MDT2
Self-Monitoring Blood Glucose System
Quick Reference Guide
2

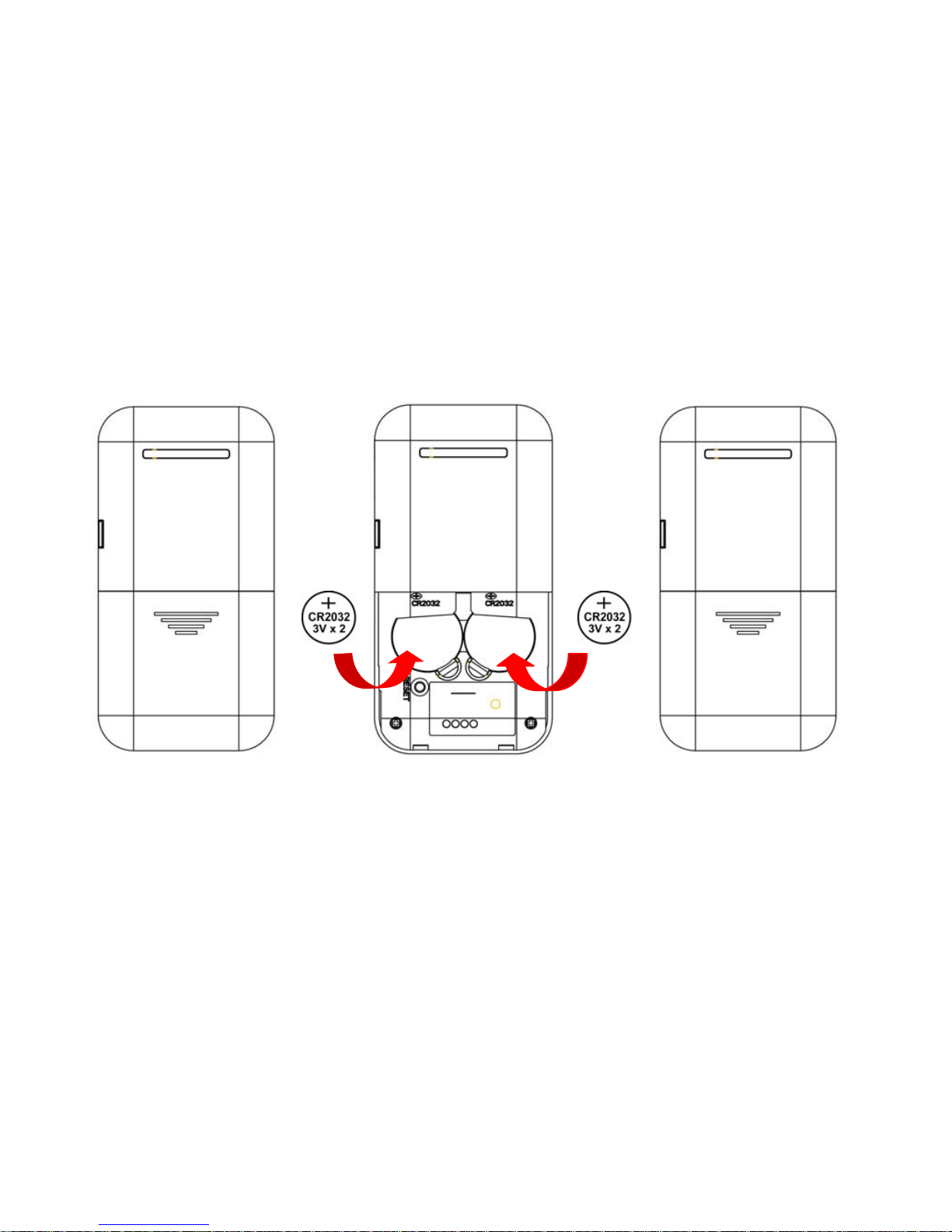

Inserting Batteries
1. Open the battery door on the
back of the meter by pushing
the tab in the direction of the
arrow.
2. Insert two batteries. The
meter will beep to confirm the
batteries are inserted
correctly.
3. Put the battery door back in
place and snap it closed.
3
Setting The Time and Date—First Time Use
Setting the current time and date in your meter is important if you intend to use the meter memory.
The unit of blood glucose meter is set at mg/dL or mmol/L. If the display shows the
wrong unit, please contact your local dealer for repair.
3. Repeat step 2 to set the date
and time. The flashing field is
the one you are currently
setting.
1. After inserting batteries, the
meter turns on automatically.
2. The last 2-digits of the year flash
at the center of the display.
Press to adjust the year and
Press OK to confirm the setting.
4. The icon of flashes on
the display. The meter is
ready to run the test.
4
Running A Control Solution Test
You need the meter, a test strip, and control solution.
3. Place the meter on a flat surface,
like a table.
4. Remove the control solution bottle
cap and wipe the tip of the bottle
with a tissue.
If you do not choose “CtL”, the test results will be included in the memory of blood test.
1. Put a test strip into the meter in
the direction of the arrow and
the icon of
shows itself.
2. Press
to set the mode of
control solution “ ”.
Press OK to confirm the setting.
5
5. Squeeze the bottle until a tiny
drop forms at the tip of the
control solution cap.
6. Touch the drop to the Blood
collection area at the end of
the test strip.
7. Do not put control solution on
top of the test strip.
11. Remove the test strip and
throw it away after you have
compared the reading to the
range printed on the test strip
bottle.
8. When the icon of shows, the
meter beeps, you have enough
control solution for the test.
9. The meter starts to count down from
5 seconds and will show the results.
A result appears on the display.
10. Don’t remove the test strip yet.
Check if the reading falls within the
ran
ge p
rinted on the test strip bottle.
6
Inserting A Lancet Into The Lancing Device
You must first load the lancet into the lancing device to get it ready for use.
1. Unscrew the Cap.
2. Insert the lancet into the lancing
device firmly then twist off the
protective cover.
3. Recap the front cap.
Lancets are for use only and a new, sterile lancet should be used each time you perform a test.
7
4. Select the desired
penetration depth.
1. Select 1-2 for soft or thin skin, 3-4 for average, and 5-6 for thick or calloused skin.
2. Lancing device and lancets are not to be shared between users. Sharing lancing devices and
lancets may transmit blood borne pathogens, such as viral hepatitis.
6. Set the lancing device
aside until later in the
test.
5. Pull on the sliding barrel of the
lancing device until it clicks and
then release.
Now the lancing device is ready.
Do not prick your finger until your
meter and strip are prepared.
8
Running A Blood Glucose Test With Blood From Your Fingertip
1. Wash your hands with
soap and warm water.
Rinse and dry thoroughly.
4. When the blood drop flashes
on the display, obtain a drop
of blood from your fingertip.
5. Gently squeeze your finger to
assist the flow of blood.
2. Insert a test strip into the meter in
the direction of the arrow and the
icon flashes.
3. Press
to set , or
and press OK to confirm
the setting.
9
6. Place the lancing device
against the tip or side of
your finger; press the trigger
button to activate the lancing
device.
7. Gently squeeze your finger to assist
the flow of blood. This helps you get a
blood drop.
Touch the blood drop to the tip of the
transparent window of the test strip.
Do not put blood on top of the strip.
Be sure to get enough blood on the
strip’s reaction zone. Otherwise, an
inaccurate reading may result.
8. When the icon of shows,
the meter beeps, sufficient
blood is applied to the strip’s
reaction zone.
9. The meter starts to count
down from 5 seconds.
10. A result will appear on the
display afterwards.
Apply blood to the edge
of the test strip.
Do not apply blood on
top of the test strip.
Be sure to get enough
blood on strip to make it to
the confirmation window.
Not enough blood
on strip to get a test
result.
10
1. This graphic shows where the
meter cleared for alternate site
testing.
2. Massage the puncture area of
forearm for a few seconds.
3. Press and hold the device
with a clear adjustable tip
against the forearm.
4. Press the trigger button to
activate the lancing device. Hold
the device against forearm and
increase pressure until the blood
sample size is sufficient.
Running A Blood Glucose Test With Blood From Your Forearm
Please use the clear cap with the lancing device for AST testing.
11
2. Press and hold the device
with a clear adjustable tip
against the palm.
3. Press the trigger button to
activate the lancing device.
4. Hold the device against palm
and increase pressure until the
blood sample size is sufficient.
1. Massage the puncture area of
palm for a few seconds.
Running A Blood Glucose Test With Blood From Your Palm
1. Check with your healthcare professional before testing sites other that the fingertip.
2. Please do NOT use the first drop of blood sample.
12
Discarding Used Lancets
1. Unscrew and remove the
cap.
3. Pointing the lancing device
toward a container for sharp or
biohazard material, slide the
ejection button up to release the
covered lancet into the container.
2. Without touching the used
lancet, stick the lancet tip
into its protective cover.
13
Viewing & Deleting Test Results
You can review them at any time without inserting a test strip. The display flashes the icon of .
Each review requires the user to go back to the main screen (testing mode) by pressing OK for 2 seconds.
1. Press OK and then
to review
AC & PC average values of 30-days
under
and . The average
value of 7/14/30/90-day.
2. Press O
K
to review all
results in order from
records of 480 to 001.
3. To delete a test result, press
and
OK for 3 seconds together and display
shows “dEL”.
4. Press OK to delete the test result. The
display shows OK.
5. Press
to cancel the delete and
the meter will turn off in 1.5 minutes
automatically.
14
Running With Your Computer
To Transfer data, the meter can be turned on or off.
2. The meter starts to transfer data
to the GlucoManager
TM
software.
3. W hen all data are uploaded
from the meter to the PC,
the meter shows “OK” and
beeps.
1. Use the USB cable to
connect to the meter and
your computer. The meter
shows ” “.
15
Screen Messages And Troubleshooting
Never make treatment decisions based on an error message. If you have any concerns, pleas e contact yo ur
local dealer.
Message
What it means? What to do?
Humidified / Used strips
The meter has detected a problem
with the test strip.
Repeat the test with a new strip.
Refer to pages 8-9 for information on
sample application.
Low power
The meter batteries do not have
enough power to perform a test.
Replace the new batteries.
16
Message What it means? What to do?
Memory Error
Replace the batteries first.
If ERROR 005 appears again, please
contact your local dealer.
System error
There may be a problem with the
meter.
Replace the batteries first.
Refer to pages 2. If this error message
appears again, please contact your
local dealer.
17
Message What it means? What to do?
Test result is higher than 630
mg/dL (33.3 mmol/L).
Re-check your glucose level.
If the result is HI again, obtain and
follow instructions from your
healthcare professional without
delay.
The test result is lower than
20 mg/dL (1.1 mmol/L).
This may require immediate
treatment according to your
healthcare professional’s
recommendations. Although this
message could be due to a test
error, it is safer to treat first and
then do another test.
18
Message What it means? What to do?
The “Ht” and thermometer icon
appears. Temperature is too high,
outside the required range of 10°C
- 40°C (50°F - 104°F). This alerts
users that an incorrect result may
occur if the test continues.
Relocate the meter to a location with
temperature between 10°C - 40°C
(50°F - 104°F).
The “Lt” and thermometer icon
appears. Temperature is too low,
outside the required range of 10°C
- 40°C (50°F - 104°F). This alerts
users that an incorrect result may
occur if the test continues.
Relocate the meter to a location with
temperature between 10°C - 40°C
(50°F - 104°F).
19
Message What it means? What to do?
The test result is more than or
equal to 251 mg/dL.
The function of Ketone detector
doesn’t apply to the mode of
control solution.
Re-check your glucose level.
If the result appears again, obtain
and follow instructions from your
healthcare professional without
delay.
Volume detector error
The volume of blood or control
solution is NOT enough.
Repeat the test with a new strip.
If Err appears again, please
contact your local dealer.
20
Message What it means? What to do?
Reset the meter
The Resetting button is on the back
side of the meter. Press the button
for 3 seconds to get back to the
initial status.
No result in memory
The meter doesn’t run any test
yet.
You can still perform a blood
glucose test and get an accurate
test result.
The
Resetting
button
21
Manufacturer:
EPS BIO TECHNOLOGY CORP.
No.8, R&D RD. III, Hsinchu Science Park, Hsinchu, Taiwan 30077
TEL：+886-3-6686868 FAX：+886-3-6686866
E-mail：info@epsbio.com.tw
Website：http://www.epsbio.com
Obelis s.a.
Boulevard Général Wahis 53, B-1030 Brussels, Belgium
TEL：(32) 2.732.59 54 FAX：(32) 2.732.60 03 E-mail: mail@o belis.net
P/N: 71800310B_0029B_02
