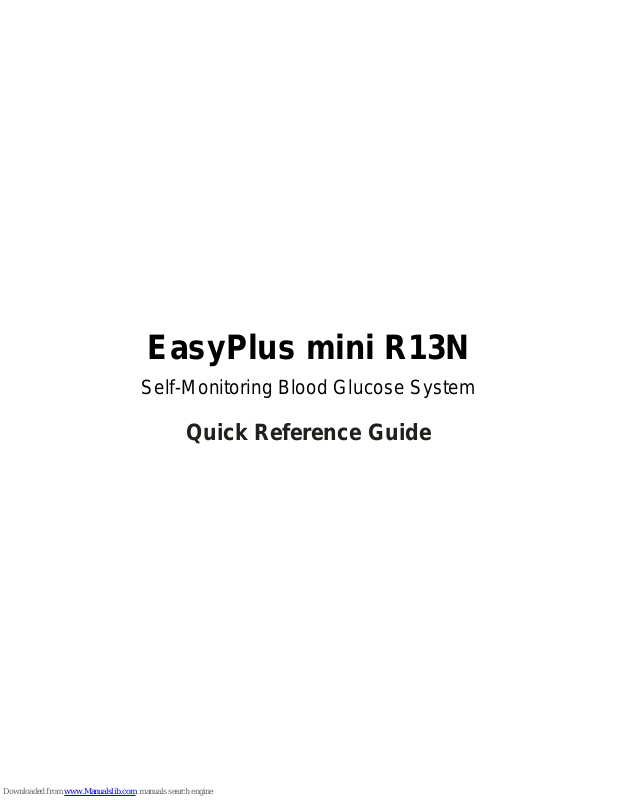

EasyPlus mini R13N
Self-Monitoring Blood Glucose System
Quick Reference Guide
2
Setting the Time and Date — First Time Use
Setting the current time and date in your meter is important if you intend to use the meter
memory.
The unit of Blood Glucose Mete r is set at mg/dL without any modification function.
3. Repeat step 2 to set the date
and time. The flashing field
is the one you are currently
setting.
1. Put a battery into the slot
and the meter turns on
automatically.
2. The last 2-digits of the year flash at
the center of the display. Press
to adjust the year and press
to confirm the setting.
3
Running A Control Solution Test
You need the meter, a test strip, and control solution
3. Place the meter on a flat surface,
like a table.
4. Remove the control solution bottle
cap and wipe the tip of the bottle
with a tissue.
1. If display stays at or and no any setting is made, the test results will always
in or .
2. If you do not choose “CtL”, the test results will be included in the memory of blood
test.
1. Put a test strip into the meter in
the direction of the arrow and the
icon of shows itself.
2. Press twice to set
“CtL ” and press to
confirm the setting.
4
5. Squeeze the bottle until a
tiny drop forms at the tip of
the control solution cap.
6. Touch the d rop to the
Blood Collection Area at
the end of the test strip.
7. Do not put control solution
on top of the test strip.
8. When you hear the beeper, you have
enough control solution in the test strip.
The meter starts to count down from 5
seconds and will show the results.
9. A result appears on the display. Don’t
remove the test strip yet. Check if the
reading falls within the range printed on
the test strip bottle.
10. Remove the test strip and
throw it away after you have
compared the reading to the
range printed on the test
strip bottle.
5
Inserting a Lancet into the Lancing Device
You must first load the lancet into the lancing device to get it ready for use.
1. Unscrew the Cap.
2. Insert the lancet into the lancing
device firmly then twist off the
protective cover.
3. Recap the front cap.
Lancets are for use only and a new, sterile lancet should be used each time you
perform a test.
6
1. Select 1-2 for soft or thin skin, 3 for average, and 4-5 for thick or calloused skin.
2. Lancing device and lancets are not to be shared between users. Sharing lancing devices and
lancets may transmit blood borne pathogens, such as viral hepatitis.
6. Set the lancing device
aside until later in the
test.
5. Pull on the sliding barrel of the
lancing device until it clicks and
then release.
Now the lancing device is ready.
Do not prick your finger until your
meter and strip are prepared.
4. Select the desired
penetration depth.
7
Running A Blood Glucose Test With Blood From Your Fingertips
1. Wash your hands with soap
and warm water.
Rinse and dry thoroughly.
4. When the blood drop flashes
on the display, obtain a drop
of blood from your fingertip,
using the lancing device.
2. Insert a test strip into the meter in the
direction of the arrow and the icon
will appear.
3. Press to set or and press
to confirm the setting.
8
5. Place the lancing device
against the tip or side of
your finger; press the
trigger button to activate
the lancing device.
6. Gently squeeze your finger to assist the
flow of blood. This helps you get a blood
drop.
Touch the blood drop to the tip of the
transparent window of the test strip.
Do not put blood on top of the strip.
Be sure to get enough blood on the strip’s
reaction zone. Otherwise, an inaccurate
reading may result.
7. The meter will beep when
enough blood has entered the
strip’s reaction zone.
The result will appear on the
display after 5 seconds.
8. Remove the test strip and the
meter turns off automatically.
9
3. Press the trigger button to activate the
lancing device.
4. Hold the device against forearm and
increase pressure until the blood
sample size is sufficient.
Running a Blood Glucose Test with Blood From Your Forearm (Optional)
Please use the clear cap with the lancing device for AST testing.
1. Massage the puncture
area of forearm for a
few seconds.
2. Press and hold the device with
clear adjustable tip against the
forearm.
10
2. Press and hold the device
with one clear adjustable tip
against the palm.
3. Press the trigger button to
activate the lancing device.
4. Hold the device against palm
and increase pressure until the
blood sample size is sufficient.
1. Massage the puncture area
of palm for a few seconds.
Running a Blood Glucose Test with Blood From Your Palm (Optional)
Check with your healthcare professional before testing other sites than fingertip.
11
Discarding Used Lancets
1. Unscrew and remove the
cap.
2. Without touching the used
lancet, stick the lancet tip into
its protective cover.
3. Pointing the lancing device
toward a container for sharp or
biohazard material, slide the
ejection button down to release
the covered lancet into the
container.
12
Viewing & Deleting Test Results
You can review them at any time without inserting a test strip.
1. Press to review test
results of 30 days in
or .
2. Press to review all
results in order from records
of 360 to 001.
3. To delete a test result, press for 3
seconds and display
shows “dEL”.
4. Press to keep reviewing test results.
5. The meter will turn off in 1 minute
automatically.
13
Meter Memory
You can review them at any time without inserting a test strip.
1. Press to review test
results of 30 days in ,
, , or .
2. Press to review results
of 7, 14, 30, 60 or 90 days.
3. Press to go back the
display of .
4. Meter will turn off in 1 minute
automatically.
14
Screen Messages and Troubleshooting
Never make treatment decisions based on an error message. If you have any concerns, please
contact your local dealer or healthcare provider.
Message What it means? What to do?
Humidified / Used strips
The meter has detected a
problem with the test strip.
Repeat the test with a new strip.
Refer to pages 7-8 for information on
sample application.
Low power
The meter batteries do not have
enough power to perform a test.
Replace the new batteries.
15
Message What it means? What to do?
System error
There may be a problem with the
meter.
Replace the batteries first.
If Err 001 appears again, please
contact your local dealer.
The test result is among 20~60
mg/dL.
Please call your healthcare
professional.
The test result is higher than
630 mg/dL.
Re-check your glucose level.
If the result is HI again, obtain and
follow instructions from your
healthcare professional without delay.
16
Message What it means? What to do?
The test result is lower than 20
mg/dL.
This may require immediate treatment
according to your healthcare
professional’s recommendations.
Although this message could be due to
a test error, it is safer to treat first and
then do another test.
The “Ht” and thermometer icon
appears. Temperature is too high,
outside the required range of 10°C 40°C (50°F - 104°F). This alerts users
that an incorrect result may occur if
the test continues.
Relocate the meter to a location with
temperature between 10°C - 40°C
(50°F - 104°F).
The “Lt” and thermometer icon
appears. T emperature is too low,
outside the required range of 10°C 40°C (50°F - 104°F). This alerts users
that an incorrect result may occur if
the test continues.
Relocate the meter to a location with
temperature between 10°C - 40°C
(50°F - 104°F).
P/N. 718032500_0306_02
