EPoX/ProNiX EP-P4MKI-S, EP-P4MKI Manual

User’User’

User’

User’User’
ManualManual

Manual

ManualManual

VIA VIA

P4M266AP4M266A

VIA

P4M266A

VIA VIA

P4M266AP4M266A

for Intel Socket 478 processorfor Intel Socket 478 processor

for Intel Socket 478 processor

for Intel Socket 478 processorfor Intel Socket 478 processor

TRADEMARK

ss

s

ss

mainboard mainboard

mainboard

mainboard mainboard

6000002P4MK10

All products and company names are trademarks or registered
trademarks of their respective holders.

These specifications are subject to change without notice.

Manual Revision 1.0

July 30, 2003

DISCLAIMER OF WARRANTIES:

THERE ARE NO WARRANTIES WHICH EXTEND BEYOND THE

DESCRIPTION ON THE FACE OF THE MANUFACTURER LIMITED

WARRANTY. THE MANUFACTURER EXPRESSLY EXCLUDES ALL

OTHER WARRANTIES, EXPRESS OR IMPLIED, REGARDING ITS

PRODUCTS; INCLUDING ANY IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE OR

NONINFRINGEMENT. THIS DISCLAIMER OF WARRANTIES SHALL

APPLY TO THE EXTENT ALLOWED UNDER LOCAL LAWS IN THE

COUNTRY PURCHASED IN WHICH LOCAL LAWS DO NOT ALLOW

OR LIMIT THE EXCLUSION OF THE IMPLIED WARRANTIES.

Section 1 Introduction

Package Contents ...................................................... 1-1

Intel Pentium 4 Processors......................................... 1-2

Accelerated Graphics Port ......................................... 1-2

Ultra ATA66/100/133 .................................................. 1-2

Hardware Monitoring................................................. 1-3

LAN (Optional) .......................................................... 1-3

Mainboard Form-Factor .............................................1-4

I/O Shield Connector.................................................. 1-5

Power-On/Off (Remote) .............................................. 1-5

System Block Diagram ............................................... 1-6

Section 2 Features

Mainboard Features ................................................... 2-1

Section 3 Installation

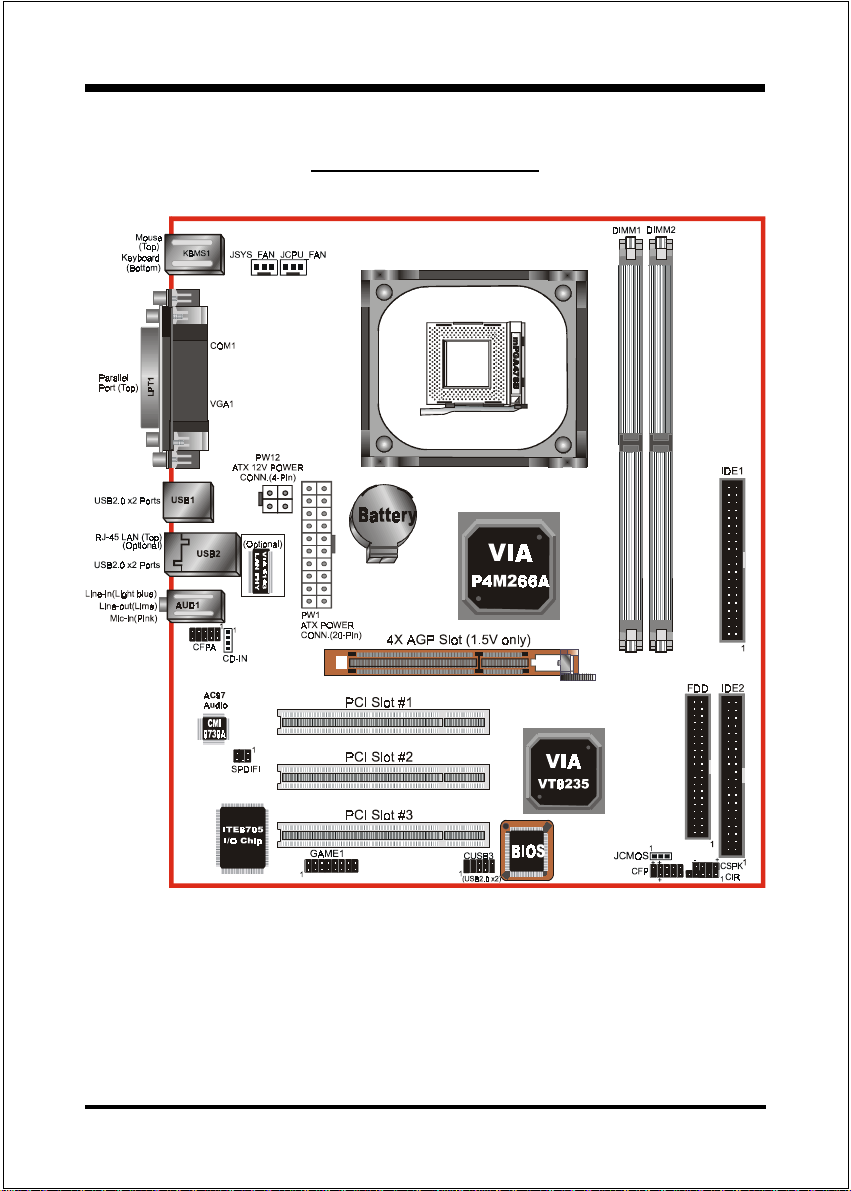

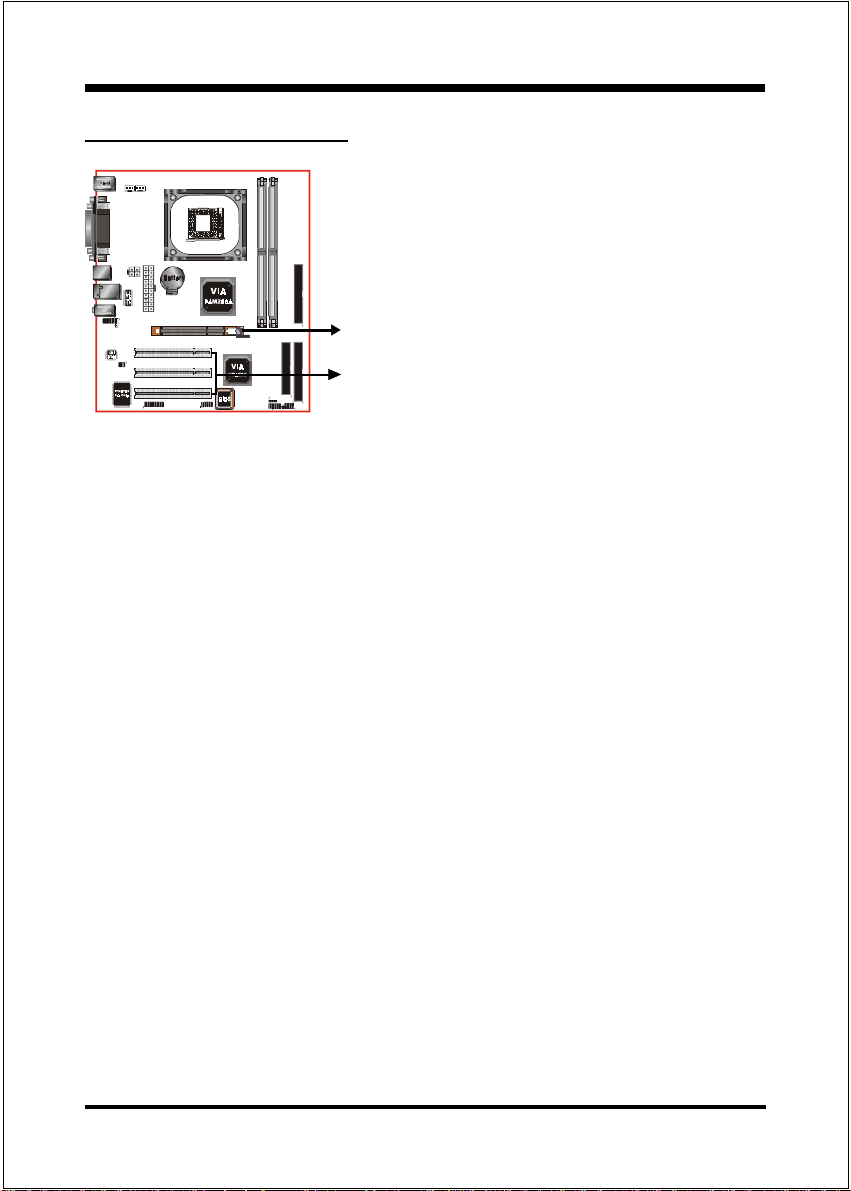

Mainboard Layout ..................................................... 3-2

Easy Installation Procedure

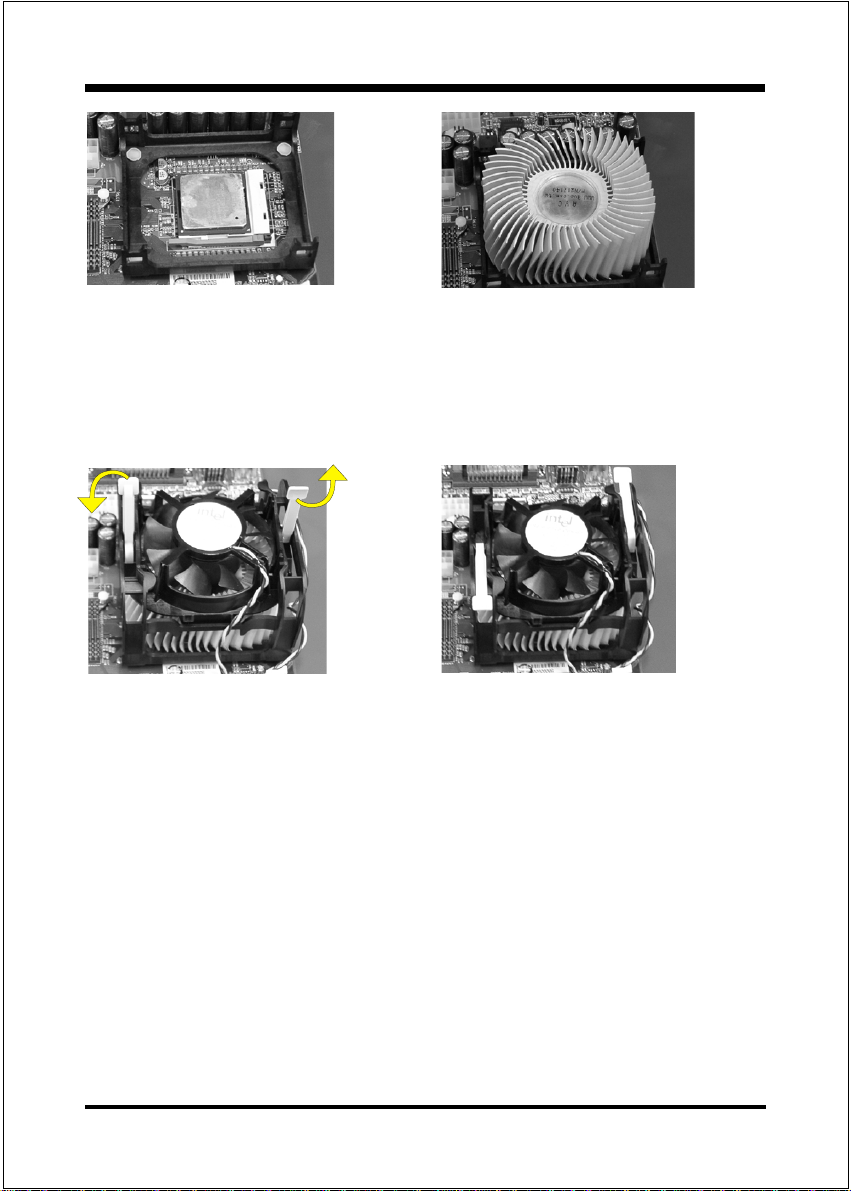

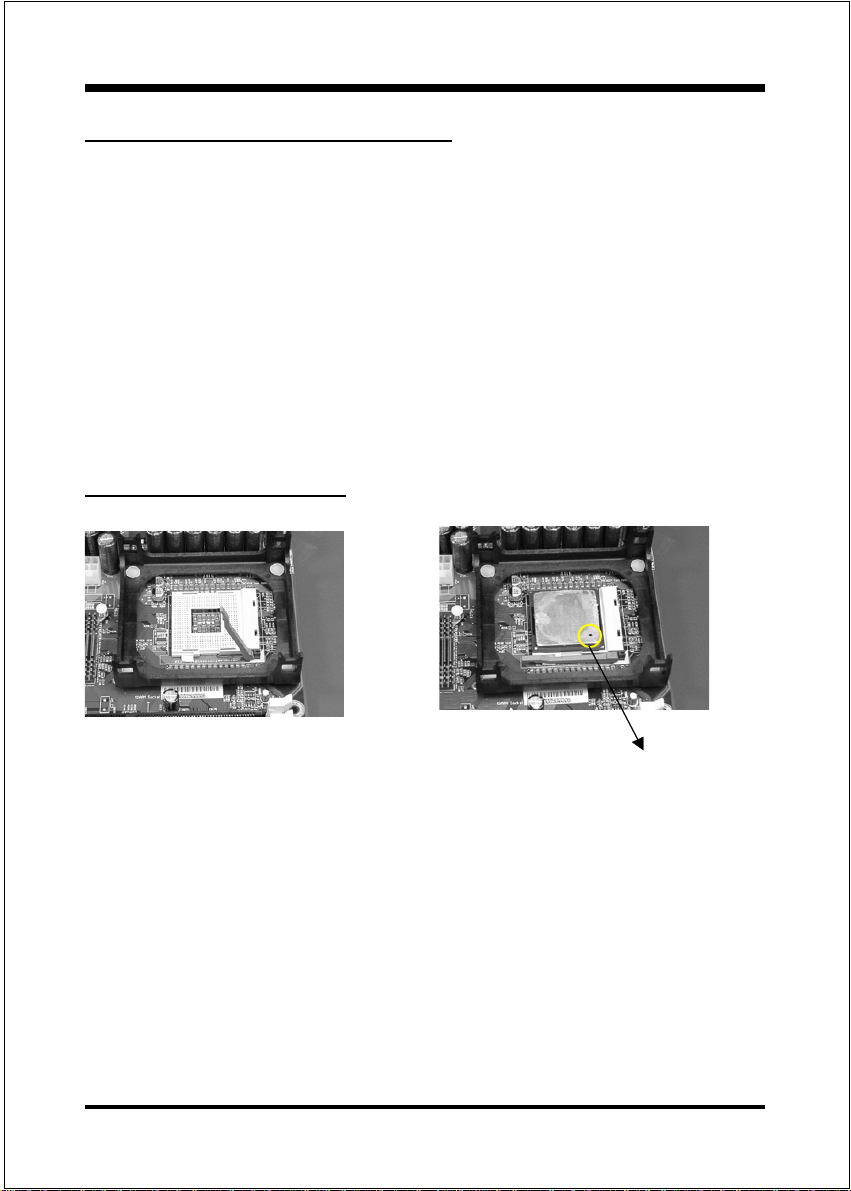

CPU Installation ......................................................... 3-3

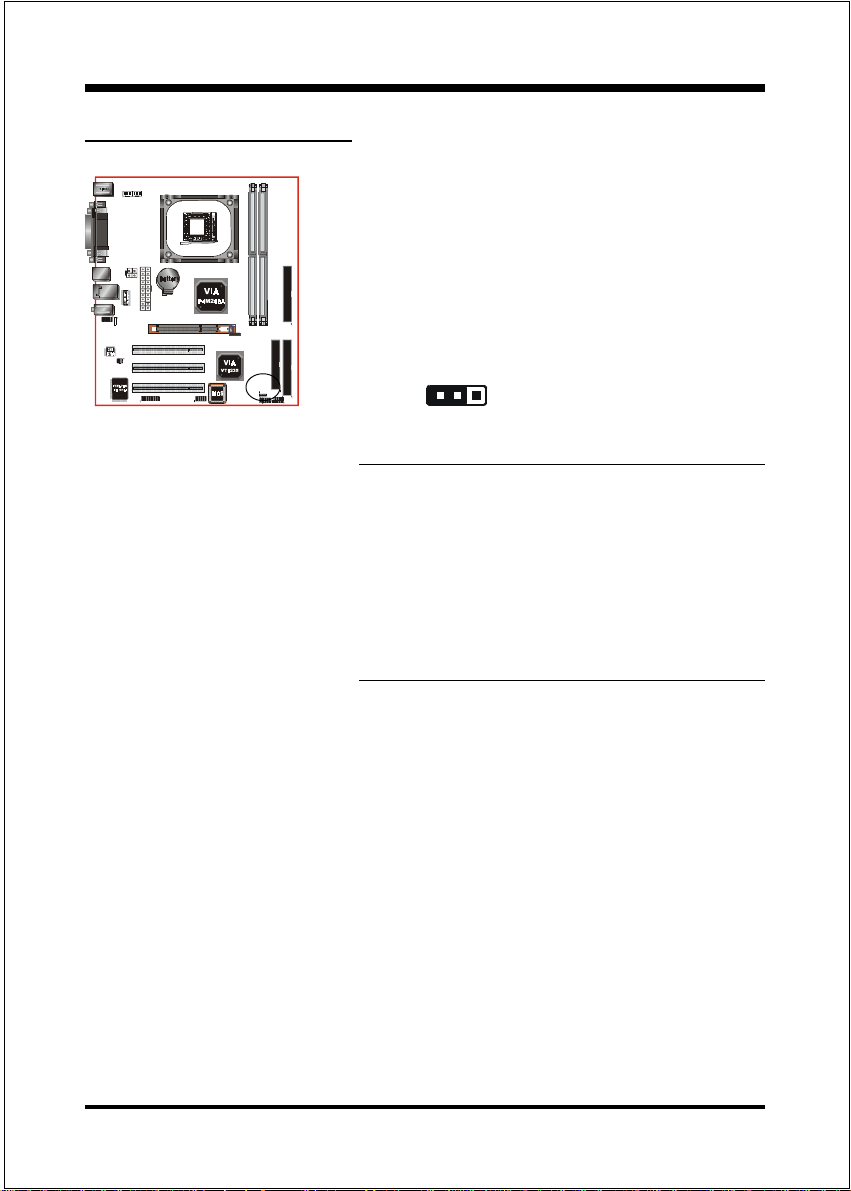

Jumper Settings.......................................................... 3-5

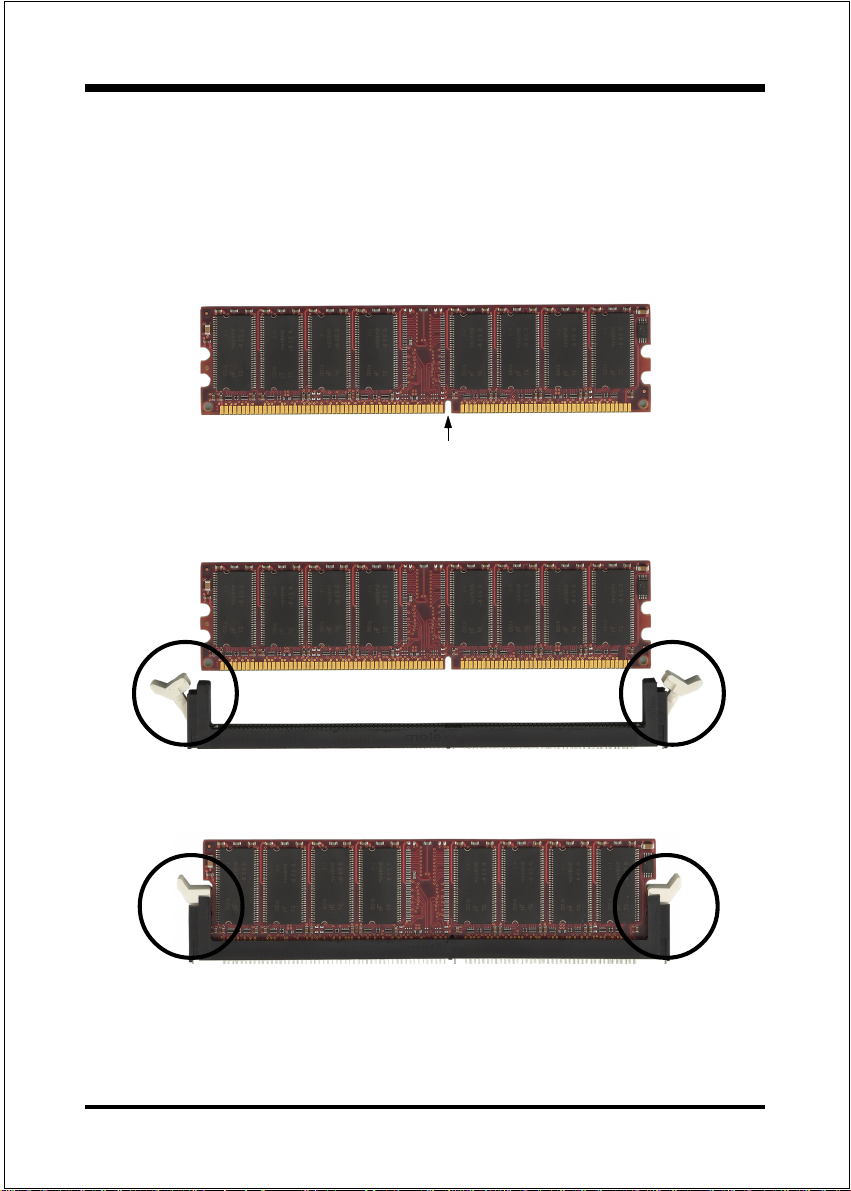

System Memory Configuration.................................. 3-6

Expansion slots ..........................................................3-8

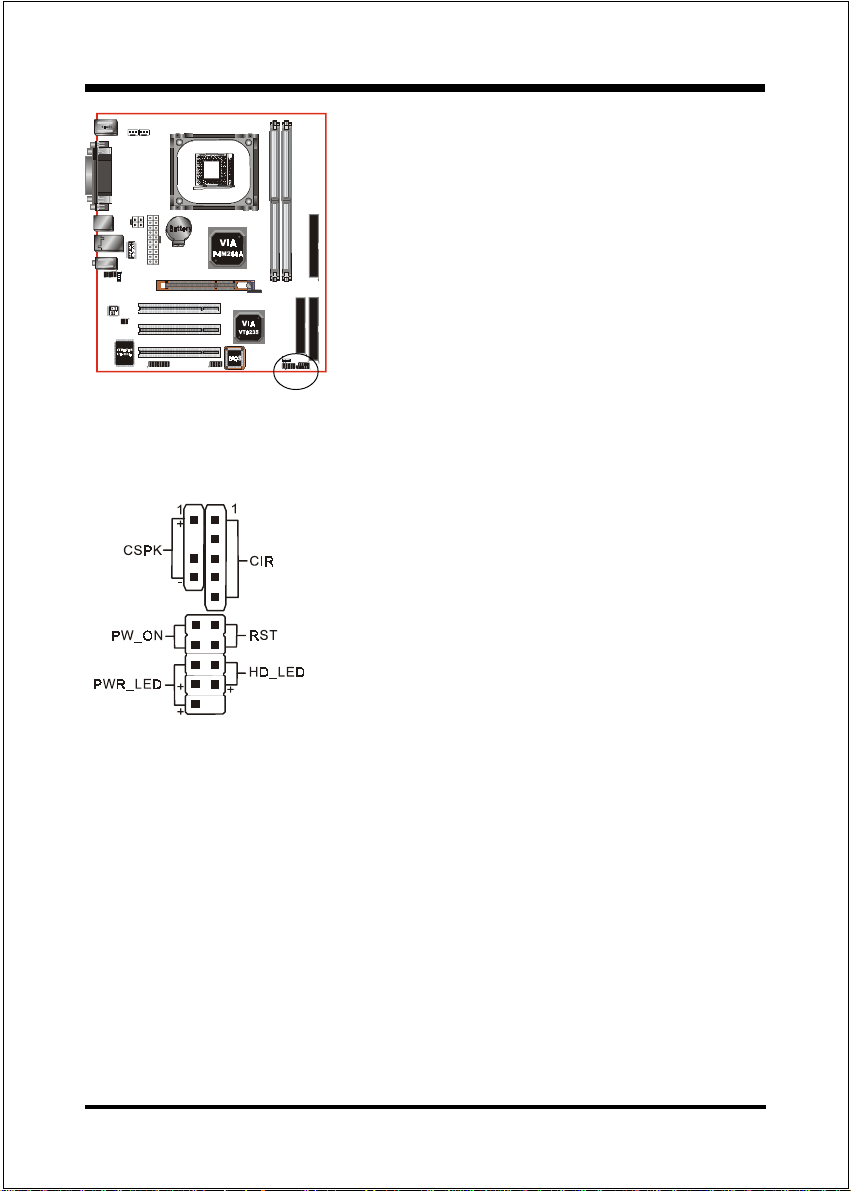

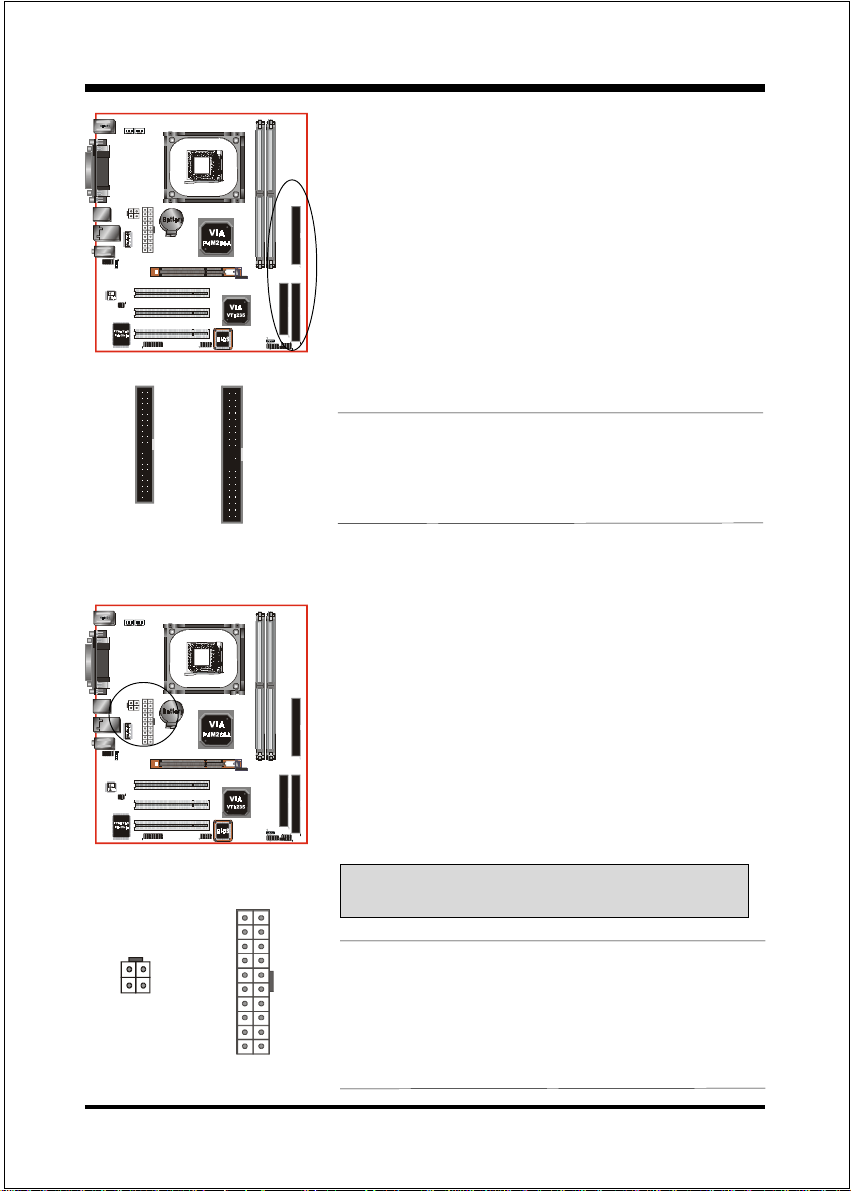

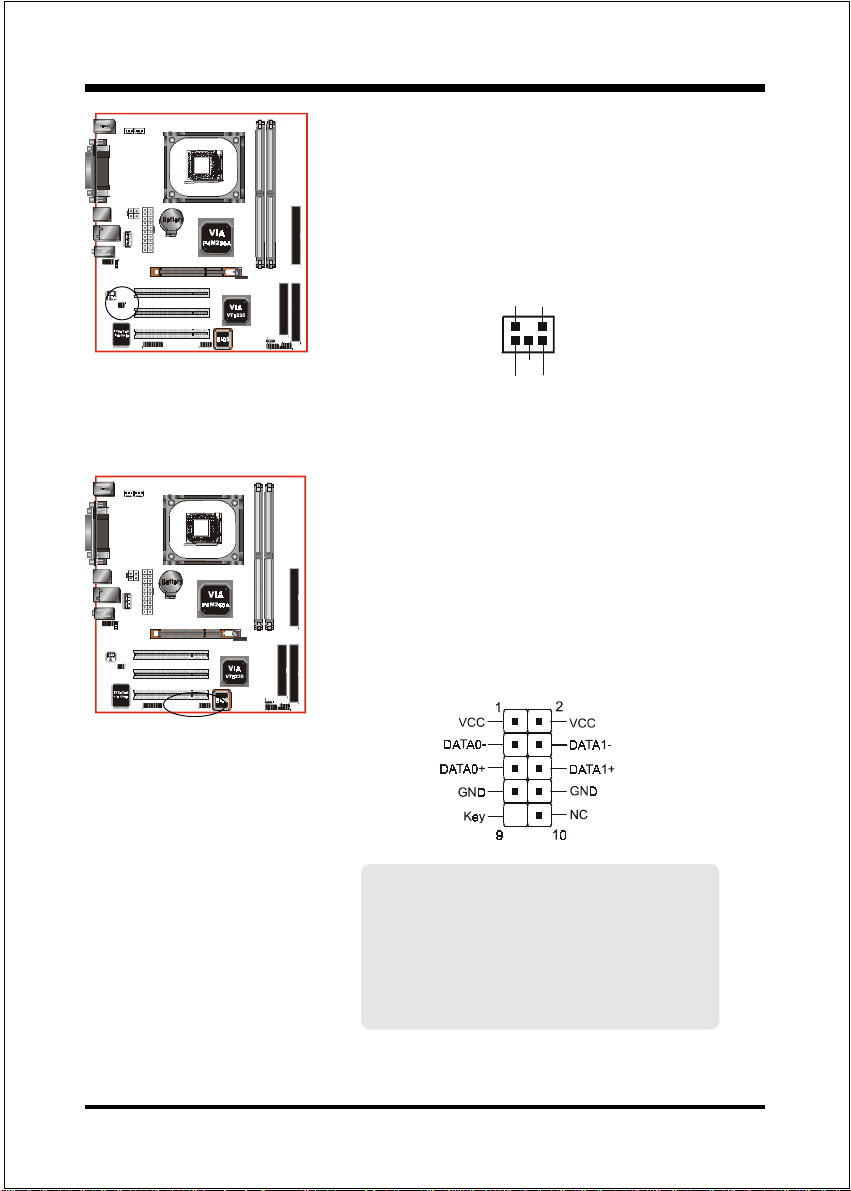

Device Connectors..................................................... 3-10

External Modem Ring-in Power ON and

Keyboard Power ON Function (KBPO) ..................... 3-15

STR (Suspend To RAM) Function .......................... 3-16

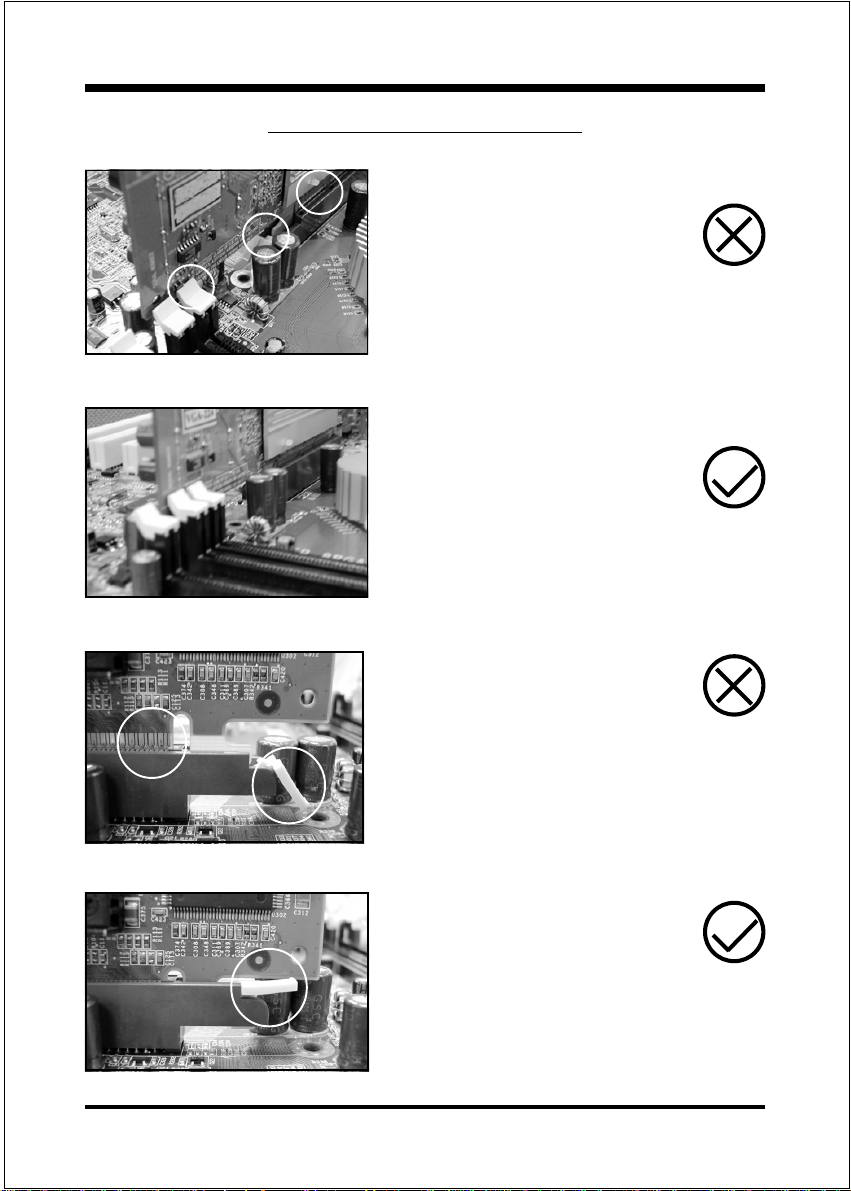

Supports AGP Card 3.3V Protection ..........................3-17

Table of Contents

Page

Section 4 Award BIOS Setup

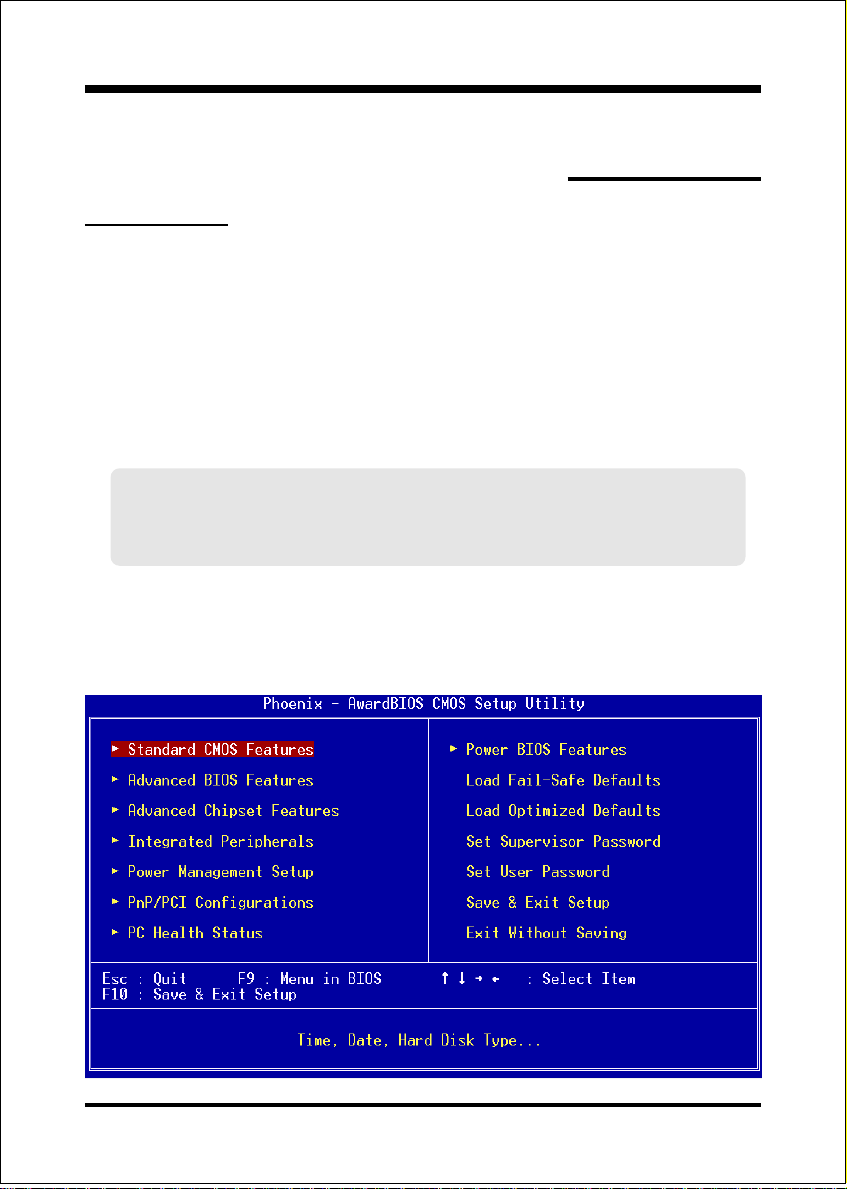

Main Menu ................................................................ 4-1

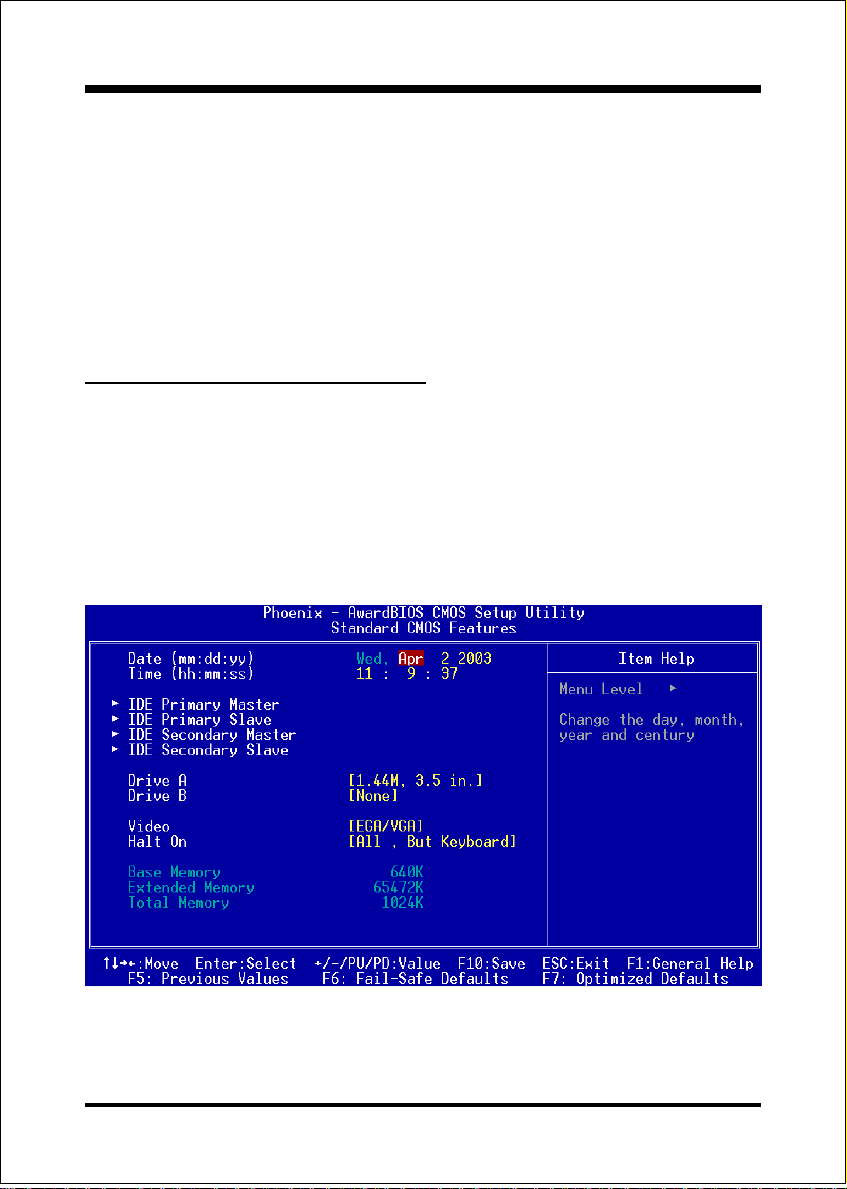

Standard CMOS Setup ............................................... 4-2

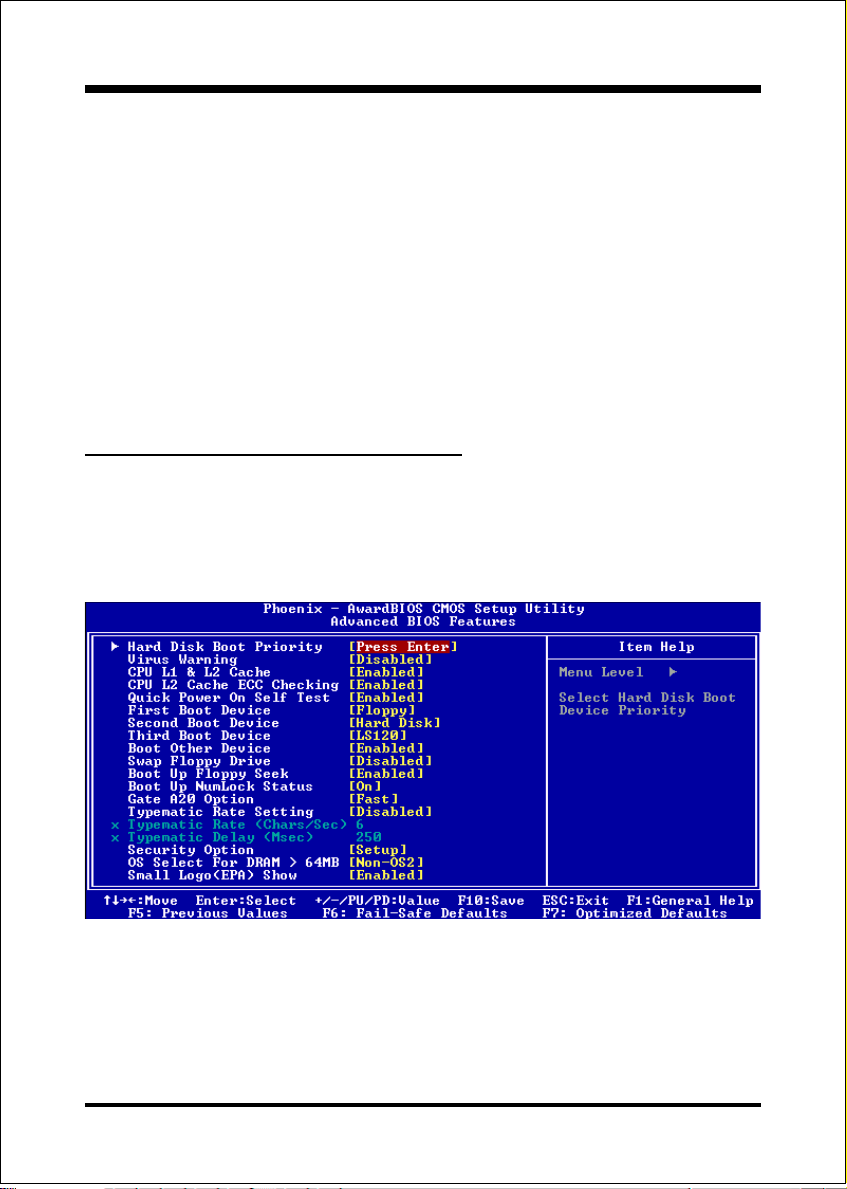

Advanced BIOS Features .......................................... 4-3

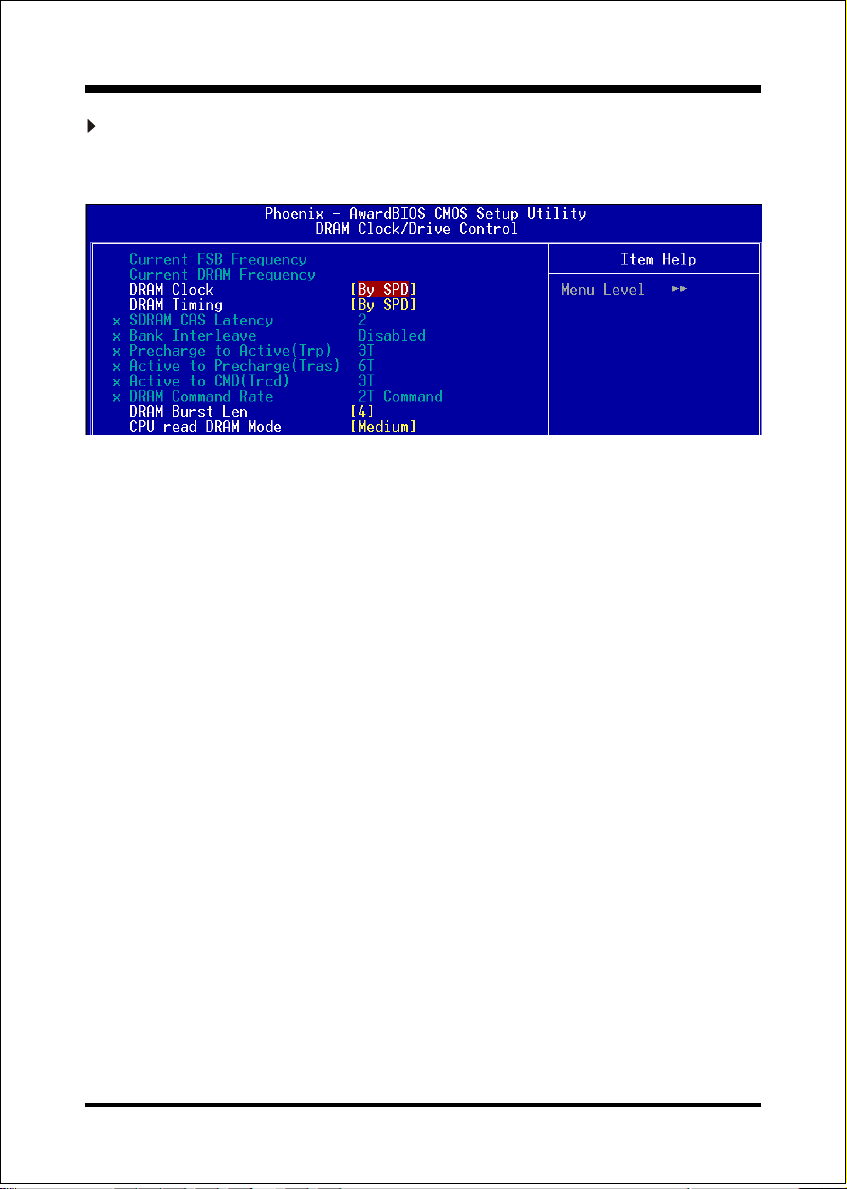

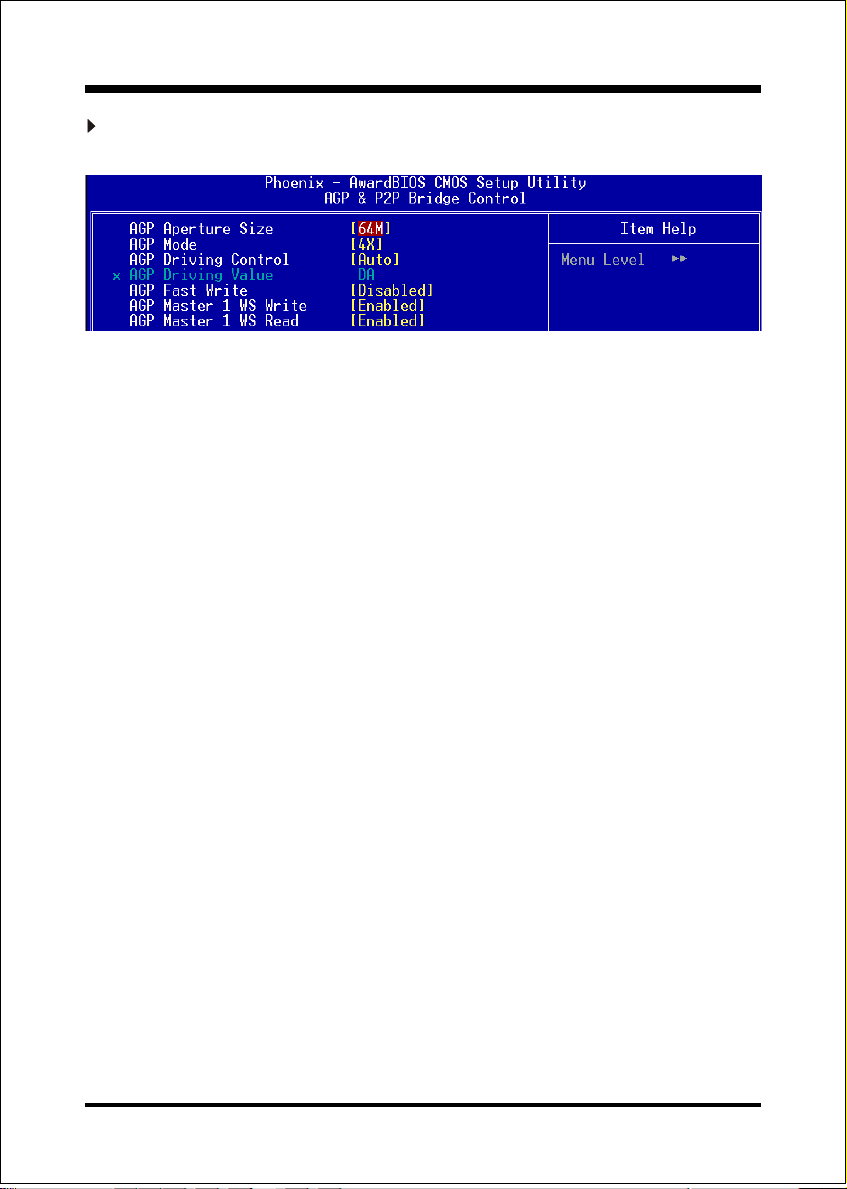

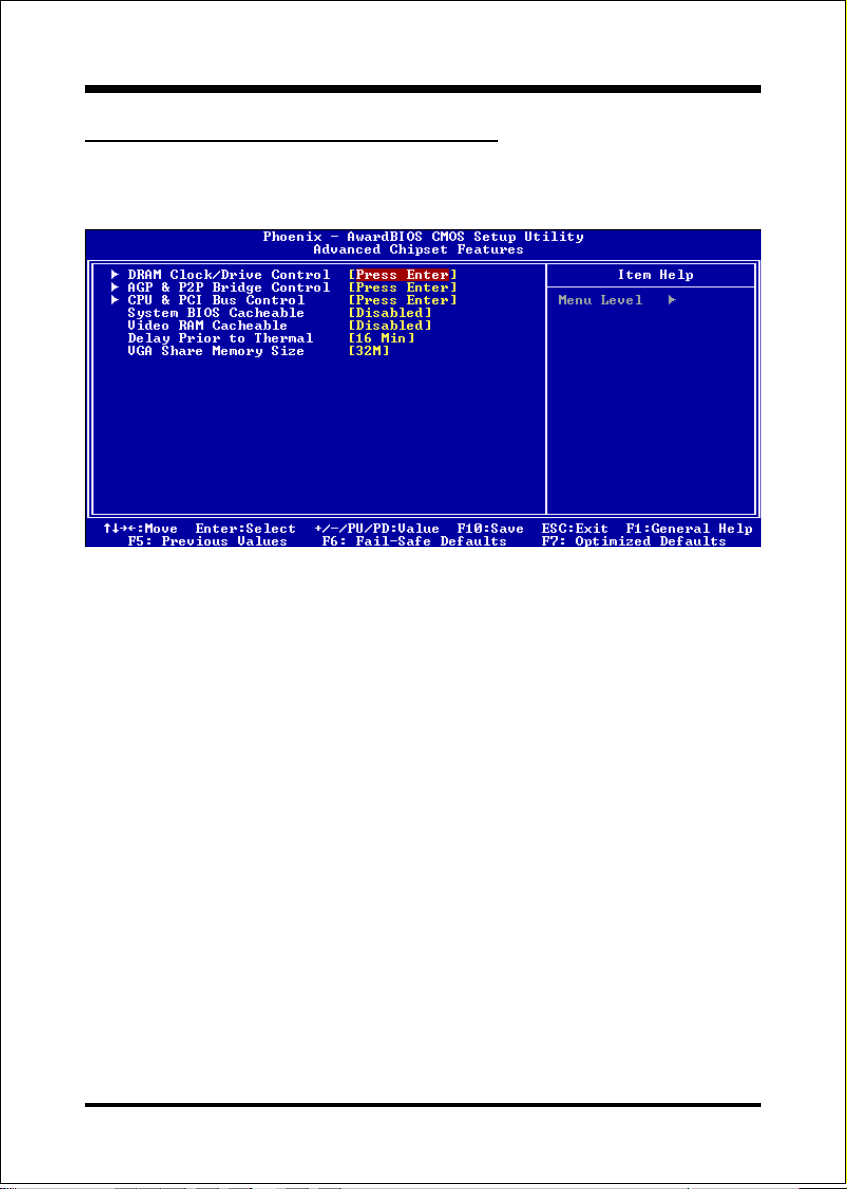

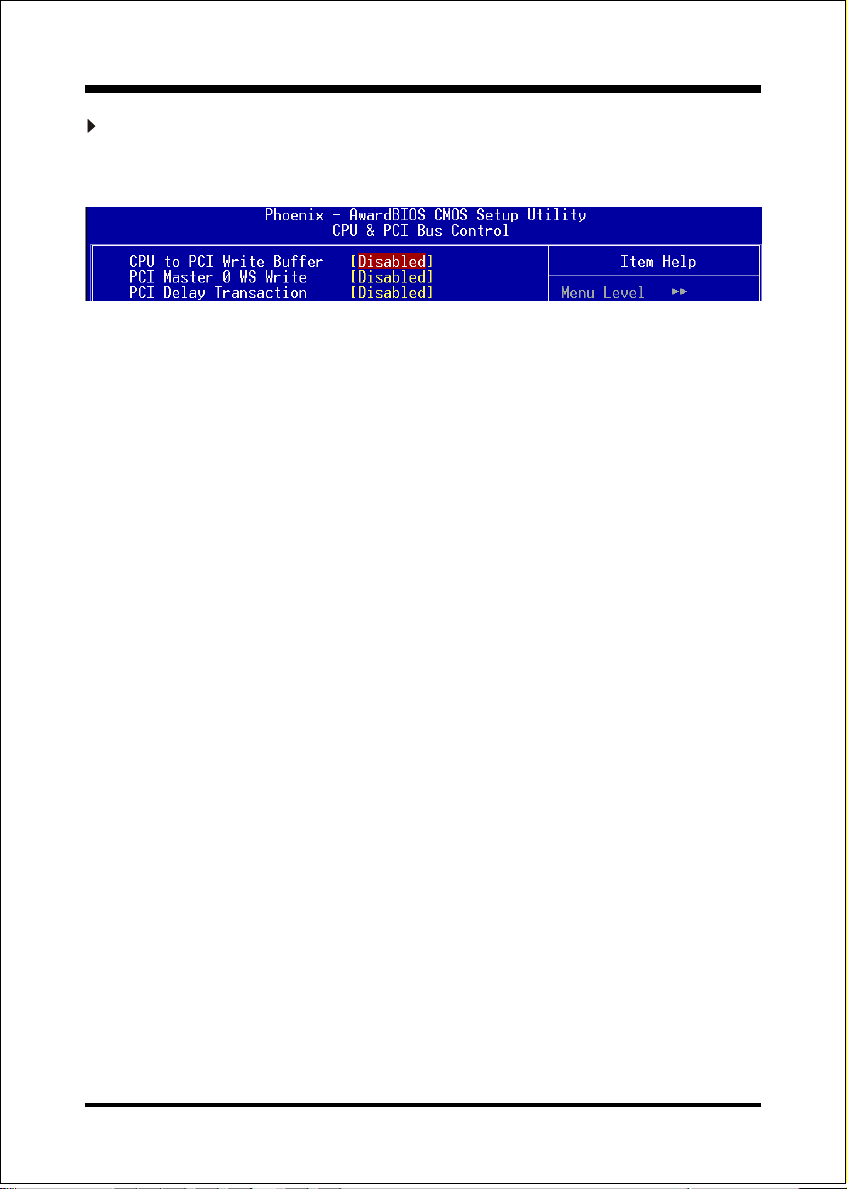

Advanced Chipset Features ...................................... 4-7

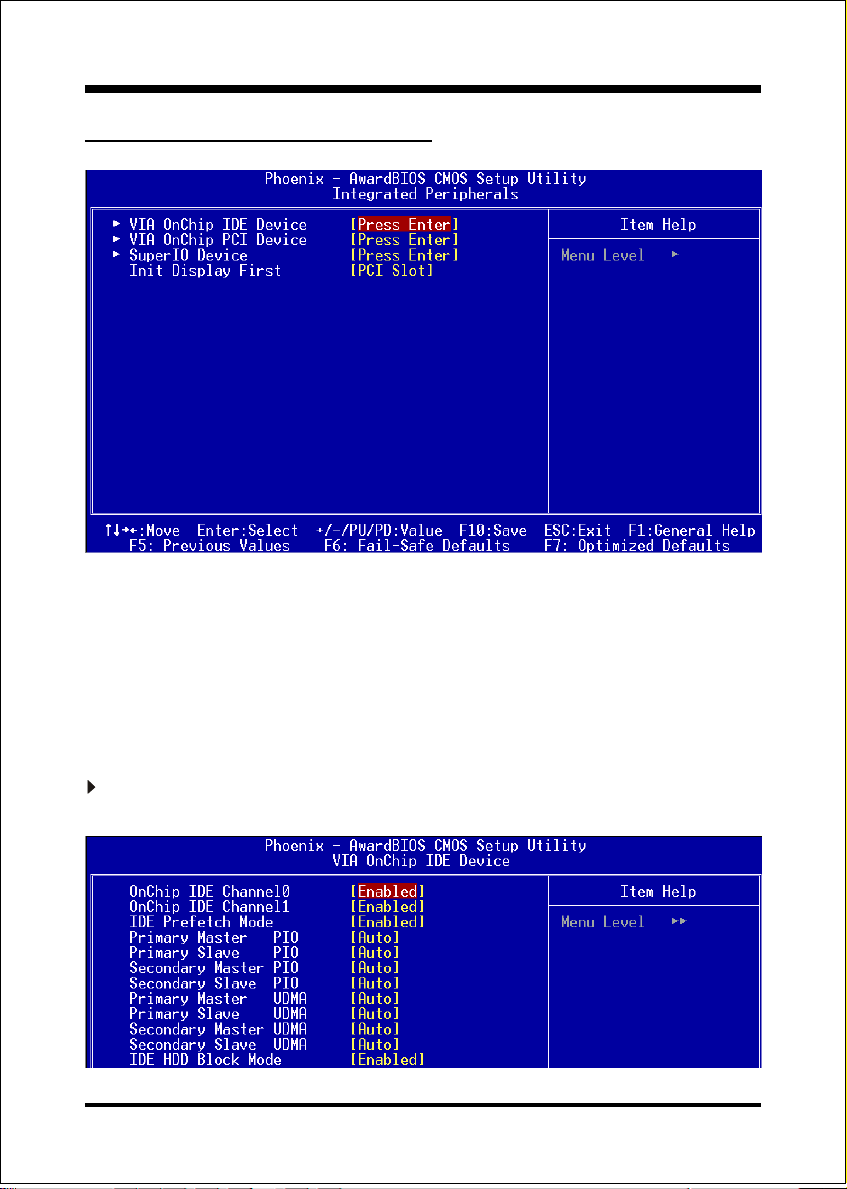

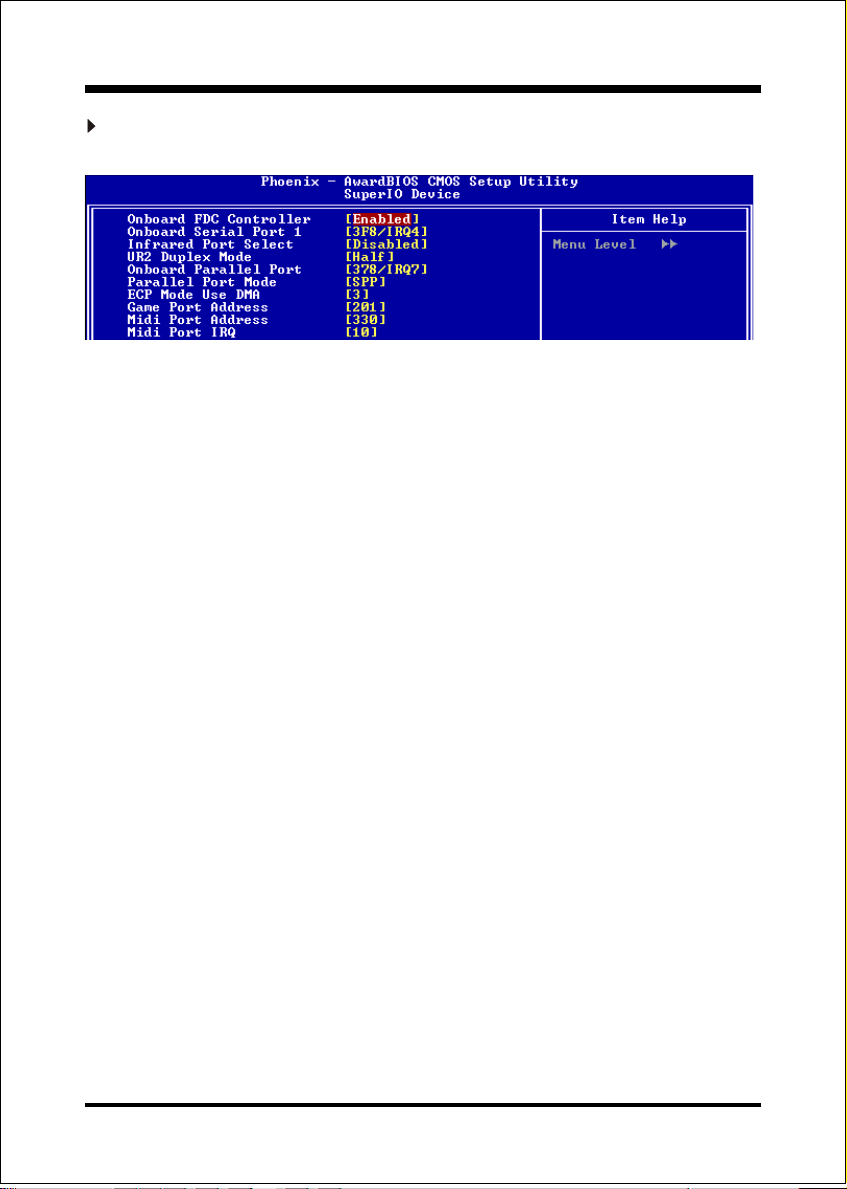

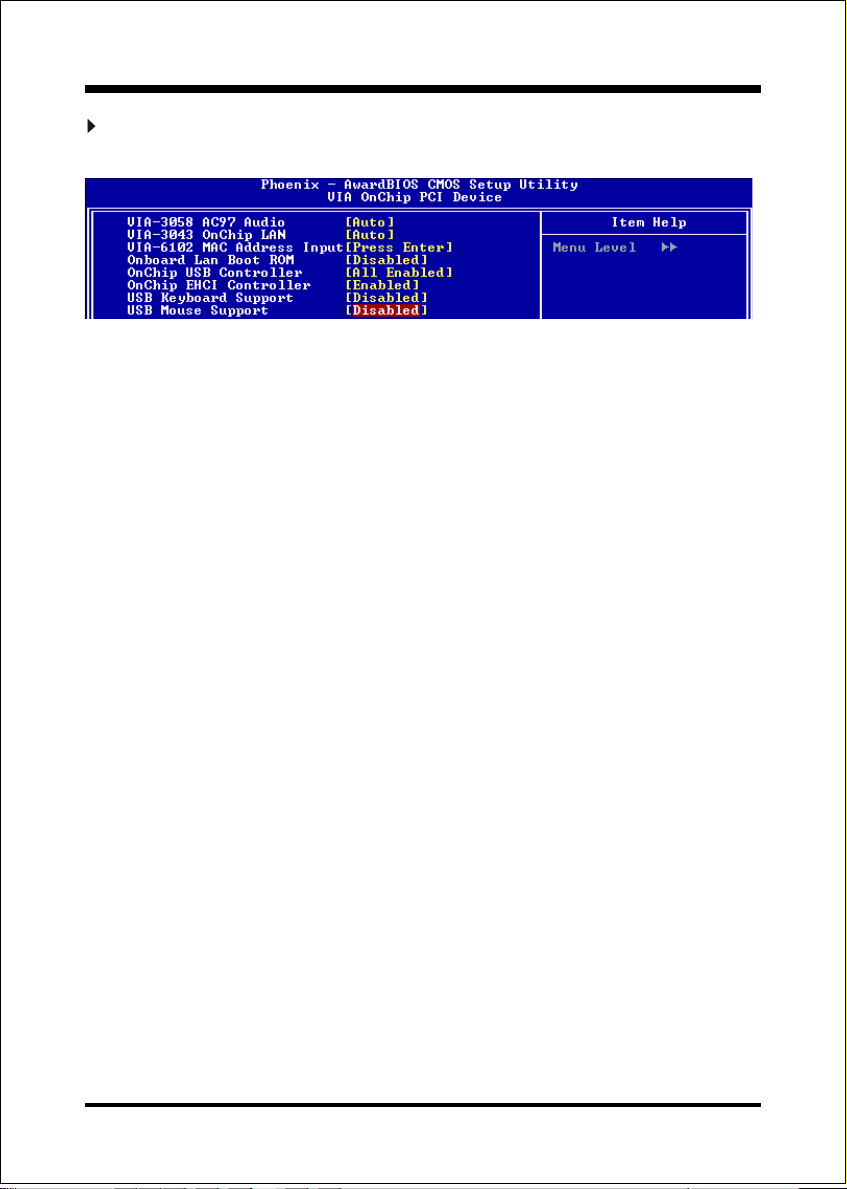

Integrated Peripherals ................................................ 4-12

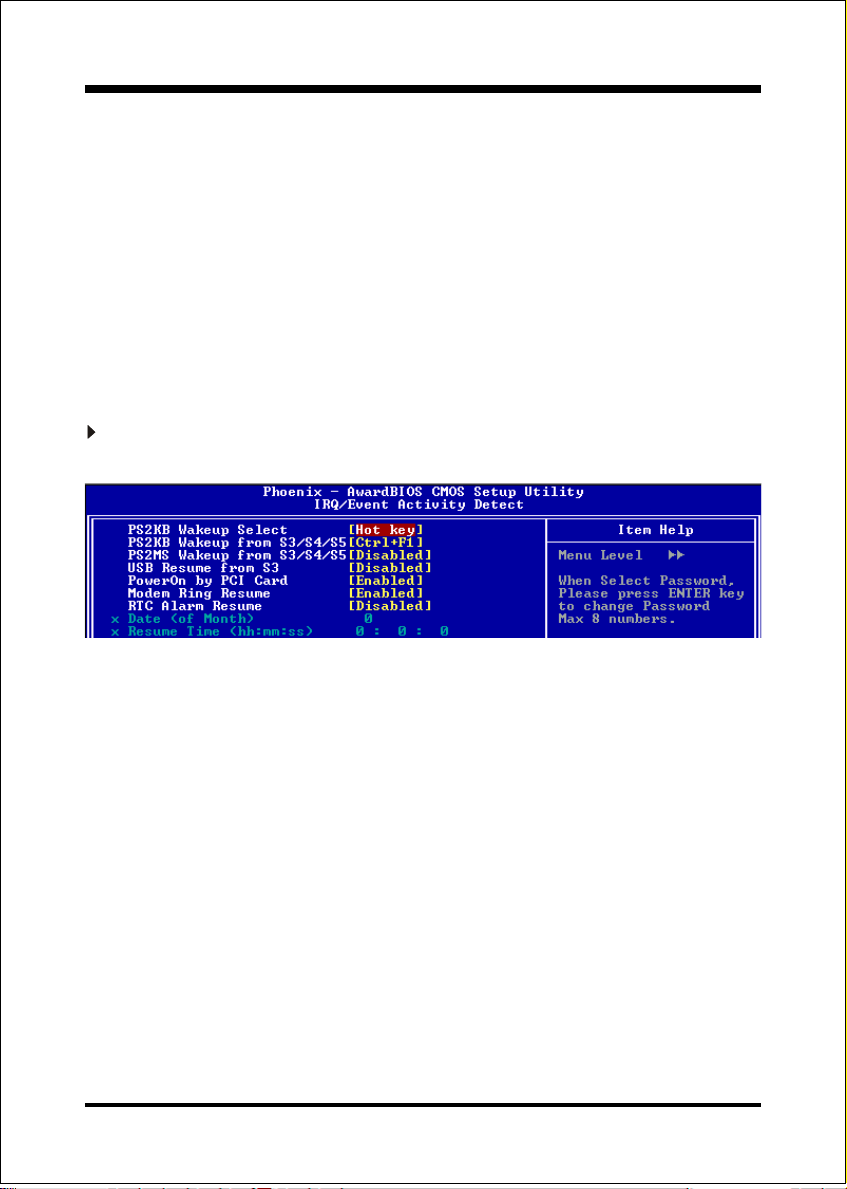

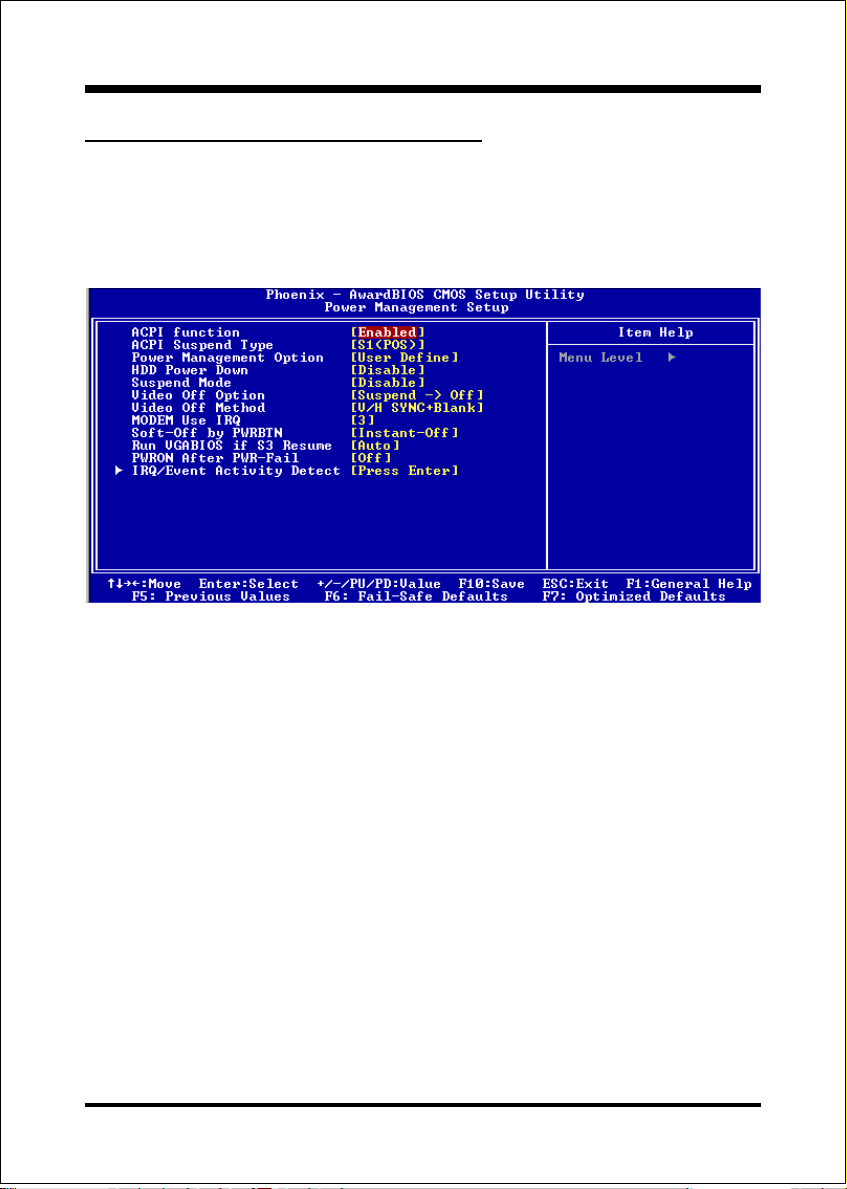

Power Management Setup ......................................... 4-17

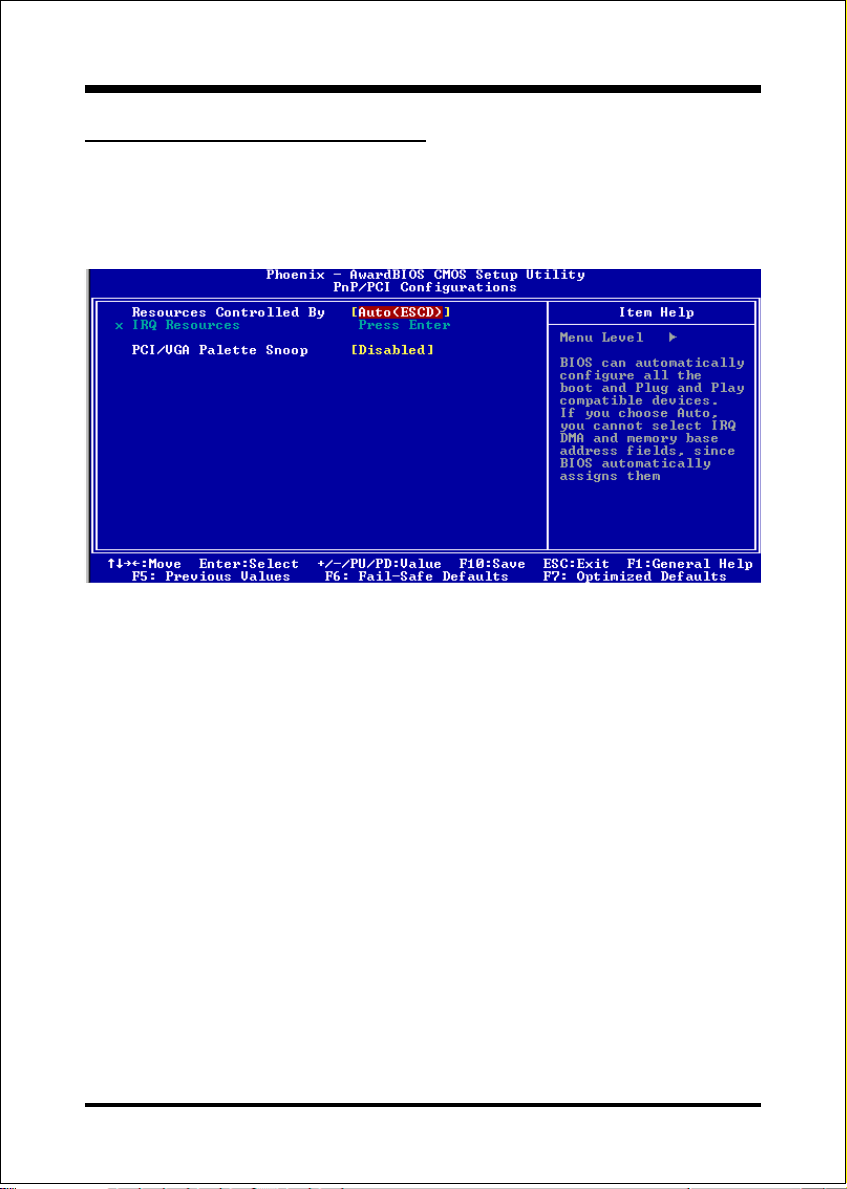

PNP/PCI Configuration Setup.................................... 4-21

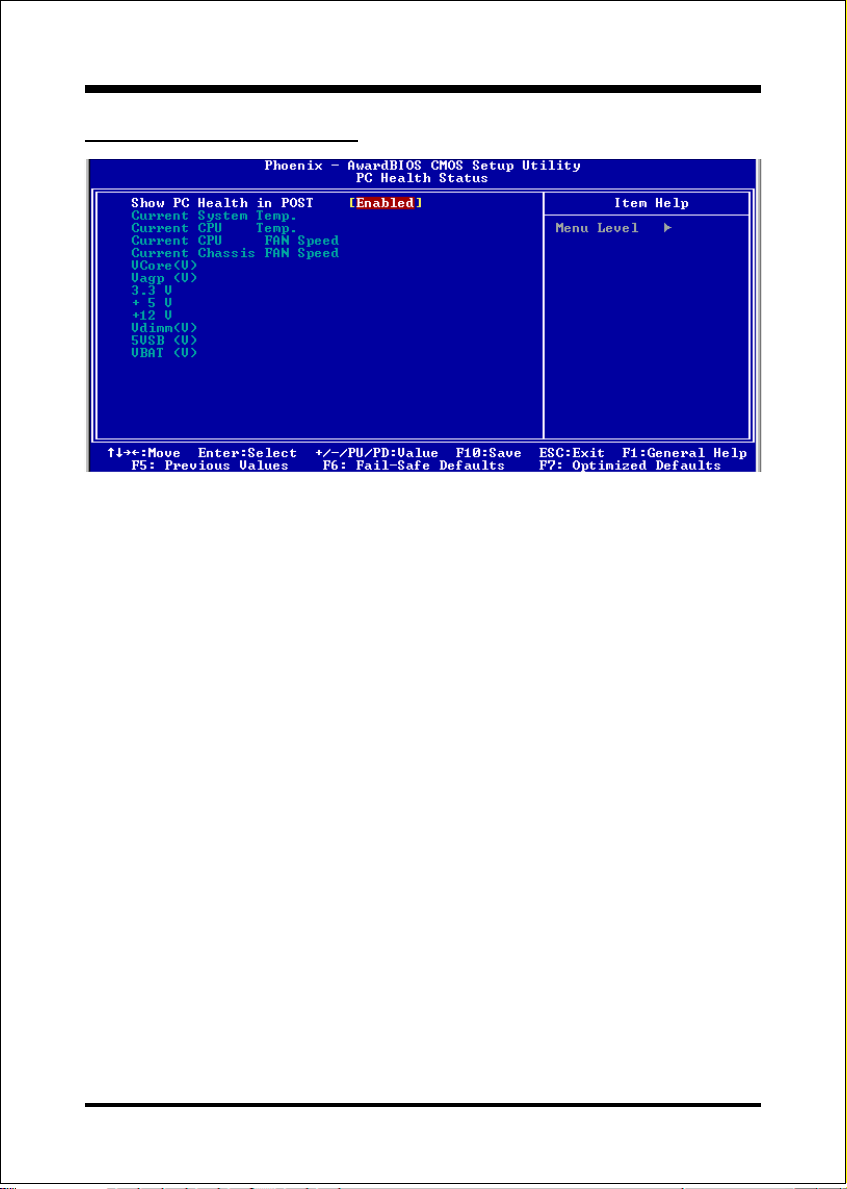

PC Health Status ........................................................ 4-23

Power BIOS Features ................................................. 4-24

Defaults Menu ........................................................... 4-26

Supervisor/User Password Setting ............................4-27

Exit Selecting .............................................................. 4-28

Section 5 Driver Installation

Easy Driver Installation.............................................. 5-1

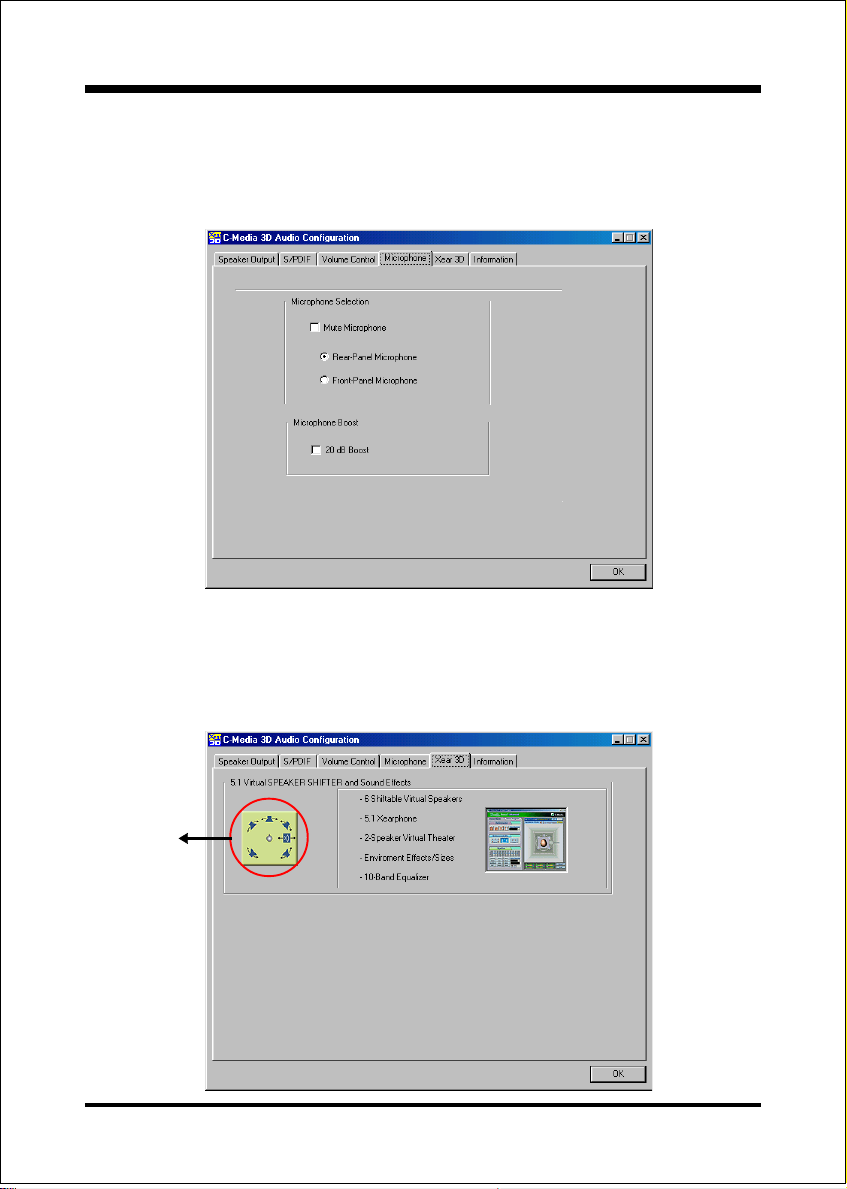

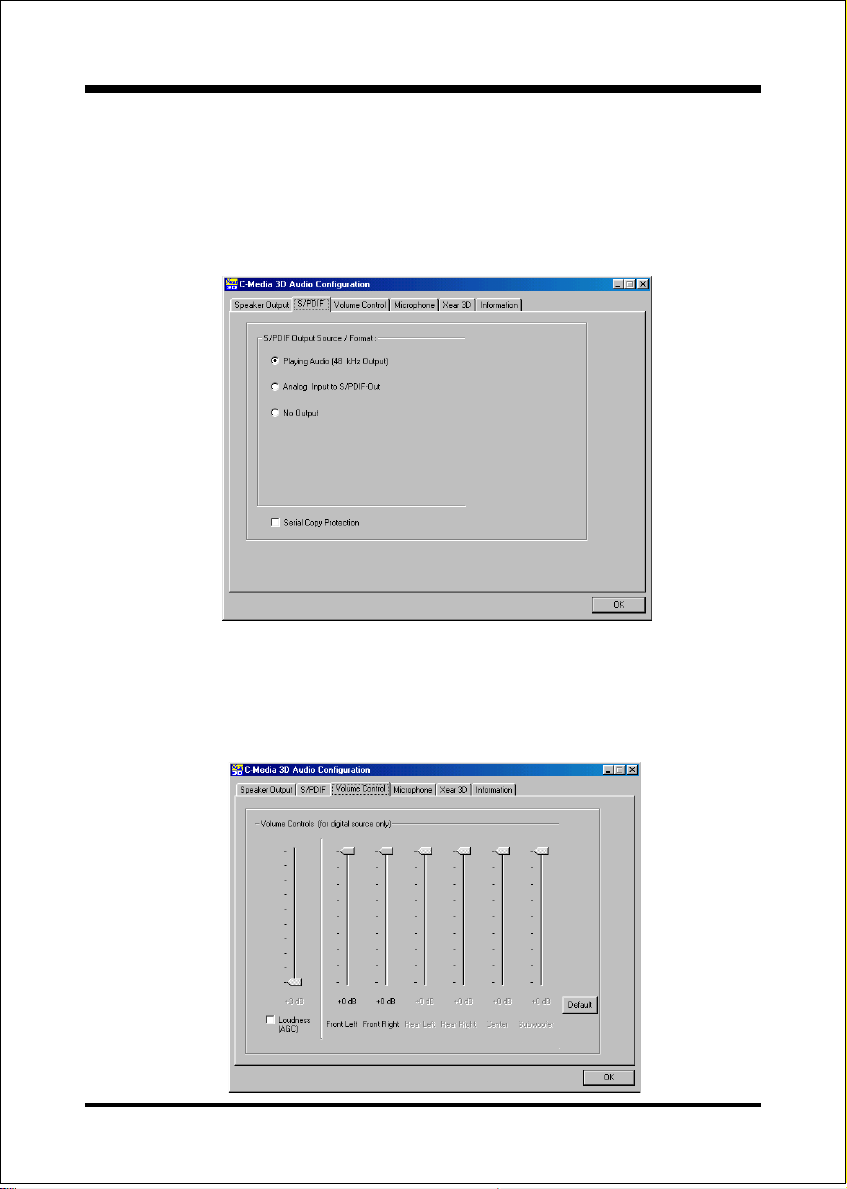

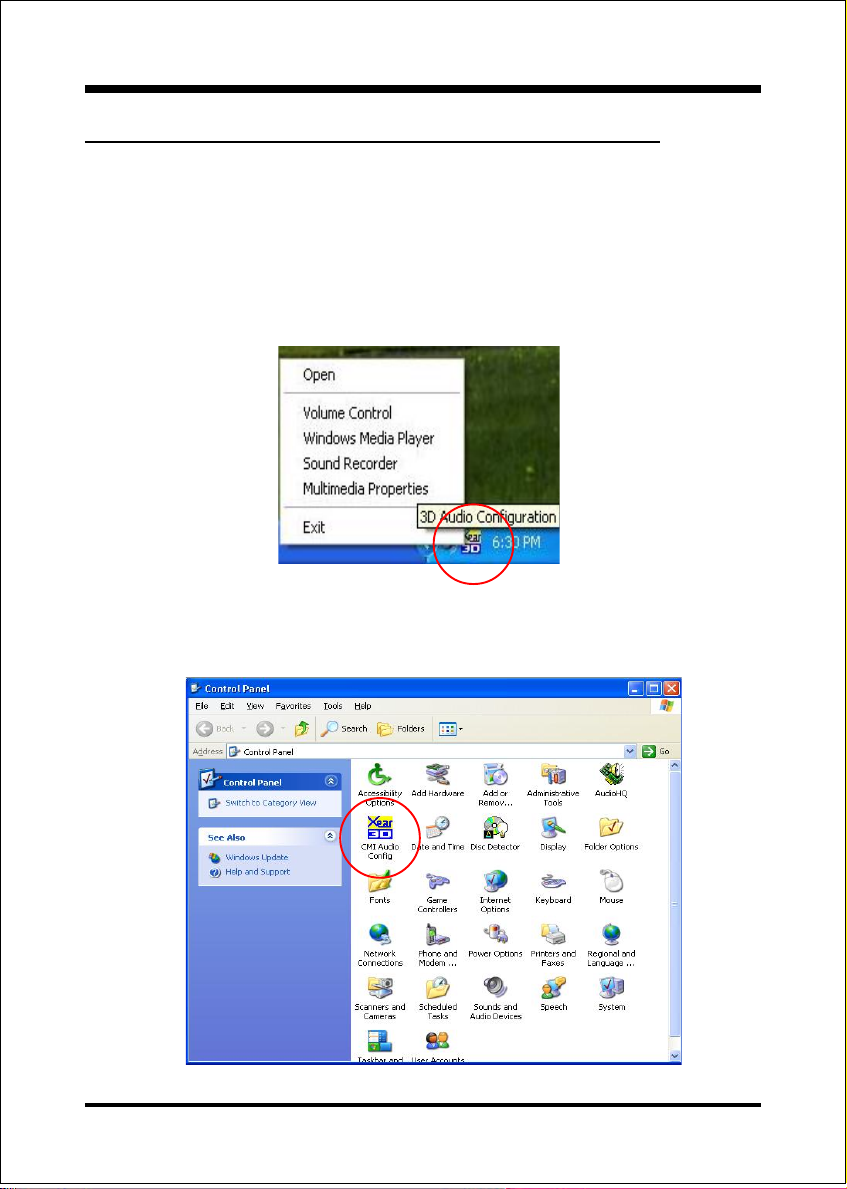

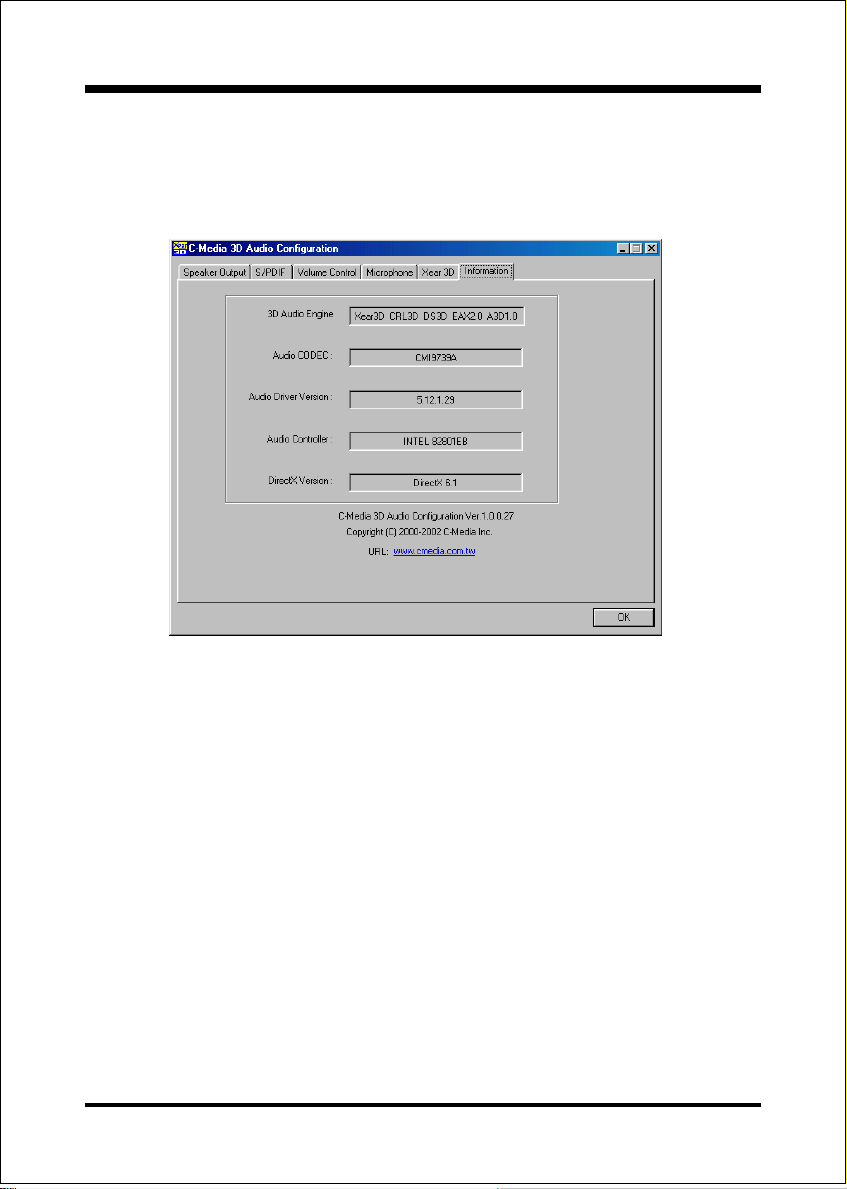

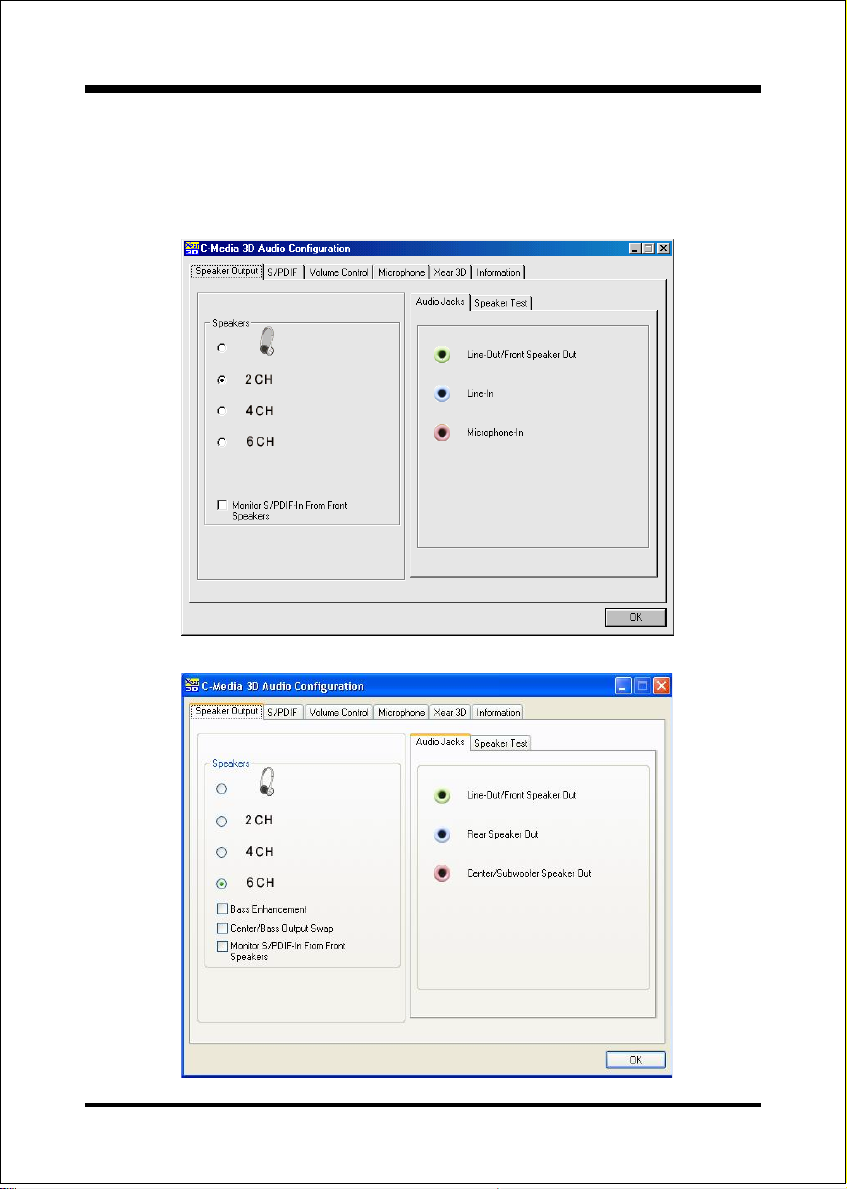

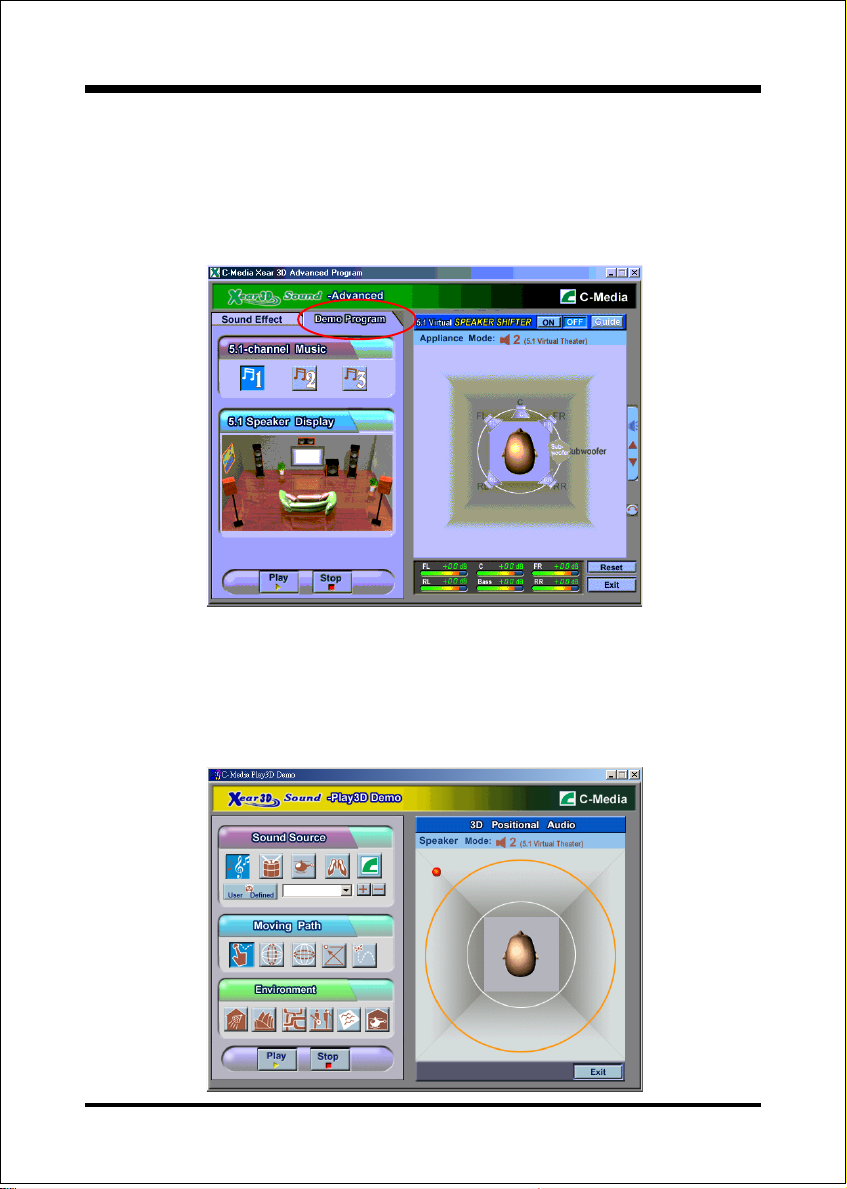

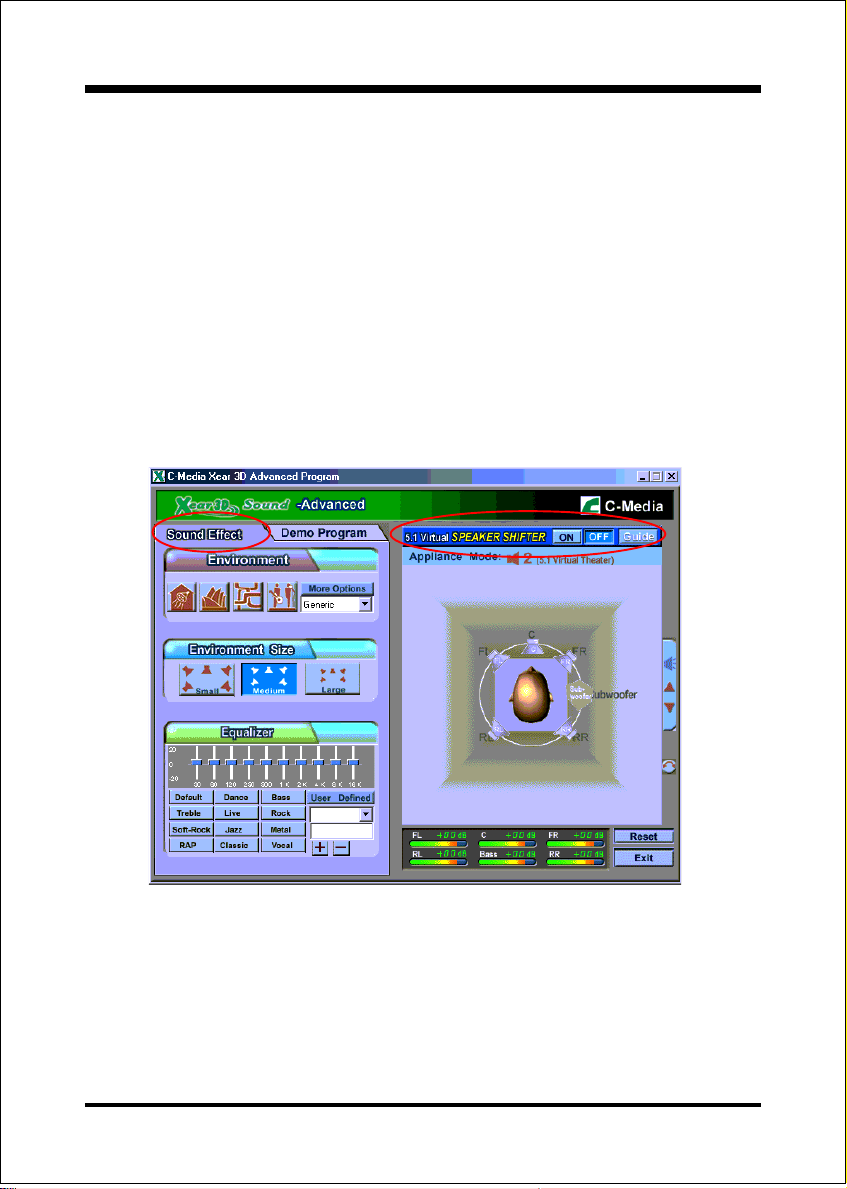

C-Media Audio Configuration Brief Guide ................ 5-2

Appendix Appendix A

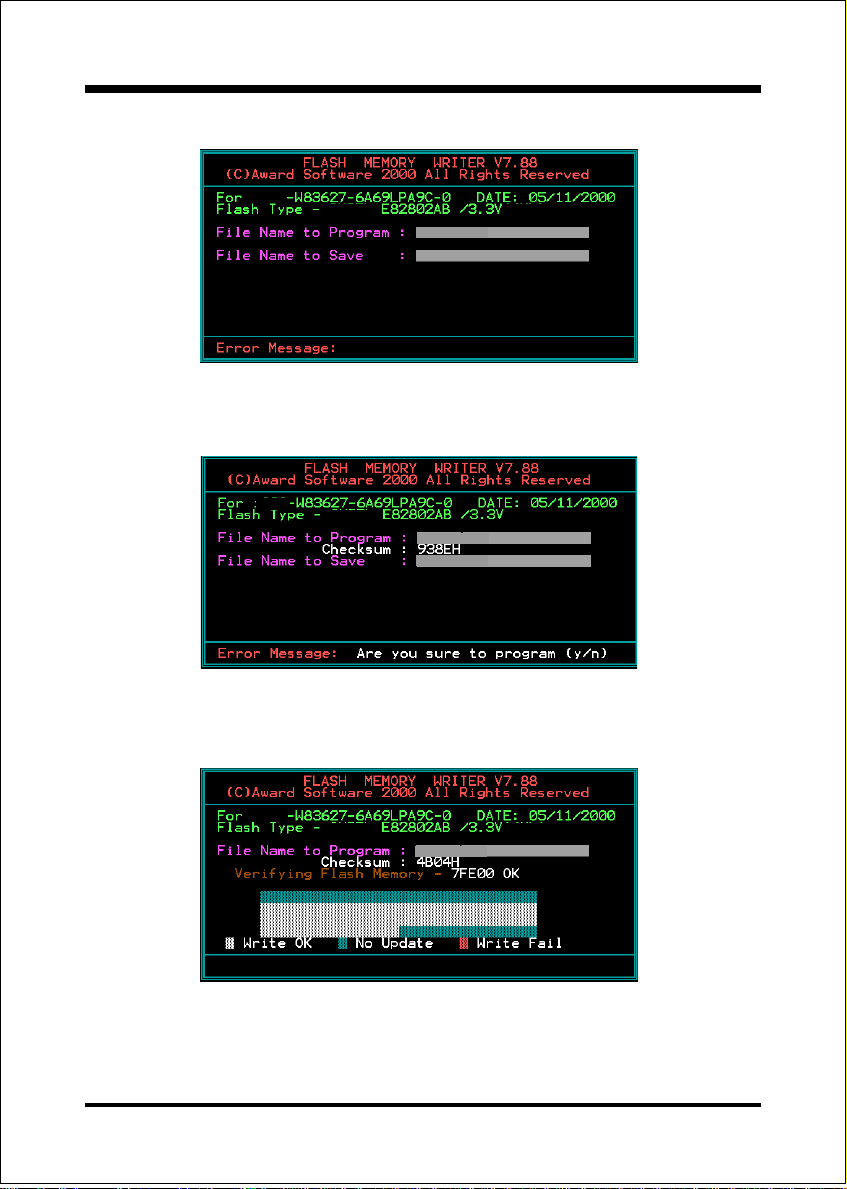

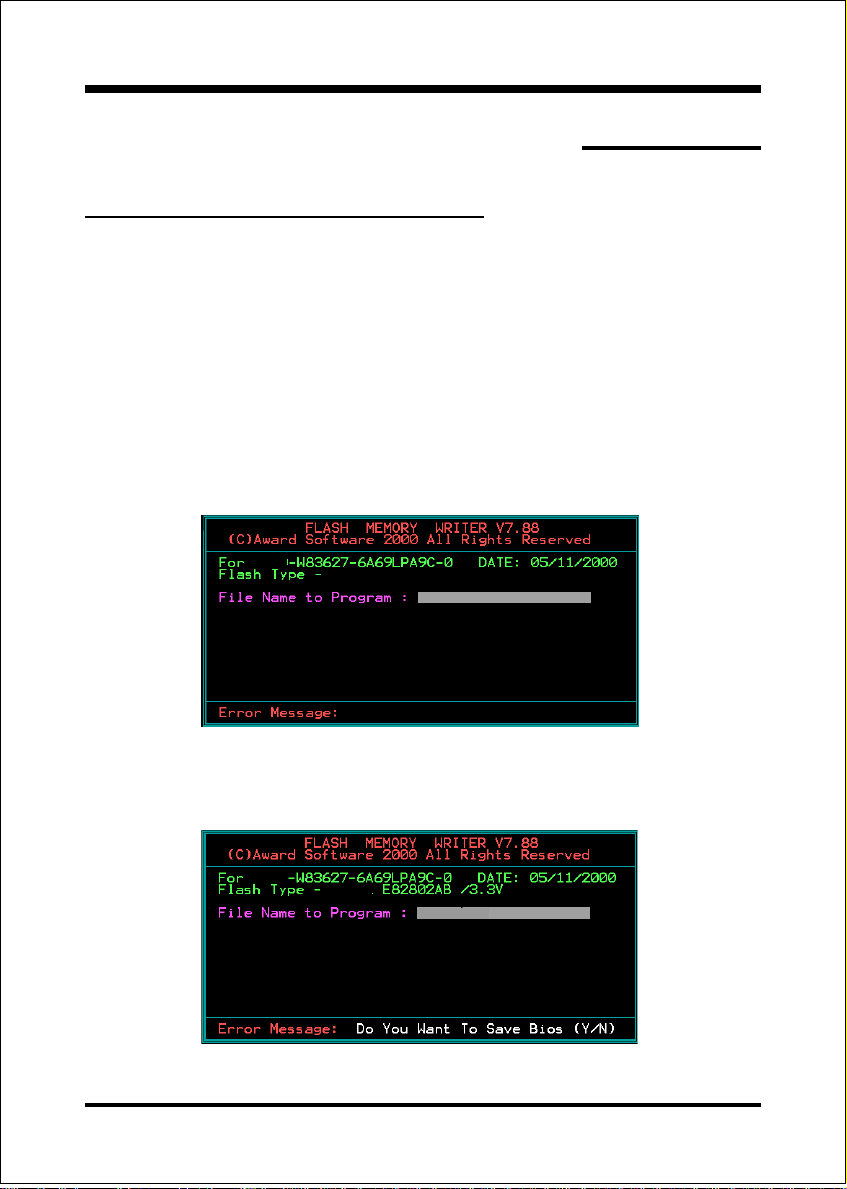

Update Your System BIOS ......................................... A-1

Page

Appendix B

EEPROM BIOS Remover ........................................... B-1

Appendix C

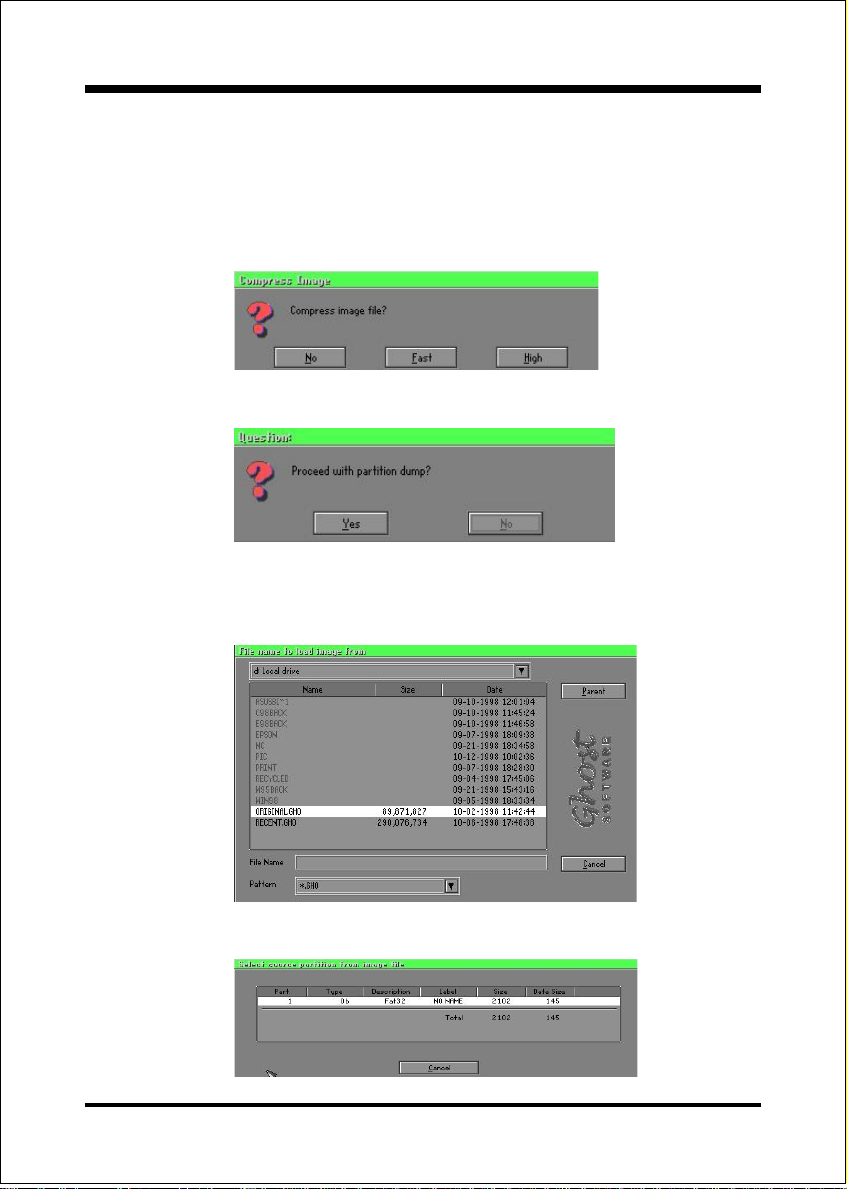

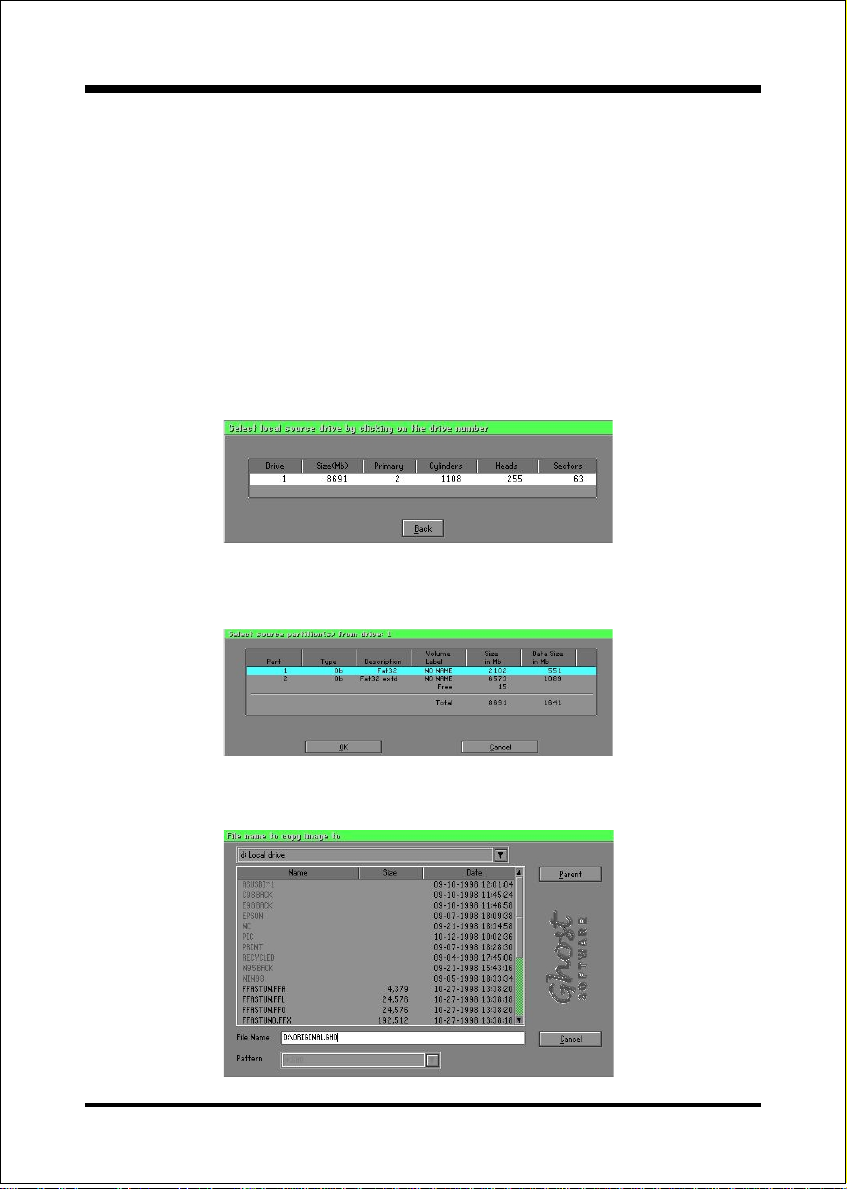

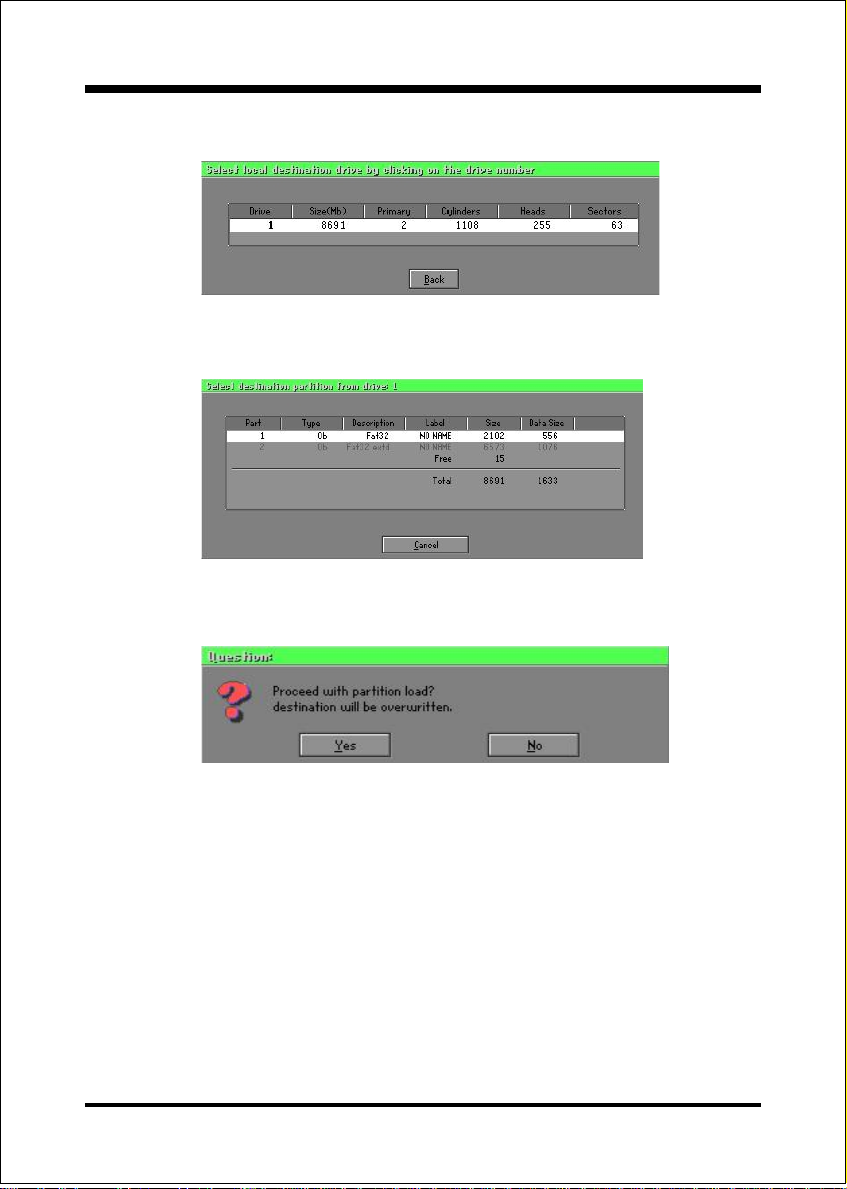

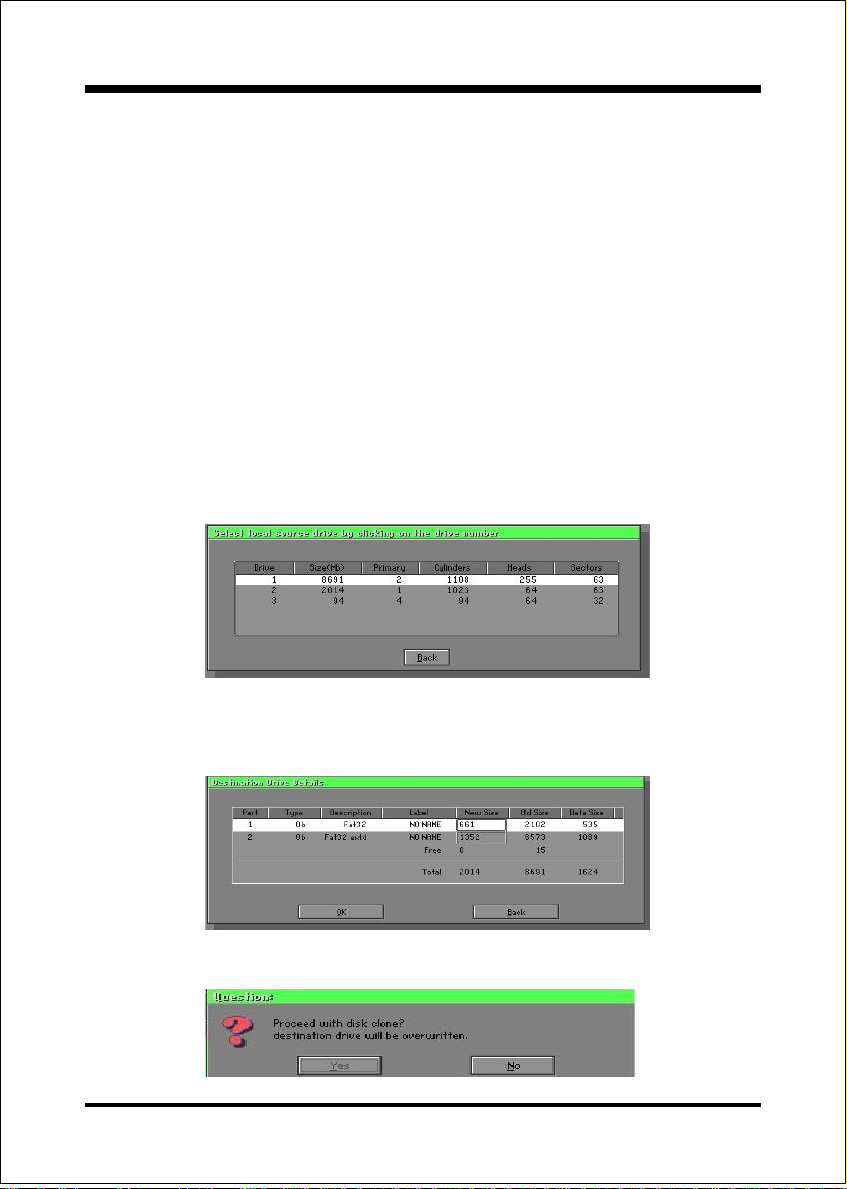

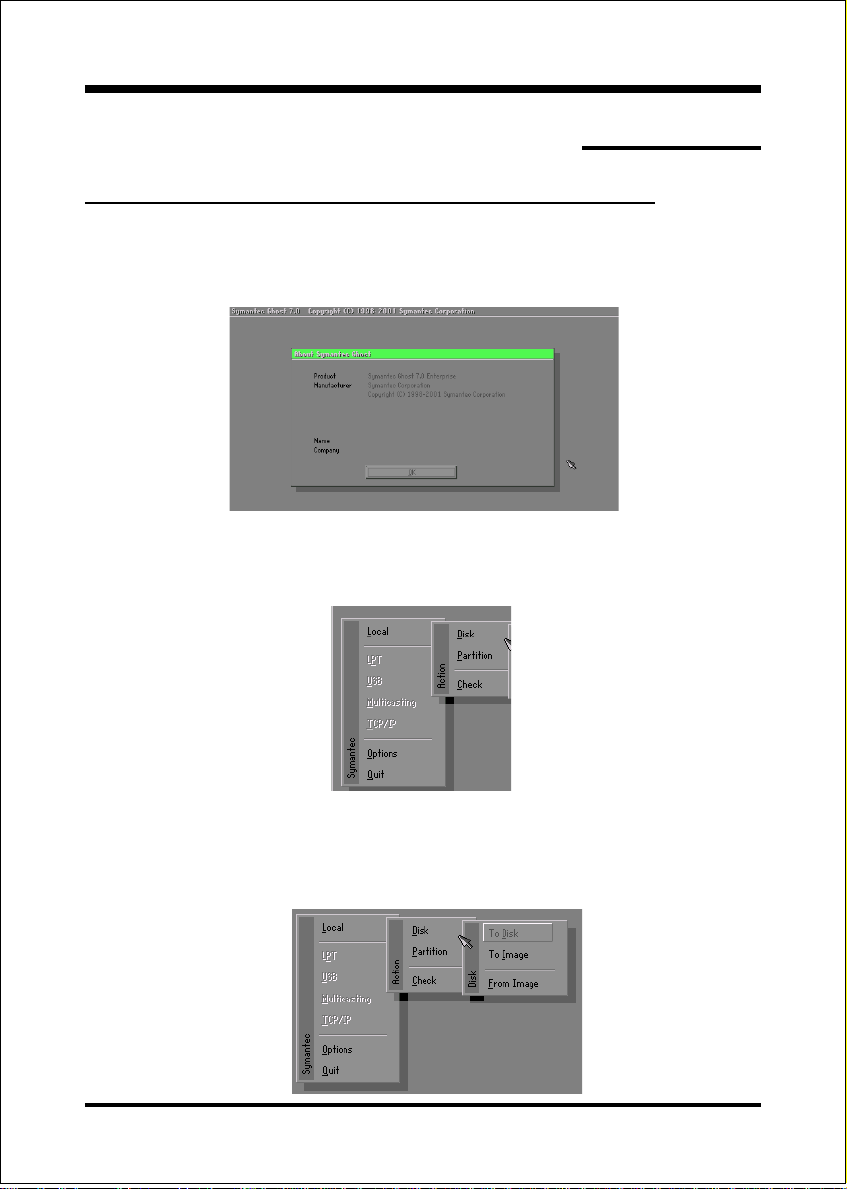

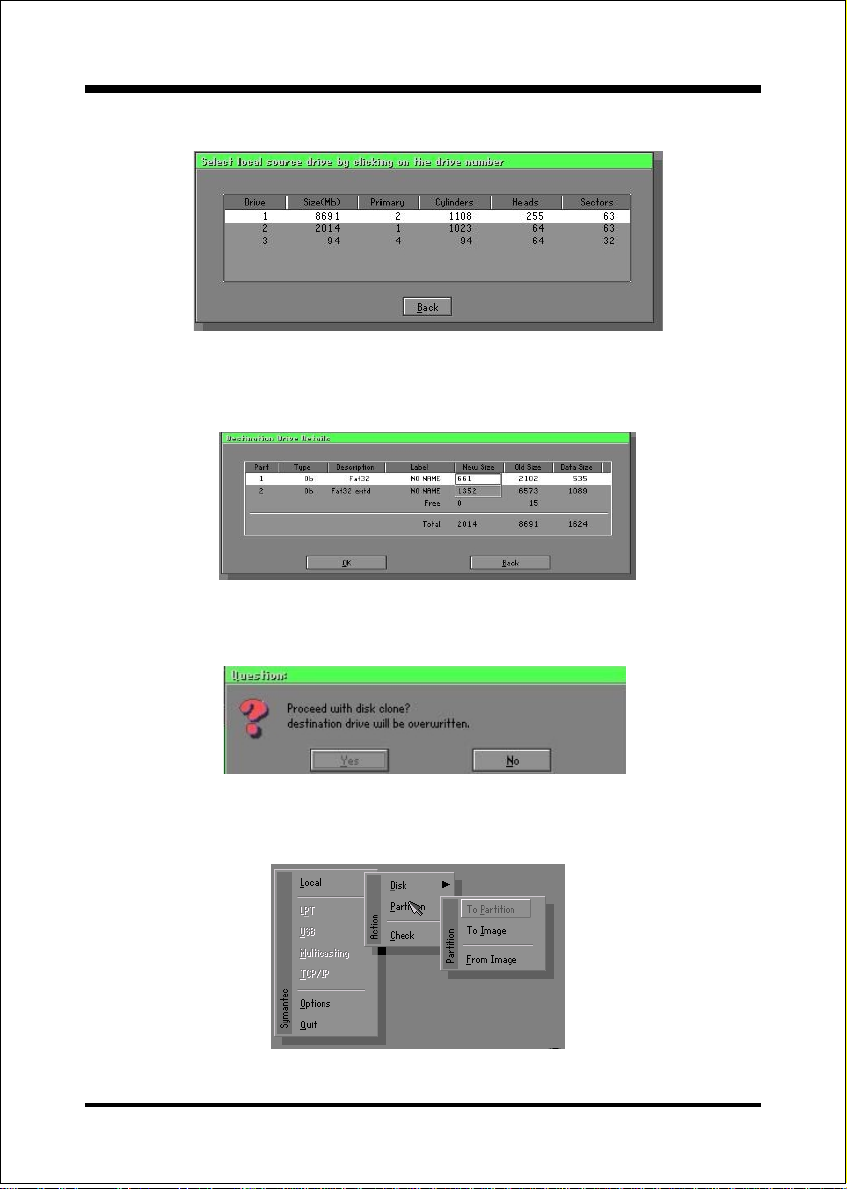

GHOST 7 Quick Users Guide (Optional) ................... C-1

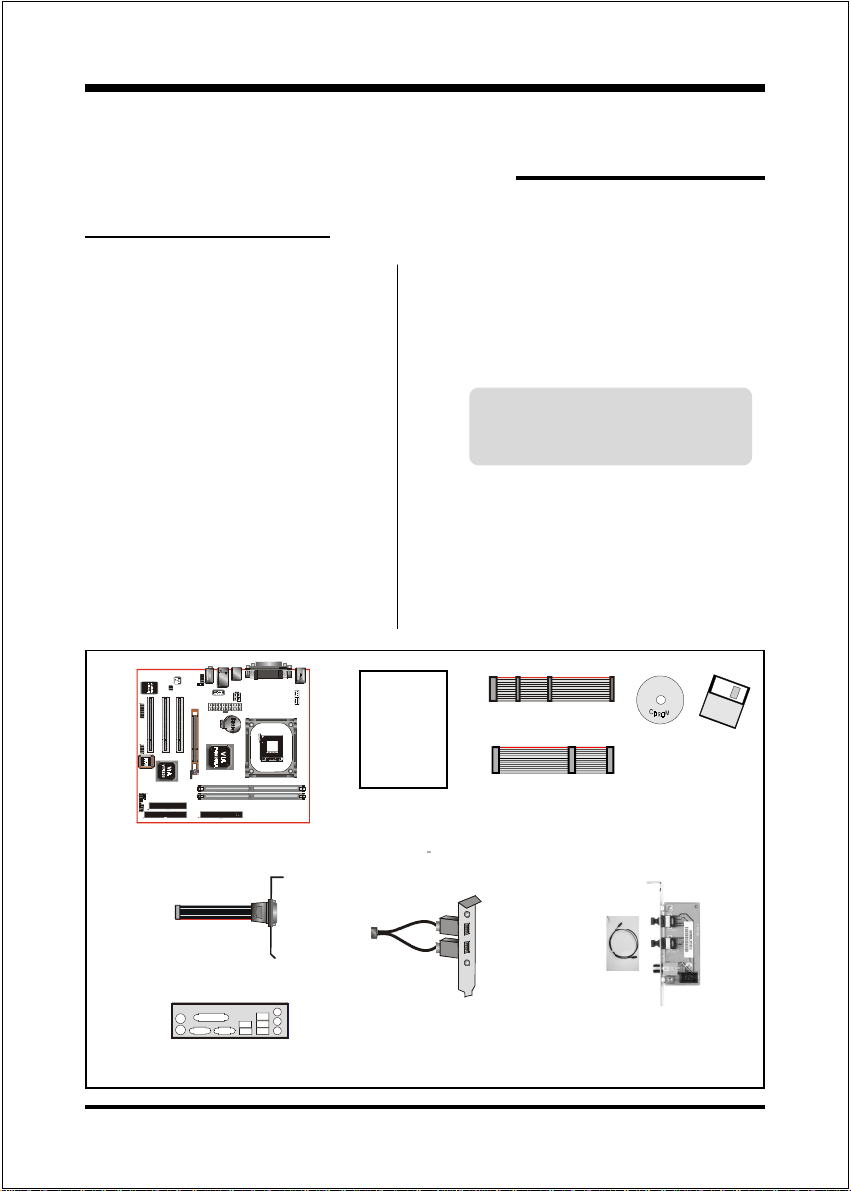

Package Contents

Introduction

Section 1

INTRODUCTION

Contents

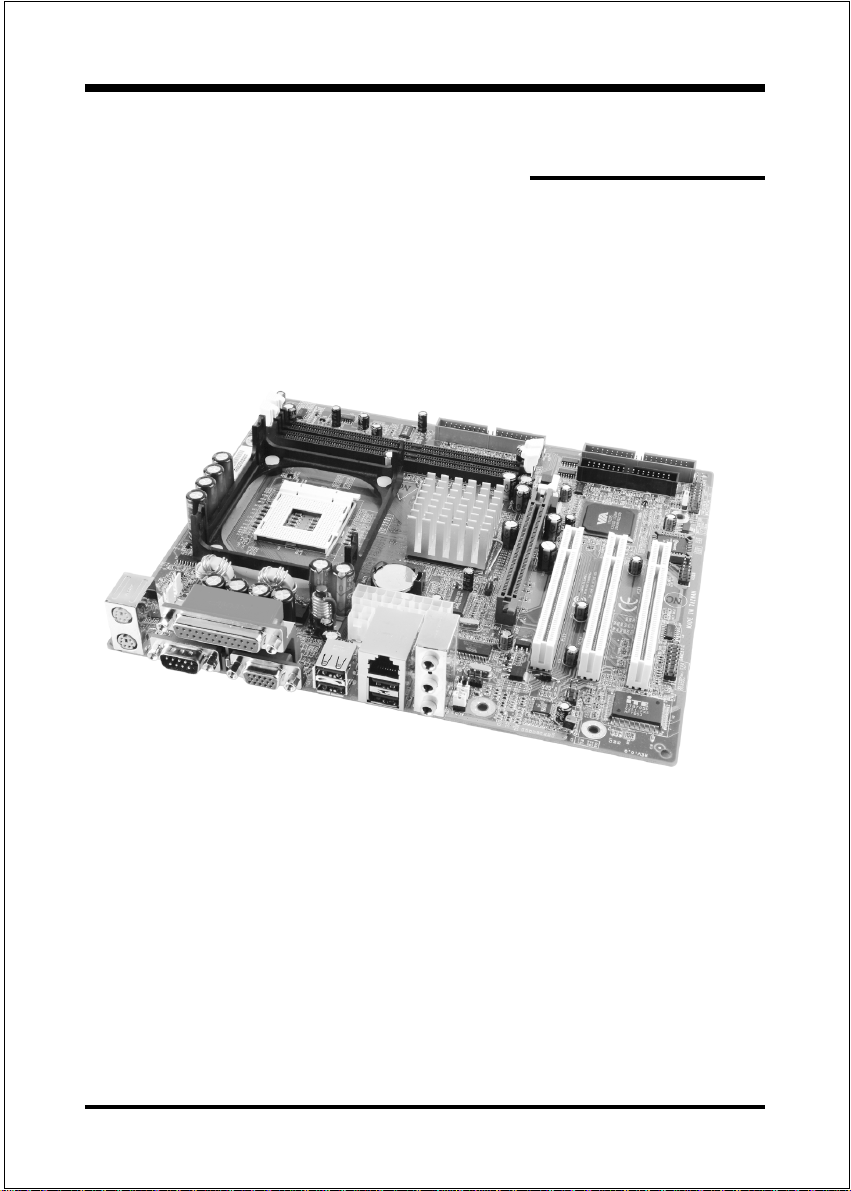

A.Mainboard

B. Users manual

C. Floppy drive cable

D. HDD drive cable

E. CD or diskette (drivers and

utilities)

F. Game port cable

G. I/O Shield

A

USERS

MANUAL

B

Optional Items

H. Extra USB2.0 port cable

I. S/PDIF Module

If you need the other optional item,
please contact your dealer for
assistance.

C

D

or

E

F

G

H

I

Page 1-1

Introduction

Intel® Pentium® 4 processors

The Intel Pentium 4 processor, Intel's most advanced, most powerful processor for
desktop PCs and entry-level workstations, is based on Intel NetBurst
microarchitecture. The Pentium 4 processor is designed to deliver performance
across applications and usages where end-users can truly appreciate and experience
the performance. These applications include Internet audio and streaming video,
image processing, video content creation, speech, 3D, CAD, games, multimedia, and
multi-tasking user environments. The Pentium 4 processor delivers this world-class
performance for consumer enthusiasts and business professional desktop PC users
as well as for entry-level workstation users.

Intel adds support for Hyper-Threading Technology to the Pentium 4 processor
family. HT Technology allows a single, physical Pentium 4 processor to function as
two logical processor for next generation multi threaded application.

For more information about all the new features Pentium 4 deliver, check out the

Intel website at http://www.intel.com

TM

Accelerated Graphics Port (AGP)

The AGP slot on the board is compliant with the new AGP 2.0 specification. This
new specification enhances the functionality of the original AGP specification by
allowing 4X data transfers ( 4 data samples per clock) resulting in maximum band­width of 1GB/s. In addition, it defines 1.5 volt power supply operation. Complying
with this specification, this board supports external AGP-4X cards with Fast Write
Transactions. Only 1.5V AGP cards are supported.

Ultra ATA/66/100/133

This mainboard provides two independent ATA133 IDE controllers, supporting
standard programmable input/output (PIO) and Direct Memory Access (DMA)
mode operations, as well as UltraDMA-133/100/66/33 standards for a maximum data
transfer rate of 133MB/sec per channel.

Page 1-2

Introduction

Hardware Monitoring

Hardware monitoring enables you to monitor various aspects of the system operation
and status. The features include CPU temperature, voltage and fan speed in RPMs.

LAN (Optional)

This mainboard is optionally mounted with a LAN chipset. It allows the mainboard to
connect to a local area network by means of a network hub.

Page 1-3

Introduction

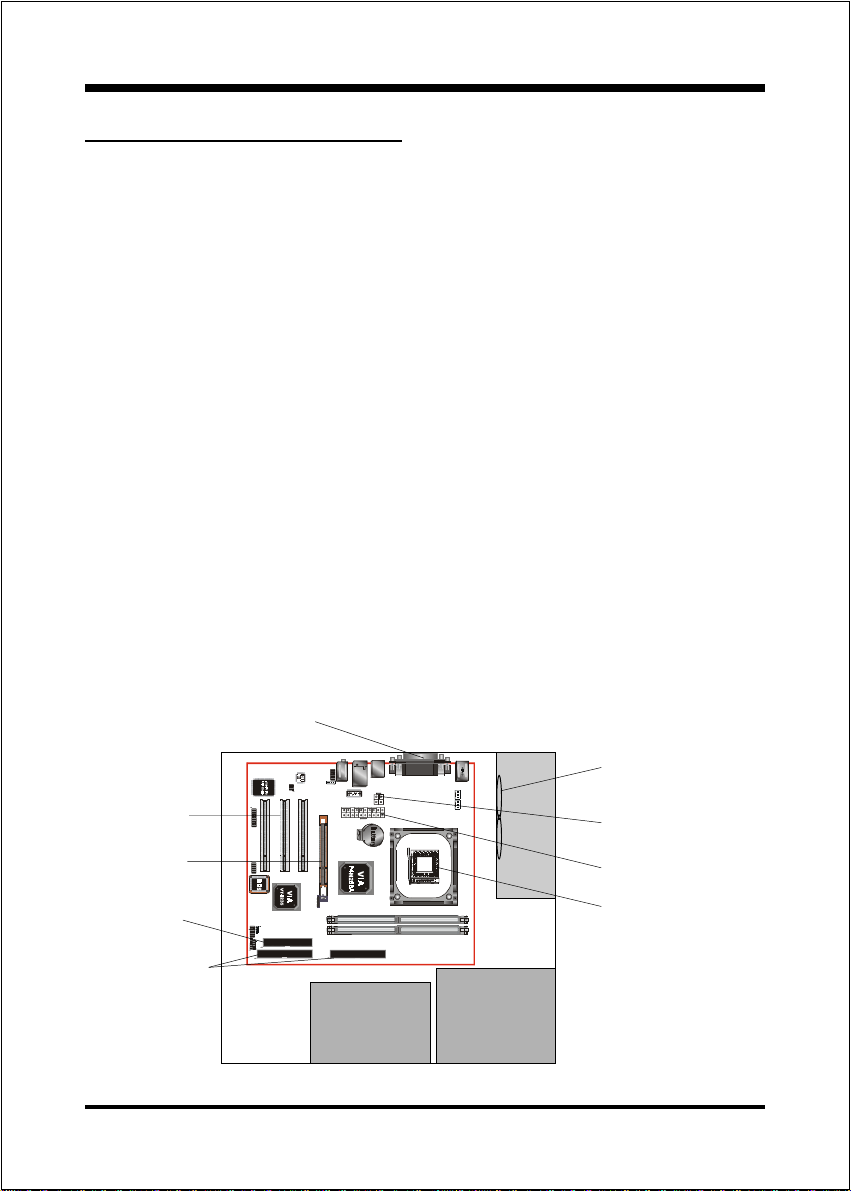

Mainboard Form-Factor

This board is designed with ATX form factor - the latest industry standard for
chassis design. The ATX form factor is essentially a Baby-AT baseboard rotated
90 degrees within the chassis enclosure and a new mounting configuration for
the power supply. With these changes the processor is relocated away from the
expansion slots, allowing them all to hold full length add-in cards. ATX defines a
double height aperture to the rear of the chassis which can be used to host a
wide range of onboard I/O. Only the size and position of this aperture is defined,
allowing PC manufacturers to add new I/O features (e.g.; TV input, TV output,
joystick, modem, LAN, audio, etc.) to systems. This will help systems integrators
differentiate their products in the marketplace, and better meet your needs.

 By integrating more I/O down onto the board and better positioning the hard

drive and floppy connectors material cost of cables and add-in cards is
reduced.

 By reducing the number of cables and components in the system, manufac-

turing time and inventory holding costs are reduced and reliability will
increase.

 By using an optimized power supply, it's possible to reduce cooling costs

and lower acoustical noise. An ATX power supply, which has a side­mounted fan, allows direct cooling of the processor and add-in cards making
a secondary fan or active heatsink unnecessary in most system applications.

Expandable I/O

PCI slots

AGP slot

Floppy
connector

IDE connectors

Page 1-4

AT X
Power
Supply

3 1/2-inch

Bay

Figure 2: Summary of ATX chassis features

5 1/4-inch

Bay

Single chassis
fan for system

ATX 12V power
connector

ATX power connector

CPU socket

Introduction

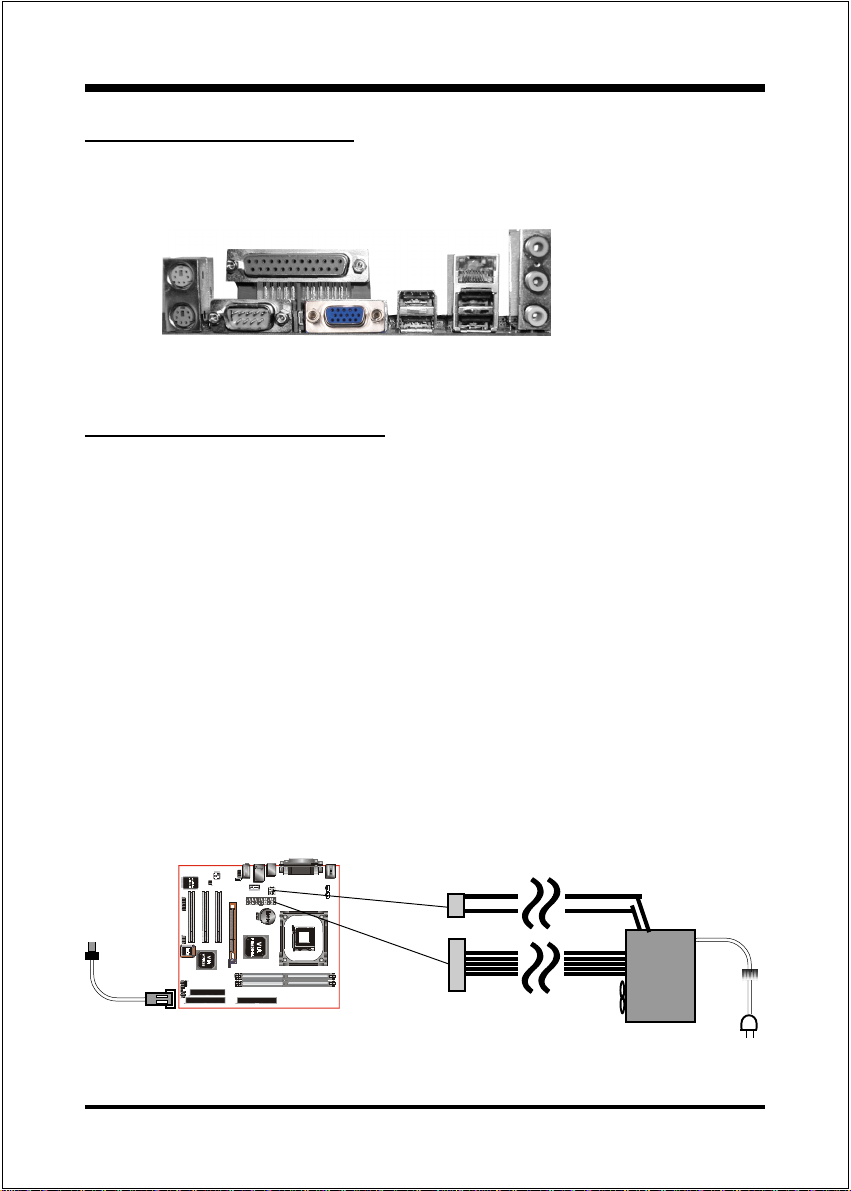

I/O Shield Connector

The board is equipped with an I/O back panel (Figure 3). Ensure that your computer
case has the appropriate I/O cutout.

USB2.0

ports

RJ-45 LAN

(Optional)

USB2.0

ports

Line-in/Rear out (Light blue)

Line-out/Front out (Lime)

Mic-in/Center&Subwoofer (Pink)

PS/2

Mouse

PS/2

Keyboard

Parallel Port

COM1

VGA1

Figure 3: I/O ports

Power-On/Off (Remote)

This board has a 20-pin ATX and a 4-pin ATX12V power supply connector (Figure

4). For power supplies that support the Remote On/Off feature, this should be
connected to the mainboard front panel PW_ON connector for the computer power
On/Off button.
The board has been designed with Soft Off" function. You can turn off the system
in two ways: by pressing the front panel power On/Off button or using the "Soft
Off" function (incorporated in the mainboards onboard circuit controller) that can
be controlled by an operating system such as Windows®XP/ME/2000/98.

Note: For maintaining the DDR SDRAM power during STR (ACPI S3) function, it is

strongly recommended to use power supplies that have a +5VSB current of (>
=) 2A. Please check the 5VSBs specification that has been printed on the
power supplys outer case.

Note: The board requires a minimum of 250 Watt power supply to operate. Your

system configuration (amount of memory, add-in cards, peripherals, etc.) may
exceed this minimum power requirement. To ensure that adequate power is
provided, use a 300 Watt (or higher) power supply.

12V 4-pin

20-pin

PW-ON

Case (chassis) Power ON/OFF button (PW-ON)

Figure 4: Simple ATX power ON/OFF controller

POWER SUPPLY

Page 1-5

Introduction

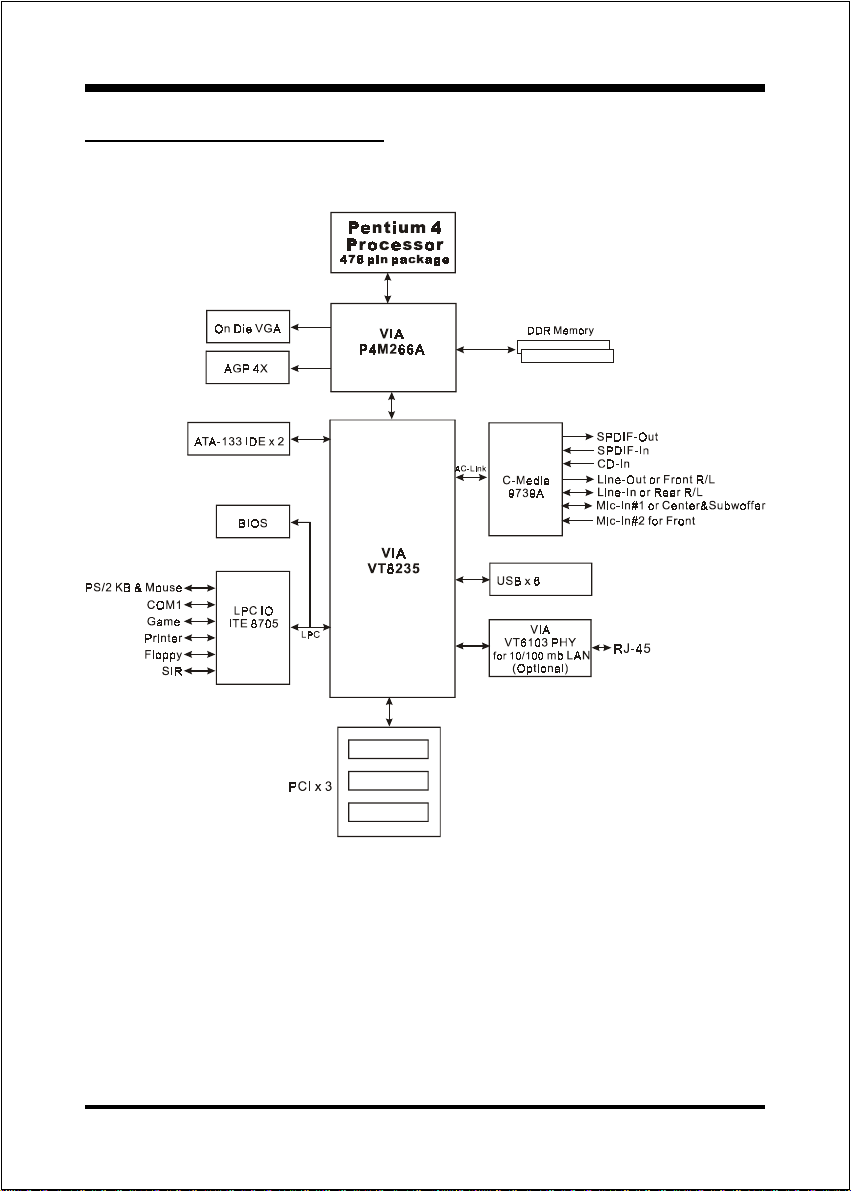

System Block Diagram

Page 1-6

Figure 5: System Block Diagram

Mainboard Features

Processor

Socket 478 Intel® Pentium® 4 processor with 533MHz front size bus up to



3.0+ GHz
Socket 478 Intel®Celeron processor with 400MHz front size bus up to 2.4 GHz



Chipset

VIA P4M266A AGPset : VIA P4M266A + VT8235



- Built-in VIA ProSavage 8 Graphics core

Main Memory

Two 184-pin DDR DIMM sockets for 64-bit, Unbuffered, Single/Double-



side and Non-ECC DDR-200/266 DIMMs
Supports up to 2GB memory size



.A=JKHAI

Section 2

FEATURES

BIOS

Flash EEPROM with Award BIOS



- ACPI v2.0 compliant

- S3 (Suspend to DRAM) sleep-state support

- SMBIOS (System Management BIOS)v2.2 compliant

- Supports Power failure recovery

- Able to wake the computer from specific states by Power switch, RTC alarm,
USB, PS2 KB&Mouse, Modem ring on COM#1

Onboard PCI Devices

 LAN --> Embedded 10/100Mbps Fast Ethernet controller with onboard

(Optional)

VIA 6103 PHY

Page 2-1

.A=JKHAI

 IDE --> Embedded IDE controller with 2 ordinary IDE ports up to 4 IDE

devices, supports ATA-133 with up to 133MB/sec bandwidth

Legacy IO Controller

 ITE 8705 LPC IO controller for floppy, printer, serial, game and CIR/SIR

interface

Audio

 Six channel audio with analog and digital output using C-Media 9739A

AC97 CODEC

- AC97 v2.3 compliant

- In 2-CH mode, supports Line-In (Light blue), Line-Out (Lime) and Mic-In
(Pink) at rear panel

- In 6-CH mode, supports Rear speaker out (Light blue), Front speaker out
(Lime) and Center&Subwoofer speaker out (Pink) at rear panel

- Supports CD-In and S/PDIF-in/out interface

- Supports Line-out and Mic-In for front panel

Peripheral Interfaces

)At Rear Panel

 PS/2 keyboard and mouse ports
 One Parallel (printer) port
 One Serial port
 One VGA port
 One RJ45 LAN connector (Optional)
 Four USB2.0 ports
 Three Audio jacks

)Onboard connector and pin-header

 One floppy drive connector
 Two IDE connectors
 Two extra USB2.0 ports

Page 2-2

 One CD-IN connector
 One S/PDIF in/out connector
 One IR connector
 One Front Panel Audio connector
 One Game port connector
 Two Fan connectors

Front Panel Controller

 Supports Reset & Soft-Off switches
 Supports HDD & Power LEDs
 Supports PC speaker

Expansion Slots

 One AGP slot supporting 1.5v 4X AGP cards

- AGP v2.0 compliant

 Three PCI slots with Bus Master support

- PCI v2.2 compliant

.A=JKHAI

Other Features

 Magic Health  a BIOS H/W monitoring utility for voltage, temperature and

fan-speed sensing displayed during POST

 EZ Boot  A simple shortcut to select the boot device, e.g. hard drive, CD-

ROM or floppy without entering CMOS setup

 Supports exclusive KBPO (Keyboard Power On) function

 Excellent Over clocking capabilities through

- subtle frequency tuning on FSB

- supports complete Asynchronous FSB/Memory for overclocking

 Supports AGP card 3.3V Protection

Form Factor

 210mm x 245 mm ATX size

Page 2-3

.A=JKHAI

Page Left Blank

Page 2-4

Installation

Section 3

INSTALLATION

Page 3-1

Installation

Mainboard Layout

Page 3-2

Installation

Easy Installation Procedure

The following must be completed before powering on your new system:

3-1. CPU Installation

3-2. Jumper Settings

3-3. System Memory Configuration

3-4. Expansion Slots

3-5. Device Connectors

3-1 CPU Installation

Figure 1

Step 1

Open the socket by raising the actuation
lever.

Figure 2

Pin 1

Step 2

Align pin 1 on the CPU with pin 1 on
the CPU socket as shown in the
illustration above. The CPU is keyed to
prevent incorrect insertion. Dont force
the processor into the socket. If it does
not go in easily, check for mis-orienta­tion and reinsert the CPU.
Make sure the processor is fully
inserted into the socket.

Page 3-3

Installation

Figure 3

Step 3

Close the socket by lowering and
locking the actuation lever.

Step 4

Apply thermal compound to the top of
the CPU and install the heatsink as

Figure 4

shown.

Figure 5 Figure 6

Step 5

Install the cooling fan assembly. Press
the two clips in the direction of the
arrows shown in Figure 5 to secure the

Step 6

Plug the CPU fan into the CPU fan
connector.

The installation is complete.

assembly to the CPU socket.

NOTES:

 Damage to Intel Pentium

TM

4 processors might result if installed with
incorrect CPU fan and heatsink assemblies. Use Intels design thermal
solution shown in the illustrations above: an active heatsink; an extruded
aluminum heatsink base; and a fan attached to the top of the fin array.

 Apply heatsink thermal compound or paste to the CPU to avoid CPU

overheating and damage.

 In accordance with Intel Corp. specifications, do not install a CPU over

50 times to avoid bending the pins and damaging the CPU.

Page 3-4

3-2 Jumper Settings

Installation

JCMOS:

Clear CMOS data Jumper
If the CMOS data becomes corrupted or you
forgot the supervisor or user password,
clear the CMOS data to reconfigure the
system back to the default values stored in
the ROM BIOS.

Settings:



1-2: Normal (Default)
2-3: Clear CMOS

To CMOS Clear data, please follow the steps below.

1. Turn off the system.

2. Change the jumper from 1-2 to 2-3 position
for a few seconds.

3. Replace the jumper on to the 1-2 position.

4. Turn on the system and hold down the <Del>
key to enter BIOS setup.

Page 3-5

Installation

3-3 System Memory Configuration
Memor y Layout

The mainboard accommodates two PC1600/PC2100 184-pin DIMMs (Dual In-line
Memory Modules):

 Supports up to 2.0GB of 200/266MHz DDR SDRAM

 Supports unbuffered and non-ECC DIMMs

 Supports configurations defined in the JEDEC DDR DIMM specification

Figure 6 and Table 1 show two possible memory configurations.

<Figure 6>

<Table 1>

DDR DIMM 1

DDR DIMM 2

yromeMlatoT

BG1=

mumixaM

BG2=

mumixaM

1X*BG1

1X*BG1

1MMIDRDD 2MMIDRDD

*MARDSRDD

*MARDSRDD

,BM215,BM652,BM821,BM46

enoN

,BM215,BM652,BM821,BM46

*MARDSRDD

1X*BG1

NOTES:

_ Using non-compliant memory with higher bus speeds

(overclocking) may severely compromise the integrity of the
system.

,BM215,BM652,BM821,BM46

Page 3-6

Installation

DIMM Module Installation

Figure 8 displays the notch on the DDR DIMM memory module.
DIMMs have 184 pins and one notch that matches with the DDR DIMM socket.

DIMM modules are installed by placing the chip firmly into the socket and
pressing straight down as shown in figure 9 until the white clips close and the
module fits tightly into the DIMM socket (figure 10).

CENTER KEY ZONE
(2.5 V DRAM)

Figure 8 - DIMM notch

Figure 9 - DIMM module clips before installation

Figure 10 - DIMM module clip after installation

To remove the DIMM module press down the white clips and the module will be
ejected from the socket.

Page 3-7

Installation

3-4 Expansion Slots

AGP Slot

The mainboard is equipped with an AGP
slot. Make sure you install a card that
supports the 1.5V specification.

AGP Slot

PCI Slots

PCI Slots

The mainboard is equipped with 3 PCI
slots.

Installing an Expansion Card

The steps below assume that the mainboard is already installed in the system chassis.

1. Make sure the PC and all other peripheral devices connected to its has been
powered down.

2. Disconnect all power cords and cables.

3. Remove the system unit cover.

4. Remove the bracket of the slot that you intend to use. (You need to remove the
screw in order to remove the bracket.)

5. Align the card above the slot then press it down firmly until it is completely
seated in the slot.

6. Secure the card to the chassis with the screw you removed in step 4.

7. Replace the system unit cover.

8. Power on the PC.

9. Enter the BIOS step program to make the necessary settings.

10. Save the settings and restart the PC.

11. Install the software drivers of the expansion cards, if necessary.

Page 3-8

AGP Card Installation Caution

1. AGP card component is blocked
by DIMM socket lock.

2. AGP slot clicker is not locked.

3. AGP card edge connector is not
inserted properly.

1. AGP card component is not
blocked by DIMM socket lock.

2. AGP slot clicker is locked.

3. AGP card edge connector is
inserted properly.

Installation

1. AGP slot clicker is not locked.

2. AGP card edge connector is not
inserted properly.

1. AGP slot clicker is locked.

2. AGP card edge connector is
inserted properly.

Page 3-9

Installation

3-5 Connectors

PS/2

Mouse

PS/2

Keyboard

JCPU_FAN

JSYS_FAN

Parallel Port

COM1

RJ-45 LAN
(Optional)

Line-in/Rear out (Light blue)

Line-out/Front out (Lime)

Mic-in/Center&Subwoofer (Pink)

VGA1

USB2.0

ports

USB2.0

ports

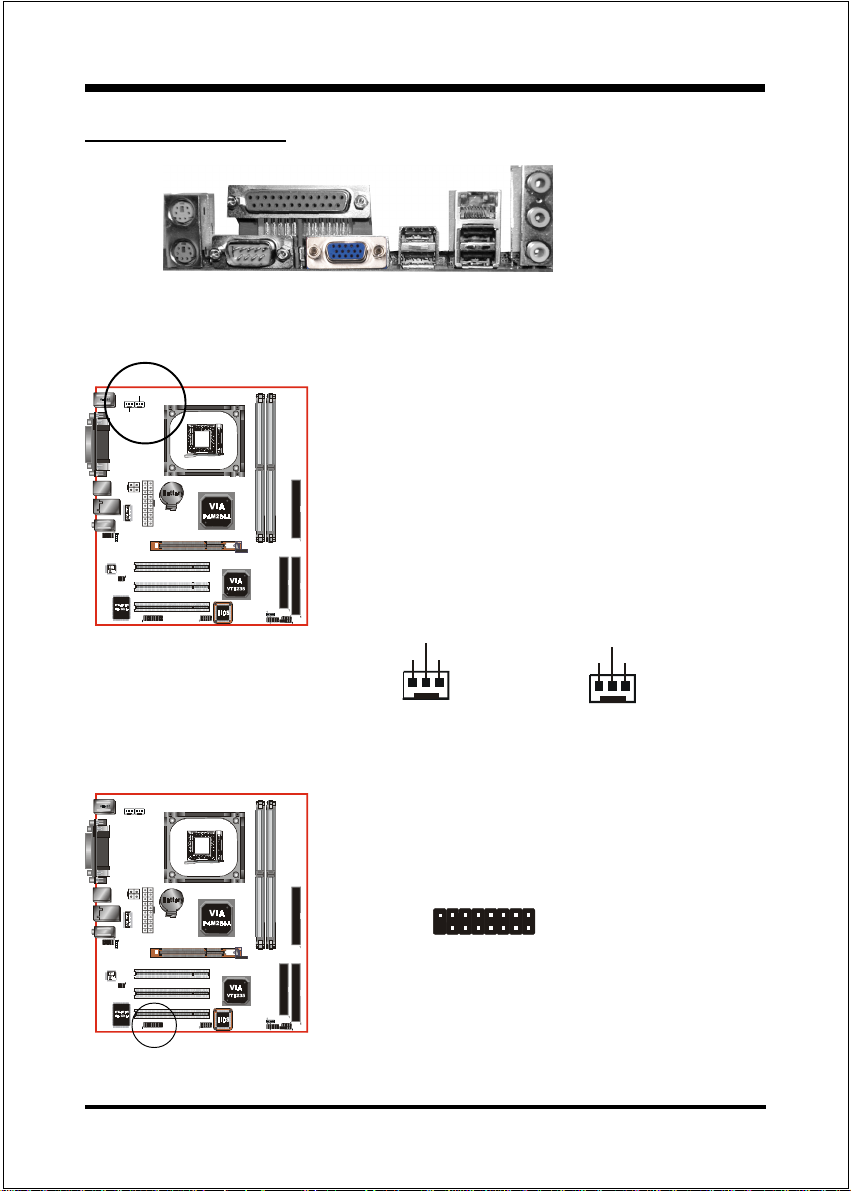

Figure 11 - I/O Ports

JCPU_FAN / JSYS_FAN:

CPU/Chassis Fan Power Connectors
JCPU_FAN: The CPU must be kept cool by using a

heatsink with fan assembly.

JSYS_FAN: The chassis fan will provide adequate
airflow throughout the chassis to prevent overheat­ing the CPU.

JCPU_FAN

+12V

Ground

Sence

JSYS_FAN

+12V

Ground

Sence

Page 3-10

GAME1: Game/MIDI connector
This port works well with any application that is

compatible with the standard PC joystick.





34 33

2

FDD

29

29

Installation

.,,: Floppy Controller Connector

This mainboard is equipped with a floppy disk drive
connector for connecting up to 2 floppy disk drives.

1,-

IDE1/IDE2: Ultra DMA-66/100/133 Primary/Secondary

.,,

1,-

This mainboard is equipped with 2 IDE disk connec­tors for connecting up to 4 ATA-133 IDE drives.
It supports PIO and DMA mode operations for

40 39

1

1

2

IDE1/IDE2

maximum data transfer rate of 133MB/sec per channel.



 When use two IDE drives, one must be set to Master



PW1: 20-pin ATX Power Connector
PW12: 4-pin ATX12V Power Connector

The mainboard is equipped with a standard 20-pin
ATX main power connector and a 4-pin +12V
power connector for connecting an ATX12V
power supply. The plugs of the power cables are
designed to fit in only one orientation. Find the
proper orientation then insert the plugs into the
connectors until they fit in place.

IDE Connector

mode and the other one to Slave mode. Refer to your
disk drive users manual for information about select­ing the proper drive switch settings.

!



PW12

Caution:





+5V+12V

+5V5VSB

"

+12V+12V

GroundGround

-5VPW-OK

GroundGround

Ground+5V

GroundGround

PS-ON+5V

GroundGround

-12V3.3V

3.3V3.3V





PW1

The PW1 and PW12 Power Connector must be used simultaneously
or else this system will not boot-up.



 The board requires a minimum of 250 Watt power



supply to operate. Your system configuration (amount
of memory, add-in cards, peripherals, etc.) may
exceed this minimum power requirement. To ensure
that adequate power is provided, use a 300 Watt or
greater power supply.

Page 3-11

Installation

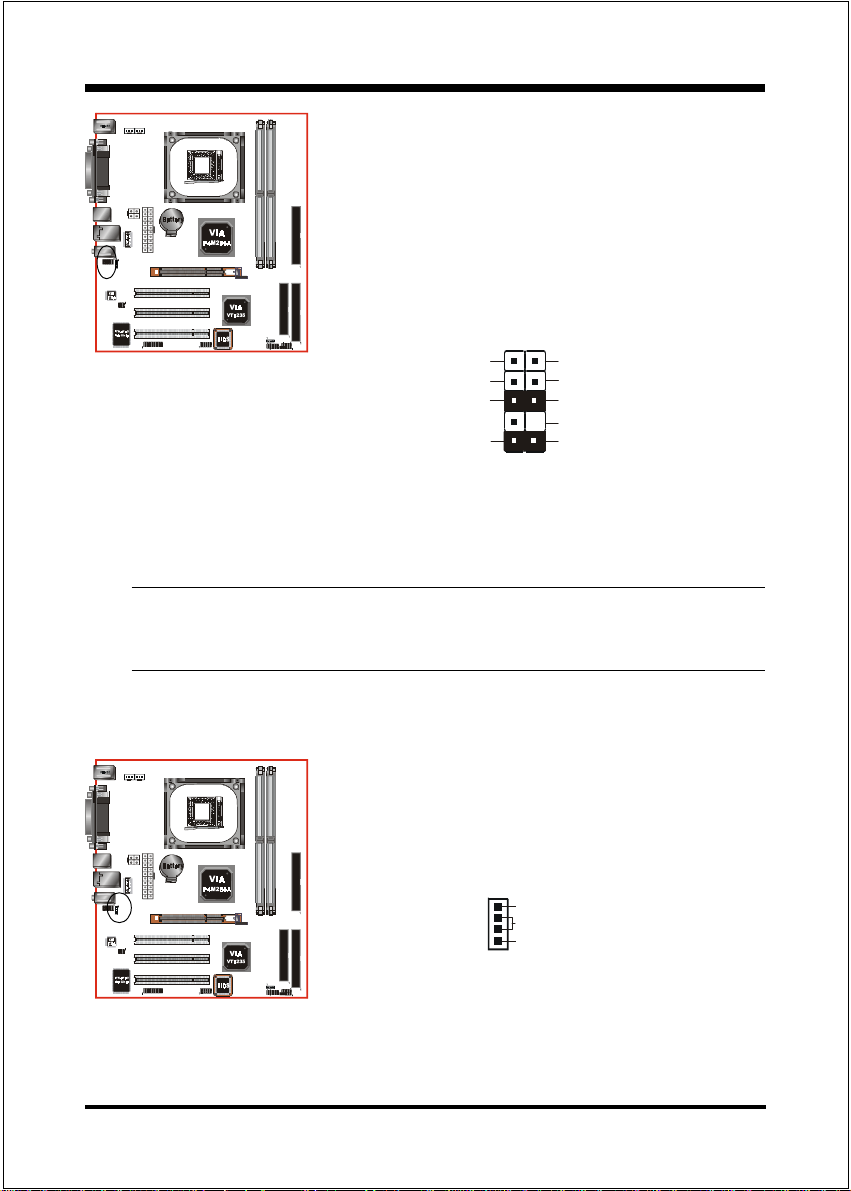

CFPA: Front Panel Audio Connector

When the jumpers are removed this connector
can be used for front panel audio.
The front panel line-out phone jack should
have a normal close switch . Without a
phone- plug inserted, the rear panel audio is
enabled. With phone plug inserted, the rear
panel audio will be disabled.



MIC_In

Front Line-out-R

Settings

Pins (5-6) & (9-10) Short (default): Only the onboard rear
panel audio jack can be used.

Pins (5-6) & (9-10) Open: Only front panel audio jack can
be used.



 In 2-Channel audio mode, Mic-In is shared for both front panel and rear panel.



NC

Front Line-out-L

' 

In 6-Channel audio mode, the Mic-In is dedicated for front panel use, and rear
panel Mic-In function will switch to Center and Subwoofer support.

GND

+5V

Rear Line-out-FR

Key

Rear Line-out-FL

Page 3-12

CD-IN: CD Audio_IN Connector
The CD-IN connector is for receiving audio form a

CD-ROM drive, TV tuner or MPEG card.

CD-IN

CD_IN_Right

CD_Reference

CD_IN_Left

1

Installation

S/PDIF: Sony/Philips Digital InterFace connector
This connector links digital audio between the
mainboard and your audio devices, such as CD
player, sampler or DAT recorder. It allows the
digital transmission of audio data in S/PDIF format.

VCC

SPDIF_IN

5

6

GND

CUSB3: Two USB 2.0 ports
This mainboard includes 2 additional onboard USB

ports, identified by two 10-pin connector.
If you wish to use the additional USB ports, install

the card-edge bracket to the system chassis then
insert its cables to this 10-pin connector.

1

2

NC

SPDIF_OUT

+75*!

USB2.0 allows data transfer speed up to 480Mbps.

CAUTION !

Please make sure the USB cable has the same

pin assignment. A different pin assignment

may cause damage to the system.

If you need the USB cable, please contact our

retailer.

Page 3-13

Installation

CFP / CIR / CSPK

CFP: Front Panel Connector



 HD_LED



This LED will light up whenever the hard drive
is being accessed.



 PWR_LED



This connects to the power button of the
system chassis



 RST



This switch allows you to reboot without
having to power off the system thus prolonging
the life of the power supply or system.



 PW_ON



This is connected to the power button on the
case. Using the Soft-Off by Pwr-BTTN feature,
you can choose either Instant Off (turn off
system immediately) or 4 sec delay (push the
button for 4 seconds to turn off the system).
When the system is in 4 sec delay mode,
suspend mode is enabled by pushing the
button momentarily.

Page 3-14

CIR: IR connector

Connect your IrDA cable to this IR connector.

1. VCC 4. GND

2. NC 5. IRTX

3. IRRX

CSPK: Speaker

Connect to the systems speaker for beeping

1. VCC 3. GND

2. NC 4. Speaker

Installation

3-6 External Modem Ring-in Power ON and

Keyboard Power ON Functions (KBPO)

Modem-Ring Power ON Function

The I/O chipset provides the two serial ports with the External Modem Ring-in Power
ON function. Once you connect an external modem to COM1 or COM2, the
mainboard enables you to turn on the system through remote and host dial-up
control.

Keyboard Power ON Function

The mainboard features a keyboard power on function that enables you to turn on
the power supply using a keypress. Follow these instructions to enable the Key­board Power ON function .

Step : Use the Keyboard Power ON function (KBPO) to turn on the system by using

a key press, password, or hot key combination etc. as set in the BIOS Power
Management Setup menu (refer to the BIOS Power Management Setup for
details). The BIOS default setting is keyboard Hot key (<Ctrl> + <F1>). To power
off the system, use the Soft-OFF function under Windows XP/ME/2000/98.
(refer to Windows online help).

NOTES:

 Intel ATX version 2.0 specification recommends a power supply that

supplies >=2.0 A in 5.0 VSB. However, this mainboard supports a 5.0
VSB standby power supply > = 2A .

 We recommend you use the power supply with 2.0 A in 5.0 VSB, which

supports PCI 2.3 specification for remote power-on and wake-up
functions.

Page 3-15

Installation

3-7 STR (Suspend To RAM) Function

This mainboard supports the STR (Suspend To RAM) power management
scheme by maintaining the appropriate power states in the DDR SDRAM
interface signals. The power source to the DDR SDRAM must be kept active
during STR (ACPI S3). Advanced Configuration Power Interface (ACPI)
provides many Energy Saving Features for operating systems that support
Instant ON and QuickStartTM function.

1. To enable STR functionality to save system power :
a. Install ACPI certified add-on cards (such as AGP, LAN, and modem cards).
b. In BIOS, under Power Management Setup (refer to Section 4), select ACPI

Suspend Type: S3(STR) and USB Port Wake Up Control (if you have a

USB mouse or keyboard device).
c. Install Windows® XP/2000/ME/98SE.
d. Restart the system.
e. Open the Control Panel Power Management application, and click the

Advanced tab. In the Power buttons section, select Stand By from the

drop-down lists.

2. To activate the STR function, click the START button and choose Shut Down.
In the Shut Down Windows dialog box, select the Stand By option to enter STR
mode.

The following the differences between STR power saving mode and Green (or
Suspend) mode:

a. STR is the most advanced Power Management mode.
b. STR cuts all the power supplied to peripherals except to memory - max. power

saving.

c. STR saves and keeps all on-screen data including any executed applications

to DDR SDRAM.

d. In STR mode, you must push the power button (connected to the onboard PW-

On of CFP pin), click your USB mouse buttons, or press your USB keyboard
keys to wake up your system to the last display.

Page 3-16

Installation

3-8 Suppor ts AGP Card 3.3V Protection

The VIA P4M266A chipset supports 1.5 volt AGP graphics cards only. Inserting a

3.3 volt AGP card on an VIA P4M266A based mainboard might damage the chipset.

However, this mainboard features a protection function that prevents the
system from powering on when a 3.3V AGP card is inadvertently inserted into
the AGP slot.

Should this happen, we recommend you to follow these steps:

Step 1: Remove the 3.3V AGP card from the AGP slot.

Step 2: Unplug the ATX/ATX12V power cable.

Step 3: Insert a 1.5V AGP card into the AGP slot.

Step 4: Wait for 5 ~ 7 seconds and then plug in the ATX/ATX12V power

cord again (or turn on the ATX/ATX12V power switch) to turn on
your system.

Note: There should be an interval of 5 ~ 7 seconds between

unplugging and plugging in the power cord, or turning
the ATX/ATX12V power supply on and off.

Page 3-17

Installation

Page Left Blank

Page 3-18

BIOS

Section 4

BIOS SETUP

Main Menu

The ROM BIOS provides a built-in Setup program which allows user to modify the
basic system configuration and hardware parameters. The modified data is stored in
a battery-backed CMOS, so that data will be retained even when the power is turned
off. In general, the information saved in the CMOS RAM will stay unchanged unless
there is a configuration change in the system, such as hard drive replacement or a
device is added.
It is possible for the CMOS battery to fail causing CMOS data loss. If this happens
you will need install a new CMOS battery and reconfigure your BIOS settings.



 The BIOS setup screen and description are for reference only, and may



not exactly match what you see on your screen. The contents of BIOS are
subject to change without notice. Please visit our website for updates.

To enter the Setup Program :

Power on the computer and press the <Del> key during the POST (Power On Self
Test). The BIOS CMOS SETUP UTILITY opens.

Figure 1: CMOS Setup Utility

Page 4-1

BIOS

The main menu displays all the major selection items. Select the item you need to
reconfigure. The selection is made by moving the cursor (press any direction (arrow
key ) to the item and pressing the Enter key. An on-line help message is displayed
at the bottom of the screen as the cursor is moved to various items which provides a
better understanding of each function. When a selection is made, the menu of the
selected item will appear so that the user can modify associated configuration
parameters.

4-1 Standard CMOS Setup

Choose STANDARD CMOS FEATURES in the CMOS SETUP UTILITY Menu
(Figure 2). Standard CMOS Features Setup allows the user to configure system
settings such as the current date and time, type of hard disk drive installed, floppy
drive type, and display type. Memory size is auto-detected by the BIOS and
displayed for your reference. When a field is highlighted (use direction keys to move
the cursor and the <Enter> key to select), the entries in the field can be changed by
pressing the <PgDn> or the <PgUp> key.

Page 4-2

Figure 2: Standard CMOS Setup

BIOS

Notes:

 If the hard disk Primary Master/Slave and Secondary Master/Slave are set to

Auto, the hard disk size and model will be auto-detected.

 The Halt On: field is used to determine when the BIOS will halt the system

if an error occurs.

 Floppy 3 Mode support is a mode used to support a special 3.5-inch drive

used in Japan. This is a 3.5-inch disk that stores 1.2 MB. The default setting
for this is disabled.

4-2 Advanced BIOS Features

Selecting the ADVANCED BIOS FEATURES option in the CMOS SETUP UTILITY
menu allows users to change system related parameters in the displayed menu. This
menu shows all of the manufacturers default values for the board.

Pressing the [F1] key displays a help message for the selected item.

Figure 3: BIOS Features Setup

Hard Disk Boot Priority

This item allows you to select the hard disk boot priority.

Page 4-3

BIOS

Virus Warning

During and after system boot up, any attempt to write to the boot sector or partition
table of the hard disk drive halts the system and an error message appears.
You should then run an anti-virus program to locate the virus. Keep in mind that this
feature protects only the boot sector, not the entire hard drive.
Enabled: Activates automatically when the system boots up causing a warning

message to appear when anything attempts to access the boot sector.

Disabled: No warning message appears when anything attempts to access the boot

sector.

Note: Many disk diagnostic programs that access the boot sector table can

trigger the virus warning message. If you plan to run such a program, we
recommend that you first disable the virus warning.

CPU L1 & L2 Cache

This controls the status of the processors internal and external (L2) cache area.
Options: Enabled, Disabled.

CPU L2 Cache ECC Checking

This item allows you to enable/disable CPU L2 Cache ECC checking.
Options: Enabled, Disabled.

Quick Power On Self Test

This category speeds up the Power On Self Test (POST). The default is Enabled.

Enabled: This setting will shorten or skip of the items checked during POST.
Disabled: Normal POST.

First /Second/Third/Other Boot Device

The BIOS attempts to load the operating system from the devices in the sequence
selected in these items.
Options: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, ZIP100,
USB-FDD, USB-ZIP, USB-CDROM, USB-HDD, LAN, Disabled.

Boot Other Device

When enabled, the system searches all other possible locations for an operating
system if it fails to find one in the devices specified under the first, second, and third
boot devices. The default is Enabled.
Options: Enabled, Disabled.

Page 4-4

BIOS

Swap Floppy Drive

This will swap your physical drive letters A & B if you are using two floppy disks.
Options: Enabled, Disabled.

Boot Up Floppy Seek

If this item is enabled, it checks the size of the floppy disk drives at start-up time.
You dont need to enable this item unless you have a legacy diskette drive with
360K capacity. The default is Disabled.
Options: Enabled, Disabled.

Boot Up NumLock Status

This controls the state of the NumLock key when the system boots. The default is On.

On: The keypad acts as a 10-key pad.
Off: The keypad acts like cursor keys.

Typematic Rate Setting

This determines the keystrokes repeat rate. The default is Disabled.

Enabled: Allows typematic rate and typematic delay programming.
Disabled: The typematic rate and typematic delay will be controlled by the keyboard

controller in your system.

Typematic Rate (Chars/Sec)

This is the number of characters that will be repeated by a keyboard press.
The default is 6.
Options: 6 ~ 30 characters per second.

Typematic Delay (msec)

This setting controls the time between the first and the second character displayed
by typematic auto-repeat. The default is 250.
Options: 250/500/750/1000 msec.

Security Option

This category allows you to limit access to the System and Setup, or just to Setup.
The default is Setup.
System: The system will not boot and the access to Setup will be denied if the

correct password is not entered at the prompt.

Setup: The system will boot; but the access to Setup will be denied if the

incorrect password is not entered at the prompt.

Page 4-5

BIOS

OS Select For DRAM > 64 MB

Some operating systems require special handling. Use this option only if your
system has greater than 64 MB of memory. The default is Non-OS2.
OS2: Select this if you are running the OS/2 operating system with greater

than 64 MB of RAM.

Non-OS2: Select this for all other operating systems and configurations.

Small Logo (EPA) Show

If the BIOS contains an internal bitmap picture, this option sets the bitmap display at
the top right corner of the screen.
Options: Enabled, Disabled.

Page 4-6

4-3 Advanced Chipset Features

Choose the ADVANCED CHIPSET FEATURES option in the CMOS SETUP
UTILITY menu to display following menu.

Figure 4: Chipset Features Setup

System BIOS Cacheable

This item allows the system to be cached in memory for faster execution.
Options: Disabled, Enabled.

BIOS

Video RAM Cacheable

This option allows the CPU to cache read/writes of the video RAM.
Options: Disabled, Enabled.

Delay Prior to Thermal

Set this item to enable the CPU Thermal function to engage after the specified time.
The default is 16 minutes.
Options: 4, 8, 16, 32 minutes.

VGA Share Memory Size

This item allows you to select the VGA share memory size for video.
Options: 8M, 16M, 32M, Disabled.

Page 4-7

BIOS

DRAM Clock / Drive Control

Scroll to DRAM Clock/Drive Control and press <Enter>. The following screen
appears:

Current FSB Frequency

Display the current CPU front side bus frequency information.

Current DRAM Frequency

Display the current DRAM frequency information.

DRAM Clock

This item allows you to select DRAM clock.
Options: By SPD, 100MHz, 133MHz.

DRAM Timing

For setting DRAM Timing select By SPD to follow SDRAM Serial Presence Detect
Specification.
Options: Manual, Auto by SPD.

DRAM CAS Latency

Enables you to select the CAS latency time. The value is set at the factory depending
on the DRAM installed. Do not change the values in this field unless you change
specifications of the installed DRAM and DRAM clock from DRAM Timing Selectable.
The default is set by SPD (see DRAM Timing).
Options: 2, 2.5.

Bank Interleave

The item allows you to set how many banks of SDRAM support in your mainboard.
Default is by SPD.
Options: 2 Bank, 4 Bank, Disabled.

Page 4-8

BIOS

Precharge to Active (Trp)

This item refers to the number of cycles required to return data to its original
location to close the bank or the number of cycles required to page memory before
the next bank activate command can be issued. The default is by DRAM SPD.
Options: 3T, 2T.

Active to Precharge (Tras)

This item sets the minimum RAS pulse width. The default is by DRAM SPD.
Options: 5T, 6T.

Active to CMD (Trcd)

This item sets the timing parameters for the system memory such as the CAS (Column
Address Strobe) and RAS (Row Address Strobe). The default is by DRAM SPD.
Options: 3T, 2T.

DRAM Command Rate

Setup the timing at each cycle.
Options: 1T Command, 2T Command.

Page 4-9

BIOS

AGP & P2P Bridge Control

Scroll to AGP & P2P Bridge Control and press <Enter>. The following screen appears:

AGP Aperture Size (MB)

This item defines the size of the aperture if you use an AGP graphics adapter. It
refers to a section of the PCI memory address range used for graphics memory.
Options: 4M, 8M, 16M, 32M, 64M, 128M, 256M.

AGP Mode

Chipset AGP Mode support.
Options: 1X, 2X, 4X.

AGP Driving Control

This item allows you to adjust the AGP driving force. Choose Manual to key in a
AGP Driving Value in the next selection. This field is recommended to set in Auto for
avoiding any error in your system.
Options: Auto, Manual.

AGP Fast Write

Selecting Enabled allows to use Fast Write Protocol for 4X AGP card.
Options: Enabled, Disabled.

AGP Master 1 WS Write

When Enabled, Writes to the AGP (Accelerated Graphics Port) are executed with one
wait states.
Options: Enabled, Disabled.

AGP Master 1 WS Read

When Enabled, Reads to the AGP (Accelerated Graphics Port) are executed with one
wait states.
Options: Enabled, Disabled.

Page 4-10

BIOS

CPU & PCI Bus Control

Scroll to CPU & PCI Bus Control and press <Enter>. The following screen
appears:

CPU to PCI Write Buffer

When enabled, up to four words of data can be written to the PCI bus without interruting
the CPU. When disabled, a write buffer is not used and the CPU read cycle will not be
completed until the PCI bus signals that it is ready to receive the data.
Options: Enabled, Disabled.

PCI Master 0 WS Write

When Enabled, Writes to the PCI bus are commanded with zero wait states.
Options: Enabled, Disabled.

PCI Delay Transaction

The chipset has an embedded 32-bit posted write buffer to support delay transactions
cycles. Select Enabled to support compliance with PCI specification version 2.3.
Options: Enabled, Disabled.

Page 4-11

BIOS

4-4 Integrated Peripherals

Figure 5: Integrated Peripherals

Init Display First

If two video cards are used (1 AGP and 1 PCI) this specifies which one will be the
primary display adapter. The default is PCI Slot.
Options: PCI Slot, AGP.

VIA OnChip IDE Device

Scroll to VIA Onchip IDE Device and press <Enter>. The following screen appears:

Page 4-12

BIOS

OnChip IDE Channel0/1

The integrated peripheral controller contains an IDE interface with support for two
IDE channels. Select Enabled to activate each channel separately.
Options: Enabled, Disabled.

Note: If you do not use the onboard IDE connector, then you will need to set the

Onboard Primary PCI IDE and Onboard Secondary PCI IDE to Disabled.

IDE Prefetch Mode

Selecting Enabled reduces latency between each drive read/write cycle, but may
cause instability in IDE subsystems that cannot support such fast performance. If
you are getting disk drive errors, try setting this value to Disabled. This field does
not appear when the Internal PCI/IDE field, above, is Disabled.
Options: Enabled, Disabled.

Primary/Secondary Master/Slave PIO

The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for
each of the four IDE devices that the onboard IDE interface supports. Modes 0 to 4
provide successively increased performance. In Auto mode, the system automati­cally determines the best mode for each device.
Options: Auto, Mode 0 ~ 4.

Primary/Secondary Master/Slave UDMA

Select the mode of operation for the IDE drive. Ultra DMA-33/66/100/133 implemen­tation is possible only if your IDE hard drive supports it and the operating environ­ment includes a DMA driver. If your hard drive and your system software both
support Ultra DMA-33/66/100/133, select Auto to enable UDMA mode by BIOS.
Options: Auto, Disabled.

IDE HDD Block Mode

Block mode is also called block transfer, multiple commands, or multiple sector read/
write. If your IDE hard drive supports block mode (most new drives do), select
Enabled for automatic detection of the optimal number of block read/writes per
sector the drive can support.
Options: Enabled, Disabled.

Page 4-13

BIOS

VIA Onchip PCI Device

Scroll to VIA Onchip PCI Device and press <Enter>. The following screen appears:

VIA-3058 AC97 Audio

This item allows you to disable the chipset on-chip support for AC97 Audio.
Options: Auto, Disabled.

VIA-3043 Onchip LAN (Optional)

Enables the onboard LAN feature.
Options: Auto, Disabled.

VIA-6102 MAC Address (Optional)

Allows you to input the VIA-6102 MAC address.

Onboard Lan Boot ROM (Optional)

Enable/disable the onboard LAN Boot ROM.
Options: Enabled, Disabled.

Onchip USB Controller

Enables the USB controller.
Options: All Enabled, All Disabled, 1&2 USB Port, 2&3 USB Port, 1&3 USB Port, 1
USB Port, 2 USB Port, 3 USB Port.

Onchip EHCI Controller

Enables the EHCI (USB2.0) controller.
Options: Enabled, Disabled.

USB Keyboard Support

Enable/disable support for USB keyboard.
Options: Enabled, Disabled.

USB Mouse Support

Enable/disable support for USB mouse.
Options: Enabled, Disabled.

Page 4-14

BIOS

Super IO Chip Setup

Scroll to Super IO Chip Setup and press <Enter>. The following screen appears:

Onboard FDC Controller

Select Enabled if your system has a floppy disk controller (FDC) installed on the
system board and you wish to use it. If you install add-in FDC or the system has no
floppy drive, select Disabled in this field.
Options: Enabled, Disabled.

Onboard Serial Port 1

Select an address and corresponding interrupt for the first serial port.
Options: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

Infrared Port Select

Select an address for Infrared port.
Options: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

UR2 Duplex Mode

This item allows you to select IR half/full duplex function.
Options: Half, Full.

Onboard Parallel Port

This field allows the user to configure the LPT port.
Options: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled.

Parallel Port Mode

This field allows the user to select the parallel port mode.
Options: SPP, EPP, ECP, ECP+EPP.

ECP Mode USE DMA

This field allows the user to select DMA1 or DMA3 for the ECP mode.
Options: DMA1, DMA3.

Page 4-15

BIOS

Game Port Address

Select an address for the Game port.
Options: 201, 209, Disabled.

Midi Port Address

Select an address for the Midi port.
Options: 300, 330, Disabled.

Midi Port IRQ

Select an interrupt for the Midi port.
Options: 5, 10.

Page 4-16

BIOS

4-5 Power Management Setup

Choose the POWER MANAGEMENT SETUP in the CMOS SETUP UTILITY to
display the following screen. This menu allows the user to modify the power
management parameters and IRQ signals. In general, these parameters should not be
changed unless its absolutely necessary.

Figure 6: Power Management

ACPI Function

This option allows you to select ACPI Function. The default is Enabled.
Options: Enabled, Disabled.

ACPI Suspend Type

This item allows you to select S1(POS) or S3(STR) function.
Options: S1(POS), S3(STR), S1&S3.

Power Management Option

Use this to select your Power Management selection. The default is User define.

Max. saving: Maximum power savings. Inactivity period is 1 minute in each mode.
Min. saving: Minimum power savings. Inactivity period is 1 hour in each mode.
User define: Allows user to define PM Timers parameters to control power saving

mode.

Page 4-17

BIOS

HDD Power Down

When enabled and after the set time of system inactivity, the hard disk drive will be
powered down while all other devices remain active.
Options: Enabled, 1Min ~ 15Min.

Suspend Mode

enabled and after the set time of system inactivity, all devices except the CPU will be
shut off.
Options: Enabled, 1 , 2, 4 ,6, 8, 10, 20, 30, 40min and 1hour .

Video Off Option

When enabled, this feature allows the VGA adapter to operate in a power saving mode.
Always On: Monitor will remain on during power saving modes.
Suspend->Off: Monitor blanked when the systems enters the suspend mode.

Video Off Method

This option allows you to select how the video will be disabled by the power
management. The default is V/H Sync + Blank

V/H Sync + Blank: System turns off vertical and horizontal synchronization ports

and writes blanks to the video buffer.

DPMS Support: Select this option if your monitor supports the Display Power

Management Signaling (DPMS) standard of the Video
Electronics Standards Association (VESA). Use the software
supplied for your video subsystem to select video power
management values.

Blank Screen: System only writes blanks to the video buffer.

MODEM Use IRQ

Name the interrupt request (IRQ) line assigned to the modem (if any) on your
system. Activity of the selected IRQ always awakens the system. Default is IRQ 3.
Options: N/A, 3, 4, 5, 7, 9, 10, 11

Soft-Off by PWRBTN

Pressing the power button for more than 4 seconds forces the system to enter the
Soft-Off state when the system has hung. The default is Instant-off.
Options: Delay 4 Sec, Instant-Off.

Page 4-18

BIOS

Run VGABIOS if S3 Resume

This determines whether or not to enable the system to run the VGA BIOS when
resuming from S3(STR) or S1&S3.
Options: Auto, Yes, No.

PWRON After PWR-Fail

Configures the system to auto-restart or remain off after a power interrupt.
Off: System remains off after a power interrupt.
On: System always restarts after a power interrupt.
Auto: Depends on whether the system was safely shutdown before power failure.

IRQ/Event Activity Detect

Scroll to IRQ/Event Activity Detect and press <Enter>. The following screen appears:

PS2KB Wakeup Select

This item allows you to select Hot Key or Password to wake-up the system by PS2
Keyboard. When select Password, please press ENTER key to change password
max 8 numbers.
Options: Hot key, Password.

PS2KB Wakeup form S3/S4/S5

This item allows you to set a Hot Key to wake-up the system by PS2 Keyboard from
S3/S4/S5 mode.
Options: Disabled, Ctrl+F1, Ctrl+F2, Ctrl+F3, Ctrl+F4, Ctrl+F5, Ctrl+F6, Ctrl+F7, Ctrl+F8,
Ctrl+F9, Ctrl+F10, Ctrl+F11, Ctrl+F12, Power, Wake, Any key.
Note: Power and Wake are Windows98 Keyboard button.

PS2MS Wakeup form S3/S4/S5

This item allows you to wake-up the system by PS2 Mouse from S3/S4/S5 mode.
Options: Enabled, Disabled.

Page 4-19

BIOS

USB Resume from S3

This item allows you to wake-up the system by USB device when you save the
computer power at S3.
Options: Enabled, Disabled.

PowerOn by PCI Card

An input signal form PME on the PCI card awakens the system from a soft off state.
Options: Enabled, Disabled.

Modem Ring Resume

When set to Enabled, any event occurring to the Modem Ring will awaken a system
which has been powered down.
Options: Enabled, Disabled.

RTC Alarm Resume

When set to Enable rtc alarm resume, you could set the date (of month) and timer
(hh:mm:ss), any event occurring at will awaken a system which has been powered
down.

Page 4-20

BIOS

4-6 PNP/PCI Configuration

This page lets the user to modify the PCI/ISA IRQ signals when various PCI cards
are inserted.

WARNING: Conflicting IRQs may cause the system to not find certain devices.

Figure 7: PNP/PCI Configuration Setup

Resources Controlled By

Determines what controls system PNP/PCI resources. The default is Auto (ESCD).

Manual: PNP Cards resources are controlled manually. The IRQ Resources field

becomes available and you can set which IRQ-X and DMA-X are
assigned to PCI and onboard devices.

Auto: BIOS assigns the interrupt resource automatically.

PCI/VGA Palette Snoop

This item is designed to overcome problems that may be caused by some nonstandard
VGA cards. This board includes a built-in VGA system that does not require palette
snooping therefore you must leave this item disabled.
Options: Enabled, Disabled.

Page 4-21

BIOS

Interrupt requests are shared as shown below:

ATNIBTNICTNIDTNI

1ICP

2ICP

3ICP

tolSPGA

79CA

1BSUdraobnO

2BSUdraobnO

3BSUdraobnO

0.2BSU

)lanoitpO(NALdraobnO

IMPORTANT!

When using PCI cards on shared IRQ slots, make sure its drivers support Shared
IRQ, or that the cards do not need IRQ assignments. IRQ conflicts between the two
PCI groups will make the system unstable or cards inoperable.

V

V

V

V

V

V

V

V

V

V

Page 4-22

BIOS

4-7 PC Health Status

Figure 8: PC Health Status

Show PC Health in POST

When this function is enabled the PC Health information is displayed during the
POST (Power On Self Test).
Options: Disabled, Enabled.

Current System/CPU Temperature

Displays the current system/CPU temperature.

Current CPU/Chassis FAN Speed

Displays the current speed of the CPU and chassis fan speed in RPMs.

Vcore (V)

The voltage level of the CPU(Vcore).

Vagp (V)

The voltage level of power supplied to AGP card.

3.3V, 5V, 12V, 5VSB

The voltage level of the switching power supply.

Vdimm (V)

The voltage level of the DRAM

VBAT (V)

The voltage level of the battery.

Page 4-23

BIOS

4-8 Power BIOS Features

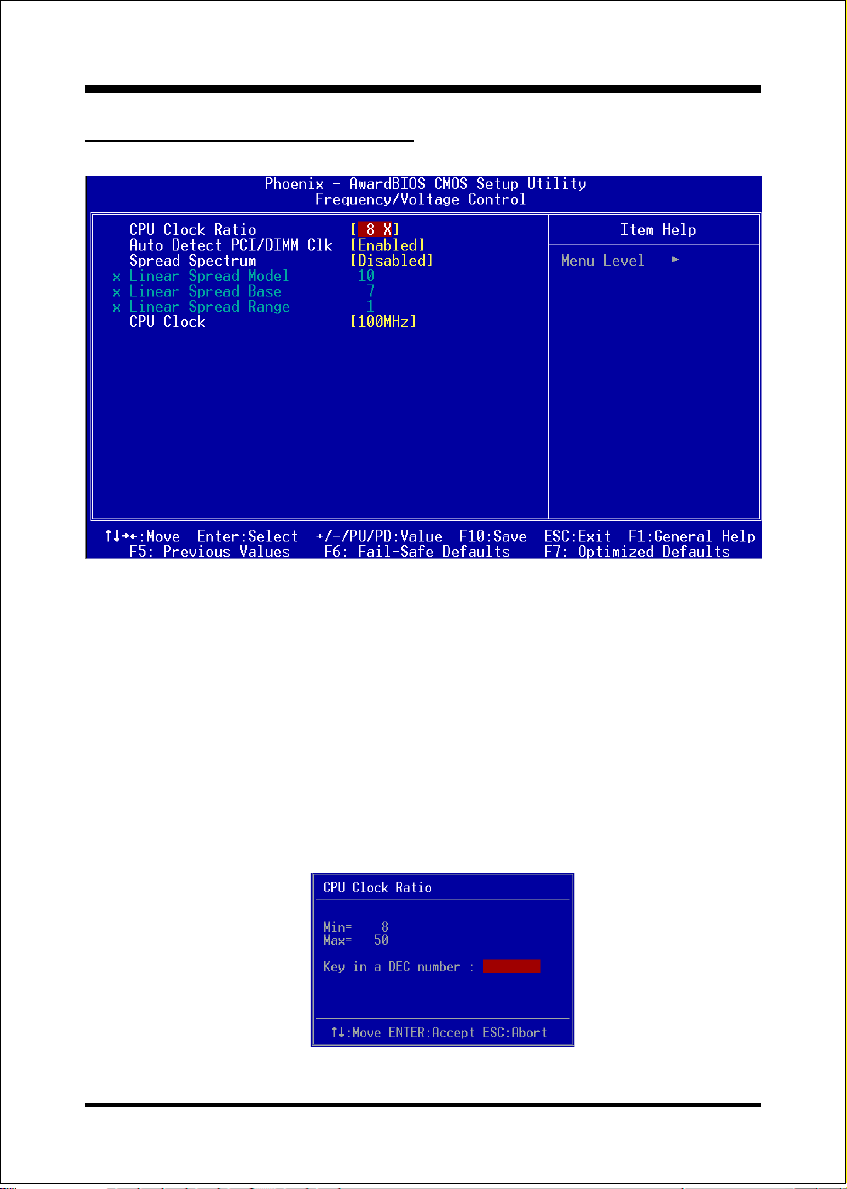

Figure 9: Frequency/Voltage Control

CPU Clock Ratio

Use this item to select a multiplier for the system front side bus (FSB) frequency.
The value of the multiplier must be set so that:

Multiplier x Front side Bus Frequency = CPU Clock Speed

For example, if you have a processor that is rated to run at 800 MHz and the
system is running a front side bus frequency of 100 MHz, you should select a
multiplier of 8 so that:

8 (Multiplier) x 100 MHz (front side bus) = 800 MHz (CPU clock)

Key in the DEC (decimal) number for the CPU Clock Ratio.

Page 4-24

BIOS

Auto Detect PCI/DIMM Clk

When enabled the mainboard automatically disables the clock source for a PCI/
DIMM slot which does not have a module in it, reducing EMI (ElectroMagnetic
Interference).
Options: Enabled, Disabled.

Spread Spectrum

If you enable spread spectrum, it can significantly reduce the EMI (ElectroMagnetic
Interference) generated by the system.
Options: Disabled, Enabeld.

CPU Clock

Enables you to set the CPU front side bus speed at increments of 1MHz step. The
default is 100 MHz. Press <Enter> to display the following screen:

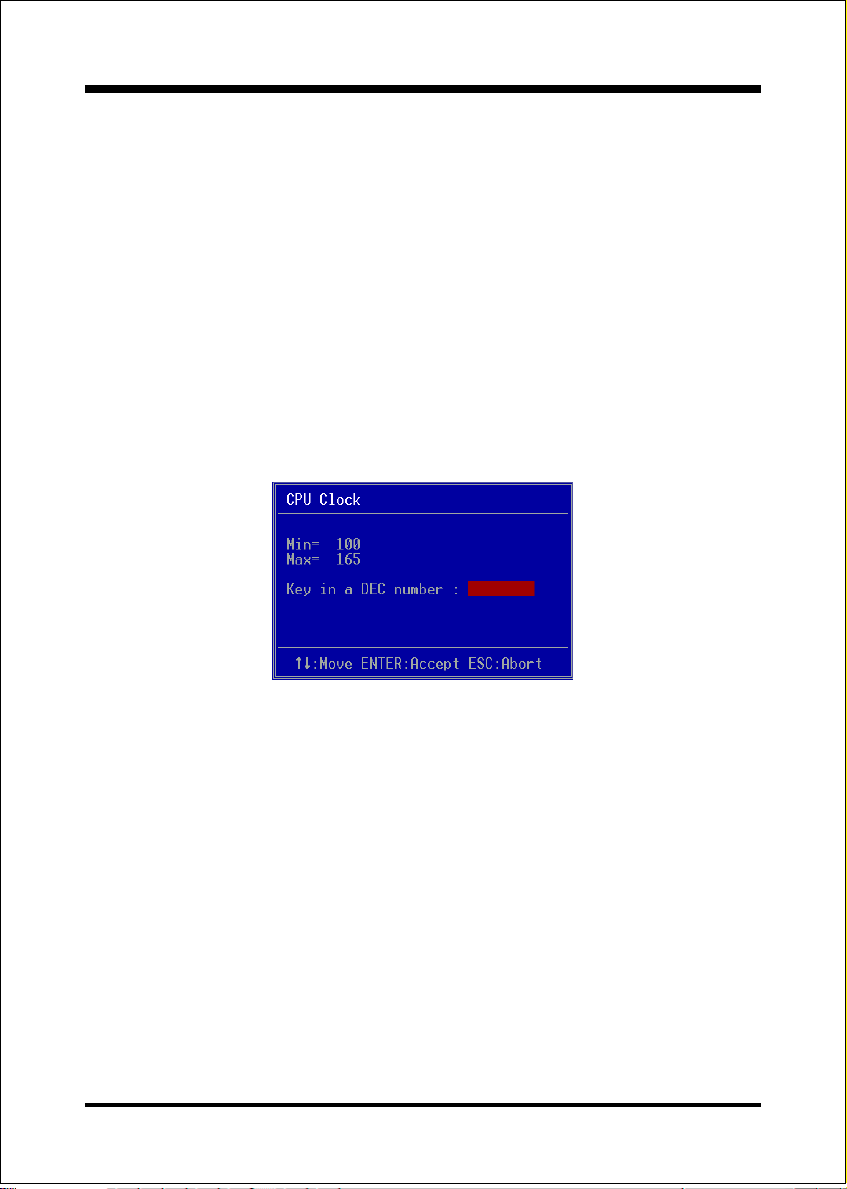

Key in the DEC (decimalism) number for the CPU clock.

Note: Overclocking failure will cause no display on monitor. At this instant,

press Insert key to revert back to the initial or default setting to boot
up your system.

Page 4-25

BIOS

4-9 Defaults Menu

Selecting Defaults from the main menu shows you two options which are de­scribed below

Load Fail-Safe Defaults

When you press <Enter> on this item you get a confirmation dialog box:

Load Fail-Safe Defaults (Y/N) ? N
Pressing Y loads the BIOS default values for the most stable, minimal-performance

system operations.

Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box:
Load Optimized Defaults (Y/N) ? N
Pressing Y loads the default values that are factory settings for optimal perfor-

mance system operations.

Page 4-26

BIOS

4-10 Supervisor/User Password Setting

You can set either supervisor or user password, or both. The differences between are:

supervisor password: full rights to enter and change the options of the setup menus.
user password: only enter but do not have the right to change the options

of the setup menus.
When you select this function, the following message will appear at the center of
the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The pass­word typed now will clear any previously entered password from CMOS memory. You
will be asked to confirm the password. Type the password again and press <Enter>.
You may also press <Esc> to abort the selection and not enter a password.
To disable a password, just press <Enter> when you are prompted to enter the
password. A message will confirm the password will be disabled. Once the password
is disabled, the system will boot and you can enter Setup freely.

PASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you
try to enter Setup. This prevents an unauthorized person from changing any part of
your system configuration.
Additionally, when a password is enabled, you can also require the BIOS to request a
password every time your system is rebooted. This would prevent unauthorized use
of your computer.
You can determine when the password is required within the BIOS Features Setup
Menu and its Security option. If the Security option is set to System, the password
will be required both at boot and at entry to Setup. If set to Setup, prompting only
occurs when trying to enter Setup.

Page 4-27

BIOS

4-11 Exiting BIOS

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

 Save to CMOS and EXIT (Y/N)? Y

Pressing Y stores the selections made in the menus in CMOS  a special section
of memory that stays on after you turn your system off. The next time you boot
your computer, the BIOS configures your system according to the Setup selections
stored in CMOS. After saving the values the system is restarted again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

 Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous
selections remain in effect. This exits the Setup utility and restarts your computer.

Page 4-28

Easy Driver Installation

VIA P4M266A SERIES

VIA SERVICE PACK 4IN1 DRIVER

C-MEDIA AUDIO DRIVER

VGA (ProSavage) DRIVER

VIA USB 2.0 DRIVER

Drivers Installation

Section 5

Driver Installation

(Optional)

VIA 6103 LAN DRIVER

DRIVER MANUAL

CD EXPLORER EXIT

Insert the bundled CD-disk, the main menu screen will appear. The main menu
displays buttons that link you to the supported drivers, utilities and software.

Step 1 : Click VIA SERIES PACK 4IN1 DRIVER to install chipset driver.

Step 2 : Click C-MEDIA AUDIO DRIVER to install audio driver.

Step 3 : Click VGA (ProSavage) DRIVER to install graphical driver.

Step 4 : Click USB V2.0 DRIVER  to install USB V2.0 driver.

Step 5 : Click VIA 6103 LAN DRIVER to install LAN driver. (Optional)

Page 5-1

Drivers Installation

C-Media Audio Configuation Brief GuideC-Media Audio Configuation Brief Guide

C-Media Audio Configuation Brief Guide

C-Media Audio Configuation Brief GuideC-Media Audio Configuation Brief Guide

Below is list brief guide of C-Media Audio Configuration. For more detailed
information, please refer to users manual in the attached CD.

You are able to access the control panel from two places:

a) The system tray in the right-bottom of your screen. You can click right button

of the mouse on it to get an audio-related pop-up menu as follows

b) In the Control Panel (Start=>Setting=>Control Panel), double-click CMI

Audio Config to open it.

Page 5-2

Drivers Installation

1. Speaker output:

When you open the 3D Audio Configuration, you will see the default Output
tab as the figure below. Speaker Output tab collects main setting/options for
analog output to speakers.

<2 channel mode>

<6 channel mode>

Page 5-3

Drivers Installation

2. S/PDIF:

C-Media driver supports digital S/PDIF output (Sony/Philips Digital InterFace,
developed by SONY/PHILIPS to provide a low-distortion digital data transfer
between audio devices). There may be an optical or coaxial connector for S/PDIF
on your system. When you select S/PDIF tab, you will see the setting page as the
figure below.

3. Volume Control:

C-Media driver provides the digital volume control for all 6 channels in 3D
Audio Configuration. You can regulate each volume to the speaker for current
playing digital sound sources. Its not effective for analog input sources.

Page 5-4

Drivers Installation

4. Microphone:

C-Media driver provides microphone setting in 3D Audio Configuration directly
for more convenience. You can control microphone options in the tab though
you can also reach them in Microsoft volume control.

5. Xear 3D:

C-Media driver now supports Xear 3D- 5.1 Virtual SPEAKER SHIFTER and
sound effects. Just click the left button in Xear 3D tab and then the new
friendly/fancy graphic user interface will pop up.

Click this

Page 5-5

Drivers Installation



Xear 3D - 5.1 Virtual SPEAKER SFIFTER:



The SPEAKER SHIFTER block provides an advanced, amazing and considerate
feature- dynamically adjustable multi-channel sound system no matter what
listening appliance you use and what application you are running. You do NOT
have to endure unbalanced speaker placement due to spatial limitation. You can
enjoy multi-channel surround sound with even an earphone or usual 2 speakers.



Xear 3D - Sound Effect:



Xear 3D Advanced Program provides another functional block- Sound Effect.
You can create a different feeling for your music including 27 Environment
Effects, Environment Size & 10-Band Equalizer with 12 pre-set models.

Page 5-6

Drivers Installation



Xear 3D - Multi-channel Music Demo:



This demo program provides each speaker testing and three 5.1-channel music.
You can get feeling about 5.1-channel surround music and use it to test
SPEAKER SHIFTER, too. All demo music/sound here will repeat playing if you
dont press Stop button.



Xear 3D - Play3D Demo:



Xear 3D Advanced Program also provides interesting Play3D demo programs as
below. After installing the program with setup program, you will find the
program from the path: Start->Programs->C-Media 3D Audio->Play3D Demo.

Page 5-7

Drivers Installation

6. Information :

There is a C-Media audio-related Information tab in 3D Audio Configuration.
You can get a whole picture about the audio chip, driver version, 3D Audio
Engine, Microsoft DirectX Version, and Configuration Version itself.

Page 5-8

Appendix

Appendix A

A-1 Update Your System BIOS

Download the xxxxx.EXE file corresponding to your model from our website to an
empty directory on your hard disk or floppy. Run the downloaded xxxxx.EXE file and
it will self extract. Copy these extracted files to a bootable DOS floppy disk.

Note: The DOS floppy disk should contain NO device drivers or other programs.

1. Type A:\AWDFLASH and press <Enter> Key.

2. You will see the following setup screen.

3. Please key in the xxxxx.bin BIOS file name.

XXXX

4. If you want to save the previous BIOS data to the diskette, please key in [Y],

otherwise please key in [N].

XXXX

XXXXX

xxxxx.bin

A-1

Appendix

5. Key in File Name to save previous BIOS to file.

XXXX

XXXXX

xxxxx.bin
xxxxx.bin

6. To confirm and proceed, please key in [Y] to start the programming.

XXXX

XXXXX

xxxxx.bin

xxxxx.bin

7. The BIOS update is finished.

A-2

F1 : Reset

XXXX

XXXXX

xxxxx.bin

F10 : Exit

Appendix

Appendix B

B-1 EEPROM BIOS Remover

Do not remove the BIOS chip, unless instructed by a technician and only with a

PLCC IC extractor tool.

The BIOS socket is fragile may be damaged if an improper method to

replace the BIOS chip is applied.

B-1

Appendix

Page Left Blank

B-2

Appendix

Appendix C

C-1 GHOST 7 Quick User’s Guide (Optional)

Installation is very easy. You only need to copy the Ghost7 folder or Ghost.exe to
your hard disk.

Main Menu

Description of Menu

Ghost clones and backs up Disk and Partition.

In which Disk indicates hard disk options

Partition indicates partition options
Check indicates check options

Disk

C-1

Appendix

There are 3 hard disk functions:

1. Disk To Disk (disk cloning)

2. Disk To Image (disk backup)

3. Disk From Image (restore backup)

Important!

1. To use this function, the system must have at least 2 disks. Press the Tab key to

move the cursor.

2. When restoring to a destination disk, all data in that disk will be completely

destroyed.

Disk To Disk (Disk Cloning)

1. Select the location of the Source drive.

2. Select the location of the Destination drive.

3. When cloning a disk or restoring the backup, set the required partition size as

shown in the following figure.

4. Click OK to display the following confirmation screen. Select Yes to start.

C-2

Appendix

Disk To Image (Disk Backup)

1. Select the location of the Source drive.

2. Select the location for storing the backup file.

3. Click OK to display the following confirmation screen. Select Yes to start.

Disk From Image(Restore Backup)

1. Select the Restoring file.

C-3

Appendix

2. Select the Destination drive of the disk to be restored.

3. When restoring disk backup, set the required partition size as shown in the

following figure.

4. Click OK to display the following confirmation screen. Select Yes to start.

Partition

C-4

Appendix

There are 3 partition functions:

1. Partition To Partition (partition cloning)

2. Partition To Image (partition backup)

3. Partition From Image (restore partition)

Partition To Partition (Partition Cloning)

The basic unit for partition cloning is a partition. Refer to disk cloning for the
operating method.

Partition To Image (Partition Backup)

1. Select the disk to be backed up.

2. Select the first partition to be backed up. This is usually where the operating

system and programs are stored.

3. Select the path and file name to store the backup file.

C-5

Appendix

4. Is the file compressed? There are 3 options:

(1) No: do not compress data during backup
(2) Fast: Small volume compression
(3) High: high ratio compression. File can be compressed to its minimum, but

requiring longer execution time.

5. Select Yes to start performing backup.

Partition From Image (Restore Partition)

1. Select the backup file to be restored.

2. Select the source partition.

C-6

3. Select the disk to be restored.

4. Select the partition to be restored.

5. Select Yes to start restoring.

Appendix

Check

This function is to check possible error caused by defective FAT or
track during backup or restoring.

C-7

Appendix

How to Reinstall Windows in 2 Minutes

This chapter guides you how to setup your computer properly and, if
necessary, reinstall Windows in 2 minutes. Ghost provides different

methods to complete this task. The following two sections explain how to
create an emergency Recover Floppy and Recover CD:

Emergency Recover Floppy

Divide a hard disk into two partitions. The first partition is to store the
operating system and application programs. The second partition is to back
up the operating system and data. The size of the partition can be
determined according to the backup requirements. For example, the
Windows operating system needs 200MB of hard disk space, Plus
complete Office programs require 360MB. The remaining space can be
used to store data.

After installing Windows, use Ghost to create a backup area for the system
and to store the file (Image file) in drive D. The file is named Original.gho.
Then, create a recover floppy disk containing:

Bootable files (Command.com, Io.sys, and MSDOS.SYS )

Config.sys (configuration setup file)

Autoexec.bat (auto-execution batch file)

Ghost.exe (Ghost execution file)

There are two ways to create the content of the recover floppy for
restoring:

(1)To load Windows automatically after booting, store the Autoexec.

bat file with a command line:
Ghost.exe clone, mode=pload, src=d:\original.gho:2,dst=1:1 -fx -sure -rb
Command Description: Runs the restore function automatically with

the Image File. Stored in drive D. After execution, it will exit Ghost
and boots the system.

Refer to the [Introducing Ghosts Functions] for details.

C-8

Appendix

(2) After booting, the screen displays the Menu. Select Backup or Restore:

Since the user may install other applications in the future, he/she may
alter Autoexec.bat file to back up or restore the user-defined Image
file as follows:

BackupBackup

Backup

BackupBackup

))

)

))

Back up Windows and application programs as a file (Recent.
gho). Command is:

Ghost clone,mode=pdump,src=1:1,dst=d:\Recent.gho -fx ­sure -rb

RestoreRestore

Restore

RestoreRestore

))

)

))

Restore types include [General Windows] and [Windows and
Application Programs]. If you select [General Windows],

the system is restored to the general Windows operation
condition. The command is:

Ghost.exe -clone,mode=pload,src=d:\Original.gho,dst=1:1 -fx

-sure -rb
If you select [Windows and Application Programs], the latest

backup file (Recent.gho) is restored, skipping the installation
and setup of application programs.

For description of related parameters, refer to [Introducing Ghosts
Functions].

For more information about menu design, refer to Config.sys and
Autoexec.bat under /Menu in the CD. You can also create a backup CD
containing Ghost.exe and these two files.

C-9

Appendix

Recover CD

The following is a simple guide to create a recover CD:

1. First, create a recover floppy disk contains the following with any
copy program such as Easy CD Create (Note 2) :

Bootable files (Command.com and Io.sys and MSDOS.SYS)
Config.sys (Configuration setup file)
Autoexec.bat (Auto-execution batch file)
Mscdex.exe (CD-Rom execution file)
Ghost.exe (Ghost execution file)
Oakcdrom.sys (ATAPI CD-ROM compatible driver)

The content of Config.sys is:

DEVICE=Oakcdrom.sys /d:idecd001

The content of Autoexec.bat includes:

MSCDEX.EXE /D:IDECD001 /L:Z
Ghost.exe clone,mode=load,src=z:\original.gho,dst=1 -sure -rb

2. Write the backup image file (original.gho) of the entire hard disk or
partition into the recover CD. Use the Recover CD to boot up the
system and restore the backup files automatically.

For description of related parameters, refer to [Introducing Ghosts
Functions].

Note: For more details about copy the creation program and method to create a

recover CD, please refer to the releated software and its associated
operating manual.

Note: Ghost may be executed in interactive or in batch mode. Most of the Ghost

switches are used to assist in batch mode operation. To list switches, type
ghost.exe -h.

C-10
