T able of Contents

Section 1 Introduction

Components Checklist ........................................1-1

Overview

AMD DuronTM & AthlonTM Processors .............1-2

Accelerated Graphics Port..................................1-3

Ultra ATA66/100 .................................................1-3

Hardware Monitoring .......................................... 1-3

Mainboard Form-Factor ...................................... 1-4

I/O Shield Connector .......................................... 1-5

Power-On/Off (Remote).....................................1-5

System Block Diagram........................................1 -6

Section 2 Features

Mainboard Features ............................................. 2-1

Section 3 Installation

Mainboard Detailed Layout................................. 3-2

Easy Installation Procedure

CPU Insertion ...................................................... 3-3

Jumper Settings ...................................................3-5

System Memory Configuration ..........................3-6

Device Connectors ..............................................3-8

STR (Suspend To RAM) Function....................... 3-11

Section 4 Award BIOS Setup

BIOS Instructions................................................. 4-1

Standard CMOS Setup ......................................... 4-2

Advanced BIOS Features..................................... 4-3

Advanced Chipset Features ................................. 4-7

Page

Integrated Peripherals ......................................... 4-12

Power Management Setup................................... 4-17

PNP/PCI Configuration Setup ............................4-21

PC Health Status ..................................................4-23

Frequency/Voltage Control ................................. 4-25

Defaults Menu .....................................................4-26

Supervisor/User Password Setting .....................4-27

Exit Selecting ...................................................... 4-28

Section 5 Driver Installation

Easy Driver Installation ....................................... 5-1

Appendix

Appendix A

GHOST 5.1/6.03 Quick User’s Guide .................... A-1

Appendix B

POST Codes......................................................... B -1

Appendix C

EEPROM BIOS Remover ...................................C-1

Appendix D

Update Your System BIOS .................................. D-1

Introduction

Page 1-1

Section 1

INTRODUCTION

Components Checklist

9 A. (1) Mainboard

9 B. (1) User’s manual

9 C. (1) Floppy ribbon cable

9 D . ( 1 ) AT A-66/100 Hard drive ribbon cable

9 E . (1 ) USB Cable

9 F. ( 1) Driver and utility

9 G. ( 1) ATA-33 Hard drive ribbon cable

USER’S

MANUAL

Introduction

Page 1-2

Over view

AMD DuronTM & AthlonTM Processors

The AMD AthlonTM is a seventh-generation micro architecture with an integrated L2 cache, which is powerful enough to support the bandwidth requirements of a large range of applications, hardware, graphics, and memory technologies. These processors implement advanced design techniques such as:

Socket A (PGA 462) 200/266MHz system interface based on the Alpha™ EV6 bus protocol. Three out-of-order, superscalar, pipelined Multimedia Units. Three out-of-order, superscaler, pipelined Integer Units. Fixed-sized internal instruction formats (MacroOPs). 72-entry Instruction Control Units. AMD enhanced 3DNow!™ technology L1 and L2 caches. Dynamic branch prediction.

Socket A is the name for AMD’s new socketed interface designed to support both AMD DuronTM and AMD AthlonTM processors. This innovation is made possible by integrating the L2 cache memory on chip with the processor. Socket A will help enable smaller enclosures, and ultimately result in a wider variety of solutions in the market.

The AMD DuronTM & AthlonTM processors in the Socket A format continue to deliver the ultimate performance for cutting-edge applications. Both bring to desktop systems running industry-standard x86 software superscalar RISC performance. Being provided in the Socket A format they are the world’s most powerful x86 processors. They easily deliver the highest integer, floating-point, and 3D multimedia performance for applications running on x86 platforms around.

Introduction

Page 1-3

The AMD DuronTM processor is derived from the AMD AthlonTM processor core. It features full-speed, on-chip cache memory, a 200MHz front side system bus, and enhanced 3DNow!™ technology. Although both processors are related, there are key differences. The AMD AthlonTM processor is targeted at the performance segment, and as such will have more cache memory and higher clock speeds.

Accelerated Graphics Port (AGP or A.G.P.)

Typically, 3D graphics rendering requires a tremendous amount of memory, and demands ever increasing throughput speed as well. As 3D products for the personal computer become more and more popular, these demands will only increase. This will cause a rise in costs for both end users and manufacturers. Lowering these costs as well as improving performance is the primary motivation behind AGP. By providing a massive increase in the bandwidth available between the video card and the processor, it will assist in relieving some of these pressures for quite sometime.

Ultra ATA/66/100

The board provides two channel (one channel is optional) Ultra ATA/66/100 Bus Master IDE controller, that support Ultra ATA/66/100 protocols, perfect for such demanding applications as real-time video, multimedia, and high performance operating system. A new IDE cable is required for Ultra ATA/66/100. This cable is an 80 conductor cable; however the connectors are, of course, backwards compatible with ATA/33.

Hardware Monitoring

Hardware monitoring allows you to monitor various aspects of your systems operations and status. The features include CPU temperature, voltage and RPM of fan.

Introduction

Page 1-4

Mainboard Form-Factor

The board is designed with ATX form factor - the new industry standard of chassis. ATX form factor is essentially a Baby-AT baseboard rotated 90 degrees within the chassis enclosure and a new mounting configuration for the power supply. With these changes the processor is relocated away from the expansion slots, allowing them all to hold full length add-in cards. ATX defines a double height aperture to the rear of the chassis which can be used to host a wide range of onboard I/O. Only the size and position of this aperture is defined, allowing PC manufacturers to add new I/O features (e.g.; TV input, TV output, joystick, modem, LAN, etc.) to systems. This will help systems integrators differentiate their products in the marketplace, and better meet your needs.

• Smaller size promotes a smaller system size.

• I/O shield does not need to be retooled in an ATX 2.01 or later. The mainboard should be used in an ATX 2.01 (or later) compliant case.

• A smaller power supply can be used. High integration on mainboard reduces the system costs.

PCI slots

Expandable I/O

5 1/4"

Bay

3 1/2"

Bay

Figure 2: Summary of ATX chassis features

CPU

Single chassis fan for system

ATX Power Supply

ATX power connector

Floppy / IDE connectors

AGP slot

Introduction

Page 1-5

Power-On/Off (Remote)

The board has a single 20-pin connector for ATX power supplies. For ATX power supplies that support the Remote On/Off feature, this should be connected to the systems front panel for system Power On/Off button. The systems power On/Off button should be a momentary button that is normally open.

The board has been designed with “Soft Off" functions. You can turn Off the system from one of two sources: The first is the front panel Power On/Off button, and the other is the "Soft Off" function (coming from the M/B’s onboard circuit controller) that can be controlled by the operating system such asWindows® 95/98/SE/ME or Windows®2000.

Figure 4: Simple ATX Power ON/OFF Controller

J 3

ATX POWER SUPPLY

Case (chassis) Power ON/OFF button (J 3)

I/O Shield Connector

The board is equipped with an I/O back panel. Please use the appropriate I/O shield (figure 3).

Figure 3: I/O back panel layout

MIC

parallel port

Joystick/Midi port

USB port

COM1

COM2

Speaker

Line_in

PS/2 Mouse

PS/2

KEYBOARD

Introduction

Page 1-6

Figure 5: System Block Diagram

System Block Diagram

PAC

PCI Bridge

and memory

controller

VT8366/VT8366A

266/200MHz

DDR SDRAM

133/100MHz

66MHz

AMD

Socket A

Processors

VT8233

I/O Bridge

USB 0,1 USB 2,3

USB 4,5

Mouse Keyboard

LPC

W83697

Serial Port 1 Serial Port 2 LPT Port FDD

IDE 2

IDE 1

HDD

(A TA-66/100)

V_Link

MA [0:13]

MDS [0:7]

MD [0:63]

Features

Page 2-1

Section 2

FEATURES

Mainboard Features:





PROCESSOR

- AMD Athlon TM, Duron

Processors, Socket A, operating at 600MHz ~

1.4GHz





CHIPSET

- VIA KT266 or KT266A AGPset (VT8366 or VT8366A + VT8233)





DRAM MODULE

- 184pin DDR DIMM x 3 for PC1600/2100 Memory

- DRAM Size: 64MB to 1.5GB





EXP ANSION SLOT

- PCI x 6, 4X AGP x 1





ONBOARD I/O

Winbond 83697HF LPC I/O integrated with

- FDD, Parallel and Serial, Fast IR, Game Port





ONBOARD PCI / IDE

- PCI Bus IDE Port with PIO / Ultra DMA-100 x 2 (Up to 4 Devices)





I/O CONNECTOR

- PS/2 Mouse and PS/2 style Keyboard

- COM1, COM2, Printer, Audio-in/out, MIC & Game Port connectors





USB

- USB connector x 6 (4 for Opt.)

Features

Page 2-2





BIOS

- Award Plug & Play BIOS





Built-in AC97 Digital Audio (by VIA VT8233)

- Dual full-duplex Direct Sound channels

- H/W Sound Blaster Pro for DOS legacy compatibility

- FM synthesis for legacy compatibility

- Supports game and MIDI port





EXTENDED FUNCTION

- Supports Hardware Monitoring Function

- Supports exclusive KBPO (KeyBoard Power On)

- Supports CPU Clock settings via BIOS

- Supports CPU Vcore Voltage setting via BIOS

- Supports VDIMM Voltage setting via BIOS

- Supports STR (Suspend T o RAM) power saving Function

- Supports Wake-On-LAN Function

- Supports Wake-On-Modem Function

- P80P Debug (POST) Card onboard design with 7-Segment display





FORM FACT OR

- 305mm x 245mm A TX Size

Installation

Page 3-1

Section 3

INSTALLATION

Installation

Page 3-2

Figure 1

Mainboard Detailed Layout

Installation

Page 3-3

Easy Installation Procedure

The following must be completed before powering on your new system:

3-1. CPU Insertion 3-2. Jumper Settings 3-3. System memory Configuration 3-4. Device Connectors

3-5. STR Function

Section 3-1 CPU Insertion

CPU Insertion: (use AMD AthlonTM as reference)

Step 1

Open the socket by raising the actuation lever.

Figure 2

Step 2

Insert the processor. Ensure proper pin 1 orientation by aligning

the FC-PGA corner marking with the socket corner closest to the actuation arm tip. The pin field is keyed to prevent mis-oriented insertion. Don’t force processor into socket. If it does not go in easily, check for mis-orientation and debris. Make sure the processor is fully inserted into the socket on all sides.

Figure 3

Installation

Page 3-4

Step 3

Close the socket by lowering and locking the actuation lever.

Figure 4

Figure 5

Step 4

Thermal compound and qualified heatsink recommended by AMD are a must to avoid CPU overheat damage. For more information about installing your CPU, please refer to the AMD website article “Socket A AMD processor and Heatsink Installation Guide” http://www.amd.com/products/cpg/athlon/pdf/23986.pdf.

Installation

Page 3-5

JCK1

CPU Host Clock Select = 1-2 100MHz (Default) = 2-3 133MHz

LED2 LED1

Debug card on board (Please refer to Appendix B for POST codes)

Section 3-3 Jumper Settings

The mainboard was designed with very few jumpers to make your installation faster and easier.

JBAT1

CMOS Clear = 1-2 Normal (Default) = 2-3 Clear CMOS

Installation

Page 3-6

Section 3-4 System Memory Configuration

Memory Layout

The board supports (3) PC1600/2100 184-pin DIMMs (Dual In-line Memory Module). The DIMMs is for DDR SDRAM (Double-Data-Rate Synchronous DRAM) only.

Figure 6 and Table 1 show several possible memory configurations.

DDR DIMM 1

DDR DIMM 2 DDR DIMM 3

Bank 0/1

DDR Synchronous DRAM

Bank 2/3 Bank 4/5

yromeMlatoT

1MMIDRDD

)1/0knaB(

2MMIDRDD

)3/2knaB(

3MMIDRDD

)5/4knaB(

BM215= mumixaM

*MARDSRDD

,BM652,BM821,BM46

1XBM215

enoNenoN

BG1=

mumixaM

*MARDSRDD

,BM652,BM821,BM46

1XBM215

*MARDSRDD

,BM652,BM821,BM46

1XBM215

enoN

BG5.1=

mumixaM

*MARDSRDD

,BM652,BM821,BM46

1XBM215

*MARDSRDD

,BM652,BM821,BM46

1XBM215

*MARDSRDD

,BM652,BM821,BM46

1XBM215

Figure 6

Table 1

* DDR SDRAM supports 64, 128, 256, 512MB DIMM modules. * We recommend using PC1600 Memory Module only for front-side bus

100MHz.

* DO NOT MIX the unbuffered and registered DDR SDRAM on DIMM1 ,

DIMM2 and DIMM3 socket.

* This mainboard doesn’t support ECC memory module.

* Supports PC1600 modules with 2-2-2 timing. * Supports PC2100 modules with 2-2-2 timing.

Installation

Page 3-7

DIMM Module Installation

Figure 7 displays the notch marks and what they should look like on your DDR DIMM memory module.

DIMMs have 184-pins and one notche that will match with the onboard DDR DIMM socket. DIMM modules are installed by placing the chip firmly into the socket at a 90 degree angle and pressing straight down (figure 8) until it fits tightly into the DIMM socket (figure 9).

Figure 7

Figure 9

DIMM Module clip after installation

To remove the DIMM module simply press down both of the white clips on either side and the module will be released from the socket.

Figure 8

DIMM Module clip before installation

CENTER KEY ZONE (2.5 V DRAM)

Installation

Page 3-8

Section 3-5 Device Connectors

Figure 10

J2,J3: Chassis Panel Connector

• Power_LED, Speaker, Reset, Power ON/Off, Turbo LED, HDD LED, IR Conn.,

F AN1: CPU Fan

• A plug-in for the CPU Fan Power

F AN2: Chassis Fan

• A plug-in for the chassis Fan Power

F AN3: Power Fan

• A plug-in for the Power Supply Fan Power

WOL1: WOL (Wake On LAN) Connector WOM1:WOM (Wake On Modem) Connector

IDE1: Ultra AT A-100 Primary IDE Connector (Blue Color) IDE2: Ultra AT A-100 Secondary IDE Connector (Blue Color)

FDD1: Floppy Controller Connector (Black Color) PW1: ATX Power Connector

• 20-pin power connector

CD1: CD Audio_IN Connector

• Pin1(CD_IN_Left), Pin2/Pin3(CD_Reference), Pin4(CD_IN_Right)

MIC

parallel port

Joystick/Midi port

USB port

COM1

COM2

Speaker

Line_in

PS/2 Mouse

PS/2

KEYBOARD

Installation

Page 3-9

AUX1: Auxiliary Line_IN Connector

• Pin1(Left Line_IN), Pin2/Pin3(GND), Pin4(Right Line-IN)

MODEM1: Telephony Connector for Modem audio output.

• Pin1(Audio_in), Pin2/Pin3(GND), Pin4(Mic-out to Modem)

#NIProloceriWemaNlangiStnemmoC 1deRccVrewoPelbaC 2etihWataD-ataD 3neerGataD+ataD

4kcalBdnuorGdnuorGelbaC 5kcalBdnuorGdnuorGesaC 6kcalBdnuorGdnuorGesaC

7kcalBdnuorGdnuorGelbaC 8neerGataD+ataD 9etihWataD-ataD

01deRccVrewoPelbaC

USB port header pin descriptions.

VCC

GND

-Data

+Data

USB2/3:USB port header pins for adding four additional USB ports.

Installation

Page 3-10

Device Connectors (continued)

Reset - Closed to restart system.

(This is connected to the power button on the case. Using the Soft-Off by Pwr-BTTN feature, you can choose either Instant Off (turns system off immediately), or 4 sec delay (you need to push the button down for 4 seconds before the system turns off). When the system is in 4 sec delay mode, suspend mode is enabled by pushing the button momentarily.)

Turbo LED indicator - LED ON when higher speed is selected

IDE LED indicator - LED ON when Onboard PCI IDE Hard disks is

activate

IR Connector

1. VCC 4. GND

2. NC 5. IRTX

3. IRRX

Power On/Off

Speaker -

Connect to the system's speaker for beeping

1. Speaker 3. GND

2. N/C 4. GND

Power LED - Power LED connector

1. Power LED(+) 4. NC

2. N/C 5. GND

3. GND

Installation

Page 3-11

3-6 STR (Suspend To RAM) Function

The board supports the STR power management state by maintaining the appropriate states on the DDR SDRAM interface signals. The power source must be kept alive to the DDR SDRAM during STR (ACPI S3). Advanced Configuration Power Interface (ACPI) provides more Energy Saving Features for operating systems that supporting Instant ON and QuickStartTM function.

1. To enable the ACPI function and use the STR functionally to save your system energy, you are recommended to confirm the following requirements:

a. Please do install all ACPI qualified add-on cards such as AGP, LAN,

Modem cards.

b. In BIOS, please select “ ACPI function: Enable” and “ACPI Suspend Type:

S3(STR)” in the Power Management Setup menu.

c. Then, please install the Windows® 98SE/ME or Windows® 2000.

d. Restart your system.

e. Getting in to the “Advanced” of the Power Management icon of Control

Panel, and selecting the “Stand By” in the Power Buttons.

2. Getting start with STR function, please click the START button and choose Shut Down. Then, select the Stand By option in the Shut Down Windows box to get into STR mode.

Here are the differences between STR power saving mode and Green (or Suspend) mode:

a. It is the most advanced Power Management mode

b. It cuts all the power supplied to peripherals except to Memory - max.

power saving

c. It saves and keeps all on-screen data including any executed applications to

DDR SDRAM.

Installation

Page 3-12

d. You must push the Power button connected with onboard J3 pin to wake up

you system (not to click to mouse or press keyboard to wake up the system).

Just pushing Power button, your system will quickly back to the last screen for you.

The “LED Indicator for ACPI Status” table shown below will guide you and give you a reference for ACPI status on this mainboard.

ACPI Onboard’s LED Status Indicator Table

Status

Onboard’s

LED

Location

Plug in the ATX

Power Core

Power ON

J3(PW-ON)

Green Mode

(S1)

STR (S3)

Shutdown

(Soft-OFF)

(S5)

LED3

(Red LED)

OFF ON ON ON OFF

PW_LED

OFF ON Blinking Blinking OFF

BIOS

Page 4-1

Section 4

AWARD BIOS SETUP

Main Menu

Award’s ROM BIOS provides a built-in Setup program which allows user to modify the basic system configuration and hardware parameters. The modified data will be stored in a battery-backed CMOS, so that data will be retained even when the power is turned off. In general, the information saved in the CMOS RAM will stay unchanged unless there is a configuration change in the system, such as hard drive replacement or a device is added.

It is possible for the CMOS battery to fail, this will cause data loss in the CMOS only. If this does happen you will need to reconfigure your BIOS settings.

To enter the Setup Program :

Power on the computer and press the <Del> key immediately, this will bring you into the BIOS CMOS SETUP UTILITY.

Figure 1: CMOS Setup Utility

BIOS

Page 4-2

The menu displays all the major selection items. Select the item you need to reconfigure. The selection is made by moving the cursor (press any direction key ) to the item and pressing the ‘Enter’ key. An on-line help message is displayed at the bottom of the screen as the cursor is moved to various items which provides a better understanding of each function. When a selection is made, the menu of the selected item will appear so that the user can modify associated configuration parameters.

4-1 Standard CMOS Setup

Choose “Standard CMOS Setup” in the CMOS SETUP UTILITY Menu (Figure 2). The Standard CMOS Setup allows the user to configure system settings such as the current date and time, type of hard disk drive installed, floppy drive type, and display type. Memory size is auto-detected by the BIOS and displayed for your reference. When a field is highlighted (use direction keys to move the cursor and the <Enter> key to select), the entries in the field can be changed by pressing the <PgDn> or the <PgUp> key.

Figure 2: Standard CMOS Setup

BIOS

Page 4-3

NOTE: If the hard disk Primary Master/Slave and Secondary Master/

Slave are set to Auto, then the hard disk size and model will be auto-detected.

NOTE: The “Halt On:” field is used to determine when to halt the system

by the BIOS if an error occurs.

NOTE: Floppy 3 Mode support is a mode used to support a special 3.5”

drive used in Japan. This is a 3.5” disk that stores only 1.2 MB, the default setting for this is disabled.

4-2 Advanced BIOS Fea tures

Selecting the “BIOS FEATURES SETUP” option in the CMOS SETUP UTILITY menu allows users to change system related parameters in the displayed menu. This menu shows all of the manufacturer’s default values for the board.

Pressing the [F1] key will display a help message for the selected item.

Figure 3: BIOS Features Setup

BIOS

Page 4-4

Virus Warning: During and after the system boots up, any attempt to write to the boot sector or partition table of the hard disk drive will halt the system and an error message will appear.

You should then run an anti-virus program to locate the virus. Keep in mind that this feature protects only the boot sector, not the entire hard drive. The default value is Disabled.

Enabled: Activates automatically when the system boots up causing a warning

message to appear when anything attempts to access the boot sector.

Disabled: No warning message will appear when anything attempts to access the

boot sector.

Note: Many disk diagnostic programs that access the boot sector table can

trigger the virus warning message. If you plan to run such a program, we recommend that you first disable the virus warning.

CPU Internal Cache: This controls the status of the processor’s internal cache area. The default is Enabled. Enabled: This activates the processor’s internal cache thereby increasing

performance.

Disabled: This deactivates the processor’s internal cache thereby lowering

performance.

External (L2) Cache: This controls the status of the external (L2) cache area. The default is Enabled.

Enabled: This activates the CPU’ s L2 cache thereby increasing performance. Disabled: This deactivates the CPU’s L2 cache thereby lowering performance.

CPU L2 Cache ECC Checking: This control if the CPU’s L2 Cache will support

Error Checking and Correcting (ECC). The default is Disabled. Enabled : Enables ECC support for the CPU’s L2 cache. Performance will decrease

2% ~ 4%.

Disabled: Disables ECC support for the CPU’s L2 cache.

Quick Power On Self Test: This category speeds up the Power On Self Test

(POST). The default is Enabled.

Enabled: This setting will shorten or skip of the items checked during POST. Disabled: Normal POST.

BIOS

Page 4-5

First /Second/Third/Other Boot Device: The BIOS attempts to load the operating system from the devices in the sequence selected in these items. The choice: Floppy, LS120, HDD-0, SCSI, CDROM, HDD-1, HDD-2, HDD-3, ZIP100, USB-FDD, USB-ZIP, USB-CDROM, USB-HDD, LAN, Disabled.

Swap Floppy Drive: This will swap your physical drive letters A & B if you are using two floppy disks. The default is Disabled.

Enabled: Floppy A & B will be swapped under the O/S. Disabled: Floppy A & B will be not swapped.

Boot Up Floppy Seek: During Power-On-Self-Test (POST), BIOS will deter-

mine if the floppy disk drive installed is 40 or 80 tracks. Only 360K type is 40 tracks while 760K, 1.2MB and 1.44MB are all 80 tracks. The default is Enabled.

Enabled: The BIOS will search the floppy disk drive to determine if it is 40 or

80 tracks.

Disabled: The BIOS will not search for the type of floppy disk drive by track

number.

Note: BIOS can not tell the difference between 720K, 1.2MB and 1.44MB

drive types as they are all 80 tracks.

Boot Up NumLock Status: This controls the state of the NumLock key when the system boots. The default is On.

On: The keypad acts as a 10-key pad. Off: The keypad acts like the cursor keys.

Gate A20 Option: This refers to the way the system addresses memory above

1MB (extended memory). The default is Normal. Normal: The A20 signal is controlled by the keyboard controller or chipset

hardware.

Fast: The A20 signal is controlled by Port 92 or chipset specific method.

Typematic Rate Setting: This determines the keystrokes repeat rate.

The default is Disabled.

Enabled: Allows typematic rate and typematic delay programming. Disabled: The typematic rate and typematic delay will be controlled by the

keyboard controller in your system.

BIOS

Page 4-6

Typematic Rate (Chars/Sec): This is the number of characters that will be repeated by a keyboard press. The default is 6.

6: 6 characters per second. 8: 8 characters per second. 10: 10 characters per second. 12: 12 characters per second. 15: 15 characters per second. 20: 20 characters per second. 24: 24 characters per second. 30: 30 characters per second.

Typematic Delay (msec): This setting controls the time between the first and

the second character displayed by typematic auto-repeat. The default is 250. The Choice: 250, 500, 750, 1000 msec.

Security Option: This category allows you to limit access to the System and Setup, or just to Setup. The default is Setup. System: The system will not boot and the access to Setup will be denied if the

correct password is not entered at the prompt.

Setup: The system will boot; but the access to Setup will be denied if the

incorrect password is not entered at the prompt.

OS Select For DRAM > 64MB: Some operating systems require special handling. Use this option only if your system has greater than 64MB of memory. The default is Non-OS2. OS2: Select this if you are running the OS/2 operating system with greater

than 64MB of RAM.

Non-OS2: Select this for all other operating systems and configurations.

BIOS

Page 4-7

DRAM Clock/Drive Control

4-3 Advanced Chipset Features

Choose the “CHIPSET FEATURES SETUP” in the CMOS SETUP UTILITY menu to display following menu.

Figure 4: Chipset Features Setup

100MHz 133MHz

BIOS

Page 4-8

System Performance : This item will help you to configure your system performance quickly and easily. There are four selections. When a selection is mode, the other related items will automatically vary values. The Choice: Normal, Fast, Fastest, Turbo.

Note: If you select the higher performance, compatibility problem could be

occurred.

Current FSB Frequency: CPU clock frequency information. (No option/ Display only). Current DRAM Frequency: DRAM frequency information. (No option/ Display only).

DRAM Clock : The item will synchronize/asynchronize DRAM clock operation.

100MHz: DRAM is running at 100MHz frequency. 133MHz: DRAM is running at 133MHz frequency. By SPD: SDRAM clock by SPD data.

DRAM Timing : Select SPD for setting SDRAM timing by SPD. The Choice: Manual, SPD.

SDRAM Cycle length: This setting defines the CAS timing parameter of the SDRAM in terms of clocks. Default is by SPD. The Choice: 2, 2.5, 3.

Bank Interleave: The item allows you to set how many banks of SDRAM support in your mainboard. Default is by SPD. The Choice: 2 Bank, 4 Bank, Disabled.

DRAM PreChrg to Act CMD: Setup the minimum row precharge time. The Choice: 2T, 3T.

DRAM Act to PreChrg CMD: Setup the minimum RAS pulse width. The Choice: 5T, 6T.

DRAM Active to CMD: Setup the minimum CAS to RAS delay. The Choice: 2T, 3T.

BIOS

Page 4-9

DRAM Queue Depth: The Choice: 4 level, 2 level, 3 level.

DRAM Drive Strength: Setup the DRAM’s driving current strength. The Choice: Auto, Manual.

DRAM Command Rate: Setup the timing at each cycle. The Choice: 1T Command, 2T Command.

DCLKI/O Timing: The Choice: 0ns, 0.5ns, 1ns, Auto.

Fast R-W Turn Around: This item controls the DRAM timing. It allows you to enable/disable the fast/write turn around. The Choice: Enabled, Disabled.

Continuous DRAM Request: The Choice: Enabled, Disabled.

AGP Aperture Size: The amount of system memory that the AGP card is allowed to share with. The default is 64MB. The Choice: 4, 8, 16, 32, 64, 128, 256MB.

AGP Mode: Chipset AGP Mode support. The choice: 1X, 2X, 4X.

AGP Driving Control: This item allows you to adjust the AGP driving force. Choose Manual to key in a AGP Driving Value in the next selection. This field is recommended to set in Auto for avoiding any error in your system.

AGP & P2P Bridge Control

BIOS

Page 4-10

AGP Fast Write: Selecting Enabled allows to use Fast Write Protocol for 4X AGP card.

AGP Master 1 WS Write: When Enabled, Writes to the AGP (Accelerated Graphics Port) are executed with one wait states. The Choice: Enabled, Disabled.

AGP Master 1 WS Read: When Enabled, Reads to the AGP (Accelerated Graphics Port) are executed with one wait states. The Choice: Enabled, Disabled.

PCI1/2 Master 0 WS Write: When Enabled, Writes to the PCI bus are commanded with zero wait states. The Choice: Enabled, Disabled.

PCI Delay Transaction: The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select Enabled to support compliance with PCI specification version 2.1. The Choice: Enabled, Disabled.

Memory Hole : You can reserve this memory area for the use of ISA adaptor ROMs. The default is Disabled.

Enabled: This field enables the main memory (15~16MB) to remap to ISA BUS. Disabled:Normal Setting. Note: If this feature is enabled you will not be able to cache this memory

segment.

System BIOS Cacheable: This allows you to copy your BIOS code from slow

ROM to fast RAM. The default is Disabled.

CPU & PCI Bus Control

BIOS

Page 4-11

Enabled: The option will improve system performance. However, if any program

writes to this memory area, a system error may result.

Disabled: System BIOS non-cacheable.

Video RAM Cacheable: This option allows the CPU to cache read/writes of the

video RAM. The default is Enabled.

Enabled: This option allows for faster video access. Disabled: Reduced video performance.

BIOS

Page 4-12

4-4 Integrated Peripherals

Figure 5: Integrated Peripherals

Note: If you do not use the Onboard IDE connector, then you will need to set Onboard

Primary PCI IDE: Disabled and Onboard Secondary PCI IDE: Disabled

Note: The Onboard PCI IDE cable should be equal to or less than 18 inches (45

cm.).

VIA OnChip IDE Device

BIOS

Page 4-13

OnChip IDE Channel0/1: The default value is Enabled. The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately. The choice: Enabled, Disabled.

IDE Prefetch Mode: Enable prefetching for IDE drive interfaces that support its faster drive accesses. If you are getting disk drive errors, change the setting to omit the drive interface where the errors occur. Depending on the configuration of your IDE subsystem, this field may not appear, and it does not appear when the Internal PCI/IDE field, above, is Disabled. The Choice: Enabled, Disabled.

Primary/Secondary Master/Slave PIO: The default is Auto. The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device. The choice: Auto, Mode 0, Mode 1, Mode 2, Mode 3, Mode 4.

Primary/Secondary Master/Slav UDMA: This allows you to select the mode of operation for the Ultra DMA/33/66/100 implementation is possible only if your IDE hard drive supports it and the operating environment includes a DMA driver (W indows 95 OSR2 or a third-party IDE bus master driver). If your hard drive and your system software both support Ultra DMA/33/66/100, select Auto to enable UDMA mode by BIOS or you can select mode by manual.

The Choice: Auto, Disabled, UDMA33, UDMA66, DUMA100.

VIA OnChip PCI Device

VIA-3058 AC97 Audio: This item allows you to decide to Auto/disable the chipset family to support AC97 Audio. The function setting AC97 Audio Codec states. The system default is Auto.

BIOS

Page 4-14

Super IO Device

Onboard FDC Controller: Select Enabled if your system has a floppy disk controller (FDC) installed on the system board and you wish to use it. If you install and-in FDC or the system has no floppy drive, select Disabled in this field. The choice: Enabled, Disabled.

Onboard Serial Port 1/2: Select an address and corresponding interrupt for the first and second serial ports. The choice: 3F8/IRQ4, 2E8/IRQ3, 3E8/IRQ4, 2F8/IRQ3, Disabled, Auto.

UART Mode Select: This filed allows the users to configure what IR mode the 2nd serial port should use. The default is Normal. The choice: Normal, IrDA and ASKIR.

RxD, TxD Active :This field configures the receive and transmit signals generated from the IR port. The default is Hi Lo (when UART Mode Select is not set to Normal).

The choice: Hi Hi, Hi Lo, Lo Hi, and Lo Lo. IR Transmission delay : This item allows you to enabled/disable IR transmis-

sion delay. The choice: Enabled, Disabled.

UR2 Duplex Mode: This item allows you to select IR half/full duplex function. The choice: Half, Full.

BIOS

Page 4-15

Use IR Pins: This item allows you to select IR transmission routes, one is RxD2, TxD2 (COM Port) and the other is IR-Rx2Tx2. The choice: IR-Rx2Tx2, RxD2, TxD2.

Onboard Parallel port: This field allows the user to configure the LPT port. The choice: 378/IRQ7, 278/IRQ5, 3BC/IRQ7, Disabled.

Parallel Port Mode: This field allows the user to select the parallel port mode. The choice: SPP, EPP, ECP, ECP+EPP.

EPP Mode Select: This item allows you to determine the IR transfer mode of onboard I/O chip. The Choice: EPP1.9, EPP1.7.

ECP Mode USE DMA: This field allows the user to select DMA1 or DMA3 for the ECP mode. The Choice: DMA1, DMA3.

Game Port Address: Select an address for the Game port. The choice: 201, 209, Disabled.

Midi Port Address: Select an address for the Midi port. The choice: 290, 300, 330, Disabled.

Midi Port IRQ

Select an interrupt for the Midi port. The choice: 5, 10.

Init Display First: If two video cards are used (1 AGP and 1 PCI) this specifies which one will be the primary display adapter. The default is PCI Slot.

PCI Slots: PCI video card will be primary adapter. AGP: AGP video card will be primary adapter.

OnChip USB Controller: USB Controller (Port1)(Port2)(Port3).

The Choice: All Disabled, All Enabled, 1&2 USB Port, 2&3 USB Port, 1&3 USB Port, 1 Port, 2 Port, 3 Port.

BIOS

Page 4-16

USB Keyboard/Mouse Support: Select Enabled if your system contains a Universal Serial Bus (USB) controller and you have a USB/Mouse keyboard. The Choice: Enabled, Disabled.

IDE HDD Block Mode: IDE Block Mode allows the controller to access blocks of sectors rather than a single sector at a time. The default is Enabled.

Enabled: Enabled IDE HDD Block Mode. Provides higher HDD transfer rates. Disabled: Disable IDE HDD Block Mode.

BIOS

Page 4-17

4-5 Po wer Management Setup

Choose the “POWER MANAGEMENT SETUP” in the CMOS SETUP UTILITY to display the following screen. This menu allows the user to modify the power management parameters and IRQ signals. In general, these parameters should not be changed unless it’s absolutely necessary.

Figure 6: Power Management Setup

ACPI Function: This option allows you to select ACPI Function. The default is Enabled. The Choice: Enabled, Disabled.

ACPI Suspend T ype: This item allows you to select S1(POS) or S3(STR) function. The choice: S1(POS), S3(STR).

Power Management Option: Use this to select your Power Management selection. The default is User define.

Max. saving: Maximum power savings. Inactivity period is 1 minute in each mode. Min. saving: Minimum power savings. Inactivity period is 1 hour in each mode. User define: Allows user to define PM Timers parameters to control power

saving mode.

BIOS

Page 4-18

HDD Power Down: When enabled and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active. The choice: Enabled, Disabled.

Suspend Mode: When enabled and after the set time of system inactivity, all devices except the CPU will be shut off. The choice: Enabled, Disabled.

Video Off Option: Tells you what time frame that the video will be disabled under current power management settings. The default is Suspend->Off.

Always On: V ideo power of f not controlled by power management. Suspend->Off: Video powers off after time shown in suspend mode setting.

Video Off Method: This option allows you to select how the video will be disabled

by the power management. The default is V/H Sync + Blank V/H Sync + Blank: System turns off vertical and horizontal synchronization ports

and writes blanks to the video buffer.

DPMS Support: Select this option if your monitor supports the Display Power

Management Signaling (DPMS) standard of the Video Electronics Standards Association (VESA). Use the software supplied for your video subsystem to select video power management values.

Blank Screen: System only writes blanks to the video buffer.

MODEM Use IRQ: Name the interrupt request (IRQ) line assigned to the modem (if

any) on your system. Activity of the selected IRQ always awakens the system. Default is IRQ 3. The Choice: N/A, 3, 4, 5, 7, 9, 10, 11

Soft-Off by PWRBTN: Use this to select your soft-off function. The default is Instant Off.

Instant Off: Turns off the system instantly. Delay 4 Second : Turns off the system after a 4 second delay. If momentary

press of button, the system will go into Suspend Mode. Press the power botton again to make system back to work.

BIOS

Page 4-19

State After Power Failure: This field lets you determine the state that your PC returns to after a power failure. If set to OFF, the PC will not boot after a power failure, if set to ON, the PC will restart after a power failure.

IRQ/Event Activity Dectect

PS2KB Wakeup Select : This item allows you to select Hot Key or Password to wake-up the system by PS2 Keyboard. When select Password, please press ENTER key to change password max 8 numbers.

PS2KB Wakeup form S3/S4/S5: This item allows you to set a Hot Key to wakeup the system by PS2 Keyboard. The choice: Disabled, Ctrl+F1, Ctrl+F2, Ctrl+F3, Ctrl+F4, Ctrl+F5, Ctrl+F6, Ctrl+F7, Ctrl+F8, Ctrl+F9, Ctrl+F10, Ctrl+F11, Ctrl+F12, Power, Wake, Any key. Note: Power and Wake are Windows98 Keyboard button.

VGA: When set to On, any event occurring at a VGA port will awaken a system which has been powered down.

LPT & COM: When set to LPT/COM, any event occurring at a COM(serial)/ LPT (printer) port will awaken a system which has been powered down.

HDD & FDD: When set to On, any event occurring at a hard or floppy drive port will awaken a system which has been powered down.

PCI Master: When set to Off, any event occurring to the DMA controller will awaken a system which has been powered down.

BIOS

Page 4-20

PowerOn by PCI Card: An input signal form PME on the PCI card awakens the system from a soft off state.

Modem Ring/LAN Resume: When set to Enabled, any event occurring to the Modem Ring / LAN will awaken a system which has been powered down.

RTC Alarm Resume: When set to Enable rtc alarm resume, you could set the date (of month) and timer (hh:mm:ss), any event occurring at will awaken a system which has been powered down.

IRQs Activity Monitoring

Primary INTR: When set to On (default), any event occurring at will awaken a system which has been powered down.

IRQs 3-15: Allows you to set system to monitor IRQs 3-15 for activity to awaken system form a power managerment mode.

BIOS

Page 4-21

4-6 PNP/PCI Configuration

The PNP/PCI configuration program is for the user to modify the PCI/ISA IRQ signals when various PCI/ISA cards are inserted in the PCI or ISA slots.

WARNING: Conflicting IRQ’s may cause the system to not find certain devices.

Figure 7: PCI Configuration Setup

PNP OS Installed: Do you have a PNP OS installed on your system. The default is No.

Reset Configuration Data: This setting allows you to clear ESCD data. The default is Disabled

Disabled: Normal Setting. Enabled: If you have plugged in some Legacy cards to the system and they were

recorded into ESCD (Extended System Configuration Data), you can set this field to Enabled in order to clear ESCD.

Resources Controlled By: Who controlled the system PNP/PCI resources. The default is Auto.

BIOS

Page 4-22

Manual: PNP Card’s resources will be controlled manually. You can set which

IRQ-X and DMA-X are assigned to PCI/ISA PNP or Legacy ISA Cards.

Auto: If your ISA card and PCI card are all PNP cards, BIOS will assign the

interrupt resource automatically.

PCI/VGA Palette Snoop: Leave this field at Disabled. The choice: Enabled, Disabled.

Assign IRQ For VGA/USB: This item allows BIOS to assign whether IRQ is with VGA/USB or not. If you have not connect the VGA/USB device. Can release the IRQ for other device. The default is Enabled.

Enabled: Provides IRQ for VGA/USB device. Disabled: Release IRQ for other device.

PCI Latency Timer (CLK): The latency timer defines the minimum amount of

time, in PCI clock cycles, that the bus master can retain the ownership of the bus. The Choice: 0-255.

INT Pin1 to Pin4 Assignment: These settings allow the user to specify what IRQ will be assigned to PCI devices in the chosen slot. Options available: Auto,3,4,5,7,9, 10,11,12,14 & 15. The defaults are Auto.

BIOS

Page 4-23

4-7 PC Health Status

CPU W arning Temperature: This is the temperature that the computer will respond to an overheating CPU. The default is Disabled. The Choice: Disabled, 50OC/122OF, 53OC/127OF, 56OC/133OF, 60OC/140OF,63OC/145OF, 66OC/151OF, 70OC/158OF.

Current System Temperature: This is the Current temperature of the system.

Current CPU Temperature: This is the Current temperature of the CPU.

Current CPU/Chassis FAN Speed: The current CPU/Chassis fan speed in

RPMs.

Vcore: The voltage level of the CPU(Vcore).

Vagp: The voltage level of Power supplied to AGP card.

1.52V: for 4X AGP card.

3.3V : for 2X AGP card.

5V, 12V, VBAT(V), 5VSB(V): The voltage level of the switch power supply.

31oC/87oF 0oC/32oF 6135 RPM 0 RPM

1.62V

3.35V

1.52V

4.97V

12.16V

4.89V

3.02V

2.57V

BIOS

Page 4-24

Vio: The voltage level of the CPU Vio. Vdimm: The voltage level of the DRAM. Shutdown Temperature: This is the temperature that the computer will turn off

the power to combat the effects of an overheating system. (requires ACPI to be enabled in Power Management BIOS and ACPI compliant operating system.) The default is Disabled. Options available are 60oC/140oF to 75oC/167oF in increments of 5oC.

BIOS

Page 4-25

Auto Detect DIMM/PCI Clk: When enabled the motherboard will automatically disable the clock source for a DIMM socket which does not have a module in it. Same applies for PCI slots. This setting will reduce the EMI. The default is Enabled.

Spread Spectrum: This item allows you to enable/disable the spread spectrum modulate.

CPU Clock: The mainboard is designed to set the CPU clock via BIOS. This item allows you to select the CPU Host clock speed by “Enter” key. The default speed depends on what CPU was installed.

Note: Overclocking failure will cause system No display problem. At this

moment, please press “Insert” key to back to the initial or default setting to boot up your system.

CPU Ratio : This item allows you to select the CPU ratio. If the CPU ratio is fixed. This

item was no function. Configuration options: [6.x].... [15.x],auto.

CPU Vcore Voltage: This item allows you to increase the CPU Vcore Voltage. The Options: Default, ±0.025V increment.

4-8 Frequency/Voltage Control

1.75V

2.50V

BIOS

Page 4-26

4-9 Defaults Menu

Selecting “Defaults” from the main menu shows you two options which are described below

Load Fail-Safe Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Load Optimized Defaults (Y/N) ? N

Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

VDIMM Voltage: This item allows you to increase the DRAM Voltage. The Options: Default, +0.1V increment.

BIOS

Page 4-27

4-10 Supervisor/User Password Setting

You can set either supervisor or user password, or both of then. The differences between are:

supervisor password : can enter and change the options of the setup menus. user password : just can only enter but do not have the right to change the

options of the setup menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD:

Type the password, up to eight characters in length, and press <Enter>. The password typed now will clear any previously entered password from CMOS memory. You will be asked to confirm the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password. To disable a password, just press <Enter> when you are prompted to enter the password. A message will confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.

P ASSWORD DISABLED.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup. This prevents an unauthorized person from changing any part of your system configuration. Additionally, when a password is enabled, you can also require the BIOS to request a password every time your system is rebooted. This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security option (see Section 3). If the Security option is set to “System”, the password will be required both at boot and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

BIOS

Page 4-28

4-11 Exit Selecting

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS. After saving the values the system is restarted again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in effect. This exits the Setup utility and restarts your computer.

Drivers Installation

Page 5-1

Section 5

Driver Installation

Easy Driver Installation

Insert the bundled autorun driver CD-disk.

Step 1 : Click SERVICE PACK 4IN1 DRIVER. Install all components

recommended.

Step 2 : Click AC’97(VT8233) AUDIO DRIVER to install Audio Sound

Driver.

Step 3 : Click BUS MASTER PCI IDE DRIVER to install BusMaster PCI

IDE.

Step 4 : Click USB Driver to install USB.

Drivers Installation

Page 5-2

Page Left Blank

Appendix

A-1

Appendix A

A-1 GHOST 5.1/6.03 Quick User’s Guide

Installation is very easy. You only need to copy the Ghost5 folder or Ghost.exe to your hard disk.

The current market version is for single Client, so the LPT and NetBios portions will not be explained further.

Description of Menus

Ghost clones and backs up Disk and Partition.

In which Disk indicates hard disk options

Partition indicates partition options Check indicates check options

Disk

Appendix

A-2

Disk To Disk (Disk Cloning)

1. Select the location of the Source drive.

2. Select the location of the Destination drive.

3. When cloning a disk or restoring the backup, set the required partition

size as shown in the following figure.

There are 3 hard disk functions:

1. Disk To Disk (disk cloning)

2. Disk To Image (disk backup)

3. Disk From Image (restore backup)

Important!

1. To use this function, the system must have at least 2 disks. Press the

Tab key to move the cursor.

2. When restoring to a destination disk, all data in that disk will be

completely destroyed.

Appendix

A-3

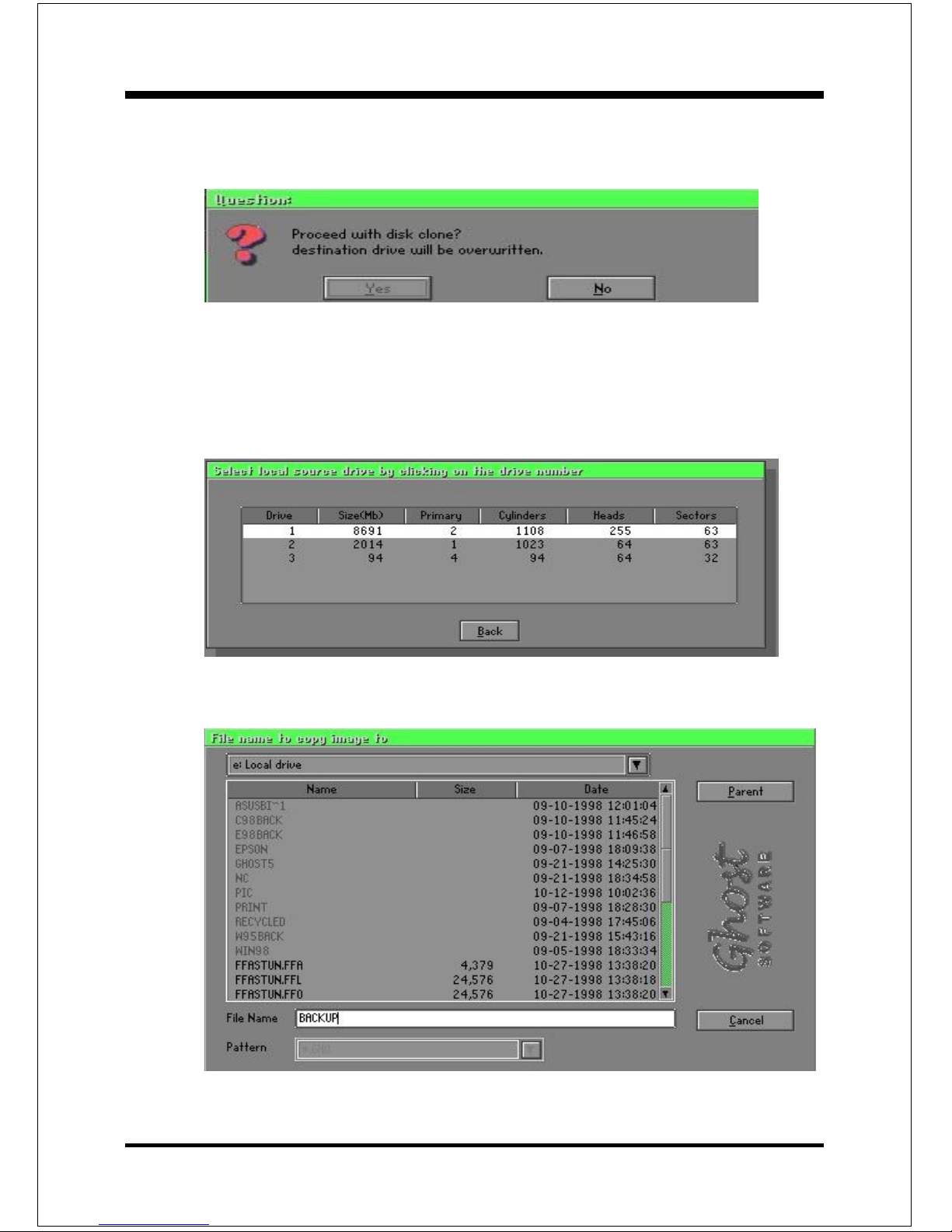

4. Click OK to display the following confirmation screen. Select Yes to

start.

Disk To Image (Disk Backup)

1. Select the location of the Source drive.

2. Select the location for storing the backup file.

Appendix

A-4

Disk From Image (Restore Backup)

1. Select the Restore file.

2. Select the Destination drive of the disk to be restored.

3. Click OK to display the following confirmation screen. Select Yes to

start.

Appendix

A-5

3. When restoring disk backup, set the required partition size as shown in

the following figure.

4. Click OK to display the following confirmation screen. Select Yes to

start.

Partition

Appendix

A-6

2. Select the first partition to be backed up. This is usually where the

operating system and programs are stored.

There are 3 partition functions:

1. Partition To Partition (partition cloning)

2 . Partition To Image (partition backup) 3 . Partition From Image (restore partition)

Partition To Partition (Partition Cloning)

The basic unit for partition cloning is a partition. Refer to disk cloning for the operation method.

Partition To Image (Partition Backup)

1. Select the disk to be backed up.

Appendix

A-7

3. Select the path and file name for storing the backup file.

4. Is the file compressed? There are 3 options:

(1)No: do not compress data during backup (2)Fast: Small volume compression (3)High: high ratio compression. File can be compressed to its minimum,

but this requires longer execution time.

5. During confirmation, select Yes to start performing backup.

Appendix

A-8

Partition From Image (Restore Partition)

1. Select the backup file to be restored.

2. Select the source partition.

3. Select the disk to be restored.

Appendix

A-9

4. Select the partition to be restored.

5. Select Yes to start restoring.

Check

This function checks the hard disk or backup file for backup or restoration error due to FAT or track error.

Appendix

A-10

How to Reinstall Windows in 2 Minutes

This chapter teaches you how to set your computer properly and, if necessary, reinstall Windows in 2 minutes. Ghost can use different

methods to complete this task. The following two sections explain the creation of the emergency Recover Floppy and Recover CD:

Emergency Recover Floppy

Divide a hard disk into two partitions. The first partition is for storing the operating system and application programs. The second partition is for backing up the operating system and data. The size of the partition can be set according to the backup requirements. For example, the Windows operating system needs 200MB of hard disk space, while the complete Office installation requires 360MB. The remaining space can be used to store other data.

After installing Windows, use Ghost to create a backup of the source system and store the file (Image file) in drive D. The file is named as Original.gho. Then, create a recover floppy disk containing:

Bootable files (Command.com, Io.sys, and MSDOS.SYS ) Config.sys (configuration setup file) Autoexec.bat (auto-execution batch file) Ghost.exe (Ghost execution file)

There are two ways to set the content of the recover floppy for restoration:

(1)To load Windows automatically after booting, set the Autoexec.bat

command as: Ghost.exe clone, mode=pload, src=d:\original.gho:2,dst=1:1 -fx -sure -rb Description: Runs the restore function automatically using the Image

File. After execution, it exits Ghost and boots the system automatically.

Refer to the [Introducing Ghosts Functions].

Appendix

A-11

(2)After booting, the screen displays the Menu. Select Backup or Restore:

Since the user may install other applications in the future, he/she may design Autoexec.bat as a Menu to back up or restore the userdefined Image file as follows:

))

)

BackupBackup

Backup

Back up Windows and application programs as a file (Recent. gho). Command is:

Ghost –clone,mode=pdump,src=1:1,dst=d:\Recent.gho -fx sure -rb

))

)

RestoreRestore

Restore

Restore types include [General Windows] and [Windows and Application Programs]. If you select [General Windows],

the system is restored to the general Windows operation condition. The command is:

Ghost.exe -clone,mode=pload,src=d:\Original.gho,dst=1:1 -fx

-sure -rb If you select [Windows and Application Programs], the latest

backup file (Recent.gho) is restored, skipping the installation and setup of application programs.

For description of relevant parameters, refer to [Introducing Ghosts Functions].

For more information about menu design, refer to Config.sys and Autoexec.bat under /Menu in the CD. You can also create a backup CD containing Ghost.exe and these two files.

Appendix

A-12

Recover CD

In recent years, well-known computer manufacturers (such as IBM, Acer, Compaq, etc.) bundle Recover CDs with their computers to reduce the cost resulting from servicing, while at the same time increasing their market competitiveness.

The following is a simple guide to how to create a recover CD:

1. For extremely easy creation of the recover floppy disk, use the copy program for example “Easy CD Creator “ (Note 2). First, create a recover floppy disk containing:

Bootable files (Command.com and Io.sys and MSDOS.SYS) Config.sys (Configuration setup file) Autoexec.bat (Auto-execution batch file) Mscdex.exe (CD-Rom execution file) Ghost.exe (Ghost execution file) Oakcdrom.sys (ATAPI CD-ROM compatible driver)

The content of Config.sys is:

DEVICE=Oakcdrom.sys /d:idecd001

The content of Autoexec.bat includes:

MSCDEX.EXE /D:IDECD001 /L:Z Ghost.exe clone,mode=load,src=z:\original.gho,dst=1 -sure -rb

2. Write the backup image file (original.gho) of the entire hard disk or partition into the recover CD. Use the Recover CD to boot up the system and restore the backup files automatically.

For description of relevant parameters, refer to [Introducing Ghosts Functions].

Note: For more details regarding the creation program and method for

creating the recover CD, please refer to the legal software and relevant operation manual.

Appendix

A-13

Ghost Command Line Switches Reference

Ghost may be run in interactive or in batch mode. Batch mode is useful for automating installations for backups using Ghost. Most of the Ghost switches are used to assist with batch mode operation. To list switches from Ghost, type ghost.exe -h.

-clone

The full syntax for this switch is: clone,MODE={copy|load|dump|pcopy|pload|pdump},SRC=

{drive|file|drive:partition|,DST={drive|file|drive:partition},SZE{F|L|n= {nnnnM|nnP|F|V}}

Clone using arguments. This is the most useful of the batch switches and has a series of arguments that define:

a) MODE This defines the type of clone command to be used:

COPY disk to disk copy LOAD file to disk load DUMP disk to file dump PCOPY partition to partition copy PLOAD file to partition load PDUMP partition to file dump

b) SRC This defines the source location for the operation:

Mode Meaning: COPY/ DUMP Source drive (e.g, 1 for drive one) LOAD

Disk image filename or device (e.g, g:\Images\system2.img)

PCOPY/ PDUMP Source partition e.g, 1:2 indicates the second partition

on drive one.

PLOAD Partition image filename or device and partition

number. Example: g:\images\disk1.img:2 indicates the second partition in the Image file.

Appendix

A-14

c) DST This defines the destination location for the operation:

Mode Meaning COPY/ LOAD Destination drive (e.g, 2 for drive two) DUMP

Disk image filename or device,(e.g, g:\images\system2.img)

PCOPY/ PLOAD Destination partition,(e.g, 2:2 indicates the second

partition on drive two).

PDUMP Partition image filename (e.g, g:\images\part1.img).

c) SZEy Used to set the size of the destination partitions for

either a disk load or disk copy operation.

Available y Options:

F Resizes the first partition to maximum size allowed based

on file system t type.

L Resizes the last partition to maximum size allowed based on

file system type.

n=xxxxM - indicates that the n?h destination partition is to have a size

of xxxx Mb. (e.g, SZE2=800M indicates partition two is to have 800 mb.) n=mmP - indicates that the n?h destination partition is to have a size of mm percent of the target disk.

n=F - indicates that the n?h destination partition is to remain

fixed in size.

n=V - Indicates that the partition will be resized according to the

following rules: Rule 1 - If the destination disk is larger than the original

source disk, then the partition(s) will be expanded to have the maximum amount of space subject to the free space available and the partition type (e.g, FAT16 partitions will have a maximum size of 2048Mb.) Rule 2 - If the destination disk is smaller than the original source disk, (but still large enough to accommodate the data from the source disk), the free space left over after the

Appendix

A-15

data space has been satisfied will be distributed between the destination partitions in proportion to the data usage in the source partitions Someexamples follow that will help illustrate:

-fx flag Exit. Normally when Ghost has finished copying a new system to a disk, it prompts the user to reboot with a press Ctrl-Alt-Del to reboot window. However, if Ghost is being run as part of a batch file it is sometimes useful to have it just exist back to the DOS prompt after completion so that further batch commands may be processed. -fx enables this. See -rb for another option on completing a clone.

-ia Image All. The Image All switch forces Ghost to do a sector by sector copy of all partitions. When copying a partition from a disk to an image file or to another disk, Ghost examines the source partition and decides whether to copy just the files and directory structure, or to do an image (sector by sector) copy. If it understands the internal format of the partition it defaults to copying the files and directory structure. Generally this is the best option, but occasionally if a disk has been set up with special hidden security files that are in specific positions on the partition , the only way to reproduce them accurately on the target partition is via an image or sector-by-sector copy.

-span enables spanning across volumes.

-split=x splits image file into ‘x’ Mb? Mb spans. Use this to create a ‘forced’ size volume set. For example, if you would like to force smaller image files from a 1024 Megabyte drive, you could specify 200 megabyte segments.For example, ghost. exe -split=200 will divide the image into 200 Megabyte segments.

-sure use the -sure switch in conjunction with -clone to avoid being prompted with the final ‘Proceed with disk clone destination drive will be overwritten?’ question. This command is useful in batch mode.

Appendix

A-16

Example 1:

To copy drive one to drive two on a PC, without final prompt if OK to proceed. ghost.exe -clone,mode=copy,src=1,dst=2 –sure

Example 2:

To connect via NetBIOS to another PC running Ghost in slave mode, and dump a disk image of local drive two to the remote file c:\drive2.gho ghost.exe -clone,mode=dump,src=2,dst=C:\drive2.gho -nbm Note: The slave Ghost can be started with ghost –nbs

Example 3:

To copy drive one, second partition on a PC to drive two, first parti-tion the same PC, without final prompt ghost.exe -clone,mode=pcopy,src=1:2,dst=2:1 –sure

Example 4:

To dump the second partition of drive one to an image file on a mapped drive g: ghost.exe -clone,mode=pdump,src=1:2,dst=g:\part2.gho

Example 5:

To load partition 2 from a two-partition image file on a mapped drive g: onto the second partition of the local disk ghost -clone,mode=pload,src=g:\part2.gho:2,dst=1:2

Example 6:

To load drive 2 from an image file and resize the destination partitions into a 20:40 allocation ghost.exe -clone,mode=load,src=g:\2prtdisk.gho,dst=2,sze1=60P, sze2=40P

Appendix

B-1

Appendix B

B-1 POST CODES

POST (hex) DESCRIPTION

CFh Test CMOS R/W functionality. C0h Early chipset initialization:

- Disable shadow RAM

- Disable L2 cache (socket 7 or below)

- Program basic chipset registers

C1h Detect memory

- Auto-detection of DRAM size, type and ECC.

- Auto-detection of L2 cache (socket 7 or below) C3h Expand compressed BIOS code to DRAM C5h Call chipset hook to copy BIOS back to E000 & F000 shadow

RAM. 01h Expand the Xgroup codes locating in physical address 1000:0 02h Reserved 03 h Initial Superio_Early_Init switch. 04h Reserved 05h 1. Blank out screen

2. Clear CMOS error flag 06h Reserved 07h 1. Clear 8042 interface

2. Initialize 8042 self-test 08h 1. Test special keyboard controller for Winbond 977 series

Super I/O chips.

2. Enable keyboard interface. 09h Reserved 0Ah 1. Disable PS/2 mouse interface (optional).

2. Auto detect ports for keyboard & mouse followed by a

port & interface swap (optional).

3. Reset keyboard for Winbond 977 series Super I/O chips. 0B-0Dh Reserved

Appendix

B-2

0Eh Test F000h segment shadow to see whether it is R/W-able or

not. If test fails, keep beeping the speaker. 0Fh Reserved 10h Auto detect flash type to load appropriate flash R/W codes

into the run time area in F000 for ESCD & DMI support. 11h Reserved 12 h Use walking 1’s algorithm to check out interface in CMOS

circuitry. Also set real-time clock power status, and then

check for override. 13h Reserved 14h Program chipset default values into chipset. Chipset default

values are MODBINable by OEM customers. 15h Reserved 16h Initial Early_Init_Onboard_Generator switch. 17h Reserved 18 h Detect CPU information including brand, SMI type (Cyrix or

Intel) and CPU level (586 or 686). 19-1Ah Reserved 1Bh Initial interrupts vector table. If no special specified, all H/W

interrupts are directed to SPURIOUS_INT_HDLR & S/W

interrupts to SPURIOUS_soft_HDLR. 1Ch Reserved 1Dh Initial EARLY_PM_INIT switch. 1Eh Reserved 1Fh Load keyboard matrix (notebook platform) 20h Reserved 21h HPM initialization (notebook platform) 22h Reserved 23h 1. Check validity of RTC value:

e.g. a value of 5Ah is an invalid value for R TC minute.

2. Load CMOS settings into BIOS stack. If CMOS checksum fails, use default value instead.

3. Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into consideration of the ESCD’s legacy information.

Appendix

B-3

4. Onboard clock generator initialization. Disable respective clock resource to empty PCI & DIMM slots.

5. Early PCI initialization:

-Enumerate PCI bus number

-Assign memory & I/O resource

-Search for a valid VGA device & VGA BIOS, and put it into C000:0.

24-26h Reserved 27 h Initialize INT 09 buffer 28h Reserved 29h 1. Program CPU internal MTRR (P6 & PII) for 0-640K

memory address.

2. Initialize the APIC for Pentium class CPU.

3. Program early chipset according to CMOS setup. Example: onboard IDE controller.

4. Measure CPU speed.

5. Invoke video BIOS.

2A-2Ch Reserved 2Dh 1. Initialize multi-language

2. Put information on screen display, including Award title, CPU type, CPU speed ….

2E-32h Reserved 33h Reset keyboard except Winbond 977 series Super I/O chips. 34-3Bh Reserved 3Ch Test 8254 3Dh Reserved 3Eh Test 8259 interrupt mask bits for channel 1. 3Fh Reserved 40h Test 8259 interrupt mask bits for channel 2. 41h Reserved 42h Reserved 43h Test 8259 functionality. 44h Reserved 45-46h Reserved 47h Initialize EISA slot

Appendix

B-4

48h Reserved 49h 1. Calculate total memory by testing the last double word of

each 64K page.

2. Program writes allocation for AMD K5 CPU.

4A-4Dh Reserved 4Eh 1. Program MTRR of M1 CPU

2. Initialize L2 cache for P6 class CPU & program CPU with proper cacheable range.

3. Initialize the APIC for P6 class CPU.

4. On MP platform, adjust the cacheable range to smaller one in case the cacheable ranges between each CPU are not identical.

4Fh Reserved 50h Initialize USB 51h Reserved 52h Test all memory (clear all extended memory to 0) 53-54h Reserved 55h Display number of processors (multi-processor platform) 56h Reserved 57h 1. Display PnP logo

2. Early ISA PnP initialization

-Assign CSN to every ISA PnP device.

58h Reserved 59h Initialize the combined Trend Anti-Virus code. 5Ah Reserved 5Bh (Optional Feature)Show message for entering AWDFLASH.

EXE from FDD (optional) 5Ch Reserved 5Dh 1. Initialize Init_Onboard_Super_IO switch.

2. Initialize Init_Onbaord_AUDIO switch. 5E-5Fh Reserved 60 h Okay to enter Setup utility; i.e. not until this POST stage can

users enter the CMOS setup utility. 61-64h Reserved 65h Initialize PS/2 Mouse

Appendix

B-5

66h Reserved 67h Prepare memory size information for function call:

INT 15h ax=E820h 68h Reserved 69h Turn on L2 cache 6Ah Reserved 6Bh Program chipset registers according to items described in

Setup & Auto-configuration table. 6Ch Reserved 6Dh 1. Assign resources to all ISA PnP devices.

2. Auto assign ports to onboard COM ports if the corresponding item in Setup is set to “AUTO”.

6Eh Reserved 6Fh 1 . Initialize floppy controller

2. Set up floppy related fields in 40:hardware.

70-72h Reserved 73h (Optional Feature) Enter AWDFLASH.EXE if :

-AWDFLASH is found in floppy drive.

-ALT+F2 is pressed

74h Reserved 75h Detect & install all IDE devices: HDD, LS120, ZIP, CDROM….. 76h Reserved 77h Detect serial ports & parallel ports. 78h Reserved 79h Reserved 7Ah Detect & install co-processor 7B-7Eh Reserved 7Fh 1. Switch back to text mode if full screen logo is supported.

-If errors occur, report errors & wait for keys

-If no errors occur or F1 key is pressed to continue: Clear EPA or customization logo.

80h Reserved 81h Reserved 82 h 1. Call chipset power management hook.

2. Recover the text fond used by EPA logo (not for full

Appendix

B-6

screen logo)

3. If password is set, ask for password.

83h Save all data in stack back to CMOS 84 h Initialize ISA PnP boot devices 85h 1. USB final Initialization

2. NET PC: Build SYSID structure

3. Switch screen back to text mode

4. Set up ACPI table at top of memory.

5. Invoke ISA adapter ROMs

6. Assign IRQs to PCI devices

7. Initialize APM

8. Clear noise of IRQs.

86-92h Reserved 93h Read HDD boot sector information for Trend Anti-Virus code 94 h 1. Enable L2 cache

2. Program boot up speed

3. Chipset final initialization.

4. Power management final initialization

5. Clear screen & display summary table

6. Program K6 write allocation

7. Program P6 class write combining

95h 1. Program daylight saving

2. Update keyboard LED & typematic rate

96 h 1. Build MP table

2. Build & update ESCD

3. Set CMOS century to 20h or 19h

4. Load CMOS time into DOS timer tick

5. Build MSIRQ routing table.

FFh Boot attempt (INT 19h)

Appendix

C-1

Appendix C

C-1 EEPROM BIOS Remover

Do not remove the BIOS chip, unless instructed by a technician and only with a PLCC IC extractor tool.

The BIOS socket may be damaged if using an improper method to replace the BIOS chip.

Appendix

C-2

Page Left Blank

Appendix

D-1

Appendix D

D-1 Update Your system BIOS

Download the xxxxx.EXE file corresponding to your model form the our website to an empty directory on your hard disk or floppy. Run the downloaded xxxxx.EXE file and it will self extract. Copy these extracted files to a bootable DOS floppy disk.

Note: The DOS floppy disk should contain NO device drivers or other programs.

1. Type “A:\AWDFLASH and press <Enter> Key.

2. You will see the following setup on screen.

3. Please key in the xxxxx.bin BIOS file name.

4. If you want to save the previous BIOS data to the diskette, please key in [Y], otherwise please key in [N].

xxxxx.bin

XXXX

XXXXX

XXXX

Appendix

D-2

5. Key in File Name to save previous BIOS to file.

6. Are you sure to program (y/n), please key in [Y] to start the programming.

7. The programming is finished.

xxxxx.bin

F1 : Reset

F10 : Exit

XXXXX

XXXX

xxxxx.bin

XXXXX

XXXX

xxxxx.bin xxxxx.bin

XXXXX

XXXX

EPOX MU-8KHA, MU-8KHA+11 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
