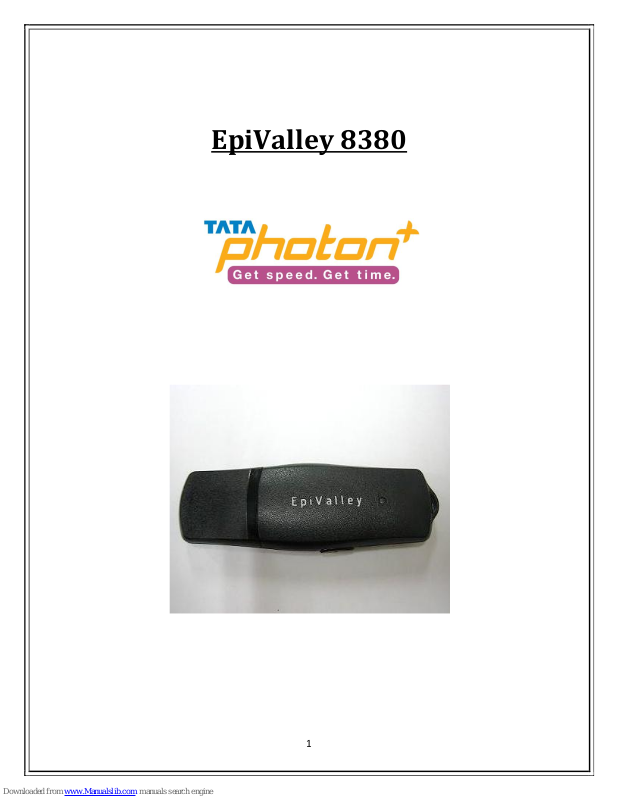

EpiValley 8380 User Manual
EpiValley 8380
1
Table of Contents
Product Features ..................................................................................................................................................................... 3
Technical Specifications ........................................................................................................................................................ 3
System Requirements ............................................................................................................................................................ 4
Installation Procedure ........................................................................................................................................................... 4
Installation in Windows XP ........................................................................................................................................ 5
Start Installation ............................................................................................................................................................. 5
USB Driver Installation ................................................................................................................................................ 7
Un-installing Procedure .............................................................................................................................................. 8
Launch Access Manager ............................................................................................................................................ 10
Activation Procedure .................................................................................................................................................. 11
Setting Up Internet Connection .............................................................................................................................. 12
Settings And Information ......................................................................................................................................... 13
Installation in Mac OS .................................................................................................................................................. 18
Installation Procedure ............................................................................................................................................... 18
Un-installing Procedure ............................................................................................................................................ 19
Access Manager Installing Guide ........................................................................................................................... 20
Launch Access Manager ............................................................................................................................................ 23
Setting Up Internet Connection .............................................................................................................................. 24
Network Settings .......................................................................................................................................................... 24
Installation in Linux ..................................................................................................................................................... 26
Installation Procedure ............................................................................................................................................... 26
Configuration Of The Internet Connection on Text Interface .................................................................... 27
Configuration Of The Internet Connection On Graphic Interface ............................................................ 30
FAQ .............................................................................................................................................................................................. 37
2
P
RROODDUUCCTT
P
New Sleek Slim and Stylish design with a internal antenna.
Supports Windows 2000, XP, Vista32/64 and Windows 7.
Supports Mac OS version
Supports selected version of LINUX OS
Complete PNP functionality support on Windows OS.
Support the PC-Voice functionality and Ear-Jack* (Presently the voice functionality is
limited to the *228 activation process)
Supports SHDR functionality for improved throughputs
Supports Hybrid mode of operation between CDMA 1x and HSIA
Supports Standard USB 2.0 interface (High Speed)
F
EEAATTUURREES
F
S
T
EECCHHNNIICCAALL
T
S
PPEECCIIFFIICCAATTIIOONNS
S
S
3
S
YYSSTTEEMM
S
The Photon+ Modem supports an complete Plug and Play feature for the automatic
installation of USB drivers and PC-Client tool (Access Manager) on
Windows
MAC
Linux
The following the version of Linux is supported.
R
EEQQUUIIRREEMMEENNTTS
R
o Windows® 2000, Windows® XP32/64, Windows® Vista 32 / 64, and
Windows® 7 32/64 bit Operating Systems
o Supports standard USB 1.1 ( USB 2.0 Compatible )
o 100Mb free hard disk space or above
o 128Mb RAM or above
o Mac OS X Leopard(10.5) and Snow Leopard(10.6) version
o Supports standard USB 1.1 ( USB 2.0 Compatible )
o 10Mb free hard disk space or above
o Redhat Enterprise Linux 3 & above
o Fedora Core 5,6 & above (Except 11)
o SUSE Desktop Linux 9,10 & above
o Debian Linux 5,6 & above
o Ubuntu Linux 7 & above
o Supports standard USB 1.1 ( USB 2.0 Compatible )
o 10Mb free hard disk space or above
S
I
NNSSTTAALLLLAATTIIOONN
I
• The SEC 8380 Photon+ Device supports an complete Plug and Play feature for the
automatic installation of USB drivers and PC-Client tool (Access Manager) on Windows
® 2000, Windows® Vista 32 / 64 and Windows® 7
• After plugging the SEC 8380 Photo+ Modem on your computer, it will mount a CD
Drive, and will execute a Autorun.exe file which will guide you to a Dialer Setup wizard
Program.
• If the dialer is already installed on your Computer the program will auto detect and just
run the Access Manager program
P
RROOCCEEDDUURRE
P
E
4
Installation in Windows XP
• Insert the Wireless Modem Photon+ into a USB port of your computer. The installer will
initiate in about 1 minute and start loading the installation files.
Remember : Autorun.exe program of the Photon + CD installer could be disabled on some
computers due to local IT policies. Contact your system administrator in this case.
• If the Autorun feature on Windows is disabled on your computer, you can install it
manually.
• Follow the steps below for the first time installation
1. Open Windows Explorer or My Computer, and the Virtual CD Drive ‘Photon+’
appears.
2. Click Virtual CD Drive ‘Photon+’.
3. Execute ‘Autorun.exe’ program for starting the installation by double clicking it.
Start Installation
When the Device is plugged in the Laptop / Desktop, a welcome Splash Screen will be
displayed and the Installer will initialize and display ‘Welcome to the TATA Photon+ Setup
Wizard’
1. Click ‘Next’ button in order to proceed.
5
2. Default Installation directory is ‘C:\Program Files\TATA\Photon+\EpiValley’.You
can change it to the desired directory location by Pressing the ‘Browse…’ button. It
is recommended to install the program in the default installation directory.
Click ‘Install’ button to continue the installation.
3. The Installation process will continue and once completed you will find a dialogue
box as shown below which will indicate the completion of the Dialer (Access
manager) Installation Process.
6
When the installation is completed, click ‘Finish’.
USB Driver Installation
• After installing the Photon+ Access manager Dialer, the Wireless Modem will be
automatically recognized as a modem, and not a CD Drive. This process will be
completely automated and once the installation process is completed “Your new
hardware is installed and ready to use” will be displayed.
• The Access manager will be launched automatically.
IMPORTANT NOTE
• DO NOT unplug the Wireless Modem during the USB driver installation.
• DO NOT move the Access Manager launched automatically during the USB driver
installation.
• DO NOT restart the computer during the USB driver installation.
7
※ If the USB deriver is not properly installed, Re-run the installation process after
completing the steps mentioned in the “3. Uninstalling Guide”.
Un-installing Procedure
Please note that the Access Manager cannot be Completely Uninstalled while it is running
either on the desktop or in the system tray.
IMPORTANT NOTE
• Please UNPLUG your Wireless Modem before uninstalling.
• Before uninstalling the Access Manager, please CLOSE the Access Manager on the
desktop and also from the system tray.
(You will see a ‘Photon+ Access Manager’ icon at the bottom right of your desktop screen.)
Procedure I
• To Un-install the Access manager you have to close the application from the desktop
as well as from the system tray.
• Exit the Access Manager from the system tray as shown below:
• Select ‘Exit’ on Tray Menu, Click ‘Yes’ button.
Procedure II
Program can be uninstalled by accessing the Start menu.
Open START menu _Programs _ TATA Photon+ _ Epivalley _ Click Uninstall
Or
Open START menu _ Control Panel _ Add Remove Programs _ Change or Remove
Programs _ Click TATA Photon+.
You will see the Screen as shown below:
8
Click ‘Yes’ button to continue..
• Click ‘YES’ if you want to remove the Modem Driver Access manager along with the
USB
Modem Drivers.
• Click ‘NO’ to just remove the Photon+ Access Manager application only.
Remember Uninstalling the Modem drivers requires restarting the computer.
• Click ‘YES’ to complete, and your computer will restart.
• Click ‘NO’ to complete, but its recommended that you restart your system .
9
• If USB Modem device unplugged during uninstallation process, Below message will
pop up.
Note : Your Device should be unplugged
Launch Access Manager
Running Access Manager
• Plug the Wireless Modem in a USB port, and Access Manager will run automatically
on Windows OS. Otherwise you need to double click ‘Photon+’( )
icon on your desktop or select ‘Start All Program TATA Photon+ EpiValley
Photon+ dialer’.
• After initialization, the main window of application will be displayed on the screen
as shown below. The main window has six Menus with specific functions.
10
Status Information

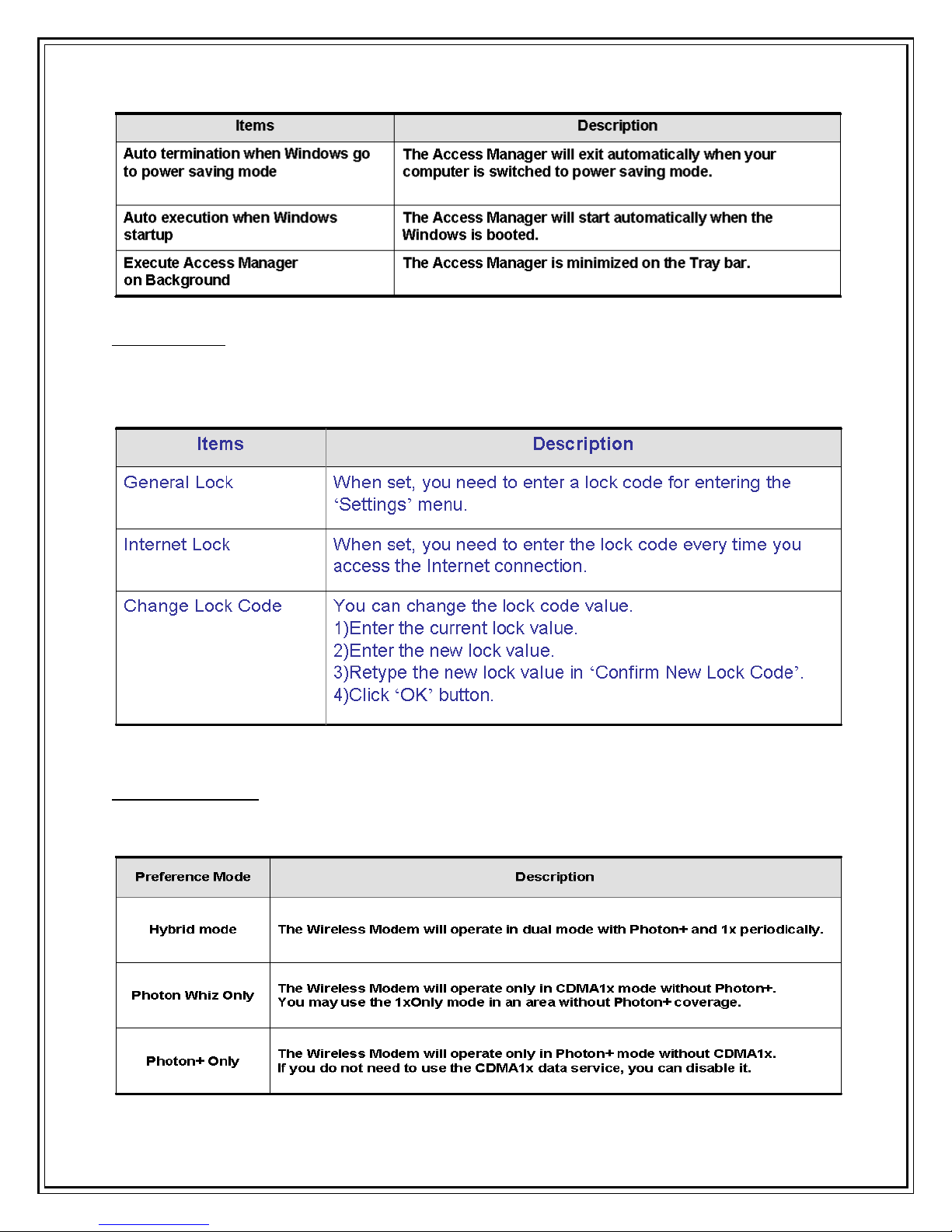

• The below table lists the status information on the Access Manager.
Activation Procedure
If you see the following dialogue on the Access Manager, you should activate the wireless modem as
per Instructions from Service Provider by PC Voice.
11
IMPORTANT NOTE
• Please Turn ON your PC / Laptop speaker before you dial the activation call to hear the
voice instruction.
• If your Laptop/ Desktop Speakers are not functioning, Please use the ear jack provided on
the device, by connecting Earphones.
1. Click ‘Yes’ button, to continue the activation call. You will hear the activation IVR, which will
guide you through the rest of the process.
2. ‘PIN Code Dialog’ will pop-up and prompt for entering a 14 digit PIN code. Input the correct
PIN Code following the instructions received from the IVR.
3. The activating procedure is successful, ‘Programming Successful..’ message will be
displayed.
Note: For any Error codes encountered while activation process, please contact the Service
Provider for further information.
Setting up Internet Connection
Click “Setting” icon -> Click “Network” tab
12
