EPISODE

LX / LXP

WHIRLPOOL PEDICURE SPA User’s Manual

Please read user’s Manual thoroughly before using pedicure spa

Pedicure Spa

Page 2

Table of Contents

Introduction & Safety

Identify Parts & Description

Consideration

Specification

Dimension

Drainage Connection

EPISODE

Installation Summary

Safety and Maintenance ( Dura-Jet)

Safety and Maintenance (Magnetic - Jet )

How to use Magnetic Jet

Discharge Pump

Chair / Backrest attachment

Remote Control Function

Disinfecting Pedicure spa

User Recommendations

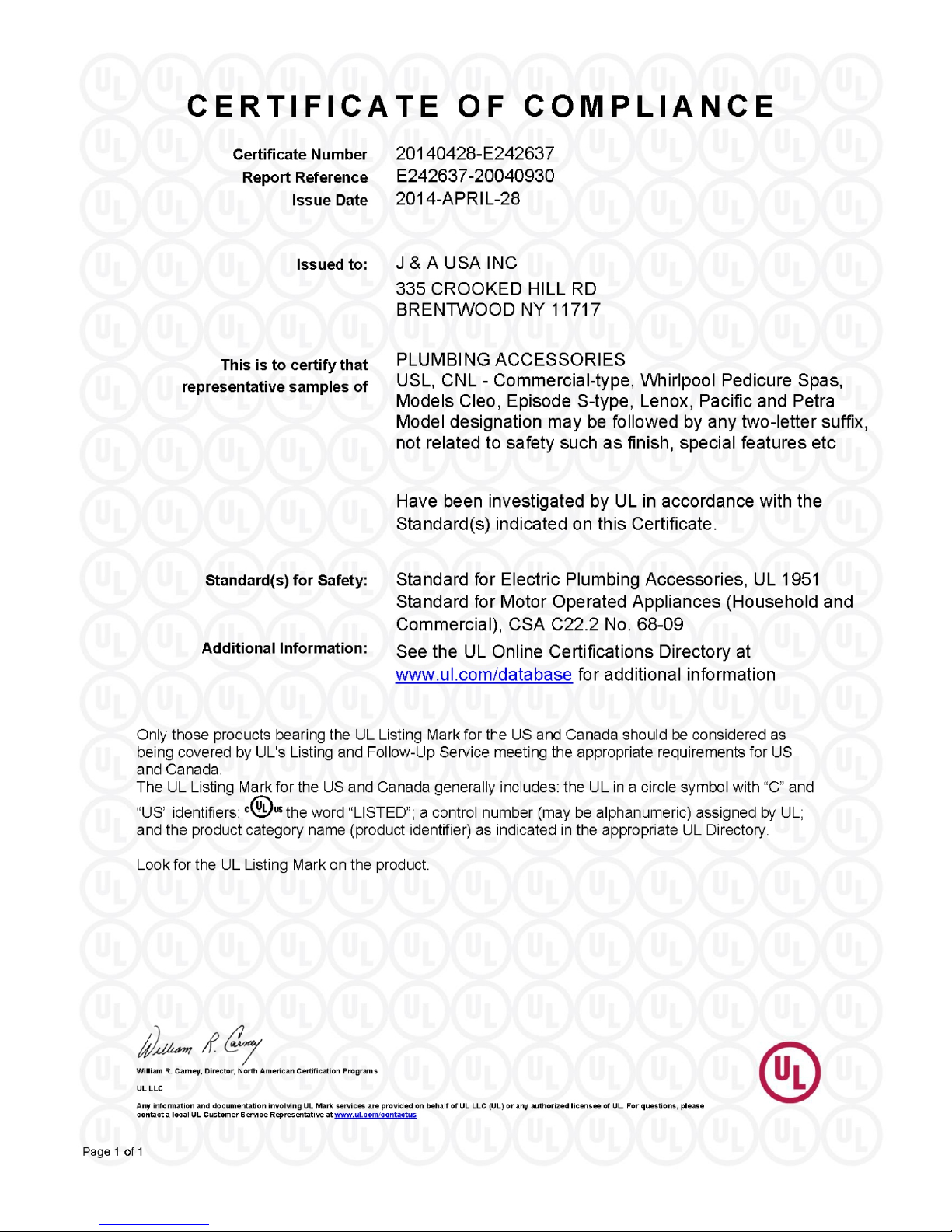

UL Certificate

Back Flow Prevention Device (Dual Check valve)

Limited Warranty

Page 3

Introduction

Thank you for choosing EPISODE LX series , This finest Whirlpool Pedicure Spa has been develop and Manufactured by J&A USA Inc., to bring quality and exquisitely balanced design yet afford-ability and dependability when properly use. Please read this entire manual thoroughly before installation and use

PLEASE TAKE TIME TO READ THIS MANUAL THOROUGHLY BEFORE USE. If you have any questions or concerning with our pedicure spa, Please contact our customer service and technical support at 631-243-3336 ext 121, Monday through Friday 9AM - 5PM or email us at [email protected]

Important requirements

The MFG requires that you contact your local, licensed plumber and licensed electrician to install your new spa. Installation MUST be in compliance with all local and state building codes. Your pedicure spa can not operate efficiently or safely unless it is provided with adequate electrical power, sufficient water pressure, proper water temperature, and required drainage capabilities. Contact your local building inspector for information and local code compliance procedure that need to be followed when having your new pedicure spa installed. Subsequent inspections and approvals that may be required are the responsibility of the purchaser.

Shipment Inspection

Examine the components immediately upon arrival to make sure no damages to the pedicure spa base and chair during the shipment. It is very important that you notify the driver directly and notation should be on the face of the freight bill or bill of lading of any damage. Failure to note damage on the bill of lading may prevent any claims you may have against the carrier.

If concealed or damage is found, you MUST notify the carrier at once and request an inspection. DO NOT DISCARD THE SHIPPING CARTON If receiver sign the carrier clean receipt of goods that have been damaged in transit .Do so at your own risk

and expense.

Precaution

- Do not stand in the basin of the spa.

- Excessive water temperature is dangerous and should be checked before use. Maximum water Temperature should not exceed 100F (38C).

- Always enter and exit the spa slowly and carefully.

- Never bring or operate any electrical device near pedicure spa.

- The unit has a weight capacity of 250 pounds.

Health Warning

Individuals whose feet or legs are inflamed or have open wounds should not be allowed to use the pedicure spa at any time. The technician should advise clients to consult their physician before using the spa if there is any sign of fungal infection, swelling, fracture, or persistent pain. In some cases diabetics may experience improved circulation in their feet, but should first consult their physician prior to receiving a pedicure.

If the client experiences any pain or discomfort, discontinue the use of the pedicure spa

immediately.

Page 4

EPISODE

Identification

Remote control (insert into arm)

Head Rest

Pillow

Backrest

Up/Down Armrest

Arm Tray

Drain Knob

Faucet

Basin

Accentuate Spa Base

Adjustable footrest

Product Logo

Drain Plug

Standard Pipless Motor (D3)

Jet cover

Adjustable Footrest

Optional Pipeless Motor (MG)

Page 5

Auto Fill System

(As an optional Only available on Episode LX)

Features & Operation

a. Automatic spa fill with intelligent and reliable level sensor b. Time delay setting c. Dual Switched outlets / Control Box d. Dual continuous outlets e. Single Drain pump controlled outlet with 3 minute timer ( If drain pump requested as an Option) f. Heavy duty water valve g. Operated in automatic or manual mode h. Automatically shutdown Jet and LED light If water level in the basin is below the sensor I. Built in LED light power supply j. Built-in 1 hour timer k. Audible overflow warning in manual fill mode

USA

Dura Jet III Built -in Electrodes Water sensor

KEY PAD

LEVEL SENSOR

WATER VALVE

12 VAC LIGHT

Drain Air Switch

INSTRUCTION

Water Faucet MUST be ON and desirable Temperature must be set with Faucet handle before using Auto-fill System

1- Pressing the iFill - Auto button will fill the basin with water automatically. Water valve will shutoff when water level is above the sensor.

2- Pressing the JET button will turn On/Off the JET and LED light manually.

3- Pressing the valve button will turn On/Off the water manually.

POWER LED

DRAIN (2A)

Key Pad

Level Sensor

Water Valve

12 AC Light

JET (2A)LIGHT (2A)

CONT (2A)

iFILL DELAY SETTING

POWER CORD

Power On Indicator

Continuous Outlet (2 Amp)

Press iFill - Auto to start fill the basin and once reaches water level Whirlpool / light will be activated

iFill-Auto

Manual On/Off Water

Time delay setting

Manual On/Off Switch for Jet & Light

Auto Fill Delay Setting

5 S

55 S

ALL WIRES ARE INDICATED AS IT SHOWN

Power Cord

Model: L0903A Voltage: 120 VAC / 60 Hz

Product of USA

Page 6

EPISODE

Identification

LXP

Head Rest

Pillow

Backrest

Remote control (insert into arm)

Up/Down Armrest

Arm Tray

Faucet

Adjustable footrest

Serial Number location

Serial Number location Ja03______________

Ja03______________

Basin

Drain Knob

Accentuate Spa Base

Drain Plug

Standard Pipless Motor (D3)

Product Logo

Jet cover

Adjustable Footrest

Optional Pipeless Motor (MG)

Page 7

Important Considerations

Electrical Service

110V, 60Hz, 15Amp GFCI protected grounded circuit MUST be used to supply power each individual pedicure spa. And the main circuit breaker MUST be at 25Amp. For maximum of two units per each electrical outlet.

Water Supply

All plumbing connections must conform to local codes. Water supply to the spa should be provided with adequate water pressure and water temperature.

Water pressure

To fill the basin correctly up to level, Normal water pressure of 30 to 80 P.S.I is required.

Water temperature

The hot water supply temperature must not exceed 140 . Adjust your hot water accordingly. For hot and cold water supply fittings and drain fittings location, see below diagram .Carefully connect the water supply line to the appropriate fittings located on the rear of the pedicure spa.

Pressure / Temperature

Maximum Pressure: 150 psi (10 bars) Minimum Pressure: 10 psi (69kPa) Working Temperature: 33F to 140F constant; intermittent to 180f (0.6C to 60C sustained; intermittent to 82.2C) Recommended Flow: 1.5gpm

UL LISTED / CE CERTIFIED

Compliance with following Code (s): Uniform Plumbing Code, National Plumbing Code of Canada and international Plumbing Code. Also, Compliance with following Standard (s): ASME A112.18.3M / A112.18.1M, CSA B125, NSF / ANSI 61

ANSI - American National Institute, ASME - American Society of Mechanical Engineers, CSA - Canadian Standard Association IAPMO - International Association of Plumbing and Mechanical Officials, UL - Underwriters Laboratory

All J&A USA products has been compliance with requirements for Whirlpool bath appliances contained in ASME / ANSI A122.19.7M-1995, CSA C22.2 No. 68-69

** Vaccum Breaker

Due to Town and / or State requirement/s are varies in building code, if the Town and / or State requires Vaccum Breaker, As the Plumber MUST provide Vaccum Breaker according to building code requirement.

Drain Facilities

The pedicure spa Drain must meet local plumbing codes. Check valve for Drain (not Provided) Must be installed by a licensed plumber. Also Pedicure spa must be securely fasten to the floor.

Installation Summary

The installation must comply with local, state, and federal buildi ng, plumbing and e lectrical codes, where applicable. A licensed plumber should complete the plumbing of the pedicure spa.

Note: Failure to comply with federal, state, or local codes and ordinances will result i n warranty being n ullified and void.

Page 8

EPISODE

Specification

LX / LXP

Specification

Dimen sion & Weight (Sh ipping)

Dimen sion & Weight (Ne t)

Capac ity of Tub

Switc h

Power S ource

Plumb ing Source

War ranty

Due to continuous improvements on all our products, specification, characteristics, packing, color, designs are subject to

Pedic ure Spa & Mass age Chair Stool

Pedic ure Spa & Mass age Chair

Episo de LX

Dedic ated 15Amp Wall Outl et Re quire Pipe - le ss whirlpo ol motor Disch arge Pump (O ptional) Massa ge System

Hot Water Cold Water Drain

Unit Optio nal Item

change without notice.

67L x 37W x 40H 242 lbs

20.25 L x 8.5H x 20W 1 9 lbs

57 3/4” L x 28”W x 56” H 182 l bs.

4.5 U.S G allon

On / Off Air Activ ated Switc h

120Vac, 0.4 Am p. 60Hz, 120Vac, 60H z 120Vac, 60H z

0.5 inc hes (Fitti ng Provide d)

1.5 inc hes (See Plu mbing Inst ruc tion)

One Yea r 120 Day s

Page 9

EPISODE

Dimension

LX / LXP

15”

Open Tray 8 ½”

Arm to Arm 28 1/4”

21 1/4”

23 ½”

12”

3”

2 3/4”

28”

26 1/4”

13 1/8”

Wall

43 ½”

16”

15 ½”

57 3/4”

12 ½”

16 ½”

Page 10

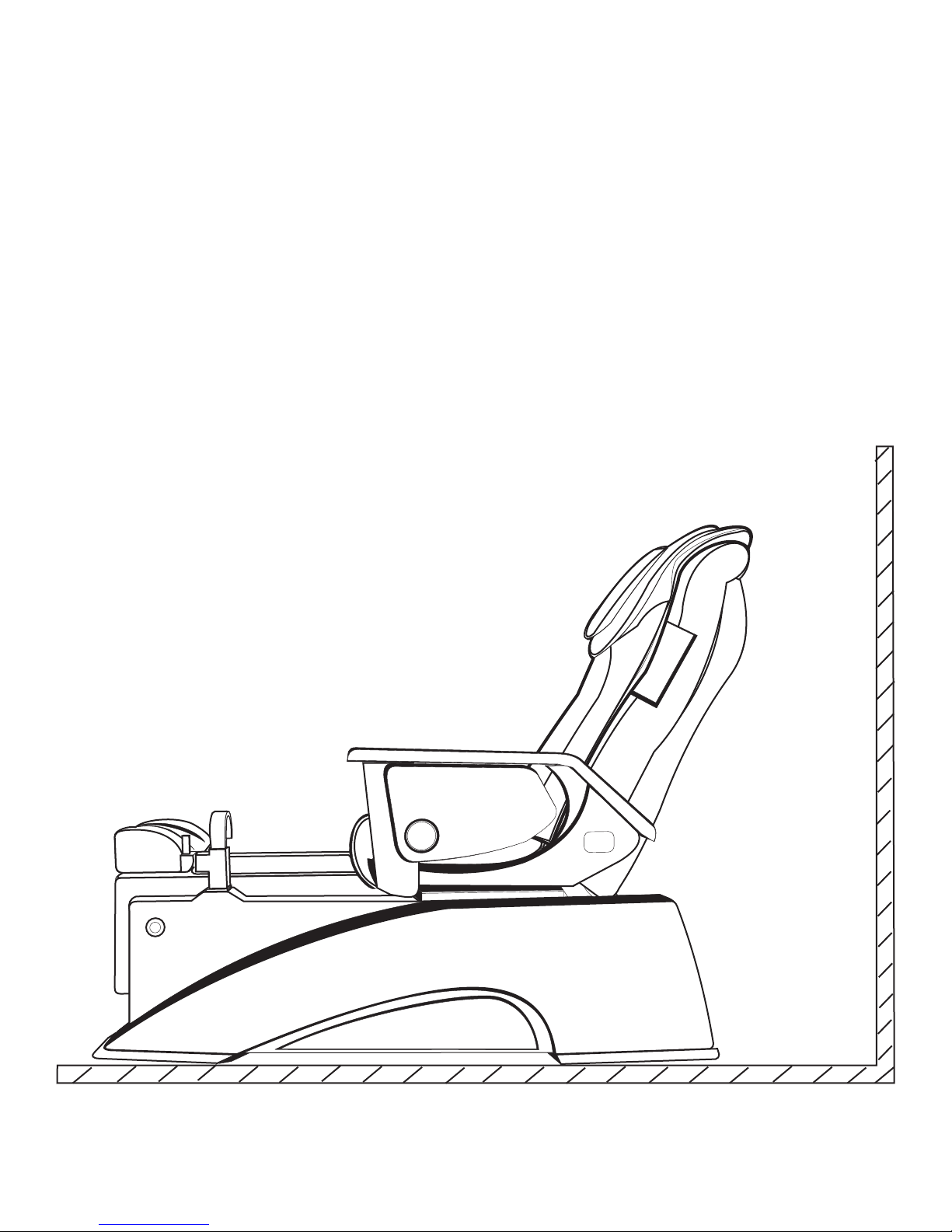

Installation Specifications Summary

Warning: Failure to comply with federal, state or local codes and ordinances will result in warranty being null and void.

As stated, the pedicure spa installation must comply with all plumbing and electrical codes. A licensed plumber and licensed electrician MUST complete the applicable connections of the pedicure spa.

Location and support

Select a level location. The floor structure beneath the pedicure spa must be capable of supporting the occupied pedicure spa.

Due to continuous improvements on all our products, specification, characteristics, packing, color, designs are subject to

See Detailed info on top of the page

change without notice.

Page 11

EPISODE

DRAIN

Rear View

Basement Connection (NOT recommended on floor drain)

15”

2 3/4”

Wall drain

15 ½”

12”

28”

3”

Power Drain (An Option at Request) (See detailed power drain pump)

2 3/4”

½”Drain outlet

15 ½”

Page 12

Dura-Jet III

Safety Instructions

When using electrical equipment, basic safety precaut ions should alwa ys be followed to reduce the risk of fire, electrical shock, and injury to persons, including the follow ing:

1. Read and follow all instructions before using the equipment.

2. Keep the cord out of heavy traffic area. To av oid fire hazard NE VER put the cord und er the rugs, near he at generating devices.

3. Always turn off the equipment be fore servicing .

4. Do not drop or insert any object into any openings.

5. Do not operate any equipment with a damage parts.

6. Any other use not re commended by the manufacturer may electrical shock or injury to persons.

7. Never use outdoors

8. Do not attempt to repair or adjust any electrical or mechanical funct ions on the unit.

Feature

1. Dual powerful massage jet-streams

2. Jet assembly can be attached from the pump for quick cleaning and sanitizing.

3. Built-in electronic sensor for pump control.

4. AC motor (long lif e)

5. Extremely low power consumption .

Cleaning Instruction

1. Ensure the unit is off

2. Remove the front cover

3. Remove the impeller and impeller cover

4. Use anti-bacterial solution ( EPA registered) to c lean all plastic parts.

5. Reassemble the front cover

DURA-JET III Specific ations

Model: DURA_JETIII -

120Vac, 0.4 Amp. 60Hz,

Pump: Dual Air Jet Fl ow

Mounting: Single 3.5” hole Auto tighten Moun ting screws(4)

6. Manufactured in USA.

Page 13

When us ing electr ical equip ment, Basi c safety precau tions must b e followed t o red uce the risk o f fire, electri cal shock, a nd injur y to Persons .

1. Read a nd follow al l instruct ions befor e using the eq uipment.

2. Keep e lectrica l cord out of he avy traffic area. To avoid fire hazard NEVER place elec trical cor d under the ru g, near heat Gener ating devi ces.

3. Always turn power off the equipment before service.

4. Do not d rop or inser t any object i nto any open ings.

5. Do not o perate any e quipment w ith damage d parts.

6. Any other use not recommended by the manufacturer may cause electrical shock or cause injury to person/s.

7. Neve r use it outdo ors

8. Do not a ttempt to re pair or adju st any elect rical or mechanical.

Motor

Round Magne tic Field (h ousing)

Magne tic Jet Bas e

Magne tic Impel ler

Magne tic Whirl pool jet cov er

1. Hydr o dual massa ge jet strea m

2. Magn etic whirl pool jet cov er can be remo ve for quick clean ing and sani tizing.

3. Buil t-In elect ronic sens or for pump co ntrol.

4. AC Whirlpool motor (long life)

5. Very l ow power con sumption ( 27W)

6. Manu factured i n USA.

1. Turn off the unit and wait until the motor is fully stops.

2. Hold H ydro whirl pool jet cov er firmly an d pull to sepa rate from th e round magn etic field.

3. Turn hydro whirlpool jet cover to left to open and pull out impeller.

4. Use Anti - Bacterial solution (EPA Registered) to clean all parts.

5. After sanitize all parts, place impeller and close hydro whirlpool jet cover to turn right to lo ck

6. Hold f irmly the wh irlpool co ver jet and ge ntly place i t onto the round magnetic field. Do not release the hydro whirlpool jet cover until Jet cov er is on the rou nd magneti c housing.

Hydro -Massage D ual jet Flow

Diame ter

Page 14

How to USE Magnetic jet !

WARNING: DO N OT RU N DRY, BASIN MU ST FI LLED WITH WATER TO LEVEL INDICATOR.

CAUTI ON: MAGNET IC JET COVER ASSEM BLY MUST A LIGN WITH DISCH ARGE PORT POSIT IONED AT 3/9 O’CL OCK.

WHEN RE ADY TO USE, MAKE S URE JET COVER IS PO SITIONED AT 3 /9 OCLOC K FOR PROPE R WHI RLPOOL ACTI ON IN THE BASIN. IF J ET CO VER IS NOT ALIGN AT 3/9 O’CLOC K, WATER WILL SPLASH OUT SIDE OF THE BASIN .

PROPER WAY TO USE MAGNETIC JET SYSTEM

1- FILL THE WATER TO WATER LEVEL INDICATOR.

2- HOLD MAGNETIC JET FIRMLY TO BRING CLOSER TO THE ROUND MAGNETIC FILED AND DO NOT RELEASE THE MAGNETIC JET PREM ATURELY OR THIS WILL CAUSE IMPACTS ON THE J ET COVER AND THE ROUND MAGNETIC FIELD(HOUSING) SHORTENING THE LIFE E XPECTANCY OF THE JET COVER . WHEN THE JET COVER NEARS THE ROUND MAGNETIC FIELD, PLA CE JET COVER ONTO THE FOUR DIMMPLE AREA (SEE DIAGRAM). THE JET COV ER MUST ALIGN WITH DI SCHARGE PORTS POSITIONED AT 3/9 O’CLOCK.

3- WHEN FINISHED WITH C LIENT, DO NOT REMOVE MAGNETIC JET UNTIL MO TOR IS FULLY STOPPE D.

4- WHEN MOTOR IS FULLY STOPPED, REMOVE MAGNETIC J ET COVER FROM THE MOTOR AND REM OVE JET COVER A ND IMPELLER FOR SA NITIZATION.

Motor

Bottom View of Magnetic Jet Base

Magne tic Jet Bas e

Magne tic Impel ler

Magne tic Whirl pool jet cov er

Round Magne tic Field (h ousing)

Page 15

EPISODE

Discharge Pump ( Optional):

Up to 4ft @ +/- 39 sec. with 1/2” Connection to main drain

Fastner

On/Off Switch

(SMALL Rubber Coupling)

Rubber Gasket

Elbow

(LARGE Rubber Coupling)

Air Check Valve

Clear Tubing 3/4 OD ½”ID

Poly Insert 90 Elb ½”

3/4” Elbow

½” Discharge Outlet.

DRAIN OUTLET MUST BE ½” or 3/4” FOR EFFICIENT DRAINAGE.

½”X ½” Brass Check Valve

PLUMBER MUST BE UTILIZED TO INSTALL CHECK VALVE and Utility Valves for Hot / Cold Water

3/4 PVC Pipe

3/4” PVC Pipe

TEE 3/4 X 3/4 X ½

LARGE Rubber Coupling

Installation Instruction

HANNING DPO 40 - 020

Electrical Con tro l Box (Located left bo tto m inside of base)

1. Make a hole ( size 1-3/8”) for the On/Off switch as shown (see fig 1). Pre- drill required.

2. Placed a 1/8” clear hose into the rear of the switch and on/off switch into the hole.

3. The discharge pump kit is made to fit onto the pedicure unit. (see fig 2)

4. Connect E-Z connector onto the drain elbow.

5. Plug discharge pump outlet into the two minute timer outlet

6. Plug two minute timer into the wall outlet.

7. It is very important that tip of the clear tub remain above the water Level with one loop as shown.

** Please cut to fit 1” Flex hose to your size**

Operation Instruction

Warning ! DO NOT RUN DRY

3/4 SLIP X ½” Male Adaptor

Power Plug to wall outlet

Pipeless Motor Power Plug

3/8” clear Tube from On/Off Swi tch for Part time control bo x

IME

T T R A P

FUL L TIM E

2 Min.Timer (D.pump)

3/8” Clear Tube from on/off for D/P pump insert into 2 Min. Timer. Make sure to push in tightly.

1-3/8” Hole for On/Off Switch

Lig

Tra

P A

RT TI

M E

Fastner

1. Turn to open drain plug. 3 to 5 second for air to release from the pipe

2. Press On/Off switch to activate timer.

3. At any time, water drain completely from the basin. Press On/Off switch to stop or built in two minute timer.

Figure 1

On/Off Switch

Page 16

Recliner Piston End Attachment Instruction

CORRECT PIN POSITION

Recliner Piston Pin

BOTTOM OF BRACKET

Recliner Piston Located

WRONG PIN POSITION

Recliner Piston Pin

BOTTOM OF BRACKET

A. PLEASE MAKE SURE PIN LOCATED AT THE END OF RECLINER PISTON IS IN HORIZONTAL POSITION. B. SLOWLY BRING UP THE BACKREST TO UP RIGHT POSITION UNTIL YOU HEAR “CLICKING” SOUND TO ENSURE PROPER PIN ENGAGEMENT INTO LOCKING LATCH.

Locking Latch

Page 17

EPISODE

Remote Control Functions

INCLINE

Press down to move chair To desirable angle.

FORWARD

Press to hold to move chair to desirable position

AUTO

KNEADING

3 Selections of Kneading Intensity

KNOCKING

Impulse Tapping Massage. 2 Selections of Knocking Intensity

Pre-Programed Automatic Massage with 2 Selection

POSITION

User’s Height (HIGH / MID / LOW)

WHEEL

Adjust Massage Wheels Up and Down to desirable position.

POSITION

MASSGAE

VIBRATION

HIGH

MID

LOW

KNEAD

KNOCK

AUTO

FULL PAR SPOT

RANGE

WHEEL

MSG

WIDTH

TIAL

INTENSITY

COMB

INTENSITY

30 20

MANUAL

TAP

POWER

On / Off

BACKWARD

Press to hold to move chair to desirable position

RECLINE

Press down to move chair To desirable angle.

MANUAL

Press for Manual MODE with Time Selection of 10~30 Mins.

RANGE

FULL / PARTIAL / SPOT 3 Selections

MSG

Keep Pressing to Massage Wheel to the intended Massage Width.

COMB

Kneading / Tapping / Knocking Combinations

TAP

3 Slections of Tapping intensity

VIB

2 Selections of Intensity for Seat vibration Massage.

SHIATSU

1. Press Manual / Timer to choose Shiatsu Massage Time Selection

2. Press Massage Range to Select FULL or PARTIAL Travel Position.

3. Press Tapping Width to fine tunecomfort.

Page 18

DISINFECTING YOUR PEDICURE SPA

Note: Please be advised that it is responsibility of purchaser/user to adhere strictly to the following procedure.

Any non-compliance will be considered negligence of the purchaser/user.

The Bureau of barbering and cosmetology requires that salons using whirlpool pedicure spas use the following disinfecting Procedures to ensure proper cleaning and maintenance of the equipment, and to prevent bacterial infection. For your clients safety, always use the regulations as a minimum standard for cleaning and disinfecting.

Chair maintenance Please see chair manual for Do and Don't

At the end of the day:

1. Remove the intake suction screen, All debris trapped behind the screen of each pedicure spa must be removed. And the screen and the inlet shall be washed with soap or detergent and water

2. Before replacing the screen, Totally immersed the screen into an EPA- registered disinfectant with bactericidal, Fungicidal, and virucidal activity.

3. Finally, flush the whirlpool system with low-suding detergent and warm OR an EPA - registered cleanser for 10 minutes. Rinse with clean fresh water and drain.

Note:

Cleaning or sanitizing is NOT disinfecting. According to the CDC and EPA, disinfecting occours only when there is a reduction of pathogenic microbes at 99.999%. Sanitizing is a only reduction of 99.9%. Cleaning of whirlpool pedicure spa requires surfactant and chelating detergents that are low foaming and have ability to remove body oils, organic oil additives, mineral oil, skin cell, nail clippings, etc.. that can accumulate both in the basin and the jets which may become fertile area for micro organism to grow.

Note: The use of oil based products can build up in the whirlpool system causing clogging in the jet and build up onto the surface of the basin. Adherence to the above cleaning will minimize build up thus the manufacturer recommend not to use mineral oil based product.

Page 19

USER RECOMMENDATION

PLEASE READ THE MANUAL THROUGHLY BEFORE USE TO ENSURE CORRECT OPERATION. THOSE UNDER A DOCTORS CARE OR WHO ARE EXPERIENCING ONE OR MORE OF THE FOLLOWING DONDITIONS SHOULD CONSULT THEIR DOCTOR BEFORE USE.

- You are receiving medical treatment or are feeling ill.

- Your body shows any cute symptoms.

- You have heart disease.

- You are pregnant or having a menstrual period.

- Your doctor has ordered you to rest.

- You have a back disorder resulting from an accident or disease.

- You have a high fever.

- You have sensory disorders.

- You have medical electrical device (e.g. pacemaker).

- You have service interruption in the circulation of the legs.

- You are diabetic.

FAILURE TO DO SO MAY RESULT IN ACCIDENTS AND HEALTH PROBLEMS.

Page 20

Page 21

Back Flow Protection Device (Dual Check Valve)

May.1.2014

In accordance with applicable Local or State regulations, J&A USA Inc., The manufacturer of the pedicure whirlpool spa certifies that the following models are equipped with factory installed Dual Check Valve back flow preventer:

** Lenox Series ** Cleo Series ** Episode Series ** Pacific Series ** Petra Series ** Toepia Series

The specification of the installed device is as follows:

J&A USA Inc.

335 Crooked Hill Road Brentwood, NY 11717 Tel: 631.243.3336 Fax: 631.243.3339

www.jausainc.com

DEVICE NAME

DEVICE MANUFACTURER

DEVICE MODEL

DEVICE SPECIFICATION

DEVICE PRESSURE

DEVICE TEMPERATURE

DUAL CHECK VALVE BACKFLOW PROTECTION

NEOPERL INC. Waterbury CT.

Dual Check Valve 1/2” x /2”NPT

TESTED AND CERTIFIED TO MEET NSF/ASSI 61 Complies with ANSI/ASME A112.18.3M, A112.18.1M AND CSA B125

MAXIMUM PRESSURE: 150 PSI (10 BAR) SERVICE PRESSURE : 80 PSI

MAXIMUM TEMPERATURE : 150F SERVICE TEMPERATURE : 90F

ALL MODELS OF PEDICURE SPA MENTIONED ABOVE ARE EQUIPPED WITH THE SUBJECT DEVICE AS STANDARD FEATURE. As for your information, indicated State requires Vaccum Breaker.

** Effective April 01 2005:

ARIZONA, CALIFORNIA, NEBRASKA, NEVADA, OREGON, TEXAS AND WASHINGTON

** Effective June 15 2005: ILLINOIS, MINNESOTA, WISCONSIN, MICHIGAN

** Effective May 01 2007: CONNECTICUT

For additional information, Please contact us at 631-243-5300 Very Truly yours,

Technical Support

Page 22

Limited Warranty

Pedicure Spa

IMPORTANT

To validate the limited warranty, The Limited Warranty Registration Form MUST be ﬁlled out completely and return to J&A USA within 30 days of original purchased date. This Limited Warranty is valid if J&A USA received registration form.

J&A USA Inc. Pedicure Spas has designed and manufactured with the highest standards and expressly warrant the pedicure spa as follows: To the original owner of the J&A USA Inc. Pedicure Spa may repair or replace, at its option, any pedicure spa found to be defective in material or workmanship upon inspection by a authorized representative of J&A USA Inc. This limited warranty covers the following:

Base - Twenty four (24) month from date of shipment from J&A USA facility. Components / Parts - Twenty four (24) month from date of shipment from J&A USA facility. Stool - Ninety (90) days from date of shipment from J&A USA facility. Shipping Costs - Twenty four (24) month from date of shipment. J&A USA will cover normal shipping costs associated with

replacement parts. Expedited shipping cost will incur an additional charge. Labor - Twelve (12) month from date of shipping, J&A USA Inc will cover reasonable labor costs associated with the installation of replacement parts found to be defective in material or workmanship upon inspection by authorized representative of J&A USA INC.

No labor cost or replacement parts will be covered under this limited warranty if at the sole discretion of J&A USA INC. it is determined a failure was caused by negligence, accident or improper use, improper installation or lack of proper maintenance as in the Owner’s Manual.

NO CONSEQUENTIAL, INCIDENTAL, CONTINGENT, INDIRECT, SPECIAL OR OTHER DAMAGES WILL BE ALLOWED. This warranty is null and void if the pedicure spa is removed from its original installation or is not installed accordance

with speciﬁcations of pedicure spa or national, state or local codes, regulation and ordinances. Furthermore, this limited warranty is null and void if the pedicure spa is subjected to improper installation or maintenance, negligence, improper cleaning or any other circumstance beyond J&A’s control. To validate limited warranty, pedicure spa must be installed by a licensed plumber and/or electrician in accordance with local and / or State code and pedicure spa installation instructions.

Warranty Exclusion

1- Unauthorized repairs and/or modiﬁcation or tampered in any way. 2- Damage due to freight, accident, natural disaster and /or abuse or misuse 3- Stain, fading or discoloration of seat, back cover, armrests ( Upholsteries), Tray or Footrest 4- Fading, discoloration or staining of basin or Any portion of surface of pedicure spa caused by water additive or improper water treatment (such calcium built up) and/or cleaning agents/s 5- Damage or malfunction due to improper installation including but not limited to, failure to comply with all national, state and local plumbing, electrical and building codes. 6- Magnetic jet assembly (base, impeller and cover) due to J&A provided an extra jet assembly to accommodates wear-tear. 7- Damage drain pump due to residue built up in drain pipe and / or due to the lack of maintenance.

Parts for which labor / Service is NOT COVERED - Following components are simple to replace and DO NOT require a service

technician. Therefore, though the part is covered under the guidelines of the warranty agreement.

1- Panel 2- Jet cover, impeller and / or jet assembly 3- Faucet Cartridge, Shower Head 4- Footrest 5- Air actuate On/Off Button 6- Drain Plug 7- Remote control

During the Limited Warranty period, J&A will, at its sole discretion, repair o r replace any defe ctive component. All component parts removed under this Limited Warranty become property of J&A USA Inc. And all rep lacement compo nent /s MUST be return to J&A USA Inc. within 20 days of replacement. If not, replaced component/s will be charge as its cost/s.

This limited warranty is for the original owner and not transferable . The original owner agrees by using pedicure spa th e obligation of J&A USA shall not extend to indirect or contingen t damage or injury. Furthermore, the obligations of J&A are limited to those set forth herein. The limited warranty is the exclusive remedy and is in lieu of all other warranties, express or limited, including but not limited to, any implie d warranty of fitn ess or merchantability for a particular purpose. No distributor or other person has the right or authority to bind J&A USA INC to changes to this limited warranty. Consequently, J&A USA I NC is not responsi ble for such warra nties or represe ntations.

Limit ation of lia bility

TO THE EXTENT ALLOWED BY LOCAL LAW, EXCEPT FOR THE OBLIGATIONS SPECIFICALLY SET FORTH IN THIS WARRANTY STATEMENT, IN NO EVENT WILL J&A OR ITS THIRD PARTY SU PPL IER S BE LI ABL E FOR ANY DAMA GED C AUS ED BY J&A’S PED ICU RE SPA OR THE FAI LUR E OF J& A PEDI CUR E SPA INCL UDI NG ANY LOST PR OFI T OR SAVIN GS, B USI NES S INT ERR UPT ION , LOS S OF US E OR ANY OT HER C OMM ERC IAL OR ECONOMIC LOSS OF ANY KI ND, O R SPE CIA L, IN CRE MEN TAL, OR CONSEQUENTIAL DA MAG ES. THIS LIMITATION OF LIABILITY A PPL IES WHETHER DAMAGES ARE SOUGHT, OR A CLAIM MADE, UNDER THIS LIMITED WA RRA NTY OR AS A TORT CLAIM, A CONTRACT CLAIM OR ANY OTHER CLAIM.

Page 23

Limited Warranty Registration Form

IMPORTANT

Serial No.:

Your Salon E-Mail Address:

First Name : Last Name :

Salon Name :

Salon Address :

City :

State:

Name of Distributor :

Zip Code:

Tel (Salon)

Cell

Area Code:

Phone :

Date of Purchase (mm/dd/yyyy):

City :

Completed Warranty Registration Form to : J&A USA Inc. 335 Crooked Hill Road Brentwood N.Y 11717 or Fax to 631-243-3339 or email to [email protected]

Questionnaire ( We value your voice!)

1. Are you satisfy with Pedicure spa received?

2. Are you currently using J&A product/s? If so, How long?

2. If not, What other product ?

4. What is the most important features in choosing Pedicure Spa?

5. How long in business?

6. How often are you remodel Your Salon?

7. Would you purchase J&A product in the future?

State:

Yes : No :

Brand

Price

Year/s

Yes : No :

Zip Code:

Design

Other

Function

Year/s

Service

8. Do you want to receive a promotion by email ?

9. Any suggestion or Comment

Yes : No :
