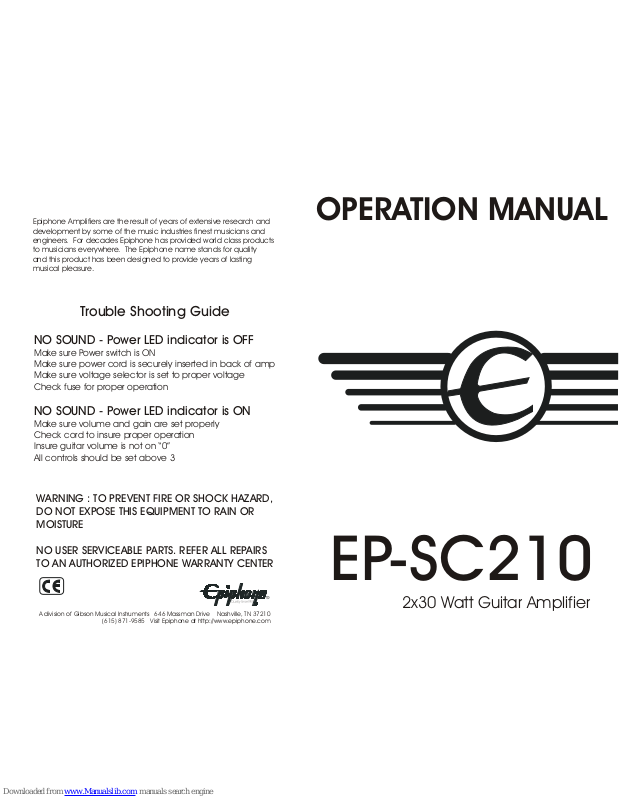

2x30 Watt Guitar Amplifier
Epiphone Amplifiers are the result of years of extensive research and
development by some of the music industries finest musicians and
engineers. For decades Epiphone has provided world class products
to musicians everywhere. The Epiphone name stands for quality
and this product has been designed to provide years of lasting
musical pleasure.
Trouble Shooting Guide
NO SOUND - Power LED indicator is OFF
Make sure Power switch is ON
Make sure power cord is securely inserted in back of amp
Make sure voltage selector is set to proper voltage
Check fuse for proper operation
NO SOUND - Power LED indicator is ON
Make sure volume and gain are set properly
Check cord to insure proper operation
Insure guitar volume is not on “0”
All controls should be set above 3
WARNING : TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE
NO USER SERVICEABLE PARTS. REFER ALL REPAIRS
TO AN AUTHORIZED EPIPHONE WARRANTY CENTER
A division of Gibson Musical Instruments 646 Massman Drive Nashville, TN 37210
(615) 871-9585 Visit Epiphone at http://www.epiphone.com
EP-SC210
OPERATION MANUAL
Page 2
A) INPUT JACK -- 1/4” jack for instrument connection
B) GAIN -- Sets the amount of gain or distortion in the Overdrive
Channel. Higher settings provide greater distortion.
C) VOLUME(CH1) -- Adjusts the overall level or volume of the
Overdrive Channel. For a clean sound set the Gain Control
between 1 and 3 and the Volume at 5 or above. For
Distortion, increase the Gain and the Volume to the
desired level.
D) CHANNEL SELECT SWITCH -- Selects between
Ch1(Overdrive) and CH2(Clean)
E) VOLUME (CH2) -- Adjusts the level or loudness of CH2
F) BASS -- Controls the boost and cut of the low frequency
range. Clockwise adds low frequencies, counter clockwise
reduce low frequencies
G) MIDDLE -- Controls the boost and cut of the mid range
frequencies
H) TREBLE -- Controls the boost and cut of the upper
frequencies. The Treble control will make the
sound brighter
I) PRESENCE -- Adjusts the amount of mid high frequencies
between the Treble control and Middle control.
SPECIFICATIONS
OUTPUT POWER
TREBLE CONTROL
PRESENCE CONTROL
MIDDLE CONTROL
BASS CONTROL
INPUT SENSITIVITY @ 1KHz
INPUT IMPEDANCE
SPEAKER
POWER CONSUMPTION
:2 x 30 WATTS
:12dB @ 10KHz
: 4dB @1KHz
: 9dB @ 440Hz
: 8dB @100Hz
:56mVmV
:470K ohms
: 2 x 10”
:40 WATTS
GAIN
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
ON
0
-15
+15
GAIN VOLUME
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
VOLUME
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
BASS MIDDLE PRESENCETREBLE REVERB DEPTH RATE FOOT SWITCH POWERPHONES
0
-15
+15
0
-15
+15
0
-15
+15
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
5
6
4
3
7
8
2
9
1
0
10
GAIN
GAIN GAIN
OVERDRIVE
CHANNEL
SELECT
CHORUS
CHORUSODRIVE
GUITAR AMPLIFIER MODEL EP-SC210
CH 1CH
2
CLEAN
J) Reverb -- Adjusts the amount of reberb added to the
normal signal
K) CHORUS SELECT SWITCH -- Turns the stereo chorus effect
on and off.
L) CHORUS RATE -- Sets the speed of the chorus effect.
Turning the Control clockwise increases the speed.
M) CHORUS DEPTH -- Adjusts the amount of the chorus
effect added with the “dry ” or unaffected signal
N) FOOTSWITCH 1 JACK -- For connection of a single button
footswitch for Channel select.
O) FOOTSWITCH 2 JACK -- For connection of a single button
footswitch for Chorus on/off.
P) HEADPHONE JACK -- For connecting headphones with a
1/4” stereo plug. When using headphone jack the speaker is
disconnected.
WARNING: Prolonged listening at high volume can cause
hearing damage!!
Q) ON/OFF SWITCH -- Turns the AC power on and off
