Model No. EPEL0995.0
Serial No. _
Serial
Number
Decal
(beneath
ramp)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER’S MANUAL
CALL TOLL FREE:
1-866-997-6999
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.iconservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
HOW TO OPERATE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

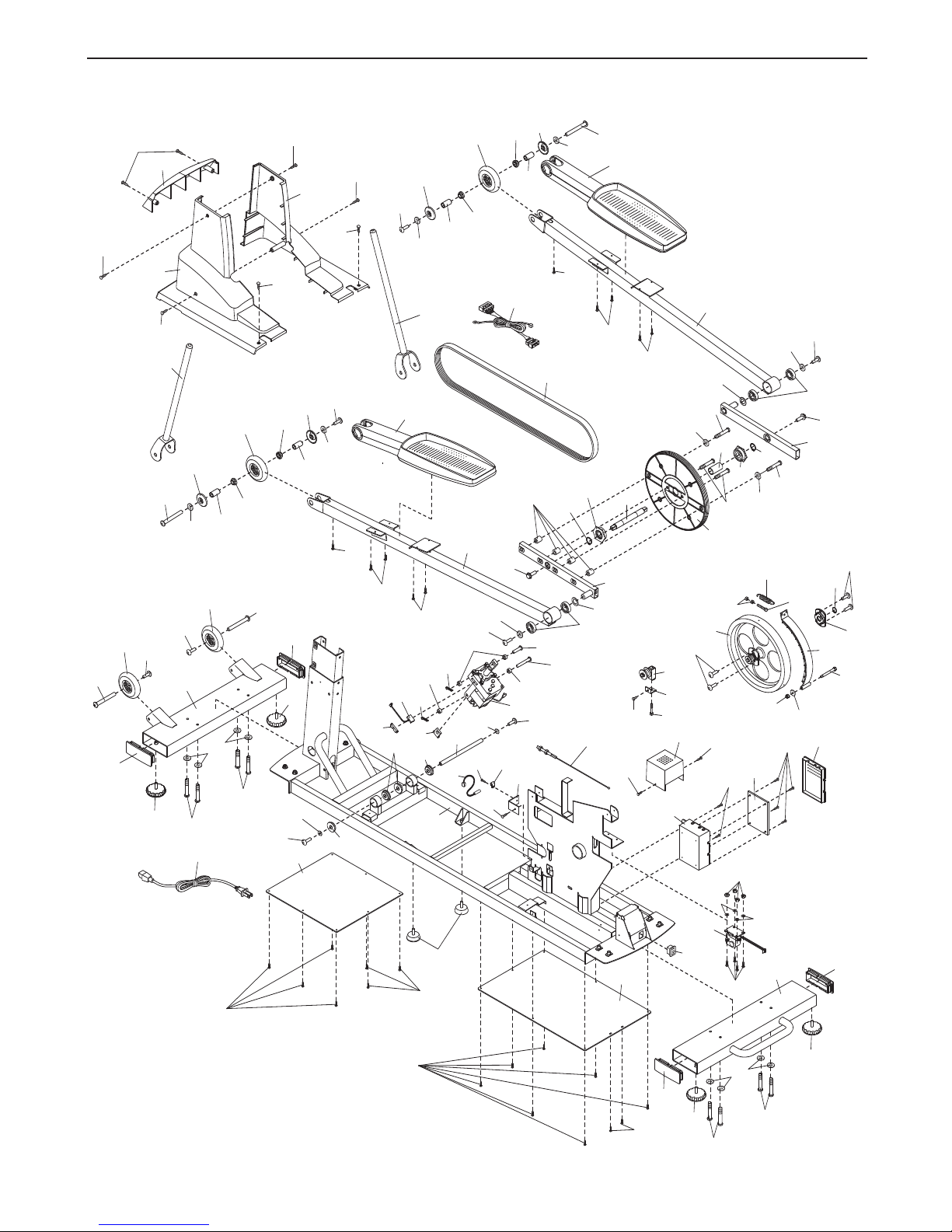

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
IMPORTANT PRECAUTIONS
WARNING:
tions before using the elliptical exerciser.
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the elliptical exercise r only as described.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
in-home use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
4. Place the elliptical exerciser on a level surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical exerciser
indoors, away from moisture and dust. Make
sure that there is enough clearance around
the elliptical exerciser to mount, dismount,
and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
7. The elliptical exerciser should not be used
by persons weighing more than 350 pounds.
To reduce the risk of serious injury, read the following important precau-
8. Always hold the handlebars or the handgrip
pulse sensor when mounting, dismounting,
or using the elliptical exerciser.
9. Wear appropriate exercise clothes and
athletic shoes while using the elliptical
exerciser.
10. Keep your back straight when using the elliptical exerciser; do not arch your back.
11. If you feel pain or dizziness while exercising, stop immediately and cool down.
12. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exerci se aid in determining heart rate
trends in general.
When you stop exercising, allow the pedals
13.
to slowly come to a complete stop. The elliptical exerciser does not have a free wheel;
the pedals will continue to move until the
flywheel stops.
14. Always unplug the power cord immediately
after use and before cleaning the elliptical
exerciser.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
2
Page 3
BEFORE YOU BEGIN
Congratulations for selecting the new EPIC E 950
lliptical exerciser. The E 950 elliptical exerciser offers
e
an impressive array of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, see the front cover of
this manual. To help us assist you, please note the
product model number and serial number before contacting us. The model number is EPEL0995.0. The
Left Handlebar
Handgrip Pulse Sensor
serial number can be found on a decal attached to the
lliptical exerciser (see the front cover of this manual
e
for the location of the decal).
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.iconservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fans
Console
BACK
Ramp
Water Bottle Holder*
Pedal
Wheel
Pedal Arm
RIGHT SIDE
Power Receptacle
*No water bottle is included
The decals shown above have been placed on the elliptical exerciser. If a decal is missing or illegible, call the toll-free telephone number on the front cover of this manual and order a free replacement decal. Apply the decal in the location shown.
3
Page 4
ASSEMBLY
M8 Split
Washer
(85)–11
M8 x 25mm
Washer (119)–2
M8 x 18mm
Washer (93)–4
M8 x 20mm Button
Screw (118)–2
M8 x 25mm Button
Screw (100)–1
M8 x 65mm Button Screw (95)–8
M8 x 47mm Button Screw (1 10)–2
M8 x 23mm
Washer (103)–2
Union Set (86)–2
M4 x 16mm
Screw (89)–30
M4 x 16mm Round
Head Screw (91)–6
M8 x 13mm Button
Screw (90)–8
M8 x 16mm Button
Screw (94)–4
M8 x 25mm Patch
Screw (123)–2
To hire an authorized technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
ssembly requires two persons.Place all parts of the elliptical exerciser in a cleared area and remove the
A
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the two
included hex keys, assembly requires a phillips screwdriver , two adjustable
wrenches , a rubber mallet , and pliers .
Use the drawings below to identify the small parts used for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST on pages 24 and 25. The number following the key
number is the quantity needed for assembly.
is not in the parts bag, check to see if it has been preassembled.
Note: Some s mal l pa rts may have been preassembled. If a part
1. Orient the Front Stabilizer (3) as shown. Attach the
Front Stabilizer to the Frame (1) with four M8 x 65mm
Button Screws (95) and four M8 Split Washers (85).
Next, attach the Front Shield (38) to the Front
Stabilizer (3) with two M4 x 16mm Round Head
Screws (91).
Then, tighten the two Frame Cushions (106) into the
underside of the Frame (1).
1
91
38
1
3
85
95
4
85
106
95
Page 5
2. Orient the Rear Stabilizer (2) as shown. Attach the
Rear Stabilizer to the Frame (1) with four M8 x 65mm
utton Screws (95) and four M8 Split Washers (85).
B
2
2
1
85
3. Slide an M8 x 25mm Washer (119) onto an M8 x
20mm Button Screw (118). Tighten the Button Screw
into one end of the Incline Axle (68). Apply a small
amount of the included grease to the Incline
Orient the Ramp (5) so that the opening is up as
shown. Fit the welded tube on the underside of the
Ramp between the two rings on the top of the Frame
(1). Insert the Incline Axle (68) through the rings and
the welded tube.
Slide an M8 x 25mm Washer (119) onto an M8 x
20mm Button Screw (118). Tighten the Button Screw
into the open end of the Incline Axle (68).
4. Using your fingers, turn the shaft on top of the Motor
(46) counterclockwise until it stops turning. Next, fit the
opening of the Ramp (5) over the front of the Frame
(1) as shown. Position the U-bracket on the underside
of the Ramp over the end of the shaft as shown.
Insert the Clevis Pin (112) through one side of the Ubracket on the Ramp (5), an 8mm Plastic Spacer
(111), the shaft on the Motor (46), another 8mm Plastic
Spacer, and the other side of the U-bracket. Then,
insert the straight end of a Hairpin (65) through the
hole in the Clevis Pin.
Axle.
85
95
3
5
119
118
4
5
12
1
46
95
Opening
Grease
1
111
Welded
Tube
119
68
65
118
5
Page 6
5. Attach a Pedal Assembly (39) to the Left Pedal Arm (9)
with five M4 x 16mm Screws (89).
Attach the other Pedal Assembly (not shown) to the
ight Pedal Arm (not shown) in the same way.
R
5
89
89
39
9
6. Remove the two Pivot Shafts (10) from the two Pivot
Arms (not shown). Next, identify a Union Set (86), and
remove t he scr ew fro m the barrel. Apply a small
amount of grease to the outside of the barrel.
Slide an M8 x 18mm Washer (93), a Wheel Cap (53),
and a 30mm Spacer (87) onto the barrel of the Union
Set (86). While another person aligns the indicated
holes in the Left Pedal Assembly (39), a Pedal Arm
Wheel (52), and a Pivot Shaft (10), insert the barrel
through all of the holes. Then, slide another 30mm
Spacer (87) onto the barrel.
Next, slide an M8 x 18mm Washer (93) and a Wheel
Cap (53) onto the screw of the Union Set (86), and
tighten the screw into the barrel.
Attach the other Pivot Shaft (not shown) and the other
Pedal Arm Wheel (not shown) to the Right Pedal
Assembly (not shown) in the same way.
7. While another person holds the Upright (4) near the
Frame (1), connect the Upper Wire Harness (58) to the
Extension Wire Harness (59). Slide the Upright onto
the top of the Frame, being careful not to pinch the
ire Harnesses
W
Attach the Upright (4) to the Frame (1) with two M8 x
47mm Button Screws (110), an M8 x 25mm Button
Screw (100), and three M8 Split Washers (85).
.
6
86
Grease
7
93
87
53
Align
these
holes
10
86
93
87
53
52
39
Do not pinch the
wire harnesses
during this step.
58
59
85
85
100
10
1
4
1
6
Page 7
. Identify the Left Pulse Sensor Bar (26) and the Right
8
Pulse Sensor Bar (124); the Pulse Sensor Bars are
arked with stickers. While another person holds the
m
Pulse Sensor Bars near the Upright (4), connect the
upper pulse wires to the lower pulse wires. Insert the
excess wire into the Upright.
Orient the Pulse Sensor Bars (26, 124) as shown.
ttach the Pulse Sensor Bars to the Upright (4) with
A
four M8 x 16mm Button Screws (94),
not to pinch the wires
.
being careful
8
Lower
Pulse Wire
124
Upper
Pulse
Wire
4
26
4
9
Lower
Pulse Wire
94
4
9
Upper
ulse Wire
P
9. Identify the Front Center Pivot Cover (27). Attach the
Front Center Pivot Cover to the Frame (1) with four M4
x 16mm Screws (89).
Next, identify the Rear Center Pivot Cover (28). Attach
the Rear Center Pivot Cover to the Frame (1) with four
M4 x 16mm Screws (89).
10.Apply a small amount of the included high-temperature
lubricant to a paper towel, and rub a thin film of the
lubricant onto both of the Pivot Shafts (10). Next, apply
a small amount of grease to the axle in the Upright (4).
Then, slide a 5mm Spacer (35) onto each end of the
axle in the Upright (4).
Next, slide the two Pivot Arms (20) onto the Pivot
Shafts (10), and turn the Pivot Arms so the flanges are
facing away from the elliptical exerciser. Then, slide
the Pivot Arms onto the ends of the axle in the Upright
(4); use a rubber mallet, if necessary.
Slide an M8 x 23mm Washer (103) onto an M8 x
25mm Patch Screw (123). Attach the left Pivot Arm
(20) to the left end of the axle with the Patch Screw.
Attach the right Pivot
axle in the same way.
Arm (20) to the right end of the
9
89
10
123
28
Flange
103
20
Lubricate
4
4
Grease
35
89
10
89
89
27
Grease
20
10
7
Page 8
11.Identify the Left Handlebar (7). Attach the Left
Handlebar to the left Pivot Arm (20) with four M8 x
13mm Button Screws (90) as shown.
Attach the Right Handlebar (6) to the right Pivot Arm
(20) in the same way.
1
1
Attach the Water Bottle Holder (23) to the Upright (4)
with two M4 x 16mm Screws (89).
12.Position the Front Left Pivot Cover (21) and the Rear
Left Pivot Cover (31) over the left Pivot Arm (20) as
shown. Attach the Left Pivot Covers with an M4 x
16mm Round Head Screw (91) and two M4 x 16mm
Screws (89).
Attach the Front Right Pivot Cover (29) and the Rear
Right Pivot Cover (not shown) over the right Pivot Arm
(not shown) in the same way.
12
91
89
90
7
6
20
23
20
90
4
31
29
20
89
21
89
13. While another person holds the Console (17) near the
Upright (4), attach the Upper Wire Harness (58) and
the Pulse Sensor Wire (25) to the corresponding console wire harnesses. Then, attach the Console to the
Upright with six M4 x 16mm Screws (89), being care-
ful not to pinch the wires.
Attach the Upright Cover (22) to the Upright (4) with
two M4 x 16mm Round Head Screws (91).
14. Plug the Power Cord (56) into the Power Receptacle
(70) at the rear of the elliptical exerciser.
15.Make sure that all parts of the elliptical exerciser are properly tightened.
the assembly of your elliptical exerciser, activate the calibration process by following the steps in
HOW T
to protect the floor from damage. Note: Some extra hardware may be left over
O CALIBRATE THE INCLINE SYSTEM on page 17.
13
91
89
89
14
Cover the floor beneath the elliptical exerciser
22
25
58
4
70
56
When you have completed
.
17
8
Page 9
HOW TO OPERATE THE ELLIPTICAL EXERCISER
OW TO PLUG IN THE POWER CORD
H
his product
T
must be
grounded.
If it should
malfunction
or break
down,
grounding
provides a
path of least
resistance for
electric
current to reduce the risk of electric shock.
uct is equipped with a cord having an equipmentgrounding conductor and a grounding plug.
power cord into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. This product is for
use on a nominal 120-volt circuit. Important: The
elliptical exerciser is not compatible with GFCIequipped outlets.

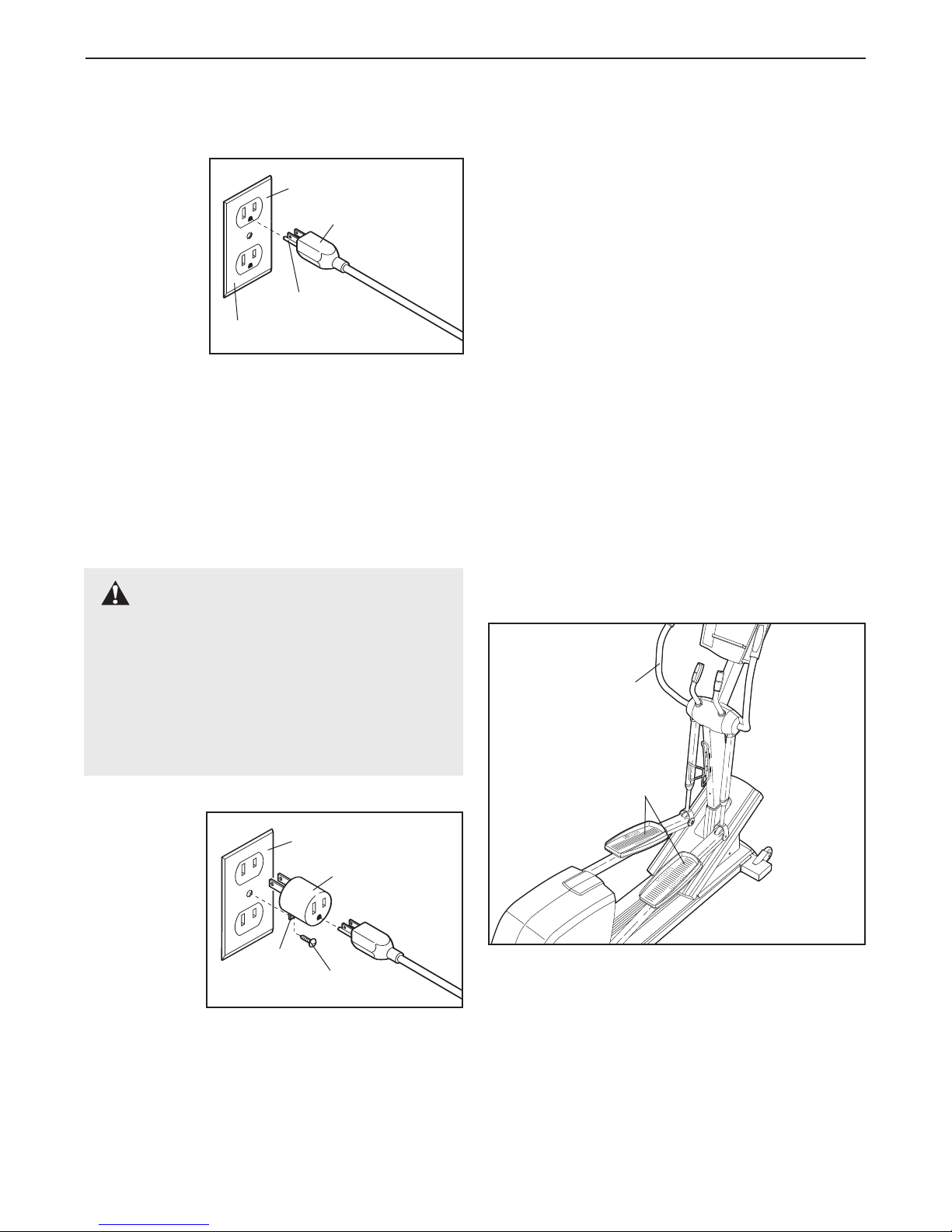

Grounded Outlet
Grounded Outlet Box
Grounding Plug
Grounding Pin
This prod-
Plug the
DANGER:Improper connection of
the equipment-grounding conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product is
properly grounded. Do not modify the plug
provided with the product—if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
he green-colored rigid ear, lug, or the like extending
T
from the adapter must be connected to a permanent
round such as a properly grounded outlet box cover.
g
Whenever the adapter is used, it must be held in
place by a metal screw. Some 2-pole receptacle out-
let box covers are not grounded. Contact a qualified electrician to determine if the outlet box cover
is grounded before using an adapter.
Note: When the power cord is plugged in, the elliptical exerciser’s incline system may automatically
calibrate itself. During the calibration process, two
dashes (– –) will appear in the Ramp display while
the ramp rises to the highest position and then
moves down to the lowest position. The calibra
tion process may last for one to two minutes. If
the incline system does not calibrate itself, see
HOW TO CALIBRATE THE INCLINE SYSTEM on
page 17.
EXERCISING ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
Handlebar
-
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown at
the right if a
properly
grounded
outlet is not
available.
until a properly grounded outlet can be installed by a
qualified electrician.
The temporary adapter should be used only
Grounded Outlet Box
Lug
Metal Screw
Adapter
Pedals
To dismount the elliptical exerciser, wait until the pedals come to a complete stop.
does not have a free wheel; the pedals will continue to move until the flywheel stops. When the ped-
als are stationary, step off the highest pedal first.
Then, step off the lowest pedal.
The elliptical exerciser
9
Page 10

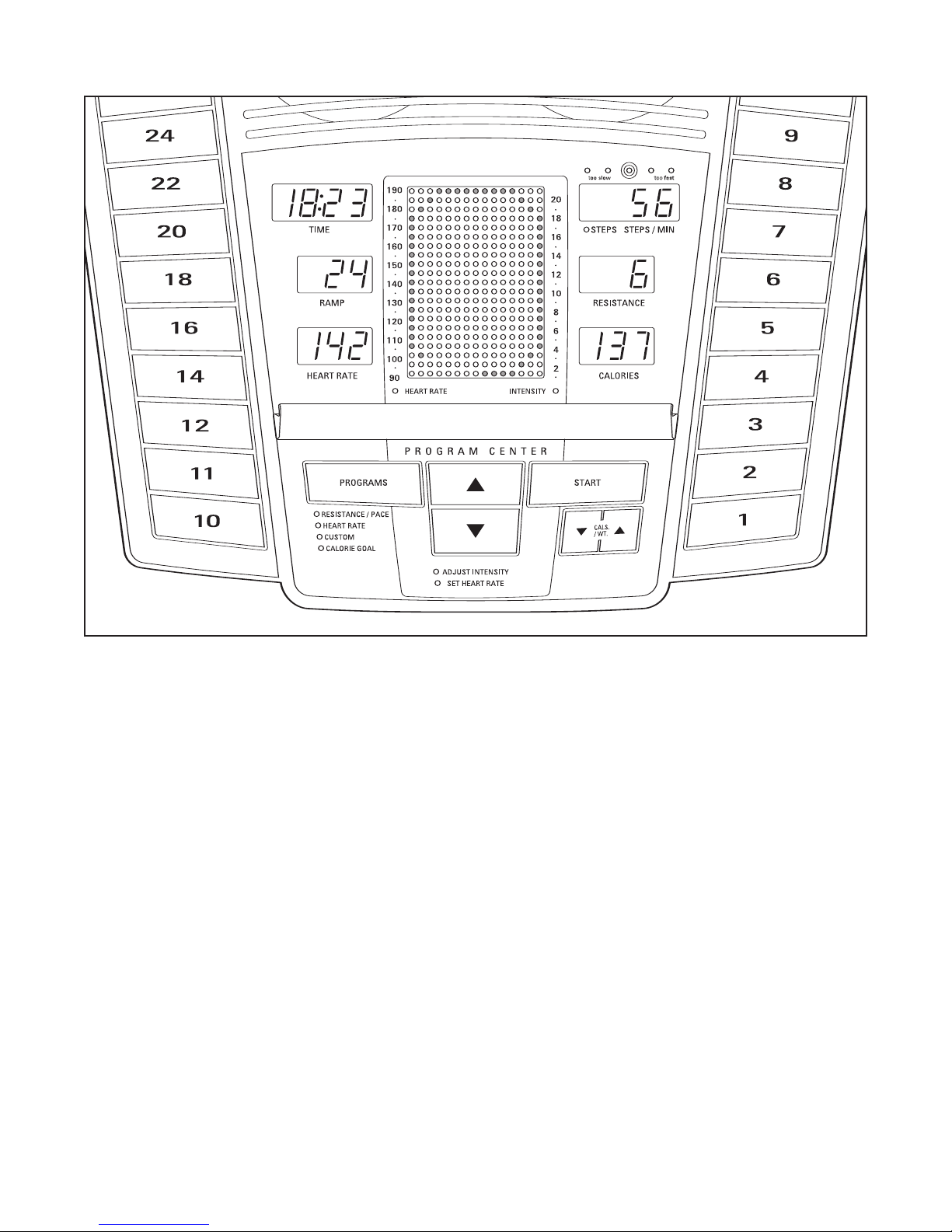

CONSOLE DIAGRAM
FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals and the angle of
the ramp can be changed with the touch of a button.
As you pedal, the console will provide continuous
exercise feedback. You can even measure your heart
rate using the built-in handgrip pulse sensor.
The console also features a calorie goal program that
allows you to choose a calorie-burning goal for your
workout.
calories that you burn until the goal is reached.
In addition, the console of
Each program automatically changes the resistance of
As you exercise, the console will count the
fers eight preset programs.
the pedals and prompts you to increase or decrease
your pace as it guides you through an effective workout.
The console also features two heart rate programs
that automatically change the resistance of the pedals
to keep your heart rate near a target heart rate as you
exercise.
You can even create your own custom workout programs and save them in memory for future use.
o use the manual mode of the console,
T
11. To use the calorie goal program, see page 12.
o use a preset program,
T
heart rate program,
a custom program, see page 16.
see page 13. T
see page 14. T
o create and use
see page
o use a
10
Page 11
OW TO USE THE MANUAL MODE
H
urn on the console.
T
1
To turn on the console, press any button or begin
pedaling.
ote: If there are sheets of clear plastic on the
N
face of the console, remove the plastic.
Select the manual mode.
2
When the power is
turned on, the manual mode will be
selected. If you have
selected a program,
reselect the manual
mode by pressing the
Programs button repeatedly until no program indicators are lit.
Begin pedaling and change the resistance of
3
the pedals as desired.
As you pedal, change the resistance of the pedals by pressing the Quick Resistance buttons.
Note: After the Quick Resistance buttons are
pressed, it will take a moment for the pedals to
reach the selected resistance level.
Adjust the angle of the ramp as desired.
4
As you pedal, change the angle of the ramp by
pressing the Quick Ramp buttons. Note: After the
Quick Ramp buttons are pressed, it will take a
moment for the ramp to reach the selected angle.

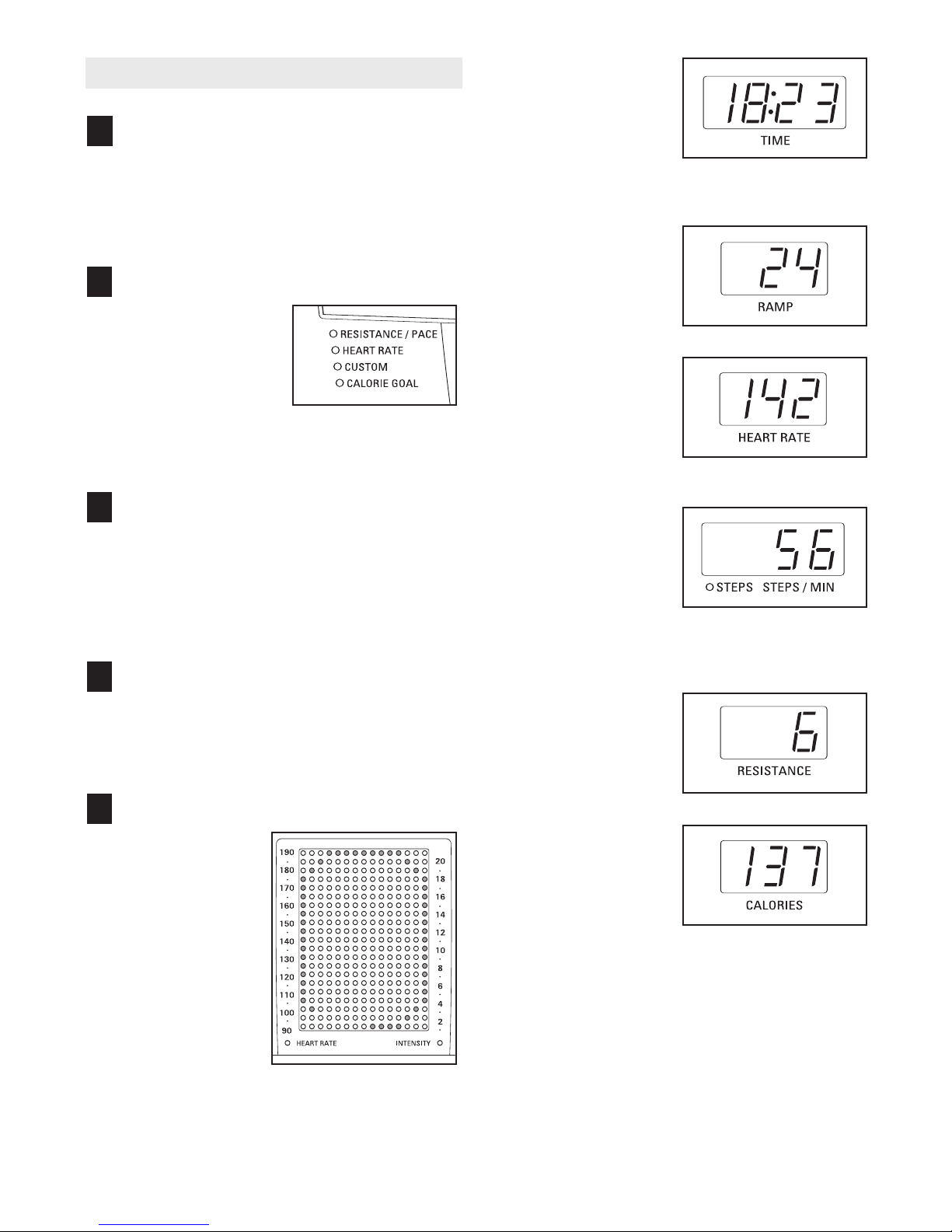

The Time display
will show the
lapsed time. Note:
e
When a program is
elected, the dis-
s
play will show the
time remaining in
the program instead of the elapsed time.
The Ramp display
will show the angle
of the ramp.
The Heart Rate
display will show
your heart rate
when you use the
handgrip pulse
sensor (see step 6
on page 12).
The Steps display
will show the total
number of steps
you have pedaled
and your pedaling
pace, in steps per
minute. The display
will change from one number to the other every
few seconds.
The Resistance
display will show
the resistance level
of the pedals.
Monitor your progress with the displays.
5
The matrix—
When the manual
mode or the calorie goal program is
selected, the
matrix will show a
track representing
1/4 mile. As you
exercise, the indicators around the
track will light in
succession until
the entire track is
The track will
lit.
then darken and the indicators will again begin to
light in succession.
11
The Calories display will show the
approximate num
ber of calories you
have burned. Note:
For a more accu
rate reading, enter
your weight by pressing the Calories/Weigh t
(Cals./Wt.)
your weight is shown in the Calories display. Your
weight will be saved in memory.
-
-
increase and decrease buttons until
Page 12

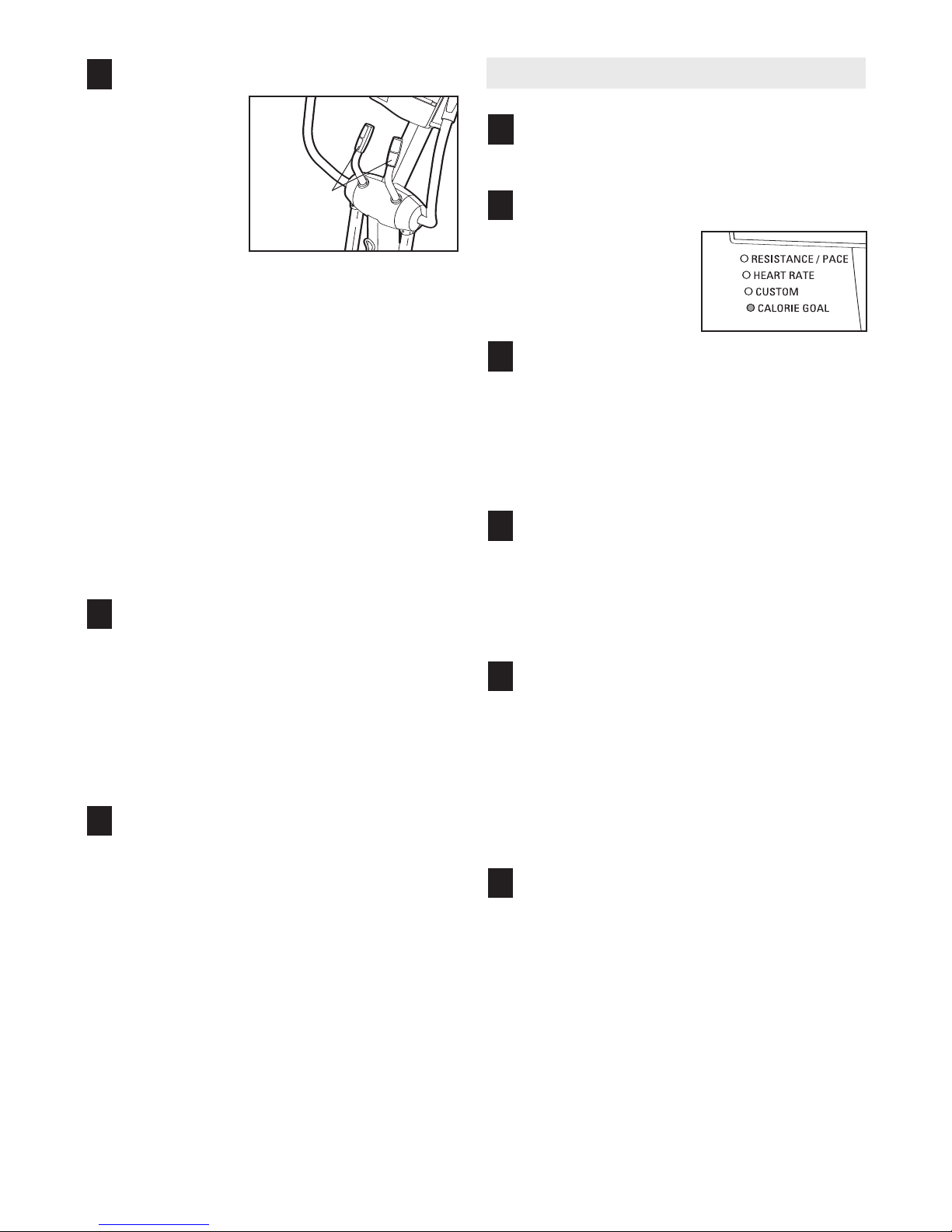

easure your heart rate if desired.
M
6
If there are
sheets of
clear plastic
on the metal
contacts on
ontacts
he handgrip
t
pulse sensor,
peel off the
plastic.
your hands on
the handgrip pulse sensor, with your palms on the
contacts.
pulse is detected, one or two dashes will appear
in the Heart Rate display and then your heart rate
will be shown.
For the most accurate heart rate reading, continue
to hold the handgrips for about 30 seconds.
If your heart rate is not shown, make sure th at
your hands are positioned as described. Avoid
moving your hands excessively or squeezing the
metal contacts too tightly. For optimal performance,
periodically clean the metal contacts using a soft
cloth;
cals.
Turn on the fans if desired.
Place
Avoid moving your hands. When your
never use alcohol, abrasives, or chemi-
C
7
To turn on the fans at low speed, press the fans
button. To turn on the fans at medium speed,
press the button again. To turn on the fans at high
speed, press the button a third time. To turn off
the fans, press the button a fourth time. Note: If
the fans are turned on but the pedals are not
moved for thirty seconds, the fans will automatically turn off.
When you are finished exercising, the console
8
will automatically turn off.
OW TO USE THE CALORIE GOAL PROGRAM
H
Turn on the console.
1
See step 1 on page 11.
Select the calorie goal program.
2
Press the Programs
button repeatedly until
the Calorie Goal indicator lights.
Enter your weight.
3
When the calorie goal program is selected, the
current user weight setting will flash in the
Calories display. If desired, press the
Calories/Weight (Cals./Wt.) increase and
decrease buttons to change the user weight setting. Then, press the Start button.
Enter your calorie goal.
4
After the Start button is pressed, a calorie goal
will flash in the Calories display. If desired, press
the Calories/Weight (Cals./Wt.) increase and
decrease buttons to change the calorie goal.
Then, press the Start button.
Begin pedaling to start the progr am.
5
When a calorie goal program is used, the console
will function in the same way as when the manual
mode is selected, except that the Calories display
will show the number of calories still to be burned
instead of the number of calories you have
burned. When the calorie goal is reached, a tone
will sound and the time will stop incrementing in
the display.
If the pedals are not moved for a few seconds, a
series of tones will sound, the Time display will
begin to flash, and the console will pause.
If the pedals are not moved for a few minutes, the
console will turn of
f and the displays will be reset.
12
When you are finished exercising, the console
6
will automatically turn off.
See step 8 on page this page.
Page 13
HOW TO USE A PRESET PROGRAM
The program will continue until no time remains
in the Time display.
Turn on the console.
1
See step 1 on page 11.

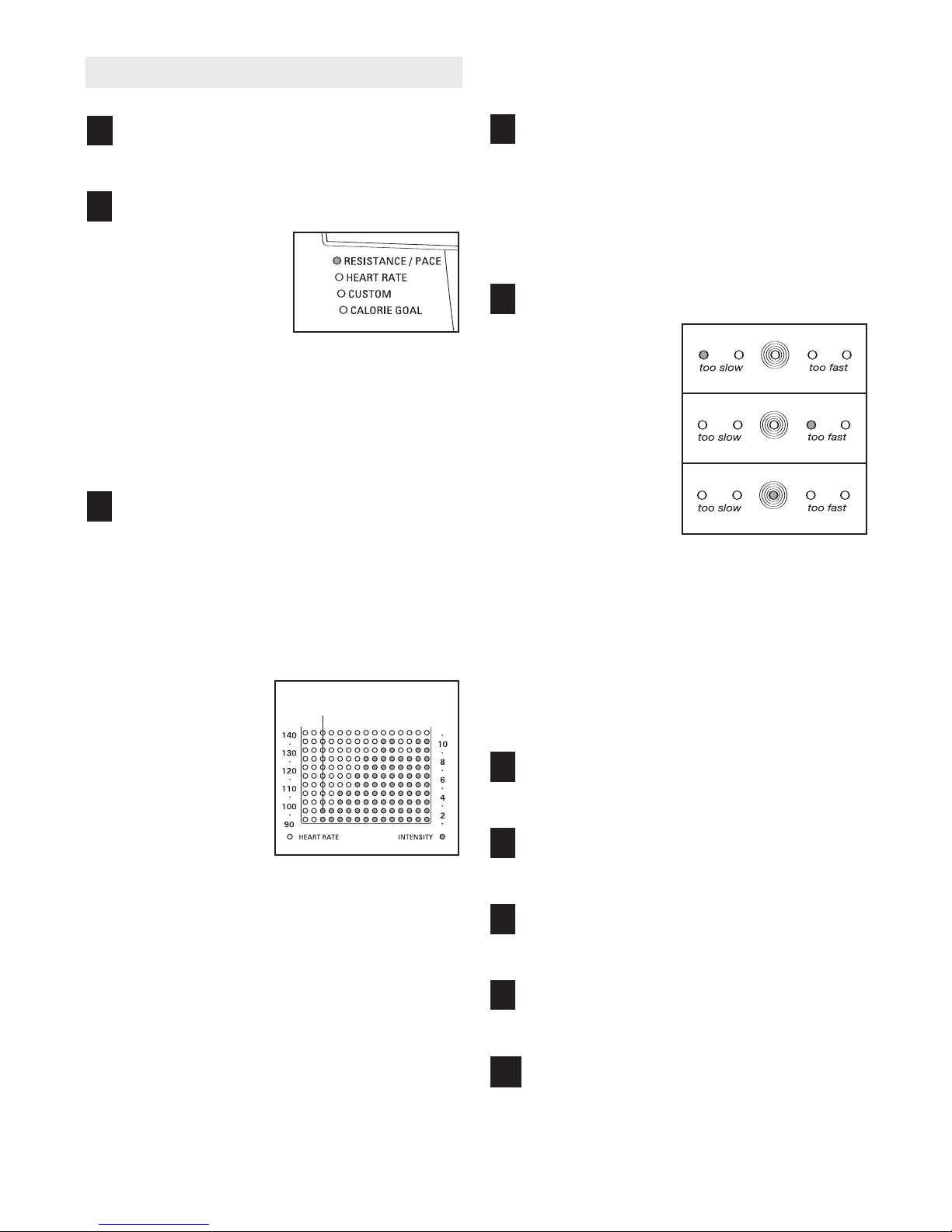

elect a preset program.
S
2
To select one of the
eight preset programs, press the
Programs button
repeatedly . As each
preset program is
selected, the
Resistance/Pace indicator will light, a profile of
the resistance settings of the program will scroll
across the matrix, the program time will appear in
the Time display, and the maximum resistance
setting of the program will flash in the Resistance
display for a few seconds.
Press the Start button or begin pedaling to
3
start the program.
Each program is divided into 20, 30, or 45 oneminute segments. One resistance setting and one
pace setting are programmed for each segment.
Note: The same resistance setting and/or target
pace may be programmed for two or more consecutive segments.
Adjust the intensity level of the program if
4
desired.
o increase or decrease the intensity level of the
T
program, press the increase and decrease buttons above the Adjust Intensity indicator. If you
change the intensity level, the profile in the matrix
will show the new resistance settings.
Use the pace guide to pace your exercise.
5
Throughout the
program, the pace
guide will prompt
you to increase or
decrease your pedaling pace. When
one of the indicators on the left side
of the pace guide
lights, increase
your pace; when
one of the indicators on the right
side lights, decrease your pace. When the center
indicator lights, maintain your current pace.
Important: The pace guide is intended only to
provide a goal. Make sure to pedal at a pace
that is comfortable for you.
When you start the
program, the r e s i s tance setting for
the first segment
will be shown in
the flashing
Current Segment
column of the
matrix. The resistance settings for
the next twelve
segments will be shown in the columns to the
right.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and the time will flash
in the Time display. When the first segment ends,
all resistance settings will move one column to
the left.
segment will then be shown in the flashing
Current Segment column and the resistance of
the pedals will automatically change to the resistance setting for the second segment.
The resistance setting for the second
Current Segment
If you stop pedaling for several seconds, a tone
will sound and the program will pause. To restart
the program, simply resume pedaling.
Adjust the angle of the ramp as desired.
6
See step 4 on page 11.
Monitor your progress with the displays.
7
See step 5 on page 1
Measure your heart rate if desired.
1.
8
See step 6 on page 12.
Turn on the fans if desired.
9
See step 7 on page 12.
When you are finished exercising, the console
10
will automatically turn off.
See step 8 on page 12.
13
Page 14
OW TO USE A HEART RATE PROGRAM
H
Each heart rate program helps you to keep your heart
rate near a target heart rate during your workout.
ollow the steps below to use a heart rate program.
F
hold the handgrips frequently for the program to
operate properly.
rips, keep your hands on the metal contacts
g
for at least 30 seconds.
ot holding the handgrips, the letters PLS will
n
flash in the Heart Rate display instead of your
heart rate.
Each time you hold the hand-
Note: When you are
urn on the console.
T
1
See step 1 on page 11.

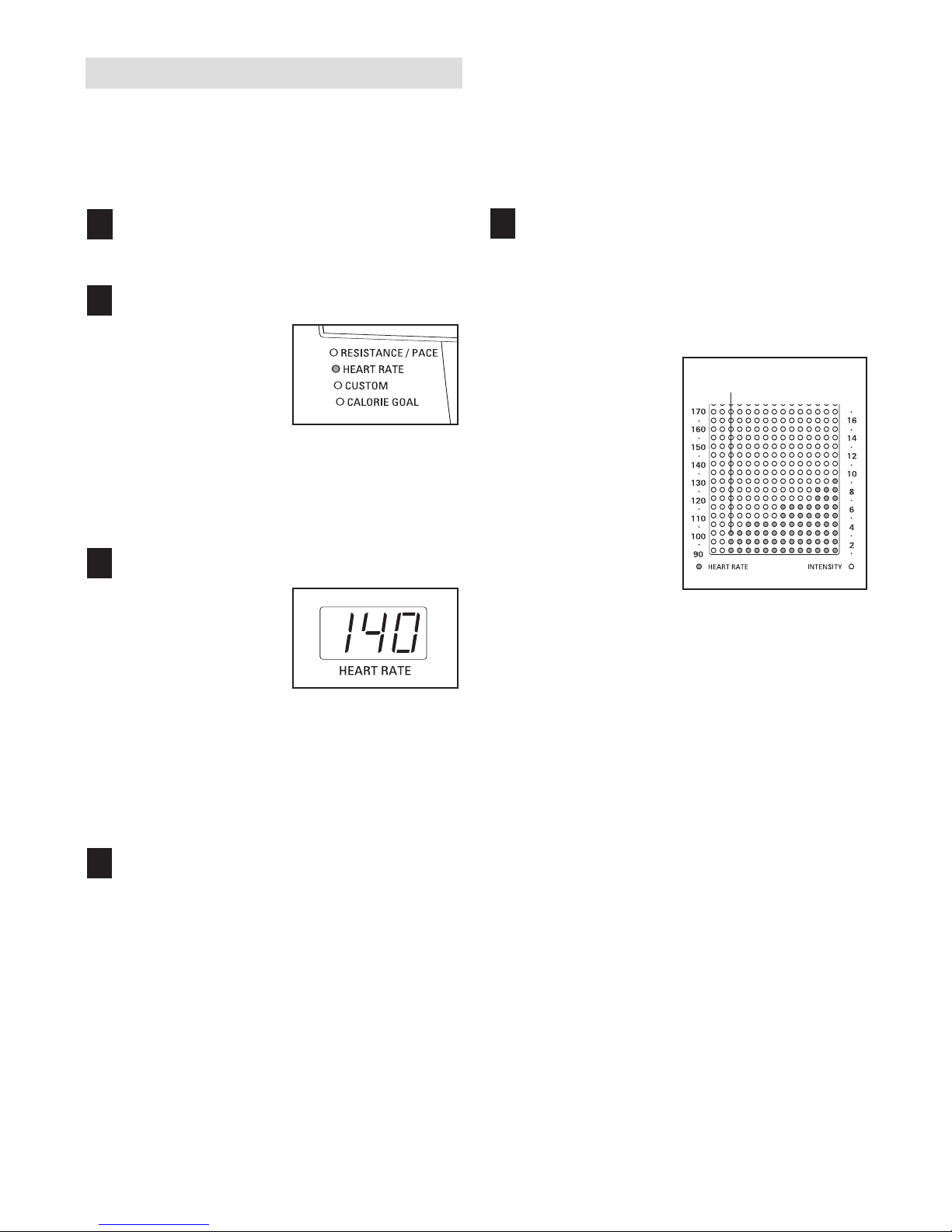

Select a heart rate program.
2
To select one of the
two heart rate programs, press the
Programs button
repeatedly . As each
heart rate program is
selected, the Heart
Rate indicator will light, a profile of the target
heart rate settings of the program will scroll
across the matrix, and the program time will
appear in the Time display.
Enter a maximum target heart rate setting.
3
When a heart rate
program is selected,
the current maximum
target heart rate setting will be shown in
the Heart Rate display. If desired, press
the increase and decrease buttons to change the
maximum target heart rate setting (see
EXERCISE INTENSITY on page 18). If you
change the maximum target heart rate setting,
the profile will change to show the new target
heart rate settings.
Hold the handgrip pulse sensor.
4
To use a heart rate program, you must use the
handgrip pulse sensor (see step 6 on page 12). It
is not necessary to hold the handgrips continuously during the program. However, you should
Press the Start button to start the program.
5
Each heart rate program is divided into 30 oneminute segments. One target heart rate setting is
programmed for each segment. Note: The same
target heart rate setting may be programmed for
two or more consecutive segments.
The target heart
rate setting for the
first segment will
be shown in the
flashing Current
Segment column of
the matrix. The target heart rate settings for the next
twelve segments
will be shown in the
columns to the
right.
When only three seconds remain in the first segment of the program, both the Current Segment
column and the column to the right will flash, a
series of tones will sound, and
rate settings will move one column to the left.
target heart rate setting for the second segment
will then be shown in the flashing Current
Segment column.
As you pedal, the console will regularly compare
your heart rate to the target heart rate setting. If
your heart rate is too far below or above the target heart rate setting, the resistance of the ped
als will automatically increase or decrease to
bring your heart rate closer to the target heart
rate setting.
Current Segment
all target heart
The
-
14
Page 15

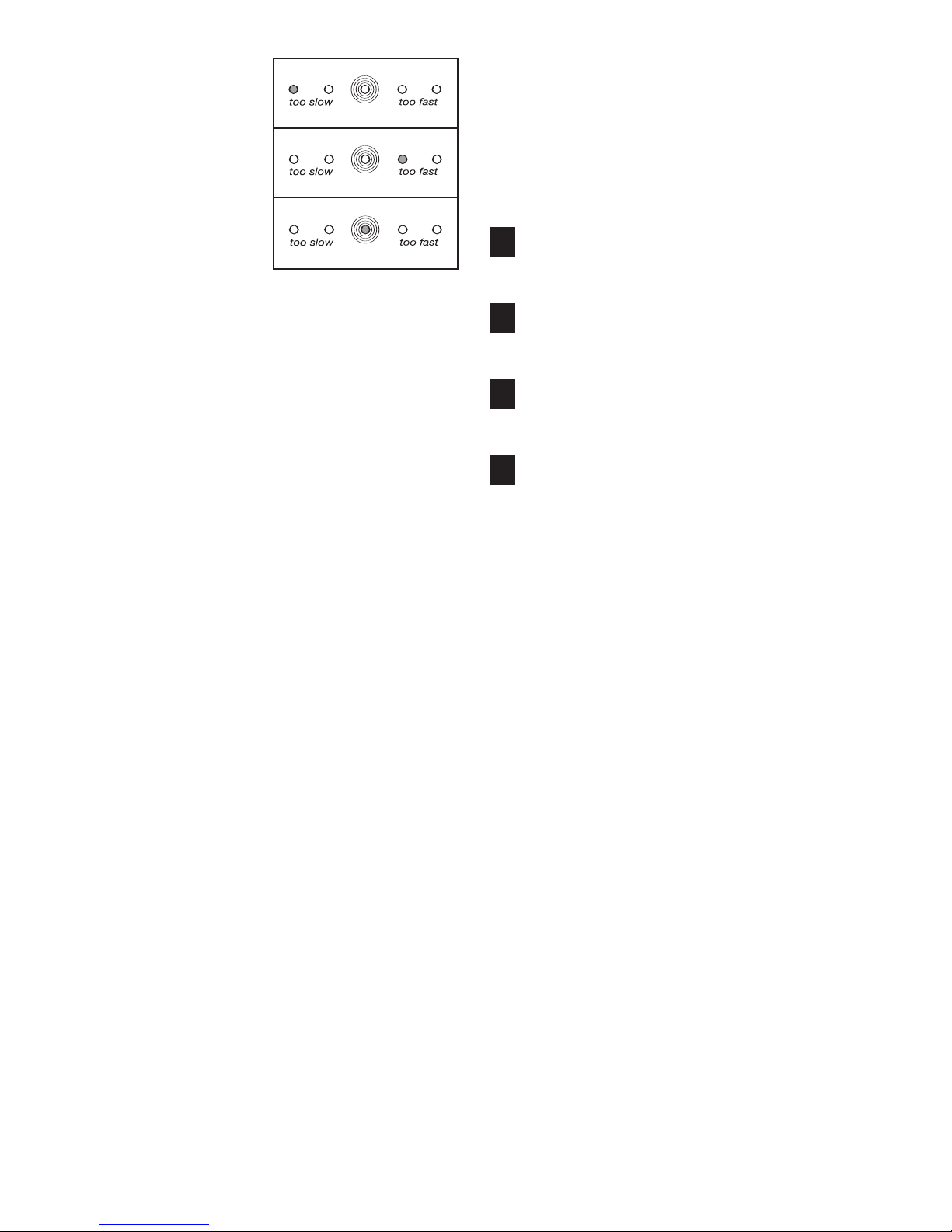

The pace guide
will prompt you to
ncrease or
i
decrease your
edaling pace.
p
When one of the
indicators on the
left side of the
pace guide lights,
increase your
pace; when one of
the indicators on
the right side
lights, decrease your pace. When the center indicator lights, maintain your current pace.
Important: The target heart rate settings are
intended only to provide motivation. Your
actual heart rate may be slower than the target heart rate settings. Make sure to exercise
at a pace that is comfortable for you.
The program will continue until the target heart
rate setting for the last segment is shown in the
Current Segment column of the matrix and the
last segment ends.
heart rate to the target heart rate setting, the
resistance of the elliptical exerciser may automat-
cally increase or decrease to bring your heart
i
rate closer to the target heart rate setting.
If you stop pedaling for several seconds, a tone
will sound and the program will pause. To restart
the program, simply resume pedaling.
Adjust the angle of the ramp as desired.
6
See step 4 on page 11.
Monitor your progress with the displays.
7
See step 5 on page 11.
Turn on the fans if desired.
8
See step 7 on page 12.
When the program is finished, the console
9
will automatically turn off.
See step 8 on page 12.
Note: During the program, you can manuall y o v er ride the resistance setting for the current segment, if desired, with the Quick Resistance buttons. However, when the console compares your
15
Page 16
HOW TO CREATE AND USE A CUSTOM
PROGRAM
Turn on the console.
1
See step 1 on page 11.

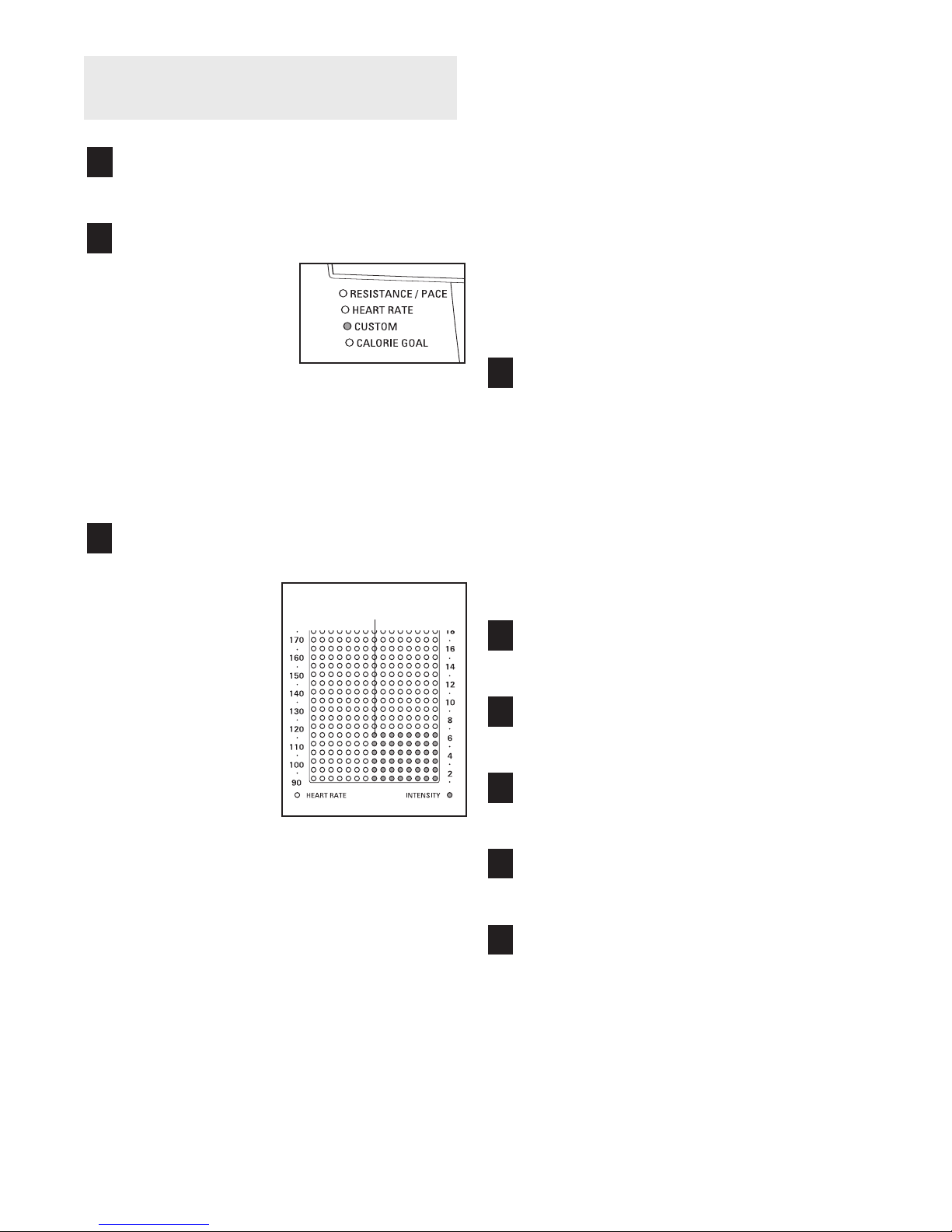

Select a custom program.
2
To select one of the
two custom programs,
press the Programs
button repeatedly. As
each custom program
is selected, the
Custom indicator will
light.
Note: If the custom program has not yet been
defined, see step 3 to create the program. If
the program is already defined, see step 4 to
use the program.
Press the Start button or begin pedaling to
3
create the program.
Refer to the matrix.
Each custom program is divided into
40 one-minute segments. One resistance setting and
one pace setting
can be programmed for each
segment. The resistance setting for the
first segment will be
shown in the flashing Current
Segment column of the matrix. (The pace settings
are not shown in the matrix.) To program a resistance setting and a pace setting for the first segment, simply adjust the resistance of the pedals
as desired by pressing the Quick Resistance buttons, and pedal at the desired pace.
Current Segment
When the first segment of the program ends, a
series of tones will sound and the current resis-
ance setting and the current pace setting will be
t
saved in memory.
hen move one column to the left,
t
tance setting for the second segment will be
shown in the flashing Current Segment column.
Program a resistance setting and a pace setting
for the second segment as described above.
Continue programming resistance and pace settings for as many segments as desired; custom
programs can have up to 40 segments. The resistance and pace settings that you have programmed will be saved in memory.
Press the Start button or begin pedaling to
4
start the program.
The custom program will function in almost the
same way as a preset program (see steps 3 and
5 on page 13).
If desired, you can redefine the program while
using it.
ting for the current segment, simply press the
Quick Resistance buttons or change your pedaling pace. When the current segment ends, the
new setting will be saved in memory.
Adjust the angle of the ramp as desired.
To change the resistance or pace set-
The columns of indicators will
nd the resis-
a
5
See step 4 on page 11.
Monitor your progress with the displays.
6
See step 5 on page 11.
Measure your heart rate if desired.
7
See step 6 on page 12.
urn on the fans if desired.
T
8
See step 7 on page 12.
When you are finished exercising, the console
9
will automatically turn off.
See step 8 on page 12.
16
Page 17
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the elliptical
exerciser regularly. Replace any worn parts immedi-
tely.
a
or smooth
F
operation of the
elliptical exerciser,
inspect
and clean the
ramp regularly
using a soft
cloth and mild
detergent.
Other parts of
the elliptical
exerciser can
also be cleaned
in this way.
abrasives or solvents.
PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function properly, see step 6 on page 12.
Keep liquids off the console. Never use
Ramp
HOW TO MOVE THE ELLIPTICAL EXERCISER
tand behind the elliptical exerciser and hold the indi-
S
cated handle firmly. Lift the handle until the elliptical
xerciser can be moved on the front wheels, and
e
carefully move the elliptical exerciser to the desired
location. Then, carefully lower the elliptical exerciser.
Due to the size and weight of the elliptical exerciser, use extreme caution while lifting, moving, and
lowering it.
Wheel
HOW TO CALIBRATE THE INCLINE SYSTEM
If the elliptical exerciser’s incline system is not working
properly, activate the calibration process by following
the steps below.
1. Hold down the Start button and the increase but-
ton to the left of it at the same time for about five
seconds. Note: Numbers may appear in the displays; disregard these numbers.
Press the Programs button. Note:
2.
letters and numbers will appear in the display.
3. Press the Quick Ramp 30 button. The ramp will
rise to the highest position and then move down to
the lowest position.
4. Press the Programs button three times. The con-
sole will then be in the normal operating mode and
the elliptical exerciser will be ready for use.
A combination of
Lift Here

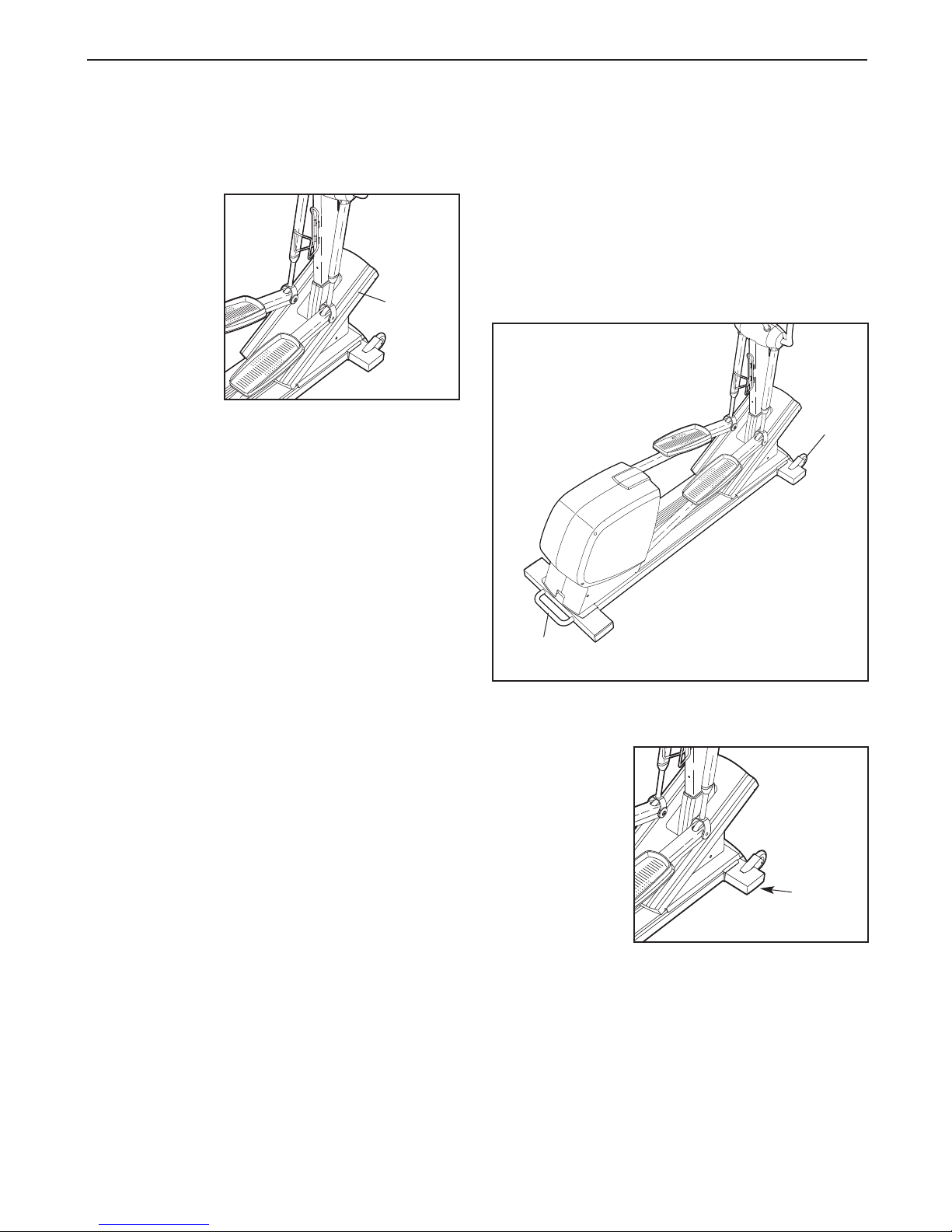

HOW TO LEVEL THE ELLIPTICAL EXERCISER
If the elliptical
exerciser rocks
on your floor
during use, turn
one or both of
the leveling feet
under the front
stabilizer until
the rocking
motion is eliminated.
Leveling
Foot
17
Page 18
EXERCISE GUIDELINES
WARNING:
Before beginning this or any exercise pro-
ram, consult your physician. This is espe-
g
cially important for persons over the age of 35
or persons with pre-existing health problems.
During the first few minutes of exercise, your body
uses easily accessible
gy. Only after the first few minutes of exercise does
your body begin to use stored
f your goal is to burn fat, adjust the intensity of your
I
exercise until your heart rate is near the lowest number in your training zone as you exercise.
carbohydrate
calories for ener-
fat
calories for energy.
The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exerci se aid in determining heart rate
trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

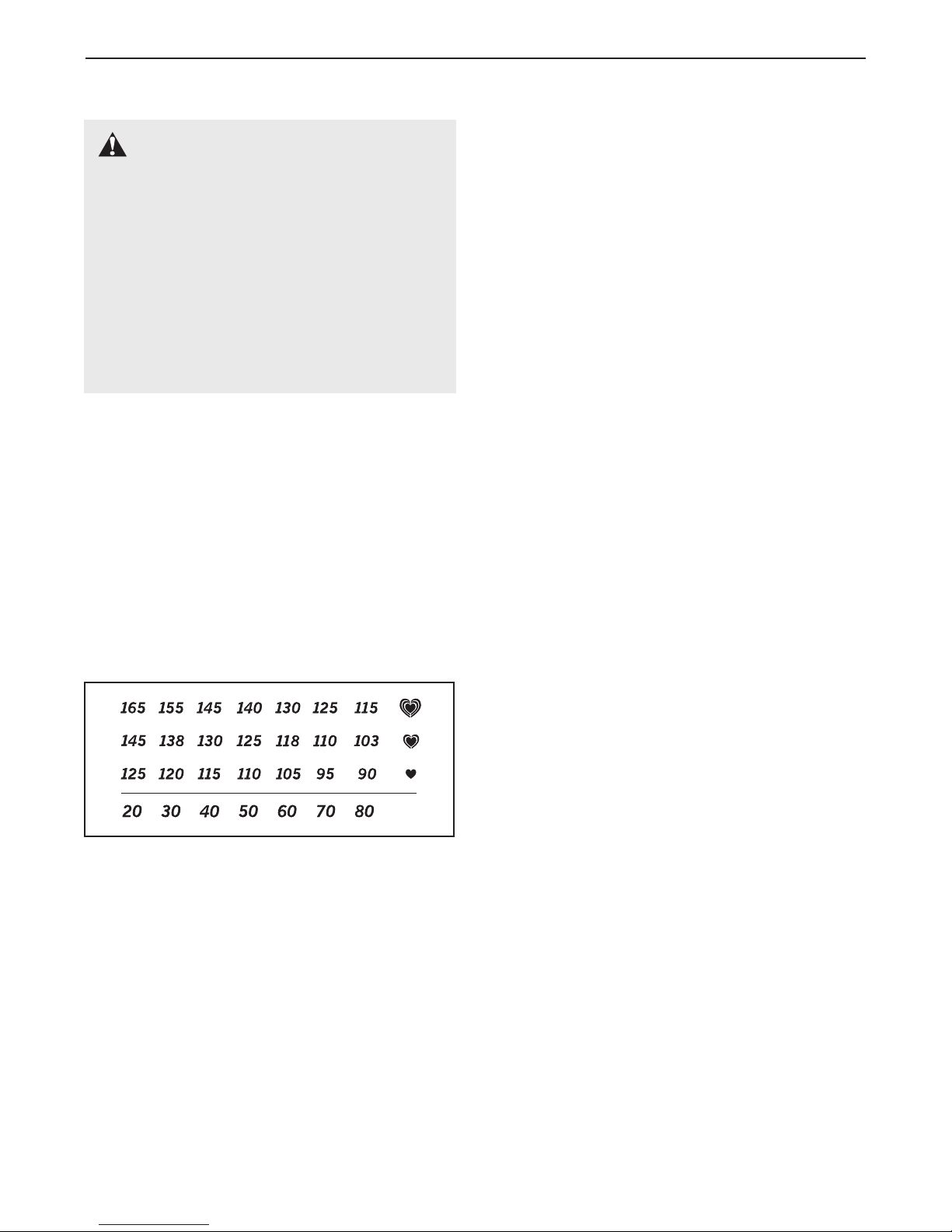

heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. Aproper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age.
zone.” The lower two numbers are recommended
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
The three numbers are your “training
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
o maintain or improve your condition, complete three
T
workouts each week, with at least one day of rest
between workouts. After a few months of regular exercise, you may complete up to five workouts each week
if desired.
regular and enjoyable part of your everyday life.
The key to success is to make exercise a
18
Page 19

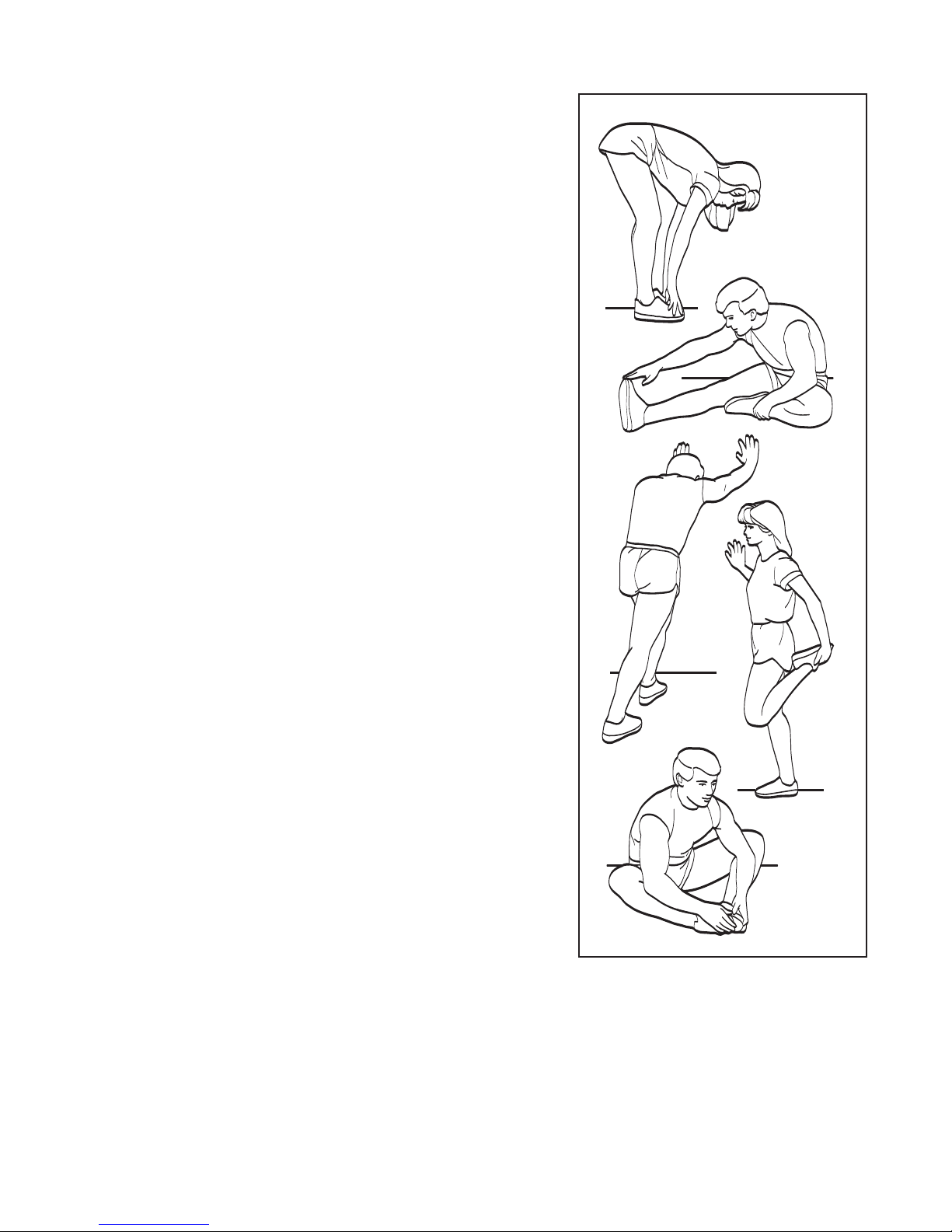

SUGGESTED STRETCHES
he correct form for several basic stretches is shown at the right.
T
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
19
Page 20
PART LIST—Model No. EPEL0995.0 R1105A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame
2
3 1 Front Stabilizer
4
5 1 Ramp
6 1 Right Handlebar
7 1 Left Handlebar
8 1 Right Pedal Arm
9 1 Left Pedal Arm
10 2 Pivot Shaft
11 1 Right Crank Arm
12 1 Left Crank Arm
13 1 Right Rear Side Shield
14 1 Left Rear Side Shield
15 1 Right Center Side Shield
16 1 Left Center Side Shield
17 1 Console
18 1 Right Foot Rail
19 1 Left Foot Rail
20 2 Pivot Arm
21 1 Front Left Pivot Cover
22 1 Upright Cover
23 1 Water Bottle Holder
24 2 Hand Grip
25 2 Pulse Sensor/Wire
26 1 Left Pulse Sensor Bar
27 1 Front Center Pivot Cover
28 1 Rear Center Pivot Cover
29 1 Front Right Pivot Cover
30 1 Rear Right Pivot Cover
31 1 Rear Left Pivot Cover
32
33 1 Upper Ramp Cap
34 1 Lower Ramp Cap
35 2 5mm Spacer
36 1 Right Motor Shield
37 1 Left Motor Shield
38
39 2 Pedal Assembly
40 1 Reed Switch/Wire
41
42 4 Pedal Arm Bushing
43
44
45 1 Flywheel
46
47
48 1 Power Board Bracket
49 1 Power Board
50
51
52 2 Pedal Arm Wheel
1 Rear Stabilizer
1 Upright
2 Pivot Shaft Sleeve Set
1
1
4
1
1
1
1
2
Front Shield
Snap Ring
Stabilizer Endcap
Pulley
Motor
ransformer
T
Power Board Bracket Cover
Wheel
53 4 Wheel Cap
4 1 “C” Magnet
5
55 1 Spring
6 1 Power Cord
5
57 1 Lower Wire Harness
58 1 Upper Wire Harness
59 1 Extension Wire Harness
60 1 Frame Plate
61 1 Rear Frame Plate
62 4 Stabilizer Foot
63 1 Incline Reed Switch
64 1 Grommet
65 2 Hairpin
66 1 Resistance Motor
67 1 Wedge
68 1 Incline Axle
69 4 Ramp Bushing
70 1 Power Receptacle
71 1 Pulley Axle
72 2 Bearing Block Set
73 2 Large Snap Ring
74 1 Crank Spacer
75 4 Pulley Spacer
76 4 Bearing
77 1 Idler Pulley
78 1 Idler Pulley Bracket
79 2 M8 x 39mm Button Screw
80 1 M8 x 57mm Screw
81 1 Pillow Block
82 5 M6 x 10mm Button Screw
83 2 M6 Nut
84
85 11 M8 Split Washer
86 2 Union Set
87 4 30mm Spacer
88 4 M4 x 19mm Screw
89 61 M4 x 16mm Screw
90
91 6 M4 x 16mm Round Head Screw
92 4 M4 x 30mm Screw
93
94 4 M8 x 16mm Button Screw
95
96
97 2 M8 x 50mm Button Screw
98
99
100 1 M8 x 25mm Button Screw
101 2 M8 16mm Washer
102
103
104 1 M8 Nylon Locknut
1 M6 x 38mm Bolt
8
4
8
1
2
2
2
5
M8 x 13mm Button Screw
M8 x 18mm W
M8 x 65mm Button Screw
M4 x 19mm Round Head Screw
Steel Washer
Flange Screw
M8 x 37mm Union Set
M8 x 23mm W
asher
asher
20
Page 21
Key No. Qty. Description Key No. Qty. Description
105 1 Magnet Bracket Bolt
106 2 Frame Cushion
107 1 Clamp
108 1 Reed Switch Bracket
109 1 M5 x 16mm Self-tapping Screw
110 2 M8 x 47mm Button Screw
11 4 8mm Plastic Spacer
1
112 1 Clevis Pin
113 4 #8 x 9mm Screw
114 4 M5 Nylon Locknut
115 4 M5 Washer
Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
116 1 Long Clevis Pin
117 4 M5 x 16mm Bolt
118 2 M8 x 20mm Button Screw
119 2 M8 x 25mm Washer
120 10 M4 x 12mm Screw
121 1 Belt
22 1 Resistance Cable
1
123 4 M8 x 25mm Patch Screw
124 1 Right Pulse Sensor Bar
# 1 User’s Manual
# 1 Exercise Guide
21
Page 22
23
89
91
22
89
17
25
25
26
91
89
31
21
28
94
94
94
94
4
20
89
18
33
32
120
120
19
120
120
34
5
89
14
13
88
88
88
88
16
15
58
24
7
90
32
20
91
89
29
30
90
90
6
24
27
89
103
123
35
103
123
35
85
100
92
96
89
89
89
89
89
85
110
110
59
89
89
124

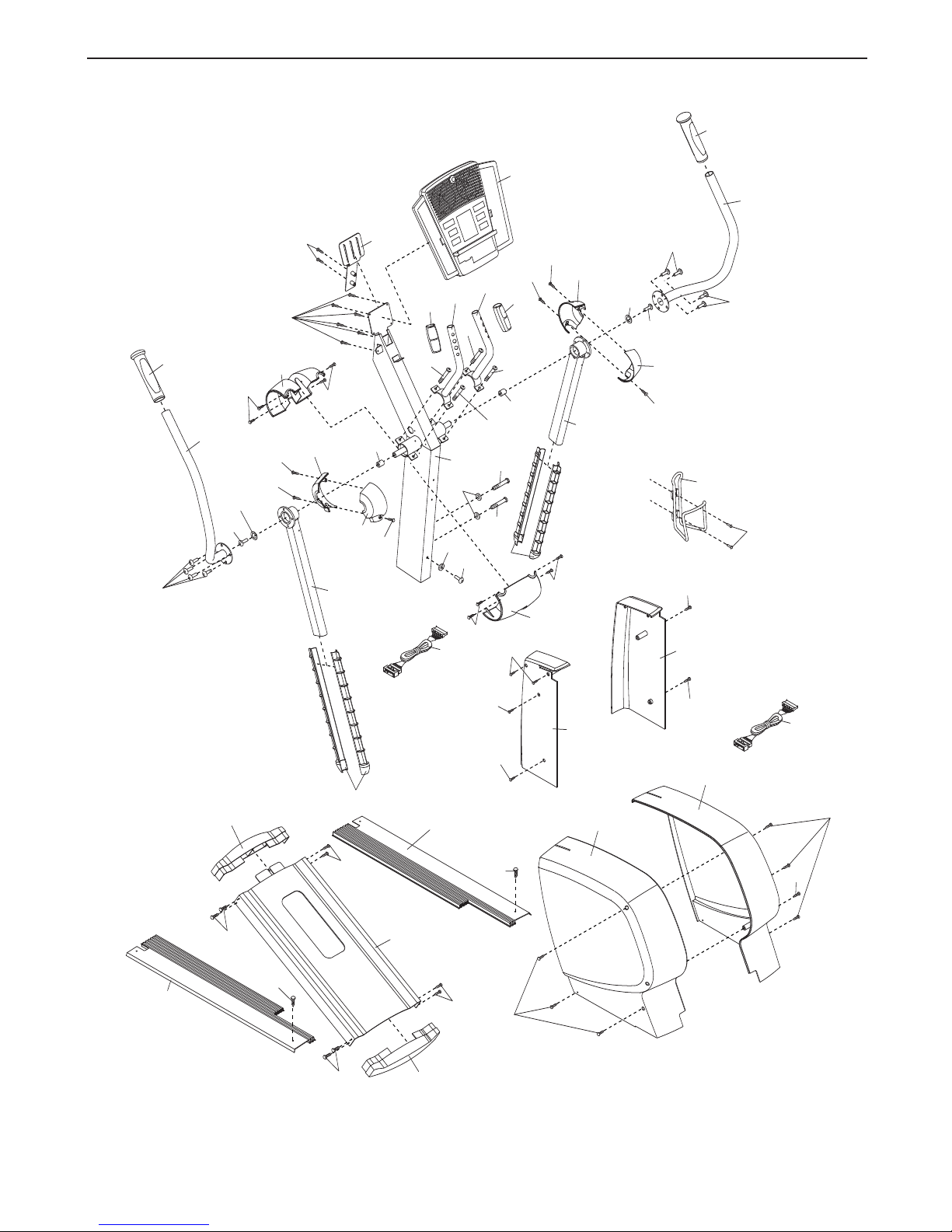

EXPLODED DRAWING A—Model No. EPEL0995.0 R1105A
22
Page 23
101
91
36
37
121
10
10
51
51
102
43
62
95
95
85
62
43
3
60
118
119
69
56
95
95
85
43
62
62
43
2
70
117
115
115
66
114
61
106
1
9
57
8
6
86
52
3
9
8
111
111
119
118
69
68
64
63
65
65
111
46
67
107
40
89
108
109
47
120
77
80
78
82
112
123
76
98
75
12
99
73
73
72
71
79
97
97
72
76
99
11
74
82
82
55
54
45
81
105
103
104
83
84
48
113
89
50
44
123
38
98
116
101
89
89
89
8
9
89
92
92
87
9
3
53
42
42
86
52
53
53
87
42
87
42
86
89
103
102
102
102
93
93
89
89
89
69
89
89
89
39
89
49
120
41
103
89
93
53
8
7
122
EXPLODED DRAWING B—Model No. EPEL0995.0 R1105A
23
Page 24
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
the following information when calling:
• the MODEL NUMBER of the product (EPEL0995.0)
• the NAME of the product (EPIC E 950 elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 20 through 23)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
-
This warranty gives you specific legal rights.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 229312 R1
105A
Y ou may also have other rights which vary from state to state.
Printed in China
© 2005 ICON IP, Inc.
Loading...
