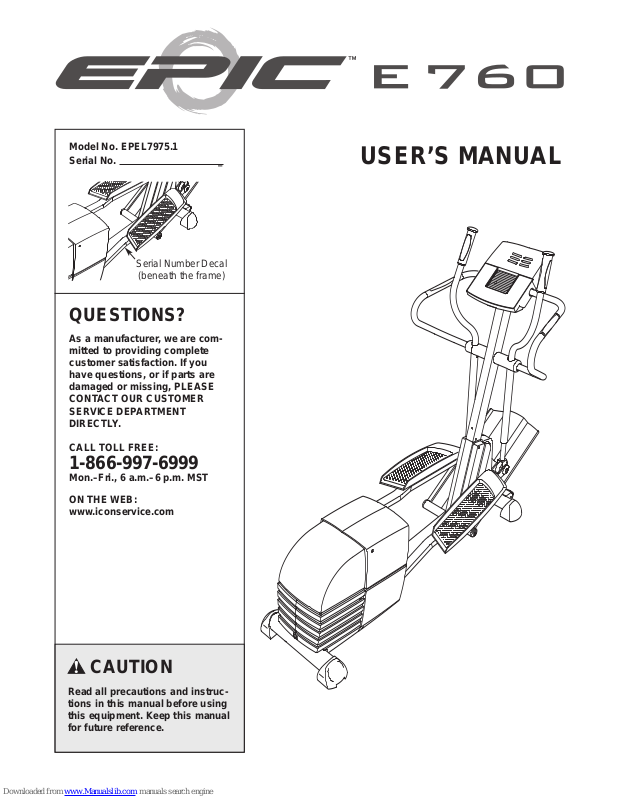

Model No. EPEL7975.1
Serial No. _
Serial Number Decal
(beneath the frame)
QUESTIONS?
As a manufacturer, we are committed to providing complete
customer satisfaction. If you
have questions, or if parts are
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
USER’S MANUAL
CALL TOLL FREE:
1-866-997-6999
Mon.–Fri., 6 a.m.–6 p.m. MST
ON THE WEB:
www.iconservice.com
CAUTION
Read all precautions and instructions in this manual before using
this equipment. Keep this manual
for future reference.
Page 2
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
HOW TO OPERATE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
HOW TO ORDER REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
2
Page 3
IMPORTANT PRECAUTIONS
WARNING:
ions before using the elliptical exerciser.
t
1. Read all instructions in this manual and all
warnings on the elliptical exerciser before
using the elliptical exerciser. Use the elliptical exercise r only as described.
2. It is the responsibility of the owner to ensure
that all users of the elliptical exerciser are
adequately informed of all precautions.
3. The elliptical exerciser is intended for
in-home use only. Do not use the elliptical
exerciser in a commercial, rental, or institutional setting.
4. Place the elliptical exerciser on a level surface, with a mat beneath it to protect the
floor or carpet. Keep the elliptical exerciser
indoors, away from moisture and dust. Make
sure that there is enough clearance around
the elliptical exerciser to mount, dismount,
and use it.
5. Inspect and properly tighten all parts regularly. Replace any worn parts immediately.
6. Keep children under age 12 and pets away
from the elliptical exerciser at all times.
To reduce the risk of serious injury, read the following important precau-
9. Keep your back straight when using the elliptical exerciser; do not arch your back.
10. Always hold the handlebars or the upper
body arms when mounting, dismounting, or
using the elliptical exerciser.
11. If you feel pain or dizziness at any time
while exercising, stop immediately and cool
down.
12. The pulse sensor is not a medical device.
Various factors, including the user's movement, may affect the accuracy of heart rate
readings. The pulse sensor is intended only
as an exercise aid in determining heart rate
trends in general.
13. When you stop exercising, allow the pedals
to slowly come to a stop. The elliptical exerciser does not have a free wheel; the pedals
will continue to move until the flywheel
stops.
14. Always unplug the power cord immediately
after use and before cleaning the elliptical
exerciser.
7. The elliptical exerciser should not be used
by persons weighing more than 250 pounds.
8. Wear appropriate exercise clothes when
using the elliptical exerciser.
athletic shoes for foot protection.
Always wear
15. The decals shown on page 4 have been
placed on the elliptical exerciser. If a decal
is missing or illegible, call the toll-free telephone number on the front cover of this
manual and order a free replacement decal.
Apply the decal in the location shown.
WARNING:Before beginning this or any exercise program, consult your physician.
This is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. ICON assumes no responsibility for personal injury or
property damage sustained by or through the use of this product.
3
Page 4
209489 & 210125
03/26/04
B
PENDING Modified Warning Definition and Size
R
EVISIONS
DRAWINGS PREVIOUS TO LAST REV. DATE ARE OBSOLETE
DATE
REV ECN DESCRIPTION OF CHANGE
01/20/04
A
1274-10 Added Part No. 210125 and Table
BEFORE YOU BEGIN
Congratulations for selecting the new EPIC E 760
lliptical exerciser. The EPIC E 760 is an incredibly
e
mooth exerciser that moves your feet in a natural
s
elliptical path, minimizing the impact on your knees
and ankles. And the E 760 offers an impressive selection of features designed to make your workouts at
home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical exerciser. If you have ques-
tions after reading this manual, see the front cover of
this manual. To help us assist you, please note the
Bookrack
Upper Body Arm
Console
product model number and serial number before con-
acting us. The model number is EPEL7975.1. The
t
erial number can be found on a decal attached to the
s
elliptical exerciser (see the front cover of this manual
for the location of the decal).
To avoid a registration fee for any service needed
under warranty, you must register the elliptical
exerciser at www.iconservice.com/registration.
Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Fan
Pulse Sensor
LEFT SIDE
BACK
Upright
Power Receptacle
Handlebar
Ramp
Wheel
Pedal
Pedal Leg
RIGHT SIDE
Leveling Foot
4
Page 5
M10 x 92mm Carriage Bolt (124)–2
M6 Washer
(102)–2
M10 x 25mm Button
Screw (123)–3
M8 Washer
(132)–4
M8 x 35mm Button
Bolt (117)–2
M8 x 42mm Button
Bolt (116)–4
M4 x 16mm
Screw (99)–4
M8 Jam Nut
(91)–6
M10 Split
Washer (118)–3
M10 x 105mm Button Screw (89)–2
M4 x 16mm Round
Head Screw (125)–1
M6 x 16mm Button
Screw (103)–4
Bolt Set (101)–2
M10 Nylon
Locknut (90)–2
M8 x 52mm Button
Screw (100)–4
M8 Split
Washer (122)–4
M4 x 25mm Round
Head Screw (115)–2
ASSEMBLY
To hire an authorized technician to assemble the elliptical exerciser, call toll-free 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the
packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the
ncluded allen wrenches, assembly requires a phillips screwdriver , two adjustable
i
wrenches , a rubber mallet , and pliers .
As you assemble the elliptical exerciser, use the drawings below to identify the small parts used for assembly.
The number in parentheses below each drawing is the key number of the part, from the PART LIST on pages 20
and 21. The number following the key number is the quantity needed for assembly.
may have been preassembled. If a part is not in the parts bag, check to see if it has been preassembled.
Note: Some small parts
1. Identify the Front Stabilizer (29), which has Wheels (44)
attached to it
Frame (1), attach the Front Stabilizer to the Frame
with two M10 x 92mm Carriage Bolts (124) and two
M10 Nylon Locknuts (90).
. While another person lifts the front of the
5
1
124
44
29
90
1
Page 6
2. While another person lifts the rear of the Frame (1),
attach the Rear Stabilizer (30) to the Frame with two
10 x 105mm Button Screws (89).
M
2
30
1
89
3. Identify the Ramp Axle (39), which is the longest axle.
Next, identify the Ramp Axle Covers (41), which are
smaller than the Wheel Covers (not shown). Slide a
Ramp Axle Cover onto an M6 x 16mm Button Screw
(103) as shown, and tighten the Button Screw into one
end of the Ramp Axle. Next, apply a small amount of
the included grease to the Ramp Axle.
Have a second person hold the two Ramp Spacers
(42) against the indicated tubes on the Frame (1).
Align the tubes on the Ramp (33) with the Ramp
Spacers;
shown. Insert the open end of the Ramp Axle (39) into
the Ramp, the Ramp Spacers, and the Frame. If necessary, tap the Ramp Axle with a rubber mallet to
insert it.
Slide the other Ramp Axle Cover (41) onto an M6 x
16mm Button Screw (103), and tighten the Button
Screw into the open end of the Ramp Axle (39).
4. Slide an M6 Washer (102) onto an M6 x 16mm Button
Screw (103), and tighten the Button Screw into one
end of the Lift Axle (38). Next, apply a small amount of
grease to the Lift Axle.
make sure that the Ramp is turned as
3
4
103
33
Grease
39
41
33
42
Tubes
103
41
42
Tubes
1
Raise the Ramp (33). Insert the Lift Axle (38) through
the welded tube under one side of the Ramp, through
the motor screw, and then through the welded tube
under the other side of the Ramp.
Incline Axle through the motor screw
that the motor screw does not turn.
Slide an M6 Washer (102) onto an M6 x 16mm Button
Screw (103), and tighten the Button Screw into the
open end of the Lift Axle (38).
As you insert the
, make sure
Motor
Screw
103
102
38
Grease
103
102
6
Page 7
5. Hold a Ramp Wheel (50) inside of the bracket on one
of the Chrome Tubes (45). Hold the Chrome Tube and
he Ramp Wheel inside of the bracket on the Left
t
Pedal Leg (46). Slide a Wheel Cover (51) onto the
ong part of a Bolt Set (101), and insert the Bolt Set
l
into the Left Pedal Leg, the Chrome Tube, and the
Ramp Wheel.
5
45
101
Slide a Wheel Cover (51) onto the short part of the
Bolt Set (101), and tighten the short part of the Bolt
Set into the long part.
Attach the other Chrome Tube (not shown) and the
other Ramp Wheel (not shown) to the right side of
the elliptical exerciser in the same way.
6. Identify the Left Pedal (48), which is marked with an
“L.” Attach the Left Pedal to the Left Pedal Leg (46)
with two M8 x 52mm Button Screws (100), two M8
Split Washers (122), and two M8 Washers (132).
Attach the Right Pedal (not shown) to the Right
Pedal Leg (not shown) in the same way.
46
50
101
51
6
132
122
51
48
46
132
122
100
7. Have another person hold the Upright (2) in the position shown. Make sure that the Upright is turned so
the three holes are aligned with the holes in the
Frame (1).
Connect the Upper Wire Harness (18) to the Lower
Wire Harness (53). Carefully pull the upper end of
the Upper Wire Harness to remove the slack from
the Wire Harnesses. Next, slide the Upright (2) onto
the Frame (1). Be careful to avoid pinching the W
Harnesses. Attach the Upright with three M10 x 25mm
Button Screws (123) and three M10 Split Washers
(118).
ire
7
2
1
118
123
18
123
118
18
53
1
7
Page 8
8. Apply a small amount of the included high-temperature
lubricant to a paper towel. Rub a thin film of the lubri-
ant onto each Chrome Tube (45).
c
dentify the Left Upper Body Arm (9), which is marked
I
with an “L.” Slide the Left Upper Body Arm onto the left
Chrome Tube (45). Slide the Right Upper Body Arm
(10) onto the right Chrome Tube (not shown). Make
sure that the Upper Body Arms are on the correct
sides. Next, slide an Upper Body Cover (15) onto the
post on each Upper Body Arm.
Apply grease to the Pivot Axle (16). Insert the Pivot
Axle into the Upright (2), the right Upper Body Cover
(15), and the Right Upper Body Arm (10). Next, push
the Pivot Axle into the Upright
Pivot Axle is flush with the left side of the Upright.
Then, raise the Left Upper Body Arm (9), and insert
the Pivot Axle into the left Upper Body Cover and the
Left Upper Body Arm. Center the Pivot Axle and rotate
it so the indicated hole is in the position shown.
until the left end of the
8
9
Post
Grease
Hole
16
15
45
15
10
2
9. Have another person hold the Left Handlebar (7) near
the Upright (2) as shown. Connect the left Pulse
Sensor Wire (11) to the Pulse Extension Wire (17).
Next, slide a Handlebar Cap (12) onto the lower end of
the Left Handlebar.
Slide the upper end of the Left Handlebar (7) into the
tube on the front of the Upright (2), while sliding the
lower end of the Left Handlebar onto the Pivot Axle
(16). Attach the upper end of the Left Handlebar with
two M8 x 42mm Button Bolts (116) and two M8 Jam
1,
Nuts (91); be careful not to damage the W
17) as you insert the Button Bolts. Make sure that
the Jam Nuts are resting in the hexagonal holes in
the tube on the front of the Upright.
end of the Left Handlebar with an M8 x 35mm Button
Bolt (117) and an M8 Jam Nut (91). Then, press the
tabs on the Handlebar Cap (12) into the left Upper
Body Cover (15).
Attach the Right Handlebar (8) to the Upright (2) in the
same way.
ires (1
Attach the lower
9
5
125
7
17
1
Lubricate
116
17
11
12
91
2
8
15
91
16
Tab
Hold the halves of the Upper Handlebar Cover (5)
around the tube on the front of the Upright (2).
the Upper Handlebar Cover with an M4 x 16mm Round
Head Screw (125);
Wires (11, 17).
be careful not to damage the
Attach
8
Page 9

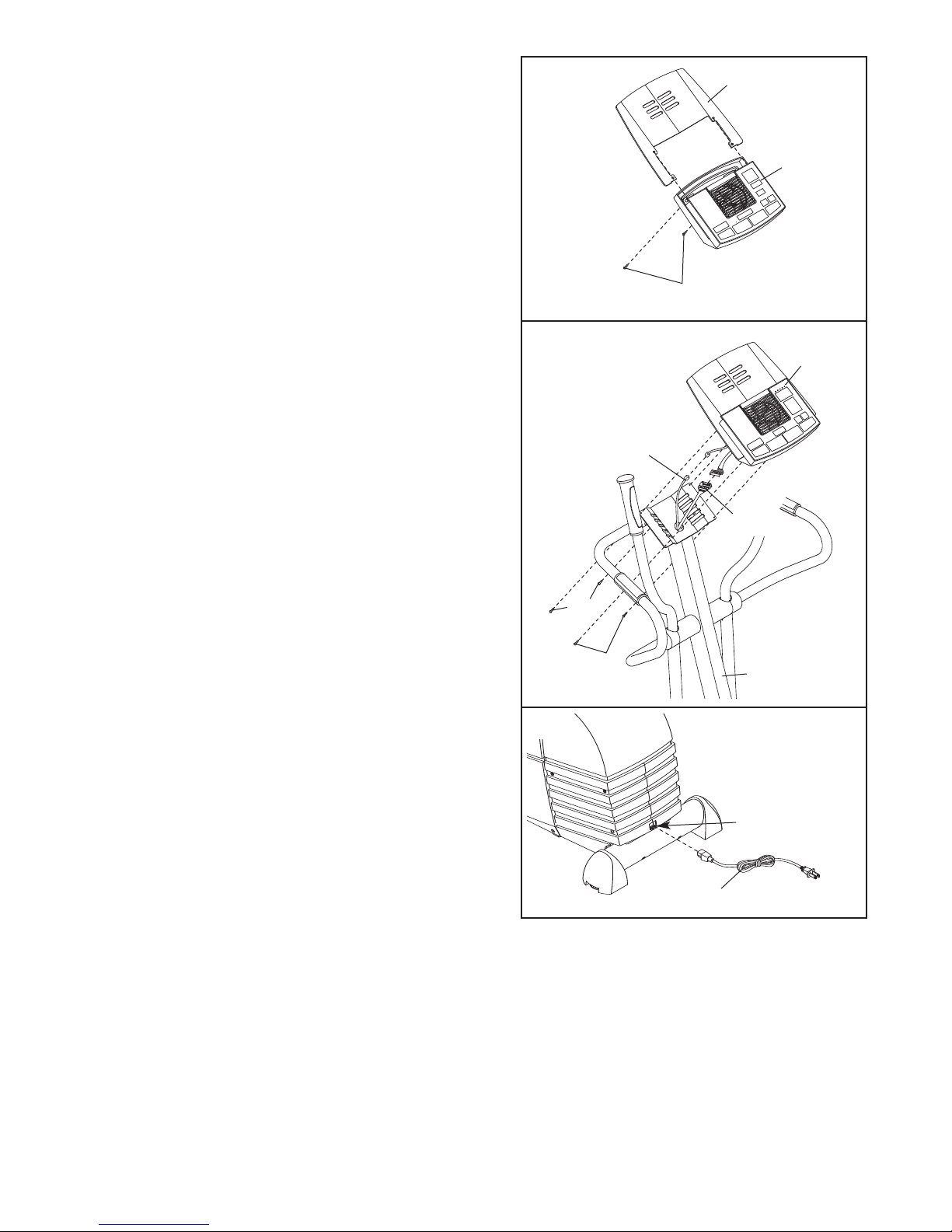

10.Attach the Bookrack (4) to the Console (3) with two
4 x 25mm Round Head Screws (115).
M
10
4
3
115
11.Have another person hold the Console (3) near the
Upright (2).
Connect the Upper Wire Harness (18) to the wire harness on the Console (3). Next, connect the Pulse
Extension Wire (17) to the pulse wire on the Console.
Carefully insert all excess wiring down into the Upright
(2). Attach the Console (3) to the Upright with four M4
x 16mm Screws (99).
the wires.
12.Plug the Power Cord (83) into the Power Receptacle
(82) at the rear of the elliptical exerciser
Be careful to avoid pinching
.
11
Do not pinch
the wires
during this step.
99
99
12
3
17
18
2
13.Make sure that all parts of the elliptical exerciser are properly tightened. Cover the floor beneath the
elliptical exerciser to protect the floor from damage. Note: Some extra hardware may be left over.
82
83
9
Page 10
HOW TO OPERATE THE ELLIPTICAL EXERCISER

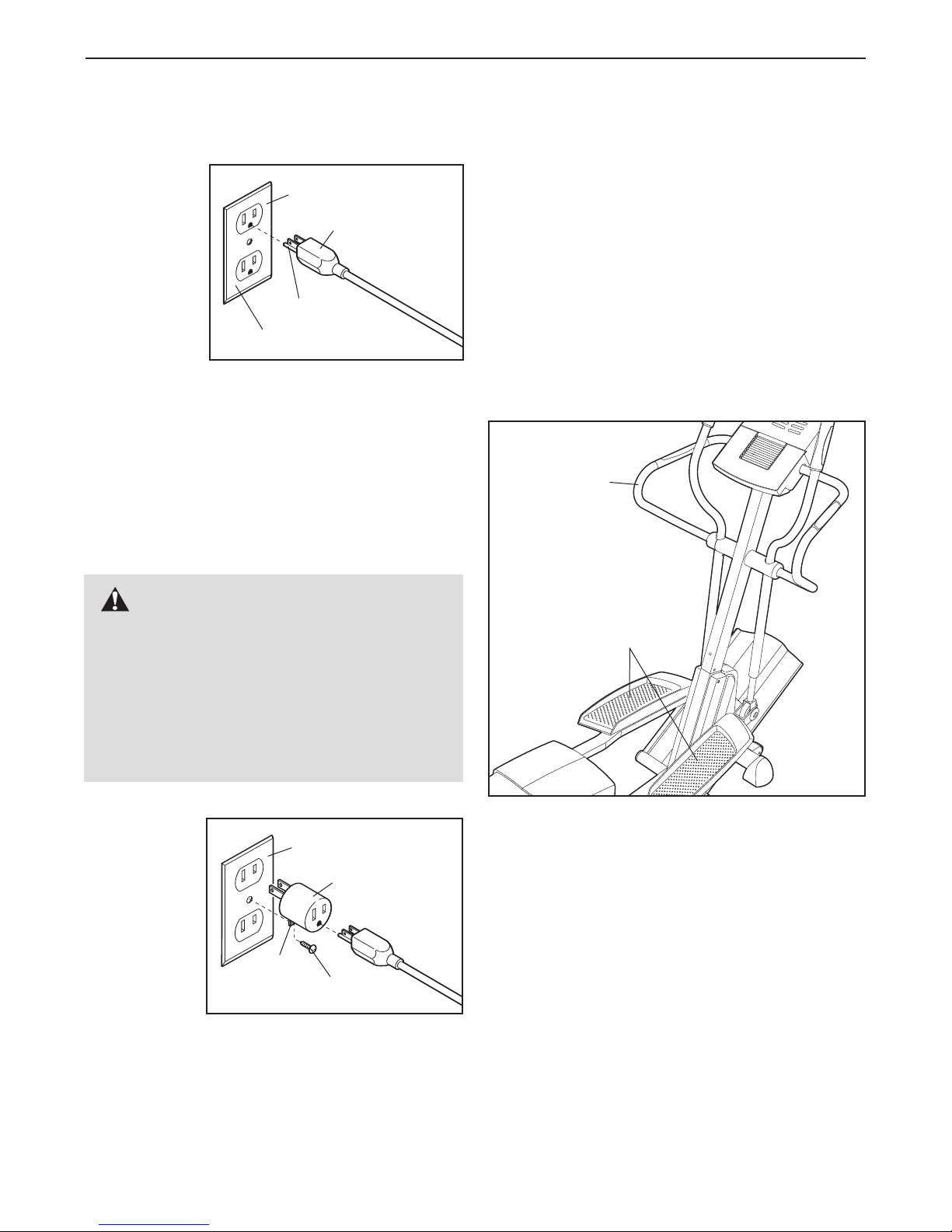

HOW TO PLUG IN THE POWER CORD
This product
ust be
m
grounded.
f it should
I
malfunction
or break
down,
grounding
provides a
path of least
resistance for
electric
current to reduce the risk of electric shock. This product is equipped with a cord having an equipmentgrounding conductor and a grounding plug. Plug the
power cord into an appropriate outlet that is properly installed and grounded in accordance with all
local codes and ordinances. This product is for
use on a nominal 120-volt circuit. Important: The
elliptical exerciser is not compatible with GFCIequipped outlets.
Grounded Outlet
Grounded Outlet Box
Grounding Plug
Grounding Pin
The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
henever the adapter is used, it must be held in
W
place by a metal screw.
et box covers are not grounded. Contact a quali-
l
fied electrician to determine if the outlet box cover
is grounded before using an adapter.
EXERCISING ON THE ELLIPTICAL EXERCISER
To mount the elliptical exerciser, hold the handlebars
and step onto the pedal that is in the lowest position.
Next, step onto the other pedal. Push the pedals until
they begin to move with a continuous motion.
Handlebar
Some 2-pole receptacle out-
DANGER:Improper connection of
the equipment-grounding conductor can result
in an increased risk of electric shock. Check
with a qualified electrician or serviceman if
you are in doubt as to whether the product is
properly grounded. Do not modify the plug
provided with the product—if it will not fit the
outlet, have a proper outlet installed by a qualified electrician.
A temporary
adapter may
be used to
connect the
power cord
to a 2-pole
receptacle
as shown at
the right if a
properly
grounded
outlet is not
available. The temporary adapter should be used only
until a properly grounded outlet can be installed by a
qualified electrician.
Grounded Outlet Box
Adapter
Lug
Metal Screw
Pedals
To dismount the elliptical exerciser, wait until the pedals come to a complete stop. The elliptical exerciser
does not have a free wheel; the pedals will continue to move until the flywheel stops. When the ped-
als are stationary
Then, step of
f the lowest pedal.
, step of
f the highest pedal first.
10
Page 11
Note: If there is a sheet of clear plastic on
the face of the console, remove the plastic.

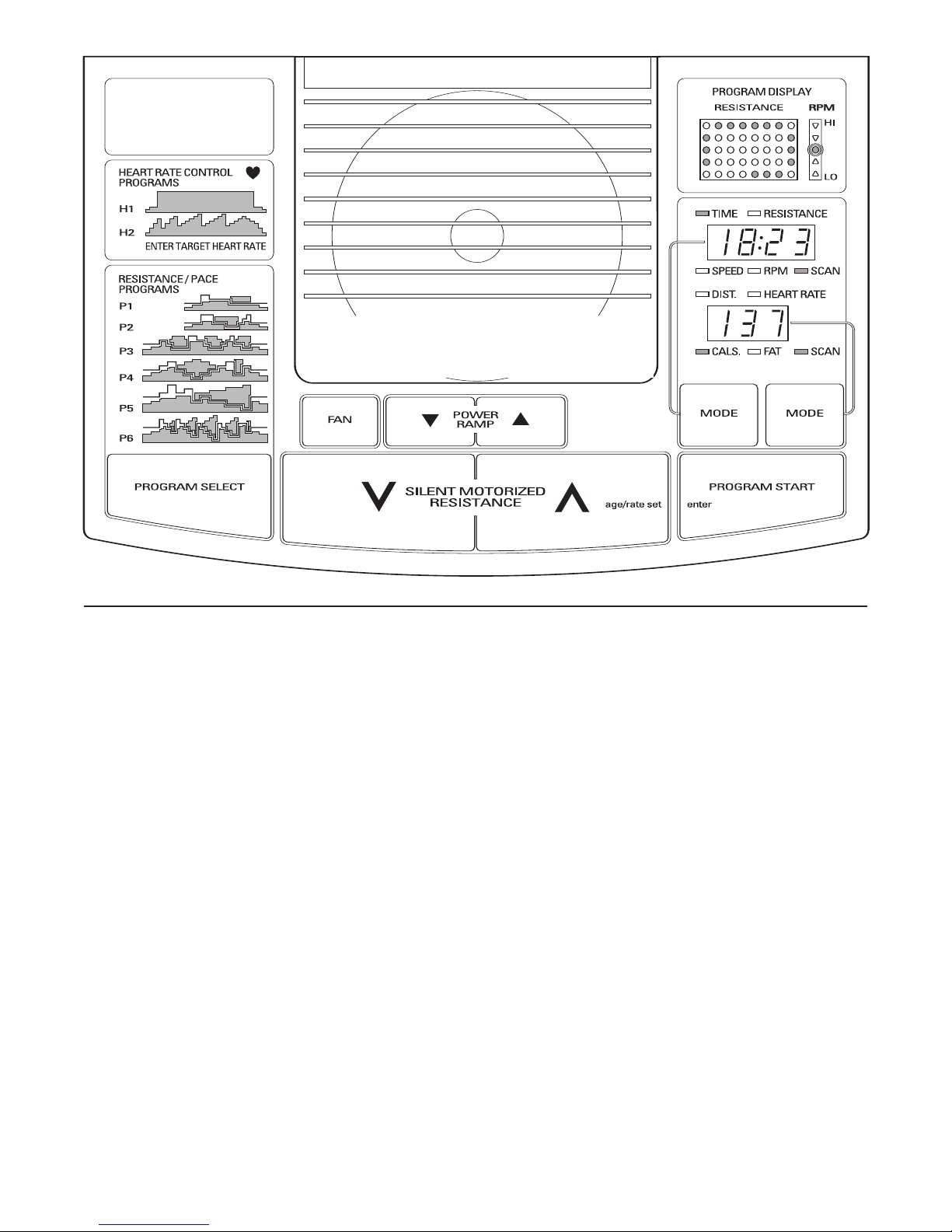

FEATURES OF THE CONSOLE
The advanced console offers a selection of features
designed to make your workouts more enjoyable and
effective. When the manual mode of the console is
selected, the resistance of the pedals can be changed
with the touch of a button. As you exercise, the con-
ou
sole will provide continuous exercise feedback.
can even measure your heart rate using the handgrip
pulse sensor.
The console also offers six preset programs. Each program automatically changes the resistance of the ped-
Y
als and prompts you to increase or decrease your pace
as it guides you through an effective workout.
In addition, the console features two heart rate programs that automatically change the resistance of the
pedals and prompt you to vary your pace to keep your
heart rate near a target heart rate as you exercise.
To use the manual mode of the console, see page
12. To use a preset program, see page 14. To use a
heart rate program, see page 15.
11
Page 12

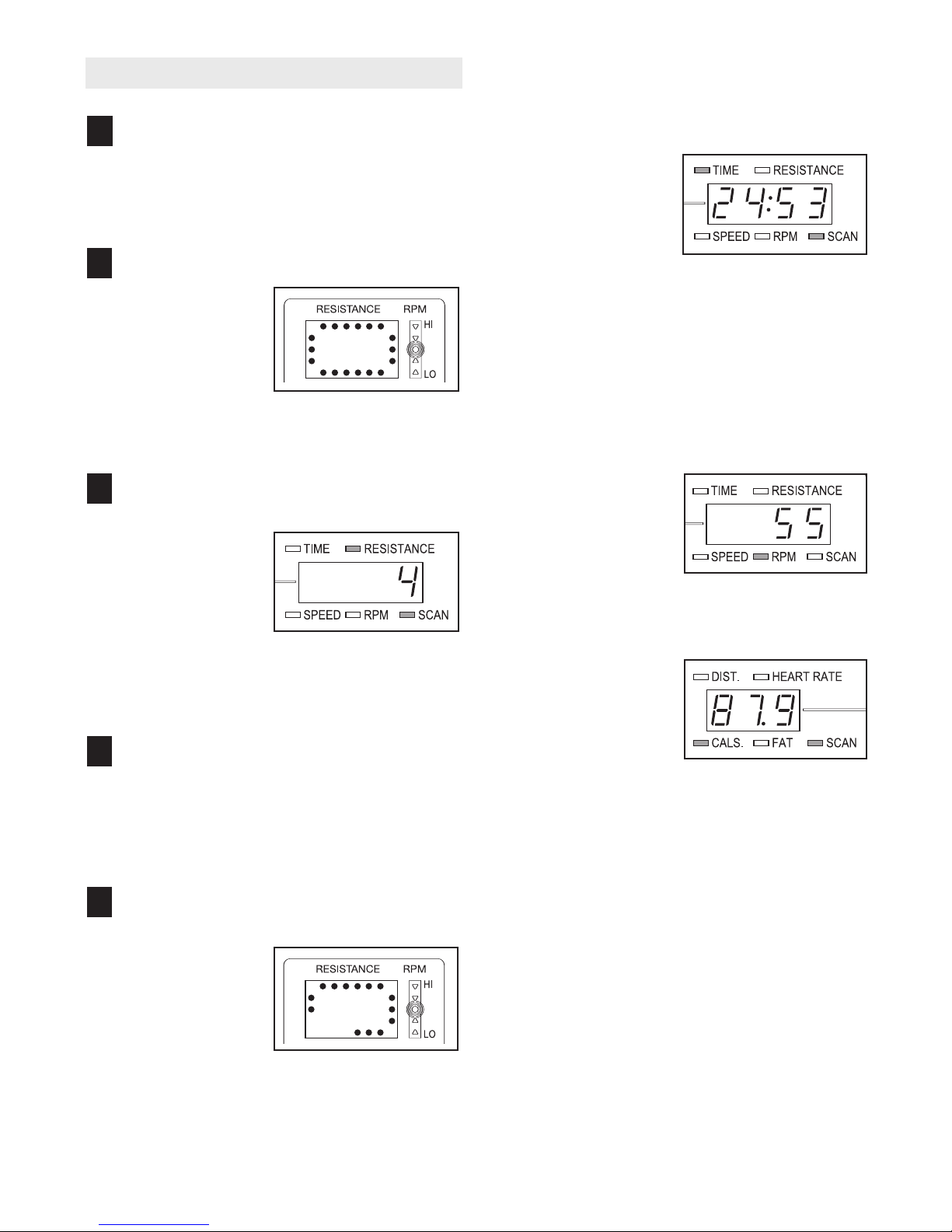

OW TO USE THE MANUAL MODE
H
egin pedaling to activate the console.
B
1
To activate the console, begin pedaling or push
any button on the console. After a few seconds,
the console displays will light. Atone will then
ound and the console will be ready for use.
s
Select the manual mode.
2
When the power is
turned on, th e
manual mode will
be selected. If you
have selected a
program, select
the manual mode
by pressing the Program Select button repeatedly
until a track appears in the matrix.
As you exercis e, the indicators around the tr a ck
will light in succession until the entire track is lit.
he track will then darken and the indicators will
T
again begin to light in succession.
The upper
display—The
upper display will
show the elapsed
time, the resistance
level, your pedaling
speed, and your
pedaling pace, in revolutions per minute (RPM).
The display will change from one number to the
next every few seconds, as shown by the indicators around the display. Note: When a program is
selected (except for heart rate program 1), the
display will show the time remaining in the program instead of the elapsed time. Each time the
resistance of the pedals changes, the display will
show the resistance level.
Begin pedalin g and change the resistance of
3
the pedals as desired.
As you pedal,
change the resistance of the pedals by pressing the
Resistance buttons. There are
ten resistance levels. Note: After the buttons are pressed, it will
take a moment for the pedals to reach the selected resistance level.
Adjust the angle of the ramp as desired.
4
As you pedal, change the angle of the ramp by
pressing the Power Ramp buttons. Note: After
the Power Ramp buttons are pressed, it will take
a moment for the ramp to reach the selected
angle.
Monitor your progress with the matrix and the
5
two displays.
The matrix—
When the manual
mode is selected,
the matrix will
show a track rep
resenting 1/4 mile.
-
If desired, you can
select a single
mode for continuous display. Press
the left Mode button
repeatedly until the
desired mode indicator is lit; make sure that the Scan indicator is
not lit.
The lower
display—The lower
display will show
the distance you
have pedaled and
the approximate
numbers of
and
fat calories
ING on page 18). The display will change from
one number to the next every few seconds, as
shown by the indicators around the display
display will also show your heart rate when you
use the handgrip pulse sensor.
If desired, you can select a single mode for con
tinuous display. Press the right Mode button
repeatedly until the desired mode indicator is lit;
make sure that the Scan indicator is not lit.
calories
you have burned (see F
T
A
BURN-
The
.
-
12
Page 13

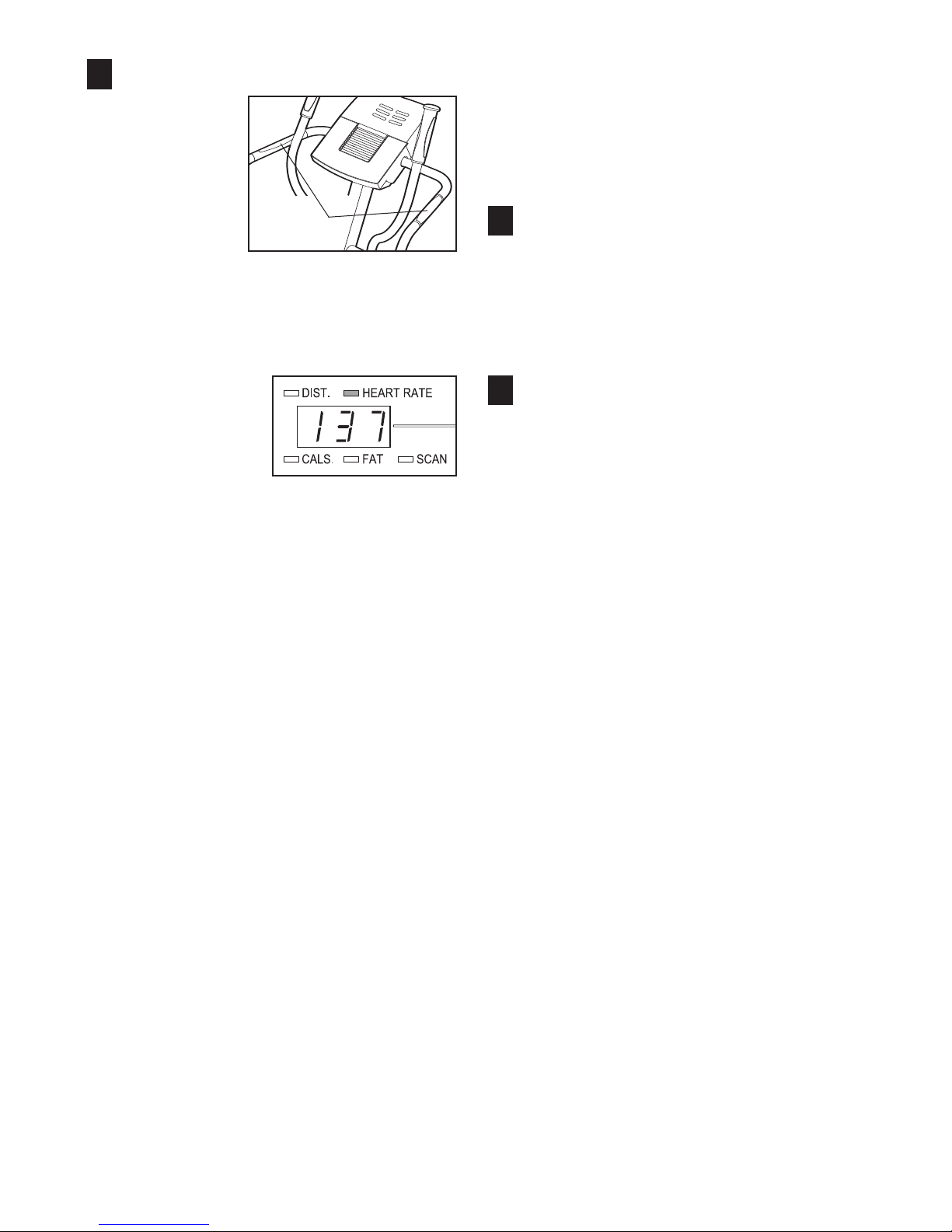

easure your heart rate if desired.
M
6
If there are
sheets of
clear plastic
on the metal
contacts on
he handgrip
t
pulse sensor,
peel off the
plastic.
measure your
heart rate, hold the handgrip pulse sensor, with
your palms resting on the upper contacts and
your fingers touching the lower contacts.
moving your hands.
To
Contacts
Avoid
If your heart rate is not shown, make sure th at
your hands are positioned as described. Avoid
oving your hands excessively or squeezing the
m
metal contacts too tightly. For optimal performance,
eriodically clean the metal contacts using a soft
p
never use alcohol, abrasives, or chemi-
cloth;
cals.
Turn on the fan if desired.
7
To turn on the fan at low speed, press the Fan
button. To turn on the fan at high speed, press the
button a second time. To turn off the fan, press
the button a third time. Note: If the fan is turned
on but the pedals are not moved for thirty seconds, the fan will automatically turn off.
When your pulse
is detected, one or
two dashes will
appear in the
lower display and
then your heart
rate will be shown.
For the most accurate heart rate reading, hold the
contacts for at least 15 seconds.
Note: If you continue to hold the handgrip pulse
sensor, the lower display will show your heart rate
for up to 30 seconds. The display will then show
your heart rate along with the other modes.
When you are finished exercising, the console
8
will automatically turn off.
If the pedals are not moved for a few seconds, a
tone will sound, the console will pause, and the
upper display will begin to flash.
If the pedals are not moved for about five minutes, the console will turn off and the displays will
be reset.
13
Page 14
OW TO USE A PRESET PROGRAM
H
Segment column of the matrix and no time
remains in the program.
egin pedaling to activate the console.
B
1
See step 1 on page 12.

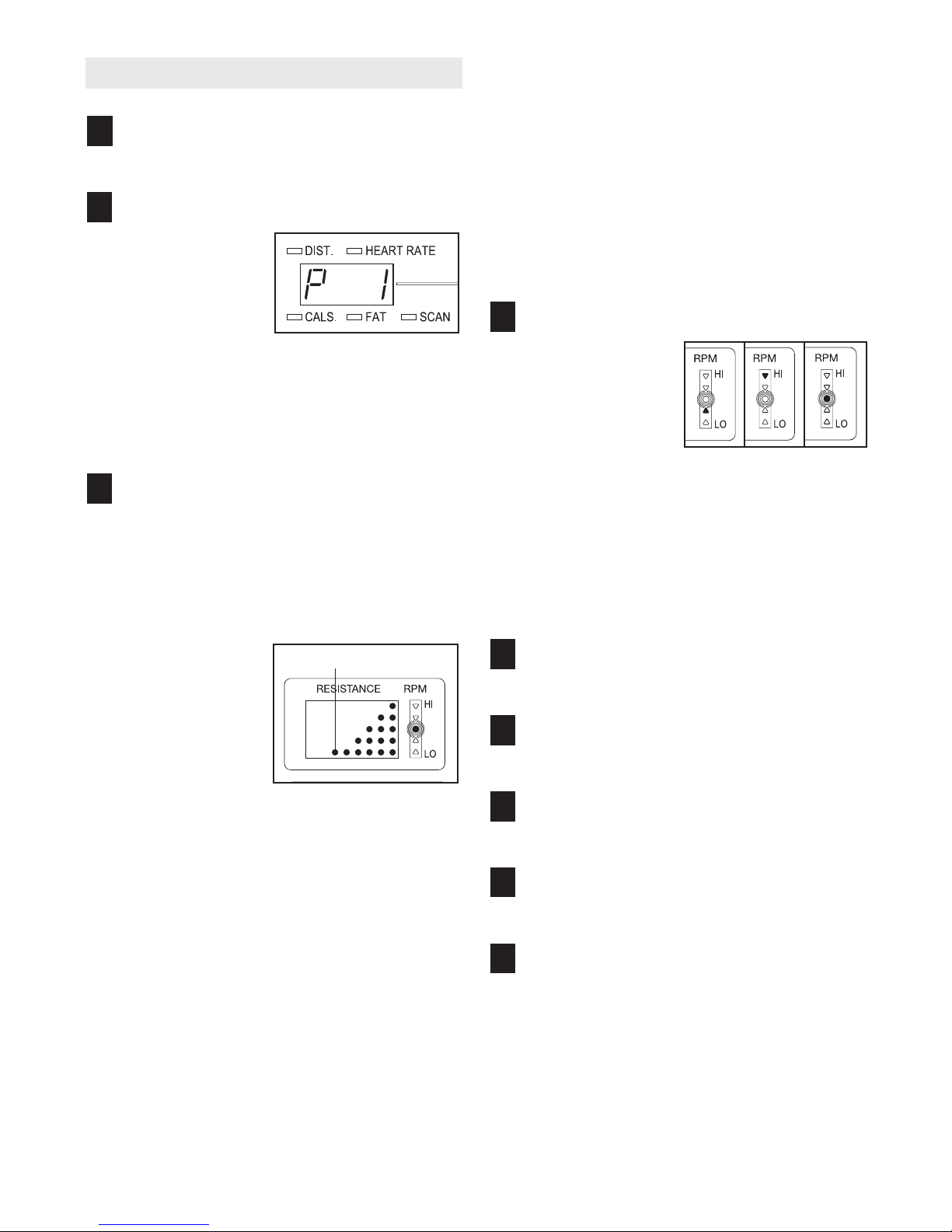

Select one of the preset programs.
2
To select a preset
program, press the
Program Select
button repeatedly
until “P 1,” “P 2,”
“P 3,” “P 4,” “P 5,”
or “P 6” appears in
the lower display.
When a preset program is selected, the matrix
will show the first six resistance settings of the
program.
Press the Program Start button or begin
3
pedaling to start the program.
Each program is divided into either 20 or 30 oneminute segments. One resistance setting is programmed for each segment. Note: The same
resistance setting may be programmed for two or
more consecutive segments.
Note: During the program, you can override t h e
esistance setting for the current segment by
r
pressing the Resistance buttons. However, when
the next segment begins, the resistance will automatically change if a different resistance setting is
programmed for the next segment. If you stop
pedaling for several seconds, a tone will sound
and the program will pause. To restart the program, simply resume pedaling.
Use the pace (RPM) guide.
4
During preset programs, the pace
guide will prompt
you to increase or
decrease your pedaling pace. When
one of the arrows
below the center indicator lights, increase your
pace. When one of the arrows above the center
indicator lights, decrease your pace. When the
center indicator lights, maintain your current
Important: The pace settings of the pro-
pace.
gram are intended only to provide a goal.
Make sure to pedal at a pace that is comfortable for you.
The resistance
setting for the first
segment will be
shown in the
flashing Current
Segment column
of the matrix. The
resistance settings
for the next five
segments will be shown in the columns to the
right.
When only three seconds remain in the first segment of the program, a series of tones will sound;
all resistance settings will then move one column
to the left.
segment will then be shown in the flashing
Current Segment column and the resistance of
the pedals will automatically change to the resistance setting for the second segment.
The program will continue until the resistance set
ting for the last segment is shown in the Current
The resistance setting for the second
Current Segment
Adjust the angle of the ramp as desired.
5
See step 4 on page 12.
Monitor your progress with the two displays.
6
See step 5 on page 12.
Measure your heart rate if desired.
7
See step 6 on page 13.
Turn on the fan if desired.
8
See step 7 on page 13.
When you are finished exercising, the console
9
will automatically turn off.
See step 8 on page 13.
-
14
Page 15
OW TO USE A HEART RATE PROGRAM
H
Begin pedaling to activate the console.
1
See step 1 on page 12.
Select one of the heart rate programs.
2

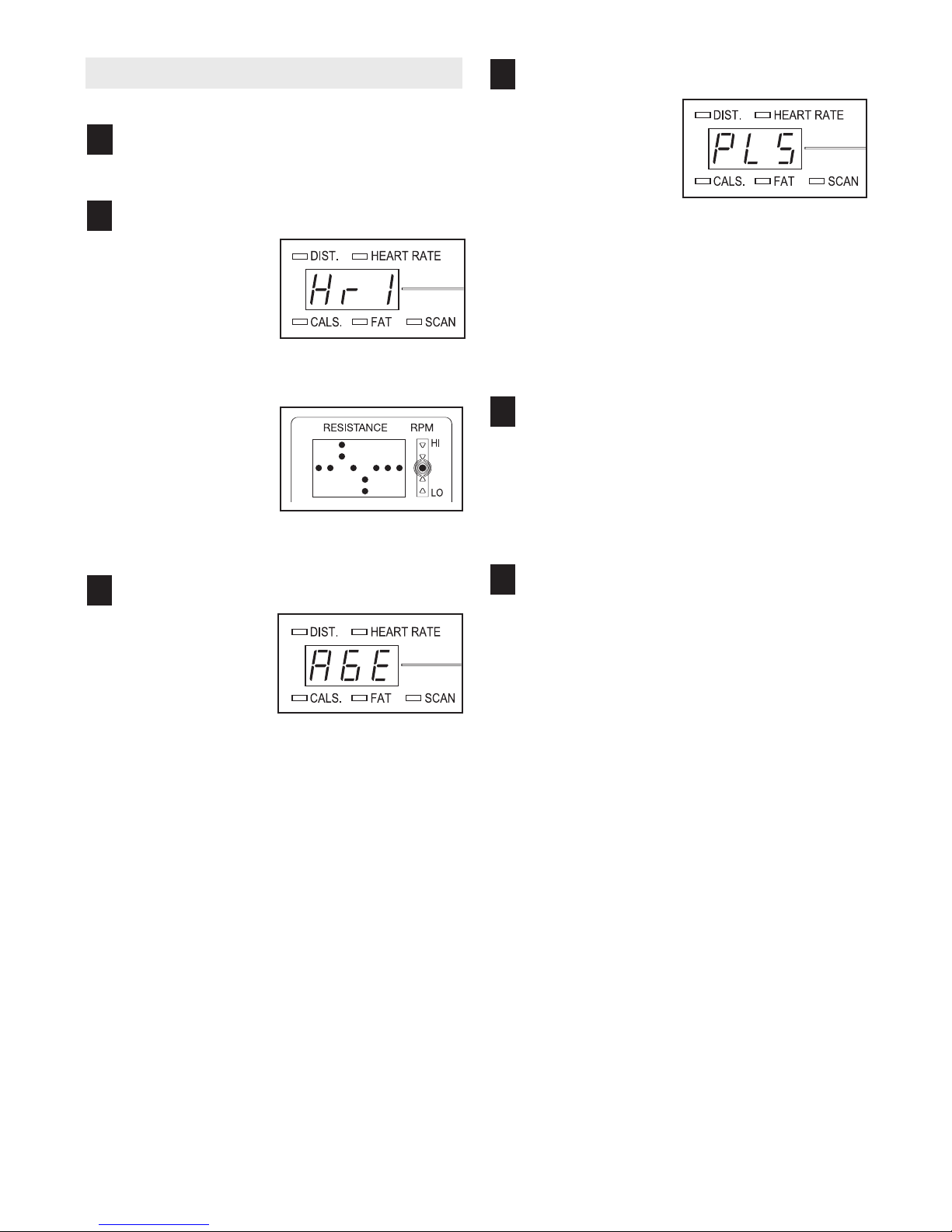

To select a heart
rate program,
press the Program
Select button
repeatedly until
“Hr1” or “Hr2”
appears in the
lower display.
During heart rate
programs, the
matrix will show a
graphic that represents your heart
rate. Each time a
heartbeat is detected, an additional peak will appear.
Enter your age.
3
After a heart rate
program is selected, the word
“AGE” and the current age setting
will flash in the
lower display. You
must enter your age to use a heart rate program.
If you have already entered your age, press the
Enter (Program Start) button and go to step 4. If
you have not entered your age, press the
Age/Rate Set (Resistance) buttons repeatedly to
enter your age, and then press the Enter button.
Once you have entered your age, it will be saved
in memory.
nter a target heart rate.
E
4
If heart rate program 1 is selected,
the letters
“PLS” and a target
heart rate will flash
n the lower dis-
i
play. Press the
Age/Rate Set (Resistance) buttons repeatedly to
change the target heart rate, if desired, and then
press the Enter (Program Start) button.
See EXERCISE INTENSITY on page 18 for
heart rate guidelines.
If heart rate program 2 is selected, you do not
need to enter a target heart rate. Go to step 5.
Hold the handgrip pulse sensor.
5
It is not necessary to hold the handgrips continuously during the program; however, you should
hold the handgrips frequently for the program to
operate properly.
grips, keep your hands on the metal contacts
for at least 30 seconds.
Begin pedaling to start the program.
Each time you hold the hand-
6
Heart rate program 1 is divided into 20 one-
minute segments. The same target heart rate is
programmed for all segments.
Heart rate program 2 is divided into 30 oneminute segments. One target heart rate is programmed for each segment. Note: The same target heart rate may be programmed for two or
more consecutive segments.
At the end of each segment, a series of tones will
sound. As you pedal, the console will regularly
compare your heart rate to the target heart rate. If
your heart rate is too far below or above the target
heart rate, the resistance of the pedals will automatically increase or decrease to bring your heart
rate closer to the target heart rate.
Note:
15
Page 16
Note: If the resistance is too high or too low, you
can adjust the resistance by pressing the
esistance buttons. However, when the console
R
compares your heart rate to the target heart rate,
he resistance may automatically change.
t

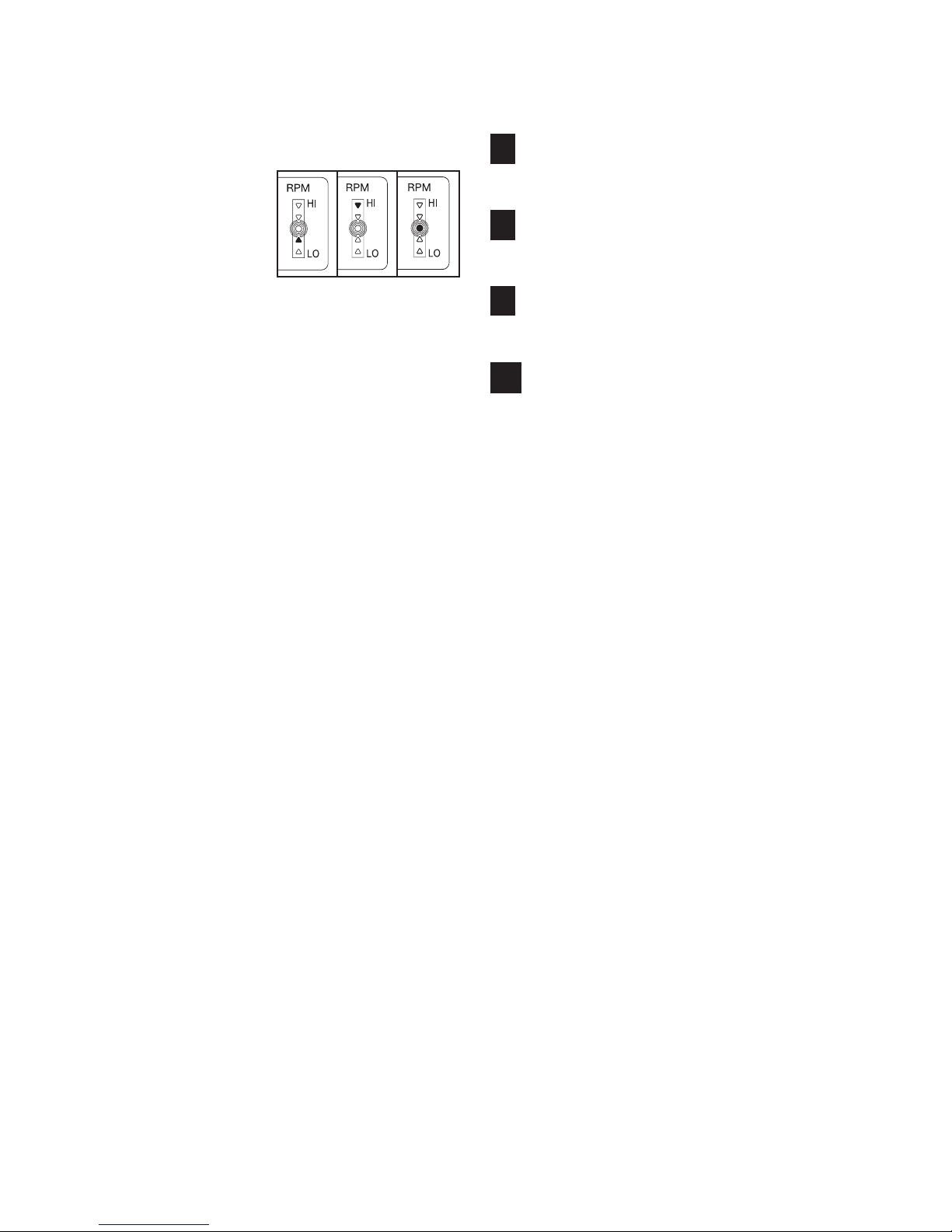

The pace guide
will help you to
maintain a constant pace during
the program.
When one of the
arrows below the
center indicator lights, increase your pace. When
one of the arrows above the center indicator
lights, decrease your pace. When the center indicator lights, maintain your current pace.
Important: The pace guide is intended only to
provide a goal. Make sure to pedal at a pace
that is comfortable for you.
The program will continue in this way until the
upper display shows that no time remains in the
program.
Note: If you stop pedaling for several seconds, a
tone will sound and the program will pause. To
estart the program, simply resume pedaling.
r
Adjust the angle of the ramp as desired.
7
See step 4 on page 12.
Monitor your progress with the two displays.
8
See step 5 on page 12.
Turn on the fan if desired.
9
See step 7 on page 13.
When the program is finished, the console
10
will automatically turn off.
See step 8 on page 13.
16
Page 17
MAINTENANCE AND TROUBLESHOOTING
Inspect and properly tighten all parts of the elliptical
xerciser regularly. Replace any worn parts immedi-
e
ately.
For smooth
peration of the
o
elliptical exerciser,
inspect
and clean the
ramp regularly
using a soft
cloth and mild
detergent.
Other parts of
the elliptical
exerciser can
also be cleaned in this way. Keep liquids off the
console. Never use abrasives or solvents.
PULSE SENSOR TROUBLESHOOTING
If the handgrip pulse sensor does not function properly, see step 6 on page 13.
HOW TO LEVEL THE ELLIPTICAL EXERCISER
Ramp

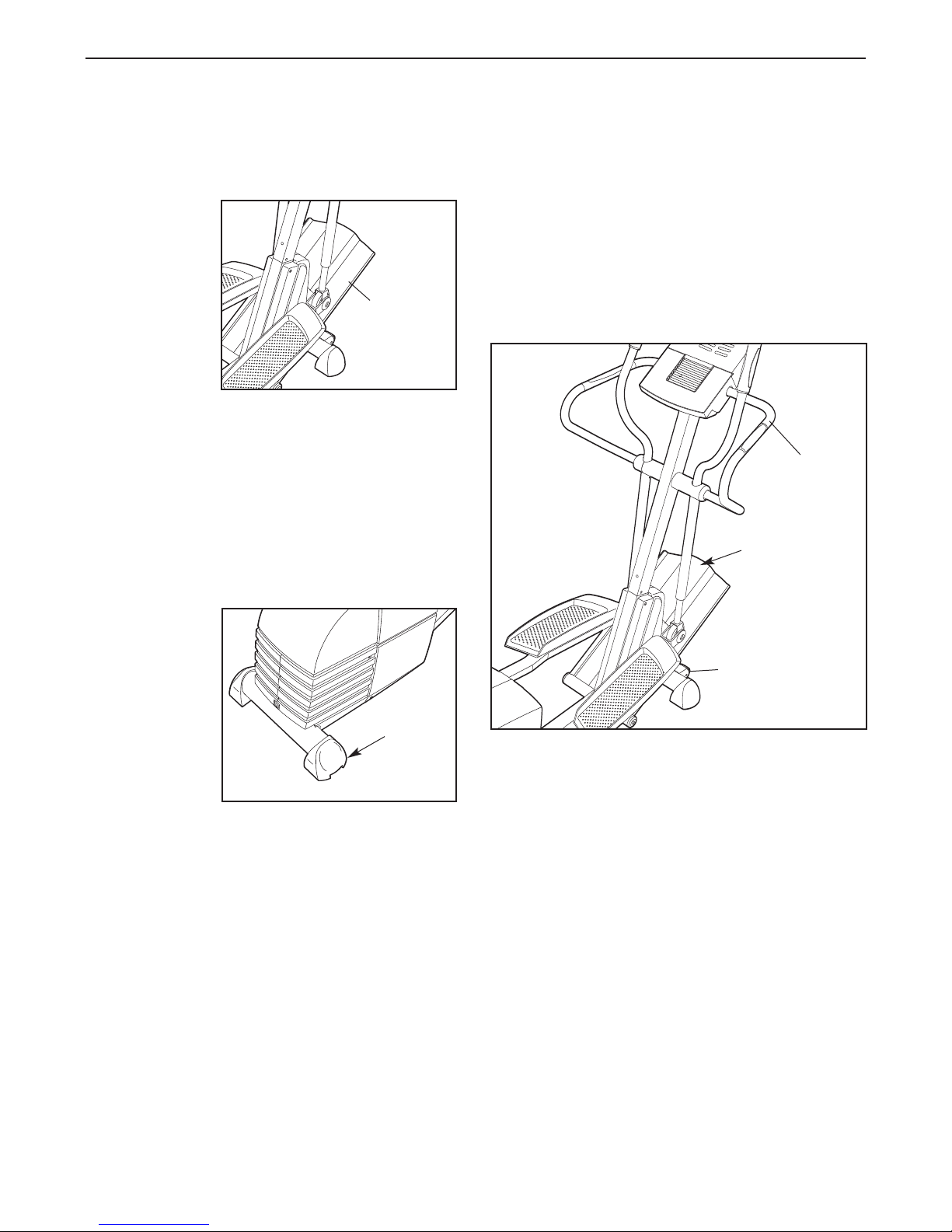

HOW TO MOVE THE ELLIPTICAL EXERCISER
Stand in front of the elliptical exerciser, hold the handlebars firmly, and place one foot against the ramp in
the location shown below. Pull the handlebars until
he elliptical exerciser can be moved on the front
t
wheels, and carefully move the elliptical exerciser to
the desired location. Then, place one foot against the
ramp, and lower the elliptical exerciser. Due to the
size and weight of the elliptical exerciser, use
extreme caution while moving and lowering it.
Handlebars
Place your
foot here
If the elliptical
exerciser rocks
slightly on your
floor during use,
turn one or both
of the leveling
feet under the
rear stabilizer
until the rocking
motion is eliminated.
Wheel
Leveling
Foot
17
Page 18
EXERCISE GUIDELINES
WARNING:
Before beginning this or any exercise pro-
ram, consult your physician. This is espe-
g
cially important for persons over the age of 35
or persons with pre-existing health problems.
During the first few minutes of exercise, your body
uses easily accessible
gy. Only after the first few minutes of exercise does
your body begin to use stored
f your goal is to burn fat, adjust the intensity of your
I
exercise until your heart rate is near the lowest number in your training zone as you exercise.
carbohydrate
fat
calories for energy.
calories for ener-
The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in determining heart rate trends in general.
The following guidelines will help you to plan your
exercise program. Remember that proper nutrition
and adequate rest are essential for successful results.
EXERCISE INTENSITY
Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the
desired results is to exercise with the proper intensity.
The proper intensity level can be found by using your

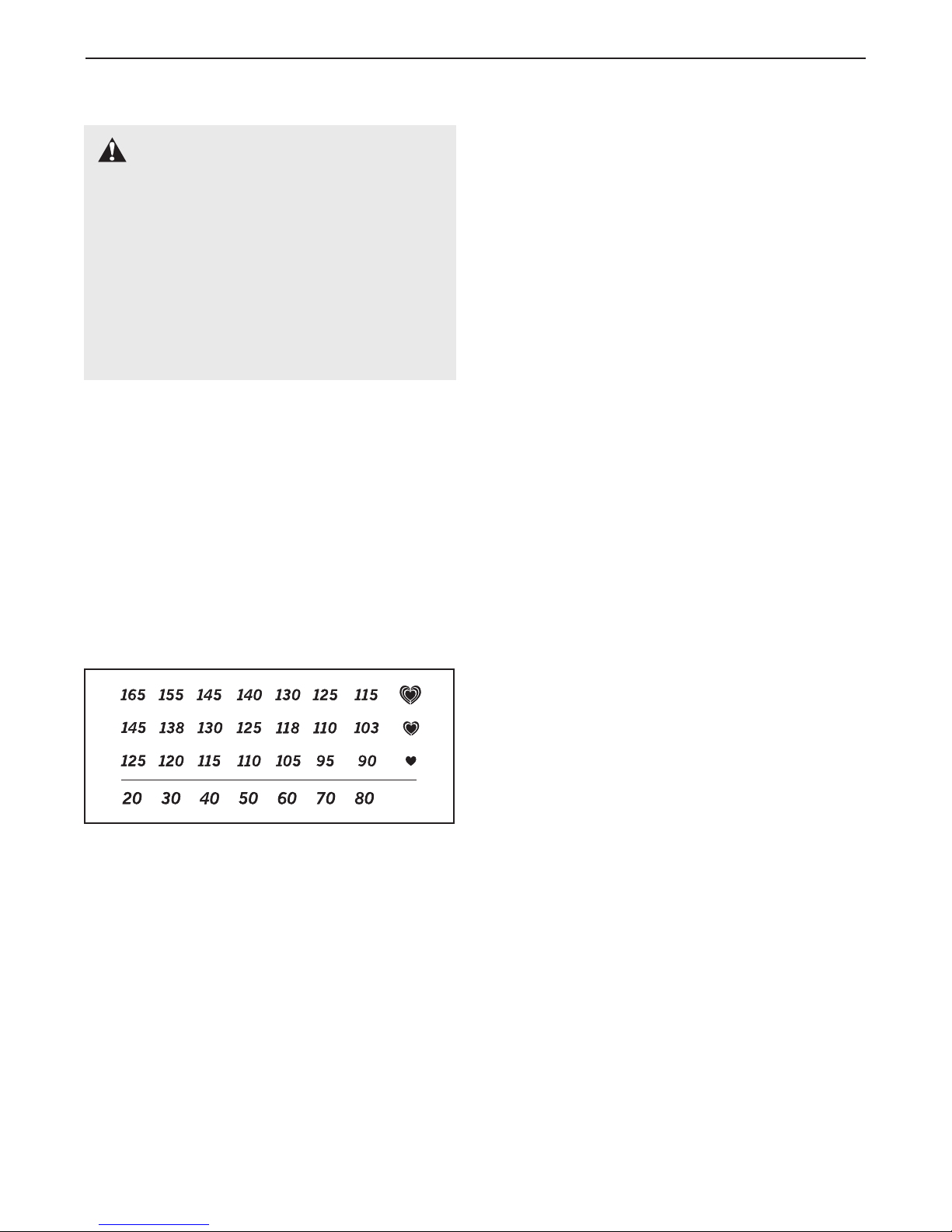

heart rate as a guide. The chart below shows recommended heart rates for fat burning, maximum fat
burning, and cardiovascular (aerobic) exercise.
For maximum fat burning, adjust the intensity of your
exercise until your heart rate is near the middle number in your training zone as you exercise.
Aerobic Exercise
If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen
for prolonged periods of time. This increases the
demand on the heart to pump blood to the muscles,
and on the lungs to oxygenate the blood. For aerobic
exercise, adjust the intensity of your exercise until
your heart rate is near the highest number in your
training zone as you exercise.
WORKOUT GUIDELINES
Each workout should include the following three parts:
A warm-up, consisting of 5 to 10 minutes of stretching
and light exercise. Aproper warm-up increases your
body temperature, heart rate, and circulation in preparation for exercise.
To find the proper heart rate for you, first find your age
near the bottom of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers
above your age. The three numbers are your “training
zone.” The lower two numbers are recommended
heart rates for fat burning; the highest number is the
recommended heart rate for aerobic exercise.
Fat Burning
To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time.
Training zone exercise, consisting of 20 to 30 minutes of exercising with your heart rate in your training
zone. (During the first few weeks of your exercise
program, do not keep your heart rate in your training
zone for longer than 20 minutes.)
A cool-down, with 5 to 10 minutes of stretching. This
will increase the flexibility of your muscles and will
help to prevent post-exercise problems.
EXERCISE FREQUENCY
To maintain or improve your condition, complete three
workouts each week, with at least one day of rest
between workouts.
cise, you may complete up to five workouts each week
if desired. The key to success is to make exercise a
regular and enjoyable part of your everyday life.
After a few months of regular exer-
18
Page 19
SUGGESTED STRETCHES
he correct form for several basic stretches is shown at the right.
T
Move slowly as you stretch—never bounce.
1. Toe Touch Stretch
Stand with your knees bent slightly and slowly bend forward from
your hips. Allow your back and shoulders to relax as you reach
down toward your toes as far as possible. Hold for 15 counts, then
relax. Repeat 3 times. Stretches: Hamstrings, back of knees and
back.
2. Hamstring Stretch
Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended leg.
Reach toward your toes as far as possible. Hold for 15 counts,
then relax. Repeat 3 times for each leg. Stretches: Hamstrings,
lower back and groin.
3. Calf/Achilles Stretch
With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your back
foot flat on the floor. Bend your front leg, lean forward and move
your hips toward the wall. Hold for 15 counts, then relax. Repeat 3
times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.
1
2
3
4
4. Quadriceps Stretch
With one hand against a wall for balance, reach back and grasp
one foot with your other hand. Bring your heel as close to your
buttocks as possible. Hold for 15 counts, then relax. Repeat 3
times for each leg. Stretches: Quadriceps and hip muscles.
5. Inner Thigh Stretch
Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold for
15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and
hip muscles.
5
19
Page 20
PART LIST—Model No. EPEL7975.1 R1005A
Key No. Qty. Description Key No. Qty. Description
1 1 Frame
2
3
4 1 Bookrack
5 1 Upper Handlebar Cover
6 2 Hand Grip
7 1 Left Handlebar
8 1 Right Handlebar
9 1 Left Upper Body Arm
10 1 Right Upper Body Arm
11 2 Pulse Sensor/Wire
12 2 Handlebar Cap
13 2 Handlebar Bushing
14 6 Upper Body Bushing
15 2 Upper Body Cover
16 1 Pivot Axle
17 1 Pulse Extension Wire
18 1 Upper Wire Harness
19 2 Plastic Sleeve
20 1 Left Upright Cover
21 1 Right Upright Cover
22 1 Left Side Shield
23 1 Right Side Shield
24 1 Side Shield Cover
25 1 Left Rear Side Shield
26 1 Right Rear Side Shield
27 1 Left Kick Plate
28 1 Right Kick Plate
29 1 Front Stabilizer
30 1 Rear Stabilizer
31 2 Front Stabilizer Endcap
32 2
33 1 Ramp
34 1 Lift Motor
35 1 Lift Motor Stop Bracket
36 1 Lift Sensor
37
38 1 Lift Axle
39 1
40
41 2 Ramp Axle Cover
42 2
43
44 2 Wheel
45
46
47 1 Right Pedal Leg
48
49
50
51 4 Wheel Cover
52
1 Upright
1 Console
Rear Stabilizer Endcap
1 Sensor Cover
Ramp Axle
4
2
2
1
1 Left Pedal
1
2
4 Pedal Leg Bearing
Ramp Bushing
Ramp Spacer
Axle Bushing
Ramp
Chrome Tube
Left Pedal Leg
Right Pedal
Ramp Wheel
53 1 Lower Wire Harness
4 2 Foot
5
5 2 Rear Side Shield Bracket
5
56 2 Front Side Shield Bracket
57 1 Upper Side Shield Bracket
58 1 Left Inner Shield
59 1 Right Inner Shield
60 2 Crank Arm
61 1 “C” Magnet Bracket
62 1 “C” Magnet
63 1 Flywheel
64 1 Alignment Rod
65 1 Spring
66 2 Flywheel Bearing
67 1 Magnet
68 1 Resistance Motor
69 1 Reed Switch Clamp
70 1 Reed Switch Bracket
71 1 Reed Switch/Wire
72 1 Pulley
73 4 Pulley Spacer
74 2 Crank Arm Spacer
75 1 Crank
76 2 Crank Bearing
77 1 Resistance Cable Set
78 1 Idler
79 1 Control Box
80 1 Control Box Cover
81 1 Control Board
82 1 Power Receptacle
83 1 Power Cord
84 1
85 1 Shield Spacer
86 4 Snap Ring
87 4 Ramp Wheel Bushing
88 1 M10 x 68mm Bolt
89
90 5 M10 Nylon Locknut
91 6
92
93 4 M5 Nylon Locknut
94 4
95
96 1 M8 x 25mm Button Screw
97
98
99 22 M4 x 16mm Screw
100
101
102
103 4 M6 x 16mm Button Screw
104
2 M10 x 105mm Button Screw
4
2
1
2
4 M8 x 52mm Button Screw
2
2
2 M10 x 60mm Button Bolt
Belt
M8 Jam Nut
M5 x 12mm Bolt
asher
M5 W
M8 x 54mm Button Screw
Idler Bolt
Upper Body Arm Foam
Bolt Set
asher
M6 W
20
Page 21
ey No. Qty. Description Key No. Qty. Description
K
105 2 Plastic Bushing
106 1 M6 x 18mm Button Bolt
07 1 M6 x 38mm Bolt
1
08 4 M6 Nut
1
109 3 M8 Nylon Locknut
110 3 #8 x 9.5mm Screw
111 1 M4 x 52mm Screw
12 1 M10 Washer
1
113 2 Flange Screw
114 2 M5 x 6mm Screw
115 2 M4 x 25mm Round Head Screw
116 4 M8 x 42mm Button Bolt
117 2 M8 x 35mm Button Bolt
118 3 M10 Split Washer
119 2 M4 x 50mm Screw
120 1 M4 x 25mm Screw
121 10 M4 x 14mm Screw
122 4 M8 Split Washer
Note: # indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover
of this manual for information about ordering replacement parts.
123 3 M10 x 25mm Button Screw
124 2 M10 x 92mm Carriage Bolt
25 3 M4 x 16mm Round Head Screw
1
26 1 M5 x 16mm Screw
1
127 12 M4 x 12mm Screw
128 2 M8 x 43mm Button Screw
129 1 M6 Nylon Locknut
30 2 M4 x 30mm Screw
1
131 3 M8 x 16mm Washer
132 4 M8 Washer
133 1 Flywheel Axle
134 2 Short Handlebar Foam
135 2 Long Handlebar Foam
# 6 Allen Wrench
# 1 Grease
# 1 High-temperature Lubricant
# 1 User’s Manual
21
Page 22
2
3
4
5
6
6
7
8
9
10
11
12
12
13
13
14
14
14
14
14
14
15
15
16
18
17
19
19
20
21
22
23
24
25
26
27
28
99
99
99
115
125
116
91
91
117
117
91
91
99
99
99
99
119
121
121
127
121
120
121
121
99
121
99
121
125
127
127
127
125
123
118
118
123
118
114
114
127
9
8
134
135

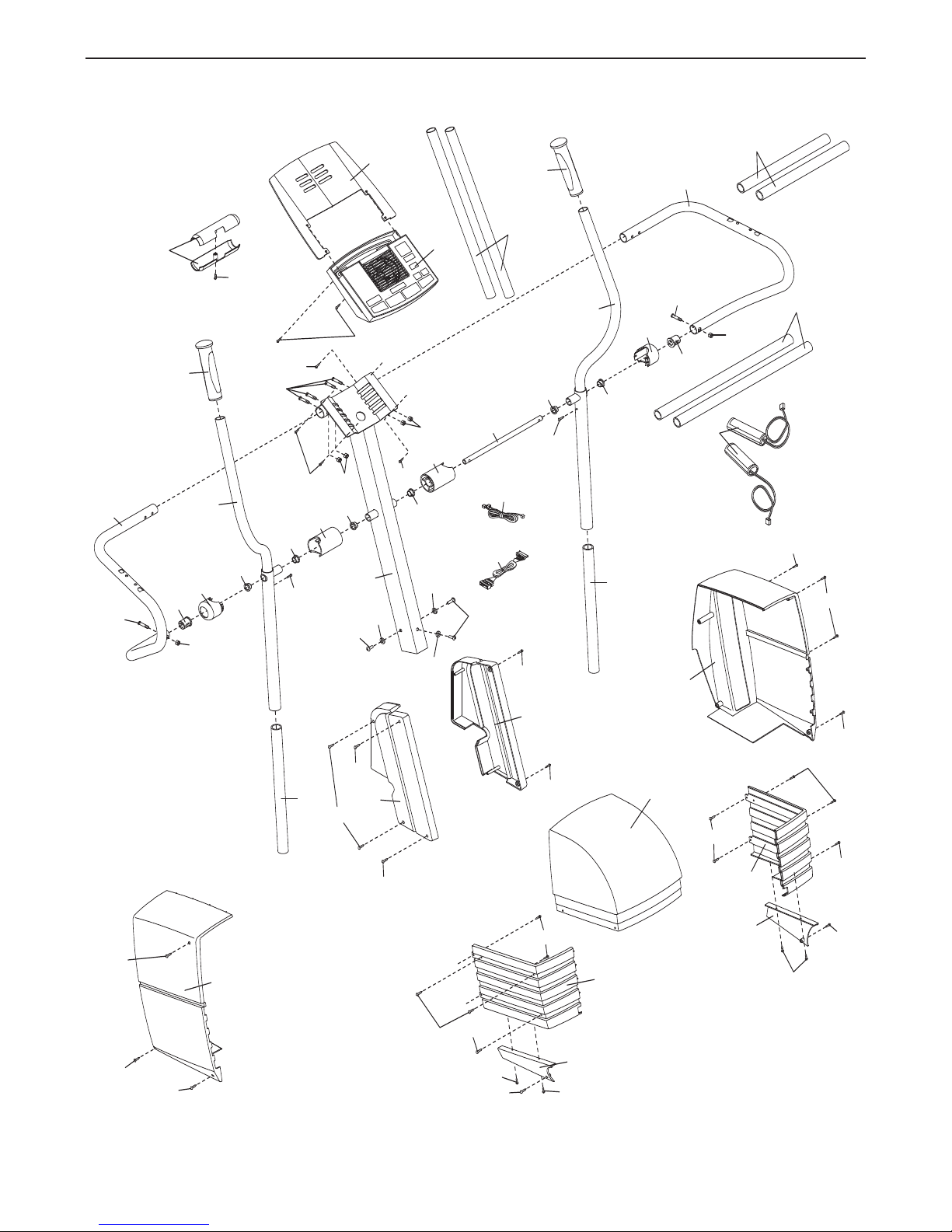

EXPLODED DRAWING A—Model No. EPEL7975.1 R1005A
22
Page 23
1
30
29
31
31
32
32
33
34
35
3
6
37
38
39
40
40
40
41
41
42
42
43
43
44
4
5
45
46
47
48
49
50
50
51
51
51
51
52
52
52
52
53
54
54
55
55
56
56
57
58
59
60
60
61
62
63
64
65
66
66
67
68
69
70
71
72
73
74
74
75
76
76
77
78
79
81
80
82
83
84
85
86
86
86
86
87
87
87
87
88
90
89
124
90
101
101
101
101
103
103
102
102
103
103
104
104
90
100
100
96
97
99
99
127
126
99
95
95
109
127
127
130
92
93
94
94
133
106
107
108
108
129
109
109
99
110
110
99
111
99
113
113
105
105
112
131
122
132
122
132
131
131
128
108

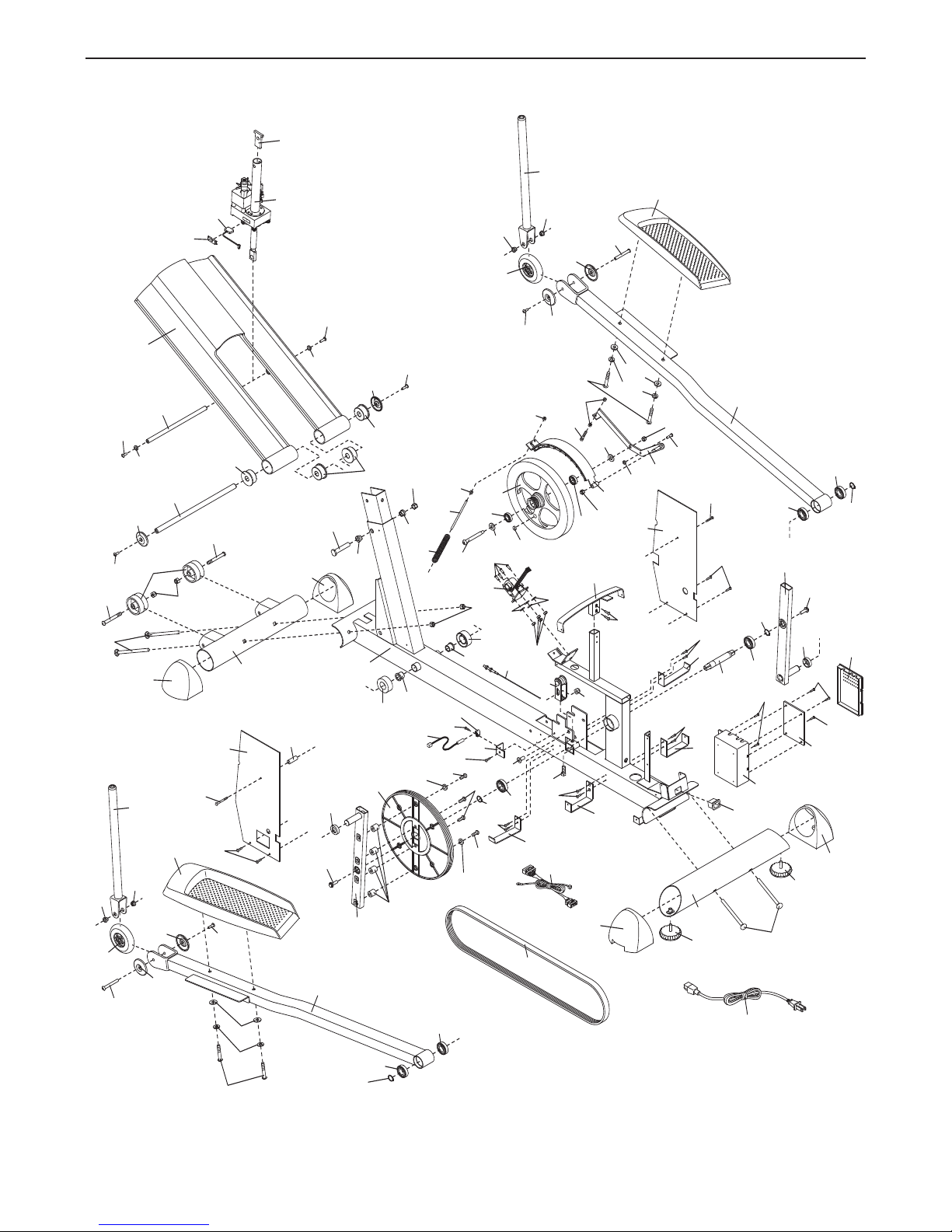

EXPLODED DRAWING B—Model No. EPEL7975.1 R1005A
23
Page 24
HOW TO ORDER REPLACEMENT PARTS
To order replacement parts, see the front cover of this manual. To help us assist you, please be prepared to give
the following information when calling:
• the MODEL NUMBER of the product (EPEL7975.1)
• the NAME of the product (EPIC E 760 elliptical exerciser)
• the SERIAL NUMBER of the product (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part(s) (see pages 20 through 23)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON), warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of purchase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is limited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center,freight charges to and from the service center will be the customer’s responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in connection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of incidental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly
limitation may not apply to you.
, the above
This warranty gives you specific legal rights.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
Part No. 234077 R1005A
ou may also have other rights which vary from state to state.
Y
2005 ICON IP, Inc.
Printed in China
©
Loading...
