UPower Series
——Inverter/changer
User Manual
Models：
UP1500-M3222
UP2000-M3322
UP3000-M3322
UP3000-M2142
Page 2
Page 3
Important Safety Instructions
Please reserve this manual for future review.
Please reserve this manual for future review. This manual contains all instructions of safety,
installation and operation for the inverter/charger.
Read carefully all the instructions and warnings in the manual before installation.
Non-safety voltage exists inside the inverter/charger, users must not dismantle it by itself
in order to avoid personal injury, contact professional maintenance personnel of our
company in need of maintenance.
Keep the inverter/charger beyond the reach of children.
Do not place the inverter/charger in a damp, oily, inflammable and explosive or a severe
environment with a large amount of dust accumulation.
The utility input and AC output are of high voltage, don’t touch wire connecting locations.
Install the inverter/charger in well ventilated places, it’s shell may become very hot
during operation.
It is suggested to install appropriate external fuses/breakers.
Make sure switching off all connections with PV array and the fuse/breakers close to
battery before inverter/charger installation and adjustment.
Power connections must remain tight to avoid excessive heating from a loose
connection.
It’s an off-grid inverter/charger, if connect to the grid, it may be damaged.
This inverter/charger can only be used singly, parallel connection or in series will
damage the inverters.
Page 4
Page 5
CONTENTS
1. General Information ................................................................................... 1
1.1 Overview .................................................................................... 1
1.2 Characteristics .......................................................................... 2
1.3 Designations of models ........................................................... 3
1.4 Schematic Diagram for Connections ..................................... 3
2. Installation Instructions ............................................................................ 4
2.1 General Installation Notes ....................................................... 4
2.2 Wire Size& breaker................................................................... 4
2.3 Mounting .................................................................................... 6
3. Interface Instruction .................................................................................. 9
3.1 Indicator...................................................................................... 9
3.2 Buttons .....................................................................................10
3.3 Real-time interface .................................................................10
3.4 Setting interface ......................................................................13
3.5 Other function ..........................................................................15
4. Protection ................................................................................................. 17
5. Troubleshooting ....................................................................................... 18
5.1 Fault ..........................................................................................18
5.2 Troubleshooting ......................................................................18
6. Maintenance ............................................................................................. 19
7. Technical Specifications ......................................................................... 20
Page 6
Page 7
1
1. General Information
1.1 Overview
The UPower series is a new type of the inverter/charger combining with solar & utility charging
and AC output, which adopts a multi-core processor design and advanced MPPT control
algorithm, and has the features of high response speed, high reliability and high
industrialization standard. It offers four charging modes to Solar priority, Utility priority, Solar
and Utility & Solar; two output modes for Battery and Utility, meeting the various application
demands.
The up-to-date optimized MPPT tracking technology is adopted for the PV charging modules.
It can quickly track the maximum power point of the PV array in any environment and acquire
the maximum energy of solar panel in real time;
The advanced control algorithm is adopted for AC-DC charging modules that realize fully
digitalized double closed-loop control for voltage and current, with high control precision, small
volume. The input range of AC voltage is wide, the output DC charging voltage/current is
continuously adjustable in a certain range, and the complete input/output protection functions
can offer stable and reliable charging and protection to the battery.
The DC-AC inverter modules are based on full digital and intelligent design. It adopts the
advanced SPWM technology, outputs the pure sine wave and converts 24/48VDC to
220/230VAC suitable for AC loads of household appliances, electric tools, commercial units,
electronic audio and video devices etc.
The product adopts 4.2 inch LCD display design, which real-time displays the operational data
and running state of the system. The comprehensive electronic protection function guarantees
more safe and more stable operation of the system.
Features：
Adoption of the advanced SPWM technology, with pure sine wave output
Fully digitalized voltage and current double closed-loop control
Advanced MPPT technology, with efficiency no less than 99.5%.
Four charging mode: Solar priority, Utility priority, Utility & solar and Solar
Two OUTPUT mode: Battery and Utility
LCD design that enables dynamic display of system running data and operating state
Provided with common interface and advanced interface
Multiple LED indicators that instantly indicate the operating state of the system
2P circuit breaker provided at the utility input end
Independent control of AC output with AC OUT button
Battery temperature compensation function.
Extensive Electronic protection
Page 8
2
1.2 Characteristics
①
Mounting Hole
⑦
RTS
★
interface
②
Captive screw (2)
⑧
Relay interface
③
AC output terminal
⑨
Remote interface
④
Utility input terminal
⑩
Reserved communication interface
⑤
Ground terminal
⑪
Inverter/charger switch
⑥
Battery input terminal
⑫
PV input terminal
★The temperature sensor short-circuited or damaged, the controller will be charging or
discharging at the default temperature 25 ºC.

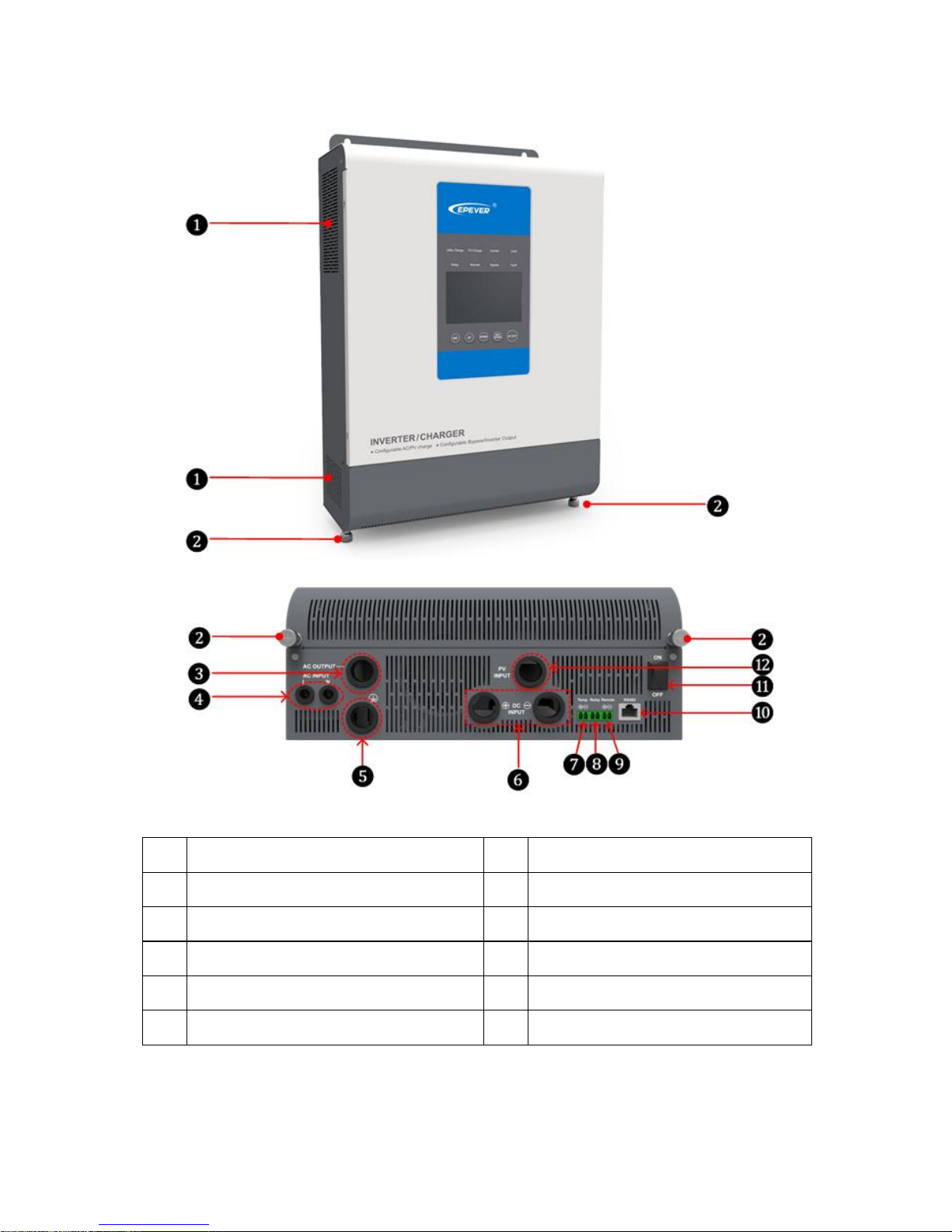

Figure 1 Product appearance
Page 9
3
1.3 Designations of models

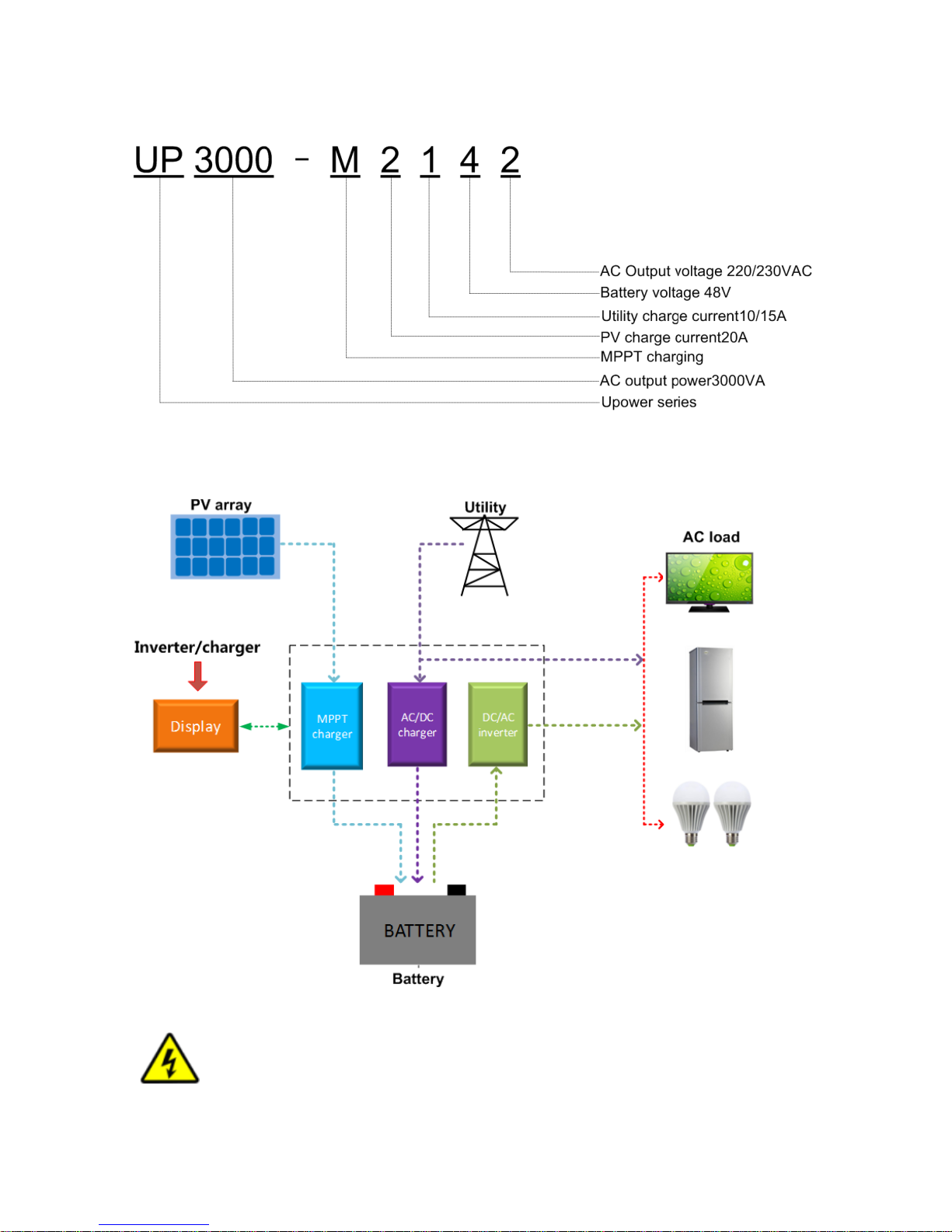

1.4 Schematic Diagram for Connections
Warning：Confirm the AC equipment according to the power of the inverter/charger
selected, the maximum power value that exceeds its power, therefore is prohibited.
Page 10
4
2. Installation Instructions
2.1 General Installation Notes
Please read the entire installation instructions to get familiar with the installation steps before
installation.
Be very careful when installing the batteries, especially flooded lead-acid battery. Please
wear eye protection, and have fresh water available to wash and clean any contact with
battery acid.
Keep the battery away from any metal objects, which may cause short circuit of the battery.
Explosive battery gases may come out from the battery during charging, so make sure
ventilation condition is good.
Ventilation is highly recommended if mounted in an enclosure. Never install the controller in
a sealed enclosure with flooded batteries! Battery fumes from vented batteries will corrode
and destroy the controller circuits.
Lead-acid battery is recommended, other kinds please refer to the battery manufacturer.
Loose power connections and corroded wires may result in high heat that can melt wire
insulation, burn surrounding materials, or even cause fire. Ensure tight connections and use
cable clamps to secure cables and prevent them from swaying in mobile applications.
Battery connection may be wired to one battery or a bank of batteries. The following
instructions refer to a singular battery, but it is implied that the battery connection can be
made to either one battery or a group of batteries in a battery bank.
Select the system cables according to 5A/mm2 or less current density in accordance with
Article 690 of the National Electrical Code, NFPA 70.
For outdoor installation, keep out of the direct sunshine and rainwater infiltration.
High voltage still exists inside the inverter/charger after switching off the power switch, do
not turn on or touch the internal units, conduct the associated operation only after
discharging the electric capacity.
Do not place the inverter/charger in a damp, oily, inflammable and explosive or a severe
environment with a large amount of dust accumulation.
Prohibit reverse connection at DC input end otherwise it may damage the equipment or
unpredictable danger will occur.
The utility input and AC output are of high voltage, do not touch the wire connecting
locations.
2.2 Wire Size& breaker
The wiring and installation methods must conform to all national and local electrical code
requirements.
Page 11
5
Recommended wire and circuit breaker of PV
Model
PV wire size
Breaker
UP1500-M3222
10mm2/8AWG
2P—63A
UP2000-M3322
10mm2/8AWG
2P—63A
UP3000-M3322
10mm2/8AWG
2P—63A
UP3000-M2142
6mm2/10AWG
2P—32A
NOTE: When the PV modules connect in series, the open circuit voltage of the PV array must
not exceed 92Vor 138V at 25℃ environment temperature.
Recommended wire of Utility
Model
Utility wire size
UP1500-M3222
2.5mm2/14AWG
UP2000-M3322
4mm2/12AWG
UP3000-M3322
6mm2/10AWG
UP3000-M2142
6mm2/10AWG
NOTE: The utility input has the circuit breaker already and there is no need to add any more.
Recommended wire and circuit breaker of battery
Model
Battery wire size
Breaker
UP1500-M3222
16mm2/6AWG
2P—100A
UP2000-M3322
25mm2/4AWG
2P—125A
UP3000-M3322
35mm2/2AWG
2P—200A
UP3000-M2142
16mm2/6AWG
2P—100A
NOTE: Type of circuit breaker is selected based on non-independent connection of inverter at
the battery end.
Recommended wire and circuit breaker for AC output
Model
AC wire size
Breaker
UP1500-M3222
2.5mm2/14AWG
2P—10A
UP2000-M3322
2.5mm2/14AWG
2P—16A
UP3000-M3322
4mm2/12AWG
2P—16A
UP3000-M2142
4mm2/12AWG
2P—16A
NOTE: The wire used for connection is for reference only, use thicker wires to lower
the voltage drop and improve the system performance when the distance between
the components is far.
NOTE: The above wire and the circuit breaker are for recommended use only,
please choose the suitable wire and circuit breaker according to the practical
situation.
Page 12
6
2.3 Mounting
Installation steps：

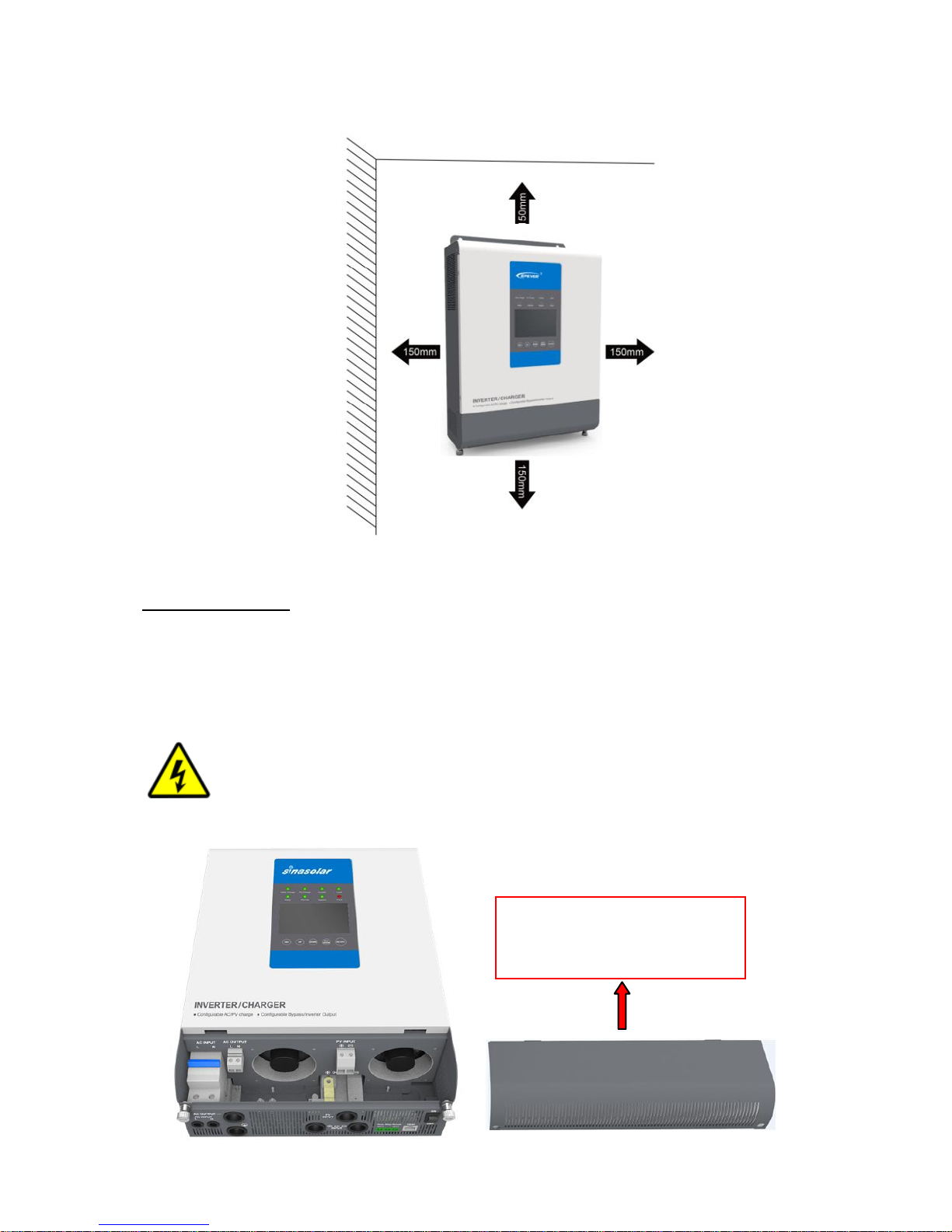

Step1：Determination of Installation Location and Heat-dissipation Space
Determination of installation location: The inverter/charger shall be installed in a place with
sufficient air flow through the radiators of the controller and a minimum clearance of 150 mm
from the upper and lower edges of the controller to ensure natural thermal convection. Please
see Figure 2-1: Mounting.
WARNING: Risk of explosion!
Never install the controller with flooded batteries in a sealed enclosure! Do not
install the battery in a confined area where battery gas can accumulate.
Step 2：Take down the terminal protective cover
Figure2-1 Mounting
※Screw off the screws and
take down the terminal
protective cover of the
Page 13
7
Step 3：Wiring
Connect the system in an order of battery load PV array Utility
in accordance with Figure 2-2: Wiring Diagram and disconnect the system in the
reverse order.
Warning: Danger, High-voltage! Utility input, AC output and PV array will produce
very high voltage, make sure to disconnect the circuit breaker/ fuse before wiring.
Warning: Do not turn on the circuit breaker/ fuse in course of wiring, and at the
same time, ensure that the wires of “+”, “-” are correctly connected.
Warning: A circuit breaker must be installed at the battery end, for selection, refer
to Section 2.3 "Wire and Circuit Breaker".
NOTE: If the inverter/charger is to be used in an area with frequent lightning strikes, it is
recommended to install an external surge arrester.
Step 4：Grounding
Grounding connection must be made when utility is connected to the inverter/charger. The
inverter/charger has dedicated grounding terminal as shown in Fig. 2-2⑤, the grounding must
be reliable, the grounding wire shall be the thicker wire (wire is not less than 4mm2), the
grounding point shall be as close as possible to the inverter/charger, the grounding wire shall
be the shorter, the better.
Step 5： Install the terminal protective cover
Step 6：Connect accessory
Connect the remote temperature sensor cable (model: RTS300R47K3.81A)
Connect one end of the remote temperature sensor cable to the interface⑦

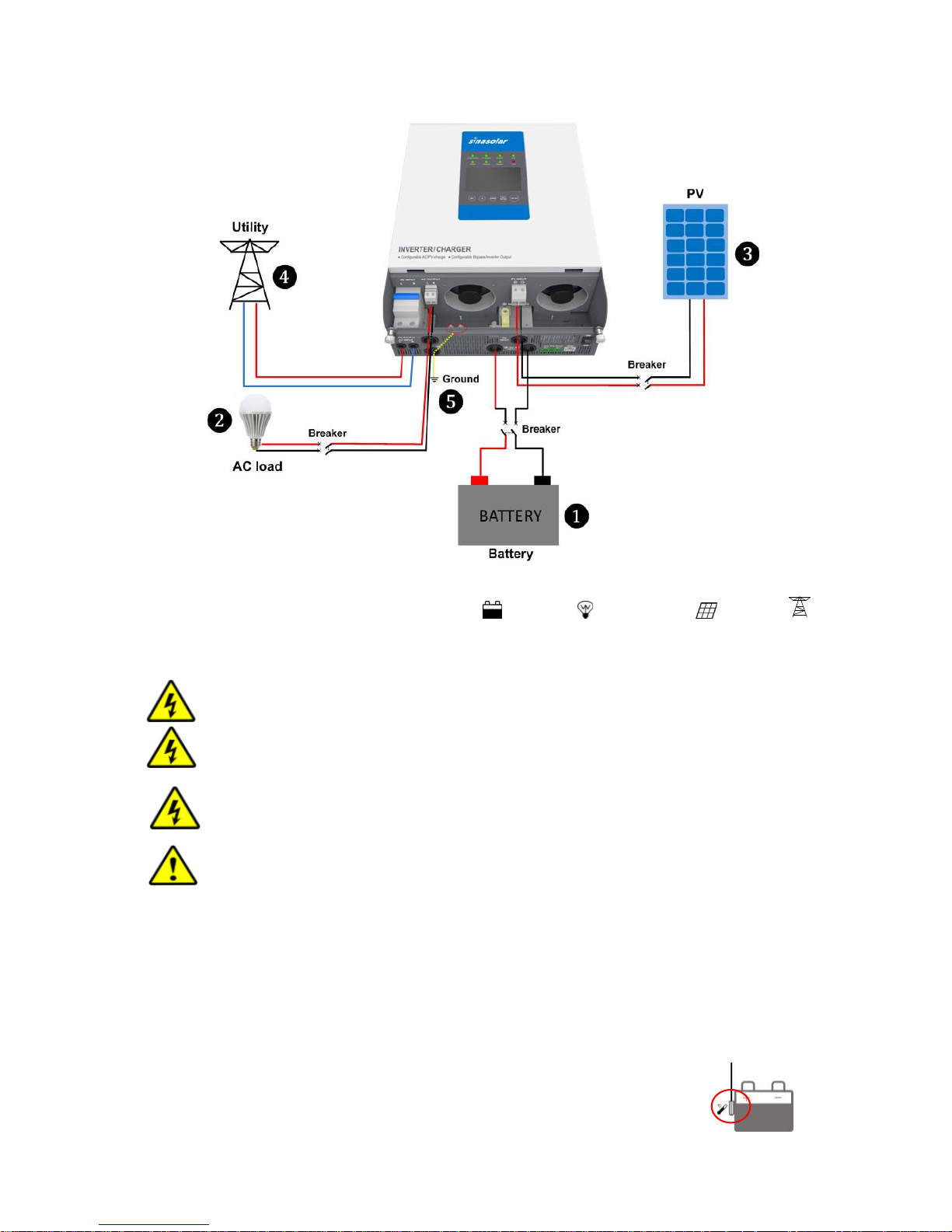

Figure 2-2 Wring Diagram
Page 14
8
and place the other end close to the battery.
NOTE: The temperature sensor short-circuited or damaged, the inverter/charger will
be charging or discharging at the default temperature 25℃.
Step 7：Recheck if the wire connection is correct
Step 8：Powered on the inverter/charger
①Turn on the circuit breaker at the battery end.

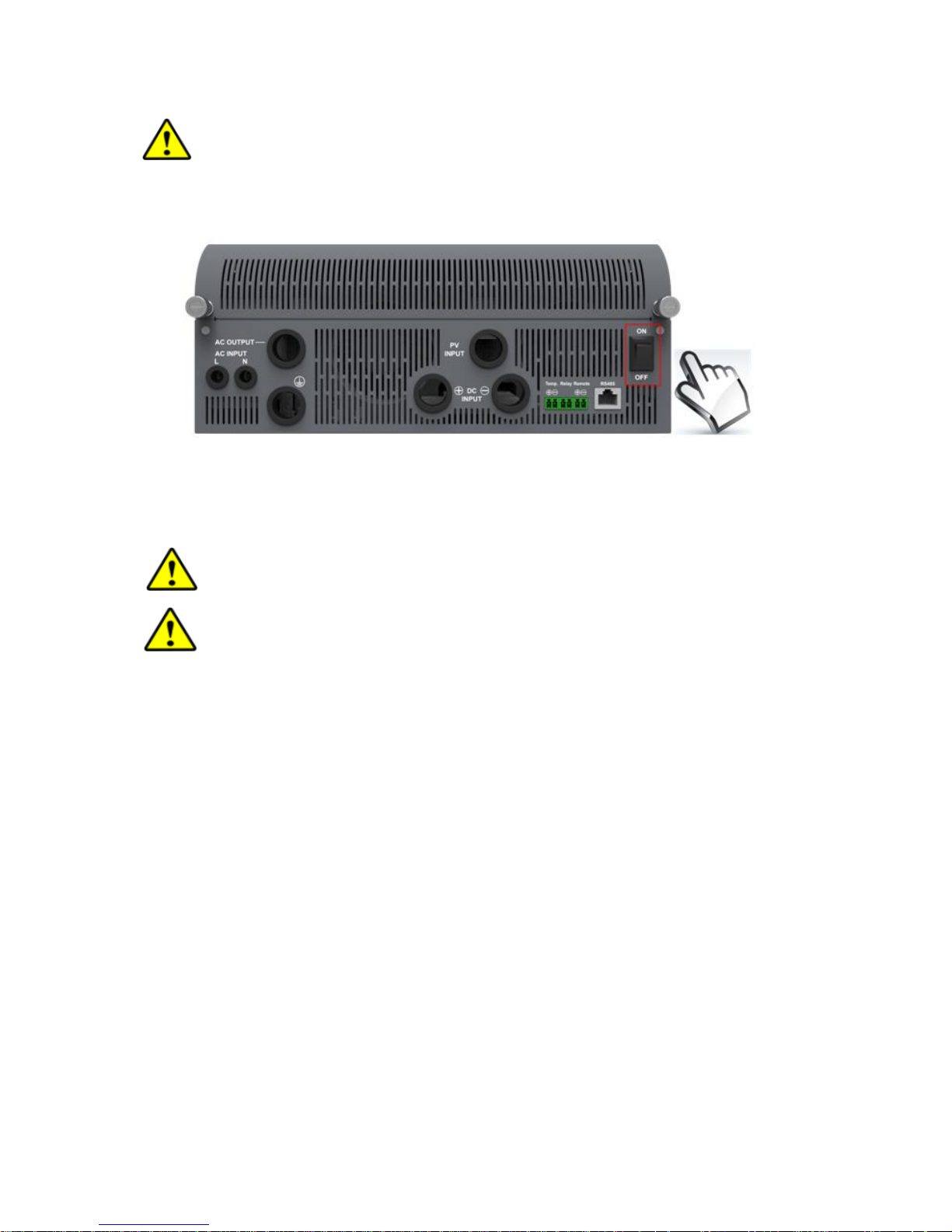

②Switch on the switch then the inverter indicator is on.
③Turn on the breaker of PV array and Utility.
④Turn on the AC load when the AC output is normal.
NOTE: In case the power is supplied to the different AC loads, it is suggested to turn
the loads with larger surge current, wait till the load operation is stable, then turn on
the loads with smaller surge current.
NOTE: In case the inverter/charger is not in normal operation, or LCD or indicator
displays abnormal, refer to Section 5 to clear the fault or contact the after-sale
service personnel of our company.
Page 15
9
3. Interface Instruction

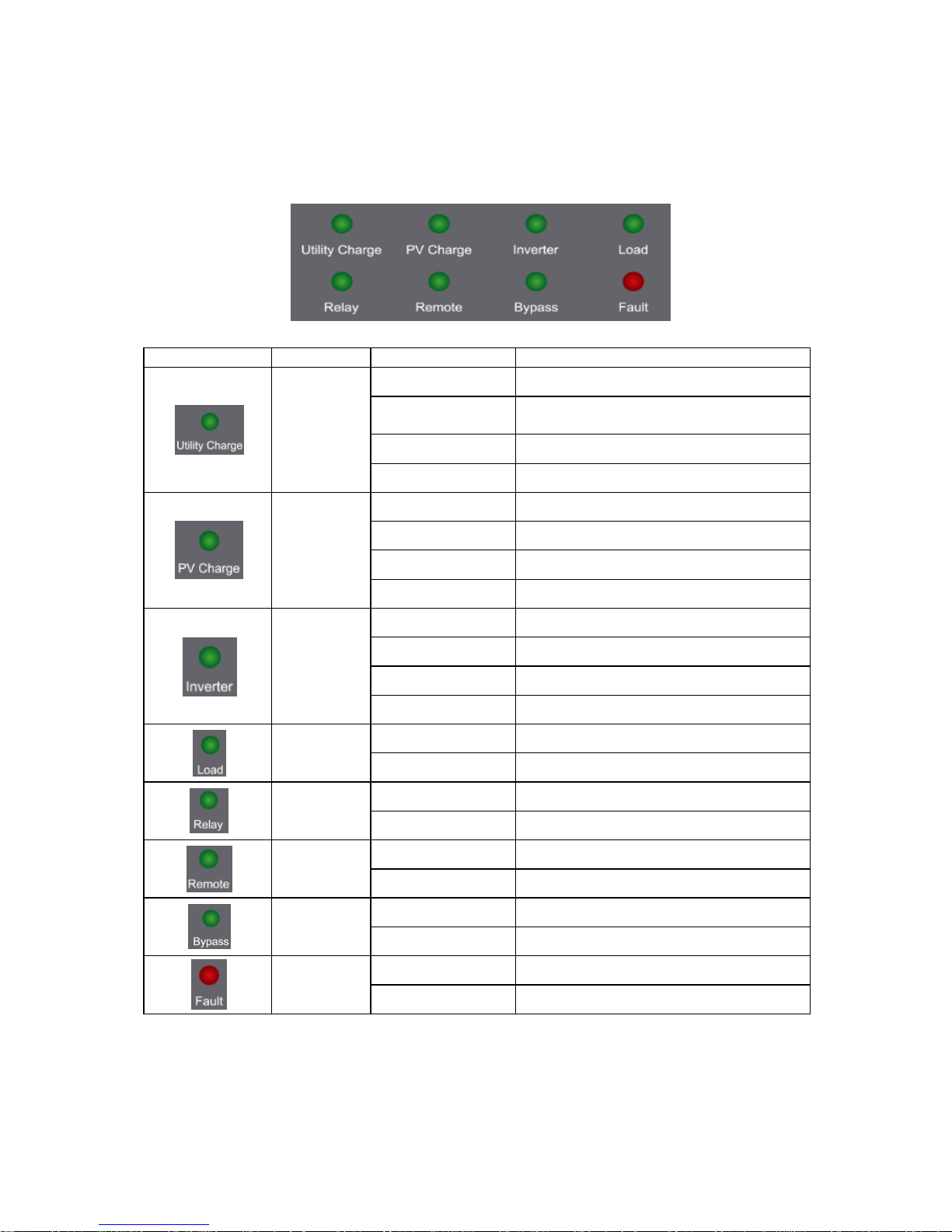

3.1 Indicator
Indicator
Color
Status
Instruction
Green
OFF
No utility
On Solid
Utility connection normal but no
charging
Slowly Flashing
Utility charging
Fast Flashing
Utility charge module fault
Green
OFF
No PV
On Solid
PV connection normal but no charging
Slowly Flashing
PV charging
Fast Flashing
PV charge module fault
Green
OFF
Inverter turn off
On Solid
Inverter turn on
Slowly Flashing
Inverter output
Fast Flashing
Inverter fault
Green
OFF
Load no output
On Solid
Load output
Green
OFF
Relay turn off
On Solid
Relay turn on
Green
OFF
Input voltage(3.3～12VDC)
On Solid
No Input voltage
Green
OFF
Inverter output
On Solid
Utility output
Red
OFF
Device normal
On Solid
Device fault
Page 16
10

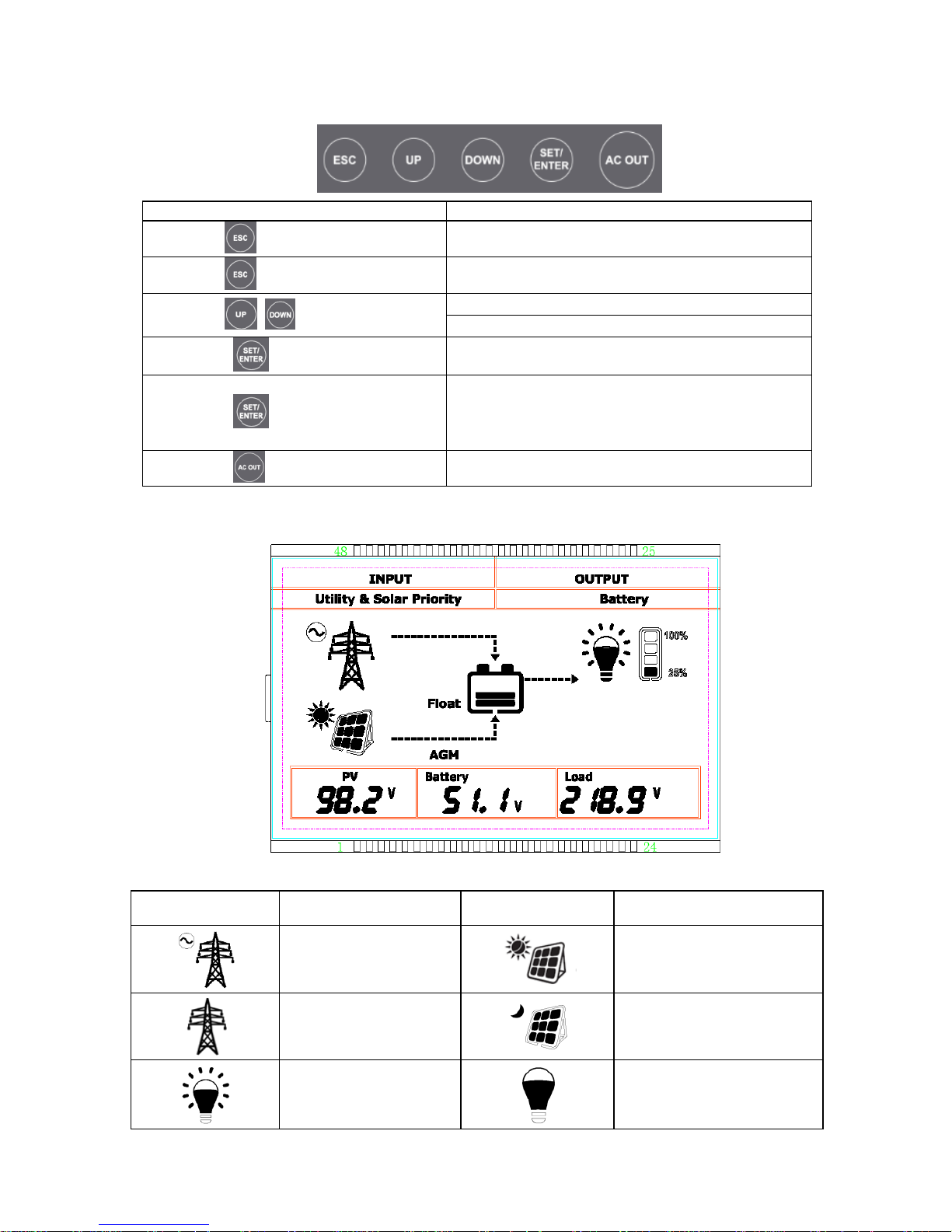

3.2 Buttons
Operation
Instruction
Press the button
Exit the current interface
Press the button and hold on 5s
Clear the faults
Press the / button
Browse interface：Up/Down
Setting interface：Up/Down
Press the button
Switch to "Browse Parameter Column"
Determine the setting parameters
Press the button and hold on 5s
Switch the" Real Time Interface" over to "Set
Browse Interface"
Switch the "Set Browse Interface" over to
"Parameter Setting Interface"
Press the button and hold on 5s
Inverter ON/OFF
3.3 Real-time interface

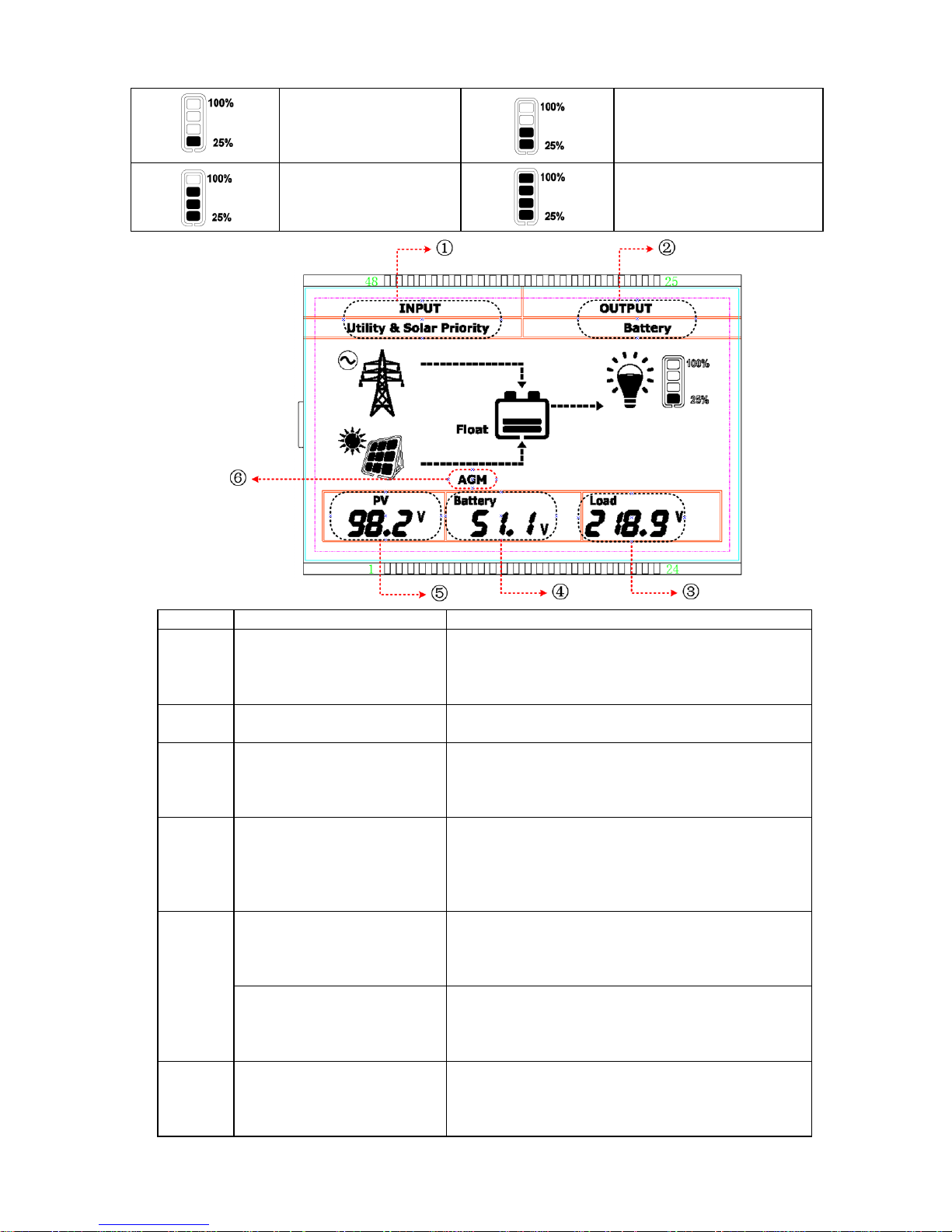

Icon：
Icon
instruction
Icon
instruction
Utility connecting
PV connecting
Utility no connecting
PV no connecting
Load ON
Load OFF
Page 17
11
Battery capacity level
8～25%
Battery capacity level
25～50%
Battery capacity level
50～75%
Battery capacity level
75～100%
Item
Setting
Content
①
INPUT
Solar priority
Utility priority
Utility & solar
Solar
②
OUTPUT
Battery
Utility
③
Load
AC output voltage
AC output current
AC output power
AC output frequency
④
Battery
Battery voltage
Max. charging current
(PV charging current+ Utility charging current)
Battery temperature
Battery SOC
⑤
PV
PV input voltage
PV charging current
PV charging power
PV charge energy
Utility
Utility input voltage
Utility charging current
Utility charging power
Utility charge energy
⑥
Battery Type
AGW
GEL
FLD
USER
Page 18
12

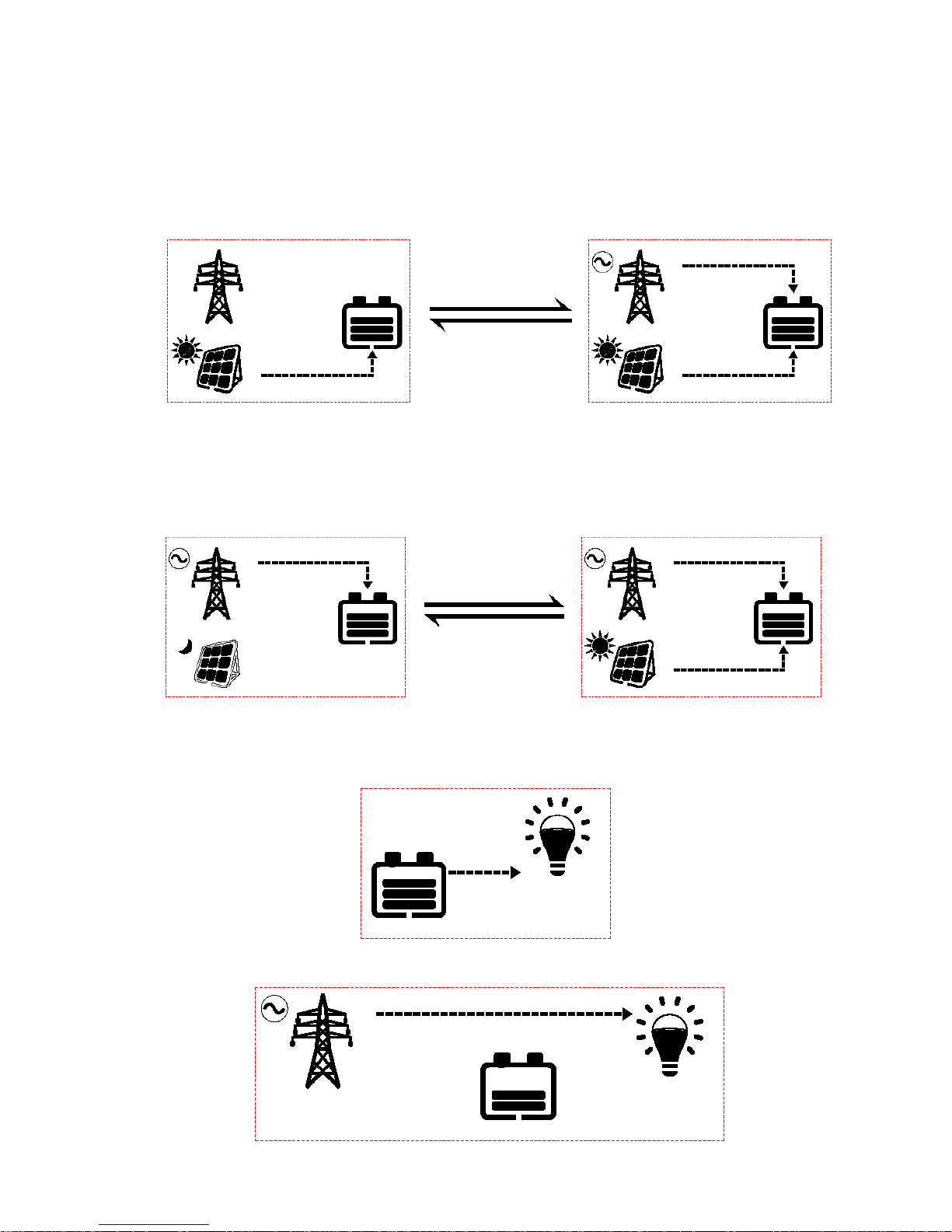

① INPUT
Solar priority
The battery is charged in solar priority mode and when the battery voltage is lower than
“Restore Auxiliary Module Charging Voltage(V
AON
)”, the utility starts charging. When the
battery voltage reaches to “Stop Auxiliary Module Charging Voltage(V
AOF
)”, the utility stops
charging.
Utility priority
The battery is charged in utility priority mode and when the battery voltage is lower than
“Restore Auxiliary Module Charging Voltage (V
AON
)”, the solar starts charging. When the
battery voltage reaches to “Stop Auxiliary Module Charging Voltage(V
AOF
)”, the solar stops
charging.
② OUTPUT
Battery
Utility
V
BAT＜VAON
V
BAT＜VAOF
V
BAT＜VAON
V
BAT＜VAOF
Page 19
13
3.4 Setting interface

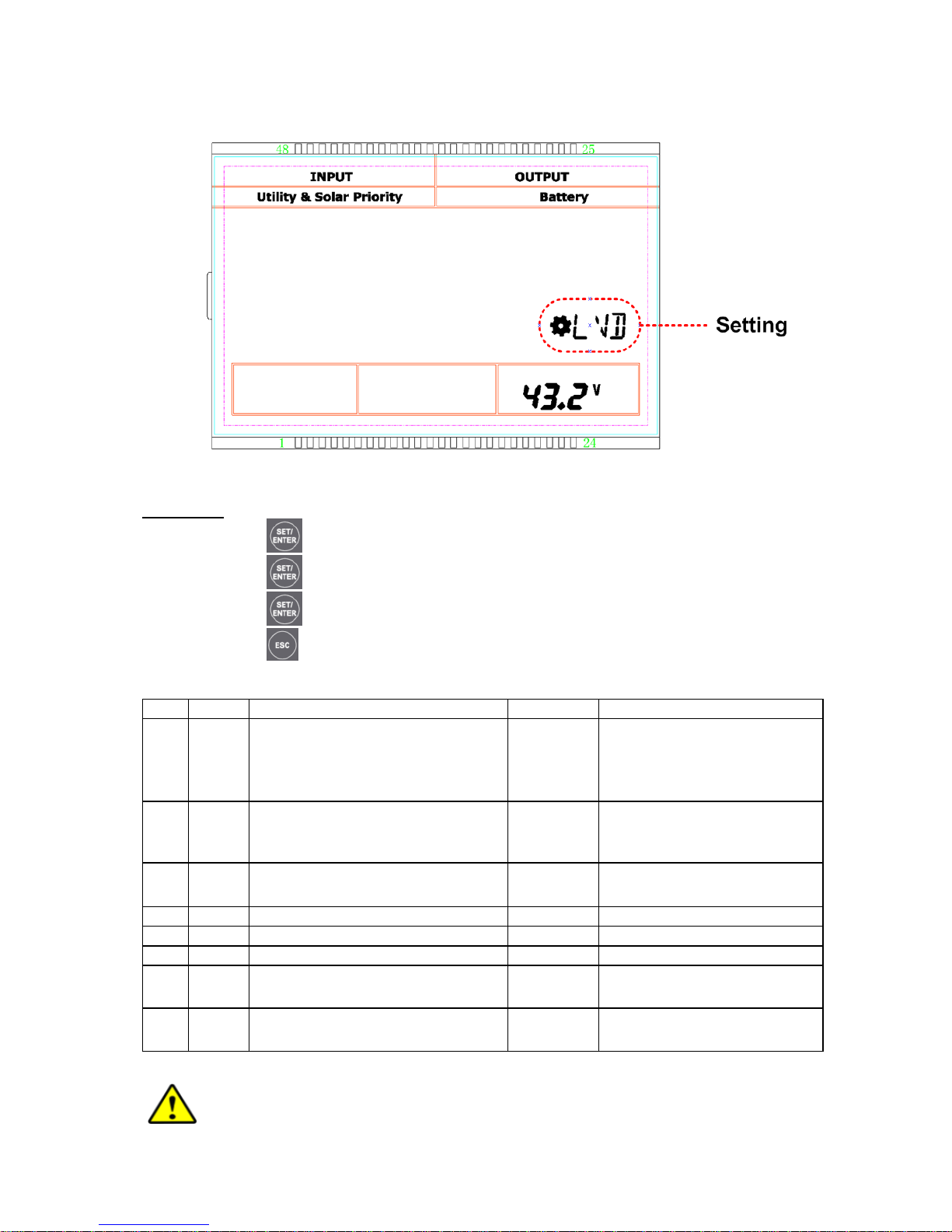

1) Common interface
Operation:
Step1: Press the button and hold on 5s under the real-time interface.
Step2: Press the button and hold on 5s under the setting parameter interface.
Step3: Press the button to enter the parameter.
Step4: Press the button to exit the setting interface.
Setting：
Item
LCD
Instruction
Default
Range
1
BTP
Battery type
AGM
AGM
GEL
FLD
USER
2
CSP
Charge source priority
Solar
priority
Solar priority
Utility priority Utility & solar
Solar
3
OSP
Output source priority
Battery
Battery
Utility
4
TMU
Temperature unit
℃
℃/℉
5
BLT
Backlight time
30S
30S/60S/100S
6
BAS
Buzzer alarm switch
ON
ON/ OFF
7
LVD
Low voltage disconnect voltage
21.6V★
User 21.0～22.6V★
step size 0.2V★
8
LVR
Low voltage reconnect voltage
25.0V★
User 24.0～26.0V★
step size 0.2V★
★The voltage parameter are referred to 25℃, and twice in 48V system.
NOTE: When Output source priority is Battery and the battery voltage less than the
Low Voltage Disconnect Voltage(LVD adjustable), the system will switch utility to
supply power for load.
Page 20
14

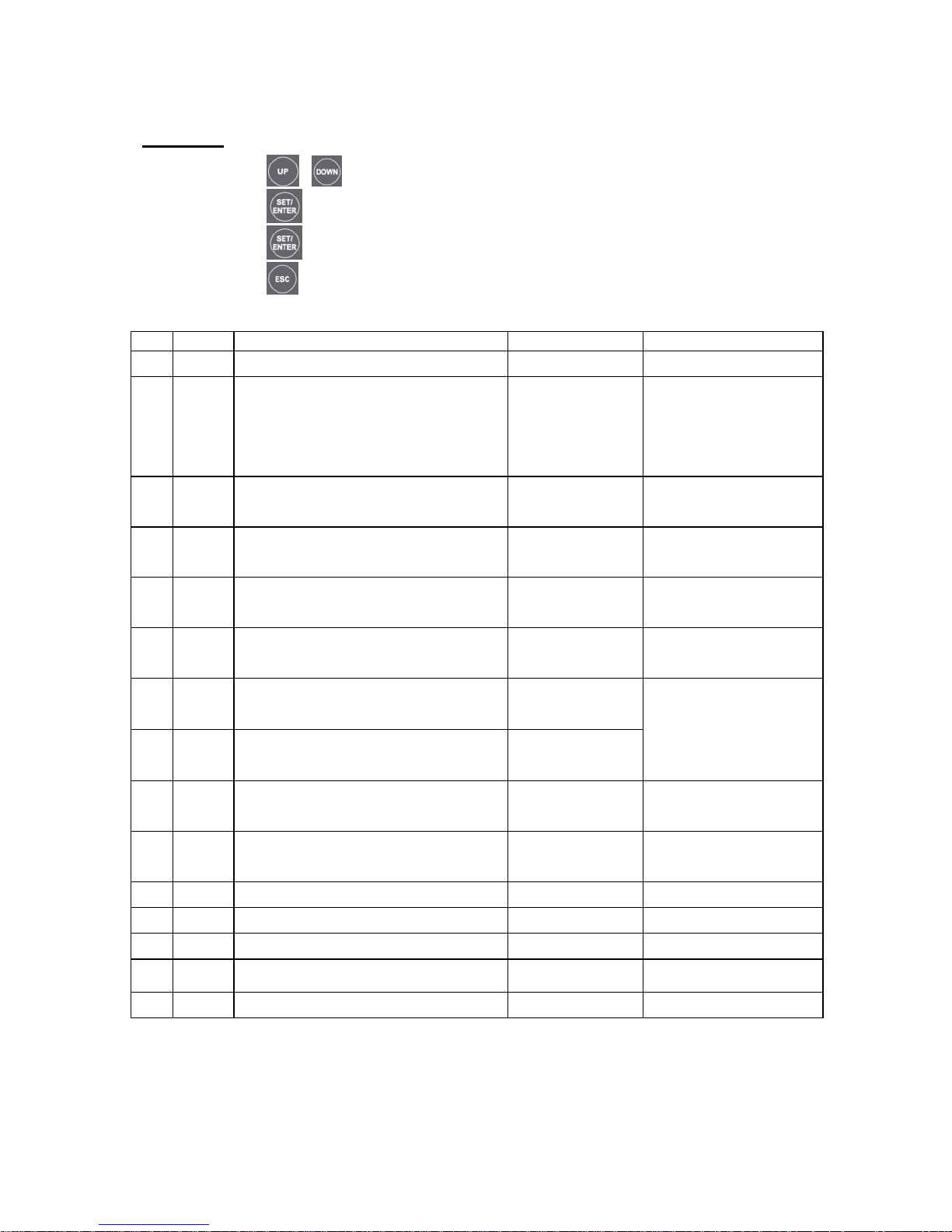

2) Advanced interface
Operation:
Step1: Press the + button and hold on 5s under the real-time interface.
Step2: Press the button and hold on 5s under the setting parameter interface.
Step3: Press the button to enter the parameter.
Step4: Press the button to exit the setting interface.
Setting：
Item
LCD
Instruction
Default
Range
9
BCT
Boost Charging Time
30M
30M/60M/120M/180M
10
BCV
Boost Charging Voltage
AGM：28.8V★
GEL：28.4V★
FLD：29.2V★
USER：28.8V★
User 25.0～29.6V★
Step size 0.2V★
11
BVR
Boost Voltage Reconnect
26.4V★
User: 25.0～28.0V★
Step size 0.2V★
12
FCV
Float Charging Voltage
27.6V★
User: 26.0～28.0V★
Step size 0.2V★
13
OVR
Over Voltage Reconnect Voltage
30.0V★
User: 29.0～31.0V★
Step size 0.2V★
14
OVD
Over Voltage Disconnect Voltage
32.0V★
User: 31.0～32.2V★
Step size 0.2V★
15
AOF
Stop auxiliary module charging
voltage
28.0V★
User: 24.0～29.6V★
Step size 0.2V★
16
AON
Restore auxiliary module charging
voltage
24.0V★
17
DON
Day connect ON voltage
22.2V★
User: 21.6～24.0V★
Step size 0.2V★
18
DOF
Day connect OFF voltage
24.0V★
User: 24.0～26.5V★
Step size 0.2V★
19
MCC
Max. charging current
60.0A◆
15.0～60.0A◆
20
PSM
Power saving mode
OFF
ON/OFF
21
CFA
Clear fault
OFF
ON/OFF
22
QCL
Clear the accumulated energy
OFF
ON/OFF
23
VER
Software version
U-1.0
—
★The voltage parameter are referred to 25℃, and twice in 48V system.
◆For the inverter/charger of different power, the current setting range is not the same,
see Table of Technical Parameters for details.
Page 21
15
NOTE：
15/16：Stop/restore auxiliary module charging voltage
Only when the charging mode is Solar priority or Utility priority will the auxiliary module
charging voltage be effective.
20：Power saving mode
When the power saving mode switch is in ON state, and when the load is less than 40W, the
cycles of AC output for 5s, and no-output for 10s are excuted.
21：Clear the faults
In occurrence of short circuit or overload caused to AC output, the fault can be cleared out.
3.5 Other function

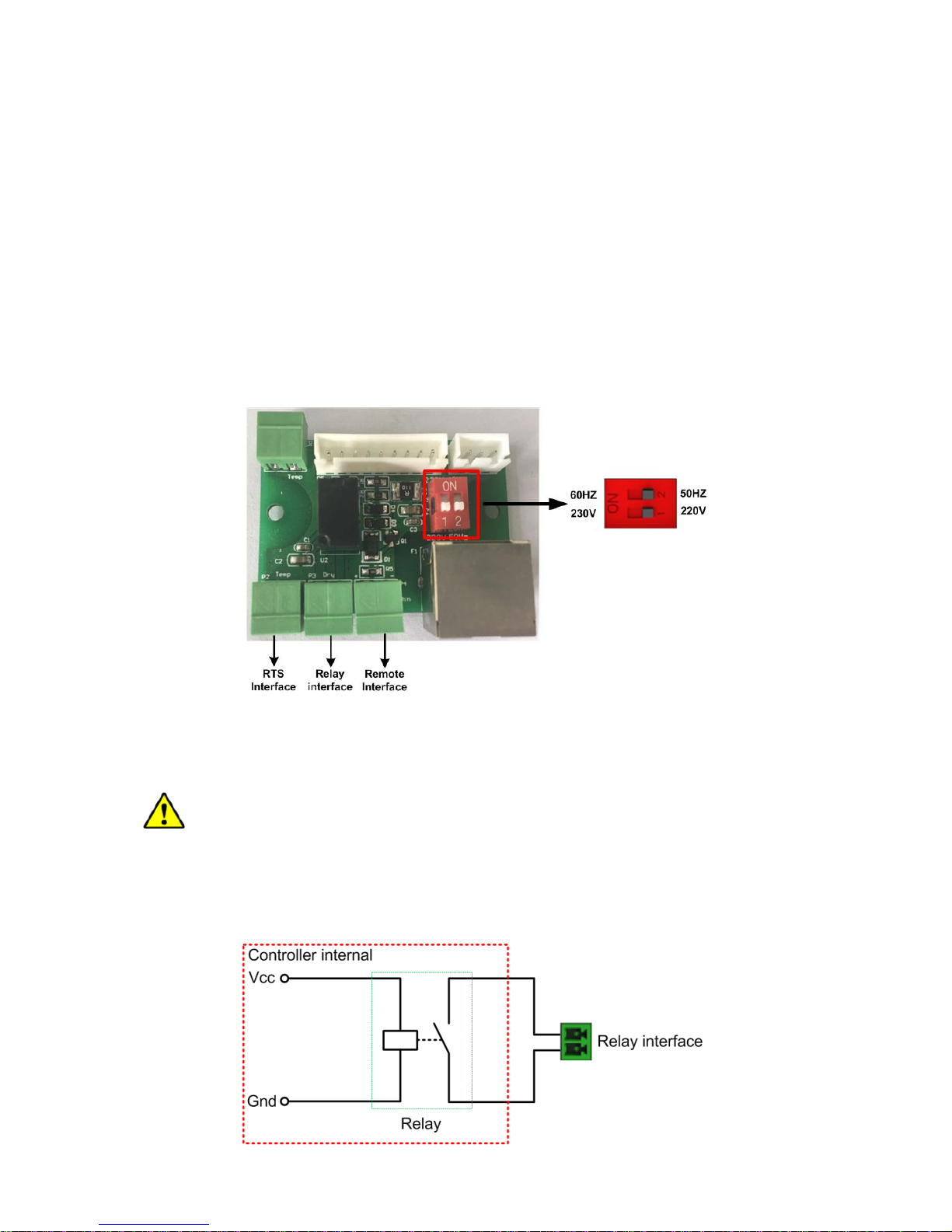

1） Output voltage & frequency switch
When Switch 1 is in "ON" side, the output voltage is selected as 230VAC, and on the
contrary as 220VAC;
When Switch 2 is in "ON" side, the output frequency is selected as 60Hz, and on the
contrary as 50Hz.
NOTE：If the output frequency or voltage of the inverter/charger is to be reset, it is
required to turn off the inverter/charger and start up the unit after setting.
2）Relay interface
Working principle: When the battery voltage reaches the Low Voltage Disconnect Voltage
（LVD）, the coil of relay is energized, and the switch is turned on. The dry contact can drive
resistive loads 125VAC /1A, 30VDC/1A.
Page 22
16
NOTE: When the utility input is abnormal, this dry contact can control the oil engine
switch to charge the battery.

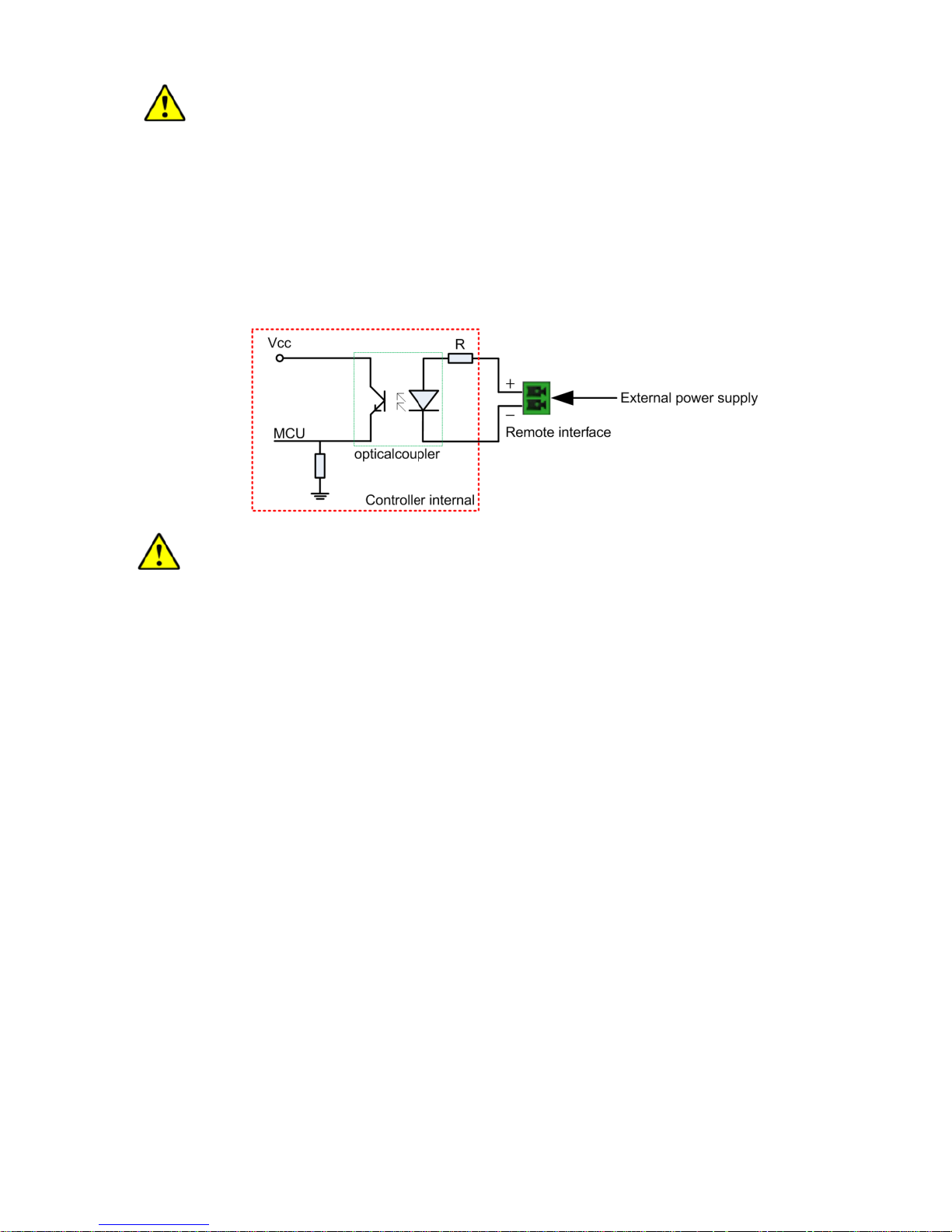

1） Remote interface
2） Remote interface input voltage( 3.3~ 12V )
(1)The input voltage Vi is within 2.5~ 10s, the AC output state is reversed (when the AC is
formerly in output state, now it is in no-output state ; when the AC is formerly in no-output state,
now it is in output state;)
(2) The input voltage Vi is greater than 10s, the AC is in output state all the time till the input
voltage Vi disappears.
NOTE: If it is to change the range of input voltage, it can be realized by changing the
resistance value of R.
Page 23
17
4. Protection
Protection
Instruction
PV Over Current
When the charging current of the PV array exceeds its rated current, it will be charged at the rated current.
NOTE: When the PV modules are in series, ensure that the open-circuit voltage of the PV array does not exceed the "maximum PV
open-circuit voltage". Otherwise the inverter/charger may be damaged.
PV short circuit
When PV is not charging and short circuit, the inverter/charger is not damaged.
PV Reverse Polarity
Fully protection against PV reverse polarity, correct the wire connection to resume normal operation.
NOTE: The inverter/charger will be damaged when the PV array straight polarity and the actual operation power of the
PV array is 1.5 times greater than the rated charge power!
Night Reverse Charging
Prevent the battery discharging through the PV module in the night.
Utility input overvoltage
When the utility voltage exceeds 280V, it will stop utility charging/discharging.
Utility input under voltage
When the utility voltage less than 160V, it will stop utility charging/discharging.
Battery overvoltage
When the battery voltage reaches to the set point of Over Voltage Disconnect Voltage, the inverter/charger will stop charging the
battery to protect the battery from being over charged to break down.
Battery Over Discharge
When the battery voltage reaches to the set point of Low Voltage Disconnect Voltage, the controller will stop discharging the
battery to protect the battery from being over discharged to break down.
Load Short Circuit
It will immediately close the output in occurrence of short-circuit and hereafter the output is automatically
recovered in time delay (the first time delay for 5s, the second time delay for 10s, the third time delay for 15s); if
the short-circuit remains after 3 times of delay, restart the inverter/charger only after clearing the fault.
Load Overload
Overload
105%
131%
160%
183%
Continuance
15min.
30S
10S
5S
Recover 3 times
The first time delay for 5s, the second time delay for 10s, the third time delay for 15s
Device overheating
The inverter/charger will stop charging/discharging when the internal temperature is too high, and will restore
charging/discharging when the temperature is recovered to normal.
Page 24
5. Troubleshooting
5.1 Fault
Module
Code
Fault
battery
frame
blink
indicator
Buzzer
Fault
indicator
Battery
BLV
Battery over voltage
Flashing
—
—
—
BOV
Battery low voltage
Alarm
On Solid
BOD
Battery over discharge
NVE
Nominal voltage error
LTP
Low temperature
PV
charging
module
OTP
over temperature
(PV charge module)
—
PV charge
Fast Flashing
CFA
Communication Fault
Alarm
Utility
charging
module
IOV
Input over voltage
Utility
Fast Flashing
ILV
Input low voltage
OTP
over temperature
(Utility charge module)
CFA
Communication Fault
Alarm
Inverter
output
module
OVA
Input over voltage
inverter
Fast Flashing
IOS
Input low voltage
OOL
Output voltage
abnormal
OTP
Inverter output short
circuit
CFA
Output overload
5.2 Troubleshooting
Fault
Troubleshooting
Battery over voltage
Check if battery voltage too high, and disconnect solar modules.
Battery over
discharge
When the battery voltage is restored to or above LVR point (low
voltage reconnect voltage), the AC load will recover
Battery overheating
The inverter/charger will automatically turn the system off. But while
the battery temperature declines to be below overheating recover
temperature value, the inverter/charger will working.
Device overheating
The inverter/charger will automatically turn the system off. But while
the device temperature declines to be below overheating recover
temperature value, the inverter/charger will working.
Output overload
①Please reduce the number of electric equipments.
②Restart the controller or CFA of setting interface change to ON .
Output short circuit
①Check carefully loads connection, clear the fault.
②Restart the controller CFA of setting interface change to ON ..
Page 25
6. Maintenance
1）The following inspections and maintenance tasks are recommended at least two
times per year for best performance.
Make sure inverter/charger firmly installed in a clean and dry ambient.
Make sure no block on air-flow around the inverter/charger. Clear up any dirt and fragments
on radiator.
Check all the naked wires to make sure insulation is not damaged for serious solarization,
frictional wear, dryness, insects or rats etc. Repair or replace some wires if necessary.
Tighten all the terminals. Inspect for loose, broken, or burnt wire connections.
Check and confirm that LED is consistent with required. Pay attention to any troubleshooting
or error indication .Take corrective action if necessary.
Confirm that all the system components are ground connected tightly and correctly.
Confirm that all the terminals have no corrosion, insulation damaged, high temperature or
burnt/discolored sign, tighten terminal screws to the suggested torque.
Check for dirt, nesting insects and corrosion. If so, clear up in time.
Check and confirm that lightning arrester is in good condition. Replace a new one in time to
avoid damaging of the inverter/charger and even other equipments.
WARNING：Risk of electric shock!
Make sure that all the power is turned off before above operations, and then
follow the corresponding inspections and operations.
2）This warranty does not apply under the following conditions:
Damage from improper use or use in an unsuitable environment.
PV or load current, voltage or power exceeding the rated value of controller.
The inverter/charger is working temperature exceed the limit working environment
temperature.
User disassembly or attempted repair the inverter/charger without permission.
The inverter/charger is damaged due to natural elements such as lighting.
The inverter/charger is damaged during transportation and shipment.
Page 26
7. Technical Specifications
Item
UP1500-M3222
UP2000-M3322
UP3000-M3322
UP3000-M2142
System battery
voltage
24VDC
48VDC
Battery input voltage
range
21.6～31.9VDC
43.2～63.9VDC
Inverter output
Output rated power
1200W
1600W
2400W
2400W
Output power (15min.)
1500W
2000W
3000W
3000W
Overload power(5s)
2400W
3200W
4800W
4800W
Max. surge power
3000W
4000W
6000W
6000W
Output voltage
range
220VAC±3%
Output frequency
50HZ/60HZ
Output wave
Pure Sine Wave
Power factor
0.8
Distortion THD
≤3%（24V or 48V resistive load）
Inverter efficiency
≤95%
Utility input
Utility input voltage
range
170VAC～275VAC
Utility charge current
20A
30A
30A
15A
Transfer time
20mS
Solar charging
Max. PV open circuit
voltage
100V★
92V◆
150V
★
138V◆
Max. PV input power
780W
780W
780W
1040W
PV charging current
30A
30A
30A
20A
Equalization voltage
29.2V
58.4V
Boost voltage
28.8V
57.6V
Float voltage
27.6V
55.2V
Tracking efficiency
≤99.5%
Charging conversion
efficiency
≤98%
Temperature
compensate
coefficient
-3mV/℃/2V (Default)
Others
Self-consumption
≤0.6A
≤0.8A
≤0.8A
≤0.6A
Enclosure
IP30
Relative humidity
< 95%(N.C.)
Working
environment
temperature
-20℃～50℃(100% input and output)
Mechanical Parameters
Dimension
386×300×126mm
444×300×126mm
Mounting dimension
230mm
Mounting hole size
Φ8mm
Weight
7kg
8.5kg
9kg
9kg
★At minimum operating environment temperature
◆At 25℃ environment temperature
Any changes without prior notice! Version number: V1.0
Page 27
Page 28
BEIJING EPSOLAR TECHNOLOGY CO., LTD.
Tel: +86-10-82894112 / 82894962
Fax: +86-10-82894882
E-mail：[email protected]
Website: http://www.epsolarpv.com/
http://www.epever.com/
Loading...
