BEIJING EPSOLAR TECHNOLOGY CO., LTD. Tel：+86-10-82894112 / 82894962 Website：www.epsolarpv.com/www.epever.com
❶
PV Terminals
❻
Load Switch Button
❷
Battery Terminals
❼
Battery status LED indicator
❸
Load Terminals
❽
Load status LED indicator
❹
USB output interface
(LS E series only)
❾
Charging status LED
indicator
❺
Mounting Hole Φ4.5
Indicator
Color
Status
Instruction
Charging status
LED indicator
Green
On Solid
In Charging
Green
OFF
No Charging
Green
Fast Flashing
Battery Over
Voltage
Load status LED
indicator
Green
On Solid
Load ON
Green
OFF
Load OFF
Green
Slowly Flashing
Load over load
Green
Fast Flashing
Load short circuit
LED1
LED2
LED3
LED4
Battery Status
Slowly Flashing
× × ×
Under voltage
Fast Flashing
× × ×
Over discharge
Battery LED indicator status during voltage is up
○
○ × ×
12.8V＜ U
bat
＜13.4V
○
○ ○ ×
13.4V＜ U
bat
＜14.1V
○
○ ○ ○
14.1V ＜ U
bat
Battery LED indicator status during voltage is down
○
○ ○ ×
12.8V＜U
bat
＜13.4V
○
○ × ×
12.4V＜U
bat
＜12.8V
○
× × ×
U
bat
＜12.4V
LED1
LED2
LED3
Battery type
○ × ×
Sealed(Default)
○ ○ ×
Gel
○ ○ ○
Flooded
Figure 1 Product Feature
Figure 2 Connection diagram
※Thank you for selecting the LandStar E/EU series solar charge
controller. Please read this manual carefully before using the
product and pay attention to the safety information.

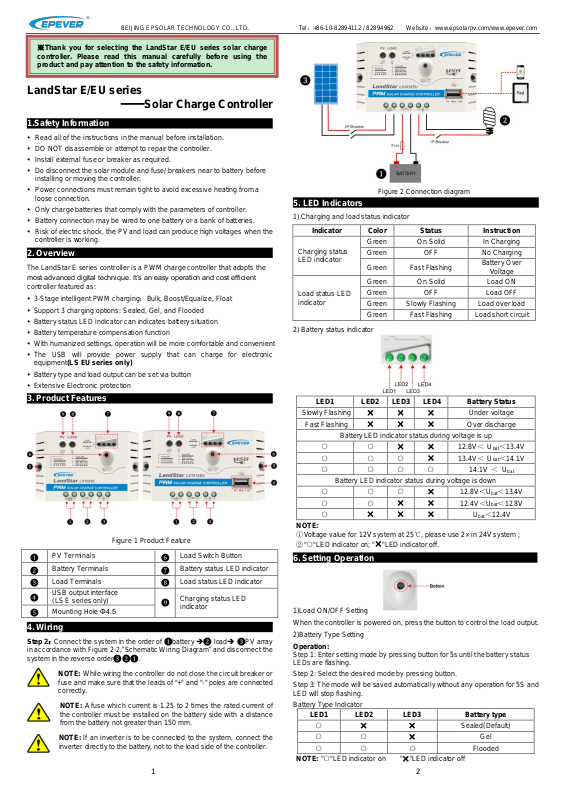

LandStar E/EU series
——Solar Charge Controller
1.Safety Information
Read all of the instructions in the manual before installation.
DO NOT disassemble or attempt to repair the controller.
Install external fuse or breaker as required.
Do disconnect the solar module and fuse/ breakers near to battery before
installing or moving the controller.
Power connections must remain tight to avoid excessive heating from a
loose connection.
Only charge batteries that comply with the parameters of controller.
Battery connection may be wired to one battery or a bank of batteries.
Risk of electric shock, the PV and load can produce high voltages when the
controller is working.
5. LED Indicators
1) Charging and load status indicator
2. Overview
The LandStar E series controller is a PWM charge controller that adopts the
most advanced digital technique. It’s an easy operation and cost efficient
controller featured as:
3-Stage intelligent PWM charging：Bulk, Boost/Equalize, Float
Support 3 charging options: Sealed, Gel, and Flooded
Battery status LED indicator can indicates battery situation
Battery temperature compensation function
With humanized settings, operation will be more comfortable and convenient
The USB will provide power supply that can charge for electronic
equipment(LS EU series only)
Battery type and load output can be set via button
Extensive Electronic protection
3. Product Features
2) Battery status indicator
NOTE:
①Voltage value for 12V system at 25℃, please use 2× in 24V system ;
②"○"LED indicator on; "×"LED indicator off.
6. Setting Operation
1)Load ON/OFF Setting
4. Wiring
Step 2：Connect the system in the order of ❶battery ❷ load ❸PV array
in accordance with Figure 2-2,”Schematic Wiring Diagram” and disconnect the
system in the reverse order❸❷❶.
NOTE: While wiring the controller do not close the circuit breaker or
fuse and make sure that the leads of "+" and "-" poles are connected
correctly.
NOTE: A fuse which current is 1.25 to 2 times the rated current of
the controller must be installed on the battery side with a distance
from the battery not greater than 150 mm.
NOTE: If an inverter is to be connected to the system, connect the
inverter directly to the battery, not to the load side of the controller.
1 2
When the controller is powered on, press the button to control the load output.
2)Battery Type Setting
Operation:
Step 1: Enter setting mode by pressing button for 5s until the battery status
LEDs are flashing.
Step 2: Select the desired mode by pressing button.
Step 3: The mode will be saved automatically without any operation for 5S and
LED will stop flashing.
Battery Type Indicator
NOTE: "○"LED indicator on "×"LED indicator off
BEIJING EPSOLAR TECHNOLOGY CO., LTD. Tel：+86-10-82894112 / 82894962 Website：www.epsolarpv.com/www.epever.com
Battery Type
Sealed
Gel
Flooded
Over Voltage Disconnect Voltage
16.0V
16.0V
16.0V
Charging Limit Voltage
15.0V
15.0V
15.0V
Over Voltage Reconnect Voltage
15.0V
15.0V
15.0V
Equalize Charging Voltage
14.6V
——
14.8V
Boost Charging Voltage
14.4V
14.2V
14.6V
Float Charging Voltage
13.8V
13.8V
13.8V
Boost Reconnect Charging Voltage
13.2V
13.2V
13.2V
Low Voltage Reconnect Voltage
12.6V
12.6V
12.6V
Under Voltage Warning Reconnect
Voltage
12.2V
12.2V
12.2V
Under Voltage Warning Voltage
12.0V
12.0V
12.0V
Low Voltage Disconnect Voltage
11.1V
11.1V
11.1V
Discharging Limit Voltage
10.6V
10.6V
10.6V
Equalize Duration
120 min.
——
120 min.
Boost Duration
120 min.
120 min.
120 min.
Faults
Possible reasons
Troubleshooting
LED Charging
indicator turn off
during daytime
when sunshine falls
on PV modules
properly
PV array
disconnection
Confirm that PV and battery
wire connections are correct
and tight
No LED indicator
Battery voltage
maybe less than 8V
Measure battery voltage with
the multi-meter. Min.8V can
start up the controller
Charging status
LED indicator Fast
flashing
Battery Over
Voltage
Check if battery voltage is
higher than OVD, and
disconnect the PV
LED1 Fast flashing
Battery
over discharged
When the battery voltage is
restored to or above LVR point
(low voltage reconnect
voltage), the load will recover
Load status LED
indicator slowly
flashing
Load over load①
①Please reduce the number of
electric equipments.
②Press the button or repower
the controller.
Load status LED
indicator fast
flashing
Load short circuit
①Check carefully loads
connection, clear the fault.
②Press the button or repower
the controller.
Item
LS0512E
LS1012E
LS1024E
LS2024E
LS0512EU
LS1012EU
LS1024EU
LS2024EU
LS3024EU
Nominal system
voltage
12VDC
12/24VDC Auto
12VDC
12/24VDC Auto
Rated charge current
5A
10A
20A
5A
10A
20A
30A
Rated discharge
current
5A
10A
20A
5A
10A
20A
30A
Battery input voltage
range
8V～16V
8V～32V
8V～16V
8V～32V
Max. PV open circuit
voltage
30V
50V
30V
50V
Self-consumption
12V≤5mA; 24V≤7mA
Charge Circuit
Voltage Drop
≤0.21V
≤0.13V
Discharge Circuit
Voltage Drop
≤0.12V
≤0.17V
USB input interface — 5VDC/1.2A
5VDC/2A
Temperature
compensation
coefficient
-5mV/℃/2V
Working environment
temperature
-35℃ ～ +55℃
Humidity
≤95%,(N.C.)
Enclosure
IP30
IP20
Grounding
Common Positive
Overall dimension
92.8x65
x20.2mm
101.2x67
x21.8mm
101.2x67
x21.8mm
128x85.6
x34.8mm
109.7x65.5
x20.8mm
120.3x67
x21.8mm
120.3x67
x21.8mm
148x85.6
x34.8mm
148x106.8
X43.7mm
Mounting dimension
84.4mm
92.7mm
92.7mm
118mm
100.9mm
111.5mm
138mm
Mounting hole size
Φ4.5
Terminals
14AWG/2.5mm
2
12 AWG/4mm2
12AWG/4mm2
10AWG/6mm2
14AWG/2.5mm
2
12AWG/4mm2
12AWG/4mm2
10AWG/6mm2
8AWG/10mm2
Net weight
0.07kg
0.08kg
0.08kg
0.15kg
0.09kg
0.10kg
0.10kg
0.18kg
0.29kg
Battery Voltage Control Parameters
8. Troubleshooting
Below parameters are in 12V system at 25 ºC, please double the values in
24V system
7. Protection
Battery Over Voltage Protection
When the battery voltage reaches to the set point of Over Voltage
Disconnect Voltage(OVD), the controller will stop charging the battery to
protect the battery from being over charged to break down.
Battery Over Discharge Protection
When the battery voltage reaches to the set point of Low Voltage
Disconnect Voltage(LVD), the controller will stop discharging the battery to
protect the battery from being over discharged.
Load Overload Protection
Load will be switched off when 1.25 times rated current overload happens.
User has to reduce load appliance, then press the button or repower the
controller.
Load Short Circuit Protection
Load will be switched off when load short circuit (≥3 times rated current)
happens. User has to clear short circuit, then press the button or repower
the controller.
High Voltage Transients Protection
The controller is protected against small high voltage transients. In lightning
①When load current reaches1.25 times 1.5 times and 2 times more than
nominal value, the controller will automatically turn off loads in 60s, 5s and 1s
respectively.
10. Disclaimer
This warranty does not apply under the following conditions:
Damage from improper use or use in an unsuitable environment.
PV or load current, voltage or power exceeding the rated value of controller.
User disassembly or attempted repair the controller without permission.
The controller is damaged due to natural elements such as lighting.
The controller is damaged during transportation and shipment.
Any changes without prior notice! Version number：V2.0
prone areas, additional external suppression is recommended.
9. Technical Specifications
3 4
