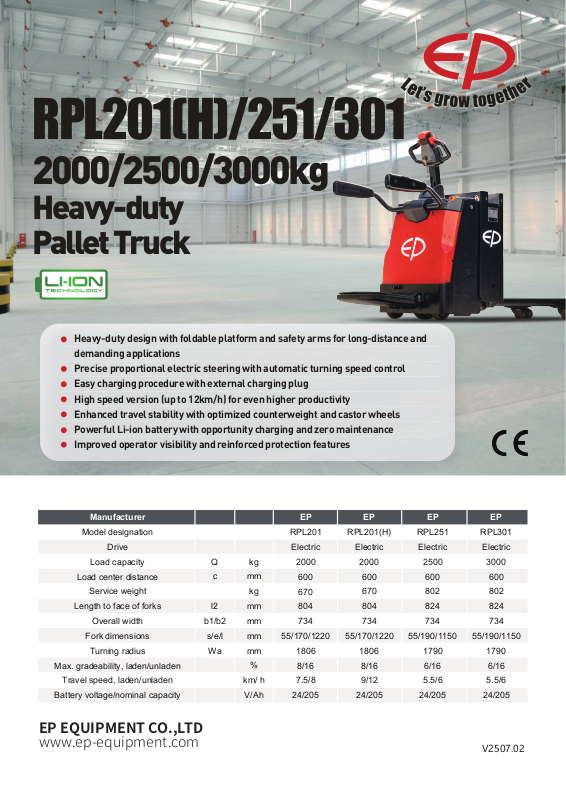

Page 1
RPL201(H)/251/301
2000/2500/3000kg
Heavy-duty
Pallet Truck
Heavy-duty design with foldable platform and safety arms for long-distance and
demanding applications
Precise proportional electric steering with automatic turning speed control
Easy charging procedure with external charging plug
High speed version (up to 12km/h) for even higher productivity
Enhanced travel stability with optimized counterweight and castor wheels
Powerful Li-ion battery with opportunity charging and zero maintenance
Improved operator visibility and reinforced protection features
Manufacturer
Model designation
Drive
Load capacity
Load center distance
Service weight
Length to face of forks
Overall width
Fork dimensions
Turning radius
Max. gradeability, laden/unladen
Travel speed, laden/unladen
Battery voltage/nominal capacity
EP EQUIPMENT CO.,LTD
www.ep-equipment.com
Q
c
l2
b1/b2
s/e/l
Wa
kg
mm
kg
mm
mm
mm
mm
%
km/ h
V/Ah
EP
RPL201
Electric
2000
600
670
804
734
55/170/1220
1806
8/16
7.5/8
24/205
EP
RPL201(H)
Electric
2000
600
670
804
734
55/170/1220
1806
8/16
9/12
24/205
EP
RPL251
Electric
2500
600
802
824
734
55/190/1150
1790
6/16
5.5/6
24/205
EP
RPL301
Electric
3000
600
802
824
734
55/190/1150
1790
6/16
5.5/6
24/205
V2507.02
Page 2
FEATURE
Ideal for Heavy-duty and Longdistance Applications
The RPL series is a heavy duty ride on palletruck with
foldable suspended platform and sidearms and
capacity from 2 to 3 tons, and offers a high-speed
version RPL201H for even higher productivity, which
suits for long-distance transportation in large
warehouses and logistics centers. The RPL 251 and 301
are able to realize heavy-duty applications and satisfy
different working conditions.
Lithium-ion Technology
The integration of maintenance-free Li-ion batteries
allows for rapid and opportunity charging, minimizing
downtime and maximizing continuous operation without
disrupting working schedules. The dedicated external
charging port simplifies charging procedure without the
need of opening battery compartment, disconnect and
reconnect plugs.
User-centered Design
RPL Series is equipped with and ergonomic tiller and
powersteering that means an effortless operation during
driving with any kind of loads and the battery cover is
carved in the middle to provide better visibility of the fork
tips and the storage space is a thoughtful addition for
operator convenience. The widened frame protects the
back cover from collision damage.
POWER STEERING
Enhanced Travel Stability
Counterweight is added to the bottom of the battery compartment to lower the center of gravity and the rear stabilizing
wheels are re-positioned, which brings enhanced driving behavior and travel stability, particularly during sudden stops.
During turns the speed is automatically reduced increasing safety and loads stability.
SPEED REDUCTION
Page 3
Electric Pallet Truck 2.0T
RPL201
1.1 Manufacturer EP EP
1.2 Model des ignation RPL201(Li) RPL201(Lead-acid)
1.3 Drive Electric Electric
1.4 Operator type Standing Standing
1.5 Load capacity Q kg 2000 2000
1.6 Load center distance c mm 600 600
Distinguishing mark
1.8 Load distance centre of drive axle to fork x mm 980 980
1.9 Wheelbase y mm 1531 1531
2.1 Service weight kg 670 755
2.2 Axl e loadi ng, laden front/rear kg 1060 / 1610 1090 / 1665
weight
Service
2.3 Axl e loadi ng, unlad en front/rear kg 540 / 130 600 / 155
3.1 Tyre type Polyurethane Polyurethane
3.2.1 Tyre size, front mm Ф230 x75 Ф230x75
3.3.1 Tyre size, rear mm Ф85x70/Ф83x115 Ф85x70/Ф83x115
3.4 Additional wheels (castor wheels ) mm Ф130 x55 Ф130x55
3.5 Wheels , number front/rear (x=drive wheel s) mm 1x+2/4/1x+2/2 1x+2/4/1x+2/2
Tyres/chassisDimensionsPerformance dataElectric-engine
3.6.1 Tread width, front b10 mm 510 510
3.7.1 Tread width, rear b11 mm 370 / 515 370 / 515
4.4 Lift height h3 mm 120 120
4.9 Height of tiller handle in drive positio
4.15 Lowered height h1 3 mm 85 85
4.19 Overall length l1 mm 1954 1954
4.20 Length to face of forks l2 mm 804 804
4.21 Overall width b1/b2 mm 734 734
4.22 Fork dimensions s/e/l mm 55 x 170 x 1150 55 x 170 x 1150
4.25 Dis tance between fork-arms b5 mm 540 / 685 540 / 685
4.32 Ground clearance, center of whee lbas e m2 mm 30 30
4.34.1 Aisle width for pallets 1000×1200 cros sways Ast m m 2606 2606
4.34.2 Aisle
4.35 Turning radius Wa m m 1806 1806
5.1 Travel speed, laden/unladen km/ h 7.5 / 8 7.5 / 8
5.2 Lifting s peed, laden/unladen m/s 0.050 / 0.054 0.050 / 0.054
5.3 Lowering speed, laden/unladen m/s 0.067 / 0.054 0.067 / 0.054
5.8 Max. gradeabil ity, laden/un laden % 8 / 16 8
5.10 Service brake Electrom agnetic Electrom agnetic
6.1 Drive motor rating S2 60 min kW 1.6 1.6
6.2 Lift motor rating at S3 15% kW 2.2 2.2
6.4 Battery voltage/nom inal cap acity V/Ah 2 4 / 205 24 / 210
6.5 Battery weigh t kg 62 255
8.1 Type of drive control AC AC
10.5 Steering design Electronic Electronic
data
Addition
10.7 Sound press ure level at the driver's ear dB(A) 74 74
，
width for pallets 800×1200 cros sways Ast m m 2463 2463
n min./max. h14 mm 1075 / 1288 1075 / 1288
/ 16
If there are improvements of technical parameters or configurations, no further notice will be given.
The diagram shown may contain non-standard configurations.
Page 4
Electric Pallet Truck 2.0T
RPL201H
1.1 Manuf act urer EP
1.2 Model designat ion RPL201H(Li)
1.3 Driv e Electric
1.4 Operator ty pe Standing
1.5 Load capacit y Q kg 2000
1.6 Load center dist ance c m m 600
Disting ui shing mark
1.8 Load distanc e c entre of driv e axle to f ork x mm 980
1.9 Wheelbase y m m 1531
2.1 Servic e weight kg 670
2.2 Axle loading, laden f ront/rear kg 1060 / 1610
weight
Service
Ad di tion
2.3 Axle loading, unladen f ront/rear kg 540 / 130
3.1 Ty re t y pe Poly urethane
3.2.1 Ty re s ize, f ront mm Ф230x75
3.3.1 Ty re s ize, rear
3.4 Additional wheels (c ast or wheels) mm Ф130x55
3.5 Wheels, number f ront/rear (x =driv e wheels) mm 1x+2/4/ 1x+2/2
Tyres/chassisDimensio nsPerformance dataElectric-eng in e
3.6.1 Tread width, f ront b10 mm 510
3.7.1 Tread width, rear b11 mm 370 / 515
4.4 Lift height h3 mm 120
4.9 Height of tiller handle in driv e position min. /max. h14 m m 1075 / 1288
4.15 Lowered height h13 mm 85
4.19 Ov erall lengt h l1 mm 1954
4.20 Length to f ace of f orks l2 m m 804
4.21 Ov erall width b1/b2 mm 734
4.22 F
4.25 Distance between f ork-arms b5 mm
4.32 Ground clearance, cent er of wheelbase m2 m m 30
4.34.1 Aisle width f or pallets 1000×1200 cros sway s Ast m m 2606
4.34.2 Aisle width f or pallets 800×1200 crossway s Ast mm 2463
4.35 Turning radius W a mm 1806
5.1 Trav el s peed, laden/unladen
5.2 Lift ing s peed, laden/unladen m/s 0.050 / 0.054
5.3 Lowering speed, laden/ unladen m/s 0.067 / 0. 054
5.8 Max. gradeability , laden/ unladen % 8 / 16
5.10 Serv ice brake Electromagnetic
6.1 Driv e m otor rating S2 60 m in kW 2.5
6.2 Lift m otor rating at S3 15% kW 2.2
6.4 Battery v oltage/ nominal capacity V/Ah 24 / 210
6.5 Battery weight kg 62
8.1 Ty pe of driv e control AC
10.5 Steering design Electronic Elec tronic
data
10.7 Sound
ork dimensions s/ e/l mm 55 x 170 x 1150
，
mm Ф85x 70/Ф83x 115
km/ h 9 / 12
pressure lev el at t he driv er's ear dB(A) 74
540 / 685
EP
RPL201H(Lead-acid)
Electric
Standing
2000
600
980
1531
755
1090 / 1665
600 / 155
Poly urethane
Ф230x75
Ф85x70/ Ф83x115
Ф130x55
1x+2/4/ 1x+2/2
510
370 / 515
120
1075 / 1288
85
1954
804
734
55 x 170 x 1150
540 / 685
30
2606
2463
1806
9 / 12
0.050 / 0.054
0.067 / 0. 054
8 / 16
Electromagnetic
2.5
2.2
24/205
255
AC
74
If there are improvements of technical parameters or configurations, no further notice will be given.
The diagram shown may contain non-standard configurations.
Page 5
Electric Pallet Truck 2.5T
RPL251
1.1 Manufacturer EP EP
1.2 Model designation RPL251(Li) RPL251(Lead-acid)
1.3 Drive Electric Electric
1.4 Operator type Standing Standing
1.5 Load capacity Q kg 2500 2500
1.6 Load center distance c mm 600 600
Distinguishing ma rk
1.8 Load distance centre of drive axle to fork x mm 916 916
1.9 Wheelbase y mm 1531 1531
2.1 Service weight kg 802 875
2.2 Axle loading, laden front/rear kg 1120 / 1670 1120 / 1670
we ight
Service
Addition
2.3 Axle loading, unladen front/rear kg 650 / 140 650 / 140
3.1 Tyre type Polyurethane Polyurethane
3.2.1 Tyre size, front mm Ф85x70 / Ф 83x115 Ф 85x70 / Ф 83x115
3.3.1 Tyre size, rear mm Ф 230x75 Ф 230x75
3.4 Additional wheels (castor wheels) mm Ф 130x55 Ф 130x55
3.5 Wheels, number front/rear (x=drive wheels) mm 1 x +2/4 / 1 x + 2/2 1 x +2/4 / 1 x +2/2
Tyres/chassisDimensionsPerforma nce dataElectric-engine
3.6.1 Tread width, front b10 mm 510 510
3.7.1 Tread width, rear b11 mm 370 / 495 370 / 495
4.4 Lift height h3 mm 120 120
4.9 Height of tiller handle
4.15 Lowered height h13 mm 85 85
4.19 Overall length l1 mm 1954 1954
4.20 Length to face of forks l2 mm 824 824
4.21 Overall width b1/b2 mm 734 734
4.22 Fork dimensions s/e/l mm 55 x 190 x 1150 55 x 190 x 1150
4.25 Distance between fork-arms b5 mm 560 / 685 560 / 685
4.32 Ground clearance, center of wheelbase m2 mm 30 30
4.34.1 Aisle width for pallets 1000×1200 crossways Ast mm 2590 25
4.34.2 Aisle width for pallets 800×1200 crossways Ast mm 2447 2447
4.35 Turning radius Wa mm 1790 1790
5.1 Travel speed, laden/unladen km/ h 5.5 / 6 5.5 / 6
5.2 Lifting speed, laden/unladen m/s 0.050 / 0.054 0.050 / 0.054
5.3 Lowering speed, laden/unladen m/s 0.067 / 0.054 0.067 / 0.054
5.8 Max. gradeability, laden/unladen % 6 / 16 6 / 16
5.10 Service brake Electromagnetic Electromagnetic
6.1 Drive motor rating S2
6.2 Lift motor rating at S3 15% kW 2.2 2.2
6.4 Battery voltage/nominal capacity V/Ah 24 / 205 24 / 280
6.5 Battery weight kg 62 255
8.1 Type of drive control AC AC
10.5 Steering design Electronic Electronic
data
10.7 Sound pressure level at the driver's ear dB(A) 74 74
，
in drive position min./ max. h14 mm 1075 / 1288 1075 / 1288
60 min kW 1.6 1.6
90
If there are improvements of technical parameters or configurations, no further notice will be given.
The diagram shown may contain non-standard configurations.
Page 6
Electric Pallet Truck 3.0T
RPL301
1.1 Manufacturer EP EP
1.2 Model designation RPL301(Li) RPL301(Lead-acid)
1.3 Drive Electric Electric
1.4 Operator type Standing Standing
1.5 Load capacity Q kg 3000 3000
1.6 Load center distance c mm 600 600
Distinguishing ma rk
1.8 Load distance centre of drive axle to fork x mm 916 916
1.9 Wheelbase y mm 1531 1531
2.1 Service weight kg 802 875
2.2 Axle loading, laden front/rear kg 1370 / 2420 1370 / 2420
we ight
Service
Addition
2.3 Axle loading, unladen front/rear kg 650 / 140 650 / 140
3.1 Tyre type Polyurethane Polyurethane
3.2.1 Tyre size, front mm Ф 85x70 / Ф83x115 Ф 85x70 / Ф83x115
3.3.1 Tyre size, rear mm Ф 230x75 Ф230x75
3.4 Additional wheels (castor wheels) mm Ф 130x55 Ф130x55
3.5 Wheels, number front/rear (x=drive wheels) mm 1 x +2/4 / 1 x + 2/2 1 x +2/4 / 1 x + 2/2
Tyres/chassisDimensionsPerforma nce dataElectric-engine
3.6.1 Tread width, front b10 mm 510 510
3.7.1 Tread width, rear b11 mm 370 / 495 370 / 495
4.4 Lift height h3 mm 120 120
4.9 Height of tiller
4.15 Lowered height h13 mm 85 85
4.19 Overall length l1 mm 1954 1954
4.20 Length to face of forks l2 mm 824 824
4.21 Overall width b1/b2 mm 734 734
4.22 Fork dimensions s/e/l mm 55 x 190 x 1150 55 x 190 x 1150
4.25 Distance between fork-arms b5 mm 560 / 685 560 / 685
4.32 Ground clearance, center of wheelbase m2 mm 30 30
4.34.1 Aisle width for pallets 1000×1200 crossways Ast m
4.34.2 Aisle width for pallets 800×1200 crossways Ast mm 2447 2447
4.35 Turning radius Wa mm 1790 1790
5.1 Travel speed, laden/unladen km/ h 5.5 / 6 5.5 / 6
5.2 Lifting speed, laden/unladen m/s 0.050 / 0.054 0.050 / 0.054
5.3 Lowering speed, laden/unladen m/s 0.067 / 0.054 0.067 / 0.054
5.8 Max. gradeability, laden/unladen % 6 / 16 6 / 16
5.10 Service brake Electromagnetic Electromagnetic
6.1 Drive motor rating S2 60 min kW 2.5 2.5
6.2 Lift motor rating at S3 15% kW 2.2 2.2
6.4 Battery voltage/nominal capacity V/Ah 24 / 205 24 / 280
6.5 Battery weight kg 62 255
8.1 Type of drive control AC AC
10.5 Steering design Elect ronic Elec tronic
data
10.7 Sound pressure level at the driver's ear dB(A) 74 74
，
handle in drive position min./max. h14 mm 1075 / 1288 1075 / 1288
m 2590 2590
If there are improvements of technical parameters or configurations, no further notice will be given.
The diagram shown may contain non-standard configurations.
Page 7
Option
No. Optional items RPL201/RPL201H
1.1 Fork length ●1150/1220○850/1000/1300/1450/1600/1800 /2000/2200/2400
1.2 Fork width ●540/685○600/725/790/840/940/1000 /1050/1100/1200
1.3 Fork lowered height ●85
1.4 Load backrest width ●740
1.5 Load backrest height ○1220mm 48in ○1520mm 60in
2.1 Load wheel type ●Double ○Single
2.2 Load wheel material ●PU
2.3 Drive wheel material ●PU○Carved PU○Rubber
2.7 Battery capacity ●205Ah●210Ah
2.8 Charger
2.9 Battery indicator
3.3 Castor wheels ●Yes and not customized
3.4 Auto battery watering system ○Yes and not customized
4.1 Battery side pull function ○Yes and not customized
4.2 Cold storage ○Yes and not c ustomized
4.4 Weighting system with fork ○Yes and not customized
Note ●Standard ○ Optional - Inconformity
：
●24V-30A external charge
○24V-50A external charger Lead-acid
（ ） （ ）
（ ） （ ）
Lead-acid ○280Ah/345Ah Lead-acid
●24V-100A external charger
r Lead-acid
（ ）
（ ）
●With hourmeter
Page 8
Option
No. Optional item s RPL251/RPL301
1.1 Fork length ●1150/1220○850/1000/1300/1450/1600/1800 /2000/2200/2400
1.2 Fork width ●560/685○830/880/980/1040/1090/1140/1240
1.3 Fork lowered height ●85
1.4 Load backrest width 750
1.5 Load backrest height ○1220mm 48in ○1520mm 60in
2.1 Load wheel type ●Double○Single
2.2 Load wheel material ●PU
2.3 Drive wheel material ●PU○CarvedPU○Rubber
2.7 Battery capacity
2.8 Charger
2.9 Battery indicator ●W ith hourmeter
3.3 Castor wheels ●Yes
3.4 Auto battery watering sys tem ○Yes and not customized
4.1 Battery side pull function ○Yes and not customized
：
Note ●Standard ○ Optional - Inconformity
●205Ah (Li-ion) ●280Ah (Lead-acid) ○210Ah/345Ah (Lead-acid)
●24V-100A external charge
●24V-30A external charger 210/280Ah ○24V-50A external charger 345Ah
（ ） （ ）
r 205Ah
（ ） （ ）
（ ）
Load Capability Chart
Fork length mm) Load capacity (kg（ ）
850
1000
1150
1220
1300
1450
1600
2000
2200
2400
RPL201/RPL201H RPL251 RPL301
2000KG
2500KG
1800KG
1600KG 2500KG
3000KG
2700KG1800
Loading...
