Page 1
Data and signal line chokes
ACT45B common-mode chokes for CAN bus systems, EIA 1812
51 ... 100 μH, 150 ... 200 mA
Series/Type: ACT45B
Date: June 2013
a~í~=pÜÉÉía~í~=pÜÉÉí
¤EPCOS AG 2013. Reproduction, publication and dissemination of this publication, enclosures
hereto and the information contained therein without EPCOS’ prior express consent is prohibited.
Page 2
Common-mode chokes, EIA 1812
Rated voltage 50 V DC
Rated inductance 51 ... 100 μH
Rated current 150 ... 200 mA
Construction
■ Current-compensated double choke
■ Ferrite I core
■ Winding: enamel copper wire
■ Winding welded to terminals
Features
■ Operating temperature range: –40 ... +150 °C
■ Qualified to AEC-Q200
■ Suitable for lead-free reflow soldering as referenced in JEDEC J-STD 020D
■ RoHS-compatible
Function
ACT45BData and signal line chokes
■ Suppression of assymetrical interference coupled in on lines,
whereas data signals up to some MHz can pass unaffectedly.
Applications
■ Automotive CAN bus systems
Terminals
One-sided tinned terminals:
■ Base material CuSn8
■ Electro-plating Sn with Ni underlayer
■ Lead-free tinned
Marking
■ Marking on component: L value ("G" = 51 μH, "H" = 100 μH), date of manufacture (YWWD),
two last digits of production order (underlined)
Delivery mode and packing unit
■ 12-mm blister tape, wound on 330-mmreel
■ Packing unit: 2500 pcs./reel
Please read Cautions and warnings and
Important notes at the end of this document.
2 06/13
Page 3
ACT45BData and signal line chokes
Common-mode chokes, EIA 1812
Dimensional drawing and pin configuration Layout recommendation
Dimensions in mm
Circuit diagram
Taping and packing
Blister tape Reel
Dimensions in mm
Please read Cautions and warnings and
Important notes at the end of this document.
3 06/13
Page 4
Common-mode chokes, EIA 1812
Technical data and measuring conditions
ACT45BData and signal line chokes
Rated voltage V
R
50 V DC
Max. component temperature +150 °C
Rated current I
R
Rated inductance L
R
Referred to 50 Hz and +20 °C
Measured with Agilent 4284A at 100 kHz, 100 mV, +20 °C
Inductance is specified in common-mode
Inductance tolerance –30/+50% at +20 °C
Stray inductance L
stray,typ
Measured with Agilent 4284A at 100 kHz, 100 mV, +20 °C,
typical values
DC resistance R
max
Insulation resistance (min)
Rated impedance Z
Rated impedance Z
min
typ
Measured at +20 qC, specified per winding
10 M:,measured at 50 V DC
Measured at +20 °C, 10 MHz, 100 mV in common-mode
Measured at +20 °C, 10 MHz, 100 mV in common-mode
Solderability Dip and look method Sn95.5Ag3.8Cu0.7:
+(245 r5) °C, (3 r0.3) s
Wetting of soldering area t90%
(based on IEC 60068-2-58)
Resistance to soldering heat +260 °C, 40 s as referenced in JEDEC J-STD 020D
Climatic category 40/150/56 (to IEC 60068-1)
Storage conditions (packaged) –25 °C … +40 °C, d75% RH
Weight Approx. 0.14 g
Characteristics and ordering codes
L
R
μH
L
stray,typ
μH
I
R
mA
R
:
max
Z
:
min
Z
:
typ
Internal code Ordering code
51 0.15 200 1.0 1000 2800 B82787C0513H002 ACT45B-510-2P-TL003
100 0.20 150 2.0 2000 5800 B82787C0104H002 ACT45B-101-2P-TL003
Please read Cautions and warnings and
Important notes at the end of this document.
4 06/13
Page 5
Common-mode chokes, EIA 1812

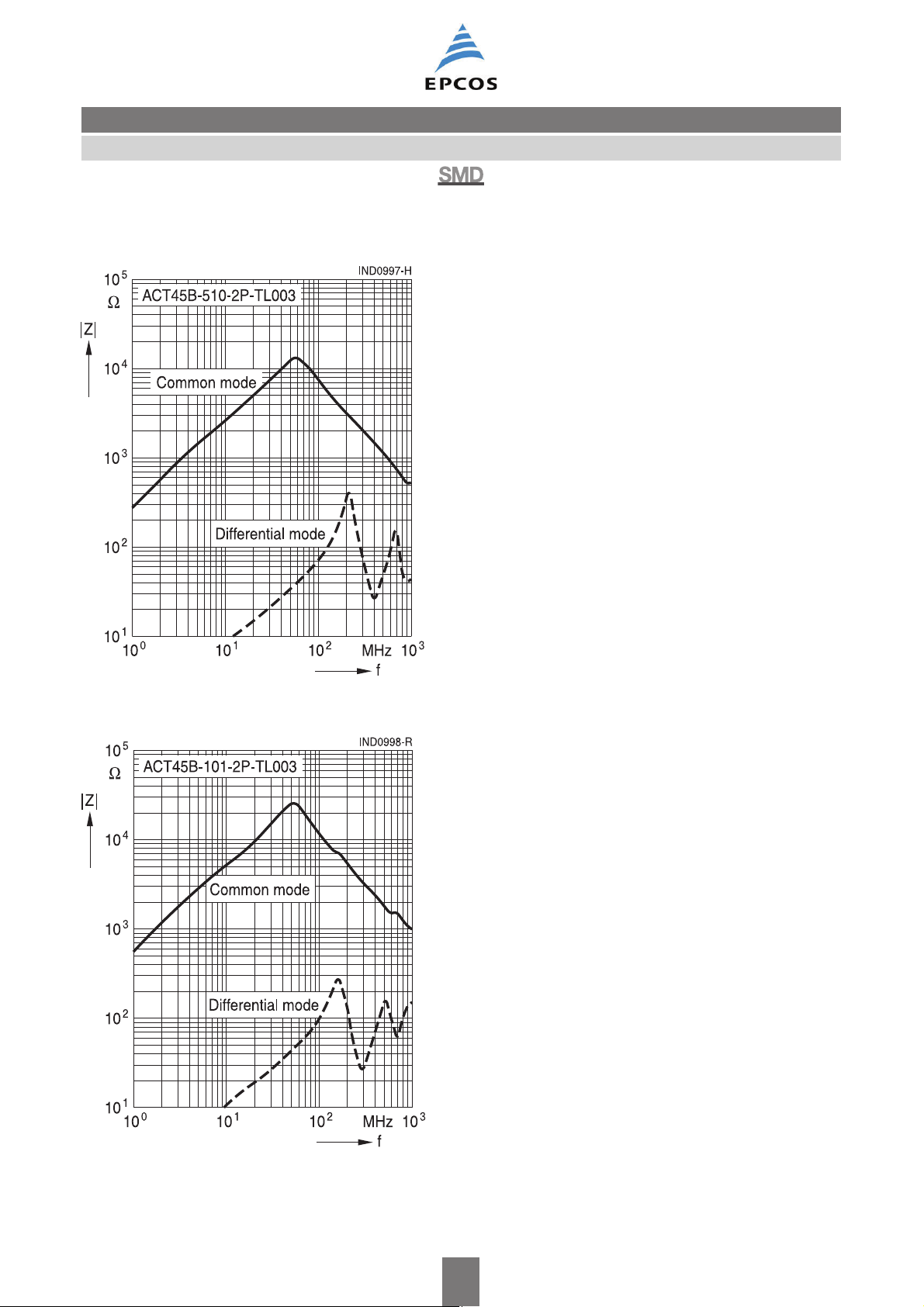

Impedance versus frequency
ACT45B-510-2P-TL003
ACT45BData and signal line chokes
ACT45B-101-2P-TL003
Please read Cautions and warnings and
Important notes at the end of this document.
5 06/13
Page 6
Cautions and warnings
■ Please note the recommendations in our Inductors data book (latest edition) and in the data
sheets.
– Particular attention should be paid to the derating curves given there.
– The soldering conditions should also be observed. Temperatures quoted in relation to wave
soldering refer to the pin, not the housing.
■ If the components are to be washed varnished it is necessary to check whether the washing
varnish agent that is used has a negative effect on the wire insulation, any plastics that are used,
or on glued joints. In particular, it is possible for washing varnish agent residues to have a
negative effect in the long-term on wire insulation.
Washing processes may damage the product due to the possible static or cyclic mechanical
loads (e.g. ultrasonic cleaning). They may cause cracks to develop on the product and its parts,
which might lead to reduced reliability or lifetime.
■ The following points must be observed if the components are potted in customer applications:
– Many potting materials shrink as they harden. They therefore exert a pressure on the plastic
housing or core. This pressure can have a deleterious effect on electrical properties, and in
extreme cases can damage the core or plastic housing mechanically.
– It is necessary to check whether the potting material used attacks or destroys the wire
insulation, plastics or glue.
– The effect of the potting material can change the high-frequency behaviour of the components.
■ Ferrites are sensitive to direct impact. This can cause the core material to flake, or lead to
breakage of the core.
■ Even for customer-specific products, conclusive validation of the component in the circuit can
only be carried out by the customer.
Please read Cautions and warnings and
Important notes at the end of this document.
6 06/13
Page 7
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain statements about the suitability of our products for
certain areas of application. These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application. As
a rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them
than the customers themselves. For these reasons, it is always ultimately incumbent on the
customer to check and decide whether an EPCOS product with the properties described in the
product specification is suitable for use in a particular customer application.
2. We also point out that in individual cases, a malfunction of electronic components or
failure before the end of their usual service life cannot be completely ruled out in the
current state of the art, even if they are operated as specified. In customer applications
requiring a very high level of operational safety and especially in customer applications in which
the malfunction or failure of an electronic component could endanger human life or health (e.g.
in accident prevention or life-saving systems), it must therefore be ensured by means of suitable
design of the customer application or other action taken by the customer (e.g. installation of
protective circuitry or redundancy) that no injury or damage is sustained by third parties in the
event of malfunction or failure of an electronic component.
3. The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements, some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as hazardous). Useful information on this will be found in our
Material Data Sheets on the Internet (www.epcos.com/material). Should you have any more
detailed questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently, the products described in this
publication may change from time to time. The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also reserve the right to discontinue production and delivery of products.
Consequently, we cannot guarantee that all products named in this publication will always be
available. The aforementioned does not apply in the case of individual agreements deviating
from the foregoing for customer-specific products.
6. Unless otherwise agreed in individual contracts, all orders are subject to the current version
of the “General Terms of Delivery for Products and Services in the Electrical Industry”
published by the German Electrical and Electronics Industry Association (ZVEI).
7. The trade names EPCOS, BAOKE, Alu-X, CeraDiode, CeraLink, CSMP, CSSP, CTVS,
DeltaCap, DigiSiMic, DSSP, FilterCap, FormFit, MiniBlue, MiniCell, MKD, MKK, MLSC,
MotorCap, PCC, PhaseCap, PhaseCube, PhaseMod, PhiCap, SIFERRIT, SIFI, SIKOREL,
SilverCap, SIMDAD, SiMic, SIMID, SineFormer, SIOV, SIP5D, SIP5K, ThermoFuse, WindCap
are trademarks registered or pending in Europe and in other countries. Further information will
be found on the Internet at www.epcos.com/trademarks.
7 06/13
