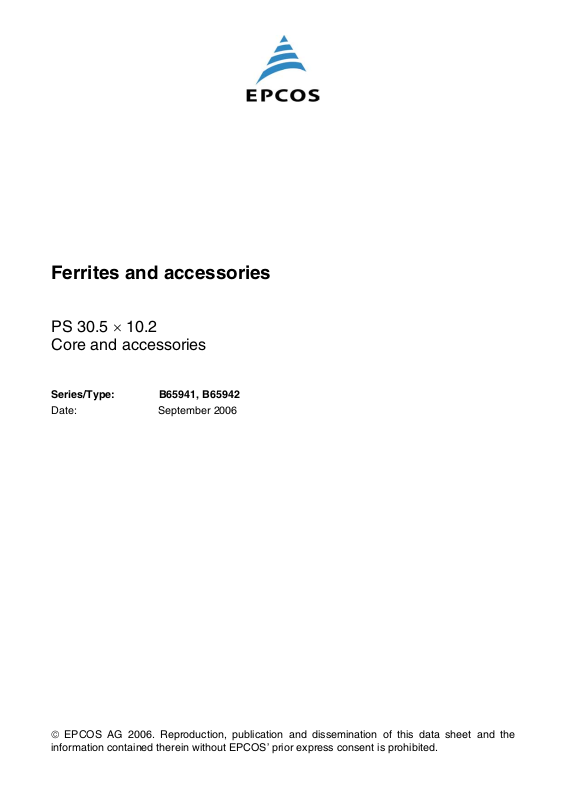

Ferrites and accessories
PS 30.5 × 10.2
Core and accessories
Series/Type: B65941, B65942
Date: September 2006
Data SheetData Sheet
EPCOS AG 2006. Reproduction, publication and dissemination of this data sheet and the
information contained therein without EPCOS’ prior express consent is prohibited.
PS 30.5 × 10.2
Core
B65941, B65942Core and accessories
■ To IEC 62323
■ Recommended for new designs
■ For inductive proximity switches
■ Material N22 for the frequency
range from about 50 to 500 kHz
Material Approx. weight
0.920.9
_
4.7
25+0.8
_
30.5 1
Ordering code
ø5.4+0.2
7+0.4
_
10.2 0.5
g
N22 18 B65941A0000X022
Coil former
Material: GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
F max. operating temperature 155 °C), color code black
®
[E45329 (M)], GE PLASTICS B V
N
AR value
Ordering code
µΩ
A
N
mm
Valox 420-SE0
l
2
mm
0.4
_
ø13.5
FPK0220-8
24.4 62 87 B65942B0000T001
