Ferrites and accessories

PM 62/49 Core and accessories

Series/Type: B65684, B65685

Date: September 2006, November 2008

%BUB4IFFU%BUB4IFFU

Page 2

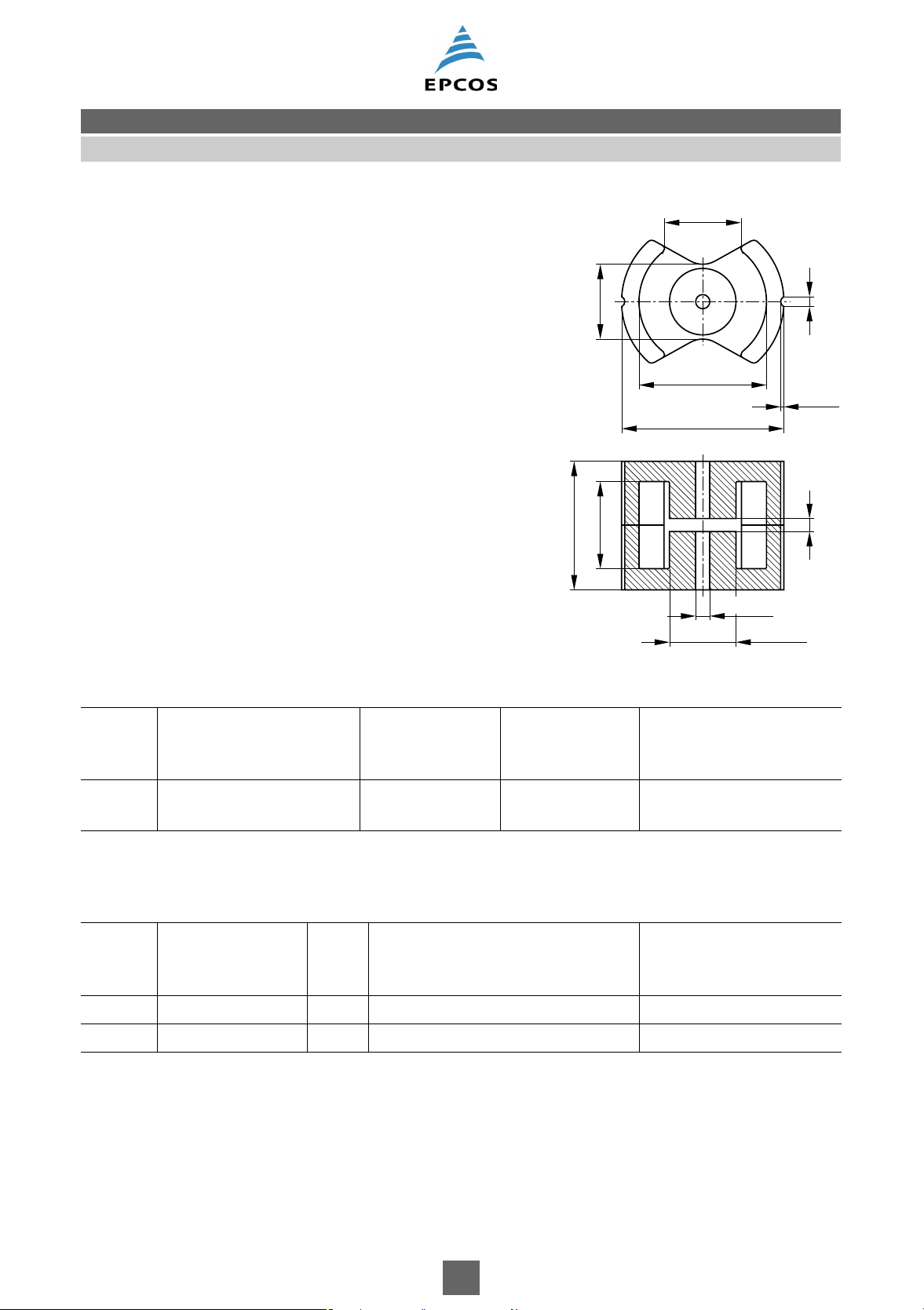

PM 62/49

B65684Core

■ To IEC 61247

■ Particularly suitable for power transformers

and energy storage chokes

■ Delivery mode: sets

Magnetic characteristics (per set)

Σ l/A = 0.191 mm l

= 109 mm

Ae= 570 mm A

= 470 mm

min

Ve= 62000 mm

–1

2 2

Approx. weight 280 g/set

Gapped

49 0.4

< 28.5

33.4+0.8

> 29

48.8+1.5

62 2

ø5.4+0.2

1.2+0.2

ø25.5 0.8

FPM0024-2

4+1

Material AL value

s approx. mm

Ordering code

N27 315 ±3% 2.60 48 B65684A0315A027

630 ±3% 1.10 95 B65684A0630A027

Ungapped

Material AL value

Ordering code

W/set N27 9200 +30/–20% 1400 < 9.5 (200 mT, 25 kHz, 100 °C) B65684A0000R027 N87 9200 +30/–20% 1400 < 5.8 (200 mT, 100 kHz, 100 °C) B65684A0000R087

Please read Cauti ons and warnings and Important notes at the end of this document.

2 09/06

Page 3

PM 62/49

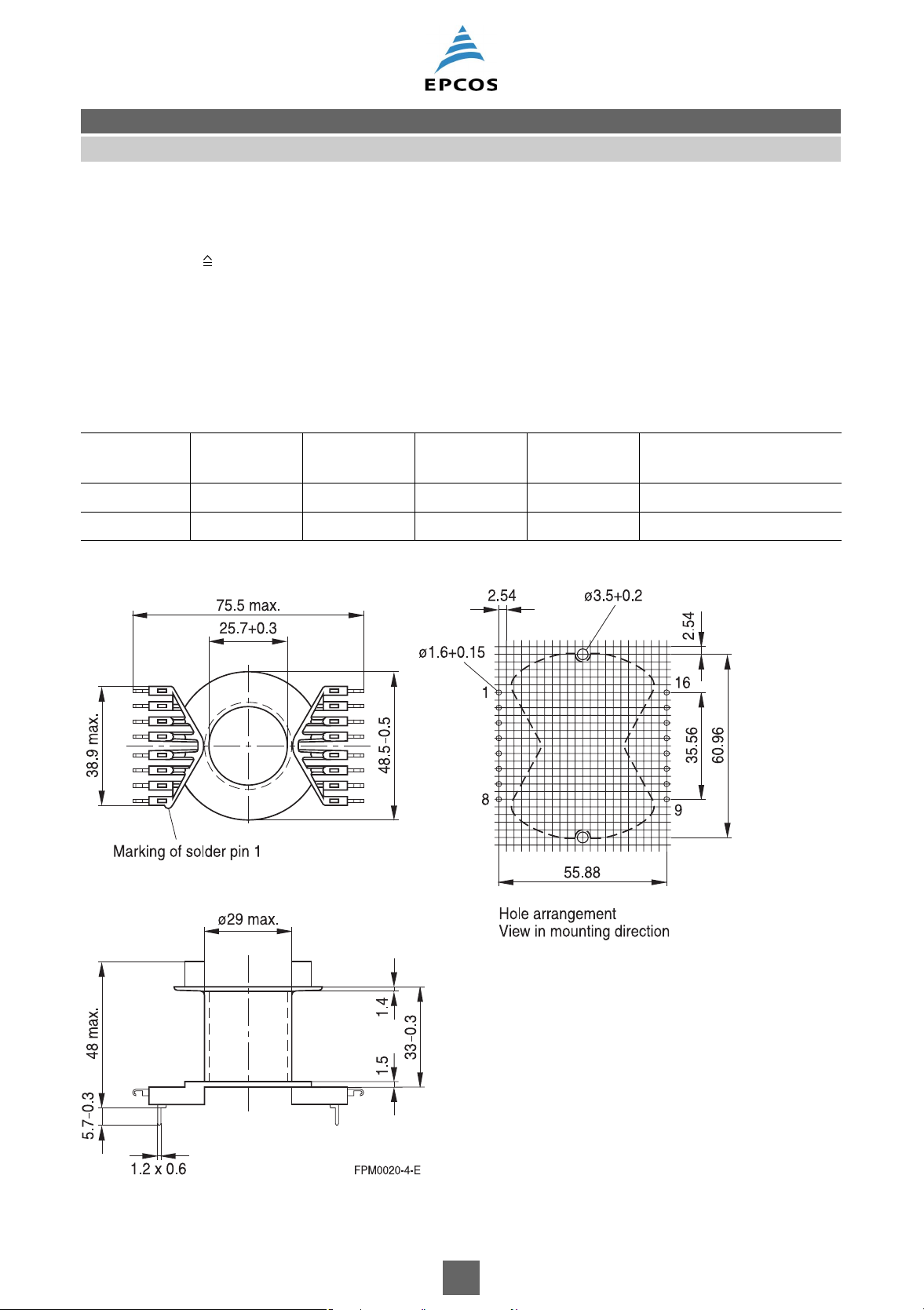

Coil former

Material: GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:

F max. operating temperature 155 °C), color code black

Valox 420-SE0 ® [E45329 (M)], GE PLASTICS B V Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): 235 °C, 2 s Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: 350 °C, 3.5 s Winding: see Data Book 2007, chapter “Processing notes, 2.1”

Pins squared in the start-of-winding area. Also available without solder pins.

B65685Accessories

Sections A

AR value

μΩ

Solder pins

Ordering code

1 270 120 15.4 16 B65685B1016T001 1 270 120 15.4 — B65685A1000T001

Please read Cauti ons and warnings and Important notes at the end of this document.

3 11/08

Page 4

PM 62/49

B65685Accessories

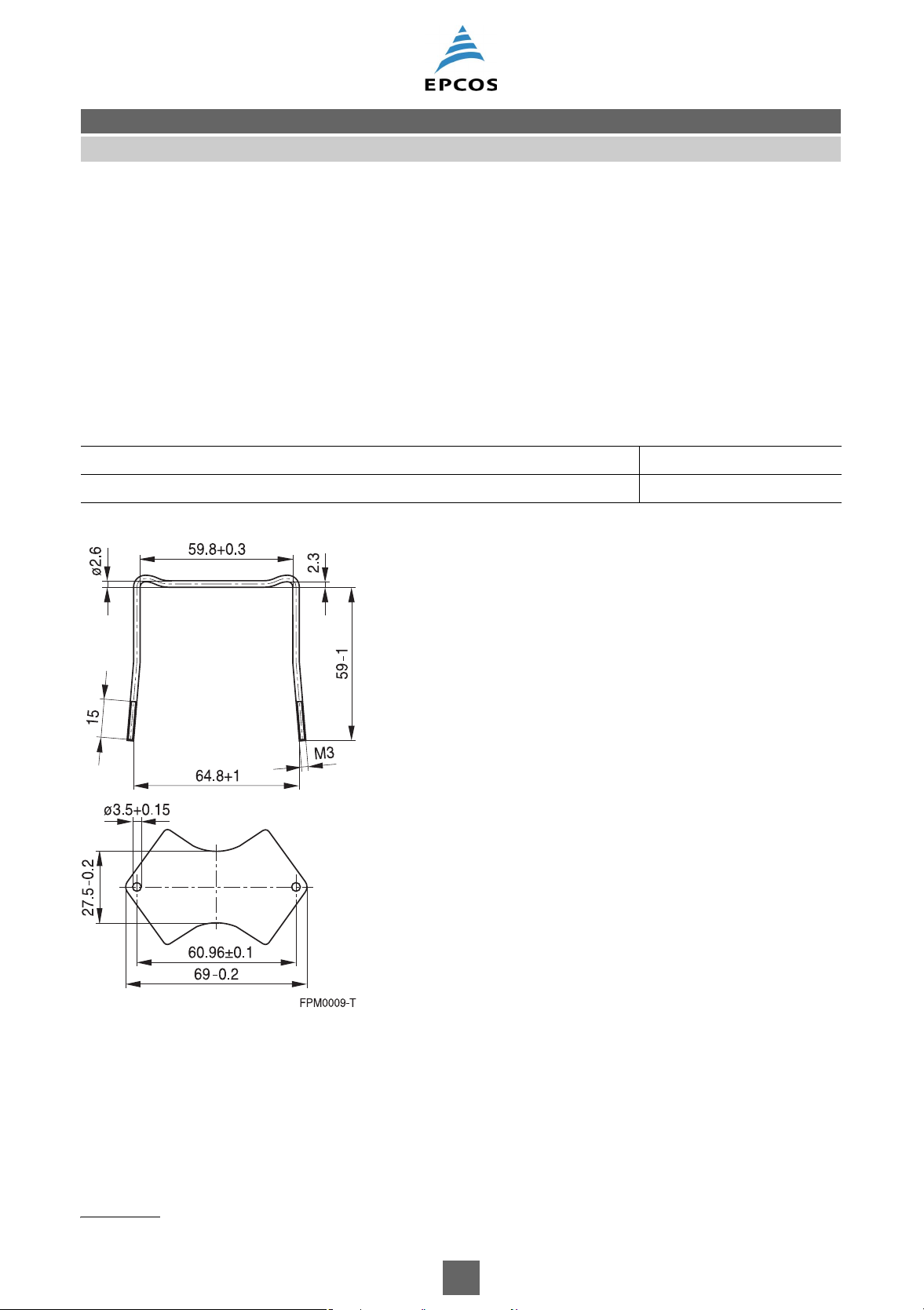

Mounting assembly
