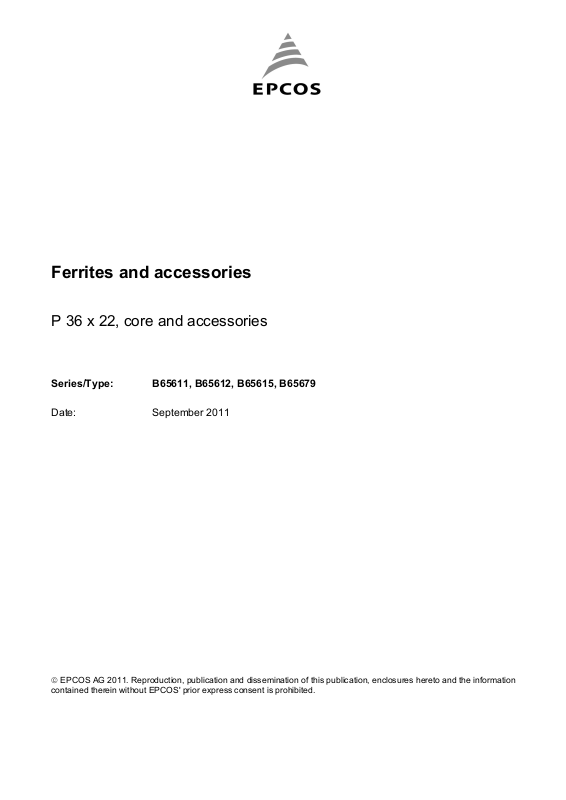

Page 1
Ferrites and accessories
P 36 x 22, core and accessories
Series/Type: B65611, B65612, B65615, B65679
Ordering code:
Date: September 2011
Version:
Content of header bars 1 and 2 of data sheet will be automatically entered in headers and footers! Please fill in the
table and then change the color to "white". This ensures that the table disappears (invisible) for the customer PDF.
Don't change formatting when entering or pasting text in the table and don't add any cell or line in and to it!
Identification/Classification 1
(header 1 + top left bar):
Identification/Classification 2
(header 2 + bottom left header bar):
Ordering code: (top right header bar)
Series/Type: (bottom right header bar)
Preliminary data (optional):
(if necessary)
Department:
Date:
Version:
Ferrites and accessories
P 36 x 22, core and accessories
B65611, B65612, B65615, B65679
September 2011
EPCOS AG 2011. Reproduction, publication and dissemination of this publication, enclosures hereto and the information
contained therein without EPCOS' prior express consent is prohibited.
Page 2
Ferrites and accessories
P 36 x 22, core and accessories B65611, B65612, B65615, B65679
_
Core
Delivery mode: sets
126
Magnetic characteristics
with center
hole
Σl/A
l
e
A
e
A
min
V
e
0.26
52
202
—
10500
without
center hole
0.25
53.5
213
173
11400
mm
mm
mm
mm
mm
-1
2
2
3
Approx. weight (per set)
with center
hole
m 57 59.9 g
without
center hole
Gapped
Material
N48
AL value
nH
250 3%
400 3%
630 3%
1000 3%
s
approx
mm
1.20
0.62
0.35
0.22
μe Ordering code1
51
82
129
205
_
36 1
0.622
_
- D with center hole
- T with threaded sleeve
B65611+0250A048
B65611+0400A048
B65611+0630A048
B65611+1000A048
4.3 min.
29.9+0.8
0.9+0.2
14.6+0.4
sM33.75±0.15
ø5.4+0.3
_
0.4ø16.2
FPK0358-W

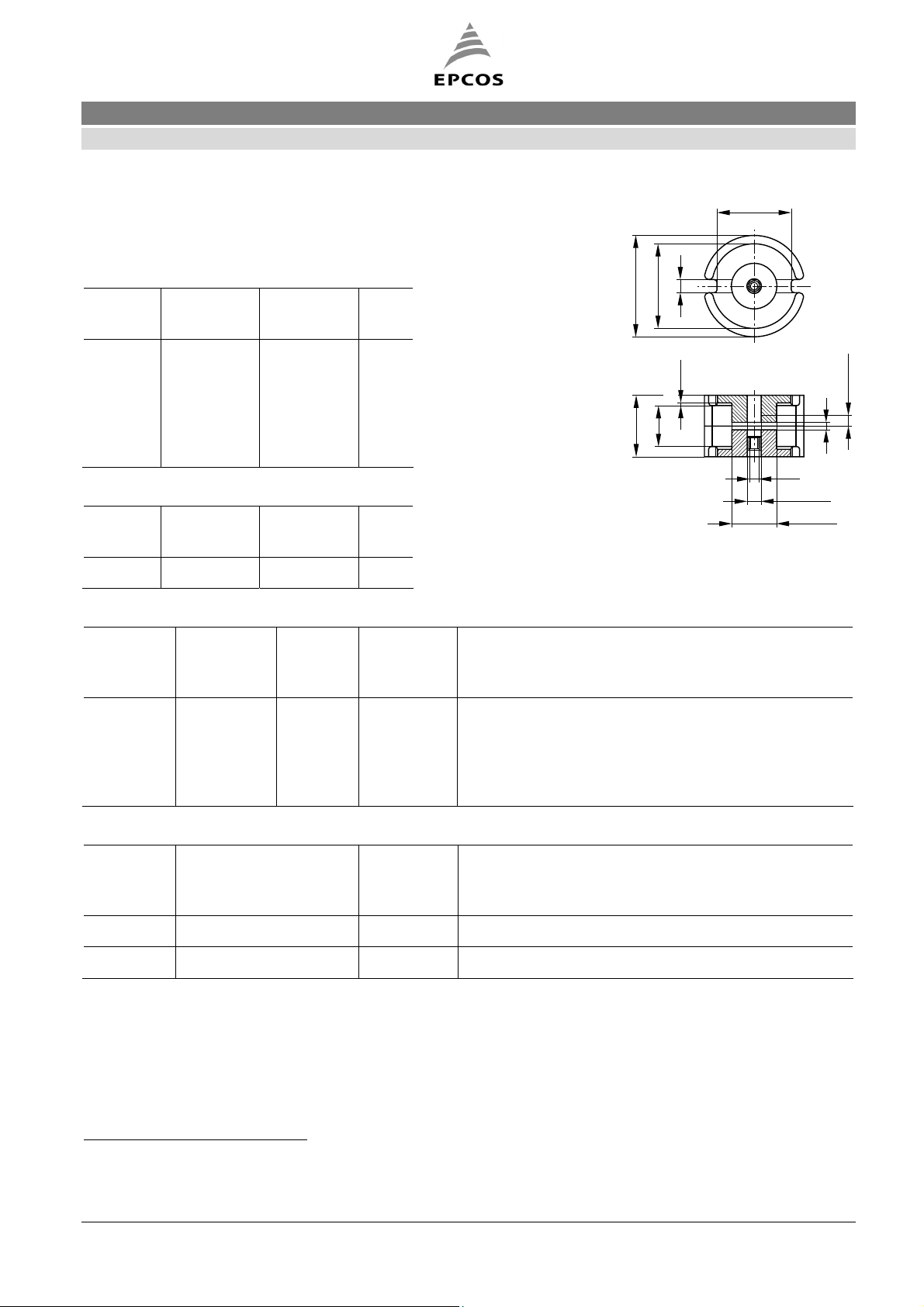

Dimensions in mm
Ungapped
Material
AL value
nH
μe Ordering code
- D with center hole
- T with threaded sleeve
N48 7600 +30/-20% 1560 B65611D0000R048
N30 15200 +30/-30% 3040 B65611W0000R030
1
Replace + by D or T for required version
September 2011
Please read Cautions and warnings and Page 2 of 7
Important notes at the end of this document.
Page 3
Ferrites and accessories
P 36 x 22, core and accessories B65611, B65612, B65615, B65679

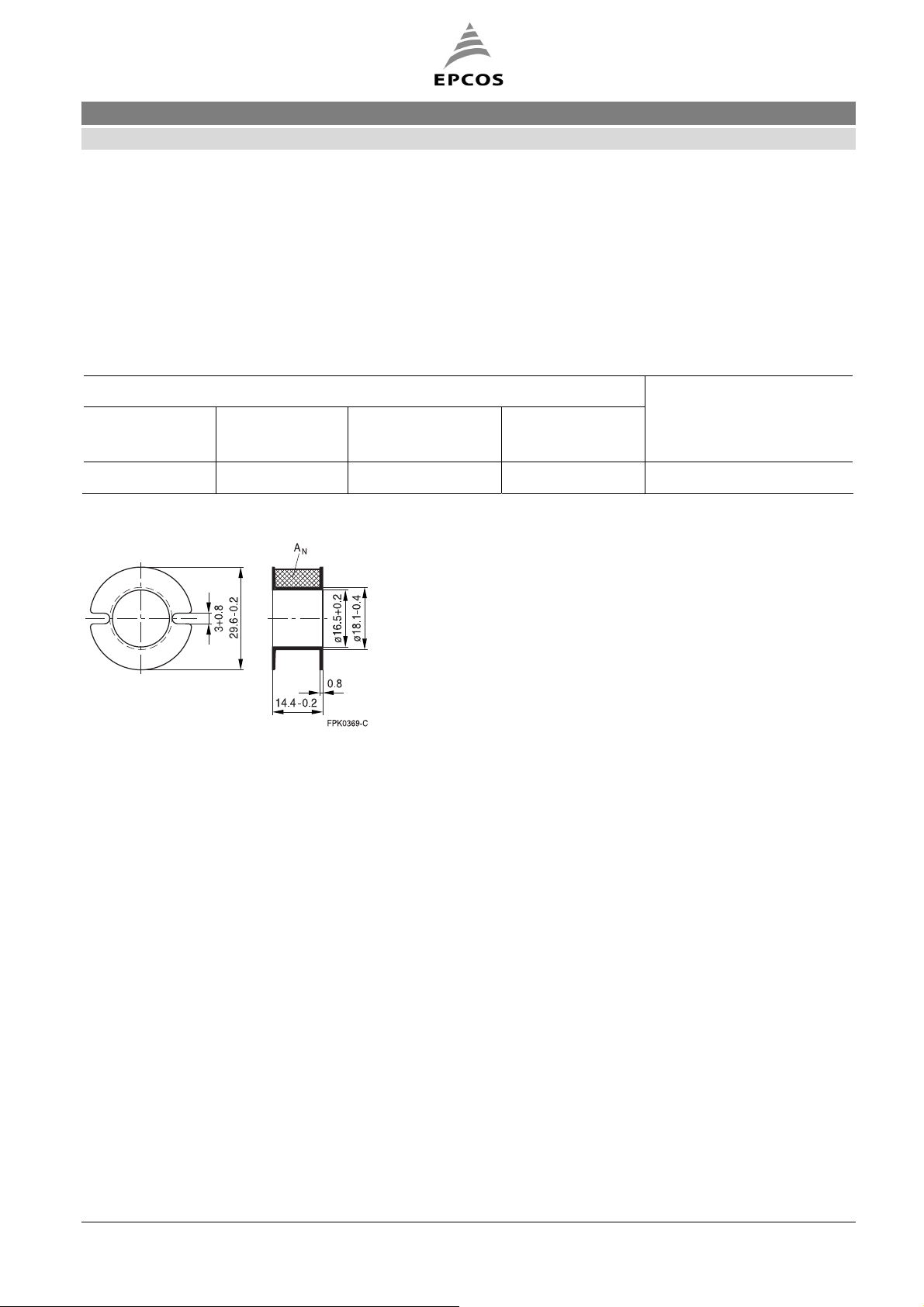

Coil former
Standard: to IEC 60133
Material: GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
F ≙ max. operating temperature +155 °C), color code black,
Valox 420-SE0® [E45329 (M)], SABIC INNOVATIVE PLASTICS
Winding: see Data Book 2007, chapter “Processing notes”
Coil former
Sections
AN
mm
I
2
N
mm
AR value
μΩ
Ordering code
1 63 73 39 B65612B0000T001
Coil former:
September 2011
Please read Cautions and warnings and Page 3 of 7
Important notes at the end of this document.
Page 4
Ferrites and accessories
P 36 x 22, core and accessories B65611, B65612, B65615, B65679

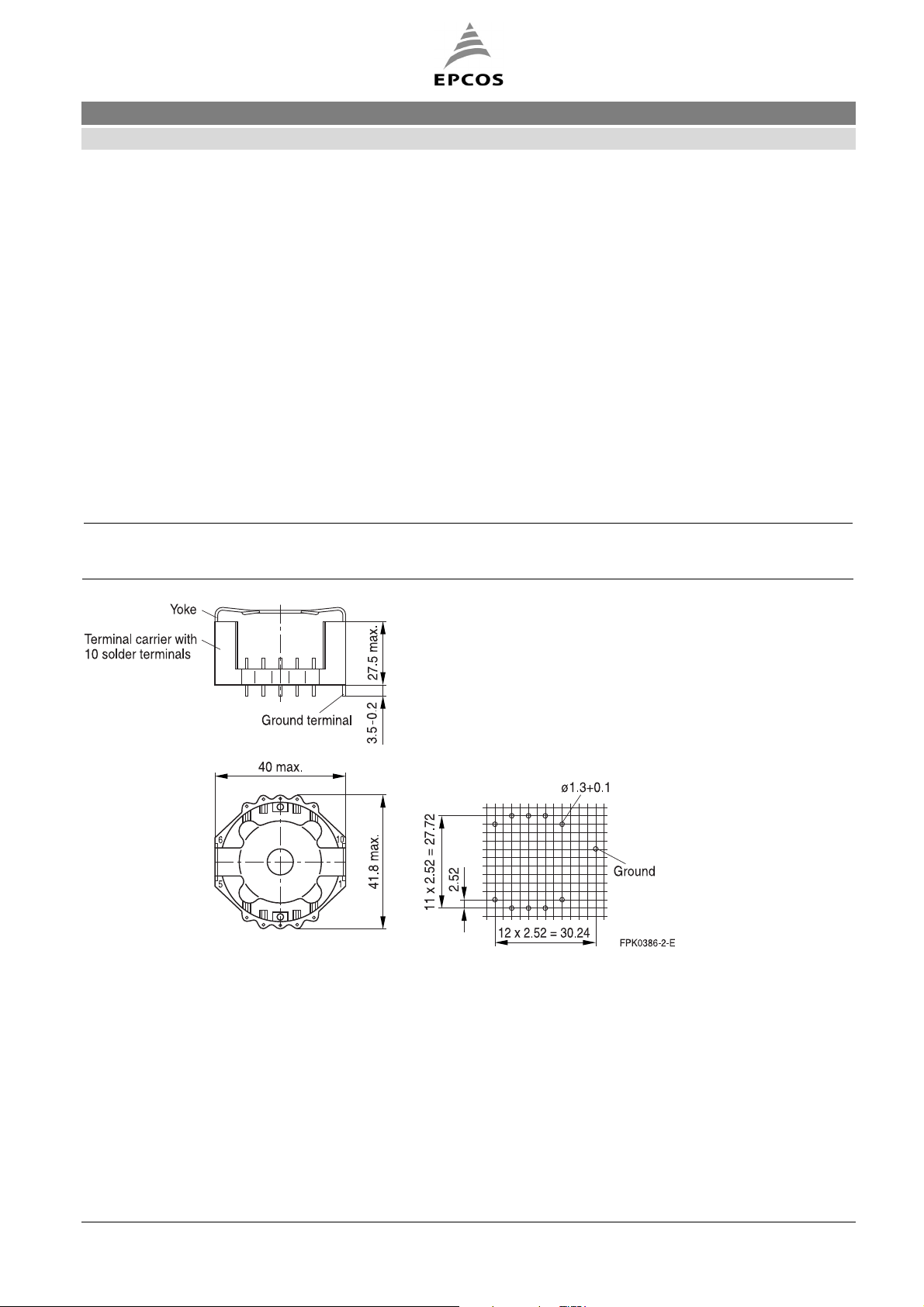

Mounting assembly for printed circuit boards
The set comprises a terminal carrier and a yoke
For snap-in connection
Terminal carrier
Material: GFR polyterephthalate (UL 94 V-0, insulation class to IEC 60085:
F ≙ max. operating temperature +155 °C), color code black,
Pocan B4235® [E245249 (M)], LANXESS AG
Solderability: to IEC 60068-2-20, test Ta, method 1 (aging 3): +235 °C, 2 s;
Resistance to soldering heat: to IEC 60068-2-20, test Tb, method 1B: +350 °C, 3.5 s
Yoke
Spring yoke, made of tinned nickel silver (0.6 mm), with ground terminal
Complete mounting assembly (10 solder terminals)
Ordering code: B65615B0001X000
September 2011
Please read Cautions and warnings and Page 4 of 7
Important notes at the end of this document.
Page 5
Ferrites and accessories
P 36 x 22, core and accessories B65611, B65612, B65615, B65679

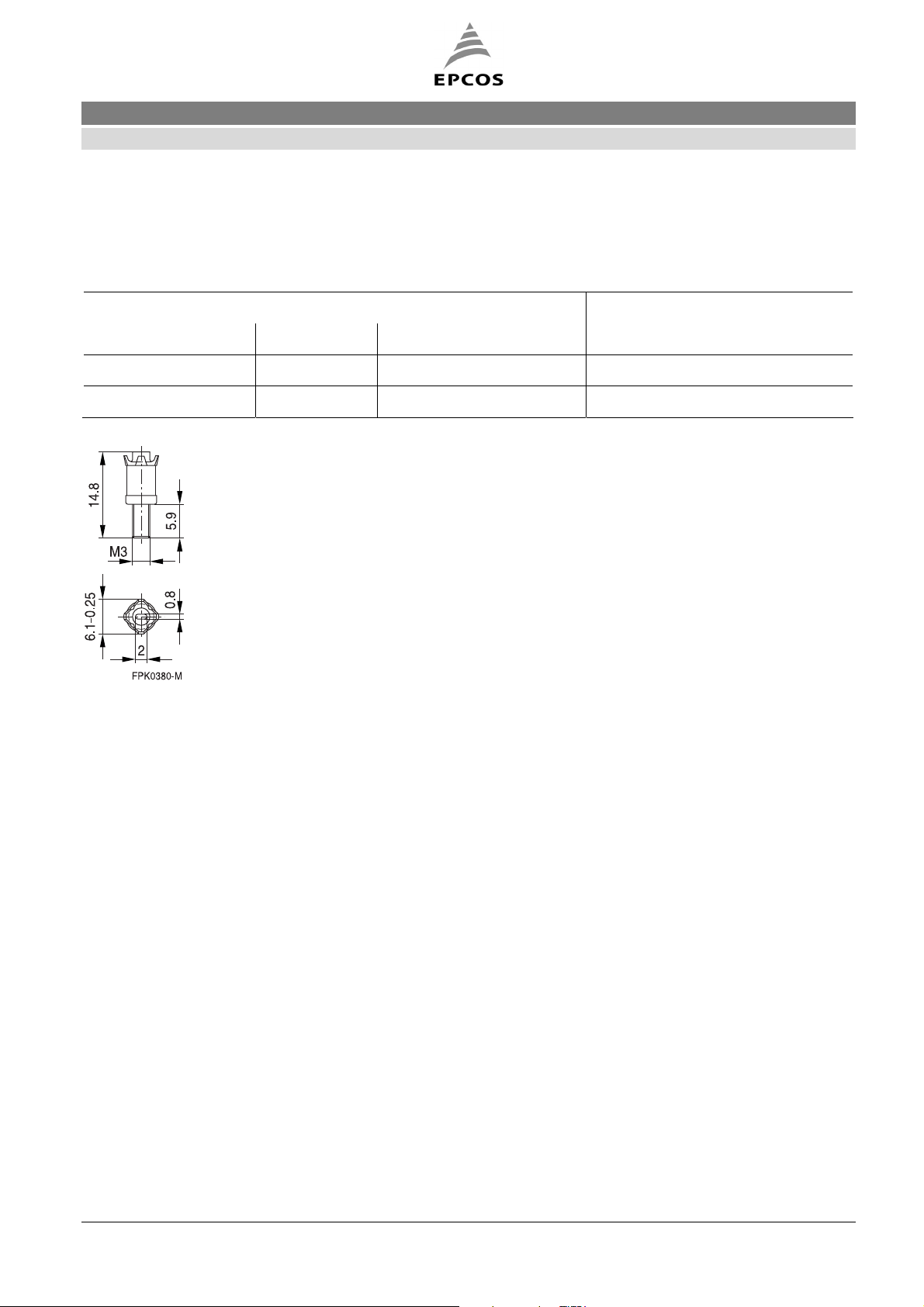

Adjusting screw
Tube core with thread and core brake made of GFR polyterephthalate,
Pocan B3235® [E245249 (M)], LANXESS AG
Tube core
Ordering code
Ø x length (mm) Material Color code
4.55 x 6.3 N22 red B65679E0003X022
4.98 x 6.3 N22 black B65679E0002X022
Note:
Due to the limited distance between adjusting screw and internal borehole, the entire assembly must
be accurately centered.
September 2011
Please read Cautions and warnings and Page 5 of 7
Important notes at the end of this document.
Page 6
Ferrites and accessories
Cautions and warnings
Mechanical stress and mounting
Ferrite cores have to meet mechanical requirements during assembly and for a growing number of
applications. Since ferrites are ceramic materials one has to be aware of their special behavior under
mechanical load.
Just like any ceramic material, ferrite cores are brittle and sensitive to any shock, fast changing or
tensile load. Especially fast cooling rates under ultrasonic cleaning, high static and cyclic loads can
cause cracks or failure of the ferrite cores.
For detailed information see Data Book 2007, chapter “General – Definitions, 8.1”.
Effects of core combination on AL value
Stresses in the core affect not only the mechanical but also the magnetic properties. It is apparent
that the initial permeability is dependent on the stress state of the core. The higher the stresses are in
the core, the lower the value for the initial permeability. Thus, the embedding medium should offer the
greatest possible elasticity.
For detailed information see Data Book 2007, chapter “General – Definitions, 8.2”.
Heating up
Ferrites can run hot during operation at higher flux densities and higher frequencies.
NiZn-materials
The magnetic properties of NiZn-materials can change irreversibly when exposed to strong magnetic
fields.
Processing notes
The start of the winding process should be soft. Otherwise, the flanges may be destroyed.
Excessive winding forces may damage the flanges or squeeze the tube so that the cores can no
longer be mounted.
Excessive soldering time at high temperature (>300 °C) may affect coplanarity or pin arrangement.
Not following the processing notes for soldering of the J-leg terminals may cause solderability
problems at the transformer because of contamination with tin oxide (SnO) from the tin bath or burned
insulation from the wire. For detailed information see Data Book 2007, chapter “Processing notes,
2.2”.
The dimensions of the pin hole arrangement are fixed and should be understood as an ideal
recommendation for drilling the printed circuit board. In order to avoid problems when mounting the
transformer, customers should make allowances for manufacturing tolerances in the drilling and pickand-place processes by increasing the diameter of the pin holes
September 2011
Please read Cautions and warnings and Page 6 of 7
Important notes at the end of this document.
Page 7
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain statements about the suitability of our products for
certain areas of application. These statements are based on our knowledge of typical
requirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application. As a
rule, EPCOS is either unfamiliar with individual customer applications or less familiar with them
than the customers themselves. For these reasons, it is always ultimately incumbent on the
customer to check and decide whether an EPCOS product with the properties described in the
product specification is suitable for use in a particular customer application.
2. We also point out that in individual cases, a malfunction of electronic components or failure
before the end of their usual service life cannot be completely ruled out in the current state
of the art, even if they are operated as specified. In customer applications requiring a very high
level of operational safety and especially in customer applications in which the malfunction or
failure of an electronic component could endanger human life or health (e.g. in accident
prevention or life-saving systems), it must therefore be ensured by means of suitable design of the
customer application or other action taken by the customer (e.g. installation of protective circuitry
or redundancy) that no injury or damage is sustained by third parties in the event of malfunction or
failure of an electronic component.
3. The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements, some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as hazardous). Useful information on this will be found in our Material
Data Sheets on the Internet (www.epcos.com/material). Should you have any more detailed
questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently, the products described in this
publication may change from time to time. The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order.
We also reserve the right to discontinue production and delivery of products. Consequently,
we cannot guarantee that all products named in this publication will always be available.
The aforementioned does not apply in the case of individual agreements deviating from the
foregoing for customer-specific products.
6. Unless otherwise agreed in individual contracts, all orders are subject to the current version of
the “General Terms of Delivery for Products and Services in the Electrical Industry”
published by the German Electrical and Electronics Industry Association (ZVEI).
7. The trade names EPCOS, BAOKE, Alu-X, CeraDiode, CSMP, CSSP, CTVS, DeltaCap, DigiSiMic,
DSSP, FormFit, MiniBlue, MiniCell, MKD, MKK, MLSC, MotorCap, PCC, PhaseCap, PhaseCube,
PhaseMod, PhiCap, SIFERRIT, SIFI, SIKOREL, SilverCap, SIMDAD, SiMic, SIMID, SineFormer,
SIOV, SIP5D, SIP5K, ThermoFuse, WindCap are trademarks registered or pending in Europe
and in other countries. Further information will be found on the Internet at
www.epcos.com/trademarks.
Page 7 of 7
