Aluminum electrolytic capacitors
Snap-in capacitors
Series/Type: B41303
Date: December 2006
EPCOS AG 2007. Reproduction, publication and dissemination of this publication, enclosures hereto and the
information contained therein without EPCOS' prior express consent is prohibited.
Page 2
Snap-in capacitors B41303
Standard 85 °C
General-purpose grade capacitors
Applications
Switch-mode power supplies in industrial and entertainment
electronics
Features
High ripple current capability
Different case sizes available for each capacitance value
Construction
Charge/discharge-proof, polar
Aluminum case, fully insulated
Snap-in solder pins to hold component in place on PC-board
Minus pole marking on case surface
Minus pole not insulated from case
Overload protection by safety vent on the base
Terminals
Standard version with 2 terminals,
2 lengths available: 6.3 and 4.5 mm
3 terminals to ensure correct insertion: length 4.5 mm
Important notes at the end of this document.
Page 2 of 14Please read Cautions and warnings and
Page 3
Specifications and characteristics in brief
B41303
Standard 85 °C
Rated voltage V
Surge voltage V
R
S
10 ... 100 V DC
1.15 V
R
Rated capacitance CR680 ... 47000 µF
Capacitance tolerance ±20% M
Leakage current I
leak
(5 min, 20 °C)
Self-inductance ESL Approx. 20 nH
Useful life Requirements:
85 °C, VR, I
AC,R
40 °C, VR, 1.25 I
> 2000 h ∆C/C ≤ ±45% of initial value
> 100000 h ESR ≤ 3 times initial specified limit
AC,R
I
leak
≤ initial specified limit
Voltage endurance test Post test requirements:
85 °C, V
R
2000 h ∆C/C ≤ ±15% of initial value
ESR ≤ 1.3 times initial specified limit
Vibration resistance
test
I
leak
To IEC 60068-2-6, test Fc:
Displacement amplitude 0.35 mm, frequency range 10 Hz ... 55 Hz,
≤ initial specified limit
acceleration max. 5 g, duration 3 × 2 h.
Capacitor mounted by its body which is rigidly clamped to the work
surface.
IEC climatic category To IEC 60068-1:
40/085/56 (40 °C/+85 °C/56 days damp heat test)
Detail specification
Sectional specification
Similar to CECC 30301-806
IEC 60384-4
Important notes at the end of this document.
Page 3 of 14Please read Cautions and warnings and
Page 4
B41303
Standard 85 °C
Dimensional drawings
Snap-in terminals, length 6.3 ±1 mm.
Also available in a shorter version with a
length of 4.5 1 mm. For packing mode
and ordering example see next page.
Dimensions (mm) Approx
d +1 l ±2
weight (g)
Packing
units (pcs.)
22 30 12 160
22 35 15 160
25 25 13 130
25 30 17 130
25 35 19 130
25 40 22 130
Important notes at the end of this document.
Snap-in capacitors are also available with
3 terminals (length 4.5 1 mm).
For packing mode and ordering example see
next page.
Dimensions (mm) Approx
d +1 l ±2
weight (g)
30 30 23 80
30 35 29 80
30 45 41 80
30 50 46 80
Page 4 of 14Please read Cautions and warnings and
Packing
units (pcs.)
Page 5

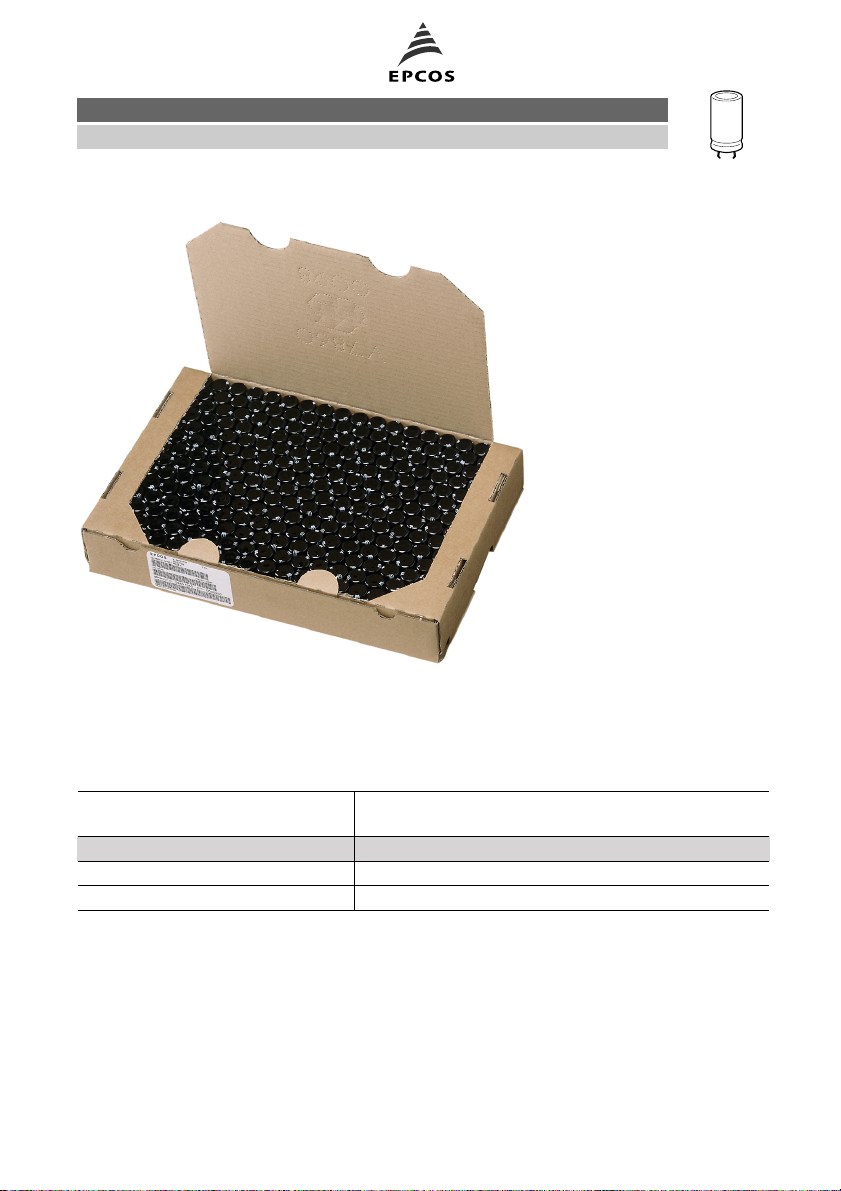

Packing of snap-in capacitors
B41303
Standard 85 °C
For ecological reasons the packing is pure cardboard. Components can be withdrawn (in full or in
part) in the correct position for insertion.
Ordering codes for terminal styles
Snap-in capacitors
Identification in 3rd block of ordering code
Terminal versions
Standard terminals (6.3 ±1) mm M000
Short terminals (4.5 1) mm M007
3 terminals (4.5 1) mm M002
Ordering examples:
B41303A3109M007 } snap-in capacitor with short terminals
B41303A3109M002 } snap-in capacitor with 3 terminals
Important notes at the end of this document.
Page 5 of 14Please read Cautions and warnings and
Page 6
B41303
Standard 85 °C
Overview of available types
VR(V DC) 10 16 25 40 63 100
Case dimensions d × l (mm)
CR(µF)
680 22 × 30
25 × 25
1000 22 × 35
25 × 30
1500 22 × 30
25 × 25
2200 22 × 35
25 × 35
30 × 30
30 × 35
25 × 30
3300 22 × 30
25 × 25
4700 22 × 30
25 × 25
6800 22 × 30
25 × 25
10000 22 × 30
25 × 25
15000 22 × 35
25 × 30
22000 25 × 40
22 × 35
25 × 30
25 × 40
30 × 30
30 × 35 30 × 45
22 × 35
25 × 30
25 × 35
30 × 30
30 × 35 30 × 50
22 × 35
25 × 30
25 × 40
30 × 30
30 × 35
25 × 35
30 × 30
30 × 35
30 × 45
30 × 45
30 × 30
33000 30 × 35 30 × 45
47000 30 × 45
The capacitance and voltage ratings listed above are available in different cases upon request.
Other voltage and capacitance ratings are also available upon request.
Important notes at the end of this document.
Page 6 of 14Please read Cautions and warnings and
Page 7
B41303
Standard 85 °C
Technical data and ordering codes
C
R
100 Hz
20 °C
µF
Case
dimensions
d × l
mm
ESR
typ
100 Hz
20 °C
mΩ
ESR
max
100 Hz
20 °C
mΩ
Z
max
10 kHz
20 °C
mΩ
I
AC,max
100 Hz
60 °C
A
1)
I
AC,R
100 Hz
85 °C
A
Ordering code
(composition see
below)
VR= 10 V DC
10000 22 × 30 44 66 59 3.9 1.8 B41303A3109M00*
10000 25 × 25 44 66 59 3.9 1.8 B41303J3109M00*
15000 22 × 35 36 54 49 4.7 2.2 B41303B3159M00*
15000 25 × 30 36 54 49 4.7 2.2 B41303J3159M00*
22000 25 × 40 31 46 43 5.6 2.6 B41303A3229M00*
22000 30 × 30 31 46 43 5.6 2.6 B41303J3229M00*
33000 30 × 35 27 41 39 6.0 2.8 B41303B3339M00*
47000 30 × 45 25 38 36 6.9 3.2 B41303B3479M00*
VR= 16 V DC
6800 22 × 30 47 71 59 3.9 1.8 B41303A4688M00*
6800 25 × 25 47 71 59 3.9 1.8 B41303J4688M00*
10000 22 × 35 39 58 52 4.3 2.0 B41303B4109M00*
10000 25 × 30 39 58 52 4.3 2.0 B41303J4109M00*
15000 25 × 40 33 49 45 5.4 2.5 B41303A4159M00*
15000 30 × 30 33 49 45 5.4 2.5 B41303J4159M00*
22000 30 × 35 29 43 40 6.0 2.8 B41303B4229M00*
33000 30 × 45 26 39 37 6.7 3.1 B41303B4339M00*
VR= 25 V DC
4700 22 × 30 51 77 67 3.7 1.7 B41303A5478M00*
4700 25 × 25 51 77 67 3.7 1.7 B41303J5478M00*
6800 22 × 35 41 62 56 4.1 1.9 B41303B5688M00*
6800 25 × 30 41 62 56 4.1 1.9 B41303J5688M00*
10000 25 × 35 35 52 48 4.9 2.3 B41303B5109M00*
10000 30 × 30 35 52 48 4.9 2.3 B41303J5109M00*
15000 30 × 35 30 45 42 5.8 2.7 B41303B5159M00*
22000 30 × 45 27 40 38 6.7 3.1 B41303B5229M00*
Composition of ordering code
* = Terminal style
0 = snap-in standard terminals (6.3 ±1) mm
2 = snap-in 3 terminals (4.5 1) mm
7 = snap-in short terminals (4.5 1) mm
1) 120-Hz conversion factor of ripple current: IAC(120 Hz) = 1.03 IAC(100 Hz)
Important notes at the end of this document.
Page 7 of 14Please read Cautions and warnings and
Page 8
B41303
Standard 85 °C
Technical data and ordering codes
C
R
100 Hz
20 °C
µF
Case
dimensions
d × l
mm
ESR
typ
100 Hz
20 °C
mΩ
ESR
max
100 Hz
20 °C
mΩ
Z
max
10 kHz
20 °C
mΩ
I
AC,max
100 Hz
60 °C
A
2)
I
AC,R
100 Hz
85 °C
A
Ordering code
(composition see
below)
VR= 40 V DC
3300 22 × 30 51 77 71 3.7 1.7 B41303A7338M00*
3300 25 × 25 51 77 71 3.7 1.7 B41303J7338M00*
4700 22 × 35 44 66 59 4.1 1.9 B41303B7478M00*
4700 25 × 30 44 66 59 4.1 1.9 B41303J7478M00*
6800 25 × 40 37 55 50 5.2 2.4 B41303A7688M00*
6800 30 × 30 37 55 50 5.2 2.4 B41303J7688M00*
10000 30 × 35 31 47 44 5.6 2.6 B41303B7109M00*
15000 30 × 50 27 41 39 7.1 3.3 B41303A7159M00*
VR= 63 V DC
1500 22 × 30 80 120 100 3.0 1.4 B41303A8158M00*
1500 25 × 25 80 120 100 3.0 1.4 B41303J8158M00*
2200 22 × 35 59 89 77 3.4 1.6 B41303B8228M00*
2200 25 × 30 59 89 77 3.4 1.6 B41303J8228M00*
3300 25 × 35 46 69 62 4.3 2.0 B41303B8338M00*
3300 30 × 30 46 69 62 4.3 2.0 B41303J8338M00*
4700 30 × 35 39 58 52 5.2 2.4 B41303B8478M00*
6800 30 × 45 33 49 45 6.0 2.8 B41303B8688M00*
VR= 100 V DC
680 22 × 30 120 180 150 2.4 1.1 B41303A9687M00*
680 25 × 25 120 180 150 2.4 1.1 B41303J9687M00*
1000 22 × 35 87 130 110 2.8 1.3 B41303B9108M00*
1000 25 × 30 87 130 110 2.8 1.3 B41303J9108M00*
1500 25 × 35 65 97 83 3.7 1.7 B41303B9158M00*
1500 30 × 30 65 97 83 3.7 1.7 B41303J9158M00*
2200 30 × 35 50 75 66 4.5 2.1 B41303B9228M00*
3300 30 × 45 40 60 54 5.4 2.5 B41303B9338M00*
Composition of ordering code
* = Terminal style
0 = snap-in standard terminals (6.3 ±1) mm
2 = snap-in 3 terminals (4.5 1) mm
7 = snap-in short terminals (4.5 1) mm
2) 120-Hz conversion factor of ripple current: IAC(120 Hz) = 1.03 IAC(100 Hz)
Important notes at the end of this document.
Page 8 of 14Please read Cautions and warnings and
Page 9
B41303
Standard 85 °C
Useful life
depending on ambient temperature TAunder ripple current operating conditions
Frequency factor of permissible ripple
current IACversus frequency f
Frequency characteristics of ESR
Typical behavior
1)
1) Refer to chapter "General technical information, 5.3 Calculation of useful life" for an explanation on how to interpret the useful life
graphs.
Important notes at the end of this document.
Page 9 of 14Please read Cautions and warnings and
Page 10
B41303
Standard 85 °C
Impedance Z versus frequency f
Typical behavior at 20 °C
Important notes at the end of this document.
Page 10 of 14Please read Cautions and warnings and
Page 11
B41303
Standard 85 °C
Cautions and warnings
Personal safety
The electrolytes used by EPCOS have not only been optimized with a view to the intended
application, but also with regard to health and environmental compatibility. They do not contain
any solvents that are detrimental to health, e.g. dimethyl formamide (DMF) or dimethyl acetamide
(DMAC).
Furthermore, part of the high-voltage electrolytes used by EPCOS are self-extinguishing. They
contain flame-retarding substances which will quickly extinguish any flame that may have been
ignited.
As far as possible, EPCOS does not use any dangerous chemicals or compounds to produce
operating electrolytes. However, in exceptional cases, such materials must be used in order to
achieve specific physical and electrical properties because no safe substitute materials are
currently known. However, the amount of dangerous materials used in our products has been
limited to an absolute minimum. Nevertheless, the following rules should be observed when
handling Al electrolytic capacitors:
Any escaping electrolyte should not come into contact with eyes or skin.
If electrolyte does come into contact with the skin, wash the affected parts immediately with
running water. If the eyes are affected, rinse them for 10 minutes with plenty of water. If
symptoms persist, seek medical treatment.
Avoid breathing in electrolyte vapor or mists. Workplaces and other affected areas should be
well ventilated. Clothing that has been contaminated by electrolyte must be changed and
rinsed in water.
Important notes at the end of this document.
Page 11 of 14Please read Cautions and warnings and
Page 12
B41303
Standard 85 °C
Product safety
The table below summarize the safety instructions that must be observed without fail. A detailed
description can be found in the relevant sections of chapter "General technical information".
Topic Safety information Reference
Chapter "General
technical information"
Polarity Make sure that polar capacitors are connected
with the right polarity.
1
"Basic construction of
aluminum electrolytic
capacitors"
Reverse voltage Voltages polarity classes should be prevented by
connecting a diode.
Upper category
Do not exceed the upper category temperatur. 7.2
temperature
3.1.6
"Reverse voltage"
"Maximum permissible
operating temperature"
Maintenance Make periodic inspections of the capacitors.
Before the inspection, make sure that the power
10
"Maintenance"
supply is turned off and carefully discharge the
electricity of the capacitors.
Do not apply any mechanical stress to the
capacitor terminals.
Mounting
position of screw
terminal capacitors
Do not mount the capacitor with the terminals
(safety vent) upside down.
11.1.
"Mounting positions of
capacitors with screw
terminals"
Mounting of
single-ended
capacitors
The internal structure of single-ended capacitors
might be damaged if excessive force is applied to
the lead wires.
Avoid any compressive, tensile or flexural stress.
11.4
"Mounting
considerations for
single-ended capacitors"
Do not move the capacitor after soldering to PC
board.
Do not pick up the PC board by the soldered
capacitor.
Do not insert the capacitor on the PC board with a
hole space different to the lead space specified.
Robustness of
terminals
The following maximum tightening torques must
not be exceeded when connecting screw
11.3
"Mounting torques"
terminals:
M5: 2 Nm
M6: 2.5 Nm
Soldering Do not exceed the specified time or temperature
limits during soldering.
11.5
"Soldering"
Important notes at the end of this document.
Page 12 of 14Please read Cautions and warnings and
Page 13
B41303
Standard 85 °C
Topic Safety information Reference
Chapter "General
technical information"
Soldering,
cleaning agents
Passive
flammability
Active
flammability
Do not allow halogenated hydrocarbons to come
into contact with aluminum electrolytic capacitors.
11.6
"Cleaning agents"
Avoid external energy, such as fire or electricity. 8.1
"Passive flammability"
Avoid overload of the capacitors. 8.2
"Active flammability"
Reference
Chapter "Capacitors
with screw terminals"
Breakdown strength
of insulating
Do not damage the insulating sleeve, especially
when ring clips are used for mounting.
"Screw terminals -
accessories"
sleeves
Important notes at the end of this document.
Page 13 of 14Please read Cautions and warnings and
Page 14
Important notes
The following applies to all products named in this publication:
1. Some parts of this publication contain statements about the suitability of our products for
certain areas of application. These statements are based on our knowledge of typical re-
quirements that are often placed on our products in the areas of application concerned. We
nevertheless expressly point out that such statements cannot be regarded as binding
statements about the suitability of our products for a particular customer application.
As a rule, EPCOS is either unfamiliar with individual customer applications or less familiar
with them than the customers themselves. For these reasons, it is always ultimately incumbent on the customer to check and decide whether an EPCOS product with the properties described in the product specification is suitable for use in a particular customer application.
2. We also point out that in individual cases, a malfunction of passive electronic compon-
ents or failure before the end of their usual service life cannot be completely ruled out
in the current state of the art, even if they are operated as specified. In customer applica-
tions requiring a very high level of operational safety and especially in customer applications
in which the malfunction or failure of a passive electronic component could endanger human
life or health (e.g. in accident prevention or life-saving systems), it must therefore be ensured
by means of suitable design of the customer application or other action taken by the customer
(e.g. installation of protective circuitry or redundancy) that no injury or damage is sustained by
third parties in the event of malfunction or failure of a passive electronic component.
3. The warnings, cautions and product-specific notes must be observed.
4. In order to satisfy certain technical requirements, some of the products described in this
publication may contain substances subject to restrictions in certain jurisdictions (e.g.
because they are classed as “hazardous”). Useful information on this will be found in our
Material Data Sheets on the Internet (www.epcos.com/material). Should you have any more
detailed questions, please contact our sales offices.
5. We constantly strive to improve our products. Consequently, the products described in this
publication may change from time to time. The same is true of the corresponding product
specifications. Please check therefore to what extent product descriptions and specifications
contained in this publication are still applicable before or when you place an order. We also
reserve the right to discontinue production and delivery of products. Consequently, we
cannot guarantee that all products named in this publication will always be available.
6. Unless otherwise agreed in individual contracts, all orders are subject to the current ver-
sion of the “General Terms of Delivery for Products and Services in the Electrical Industry” published by the German Electrical and Electronics Industry Association
(ZVEI).
7. The trade names EPCOS, EPCOS-JONES, BAOKE, Alu-X, CeraDiode, CSSP, MLSC,
PhaseCap, PhaseMod, SIFERRIT, SIFI, SIKOREL, SilverCap, SIMID, SIOV, SIP5D, SIP5K,
UltraCap, WindCap are trademarks registered or pending in Europe and in other countries.
Further information will be found on the Internet at www.epcos.com/trademarks.
Page 14 of 14
Loading...
