Page 1

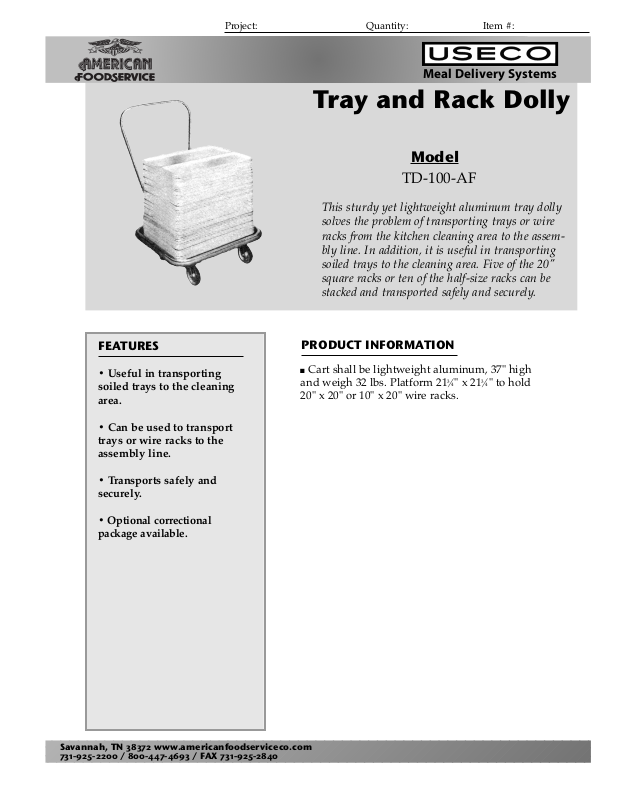

Tray and Rack Dolly
TD-100-AF
This sturdy yet lightweight aluminum tray dolly
solves the problem of transporting trays or wire
racks from the kitchen cleaning area to the assembly line. In addition, it is useful in transporting
soiled trays to the cleaning area. Five of the 20"
square racks or ten of the half-size racks can be
stacked and transported safely and securely.
FEATURES
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840
■ Cart shall be lightweight aluminum, 37" high
and weigh 32 lbs. Platform 21
3
⁄4 " x 213⁄4 " to hold
20" x 20" or 10" x 20" wire racks.
PRODUCT INFORMATION
• Useful in transporting
soiled trays to the cleaning
area.
• Can be used to transport
trays or wire racks to the
assembly line.
• Transports safely and
securely.
• Optional correctional
package available.
Project: Quantity: Item #:
Model
Meal Delivery Systems
Page 2
Tray and Rack Dolly
Savannah, TN 38372 www.americanfoodserviceco.com
731-925-2200 / 800-447-4693 / FAX 731-925-2840
TD-100-AF
Due to continued product improvement, specifications are subject to change without notice. 4/01/10 USA
TECHNICAL SPECIFICATIONS
BID SPECIFICATIONS
Provide (1) model ___ Tray and Rack Dolly. Unit to be manufactured of aluminum.
Unit to hold (5) 20" x 20" racks.
Model
Dimensions
WD H
TD-100-AF
25"
24
3
⁄4 "
36"
Shipping Weight
50 lbs.
Notes
Capacity: 5-20" x 20" racks or
10-10" x 20" racks or 100 trays.
4-4" swivel casters standard.
SIDE VIEW
FRONT VIEW
