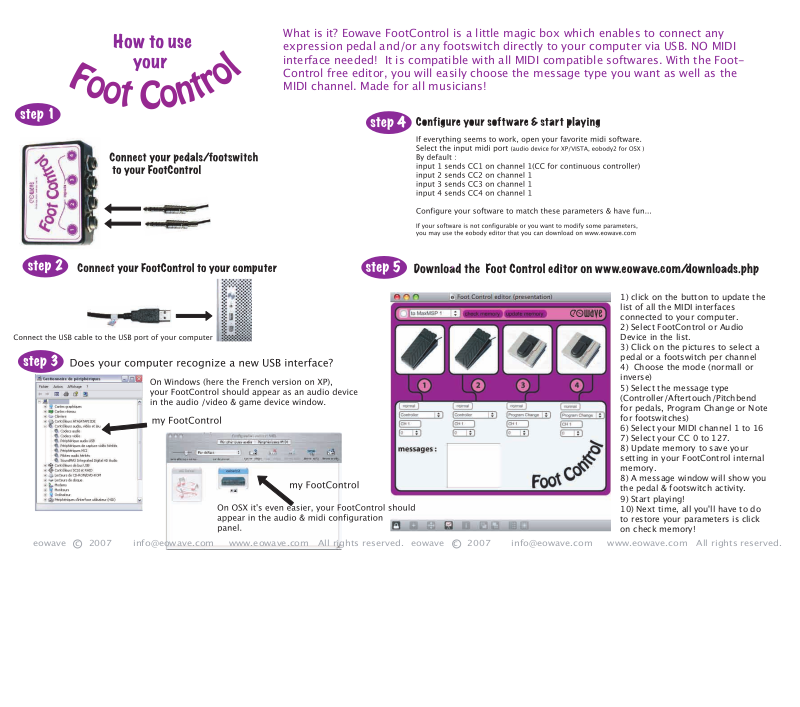

Eowave FootControl User Manual
What is it? Eowave FootControl is a little magic box which enables to connect any
expression pedal and/or any footswitch directly to your computer via USB. NO MIDI
interface needed! It is compatible with all MIDI compatible softwares. With the FootÂControl free editor, you will easily choose the message type you want as well as the
MIDI channel. Made for all musicians!
1) click on the button to update the
list of all the MIDI interfaces
connected to your computer.
2) Select FootControl or Audio
Device in the list.
3) Click on the pictures to select a
pedal or a footswitch per channel
4) Choose the mode (normall or
inverse)
5) Select the message type
(Controller/Aftertouch/Pitchbend
for pedals, Program Change or Note
for footswitches)
6) Select your MIDI channel 1 to 16
7) Select your CC 0 to 127.
8) Update memory to save your
setting in your FootControl internal
memory.
8) A message window will show you
the pedal & footswitch activity.
9) Start playing!
10) Next time, all you'll have to do
to restore your parameters is click
on check memory!
eowave c 2007 info@eowave.com www.eowave.com All rights reserved. eowave c 2007 info@eowave.com www.eowave.com All rights reserved.
