EOS Tech VT-300 User Manual

User Manual Rev.1.2.1EN

Network Drive Recorder

Network Drive Recorder

VT-300

Thank you for purchasing
this network drive recorder.
Please read this user
manual carefully before
you use the NDVR and
keep it handy for future
reference.

Before reading this user manual

2

⚠WARNING

Failure to follow these safety instructions could result in fire,
electric shock, or other injuries, or damage to product or other
property. Read all the safety information below before using
product.

* Do not disassemble or modify s product under user's own

discretion, or it may cause product failure, electric shock or
fire.

* When terminal is in malfunction, do not operate terminal.

* If foreign matter or water gets into terminal or smoking, stop

using and contact service center for A/S.

* When other electronic product is installed in vehicle, be

careful that terminal power cable is cut or gets damaged, or it
may cause product failure or electric shock or fire.

* Do not change the terminal installation location without

authorization, or there may be blind area in image
photography and user shall be liable on this.

* Fuse shall be in rated capacity.

* Unauthorized installation may cause failure in vehicle or

product.

* When power is connected, do not remove memory card,

cause memory card failure.

* Do not touch memory card with oily or wet hand, or it may

cause product failure.

* Please use only authenticated and recommended memory

card, or it may cause data loss.

* Do not put foreign material into card insertion slot of the

terminal, or card may not be inserted or it may cause product
failure.

* An improper connection could result in loss of data or memory

card defect.

* For cleaning, do not use water, benzene or alcohol to product

and parts. Please use soft and dry cloth, or it may cause
product failure.

* Do not apply strong impact to the terminal, or terminal may

break by the impact or it may cause product failure.

Section 1

Important safety information

3

* GPS receiver module requires warming up time for initial start

up. It may take several seconds or several minutes after
power is turned on according to signal receiving environment.

* Metallic coating on front window of vehicle may cause signal

trouble in GPS.

* Be careful for In-Cabin camera angle not to be shaded by

inside room mirror when the product install.

* Adhere after working Air Drier (Air Conditioner) in case of

much humidity.

* Do not operate the terminal in driving or it may cause a traffic

accident. Park vehicle safely first and then operate the
terminal.

* When service is required please contact our service center for

A/S.

* Do not touch to camera lens. Finger prints are may cause

unclear recorded video quality.

Getting to know the network drive
recorder

5

Your network drive recorder comes with the accessories shown
on this page. If any of these items is missing from your box, call
customer center.

* The exact appearance of each item may vary by model.

* Micro SDXC memory card are not included.

* You can purchase parts and accessories after consulting with

your local distributor. Product is not responsible for reduced
malfunctions caused by any unauthorized use of accessories
such as the power cable etc.,

* The exact appearance of each item may vary by model.

Section 1

Unpacking

Main NDVR

GPS Module & Cradle

Tamperproof cover Screw seal Screw Screw wrench

Cable Clip & Tie Uninterrupted power cable CD

6

Section 2

Optional Accessories

RCAM-D16M

3rd Camera

* 720x480p
* 6 meters cable
* Reverse gear signal wire port
* DC 5V power use from NDVR
* Korea origin

* 720x480p / IP67 / Waterproof
* 160(D) wide angle / IR LED
* 23 meters cable
* Reverse gear signal wire port
* DC 5V power use from NDVR

RCAM-9990IR

3rd Camera

* IEEE 802.11 b/g/n
* 2.4GHz frequency bands
* OFDM, Peak rate 150Mbps
* Peak throughput 90Mbps.
* 64/128 WEP,WPA,WPA2,TKIP,AES

WF-700RA

Wireless LAN USB Adopter

* IP67 / Waterproof
* 6 meters cable length
* Magnetic type
* MCX connecter

GPSA-6000

External GPS Antenna for
metal film coating vehicle.

* 2.5mm EarPhone jack to RCA
* 3 meter cable length
* UL approved

VOC-300

Video-out Cable

* 2.5mm EarPhone jack type
* 1 male to 2 female jack use
* This part is may need to use video-out
cable and panic button use at once

YCB-100

Y-Type Cable

* IP54 / Metal type
* 5 meters cable length
* 10A/250VAC
* This part is able to connect to
Video-out port from NDVR

FS-5M

Panic Foot Switch

* L-angle male to right angle female
* Use for external flash memory

USB-200

USB 2.0 Cable

7

Section 3

Part & Names

Read this section to learn about the NDVR features, how to use the
controls, and more.

GPS & Cradle

Operating LED

Road view camera

(Six-element lens)

GPS receiver module

(GNSS worldwide)

In-cabin view camera

Angle hook for
tamperproof case

Speaker

Main device-Road side view

In-cabin view camera

(Six-element lens)

In-cabin IR LEDs

(Infrared night vision
recording)

Micro SD card slot

(Dual slot)

DC power

GPS port

Video-out port

3rd camera port

USB 2.0 port

Micro USB port

Network state LED

Record state LED

GPS state LED

Manual event recording button

Microphone and

Reset button

Main device-InCabin side view

In Cabin view

9

GPS cable jack

Install type
assignment icon

External GPS antenna MCX
connecter

Main device joint hook

Tamperproof cover hook

GPS Receiver
module inside

GPS & Windshield cradle

GPS & Cradle

Main device joint hook

Lock screw joint hole

GPS Cradle joint hook

Tamperproof cover

Tamperproof cover

11

GPS IN

The ‘GPS IN’ port is use to receiving GPS signal from GPS
module receiver. !

VIDEO OUT

The ‘VIDEO OUT’ port is use to out put video signal by live
streaming to video monitor. It is need to connect to ‘Video out
cable’ if use the ‘Video out’ function to monitoring cargo inside
or backward view.

Section 4

Terminal ports

Main device-Road side view

12

The ‘VIDEO OUT’ port is able to connect to use panic button
switch. And If need to use for video out and panic button switch
at once then it is able to connect by Y-type cable use.(Extra)

CAMERA IN

The ‘CAMERA IN’ port is able to connect external 3rd camera
for 3 Channel video recording. The ‘CAMERA IN’ port is supply
power DC 5v to 3rd camera and able to receive analog signal
for reverse gear detection or electronic dry signal from 3rd
party’s device as like GPS tracker.

Video monitor (RCA) SOS Panic foot S/W

Y-type cable

VIDEO OUT

3rd Camera

Dry signal cable

(High & Low)

CAMERA IN

13

MicroUSB

The ‘micro USB’ port is able to use communication with other
devices for record and save to external hard drive(SSD/HDD)
or charging battery for smart phone or pocket Wi-Fi modem
use for a long time etc. The port is supplying DV 5v power to
connected device. (Host mode)

USB

The ‘USB’ port is able to use wireless LAN user adopter or 3G/
LTE USB modem for telematics server transmission and the
port is support to record and save at external removable flash
memory back up automatically or charge to battery for smart
phone or pocket Wi-Fi modem use for a long time etc. The port
is supplying DV 5v power to connected device. (Host mode)

Wireless LAN USB Adopter for
internet access

Back up and save data to external
device(SSD/HDD/Flash memory)

14

Reset button

When the NDVR is freezes or hold operating then makes reset
power by push reset button.

Microphone(MIC)

Microphone is located beside of reset button hole.

⚠ All the devices are must be connected to each port before supply the power to main NDVR.

Please read this chapter for
basic operation of NDVR.

Getting ready to start recording

17

* You can use micro SDHC, and SDXC cards with this network

drive recorder. We recommend you use an micro SDHC,
SDXC card. This drive recorder supports SDHC, SDXC cards
up to 128GB. We cannot guarantee normal operation with
SDHC cards bigger than 128GB.

* MMC (Multi Media Card) and MMC Plus are not supported.

* Compatible memory card capacity:"

- SDHC: 4GB ~ 32GB"

- SDXC: ~ up to 128GB

* When you use unauthorized memory cards, the driving

recorder can not record videos correctly and your recordings
may be lost.

* The memory cards released after this drive recorder was

released may not be compatible with the network drive
recorder.

* To ensure stable recording and playback, use writing speed

40MB/s (Class 10) or higher memory cards. (MLC/Multi Level
Cell) Type memory card is recommended)

* SDHC/SDXC cards are a higher version of micro SD memory

cards and support higher capacities than micro SD memory
cards.

Section 1

Selecting a suitable memory card

Using the memory card adaptor

To use a micro memory card with a

computer or card reader you must

attach it to or insert it into an adaptor.

18

• Damaged data may not be recoverable. We recommend you
make a back-up of important data separately on the hard disk
of your PC.

• Turning the power off or removing a memory card during an
operation such as formatting, deleting, recording, and
playback may cause data loss.

• If you modify the name of a file or folder stored in the memory
card with your PC, your NDVR may not recognize the
modified file.

• The memory card does not support any data recovery mode.
Therefore, care should be taken to prevent the memory card
from being damaged while recording.

• A memory card has a certain life span. If you cannot record
new data, you have to purchase a new memory card.

• Do not bend, drop, or subject the card to strong impacts.

• Do not place foreign substances on the memory card
terminals. Use a soft dry cloth to clean the terminals if
required.

• Do not paste anything other than the label provided with the
card on the label pasting area of the card.

• Do not use a damaged memory card.

• Be careful to keep the memory card out of the reach of
children, who might swallow it.

• We are not responsible for data loss due to misuse, including
loss caused by any PC virus.

• We recommend using a memory card case to avoid data loss
that can be caused by moving the card or by static electricity.

• After a period of use, the memory card may get warm. This is
normal and is not a malfunction.

The NDVR supports micro SDHC, and SDXC memory cards,
giving you a wider choice of cards!

The data storage speed of cards may differ, depending on the
manufacturer and production system.

• MLC (multi level cell) system: faster write speed enabled.

• TLC (Triple level cell) system: only lower write speed is supported.!
" " " For best results, we recommend using a memory card that
supports a faster write speed 40MB/s or higher.
"Using a lower write speed memory card for recording video may
cause difficulties when storing.

Section 2

Handling a memory cards

19

• Please format FAT32 before copy the firmware to micro SD
card when you need firmware update.

A. Window PC User.

1. Connect removable memory card(micro SDXC card) to PC

first.

2. Unzip ‘FAT32format.zip’ file and running FAT32format.exe."

"
"
"
"

3. Select memory card unit size(Allocate unit size);"

(Ex. 32GB -> 32768 / 64GB-> 65536)"

"

Section 3

Format memory cards

Select memory size

20

B. MAC IOSX PC User.

1. Connect removable memory card(micro SDXC card) to MAC.

2. Running ‘Disk Utility.app’ "
(Application > Utility > Disk Utility.app )"

"
"
"
" "

" "
" "
" "
" "
" "
" "
" "
" "

"
"
"
"
"
"
"
"

Click to start

format

21

3. Select removable memory card erase by MS-MOS(FAT)"

"
"
"
"
"
"
"
"
"
"
"
"
"
"
"
"

4. Click to Erase button.

5. Format completed."

22

A) Ready to update

1) Format micro SD card before firmware upgrade.(➤page 20)

2) Unzip the firmware file as attached this file folder. After
unzipped then it can be found “update” folder."

B) Upgrading firmware

1) Connect micro SD card to PC.

2) Copy or move whole ‘update’ folder to micro SD card.(Roof
directory / the update file folder has contained two type of
items that ‘ACA_FS.img’ and ‘ACA_ulmage.bin’ file.)

"
"

" "
" "

"

"
" "
" "

3) Remove micro SD card from the PC and insert SD card to

NDVR. ( Please make sure that NDVR power is must
turn off state when insert micro SD card.)

4) Do not remove ‘micro SD card’ and ‘power cable’ before
completed upgrade."

C) Upgrading Time

* Firmware update time will be takes around 1 minute and 30

seconds.

* The NDVR system will reboot automatically after update

completed. ( System reboot time will be takes around 15
seconds.)

Section 4

How to update firmware

Copy

23

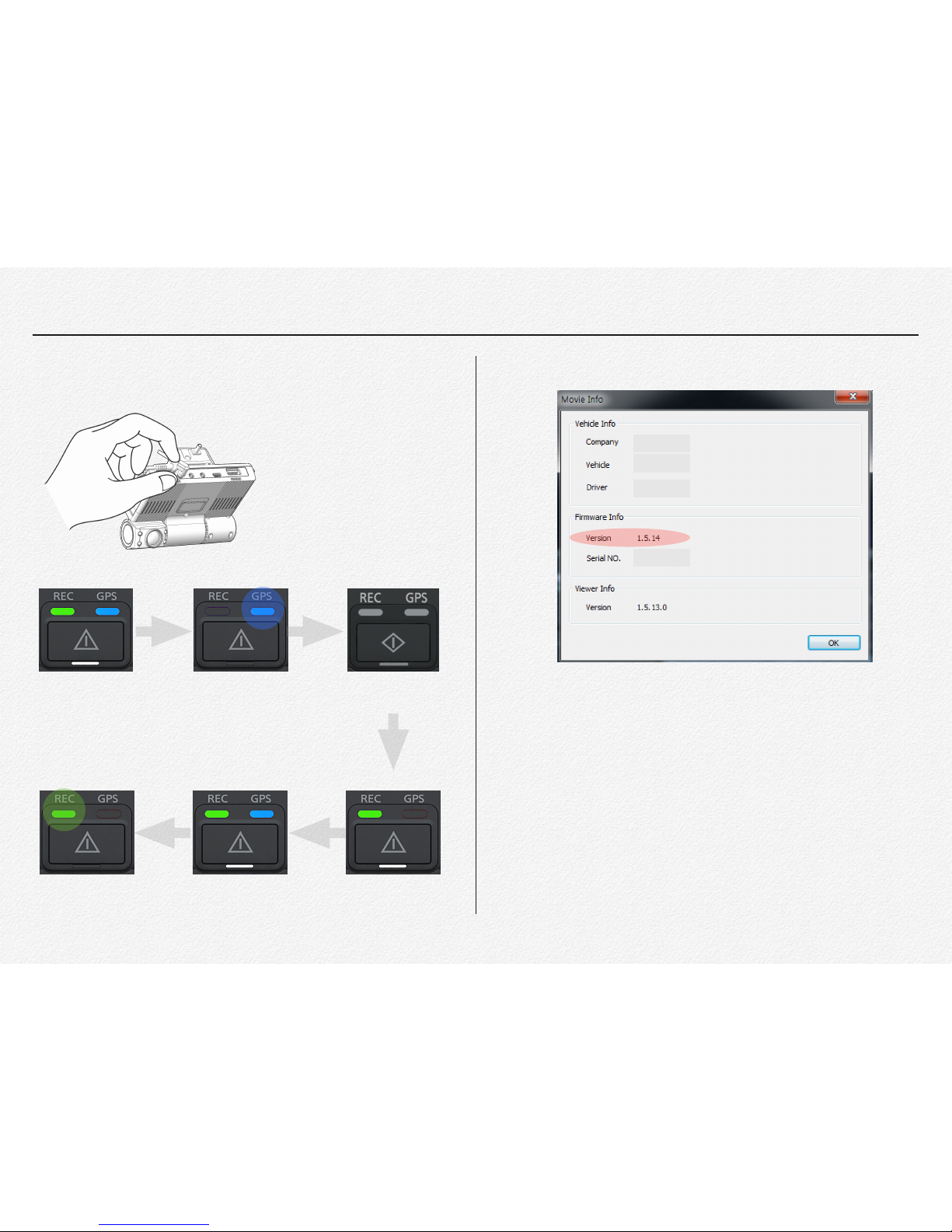

* Plug in DC power cable after inserted micro SD card which

‘update’ folder is contained.

! !
! !

!
!

!

!

! ! !

! !

! !

!

! !
! !
! !
! !
!

* It is able to check updated firmware version via PC manager.

! !
! !
! !
! !
! !

! !

D) Others

* Firmware file is should be inserted ‘Primary memory card slot’

or ‘Secondary memory card slot’. If firmware update is
operating via 1(one) micro SD card then no matter slot place
select. But if firmware update is operating with 2(Two) micro
SD card inserted statue then update firmware file is should be
inserted to ‘Primary memory slot’.

⚠ Firmware is will not be upgraded by external USB memory

device.

Power on Updating System Closing

Power on System Booting

Recording

(Completed)

Power on

25

1) Insert micro SD card when NDVR power off.

2) Open the memory card cover as shown the the figure.

3) Insert the micro SD card into the card slot until it softly click

of a latch. (⚠ Make sure that the NDVR is placed as shown

above and the terminal portion of the card is facing up.)!

!

To eject a memory card

!

1) Turn off the NDVR. (Pull off DC power jack)

2) Open the memory card cover and gently push the micro SD
card to eject it.

3) Pull the micro SD card out of the memory card slots and
close the cover.

⚠

* To avoid data loss, turn off the NDVR by removed the power

cable before inserting or ejecting the memory card.

* Be careful not to push the memory card too hard. The

memory card may suddenly pop out.

* If you eject the memory card from the NDVR while it is on, the

NDVR turns off.

* Card compatibility with this NDVR may vary depending on the

card manufacturer and type.

Section 5

To insert a memory card.

26

* The NDVR is able to save all the data to external memory

device instead of micro SD card as like SSD/HDD even flash
memory stick via micro SD or USB port use.

* The port USB and micro USB is supply power DC 5V to

external device and this port’s speed is USB 2.0 type.

* When connect external device via micro USB or USB then the

NDVR will not be saved the data to micro SD memory.

* If connect external device while recording to micro SD card

then the NDVR will start data backup to external device from
micro SD card as setup order. After completed backup tasking
then the NDVR will start recording automatically.(➤ Page 83­Setup configuration)

Section 6

Connect external memory

USB / microUSB cable connection

Please read carefully for
safety install the NDVR.

Installation

28

The NDVR is designed that support various angle of windshield
from the vehicle. Please refer to below figure for right
installation for video angle fit.

The NDVR has marked direction guide as icon of vehicle type.
you can follow direction by icon as your vehicle.

Section 1

Direction of Cradle

Truck & Bus

Taxi & Sedan

For Truck & Bus

For Taxi & Sedan

29

Joint the cradle with main device

The NDVR is designed that support various angle of windshield
from the vehicle. Please select and placing cradle to
windshield.

Mounting the NDVR

The NDVR is designed that support various angle of windshield
from the vehicle.

1) Before mounting the NDVR, please ensure that the
windscreen is free of grease, dust and any other dirt that

may result in poor adhesion. ⚠ It is recommended that the

windscreen is wiped with a glass cleaner such as Windolene
or similar."

" "
" "
" "
" "
" "
" "
" "
" "
" "
" "
" "
" "
" "
" "
"

Please refer to above tutorial movie for joint main device with
cradle.

MOVIE 4.1 Joint the cradle with main device

30

2) Remove the film on the double-sided adhesive tape."

" "
" "
" "
" "
" "
" "
" "
" "
" "

3) Placing cradle on the windshield."

"

4) Insert micro SD card.(Power off statue.)"
"

Center of windshield

31

5) Joint the main NDVR with cradle."

6) Connect the cables. (All the cables are must be connected to
each port before supply the power to main NDVR)."

" "
"

" "
" "
"

Full connected wires

PIN Assignment 1

3rd Camera Jack(CAMERA IN) SOS Panic Button Jack(VIDEO OUT)

PIN Assignment 2

Y-Type Cable Jack(VIDEO OUT) Video Out Cable Jack(VIDEO OUT)

34

Section 2

How to fit the power loom

1) The NDVR is compatible DC8V~32V. The included DC fuse
power cable can be connected directly to the
battery(permanent power connection for recording 24/7) or to
the ignition (the device will record only when the vehicle is on).

2) The power loom consists of a battery + and an Earth
connection. The red wire will be battery + and the black wire
will be the earth connection and white wire will be the
ignition(ACC) connection.

3) Please remember that all connections must be within the
tracking unit specs as per industry related connections.

4) Run the cable (power loom) via the A pillar into the roof lining
and let it meet up close to the main unit.

5) Plug the loom into the main unit and then give it a bit of slack
so that there is no tension on the power loom or the plug area
of the unit.

6) Use the management clip to tie up the cable and make if look
neat so that the cable on’t hang loose. Stick them to the
windscreen and cable tie the cable to the management clip or
slide them in the opening slots."

35

1) Adjust camera angle of view."

2) Fit tamperproof cover’s hook to camera angle’s hole after
adjust camera angle."

"

"
" "
"

3) Joint tamperproof cover with cradle clips."

" "
" "
" "
" "
" "
" "
" "
" "
" "
"

Section 3

Joint tamperproof cover

Please refer to above tutorial movie for joint main device with
cradle.

MOVIE 4.2 Joint tamperproof cover

36

4) Joint and lock the screw"
" " "
" " "
" " "
" "
"

"

"

"

"

"

"

"

"

"

"

" "
" " "
" "
" "
"
"
"
"

5) Extract tamperproof cover from NDVR."

"
"
"
"
"

"
"
"

Please refer to above tutorial movie for extract tamperproof cover.

MOVIE 4.3 Extract tamperproof cover

5

The NDVR has LED lamps
for operating signals.

LED Signals

38

System boot

The LEDs are indicate system operating state.

" "

"

" "

Update setup file

The LEDs are indicate that setup configuration value.
(Setup.cfg)

GPS signal detection

The LEDs are indicate that receiving GPS signal.

Section 1

LED Signals

Power on

System booting Recording

This LED signal is normal start state NDVR.

MOVIE 5.1 LED State of system boot

Reading setup file.

Recording

Receiving GPS signal (Blue LED hold)

39

LED Signal table USB Backup LED state

When it completed backup USB then Green and Blue LED are
blinking at once. ⚠ The NDVR is not recording and save the

video file to micro SD card while backup to USB.

Operating

LED

Operating

LED

System Booting

(Approx. 5sec.)

Connecting

External Device

Re-booting

(Approx. 20sec.)

Not inserted

memory card

Firmware

updating

(Approx. 40sec.)

GPS signal

detected

Normal

Recording

Event Recording

(Approx.15sec.)

USB Backup

USB Backup

completed

Blinking

Just remove to connection after completed data backup to external
USB memory or HDD.

MOVIE 5.2 USB backup LED state.

40

Firmware update

After completed firmware update then the NDVR will reboot
system and start recording in automatically.

Remote download Firmware(OTA)

After download firmware via wireless network then the NDVR
will update and reboot in automatically. This OTA function is
based on FMS Network service approved.(Option) Please
contact to your distributor to use OTA function and FMS
service.

MOVIE 5.3 LED state of Firmware update

The NDVR is keep recording and save the video data while OTA firmware
downloading.

MOVIE 5.4 LED state of OTA firmware downloading

Features

42

Encryption Video

The NDVR is designed secure video data. It is unable to
playback via common media player except by use private PC
manager. Encryption video file format is ‘.KDS’

3rd Camera Recording(Extra)

It is able to use 3 Channels recording by connecting optional
rear camera or dome camera for 3 Channels video recording.
The NDVR is able to use DC5V 3rd camera.

3 Channel recording function is able to select setup via PC
manager.

Section 1

Features-NDVR

2 Channel

3 Channel

43

Video resolution as channel selection.

Back-up gear signal cable

When connect the back-up gear signal cable to back-up light or
back-up shift terminal then the NDVR will mirror 3rd camera’s
live view to video monitor.

IR Recording

Providing a brighter video and
picture, wider view, and longer
range in low-light situations, the
NDVR cameras use the latest
night vision technology to surpass
expectations for quality video even
in the dark.

In-Cabin camera with 4(four) IR_LED are automatically turns
ON and OFF according to surrounding luminance. If closer
object in front of In-cabin lens then IR LED lamps will turn and
off repeat, this is normal and is not a malfunction.

Cycle Recording

During normal operate the video files are saved in 60 second
intervals. If the capacity of the micro SDHC card runs short, the
files will be overwritten from the oldest to newest.

EMERGENCY files will not be overwritten. (factory default). It is
able to be changed configuration via PC manager setting.

2 Channel

Resolution

Bit-rate

fps/sec.

Front Ch.

1280x720p

4Mbps

30 fps

In-Cabin Ch.

1280x720p

4Mbps

30 fps

3 Channel

Resolution

Bit-rate

fps/sec.

Front Ch.

1280x720p

4Mbps

30 fps

In-Cabin Ch.

1280x720p

2Mbps

Max 15 fps

3rd Ch.

720 x 480p

512kbps

Max 15 fps

Back-up gear signal wire.

⚠ Do not connect the back-up

gear signal wire to any power
output port. It may cause
product failure.

44

Video out(Monitoring)

The NDVR provides a CCTV interface for real-time video
monitoring from the drivers seat. Single and multi-view options
are selectable and the device can output the 3rd camera video
signal automatically when the vehicle has signal. User is able to
select 4 type of video out display mode.(➤ Page.12)

Input External Trigger

The NDVR is able to receiving and sending trigger signal or
data via micro USB port. some features are may needs to
customize for software as requirement.

LBP(Low Battery Protection)

The NDVR is able to setup cutoff voltage and timer for
protecting the discharge of the battery of vehicle. And multiple
power control options allow recording to start and stop using
vehicle ignition, delayed system shutdown and/or preset ON/
OFF times. (DC 11.8V,12V,23.7V,24V)

Voice Guide & Alarm

The NDVR has voice guide via internal speaker for several
international language. The driver is able to recognize operating
situation as working and several alarms.

Sound Recording

The NDVR is able to setup sound recording enable to use or
not.

Front In-Cabin

Front & In-Cabin

1) 3rd Camera always!

2) 3rd Camera while back-up!
signal detected.

45

Video Overlay

The video image is contain the information about time and
location even have driver information. In case of information
that the driver and company name with number plate of vehicle.

①

⑨

②

③

④ ⑤

⑥

⑧

⑦

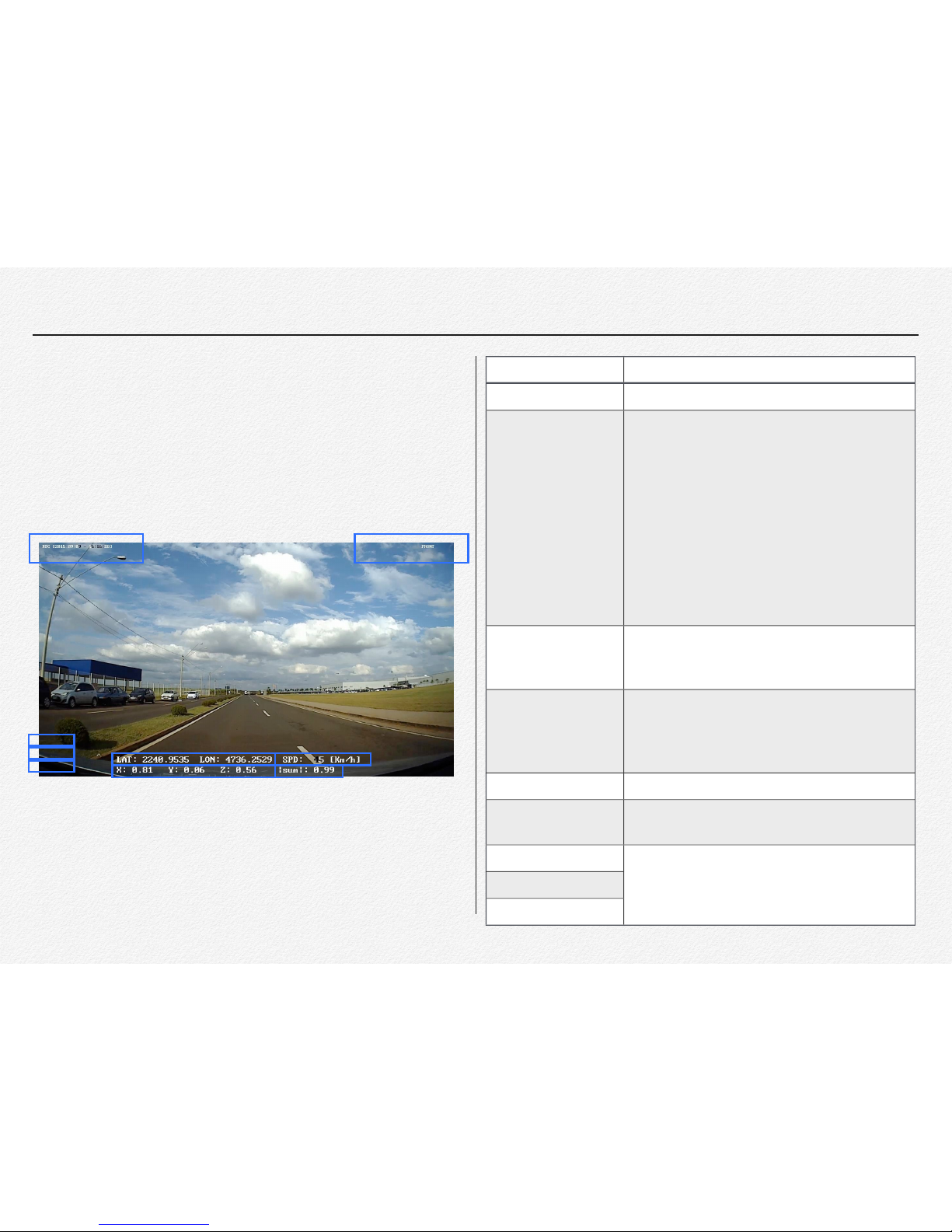

[ Figure 6.1.1] Information of overlaid on the front video

Location

Descriptions

① Camera View

“FRONT” is overlaid

② Time Information

The time information is selected by configuration
setup as “Timezone”
[Case 1: Only RTC is overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
[Case 2: Only UTC is overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
[Case 3: RTC & UTC are overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
UTC[YYYY:MM:DD-HH:MM:SS]
[Case 4: RTC with Daylight Saving Time]
DST[YYYY:MM:DD-HH:MM:SS]

③ GPS Coordinates

LAT is ‘ Latitude’ , LON is ‘Longitude’.
If the NDVR will not be received GPS data then
each of the value filed are inserted as “-”

④ G-Sensor

Each vale is displayed up to the decimal point
second place. The section shows procedures
regarding X-axis value Gx, Y-axis value Gy and
Z-axis value Gz.

⑤ Sum

This value is total sum about G-sensor

⑥ Speed

This value is receiving from GPS signal.
(Km/Mph/Knot per every 0.5 seconds)

⑦ Company name

⑧ Driver name

This value is able to setup by PC manager

⑨ Vehicle number

This value is able to setup by PC manager

46

①② ①②

[ Figure 6.1.3] Information of overlaid on the 3rd camera video

Location

Descriptions

① Camera View

“REAR” is overlaid

② Time Information

The time information is selected by
configuration setup as “Timezone”
[Case 1: Only RTC is overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
[Case 2: Only UTC is overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
[Case 3: RTC & UTC are overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
UTC[YYYY:MM:DD-HH:MM:SS]
[Case 4: RTC with Daylight Saving Time]
DST[YYYY:MM:DD-HH:MM:SS]

Location

Descriptions

① Camera View

“IN-CABIN” is overlaid

② Time Information

The time information is selected by
configuration setup as “Timezone”
[Case 1: Only RTC is overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
[Case 2: Only UTC is overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
[Case 3: RTC & UTC are overlaid]
RTC[YYYY:MM:DD-HH:MM:SS]
UTC[YYYY:MM:DD-HH:MM:SS]
[Case 4: RTC with Daylight Saving Time]
DST[YYYY:MM:DD-HH:MM:SS]

[ Figure 6.1.2] Information of overlaid on the In-Cabin video

47

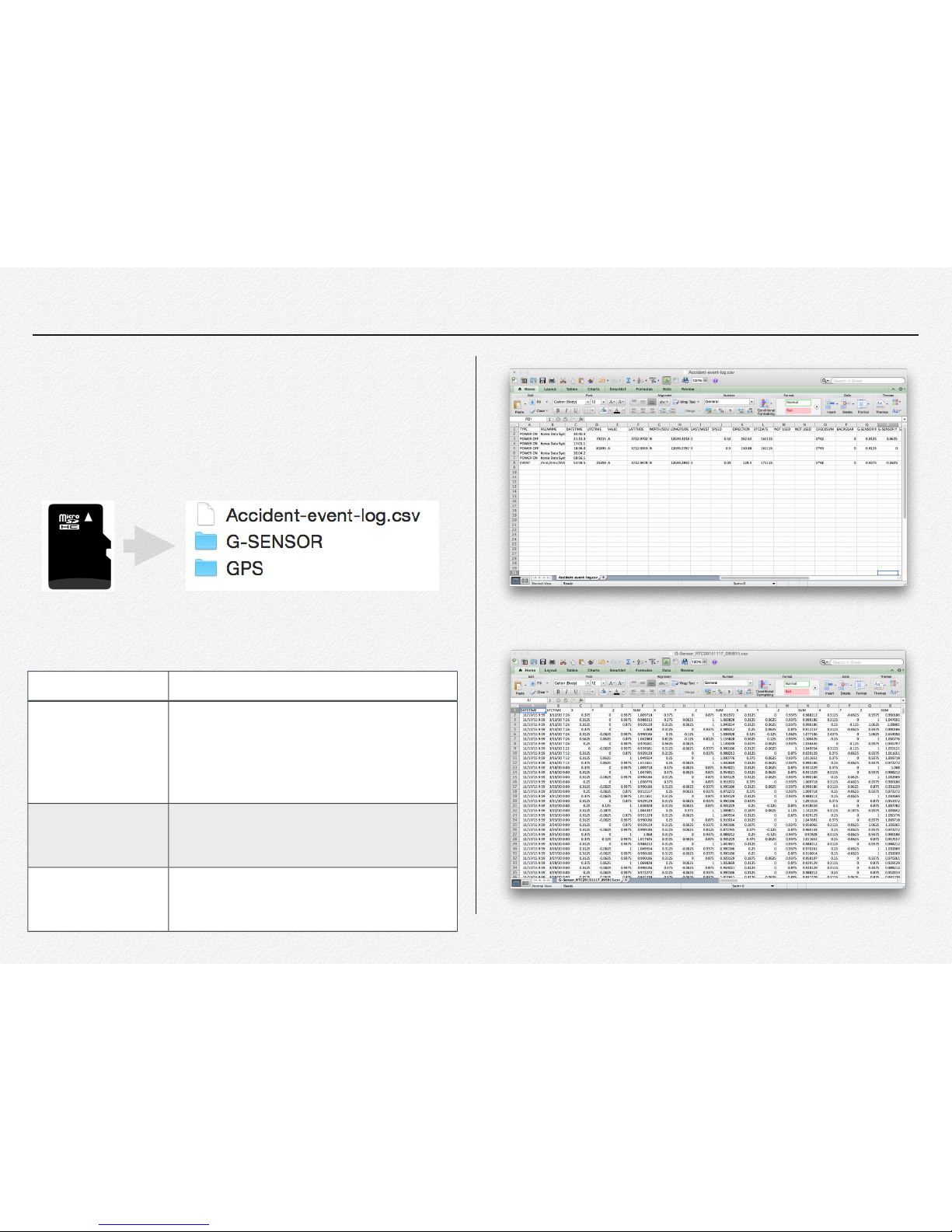

Data Logs

The NDVR is recording log history data about Accident event
and G-Sensor and GPS by CSV file format. This log file folder
will be created at ‘Primary SD card’. The CSV format file is able
to open Microsoft® Excel software.

Logs data has contained below data

Log File Name

Contained data

Accident-event-log

Event Type, File name, RTC Date & time,
UTC Date & time, GPS signal state, Latitude,
Longitude, Direction(N.S.E.W), Speed value,
G-Sensor(X,Y,Z,Check SUM) value,
Back-up dear state

G-SENSOR

RTC Date & Time, UTC Date & Time, G­Sensor(X,Y,Z,Check SUM) value per every 0.5
seconds interval.

GPS

RTC Date & Time, UTC Date & Time, GPS
signal valid, Latitude, Longitude, Direction,
Speed, Check SUM.

Accident-event-log file

G-Sensor log file

48

Manual Event Recording

This enhanced feature enables an additional method for
triggering Event Alarm Video for a specific incident to be
recorded for quick, future review. And
built-in LED status light will indicate the
system is functioning properly.

SOS Panic Button Recording(Extra)

The driver is able to creative ‘Emergency Video’ file save by
Panic button(Hidden button) push. The video file will be stored
‘EMERGENCY’ folder total 30 seconds.(before event 15 sec.
and after 15 sec.) And If the NDVR has connected network then
SOS signal will be transmitted to Administrator.

Excessive Speed Trigger

Combined with the GPS, the NDVR can be stored speed event
alarm video when the vehicle exceeds a preset speed.

Motion Detection - Sleep mode

Under motion detective when it entering sleep mode(park
mode) the NDVR will automatically start recording when any
object movement is detected. The NDVR can be setup to enter
‘Sleep mode’ when the vehicle is parked for conserve memory
space.The built in motion sensor will cause the NDVR to
resume ‘Park event’ recording if motion is detected.

GPS log file

Manual Event Recording Button

☑ Sleep mode is not recording and save any video file instead of

monitoring object movement. It will be saved ‘PARK’ event video file total
30 seconds( before event 15 sec. and after 15 sec.) when it detected any
object movement and back to the sleep mode again in automatically.

49

GPS(GNSS)

By simply connecting an GPS jack, you will know your vehicle’s
location and speed. Use the included the NDVR PC Manager
and your video will also display with an integrated GPS map.
The GPS will also enable the use of the systems max speed
setting to trigger event alarm video when a selected speed is
achieved.

External GPS Antenna(Extra)

This optional GPS antenna is useful for metal film coated
vehicle. Metallic coating on windshield of vehicle may cause
signal trouble in GPS signal.

Map Tracking

Review route efficiency and safety with available synchronized
GPS mapping and tracking embedded within the NDVR.

G-Sensor

* The direction of X-axis is an advancing direction of vehicle.

* The direction of Y-axis is a horizontal direction, whose positive

direction relative to advancing direction of the vehicle.

* The direction of Z-axis is a vertical direction, whose positive

direction is a downward direction.

X-axis

Z-axis

Y-axis

50

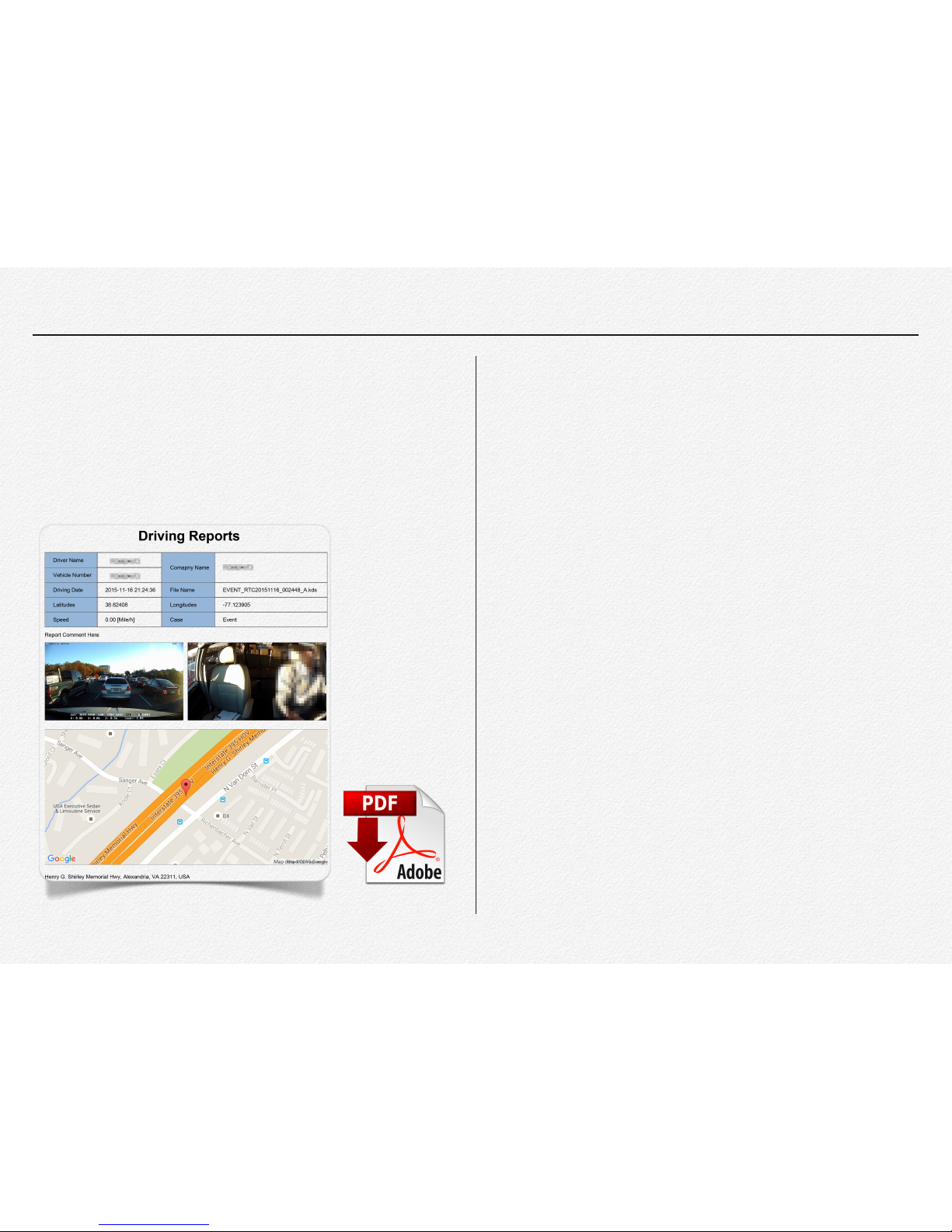

Driving Report

It is able to print out driving report or save PDF file format to
sending secure email. The report has contained below items.

Driver name, Vehicle number, Company name, Driving date &
speed, Video file name, Location address and map.all the video
snapshots.

Output Power DC5V

Micro USB and USB terminal is output DC power 5V for
smartphone or other USB device use. If vehicle has pocket Wi­Fi modem then it is able to charging battery by USB/micro USB
terminals.

External Memory Storage(Extra)

The NDVR is able to use external hard drive or SSD instead of
micro SD card use via micro USB and USB terminal. The
NDVR will not be saved video file while use HDD.

Wi-Fi LAN USB Adopter(Extra)

The NDVR is able to connect wireless internet by Wi-Fi LAN
USB Adopter. (Hotspot, Tethering, AP mode Wi-Fi..etc)

3G/LTE USB Modem(Extra)

The NDVR is able to use 3G/LTE modem for network
communication. The NDVR is support below products
modems(Firmware version 1.5.16)"

"
! ! 1. HUAWEI E8231 Wingle / Model: E8231s-2

! ! ! 2. Vodafone 3G / Model: K4607-Z USB Stick

3. Vodafone Mobile L4607-Z

3G/LTE Telecommunications

The NDVR is able to contact to FMS/CMS server via wireless telecommunication.

GSM/3G/4G

Administrator

INTERNET WEB SERVER PC Manager

*  Live GPS Tracking
*  Real-time streaming
*  VOD Download
*  Snapshot download
*  Analysts driving data

*  Analysis driving data
*  Configuration setup
*  Information setup
*  Print out report
*  Password setup

*  Log data(Location,Speed,G-force,Event,Driving info. etc.)
*  jpg image / Motion JPEG
*  Accident VOD

3G Modem
(USIM)

Internet Telecommunications

The NDVR is able to contact to FMS/CMS server via wireless telecommunication.

Pocket Wi-Fi Hotspot

Tethering

Free Wi-Fi

Internet/GSM/3G/4G

Administrator

INTERNET WEB SERVER PC Manager

*  Live GPS Tracking
*  Real-time streaming
*  VOD Download
*  Snapshot download
*  Analysts driving data

*  Analysis driving data
*  Configuration setup
*  Information setup
*  Print out report
*  Password setup

*  Log data(Location,Speed,G-force,Event,Driving info. etc.)
*  jpg image
*  Accident VOD

File & Memory Structure

54

The NDVR prepares 4 types of directories and system margin
area in Primary SDHC and Secondary SDHC slot.

Directory of NORMAL File Area

• This NORMAL folder is includes all non-alarm and event video
file.

• Allocate 84% in primary SD Memory, 95% in secondary SD
memory.

• The NDVR stores the all-time 60 seconds’ movie files in
NORMAL movie area.

• When movie files reached full capacity of NORMAL movie file
area in one SD memory, The NDVR starts to store NORMAL
movie files in NORMAL movie file area of another SD memory.
When it reached full capacity of NORMAL movie area in both
SD Memories, The NDVR should overwrite all-time movie files
in this area (delete the oldest file and store the new file).

• The EMERGENCY Event file is store in this area with
separated folder name use ‘EMERGENCY’

Directory of EVENT File Area

• Allocate 10% in primary SD memory.

• The NDVR stores the accident 30 seconds movie file in
EVENT file area.

Section 1

Usage of Memory

Secondary Slot

Primary Slot

Primary memory Secondary memory

55

• Although the NDVR depletes capacity of Event Move File area
in primary SD, the NDVR will overwrite EVENT Movie files
stored in the area. When this case occurs, even if EVENT
occurs the NDVR must not record new EVENT Movie file in
Event Movie File area of primary SD.

• The NDVR is record file names of Accident-Event-Log files to
CSV format.

• The PARK Event file is store in this area with separated folder
name use ‘PARK’

Directory of LOG File Area

• Allocate 1% in primary SD memory and Event Logs and
Sensor Logs will be stored in this area.

• A GPS Log is up to 1MB. If this log file becomes 1MB, the
NDVR should close this log file and open new log file to
record GPS data continuously.

• The NDVR is stores G-Sensor data detected by the NDVR in
20[Hz] as G-Sensor Log by CSV format.

• A G-Sensor Log is up to 1MB. If this log file becomes 1MB,
the NDVR should close this log file and open new log file to
record G-Sensor data continuously.

It is able to customize each file area by setup configuration.

(➤ page 78)"

* If one SD memory was inserted in only Primary SD memory

slot of NDVR then It operates according to the allocation of
Primary SD slot.

* If one SD memory was inserted in only Secondary SD

memory slot of the NDVR then It operates according to the
allocation of Primary SD slot. NORMAL movie file area and
EVENT movie area are prepared in the SD memory."

Primary Memory Area Secondary Memory Area

84%

NORMAL

EMERGENCY

EVENT

LOG

System Margin

10%

1%

5%

NORMAL

System Margin

95%

5%

56

Recorded File Size

Recordable Time - 2Ch.

Section 2

Recordable Time and Capacity

Audio

Video

4fps

5fps

10fps

15fps

30fps

Normal

10 MB

12 MB

22 MB

32 MB

62 MB

ON

High

14 MB

17 MB

32 MB

47 MB

92 MB

Normal

4 MB

9 MB

20 MB

29 MB

59 MB

OFF

High

6 MB

14 MB

30 MB

44 MB

89 MB

2 Channel mode

Audio

Video

4fps

5fps

10fps

15fps

30fps

Normal

9 MB

10 MB

19 MB

27 MB

52 MB

ON

High

12 MB

14 MB

26 MB

39 MB

75 MB

Normal

7 MB

8 MB

16 MB

24 MB

49 MB

OFF

High

10 MB

12 MB

24 MB

36 MB

72 MB

3 Channel mode

Video

Audio

16 GB

32 GB

64 GB

128 GB

ON

4.1 hours

8.2 hours

16.3 hours

32.7 hours

Normal

OFF

4.2 hours

8.4 hours

16.9 hours

33.8 hours

ON

2.8 hours

5.5 hours

11.0 hours

22.0 hours

High

OFF

2.9 hours

5.6 hours

11.3 hours

22.5 hours

30 fps / Secondary SDCARD

Video

Audio

16 GB

32 GB

64 GB

128 GB

ON

3.6 hours

7.2 hours

14.5 hours

28.9 hours

Normal

OFF

3.8 hours

7.6 hours

15.2 hours

30.4 hours

ON

2.4 hours

4.9 hours

9.7 hours

19.5 hours

High

OFF

2.5 hours

5.0 hours

10.1 hours

20.1 hours

30 fps / Primary SDCARD

[ 2 Channel mode ]

[ 2 Channel mode ]

57

Recordable Time - 3Ch.

Video

Audio

16 GB

32 GB

64 GB

128 GB

ON

25.3 hours

50.7 hours

101.3 hours

202.7 hours

Normal

OFF

31.7 hours

63.3 hours

126.7 hours

253.3 hours

ON

18.1 hours

36.2 hours

72.4 hours

144.8 hours

High

OFF

21.1 hours

42.2 hours

84.4 hours

168.9 hours

4 fps / Secondary SDCARD

Video

Audio

16 GB

32 GB

64 GB

128 GB

ON

22.4 hours

44.8 hours

89.6 hours

179.2 hours

Normal

OFF

18.7 hours

37.3 hours

112.0 hours

224.0 hours

ON

16.0 hours

32.0 hours

64.0 hours

128.0 hours

High

OFF

18.7 hours

37.3 hours

74.7 hours

149.3 hours

4 fps / Primary SDCARD

Video

Audio

16 GB

32 GB

64 GB

128 GB

ON

4.9 hours

9.7 hours

19.5 hours

39.0 hours

Normal

OFF

5.2 hours

10.3 hours

20.7 hours

41.4 hours

ON

3.4 hours

6.8 hours

13.5 hours

27.0 hours

High

OFF

3.5 hours

7.1 hours

14.1 hours

28.1 hours

27 fps / Secondary SDCARD

Video

Audio

16 GB

32 GB

64 GB

128 GB

ON

4.3 hours

8.6 hours

17.2 hours

34.5 hours

Normal

OFF

4.6 hours

9.1 hours

18.3 hours

36.6 hours

ON

3.0 hours

6.0 hours

11.9 hours

23.9 hours

High

OFF

3.1 hours

6.2 hours

12.4 hours

24.9 hours

27 fps / Primary SDCARD

[ 2 Channel mode ]

[ 2 Channel mode ]

[ 3 Channel mode ]

[ 3 Channel mode ]

58

• Your recordable time and capacity may differ from the figures
in the tables depending on your subject and actual recording
conditions.

• The higher the resolution, the more memory is used.

• Lower resolution increases the recording time, but the image
quality may suffer.

• The bit rate automatically adjusts to the recording image.
Accordingly, the recording time may vary.

• Memory cards bigger than 64GB may not operate normally.

☑ 1GB ≒ 1,000,000,000 bytes : Actual formatted capacity may

be less as the internal firmware uses a portion of the memory.

4 fps / Primary SDCARD

Video

Audio

16 GB

32 GB

64 GB

128 GB

ON

24.9 hours

49.8 hours

99.6 hours

199.1 hours

Normal

OFF

32.0 hours

64.0 hours

128.0 hours

256.0 hours

ON

18.7 hours

37.3 hours

74.7 hours

149.3 hours

High

OFF

22.8 hours

44.8 hours

89.6 hours

179.2 hours

[ 3 Channel mode ]

Video

Audio

16 GB

32 GB

64 GB

128 GB

ON

28.1 hours

56.3 hours

112.6 hours

225.2 hours

Normal

OFF

36.2 hours

72.4 hours

144.8 hours

289.5 hours

ON

21.1 hours

42.2 hours

84.4 hours

168.9 hours

High
OFF

25.3 hours

50.7 hours

101.3 hours

202.7 hours

4 fps / Secondary SDCARD

59

If user selects “UTC”, File Naming Rule filed of configuration file
has an indicator of UTC.

File name using RTC as “RTCYYYYMMDD_HHMMSS.kds”,
where “RTC” is indicated as using RTC time.

- “YYYY” is indicated as current YEAR,

- “MM” is indicated as current MONTH,

- “DD” is indicated as current DAY,

- “HH” is indicated as current HOUR,

- “MM” is indicated as current MINUTE,

- “SS” is indicated as current SECOND.

Section 3

File Naming Rule

Data File

Recorded Folder

NORMAL Movie File

/NORMAL/”each folder

including 20 files”

EVENT Movie File

/EVENT

EMERGENCY Movie File

/EMERGENCY

PARK Movie File

/PARK

Event Log

Accident Event Log

/LOG

GPS Log

/LOG/GPS

Sensor Log

G-Sensor Log

/LOG/G-Sensor

Recorded Folder

Example of File Name

NORMAL File

UTC20160726_020010.kds

EVENT File

EVENT_UTC20160726_020010_E.kds

EMERGENCY File

EMERGENCY_UTC20160726_020010
_E.kds

PARK Event File

PARK_RTC20160726_020010_E.kds

Accident Event Log

Accident-event-log.csv

GPS Log

GPS_UTC20160726_020010.csv

G-Sensor Log

G-Sensor_RTC20160726_113006.csv

60

Type of File

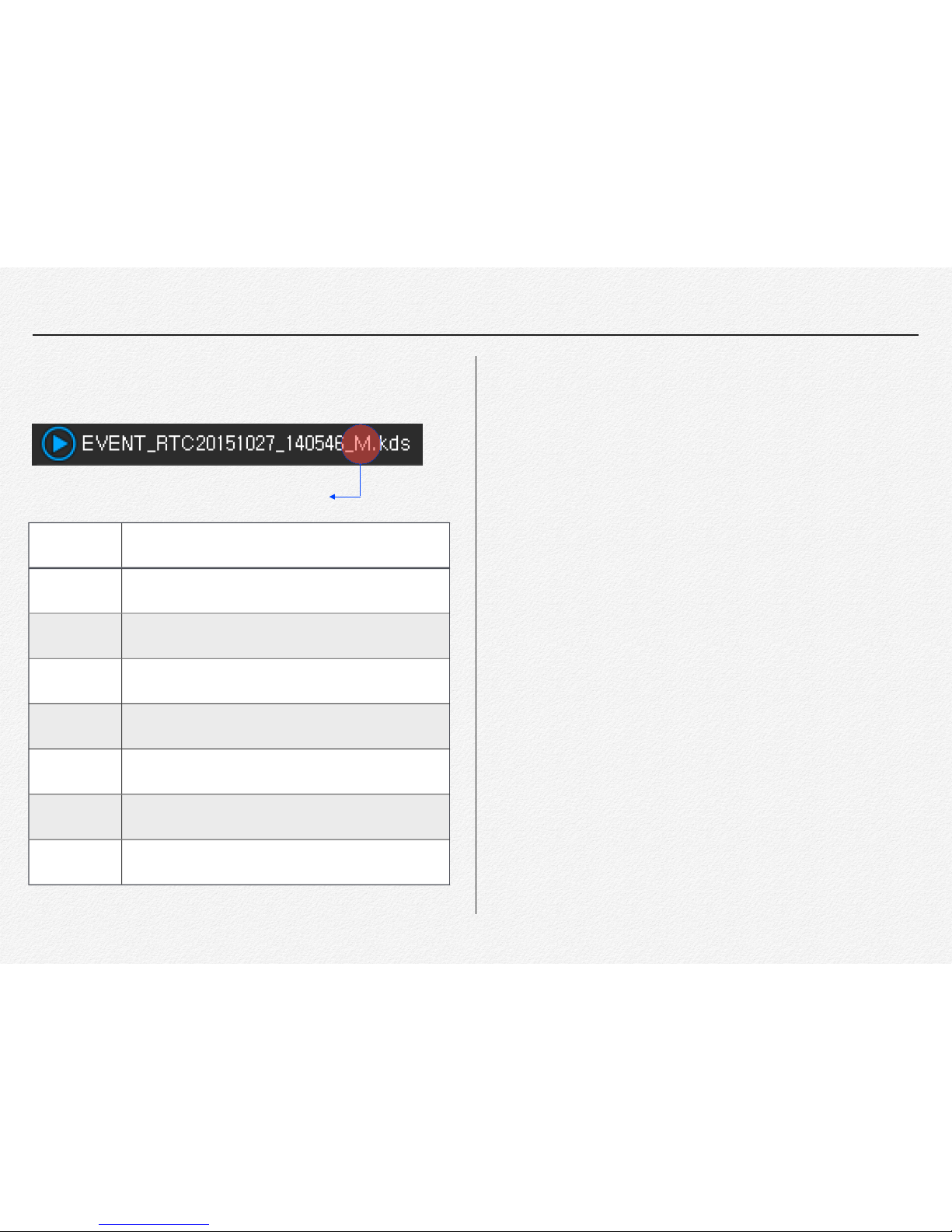

The file name has includes video type information.

Video type

Letter mark

Type of Movie

_M.kds

Pushed Manual EVENT Button Movie

_P.kds

Motion Detection Movie

_S.kds

Speed Event Movie

_A.kds

Rapid Acceleration Movie

_B.kds

Sudden Brake Movie

_G.kds

Detected G-Sensor Movie

_E.kds

Pushed Panic Button Movie

Please read the chapter for
PC Manager use. This
chapter is contain that how
to setup configuration for
the NDVR use.

PC Manager Software

62

Your computer must meet the following requirement to run PC
manager.

• System requirements mentioned above are
recommendations. Even on a system that satisfies the
requirements, PC Manager may not operate optimally.

• On a slower than recommended computer, video playback
may skip frames or operate in an unexpected manner.

• If the version of DirectX on your computer is lower than 9.0c,
install DirectX 9.0c or higher.

• We recommended you transfer recorded videos to a PC
before playing back or editing the videos.

• To run PC Manager, a laptop computer requires faster and
better components than a desktop PC.

• PC Manager is not Mac OS compliant.

• On 64-bit environment of Windows XP, Windows Vista, and
Windows7, PC Manager may be installed and work as 32-bit
program.

Section 1

System Requirement

Items

System Requirements

OS

Microsoft Windows XP SP2, Windows Vista,

Windows 7, Windows 8, Window 10 or higher

CPU

Intel® Core 2 Duo® 1.66 GHz or higher is

recommended, AMD Athlon™ X2 Dual-Core 2.2

GHz or higher is recommended, (Notebook:

Intel Core2 Duo 2.2GHz or AMD Athlon X2

Dual-Core 2.6GHz or higher is recommended)

RAM

6GB or higher is recommended

Video card

NVIDIA GeForce 8500 GT or higher,

ATI Radeon HD 2600 series or higher

Display

1024 x 768, 16-bit color or higher (1280 x 1024,

32-bit color recommended)

USB

USB 2.0 or higher

Direct X

Direct X 9.0 or higher

micro SD memory

40MB/s (Class 10) or higher / MLC type

63

1. Double click and run ‘PC Manager’ installation program file."

"
"
"
"
"
"
"
"

"

2. Select a language.

"
"
"
"
"
"
"

"

3. Click to ‘I Agree’ for next step of installation."

" "
" "
" "
" "
" "
" "
" "
" "
" "
" "

4. Choose install components and click to ‘Install’"

" "
" "
" "
" "
" "
" "
"

Section 2

Install PC Manager

⚠ If needs update PC Manager then

please remove previous PC Manager from
PC first.

64

5. Installing."

" "
" "
" "
" "
" "
" "
" "
" "
" "
" "
" "

6. Select ‘Repair’ for Visual C++redistributable setup and Click
to Next."

" "
" "
" "
" "
" "
" "
" "
" "
" "

7. Installation complete."

" "
" "
" "
" "
" "
" "
" "
" "
" "
" "
" "
" "

8. Click to PC icon at your desktop and running the program.

65

1. Click to PC manager in control panel."

"
"
"
"
"
"

2. Click to ‘Uninstall’ for next step of uninstallation."

"
"
"
"
"
"
"
"
"
"
"
"

3. Click to ‘Close’ for uninstall complete."

Section 3

Uninstall PC Manager

66

Section 4

User Interface

Front View

InCabin View

File ListMap or 3rd

camera view

Control Panel

67

Section 5

Icon & Button

Previous file play

Rewind

Play / Pause Next file play

Fast forward

Folder open

Play tap

Repeat play

control button

Event marker

Playing track time Total track time

68

1. Click ‘Loop’ button

Repeat start Repeat end

2. Just drag play tap to start and end line

3. Click ‘Close’ to end of repeat play.

Volume Control

Mute Default Max

Repeat Play Control

69

Playback Speed

Slow Level Default Fest Level

Brightness Control

Normal Brighter Darkly

70

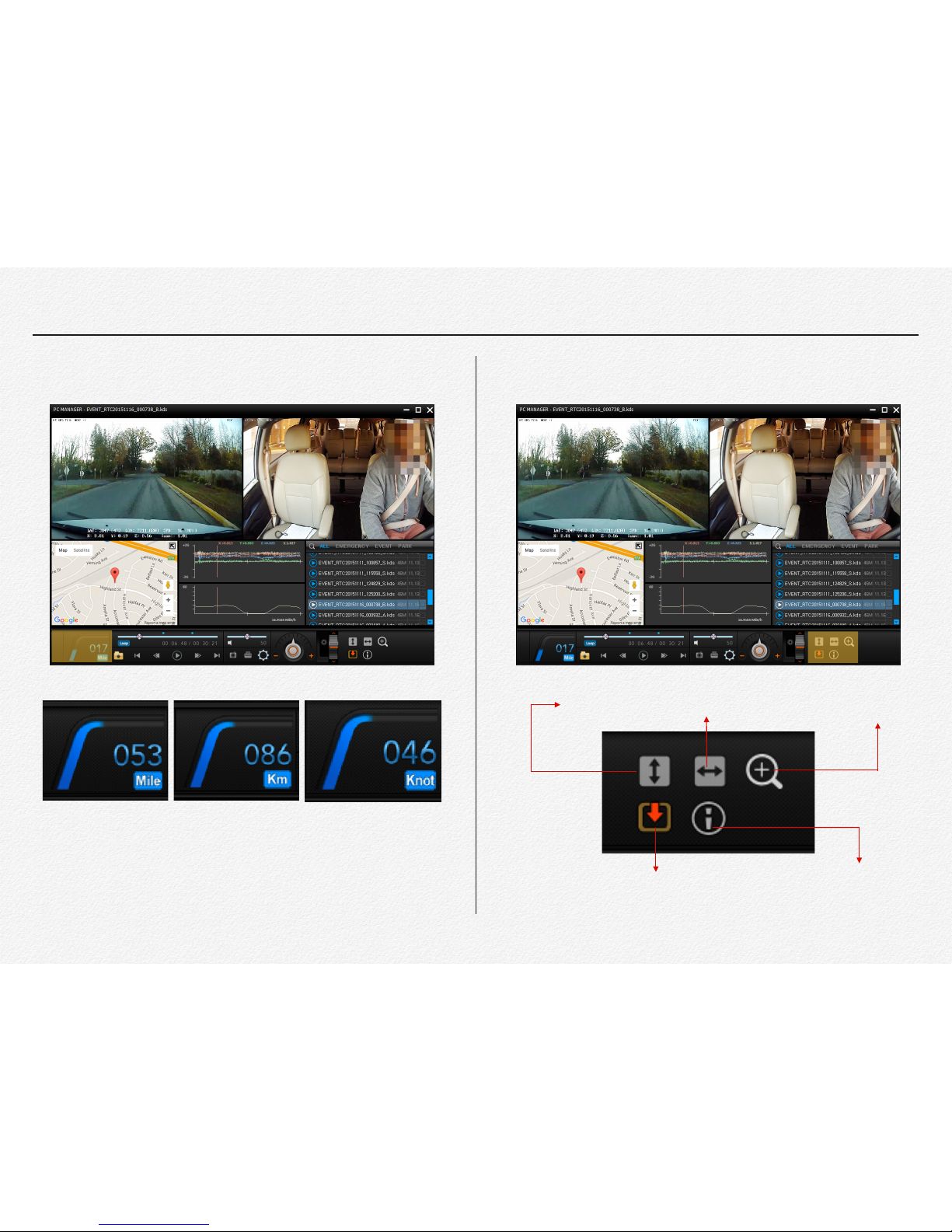

Speed Indicator

Miles per hour Kilometer per hour Knot per hour

Flip video Reverse video

Enlarge zoom

Download video file

File information

Video flip & info

71

Flip the video. The NDVR’s camera are able to rotate
degrees for movie analysis.

Reverse video

Enlarge Zoom

72

File information

It is able to check the video file information.

File download

It is able to scrap the video file.

The file select

73

Print Out Report

Click ‘Print icon’ to ready
to print and entering
comments on the report.

Enter any comments and
click ‘Print’ button.

Print out the driving reports with map address and video
snapshot.

74

Snapshot image

Save JPG snapshot images

Front view snapshot / YYYYMMDD_HHMMSS_CH1.jpg

InCabin view snapshot / YYYYMMDD_HHMMSS_CH2.jpg

3rd view snapshot file name is YYYYMMDD_HHMMSS_CH3.jpg

G-sensor Graph

Speed Graph

G-Sensor & Speed Graph

75

Record

This ‘Record’ tap is able to setup for record type and other
setting for video.

* 3 Channel Mode: Default value is ‘Auto’ and if connected 3rd

camera then the NDVR will auto detect and change 3 Channel
mode.

Section 6

Configuration Settings

Setting Icon

It can be changed and save value of settings via creating setup.cfg
file to memory card or HDD.

76

* Recording FPS: It is able to change video’s fps value applies

to all cameras. The lower frame value is makes longer time
video save. Please refer to each channel mode management
as below. !

! !
! !
! !
! ! ! !
! ! !
! ! !
! ! !
! !
! !
! !
! !
! !
! ! !
! ! ! ! !
!

! ! ! ! !
! ! ! ! !
! ! ! ! !
! !
! !
! !
!

!
!
!
!
! !
! !

! ! ! !
! ! !
! ! !
! ! !
! ! !
! ! ! !
! ! !
! ! !
! ! ! ! !
! ! ! !
! ! ! !
! ! !
! ! !
! ! !
! !
!

77

* Over speed FPS: It is setup for Event video Recording when

an over speeding EVENT occurs."

"
"
"
"

"
"
"
"

"
"

"

"
"
"

"
"
"

"
"
"
"

"
"
"

"
"
"
"

"
"
"

"
"
"
"

"

* Sleep Mode: Motion detection mode while vehicle is parked. "

System automatically records when motion is detected.

* Audio Record Enable: Enable / Disable Microphone for

audio recording.

* Front Camera Flip: Inverting of camera angle.

* InCabin Camera Flip: Inverting of camera angle.

* Rear(3rd) Camera Reverse: Reversing of camera angle.

* Speed Unit: Select your speed unit.

78

"

"
"
"
"

"

"
"
"

"
" "
" "
" "
" "
" "
" "
" "

"
"
"

"

"
"

"
"
"

"
"
"

"
"

"
"
"
"

"
"

"
"
"
"
"
"

"

"

"
"

* Load from movie: Import setting value from the movie listing.

* Load: Import setting value from ‘setup.cfg’ file from PC.

* Save: Save setting value to micro SD card or removable

memory for setting implement.

* SD Format: Format micro SD card by PC. This format function

is support maximum 32GB storage memory card. If needs
format memory card more greater then 32GB then please use

separate format program. ⚠ Formatting the SD card will erase

all content. Please back up data if necessary

* Default: Restore factory settings.

*

Close: Exit setting menu(☑ NO settings are saved when

exiting via CLOSE.) To save and exit, click on SAVE button.

79

Event

This ‘EVENT’ tap is able to setup for event recording rules.

* Emergency Overwrite: Disables overwrite of previously

recorded Emergency Events (Foot Pedal Emergency Event
Button) when storage capacity is full.

* G-Sensor Sensitivity: Adjust the sensitivity of the G Sensor

to detect vehicle vibration and shock. Lower G Sensor values
(i.e. 2.0G) represents increased sensitivity than higher GG­Sensor values (i.e. 3.5G). Suggested value is minimum 3.0G
to minimize false triggers."

* Driving Speed Limit: Enable / Disable maximum vehicle

speed limit EVENT trigger. Enter max speed."

"
"
"

80

* Sudden Acceleration: To monitor Sudden Acceleration for

fleet safety and efficiency. Enter speed based on desired
value. Suggested value is minimum 10 miles to avoid
excessive false triggers. System calculates variation at 0.5
second intervals"

* Sudden Brake: To monitor Sudden Braking for fleet safety

and efficiency. Enter speed based on desired value.
Suggested value is minimum 10 miles to avoid excessive
false triggers. System calculates variation at 0.5 second
intervals.

"
"
"
"
"

"

Time

This ‘TIME’ tap is able to setup for location time.

* Time Zone: The NDVR is recorded time by UTC and RTC so,

Please setup time zone to recording current time and location.

81

* Day Light Saving Time: Enable / Disable Daylight Savings

Time."

* Time Record: All video and data files are saved in this

format. To use local time, select ‘RTC’"

"

/RTC: Regional Time in Current"
/UTC: Coordinated Universal Time"
/RTC = UTC + Offset Time(GMT)"

"
"
"
"
"
"
"
"
"
"

User Settings

This ‘USER SETTINGS’ tap is able to setup driving information
and it will be displayed to video overlay and driving report.

82

* Company name: Enter company name to this blank and the

NDVR will record video file and data by this company name.
This information is able to mark in video overlay(watermark)"

"

* Vehicle name: Enter Vehicle name to this blank and the

NDVR will record video file and data by this Vehicle name.
This information is able to mark in video overlay(watermark)"

"

* Vehicle number: Enter Vehicle number to this blank and the

NDVR will record video file and data by this Vehicle number.
This information is able to mark in video overlay(watermark)"

"
"

* Driver name: Enter Driver name to this blank and DR will

record video file and data by this Driver name. This
information is able to mark in video overlay(watermark)"

"
"

"

* Playback Security: Administrator is able to lock the video

play and open each file."

"
"
"
"
"

83

Storage

Storage setting is Manage and allocate micro SD card storage
capacity to individual recording segment.

Recommend minimum 35% storage capacity to Event.

Network

Network setting is setup wireless telecommunication
environment to use FMS(Fleet Management System)

84

* Network Type: Select type of network method for use."

* AP Name(SSID) and Password: Enter the SSID and

password."

* 3G/LTE: To connect using 3G or LTD modem via USB(micro
USB) port.

It is necessary to verify modem from carrier site only first time.

1. Connect the 3G or 4G modem to PC and check driver detect.

2. Open internet web browser and go to carrier site as guiding

of program( ex. http://192.168.9.1/)

3. Check and enter APN and IPv4 number as your USIM and

Carrier information and try to internet connect by the modem.

4. If the internet is available use then connect the modem to the

NDVR by cable. It is may not necessary to enter APN and
Dial-up Command code when the modem has success use
internet by PC at first time.

"
" "
" "
" "
" "
" "
" "
" "
" "

Turn on the Hotspot

Get the password

85

* Server Address: Entering your server address. If you are not

sure the URL address for server access then contact to your
distributor."

" "
" "
" "
" "

* Live Streaming: This selection is needs to 3 Channel mode
device for monitoring cameras via FMS server only. If the
NDVR operating 2 Channel mode then it is able to switching
camera between Front and InCabin view."

"

"

"

"

"
" "
" "
" "

LBP

The NDVR can prevent the discharge of the vehicle battery by
blocking power to the NDVR and modem if the voltage drops
below a configured value or if the configured time has elapsed.

"

"
"

"
"

View Switching button by Live Streaming pop-up page

Monitoring the voltage and power cutoff

Set power cutoff timer

86

Etc.

This ‘Etc.’ tap is for setting LED light and sound output rules.

* Voice Guide: Voice prompt for system startup and recording.

If don’t need to any sound out up then select ‘Off’."

" "
" "

* Vehicle Info Overlay: Watermark Vehicle, Driver and

Company information on video."

* Overlay Font Size: This selection is changing overlay text

font size."

" "
" "

* Dry signal: The NDVR is able to receive trigger signal from

external device which device is output electronic signal ‘High’
and ‘Low’. If it selected ‘Trigger signal use’ then it is working
same as ‘Emergency Event’ file sort(Trigger Event). "

" "

87

* Video Mode: This selection is for ‘Video-out‘ frequency."

" "
" "
" "

"
"
"
"
"

* Video Mode: This selection is for ‘Video-out‘ mode. When

optional LCD monitor is connected for real time video viewing"
( ➤ page 44)"

"

* In-Cabin LED: This selection is setup for control blinking

enable to In-Cabin LED operating."

" "
" "
" "

* Front LED: This selection is setup for control blinking enable

to operating LED"

" "
" "
" "

* Front LED Blink Type: This selection is setup for control

blinking rules to operating LED. If don’t need to blinking
‘Operating LED’ without Event occur then select ‘Event state

only’. (☑ After saved Event video file then ‘operating LED’ will

off in automatically.)

NTSC-Compatible countries/regions

Bahamas, Canada, Central America, Japan, Korea,
Mexico, Philippines, Taiwan, United States of
America, etc.

PAL-Compatible countries/regions

Australia, Austria, Belgium, Bulgaria, China, CIS, Czech
Republic, Denmark, Egypt, Finland, France, Germany, Greece,
Great Britain, Holland, Hong Kong, Hungary, India, Iran, Iraq,
Kuwait, Libya, Malaysia, Mauritius, Norway, Romania, Saudi
Arabia, Singapore, Slovak Republic, Spain, Sweden,
Switzerland, Syria, Thailand, Tunisia, etc.

Specification

Component

Description

Remarks

CPU

Cortex-A8 (800MHz) Processor

Linux ARM

1st/ Front

Digital HD CMOS Sensor

1280 x 720p (HD)

Camera

2nd/In-Cabin

Digital HD CMOS Sensor

1280 x 720p (HD)

Camera

3rd/Rear camera

NTSC Analog D1 Composite

720 x 480p (D1), Optional

Front Lens

114.39(H), 61.98(V), 120.0(D)

Angle of view

In-Cabin Lens

114.39(H), 61.98(V), 150.0(D)

6 Element All Glass Lens

DDRII RAM

256 MB

SAMSUNG

NAND Flash Memory

128 MB

SAMSUNG

G-Sensor

3-Axial acceleration sensor

up to ±8G

Speaker / MIC

Mono Speaker / Internal MIC

Super capacitor

DC 5V / over 5F

Ensures safe shutdown

GPS Module Antenna

Built in Cradle

Supports additional external GPS Antenna

Removable storage

micro SDHC(MLC) x 2 slots

128 GB max per slot (MLC)

Video out put

NTSC/PAL

2.5mm jack to RCA

DC IN

3.5Ø DC input jack

3 Type of wire for Ignition detect

GPS

2.5Ø 4PIN ear phone jack

VIDEO OUT

2.5Ø 4PIN ear phone jack

Hardware Interface

CAMERA IN

2.5Ø 4PIN ear phone jack

Reverse gear or Trigger signal support

Hardware Interface

micro USB

Micro-USB Type B

Hardware Interface

USB

USB Type-A

Host mode / DC 5V supply

Component

Description

Remarks

Format

Private Encryption / H.264

mp4 support via Firmware update

Mode

2 Channel

3 Channel

Video Codec

Front

4Mbps / @30fps

4Mbps/ @27fps

Video Codec

In-Cabin

2Mbps/ @30fps

2Mbps/Max.@15fps

Video Codec

3rd Camera

N/A

512kbps/Max.@15fps

Audio Codec

PCM

Monaural, 22.05Khz, 16bits

Uninterrupted Recording

One file / min(60s±1s)

Button Event recording

Recording

SOS Event recording

15 sec.±0.25s before; 15 sec.±0.25s after

Recording

G-sensor Event recording

15 sec.±0.25s before; 15 sec.±0.25s after

(Total 30 sec. Event file)

Operating Power Voltage

DC 8V ~ 32V

Operating Temperature

-25℃ to +85℃

Storage temperature

-30℃ to +95℃

109(w) x 82(H) x 19(D) / mm

Main body, excluding camera lens protrusion

Dimension

121.9(W) x 104.2(H) x 46.1(D) / mm

Main body with GPS cradle and tamperproof

case, excluding camera lens protrusion

Weight

Main device: 138g / GPS Cradle : 42g

Warranty Period

1 year after purchased

MTBF

7 years

KC, FCC, EC, RoHs

Product guarantee period

5 years

Made in Korea

※ The technical specifications and design may be changed without notice.

91

Power Consumption

Condition

2 Channel

3 Channel

Normal mode

505mA ± 5%

590mA ± 5%

Not Connected

Sleep mode

470mA ± 5%

560mA ± 5%

Normal mode

560mA ± 5%

630mA ± 5%

Wi-Fi Connected

Sleep mode

520mA ± 5%

610mA ± 5%

DC 12V

Condition

2 Channel

3 Channel

Normal mode

255mA ± 5%

290mA ± 5%

Not Connected

Sleep mode

235mA ± 5%

275mA ± 5%

Normal mode

280mA ± 5%

315mA ± 5%

Wi-Fi Connected

Sleep mode

260mA ± 5%

300mA ± 5%

DC 24V

Measured Firmware Rev.1.5.11

RoHS COMPLIANT

The NDVR complies with “The Restriction of the use of certain Hazardous Substances in electrical and electronic equipment”,
and we do not use the 6 hazardous materials- Cadmium (Cd), Lead (Pb), Mercury (Hg), Hexavalent Chromium (Cr +6), Poly
Brominated Biphenyls (PBBs), Poly Brominated Diphenyl Ethers (PBDEs)- in the NDVR.

Warranty

94

COMPANY LIMITED WARRANTY

We warrants that this product is free from defective material and workmanship.

We further warrants that if product fails to operate properly within the specified warranty period and the failure is due to improper
workmanship or defective material, We will repair or replace the product at it’s option.

All warranty repairs must be performed by a We authorized service center.

On carry-in models, transportation to and from the service center is the customer’s responsibility.

The original dated sales receipt must be retained by the customer and is the only acceptable proof of purchase.

It must be presented to the authorized service center.

EXCLUSIONS (WHAT IS NOT COVERED)

This warranty does not cover damage due to accident, fire, flood and/or other acts of God; misuse, incorrect line voltage, improper
installation, improper or unauthorized repairs, commercial use, or damage that occurs in shipping.

Exterior and interior finish, lamps, and glass are not covered under this warranty.

Customer adjustments which are explained in the instruction manual are not covered under the terms of this warranty.

This warranty will automatically be voided for any unit found with a missing or altered serial number.

Some Nations do not allow the exclusions or limitations of incidental or consequential damages, or allow limitations on how long an
implied warranty lasts, so the above limitations or exclusions may not apply to you.

This warranty gives you specific legal rights, and you may also have other rights which vary from nation to nation.

95

NOTES REGARDING TRADEMARKS

• All the trade names and registered trademarks mentioned in this manual or other documentation provided with your "
product are trademarks or registered trademarks of their respective holders. Furthermore, ‘TM’ and ‘®’ are not

mentioned in each case in this manual.

• SD, SDHC and SDXC logos are trademarks of SD-3C, LLC.

• Microsoft®, Windows®, Windows Vista®, Windows® 7, and DirectX® are either registered trademarks or trademarks "
of the Microsoft Corporation in the United States and/or other countries.

• Intel®, Core™, Core 2 Duo®, and Pentium® are the registered trademarks or trademarks of the Intel Corporation in the "
United States and other countries.

• AMD and Athlon™ are either registered trademarks or trademarks of AMD in the United States and other countries.

• Macintosh, Mac OS are either registered trademarks or trademarks of Apple Inc. in the United States and/or other

countries.

FMS

Vehicle Fleet Management Systems

Related Glossary Terms

Index

Drag related terms here

Find Term

LBP

1.Low Battery Protection Technology

2.Battery Discharge Prevention Technology

Related Glossary Terms

Index

Drag related terms here

Find Term

RTC

Regional Time in Current "
RTC = UTC + Offset Time(GMT)

Related Glossary Terms

Index

Drag related terms here

Find Term

UTC

Coordinated Universal Time

Related Glossary Terms

Index

Drag related terms here

Find Term
