Eonon G2226 User Manual

Download

Page 1

Model: G2226

www.eonon.com

User Manual

Please read this manual before using and

save this manual for future reference.

Page 2

1401

CONTENTS

NOTE

instructions will not enjoy the warranty.

2. To drive safely and avoid break the traffic rules, do not watch program and operate the unit while driving.

3. To avoid short circuit, please do not exposure the device to rain.

4. To avoid short circuit, please do not put in the device or any metal objects left behind.

5. Not open the machine for maintenance by yourself, please go to the professional repair service station for repairing.

6. When the engine is turned off, please do not use the car audio a long time, otherwise the battery may run out.

7. Do not insert anything to the device’s vent and other openings.

8. Damage to the screen carefully! Do not use sharp objects push, rub, Stroke the screen.

1. Please read the instructions before using the unit, the damage caused by not following the

Click the display position of year/ month/day/hour/minute to reset the current parameters.

●

Set in the time interface touch 12HR/24HR icon to switch between clock modes.

●

Time setup

Touch [Time] icon in the main interface to enter into the calendar setup interface.

Trouble shooting

PROBLEM

CAUSE

CORRECT ACTION

Cannot power on

After ignition switchoff, setting information all lose

Poor performance of radio station

Connot load disk

Cannot play disc

Cannot switch language/ subtitle

No image

Cannot watch image during driving

Check whether power fuse melt or not

Some factors cause MPU wrong operation

Change battery or fuse

Weak signal

There is a disk inside

Disc is scratched

Put wrong side of disc into the unit

Lens has dirty

There is only one language/subtitle in disc

Other factors cause MPU wrong operation

It’s not allowed to watch image during driving

Change fuse same as the old one

Press [RES] button on the panel by penpoint, then, power on

Reset information and save

Move the car to another place, then research

Eject disk, then, slot in new disc.

Change new disc

Slot in the disk with sign side up

Clean lens by lens clean disc

If disc is not with multi-language/ subtitle, it cannot switch language/ subtitle

Press [RES] button on the panel by penpoint, then, power on

Park the car in a safe place, put the car stall in “ P ” postion, pull up the hand brake

Panel Function

Remote controller operation

Turn on/off Host

Access main interface

U Disc/SD Card function operation

Radio Function Operation

Disc Function Operation

Bluetooth Function Operation

External input operation (Optional)

IPOD Function operation

Analog TV function operation

GPS Navigation Function Operation

Other functions

Access setup interface

Trouble shooting

Page 3

0213

Panel Function

1. SRC button

Press this button shortly to power on, press this button longer to power off. In normal situation, press SOURCE button can return to the main menu.

2. MUTE button

Press the button to close volume output, re-press it to resume previous volume level.

3.VOL-/+ button

Press this button to reduce/increase the volume.

4. UP button Press this button to make the LCD monitor up.

5. DN button

Press this button make the LCD monitor down.

6.NAVI button

Press the button to enter into/exit navigation interface.

Press the button to eject disc.

8.RESET

Press this button can back to default mode.

9.USB slot

Connect the USB memory to this socket, and the unit can play music format files supported by this unit in the USB memory.

10.IR

To receive infrared signals from the remote control matched with the unit.

11.AUX IN

External audio input socket.

12. MIC

Bluetooth microphone input port.

Access setup interface

Click [Setup] icon on main interface to access setup interface. Touch each function icon to enter into the corresponding function operation.

Foreground/background Setup

You can enable background mode by foreground/background setup. When the unit is connected with background device, you can enable background mode of the unit to play audio and video files. At the Set interface Touch [Foreground/background] icon, Enter into foreground/background setup interface. Only in radio/bluetooth/navigation mode can background mode be enabled.

Sound Setup

Touch [Sound Setup] icon to enter sound setup interface. Sound effect setup: select general, pop, classic or rock, you can adjust to the best audio effect according to your preferences.

System volume: adjust volume level of the whole unit. Bluetooth volume: adjust volume level of bluetooth mode. Navigation volume: adjust volume level of navigation mode. Reverse volume: adjust volume level of reverse mode. Screen click sound: select to turn screen click sound on/off. After click sound is turned off, there is

no beep sound when you touch the screen.

Loudness: Select the turn on/off loudness function. Tweeter/woofer/subwoofer: adjust volume level of tweeter/woofer/subwoofer. Left front speaker attenuate: adjust volume level of left front speaker. Right front speaker attenuate: adjust volume level of right front speaker. Left rear speaker attenuate: adjust volume level of left rear speaker. Right rear speaker attenuate: adjust volume level of right rear speaker.

Navigation Path Setup

Navigation path is already set when you buy the product. Do not enter into the navigation setup interface to change path arbitrarily. Otherwise you may cause navigation program abnormal.

Language Setup

During use, you can select your familiar language to display menu by language setup. At the language set interface click appropriate language icon, the selected language will be displayed as the menu language.

Radio Area Setup

You need to select your radio area before you use radio function.

Backlight

Via backlight setup interface, you can manually adjust the display screen brightness according to the intensity of light of the environment to achieve satisfactory effect.

Touch Screen Calibration

If errors occur in touch position, you can calibrate touch coordinates. Enter touch calibration interface, Use a touch pen to click the central area of symbol “+”, calibrate the screen in the moving sequence of the central area of “+”. After calibration is completed, system will automatically save data and exit the screen.

Steering Wheel Setup

You can also perform control to the unit by the steering wheel of the car. Connect the positive and negative terminal of the car SWC cable with the positive and negative terminal of the SWC cable of the unit respectively. Click buttons on the steering wheel one by one and keep a record of relevant sequences. Click appropriate function setup to save the settings.

Page 4

1203

Remote controller operation

6. SEEK

In playback mode, short press the button to select the previous/next file; long press the button to fast forward/backward play. In radio mode, short press the button to fine tune and search for station manually. Long press the button to scan station automatically. Under analog TV status, short press the button to fine tune and search for station manually; long press the button to scan channel automatically.

7. VOL

Press the button to increase/decrease the volume.

8. SEL---sound feature

Repeat to press the button to select sound feature.

9. LOUD/ equal loudness compensation/ hang up

Press the button to turn the LOUD function on/off. When the unit supports bluetooth function, press the button to hang up a call after a call is finished.

10. BAND/P/N

In radio mode, press the button to switch the band. Under playback and TV status, press the button to switch the system.

11. LOC/RDM

In radio mode, press the button to switch between local/distant. In playback mode, press the button to start random play.

12. STOP

Press the button once to pause, press it twice to completely stop.

13. Play/pause

Press the button to switch between play and pause; under stop status, press the button to start playback.

14. ST/PROGstereo/programmed playback

In radio mode, press the button to select stereo or mono station; in playback status, work with number buttons to start programmed playback.

1. PWR

Press the button to turn power on/off.

2. MUTE

Press the button to turn the volume output on/off, repress it to resume previous volume level.

3. NAVI

Press the button to enter/exit the navigation interface.

Short press the button to switch the mode. Long press the button to switch between foreground/ background controls for the remote controller. Only effective when the background mode is enabled.

5. EQ/ preset equalizer select/answer

Press the button to select different sound effect mode. When the unit supports bluetooth function, press the button can answer a call.

4. SOURCE/IR-SW---mode switch

GPS Navigation Function Operation

1. Navigation Function Operation

For detailed operation of navigation function, see “Navigation Operation Manual”.

2. Receiving signal error

When the satellite signals can be normally received, the error of standard GPS shall be about 7 meters. Driving on parallel sections, there shall be error even the product has auto-correct function. The normal receiving of satellite signals shall be affected and cause error in following environment:

In tune

Among tall buildings

At the boulevard

The antenna is sheltered

Underground parking

Overpass or viaduct

Other functions

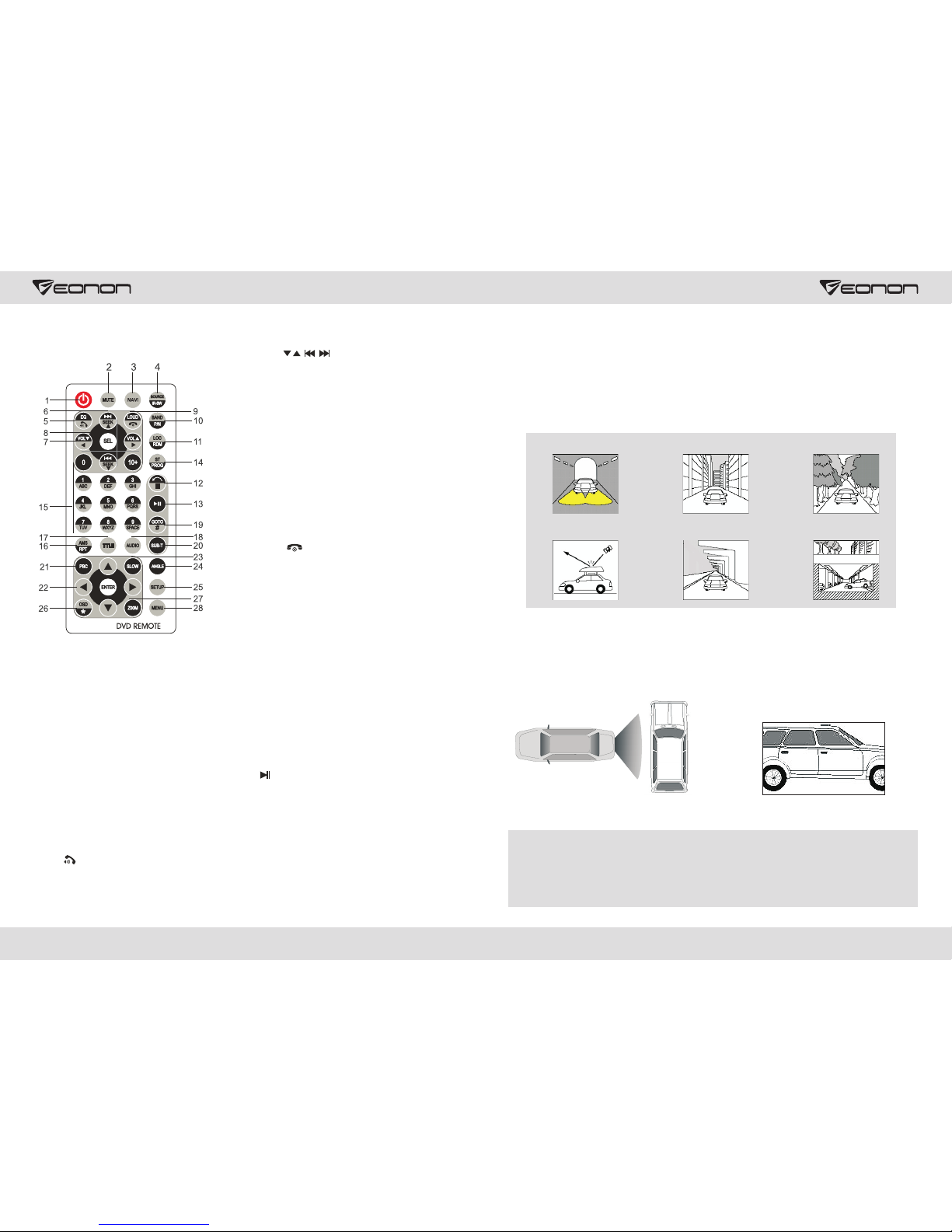

Rearview function In any running state, the video signal can switch to reverse video state when reversing the car, and the system shall return to its initial running state after reversing the car.

Reverse field simulation

Rearview backup image

Warning

Do not rely on CCD system completely, please make sure your car is safe by your eyes during driving. Back rearview system only assists in driving. As the distance range of rearview system is limited, completely relying on the rearview system during driving may cause accidents.

Page 5

15. 0-10+---number button

In radio mode, press number buttons to select to play pre-stored stations; long press the number button (1-6) to store the current frequency in the pre-stored position. In playback mode, press number buttons to directly select songs and chapters. In analog TV mode, press number button (1-9) to select station.

16. AMS/RPT

Long press the button to search for station automatically. In radio mode, press the button to browse memory stations; in playback status, press the button to select repeat to play mode.

17. TITLE

In DVD mode, press the button to return to the top menu of the disc.

18. AUDIO

In DVD mode, press the button to switch the dialogue language of the played program. Under VCD status, press the button to select L/R channel/stereo.

19. GOTO---play time setup

Under playback status, after the button is pressed, work with number buttons to select track/time play.

20. SUB-T

In DVD mode, press the button to switch subtitle language.

21. PBC

In VCD mode, press the button to display all tracks menu of the disc, work with a number button to select a track. In DVD mode, press the button to return to the root menu.

22. Enter

In DVD mode, press the button to move the cursor up/down/left/right to select an item in the system setup menu, and press the ENTER button to confirm the selected item.

23. SLOW

Under playback status, press the button to start slow forward playback.

24. ANGLE

In DVD mode, press the button to change the shooting angle of the played program.

25. SETUP

In play DVD mode, first press the STOP button, then press the SETUP button to choose different set items.

26. OSD

Press the button to display title, chapter, playing time and remaining time.

27. ZOOM

Under VCD/DVD reading status, press the button to zoom the image in/out.

28. MENU

Press the button to switch between the main interface and the current mode.

Battery Change

If the remote controller operates only over shorter distances or does not operate at all, replace the battery with a new one, and confirm polarities before you change the battery.

One hand press stopper, then pull out battery.

Put battery into battery holder.

Put the holder into the remote controller.

1. Enter / Exit

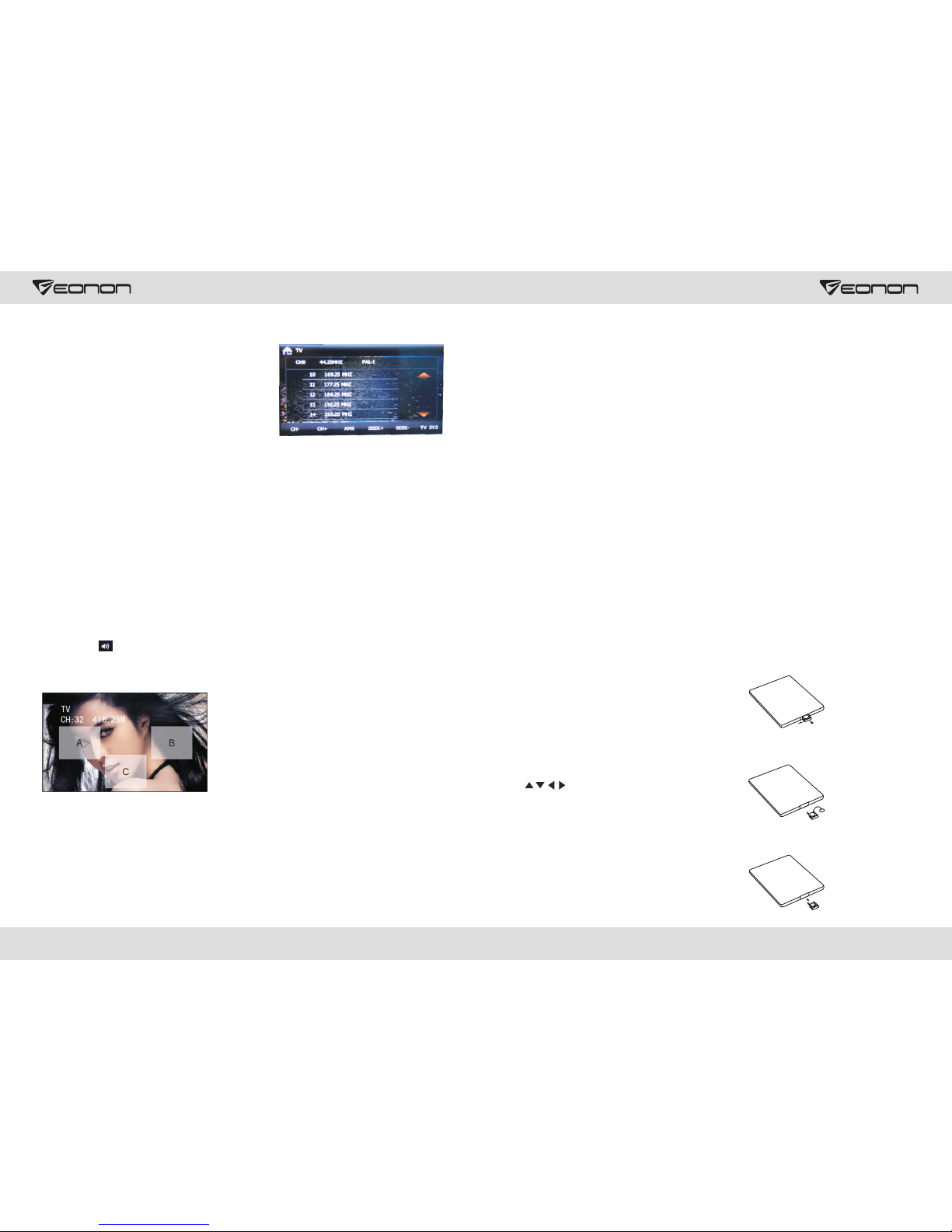

Touch [TV] icon in the main interface to enter the TV playback interface.

2. Search & save channel

(1) Auto search & save channel You may need to search for station first before you use TV. Touch [AMS] button in the interface to automatically start searching for TV channels within the scope of all the TV channels, effective TV channels searched will be automatically memorized in the preset channels in ascending order. During search, retouch [AMS] button to stop searching. (2) Manual search channel Hold [SEEK+]/[SEEK-] button on display screen for 2 seconds or more to automatically search for effective stations in the frequency ascending/descending direction.

3. Select channel and play

Touch [CH-] and [CH+] button on display screen to select the next/previous saved channel to play.

4. Audio format conversion

Touch screen [TV SYS] button to switch the TV audio formats, the following order: PAL I → NTSC → SECAM - DK → SECAM-BG → PAL-DK → PAL-M → PAL-N → PAL-BG If abnormal sound appears, that may be because the sound system setup is wrong, you need to reset it. (Sound system adopted in China: Mainland areas except Shenzhen etc.“I” other areas: “DK”; Hong Kong: “I” Users should pay special attention to this.)

5. Adjust the volume

Touch interface icon, adjust the volume size.

6. Full-screen playback

Touch Radio icon, automatically after 3 seconds to switch to full-screen playback mode, as shown below:

Analog TV function operation

Touch A area - on a radio station; Touch B area - the next station; Touch C area - to return a small screen mode.

Page 6

910

Touch the menu definition:

①. ②. Previous song ③. Next song ④. Display ID3 track information (As shown below)

Play/Pause

⑤. track using the numeric keypad to play.

Numeric keypad: Click the button to pop-up numeric keypad (As shown below), you can select a

⑥. the screen to the home directory folder, press the button again to return the current playback status.

⑦. Turn on ⑧. Page down ⑨. Repeat / Repeat all ⑩. View playback on / off

Back to Main Menu / Back to the current state of play: During playback, press the button to switch

Turn on/off Host

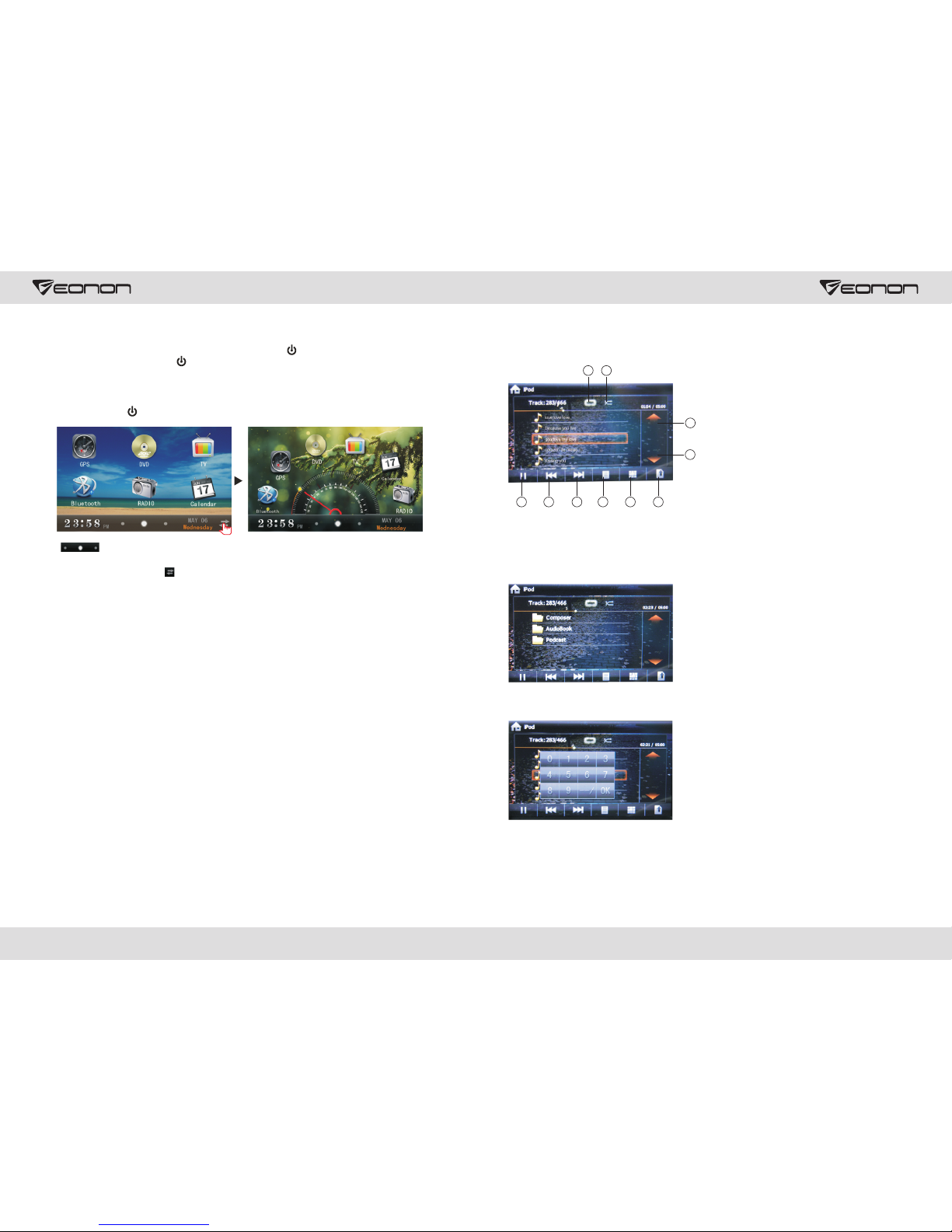

When the ignition switch is put in ACC or ON position, Press [ ] button on the front panel to turn on the unit. After the host starts, hold [ ] button for 3 seconds , the host will turn off.

Access main interface

In boot-up state, press /SRC/MENU button on the panel to switch to main interface.

Touch page. Touch the icon does not go into a long free mobile icon location. Touch the icons to enter the corresponding functions. Touch in two different interface style to switch between.

Rear view function menu (optional)

When the machine has a menu function, rear view, in the main screen, click icon to enter the menu after reversing interface.

U Disc/SD Card function operation

When there is a USB device/SD card connected, the unit can conduct the playback of audio/video image files in the USB device/SD card.

Insert/eject SD card

1. Insert a SD card recorded with media information into the SD card slot in the unit correctly until it is locked.

2. When pulling out the SD card, exit SD card playing state first, then press the SD card and it shall pop up after unlocking.

Insert/Eject USB storage device

1. Connect a U disc recorded with media information to the unit by a USB connecting cable.

2. When there is a need to eject the USB device, exit the USB device playback screen first, and then take out the device. Note: When the unit has front USB, only one of them.

icon or at the touch pen / finger gently sliding the screen to switch the main menu

IPOD Function operation

When the unit is connected with IPOD, In the main interface Touch [IPOD] icon to enter the IPOD interface:

Page 7

0609

play/pause

stop

Radio Function Operation

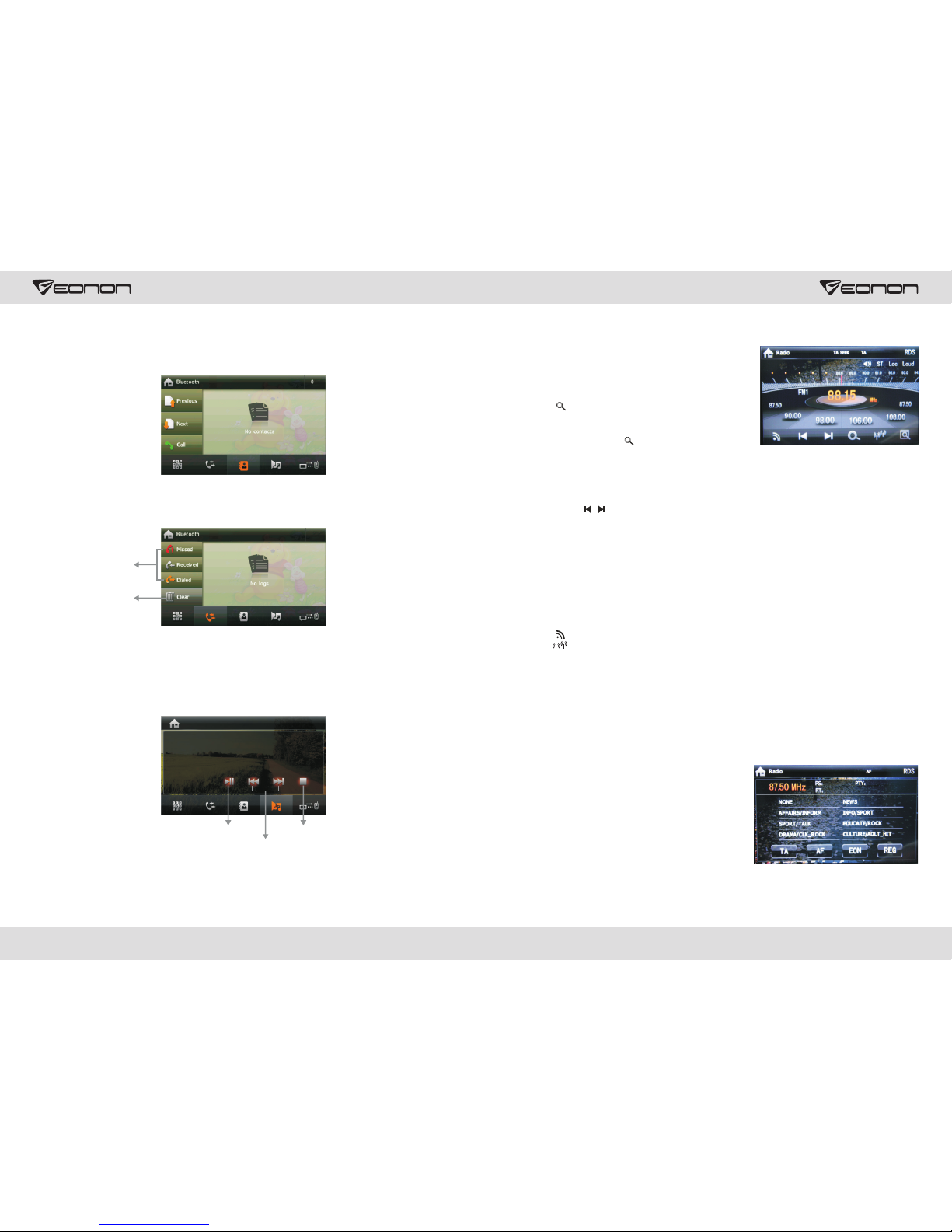

Touch [RADIO] icon in the main interface to enter into the radio interface.

Search/store station

1. Auto search and store station (1) Touch [ ] icon in the radio interface on the panel to search for station automatically. During search, the searched stations will be stored automatically. (2) During search, retouch [ ] icon to stop auto searching.

2. Manual search and store station (1) Finger / touch pen drag of high radio frequency scale can be achieved manually search for radio stations. During search, after a station is searched, the unit will stop searching automatically and play the searched station radio. (2) Directly touch[ / ] icon in the radio interface to fine-tune station frequency. (3) After a station is searched, (such as: 88.15MHZ), long press any position in the pre-stored station list in the radio main interface, the searched station will be stored in the selected position. (4) FM band can save 18 stations (FM1/FM2/FM3 can each save 6), AM band can save 12 stations (AM1/AM2 can each save 6). (5) During search, the unit will automatically stop searching after it has searched for all stations through once.

Select station/band switch/switch between LOC/DX

(1) Directly touch any station in the pre-stored station list in radio interface to play the selected station. (2) Touch [ ] button in radio interface to switch band among FM1, FM2, FM3, AM1 and AM2. (3) Touch [ ] icon to switch search mode between LOC and DX. When LOC function is turned on, only those radio stations with strong signals and good reception can be received; When DX function is turned on, distant weak radio signals can be received.

RDS function

RDS provides a series of information (such as traffic information and station name), and can automatically switch to a station with strong signals and carries the same program. RDS data contains the following contents: P1---program identification TA---traffic announcement PS---program service name PTY---program type name AF---alternative frequencies EON---enhanced other network TP---traffic program

Touch the upper right corner [RDS] radio interface icon, enter the RDS interface: Function Operation ① TA ( Receive traffic information ) ON: When the traffic station is turned on, the radio will automatically search for traffic stations. After a station is searched, screen displays “TP”. Only when traffic information is broadcasted can it be received, after traffic information is completed, the radio will automatically switch to the previous mode. OFF: Repress [TA] button to close TA function. In other modes, traffic announcement will automatically switch to radio mode, after the traffic announcement is completed, it will automatically switch to the previous mode.

Phonebook

After the cellphone gets connected to the unit, you can read records in the phonebook of your cellphone and store information in the phonebook of the unit. ( Note: Some phones may not support the phone book.)

Call records

Recent dialed calls, received calls and missed calls can be saved in call records.

Select missed/dialed/ received calls

Clear all

Bluetooth music playback

Bluetooth player can play music files in cellphone via wireless audio device on condition that the cellphone supports relevant bluetooth protocol. After bluetooth device gets connected to the unit, audio system will automatically link with the paired cellphone. In some cases, you need to enable the playback of audio files by phone keypad due to different phone models.

the previous/next song

External input operation (Optional)

external audio input jack. Touch [Input] icon on main interface to access external input interface.

Connect the video input plug with external video input jack, and connect the audio input plug with

Page 8

Dial

Call records

Phonebook

Music playback

Switch

002 Big big world

001 \

003 My Heart

001 My Heart 1.MP3 002 My Heart 1.MP3

003 My Heart 1.MP3

004 My Heart 1.MP3 005 My Heart 1.MP3

settings

② AF Touch the button to turn the AF function on/off. AF function is turned on, When the received station signals become weak, the radio will automatically fine-tune to other frequencies. When receiving an emergency announcing, the screen will display warning message “ALARM“. ③ EON ON: Open EON function, another AF list is received. OFF: Close EON function. ④ REG ON: Open REG function, only local RDS stations can be received. OFF: Close REG function.

Disc Function Operation

Play/eject disc

Insert the disc into the disc slot with the printing surface up, system will detect the disc and automatically take it in to read and play. Click button on the panel to eject the disc. If a disc has not been took away 15 seconds after it is ejected, system will automatically take in the disc but not play. Note: Do not insert two discs or more.

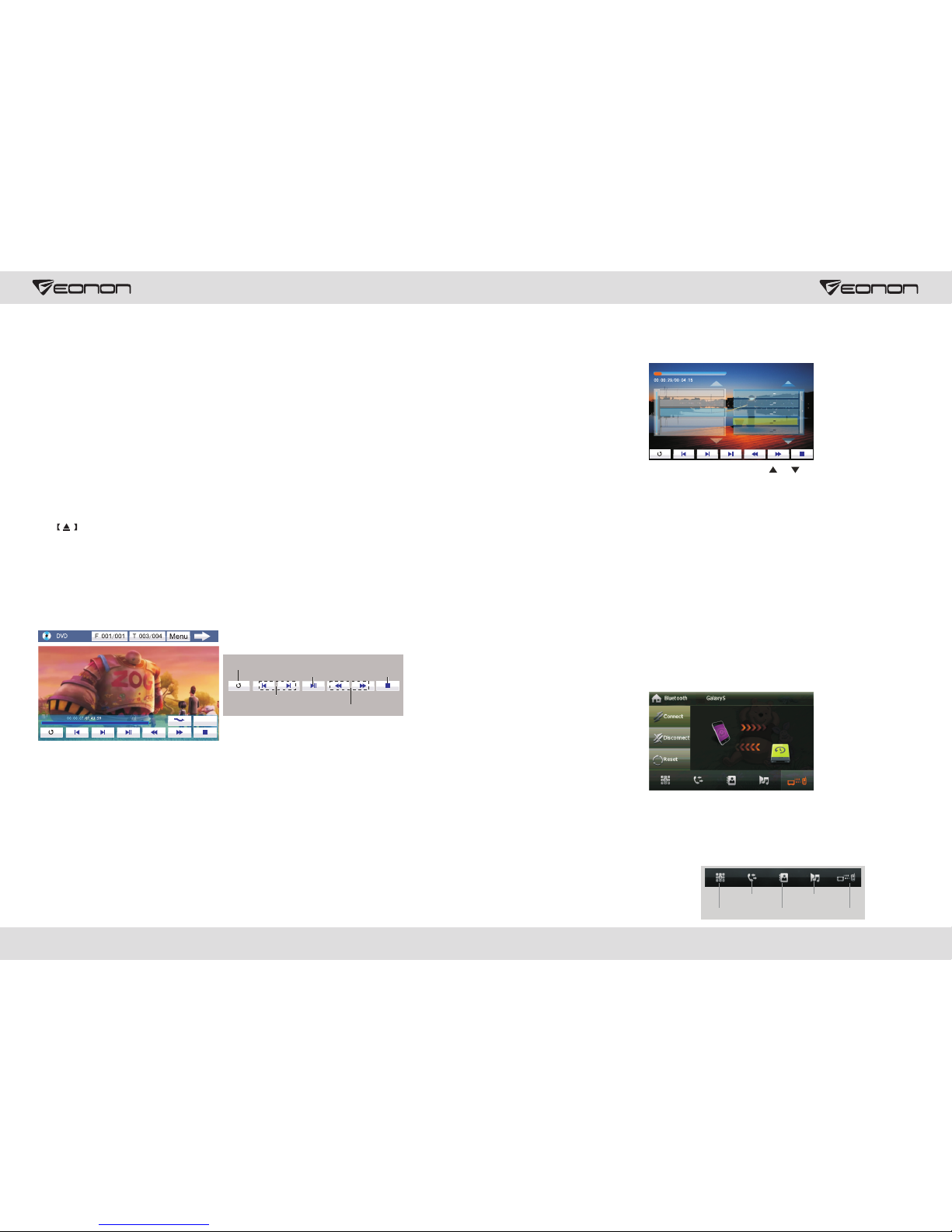

Playback Menu

During playback of disc, touch the middle lower area of the screen to pop up the touch menu, operate the touch menu to perform various playback controls. Note: Touch the top left corner of the screen to return to the main interface.

Play/pause

Stop

The songprevious/next

Fast /backward forward

Repeat/Repeat all discs

Bluetooth Function Operation

The system provides bluetooth hands free communication function, if your cellphone supports bluetooth function, you can establish a point-to-point connection between your cellphone and the system. The system can also achieve the dialing, answering function, A2DP, the function of phonebook on the screen.

Pair/link

The first time you pair your cellphone with the unit, the procedures below should be followed:

① Turn the bluetooth function of your cellphone on. ②The cell phone searches for bluetooth device and connect.

③A prompt is displayed on the screen of the phone, to accept pair, enter the same numeric code on the phone (0000) and press [OK] button.

④ After the pair is completed, the name of the connected cellphone is displayed on the screen. ⑤ After recharged, the bluetooth system will automatically get connect to the lastly disconnected

cellphone.

MP3/WMA format disc playback

Put the MP3/WMA disc in DVD player, after the disc is read, system enters into the interface as is shown below:

The upper-right corner of the touch interface to exit the DVD interface and return to the main menu.

DVD/VCD disc playback

When there is a disc in the unit, touch [DVD] icon in the main interface, system enters into disc reading status. When the disc does not have play menu, system will automatically read the disc and directly play; when the disc has play menu, system displays DVD menu, you can touch appropriate options on the screen to access the corresponding items.

CD Disc Playback

When there is a disc in the unit, touch [DVD] icon in the main interface, system enters into disc reading status. After disc format is read, the screen will display the CD playback interface, system will automatically read the disc contents and display on the screen, You can directly click song name to select and play, you can also click the numeric keypad button and enter song number to selected your favorite song to play.

Touch the file name icon and the song to read and play. Touch [ ] [ ] to select the previous/next file. Playback control function keys and DVD Play control keys are functioning.

After the successful pair, the bluetooth that indicates connecting status will be lighted, otherwise, it will appear dimmed. Touch [Disconnect] to disconnect the current connection; after disconnected。 Touch [Connect] to connect the disconnected bluetooth device. Touch [Reset] icon to clear all pair records.

Bluetooth Interface Function Introduction
