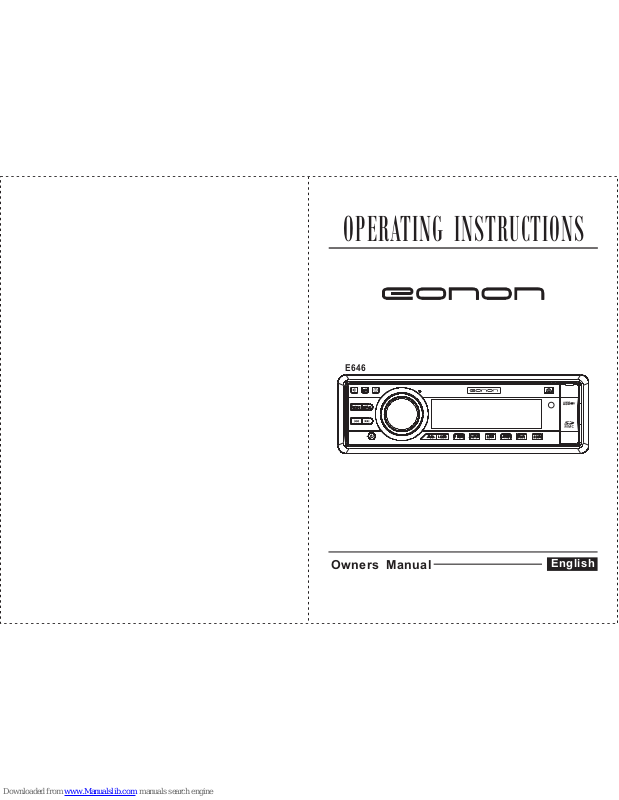

OPERATING INSTRUCTIONS

English

Owners Manual

E646

Page 2

Thank you for purchasing our company multimedia player!

To operate the unit correctly, please read the owner's manual

carefully before using the unit. Keep these instructions and

retain this booklet for future reference.

Welcome!

English

Simple Troubleshooting Guide

English

Problem Cause/Solutlon

No power

Some errors occur in the LCD or no function when pressing the button.

Unable to receive stations.

Poor effect on receiving a station.

ACDs cannot be loaded.

The stereo Indicator " " is flashing.

No picture.

The picture noise appcars.

Check and make sure whether the fuse is blown, replace with the proper value if necessary.

Press the RESET button.

Check and make sure whether the antenna is inserted or the antenna is properly connected. If so. Insert the antenna or connect it properly.

Antenna may not be the proper length . Make sure the antenna is fully extended or broken. If broken. Replace the antenna with a new one. The broadcasting signal is too weak. The antenna is poorly grounded, check and make sure the antenna is properly grounded at its mounting location.

A Cds is loaded in the mechanism.

Tune in the frequency accurately.

The broadcasting signal is too weak.

(Set to the MONO mode) (page 12)

The Video line from main unit to the TV is

not connected properly.

Improper setting of the color system. Set the

color system to" PAL "or" NTSC". According

to the connected television.

The CDs is dirty or damaged.

Note: If any of the problem persist after check list had been made, consult your nearest service dealer. Never attempt to disassemble your unit by yourself.

Page 3

Notes on installation

English

The unit is designed for 12V DC,

negative ground operation system

only. Before installing the unit,

make sure your vehicle is connected

to DC 12V negative ground electrical

system.

The negative battery terminal

must be disconnected before

making connections, which can

reduce damaging the un it due

to short circuit.

Be sure to connect the color coded

leads correctly according to th e

diagram. Incorrect connections

may cause the unit malfunction or

damage the vehicle's electrical

system.

Be sure to connect the speaker (-)

leads to the speaker (-) terminal.

Never connect the left and right

channel speaker cables each other

or to the vehicle body.

Do not block vents or radiator

panels. Blocking them will cause

heat to build up inside and may

result in fire.

After the completion of the

installation and begin to play

the unit(including replacing

the battery),please press the

RESET button on the front panel

with pointed objects (such as

ball-point pen)to set the unit to

initial status.

English

CONTENTS

Notes on Installation

Precautions

Wiring Diagram

Location of the control

Basic Operation

Radio Operation

Bluetooth Operation

DVD VCD MP3 CD Operation

Location of the Remote Control

Remote Control Operation

Playing WMA,MP3 and JPEG discs

Installation

Specification

Simple Troubleshooting Guide

Page 4

Wiring Diagram

Precautions

English

Do not attempt to modify the unit, modifying the unit may cause an accident.

Stop the vehicle before carrying out any operation that could interfere with your driving.

Do not work in extreme high or low temperature inside the vehicle is between +60 and-20 before

turning your unit on.

To enjoy optimum sound and images while playing, handlethe discs as follows:

Handle the disc by its edge to keep the disc clean, and do not touch the surface.

Do not use your Cds with paste residue or ink attached.

Do not use CDs with labels or stickers attached, which may leave a sticky residue while beginning to peel off. (Shown as picture)

Clean the discs with an optional cleaning cloth. Wipe each disc from the center out. (Shown as picture)

This unit can play the following discs only.

Type of disc

Label on the disc

Recorded material Size of disc

12cm/8cm

Sound and moving

Pictures

Sound and moving

Pictures

Sound and moving

Pictures

Sound only

MP4

DVD

VCD

MP3

MP4

MP3

Note: The unit is compatible with. DVD. VCD 1.0 / 2.0 / 3.0 VCD, CD-R, PICTURE-CD version Disc.

The manual conforms to DVD. VCD. MP3 and CD. If no VCD or MP3 on some models you should ignore them. White enjoying DVD, VCD, Mp3 and CD. The Display will automatically identify the discs and indicate the corresponding words.

VIDEO

VIDEO CD

COMPACT

DIGITAL AUDIO

COMPACT

DIGITAL AUDIO

STANDARD CONNECT

YELLOW

BLACK

Memory back-up 12V

Negative Ground

Batting

PURPLE/BLACK

PURPLE

GRAY/BLACK

GRAY

RED

BLUE

GREEN/BLACK

GREEN

Front Lch Speaker

To Auto Antenna

To ignition key

WHITE/BLACK

WHITE

Front Rch Speaker

Rear Rch Speaker

Rear Lch Speaker

P.CONT

ORANGE

SUBWOOFER OUT

AUX IN/R

REAR-R RCAOUTPUT

AUX IN/L

REAR-L RCAOUTPUT

AV-OUTPUT

FRONT-L RCAOUTPUT

FRONT-R RCAOUTPUT

ANTENNA

Page 5

7 13 8 4 19 14

3129 2

15 5 16 10

English

Location of the Control

Reset Button

Power Button

Volume Control

Setting the sound Characteristics

Loud button

LED Indicator

Mute Button

Clock Button

Mode Button

Band Selector

Tuning/Selecting Tacks

P-EQ Button

Release Button

AMS Button

Number Buttons

Eject Button

Disk Slot

LCD Panel

Remote Control Receptor

English

Basic Operation

1.Operating the unit for the first time or after replacing the car battery,you

Button with a pointed object (such as a ball point pen) to set the unit

to initial procedure.

Initlal System Start-up

Turning The Unit ON/OFF

2. Press

(PWR)

button to turn on the

unit, and press it again to turn off

the unit.

Note: After the unit is off, if the volume level is higher than it is in initial setting, it will resume to initial status; if it is lower

than that in initial status, it still store in the status which you set.

Note: When some errors occur in the LCD display, Display, you can also press RESET button to resume to normal. And it will erase the clock setting and some memorized functions.

must reset the unit. Press (RESET)

Can adjust the sound quality to make it perfect by pressing (EQ) button. The procedure is as follows: CLASS mode is selected when

(P-EQ) button is first pressed and "CLASS"appears in the display. (Shown as picture)

Vol/Bass/Tre/Bal(L-R) /Fad(F-R) Selector

3. For Volume Control , rotate VOL knob clockwise to increase the sound level, and rotate it anticlock wise to decrease the sound level.

4. Repeatedly press (SE L) button

to select the desired mode in the

following order:

VOL BAS TRE

FAD BAL

Note: After selecting the desired mode, you can

adjust the current level by rotating the

(VOL) knob.

Note: If you don t adjust (VOL) knob within

5 seconds after selecting the desired mode.

The unit will automatically return to the

current mode being displayed.

VOL BAL FAD

Setting EQ

5. While listening to the popular music, classic music and rock music, you

18 6171

RESET

Page 6

Radio Operation

English

2.Automatic Tuning: Press

( or ) button continuously to select a station upward or downward respectively.

Manual Tuning: press and hold

( or ) button for more than 3 seconds, the radio automatically searches a station

Manual/Automatlc Tuning

Press and hold (AMS) button for more than 3 seconds to activate automatically memory storing function. The radio automatically selects a station and has it stored in any one of the number buttons (1-6).

Note: The unit can be stored up to 6 stations

for details band. Regarding the function of

unmber buttons, refer to number buttons

upward or down ward respectively and plays when it finds a staion.

Scanning/Memorizing Stations Automatically

(AMS)

3. Press button to listen each stored station wh ic h stored i n (1-6)number buttons.

Mode Selector

4. Press (MODE)button to select

playback mode. If USB/SD card

exist, Mode button can switch

from each other. Press and hold

(Mode) button to select

AUX IN mode

English

Basic Operation

POP mode is selected when pressing (P-EQ) button at the second time, and "POP" appears on the LCD. (Shown as picture)

Rock mode is selected when pressing

(P-EQ) button at the third time, and "ROCK" appears in the display. (Shown as picture)

Rress (P-EQ) button at the fourth time to turn off the P-EQ system.

Note: Bass mode and Treble mode rerurn to

initial settings when P-EQ system is on,

"BASS" and "TREBLE" disappear.

Mute Function

7.Receptor for the card remote

commander.(for remote control

version only)

Note: This windows is used for the unit with

remote control function. Without this

function you should ignore the operation

contents about remote control function.

Sensor

6.Press (MUTE) button to cut down the sound output, (Press it

againto revert to previous volume level).

During CD mode,press 1 PLAY button to suspend the playback.

Band Selector /Pause the playback

(BAND)

1. Press button repeatedly to select bands i n t he f ollowing order:

FM1 FM2

FM3

MW2 11MW1

BAND

Page 7

There are there keys to operate

Bluetooth module:

1. EQ key for PAIR function

2. SEL key for ANSWER function

3. LOUD key for HANGUP

function

English

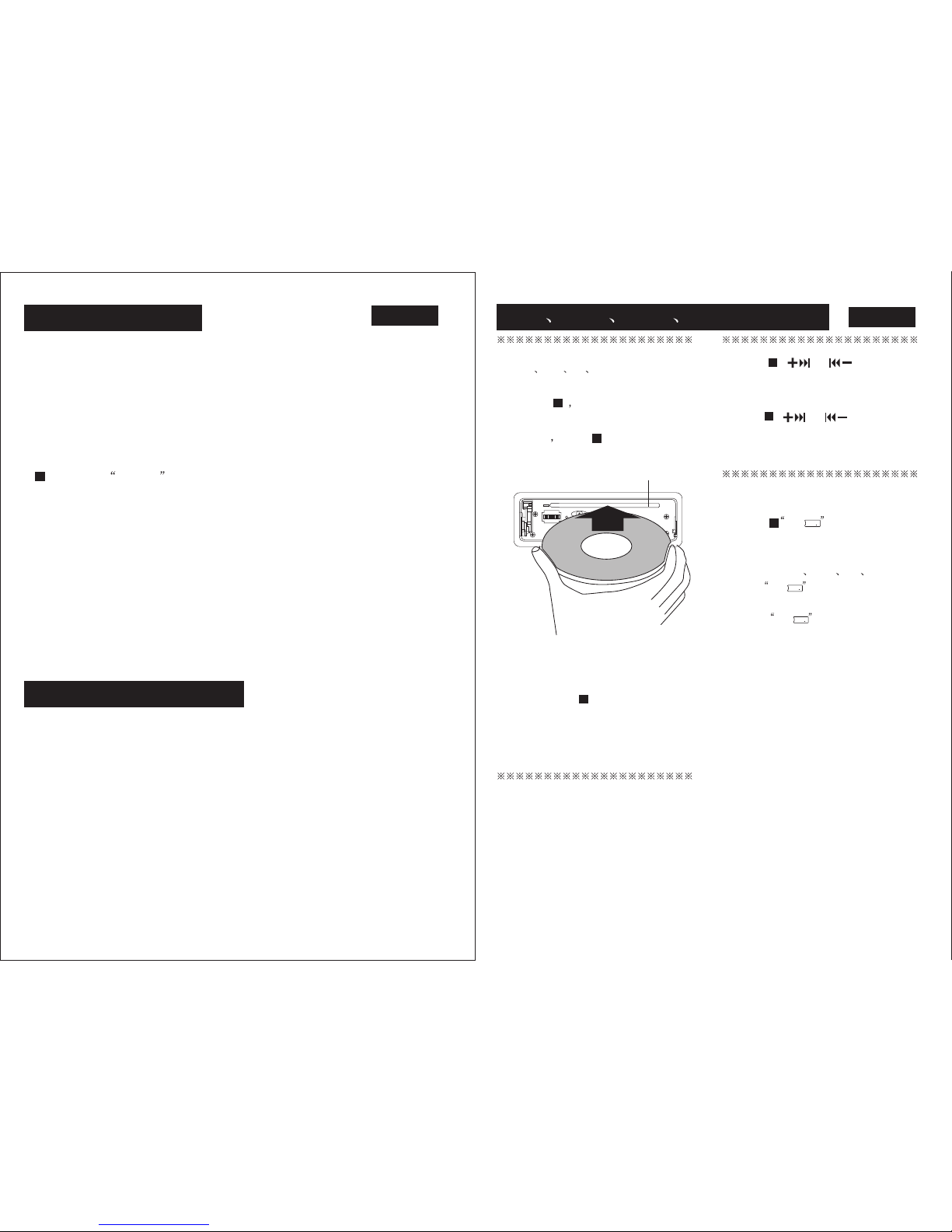

DVD VCD MP3 CD Operation

1. While listening to (or watching)

DVD VCD CD MP3,just insertaCds

(with labeled side up)into the disk

SLOT the mechanism will

automatically switch on.If a Cds is

loaded press (MOD) button to

start the playing.

Labeled side up

While listening to (or watching) MP3,just insert a Cds into the disk SLOT ,the mechanism will automatically switch on. And the menu on the disc will display to select playing pictures or music.

Selecting Tracks/F.F/REW

2. Press to choose

your favorite track upward or

downward respectively.Press and

hold button to

fast forward or rewing the track

upward or downward respectively.

( or )

Playing Tracks Repeatedly

3. Press button to perform repeat playing function when you need to repeat playing the track you like. During DVD VCD CD version. Press button at the first time to repeat playing the same track. Press button-again to stop repeat.

RPT

RESET

Radio Operation

English

5.Number buttons can help you store

your favorite station by pressing

any one of the number buttons. You

can follow the steps as below:

Press and hold any number button

(1~6) until Number appears

in theLCD display when receiving

a station. And now the station is

already stored in the corresponding

number button.

(See the picture)

You can store up to 18 FM stations, up to 12 AM stations.

Bluetooth Operation

Number Buttons

Bluetooth function.

1.PAIR function

Power on the unit. You can used

your mobile phone to search and

fine the Bluetooth module in our

unit named ONTOPPCB. Press

and hold key EQ for about 2s,it

will display PAIR on the LCD

screen. Then you can use your

phone to bonding our Bluetooth

module with your mobile phone.

The entrance code of our

Bluetooth module is 8888.

2.ANSWER function and HANGUP

function

After our Bluetooth module

bonded with your mobile phone.

When you have an incoming phone

call, the unit will ring and mute

the previous sound to indicate

that you have an incoming call,

at the same time, incoming phone

number will displayed on the LCD

screen.When you have anincoming

phone call, you canpress key SEL

to answer the callor press key LOUD

to HANGUP your phone call.

Page 8

English

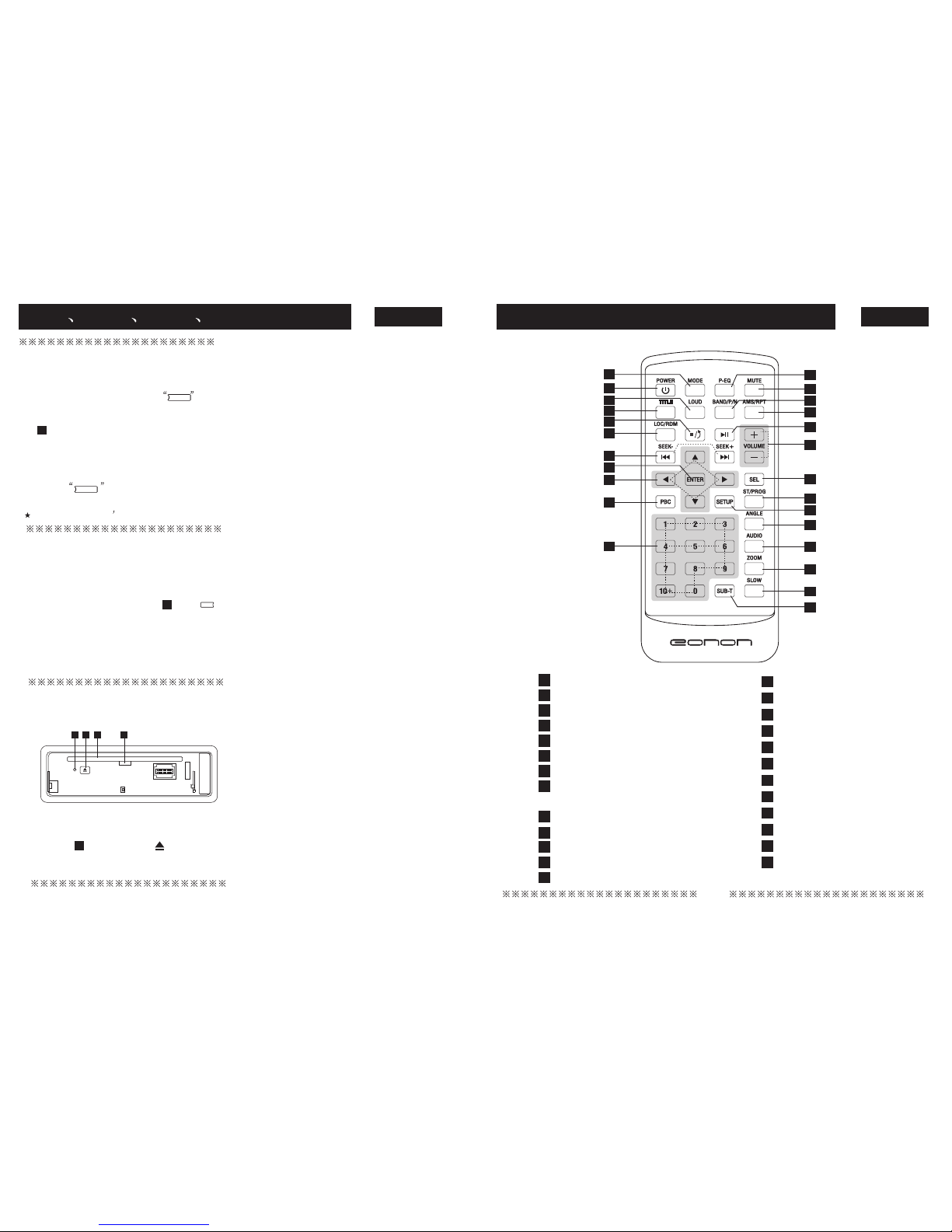

Location of the Remote Control

English

DVD VCD MP3 CD Operation

( )

Eject a Cds

6. Press Eject button to eject the

disc.

4. During play back, Press button, one of the number button to play the first 15 seconds of each track on the disc,

5SCAN

Press button once more to revert to normal play back.

Note: INT doesn t w ork d uringp laying

Playing Tracks in Random Order

5. During playback, press RDM button, The unit plays any track at random. Press RDM once more to return to normal playback mode.

5SCAN

Scanning Tracks Automatically

Number Button

Audio-Setting

PBC Menu

Subtitle-Setting

EQ Effect

Mode Switch

Stop/Reverse Button

Angle-Setting

Slow-motion play

Setup Menu

Title Display

Zoom-seting

Power Switch Pause/Play Button Mute Button Selecting Menu Button Local Enter Button Volume Control Tuning/Selecting Tracks/F.F/REW Program Playing Band Select Loudness Repeat Playing

Audio Effect

1 2 3 4 5 6 7 8

10 11

15 8171

RESET

Page 9

English

Remote Control Operation

__ __

Press button to turn On/Off the power.

button to suspend

Press

CD MP3 VCD.

the playback

DVD. P ress it a gain to re turn to normal playback mode.

( )

Press button t o c ut d own the sound output,p ress i t o nce more to resume the previous sound level.

Press to select

press

your desired m enu,then (ENTER) play

or the

press

butto

confirm.

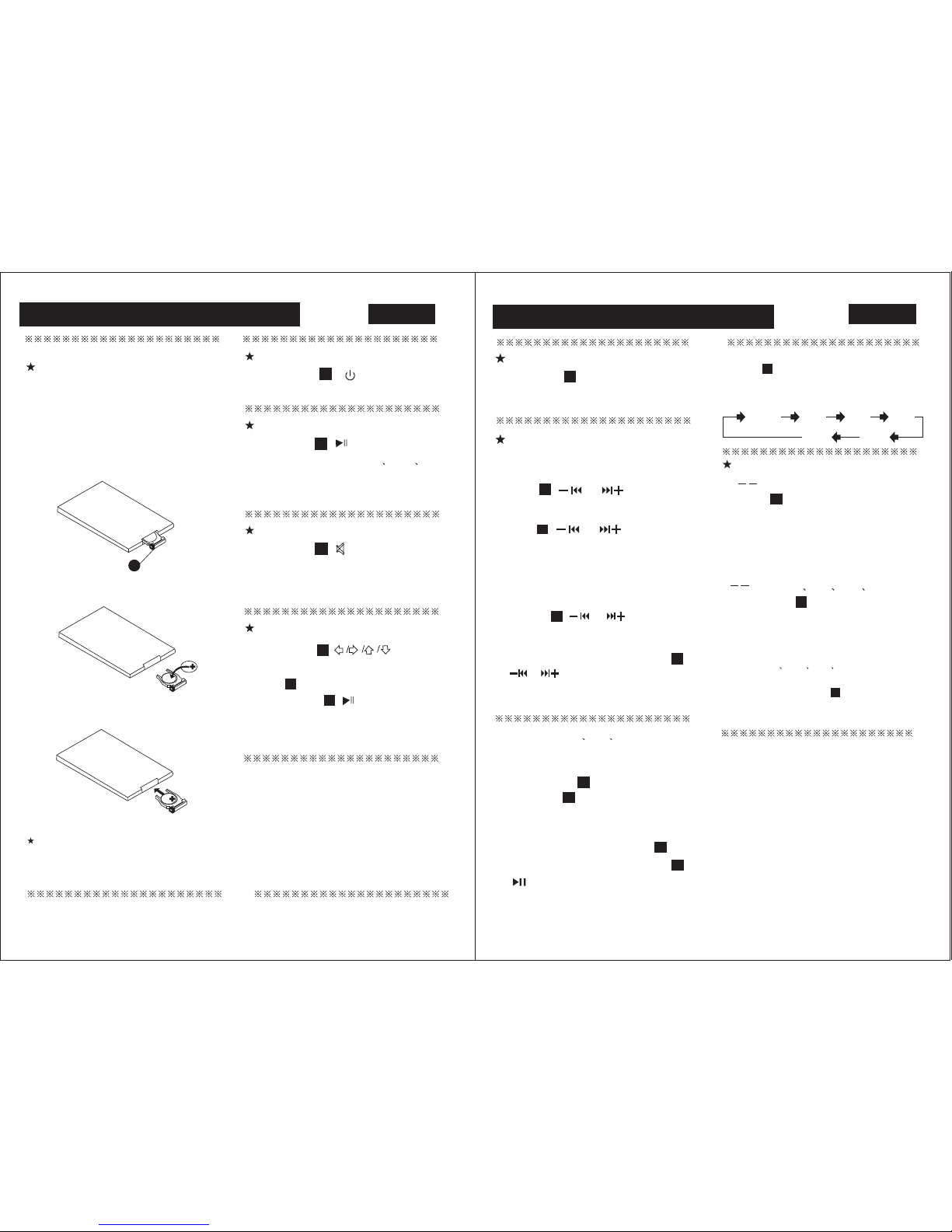

Replacing the Batt ery

2. Put the button-type battery(+)mark upward into the Battery Holder.

3. Insert the Battery Holder into the Remote Control.

Note: Some models are not equipped with remote control,you should ignore the contents about remote control.

When the range o f the o

peration of

the card r contro l become s

emote

while operating.

short o r n o f unctions Replace the b attery w ith a ne w bu tton cell.Make sure the battery polayity before replace.

Pull out the Battery H lder whil e

pressing the r

Stoppe

Pause/Play Button

Mute Button

Menu selector

Note: This function works in main menu

mode only. refer to page 13.

Power Button

During CD MP3 VCD DVD mode, firstly press (RPT) to repeat the current track being played; press it again to cancel the repeating functional.

Note: In DVD VCD MP3 CD mode. The initial procedure is repeat playing all the tracks

. press to scan

Note: In radio mode (RPT) each stored station 10seconds respectively which stored in Number Buttons.

English

Remote Control Operation

__ __

VOL + or VO

)

Press. ton

but

to increase or decrease the volume

ti ely.

evel re spec v

During radio mode, continuously press

button to

manual s a

ea rch statio n do wnward

or upwa rd res pect ively ; i f pres s and

tton for

hold

than 3 seconds, he

more t radio will

downward

search a station

automatic ally

or upward espectively until it finds a stat ion

During the playing mode, press and hold button to fast rewind or fast forward for you to

track quickly.

your desired

reach

discon ti nu ously press

When

button, you can select your

p ortion d ownward o r u pward

desired

respectively

During

CD VCD DVD

mode,you

set program

can the ord er to play,

steps as

you can follow th e below:

button, and

Firstly press

(PBC)

then press b

(PROG)

utton, and the

television displays prog ra mming

P00:00. You can set the prog ram

order to play them by using

~ 10+)

button, and then press play.

Volume Increasing/Decreasing

( or )

( )

Note:Program doesn't function in playing Mp3.

Tuning/Selecting Tracks /FastRewind/Forward

Repeat Playing/AMS

During DVD mode, firstly Press (RPT) to repeat the current track being played; press it again to repeat playing all the tracks. The third press it to cancel the repeating functional.

Band Selector

(BAND)

1. Press button repeatedly to select bands i n t he f ollowing order:

FM1 FM2

FM3

MW2 10MW1

BAND

Page 10

English

Remote Control Operation

Note: in VCD M P3and C D Press th is ke y o n ce to stop.

Press (MODE) button to switch to playback mode

In DVD mode, press

the playback

to suspend

button

press play to continue shown

and on again to sto p the

TV.Press it

playback.

In DVD playing mode, press (ANGLE) key, you can watch the DVD content from diferent angle.

Press Slow button when pictures moving, you can enter Slow Motion Playback mode. Press the Slow button on the remote during playback. Press the button again on the remote

to play at the next speed. Slow. Motion Playback

has six speeds:1/2,1/3,1/4,1/5,1/6,1/7.With each consecutive press of the button, the play

speed decreases. If you press the button seven

times, Slow Motion Playback cycles back to Normal playback. Press Play button to resume normal playback.

key to, cancel slow reverse

/Slow advance function.

SLOW REVERSE/ SLOW ADVANCE KEY

Nate: In DVD. MP3 and CD. It is not the function

Nate: in Mp3 and CD. Tt ts not the function,

( )

MULT-ANGLE KEY

Stop the playback

Mode Switch

( )

English

Remote Control Operation

In PBC playback mode, Number Button is not functional.

During radio mode , you can

select one of the 6 stored stations on

each hand by pressing any one of the

number but ton

During the playing mode,

you can select any track directly by

using number button (0~10+).

For example, if you need the fifteenth

track, you can first press button

10+ and then press button 5 , the

th.

corresponding track (15) Will be

played.

Note: When button 10+is first pressed, it works as10+. It works as 20+ when pressed at the second time, the third time 30+ and the like.

Number Buttons

During DVD mode only, when pressing (PBC) button at the

first time, PBC play back starts and

the menu of entire disc appears on

the television. And then you can

select your favorite track by using number button (0~10+) When

a track is playing , you can press (STOP/RETURN) button to return

to the menu if you want to stop to

select other tracks. To cancel PBC playing, press (PBC) button

again.

During DVD mode, press

(SUB-T) button to switch the menu

to Chinese or English.

Subtitle Selector

Playing PBC (menu)

During the playing mode, continuously press (Audio) can change the sound to left / right speaker or stereo mode.

Note: There are S grades surrounding effect in surround mode During VCD mode you can see the different pictures indicating different effects on the television.

Left/Right/Stereo Selector

Page 11

English

Remote Control Operation

1. General Steps of Setup Menu

1) Press the Setup button, the main setup menu appears. A When the main menu displayed, the DVD system will auto pause.

2) Press the Left and Right arrow buttons to highlight the icon of the desired page, the press the Down or Right arrow button to activate that page; For example,if you want to setup the video page, press Right to highlight the video icon, the video page will be displayed on the screen.

3) Press the Down arrow button to highlight the desired option. Press Enter or press Right to select, the choices of that option appear on the right; For example, press the Down arrow button to highlight the BRIGHTNESS option, then press Enter to select, the brightness choices choices appear on the right.

4) Press the Arrow buttons to highlight the Exit Setup option, then press Enter or Setup again to exit Setup Menu.

When setup, the pressing of the following buttons will turn off the setup menu, while the choices that have been changed will be saved : P/N,Subtitle,F.F,F.R. Vol+/-.PBC, PBC, Title, Return, Play, Stop, Resume. Pause / Step, Next, Prev, S.F, S.R, Zoom,

Notes:

Chapter 4 The Setup Menu System

English

Remote Control Operation

Preview, Goto, Program, Repeat, A-B, Angle, language, Soundtrack, 3D, Record, Display, Mute, Setup.

2. Setup Items lntroduction

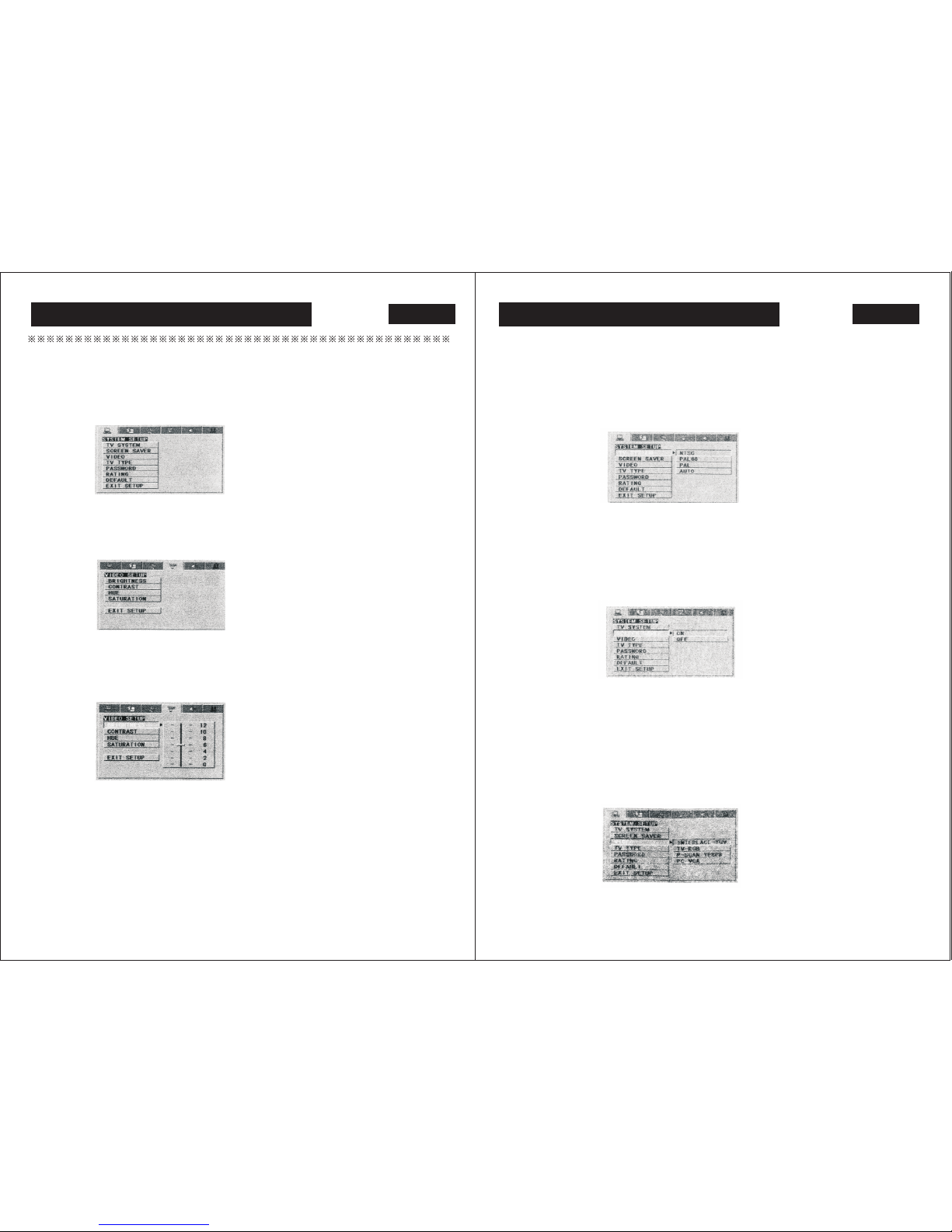

SYSTEM SETUP

The system setup options are illustrated below:

TV SYSTEM

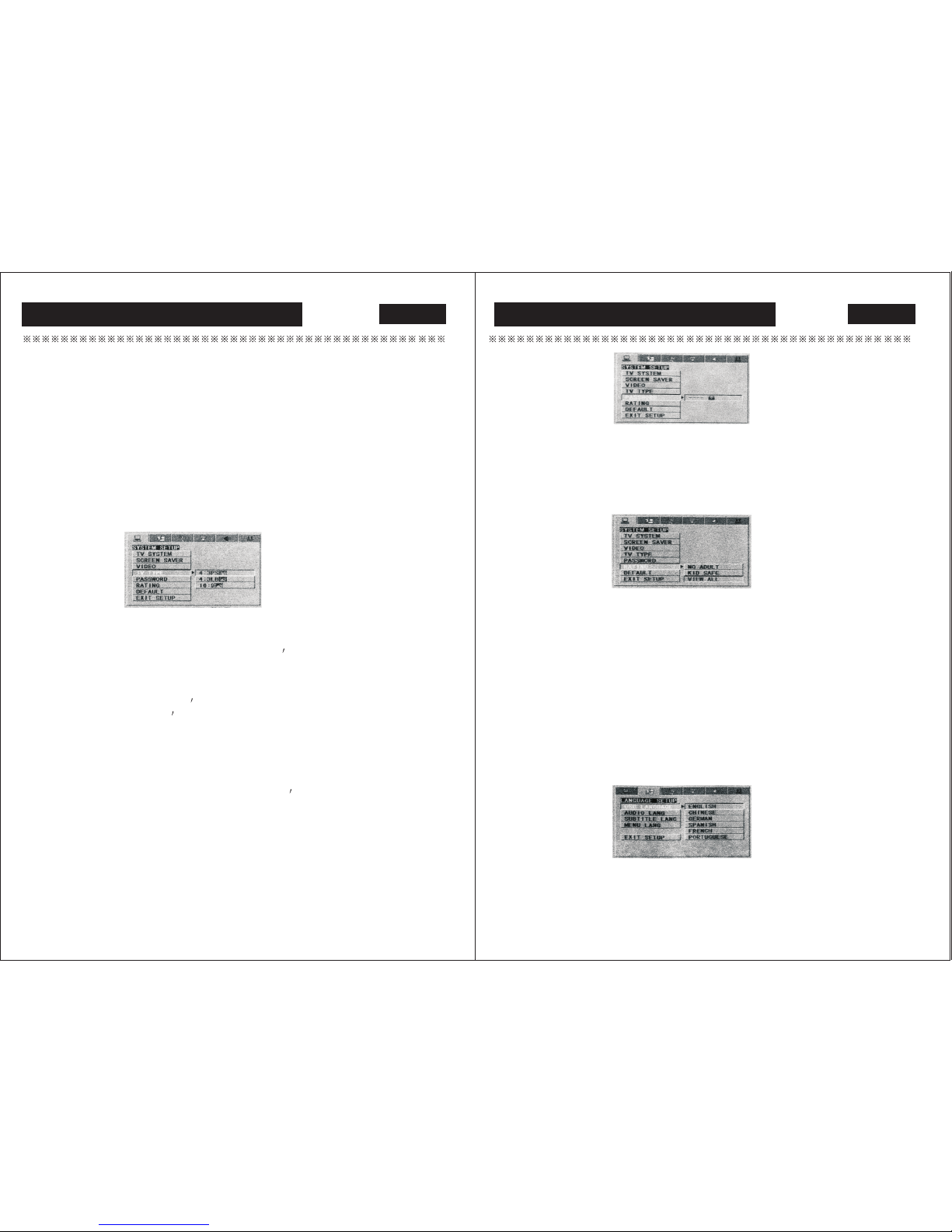

According to the Color System of the TV, you can choose the TV System. AUTO: Choose this settings if your DVD player is connected to a multi-system TV. NTSC: Choose this settings if your DVD player is connected to a NTSC TV. PAL: Choose this settings if your DVD player is connected to a Pal TV. PAL60: Choose this settings if your DVD player is connected to a PAL60 TV. The default setting is NTSC.

SCREEN SAVER

If the screen saver is on, when your DVD player is in Stop, Open, or No Disc state, or there is a frame frozen for more than 60sec, the screen saver will be displayed. This feature can protect the screen from damage.

ON: Choose this setting to act to activate the screen saver. OFF: Choose this setting to cancel the screen saver The default setting is ON.

Page 12

English

Remote Control Operation

Interlace-YUV: Choose this setting if your DVD player is connected to a TV with Y, Cb, Cr video cables. TV-RGB:Choose this setting if your DVD player is connected to a TV with an SP-SCAN:Choose this setting if your DVD player is connected to a progressive scan TV with Y, Cb, Cr video cables. PC-VGA:Choose this setting if your DVD player is connected to a progressive scan TV or a monitor with a VGA video cable. Notes: When your DVD player output composite video, you can choose the setting randomly. Choose TV-RGB/P-SCAN if your DVD player is connected to a progressive scan TV. The default setting is TV-RGB.

VIDEO

16:9 (Wide Screen):Choose this setting if your DVD player is connected to a wide screen TV. If you Choose this setting and you don t have a wide screen TV, the images on the screen may appear distorted due to vertical compression. 4:3LB (Letter Box): Choose this setting if your DVD player is connected to a

TV TYPE

normal ratio TV. connector You ll see the movies in their original aspect ratio (height-to-width ratio). You ll see the entire frame of the movie, but it will take up a smaller portion of the screen vertically. The movie might appear with black bars at the top and bottom of the screen. 4:3 PS (Pan & Scan):Choose this setting if your DVD player is connected to a

normal ratio TV. You can fill the movie to the entire screen of your TV. This might mean that

parts of the picture (the left and right edges) won t be seen. Notes: The image display ratio is related to the recorded disc format. Some disc can not display images in the aspect ratio you choose. If you play a disc recorded in 4:3 format on a wide screen TV, black bars will appear on the left and right side of the screen. You must adjust the screen setting depending on the type of the television you have.

English

Remote Control Operation

The password option is initialized locked, and you cannot sct the ratings limit or change the password. In order for the Ratings feature work, the password mode must be turned on. If you want to set the ratings limit, you will need to enter the default password, which is 0000, then press Enter to confirm. To change the password you will be prompted for the old password, then be prompted for a new. Enter a 4-digit number (this is your password).

PASSWORD

The Rating feature is a rating limit system, like movie ratings. It works with DVD discs that have been assigned a rating. This helps you control the types of DVD s that your family watches. There are two rating options: NO ADULT and KID SAFE Select the VIEW ALL option to cancel the rating limit. The default setting is VIEW ALL. Notes: If the password option is locked, you cannot set the ratings limit; the rating limit doe not work when the password option unlocked.

RATING

Choose this option to resume all the setup options to default settings.

The language setup options are illustrated below:

DEFAULT

LANGUAGE SETUP

Highlight the OSD LANGUAGE option, and press the Arrow buttons to choose the OSD language you prefer. Press Enter to confirm, and it will display OSD in that

Page 13

English

Remote Control Operation

Ianguage;There are 8 iptional OSD languages: Chinese, English, Japan, French, Spanish, Portuguese, German and Latin.

Highlight the AUDIO LANG option,and press the Arrow buttons to choose the aud io language you prefer. Press Enter to confirm. If the disc you are playing has that language available, it will output audio in that language; There are 8 optional audio languages: Chinese, English, Japan, French, Spanish, Portuguese, German and Lat in.

Highlight the SUBTITLE LANG option, and press the Arrow buttons to choose the subtitle language you prefer. Press Enter to confirm. If the disc you are playing has that language availa ble, it will displays subtitles in that language; There are 8 optional audio languages: Chi8nese, English, Japan, French, Spanish, Portuguese, German, and Off

Highlight the MENU LANG option, and press the Arrow buttons to choose the menu language you prefer. Press Enter to confirm. If the disc you are playing has that language available, it will display s menu in the language; There are 8 optional menu language: Chinese, English, Japan, French, Spanish, Portuguese, German, and Off. Notes: If your preferred language isn t available, the disc s default language will be played. The default language of your DVD player is Chinese.

The audio setup options are illustrated below:

AUDIO SETUP

English

Remote Control Operation

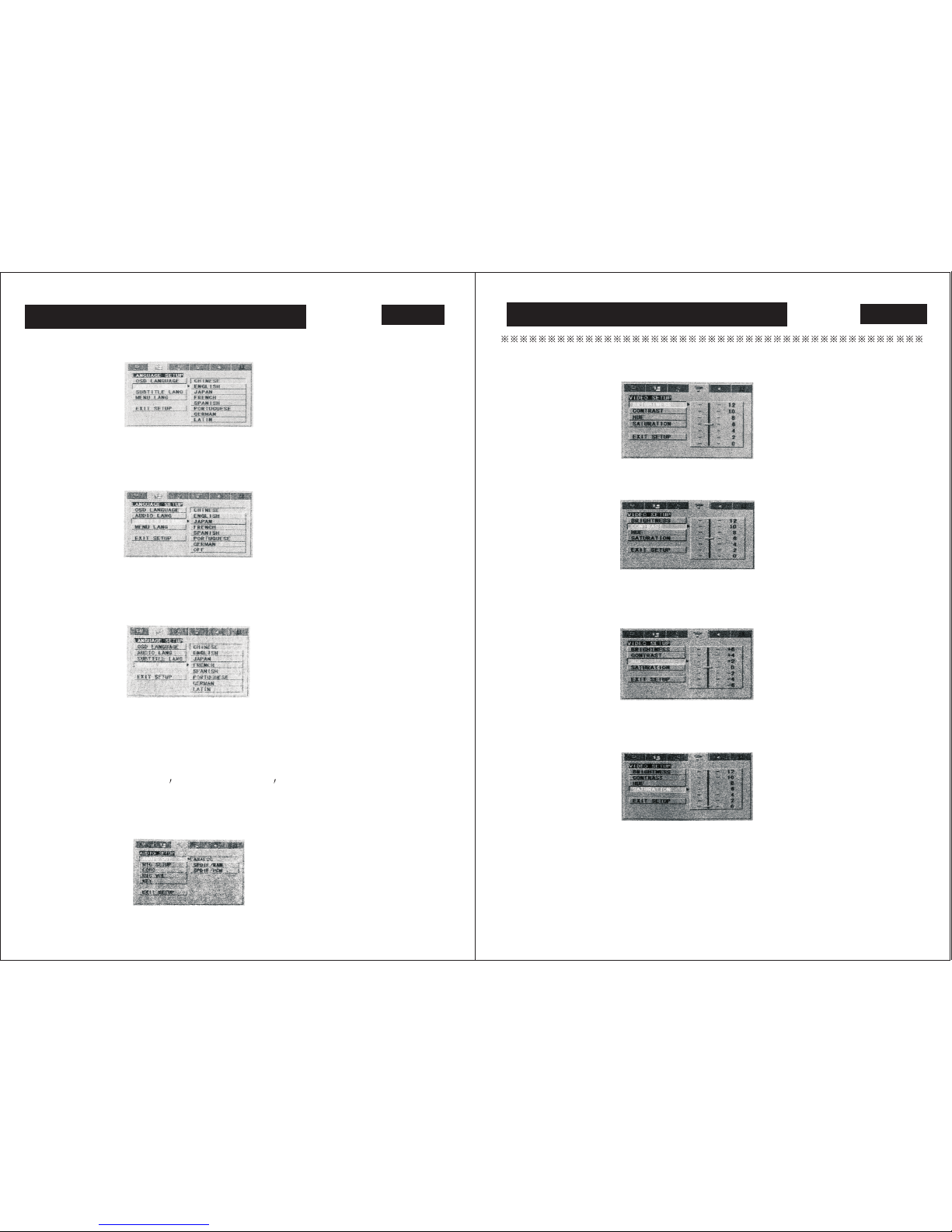

The video setup options are illustrated below:

VIDEO SETUP

BRIGHTNESS

Use the Up and Down arrow button to move the scroll and adjust the brightness.

CON TRAST

Use the Up and Down arrow button to move the scroll and adjust the contrast.

HUE

Use the Up and Down arrow button to move the scroll and adjust the hue. .

SATURATION

Use the Up and Down arrow button to move the scroll and adjust the saturation.

Page 14

English

Remote Control Operation

TITLE KEY

In DVD VCD playing mode,

press (TILE) key to show all

tracks title on TV screen. Then

press ( 0~ 10 +) key or press

( ) key to choose your

desired track number and press

(ENTER) key or ( ) key to

start.

Note:1. No title display in Mp3 CD mode

2. For choose a desired language

to press title key.

ZOOM KEY

The Function allows you to enlarge or zoom out the video image and to pan though the image. Press Zoom repeatedly to activate the function and choose the required zoom factor: Zoom 1, Zoom 2, Zoom 3, Zoom 1/2, Zoom 1/3, Zoom, Zoom Off. Notes: This feature does not work when the Disc Menu appears. Use the Arrow buttons to pan across the screen when the zoom factor is 1,2 or 3 .

REFERENCE:

To protect your DVD player, the interval between two consecutive power button operations must be above 30 seconds.

No using for a period of time, please pul l ou t the plug from the electronic outlet. The play er should be operated only on condition that the type of power supply corresponds to the marking label. Otherwise, it doesn t work or even be damaged. If the player stops playback by accident, please power it on again.

English

Remote Control Operation

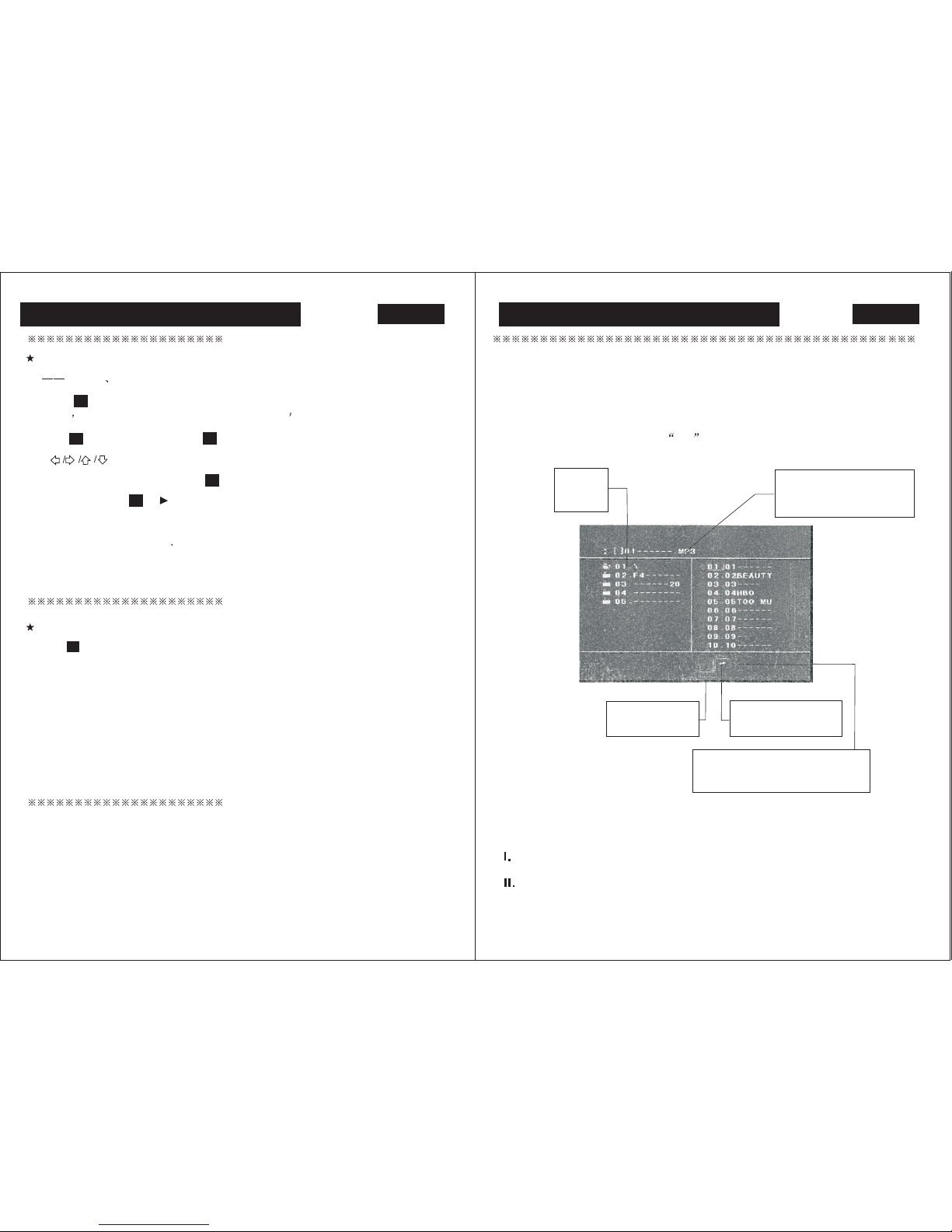

Place a MP3/ JPEG disc into the tray, and the player will auto search the directories saved MP3/JPEG files. After searching, it will auto go to the first directory saved MP3 files (to the disc containing both mp3 and jpeg files; To the disc containing single type of files,it will auto go to the first directory) and play the first song in the directory ( 01: is highlighted).The screen displays as the picture below:

Chapter 3 Playing WMA, MP3 and JPEG discs

Current Directory name

Current MP3/JPEG file name. If a JPEG file playing, the name should be

.jpg.

The playing file Is a MP3 music.

The playing file is A JPEG picture.

File Switch Region: Displays the file type of the playing and The switching.

Use the Arrow buttons to enter the Directory Region and highlight the desired directory, then the first track under it starts playback; Also you can use the Arrow buttons to enter the File Region and select the file you want to play. Notes: Press the Left and Right arrow buttons, you can activate Directory Region, File Region and File Switch Region separately. The highlight in Directory Region and File Region is shown as the picture

Page 15

Installation

English

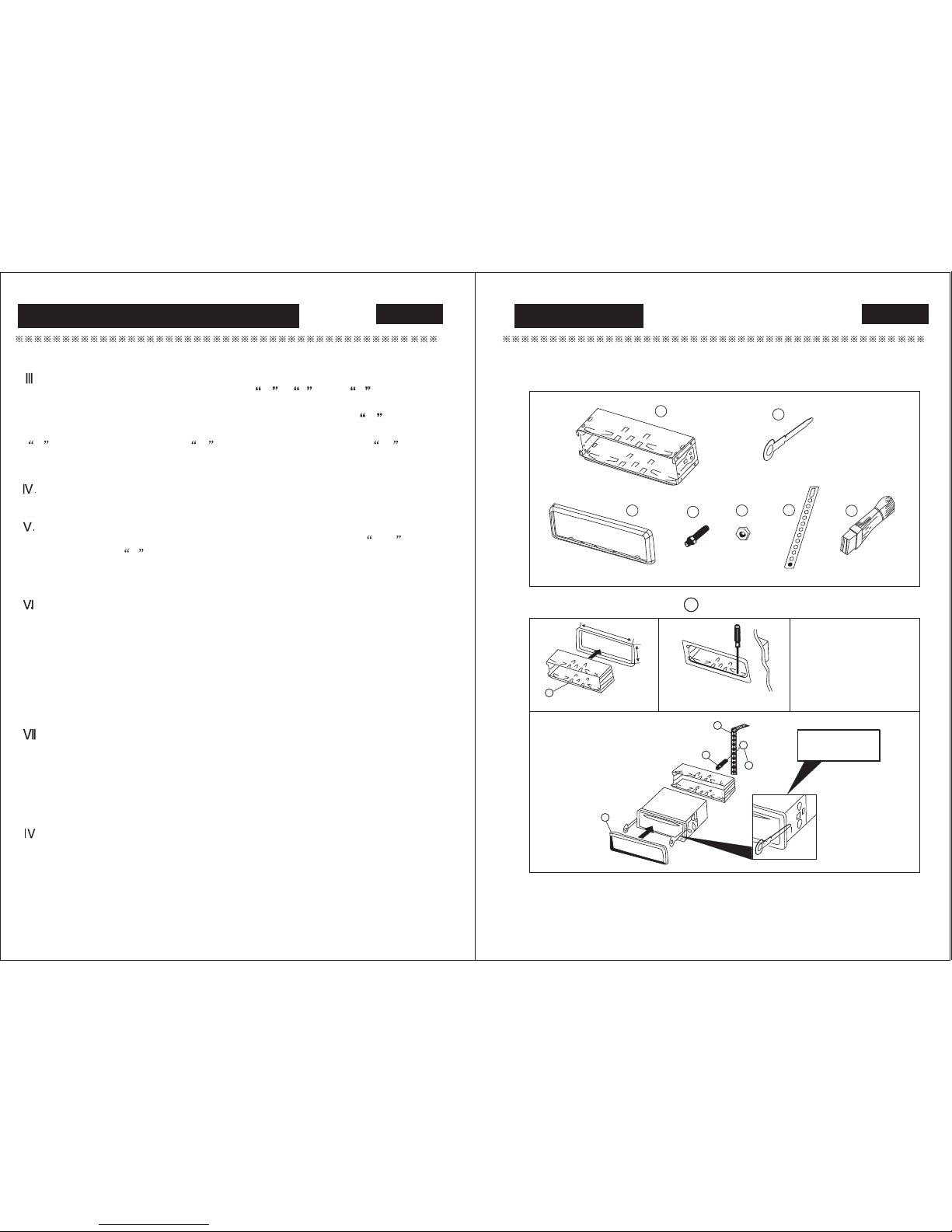

Parts List

(The number in the list are keyed to those in the instructions)

Mounting Example

Put in the mounting sleeve.

Bend these clown outward for a tight fit, if necessary.

Fasten the rear bracket serows and back side harness, and fix the unit well.

Remooac, insert key into the set then pull the set out trow dash board.

1 2

182mm

53mm

Playing WMA,MP3and JPEG discs

above; While it appears a transparent rectangle in File Switch Region.

. In File S witch Region , you can press the Left and Right arrow buttons to switch the highlight, then press Enter, the M , P ,and G button is illustrated in the above picture. For example, if a disc with Mp3 and Jpeg files but without any NES files is loaded, the color of the letter M and

P will appear to white and G black. If a Mp3 file playing, M turns darker.

To the disc with WMA, MP3 and JPEG files, whcn playing a JPEG picture, press the Return button to return to JPEG list.

You can press the Numeric buttons to select the file you want to play. For example, if you desire the 15th track in current list, press the 10+ button once, then poress 5 ,the 15th starts playback. Notes: When playing a disc with Mp3files, video cannot be output while only digital audio can.

When playing JPEG pictures, press the Program button to choose the pictures Switched mode. There are 17 switch modes; Press Program repeatedly to activate the function and choose the required switch mode: Spread from Up to Down, Spread from Down to Left, Spread from Left to Right ,Up to Left Down, Spread

Horizontal Shutter, Vertical Shutter, Fold from the Corners to the Center, Random Play, Off

Spread from Left Up to Right Down, Spread from Right Up to Left Down, Spread Left Down to Right Up, Spread from Right Down to Left Up, Spread from Center to Up / Down, Fold from Up / Down to Center, Fold from Left/ Right to Center,

When a picture playing or pausing, press the Arrow buttons to change the display angle: Up: flip vertical Down: flip horizontal Left: rotate 908 counter-clockwise Right:rotate 908 clockwise

When a picture playing or pausing, press the Menu button, the screen disp lays small pictures. Up to 12 small pictures are displayed per screen. To view the next 12 pictures, press the Next button to go forward and the prev button to go to the previous page. You can also select and play a picture in full screen by press that number on the remote.

English

Page 16

Specification

General

DVD Deck Section

Video Section

Audio Section

AM Tuner Section

FM Tuner Section

Power Requirements Load Impedance Max. Power Output Tone Controls Dimensions Mounting Dimensions Weight

Discs Played Video System Mounting Angle

Video System Video Output level Horizontal Resolution

Maximum Output level Frequency Response Signal-to-noise Ratio Separation

Frequency Range IF Range Usable Sensitivity(-20dB)

Tuning Range IF Range Usable sensitivity (-30dB) Signal-to-noise Ratio Stereo Separation Frequency Response

12V DC 4 45W x 4/65W x 4/100W x 4

8dB(Bass 100Hz, Treble 10KHz) Approx.192x178x50mm(dxwxh) Approx.169x182x53mm(dxwxh) Approx. 1.75kg

DVD,VCD1.0/1.1/2.0/3.0/MP3,CD,CD-R,CD-RW,PICTURE-CD AUTO/PAL/NTSC 0 TO+/-30

4:3 Letter Box and 4:3 Pan Scan

1.0Vp-p 75 ohms 500

2Vrms(+/-3dB) 20 to 20Khz 85dB 80dB

522-1620(Europe/China/Japan),530-1710(U.S.A) 450KHz 25dB

87.5-108(Europe/china),87.5-107.9(U.S.A)(Optional)

10.7MHz 15dB 60dB 30dB(1KHz) 30~15000Hz

Note: Due to continuous product improvement, specifications and design are subject to change without notice.

English

2928

English

Installation

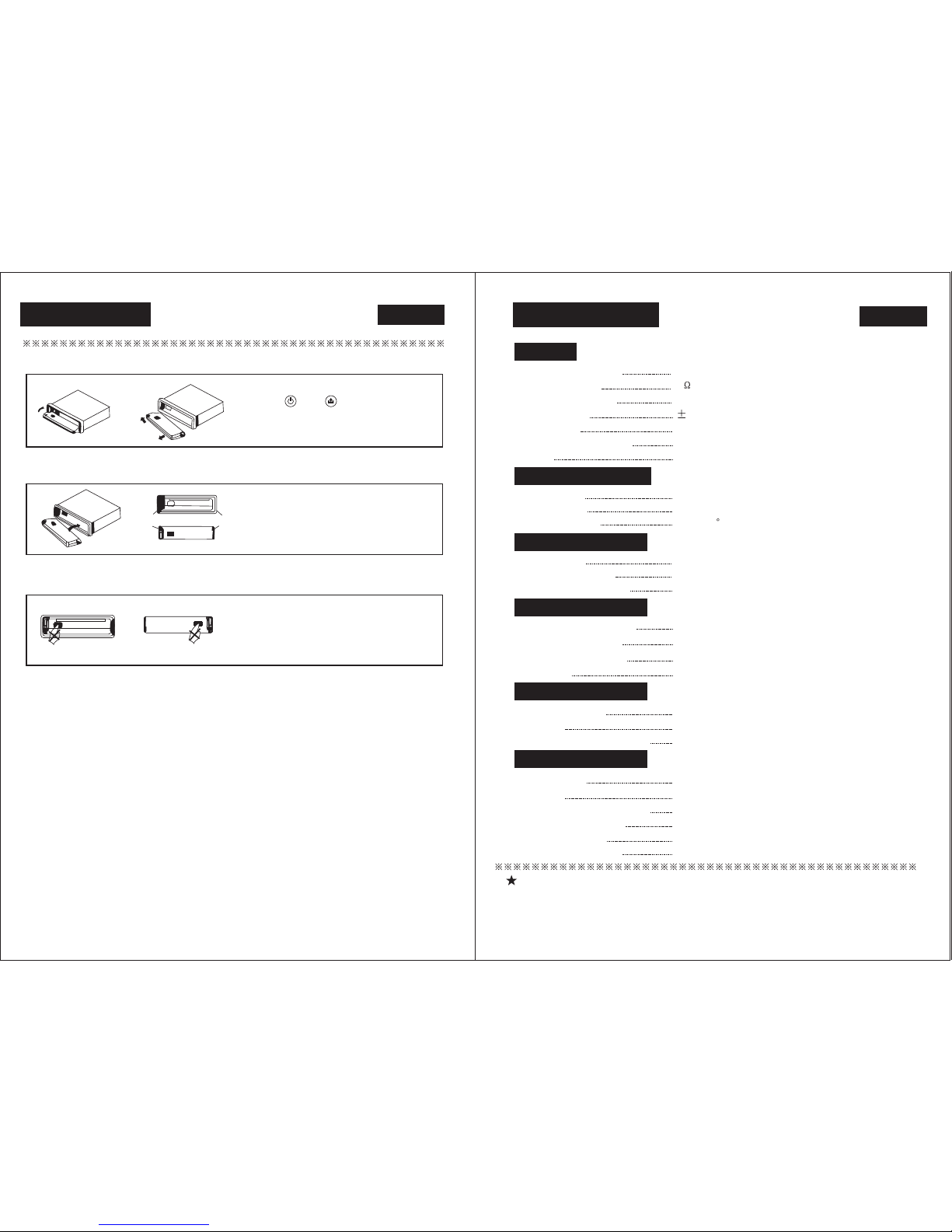

DETACHING THE FRONT PANEL

REPLACING THE FRONT PANEL

PRECAUTIONS

Before detaching the front panel. Be sure to press . Press , then ture the front panel to the level, slide it to the left, and pull it off to wards you.

First, insert the left side of the front panel into the main unit. Push the right side of the front panel until it looks firmly into the main unit, at one time, insert the right side of the front panel into the main unit.

Do not touch the contacts on the ront panel or on the unit body, since this may result in poor electrical contact, If dirt or dust get on the contacts, wipe them with s clean, dry cloth.

Bulgn

Hollow

Dulge

Hollow

76-90(Japan)

(Optional)
