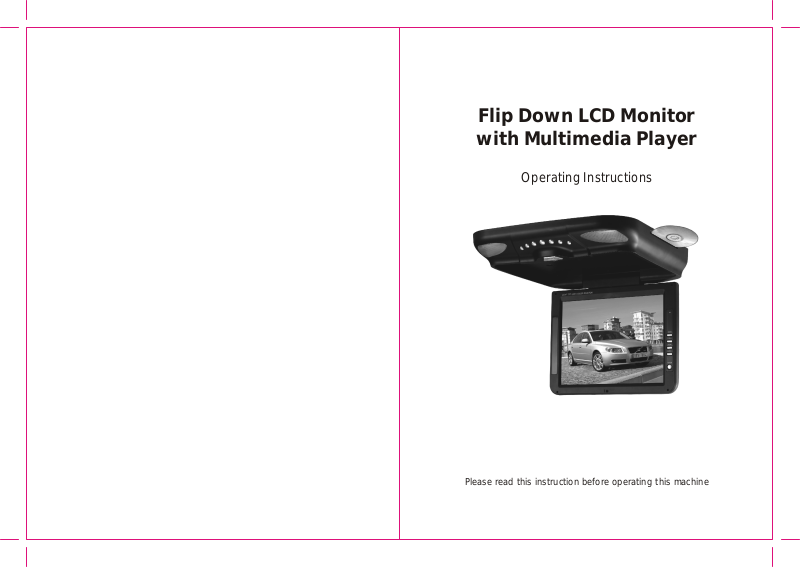

Flip Down LCD Monitor
with Multimedia Player
Operating Instructions
Please read this instruction before operating this machine
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player
Notice
1
This unit is designed for 12V DC, negative ground operation
system only. Before installing the unit, make sure your vehicle is
connected to DC 12V negative ground electrical system.
2
Connect the wire shown as the wire connecting drawing. If the
connection runs wrong, it may cause the troubles of the machine
or damage the electric system of the vehicles.
You can't turn on it until all connection is right.
3
When changing the burned-out fuse, please replace it with a new
4
one with the same specification.
5
Do not the attempt to modify the unit, otherwise, it probably cause
an accident.
6
Please park the car in the safe place before do any operation that
could interfere with your driving.
7
Please do not work under high or low temperature. Please confirm
the inside temperature range is -10 to 60 before turning on
the unit.
8
To enjoy optimum sound and pictures while playing, handle the
discs as follows:
1
Handle the disc by its edge to keep it clean, and do not touch
the surface.
Insert the cell into the remote controller.
Note:
Keep lithium cell away from the place children could reach.
If there is a child swallow it for careless, please take him to
hospital.
Using dry cloth to clean the cell to ensure good connection.
Please confirm the polarity of the cell when insert it.
Don't grip the cell with metal pliers, or there will be short
circuit.
With inappropriate operation, the cell would
explode.
The cell could not be charged, disassembled or
Warning
fired.
Labelled surface
- 1 -
- 14 -
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player
Maintenance:
1. Renew of fuse
When you renew fuse, you must confirm that amperage of used
fuse is suitable. If the fuse is burn-out, please check connection of
power supply and renew fuse. If the renewed fuse is burn-out
again, it should be a problem inside. In this case, please consult a
distributor.
Please don't use the fuse that its specified
amperage exceeds that of this system.
otherwise system would be broken.
Warning
2. Renew of lithium cell
When the operation distance of remote controller become short
or it has no action, please renew lithium cell of CR2025. Please
identify the polarity of the cell, operation is as follows:
1.1 While you are pressing plug, you should pull out lightly the cell
foundation at the same time.
2
Please do not use the discs with paste residue or ink attached.
3
Please do not use the discs with labels or stickers which may
leave a sticky residue while beginning to peel off (shown as
picture).
4
Clean the discs with the special soft cloth, wipe each disc from
centre to edge.
9. When the picture quality will be affected for humidity, please switch
on the power (do not put disc in it), and let the system run one to
two hours in order to evaporate.
1.2 Place the button cell in it with the mark "+" upward.
- 13 -
10. Please do not play the damaged or anamorphic discs.
11. DVD player is a kind of laser product, please do not open it by
yourself in order to avoid danger.
Installation and Repairing:
1. Install it by professional. When installing it, please consult to the
local dealer.
2. Do not maintain it by yourself, if the unit need be repaired, please
consult to the local dealer and do it by professional.
- 2 -
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player
Instructions for position & function
5
6
8 9
1 234
10
11
7
Yellow
White
Red
Antenna interface
S terminal
Black Grounding
Yellow
12
13
14
15
16
17
18
DVD video output
DVD audio output
DVD audio output
Connected to door switch
S terminalRed
22. ZOOM
Press this key to zoom the picture.
23. Direction
Press , keys to select the submenu item, press , to
adjust. In tv mode press , to select the channels.
CH-
CH-
24. ENTER
Press this key to enter chosen item.
25. SETUP
Under DVD mode, press this key to shift from the different setup
items. Press Direction and ENTER to select and confirm.
26. VOL+
Press this key to increase volume.
27. VOL-
Press this key to decrease volume.
28. 10+
When need press two digits number, press this key.
29. PBC
Press this key to turn off or turn on the main menu.
30. TFT MENU
Press this key to enter the main menu system.
CH+
1. Light
2. SD/USB/Disc switch
3. Last track
4. Next track
5. Light switch
6. Stop
7. Play/Pause
8. Eject button
9. CD Slot
10. Open button
11. Loudspeaker
12. IR headphone transmission window
13. Mode switch
14. CH+ or + (If no TV function)
15. Menu
16. CH- or - (If no TV function)
17. Remote control reception window
18. Power switch
19. SD Slot
20. USB Slot
- 3 -
When no Disc in slot, and under stand by or TV
or AV modes. Put the Disc in slot, the unit will
auto turn on and switch to DVD mode.
Warning
- 12 -
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player
12. 1-0 number key
When PBC turns off, you could press keys to select the tracks
from 1 to 0.
13. REPEAT
During the playing mode, press this key once to repeat a
segment, at this time, it displays segment repeat . Press this
key again to play title again, at this time, it displays title repeat ,
press this key to turn off the function.
When MP3 disc is playing, it repeats whole disc, single song and
catalogue.
14. TITLE
Under DVD mode, press this key to return to the top menu.
15. SUBTITLE
Under DVD mode, press this key to shift language on screen.
16. RETURN
Under play mode, press this key to return to the playing position
to play from the main menu.
17. DVD MENU
Press this key to display main menu of DVD disc, press it again
to play.
18. PROGRAM
Under CD/MP3/VCD mode, turn off PBC function to play in
program.
19. AUDIO
In DVD mode, press this key to select the modes among Disc,
USB, SD.
20. ANGLE
Under DVD mode, press this key to change the playing angle.
21. MUTE
Press this key to cancel volume electrical level output, press it
again to recover.
Wiring Connection:
Fuse 3A
Red Connected +12V power
Black Grounding
Yellow Video input
White Audio input L
Red Audio input R
Specifications
Type: TFT LCD
Screen size: 10.4"
Display mode: 4:3
Power voltage: 12V
FM Frequency: 87.7~89.2MHz, 14 Frequency points. (Optional)
IR Frequency: 2.3/2.8MHz (Optional)
Power consumption: approx.24W
TV System: PAL/NTSC/SECAM (Optional)
Resolution: 800 RGB 600=1440000
Rotating angle of screen: 90
Operation
1. Press the button Open to open the screen, and press the
button 18 Power Switch to switch on the power.
2. Press the key 5 to turn on/off the light.
3. In any state, the mode can be switched among DVD, TV, AV by
pressing the key 13.
Press MENU or TFT MENU on the remote control to select the
required menu.
Main menu:
CONTRAST
BRIGHTNESS
TINT
COLOR
VIDEO
MOVE
SELECT
EXIT
- 11 -
- 4 -
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player
1. Main menu consists of PICTURE, AUDIO, CHANNEL,
FUNCITON and OSD.
2. Press MENU or TFT MENU on the remote control to select the
required menu, press MODE or , on the remote control to
select sub-menu, press CH-, CH+ or , to adjust the sub-
CH-
CH+
menu item, to return to main menu, just press MENU or TFT
menu on the remote control.
Picture Menu
CONTRAST
BRIGHTNESS
TINT
COLOR
VIDEO
MOVE
1. Submenu consists of Brightness, TINT, Color, Sharpness, Color
Temp and Picture Mode.
2. Press MODE or , on the remote control to select sub-menu,
CH-
press CH-, CH+ or , to adjust the sub-menu item. Press
MENU to return to main menu.
Note: TINT can only work at NTSC.
CH+
SELECT
EXIT
Remote controller operation:
1. POWER
Press this key to turn on or turn off the power.
2. EJECT
Press this key to eject disc.
3. MODE
Press this key to select the modes among AV, DVD, TV.
4. PLAY/PAUSE
While playing CD/MP3/VCD/DVD, press this key to pause, press it
again to play.
5. FF
During the playing mode, press this key to fast forward, you can
choose from 2 , 4 , 8 and 20 .
6. Next (next track)
During the playing mode, press this key to choose next track.
7. BACK (Last track)
During the playing mode, press this key to choose last track.
8. FR
During the playing mode, press this key to play fast return, you can
choose from 2 , 4 , 8 and 20 .
9. STOP
During the playing mode, press this key once to pause, if you
want to play, just press the key Play . Press the key Stop
twice continuous, it will stop playing. Press the key Play , it will
replay from the beginning.
10. SLOW
During the playing mode, press this key to play slow, you could
choose from 1/2 to 1/7 .
11. DISP
Press this key to display the playing state.
- 5 -
- 10 -
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player
Remote controller instruction
EJECT
2
123
456
12
789
A-B
0
28
14
15
10
16
24
17
18
20
19
21
TITLE
8
SUBTITLE
RETURN
DVD
MENU
PROGRAM
AUDIO
10+
FR STOP FF
SLOW
ENTER PBC
ANGLE
MUTE
POWER
MODE
PLAY/PAUSE
NEXT
BACK
SETUP
ZOOM
REPEAT
CH-
MENU
VOL- VOL+
DISP
CH+
TFT
11
22
13
29
23
25
30
26
27
Audio Menu
AUDIO
1
3
4
6
5
1. Submenu consists of Volume, Audio Control and FM.
2. The operation is same as the other modes.
VOLUME
AUDIO CONTROL
TOSHIBA
FM
MOVE
FM
SELECT
EXIT
9
Channel Menu
7
CHANNEL
AUTO SCAN
CHANNEL 3
COLOR.SYS
SOUND.SYS
PAL
D/K
- 9 -
MOVE
SELECT
Note: This menu only valid at TV mode.
- 6 -
EXIT
Flip Down LCD Monitor with Multimedia Player Flip Down LCD Monitor with Multimedia Player
1. Submenu consists of AUTO Scan, Channel, Color.SYS,
Sound.SYS, Skip, Manual, Fine and Swap.
2. The operation is same as the other modes.
Function Menu
FUNCTION
TIMER
BLUE SCREEN ON
FACTORY RESET
MOVE
SELECT
EXIT
1. Submenu consists of Timer, Blue Screen and Factory Reset.
2. The operation is same as the other modes.
OSD Menu
OSD
LANGUAGE
H-POSITION
V-POSITION
OSD TONE
MOVE
ENGL ISH
SELECT
EXIT
1. Submenu consists of Language, H-Position, V-Position and OSD
Tone.
2. The operation is same as the other modes.
- 7 - - 8 -
