Eonon E1016m Instruction Manual

Headrest with pillow TFT LCD Monitor
INSTRUCTIONS
Please read these instructions carefully before using this unit
011
CATALOGUES
一、General information ………………………………………
二、Precautions ……………………………………………………
三、Installation guide …………………………………………… 四、Monitor illustration………………………………………… 五、Remote control unit ……………………………………… 六、Trouble shooting …………………………………………… 七、Technical specifications …………………………………
1
一、GENERAL INFORMATION
Thank you very much for your purchase of this headrest with pillow TFT LCD
Monitor. Player please read this instruction manual and keep it for future references.
二、PRECAUTIONS
1> It’s made up of many precision electronic elements, and any dismantlement or
refit will make it damaged or broken.
2> When operating the unit, please avoid contacting with the LCD panel. 3> Keep it away form the place where is too hot or too cold. Operating
temperature of the unit is 32-92 degrees Fahrenheit.
4> Do not drop the monitor or impact it with hard objects. This may cause
permanent irreversible damage to the LCD panel and/or the back light element.
5> During operation, if the unit over-heat or malfunction, switch off. Do not
disassemble the unit by yourself. Please consult the company or the dealer.
6> The battery of the remote control unit has an estimated life cycle of five
months. To ensure proper functionality, replace the battery on a timely manner.
7> Do not use any chemical solv ent, cleaning agent or corrosive detergent wh en wiping the display
三、INSTALLATION GUIDE
Precautions:
1> This unit should be installed by a qualified service technician. 2> This product is designed to operate with a 12V DC, negative ground battery
system.
3> Disconnect the ground wire from the battery terminal prior to connecting the unit to the electrical system 4> Please use accessories that come with this unit in order to avoid fire or electrical damage to it.

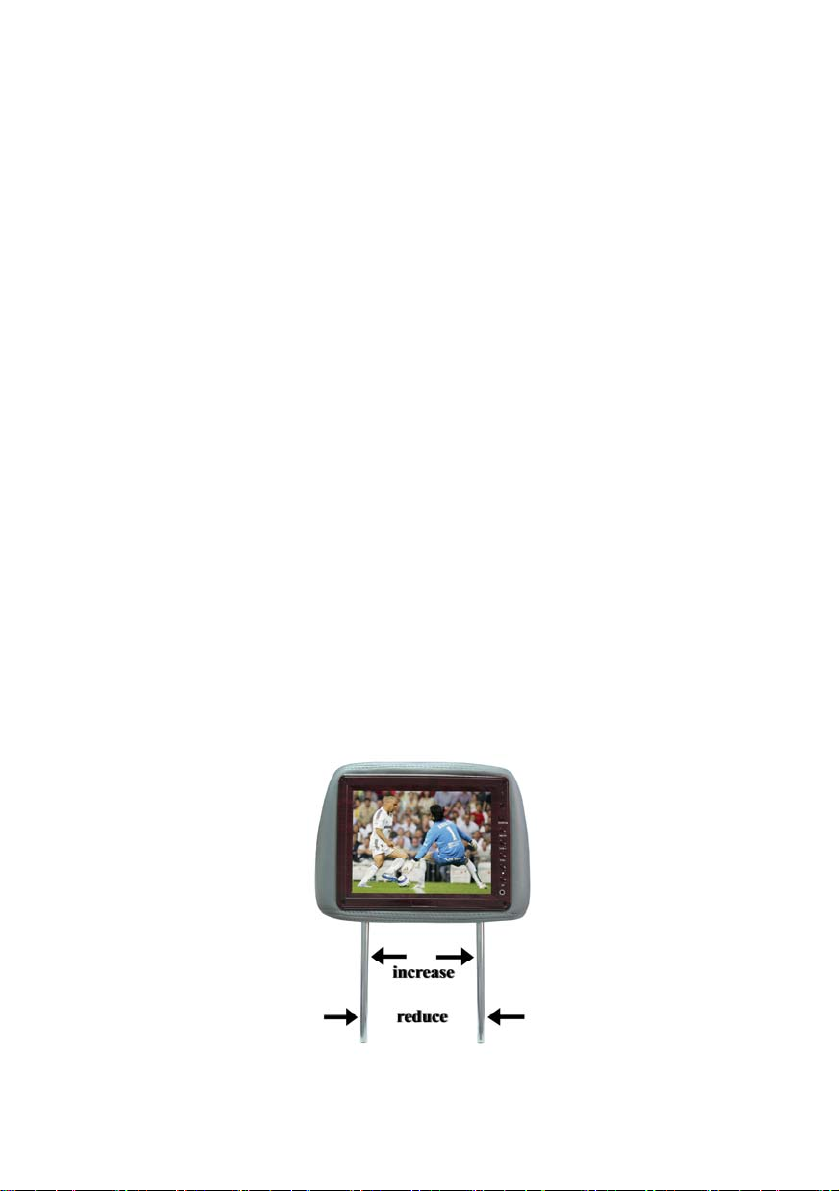

5> This unit fit any models of car, the distance between two poles can be adjust.
2
四、MONITOR ILLUSTRATION
8Monitor illustration.
1、Indicator light 2Incept window 3、Power ON/OFF button 4MENU OSD Setting 5、V+ Volume Ascend Button 6V- Volume Reduction Button 7、
Moving the cursor downwards 8、AV selection
9、Video/Audio Input
五、REMOTE CONTROL
1Fast Buttons on Remote Controller
MUTE: ON/OFF:
SYS: CALL: MENU: SLEEP: P.P AV: P :
P : V+: V-:
MUTE on/off Power switch
SYS Button Back Button Fast Menu Button Timing Shut-down Picture adjustment AV selection
Moved the cursor upwards Moved the cursor downwards
Volume increase (submenu adjust) Volume decrease (submenu adjust)
3
2、Replacement of Battery
1. Use a small coin to open the battery clip.
2. Remove old battery and replace it with the positive “+” sign facing upward.
3. Push battery clip into compartment until it is locked
六、TROUBLE SHOOTING
Phenomenon Reason
No picture and
sound
No sound
No color
Remote
Controller
Doesn’t Work
Snowflake
pictures
AC adapter or automobile adapter is improperly connected. Uncertified power is being used. Power switch is off. Audio volume is off or in mute condition. Press VOL+. Enter into the MENU “PICTURE SYSTEM” to
adjust its system.
Check the battery in the remote controller, make sure it installed correctly. The power of battery is run out or the signal is disturbed. Antenna signal is weak. Make sure to connect the antenna correctly.
4
七、TECHNICAL SPECIFICATIONS

Headrest with pillow color TFT-LCD Monitor

TYPE
Display System TFT-LCD Monitor Source Operating
Temperature Operating Humidity Operating Voltage DC+12V Power Consumption
Video input 1VP-P (PAL/NTSC) *2PC Audio input
0℃~60
20%~85
10W
