Eonon E0821 Instruction Manual

Model: E0821

User Manual

Please read this manual before using and

save this manual for future reference

NOTES ON INSTALLATION

The unit is designed for 12V DC ,
negative ground operation system
only.

Before installing the unit, make sure
the vehicle is connected to DC 12V
negative ground electrical system.

The negative battery terminal must
be disconnected before making
connections, which can reduce
damage to the unit due to short
circuit.

Be sure to connect the color coded
leads correctly according to the
diagram. Incorrect connection may
cause the unit to malfunction or
damage the vehicle electrical
system.

Be sure to connect the speaker(-)
Leads to the speak(-) terminal.
Never connect the left and right
channel speak cables together or to
the vehicle body.

After the completion of the
installation and before to play
(including replacing the battery),
please press the RESET button on
the front panel with pointed objects
(Such as ball-point pen)to set the
unit to initial status.

Do not block vents or radiator panels
Blocking them will cause heat to build
Up inside the unit and may damage it.

SPECIFICATION

General

Power Requirement 14.4DC
Load Impedance 4ohm
Max Power Output 60W 4
Tone Control +/-8DdB(Bass100Hz,Treble 10KHz)
Dimension Approx,192 188 80mm(D W H)
Mounting Dimension Approx,169 178 50mm(D W H)
Weight Approx.1.75kg

DVD Deck Section

Disc Played DVD/VCD/2.0/MP3/MP4(DIVX/CD/Picture-CD)
Video System PAL/AUTO/NTSC

CONTENTS

Precautions 2

Panel illustration

Main menu 5

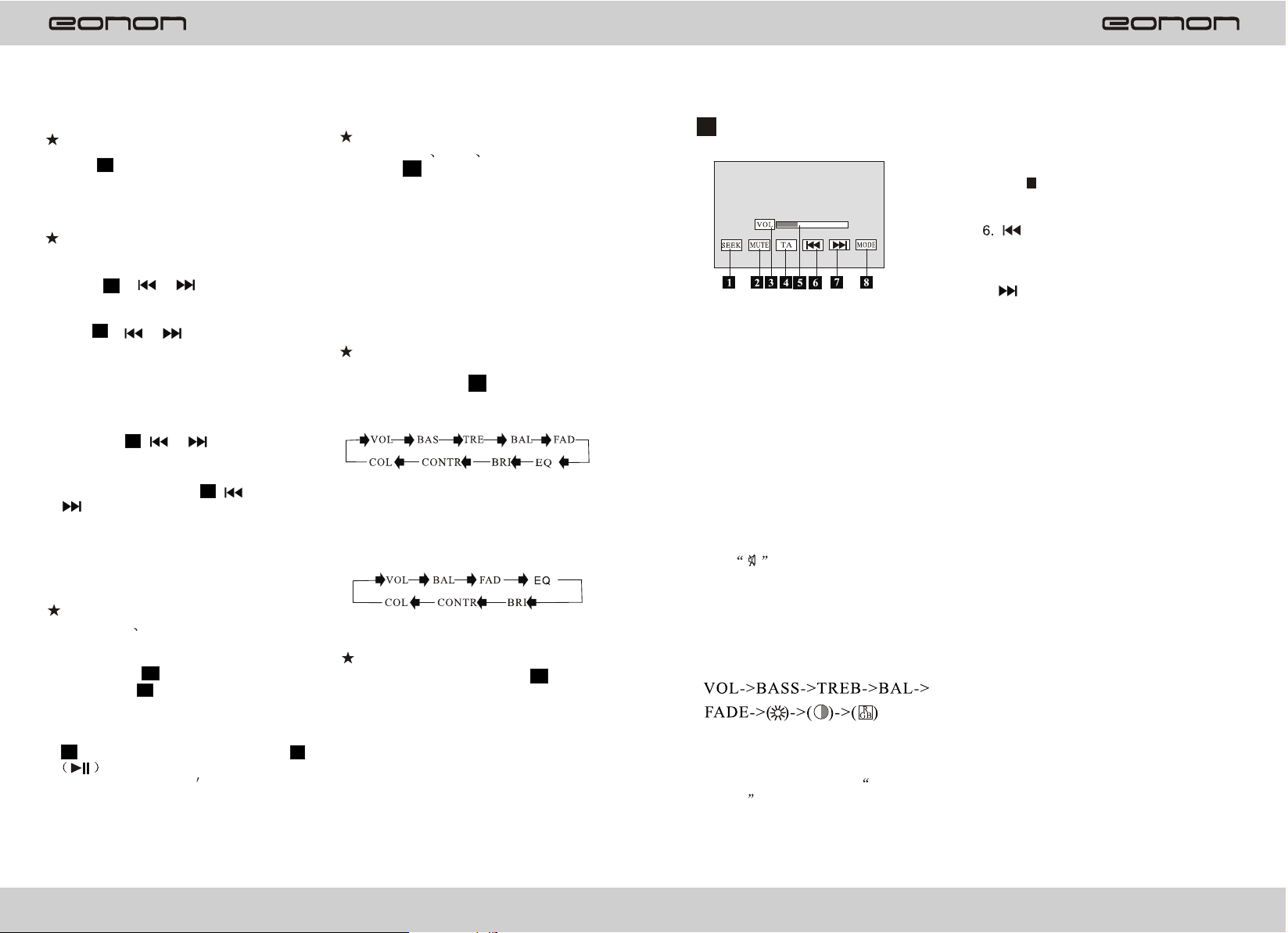

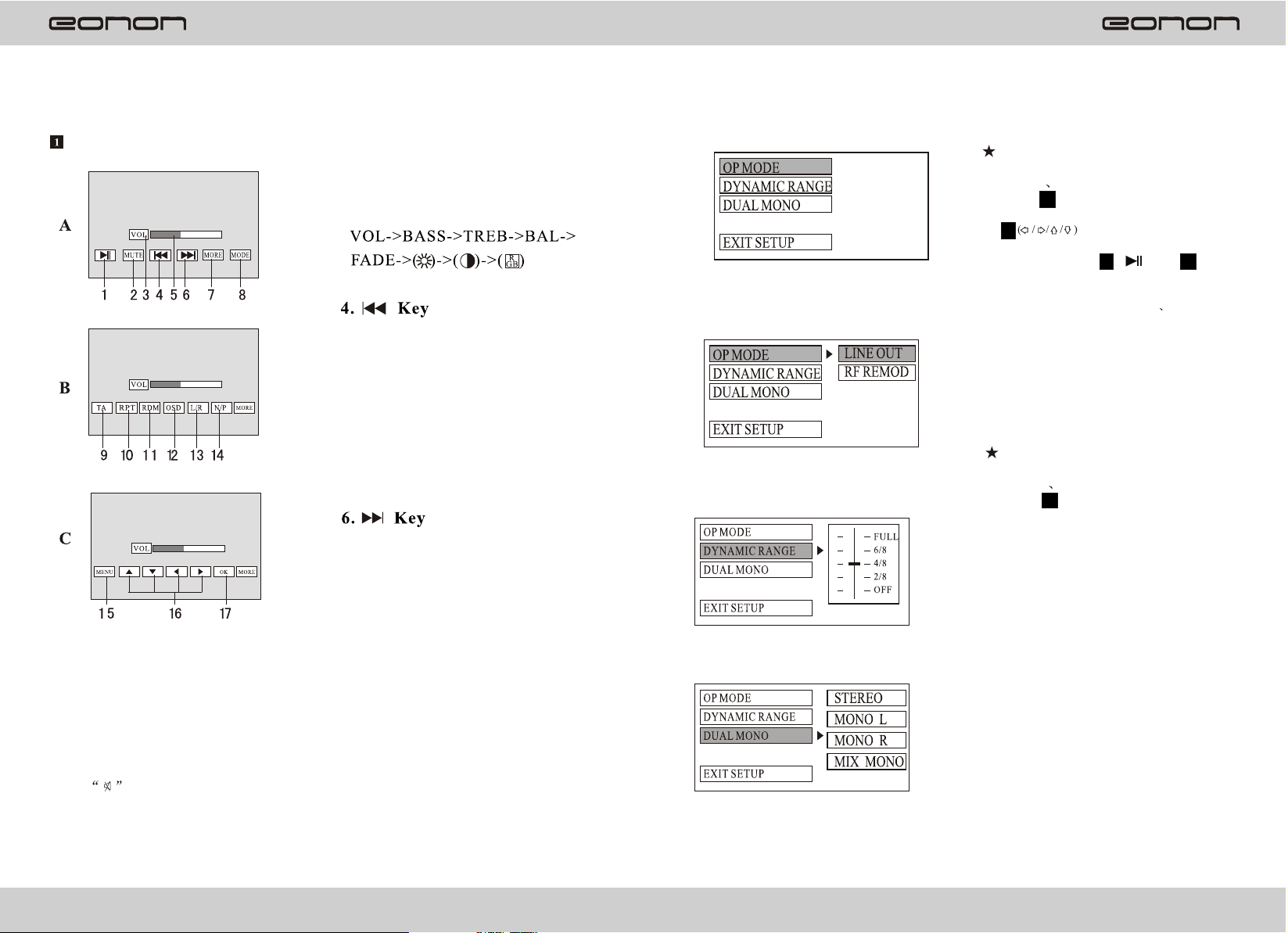

Media player

AV IN 8

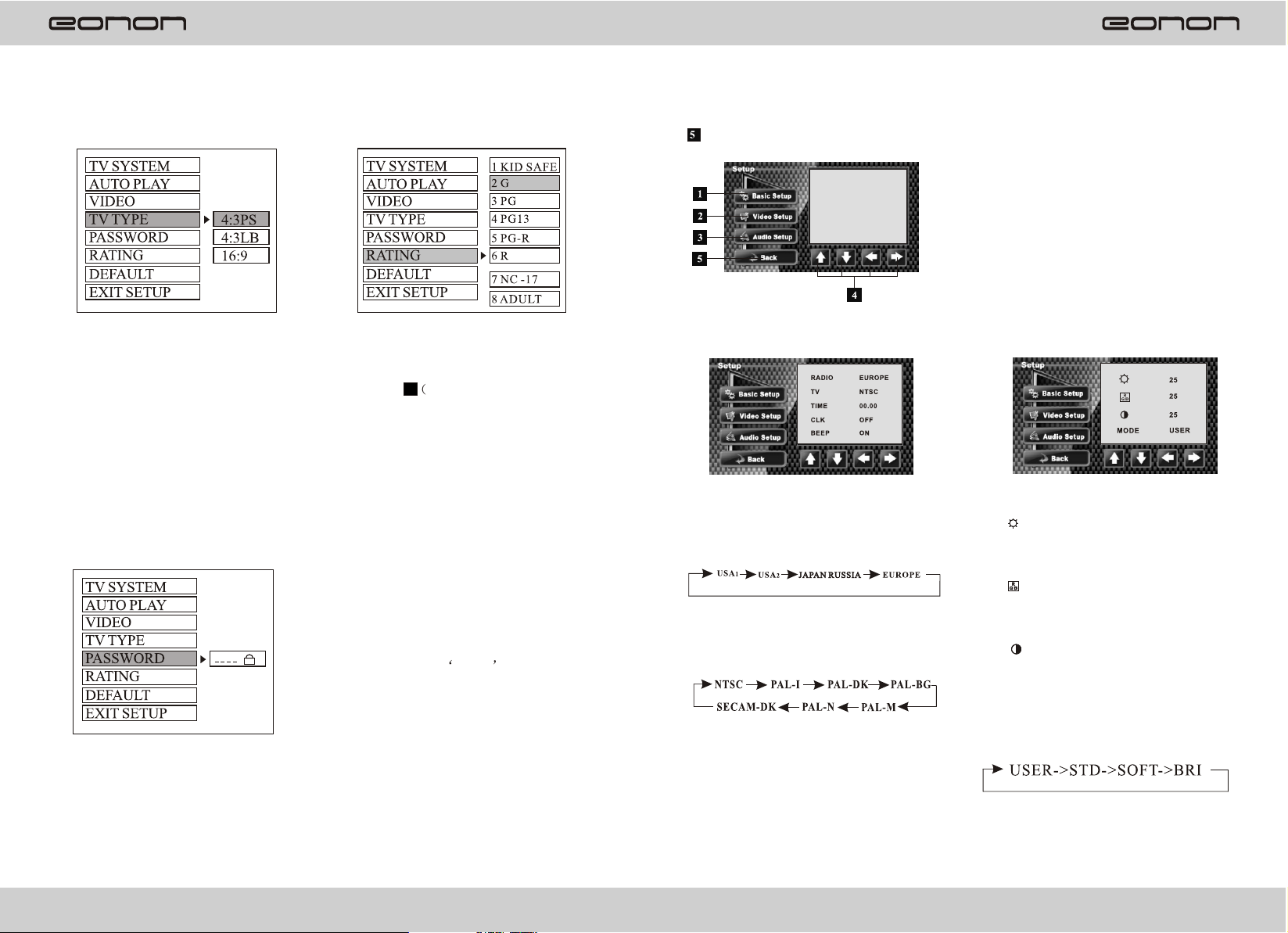

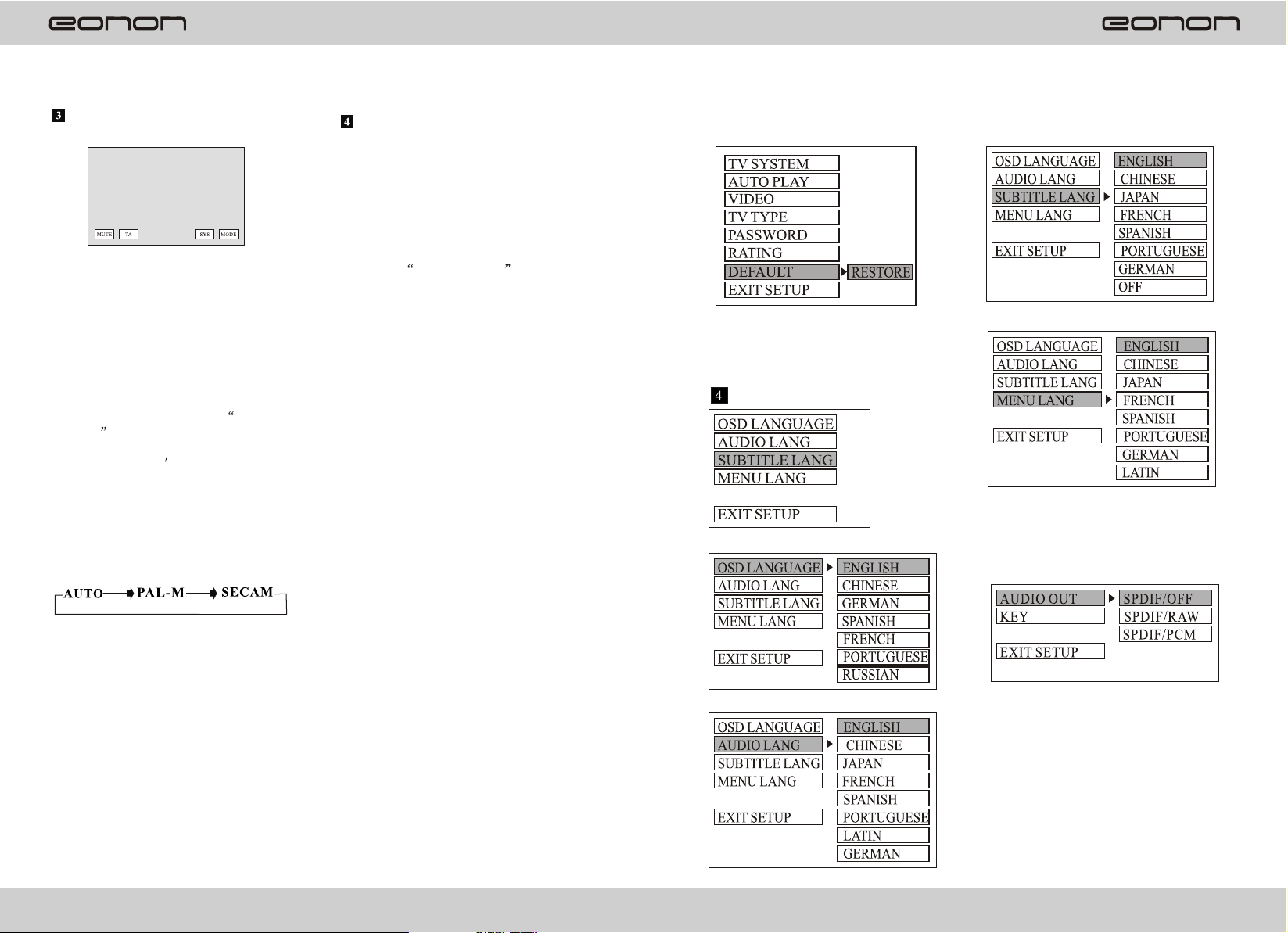

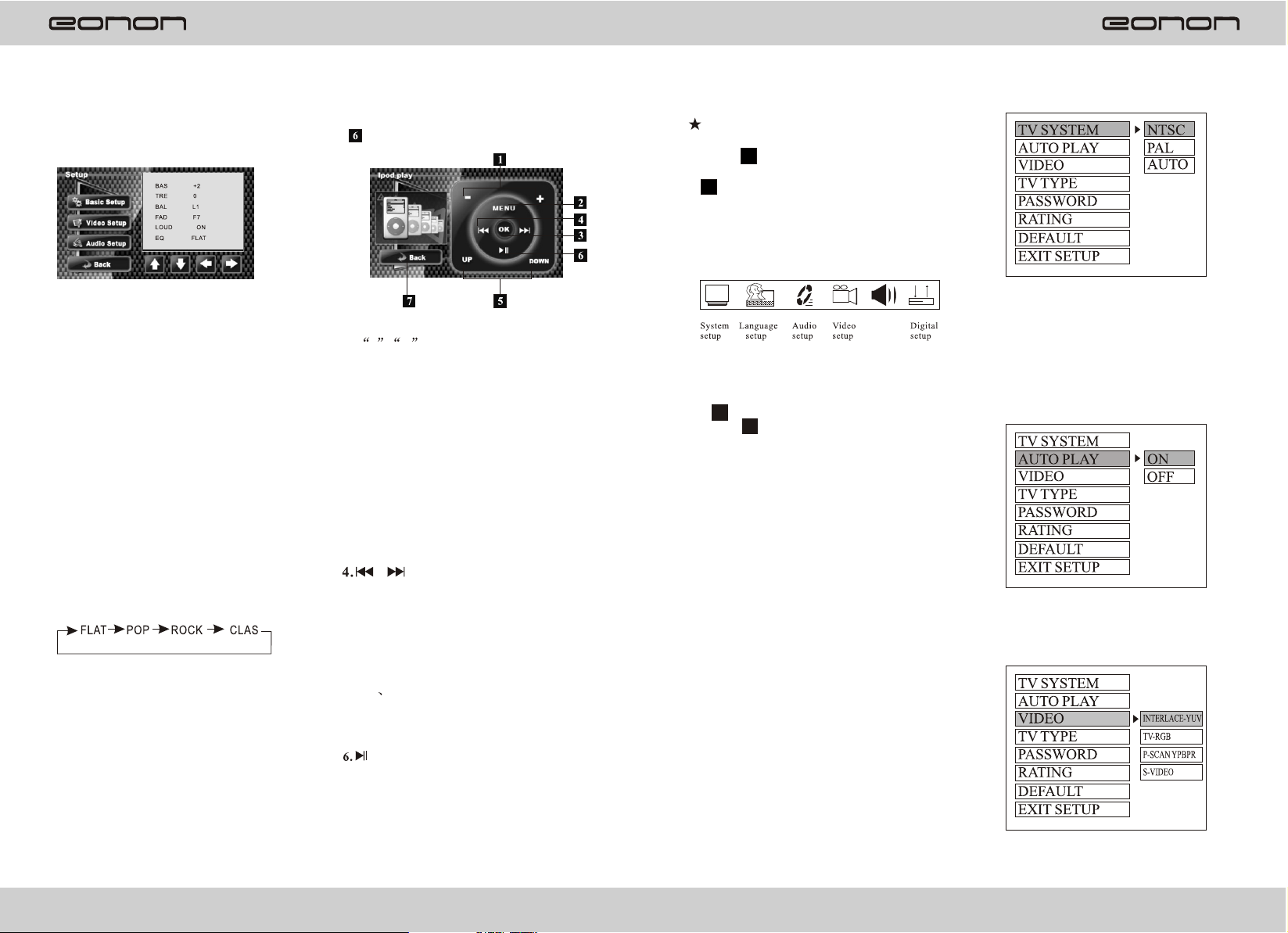

Setup 9

3

6

Video Section

Video System 4:3Letter Box and 4:3Pan Scan ,16:9wide-screen
Video Output level 1.0vp-p 75ohm
Horizontal Resolution 500

Audio Section

Maximum Output level 2Vrms(+/-3dB)
Frequency Response 20 to 20KHz
Signal-to-noise Ratio 85dB
Separation 80dB

AM Tuner Section

Frequency Range 522-1620(Europe/China/Russia)
530-1710(U.S.A);522-1629(Japan)
IF Range 450KHz
Usable Sensitivity(-20dB) 25dB

FM Tuner Section

Tuning Range 87.5-108(Europe/China);87.5-107.9(U.S.A)
76-90(Japan);65-108(Russia)
IF Range 10.7MHz
Usable Sensitivity 15dB
Signal-to-noise Ratio 60dB
Stereo Separation 30dB(1KHz)
Frequency Response 30-15KHz

iPod player

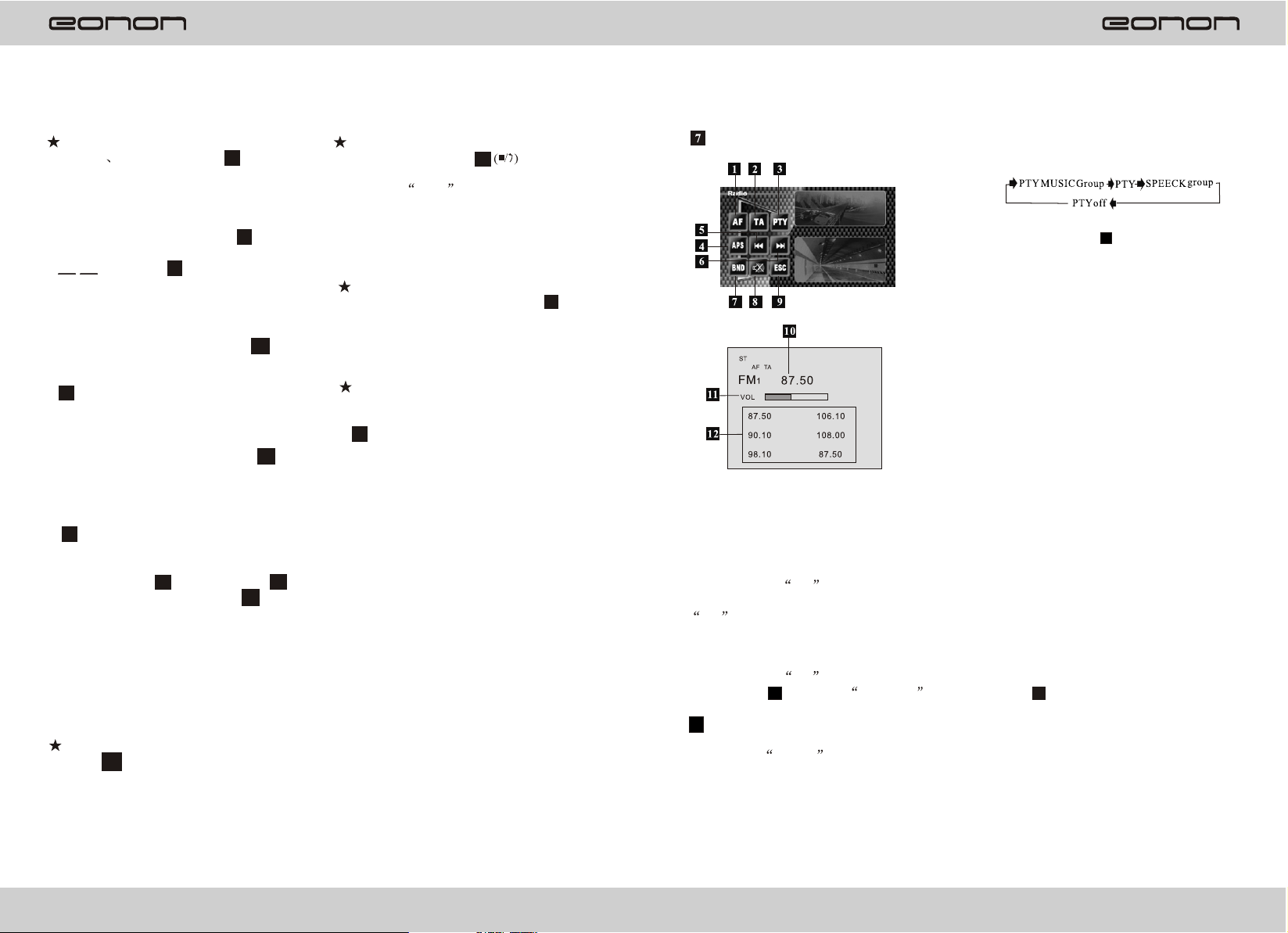

Radio operation

TV operation

10

11

13

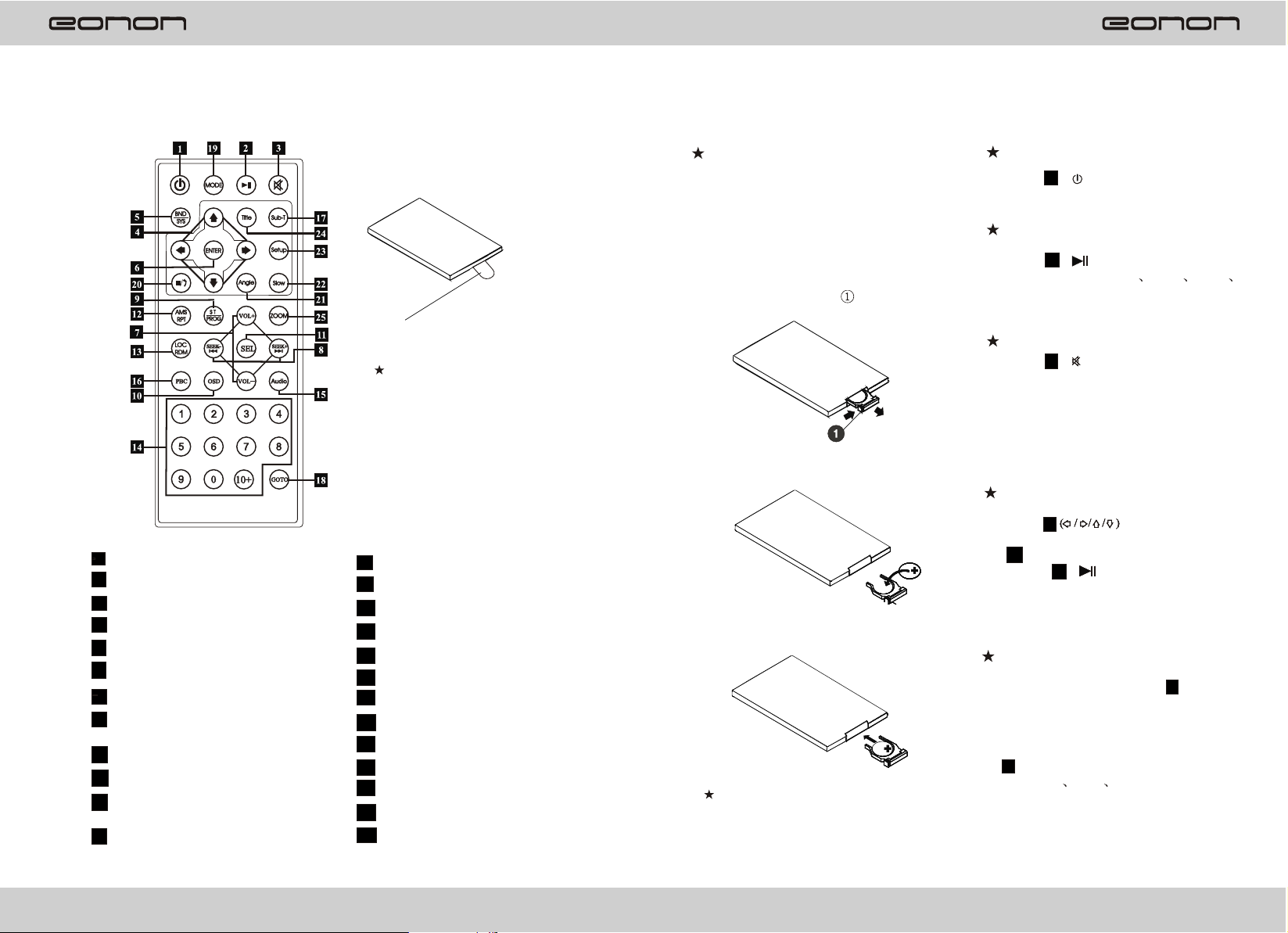

Location of the Remote Control 14

Remote Control Operation 15

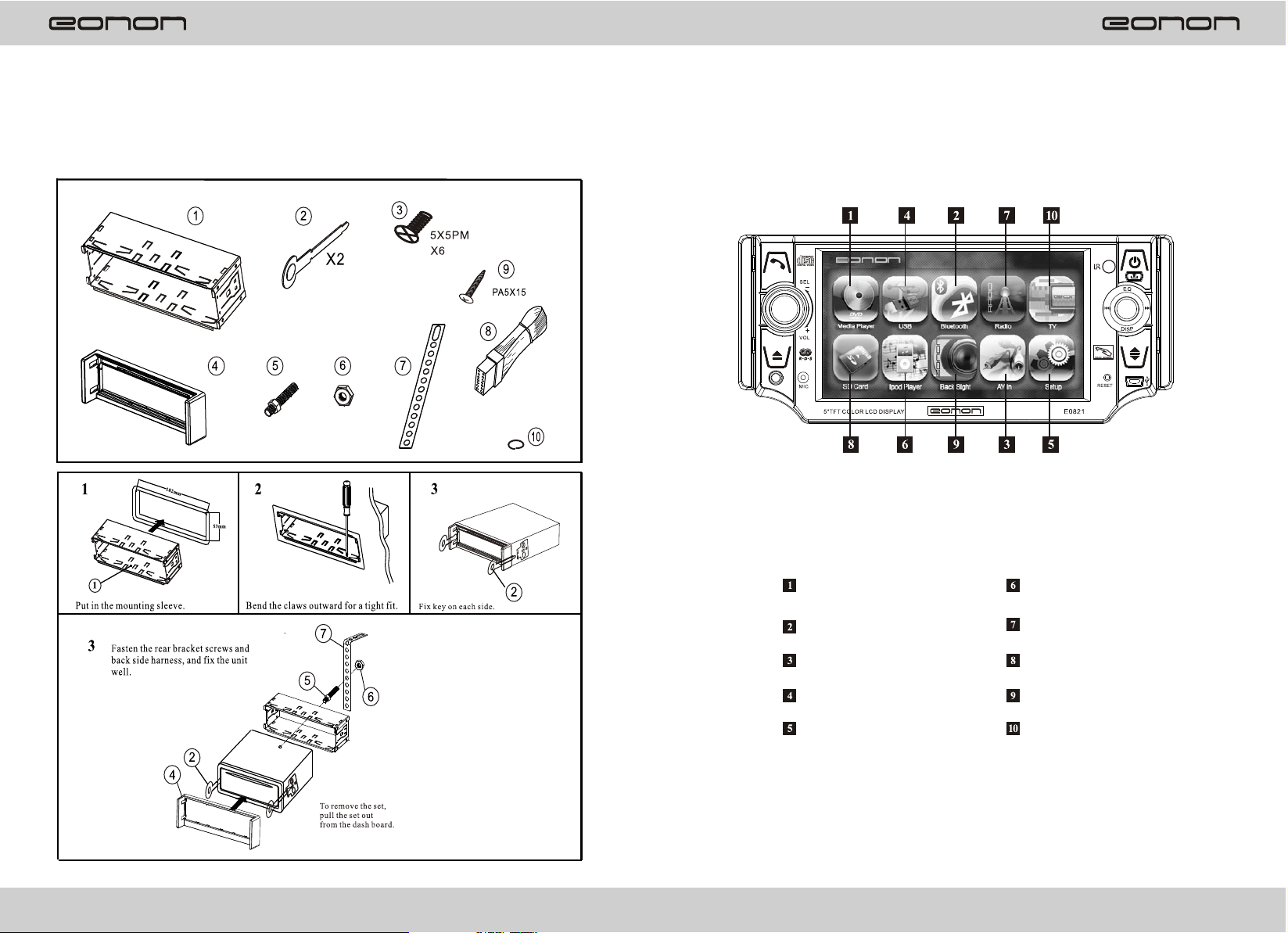

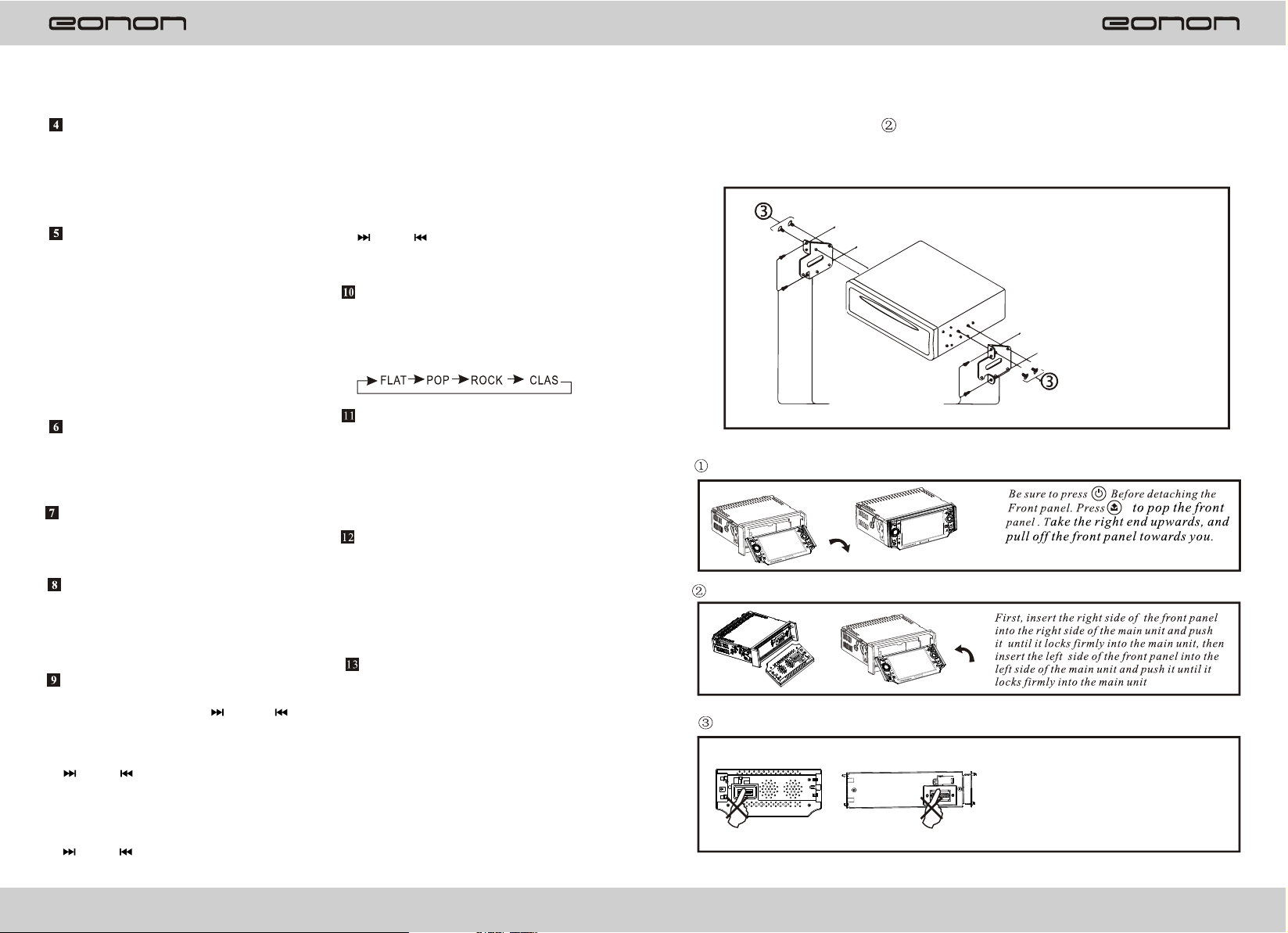

Installation 24

Simple Troubleshooting Guide

Wiring Diagram

27

26

Specification 28

Note: Due to continuous product improvement, specifications and design are
Subject to change, without notice.

28

03.MAL.5700.001.27

1

PRECAUTIONS

WIRING DIAGRAM

This unit can play the following disc only:

Type of disc Label on the disc Recorded material

Sound and moving

pictures

Sound and moving

pictures

Sound and moving

pictures

Sound and moving

pictures

Sound only

Do not attempt to modify the unit.
Unauthorised modification may
damage the unit.

Stop the vehicle before carrying
out any operation that could
Interfere with your driving.

Do not operate the unit in exteme
temperatare inside the vehicle.
The operating temperature of the
unit is between-20 to+60

----Do not use CD with paste residue
or ink on the surface

----Do not use CD with labels or
Stickers attached. It cause failure
Of the loader mechanism.
(Shown in picture)

STANDARD CONNECT

Size of disc

iPod in

To enjoy optimum sound and
images while playing, handle the
disc as follows:

----Handle the disc by its edge to keep
the disc clean. Do not touch the surface.

2 27

----Clean the disc with cleaning cloth
Wipe each disc from the centre out
(Show in picture

Antenna Receptacle

Output Socket(female)

Fuse Holder(15A)

Video Out Receptacle

Output Socket(male)

iPod in(optional)

SIMPLE TROUBLESHOO TING GUIDE

Panel illustration

Problem

No power

Some errors occur in the LCD or no
function when pressing the button

Unable to receive stations

Poor effect on receiving

CDs cannot bo loaded

The stereo indicator" "is flashing

No picture

Picture distortion

Wrong region code

Cause/solution

Check the fuse. Replace with the proper
value if necessary

Press the RESET button

Check and make sure the antenna is
properly connected.

Antenna may not have proper length. Make
sure the antenna is fully exten ded. If broken
replace the antenna with a new one.

The broadcasting signal is too weak.
The antenna is poorly grounded. Check and

make sure the antenna is properly grounded
at its mounting location.

A CD is loaded in the mechanism.

Tune in the frequency accurately

The broadcasting signal is too weak.
(Set to the MONO mode)

The video line from main unit to the TV is
not connected properly .

Improper setting of the color system. Set the
color system to PAL or NTSC, according
to the connected television.

The CD is dirty or damaged.

Under DVD mode ,press" " on
remote control pad twice, the press
arrow on remote control pad,
and press pad 0-6according to your region

For example, if disc region is 1, press
arrow and 1 on the remote control.

Press the station for 3 seconds to
memorize preset station.

No memory on radio sation

For example, if a user wants to
Preset radio frequency FM 88.10
On station 1, just simply press
station 1 for 3 seconds when
frequency is tuned at FM 88.10

Note:If any of the problem persist, consult your nearest service dealer.

Never attempt to disassemble the unit by yourself.

Tel button

Volume/Sel button

Eject button

Touch screen

Reset button

USB port

Angle button

Tel button

When there comes a call, press it to
Answer the call.(When you want to
Reject or hang up the call, press" "
on the front panel or HANG UP touch
key in the TEL touch menu).

Volume/Sel button

For volume control , rotate VOL konb
clockwise to increase the sound level
and anti-clockwise to decrease the
sound level.
Repeatedly press it to select mode
in the following orders:

Disp button

Seek+/Seek-

EQ button

Release button

Power button

Remote control sensor

Eject bu tton

A. When there is no disc in the unit,

press it and the front panel will
flip down to shown the disc slit in
the main unit, Insert the disc into
the CD slot, and the mechanism
wills automatically playback the
Disc.

B. When there is a disc in the unit,
press it, the front panel will
automatically flip down and eject
the disc, if you don t take the
disc away within 5 seconds, the
mechanism will automatically slot
in the disc, lock the front panel and
select radio mode.

326
