Eonon D1306 Instruction Manual

D1306

Model:D1306

Thank you for buying this product, please read through these operating instructions, so you will know how to operate your model properly. After you have finished reading the instructions, put them away in a safe place for future reference .

CONTENTS

PRECAUTIONS

FRONT PANEL

SYSTEM MENU

REMOTE CONTROL

BASIC OPERATION

RADIO OPERATION

BLUETOOTH OPERATION 20

TV OPERATION

DVD/VCD/CD OPERATION 25

SYSTEM SETUP

MP3 OPERATION

INSTALLATION

TROUBLE SHOOTING

CABLE CONNECTION

ACCESSORIES

SPECIFICATION

IMPORTANT: Please adjust screen to make the touching effect function best when you initiate the unit for the first time. For the details, please refer to the operation at Page 9.

NOTE: Due to the continuous product improvement, specifications and design are subject to change without prior notice.

PRECAUTIONS

1. Be sure to connect the color coded leads according to the diagram. Incorrect connections may cause the unit to malfunction or damage the vehicle, s electrical system.

2. Be sure to connect the speaker (-) leads to the speaker (-) terminal. Never connect the left and right channel speaker cables each other or to the vehicle body.

3.Make sure all the connections are completely correct before turning on your unit.

4. When replacing the fuse(s), the replacement must be of the same amperage as shown on the fuse holder.

5. Do not block vents or radiator panels.doing so many cause heat to build upinside and may result in fire.

6 After completing the installation and beginning to play the unit (including replacing the battery),please press RESET button on the front panel with pointed object (such as ballpoint pen) to set the unit to initial status.

Replacing the Fuse Make sure the amperage matches the specified value when replacing the fuses. If the fuse is blown, check the power connection and replace with a new one. If the same problem occurs, lt would be subjected to the malfunction in-house.In such cases, please consult the nearest service dealer.

WARNING: Never use the fuse with the rated amperage more than that supplied to your unit, other wise lt will damage the unit.

PRECAUTIONS

This unit can play the following discs only:

Type of disc

DVD

VCD

Label on the disc

VIDEO

Recorded material

Sound and moving pictures

Size of disc

12cm

MP3

NOTE: The unit is compatible with VCD1.0/2.0/3.0 version and DVCD disc.

Sound only

12cm

*Do not attempt to modify the unit, modifying the unit may cause an accident.

*Stop the vehicle before carrying out any operation that could interfere with your driving.

*Do not work in extremely high or low temperature. Be sure the temperature inside the vehicle is between +60 C and -10 C before turning on your unit .

*To enjoy optimum sound and images while playing, handle the discs as follows:

Handle the disc by its edge to keep the disc clean, and do not touch the surface.

Do not use your CDs with paste residue or ink attached.

Do not use CDs with labels or stickers attached, which may leave a sticky residue

while beginning to peel off. (Shown as the picture)

Clean the discs with an optional cleaning cloth. Wipe each disc from the center out.

(Shown as the picture)

FRONT PANEL

MIC

PTY AF OPEN

REL

VOL

BAND/

MUTE

SRC

POWER

AVIN

A/V IN

DISP

TILT

191818

FRONT PANEL

1.REL:Press to open the guardagainst theft front-panel.

2.VOL:Rotate VOL button clock wise to increase the volume level; and rotate VOL

button anticlockwise to decrease the volume level.

Press this button briefly to start the system setup.

3. / / / :In radio mode, long press switches to manual seek station .

Short press switches to automatic.

In playback mode, short press to select previous or next track or chapter.

Press and hold to play by fast reverse or fast forward.

4. /BAND: Press to pause or play playback mode.

In radio mode, press to change current band.

5.SRC: Press to switch sources.

6.POWER/MUTE:Press to turn on the unit, press and hold the button for 1 second or

longer to turn off the unit. In power on, press to shut off the sound output, press it again

to resume previous sound.

7.A/V IN: Insert the A/V cord, then press PWR/SRC button to selectAUX1 source.

8.SD slot: Insert SD card, the unit will play the files of SD card automatically.

NOTE: Once the SD card could not eject automatically after pressing, just pull it out

manually .

9.USB slot: Insert USB device, the unit will play the files of USB automatically.

10. IR window

11. :Short press to eject a disc. Press and hold to force ejecting a disc

when the system becomes frozen accidentally.

12. OPEN: Press to open or close the TFT panel.

13. DISP/AF: in radio mode, press to turn the AF function on/offpress and hold to display

the current time ,source of the front and rear display and media (Disc,USB,SD)available.

14. MIC

15. TA: In radio mode, press to turn the TA function on /off

16. PTY: press to switch PTY program type

17. RESET: press to return to the initialization

18. / (TILT):Press to set the angle of TFT panel.

19. MENU: In DVD mode, press to display DVD SETUP menu;

Press and hold in DVD mode or press in other mode to display SYSTEM SETUP menu.

MENU SYSTEM

The users can perform operation by touching screen directly.

RADIO OPERATION

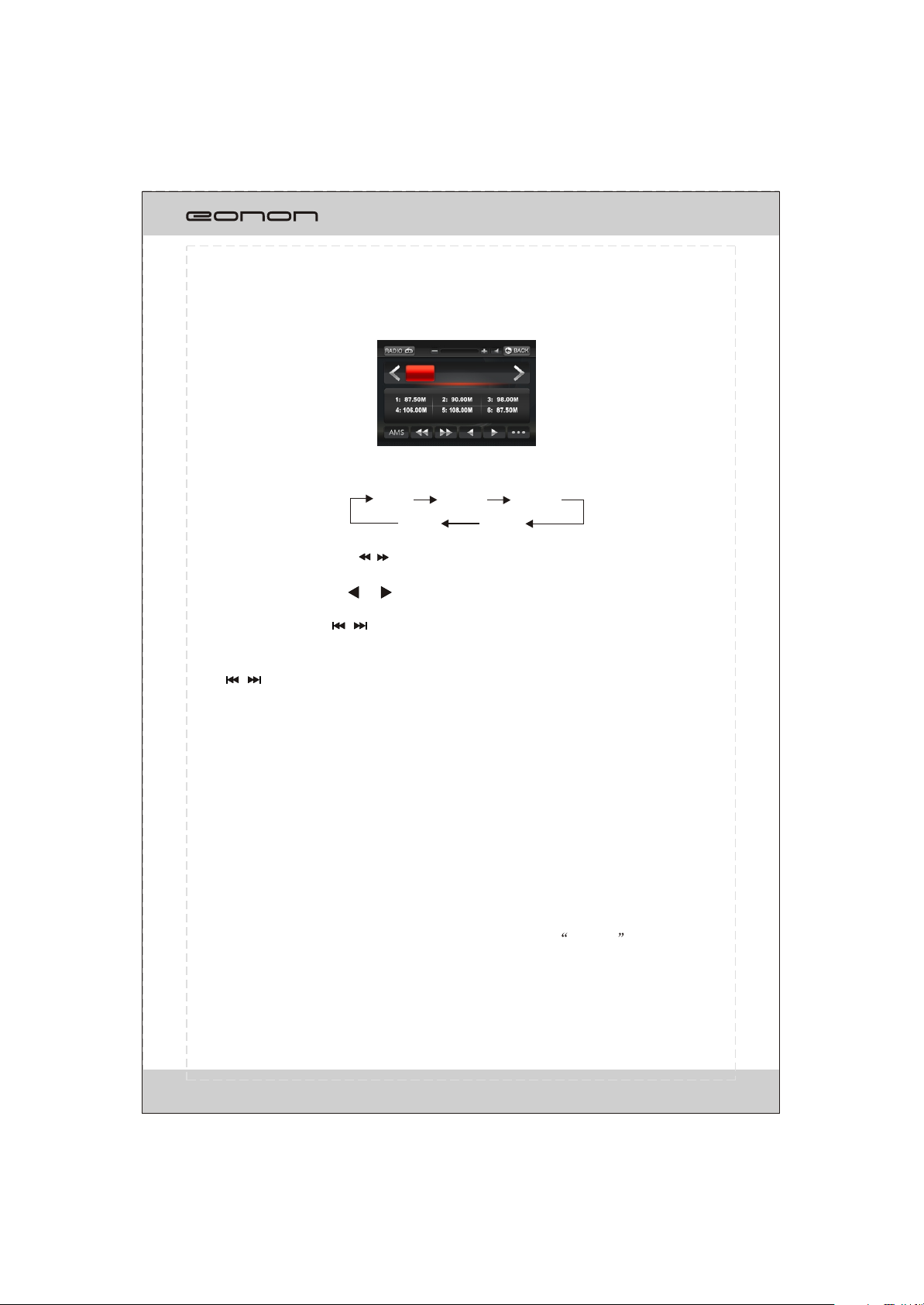

FM1 P6

87.50MHz

12 14

1. CURRENT STATUS 2/10. < / > To switch bands.

3.Station preset button To display the preset station list (touch one of the station preset button to recall the radio which stored on the position; long touch to save the current frequency into the station)

4.AMS To browse preset stations. To search and store stations automatically(long touch). 5/6. >> / << To seek a station automatically. 7/8. < / > To seek a station manually.

9. RDS To go to RDS operation

11. BACK To be back to display the SOURCE screen

12. MUTE To shut off the audio output and touch again to resume. 13/15. +/- To increase or decrease the volume.

14. Volume bar

16. BAND AND PRESET STATION DISPLAY

MENU SYSTEM

RDS OPERATION

FM1 P1

87.50MHz

1.AF ON: To turn on AF function. OFF: To turn off AF function.

2.TA ON: To turn on TA function. OFF: To turn off TA function.

3.ST ON: To turn on STEREO function. OFF: To turn on MONO function.

4.LOC ON: To tune in local area. OFF: To tune in local and distant area.

5.PTY To select one of the program types.

6.RADIO To go to radio operation.

MENU SYSTEM

MULTI-- PLAYER OPERATION

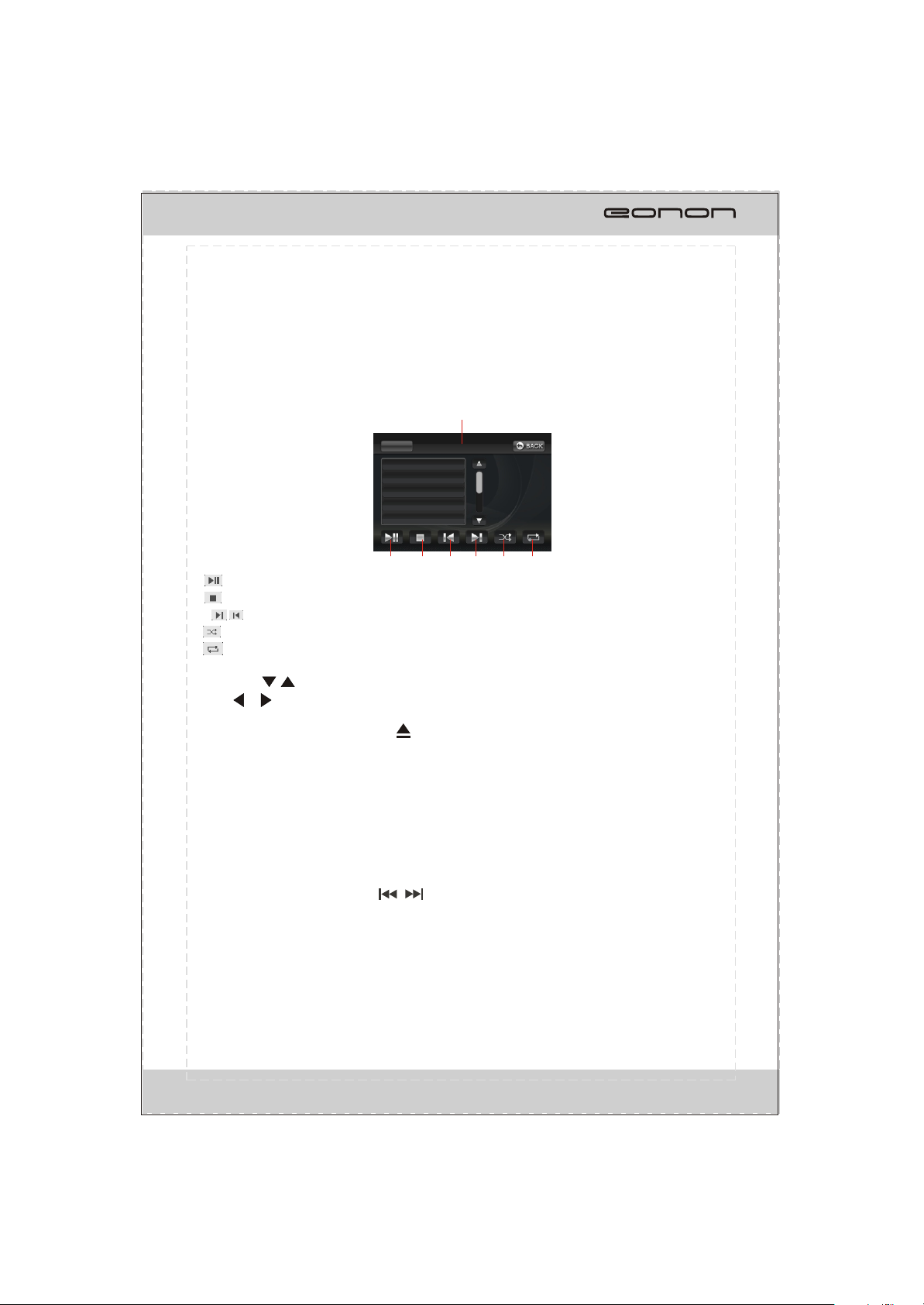

In DVD/VCD mode, the touch screen displays as following after tapping at random position.

1 2

Fig.1 Fig.2 Fig.3

To start/pause the playback.

2. To stop playing, touch twice to stop

completely. 3/4.

To select previous/next chapter or track. 5/6. To play in fast rewind or fast forwards mode. 7/14/20. To select more items.

8. To play in random order.

9. To select one of the repeat modes.

10.OSD

o select title elapsed, title remain, chapter elapsed, chapter remain, display off.

11.SUB-T. To select the subtitle type if the DVD supports.

12.

To display the DVD SETUP screen.

13.TITLE To display the title menu.

15.ANGLE To change the DVD viewing angle if the

DVD supports.

16. ZOOM To change the DVD viewing scale if the

DVD supports.

17.PBC To display the PBC menu in VCD mode.

18.P/N T

o select PAL , AUTO or NTSC system

19.A-B To play the selected A-B section.

18 15 16

NOTE: Touch the left middle position twice to display the TITLE MENU selection screen, touch the right middle position twice to display the ROOT MENU selection screen, touching the right top position to display the number keyboard. You can select chapter(track) by press the touchable screen or the RC.

Setup Operation

TOUCH ON THE TOP RIGHT POSITION TO ENTER SOURCE INTERFACE. The unit will return to the previous mode if no operation is performed in 5 seconds.

Touch on SET button on the above fig.. The user can start the system setting.

1. SETUP

Touch on the SETUP button and the screen will display as following:

Fig.1

TIME MODE Set the time display mode(12H/24H). TOUCH SCREEN To calibrate the touch screen. RADIO REGION To select the right region as per the user locates.

Tapping on button to turn to next page shown as fig.2.

In FIG.2 TIME ADJUSTMENT To adjust the time by tapping button; TIME DISPLAY ON: To display the time OFF: To turn off the time display mode.

Fig.2

SW CONTROL OPERATION

Tapping on button to turn to next page shown as fig.3.

Fig.3 Fig.4

SW control

To set 6 short-cut bottons for the steering wheel control.

The screen will display as fig.4 if there is no set for the system.

There are 10 buttons for selection in each item: POWER, SRC, PREV, NEXT, VOL+,VOL-,

MUTE, PAUSE, and .

Please refer to the following sequential order to

finish the setting:

1. Touch on one of the 6 BLANK columns position on the screen;

2. Press one button on the SW control;

3. The relative information jumps out on the screen;

4. Touch one of the functions as the wanted function for the pointed button on SW control;

Note:

1.The group-setting can be erased by press

ing and holding the selected group.

2. If there is already a set item, press the corresponding button on the SW control and the screen will display: Exist key X.

3. Different buttons on the SW can be defined to the same function. The defined button can be redefined after erasing the previous function.

SW CONTROL INSTALLATION

Before installing the SW control, please make sure all the wires are in good condition. For installation, please refer to the illustrations below:

In case of connecting to the SWC (steering wheel control):

Key1

GND

Key2

SWC1, orange

X XX

SWC2, brown

GND, black

CAR AUDIO

SWC

in case of connecting to the SW remote control:

Key1

GND

SW remote control

Key2

Please consult the professional technicians for advice if the unit cannot work as expected.

B+

GND

SWC(IR), Blue/yellow

CAR AUDIO

3.Audio

Touch on the AUDIO button and the screen will display as following:

Fig.1 Fig.2 Fig.3

In FIG.1, the user can adjust the value of BASS, TREBLE and SUB WOOFER by tapping on + / - on the touch screen.

Tapping on button to turn to previous page shown as fig.2.

In FIG.2, the user can turn on/off the BEEP and LOUD function by tapping ON or OFF button.

Tapping on button to turn to next page shown as fig.3.

In FIG.3, the user can adjust the sound output effect leftwards or rightwards by tapping button; the sound output effect frontwards or rearwards by tapping button.

4.Video

Press on the VIDEO button and the screen will display as following:

In this setting, the user can adjust the value of CONTRAST, BRIGHTNESS and COLOR by tapping on the items at the left/right end of each value bar. According to the specific condition, the user can adjust the light effect on screen by tapping SOFT, USER, NORMAL and BRIGHT modes.

REMOTE CONTROL

2 3

6 7

12 13

PTY AF TA

15 16

22 23

24 25

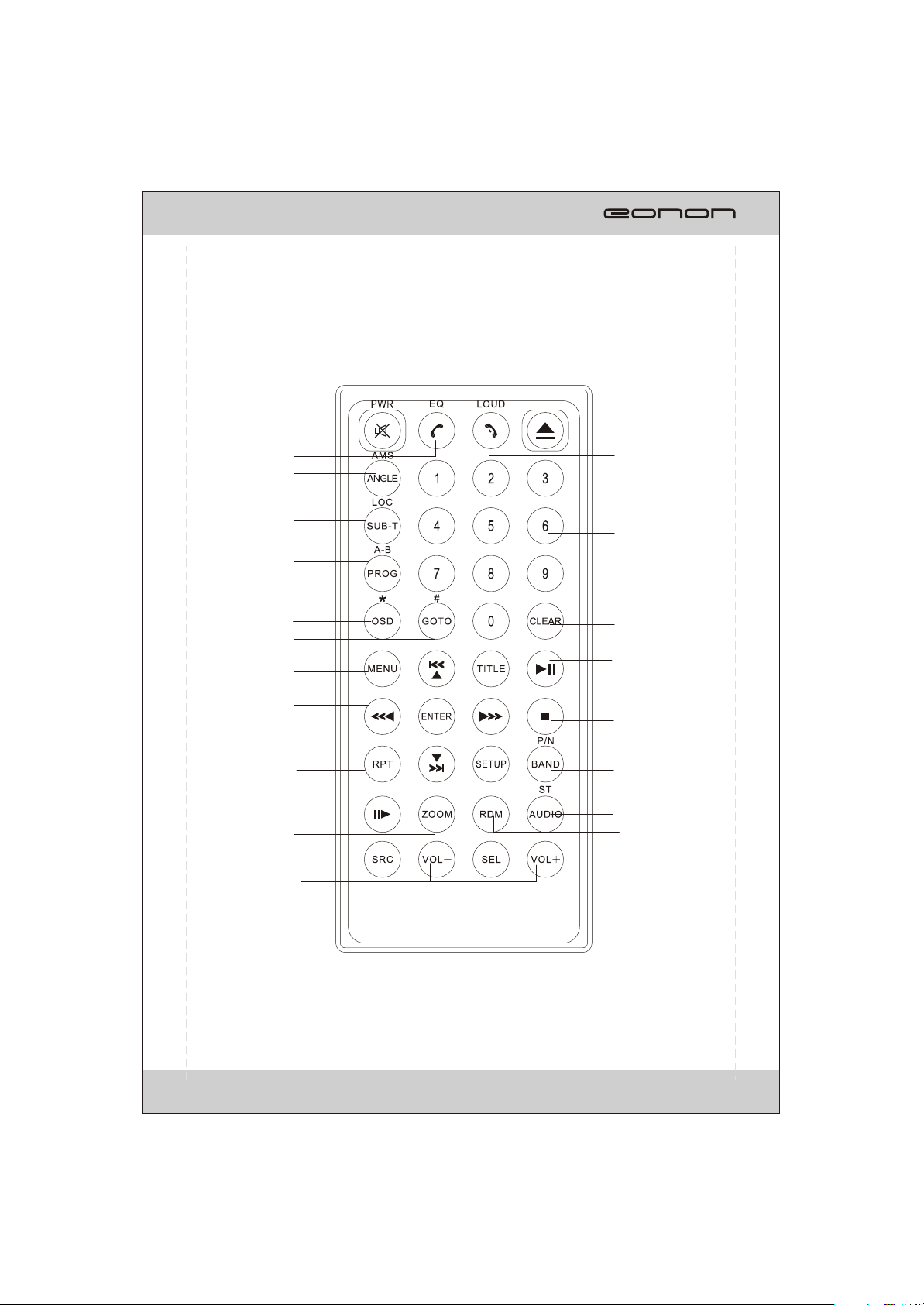

REMOTE CONTROL

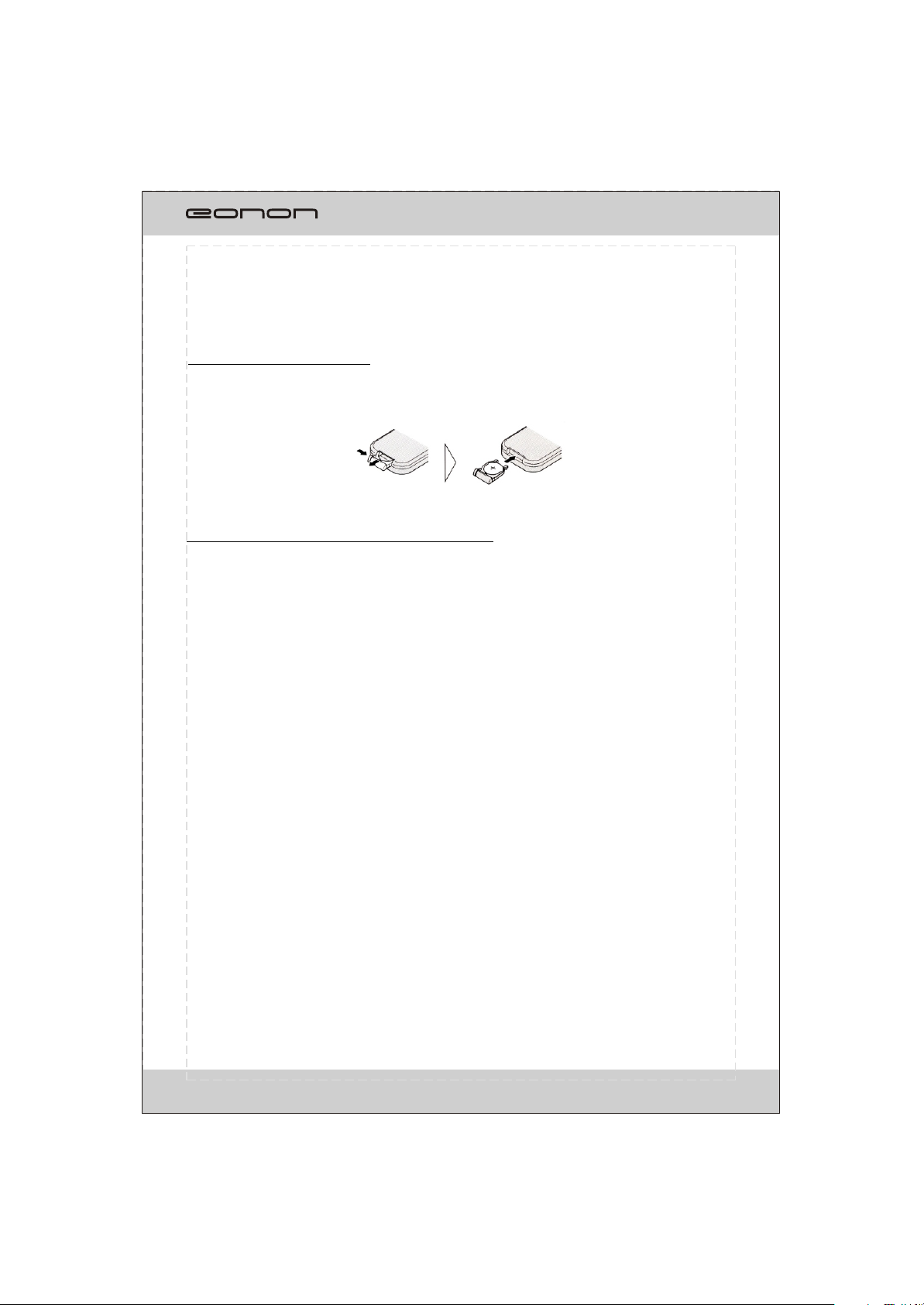

Installing the battery

Slide the tray out on the back of the remote control and insert the battery with the plus (+)and minus(-)poles pointing in the proper direction.

Use and care of the remote control

Point the remote control in the direction of the front panel to operate to use it. Notes: Using batteries improperly can cause them to explode. Take note of the following points: * Keep the battery out of the reach of children. Should the battery be swallowed, immediately consult a doctor. * Use one CR2025(3V)lithium battery. * Remove the battery if the remote control is not to be used for a month or longer. * Do not short-circuit, disassemble or heat batteries. * Do not dispose of batteries into fire or flames. * Dispose of spent batteries properly. * Do not let the remote control fall onto the floor, where it may become jammed under the brake or accelerator pedals.

REMOTE CONTROL

1.PWR Press this button to turn on the unit. Press and hold this button to turn off. In power on, press to shut off the sound output, press it again to resume the previous sound level.

2.EQ Press to select the corresponding preset modes to adjust the sound quality. In BT mode, press to dial up a call.

3.ANGLE/AMS Press to change the viewing angle in DVD mode. In radio mode, press to browse each stored station for 5 seconds respectively which have been stored. Long press to scan and automatically store stations.

4.SUB-T/LOC In DVD playback mode, press to change the subtitle language. In radio mode, press to select a local station or distance station.

5.PROG/A-B In DVD/VCD/CD mode, short press to set the program order to play. In DVD/VCD/CD mode, press and hold to repeat selected A-B section.

6.OSD/* In DVD mode, press to display Title Elapsed, Title Remain, Chapter Elapsed, Chapter Remain, DisplayOff. In VCD/CD mode, press to display Single Elapsed, Single Remain, Total Elapsed, Total Remain, Display Off. In any mode, long press to display current time, current mode. In BT mode, press this button to function as the button does on your cell phone.

7.GOTO/# In DVD mode, press GOTO button and cursor button to select TITLE, CHAPTER, AUDIO, SUBTITLE, ANGLE, TT TIME, CH TIME, REPEAT, TIME DISP. Then press ENTER button to set the item. In VCD mode, press GOTO button and cursor button to select TRACK, DISC TIME, TRACK TIME, REPEAT, TIME DISP. Then press ENTER button to set the item. In CD mode, press GOTO button to select "Disc Go To:_ _ _", "Track Go To _:_ _:_ _", “Select Track:_ _:xx". Then press 0-9 number buttons to set the track or time what you want. In radio mode ,press the button and the number button to set the frequency. In BT mode, press this button to function as the button does on your cell phone.

8.MENU Press to return to the root menu in DVD mode.

9. [ / ][ / ][ / / / ]/ENTER In playback mode perform [fast reverse /fast forward][previous track/next track][upwards/downwards/ leftwards/rightwards] and then press ENTER to execute the entering or the selected item in the system setting menu. In radio mode, press / button to recall a stored station. Press / button to seek a station automatically by short press and to seek a station manually by press and hold.

10.RPT In disc playback mode, press this button to repeat playing.

11. /PTY In radio mode, press this button to function PTY on/off.In DVD/VCD mode, press to play slowly.

12. ZOOM/AF In radio mode, press this button to function AF on/off. In DVD/VCD mode, press to increase or decrease the picture in size.

13. SRC P

ress the button repeatedly to switch sources.

14. VOL-/SEL/VOL+ Press VOL-/VOL+ to adjust volume.

Press the SEL button to start the system setup.

15. Short press to eject a disc. Press and hold this button to force ejecting a disc when the system becomes frozen.

16. LOUD Press this button to activate LOUD function. In bluetooth mode, press this button to reject your calling.

17. 0~9 numerals In radio mode, number buttons(from 1to 6)can help you store you favourite station. In DVD/VCD/CD mode, press to select any chapter or track directly.

18.CLEAR Press the button to clear the erroneous number what you import.

19. Press to pause playing and press again to resume playing.

20.TITLE In DVD mode, press the button to return the title menu. In VCD mode, press this button to display PBC function.

21. Press once to stop play. Press twice to stop completely.

22. BAND/P/N In radio mode, press to select bands. In DVD/VCD mode, press P/N button to select PAL, AUTO or NTSC.

23.SETUP In playback mode, short press to display DVD setting. Press and hold in DVD mode and press in other modes will display system settings.

24. AUDIO/ST In DVD/VCD mode, press to change the audio language. In FM mode, press to select stereo or mono reception.

25.RDM/TA In radio mode, press this button to function TA on/off. In playback mode, press to play tracks in a random order.

BASIC OPERATION

1.Reset the Unit

¼òµ¥¹ÊÕÏÅÅ³ýÖ¸ÄÏ

Operating the unit for the first time or after replacing the car battery, you must reset the unit. Press RESET button on the head unit with a pointed object, (such as a ballpoint pen) to set the unit to initial status. *This function can only be operated by the head unit.

2.Turning the Unit On/Off

Press PWR/ button on the remote control to turn on the unit. In unit ON, when insert a disc, the unit will automatically start playing. Long press it to turn off the unit completely.

Pressing PWR/MUT button on the front panel also performs the same operation.

Note:

After the unit is off, the volume level is memorized during the area between 0 and 30. If it is set less than 6, it will resume to 6; if the set volume level is higher than 30, it will resume to 30; if it is between 6 and 30, it still stores in the status which you set.

3.Volume Control

Press VOL+ button on the remote control to increase the sound level and press VOL- button on the remote control to decrease the sound level.

Rotate the VOL button on the front panel also performs the same operation.

4.Setting the Sound Characteristics

Repeatedly press VOL button on the unit or on the remote control to select the desired mode in the following order:

L-front R-front

Volume

Angle

L-rear R-rear

Treble

Subwoof

Bass

Note:

* After selecting the desired mode, you can adjust the current level by rotating VOL button or pressing VOL-/VOL+ buttons on the remote control.

fter adjusting the Angle item, the unit will memorize the angle of the panel.

* If you don t adjust VOL button in 3 seconds after selecting the desired mode, the

function will be cancel.

5.Mute Function

Press PWR/ button to shut off the sound output. MUTE will be displayed on the screen. Press it again to resume to previous volume level.

Press PWR/MUT button on the panel also performs the same operation.

6.EQ Setting

While listening to the popular music, classic music or rock music, you can select the corresponding preset modes to adjust the sound quality perfectly by using EQ button on the remote control. Repeatedly pressing EQ button to choose the following modes in turn:

POP

EQ OFF

CLASSIC

ROCK

RADIO OPERATION

Selecting the radio mode, the TFT display as the follows:

FM1 P6

87.50MHz

1.Band Selector

In radio mode, repeatedly press BAND/P/N button on the unit or on the remote control OR >/< button on the touch screen to select a band in the following order:

FM1

FM2

FM3

MW2 MW1

2.Manual/Automatic Tuning

(1).Automatic Tuning: Press / button on the remote control to search for a station in the direction of lower frequency or higher frequency. (2). Manual Tuning: Press or button repeatedly to move downward or upward one step respectively until the desired station frequency is displayed. *Press(press and hold) / button on panel also performs the operation.

3.Recalling a preset station

A total of 30preset stations (18-FM,12-MW) are available in memory. Press / button on the remote control to recall a preset station. The display shows the preset number and frequency of the stored station, touch one of these to select a corresponding station to listening. *Press one of the station preset button on the remote control also selects preset station.

4.Automatic/Manual Store

Auto store is a function for storing up to 6 stations. (1)Select the desired band. (2)Hold down AMS button ,the stations with good reception are stored automatically. Manual store: turn in a station you wish to store in the preset memory, press and hold one the preset buttons (1-6) that you want to store on. *If you store a station in a preset memory which already has a station the current station will be cleared and replaced with the new station.

5.DX/LOC Selector

In radio mode, press LOC button on the remote control to select strong or weak station reception. (1). It is set to LOC mode when LOC button is first pressed. Loc:ON appears on the screen and only strong signal station will be tuned. (2).It is switched to DX mode when Loc: OFF is pressed again. Both strong and weak stations can be received.

Note: The initial mode is DX mode.

6.MO/ST Selector

In FM of radio mode, you can press ST button on the remote control to select Mono mode or Stereo mode.

RADIO OPERATION

RDS (RADIO DATA SYSTEM) OPERATION

The RDS allows you to receive a variety of information such as traffic information, station names, and to automatically retune to a stronger transmitter that is broadcasting the same programme.

TIPS

The RDS digital data includes the followings: PI Programme Identification PS Programme Service Name AF List of Alternative Frequencies TP Traffic Programme TA Traffic Announcement PTY Programme Type EON Enhanced Other Networks

Turn on/off the AF function

* Press AF button to switch on/off AF function. *The tuner will searchfor a station with RDS information. * The tuner will retune frequencies whenever the reception signals getting worse.

Receiving Traffic information

1.Press the TA button to switch on TA mode.

2.The unit search for traffic information station automatically. When a traffic information station is tuned in, the TP mark display on touchable screen. If you do not want to listen to the traffic information being received, press TA button to skip that traffic information message. The TA function will remain in the ON position. And the unit will be back to previous mode.

3.Press it again to switch off TA mode. * Traffic information is heard only when it is being broadcast.

In other mode, Traffic announcement can interrupt the source sound output when broadcast. After broadcasted ,the unit will automatically return to the original source play before the traffic information broadcast began.

PTY(Programme Type)Tuning

The PTY function allows you to search for stations with a particular Program Type. Touching Page1 button on the radio display screen to switch to the RDS screen.

1.Press PTY button on touchable screen or on the remote control to select a programme type. After selecting the programme type for 3 seconds, the unit will search for a station in the selected programme type. *If the PTY station is found, the tuner will be stop searching. *If the PTY station is not found, No Pty will be displayed on the screen. All types for your selection are listed in table as below:

NEWS

CURRENT AFFAIR

INFORMATION

SPORTS

EDUCATION

DRAMA

CULTURE

SCIENCE

VARIED

POP MUSIC

ROCK MUSIC

M.O.R. MUSIC

LIGHT CLASSIC

SERIOUS CLASSIC

OTHER MUSIC

WEATHER

FINANCE

CHILDREN

SOCIAL AFFAIR

RELIGION

PHONE IN

TRAVEL

LEISURE

JAZZ MUSIC

An emergency broadcasting(ALARM) will broadcast automatically and produce the beep sound when it is received. The sound output through other source will be muted.

FM1 P1

87.50MHz

COUNTRY

NATIONAL

OLDIES

FOLK

DOCUMENTARY

TEST

ALARM

BLUETOOTH OPERATION

Select the BLUETOOTH mode

To select the BLUETOOTH mode, the users can make it done by the following ways:

1. Press on SRC/NAV button on the front panel to switch to BLUETOOTH mode;

Press on SRC button on the remote control to switch to BLUETOOTH mode;

3. Tap on the BLUETOOTH ICON at the MAIN MENU on the screen.

HANDS-FREE PHONE

The unit is compatible with Bluetooth international standard wireless communication technology. You can place a hands-free call by using a Bluetooth compatible with the mobile phone. *When you place a call, speak loudly and clearly. *Shut the windows before calling. *It is normal that some unnatural voice may be heard during your calling which may be caused by the conditions of the signals or the one who uses the mobile phone. *Due to some special mobile phone, you may not be able to use a hands-free phone.

CONNECTING

Searching for device

Selecting B T mode

(EONON) by using mobile phone.

The connection is successful.

The TFT displays CONNECT.

*The Bluetooth setting is required for a mobile phone. Read the Owner s Manual of

Selectting bluetooth device (EONON) by mobile phone. Input a pass code:1234

the mobile phone. *After paired ,the unit can connect with the mobile phone automatically. in valid range * If the mobile phone and the device are disconnected accidentally, the screen will display Disconnect, just press LINK button on the screen to reconnect(refer to Bluetooth setup ).

NOTE

*Press / button on the remote control also performs dial(receiving) a call or hang up a call function *The incoming call will interrupt the sound output through other source, and switch to the hands-free phone screen automatically when it is received. After the call is ended, the unit will be back to the previous mode. * The hands-free phone sounds output through the built-in speakers. When calling, press Audio Transfer button on the screen to switch the mode to receive a call by using mobile phone, and press it again to return to hands-free mode.

BLUETOOTH OPERATION

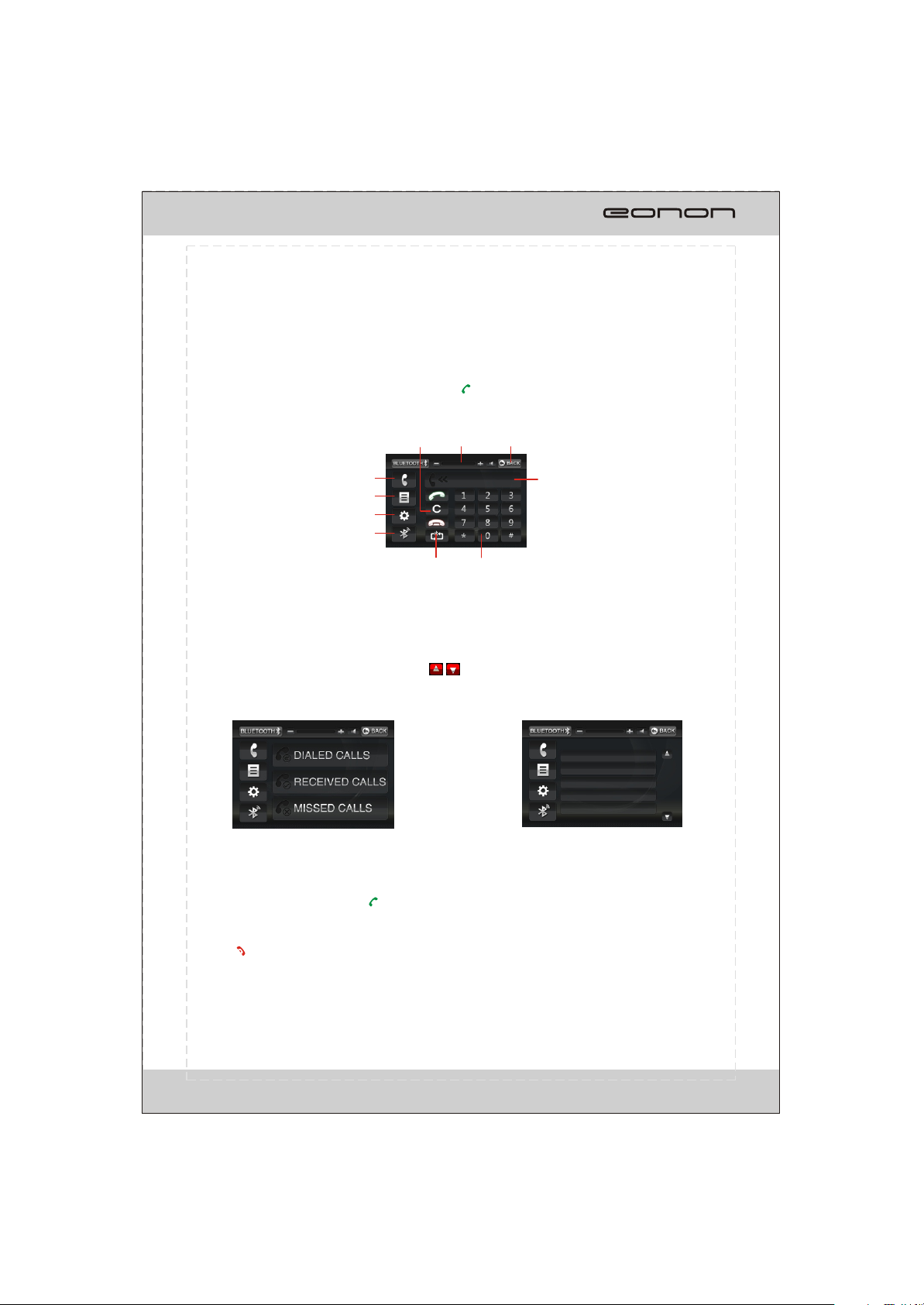

1. MAIN PAGE After selecting the bluetooth mode, MAIN PAGE will display as FIG.1. The user can dial up in this mode, i

remote control or on the screen then press button on the

nput the number required by pressing number button on the

remote control or on

screen to dial up. The telephone number you dialed is appeared on the

CLEAR

AUDIO TRANSFER

VOLUME BAR

DIGITS AREA

FIG.1

MAIN PAGE

PHONE BOOK

SETUP PAGE

A2DP PAGE

DISPLAY COLUMN.

BACK

DISPLAY COLUME

2. PHONE BOOK Tap on PHONE BOOK button on the screen shown above, the screen will display as following FIG.2. There are three item : DIALED CALLS, RECEIVED CALLS and MISSED CALLS. A maximum of 15 numbers can be stored in each call history. A maximum of 5 numbers will be displayed in each page. Tap on button to turn to previous/next page.(FIG.3) You can place a call by selecting a number from a list of each item.

FIG.2 FIG.3

010XXXXXXXX 020XXXXXXXX 021XXXXXXXX 025XXXXXXXX 027XXXXXXXX

Receiving a Call

when a call is coming, the received call sound rings ,and the coming call number is shown in the display. Press button on the screen to starts the call.

End a Call or reject a call

Press button on the screen or on the remote control to end or reject the call.

BLUETOOTH OPERATION

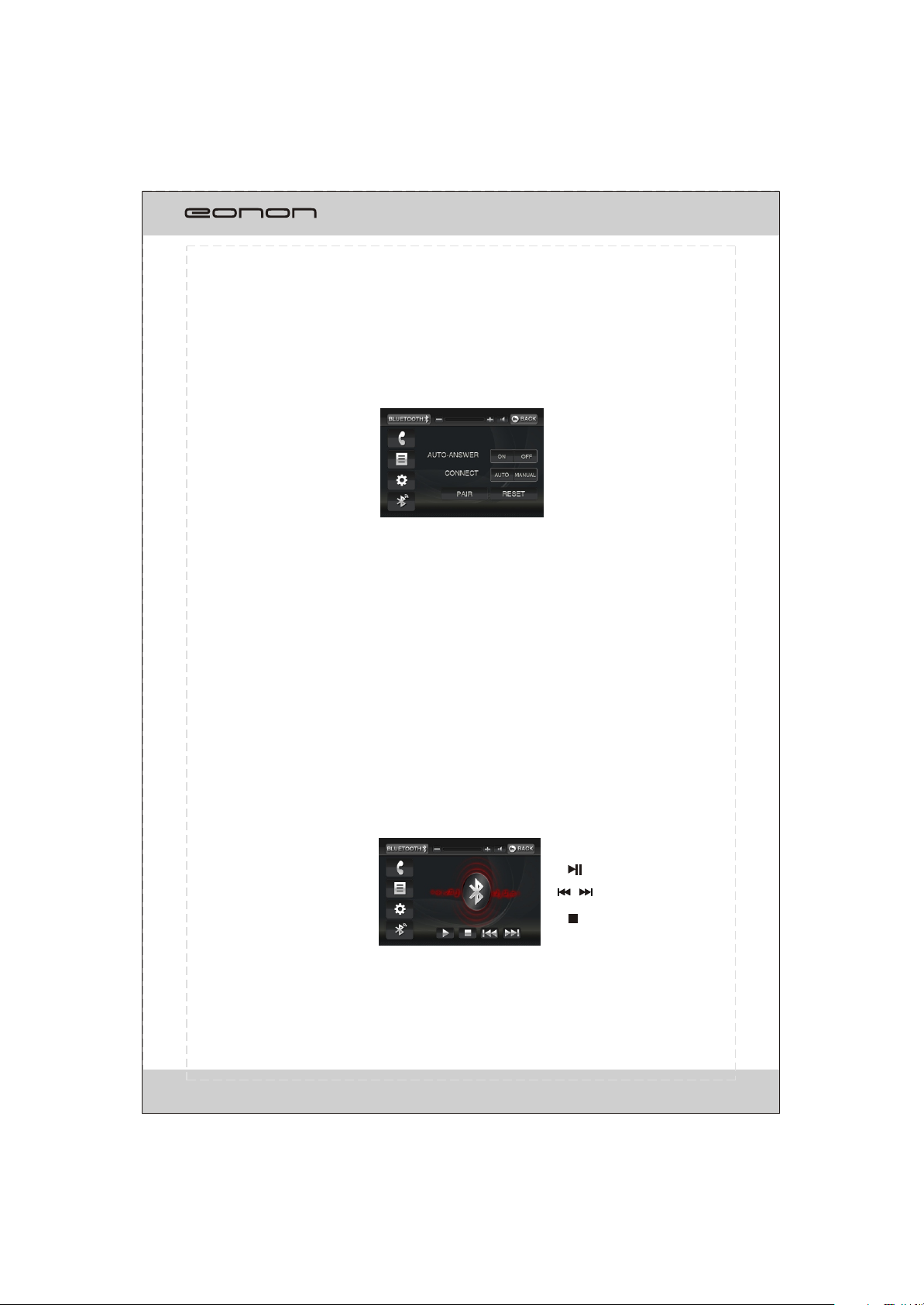

3. SETUP PAGE

Tap on SETUP PAGE button on the screen shown in FIG.1, the screen will display as following FIG.4.

3.1 AUTO-ANSWER ON: Tap on this button then the coming call will be answer automatically. OFF: Tap on this button then the coming call will not be answer automatically.

3.2 CONNECT AUTO: Tap on this button then the unit and the device will be reconnected automatically. MANUAL: Tap on this button then the unit and the device will be reconnected manually.

3.3 PAI R Tap on this button to pair up the unit and the device.

3.4 RESET Tap on this button to reset the bluetooth setup.

FIG.4

4. BLUETOOTH AUDIO FUNCTION

Tap on A2DP PAGE button on the screen shown in FIG.1, the screen will display as following FIG.5. Audio information of a bluetooth, compatible with mobile phone, portable player, etc., is transferred by wireless technology.

FIG.5

Play/pause

Previous/next track

Stop playback

Refer to CONNECT details to connect bluetooth audio devices.

NOTE

*Video playback is not supported. *Using remote control also performs the same operation.

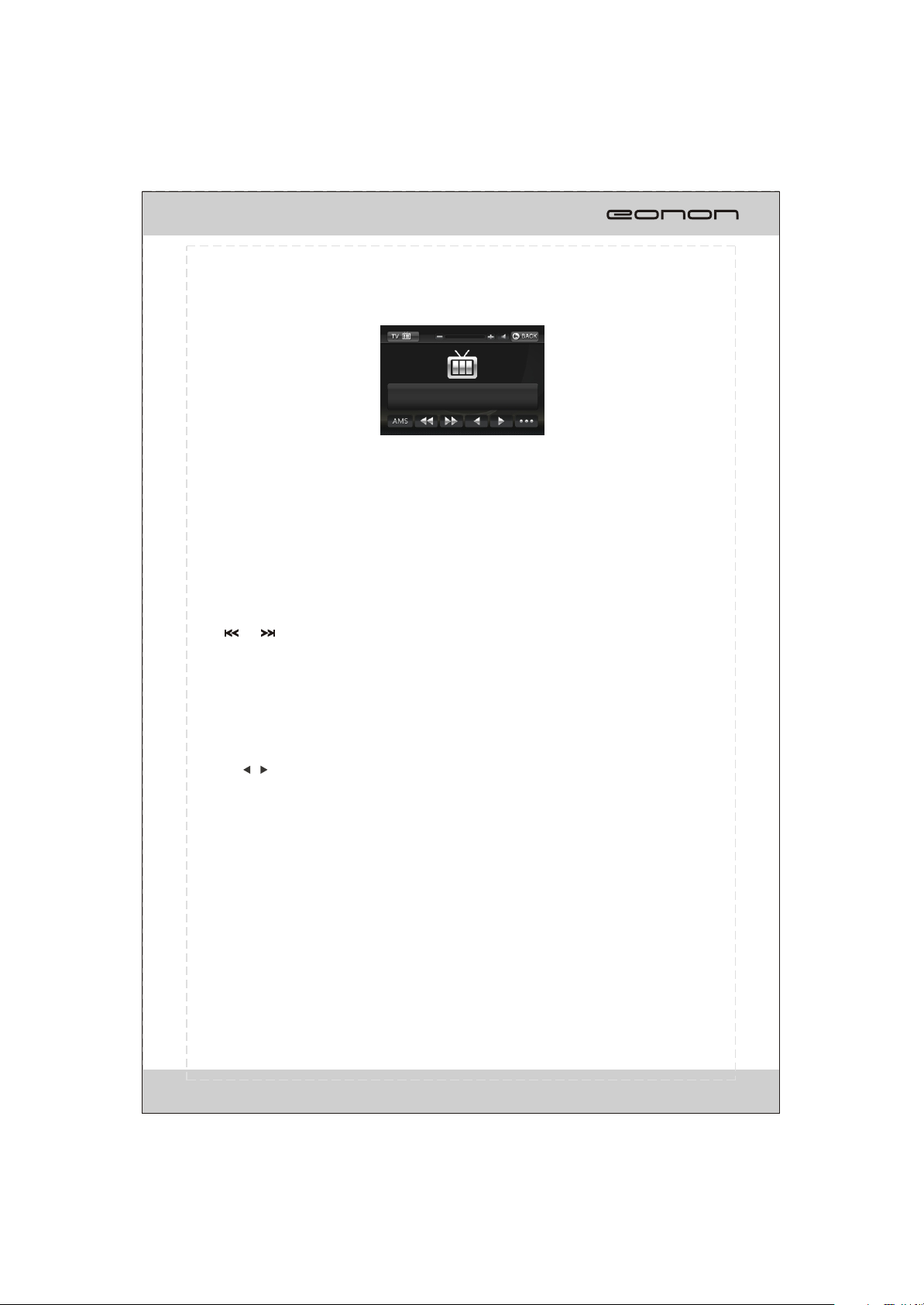

TV OPERATION

NTSC

CH:0

0: 44.25

44.25MHz

1: 55.75 2: 63.75

4: 44.253: 77.25 5: 115.25

1. Select the TV mode

Press SRC button on the remote control or on the panel to select a source of TV. NOTE: Touch BACK button on right top area of the screen to display the sources screen then TV mode can be selected.

2. Select a channel

To select a desired channel, the user can choose one of the following ways:

2.1. By Remote control Press or on the remote control to select previous or next stored channel. OR Press(1-9) number button directly on the remote control to select a preset channel. To select more than 10 channel number, firstly press GOTO button on the remote control, then press the corresponding number buttons.

2.2. By Touch screen Touch on the needed channel number on the screen. Touch on / button on the screen to turn pages to select the exact channel.

3.Selecting TV system

Touch repeatedly NTSC button on the screen OR press on BAND/P/N button on the remote control or BAND button on the panel to switch TV system.

Note: When the TV channel picture is being broadcasted, touch on the random area of the screen to return to the TV mode menu.

TV OPERATION

4. Search a channel

4.1 Automatic Searching

There are three ways to search a channel downwards automatically as below: press button on the remote control; press button on the panel; touch on button on the touch screen. There are three ways to search a channel upwards automatically as below: press button on the remote control; press button on the panel; touch on button on the touch screen.

4.1 Automatic Searching There are three ways to search a channel downwards automatically as below: press and hold button on the remote control; press and hold button on the panel. There are three ways to search a channel upwards automatically as below: press and hold button on the remote control; press and hold button on the panel.

5.Store channels

5.1 Auto store Press and hold AMS button on the unit OR on the remote control or on the touch screen for 2 seconds. The unit will search for channels and store them under preset numbers in order of signal strength.

5.2 Manual store Follow the two steps: Find a channel you want to store; Press a preset number button on the touch screen, under which you want to store the channel. *If a new channel will be stored in a preset memory which already has a station, the current channel will be cleared and replaced by the new channel.

DVD OPERATIONS/VCD/CD

Loading a disc

Insert a disc into the Disc slot the unit switch to the DVD mode automatically * You can eject a disc by pressing button on the unit.

Quick track selection fast forward/fast reward playback

During playback mode, press / button to select next/previous chapter or track.

*Press / button on the unit also perform the same operation.

Press the / button on the remote control to perform fast reward or fast forward. Repeatedly press the button ,the options switch as following order:

*Press and hold the / button on the unit will perform the same function.

Stop the playback

Press button to stop playing, then press ENTER button to play the current chapter or track, press button twice to stop playing completely, then press ENTER button to play the beginning of disc.

Pause the Playback

Press button to pause the playback,press it again to return to normal playback. *Pressing button on the front panel also perform the same operation.

Playing Tracks in Random Order

During DVD/VCD/CD playback, press RDM button, RANDOM will appear on the

display, the unit plays any track at random and the number selection is de-available. Press it again to return to normal playing.

Repeat Playing

In playback mode, press RPT on the remote control to perform replaying function when you need to repeat the chapter you like. During DVD playback, the replay option change in following order:

CHAPTER

OFF

TITLE

ALL

During VCD /CD playback, the replay option change in following order:

TRACK

ALL

OFF

*The defaulted setting is disc repeated.

Slow motion playback

In DVD mode, press repeatedly to slow forward or slow reward, as follows:

1 2

1 4

1 8

repeatedly In VCD mode,press to slow forward in following order

1 16

1 4 1 8 1 16

1 2

Normal Play

1 4

1 8

1 16

This function is operated by using the remote control.

Increase or decrease the size of the picture

During DVD/VCD playback, press ZOOM button to increase or decrease the picture size. There are 6 sizes, and press the button repeatedly to change the size in following order.

1 4

1 3

1 2

OFF

*This function is operated by using the remote control.

Selecting the channel mode

(VCD mode)

In VCD mode, press the AUDIO button on the remote control repeatedly to select the channel mode in the following order:

MONO LEFT

STEREO

MONO RIGHT

MIX-MONO

Programmed playback

In DVD/VCD/CD mode, press the PROG button and the program menu will be displayed. Press the number buttons to select the track number. Use the direction buttons to move the cursor to START and press ENTER to start programmed playback. Move the cursor to EXIT and press ENTER to exit the programmed playback. Move the cursor to PREV and press ENTER to go to the last page; move the cursor to NEXT and press ENTER to go to the next page. During this process, press PROG to cancel the programmed playback. * This function can only be operated by using the remote control.

Changing the subtitle language(Multi-subtitle)

With DVDs featuring multi-subtitle recordings. You can press SUB-T to switch between subtitle languages during playback. Selection options switch as follows:

Subtitle 01

Subtitles 2

Subtitles OFF

Notes:

* This function only operates with DVDs featuring multi-subtitle recordings. * This function is operated by using the remote control.

Changing the audio language

DVDs can provide audio playback with different language. With DVDs featuring multiaudio recordings, you can press AUDIO button to switch between language and audio systems during playback. Selection options switch as follows:

Notes:

Audio 01

Audio 02

* This function only operates with DVDs featuring multi-audio recordings. * This function is operated by using the remote control.

Selecting different title (DVD mode)

For DVD disc, you can press TITLE on the remote control to return the top menu of the disc, and you can select different chapter or title upward or downward by using or . *Touching the screen also perform the same function(refer to page 7 Multi-player

operation for detail).

Selecting root menu(DVD mode)

For DVD disc, you can press MENU to select different root menus, and then press [ENTER] buttons to enter the sub-menus. With pressing buttons, and the number buttons then ENTER button to select and enter what you desired.

Setup menu

In DVD/VCD/CDmode, press SETUP,the screen will display system setting picture, the user can select some relative constant parameters. The user also can set it as needed by moving the cursor and using buttons, and then press ENTER to execute the selecting or entering item. *This function is operated by using the remote control. Notes: * The selections are the preferred options that will be chosen if they are available on a disc. If the disc that is inserted does not have the preferred option then the discs own preference will be used. * Regarding SETUP MENU, please refer to the following pages for more details. * Some functions varies depending on the types of models or formats of the disc.

Auto switch to video

When playing DVD in driving car,there is display on screen. Just braking car, the screen can switch to video automatically.

Auto switch when revering the car

The unit can switch to the radar of revering the car automatically,when revering the car.

Attention: Cann t use function When driving

SYSTEM SETUP

When you press SETUP button on the remote control, or press SETUP button on the screen, the setup menu will be displayed. It includes General Setting, Audio Setup, Preference ,Password Setup and Exit Setup menu.

1.Within the setup menu, you can use [ ][ ][ ][ ] buttons on the remote control to move the cursor, and then press the ENTER button to make your selection.Press [ ] can return to the previous menu.

2.To exit setup menu, you can select the EXIT item in sub-menu or press SETUP button.

Note:touching the item on the screen also performs same operation.

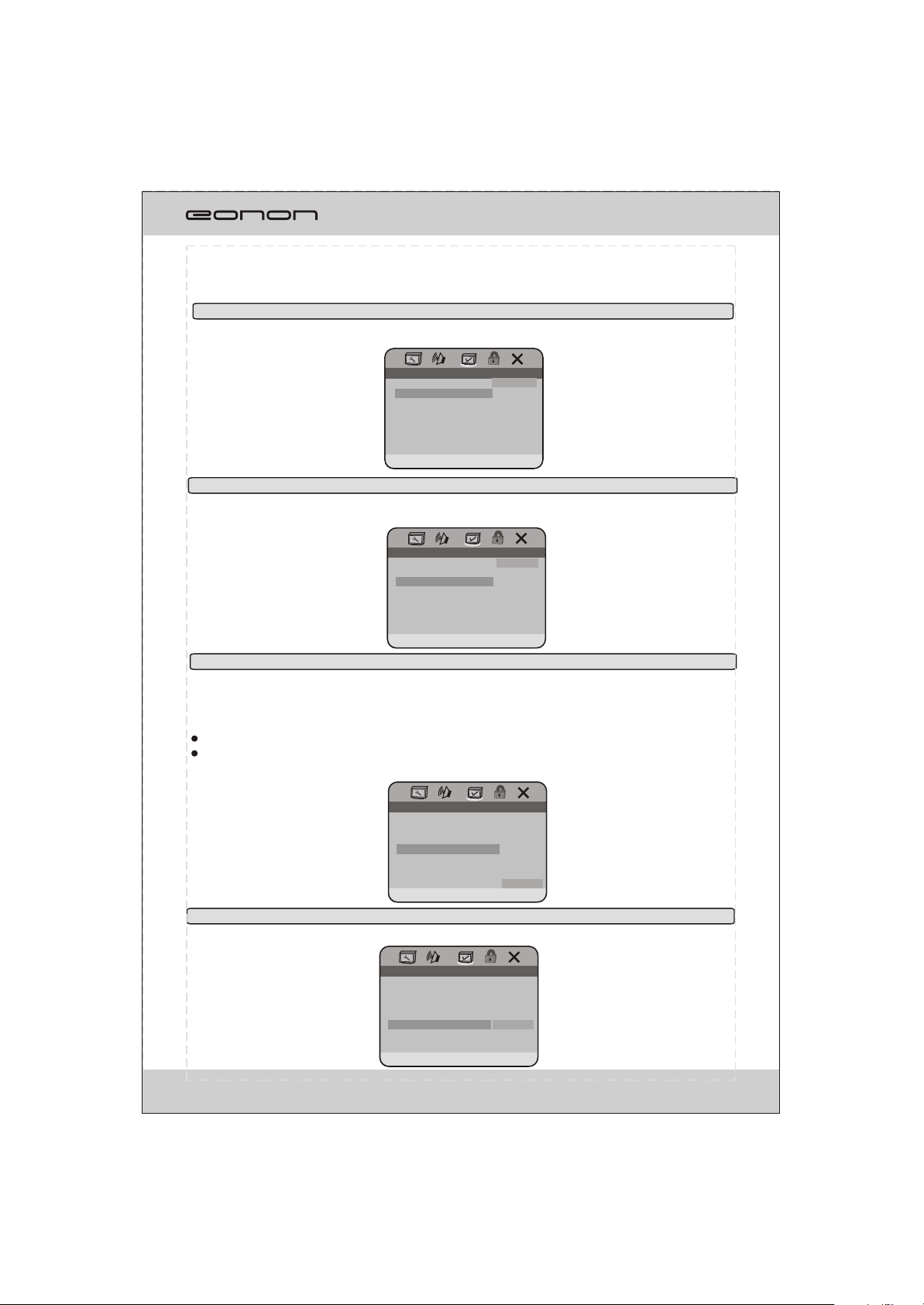

1. GENERAL SETUP PAGE

1.1 TV DISPLAY

GENERAL SETUP PAGE

TV DISPLAY OSD LANGUAGE

SET TV DISPLAY MODE

The TV Display which select the different ratio of display format and the screen of TV, There are various types of display on screen for different matches between Disc and TV.

Note: No matter which display format is selected, a picture recorded in standard 4:3 format always displays in the 4:3 aspect ratio. The display format of DVD titles may vary; please refer to the information that accompanies your specific DVD title. If the DVD title is recorded in 16:9 wide display format while the TV is a standard 4:3 screen, horizontal compression of the image will result.

Some DVD titles may be recorded in special formats. In such cases, the DVD titles will always appear on the screen in their original format,regardless of which TV display format you select.

WIDE ENG

4:3 PAN SCAN 4:3 LETTER BOX 16:9 WIDE

1.2 OSD LANGUAGE

On Screen Display(OSD)Language:Users can select the on-screen display language.

GENERAL SETUP PAGE

TV DISPLAY OSD LANGUAGE

SET OSD LANGUAGE

WIDE ENG

ENGLISH FRANCAIS DEUTSCH ITALIANO PORTUGUESE ESPANOL

2. AUDIO SETUP PAGE

User can select digital audio setup or dolby digital setup.

AUDIO SETUP PAGE

DOLBY DIGITAL SETUP

2.1 DOLBY DIGITAL SETUP

DOLBY DIGITAL SETUP PAGE

DUAL MONO DYNAMIC

DUAL MONO(1+1) SETUP

STR

STEREO L-MONO R-MONO MIX-MONO

DUAL MONO:User can switch the binaural mode. DYNAMIC:Select the provided option to change the Dynamic range setting.

3. PREFERENCE SETUP PAGE

The preference setting is active only when disc has been stopped completely, and the setting is effective on next time power on till exchanging the saved setting.

3.1 AUDIO

AUDIO: Sets the preferred audio language as the default when playing DVD. (If DVD support these

languages).

PREFERENCE PAGE

AUDIO SUBTITLE DISC MENU PARENTAL DEFAULT

PREFERRED AUDIO LANGUAGE

ENG ENG ENG

ENGLISH FRENCH SPANISH PORTUGUES JAPANESE KOREAN RUSSIAN THAI

3.2 SUBTITLE

SUBTITLE: Sets the preferred subtitle language as the default when playing DVD.(if DVD support

these languages).

PREFERENCE PAGE

AUDIO SUBTITLE DISC MENU PARENTAL DEFAULT

PREFERRED SUBTITLE LANGUAGE

ENG ENG ENG

ENGLISH FRENCH SPANISH PORTUGUES JAPANESE KOREAN RUSSIAN THAI

3.3 DISC MENU

DISC MENU: Sets the preferred menu language as the default when playing DVD.(if DVD support

these languages).

PREFERENCE PAGE

AUDIO SUBTITLE DISC MENU PARENTAL DEFAULT

PREFERRED MENU LANGUAGE

ENG ENG ENG

ENGLISH FRENCH SPANISH PORTUGUES JAPANESE KOREAN RUSSIAN THAI

3.4 PARENTAL

PARENTAL: The parental control function works in conjunction with the different censorship classes

assigned to DVDs. These classes help to control the types of DVDs that the family watches, there are up to 8 censorship classes for DVDs.

Note: The PARENTAL is changeable when 4.1 PASSWORD MODE set to OFF.

After setting the level of parental control. Please set the password as ON to perform the lock of changing.

PREFERENCE PAGE

AUDIO SUBTITLE DISC MENU PARENTAL DEFAULT

SET PARENTAL CONTROL

ENG ENG ENG

1.KID SAF

2.G

3.PG

4.PG 13

5.PG R

6.R

7.NC 17

8.ADULT

3.5 DEFAULT

DEFAULT: Resets to the initial factory setups.Press ENTER button to confirm.

PREFERENCE PAGE

AUDIO SUBTITLE DISC MENU PARENTAL DEFAULT

LOAD FACTORY SETTING

ENG ENG ENG

RESET

4. PASSWORD SETUP PAGE

4.1 PASSWORD MODE

PASSWORD MODE: Sets the function operation to locking the parental function.

ON: Using the parental control must input the password. OFF: You can not input the password to change the parental control. * The initial password is 136900.

PASSWORD SETUP PAGE

PASSWORD MODE PASSWORD

PASSWORD MODE

OFF

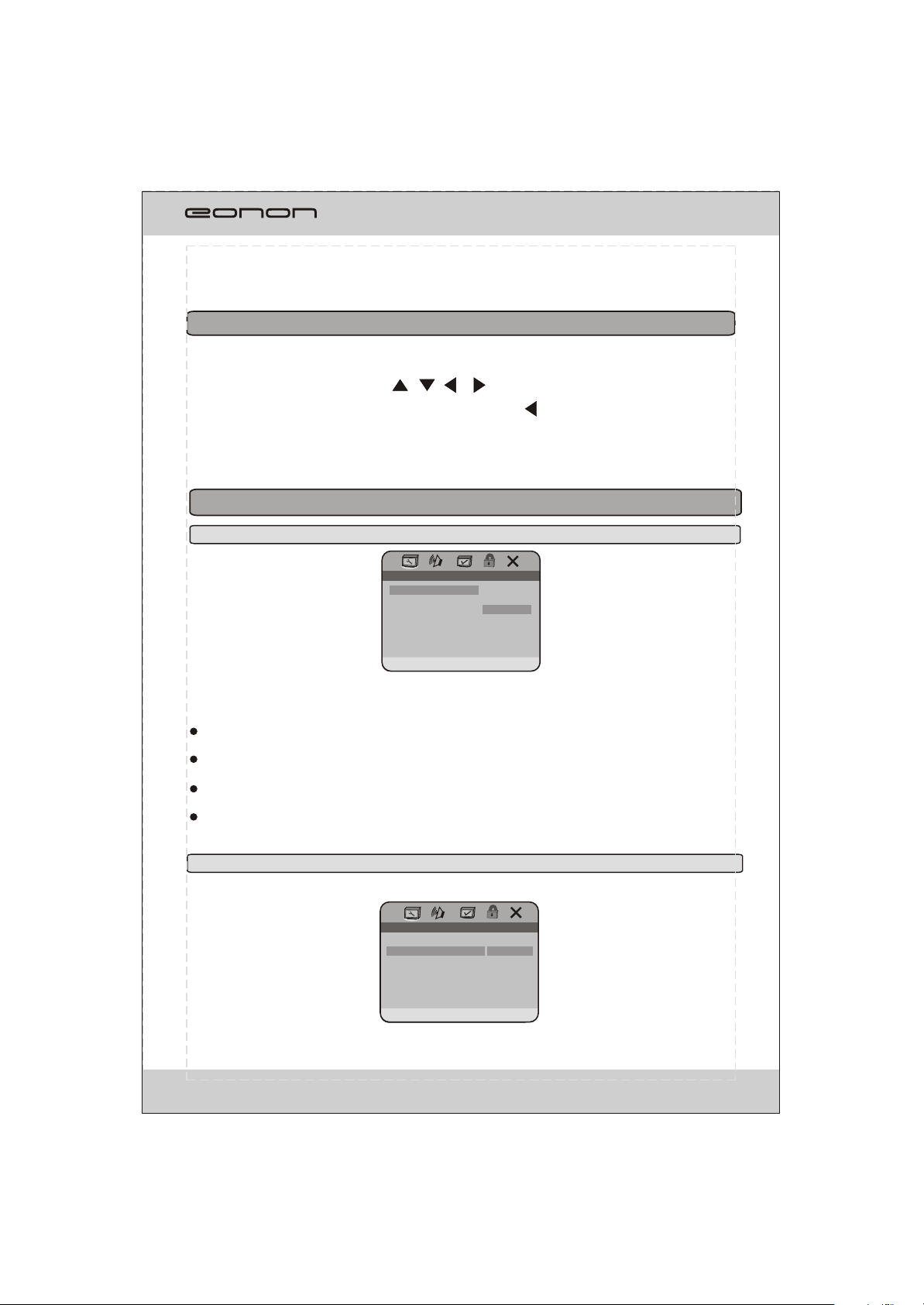

4.2 PASSWORD CHANGE

PASSWORD CHANGE: You can change the password, please type 6 numerals as new password.

PASSWORD SETUP PAGE

PASSWORD MODE PASSWORD

CHANGE PASSWORD

CHANGE

OLD PASSWORD

NEW PASSWORD

CONFIRM PWD

Note: Touch the position where inputting password, the screen will display the number button, and user can input the password by touching number button.

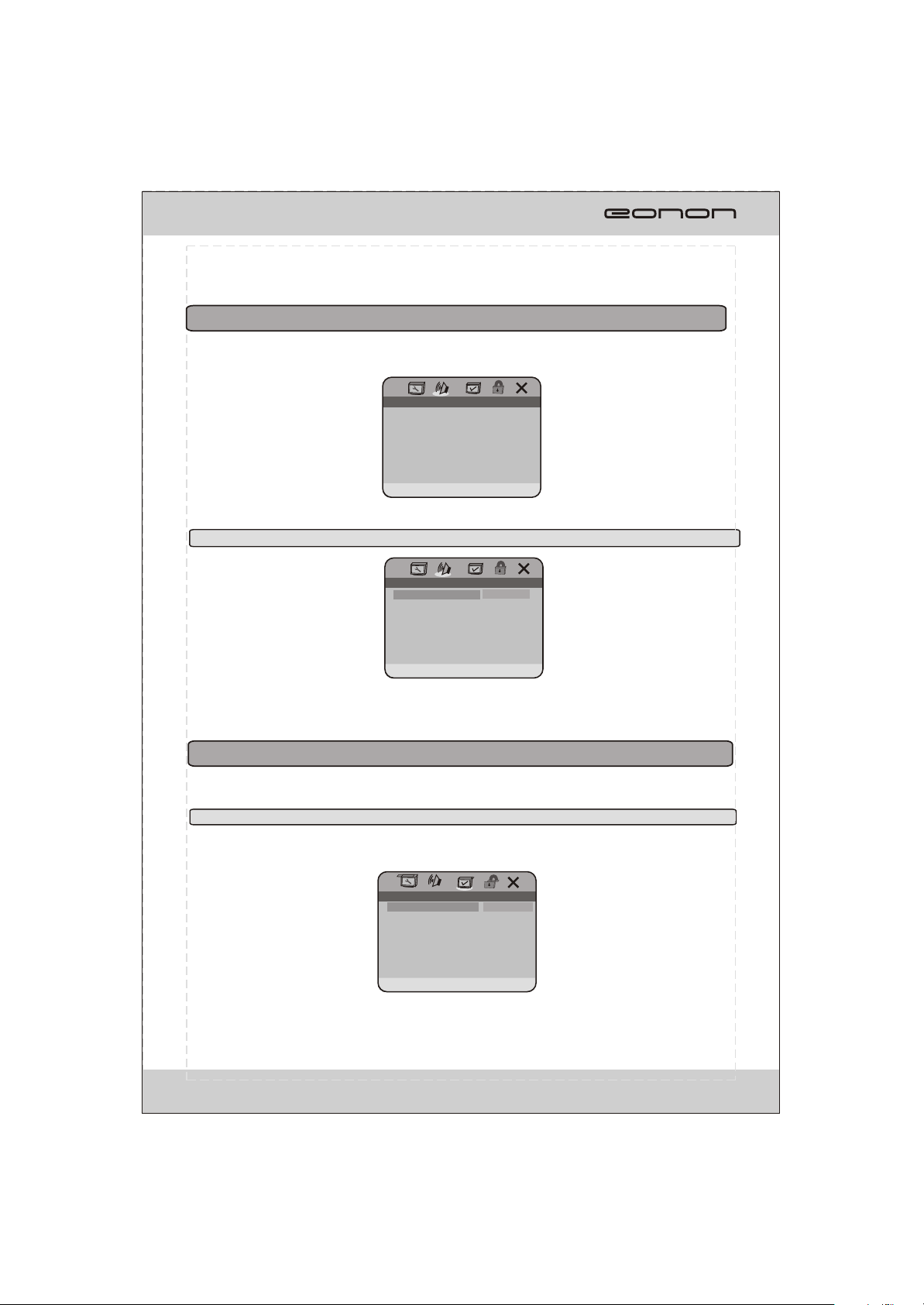

5. EXIT SETUP MENU

EXIT SETUP MENU

Moving the cursor to by using direction key on the remote control, then press ENTER button to exit the setup. Touching the to exit directly.

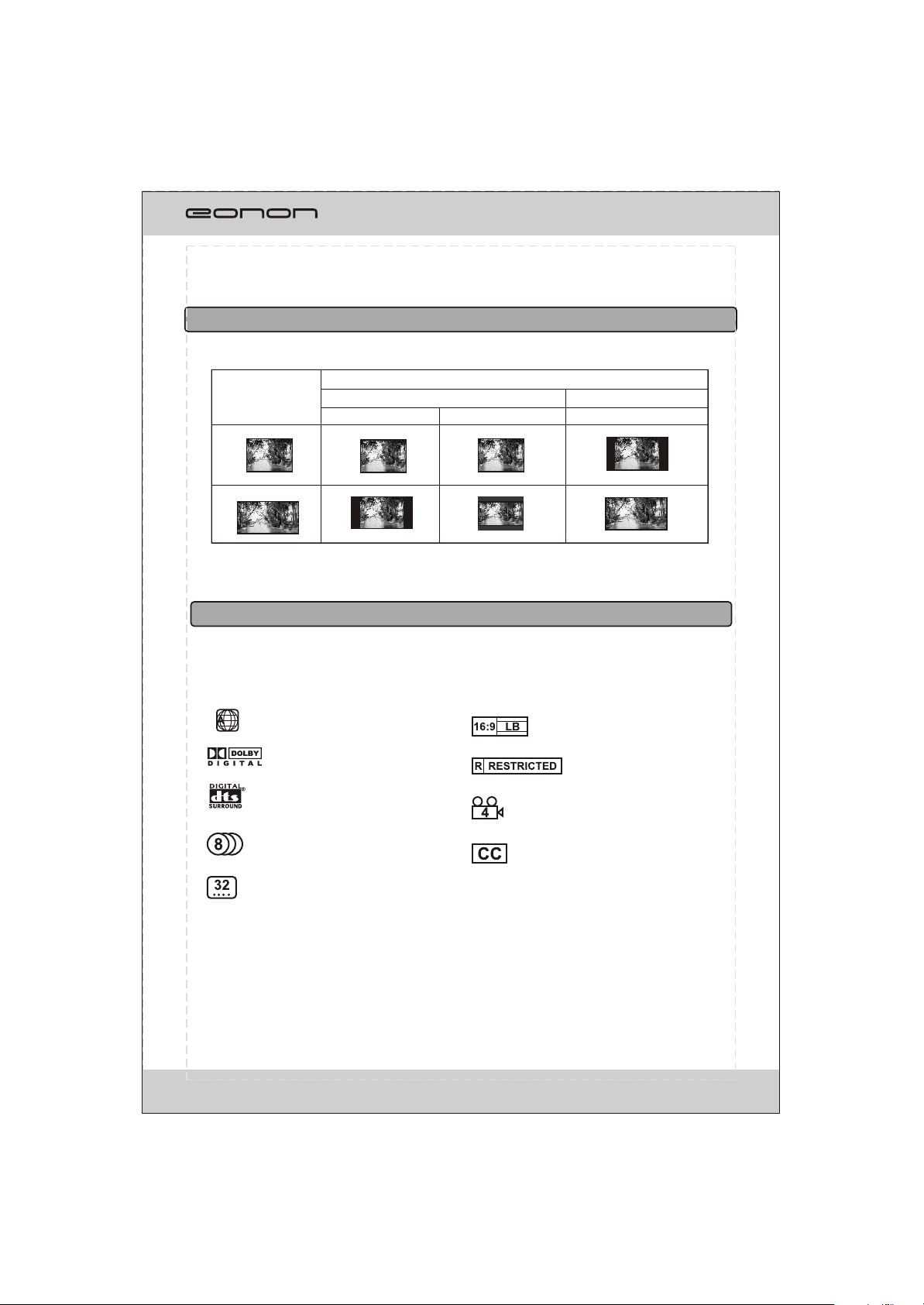

SETTING THE TV SCREEN SIZE

Multi-aspect ratios suit to different TV screen size.

Picture format

on Disc

4:3

16:9

Pan Scan

TV Screen Size

4:3

Letter-box Wide Screen

16:9

Function supported by DVD discs

There are many functions available on DVD discs and the functions vary per player and per manufacturer.

ALL

Regional code and signal system

Dolby digital surround sound

DTS surround

Number of languages

Subtitle languages

Picture proportion modes

Parent lock

Angles for viewing

Closed Caption

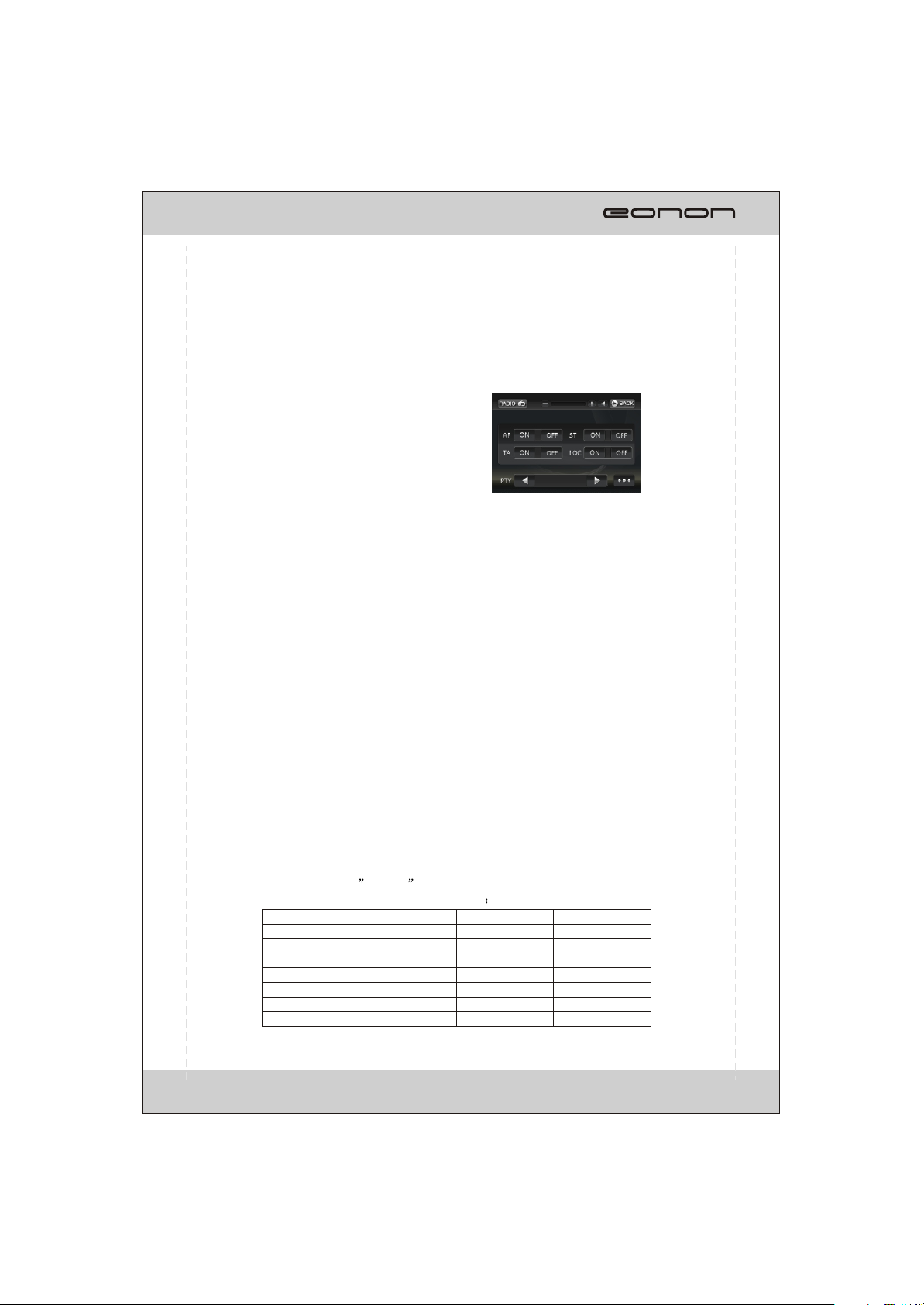

MP3 OPERATION

Playing a disc, an SD/MMC card or a USB device containing files

Connect a USB device or

insert a disc into the disc slot or SD/MMC card into the card slot.

MP3

The unit will automatically switch on when a disc, card or USB device is inserted. The screen will display as follow:

Touch this area to display number keyboard.

02:47 03:40

MP3

001/099

01 LA LUNE

01IN PARADISUM

02 NO ONE LIKE

02 WINTER IN J

03 SCARBOUGH

1 2

1. :

2. : 3-4. :

5. :

6. :

To start/pause the playback. To stop playing, touch twice to stop

To select previous/next chapter or track. To play in random order. To select one of the repeat modes.

ouch the / button on the screen to turn pages.

completely.

*Press / button on the remote control when stop playback also performs the same function. *You can eject a disc by pressing button on the unit.

Repeat playing

When playing MP3 files, press the RPT button repeatedly on the remote control to select repeat mode: REPEAT ONE, OFF. While in REPEAT ONE mode, it will play one track repeatedly. The defaulted mode is REPEAT ALL mode, the unit will play all tracks repeatedly.

Track selection

-Skip track backward/forward

When playing MP3 files, press / button on the remote control

button on the touchable screen

to go to the previous or next track.

or press NEXT/PREV

- Selecting track by using number button

Selecting any track directly by using Number button(0-9).

To select more than 9 track number, press the corresponding number buttons continuously.

For example, if you want to play the 23th track, just press button 2 and then press button 3 and the corresponding track will be played.

Note: * This function can be operated using the remote control or touch the exact track by number keyboard jumped out to be functioned. * If you make a mistake, press CLEAR button to clear.

Stop playing

When playing MP3 files, press button on the remote control to stop playback.

Pause playback

Press the button on the remote control or press PAUSE button on the touchable screen while playing, press it again or press PLAY button on the touchable screen to return to normal playback.

Fast-forward/fast-backward playing

Press / button on the remote control to select the speed of fast playing in backward or forward direction:

*Long press / button continuously on the front panel also perform the same function.

2 --4 --8 --16 --32 --

ISO FILE OPERATION

When playing the media with folders, press the / button on the remote control or PREV/NEXT buttons on the screen to move the cursor to current folder then press ENTER button on the remote control to confirm, and the first track of the current folder will be played.

INSTALLATION

Notes

Before finally installing the unit, connect the wiring temporarily, making sure it is all

connected up properly, and the unit and the system work properly.

Use only the parts included with unit to ensure proper installation. The use of unauthorized

parts can cause malfunctions.

Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

Install the unit where it does not get in the driver's way and cannot injure the passenger

if there is a sudden stop.

The semiconductor laser will be damaged if it overheats, so don't install the unit anywhere

hot--for instance, near a heater outlet.

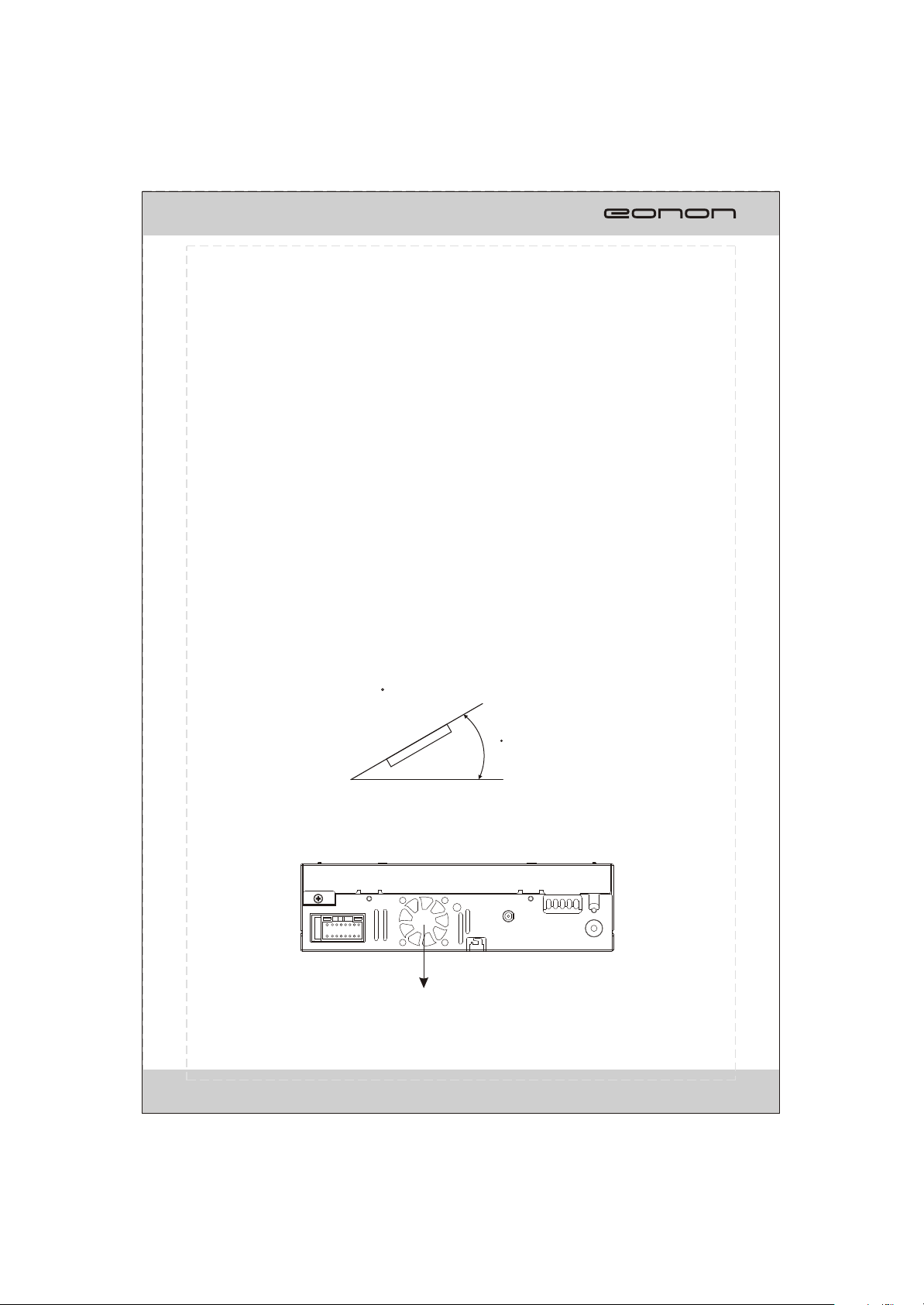

If installation angle exceeds 30 from horizontal, the unit might not give its optimum

performance.

The cords must not cover up the area shown in the figure below. This is necessary to

allow the enginery to radiate freely.

Do not close the back area

INSTALLATION

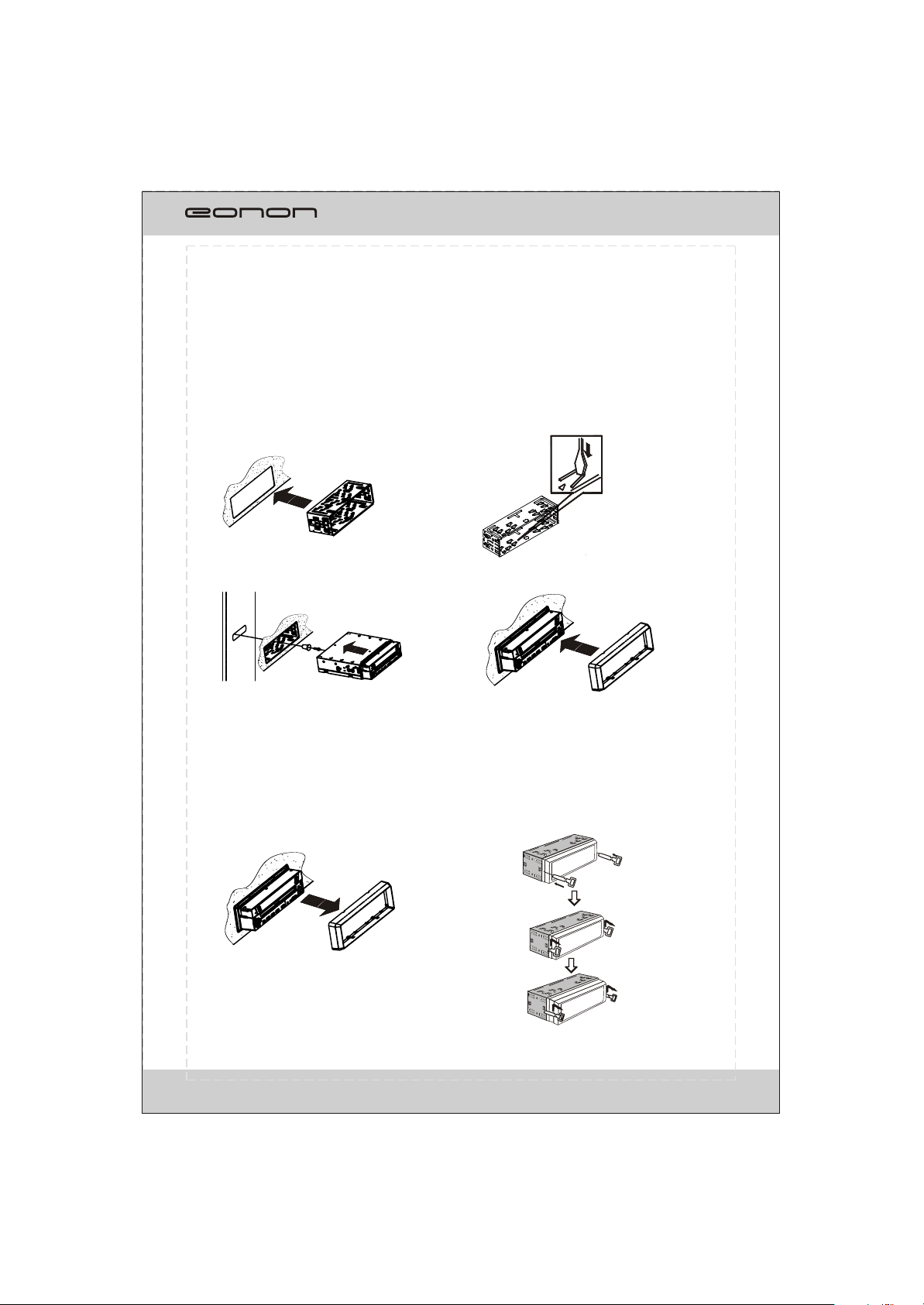

Install the unit

1.Install the mounting bracket into the dashboard of the car. And adjust the mounting bracket to horizontal

2.Fix the mounting bracket into place by pressing its tags outwards

3.Slide the main unit slowly inside the mounting bracket until the tags on either sides of the bracket lock into the respective holes on the sides of the main unit.

4.Install the removable trim ring

Picture 1

Picture 2

Picture 3

Picture 4

Detach the unit

1.Detach the removable trim ring

2.Insert the keys supplied to the unit at both sides of the unit (shown as illustrated) until they click. Pulling the keys makes it possible to remove the unit from the dashboard.

Picture 1

Picture 2

TROUBLE SHOOTING

Common problems

Symptom

Power doesn't switch ON . The unit doesn't operate.

Operation with the remote control isn't possible.

Playback is not possible. The disc is dirty.

There's no sound.

The prohibited mark is

displayed and operation is

not possible.

The picture stops (pauses) and the unit cannot be operated.

There's no sound Volume level is low.

There's audio and video skipping.

Cause

Leads and connectors are incorrectly connected.

A fuse has blown. Fix the problem causing the blown fuse

Noise and other factors are causing the built-in microprocessor to operate incorrectly.

The remote control operation mode is incorrect.

Battery power is low. Load new batteries.

Some operations are prohibited with certain discs.

The loaded disc is a type this unit cannot play.

Non compatible video system disc is loaded.

Connections are incorrect. Check connections

With some discs,96kHz output is prohibited.

The unit is performing still F.FWD or F.REV playback.

The operation is prohibited for the disc.

The operation is not compatible with the disc's organization.

Reading of data has become impossible during playback.

The volume level is low.

This unit is not firmly secured. Secure this unit firmly.

Remedy

Confirm once more that all connections are correct.

and replace the old fuse with a new one of the same capacity.

Reset the unit.

Switch to the correct remote control mode.

Check using another disc.

Clean the disc.

Check the type of the disc.

Change to a disc compatible to your video system.

Switch the output setting to 48 Khz.

There is no sound during still F.FWD , F.REV playback.

This operation is not possible.

After pressing once start playback once more.

Raise the volume level.

The picture is stretched the aspect is incorrect.

When the ignition switch is turned ON (or turned to ACC), the motor sounds.

The aspect setting is incorrect for the display.

This unit confirms whether a disc is loaded or not.

Select the appropriate setting for your display.

This is a normal operation.

Problem during DVD playback

Symptom

Playback is not possible

Cause

The loaded disc has a different region number from this unit

Dialog language (and subtitle language) can not be switched.

The DVD playing does not feature multiple language recordings.

You can only switch between options indicated in the disc menu

No subtitles are displayed

The DVD playing does not feature subtitles

You can only switch between options indicated in the disc menu

Playback is not with the audio language and subtitle language settings selected in SET UP MENU

The picture is extremely unclear/distorted and dark during playback

The DVD playing does not feature dialog or subtitles in the language selected in the SET UP MENU

The disc features a signal to prohibit copying (some discs may have this)

Problem during Video CD playback

Remedy

Replace the disc with one featuring the same region number as this unit

You cannot switch among multiple languages if they aren't recorded on the disc

Switch using the disc menu

Subtitles are not displayed if they are not recorded on the disc

Switch using the disc menu

Switching to a selected language is not possible if the language selected in the SET UP MENU is not recorded on the disc

Since this unit is compatible with the copy guard analog copy protect system. when playing a disc that has a signal prohibiting copying the picture may suffer from horizontal stripes or other imperfections when viewed on some displays. This does not mean this unit is malfunctioning.

Symptom

The PBC(playback control) menu display cannot be called up.

Repeat play and track/time search are not possible

Cause

The video CD playing does not feature PBC

Remedy

This operation is not possible with video Cds not featuring PBC

PBC is switched OFF Switch PBC ON

PBC is switched ON Switch PBC OFF.

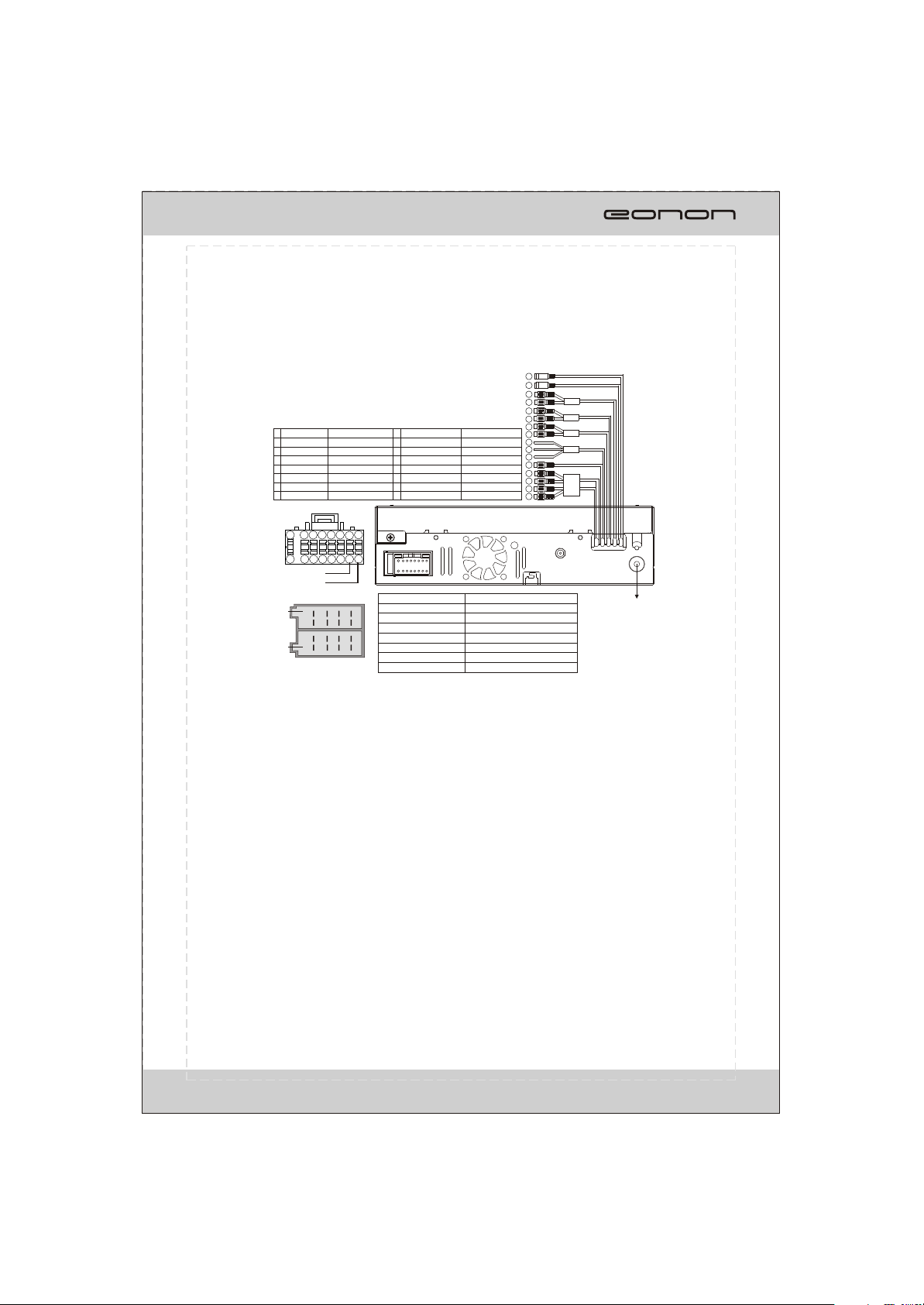

CABLE CONNECTION

3 4 5 6

Black/Black Plug

White/Black Plug

Gray/Yellow Plug

Black/Red Plug

Black/White Plug

Brown/Yellow Plug

Black/Yellow Plug

9 15

PARKING BRAKE

REVERSE GEAR

1 357

TV ANTENNA IN

REAR VIDEO OUT 1

REAR VIDEO OUT 2

AUX IN-R

AUX IN-L

REVERSE VIDEO IN

EXOTERIC VIDEO INPUT

14131211

Brown

Orange

468

Orange

Black

Brown

Brown/Brown Plug

Shallow gray/White Plug

Shallow gray/Red Plug

Deep gray/White Plug

Deep gray/Red Plug

A1.NOTHING A2.TEL MUTE A3.NOTHING A4.BATTERY A5.ANTENNA POWER+ A6.LAMP IN A7.IGNITION KEY A8.GROUND

SWC1

GND

SWC2

WOOF OUT

AUDIO OUT R.L

AUDIO OUT R.R

AUDIO OUT F.L

AUDIO OUT F.R

B1.SPEAKER REAR R+ B2.SPEAKER REAR RB3.SPEAKER FRONT R+ B4.SPEAKER FRONT RB5.SPEAKER FRONT L+ B6.SPEAKER FRONT LB7.SPEAKER REAR L+ B8.SPEAKER REAR L-

7 8 9

11 12 13 14 15 16

RADIO ANT

ACCESSORIES

Mounting Bracket (Half Sleeve) -------------------------------------------------------X1 Removable Trim Ring equipped on the unit ---------------------------------------- X1 Mounting Screw M5 --------------------------------------------------------------------- X1 Washer ------------------------------------------------------------------------------------- X1 Rubber ------------------------------------------------------------------------------------- X1 Remote Control --------------------------------------------------------------------------- X1

ount strap -------------------------------------------------------------------------------- X1

M Release key ------------------------------------------------------------------------------ X2

manual

User ----------------------------------------------------------------------------- X1

Wire connector -------------------------------------------------------------------------- X1 AV cable ---------------------------------------------------------------------------------- X1 Screws(M5X60)-------------------------------------------------------------------------- X4 Screws(M24)------------------------------------------------------------------------------ X1

SPECIFICATON

GENERAL

power requirement ---------------------------------------------- grounding system ------------ ----------max: current consumption ------- ---max: power output -------- ------- 65Wx4 load impedance --------------- ----------dimensions---------------------------------------------- 5 50 MM

-------------------------------- negative type

-------------------------------------------- 15 A

-----------------------------------------------

------------------------------------ 4 or 8 180(L) 16 (W) (H)

12VDC(10.8~16V)

weight--------------------------------------------------------------------------------2.6KG

DVD PLAYER

S/N ratio ------ more than 60dB(1kHz) dynamic range -------------- ----more than 80dB(1kHz) distortion ------------------ -----less than video output --------------- ------ -----------------audio output (RCA) ---------------- ------ 2.0Vrms+0.3V 10K

--------------------------------------------------

-----------------------------

----------------------------------------- 0.15%

---------- ------ 1.0Vp--p+0.2V/75

---------------------

FM TUNER

frequency range ---------------------------------65.0~74.0MHz/87.5~108.0MHz usable sensitivity --------------------------------------------------------------->15dB S/N ratio -------------------------------------------------------------------- 50dB(mono) distortion --------------------------------------------------------------------1%(mono) stereo separation ---------------------------------------------- 30dB(65dBu,1kHz)

MW TUNER

frequency range ----------------------------------------------------- 522~1620 kHz usable sensitivity ---------------------------------------------------------------> 35dB signal-to-noise ratio ------------------------------------------------------------- 40dB

Eonon D1306 Instruction Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
