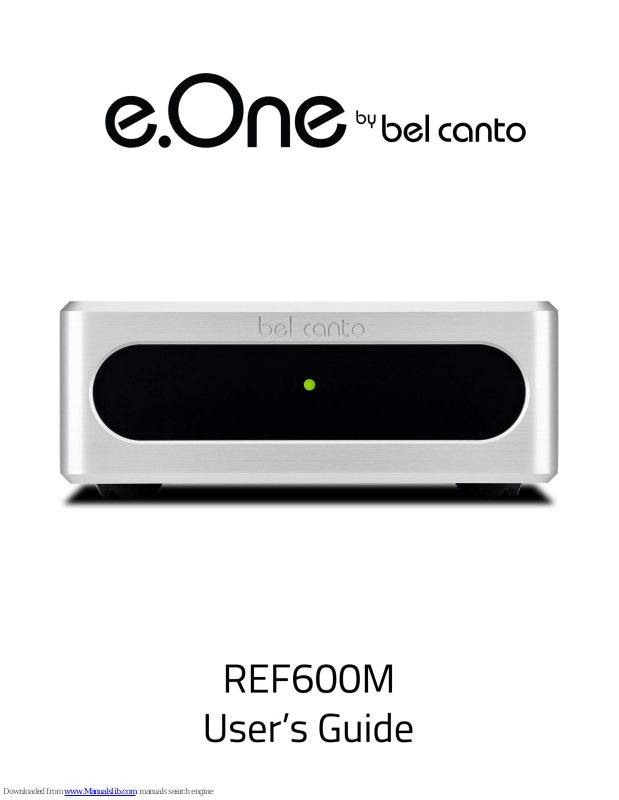

Mono Pow er Ampli fier
with
T A B L E O F C O N T E N T S
Information
Safety Information ……………………………………………………………………………………2
Certifications/Standards ……………………………………………………………………………………3
Warranty ……………………………………………………………………………………4
Unpacking ……………………………………………………………………………………4
Setup and Placement ……………………………………………………………………………………4
Rear Panel Connections ……………………………………………………………………………………5
Tips for Operation ……………………………………………………………………………………6
Specifications ……………………………………………………………………………………7
Declaration of Conformity ……………………………………………………………………………………8
Copyright © 2015 Bel Canto Design Ltd.
Bel Canto Design Limited
221 North 1st Street
Minneapolis, MN 55401
United States
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by
any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Bel Canto
Design. The content of this manual is provided for information use only, is subject to change without notice, and should not be
construed as a commitment by Bel Canto Design Limited. Bel Canto Design Limited assumes no responsibility or liability for
any errors or inaccuracies that may appear in this manual. Trademarks used in this publication: Bel Canto and the Bel Canto
logo are registered trademarks of Bel Canto Design Limited. REF600M is a trademark of Bel Canto Design Limited. Bel Canto
Design Limited disclaims any proprietary interest in trademarks and trade names other than its own. Printed in the United
States.
The Lightning Flash with arrowhead symbol
within an equilateral triangle is intended to
alert the user to the presence of uninsulated
"dangerous voltage" within the product
enclosure that may be of sufficient magnitude
to constitute a risk of shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the product.
Explanation of symbols used in this manual or on the
rear/underside of the apparatus:
Read, keep and follow these instructions.
Heed all warnings.
Do not use the apparatus near water, ie near a
bathtub, kitchen sink, laundry tub, in a wet
basement, near a swimming pool etc.
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the Manufacturer’s instructions.
Site the apparatus so that its location or position
does not interfere with its proper ventilation. For
example, the apparatus should not be situated on
a bed, sofa, rug, or similar surface that may block
the ventilation openings, or placed in a built in
installation such as a bookcase or cabinet that
may impede the flow of air through the ventilation
openings.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other
apparatus that produce heat.
Do not defeat the safety purpose of the polarized
or grounding type plug. A polarized plug has two
blades with one wider than the other. A
grounding type plug has two blades and a third
grounding prong. The wide blade or the third
prong is provided for your safety. If the provided
plug does not fit into your outlet; consult an
electrician for replacement of the obsolete outlet.
TO COMPLETELY DISCONNECT THIS APPARATUS
FROM THE AC MAINS, DISCONNECT THE POWER
SUPPLY CORD PLUG FROM THE AC RECEPTACLE.
THE MAINS PLUG OF THE POWER SUPPLY CORD
SHALL REMAIN READILY ACCESSIBLE.
Disconnect supply cord before changing fuse.
Refer servicing to qualified service personnel.
WARNING: TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPARATUS TO RAIN OR MOISTURE AND OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES, SHOULD
NOT BE PLACED ON THIS APPARATUS.
Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and at the point where they exit from
the apparatus.
Unplug this apparatus during lightning storms or
when unused for long periods of time.
Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in any way, such as power-supply
cord or plug has been damaged, liquid has been
spilled or objects have fallen into the apparatus,
the apparatus has been exposed to rain or
moisture, does not operate normally, or has been
dropped.
Mains plug: Use the mains plug to disconnect the
apparatus from the mains supply. The mains plug
must be accessible at all times. Use the mains
switch (if applicable) when the apparatus is not in
use.
Objects and liquid entry: Do not let objects or
liquids fall into the apparatus. Do not expose the
apparatus to dripping or splashing. Do not place
a vessel containing liquid on top of the apparatus.
No naked flame sources, such as lighted
candles, should be placed on the apparatus.
The apparatus has been designed for use in
moderate and tropical climates
Fuse replacement:
This appliance is fitted with a non-rewireable 10 amp
mains plug. The plug contains a 10 amp fuse. If the fuse
has blown it can be replaced as follows:
a) Pull out the black fuse cover/carrier.
b) Remove and dispose of the blown fuse.
c) Fit a new 10 amp BS1362 approved fuse into the carrier
and push the carrier back into the plug.
Note: This equipment has been tested and found to
comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference
in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does
Always ensure the fuse cover is fitted. If the fuse cover is
missing do not use the plug. Contact your Bel Canto
retailer to obtain a replacement fuse cover. Fuses are for
fire protection and do not protect against electric shock.
WARNING: THIS APPLIANCE MUST BE
GROUNDED.
cause harmful interference to radio or television reception,
which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
IMPORTANT!
Make all connections
before powering your
unit!
Bel Canto products are automatically covered by a 90 day factory warranty that covers all internal parts and labor.
Register online (http://www.belcantodesign.com/eOne/support/warranty-registration-form/) within 30 days of
purchase from an authorized dealer to automatically extend your warranty for 2 years starting from the date of
purchase. If you do not have web access, please contact your dealer for assistance. Upon fully completing
registration, within 5 business days you will receive an email that officially validates your warranty. Your
information will be used for internal use only and will not be sold or released outside Bel Canto. Your comments
and suggestions are appreciated and help us continually improve our products and services.
The warranty is only valid to the original owner and is non-transferable. Damage caused by unauthorized
modification, abuse, or neglect of product will void your warranty. Any cost associated with return of product is
the sole responsibility of the owner. All returns require a return authorization number issued after completing the
RMA form in the support section of our website. If you have any questions, please feel free to contact us online at
info@belcantodesign.com.
REF600M packaging contains the following:
1 (one) – REF600M Amplifier
1 (one) – REF600M User’s Guide
1 (one) – Power cord [6.6’ – 2 meters long]
Carefully unpack each piece and check for shipping damage. If there is any damage, or if anything is missing,
please contact your dealer, distributor or Bel Canto Design. Save all packing materials as they are specially
designed to protect the unit during transportation or shipping. If the packing becomes lost or damaged, please
contact your dealer, distributor or Bel Canto before attempting to transport your unit.
The power supply on the REF600M is preset for the proper voltage. The power cable should have the correct
plug for your local power system. If you believe this to not be true, please contact your dealer immediately.
This product, like any electrical component, can be dangerous and cause injury if not used properly. Before
powering this product, it is necessary to read and follow setup procedures.
The REF600M runs warm and can be placed in many system locations with proper air circulation. We do not
recommend placing weights or other objects directly on the REF600M. This may scratch or mar the chassis finish.
Do not use harsh chemicals when cleaning the outside of your REF600M.
Single Ended RCA and Balanced XLR connectors are available. XLR jacks allow balanced hookup using the
standard North American pin configuration: Pin1 = Ground, Pin 2 = Signal +, Pin3 = Signal -
onnections
Never Connect the Positive Speaker Output to Any Ground Contact!
Use Class 2 Wiring for all Loudspeaker Connections!
Connecting the Positive Speaker Output on the REF600M to Ground will cause the amplifier to go into protection
and could damage the amplifier and void the warranty. The Negative output is connected to Ground internally.
Power Switch: Power is OFF when the switch is
toggled to the O position and ON when in the I
position and when there is no voltage on the
5/12V Trigger input.
.
Input Connections and RCA/XLR switch: When
using RCA cables for the input ensure that the
RCA/XLR switch is pressed in to the RCA
position. When using XLR cables ensure that
the switch is out in the XLR position. Do not
connect both XLR and RCA cables to the
inputs at the same time!
Output Connections: Attach your loudspeaker to
the output connectors. Be sure that the polarity
of each speaker is correct and the same so that
no phase inversion can occur. DO NO USE
TOOLS to tighten binding posts.
IEC Power Cord Jack: Connect a heavy gauge
power cord from this jack to the wall power
supply. Note the power setting indicated on the
back of the amplifier before connecting the
power.
5/12V Trigger: Requires a 3.5mm plug
connector with tip at 5 to 12VDC. The Power
Switch must be in the ON position for the Trigger
to work. When the trigger voltage is set between
5 and 12V the amplifier will go into a low power
mode, shutting the LED off and stopping
playback.
Double-check all connections to and from
the amplifier. Power on the DAC or
preamplifier in your system, activate its Mute
setting, and then power on the REF600M.
The sonic performance of the REF600M will begin to stabilize after more than 100 hours of continuous power up.
We recommend that the REF600M remains powered for optimal performance.
The REF600M and DC Coupling
The REF600M is DC coupled with no coupling capacitors in the signal path. This optimizes audio signal quality,
maximizing micro and macro-dynamic performance. While the amplifier will protect itself and your loudspeakers
from excessive DC offset, it is critical to ensure that any Preamplifier or DAC has low DC offset at its output as
this will be amplified by the REF600M. If there is excessive DC into the REF600M the amplifier will shut itself and
the main power supply off, protecting both the amp and loudspeaker from damage. If this occurs then have the
DC offset of the signal source checked by a qualified technician.
What to do if there is hum or ground noise
In case there is hum or ground noise, check that the RCA/XLR switch is in the correct position for the type of
connection being used.
Ensure that the preamplifier or any source components are not producing hum by setting the preamplifier to a
MUTE or Standby setting.
The design of the REF600M reduces the chance for ground loop induced hum, but we still recommend
using shorter interconnect cables to the preamplifier or DAC. Connect all power cables to a common outlet box or
power conditioner unit to reduce the possibility for ground current noise being induced into the audio signal path.
If you choose to power your source and preamplifier components from a different AC supply than used for the
REF600M amplifiers, we recommend that you use a high quality balanced XLR cable driven from a true balanced
XLR preamplifier output.
We do not recommend that you resort to ‘cheater plugs’ or some other means to disconnect the power ground
from the REF600M as this may lead to dangerous operation and void the warranty.
The small green LED lamp indicates that power is connected to the REF600M and that the power switch is in the
ON position. If the amplifier detects a fault or short circuit in the output connections, it will go into a protection
mode and stop playing. If this occurs toggle the power switch to the OFF position and check the speaker cabling
to ensure that no speaker output is either shorted together or connected to a ground. When you are certain that
the loudspeaker cabling is correct, power the unit ON again, check that the green LED is lit and that music will
play.
There is an internal fuse protection on the REF600M. If the power switch is in the ON position, the power cable is
connected to a functioning power outlet at the correct voltage and the green LED is not lit, this indicates that the
internal fuse may have blown. If this occurs contact your dealer, distributor or Bel Canto for service. There are no
user replaceable fuses or other parts. Opening the chassis will void your warranty.
Power Up
We recommend leaving the REF600M powered on all times as it benefits the overall sound quality and draws little
power. If your system will not be used for an extended period of time, such as two weeks, or if there is an
imminent electrical storm, we recommend shutting off your system.
Output Connectors
Bel Canto amplifiers are all equipped with WBT Nextgen binding posts that accept spade lugs measuring 6mm²,
standard 4 mm² banana plugs, and wire with a diameter of 6mm² (10AWG). DO NOT USE TOOLS when
tightening binding posts as it can damage the connector.
Specifications
Power Output 1% THD: 600W 4 ohms, 300W 8 ohms
Minimum Load: 2 ohms
Peak Output Current: 27 amperes
Frequency Response: +/-3 dB 0Hz-50KHz, all loads
THD+N: 0.003% 1W, 1KHz, 4 ohms
IMD (CCIF): 0.0003%, 1W, 14:15KHz, 4 ohms
Output noise: 35uVRMS A-weighted 10Hz-20KHz
Voltage gain: 27dB (internal switch select for 33dB)
Damping factor: >1000
Output Impedance at 100Hz: <8 milliohms
Dynamic Range: 121dB
Input Voltage for Max Output: 2.3Vrms at 27dB gain
Input connections: Single-ended RCA or balanced XLR
RCA input impedance: 100Kohms
Balanced input impedance: 200Kohms
Output connections: 1-set WBT nextgen 5-way binding posts
Power On usage: 22W
Power Off usage: 0.0W
Internally Set Operating Voltages: 100-120VAC or 230-240VAC 50/60 Hz
Size: 8.5 x 3.5 x 12[inches], 216 x 88 x 305[mm] (WxHxD)
Weight: 15lbs, 7Kg
Features and specifications are subject to improvements and changes without prior notice.
Application of Council Directive(s):
2004/108/EC and 2006/95/EC, as amended
Standard(s) to Which Conformity Is Declared:
EN 55013:2001 + A1:2003 + A2:2006
EN 55020:2007
EN 61000-3-2:2006
EN 61000-3-3:1995 + A1:2001 + A2:2005
EN 60065:2002/A12:2011
Manufacturer:
Bel Canto Design, Ltd.
221 1st Street North
Minneapolis, MN 55401 USA
The equipment identified here conforms to the Directive(s) and
Standard(s) specified above.
Type of Equipment: Audio Amplifier
Models: REF600M
Date: January, 2015
Bel Canto Design, Ltd.
221 1st Street North
Minneapolis, MN 55401 USA
Tel: 612-317-4550
Fax: 612-359-9358
bel canto
version 1.0
Loading...
