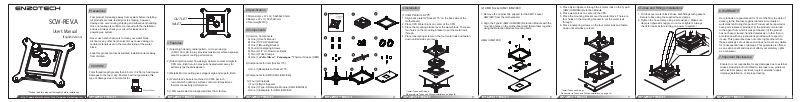

EnzoTech SCW User Manual

CAUTION!

OUTLET

INLET

1 2 3 4 5 6 7 8 9

*Please read this manual thoroughly before installation

User’s Manual

(English Version)

http:// www.enzotechusa.com http://www.enzotechnology.com

2.Specification

1.Dimension(L x W x H): 58x58x23.3mm

2.Base(L x W x H): 50x50x7mm

3.Total weight:510g

3.Components

1)Common Components
A) One (1)User’s Manuel
B) One (1)CPU Water Block
C) One (1)Mounting Bracket
D) Four(4)Innerspring Screws
E) Two (2)1/2” HI-Flow Hose Barbs
F) Two (2)Tube Clamps
H) One (1)Artic Silver

®

Céramique™ Thermal Grease (OEM)

2)Components for Intel (Socket 775)

J) One (1)Backplate for Socket 775

3)Components for AMD (AM2+/AM2/940)

G) Four (4)Clip Bolts
I) Four (4)Nylon Spacers
K) One (1)Type-S Retention Module (AM2+/AM2/940)
L) One (1)Backplate for AM2+/AM2/940

4.Installation

(1)Intel Pentium 4-775

1. Align back plate for”Socket 775” on the back side of the
motherboard.

2. Place CPU Water block on center of the CPU.

3. Place the mounting bracket over the water block. There are
four holes on the mounting bracket to put the metal rods
through.

4. Place innerspring screws on the four metal rods and fasten
down until all sides are level.

(2) AMD Socket AM2+/AM2/940

1. Remove the original Clip support for the AMD “socket
AM2/940” from the motherboard.

2. Align the Type-S (AM2+/AM2/940) Retention Module with the
mounting holes on the motherboard and fasten them together
using the Retention Module mounting bolts.

AM2+/AM2/940

3. Place Nylon Spacers through the 4 metal rods on the Type-S
(AM2+/AM2/940) Retention Module.

4. Place water block on center of the CPU.

5. Place the mounting bracket over the water block. There are
four holes on the mounting bracket to put the metal rods
through.

6. Place innerspring screws on the four metal rods and fasten
down until all sides are level.

5.Tubes and Fittings installations

1. Fit tubes over water block’s hose barb fittings with gaskets.
Secure tubes using the supplied hose clamps.

2. Tighten the hose clamp using a screwdriver. Make sure
clamp is tightened snuggly, do not over-tighten! Always
check for leaks before turning on power to system!

C

K

A

G

F

H

L

B

J

I

E

D

6.WARRANTY

Our products are guaranteed for 12 months from the date of
delivery to the final user against defects in materials or
workmanship. During this period, Product will be repaired or
have parts replaced, provided; (I) the products is returned
to the agent from which it was purchased: (II) the product
has not been misused, handled carelessly or other than in
accordance with any instructions provided with respect to
its use. This guarantee does not confer rights others than
those expressly set out above and does not cover any claims
for consequential loss or damage. This guarantee is offered
as an extra benefit and does not affect your statutory rights
as a consumer.

7.Important Disclosures:

Enzotech is not responsible for any damages due to external

causes,including but not limited to, improper use, problems
with electrical power, accident, neglect, alteration,repair,
improper installation, or improper testing.

1.Features:

1) Super high density, radial pattern, micro-pin design.
(0.5mm from pin to pin), provides maximum surface exposure
area for superior cooling performance.

2) Direct injection water flow design, delivers coolant straight to
CPU core. Eight return holes pulls heated water away for
extremely fast heat dissipation.

3) Metallic Mirror coating gives elegant style and superb finish.

4) Water block’s base is machined to .0003 per inch
run-out which optimizes surface contact and maximizes
thermal conductivity performance.

5) 100% leak tested and inspected direct from factory.

* Install Tubes and Fittings
Please refer to Tubes and Fittings installations on page (8)

* Install Tubes and Fittings
Please refer to Tubes and Fittings installations on page ( 8)

Precautions

-Test product for leakage away from system before installing.
All products are leak-tested prior to shipping; however,
damage can occur during shipping and subsequent handling.
Once no leakage is confirmed, proceed with the installation
and use. Always check your circuit for leaks prior to
powering-up system.

-Never use harsh chemicals to clean your water block.
Alcohol or any other harsh solvent may cause damage to
certain materials used in the manufacturing of the water
block.

-keep this product and its associated installation items away
from children.

SCW-REV.A

Total thread length greater than 6.5 mm / 0.256 inch will cause
damages to the top (cap). Enzotech will not guarantee this
type of damage due to human factor.

*Please read this manual thoroughly before installation

User’s Manual

(English Version)

http:// www.enzotechusa.com http://www.enzotechnology.com

SCW-REV.A

6.5 mm/0.256 inch
