Stealth 2-Base Conference Table Installation Instructions
Rev 0315
Page 2
1
STEALTH CONFERENCE TABLE ASSEMBLY
2 BASE CONFIGURATIONS
FULL BASE ASSEMBLY
TOOLS REQUIRED: FASTENERS INCLUDED IN HARDWARE PACK:
#2 PHILLIPS SCREWDRIVER, OR DRIVER BIT WITH POWER TOOL 5/16-18 FLANGE NUTS ATTACHED TO 90° CORNER BRACKET
½” COMBINATION WRENCH #1 SCREW
Page 3
2

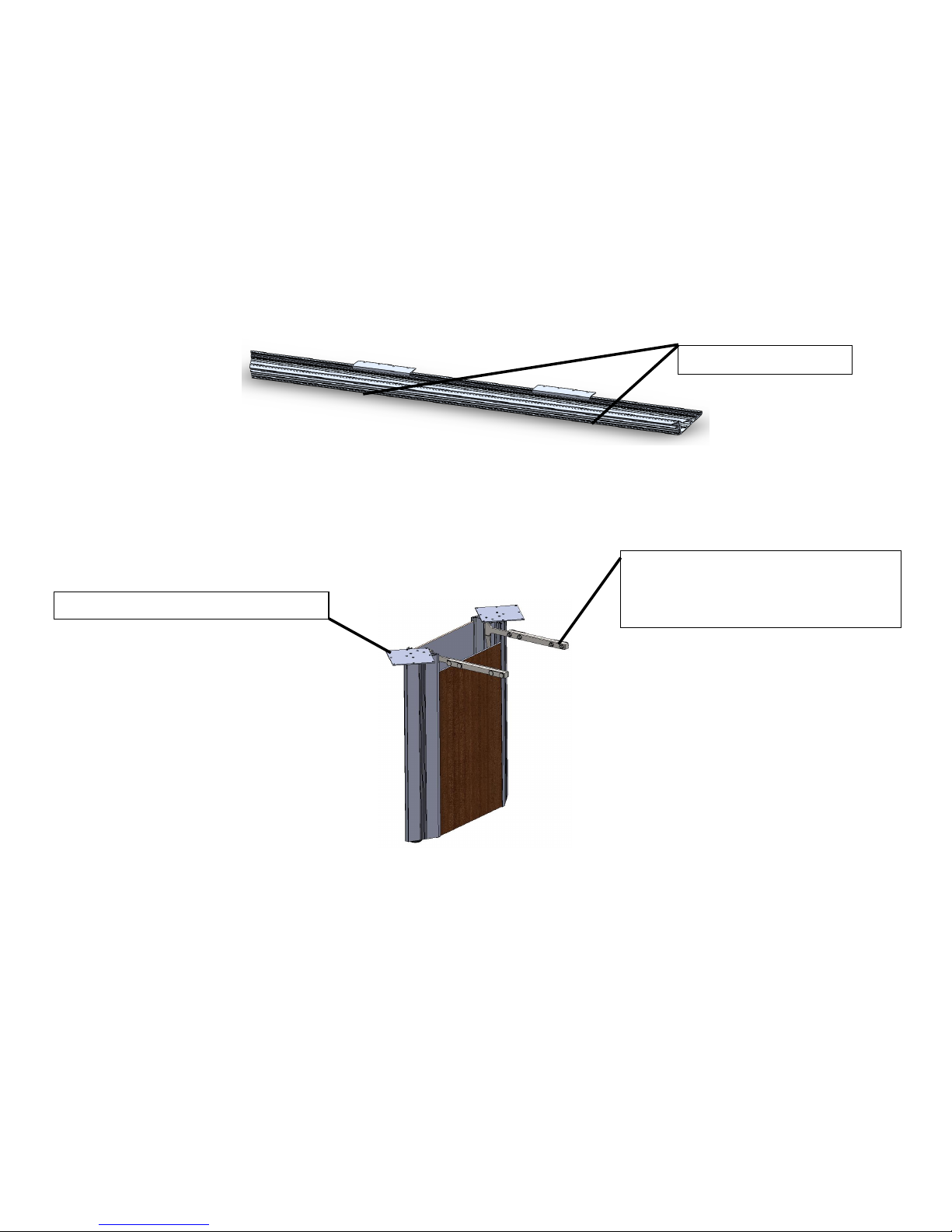

FIGURE #2 - EXTRUSION BEAM
DEPENDING UPON BEAM LENGTH THE NUMBER OF TOP SUPPORT EXTRUSIONS WILL VARY. THEY SHOULD BE EVENLY SPACED BETWEEN
EXTRUSIONS AND ½ THE DISTANCE FROM THE EXTRUSION TO THE BASE ASSEMBLY
BASE ASSEMBLY – Figure #3
TOP SUPPORT EXTRUSION
90° BRACKETS (LEFTHAND & RIGHTHAND ) FIELD
INSTALLED WITH TOP OF BRACKET FLUSH WITH
TOP OF ALUMINUM EXTRUSIONS
TOP MOUNTING PLATE (2) PER BASE ASSEMBLY
Page 4
3

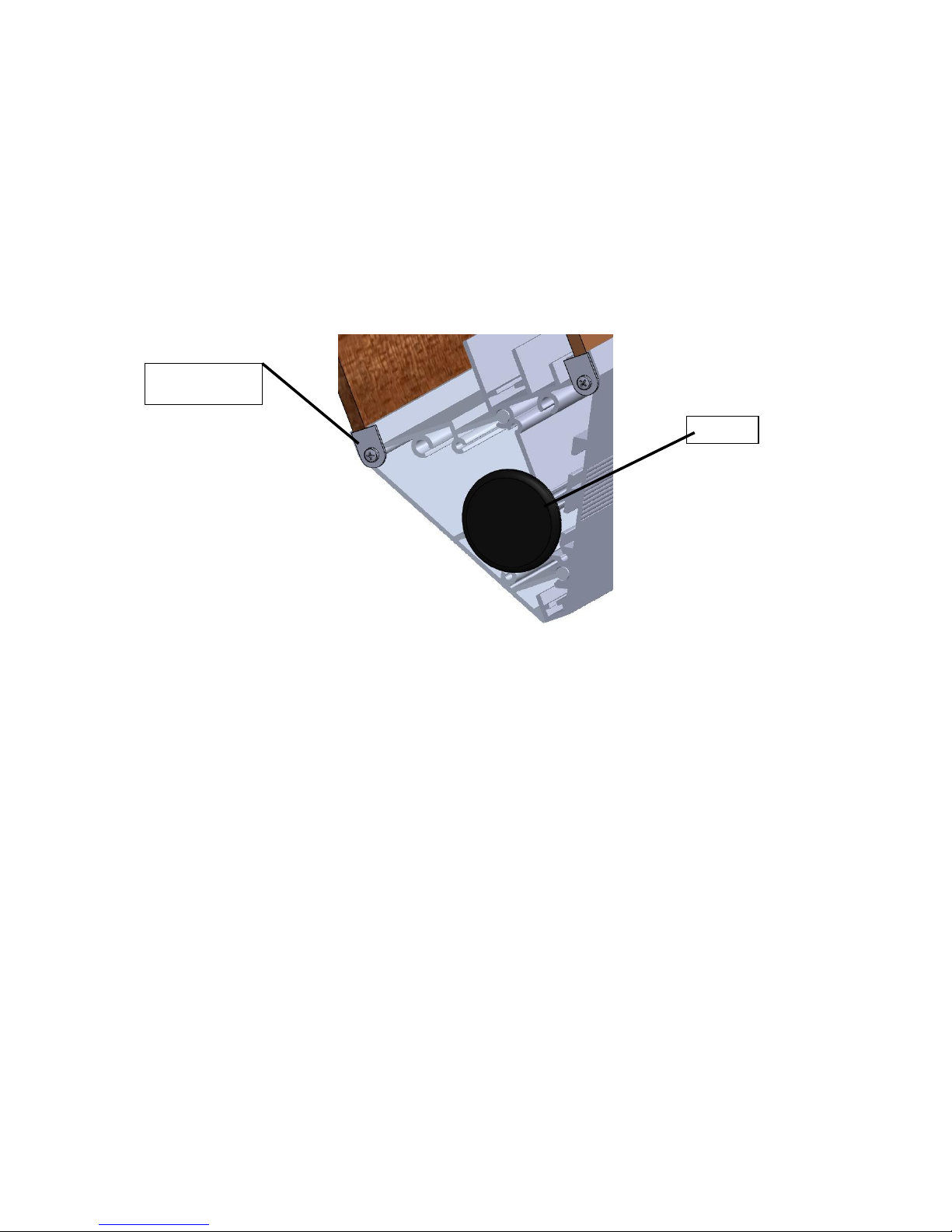

FIGURE #5
NOTE PANEL RETAINER PLATE, SCREWS AND LEVELERS ARE INSTALLED AT THE FACTORY. LEVELERS SHOULD BE ADJUSTED AS NEED TO LEVEL
TABLE BASE ASSEMBLY PRIOR TO INSTALLING TABLE TOP
PANEL RETAINER
PLATE & SCREW
LEVELER
Page 5
4

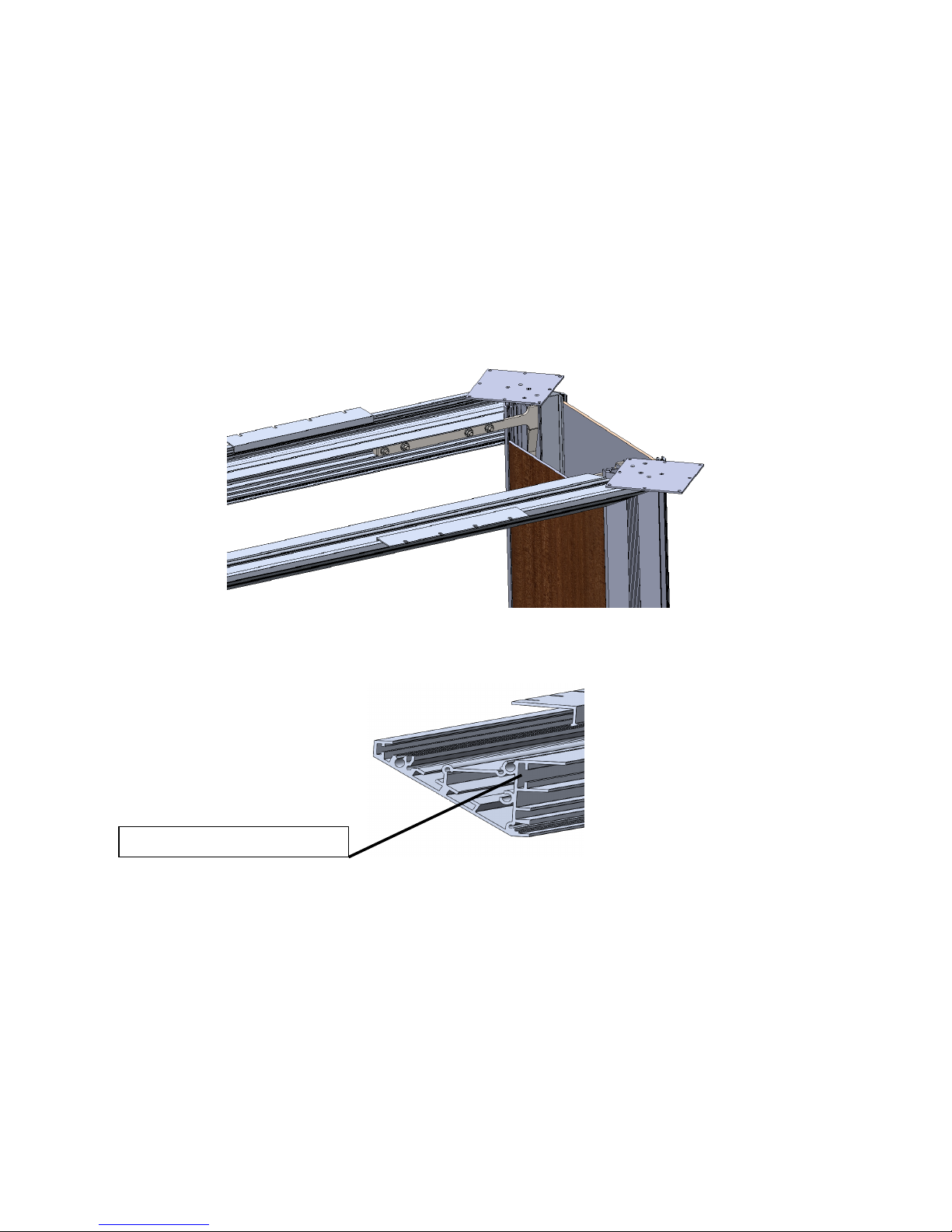

FIGURE #6
INSERT EXTRUSION ON TO BOLT PLATE, BOLT PLATE SHOULD SLIDE INTO CHANNEL IN EXTRUSION (SEE FIGURE #7)
FIGURE #7
EXTRUSION CHANNEL FOR BOLT PLATE
Page 6
5
REPEAT PROCESS FOR OPPOSITE EXTRUSION, CONTINUE WITH THE OPPOSTE BASE. ONCE THE EXTRUSIONS ARE ATTACHED TO THE TWO BASES
MAKE SURE THAT THE TOP SUPPORT EXTRUSIONS (SEE FIGURE #2) ARE LEVEL WITH THE MOUNTING PLATE (SEE FIGURE #3). TIGHTEN ALL
FLANGE NUTS SECURELY USING A ½” WRENCH
PLACE TOP ON BASE ASSEMBLY AND CENTER SIDE TO SIDE AND FRONT TO BACK, OVERHANG ON THE ENDS VARIES DEPENDING UPON SIZE OF
TOP SEE CHART FOR APPROXIMATE OVERHANG DISTANCE.
STEALTH TABLE BASE CONFIGURATION
Table Size - inches
Overhang - inches
No. of Supports
72
15.375
2
84
15.375
2
96
15.375
2
108
20.375
2
120
20.375 2 132
20.375
2
144
20.375
2
156
20.375 2 168
20.375
2
