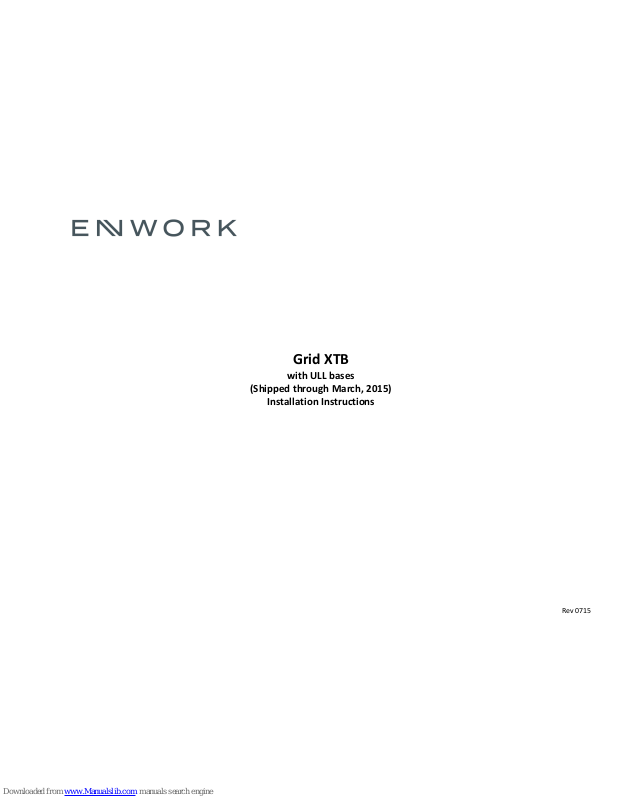

Grid XTB
with ULL bases
(Shipped through March, 2015)
Installation Instructions
Rev 0715
Page 2
1
8 - PACK
4 - PACK
2 - PACK
6 - PACK
GRID XTB
Installation
Page 3
2
USLEG19H
POWER INFEED
LEG
2-PACK QTY: 1
4-PACK QTY: 1
6-PACK QTY: 1
8-PACK QTY: 1
UMCP48 FOR 60” GRID
UMCP60 FOR 72” GRID
2-PACK QTY: 2
4-PACK QTY: 4
6-PACK QTY: 6
8-PACK QTY: 8
STEP 1:
TOOLS NEEDED & PARTS
ULF.WTC
2-PACK QTY: 2
4-PACK QTY: 4
6-PACK QTY: 6
8-PACK QTY: 8
ULF.TCS
2-PACK QTY: 4
4-PACK QTY: 8
6-PACK QTY: 12
8-PACK QTY: 16
ULF.WNMPLT
2-PACK QTY: 4
4-PACK QTY: 8
6-PACK QTY: 12
8-PACK QTY: 16
ULF.GMTBRKT
or
ULF.GMTBTRKT29
(ULRISER2, ULRISER3)
2-PACK QTY: 2
4-PACK QTY: 4
6-PACK QTY: 6
8-PACK QTY: 8
ULF.STRETCHER
(REF. UCONN1, UCONN2,
UCONN3, UCONN4)
2-PACK QTY: 0
4-PACK QTY: 2
6-PACK QTY: 4
8-PACK QTY: 6
SOCKET WRENCH WITH
½” & 7/16” SOCKET
TORX
PHILLIPS
TAPE
MEASURE
PENCIL
1/2” & 7/16”
5MM ALLEN
WRENCH
DRILL / DRIVER
RISER
Page 4
3
ULCM
2-PACK QTY: 2
4-PACK QTY: 4
6-PACK QTY: 6
8-PACK QTY: 8
#8-32 x ¼ TORX
PAN HEAD
2-PACK QTY: 12
4-PACK QTY: 24
6-PACK QTY: 36
8-PACK QTY: 48
#10-24 x 2”
PHILLIPS PAN
HEAD, UZBOLTU
2-PACK QTY: 6
4-PACK QTY: 10
6-PACK QTY: 14
8-PACK QTY: 18
5/16-18 FLANGE
HEX NUT
2-PACK QTY: 8
4-PACK QTY: 24
6-PACK QTY: 40
8-PACK QTY: 56
1/4-20 x 5/8”
PHILLIPS PAN HEAD
2-PACK QTY: 2
4-PACK QTY: 4
6-PACK QTY: 6
8-PACK QTY: 8
1/4-20 HEX NUT
2-PACK QTY: 2
4-PACK QTY: 4
6-PACK QTY: 6
8-PACK QTY: 8
#10-24 NUT,
UZNUTA
2-PACK QTY: 14
4-PACK QTY: 26
6-PACK QTY: 38
8-PACK QTY: 50
#10-24 x 3/8”
PHILLIPS PAN HEAD,
UZSCREW W
2-PACK QTY: 8
4-PACK QTY: 16
6-PACK QTY: 24
8-PACK QTY: 32
WOOD SCREW
SCREW1
2-PACK QTY: 12
4-PACK QTY: 24
6-PACK QTY: 36
8-PACK QTY: 48
STEP 2
HARDWARE
5/16-18 x 1”
FLANGE HEX BOLT
2-PACK QTY: 0
4-PACK QTY: 8
6-PACK QTY: 16
8-PACK QTY: 24
Page 5
4
STEP 3
ASSEMBLE ADJUSTABLE TABLE
SEE END OF DOCUMENT FOR “CRANK” STYLE ASSEMBLIES
FOR 60” LONG GRID TABLES
FOR 72” LONG GRID TABLES
Page 6
5
STEP 4
PRE-ASSEMBLE
TIGHTEN CONNECTION
NOTE ORIENTATION OF
ULF.GMTBRKT OR
ULF.GMTBRKT29
ASSEMBLE ALL ULF.GMTBRKT’s
OR ULF.GMTBRKT29 (RISER)
TO ULF.WTC’s
OR ULF.GMTBRKT29
IF ULRISER2 OR ULRISER3
PACKAGE WAS PURCHASED
DO NOT USE ULF.GMTBRKT
Page 7
6
5.1
5.2
HOLD FIRMLY ON
BOTH SIDES OF
COLUMN AS YOU
BEND TAB OVER
5.3
BEND
SLOTTED TAB
OVER
STEP 5
ASSEMBLING TABLE
5.4 INSERT FASTENERS
Page 8
7
5.7 END RUN

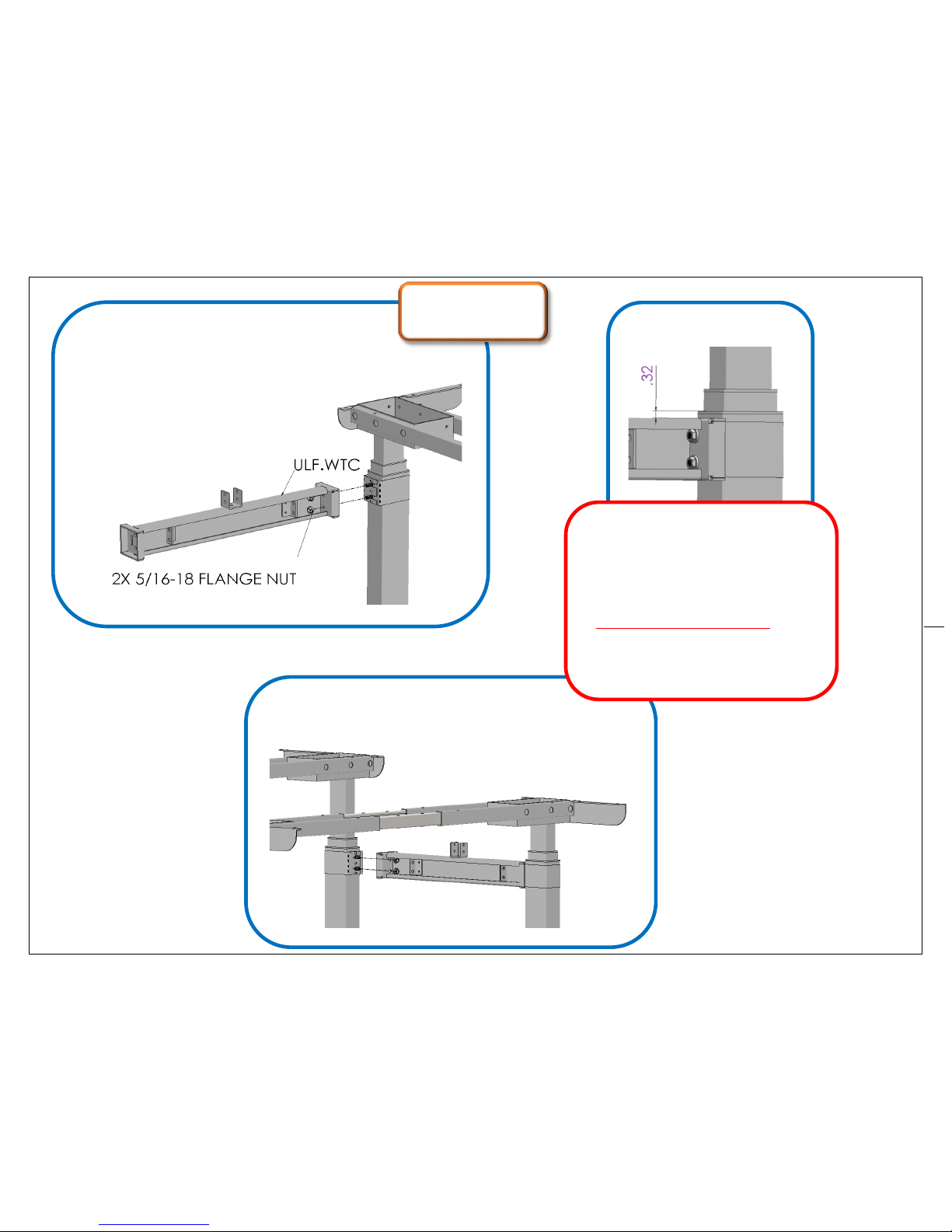

ATTACH OTHER TABLE BASE TO ULF.WTC, TIGHTEN NUTS
5.5
STEP 5
5.6
5.6
ALL ULF.WTC SHOULD BE SET TO .32
OR 5/16” FROM THE TOP OF PLASTIC
LEG INSERT.
TIGHTEN NUTS.
DO NOT OVER TIGHTEN NUTS. THIS
CAN CAUSE LEG COLUMN
DEFORMATION AND INOPERATION OF
TABLE.
Page 9
8
STEP 5
CONT.

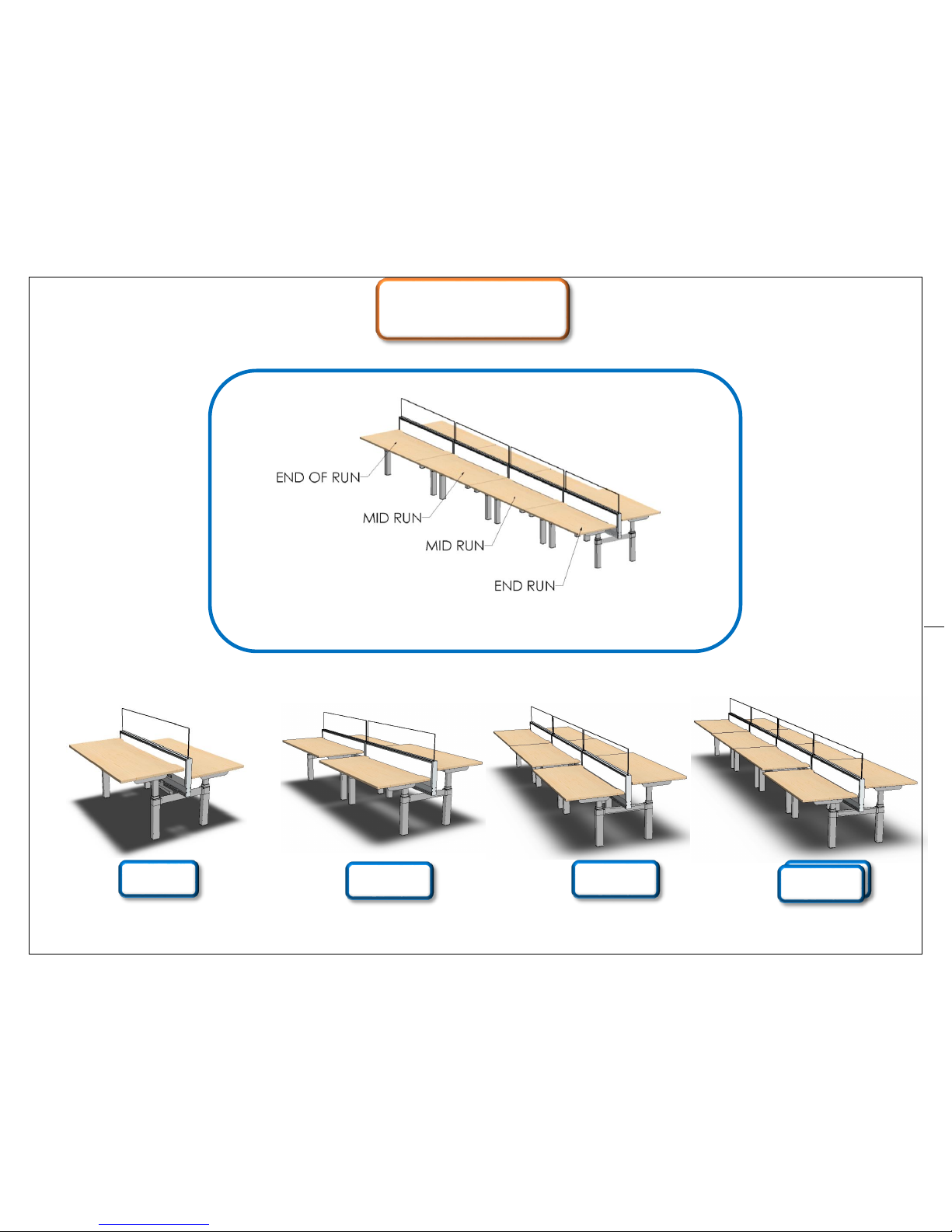

TERMINOLOGY
2 PACK
4 PACK
6 PACK
2 PACK
8 PACK
Page 10
9

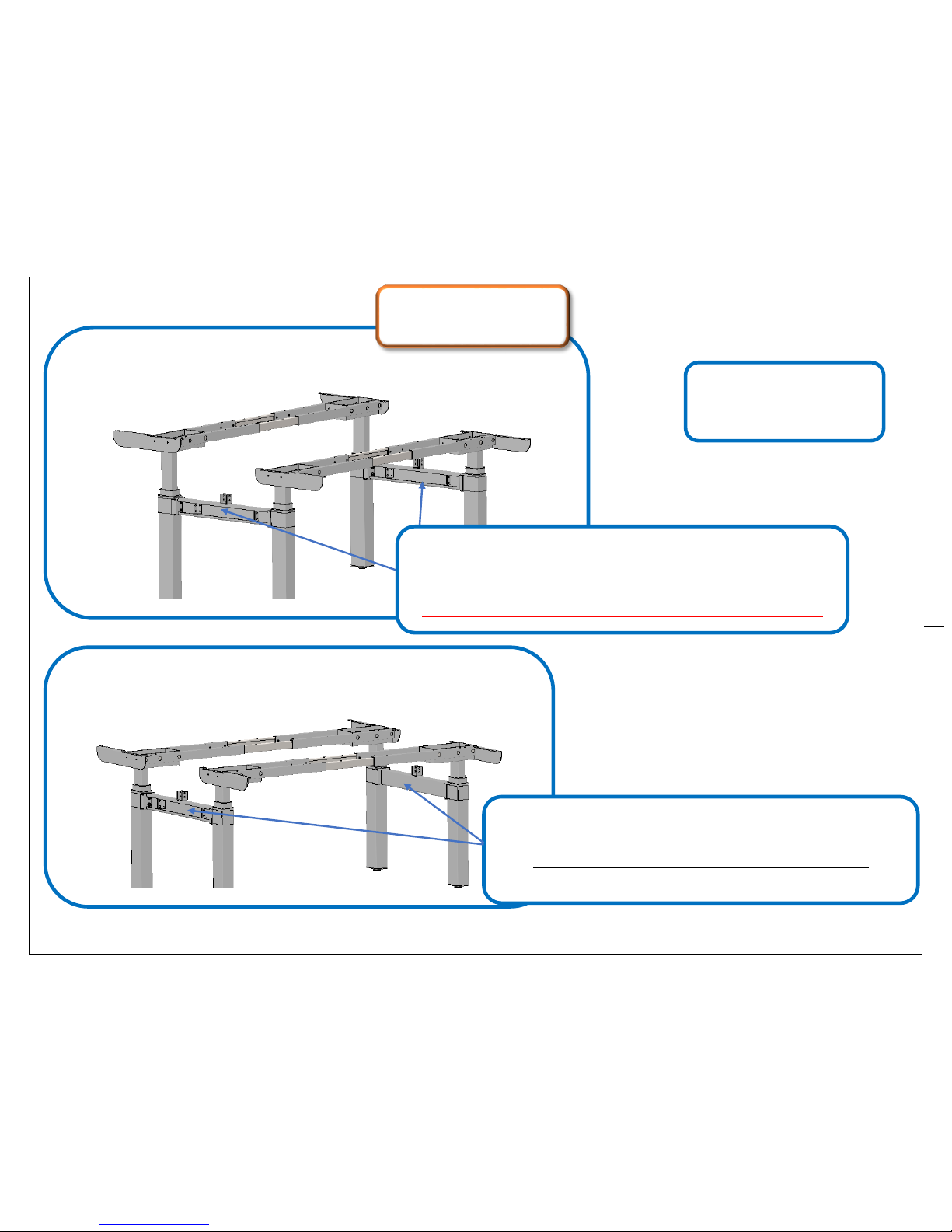

5.8 END RUN CONFIGURATION
5.8
FOR GRID XT 4 – 6 – 8 PACKS THIS AN END OF RUN CONFIGURATION
FOLLOW STEPS 5.1 THRU 5.3 FOR DETAILED INSTRUCTIONS.
NOTE THAT BOTH ULF.WTC CROSS BARS FACE THE SAME DIRECTION
STEP 5
CONT.
5.9 MID RUN CONFIGURATION
5.9
FOR GRID XT 4 – 6 – 8 PACKS THIS A MID RUN CONFIGURATION
NOTE THAT BOTH ULF.WTC CROSS BARS FACE OUTWARD
NOTE
GRID XT 2 PACK ULF.WTC
BOTH FACE INWARD
Page 11
10
STEP 6

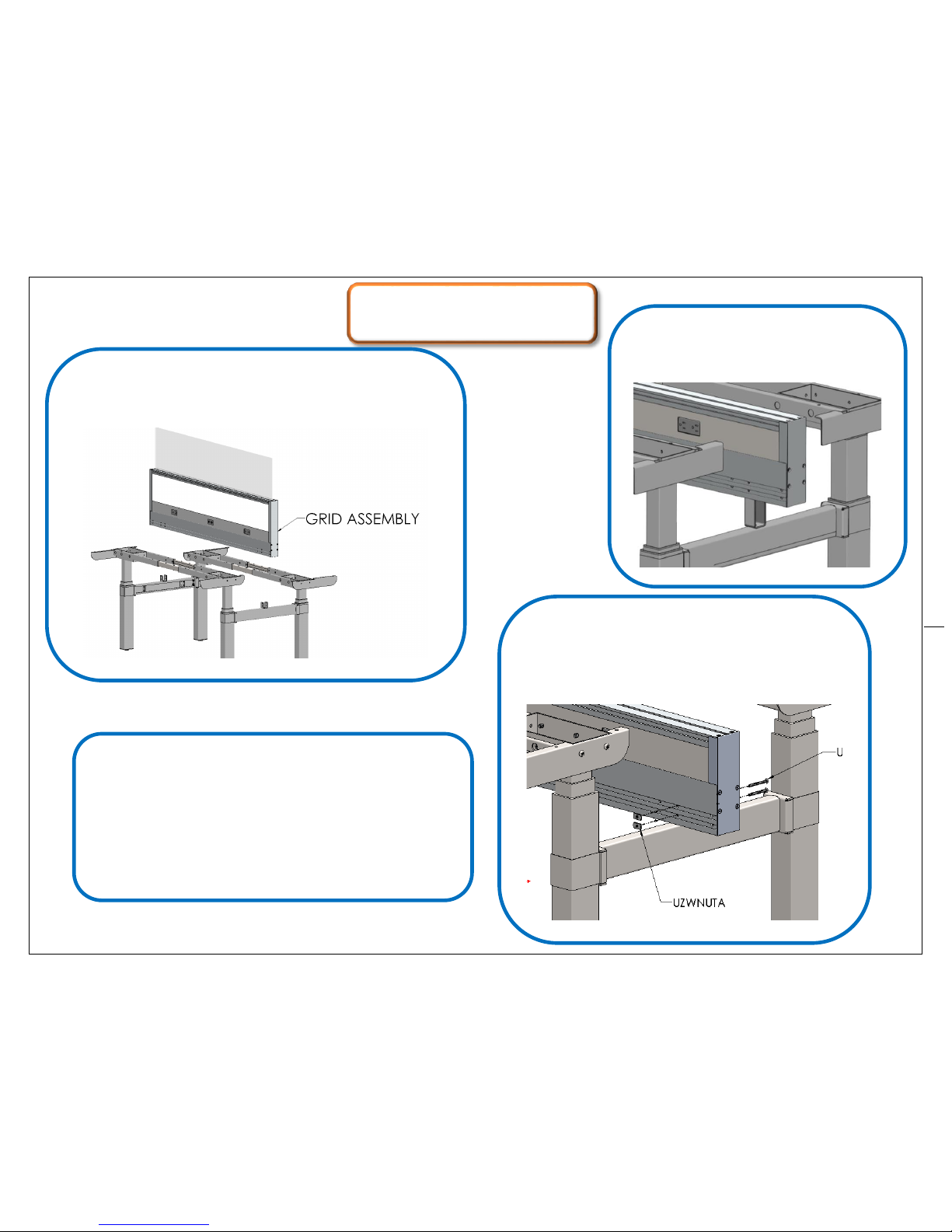

ATTACHING GRID
6.1
ATTACH GRID TO ASSEMBLY
6.2
USE MIDDLE HOLE AS SHOWN FOR
ATTACHMENT
NOTE:
IF NOT ALL HOLES ARE ALIGNING,
LOOSEN TELESCOPING LEG CONNECTOR
(PAGE 4) ADJUST WIDTH AND TIGHTEN
CONNECTIONS
VIEW OF ATTACHMENT
WITH RISER
Page 12
11
7.1
USE QTY: 4
5/16-18 FLANGE NUT
5/16-18 x 1” FLANGE BOLT

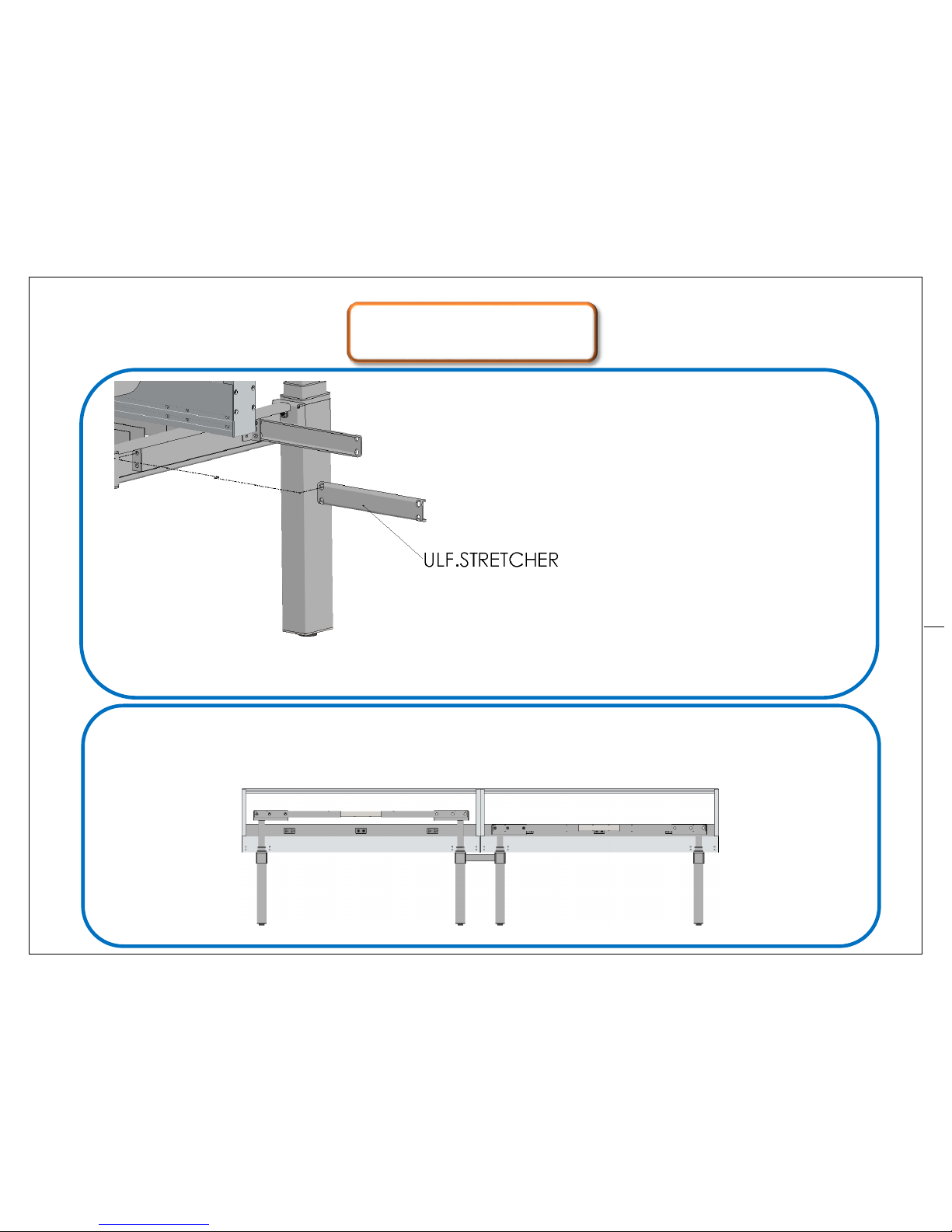

TO CONNECT ULF.STRETCHER
TO TABLE BASES
AND TIGHTEN CONNECTIONS
STEP 7
CONNECTING STATIONS
7.2
ATTACH STRETCHERS TO ADJACENT TABLE(s)
Page 13
12
8.2 REMOVE GRID TOP CAPS
8.3 CONNECT ELECTRICAL JUMPERS
8.4 CONNECT INFEED
8.5 OPTIONAL- ADD TOPPER
SCREENS IF ORDERED
8.6 RE-ATTACH TOP CAPS
8.1

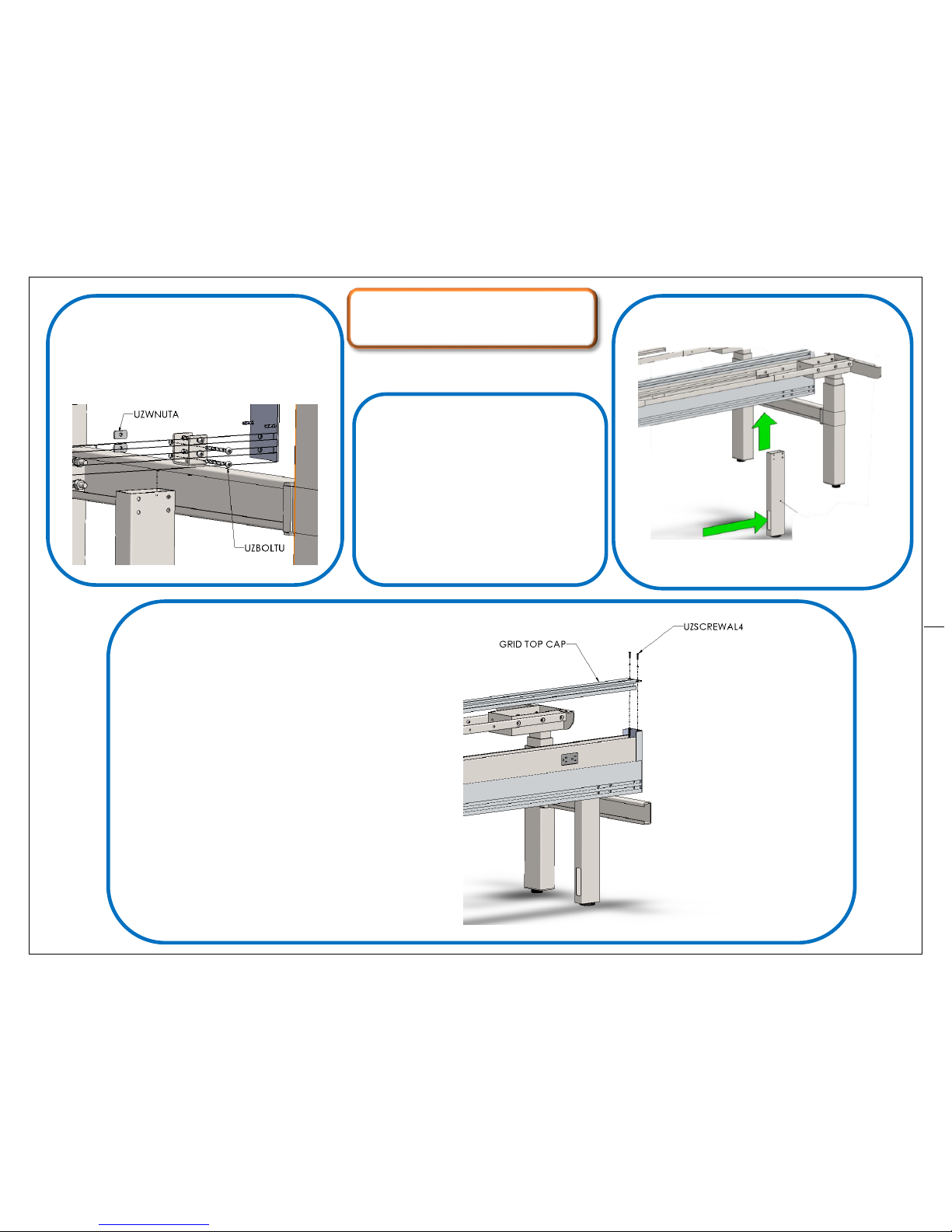

INSERT USLEG19H
USE QTY 2 EA UZBOLTU & UZNUTA TO ATTACH
LEG TO GRID
POWER ROUTES VIA GREEN ARROWS AND
CONNECTS TO LAY IN GRID POWER JUMPERS
STEP 8
CONNECTING POWER
PLACE USLEGAL19H (POWER INFEED)
CABLE MANAGER NEAR FLOOR
OUTLET.
-NOTE THAT USLEGAL15 CAN
BE PLACED ANYWHERE ALONG
A GRID XT 4 – 6 – 8 PACK
WHERE 2 HOLES IN GRID
ASSEMBLY ARE AVAILABLE TO
Page 14
13
STEP 9

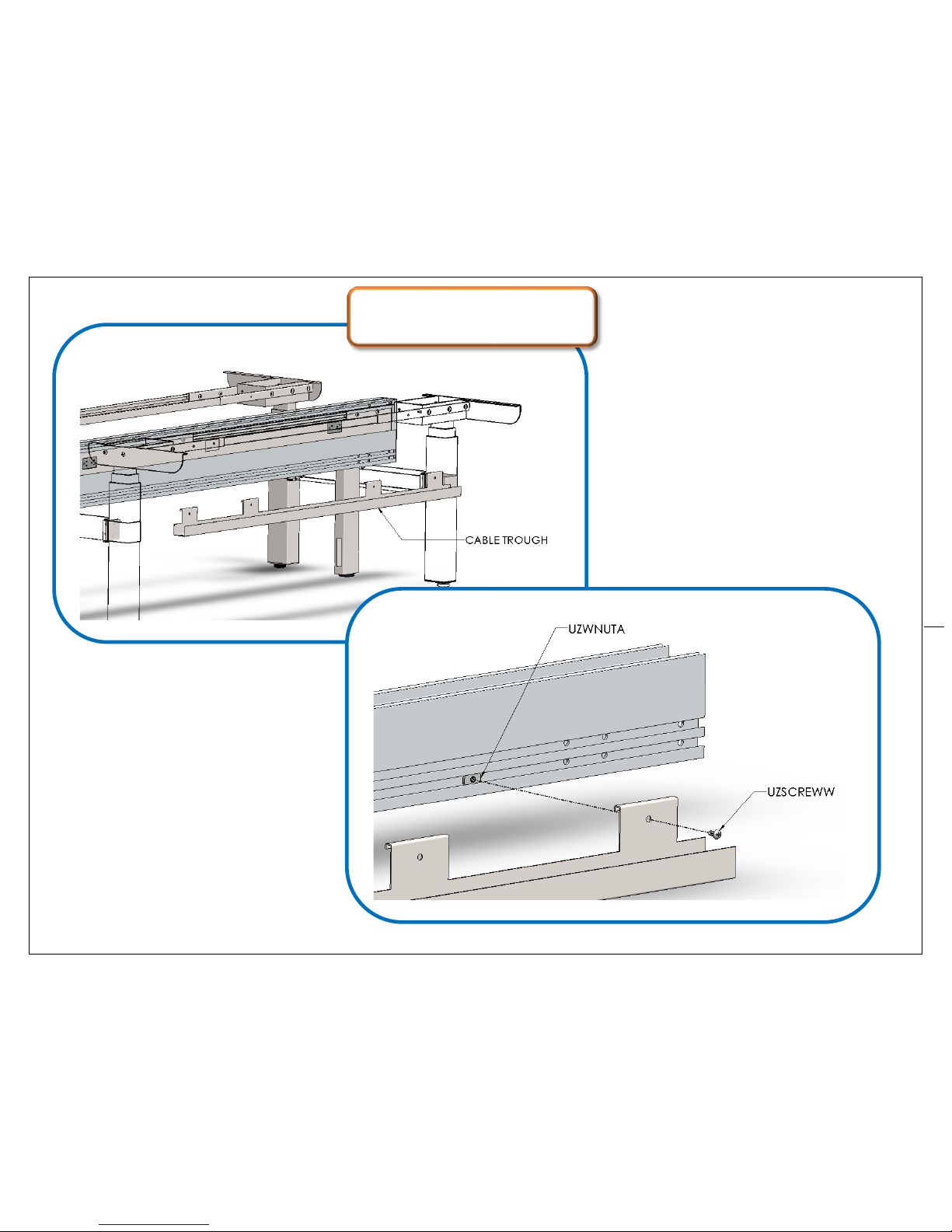

ATTACHING CABLE TROUGH
Page 15
14
STEP 10

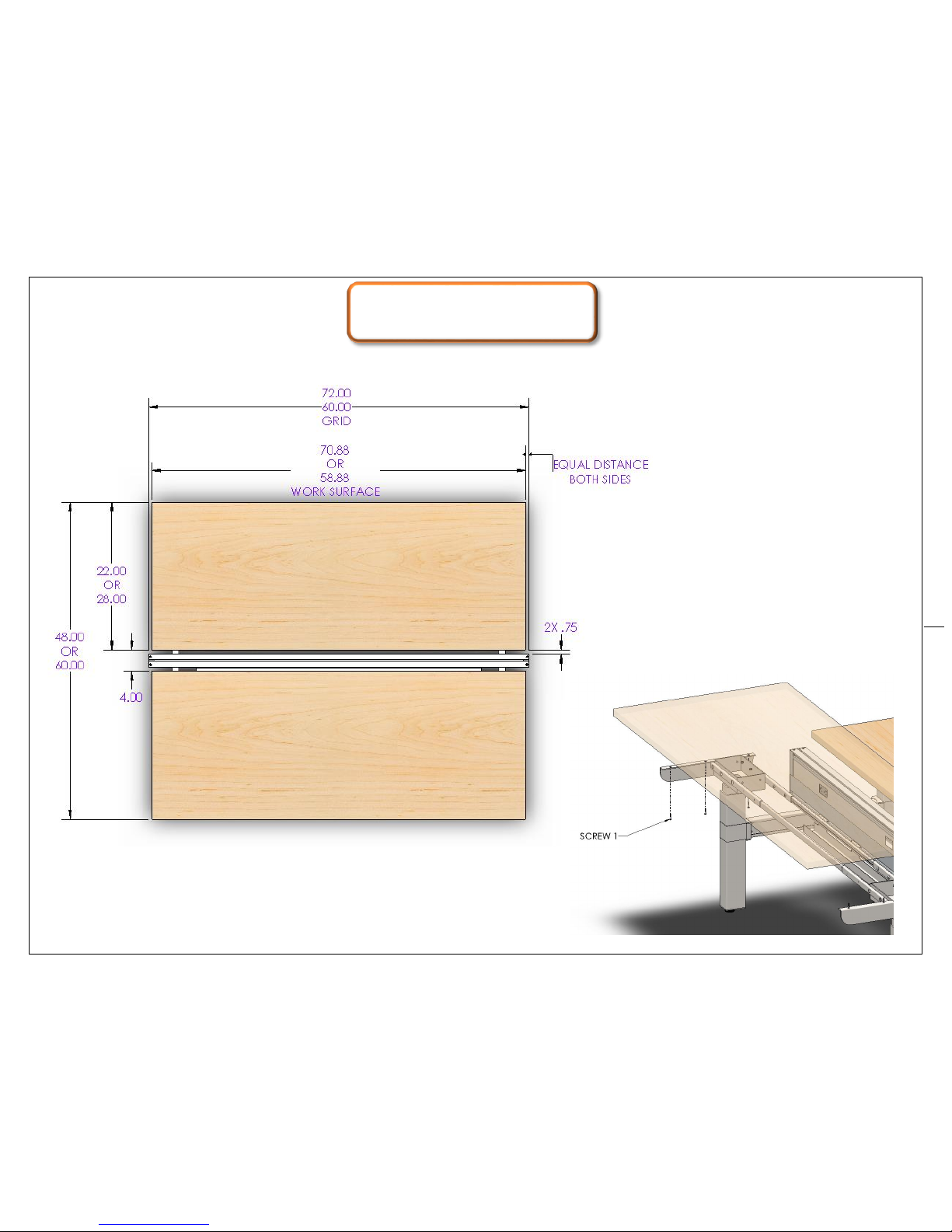

ATTACHING WORK SURFACE
Page 16
15
STEP 11

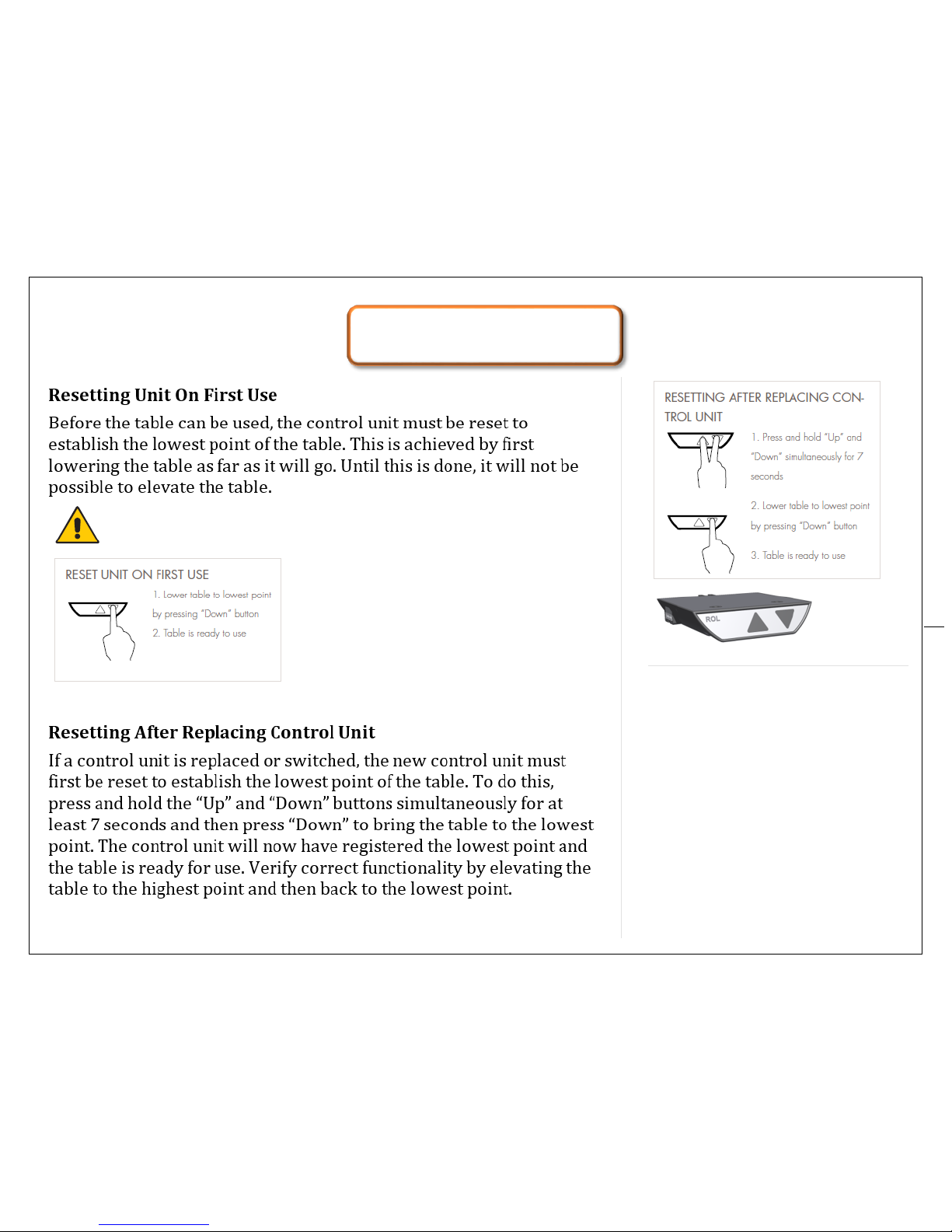

ATTACHING TABLE CONTROLLERS
Page 17
16

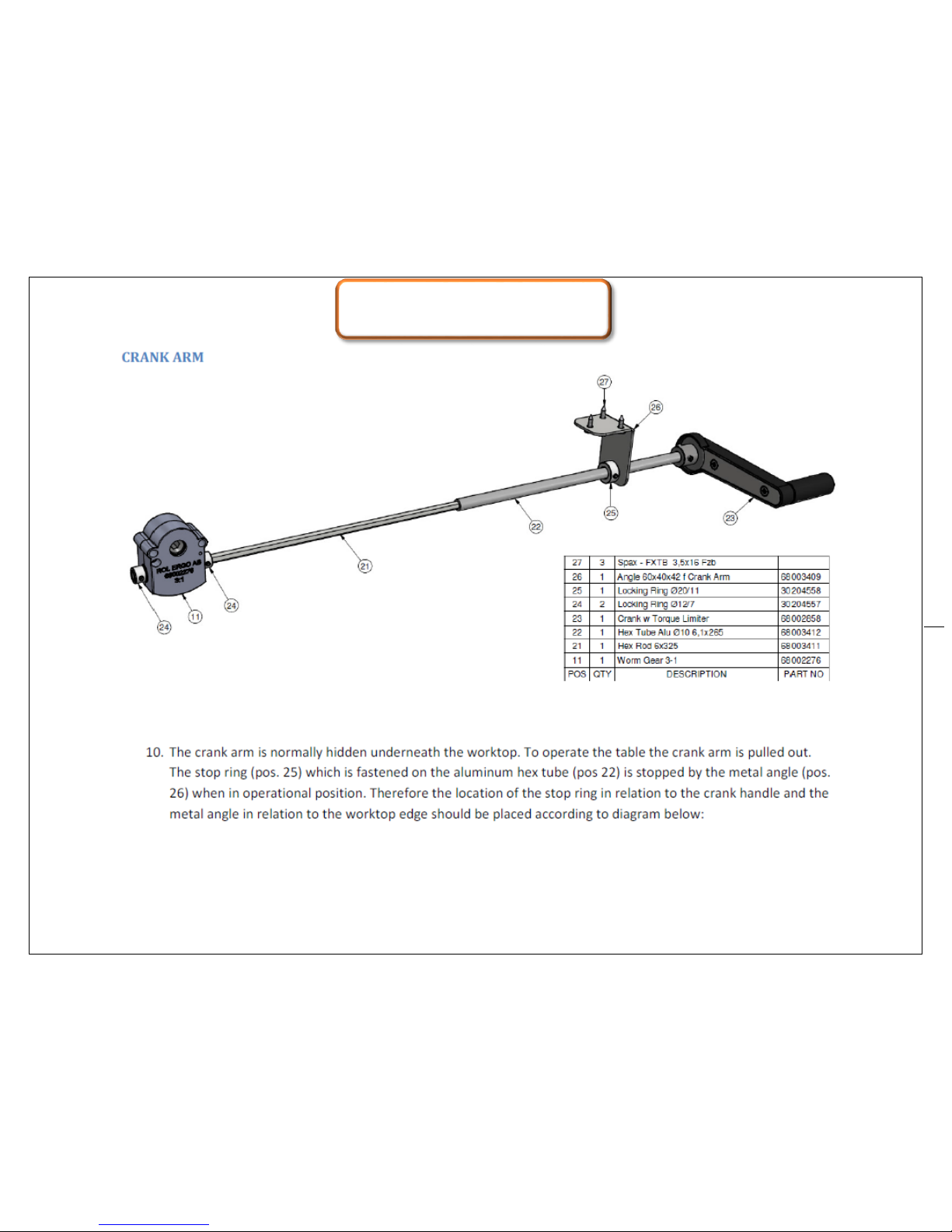

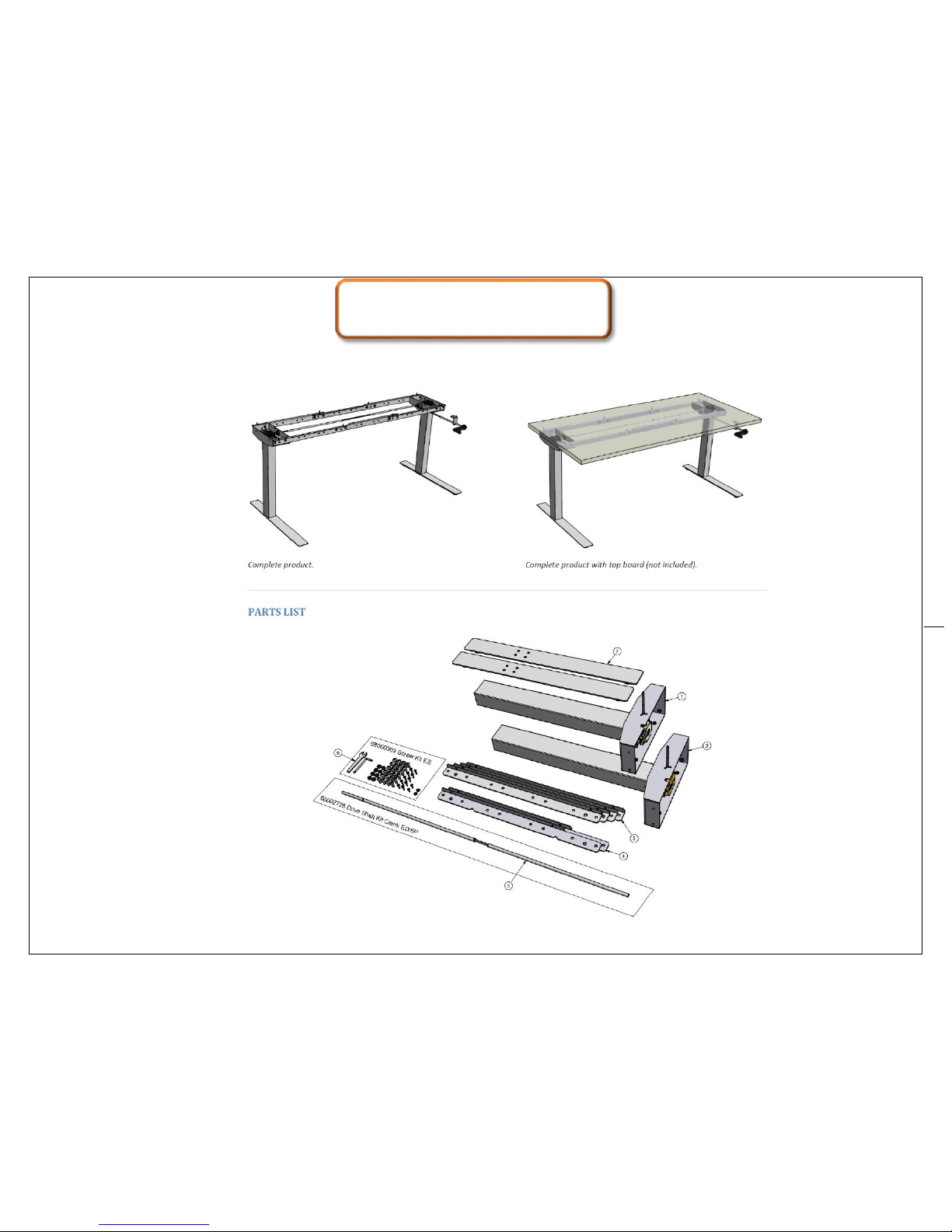

“CRANK” TABLE BASE
INSTRUCTIONS
Page 18
17

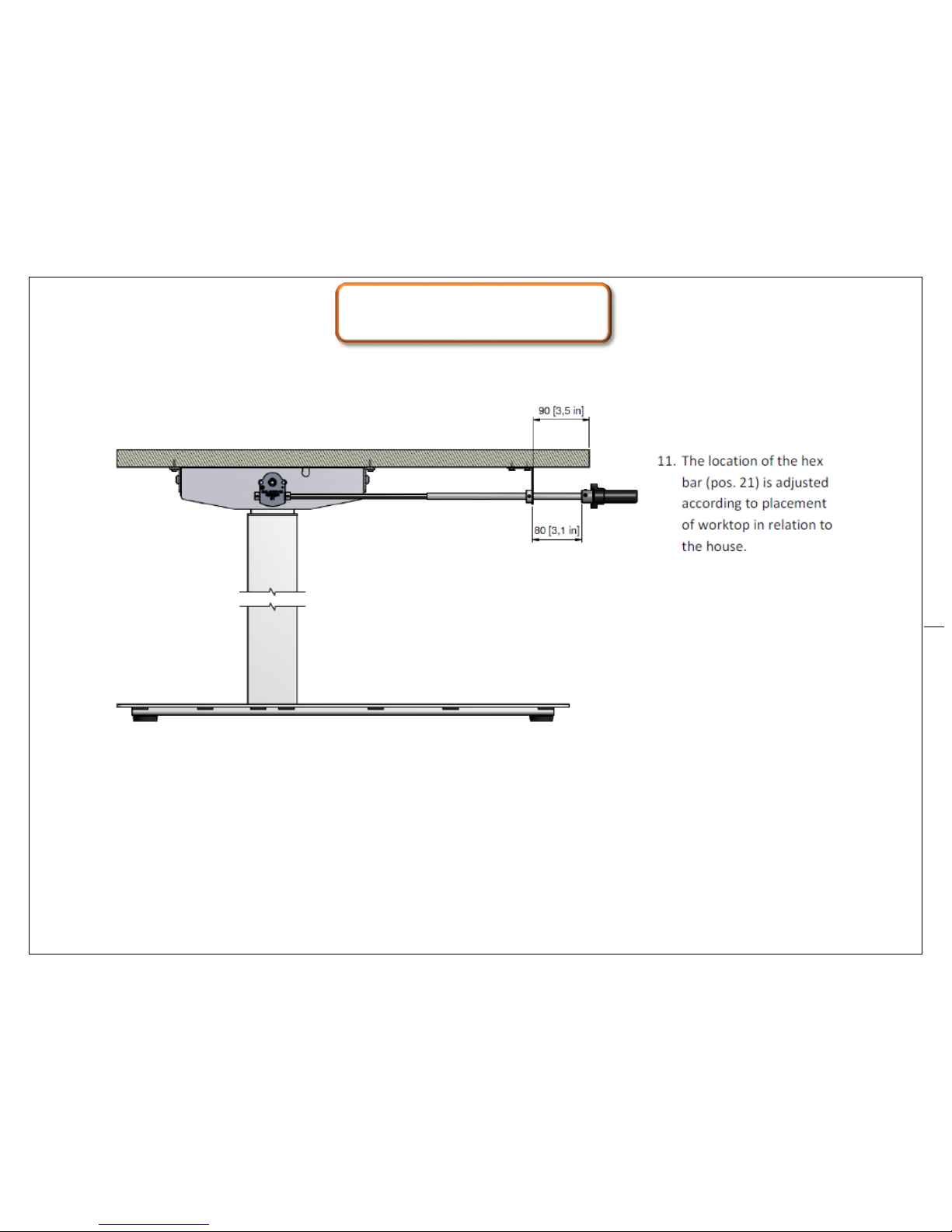

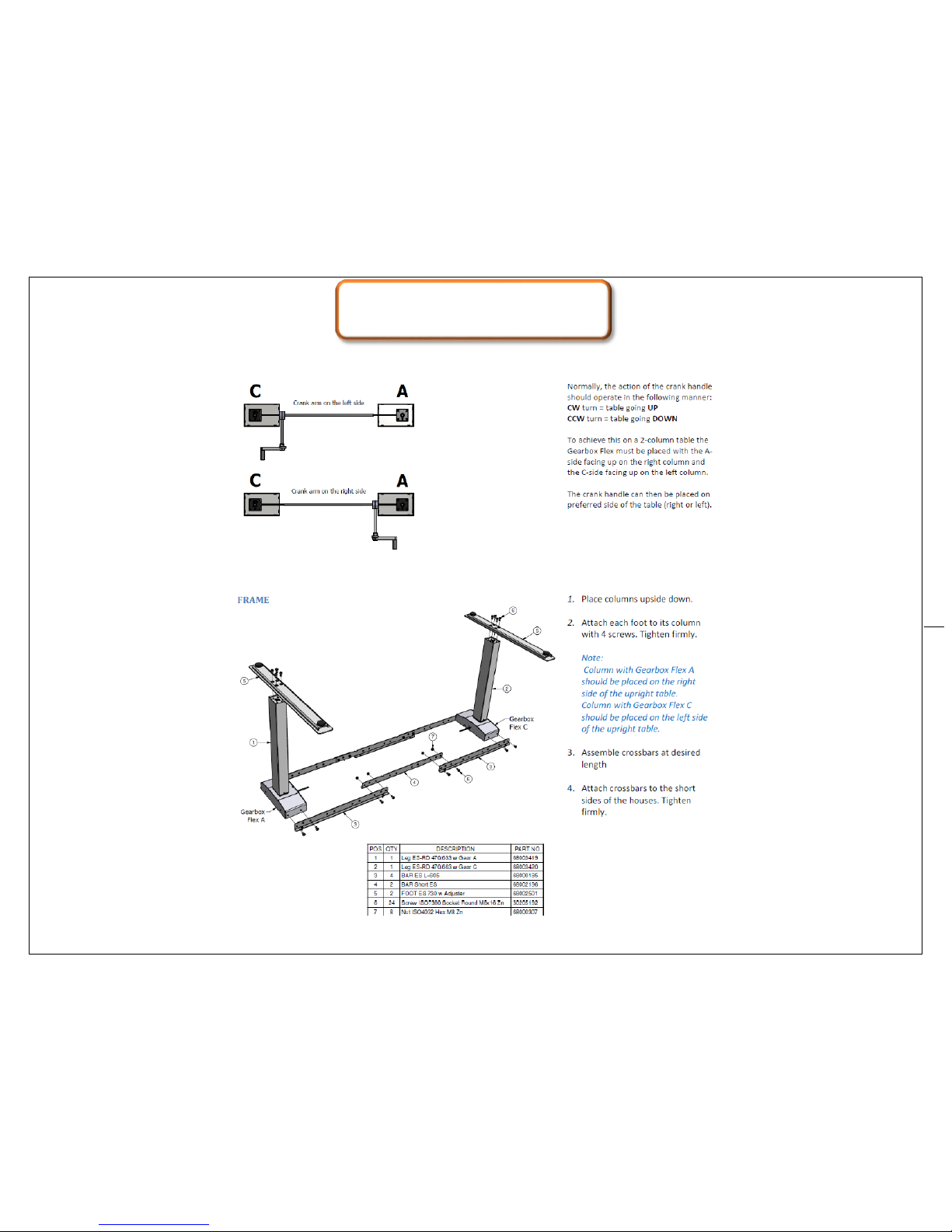

“CRANK” TABLE BASE
INSTRUCTIONS CONT.
Page 19
18

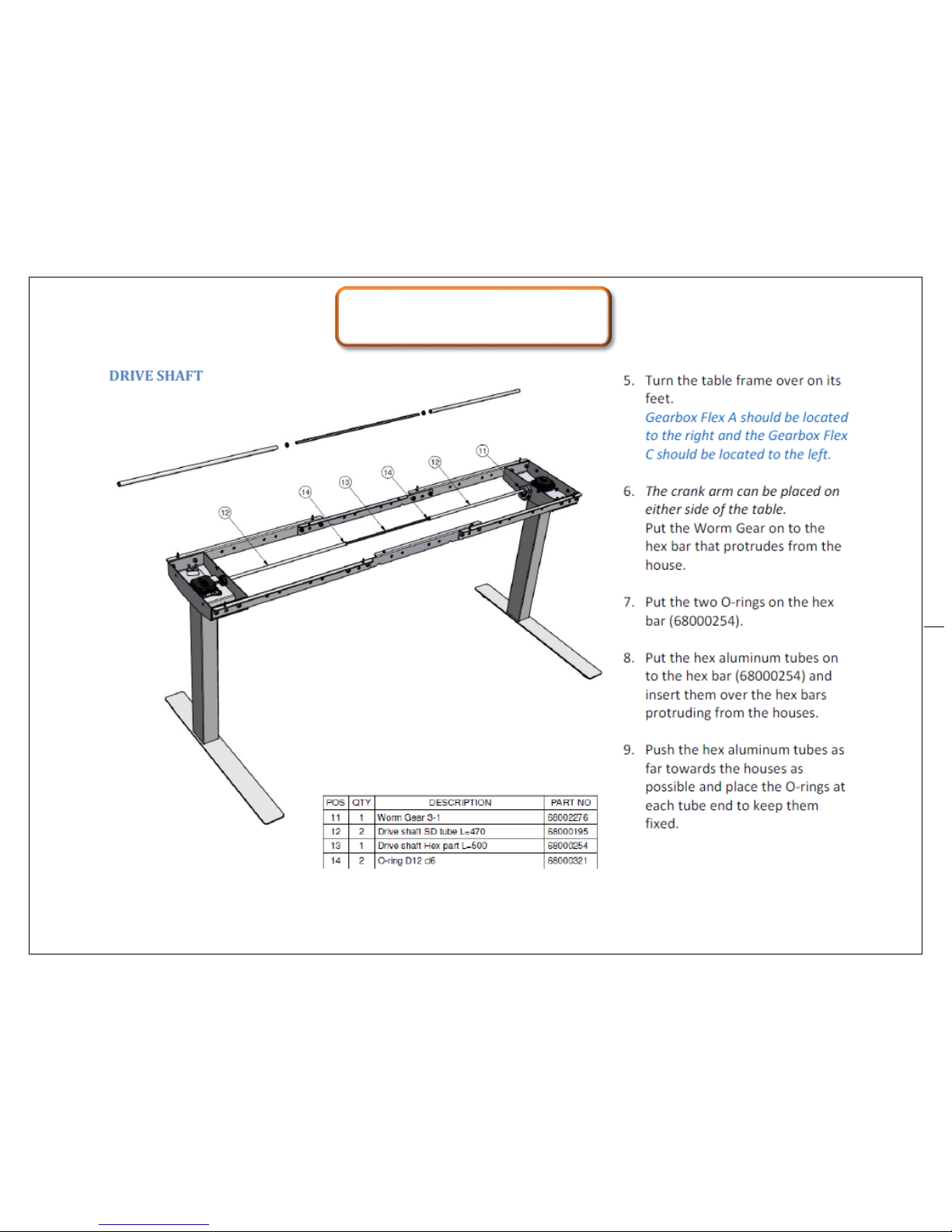

“CRANK” TABLE BASE
INSTRUCTIONS CONT.
Page 20
19
“CRANK” TABLE BASE
INSTRUCTIONS CONT.
Page 21
20
“CRANK” TABLE BASE
INSTRUCTIONS CONT.
Page 22
21

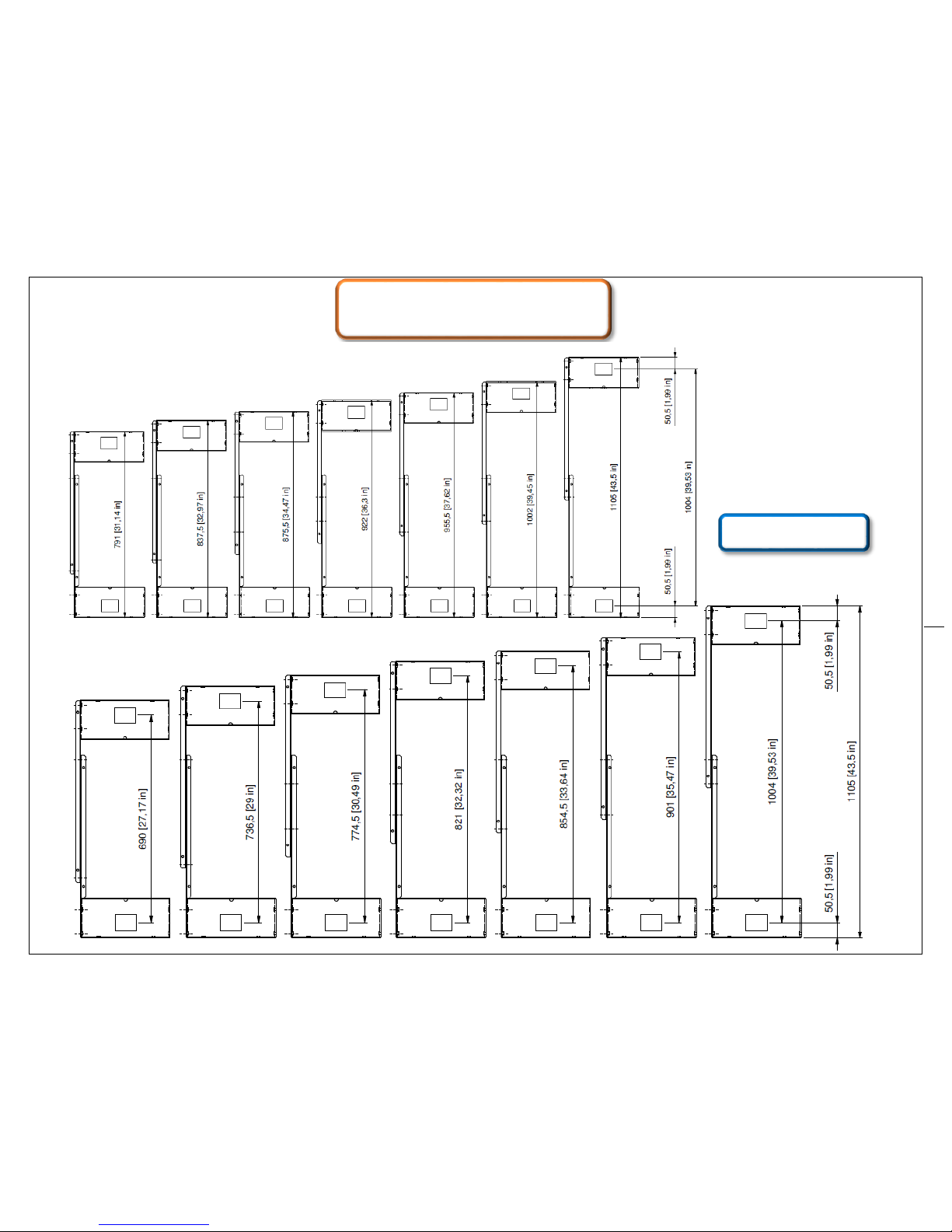

“CRANK” TABLE BASE

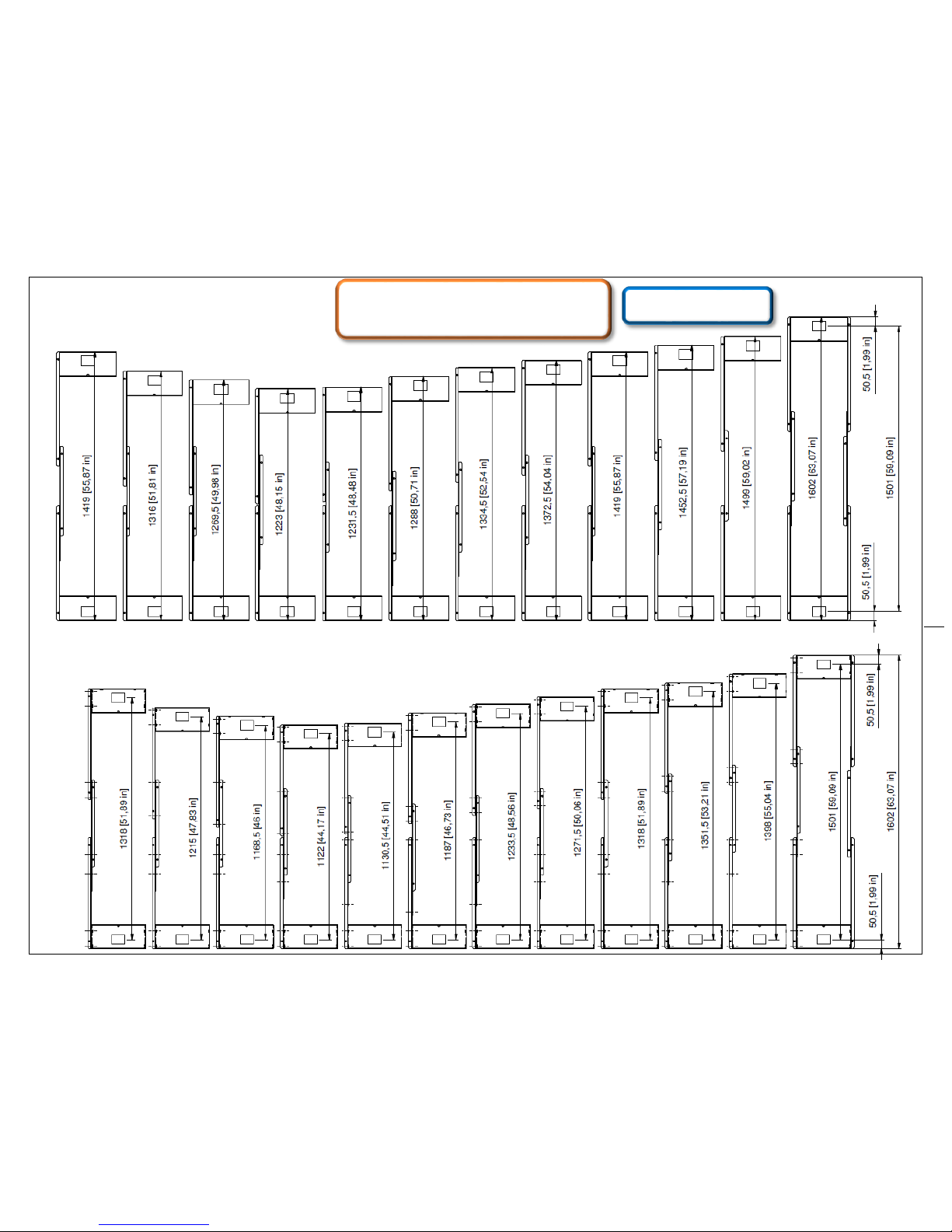

CONFIGURATIONS
2-BAR OPTIONS
Page 23
22
3-BAR OPTIONS
“CRANK” TABLE BASE
CONFIGURATIONS
