Page 1
En
i
zen
Digital
Tablet PC
VModel: 100M
Diamondking Inc
3913 schaefer Ave Chino CA91710
Toll free 866 709 1999
:()-
.
.,
Page 2
Contents
1 Overview
1.1 Appearance and Keys
1.2 Basic Operation
1.2.1 Switch ON
1.2.2 Unlock the Screen
1.2.3 Lock the screen
1.2.4 Switch OFF
1.2. Battery charging5
1.2. Switch input methods6
1.2. Use T-Flash card7
1.2. Connected to the computer8
1.2. Browse the file in the device9
1.2.1 Startup programs0
1.2.1 Close programs1
1.2.1 Screen operation2
1.2.1 Home screen3
1.2.1 Screen gestures4
1.2.1 Security setting5
1.2.1 Display setting6
1.2.1 Wireless And Network Settings7
1.3 Technical specifications
Warranty
Disclaimer
.
1
1
1
1
2
2
2
2
3
3
4
4
5
5
5
5
6
6
8
8
9
10
1 Thanks very much for purchasing our MID product! Before using this
product, please read the manual carefully.
We will consider that you have read this manual when you use this product.
2. The functions information of this manual is subject to the product itself; we
will keep developing new functions. The information in this manual is subject
to change without any prior notice.
3. The Company will not be responsible for any loss of personal data and
damage caused by incorrect operation of re, artificial
damages, replacement of batteries or any other ent. To avoid loss of
your data, please backup your data to your computer at any time.
4. We can not control any dispute from users misunderstanding or incorrect
operation against the manual, the Company will not take any relevant
responsibility for any accidental loss potentially occurring in the process of
using this manual.
5. Please do not repair it by yourself, otherwise, we will not provide you with
aftersale service.
6.Our Company reserves the final explanation right to this manual and other
relevant information
software/Hardwa
accid
Preface
Dear Customers,
Thanks very much for purchasing our product! This device is built-in high
performance Wifi receiver module, supporting external 3G USB DONGLE
wireless network card, turning on the broadband wireless networks, breaking
through the restraint of network cable; it will bring you into the portable media
player world and fulfill your entertainment needs. It also support picture
browsing, E-book Reader, games, online chat and other functions, various
settings will fully show your individuality.
Safety notices
This manual contains important information, in order to avoid accidents,
please read this manual carefully before you use this product.
● Please do not let the player fall or rub or compact with hard objects during
using, or it may cause surface scratch of the player,battery loose, data lose or
damages of other hardware.
● Never let this product expose to the humid environment or rain as the
Page 3
water leaked into may disable it to the extent beyond maintenance.
● You are recommended not to use the headset with large volume
continuously, please adjust the volume to the size of appropriate security and
control the using time to avoid the damage to your hearing, as excessive
volume will cause permanent hearing damage.
● Please do not cut off the power abruptly during software update and
download, or it may cause date loss and system error.
● Please do turn on the device where the wireless equipment is
forbidden or when the usage of the device will cause interference and danger.
Please observe any relevant restrictions.
● Please use original accessories and batteries, do not use incompatible
products.
● Please do use the device in gas station or nearby the fuel and
chemicals.
● Please do use this product when you are driving or walking in the street,
or it may cause an accident.
● Please do not scrape the screen, it may be damaged and can not be
display anything.
● Never clean the device with any chemicals and detergent, or it will damage
the product surface and corrode the spray paint
n
ot
n
ot
n
ot
Packing list
Welcome to purchase this product , when you open the package , acceptance
of the following:
Components
Item
1
MID Device
Micro USB Cable
2
User Manual
3
Adapter
4
5
Attention: Accessories are subject to the real products and change without
notice.
CardService
Quantity
1
1
1
1
1
1 Overview.
1.1 Appearance and Keys
11
12
2
3
4
5
6
7
8
9
Symbol Name Description
1 Back Camera Built-in 0.3 Megapixel camera
2
3
4
5
6
7
8
9
10 Speaker
11
12
1
Power
Earphone jack Stereo earphone jack
HDMI Support 1080P HD output
Micro USB port Connect with PC and OTG function
USB connected Select to copy files to/from your computer
Res et To res tart device
Charger port
TF Card TF Card Slot
Return key Press this key to return the previous interface
Volu me
Press shortly to enter sleeping waking/ up
mode press, long to switch ON OFF/
Power socket for charging the device
Built- in Speaker
Change volume
1.2 Basic Operation
1.2.1 Switch ON
When the device is in the OFF mode, press and hold
then you can enter the system desktop.
10 10
POWER key,
1
Page 4
1.2.2 Unlock the screen
Please press and drag the icon to the , then the LCD will
unlocked automatically.
1.2.3 Lock the screen
When the device is in the ON mode, press the POWER key shortly,
the system will lock the screen and enter the save power mode.
Then the screen is OFF but the system will still operation.
1.2.4 Switch OFF
When the device is in the ON mode, press and hold the POWER
key for 3 seconds, the screen will display the power off interface,
choose the power off item to confirm, the system will shut
automatically.
5
1.2. Battery charging
Insert the micro port of the battery adaptor into 220V AC slot on the
device, and connect the other side with the power socket. Then,you can charge the device.
[Note] This device is not recommended to use USB interface to charge, please must use the special power adapter for charging.You should charge the battery for at least - hours to make sure the
battery is fully charged at the first time. On charge the Power
812
indicating lamp of the device is in high light blue color, the desktop
icon of the battery keep rolling which shows it is connected to
the device.
6
1.2. Switch input methods
The device support handwriting, number, letter, pinyin etc.
switching follow:
Click any text input area of the working program interface, it will
popping input keyboard interface, as shown below:
Press , then it will popping Input Method switch interface.Select
the input method you want here.
[Noted] After newly install input method, you should
Settings>Language & input>KEYBOARD & INPUT METHODS,
then you can use.
7
1.2. Use T-Flash card
● Insert T-FLASH card
Insert the T-Flash card into the slot in direction of the devices
bottom shell until you hear a sound of click.
● Browse files in the memory card
In this MID device，you can view and use the needed files in
catologue of MENU>File manager> SD Card.
● Remove T-Flash card
Close all open files from the T-Flash, then enter MENU>SETTINGS>TF card and & device storage, click Unmount SD card
,System will prompt that TF card was removed safely. Tap with
your fingertips to the pop-up T-Flash Card
[Note]
1. Do not insert the T-F card by force, this card can only be applied
in one direction.
2. Do not remove the TF card before Unmounted it, or the card may
be damaged.
2
3
Page 5
3. If the memory card is write-protected, data will not be formatted
and written, please remove the write protection before such operations
4. Major brands memory card is recommended to avoid the card is
not compatible to this device.
5 please well note that theAPK (such as application software and
.
games) is default installed to the device. (not the memory card)
1.2. Connected to the computer8
One end of the USB line connect to the computer, the other end
connect the MID device, select Settings>Developer options>USB
debugging, the device will connect with computer, and you can
copy files to the device.
1 2 9 Browse the file in the device..
1.2.1 Startup programs
0
Click all the application icon you want to start and it can switch on.
1.2.1 Close programs1
Press the icon continuously or the ESC key, the device will close the active program. You can also use the corresponding function in the management currently running applications to close the
program.
1.2.1 Screen operation
2
● Zoom in and zoom out : In applications which support zoom
gestures, such as photo , IE browser, mail and map etc. you can
zoom in or out the screen contents by opening or closing your two
fingers.
● Rolling: In applications which support rolling gestures, such as
photo , IE browser, mail and map etc. you can scroll the screen
contents by sliding your fingers on the screen. If you want to stop
the rolling screen, you just need to touch it.
1.2.1 Home screen
3
● Switch home screen
In the home state, you can change the home interface by sliding
your fingers on the screen quickly.
● Custom Home Screen
Press the blank area on the home screen interface for a few seconds, it will appear Choose wallpaper from menu, then you can set
4
5
Page 6
the home screen.
● Move application icons in screen
Press the icons of applications you need to move for several seconds, it will enter into the moving model (the icon of application will
be turn big), then drag the icon to desired position directly.
● Move application icons screen to screen
Press the icons of applications you need to move for several seconds, and you can drag the icon to the left side or right side.
● Delete applications
Press the icon of application you need to remove for several seconds, drag the icon to (when the icon was turn big, the bottom of
screen will appear , then you can delete the application.
1.2.1 Screen gestures4
● Click
When you need to input by the on-screen keyboard, you just need
to select applications or press the button on the screen, then click
the items.
● Press
When you want to start the available options of a project(such as
web page link), you only need to press the project.
● Slide
Sliding on the interface with your fingers to make vertical or horizontal dragging action.
●Drag
Before you start dragging, you must press the items with your fingers, and can not let fingers leave the screen before dragging to the
desired position.
● Rotation
Changing the screen orientation by rotating the device laterally.
If use the pattern, as below:
1. You must ensure the four-point connection when you draw the
unlock pattern.
2. Click Continue and draw again to confirm it
1.2.1 Security5
You can set the unlock pattern, each time you open or wake your
MID device, you must draw pattern to unlock the screen. In
Settings＞Security＞Screen lock, it support many unlock ways.
6
3. Cilck confirm to complete unlock pattern designing.
4. Each time you open or waking your MID device, you must draw
pattern to unlock the screen.
7
Page 7
1 2 16 Display setting..
Click Settings>Display, you can set the brightness/wallpaper/Auto
rotate screen/sleep/font size of the screen.
1.2.1 Wireless And Network Settings7
a) WIFI
Click Settings>Wi-Fi, turn on the wifi, the device will find e
wireless network in the right interface.
Select the desired wireless network, the system will directly
ct the network or popup the password input window according to network access security settings. Please consult your wireless network administrator for the password.
availabl
conne-
1.3 Technical specifications
Size
Weight
LCD Display
PC Interface
OS
Hard Drive Capacity
System Memory
Capacity Expansion
Music Function
Video Function
Photo browse
WIFI
Camera Function
Recording Function
Support
Working
temperature
Languages
L 10. 39 x W 6.56 x H 0 .49 inc hes
1.29 lbs
10 1 1024 600. inch * - Multi-point capacitive touch screen
High speed Micro USB
Android 4.0
8 GB
1 GB
Support T-Flash card 32GB(max)
Format
Max. Resolutions
Format
Max. Resolutions
Screen Ratio
JPG BMP JPEG GIF.// /
Support
Transmission rate
Work Frequency
Fro nt Came ra x 0.3M /back C amera x 2 .0M
Support
--20 60℃
Simplified Chinese Traditional Chinese English French
German Spanish.
/
Mp3 , WMA, OG G, AAC, 3 GP, WAV e tc.
20Hz-20KHz
Mp4, MKV, WMA, RMVB, AVI etc.
1920 *1080
16:9
802.11b/g/n
Max 54Mbps
24.GHz
////
8
9
Page 8

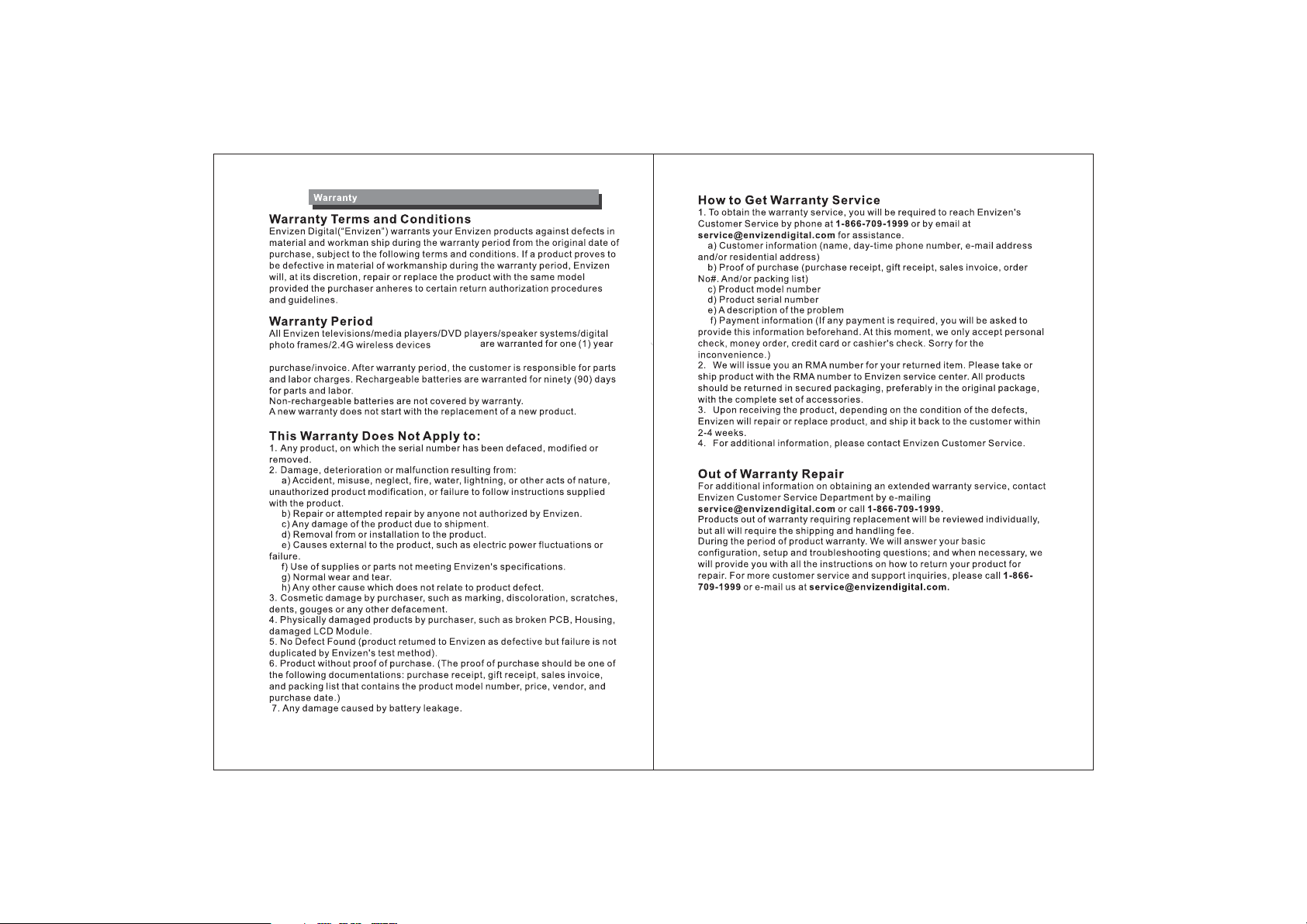

for parts and ninety(90)days for labor,starting from the original date of
/Tablet PC
10
11
Loading...
