Envizen MDP1008 User Manual
PORTABLE DVD PLAYER
USER MANUAL
MDP1008
Table of Contents
Safety Precautions.……………………………………..…………………………………………..
Introduction……………………………………..………….………………………………………..
Location of Controls……………………………………..……………………………………..…..
Remote Control……………………………………..………………………………………..……..
Quick Starting Guide……………………………………..…………………………………………
Connecting the Headphones……………………………………..………………..………………
Connecting To Optional Equipment……………………………………..………………..………
Playing a Disc………………………………………..…..…………………………………….……
Playing a Picture CD/JPEG………………………………..…………..……….…………….……
Locating a Specific Title, Chapter or Track……………………………………..………..………
Playing Repeatedly……………………………………..………………….………………….……
Playing In Favorite Order……………………………………..…………...………………….……
Using the On-Screen Display……………………………………..…………...……………...…
Selecting the Camera Angle…………………………………..…..…………...……………...…

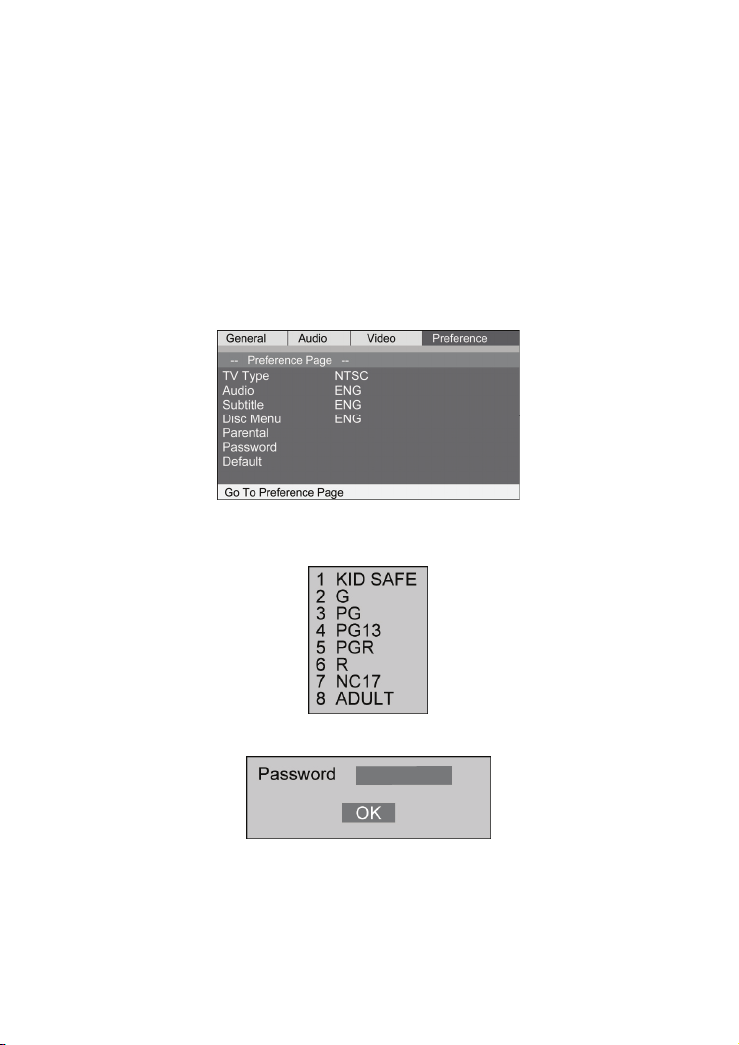

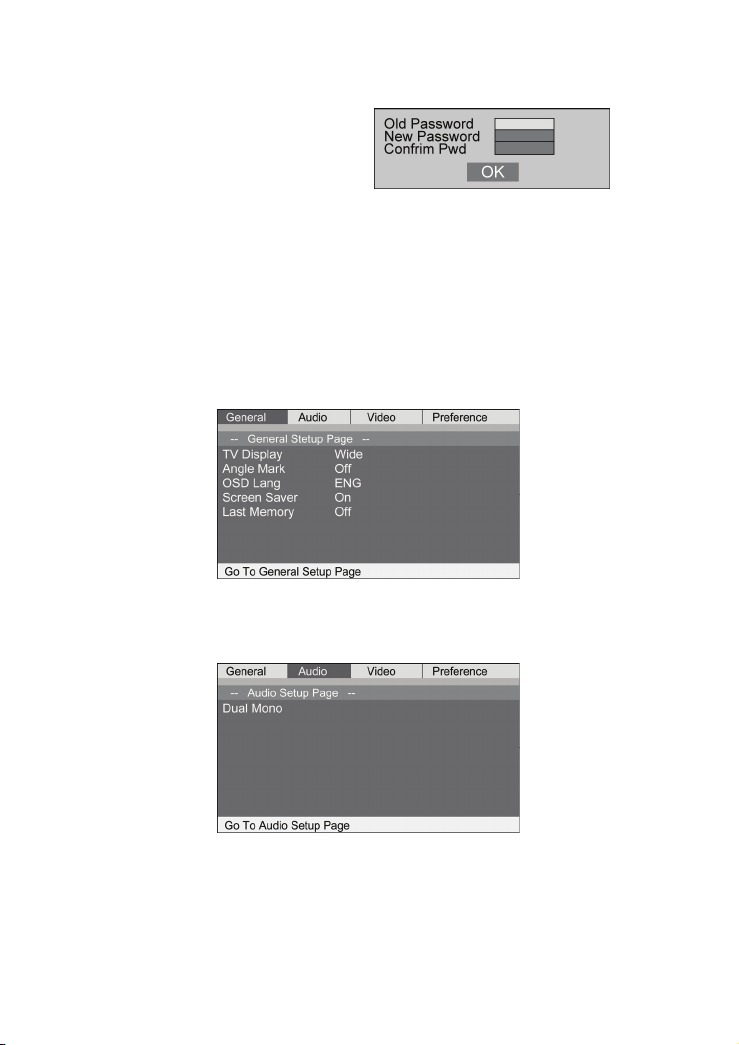

Setting the Parental Lock…………………………………..…..…………...………….……...…

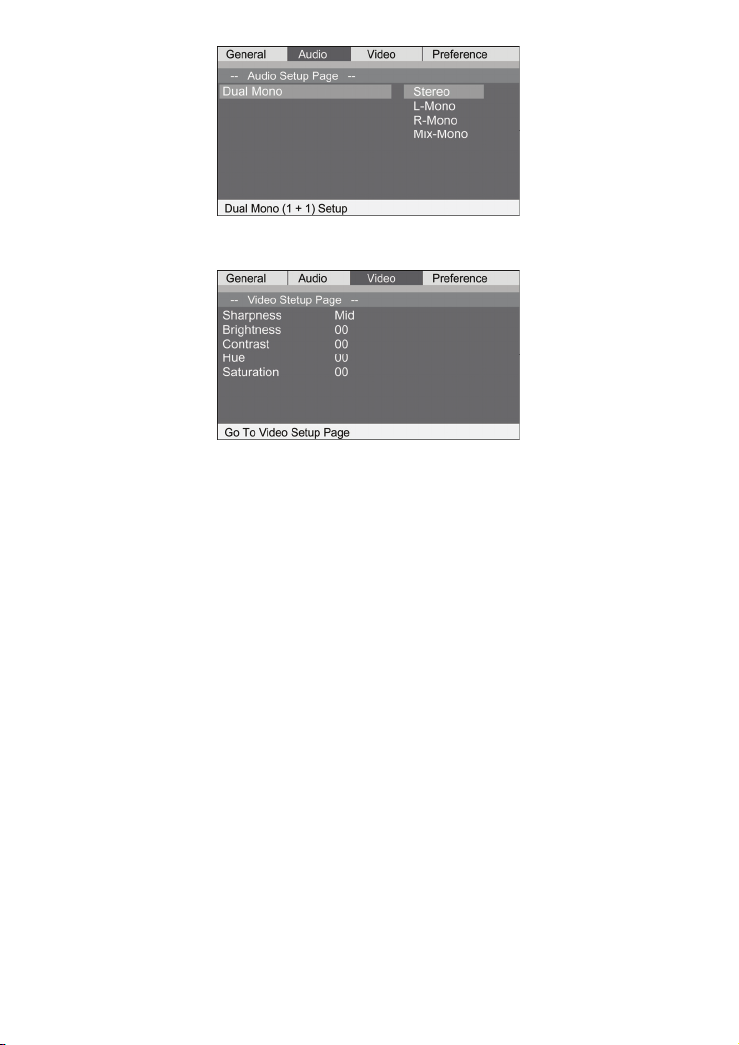

Customising the Function Settings…………………………………..…..…………...……....…
Trouble Shooting Guide……….………………………..………….……...……………………..
10
10
11
12
14
2
2
3
3
4
5
5
6
7
8
8
9
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
1
Safety Precautions
The lightning flash with an arrowhead symbol within an equilateral triangle is
intended to alert the user of the presence of uninsulated "dangerous voltage"
within the product's enclosure that may be of sufficient magnitude to constitute a
risk of electric shock to persons.
Warning: Risk of electric shock, do not open the battery cover, the back battery cover for
your safety.
The exclamation point within an equilateral triangle is intended to alert the user
of the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.
Operation is subject to the following two conditions:
(1) This device may not cause harmful interference,
(2) This device must accept any interference received.
Including interference that may cause undesired operation.
Warning: Do not expose this appliance to rain or moisture, due to the high risk of fire or
electric shock. And do not open the cabinet for dangerous high voltages are present inside
the enclosure. Only qualified service personnel should attempt this.
Caution: During playback, the disc spins at high speed, so do not lift or move the player,
doing so may damage the disc.
CAUTION: This Digital Video Disc Player employs a Laser System. There are no user
serviceable parts therefore refer all servicing to qualified personnel. Visible laser radiation
when open and interlocks defeated. Use of controls or adjustments or performance of
procedures other than those specified herein may result in hazardous radiation exposure.
DO NOT STARE INTO BEAM.
Introduction
This new portable DVD player is designed for enjoyment of all forms of
disc media. And it has USB and MMC/SD/MS port automatic
identification, compatible with various formats of AV files. It's slim shape
allows it to be easily carried.
This player incorporates the latest digital audio/video (AV) technologies
to give you the ultimate in listening and viewing pleasure.
This new player also supports CD, and JPEG. This player also has
several unique features, large LCD screen, multi-angle and
multi-language, Parental Control (to prevent children from viewing
inappropriate content), and Kodak Picture CD compatibility.
2
Location of Controls
The main screen
Front face
Right side
Remote Control
The remote control
15. OPEN
Note:
When you need to use the keys REPEAT, A<->B, ANGLE, SLOW, PRGM, AUDIO, ZOOM,
TITLE. Which are combined with numbers, set shift on by pressing SHIFT, and set shift off
to use NUMBERS by pressing SHIFT again.
3
Operating with the remote control
1. The remote control must point at the remote sensor, in order for
the DVD player to function correctly.
2. The remote works best at a distance less than 7 meters and at an
angle of up to +/-30° toward the front of the unit.
3. Obstacles should not remain in between the remote control and
the remote sensor on the main unit.
Quick Starting Guide
1. Connecting to an External Power Source
Connect the power adapter (supplied with the player) to the side input plug and to a wall
outlet. Do not use any other device otherwise specified by your dealer.
2. Open the screen panel.
The screen panel of the portable DVD opens to a maximum 180
3. Press the open button on the left to open the disc cover.
4. Insert a DVD disc with label side facing upward.
Align the center of the DVD disc with the center of the disc guide. Press gently down on the
DVD to snap the disc into place, and then close the disc cover.
5. Slide the power switch on the right side of the unit to power it on.
6. Press the OK or PLAY/PAUSE button on the unit to start playback.
In most cases, when you leave by the PLAY/PAUSE button, continue to be used by
PLAY/PAUSE button.
The DVD player will immediately start rendering the DVD program.
When you want to stop, press the STOP button, it will return to the power-on logo.
The player can be recharged while playback.
°. And it can rotate 270°.
USB drive & MMC/SD/MS card playback
● Insert a USB drive into the USB port. Press DVD/USB/CARD on the unit or
DVD/SD/USB on the remote to play the readable files in it.
● Insert a MMC /SD/ MS Card into the MMC/SD/MS Card port. Press DVD/USB/CARD on
the unit or DVD/SD/USB on the remote to play the readable files in it.
NOTE: If it has not any U drive or memory card being inserted in the player, it will return to
DVD mode.
4
