Envizen BDP-M1061 User Manual
PORTABLE BLU-RAY DISC/DVD
PLAYER
USER MANUAL
BDP-M1061
Table of Contents
Safety and Maintenance........................................................................................................2
Security Instructions..............................................................................................................2
Location of Controls……………………………………..……………………………………..…..4
Remote Control……………………………………..………………………………………..……..5
Quick Starting Guide……………………………………..…………………………………………6
Connections...........................................................................................................................7
- Connect to Earphones.........................................................................................................7
- Connect to AV OUT.............................................................................................................7
-Connect to the HDMI............................................................................................................7
-Connect Network..................................................................................................................8
-Connect USB Device............................................................................................................8
-Connect SD/MMC Card........................................................................................................8
Basic Operations...................................................................................................................9
-Play Video............................................................................................................................9
-Play a Blu-ray Video Disc...................................................................................................10
-Playing Music.....................................................................................................................11
-Play a Photo slideshow......................................................................................................12
General Settings..................................................................................................................14
-Basic Operation for the Menu.............................................................................................14

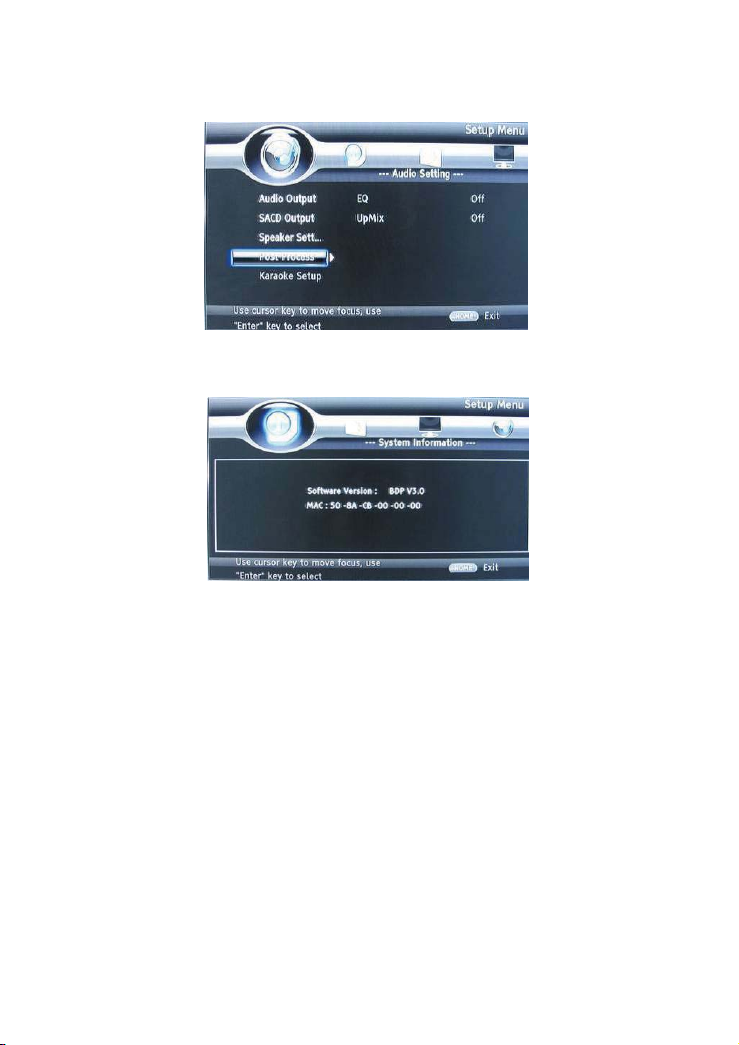

-General Player Settings......................................................................................................14

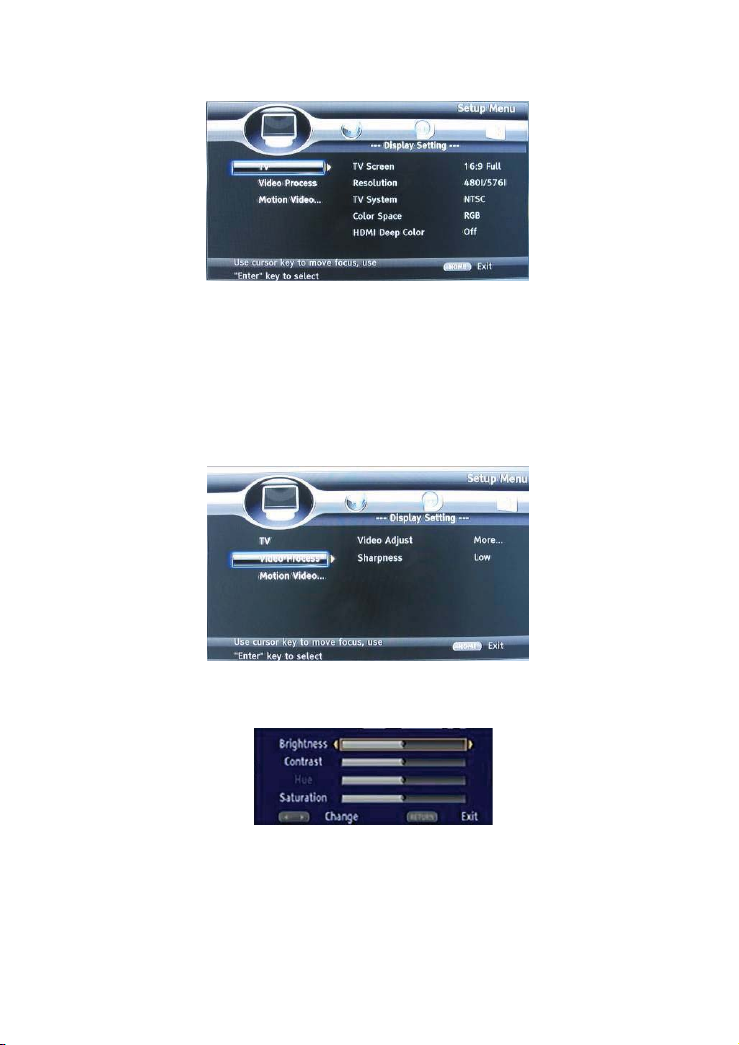

-Display Settings..................................................................................................................17
Specifications.......................................................................................................................21
Troubleshooting...................................................................................................................22
1
Safety and Maintenance
This symbol indicates “dangerous voltage” inside the product that presents a risk of
electric shock or personal injury.
This symbol indicates important instructions accompanying product.
WARNING: To reduce the risk of fire or electric shock, do not expose this product to rain or
moisture. Appliance shall not be exposed to dripping or splashing and no objects filled with
liquids, such as vases, shall be placed on the appliance.
Security Instructions
Read all of the instruction before using this Blu-ray player and keep this manual in safe
place for future reference.
1. Read and keep these instructions.
2. Heed all warnings and follow all instructions.
3. Do not use this player near water.
4. Clean only with dry cloth.
5. Do not block any ventilation openings and install in accordance with the manufacturer’s
instructions.
6. Do not install near any heat sources such as radiators, heat registers, or the player
(including amplifiers) that produce heat.
7. The polarized or the grounding type plug has an important safety purpose. A polarized
plug has two blades with one wider than the other. A grounding type plug has two blades
and a third grounding prong. The wide blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
8. Protect the power cord from being walked on or pinched particularly near the
convenience receptacles, and the point where they exit from the player.
9. Only use attachments or accessories specified by Pixela.
10. Use only with the cart, stand, tripod, bracket, table specified by the manufacturer or
sold with the player. When a cart is used, use caution when moving the cart/player
combination to avoid injury from tip-over.
11. Unplug this player during lightning storms or when unused for long periods of time.
12. Refer all servicing to qualified service personnel.
Servicing is required when the player has been
CAUTION: To reduce the risk of electric shock, do not remove cover (or back). No user
serviceable parts inside. Refer servicing to qualified service personnel.
2
damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the player, the player has been exposed to rain or
moisture, does not operate normally, or has been dropped.
13. Please keep the unit in an environment with good ventilation.
14. WARNING: To reduce the risk of the fire or electric shock, do not expose this
apparatus to rain or moisture. The apparatus shall not be exposed to dripping or splashing
and that no objects filled with liquids, such as vases, shall be placed on apparatus.
15. WARNING: Where the mains plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
16. Do not expose the batteries to excessive heat such as fire direct sunshine or similar
sources.
CLASS 1 LASER PRODUCT
Use of controls, adjustments or performance of procedures other than those specified here
in may result in hazardous radiation exposure.
Trademark Notice
DVD Video is a trademark of DVD Format / Logo Licensing Corporation.
Blu-ray Disc and Blu-ray Disc logo are trademarks of the Blu-ray Disc Association.
Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S.
and worldwide patents issued & pending. DTS and the Symbol are registered trademarks,
& DTS-HD, DTS-HD Master Audio, and the DTS logos are trademarks of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
Java and all other Java trademarks and logo are registered trademarks of Sun
Microsystems, Inc.
BD LIVE and BONUSVIEW are trademarks of the Blu-ray Disc Association.
CAUTION: This product utilizes a laser.
Do not open cover and do not repair yourself. Refer servicing to qualified personnel.
3
Location of Controls
The main screen
Front face
4
Right side Left side
Back
Remote Control
The remote control
Operating with the remote control
1. The remote control must point at the remote sensor, in order
for the DVD player to function correctly.
2. The remote works best at a distance less than 5 meters and
at an angle of up to +/-30° toward the front of the unit.
3. Obstacles should not remain in between the remote control
and the remote sensor on the main unit.
5
Quick Starting Guide
1. Connecting to an External Power Source
Connect the power adapter (supplied with the player) to the side input plug and to a wall
outlet. Do not use any other device otherwise specified by your dealer.
2. Open the screen panel.
The screen panel of the portable DVD opens to a maximum 180°. And it can rotate 270°.
3. Press the open button on the left to open the disc cover.
4. Insert a DVD disc with label side facing upward.
Align the center of the DVD disc with the center of the disc guide. Press gently down on the
DVD to snap the disc into place, and then close the disc cover.
5. Slide the power switch on the left side of the unit to power it on.
6. Press the OK or PLAY/PAUSE button on the unit to start playback.
In most cases, when you leave by the PLAY/PAUSE button, continue to be used by
PLAY/PAUSE button.
The DVD player will immediately start rendering the DVD program.
When you want to stop, press the STOP button, it will return to the power-on logo.
The player can be recharged while playback.
6
Connections
1. Connect to Earphones
1. Connect the earphones. earphones with a 3.5 mm stereo plug can be connected.
2. Adjust the volume by pressing the VOL+/VOL- buttons on the remote control.
The right side of the portable
Avoid listening to sound at levels which may be harmful to your ears.
2. Connect to AV OUT
1. Turn off the power and unplug both units before setting up any connections.
2. Connect the AV cable to AV OUT.
3. Connect the yellow cable (Video) to the VIDEO-IN of the TV set.
4. Connect the red and white cable to the AUDIO-IN of the TV set.
5. Change the resolution to 480P/576P or 480I/576I by setup menu .
Please set the resolution to 720P for the best image effect of the screen after you finished
using the the AV jack.
3. Connect to the HDMI
Connect the HDMI cable (not supplied) to the HDMI jack on this product and to the HDMI
input jack on the TV.
7
