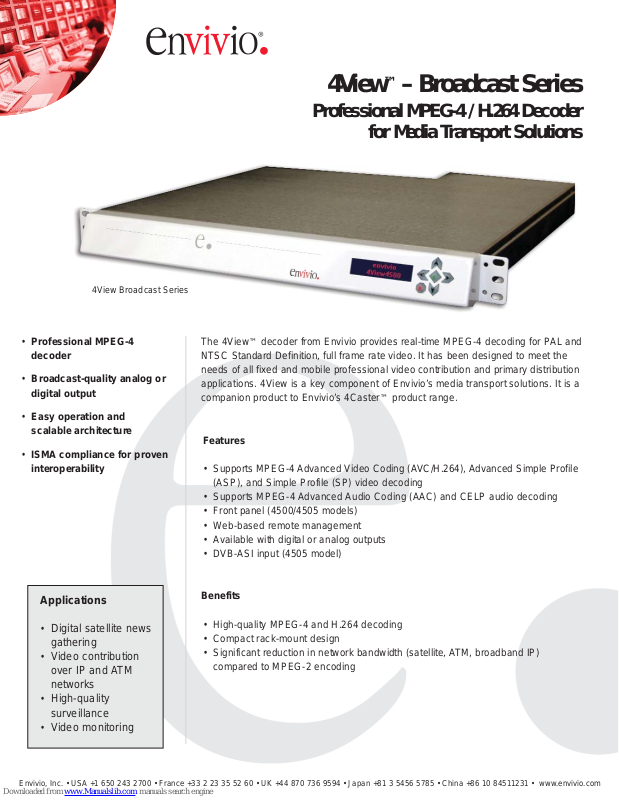

4View™– Broadcast Series
Professional MPEG-4 / H.264 Decoder
for Media Transport Solutions
• Professional MPEG-4
decoder
• Broadcast-quality analog or
digital output
• Easy operation and
scalable architecture
• ISMA compliance for proven
interoperability
The 4View™ decoder from Envivio provides real-time MPEG-4 decoding for PAL and
NTSC Standard Definition, full frame rate video. It has been designed to meet the
needs of all fixed and mobile professional video contribution and primary distribution
applications. 4View is a key component of Envivio’s media transport solutions. It is a
companion product to Envivio’s 4Caster
™
product range.
Features
• Supports MPEG-4 Advanced Video Coding (AVC/H.264), Advanced Simple Profile
(ASP), and Simple Profile (SP) video decoding
• Supports MPEG-4 Advanced Audio Coding (AAC) and CELP audio decoding
• Front panel (4500/4505 models)
• Web-based remote management
• Available with digital or analog outputs
• DVB-ASI input (4505 model)
Benefits
• High-quality MPEG-4 and H.264 decoding
• Compact rack-mount design
• Significant reduction in network bandwidth (satellite, ATM, broadband IP)
compared to MPEG-2 encoding
Envivio, Inc. • USA +1 650 243 2700 • France +33 2 23 35 52 60 • UK +44 870 736 9594 • Japan +81 3 5456 5785 • China +86 10 84511231 • www.envivio.com
4View Broadcast Series
Applications
• Digital satellite news
gathering
•
Video contribution
over IP and ATM
networks
•
High-quality
surveillance
• Video monitoring
Page 2
4View – Broadcast Series
© Copyright 2004 Envivio, Inc. All rights reserved. Envivio, EnvivioTV, the Envivio logo, 4Caster and 4View are trademarks of Envivio, Inc., all of which may or may not be used in
certain jurisdictions. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. Product specifications are subject to
change without notice. 4VB-041118-00
4View Broadcast 4010
(ASP Decoding / Analog Output)
1 x 10/100 BaseT Ethernet
IP multicast or unicast stream
Transport over TCP/UDP/reliable UDP
Video
S-Video
Analog composite
Component RGB or YPbPr
Audio
Analog unbalanced
MPEG-4 ASP levels 0-5 (no GMC
or 1/4 pixel)
MPEG-4 SP levels 0-3
ISMA Profile 0 and Profile 1
Resolutions: QCIF (176 x 144 pixels) to
CCIR-601 (720 x 480/576 pixels)
Data rate: 20 kbps to 3 Mbps
MPEG-4 Advanced Audio Coding
(AAC) and CELP
Remote: Web-based remote
management
1RU 9”
483 mm (W) x 229 mm (D) x
45 mm (H)
19” (W) x 9” (D) x 1.75” (H)
Weight: 3.6 kg (8 lb)
Power in: 100-240 VAC auto-ranging
Power consumption: 150 W maximum
Ambient temperature
Operating: 5 to 35º C (41 to 95º F)
Non-operating/storage: -40 to 70º C
(-40 to 158º F)
Relative humidity
Non-operating: 95% at 30º C (86º F)
non-condensing
Technical Specifications
Inputs
Outputs
Video
Decoder
Audio
Decoder
Advanced
Processing
Control
Physical
and Power
Environmental
Conditions
4View Broadcast 4500
(AVC + ASP Decoding / Digital Output)
1 x 10/100 BaseT Ethernet
IP multicast or unicast stream
Transport over TCP/UDP/reliable UDP
Video
Digital SDI output (8-bit SMPTE-259M)
Audio
48 kHz stereo AES and SDI embedded
audio
MPEG-4 AVC/H.264
MPEG-4 ASP levels 0-5
MPEG-4 SP levels 0-3
ISMA Profile 0 and Profile 1
Resolutions: QCIF (176 x 144 pixels) to
CCIR-601 (720 x 480/576 pixels)
Data rate: 20 kbps to 3 Mbps
MPEG-4 Advanced Audio Coding
(AAC) and CELP
Post-filtering options including
smoothing and deblocking
filters (ASP)
Local: Front panel
Remote: Web-based remote
management
1RU 17”
483 mm (W) x 432 mm (D) x
45 mm (H)
19” (W) x 17” (D) x 1.75” (H)
Weight: 7 kg (15 lb)
Power in: 100-240 VAC auto-ranging
Power consumption: 150 W maximum
Ambient temperature
Operating: 5 to 35º C (41 to 95º F)
Non-operating/storage: -40 to 70º C
(-40 to 158º F)
Relative humidity
Non-operating: 95% at 30º C (86º F)
non-condensing
4View Broadcast 4505
(AVC + ASP Decoding / Digital Output)
DVB-ASI
1 x 10/100 BaseT Ethernet
IP multicast or unicast stream
Transport over TCP/UDP/reliable UDP
Video
Digital SDI output (8-bit SMPTE-259M)
Audio
48 kHz stereo AES and SDI embedded
audio
MPEG-4 AVC/H.264
MPEG-4 ASP levels 0-5
MPEG-4 SP levels 0-3
ISMA Profile 0 and Profile 1
Resolutions: QCIF (176 x 144 pixels) to
CCIR-601 (720 x 480/576 pixels)
Data rate: 20 kbps to 3 Mbps
MPEG-4 Advanced Audio Coding
(AAC) and CELP
Post-filtering options including
smoothing and deblocking
filters (ASP)
Local: Front panel
Remote: Web-based remote
management
1RU 17”
483 mm (W) x 432 mm (D) x
45 mm (H)
19” (W) x 17” (D) x 1.75” (H)
Weight: 7 kg (15 lb)
Power in: 100-240 VAC auto-ranging
Power consumption: 150 W maximum
Ambient temperature
Operating: 5 to 35º C (41 to 95º F)
Non-operating/storage: -40 to 70º C
(-40 to 158º F)
Relative humidity
Non-operating: 95% at 30º C (86º F)
non-condensing
