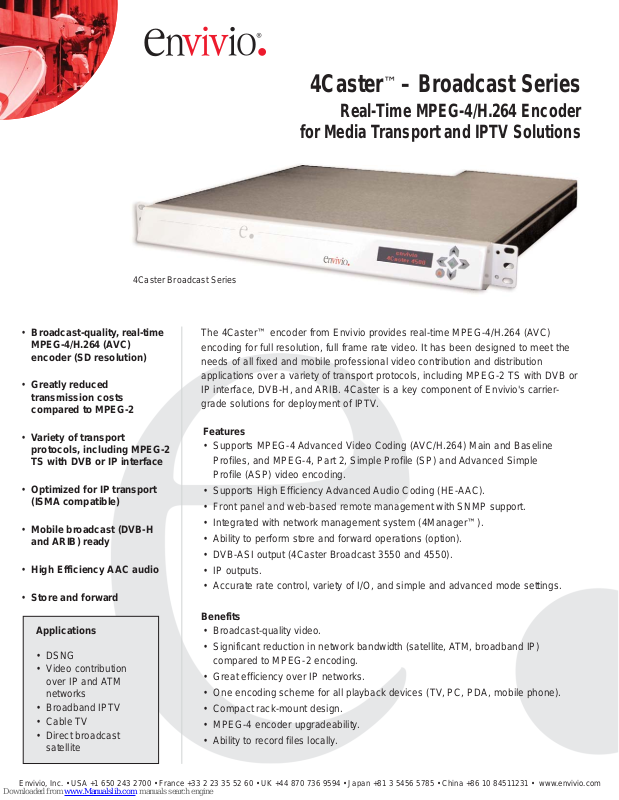

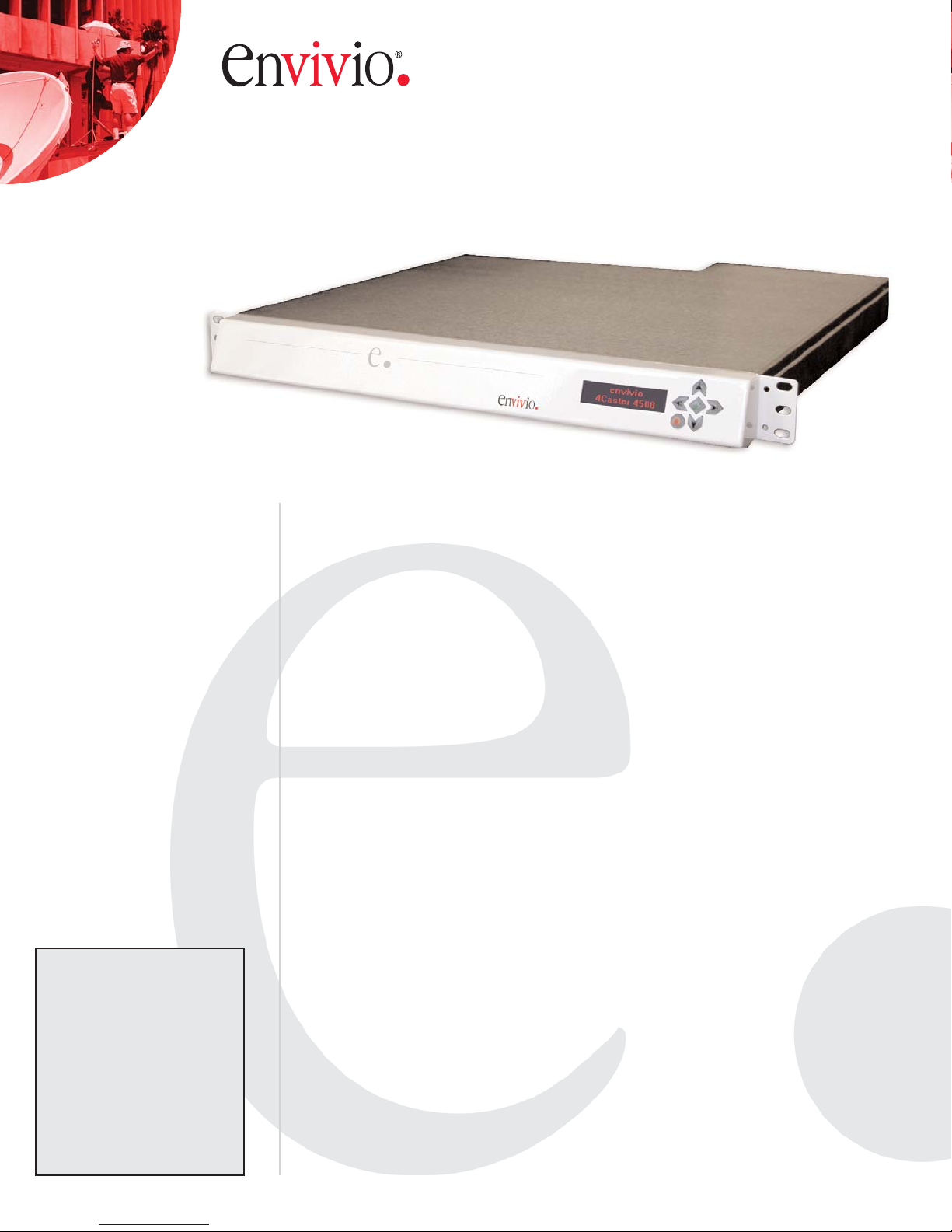

4Caster™– Broadcast Series
Real-Time MPEG-4/H.264 Encoder
for Media Transport and IPTV Solutions
• Broadcast-quality, real-time
MPEG-4/H.264 (AVC)
encoder (SD resolution)
• Greatly reduced
transmission costs
compared to MPEG-2
• Variety of transport
protocols, including MPEG-2
TS with DVB or IP interface
• Optimized for IP transport
(ISMA compatible)
• Mobile broadcast (DVB-H
and ARIB) ready
• High Efficiency AAC audio
• Store and forward
The 4Caster™ encoder from Envivio provides real-time MPEG-4/H.264 (AVC)
encoding for full resolution, full frame rate video. It has been designed to meet the
needs of all fixed and mobile professional video contribution and distribution
applications over a variety of transport protocols, including MPEG-2 TS with DVB or
IP interface, DVB-H, and ARIB. 4Caster is a key component of Envivio's carriergrade solutions for deployment of IPTV.
Features
• Supports MPEG-4 Advanced Video Coding (AVC/H.264) Main and Baseline
Profiles, and MPEG-4, Part 2, Simple Profile (SP) and Advanced Simple
Profile (ASP) video encoding.
• Supports High Efficiency Advanced Audio Coding (HE-AAC).
• Front panel and web-based remote management with SNMP support.
• Integrated with network management system (4Manager™).
• Ability to perform store and forward operations (option).
• DVB-ASI output (4Caster Broadcast 3550 and 4550).
• IP outputs.
• Accurate rate control, variety of I/O, and simple and advanced mode settings.
Benefits
• Broadcast-quality video.
• Significant reduction in network bandwidth (satellite, ATM, broadband IP)
compared to MPEG-2 encoding.
• Great efficiency over IP networks.
• One encoding scheme for all playback devices (TV, PC, PDA, mobile phone).
• Compact rack-mount design.
• MPEG-4 encoder upgradeability.
• Ability to record files locally.
Envivio, Inc. • USA +1 650 243 2700 • France +33 2 23 35 52 60 • UK +44 870 736 9594 • Japan +81 3 5456 5785 • China +86 10 84511231 • www.envivio.com
4Caster Broadcast Series
Applications
• DSNG
• Video contribution
over IP and ATM
networks
• Broadband IPTV
• Cable TV
• Direct broadcast
satellite
Page 2
4Caster – Broadcast Series
© Copyright 2004 Envivio, Inc. All rights reserved. Envivio, EnvivioTV, the Envivio logo, 4Caster, and 4Manager are trademarks of Envivio, Inc., all of which may or may not be used
in certain jurisdictions. All other brand or product names are trademarks or registered trademarks of their respective companies or organizations. Product specifications and pictures
are subject to change without notice. 4CB-041105-00
Analog
balanced
Analog
unbalanced
Video
Audio
S-Video Composite
SDI with
embedded
audio
AES/EBU
IEEE
1394
Component

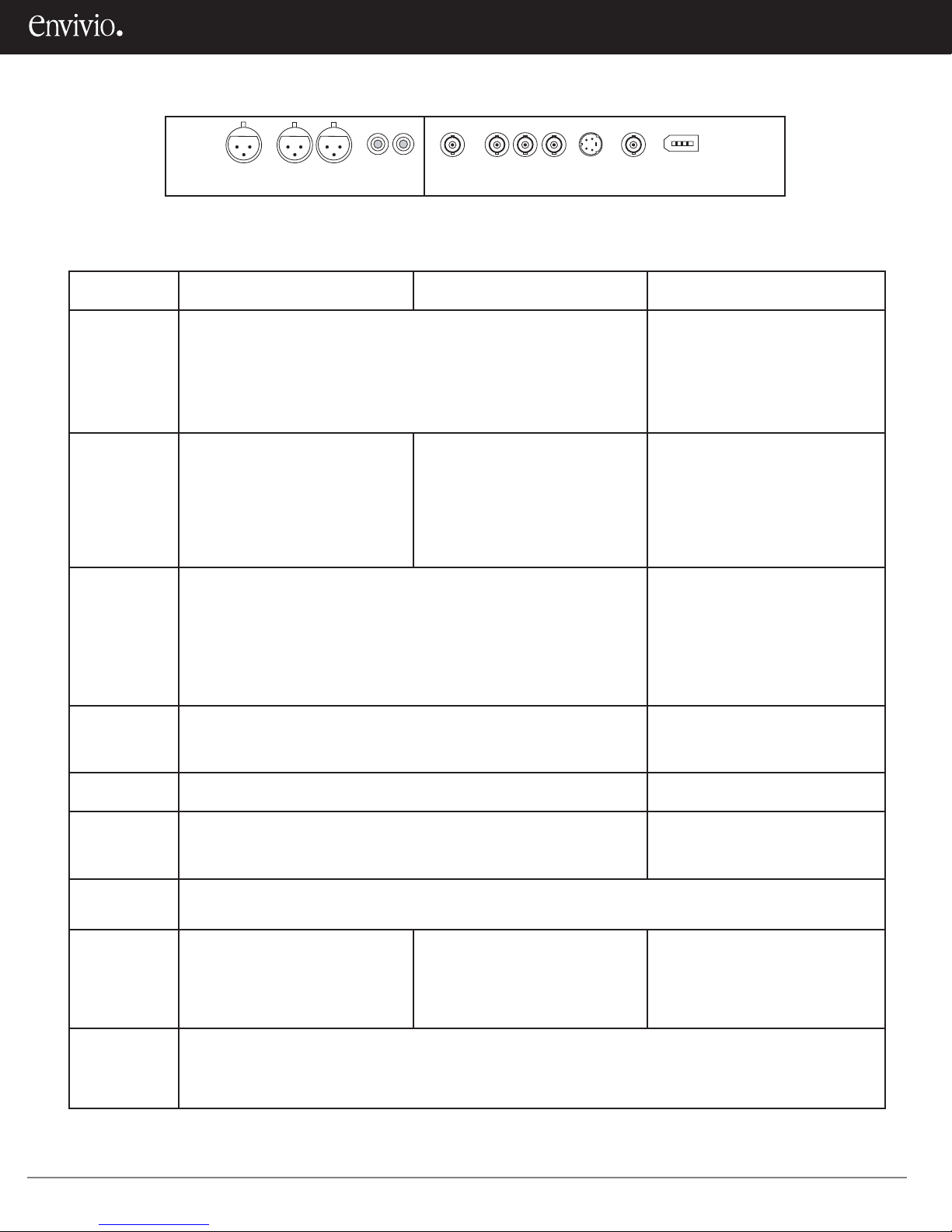

Input connectors (breakout cable) - 3500 Series
4Caster Broadcast 3500
(ASP-SD + AVC-2CIF/IP Out)
4Caster Broadcast 3550
(ASP-SD + AVC-2CIF/DVB-ASI)
4Caster Broadcast 4500 / 4550
(AVC-SD/IP or DVB-ASI Out)
Inputs
Video
SDI - Serial Digital Interface (625/525)
IEEE 1394 DV
S-Video, composite, component, analog composite (PAL, NTSC)
Audio
2 channels (1 x stereo, 2 x mono), digital AES/EBU
Analog balanced (XLR), analog unbalanced (RCA)
Video
SDI - Serial Digital Interface (625/525)
Audio
Digital AES/EBU
SDI embedded
Outputs
IP output: 1 x 10/100/1000 BaseT
Ethernet
ISMA-compliant multicast/unicast IP
stream, SAP announcement, SDP file
download
DVB-ASI
DVB-ASI output parameters: configure
PIDs, packet size, interbyte stuffing
mode, external sync
IP output: 1 x 10/100/1000 BaseT
Ethernet
ISMA-compliant multicast/unicast IP
stream, SAP announcement, SDP file
download
DVB-ASI (model 4550)
DVB-ASI output parameters: configure
PIDs, packet size, interbyte stuffing
mode, external sync
IP output: 1 x 10/100 BaseT
Ethernet
ISMA-compliant multicast/unicast IP
stream, SAP announcement, SDP file
download
Video
Encoder
MPEG-4 AVC/H.264
MPEG-4 ASP levels 0-5
MPEG-4 SP levels 0-3
Resolutions: SIF (352 x 240/288) to 2CIF (352 x 480/576 pixels) for
AVC/H.264 and to CCIR-601 (720 x 480/576 pixels) for ASP
Data rate: 20 kbps to 6 Mbps (ASP); 20 kbps to 2 Mbps (AVC/H.264)
MPEG-4 AVC/H.264
Resolutions: SIF (352 x 240/288) to
CCIR-601 (720 x 480/576 pixels) for
AVC/H.264
Data rate: 20 kbps to 4 Mbps AVC/H.264
Audio
Encoder
MPEG-4 Advanced Audio Coding (AAC)
8 to 128 kbps
MPEG-4 Advanced Audio Coding (AAC)
and High Efficiency Advanced Audio
Coding (HE-AAC)
8 to 128 kbps
Transport
ISMA Profile 0 and Profile 1
MPEG-2 TS
ISMA Profile 2 and Profile 3 (upcoming)
MPEG-2 TS
Advanced
Processing
Low delay mode
Motion-compensated temporal filtering and deinterlacing
Scene change detection with key frame (I-Frame) insertion
Low delay mode
Noise filtering, deinterlacing
Scene change detection with key
frame (I-Frame) insertion
Control
Local: Front-panel LCD control
Remote: Web-based remote management; SNMP alarms; pre-programmable setups (presets); network management
system interface with 4Manager
Physical
and Power
1RU 25”
483 mm (W) x 635 mm (D) x 45 mm (H)
19” (W) x 25” (D) x 1.75” (H)
Weight: 12 kg (26 lb)
Power in: 100-240 VAC auto-ranging
Power consumption: 150 W maximum
2RU 25”
483 mm (W) x 635 mm (D) x 90 mm (H)
19” (W) x 25” (D) x 3.5” (H)
Weight: 23 kg (50 lb)
Power in: 100-240 VAC auto-ranging
Power consumption: 150 W maximum
1RU 17”
483 mm (W) x 432 mm (D) x 45 mm (H)
19” (W) x 17” (D) x 1.75” (H)
Weight: 7 kg (15 lb)
Power in: 100-240 VAC auto-ranging
Power consumption: 150 W maximum
Environmental
Conditions
Ambient temperature
Operating: 5 to 35º C (41 to 95º F)
Non-operating/storage: -40 to 70º C (-40 to 158º F)
Relative humidity
Non-operating: 95% at 30º C (86º F) non-condensing
Loading...
