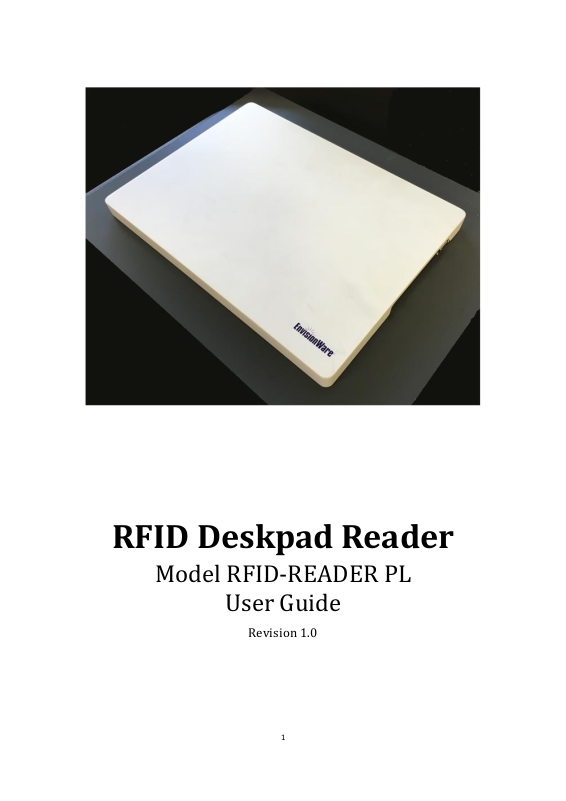

EnvisionWare READERPL User Manual

RFID Deskpad Reader

Model RFID-READER PL

User Guide

Revision 1.0

1

Contents

1. Product Description RFID-READER PL. ..................................................................... 3

2. Features ........................................................................................................................... 3

3. Specifications.................................................................................................................. 3

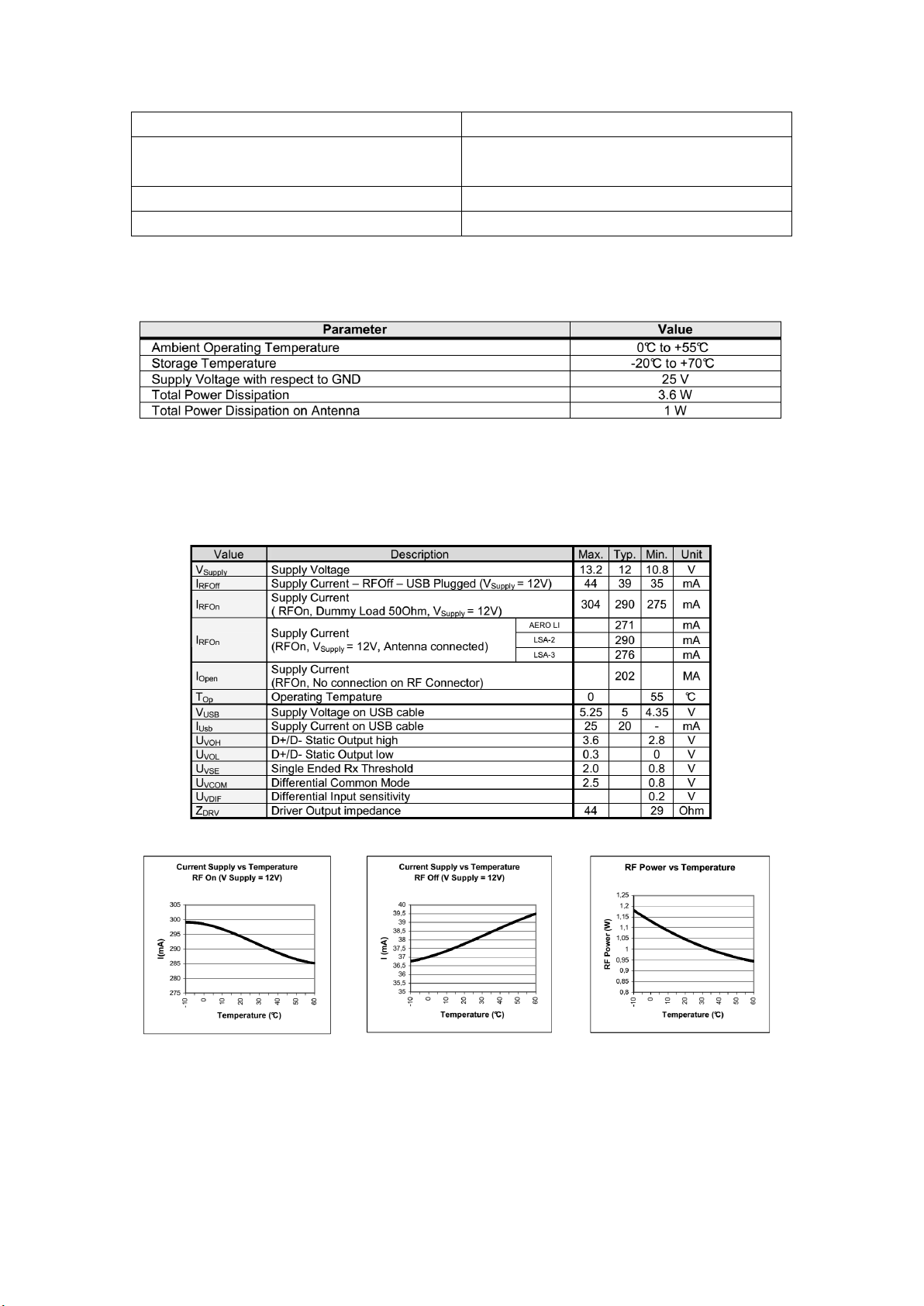

4. Absolute Maximum Ratings ......................................................................................... 4

5. DC Characteristics ......................................................................................................... 4

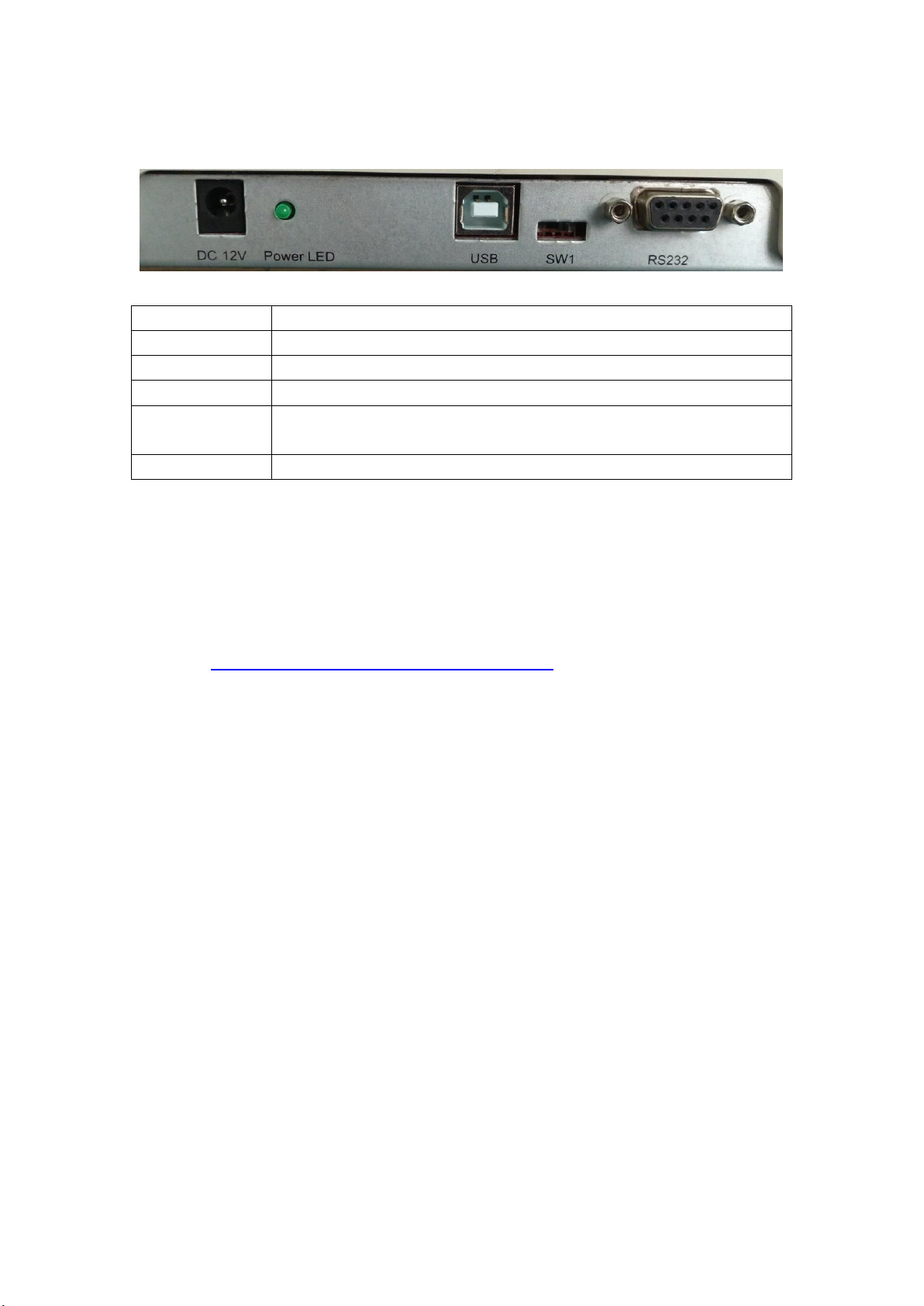

6. Connections .................................................................................................................... 5

7. Installing the USB Drivers ............................................................................................ 5

8. Reader setup tool--Px Explorer .................................................................................. 6

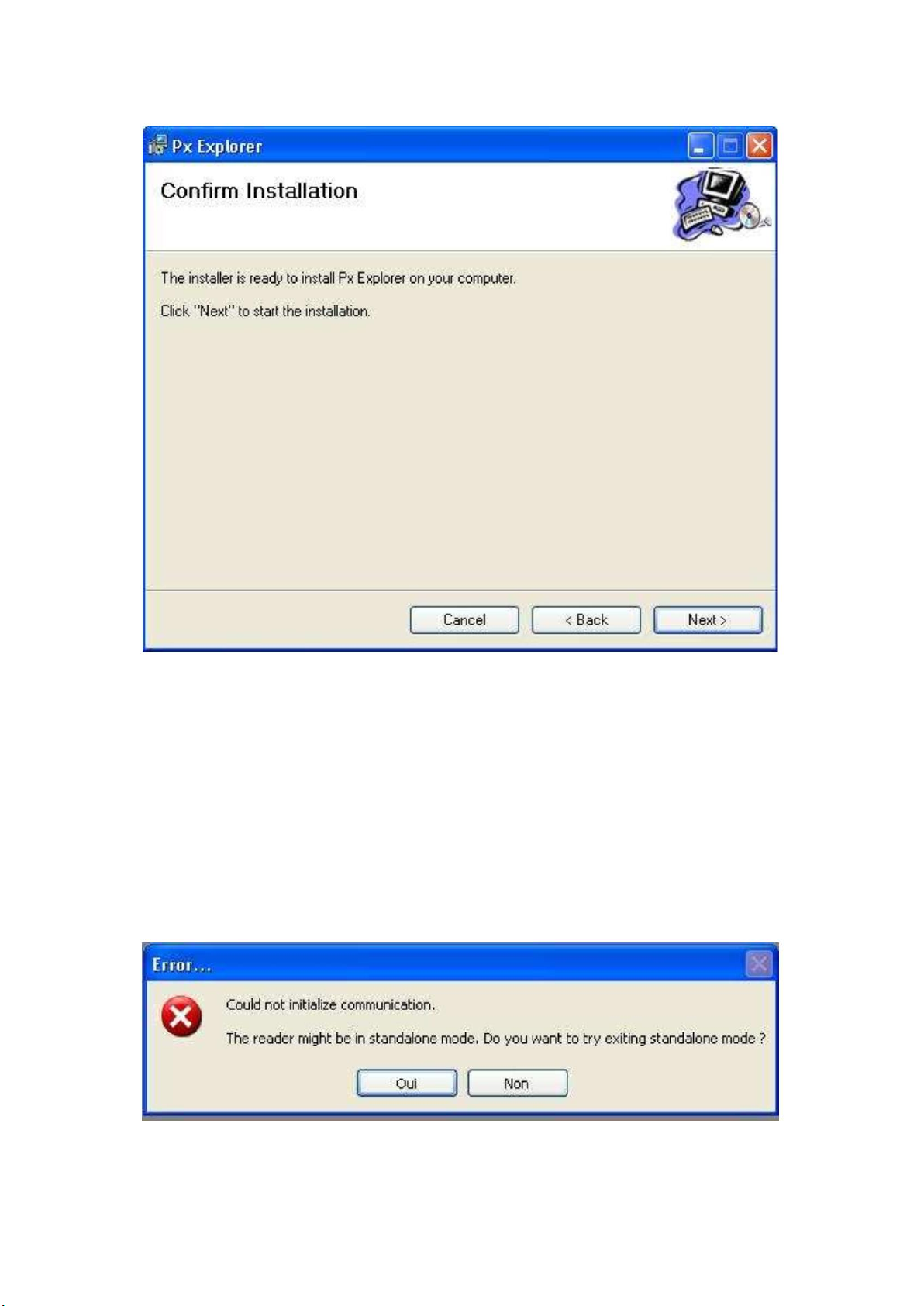

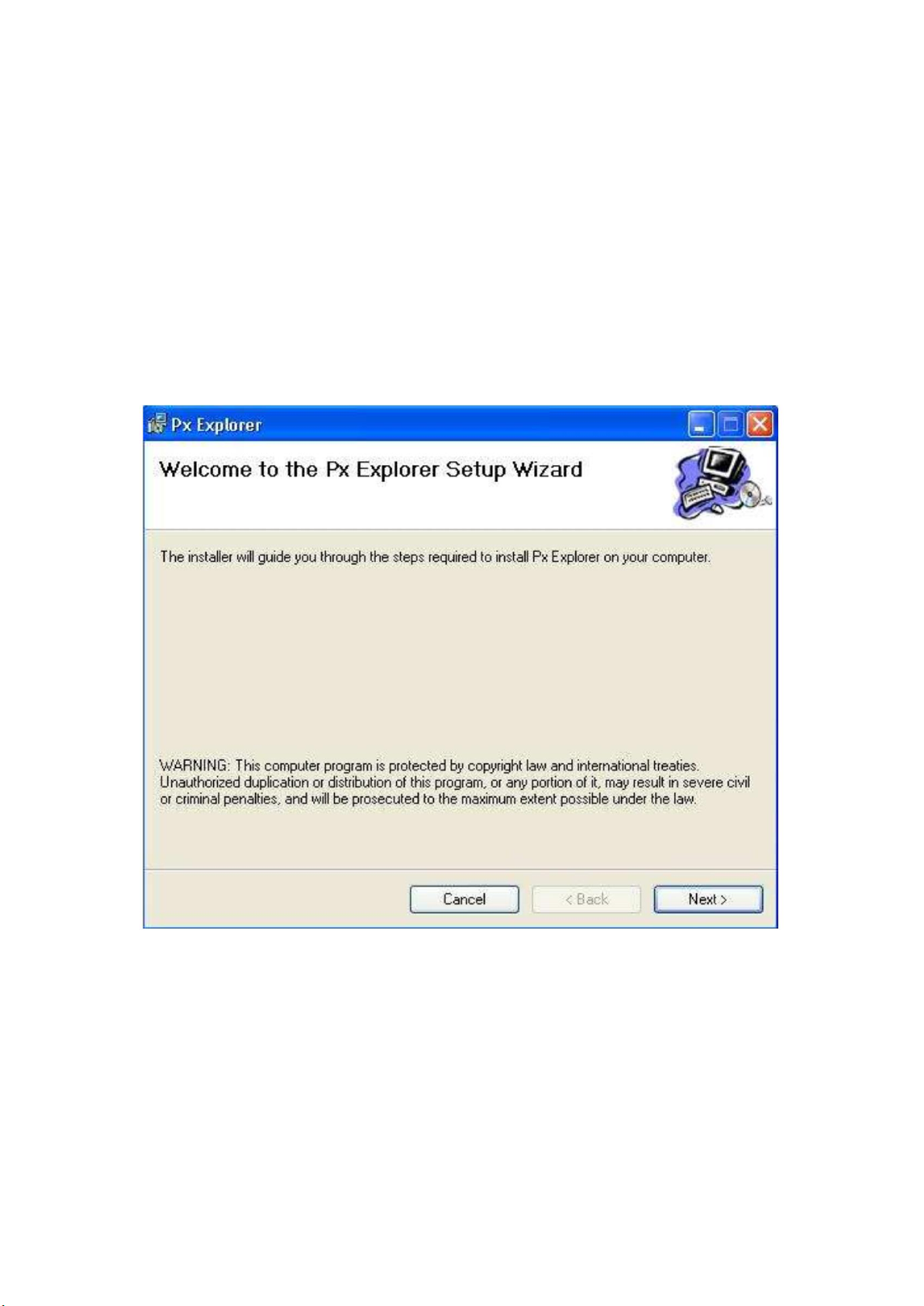

9. Install Px Explorer ......................................................................................................... 6

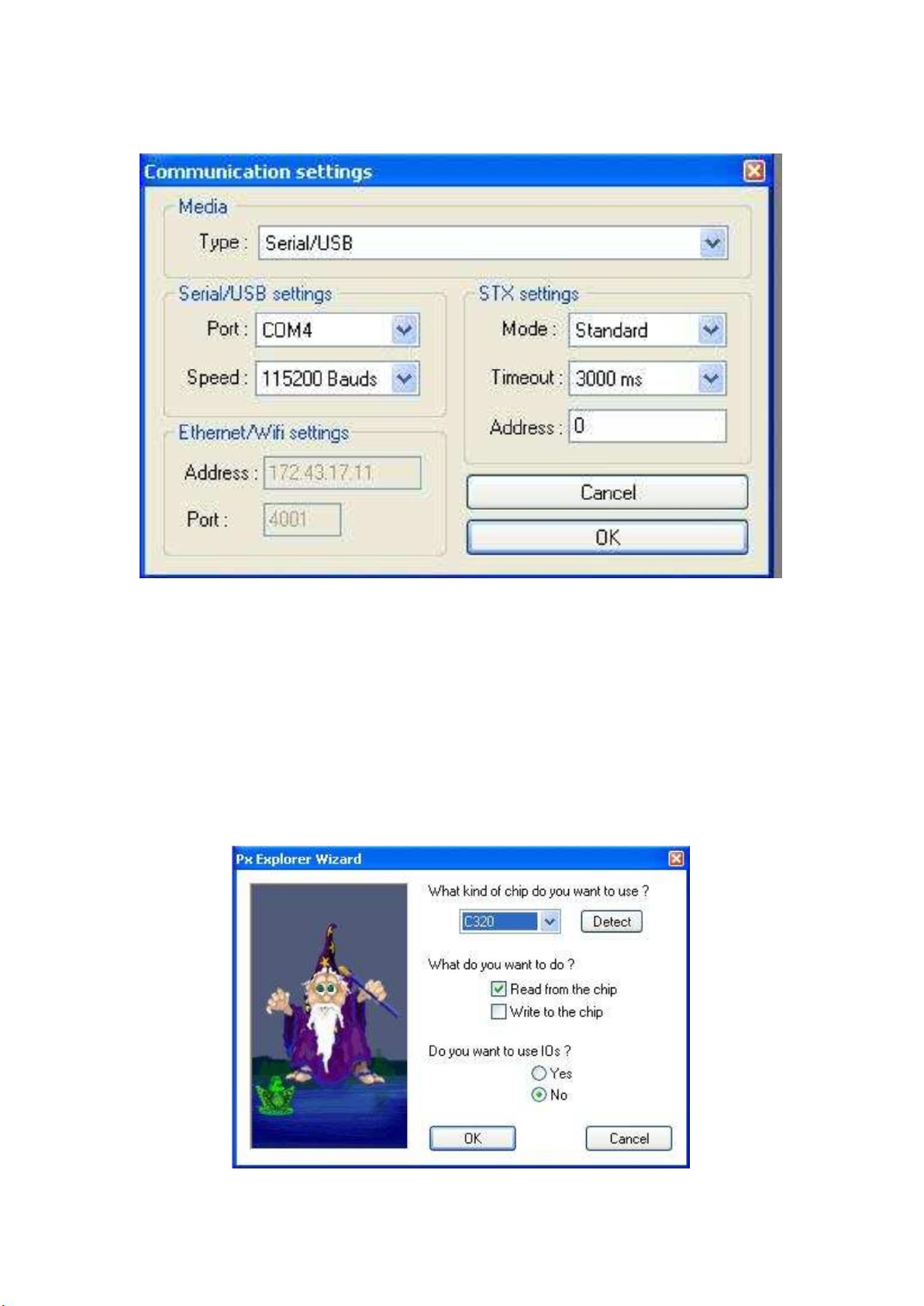

10. Reading and Writing a Tag ........................................................................................... 8

2

Reference

RFID-READER PL

Size

376 mm x 276 mm x 27 mm
(14,8 inch x 10,9 inch x 1,1 inch)

Weight

Approx. 2kg (4.4 Ibs)

DC Power

12V

Operating Frequency

13.56MHz

Chip Compatibility

EM HF ISO Chips, Fujitsu HF ISO Chips,
IDS Sensor Chips,
Infineon my-d, KSW Sensor Chips, NXP
I-Code, STM ISO Chips,
TI Tag-it

Communication Interface

USB2.0 and RS232

RF Output Power

1W

Power consumption

3.6w

Reading Range

Up to 30cm (Depends on Tag chip);

Operating Temperature

0° to +55°C

1. Product Description

RFID-READER PL is a high performance ISO15693 protocol HF RFID reader.

It is designed upon fully self-intellectual property. Based on proprietary
efficient anti-collision algorithm, it supports fast tag read/write operation
with high identification rate. It can be widely applied in many RFID
application systems such as logistics, personnel identification, conference
attendance system, access control, anti-counterfeit and industrial production
process control system.

2. Features

 Self-intellectual property;
 Support mainstream ISO15693 protocol tag
 RF output power 1w;
 Advanced anti-collision algorithm.
 Integrated in 50ohm antenna, read distance up to 30cm (Depends on

Tag chip);

 Support transparent command;
 Support tag data scan mode, stand-alone mode and EAS scan mode
 Support external input and command synchronization in scan mode;;
 Support RS232 and USB2.0
 Low power dissipation with single +12V DC needed;
 Provide DLL and demonstration software to facilitate development

3. Specifications

3
