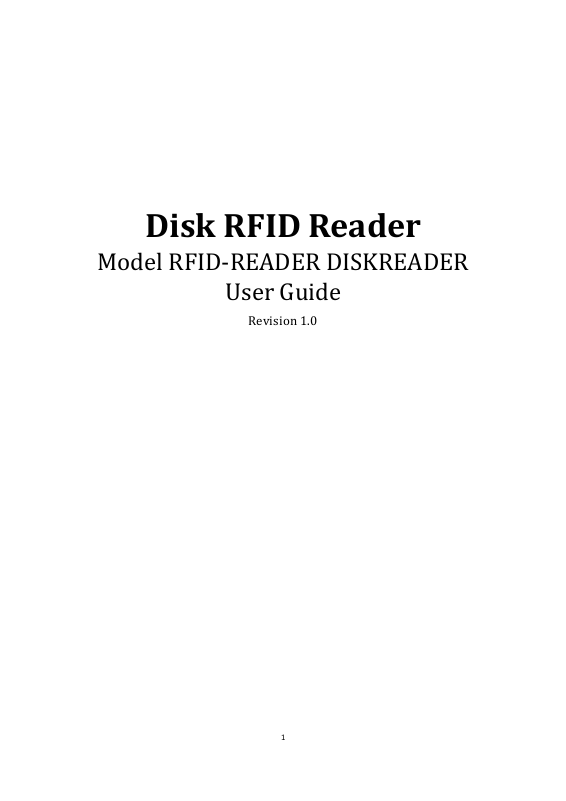

EnvisionWare READER User Manual

1

Disk RFID Reader

Model RFID-READER DISKREADER

User Guide

Revision 1.0

2

Contents

1. Product Description .................................................................................................... 3

2. Features ........................................................................................................................... 3

3. Specifications.................................................................................................................. 3

4. Absolute Maximum Ratings ......................................................................................... 4

5. Installing the USB Drivers ............................................................................................ 4

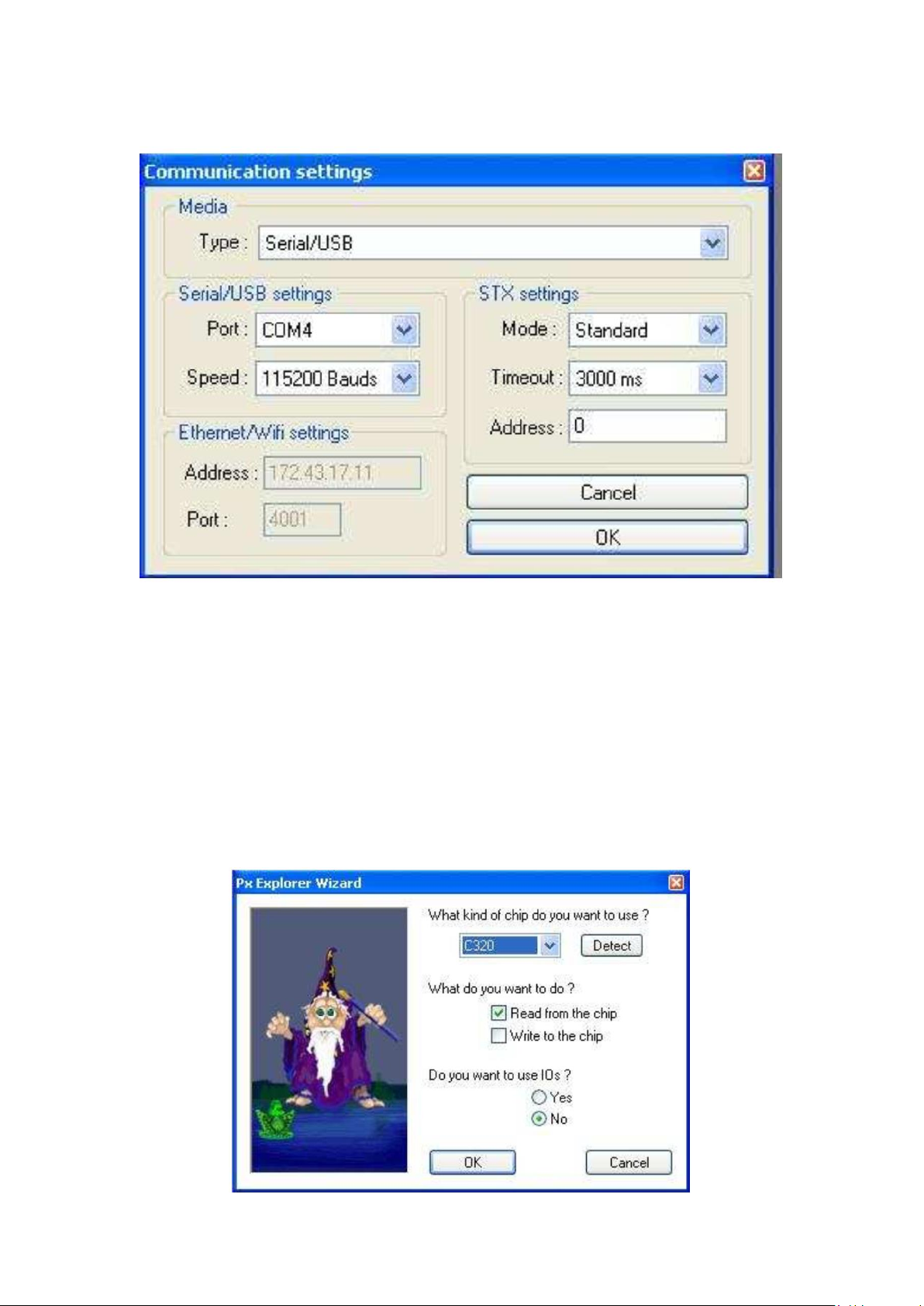

6. Reader setup tool--Px Explorer .................................................................................. 4

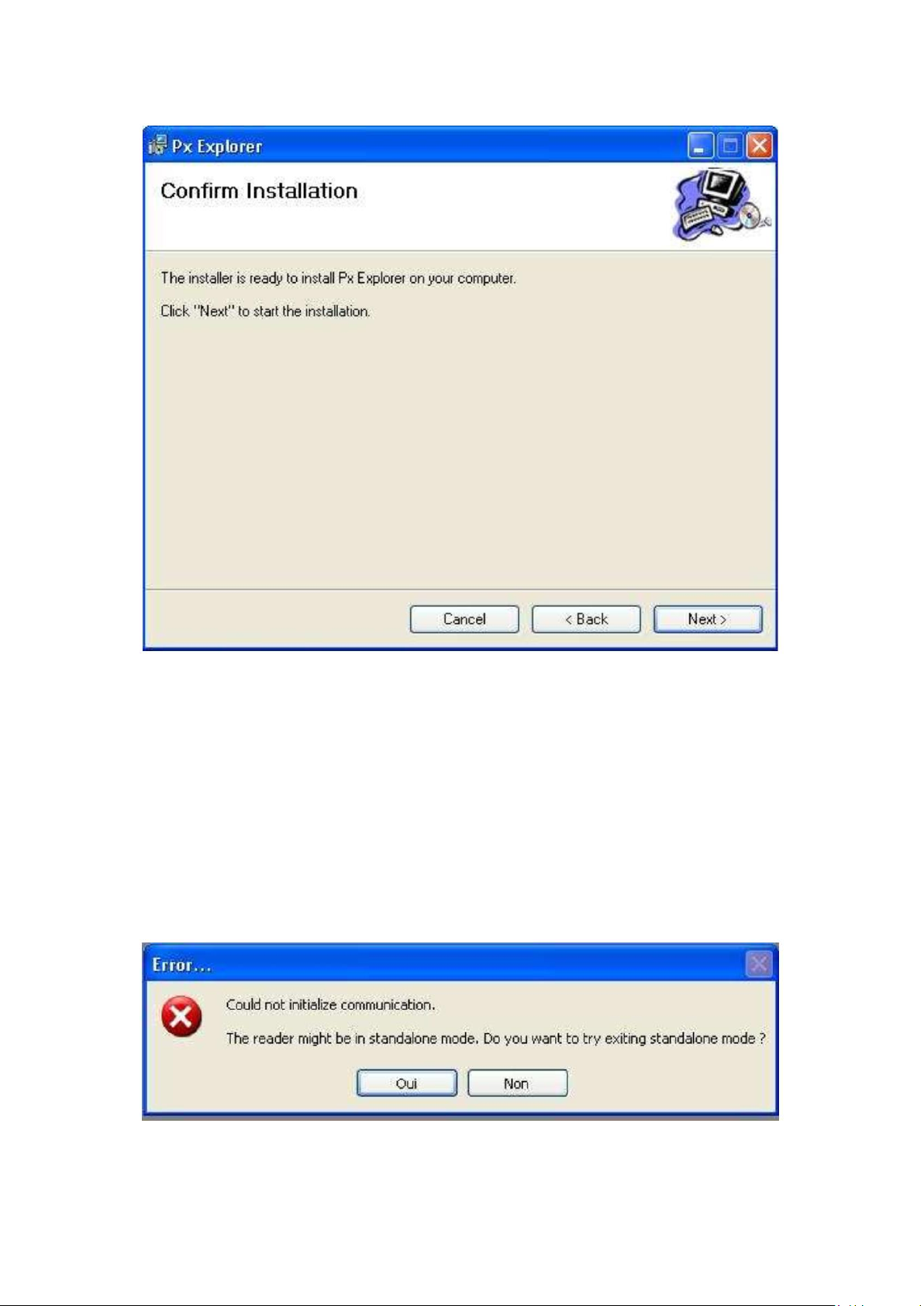

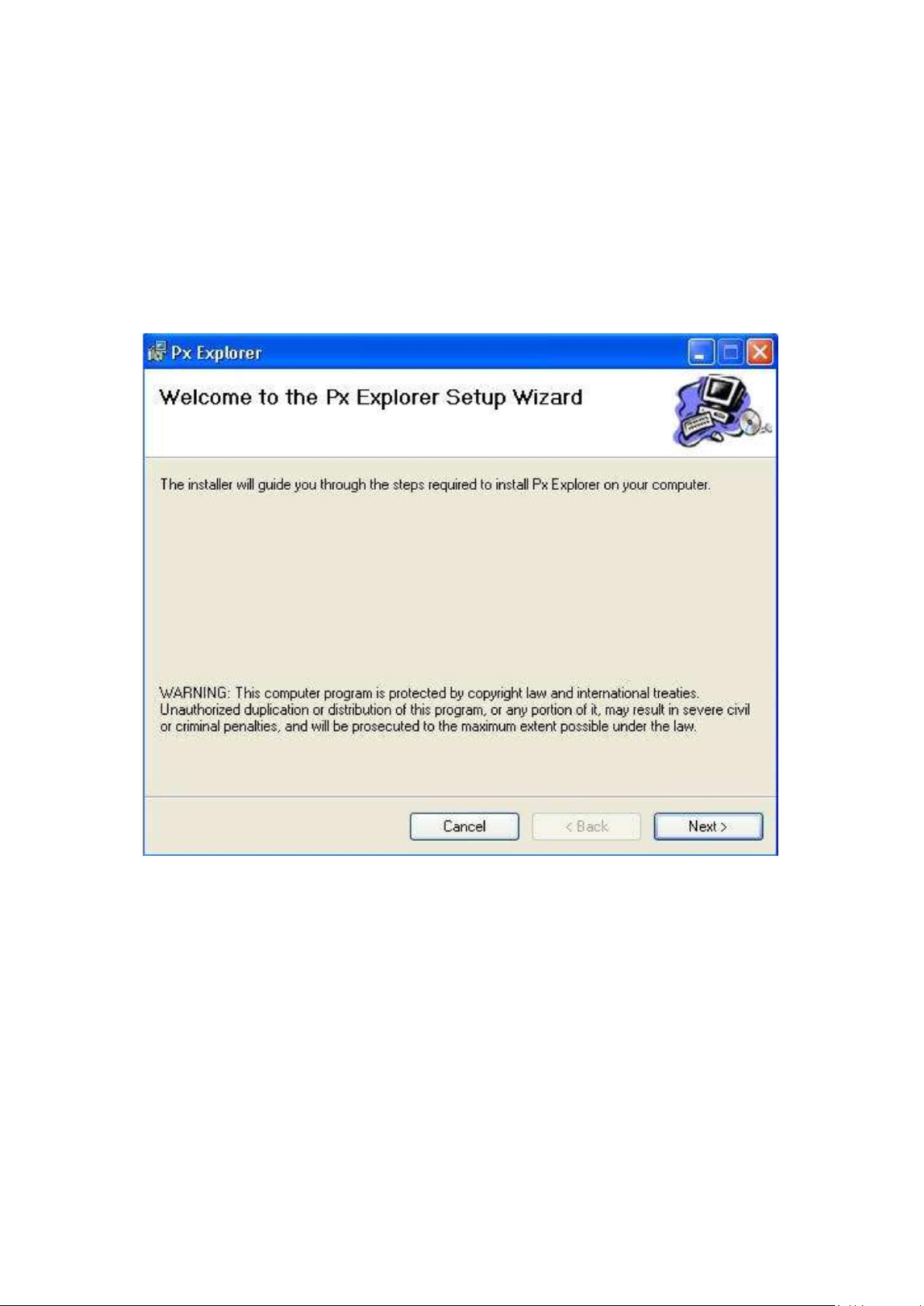

7. Install Px Explorer ......................................................................................................... 5

8. Reading and Writing a Tag........................................................................................... 7

3

1. Product Description

RFID-READER DISKREADER is a high performance ISO15693 protocol HF

RFID reader. It is designed upon fully self-intellectual property. Based on
proprietary efficient anti-collision algorithm, it supports fast tag read/write
operation with high identification rate. It can be widely applied in many RFID
application systems such as logistics, personnel identification, conference
attendance system, access control, anti-counterfeit and industrial production
process control system.

2. Features

⚫ Self-intellectual property;
⚫ Support mainstream ISO15693 protocol tag
⚫ RF output power 380mW;
⚫ Advanced anti-collision algorithm.
⚫ Integrated in 50ohm antenna, read distance up to 30cm (Depends on

Tag chip);

⚫ Support transparent command;
⚫ Support tag data scan mode, stand-alone mode and EAS scan mode
⚫ Support external input and command synchronization in scan mode;;
⚫ Support USB2.0
⚫ Low power dissipation, powered by USB
⚫ Provide DLL and demonstration software to facilitate development

3. Specifications

Reference

RFID-READER DISKREADER

Size

Diameter: 18cm

Weight

Approx. 500g (1 Ibs)

DC Power

5V via USB

Operating Frequency

13.56MHz

Chip Compatibility

EM HF ISO Chips, Fujitsu HF ISO Chips,
IDS Sensor Chips,
Infineon my-d, KSW Sensor Chips, NXP
I-Code, STM ISO Chips,
TI Tag-it

Communication Interface

USB2.0

RF Output Power

380mW

Power consumption

1.2W Max

Reading Range

Up to 30cm (Depends on Tag chip);

Operating Temperature

0° to +55°C

Storage Temperature

-20° to +70°C
