Operation Instructions
Thank you for purchasing this monitor,a high-resolution multi-scan color
monitor.
Please read this guide thoroughly before installation.
FCC Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This monitor has been tested and found to compliant with the limits for
a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide proper protection against harmful interference to a
residential installation. This montior generates, uses and can radiate radio
frequency energy, Harmful interference to radio communication may be led as
a result if it’s not properly installed and used. However, there is no guarantee
that interference will not occur in a particular installation. If this monitor does
cause serious interference to radio or television reception, resetting the
monitor may determine it.Moreover,user are encouraged to correct
interference by doing one or more of the following:
1. Reorient or relocate the receiving antenna.
2. Move the monitor and the receiver further away from each other.
3. Connect the monitor into an outlet on a circuit different from that to which
the receiver is connected.
4. Consult your local dealer or a qualified technician.
NOTICE:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables and AC power cord, if any, must be used in
order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modification to this equipment. It is the
responsibilities of the user to correct such interference.
FCC Warning:
To assure a continued FCC compliance,a user must use a grounded power
supply cord and the provided shielded video interface cable with bonded
ferrite cores. Also,any unauthorized changes or modifications to this monitor
would void the user’s authority to operate this device.
Note: If necessary,shielded interface cables and AC power cord must be used
to meet the emission level limits.
English
Deutsch Français
Contert
Safety Precautions
First Setup 2
Quick Installation 2
Front View of the Product 4
Main Menu 5
Adjusting the picture 5
Supported Timing Modes 7
Technical Specification 8
Care and Maintenance 9
Troubleshooting 9
1
1
Safety Precautions
This monitor is manufactured and tested on a ground principle that a user’s
safety comes first.However,improper use or installation may result danger to
the monitor as well as to the user.Carefully go over the following
WARNINGS before installation and keep this guide handy.
WARNINGS:
z This monitor should be operated only at the correct power sources
indicated on the label on the rear end of the monitor.If you’re unsure of
the power supply in your residence,consult your local dealer or power
company.
z Do not try to repair the monitor yourself as it contains no user-serviceable
parts. The monitor should only be repaired by a qualified technician.
z Do not remove the monitor cabinet. There is high-voltage parts inside that
may cause electric shock to human bodies,even when the power cord is
disconnected.
z Stop using the monitor if the cabinet is damaged. Have it checked by a
service technician.
z Put your monitor only in a clean, dry environment. Unplug the monitor
immediately if gets wet and consult your service technician.
z Always unplug the monitor before cleaning it. Clean the cabinet with a
clean, dry cloth. Apply non-ammonia based cleaner onto the cloth, not
directly onto the glass screen.
z Keep the monitor away from magnetic objects, motors, TV sets,and
transformer.
z Do not place heavy objects on the cable or power cord.
z
For PLUG CABLE EQUIPMENT,the Socket-outlet shall be installed near
the equipment and shall be easily accessible.
English
Deutsch Français
First Setup
2
Congratulations for purchasing this monitor of high performance!
This monitor comes with the following accessories:
1. LCD Monitor
2. Owner's Manual
3. Power Cord
4. D-Sub Cable
5. Audio Cable
Quick Installation
1. Install / Remove the base
Place the display onto the base.
Align the display with the swivel on the base and plug the display into the
base.
Hold up the display and then snap the base by hand to remove it.
Install Remove

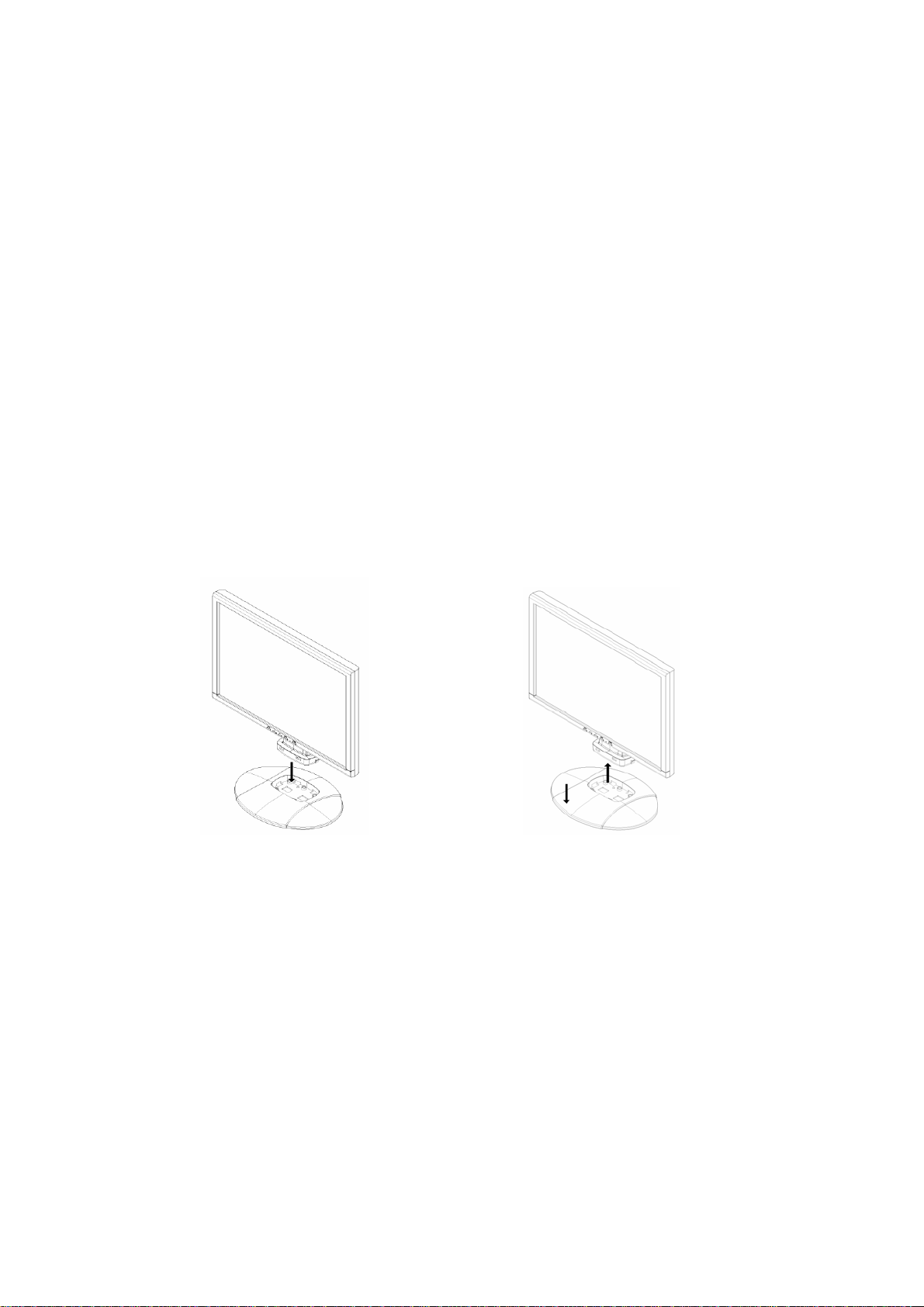

Figure 1 Installing and Removing the Base
2. Connect video cable (D-Sub cable)
Make sure both monitor and computer are powered OFF. Connect the
video cable ( D-Sub cable) to the computer,then to the monitor.
3. Connect audio cable
Connect one end of the audio cable to the back of the monitor and
connect the other end to the computer’s audio out port.
4. Connect power cord
Connect the power cord to a properly grounded AC outlet,then to the
monitor
5. Power-ON computer and monitor
Power-ON the computer,then Power-ON the monitor
6. Windows users: Setting the Timing Mode(Resolution and Refresh
Rate)
3
Example: 1680X1050 @ 60 Hz
Resolution Right-click on the Windows desktop > Properties > Settings >
“Desktop Area”. Set the resolution.
Refresh Rate (vertical frequency) See your graphic card’s user guide for
instructions.
Example:
English
Deutsch Français
1. AC Power Cord
2.
DVI Cable （Optional）
3. D-sub Cable
4. Audio Cable
Figure 2 Connecting Cables
Front View of the Product
4
Figure 3 External Control Button
1. Auto Adjust Key/Exit 2. Decrease </Audio
3. Increase>/ Input select 4. MENU
5. LED 6. Power Key
Press the MENU button (④ in fig. 3) to display the OSD menu on the screen.
1. There are a total of 5 OSD submenus divided by categories. Select the desired submenu by
pressing the OSD button < or > button (②and ③ in fig. 3); see section “OSD Menu Functions”).
2. Press the OSD button MENU (④ in fig. 3) to activate the selected function or associated
submenu.
3. If you selected submenu, now select the sub-function you want using the OSD buttons < or >(②
and ③ in fig. 3).
4. Set the desired value using the OSD button <
5. The current settings are automatically saved when you return to the previous level or exit the
OSD menu. Repeat setups 2-5 to make further adjustments as needed.
6. The OSD menu automatically disappears if no changes are made for more than 45
seconds (default setting). The current settings will be saved. You can close it manually by
pressing the AUTO (①in fig. 3) button
or >(②and ③ in fig. 3).
5
Main Menu
English
Deutsch Français
Figure 4 The OSD Message
Adjusting the picture
The descriptions for function control LEDS
Main Menu
Item
Brightness/
Contrast
Adjust
Audio
Main
Menu
Icon
Sub Menu
Item
Brightness
Contrast
Black level
Auto level
H-Position Controls the picture’s horizontal position.
V-Position Controls the picture’s vertical position.
Clock
Phase
Volume
Mute Turn the Mute ON/OFF
Controls the picture’s contrast, brightness,
black level and auto level.
Sets up the internal clock. Larger values
make the displayed image appear wider;
smaller values make it appear compressed.
Adjusts the internal clock’s time lag in order
to optimize the screen image.
Controls the volume of speaker output
Description
Main Menu
6
Item
Main
Menu
Icon
Sub Menu
Item
Description
Colour
OSD Setup
Advanced
Information
6500K
9300K
Native
Custom
colour
Language
OSD
H-Position
OSD
V-Position
OSD
Timeout
Input select
Resolution
notifier
Factory
recall
G2016wa2
Analogue
Regulates the color temperature settings.
Activate the OSD window using the
SEL/MENU button. Go to the Colour option
by pressing the < or > buttons. Press the
SEL/MENU button and < or > to select R, G
or B. Then you can change the color valu
ENGLISH, ESPAÑOL, FRANÇAIS,
РУССКNŇ DEUTSCH, NETHERLANDS,
ITALIANO, SVENSKA.
Controls the OSD menu’s horizontal position.
Controls the OSD menu’s vertical position.
Determines how long (in seconds) the OSD
menu waits before closing automatically after
no action has been performed
Selects Analog (D-sub) or Digital (DVID) input
There is an optional OSD window
(On/Off) that displays the warning
information when you don’t select the
main resolution which is 1680×1050
Select: Start Exit: Back
The optimum resolution for this monitor
is 1680×1050 @ 60Hz
7
Supported Timing Modes
VESA MODES
VGA 640 x 480@ 60Hz
VGA 640 x 480 @ 72 Hz
VGA 640 x 480 @ 75 Hz
SVGA 800 x 600@ 56 Hz
SVGA 800 x 600 @ 60 Hz
SVGA 800 x 600 @ 72 Hz
SVGA 800 x 600 @ 75 Hz
XGA 1024 x 768 @ 60 Hz
XGA 1024 x 768 @ 70 Hz
XGA 1024 x 768 @ 72 Hz
XGA 1024 x 768 @ 75 Hz
SXGA 1280 x 1024 @ 60 Hz
SXGA 1280 x 1024 @ 70 Hz
SXGA 1280 x 1024 @ 72 Hz
SXGA 1280 x 1024 @ 75 Hz
SXGA 1280 x 960 @ 60 Hz
WSXGA 1680 x 1050 @ 60 Hz
IBM MODES
DOS 720 x 400 @ 70 Hz
DOS 640 x 350 @ 70 Hz
XGA 1024 x 768 @ 72 Hz
MAC MODES
VGA 640 x 480 @ 67 Hz
SVGA 832 x 624 @ 75 Hz
XGA 1024 x 768 @ 60 Hz
XGA 1024 x 768 @ 75 Hz
English
Deutsch Français
Warning : Do not set the graphic card in your computer to
exceed these maximum refresh rates. Doing so may result
in permanent damage to your monitor
Technical Specification
8
Input signal
Display Type 20” LCD Widescreen Monitor
Viewable Diagonal size 511mm/20in
Native Resolution 1680 x 1050 Pixels
Colors 16.7M colors
Pixel Pitch 0.258 x 0.258mm
Synchronization 31~ 81 kHz horizontal, 56 ~ 75 Hz vertical
Recommended Resolution 1680x1050/60Hz
Supported Resolutions
Power
consumption
Dimensions
Weight 5.4KG(Net)
Environmental Operation:
The above specification is subject to actual panel specification and is subject
to change without prior notice.
Analog Dsub
Digital DVI-D with HDCP
Audio
640 x 480@ 60Hz; 640 x 480 @ 72 Hz;
640 x 480 @ 75 Hz; 800 x 600@ 56 Hz;
800 x 600 @ 60 Hz; 800 x 600 @ 72 Hz;
800 x 600 @ 75 Hz; 1024 x 768 @ 60 Hz;
1024 x 768 @ 70 Hz; 1024 x 768 @ 72 Hz;
1024 x 768 @ 75 Hz; 1280 x 1024 @ 60 Hz;
1280 x 1024 @ 70 Hz; 1280 x 1024 @ 72 Hz;
1280 x 1024 @ 75 Hz; 1280 x 960 @ 60 Hz;
1680 x 1050 @ 60 Hz; 720 x 400 @ 70 Hz;
640 x 350 @ 70 Hz; 1024 x 768 @ 72 Hz;
640 x 480 @ 67 Hz; 832 x 624 @ 75 Hz ;
1024 x 768 @ 60 Hz; 1024 x 768 @ 75 Hz;
Input:100 V – 240 V, 50 Hz – 60 Hz, 1.3 A
ON status: max.50 W;
color of the status LED: blue
Sleep mode: <1.0 W;
color of the status LED: amber
(W)526mmx(H)450mmx(D)146mm
5 - +40 , humidity:20 ℃ - 80% (without
condensation)
Storage:
-20- +60 , humidity:℃ 10 – 85% (without
condensation)
9
Care and Maintenance
Care
z Avoid exposing your monitor directly to sunlight or other heat source.
Place your monitor away from the sun to reduce glare.
z Put your monitor in a well ventilated area.
z Do not place any heavy things on top of your monitor.
z Make certain your monitor is installed in a clean and moisture-free area.
z Keep your monitor away from magnets,motors,transformers,speakers,
and TV sets.
Note
z Move the LCD out of the package and take off the plastic bag
and polystyrene Foam.
z Pull the base from Parallel versus Panel to Vertical.
z Adjust the Panel within 0 degree leaning forward and 20 degree
leaning backward.You must bend harder to exceed 20 degree
backward but this range is for packing the unit to a small size for
storage only.
Safety Tips
z If smoke,abnormal noise or odor came out from your monitor,
caution you should remove the power cord immediately and call
your service center.
z Never remove the rear cover of your monitor cabinet.The display
unit inside contains high-voltage parts and may cause electric
shock to human bodies.
z Never try to repair your monitor yourself.Always call your service
center or a qualified technician to fix it.
Troubleshooting
No power
z Make sure A/C power cord is securely connected to the power adapter
and the power supply is firmly connected to the monitor.
z Plug another electrical device into the power outlet to verify that the
outlet is supplying proper voltage.
z Make sure all signal cables are installed.
Power on but no screen image
z Make sure the video cable supplied with the monitor is tightly secured to
the video output prot on back of the computer.If not,tightly secure it.
z Adjust brightness.
Worng or abnormal colors
z If any colors(red,green,blue)are missing,check the video cable to make
sure it is securely connected.Loose or broken pins in the cable connector
could cause an improper connection.
z Connect the monitor to another computer.
English
Deutsch Français
Loading...
