FOR YOUR SAFETY
Before operating the monitor, please read this manual thoroughly. This
manual should be retained for future reference.
FCC Class B Radio Frequency Interference Statement
WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy, and if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
2. Shielded interface cables and AC power cord, if any, must be used in
order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modification to this equipment. It is the
responsibilities of the user to correct such interference.
As an
ENERGY STAR
that this product meets the
WARNING:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture.
Dangerously high voltages are present inside the monitor. Do not open the
cabinet. Refer servicing to qualified personnel only.
!
Partner Envision Peripherals Inc. has determined
ENERGY STAR
!
guidelines for energy efficiency.
2
PRECAUTIONS
! Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen
sink, laundry tub, swimming pool or in a wet basement.
! Do not place the monitor on an unstable cart, stand, or table. If the
monitor falls, it can injure a person and cause serious damage to the
appliance. Use only a cart or stand recommended by the manufacturer or
sold with the monitor. If you mount the monitor on a wall or shelf, use a
mounting kit approved by the manufacturer and follow the kit instructions.
! Slots and openings in the back and bottom of the cabinet are provided for
ventilation. To ensure reliable operation of the monitor and to protect it
from overheating, be sure these openings are not blocked or covered. Do
not place the monitor on a bed, sofa, rug, or similar surface. Do not place
the monitor near or over a radiator or heat register. Do not place the
monitor in a bookcase or cabinet unless proper ventilation is provided.
! Do not install the monitor in a location near heat sources such as
radiators or air ducts, or in a place subject to direct sunlight, or excessive
dust or mechanical vibration or shock.
! The monitor should be operated only from the type of power source
indicated on the label. If you are not sure of the type of power supplied to
your home, consult your dealer or local power company.
! The monitor is equipped with a three-pronged grounded plug, a plug with
a third (grounding) pin. This plug will fit only into a grounded power outlet
as a safety feature. If your outlet does not accommodate the three-wire
plug, have an electrician install the correct outlet or ground the appliance
safely. Do not defeat the safety purpose of the grounded plug.
! Unplug the unit during a lightning storm or when it will not be used for long
period of time. This will protect the monitor from damage due to power
surges.
! Do not overload power strips and extension cords. Overloading can result
in fire or electric shock.
! Never push any object into the slot on the monitor cabinet. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the
monitor.
! Do not attempt to service the monitor by yourself. Opening or removing
covers can expose you to dangerous voltages and other hazards. Please
refer all servicing to qualified service personnel.
! To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked
between 100 - 240V AC, Min. 5A.
! The wall socket shall be installed near the equipment and shall be easily
accessible.
EN9250
3
EN9250
GENERAL NOTES
SPECIAL NOTES ON LCD MONITORS
The following symptoms are normal with LCD monitor and do not indicate a
problem.
••••Due to the nature of the fluorescent light, the screen may flicker during
initial use. Turn off the Power Switch and then turn it on again to make
sure the flicker disappears.
••••You may find slightly uneven brightness on the screen depending on the
desktop pattern you use.
••••The LCD panel used in this monitor is a very high technology product with
3,932,160 thin film transistors giving you fine picture details. Occasionally,
a few non-active pixels may appear on the screen as a fixed point of red,
green, blue, white or black. Please note that this does not indicate a
defective panel.
••••Due to the nature of the LCD screen, an after-image of the previous
screen may remain after switching the image when the same image has
been displayed for a long time. The monitor will slowly recover from this.
••••LCD monitors have a fixed size & number of pixels. Due to this, an
interpolation is necessary to operate the monitor in a resolution below it’s
native resolution which may slightly degrage the display quality.
Therefore, it is highly recommended to operate the monitor at it’s native
resolution of 1280 x 1024 @ 60Hz.
OTHER NOTES
••••The screen surface is very soft. Do not rub, touch or tap the screen
surface with sharp object such as pen or pencil. This contact may scratch
or damage the screen. These damages are not covered under the
warranty.
••••Turn your computer OFF before installing your new monitor. Refer to your
computer manual for the proper shut down procedure.
••••Save the original shipping carton and packing materials, as they will come
in handy if you ever have to ship your monitor.
••••For maximum protection, repackage your monitor as it was originally
packed at the factory.
••••To keep the monitor looking new, periodically clean the case & surface of
the TFT-LCD panel with a soft non-fiberous cloth lightly dampened with a
glass cleaner. Do not use any paper products to clean the screen. Never
spay the glass cleaner directly on the monitor. Never use strong solvents
such as thinner, benzene, or abrasive cleaners, since these will damage
the case & panel. As a safety precaution, always unplug the monitor
before cleaning it.
4
EN9250
GENERAL NOTES (cont)
Plug & Play DDC 2B Feature -
••••
DDC 2B capabilities according to the VESA DDC STANDARD. It allows
the monitor to inform the host system of its identity and, depending on the
level of DDC used, communicate additional information about its display
capabilities.
The DDC 2B is a bidirectional data channel based on the I
The host can request EDID information over the DDC 2B channel.
••••This monitor will appear to be non-functional if there is not video input
signal. In order for this monitor to operate properly, there must be a video
input signal.
This monitor is equipped with VESA
2
C protocol.
5
EN9250
BEFORE YOU OPERATE THE MONITOR
FEATURES
•
19” (48cm) TFT Color LCD Monitor
•
Crisp & Clear Display for Windows
•
Recommended Resolutions: 1280 X 1024 @ 60Hz
•
EPA E
•
Ergonomic Design with Height, Pivot, Tilt & Swivel Adjustable Stand
•
3W+3W Stereo Speakers
•
Space Saving, Compact Case Design
CHECKING THE CONTENTS OF THE PACKAGE
NERGY STAR
The product package should include the following items:
®
Monitor
Warrabty Booklet CD (Manual & Drivers) 15-pin D-Sub Cable
24-Pin DVI Cable Power Cord Audio Cable
Base Quick Start Guide (QSG)
Cup x 2 Clip x 2
6
INSTALLATION INSTRUCTIONS
INSTALLING & REMOVING THE BASE
Install
Figure 1 - Installing the Base.
INSTALLIN G THE BASE
1. Set the bottom base on a flat surface.
2. Line up the front of the monitor with the front of the base and press
firmly.
Remove Pin Remove Base
EN9250
REMOVING THE BASE
1. Never remove the base while the height adjustment lock pin is
installed. Set the monitor standing on a flat firm surface. Remove
the height adjustment lock pin.
2. Set the monitor face down on a padded flat surface. Press the four
clips inward while pushing the bottom base out.
Figure 2 - Installing the Base.
7
7
EN9250
INSTALLATION INSTRUCTIONS (Cont)
POWERCORD
Power Source:
1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an internal Universal Power Supply that allows
operation in either 100/120V AC or 220/240V AC voltage area (No user
adjustment is required.)
3. Connect the AC-power cord into your LCD monitor’s AC-power-input. The
AC-power cord may be connected to either a wall power outlet or the
power outlet socket on your PC, depending on the type of power cord
supplied with your LCD monitor.
A certified power supply cord has to be used with this equipment. The
relevant national installation and/or equipment regulations shall be
considered. A certified power supply cord not lighter than ordinary polyvinyl
chloride flexible cord according to IEC 60227 (designation H05VV-F 3G
0.75mm
flexible cord of synthetic rubber according to IEC 60245 (designation H05RRF 3G 0.75mm
The accessory power cord for the Northern American region is the wall plug
with NEMA 5-15 style and is UL listed and CSA labeled. The voltage rating for
the power cord shall be 125 volts AC.
Supplied with units intended for connection to power outlet of personal
computer: Please use a cord set consisting of a minimum No. 18 AWG, type
SJT or SVT three conductors flexible cord. One end terminates with a
grounding type attachment plug, rated 10A, 250V, CEE-22 male configuration.
The other end terminates with a molded-on type connector body, rated 10A,
250V, having standard CEE-22
Please note that power supply cord needs to use VDE 0602, 0625, 0821
approval power cord in European counties.
2
or H05VVH2-F2 3G 0.75mm2) shall be used. As an alternate, a
2
) shall be used.
female configuration.
8
INSTALLATION INSTRUCTIONS (Cont)
Connecting The Cables
Figure 2 Connecting Cables
1. AC Power Cord 2. 15-pin D-SUB Cable
3. DVI Cable 4. Audio Cable
EN9250
Turn off your computer before performing the procedure below.
1. Connect the female end of the AC power cord to the AC-in port on the
back of the monitor. Connect the other end to a nearby AC-outlet.
2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and
connect the other end to the computer’s D-Sub port.
3. (Optional – Requires a video card with DVI port) Connect one end of the
24-pin DVI cable to the back of the monitor and connect the other end to the
computer’s DVI port. be tightened.
4. (Optional) - Connect the PC stereo cable between the monitor's audio
input and the PC's green audio output port.
5. Turn on your monitor and computer. If you monitor diplays an image,
installation is complete. If not, refer to the FAQ (frequently asked questions)
section for troubleshooting.
9
EN9250
INSTALLATION INSTRUCTIONS (cont)
How To Install The INF & ICM Files
•••• This is a Plug & Play monitor. Microsoft Windows will automatically install
a Plug & Play driver for it when you first install this monitor. It is not
necessary to install the INF driver file included in the floppy diskette or CD
if Microsoft Windows successfully installed a Plug & Play driver. If you
would still like to install the driver included in the floppy diskette or CD that
came with the monitor, log-on to our website at
http://www.ENVISIONdisplay.com/support/faq.asp. Then look for “Installing
the Driver” section.
10
EN9250
INSTALLATION INSTRUCTIONS (cont)
Height, Tilt, Pivot & Swivel Adjustment
Your monitor features a multi-adjustable stand that will enable it move
110mm up/down (height adjustment), 25 degree forward/backward (tilt
adjustment), 90 degree landscape/portrait (pivot adjustment) and 70 degree
side/side (swivel adjustment). To make an adjustment, grasp the monitor
with both hands on the right and left edge of the casing and move it to the
desired position.
Figure 3
NOTES
•
Do not touch the LCD screen when making the adjustments above. It may
cause damage or break the LCD screen.
•
Do not touch the speaker module when making the adjustments above. It
may cause damage to the speaker module.
•
Careful attention is required not to catch your fingers or hands when
making the adjustments above.
•
In order to use the Pivot function, the included Pivot Software must be
installed. Run D:\PIVOT\START_PIVOT.EXE, where D is the driver letter
for your CD ROM Drive.
11
INSTALLATION INSTRUCTIONS (cont)
Preparing To Install The Optional Wall Mount Arm (Not
Included)
EN9250
This monitor can be attached to a wall mounting arm you can purchase
separately. Turn the power OFF then dis-connect the cables from the
monitor before performing the procedure below. Lay the monitor face down
on a soft surface.
1. Remove the two rubber screw covers.
2. Remove the 2 screws that hold the plastic hinge cover.
3. Remove the plastic hinge cover.
4. Remove the small plastic cover. It is attached to the back of the monitor
by hooks.
5. Remove the large plastic cover. It is attached to the back of the monitor
by hooks.
6. Remove the 4 screws holding the stand to the back of the monitor.
7. Remove the stand.
12
EN9250
INSTALLATION INSTRUCTIONS (cont)

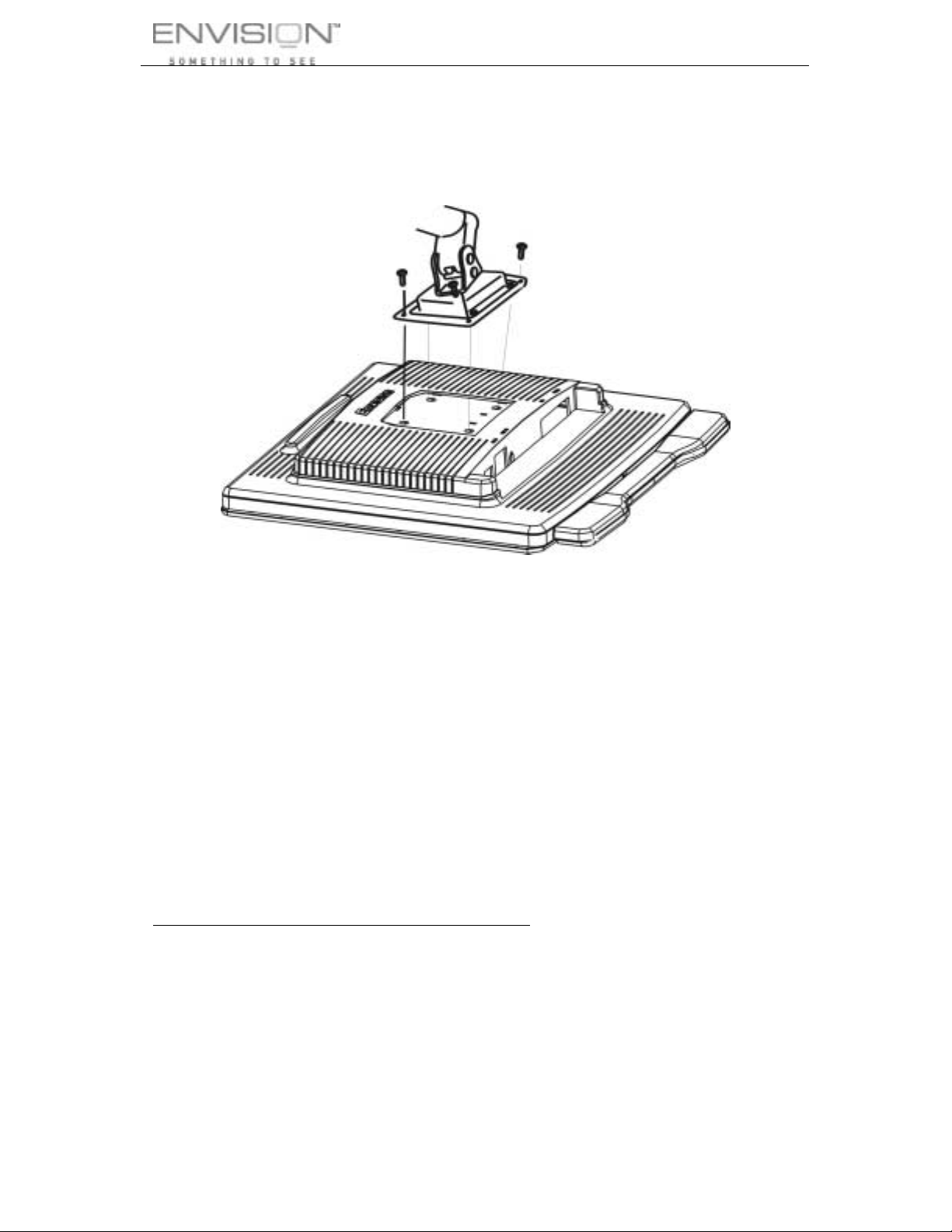

Attaching The Optional Wall Mount Arm (not supplied)
Follow these steps to finish installing the wall mounting arm:
1. Place the wall mounting arm onto the back of the monitor. Line up
the holes of the arm with the holes in the back of the monitor.
2. Insert the 4 screws into the holes and tighten.
3. Reconnect the cables. Refer to the user’s manual that came with
the optional wall mounting arm for instrucstions on attaching it to the
wall.
NOTE
The Envision EN9250 is in compliance with the most current revision of the
VESA 75mm Flat Panel Monitor Physical Mounting Interface (FPMPMI
standard). Visit our Monitor Accessories website at
www.ENVISIONdisplay.com/accessories.html
solution suitable for your needs.
to purchase a wall mount
13
OPERATING INSTRUCTIONS
EXTERNAL CONTROLS
EN9250

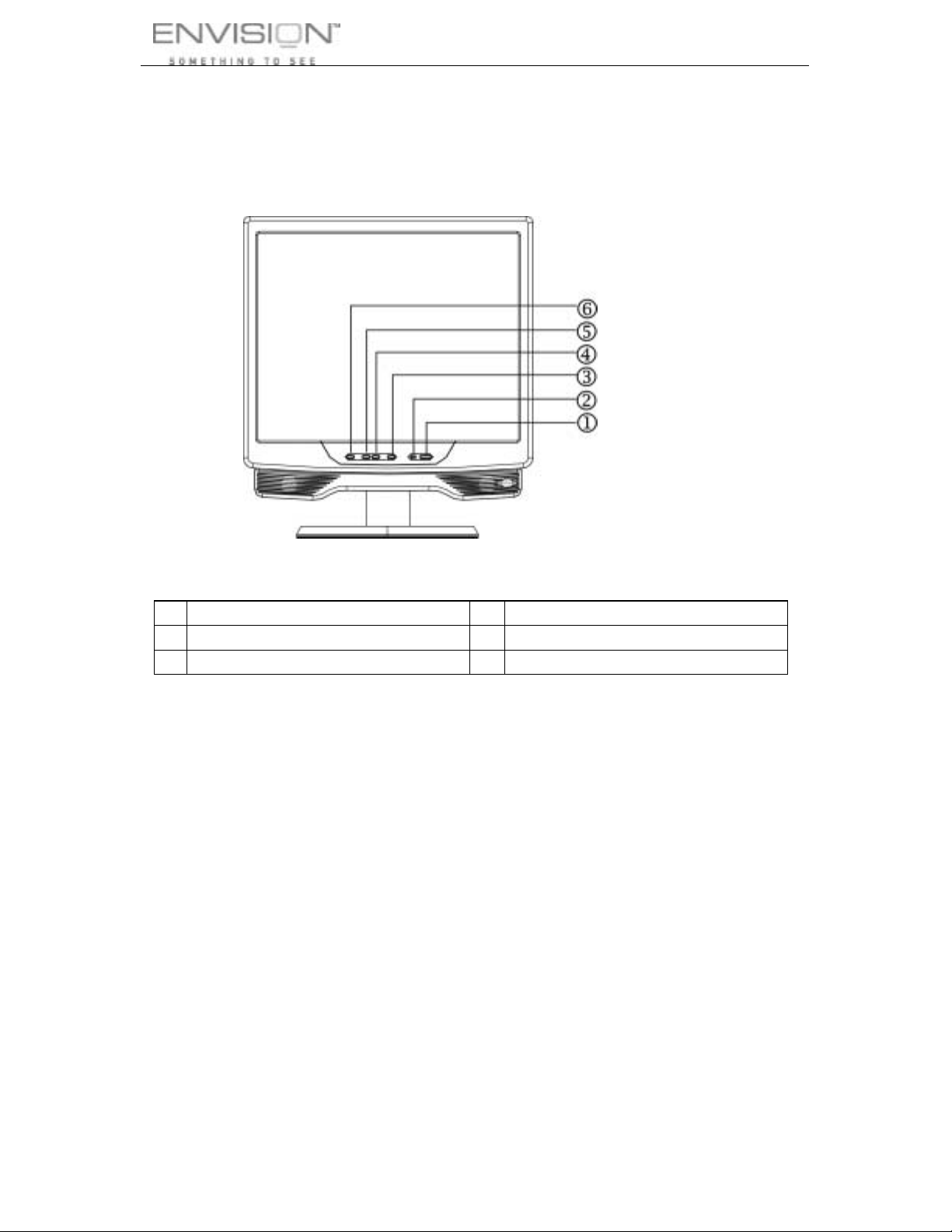

Figure 4 - External Controls
1. Power Button 4. > or Volume
2. LED 5. < or Volume
3. MENU / ENTER Button 6. Auto Adjust / Exit Button
•
Power Button:
Press this button to turn the monitor ON or OFF.
•
MENU / ENTER:
This button will activate the OSD menu when OSD is OFF or
activate/de-activate an adjustment function when OSD is ON or Exit
OSD menu when in Volume Adjust OSD status.
•
</Volume:
This button will activate the volume control when the OSD is OFF or
navigate through adjustment icons when OSD is ON or adjust a function
when function is activated.
•
>/Volume:
This button will activate the volume control when the OSD is OFF or
navigate through adjustment icons when OSD is ON or adjust a function
when function is activated.
14
EN9250
OPERATING INSTRUCTIONS (cont)
• Auto Adjust button / Exit:
1. When OSD menu is in active status, this button will act as EXIT-KEY
(EXIT OSD menu) or go back to the previous menu.
2. When OSD menu is in off status, press this button for 2 seconds to
activate the Auto Adjustment function.
The Auto Adjustment function is used to set the HPos, VPos, Clock
and Focus.
•Power Indicator:
Green — Power On mode.
Orange — Off mode.
•Osd-Lock Function:
To lock the OSD, press and hold the MENU button while the monitor is off
and then press power button to turn the monitor on.
To un-lock the OSD - press and hold the MENU
is off and then press power button to turn the monitor on.
button while the monitor
15
EN9250
OPERATING INSTRUCTIONS (cont)
How To Adjust A Setting
1. Press the MENU-button to activate the OSD window (Figure 4).
2. Press
is highlighted, press the MENU-button to activate it. If the function
selected has a sub-menu, press
sub-menu functions. Once the desired function is highlighted, press
MENU-button to activate it.
3. Press
4. To exit and save, select the exit function. If you want to adjust any other
function, repeat steps 2-3.
<
or > to navigate through the functions. Once the desired function
<
or > again to navigate through the
<
or > to change the settings of the selected function.

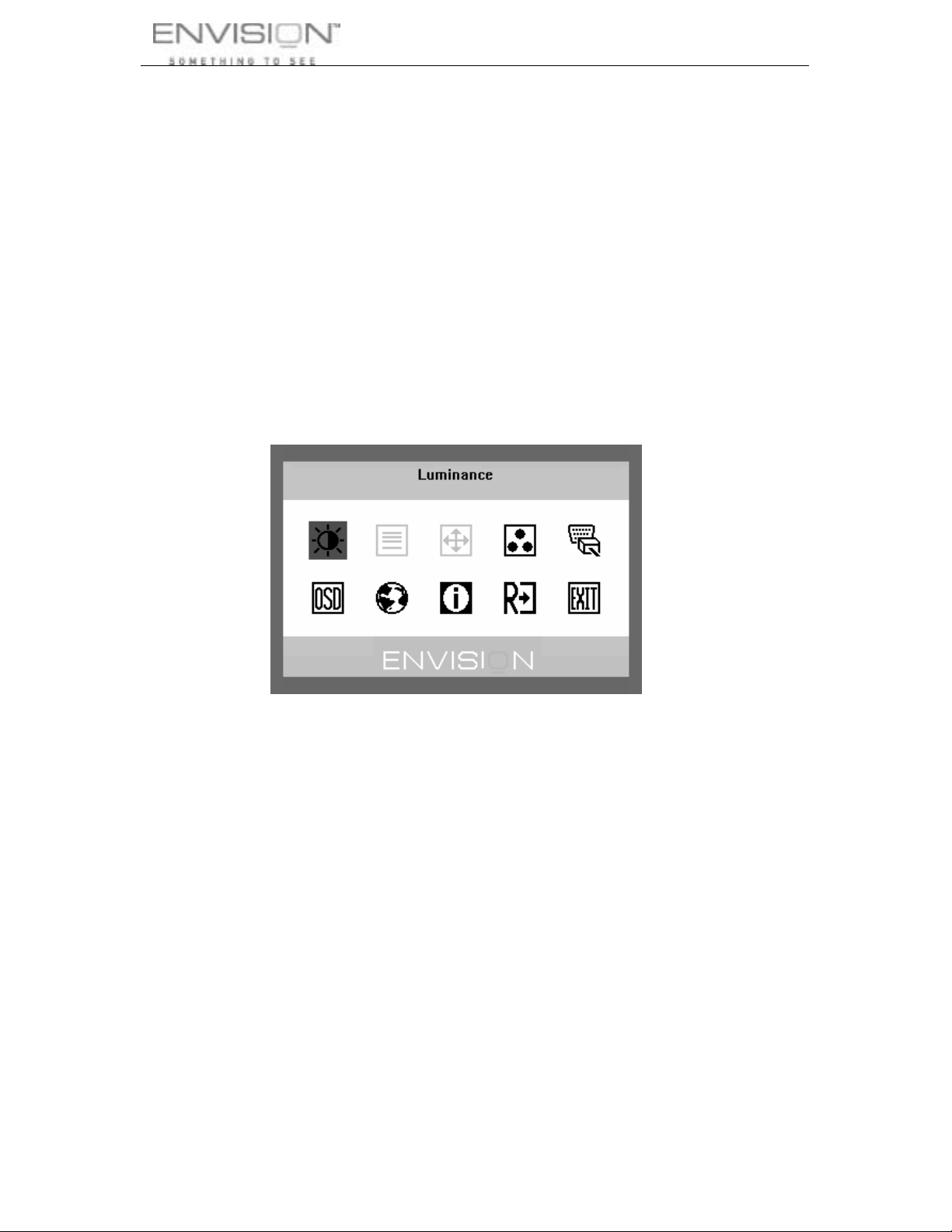

Figure 5 The OSD Menu
16
OPERATING INSTRUCTIONS (cont)
The descriptions for function control LEDS
Main
Menu
Item
Lumina
nce
Setup
Position
Color
Temp.
Input
Select
Main
Menu
Icon
Sub Menu
Item
Contrast
Brightness
Focus
Clock
H. Position
V. Position
Warm N/A Recall Warm
Cool N/A Recall Cool Color
User / Red
User /
Green
User / Blue
Analog N/A
Digital N/A
Sub
Menu
Icon
Contrast from
Digital-register.
Backlight
Adjustment
Adjust Picture
Phase to reduce
Horizontal-Line
noise
Adjust picture
Clock to reduce
Vertical-Line
noise.
Adjust the
horizontal position
of the picture.
Adjust the
verticalposition of
the picture.
Color
Temperature from
EEPROM.
Temperature from
EEPROM.
Red Gain from
Digital-register.
Green Gain
Digital-register.
Blue Gain from
Digital-register.
Select input signal
from analog
source (D-Sub)
Select input signal
from digital source
(DVI)
Description
EN9250
Reset Value
Recall Cool
Contrast Value
Recall Cool
Brightness Value
Do Auto Config
Do Auto Config
Do Auto Config
Do Auto Config
The Color
Temperature will
be set to Cool.
The User R/G/B
value(default is
100) will not be
Modified by Reset
function.
17
OSD
Setup
Langua
ge
Informat
ion
Reset
Exit
H. Position
V. Position
OSD
Timeout
English N/A Set OSD display
Deutsch N/A Set OSD display
Français N/A Set OSD display
Español N/A Set OSD display
Italiano N/A Set OSD display
!"#$
Informatio
n
Yes N/A Clear each old
No N/A Do not execute
N/A N/A Exit OSD N/A
N/A Set OSD display
N/A Show the
Adjust the
horizontal position
of the OSD.
Adjust the
verticalposition of
the OSD.
Adjust the OSD
timeout.
language to
English.
language to
German.
language to
French.
language to
Spain.
language to
Italian.
language to
Simplified
Chinese.
resolution, H/V
frequency and
input port of
current iput timing.
status of Autoconfiguration and
set the color
temperature to
Cool.
reset, return to
main menu.
EN9250
50
50
10
The Language will
be set to English.
N/A
N/A
N/A
18
EN9250
TECHNICAL SUPPORT (FAQ)
Problem & Question Possible Solution
Power LED is not on *Check if the Power Switch is in the ON
position
*Power Cord should be connected
No Plug & Play *Check if the PC system is Plug & Play
compatible
*Check if the Video Card is Plug & Play
compatible
*Check if the D-15 plug pin of Video
Cable is bent
*Make sure the Envision Monitor Drivers
are installed
Picture is fuzzy *Adjust the Contrast and Brightness
Controls.
Picture bounces or a wave
pattern is present in the picture
The power LED is ON (orange)
but there’s no video or no
picture.
Missing one of the primary
colors (RED, GREEN, or
BLUE)
Screen image is not centered
or sized properly.
Picture has color defects
(white does not look white)
Horizontal or vertical
disturbances on the screen
*Move electrical devices that may cause
electrical interference.
*Computer Power Switch should be in
the ON position.
*Computer Video Card should be snugly
seated in its slot
*Make sure monitor’s video cable is
properly connected to the computer.
*Inspect monitor’s video cable and make
sure none of the pins are bent.
*Make sure computer is operational by
hitting the CAPS LOCK key on the
keyboard while observing the CAPS
LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS
LOCK key.
*Inspect the monitor’s video cable and
make sure that none of the pins are
bent.
*Adjust pixel frequency (CLOCK) and
FOCUS or press hot-key (AUTO)
*Adjust RGB color or select color
temperature
*Use win 95/98 shut-down mode Adjust
CLOCK and FOCUS or perform hot-
key (AUTO-key).
19
EN9250
TECHNICAL SUPPORT (FAQ) (cont)
CLOCK (pixel frequency) controls the number of pixels scanned by one
horizontal sweep. If the frequency is not correct, the screen shows vertical
stripes and the picture has not correct width.
FOCUS adjusts the phase of the pixel clock signal. With a wrong phase
adjustment the picture has horizontal disturbances in light picture.
For FOCUS and CLOCK adjustment use “dot-pattern” or win 95/98 shut-down
mode pattern.
ERROR MESSAGE & POSSIBLE SOLUTION
CABLE NOT CONNECTED :
1. Check that the signal-cable is properly connected , If the connector is
loose, tighten the connector’s screws.
2. Check the signal -cable connection pins for damage.
INPUT NOT SUPPORT :
Your computer has been set to unsuitable display mode. Set the computer
to a display mode given in the Preset Display Modes table.
20
EN9250
APPENDIX
SPECIFICATIONS
Driving system TFT Color LCD
Pixel pitch 0.294mm( H )x 0.294mm( V )
LCD Pane
LCD Panel
Viewable angle
Response time 16 ms
Video
Input
Separate Sync. H/V TTL
H-Frequency 30KHz – 83KHz
V-Frequency 55-75Hz
Display Colors 16.7M Colors
Dot Clock 135MHz
Max. Resolution 1280 x 1024 @75Hz
Plug & Play VESA DDC 2B
EPA E
NERGY STAR
Input Video Signal
Size 48cm(19.0")
140° (H) 140° (V)
R,G,B Analog Interface
Digital interface
TM
®
ON Mode
OFF Mode
!
55W
!
2W
D-Sub 15pin Input Connector
DVI-D 24pin
Analog:0.7Vp-p(standard),
75 OHM, Positive
Digital DVI-D
Maximum Screen Size Horizontal : 376.32mm
Vertical : 301.056mm
Power Source 100~240VAC,47~63HZ
Environmental
Considerations
Operating Temp: 0° to 40°C
Storage Temp.: -20° to 60°C
Operating Humidity: 15% to 90%
Dimensions 422(W)×(444-557)(H)×242(D)mm
Weight (N. W.) 7.8kg Unit (net)
21
EN9250
APPENDIX (cont)
Switch
External Controls: Functions
Power Consumption ( Maximum ) 55 Watts
Speakers 3W + 3W
Regulatory Compliance FCC, TÜV/GS, CE, UL, CSA
•
Auto Adjust Key/Exit
•
<
/Volume
•
>
/ Volume
•
Power Button
•
MENU/ Enter
•
Contrast
•
Brightness
•
Focus
•
Clock
•
H.Position
•
V.Position
•
Language
•
(Warm) Color
•
(Cool)Color
•
RGB Color temperature
•
Input Select (Analog/DVI)
•
OSD position, OSD timeout
•
Display input Information
•
Reset
•
Exit
ISO13406-2 Class II
22
APPENDIX (cont)
Preset Display Modes
STANDARD
VGA
VESA
SVGA
XGA
SXGA
RESOLUTION
640 × 480 31.469 59.940
640 × 480 37.500 75.000
800 × 600 37.879 60.317
800 × 600 46.875 75.000
1024 × 768 48.363 60.004
1024 × 768 56.476 70.069
1024 x 768 60.023 75.029
1280 × 1024 64.00 60.000
1280 × 1024 80.00 75.000
EN9250
HORIZONTAL
FREQUENCY(KHZ)
VERTICAL
FREQUENCY(HZ)
IBM DOS
XGA
MAC
720 x 400 31.469 70.087
1024 x 768 48.780 60.001
1024 × 768 60.241 74.927
23
EN9250
APPENDIX (cont)
Connector Pin Assignment
15
6
1115
15 - Pin Color Display Signal Cable
PIN NO. DESCRIPTION PI N NO. DESCRIPTION
1. Red 9. NC
2. Green 10. Logic Ground
3. Blue 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
` DDC-return 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
10
24 - Pin Color Display Signal Cable
PIN NO.
DESCRIPTION
1. TMDS Data 2- 13. TMDS Data 3+
2. TMDS Data 2+ 14. +5V Power
3. TMDS Data 2/4
Shield
4. TMDS Data 4- 16. Hot Plug Detect
5. TMDS Data 4+ 17. TMDS Data 0-
6. DDC Clock 18. TMDS Data 0+
7. DDC Data 19. TMDS Data 0/5
8. Analog vertical
sync
9. TMDS Data 1- 21. TMDS Data 5+
10. TMDS Data 1+ 22. TMDS Clock Shield
11. TMDS Data 1/3
Shield
12. TMDS Data 3- 24. TMDS Clock -
PI N NO.
DESCRIPTION
15. Ground(for+5V)
Shield
20. TMDS Data 5-
23. TMDS Clock +
24
Loading...
+ hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
