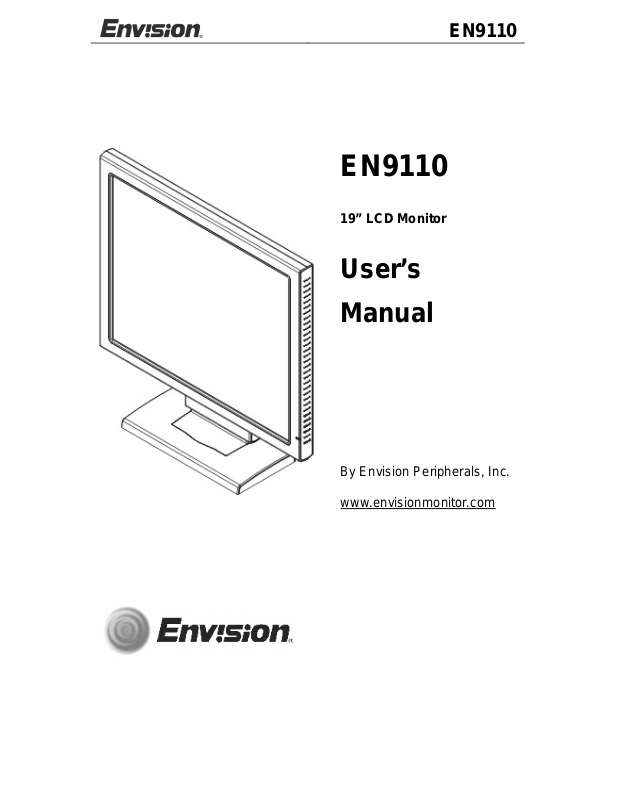

Envision Peripherals EN9110 User Manual

EN9110

19” LCD Monitor

User’s Manual

By Envision Peripherals, Inc. www.envisionmonitor.com

EN9110

Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE: This equipment has been tested and found to comply with the limits

for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

NOTICE

1. The changes or modifications not expressly approved by the party

responsible for compliance could void the user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in

order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference

caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.

As an

ENERGY STAR

that this product meets the



Partner Envision Peripherals Inc. has determined

ENERGY STAR



guidelines for energy efficiency.

WARNING:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

EN9110

PRECAUTIONS

! Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen

sink, laundry tub, swimming pool or in a wet basement.

! Do not place the monitor on an unstable cart, stand, or table. If the

monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.

! Slots and openings in the back and bottom of the cabinet are provided for

ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.

! The monitor should be operated only from the type of power source

indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

! The monitor is equipped with a three-pronged grounded plug, a plug with

a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

! Unplug the unit during a lightening storm or when it will not be used for

long period of time. This will protect the monitor from damage due to power surges.

! Do not overload power strips and extension cords. Overloading can result

in fire or electric shock.

! Never push any object into the slot on the monitor cabinet. It could short

circuit parts causing a fire or electric shock. Never spill liquids on the monitor.

! Do not attempt to service the monitor by yourself; opening or removing

covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.

! To ensure satisfactory operation, use the monitor only with UL listed

computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A.

! The wall socket shall be installed near the equipment and shall be easily

accessible.

! For use only with power adaptor manufacturer by CHI SAM

ELECTRONIC , model CH-1205

•

Do not install the monitor in a location near heat sources such as

radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.

•

Save the original shipping carton and packing materials, as they will come

in handy if you ever have to ship your monitor.

EN9110

PRECAUTIONS (cont)

•

For maximum protection, repackage your monitor as it was originally

packed at the factory.

•

To keep the monitor looking new, periodically clean it with a soft cloth.

Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it.

EN9110

SPECIAL NOTES ON LCD MO NITORS

The following symptoms are normal with LCD monitor and do not indicate a problem.

NOTES

•

Due to the nature of the fluorescent light, the screen may flicker during

initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.

•

You may find slightly uneven brightness on the screen depending on the

desktop pattern you use.

•

The LCD screen has effective pixels of 99.99% or more. It may include

blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time.

•

Due to the nature of the LCD screen, an afterimage of the previous screen

may remain after switching the image, when the same image is displayed for hours. In this case, the screen is recovered slowly by changing the image or turning off the Power Switch for hours.

BEFORE YOU OPERATE THE MONITOR

FEATURES

•

48cm(19”) TFT Color LCD Monitor

•

Crisp, Clear Display for Windows

•

Recommened Resolutions: 1280 X 1024 @60Hz

•

EPA E

•

Dual Input (DVI + Analog)

•

Space Saving, Compact Case Design

CHECKING THE CONTENTS OF THE PACKAGE

The product package should include the following items:

1. LCD Monitor

2. 15-pin D-Sub Cable

3. DVI Cable

4. Power Cord

5. External Power Adapter

6. Driver Disk

7. Quick Start Guide (QSG)

8. Wa rranty, Notices, Warnings & Precautions Booklet

9. Input Not Supported Solution Sheet

NERGY STAR

INSTALLATION INSTRUCTIONS

SWIVEL BASE

Install Remove

EN9110

Figure 1 Installing and Removing the Swivel Base

POWERCORD

Power So urce:

1. Make sure that the power cord is the correct type required in your area.

2. This LCD monitor has an External universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)

3. Connect the AC-power cord into your LCD monitor’s External Adapter input socket, and then plug the other end of External adapter to LCD monitor’s DC-power-input. The AC-power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your LCD monitor.

NOTES

A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G

0.75mm

cord be of synthetic rubber according to IEC 60245 (designation H05RR-F 3G

0.75mm

! or H05VVH2-F2 3G 0.75mm! ) shall be used. Alternative a flexible ! ) shall be used.

INSTALLATIONS INSTRUCTIONS (cont)

PREPARING TO INSTALL THE CABLES

1. Remove the wall mounting hole cover.

2. Remove the cable cover.

EN9110

INSTALLATIONS INSTRUCTIONS (cont)

CABLE

1 – Connect the DC-jack power cable into DC-IN connector on the back of the monitor.

2. Connect one end of the 15-pin D-Sub cable to the back of the monitor and

connect the other end to the computer’s D-Sub port.

3. (Optional – Requires a video card with DVI port) Connect one end of the

24-pin DVI cable to the back of the monitor and connect the other end to the computer’s DVI port. be tightened.

4 – Connect the female end of the power cord to the monitor’s power adapter and connect the male end of the power cord to the AC outlet.

Caution: If the AC outlet is not grounded (with three holes), install the proper grounding adapter (not supplied).

CONNECTIONS

Figure 2 Connecting Cables

1. External Adapter

2. 15-pin D-Sub Cable

3. DVI Cable

4. Power Cord

EN9110

INSTALLATION INSTRUCTIONS (cont)

Preparing To Instal l The Optional Wal l Mount Arm (Not Included)

CONNECTIONS

This monitor can be attached to a wall mounting arm you can purchase separately from Ergotron (www.ergotron.com). Turn the power OFF then disconnect the cables from the monitor before performing the procedure below. Lay the monitor face down on a soft surface.

1. Remove wall mounting hole cover.

2. Remove the cable cover.

3. Remove the 4 screws holding the base to the back of the monitor.

4. Remove the base.
