Envision Peripherals EN7220 User Manual

EN7220
EN7220
17” LCD Monitor
User’s Manual
www.ENVISIONdisplay.com
EN7220
TABLE OF CONTENTS
Table of Contents 1 For Your Safety 2 Precautions 3 General Notes 4-5 Before You Operate The Monitor 6 Installation Instructions 7-13 Operating Instructions 14-19 Technical Support (FAQ) 20-21 Appendix 22-25
1
EN7220
FOR YOUR SAFETY
Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference.
FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)
NOTE: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the equipment and receiver.
3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
4. Consult the dealer or an experienced radio/TV technician for help.
NOTICE:
1. The changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the equipment.
2. Shielded interface cables and AC power cord, if any, must be used in
order to comply with the emission limits.
3. The manufacturer is not responsible for any radio or TV interference
caused by unauthorized modification to this equipment. It is the responsibilities of the user to correct such interference.
As an
E
NERGY STAR
that this product meets the
WARNING:
To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.
£
Partner Envision Peripherals Inc. has determined
E
NERGY STAR£ guidelines for energy efficiency.
2
EN7220
PRECAUTIONS
z Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen
sink, laundry tub, swimming pool or in a wet basement.
z Do not place the monitor on an unstable cart, stand, or table. If the
monitor falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the monitor. If you mount the monitor on a wall or shelf, use a mounting kit approved by the manufacturer and follow the kit instructions.
z Slots and openings in the back and bottom of the cabinet are provided for
ventilation. To ensure reliable operation of the monitor and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation is provided.
z Do not install the monitor in a location near heat sources such as
radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.
z The monitor should be operated only from the type of power source
indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.
z The monitor is equipped with a three-pronged grounded plug, a plug with
a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet or ground the appliance safely. Do not defeat the safety purpose of the grounded plug.
z Unplug the unit during a lightning storm or when it will not be used for long
period of time. This will protect the monitor from damage due to power surges.
z Do not overload power strips and extension cords. Overloading can result
in fire or electric shock.
z Never push any object into the slot on the monitor cabinet. It could short
circuit parts causing a fire or electric shock. Never spill liquids on the monitor.
z Do not attempt to service the monitor by yourself. Opening or removing
covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.
z To ensure satisfactory operation, use the monitor only with UL listed
computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A.
z The wall socket shall be installed near the equipment and shall be easily
accessible.
3
EN7220
GENERAL NOTES
SPECIAL NOTES ON L CD MON ITORS
The following symptoms are normal with LCD monitor and do not indicate a problem.
•••• Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.
•••• You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
•••• The LCD panel used in this monitor is a very high technology product with 3,932,160 thin film transistors giving you fine picture details. Occasionally, a few non-active pixels may appear on the screen as a fixed point of red, green, blue, white or black. Please note that this does not indicate a defective panel.
•••• Due to the nature of the LCD screen, an after-image of the previous screen may remain after switching the image when the same image has been displayed for a long time. The monitor will slowly recover from this.
•••• LCD monitors have a fixed size & number of pixels. Due to this, an interpolation is necessary to operate the monitor in a relution below it’s native resolution which may slightly degrage the display quality. Therefore, it is highly recommended to operate the monitor at it’s native resolution of 1280 x 1024 @ 60Hz.
OTHER NOTES
•••• The screen surface is very soft. Do not rub, touch or tap the screen surface with sharp object such as pen or pencil. This contact may scratch or damage the screen. These damages are not covered under the warranty.
•••• Turn your computer OFF before installing your new monitor. Refer to your computer manual for the proper shut down procedure.
•••• Save the original shipping carton and packing materials, as they will come in handy if you ever have to ship your monitor.
•••• For maximum protection, repackage your monitor as it was originally packed at the factory.
•••• To keep the monitor looking new, periodically clean the case & surface of the TFT-LCD panel with a soft non-fiberous cloth lightly dampened with a glass cleaner. Do not use any paper products to clean the screen. Never spay the glass cleaner directly on the monitor. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the case & panel. As a safety precaution, always unplug the monitor before cleaning it.
4
EN7220
GENERAL NOTES (cont)
Plug & Play DDC1/2B Feature -
•••• DDC1/2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The communication channel is defined in two levels, DDC1 and DDC2B. The DDC1 is a unidirectional data channel from the display to the host that continuously transmits EDID information. The DDC2B is a bidirectional data channel based on the I²C protocol. The host can request EDID information over the DDC2B channel.
•••• This monitor will appear to be non-functional if there is not video input signal. In order for this monitor to operate properly, there must be a video input signal.
This monitor is equipped with VESA
5
EN7220
BEFORE YOU OPERATE THE MONITOR
FEATURES
17” (43.2cm) TFT Color LCD Monitor
Crisp & Clear Display for Windows
Recommended Resolutions: 1280 X 1024 @ 60Hz
EPA E
Ergonomic Design with Height, Pivot, Tilt & Swivel Adjustable Stand
Height, Pivot, Tilt & Swivel Adjustable Stand
Space Saving, Compact Case Design
CHECKING THE CONTENTS OF THE PACKAGE
NERGY STAR
The product package should include the following items:
®
Monitor
CD (Manual & Drivers) 15-pin D-Sub Cable Power Cord
Base Quick Start Gui de ( QSG)
Accessory Cup x 2 Accessory Clip x 2 Warranty Booklet
6
INSTALLATION INSTRUCTIONS
INSTALLING & REMOVING THE BASE
Install
EN7220
Figure 1 - Installing the Base.
INSTALLIN G THE BASE
1. Set the bottom base on a flat surface.
2. Line up the front of the monitor with the front of the base and press firmly.
Remove Pin Remove Base
REMOVING THE BASE
1. Never remove the base while the height adjustment lock pin is
2. Set the monitor face down on a padded flat surface. Press the four
Figure 2 - Installing the Base.
installed. Set the monitor standing on a flat firm surface. Remove the height adjustment lock pin.
clips inward while pushing the bottom base out.
7
EN7220
INSTALLATION INSTRUCTIONS (Cont)
POWERCORD
Power Source:
1. Make sure that the power cord is the correct type required in your area.
2. This LCD monitor has an internal Universal Power Supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.)
3. Connect the AC-power cord into your LCD monitor’s AC-power-input. The AC-power cord may be connected to either a wall power outlet or the power outlet socket on your PC, depending on the type of power cord supplied with your LCD monitor.
A certified power supply cord has to be used with this equipment. The relevant national installation and/or equipment regulations shall be considered. A certified power supply cord not lighter than ordinary polyvinyl chloride flexible cord according to IEC 60227 (designation H05VV-F 3G
0.75mm
flexible cord of synthetic rubber according to IEC 60245 (designation H05RR­F 3G 0.75mm
2
or H05VVH2-F2 3G 0.75mm2) shall be used. As an alternate, a
2
) shall be used. The accessory power cord for the Northern American region is the wall plug with NEMA 5-15 style and is UL listed and CSA labeled. The voltage rating for the power cord shall be 125 volts AC.
Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type attachment plug, rated 10A, 250V, CEE-22 male configuration. The other end terminates with a molded-on type connector body, rated 10A,
250V, having standard CEE-22 Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European counties.
female configuration.
8
EN7220
INSTALLATION INSTRUCTIONS (Cont)
Supplied with units intended for connection to power outlet of personal computer: Please use a cord set consisting of a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with a grounding type attachment plug, rated 10A, 250V, CEE-22 male configuration. The other end terminates with a molded-on type connector body, rated 10A,
250V, having standard CEE-22 Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European counties.
Connecting The Cables
female c onfiguration.
Figure 2 Connecting Cables
1. AC Power Cord 2. 15-pin D-SUB Cable
Turn off your computer before performing the procedure below.
1. Connect the female end of the AC power cord to the AC-in port on the back of the monitor. Connect the other end to a nearby AC-outlet.
3. Connect one end of the 15-pin D-Sub cable to the back of the monitor and connect the other end to the computer’s D-Sub port.
4. Turn on your monitor and computer. If you monitor diplays an image, installation is complete. If not, refer to the FAQ (frequently asked questions) section for troubleshooting.
9
EN7220
INSTALLATION INSTRUCTIONS (cont)
How To Install The INF & ICM Files
•••• This is a Plug & Play monitor. Microsoft Windows will automatically install
a Plug & Play driver for it when you first install this monitor. It is not necessary to install the INF driver file included in the floppy diskette or CD if Microsoft Windows successfully installed a Plug & Play driver. If you would still like to install the driver included in the floppy diskette or CD that came with the monitor, log-on to our website at http://www.ENVISIONdisplay.com/support/faq.asp. Then look for “Installing the Driver” section.
10
EN7220
INSTALLATION INSTRUCTIONS (cont)

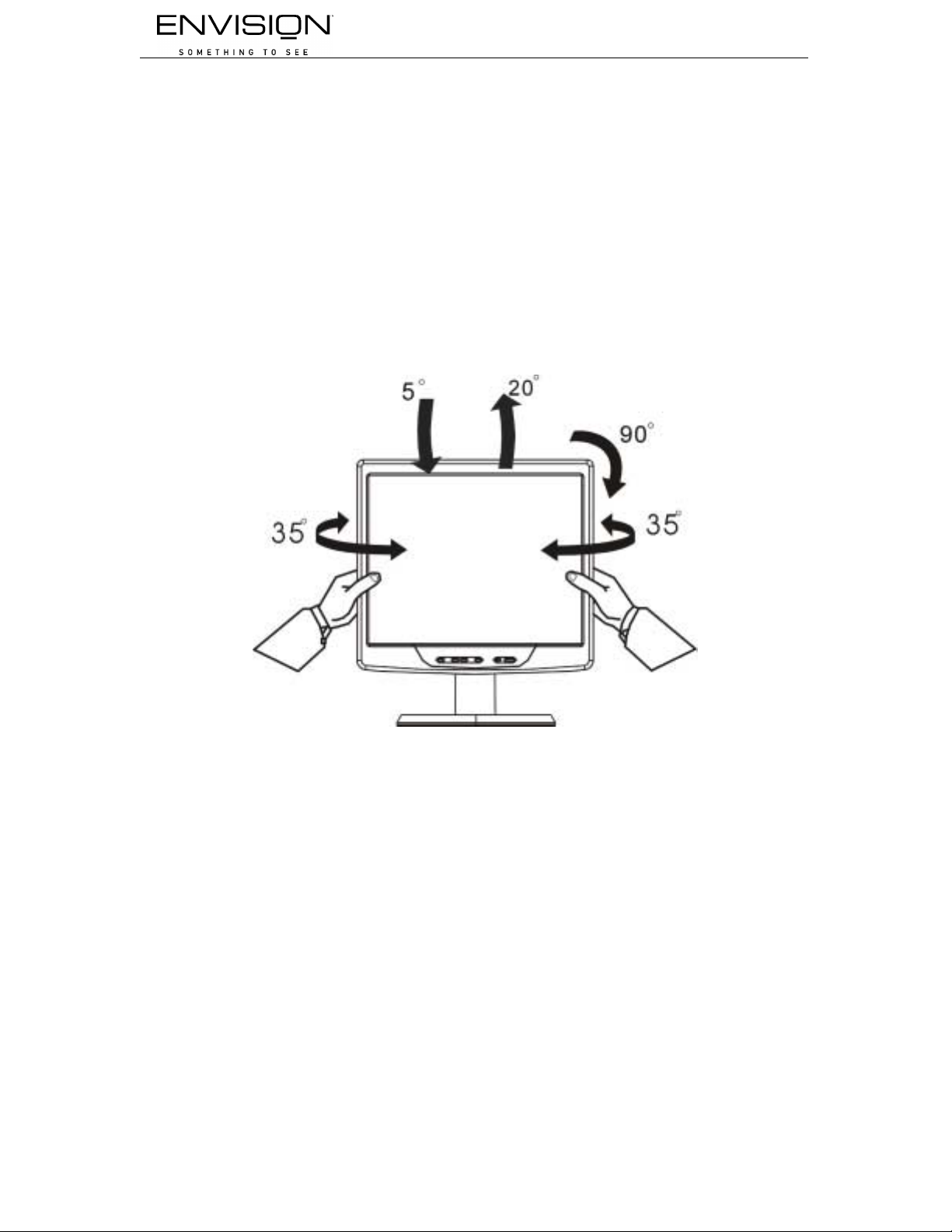

Height, Tilt, Pivot & Swivel Adjus tme nt
Your monitor features a multi-adjustable stand that will enable it move 110mm up/down (height adjustment), 25 degree forward/backward (tilt adjustment), 90 degree landscape/portrait (pivot adjustment) and 70 degree side/side (swivel adjustment). To make an adjustment, grasp the monitor with both hands on the right and left edge of the casing and move it to the desired position.
NOTES
Do not touch the LCD s creen when making the adjustments above. It may
cause damage or break the LCD screen.
Do not touch the s peaker module when making the adjustments above. It
may cause damage to the speaker module.
Careful attention is required not to catch your fingers or hands when
making the adjustments above.
In order to use the Pivot function, the included Pivot Software must be
instal led. Ru n D:\PIV OT\START_PIV OT.EXE, where D is the dri ver let ter for your CD ROM Drive.
Figure 3
11
INSTALLATION INSTRUCTIONS (cont)
Preparing To Instal l The Optiona l Wall Mount Arm (Not Included)
EN7220
This monitor can be attached to a wall mounting arm you can purchase separately. Turn the power OFF then dis-connect the cables from the monitor before performing the procedure below. Lay the monitor face down on a soft surface.
1. Remove the two rubber screw covers.
2. Remove the 2 screws that hold the plastic hinge cover.
3. Remove the plastic hinge cover.
4. Remove the small plastic cover. It is attached to the back of the monitor
by hooks.
5. Remove the large plastic cover. It is attached to the back of the monitor
by hooks.
6. Remove the 4 screws holding the stand to the back of the monitor.
7. Remove the stand.
12
EN7220
INSTALLATION INSTRUCTIONS (cont)

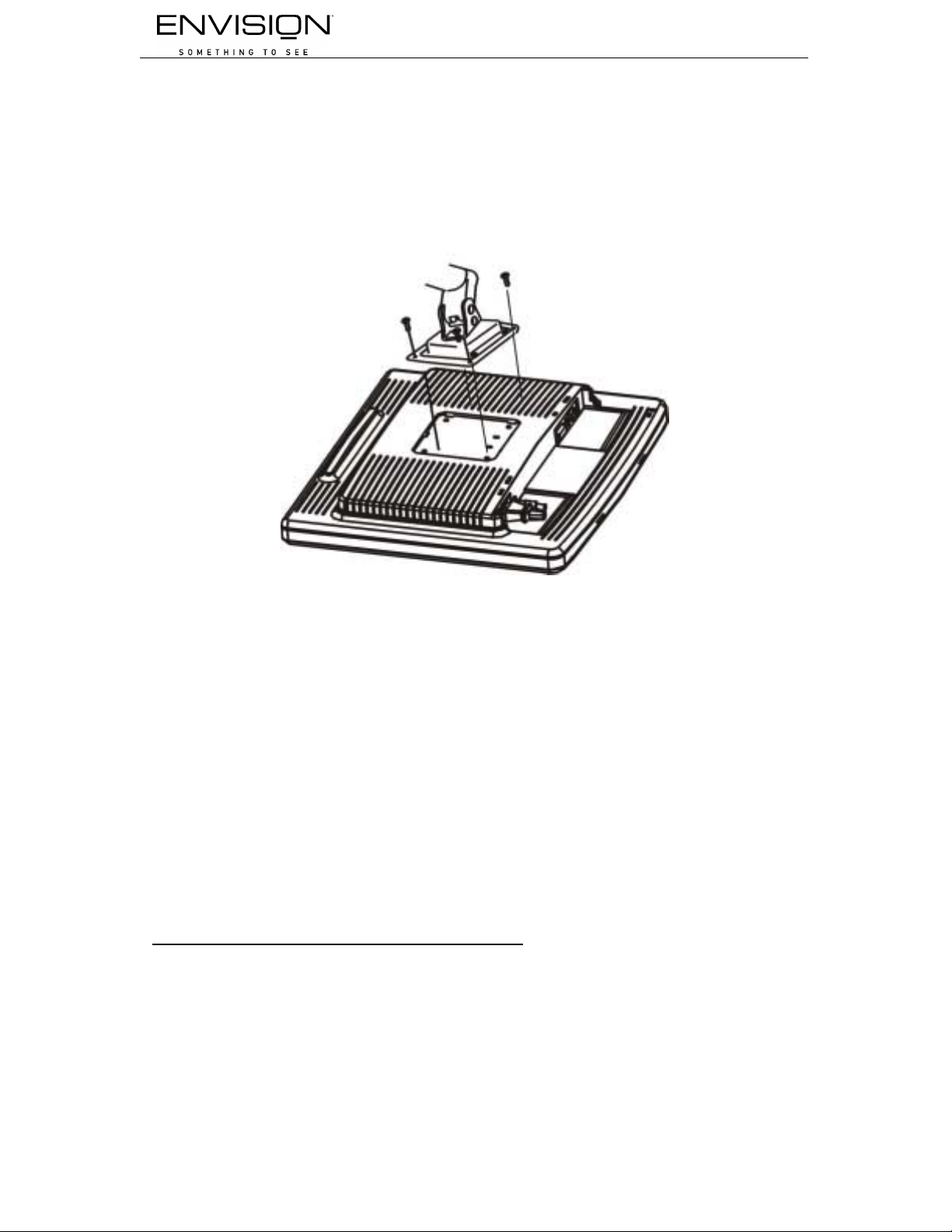

Attaching The Optional Wall Mount Arm (not supplied)
Follow these steps to finish installing the wall mounting arm:
1. Place the wall mounting arm onto the back of the monitor. Line up the holes of the arm with the holes in the back of the monitor.
2. Insert the 4 screws into the holes and tighten.
3. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting arm for instrucstions on attaching it to the wall.
NOTE
The Envision EN7220 is in compliance with the most current revision of the VESA 75mm Flat Panel Monitor Physical Mounting Interface (FPMPMI standard). Visit our Monitor Accessories website at www.ENVISONdisplay.com/accessories.html solution suitable for your needs.
to purchase a wall mount
13
OPERATING INSTRUCTIONS
EXTERNAL CONTROLS
EN7220
EXTERNA L CONTROLS
Figure 4 - External Controls
1. Power Button 4. > or Contrast Button
2. LED 5. < or Brightness Button
3. MENU / ENTER Button 6. Auto Adjust / Exit Button
Power Button:
Press this button to turn the monitor ON or OFF.
MENU / ENTER:
This button will activate the OSD menu when OSD is OFF or activate/de-activate an adjustment function when OSD is ON or Exit OSD menu when in brightness or contrast Adjust OSD status.
</Brightness: This button will activate the brightness control when the OSD is OFF or navigate through adjustment icons when OSD is ON o r adjust a function when function is activated.
>/Contrast: This button will activa te the contrast c ontrol when the OSD is OFF or navigate through adjustment icons when OSD is ON or adjus t a function when function is activated.
14
OPERATING INSTRUCTIONS (cont)
EN7220
Auto Adjust button / Exit:
1. When OSD menu is in active status, this button will act as EXIT-KEY
(EXIT OSD menu) or go back to the previous menu.
2. W hen OSD menu is in off status, press this button for 2 seconds to
activate the Auto Adjustment function. The Auto Adjustment function is used to set the HPos, VPos, Clock and Focus.
Power Indicator:
Green — Power On mode. Orange — Off mode.
Osd-Lock Function:
To lock the OSD, press and hold the MENU button while the monitor is off and then press power button to turn the monitor on.
To un-lock the OSD - press and hold the MENU is off and then press power button to turn the monitor on.
button while the monitor
15
OPERATING INSTRUCTIONS (cont)
How To Adjust A Setting
1. Press the MENU-button to activate the OSD window (Figure 4).
<
or
2. Press
function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press
through the sub-menu functions. Once the desired function is highlighted, press MENU-button to activate it.
3. Press
4. To exit and save, select the exit function. If you want to adjust any other
function, repeat steps 2-3.
<
>
or > to change the settings of the selected function.
to navigate through the functions. Once the desired
<
or
>
again to navigate
EN7220
Figure 4 The OSD Message
16
OPERATING INSTRUCTIONS (cont)
The descriptions for function control LEDS
Main
Menu
Item
Lumina
nce
Setup
Position
Color
Temp.
Main
Menu
Icon
Sub Menu
Item
Contrast
Brightness
Focus
Clock
H. Position
V. Position
Warm N/A Recall Warm
Cool N/A Recall Cool Colo r
User / Red
User / Green
User / Blue
Sub
Menu
Icon
Contrast from Digital-register.
Backlight Adjustment
Adjust Pi cture Phase to reduce Horizontal-Line noise Adjust picture Clock to reduce Vertical-Line noise. Adjust the horizontal position of the picture. Adjust the verticalposition of the picture.
Color Temperature from EEPROM.
Temperature from EEPROM. Red Gain from Digital-register.
Green Gain Digital-register.
Blue Gain from Digital-register.
Description
EN7220
Reset Value
Recall Cool Contrast Value
Recall Cool Brightness Value
Do Auto Config
Do Auto Config
Do Auto Config
Do Auto Config
The Color Temperature will be set to Cool.
The User R/G/B value(default is
100) will not be Modified by Reset function.
17
OPERATING INSTRUCTIONS (cont)
Main
Menu Item
Auto
Config
OSD
Setup
Main
Menu
Icon
Sub
Menu
Item
Yes
No N/A Do not execute
H. Position
Sub
Menu
Icon
N/A Auto Adjust the
H/V Position, Focus and Clock of picture.
Auto Config, return to main menu. Adjust the horizontal position of the OSD.
Description
EN7220
Reset Value
N/A
N/A
50
Language
V. Position
OSD Timeout
English N/A Set OSD display
Deutsch N/A Set OSD display
Français N/A Set OSD display
Español N/A Set OSD display
Italiano N/A Set OSD display
亞󰪠խ֮
N/A Se t OSD display
Adjust the verticalposition of the OSD. Adjust the OSD timeout.
language to English.
language to German.
language to French.
language to Spain.
language to Italian.
language to Simplified Chinese.
50
10
The Language will be set to English.
18
EN7220
OPERATING INSTRUCTIONS (cont)
Main
Menu
Item
Informati
on
Reset Yes N/A Clear each old
No N/A Do not execute
Exit N/A N/A Exit OSD N/A
Main
Menu
Icon
Sub Menu
Item
Informati on
Sub
Menu
Icon
N/A Show the
Description
resolution, H/V frequency and input port of current iput timing.
status of Auto­configuration and set the color temperature to Cool.
reset, return to main menu.
Reset Value
N/A
N/A
N/A
19
EN7220
TECHNICAL SUPPORT (FAQ)
Problem & Question Possible Solution Power LED is not on *Check if the Power Switch is in the ON
position
*Power Cord should be connected
No Plug & Play *Check if the PC system is Plug & Play
compatible
*Check if the Video Card is Plug & Play
compatible
*Check if the D-15 plug pin of Video
Cable is bent
Picture is fuzzy *Adjust the Contrast and Brightness
Controls. Picture bounces or a wave pattern is present in the picture The power LED is ON (orange) but there’s no video or no picture.
Missing one of the primary colors (RED, GREEN, or BLUE) Screen image is not centered
or sized properly. Picture has color defects (white does not look white) Horizontal or vertical disturbances on the screen
*Move electrical devices that may cause
electrical interference.
*Computer Power Switch should be in
the ON position.
*Computer Video Card should be snugly
seated in its slot
*Make sure monitor’s video cable is
properly connected to the computer.
*Inspect monitor’s video cable and make
sure none of the pins are bent.
*Make sure computer is operational by
hitting the CAPS LOCK key on the
keyboard while observing the CAPS
LOCK LED. The LED should either
turn ON or OFF after hitting the CAPS
LOCK key.
*Inspect the monitor’s video cable and
make sure that none of the pins are
bent.
*Adjust pixel frequency (CLOCK) and
FOCUS or press hot-key (AUTO)
*Adjust RGB color or select color
temperature
*Use win 95/98 shut-down mode Adjust
CLOCK and FOCUS or perform hot-
key (AUTO-key).
20
EN7220
TECHNICAL SUPPORT (FAQ) (cont)
CLOCK (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture has not correct width.
FOCUS adjusts the phase of the pixel clock signal. With a wrong phase adjustment the picture has horizontal disturbances in light picture.
For FOCUS and CLOCK adjustment use “dot-pattern” or win 95/98 shut-down mode pattern.
ERROR MESSAGE & POSSIBL E SOLUTION
CABLE NOT CONNECTED :
1. Check that the signal-cable is properly connected , If the connector is loose, tighten the connector’s screws.
2. Check the signal -cable connection pins for damage.
INPUT NOT SUPPORT :
Your computer has been set to unsuitable display mode. Set the computer
to a display mode given in the Preset Display Modes table.
21
EN7220
APPENDIX
SPECIFICATIONS
LCD Panel Size 43.2cm(17.0") Pixel pitch 0.264mm( H )x 0.264mm( V ) Viewable angle
Response time 16 ms Video R,G,B Analog Interface H-Frequency 30KHz – 83KHz V-Frequency 55-75Hz Display Colors 16.2M Colors Dot Clock 135MHz Max. Resolution 1280 x 1024 @75Hz Plug & Play VESA DDC1/2B
EPA E
NERGY STAR
Input Connector D-Sub 15pin Input Video Signal Analog:0.7Vp-p(standard),
Maximum Screen Size Horizontal : 337.92mm Power Source 100~240VAC,47~63HZ
Environmental Considerations
Dimensions 381(W)×391(H)×230(D)mm We ight (N. W.) 5.9kg Unit (net)
Driving system TFT Color LCD
140° (H) 130° (V)
TM
®
ON Mode OFF Mode
İ
45W
İ
3W
75 OHM, Positive Vertical : 270.34mm
Operating Temp: 5° to 35°C
Storage Temp.: -20° to 60°C Operating Humidity: 10% to 85%
22
APP ENDIX (cont)
Switch
Auto Adjust Key
• </Brightness
>
/ Contrast
Power Button
MENU/ Exit
External Controls: Functions
Power Consumption ( Maximum ) 45 Watts Regulatory Compliance FCC, TÜV/GS, CE, UL,
Contrast
Brightness
Focus
Clock
H.Position
V.Position
Language
(Warm) Color
(Cool)Color
RGB Color temperature
Reset
OSD position, OSD timeout
Display information
Exit
ISO13406-2 Class II
EN7220
23
APP ENDIX (cont)
Preset Display Modes
STANDARD
VGA
VESA
SVGA
XGA
RESOLUTION
640 × 480 31.469 59.940
640 × 480 37.500 75.000 800 × 600 37.879 60.317 800 × 600 46.875 75.000
1024 × 768 48.363 60.004 1024 × 768 56.476 70.069
1024 x 768 60.023 75.029
HORIZONTAL
FREQUENCY(KHZ)
EN7220
VERTICAL
FREQUENCY(HZ)
SXGA
IBM DOS
XGA
MAC
1280 × 1024 64.00 60.000 1280 × 1024 80.00 75.000
720 x 400 31.469 70.087
1024 x 768 48.780 60.001
1024 × 768 60.241 74.927
24
APP ENDIX (cont)
Connector Pin Assignment
15 6
11 15
15 - Pin Color Display Signal Cable
PIN NO.
1. Red 9. +5V
2. Green 10. Logic Ground
3. Blue 11. Monitor Ground
4. Monitor Ground 12. DDC-Serial Data
5. DDC-return 13. H-Sync
6. R-Ground 14. V-Sync
7. G-Ground 15. DDC-Serial Clock
8. B-Ground
DESCRIPTION
PI N NO.
EN7220
10
DESCRIPTION
25
Loading...
