Envision Peripherals EN-5200e-ei User Manual

EN-5200e/ei

EN-5200e/ei

15 inch TFT LCD Monitor

User’s
Manual

by Envision Peripherals, Inc.
www.ENVISIONmonitor.com

EN-5200e/ei

Before operating your monitor, please read this
manual thoroughly.

1

29JUL02

For Your Safety

EN-5200e/ei

FCC Statement

This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy, and if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determin ed by tur ning t he
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment
and receiver.

3. Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.

4. Consult the dealer or an experienced radio/TV
technician for help.

Notice

1. The changes or modifications not expressly
approved by the party responsible for
compliance could void the user's authority to
operate the equipment.

2. Shielded interface cables and AC power cord, if
any, must be used in order to comply with the
emission limits.

3. The manufacturer is not responsible for any
radio or TV interference caused by unauthorized
modification to this equipment. It is the
responsibility of the user to correct such
interference.

As an ENERGY STAR
Peripherals, Inc. has determined that this product

meets the ENERGY STAR
efficiency.

®

Partner, Envision

®

guidelines for energy

Warning

To prevent fire or shock hazard, do not expose the
monitor to rain or moisture. Dangerously high
voltage is present inside the monitor. Do not open
the cabinet. Refer servicing to qualified personnel
only.

EN-5200e/ei

2

29JUL02

For Your Safety

EN-5200e/ei

Precautions

• Do not use the monitor near water, e.g. near a
bathtub, washbowl, kitchen sink, laundry tub,
swimming pool or in a wet basement.

• Do not place the monitor on an unstable cart,
stand, or table. If the monitor falls, it can injure a
person and cause serious damage to the
appliance. Use only a cart or stand
recommended by the manufacturer or sold with
the monitor. If you mount the monitor on a wall
or shelf, use a mounting kit approved by the
manufacturer and follow the kit instructions.

• Slots and openings in the back and bottom of
the cabinet are provided for ventilation. To
ensure reliable operation of the monitor and to
protect it from overheating, be sure these
openings are not blocked or covered. Do not
place the monitor on a bed, sofa, rug, or similar
surface. Do not pla ce t he m oni tor ne ar or ov er a
radiator or heat register. Do not place the
monitor in a bookcase or cabinet unless proper
ventilation is provided.

• The monitor should be operated only with the
type of power source indicated on the label. If
you are not sure of the type of power supplied to
your home, consult your dealer or local power
company.

• For use only with the included power adapter
(Output 12Vdc) which have UL, CSA listed
license (EN-5200e)

• The monitor is equipped with a three-pronged
grounded plug, a plug with a third (grounding)
pin. As a safety feature, this plug will only fit into
a grounded power outlet. If your outlet does not
accommodate the three-wire plug, have an
electrician install the correct outlet, or use an
adapter to ground the appliance safely. Do not
defeat the safety purpose of the grounded plug.

• Unplug the unit during a lightning storm or when
it will not be used for long periods of time.
This will protect the monitor from damage due to
power surges.

• Do not overload power strips and extension
cords. Overloading can result in fire or electric
shock.

• Never push any object into the slot on the
monitor cabinet. It could short circuit parts
causing a fire or electric shock. Never spill
liquids on the monitor.

• Do not attempt to service the monitor yourself;
opening or removing covers can expose you to
dangerous voltage and other hazards. Please
refer all servicing to qualified service personnel.

• To ensure satisfactory operation, use the
monitor only with UL-listed computers which
have appropriately configured receptacles
marked between 100 - 240 V AC, Min. 3.5A.

• The wall socket should be installed near the
equipment and should be easily accessible.

EN-5200e/ei

3

29JUL02

For Your Safety

EN-5200e/ei

Special Notes on LCD Monitors

The following symptoms are normal with an LCD
monitor and do not indicate a problem:

• Due to the nature of the fluorescent light, the
screen may flicker during initial use. Turn off the
Power Switch and then turn it on again to make
sure the flicker disappears.

• You may find slightly uneven brightness on the
screen depending on the desktop pattern you
use.

• The LCD screen has effective pixels of 99.99%
or more. It may include blemishes of 0.01% or
less such as a missing pixel or a pixel lit all of
the time.

• Due to the nature of the LCD screen, an after­image of the previous screen may remain after
switching from an image that has been
displayed for hours. This after-image could
require several hours to disappear.

• The life of the fluorescent light used in the LCD
monitor is approximately 20,000 hours. Contact
your dealer or EPI service center for
replacement when the screen is dark, flickering
or not lighting up. Never attempt to replace it by
yourself.

General Notes

• Do not install the monitor near heat sources
such as radiators or air ducts.

• Do not place monitor in direct sunlight or in
areas with excessive dust, mechanical vibration
or shock.

• Save the original shipping carton and packing
materials in case you n eed to sh ip your moni tor.
Be sure to repackage your monitor as it was
originally packed at the factory.

• Periodically clean your monitor with a soft cloth.
Stubborn stains may be removed with a cloth
lightly dampened with a mild detergent solution.

Never use strong solvents such as thinners,
benzene, or abrasive cleaners, since these
will damage the cabinet. Always unplug the

monitor before cleaning it.

Using the Right Power Cord

The supplied power cord is a NEMA 5-15 style
plug. It is UL-listed and CSA labeled for
125 volts AC.

If the monitor will be connected to your computer’s
power outlet, use a minimum No. 18 AWG, type
SJT or SVT three conductors cord with one end
terminating with a male grounded plug, rated 10A,
250V, CEE-22. The other end must terminate with
a molded-on type connector body, rated 10A,
250V, having standard CEE-22 female
configuration.

EN-5200e/ei

4

29JUL02

Before You Operate the Monitor

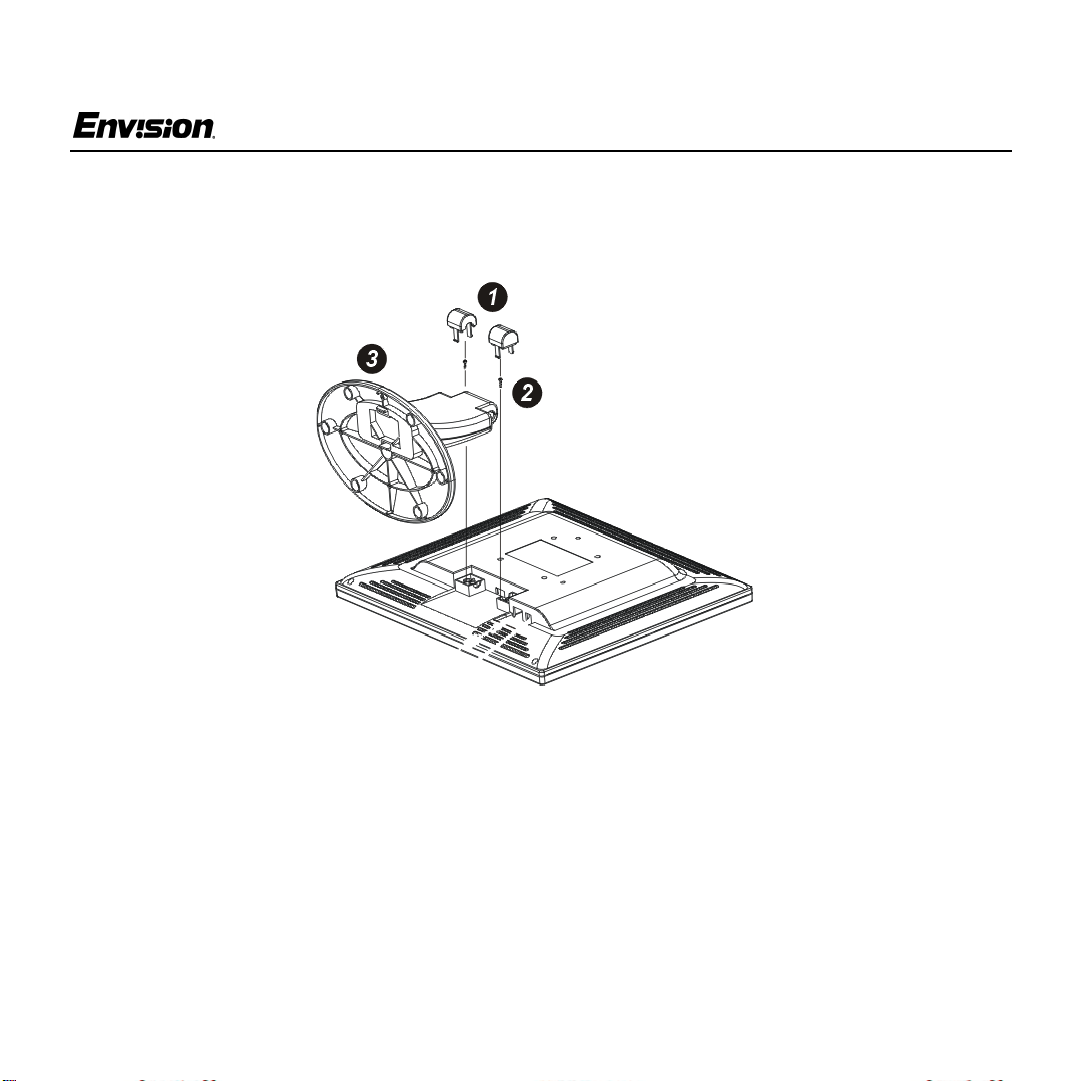

Installing & Removing the Base

EN-5200e/ei

General Features:

• 38.1cm(15") TFT Color LCD Monitor

• Crisp, Clear Display for Windows

• Supports Resolutions up to 1024 X 768 pixels
@75Hz, (1024 x 768 @ 60Hz Recommended)

• EPA ENERGY STAR

• Ergonomic Design

• Space Saving, Compact Case Design

EN-5200e/ei

®

Package Contents

The box that your monitor was shipped in should
have included the following items:

1. EN-5200e/ei LCD Monitor

2. Power Cord

3. Windows 95/98/2000/ME/XP INF Driver Disk

4. Quick Start Guide

5. Booklet (Containing Warranty & Safety
Information)

5

29JUL02

Before You Operate the Monitor

EN-5200e/ei

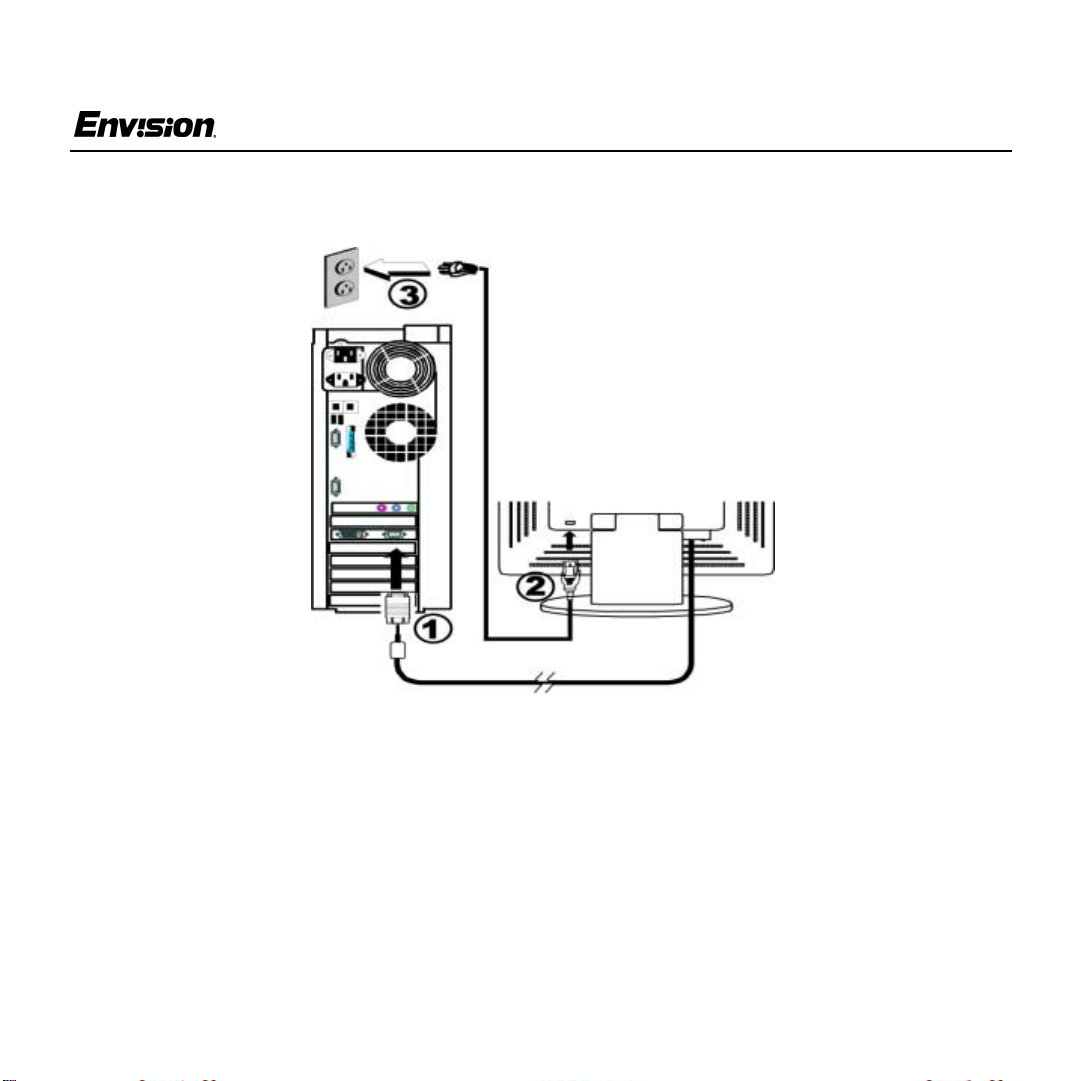

Connecting the Wires Using the Power Cord Supplied (EN-5200e)

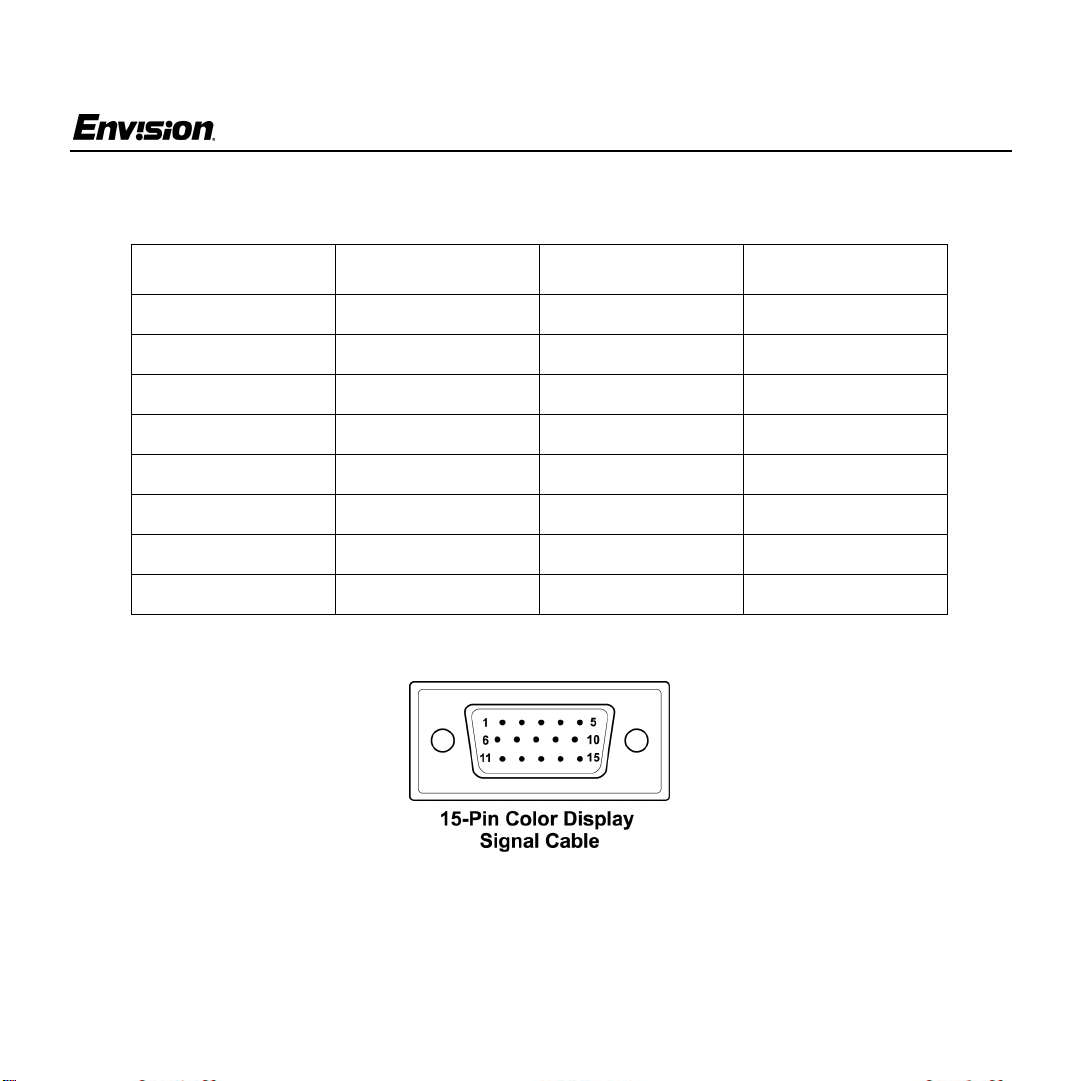

1. Connect the built-in video cable into the 15-pin
connector on the back of your computer and
tighten the two screws.

2. Connect the power cord into your LCD monitor's
Power Adapter.

3. Connect the Power Adapter to your monitor.

4. Plug the other end of the power cord into a
grounded AC outlet or UL-approved power strip.

EN-5200e/ei

Caution: Make sure the power cord is t he correct
type that is required in your area. This LCD
monitor has a universal power supply that allows
operation in either 100/120V AC or 220/240V AC
voltage areas (no user adjustment is required).

If the AC outlet is not grounded (with three
holes), install the proper grounding adapter (not
supplied).

6

29JUL02
