You are about to install a product that is designed to outlast the life-cycle of the building. Once installed
the unit will operate continuously for 7 years and beyond without a major service. Please therefore ensure
that this product is treated with care and installed properly i.e. for the life of the building. If the unit is
mishandled you might break it! This invalidates the warranty.
And remember, if you have any problems please call our dedicated Technical Team. We are always
pleased to help and in an emergency will come out to site quickly, completely free of charge.
Wiring the fan correctly...
2
3
1
The connection into the fan MUST be a exible
cable and NOT solid core twin and earth, if the fan
is mishandled or a solid core twin and earth cable
is forced into the terminals you WILL break it, this
will invalidate the warranty.
If it is necessary to use twin and earth you must
not take it into the fan. Use a terminal block to
make the connection between the exible cable
supplied with the fan and your solid core twin and
earth cable.
Place the cables inside the void in the back of the
back carcass next to the cable gland and secure
the fan to the wall securely.
Due to our policy of continuous innovation and improvement EnviroVent reserves the right to alter products
specication and appearance without notice.
IMPORTANT: The black grommets and sticky pad
provided must be tted in this unit. Not using these
items will jeopardise both the IP rating and the
warranty.
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
07540 050 147
FILTERLESS INFINITY FAN
This fan is designed for easy cleaning and long life.
Keep this user guide handy. The fan has been set by the
installation engineer to suit your kitchen or bathroom
application. Your EnviroVent Filterless Innity Fan
has been designed to improve air quality and reduce
humidity levels in kitchens and bathrooms to help
resolve the condensation and mould problems which
can eect dwellings in winter.
HOW IT WORKS
The Filterless Innity Fan works in a constant trickle
mode to create background ventilation to maintain a
healthy environment.
Vapour tracking
As standard the unit is tted with vapour tracking
(except for 2 speed models, see below). The fan senses
the amount of moisture being created in the room
which causes the fan to increase in speed to match
the rising humidity and reduce in speed to match falling
humidity. This intelligent function reduces your energy
costs, wear and tear on the motor and ensures a long
quiet life.
Pullcord
All units are tted with a pullcord override for odour
control (if remote see below). In the event that you
wish to activate the fan to full power in conditions of
low humidity simply pull on the pullcord and the fan will
boost to maximum extraction rate.
OPTIONS
Remote control
Remote control override for odour control. In the
event that you wish to activate the fan to full power
in conditions of low humidity simply press the remote
control boost switch and the fan will boost to the
maximum extraction rate for 3 to 4 minutes before
returning to the trickle extract rate.
N.B: When battery requires changing, unscrew the
switch front cover. The battery is located on the back
of the cover (CR2032) lithium coin battery). Switch
will remain paired with the fan even after battery
replacement.
2 Speed Version
The unit is also available in a two speed conguration,
without vapour tracking. These units run at a constant
trickle or at boost speed as required by the user.
Remote Switch Wire
The unit is available with a remote switch wire. On these
units the boost switch may be located up to 3 meters
away from the unit.
ENERGY USE
The EnviroVent Filterless Innity Fan uses award-
winning Ultra Low Watt motor technology to give the
lowest running costs of any domestic extract fan.
It uses only a minimal amount of electricity whilst
eliminating stale and moist air from the home.
This gives an annual running cost of only £1.97 based
on an electricity cost of £0.15 per unit (kWh) and a two
hour ‘boost’ per day. In addition, the Filterless Innity
Fan is guaranteed for 5 years and has no maintenance
requirement during this period saving both time and
money for the user.
Setting
Background
Trickle
Bathroom
on boost
Kitchen
on boost
Watts 1 7 26
Hours run
per day
22 2 2
Energy cost
p/a (£)
1.20 0.77 2.85
Total cost
p/a (£)
1.97 1.97 4.05
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
07540 050 147
FILTERLESS INFINITY FAN
IMPORTANT
Be sure to have read and understood these
instructions before beginning the installation
process.
SAFETY AND RECOMMENDATIONS
All wiring must comply with Building Regulations
and the current IEE Wiring Regulations 17th edition
(BS7671) or the equivalent standards for your
country. The nal installation should be examined
and tested by a qualied electrician.
DO NOT WIRE THROUGH A LIGHT SWITCH
• This is a constant trickle fan which requires
permanent electrical supply.
DO NOT REMOVE OR TAMPER WITH ELECTRONIC
CIRCUIT BOARD
• This is not a user function.
INSTALLATION INSTRUCTIONS

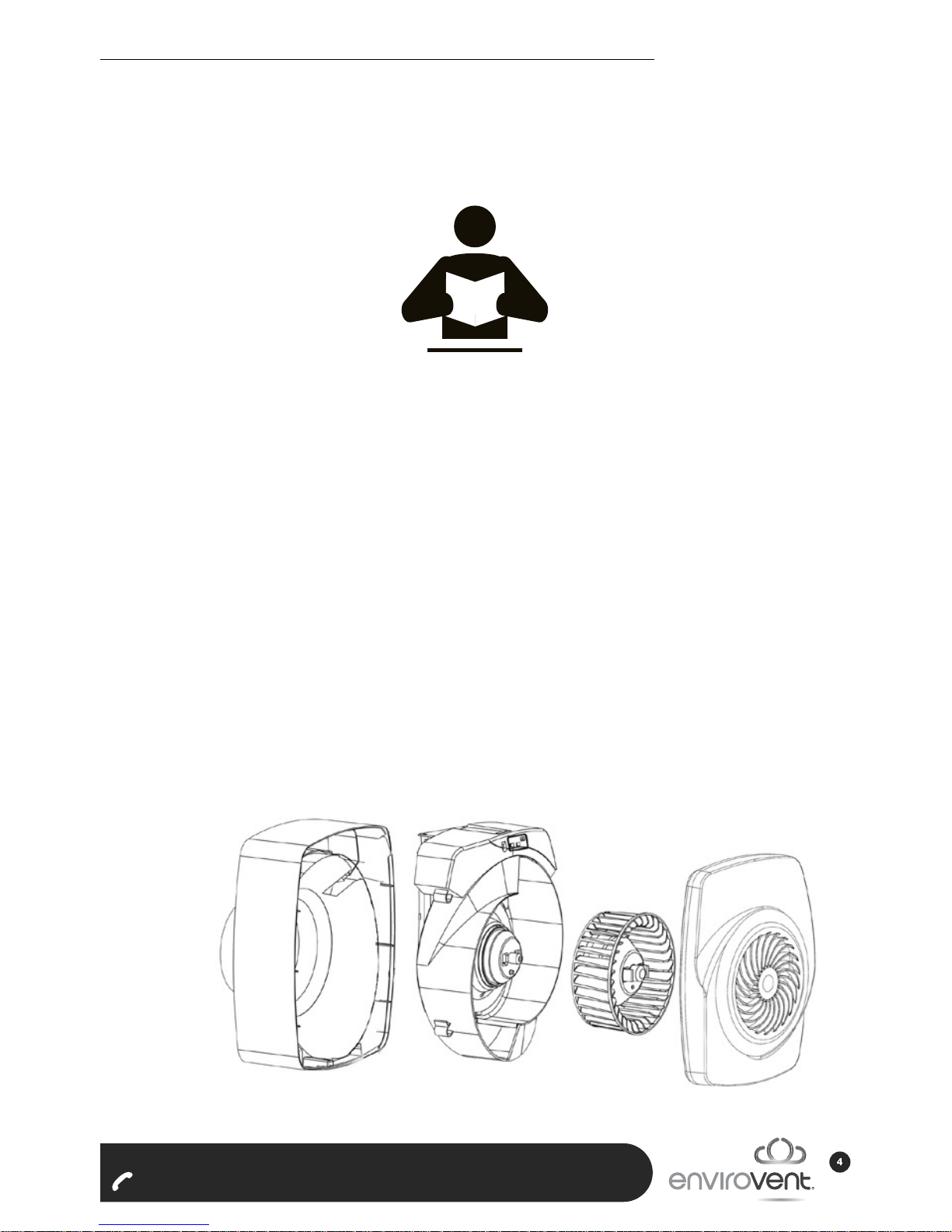

FILTERLESS INFINITY FAN COMPONENTS
Central cartridge
Back Carcass
(Permanent xture
- DO NOT REMOVE
ONCE INSTALLED)
Impeller
Front cover
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
07540 050 147
FILTERLESS INFINITY FAN
INSTALLATION INSTRUCTIONS

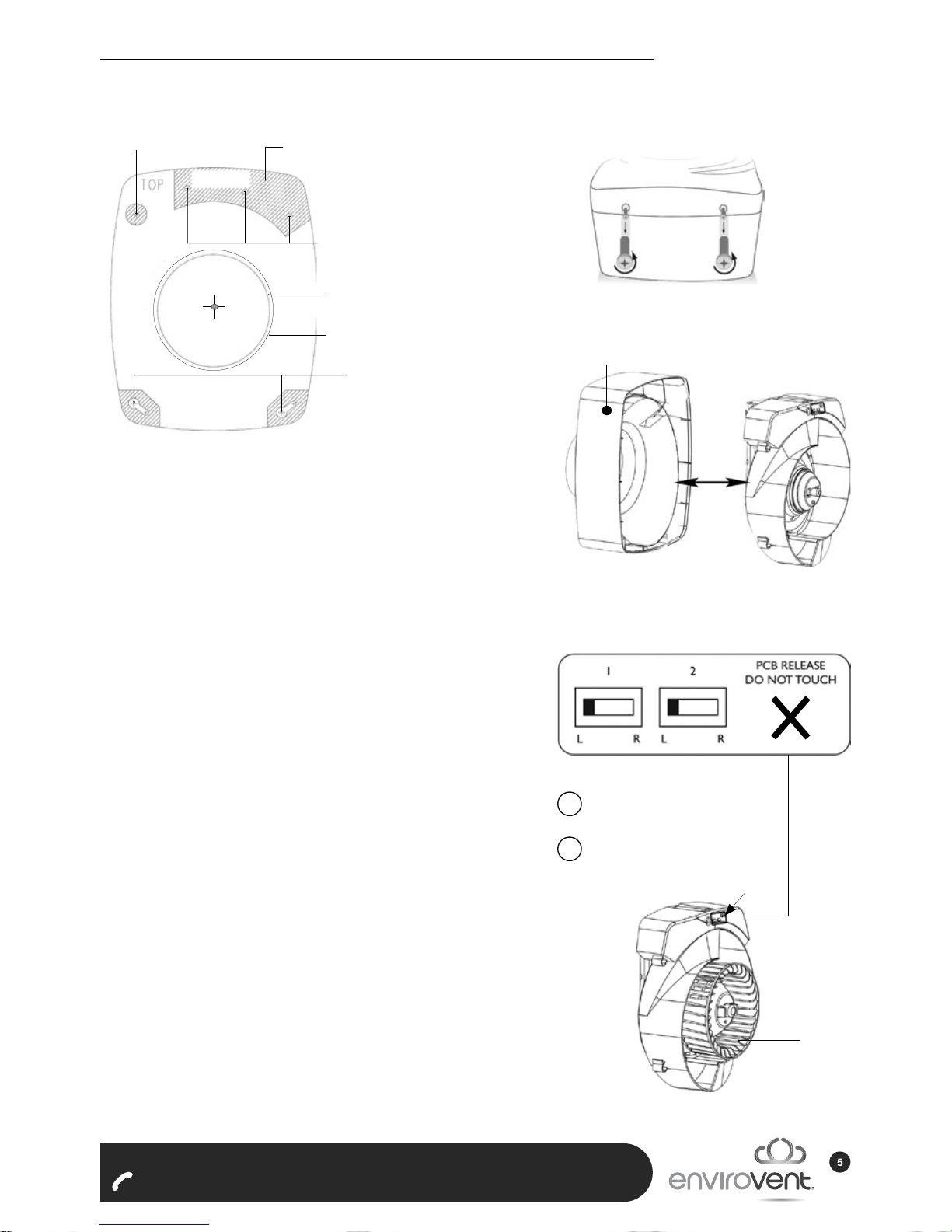

Fig.3
Fig.2
Fig.1
1. Loosen the two plastic screws and remove
front cover. (Fig 1.)
2. Carefully withdraw central cartridge from
the carcass. Disconnect green male/female
connector. (Fig 2.)
3. This fan must be installed by a competent
person. Complete electrical wiring of fan and
tighten cable gland.
4. Oer up the central cartridge, join green male/
female connector (230V) and carefully insert
the central cartridge into back carcass.
5. Insert four silver screws to x central cartridge
in place. N.B. Take care not to trap cables.
6. Please note that a suitable isolation switch or
fuse spur rated at 3amp should be used in the
xed wiring.
7. This fan is factory set to kitchen duty with
humidity tracking function. If two speed or
bathroom option is required, commission the
fan by setting the slider switch as appropriate.
Fix supplied gasket over selector switches
(Fig.3).
8. Check that the impeller is tted correctly -
ensure ‘click’ action engaged cleanly.
9. Fix front cover (Fig.1). Ensure that the pullcord
nestles into groove. N.B. Fan will not operate
unless front cover is in position.
10. This fan is factory set to kitchen duty with
humidity tracking function (Fig.3)
Alternative xings
100mm ducting (Ø106)
125mm ducting (Ø131)
Wall xings
NOT TO SCALE - FOR GENERAL INFORMATION ONLY
Cable gland
NO CABLES
Avoid cable entry
into shaded areas
Cable gland
Back carcass Central cartridge
SLIDER
230V
Impeller
Gasket
LEFT - HUMIDITY TRACKING
RIGHT - TWO SPEED
1
LEFT - KITCHEN
RIGHT - BATHROOM
2
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
07540 050 147
FILTERLESS INFINITY FAN
MAINTENANCE
ISOLATE THE UNIT FROM ELECTRICAL MAINS SUPPLY BEFORE REMOVING ANY
COVER, OR SERVICING THE UNIT.
All repair, maintenance and component replacement is carried out simply and quickly by exchanging
the plug out/plug in central cartridge.
The worn out cartridge can then be returned to the EnviroVent factory to be recycled/reworked.
This ‘when necessary’ cartridge exchange – with re-worked components will ensure that the basic
fan installation will remain intact throughout the repair cycle of the dwelling, eliminating the wasteful
disposal of plastic and other non biodegradable material to landll sites.
CLEANING
Your Filterless Innity Fan has been designed for easy safe cleaning.

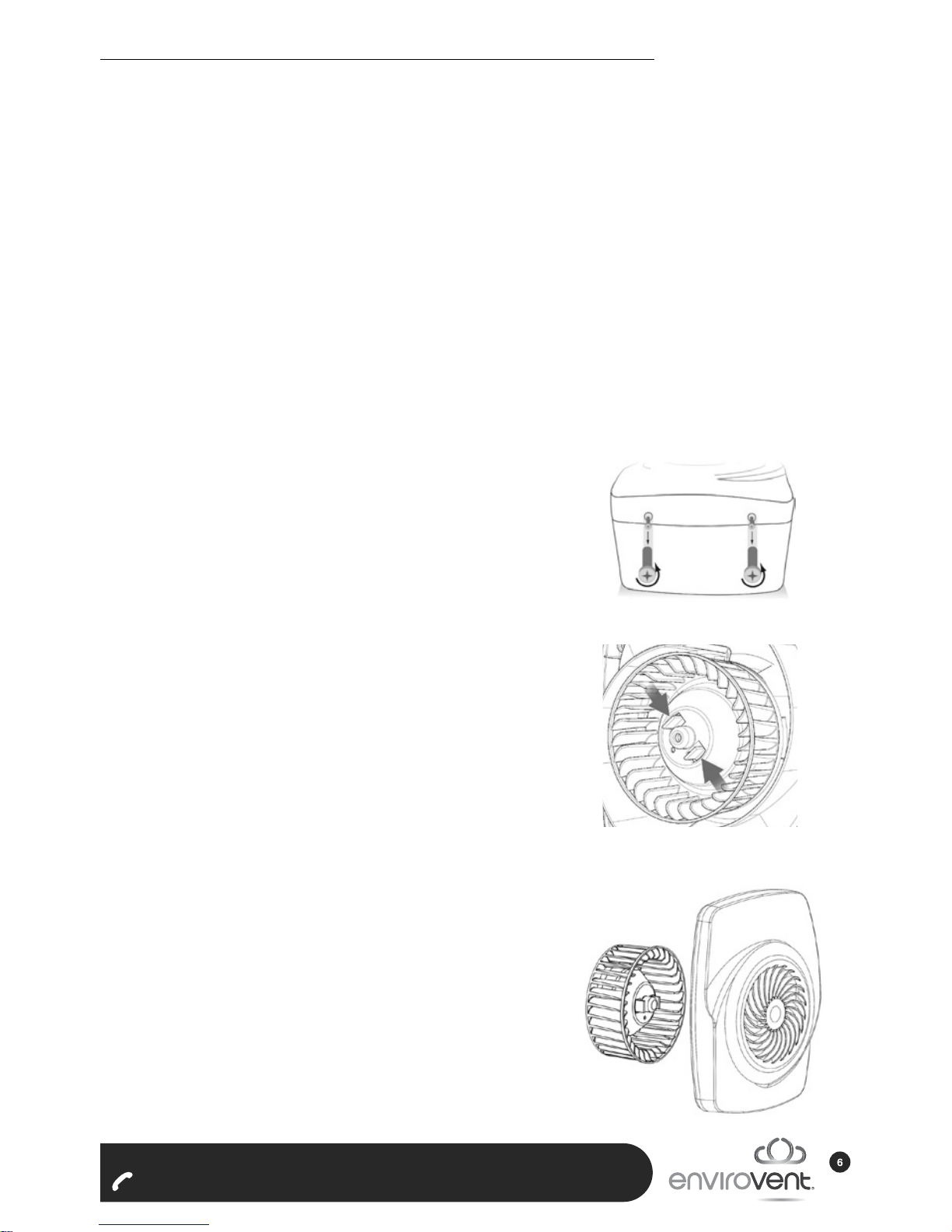

1. Isolate from mains.
2. Remove front cover. (Fig.1)
3. Pull the front cover towards you from the
bottom. It will pull towards you with a slight
hinge action from the top.
4. Push the impeller clips together with
forenger and thumb and pull the impeller
towards you. (Fig.2)
5. Wash the cover and impeller in warm soapy
water. Dry and replace as above in reverse.
(Fig.3)
6. N.B. Use damp, soapy cloth to clean scroll
(NO solvents).
Fig.3
Fig.2
Fig.1
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
07540 050 147
FILTERLESS INFINITY FAN
Gold Standard After Sales Service
In the unlikely event of any on-site installation problems or queries regarding the EnviroVent
Filterless Innity Fan, just call our hotline number. We will take your details and appoint a
regional installation manager to call you back to discuss the problem. In the majority of cases,
the problem can be resolved over the phone. However, in cases where the problem cannot
be resolved over the phone, we will arrange a visit from our Gold Standard Engineer. He will
meet with your contractor/direct labour on-site to discuss and resolve the problem, he will also
provide training and give advice on the installation of the fan.
Installer Hotline: 07540 050 147
AFTER SALES SERVICE
We recommend that you do not dismantle or remove any other parts than those mentioned, as any
tampering would automatically cancel the guarantee. If you detect any fault, please contact EnviroVent on
01423 810 810.
OTHER APPLICATIONS/VARIATIONS
For recessed only installations we can supply a bezel.
TROUBLESHOOTING
• Check feed/power supply
• Have you checked connections (green male/female connector)?
• Have you removed printed circuit board for any reason?
• Is the cartridge correctly seated (no stray wires trapped)?
• Does the impeller spin freely (check click)?
• Is the front cover in place?
• Does the pullcord activate freely?
• If you still experience diculties then please call our hotline on 07540 050 147
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
07540 050 147
FILTERLESS INFINITY FAN

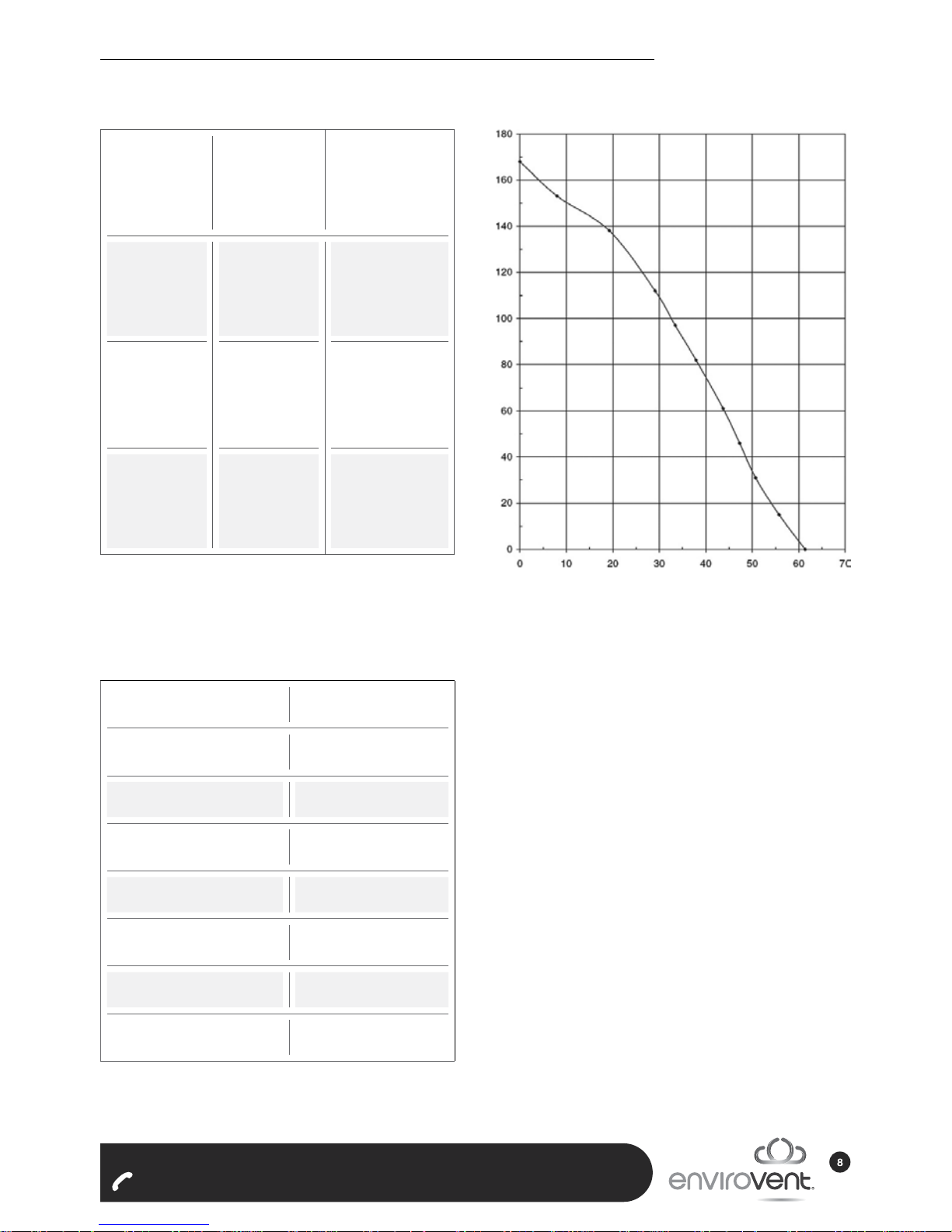

TECHNICAL SPECIFICATIONS
OPTIONS & ANCILLARIES
Duty (l/s) Power (W)
Sound dB(A)
@ 3M
15 2 30.8
35 7 36
60 25 46.2
Airow (l/s)
Description Code(s)
Remote Pullcord EFHTCM-RC
Remote Wall Switch EFHTCM-WS
Wall Mounted Kit 1RD EFWAK
Ceiling Mounted Kit 1AC EFCMBR
Window Fixing Kit (230V) EFWIK230V
Window Fixing Kit (SELV) EFWIK12V
In-line Fixing Kit EFIL-WIK
SHOULD YOU ENCOUNTER ANY PROBLEMS INSTALLING THIS UNIT CALL
07540 050 147
FILTERLESS INFINITY FAN
WARRANTY CONDITIONS AND EXCLUSIONS
The EnviroVent Filterless Innity Fan is covered by a full 7 year warranty which will benet the occupier
over many years. There is no requirement for any maintenance within the rst 7 year period.
What should I do if I have a problem?
If, after thoroughly reading this booklet, you feel that your Filterless Innity Fan unit is not working
correctly, you can telephone 07540 050 147 (operational from 8:00am to 5:00pm Monday to Friday), and
ask for technical assistance. You will either be given guidance over the telephone, or an arrangement
will be made for an engineer to visit. In any event, please have the following information ready. This will
enable your call to be dealt with quickly and eciently.
Please note that proof of purchase by the way of a receipt is required and that any fans bought from an
unapproved source, including but not limited to Ebay, will render the guarantee invalid.
Serial number of the unit
We appreciate you choosing this quality EnviroVent product, which is designed and manufactured to
the highest specication in Harrogate, North Yorkshire. We are condent that you will be delighted
with the performance of the system and the resulting improvement in air quality in your home after the
installation of the unit.
Your warranty covers any defect or break down that arises due to faulty materials or construction.
Terms of Warranty
• The system must be correctly installed and operated according to the instructions contained in the
user guide supplied.
• The warranty will be rendered invalid if the system has been serviced, maintained, repaired, taken
apart or tampered with by any person not authorised by EnviroVent Ltd.
• The warranty will be rendered invalid if the unit is turned o. Turning the unit o can damage it.
• The warranty does not cover accidental damage, misuse or abuse.
• The warranty is in addition to your statutory or legal rights.
• The guarantee will only be honoured from approved suppliers.
E&OE | MKT ENV275-V2-28.03.14
Due to our policy of continuous innovation and
improvement EnviroVent reserves the right to
alter products specication and appearance
without notice.
EnviroVent Ltd
EnviroVent House
Hornbeam Business Park
Harrogate
HG2 8PA
T 01423 810 810
F 01423 810 910
E info@envirovent.com
www.envirovent.com
AFTER INSTALLING THIS FAN PLEASE PASS ONTO END USER - DO NOT THROW AWAY
Please read carefully to ensure simple installation and a
long trouble free life for the user.
Loading...
