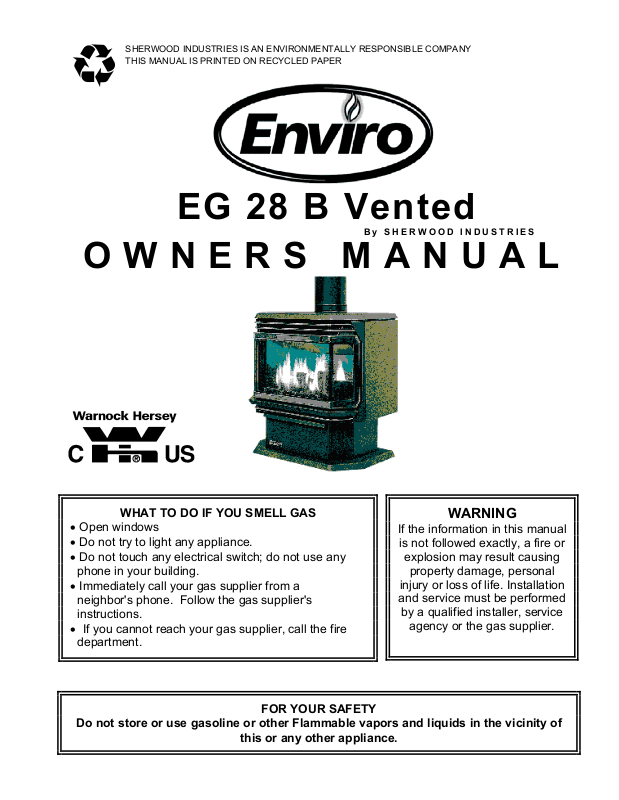

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY
THIS MANUAL IS PRINTED ON RECYCLED PAPER
EG 28 B Vented
By SHERWOOD INDUSTRIES
OWNERS MANUAL
WHAT TO DO IF YOU SMELL GAS
• Open windows
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a
neighbor's phone. Follow the gas supplier's
instructions.
• If you cannot reach your gas supplier, call the fire
If the information in this manual
is not followed exactly, a fire or
explosion may result causing
property damage, personal
injury or loss of life. Installation
and service must be performed
by a qualified installer, service
agency or the gas supplier.
WARNING
department.
FOR YOUR SAFETY
Do not store or use gasoline or other Flammable vapors and liquids in the vicinity of
this or any other appliance.
SAFETY PRECAUTIONS
FOR SAFE INSTALLATION AND OPERATIONOF YOUR "ENVIROGAS" STOVE, PLEASE,
CAREFULLY READ THE FOLLOWING INFORMATION:
GENERAL
• Installation and repair should be done by a
qualified service person. The appliance should
be inspected before use and at once least
annually by a qualified service person. More
frequent cleaning may be required due to
excessive lint from carpeting, bedding material,
etc. It is imperative that control compartments,
burners and circulating air passageways of the
appliance be kept clean.
• Due to high temperatures, the appliance
should be located out of high traffic areas and
away from furniture and draperies.
Children and adults should be alerted to
hazards of high surface temperatures and
should stay away to avoid burns or clothing
ignition.
• Young children should be carefully
supervised when they are in the same room as
the appliance.
• Clothing or other flammable material should
not be placed on or near the appliance.
• All "ENVIROGAS" gas-fired appliances must be
installed in accordance with these instructions.
Carefully read all the instructions in this manual first.
Consult the building authority having jurisdiction to
determine the need for a permit prior to commencing
the installation.
• NOTE Failure to follow these instructions could
cause a malfunction of the fireplace, which could
result in death, serious bodily injury, and/or property
damage.
• Failure to follow these instructions may also void
your fire insurance and/or warranty.
FOR YOUR SAFETY:
• Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
• Installation must conform to local codes or, in
the absence of local codes with the current CAN 1-B
149 installation code in Canada or the current
National Fuel Gas Code ANSI Z223.1 in the USA.
• To prevent injuries do not allow anyone who is
unfamiliar with the operation to use the stove.
•
Always keep the appliance area clear
and free of combustible materials, gasoline
and other flammable vapors and
• These appliances should not be used as a
drying rack for clothing or for hanging Christmas
stockings or decorations.
• Due to the paint curing on the stove a faint odor
and slight smoking will likely be noticed when the
stove is first used. Open a window until the slight
smoking stops. Always connect this gas stove to a
chimney and vent to the outside of the building
envelope. Never vent to another room or inside a
building. Make sure you use the vent pipe that is
specified. Make sure that the vent is properly sized
and is of adequate height to provide the proper draft.
Inspect the venting system annually for blockage
and any signs of deterioration.
liquids.
WARNING: Do not operate with
cracked or broken glass. Under no
circumstances should this appliance be
modified. Parts that have to be removed
for servicing must be replaced prior to
operating this appliance. Only parts
supplied by Envirogas should be used in
this appliance and replacement should
only be performed by a licensed or
qualified service person.
• Never use solid fuels such as wood, paper,
cardboard, coal, or any other flammable liquids etc.,
in this appliance.
• Do not use this heater if any part has been
under water. Immediately call a qualified service
technician to inspect the heater and to replace any
part of the control system and any gas control, which
has been under water.
• Do not abuse glass by striking or slamming door
shut.
2
TABLE OF CONTENTS
Safety Precautions 2
Code Approvals 3
Deciding where to locate your stove 4
Venting 6
Installation of Log Sets and Embers 8
Operating Instructions 9
Maintenance and Technical 10
Trouble Shooting 11
Gas Line Connection 12
Electrical 13
Parts and Accessories 14
Fuel Type Conversion 15
Warranty 16
Parts List 17
Exploded Views 18-19
Installation Data Sheet 20
CODE APPROVALS
• This Vented appliance draws all of its combustion air from the dwelling and must be vented using listed B or L
vent. May also be vented through a conventional chimney using a chimney liner kit.
This appliance have been tested by INTERTEK TESTING SERVICES (WH) and found to comply with the
established standards for a VENTED GAS FIREPLACE HEATER in CANADA and the USA as follows:-
LISTED GAS FIRED VENTED ROOM HEATER ( EG 28 BV. Nat. & LPG. )
TESTED TO: ANSI Z21.88-1998 CSA 2.33-M98 VENTED GAS FIREPLACE HEATER
CGA 2.17-M91 GAS FIRED APPLIANCES FOR USE AT HIGH ALTITUDE
SPECS:
ENVIROGAS EG 28 B VENT UNITS;
• have all been certified for use with either natural or propane gases. (see control panel and rating label.)
• are not for use with solid fuels.
• must not be connected to a chimney flue serving a separate solid-fuel burning appliance.
• are approved for bedroom or bedsitting room.
(IN CANADA: must be installed with a listed wall thermostat)
(IN USA: see current ANSI Z223.1 for installation instructions.)
• must be installed in accordance with local codes if any. If none exist, use current installation code CAN/CGA
b149 in Canada or ANSI Z223.1 / NFPA 54 in the USA.
• must be properly connected to an approved venting system.
• are approved for installation on combustible materials.
• are not approved for closet or recessed installations.
FOR INSTALLATIONS ABOVE 2000 FEET (610 m).
In Canada these appliances must have the input de-rated by 10% as per the gas code.
In the USA these appliances must have the inputs de-rated by 4% for every 1000 feet (305m) above sea level.
ASSEMBLY INSTRUCTIONS
Remove the packaging from the appliance, check to make sure there is no damage. If damage is found, PREPARATION FOR
INSTALLATION
• Please report it to both the carrier and your dealer as soon as possible.
• Before beginning, carefully check the glass door and the log set
3
DECIDING WHERE TO LOCATE YOUR STOVE
DIMENSIONS:
Front Width: 22"/ 56cm
Rear Width: 22"/ 56cm
Height: 27-1/2"/ 70cm*
Depth 19"/ 48cm
(*not including vent coupling)
Shipping Weight: 210 lbs/95 kg
CLEARANCES:
A. Side wall to stove 10"/ 25cm
B. Rear wall to stove 4"/ 10cm
C. Combustible to stove Top 22”/ 56cm
D. Floor to stove 0"/ 0cm
E. Corner clearance 2"/ 5cm
F. Alcove depth 48"/ 122cm
Maintain sufficient clearances
for service and maintenance
• The stove should be located out of traffic and away from furniture and draperies.
• The stove should have sufficient access for its safe operation and maintenance.
• Locate a position where the flue system of the stove can be properly installed without damaging the integrity
of the building. e.g. cutting a wall or ceiling joist.
• The stove can be installed on any standard flooring materials i.e. Wood, carpet or linoleum.
• Check stove and flue system clearance requirements.
• Locate the stove where it can be accessed by a gas supply line.
• Locate the stove in a large and open room that is centrally located in the house. This will optimize heat
circulation and comfort.
• As the stove is equipped with a convection fan, ensure that an electrical outlet is within 6ft. (1.8m) of the
stove.
• These stoves can be installed in bedrooms.
(IN CANADA: must be installed with a listed wall thermostat)
(IN USA: see current ANSI Z223.1 for installation instructions.)
• The
flow of combustion and ventilation air must not be obstructed.
FIG. 1
FIG. 2
4
VENT TERMINAL CLEARANCES
Figure 3
A= Clearance above grade, verandah, porch, deck, or
[balcony (*12 inches (30cm) minimum]
B= Clearance to window or door that may be opened [*12
inches (30cm) minimum]
C= Clearance to permanently closed window
[minimum 12 inches (30cm) recommended to
prevent condensation on window]
D= Vertical clearance to ventilated soffit located
above the terminal within a horizontal
distance of 2 feet (60cm) from the center-line
of the terminal 24 inches ( 60cm) minimum
E= Clearance to unventilated soffit
[18 inches (45cm) minimum]
F= Clearance to outside corner [12 inches minimum]
G= Clearance to inside corner [`12 inches minimum]
*** A vent shall not terminate directly above a sidewalk or paved driveway, which is located between two single family dwellings and serves
both dwellings.
** Only permitted if verandah, porch, deck, or balcony, is fully open on a minimum of 2 sides beneath the floor
• As specified in CGA B149 Installation Codes (1991) Note: Local Codes or Regulations may require different clearances
H= *Not to be installed above a meter/regulator
assembly within 3 feet (90cm) horizontally from
the center-line of the regulator
I= Clearance to service regulator vent outlet
[*6 feet (1.8m) minimum]
J= Clearance to non-mechanical air supply inlet to
building or the combustion air inlet to any
other appliance [12 inches (30cm) minimum]
K= Clearance to a mechanical air supply inlet
[*6 feet (1.8m) minimum]
L= *** Clearance above paved side-walk or paved
driveway located on public property
[*7 feet (2.1m) minimum]
M= Clearance under verandah, porch, deck, or
balcony [*24 inches (60cm) minimum **]
5
VENTING
This model must have a vent opening in the rear of the unit. Confirm this and also
check that the label on the right side panel door states "Vented Room Heater".
WARNING:
AND DILUTION AIR FROM THE ROOM. THE DRAFT HOOD LOCATED IN THE SAME ATMOSPHERIC
PRESSURE ZONE AS THE COMBUSTION AIR INLET TO THE APPLIANCE. IT IS ALSO DESIGNED TO
DRAW ROOM AIR FOR PROPER HEAT CIRCULATION FROM THE REAR OF THE UNIT. BLOCKING OR
MODIFYING THE LOUVERS IN ANY WAY CAN CREATE HAZARDOUS SITUATIONS, EITHER THROUGH
POOR VENTING OR BY OVERHEATING. IT IS IMPORTANT THAT THIS UNIT HAS SUFFICIENT AIR
CIRCULATION FOR PROPER VENTING AND COMBUSTION THUS PROVISIONS MUST BE MADE FOR THE
WARNING: Operation of this heater when not connected to a properly installed and maintained venting
system or tampering with the vent safety shutoff system can result in carbon monoxide (CO) poisoning
THE APPLIANCE CAN NOT BE CONNECTED TO A CHIMNEY FLUE SERVICING A SEPARATE SOLID FUEL
FLUE GAS SPILL SWITCH
NOTE: THIS HEATER MUST BE PROPERLY CONNECTED TO A VENTING SYSTEM. THIS HEATER
IS EQUIPPED WITH A VENT SAFETY SHUTOFF SYSTEM DESIGNED TO PROTECT AGAINST
IMPROPER VENTING OF COMBUSTION PRODUCTS. THIS SAFETY SWITCH IS LOCATED ON THE
REAR OF THE APPLIANCE CLOSE TO THE DRAFT HOOD RELIEF OPENING.
IF THE SWITCH TRIPS MORE THAN ONCE, THE CHIMNEY SHOULD BE INSPECTED BY A
QUALIFIED SERVICE TECHNICIAN FOR POSSIBLE BLOCKAGE OR SEVERE DOWN DRAUGHT
This stove should be vented by certified 4" Type B Gas Vent or a flexible gas vent liner which may be encased in
6" decorative stove pipe. The flue collar of the appliance will fit inside of standard vent and may be fastened
directly to the vent.
The ENVIROGAS incorporates its own internal draft hood, so no additional external draft hood is required.
Check periodically that the vent is unrestricted and an adequate draft is present when the unit is in operation.
The venting system should be assembled and installed according to the vent manufacturer's instructions and the
local, state/provincial or national codes. Two basic venting configurations are shown as rough guidelines only.
Follow national and local codes for other installation options.
THIS APPLIANCE HAS BEEN DESIGNED TO OPERATE BY DRAWING COMBUSTION AIR
SUPPLY OF ADEQUATE COMBUSTION AND VENTILATION AIR.
and possible death.
BURNING APPLIANCE.
CONDITIONS
6
A. USING AN EXISTING CHIMNEY
• Measure the height of the chimney beforehand and purchase the
appropriate kit. Never attempt to over stretch a flexible liner to
accommodate the height of the chimney.
• Any flue damper must be removed or locked permanently in the
open position.
• The chimney must be clean, in good working order and constructed
out of non-combustible materials.
• Make sure that all chimney clean-outs are tightly fitting and will not
permit air to leak into the chimney.
• Make all gas connections and check for leaks.
See vent manufacturer's instructions for vent system clearances to
combustibles and vent terminal clearance from roof.
MANUFACTURERS GENERAL VENTING
GUIDELINES
This information is compiled by the manufacturer as a very general rule for
single appliance venting of the EG 28 gas stove with 4" Type B gas vent.
Venting code and regulations may vary from area to area, please check with
the local, state/provincial codes regarding the suitability of your application.
For other special venting requirements, please refer to the local, state/provincial or national codes.
For best venting performance, we recommend total vent height of 10
ft (3m) to 30 ft (9m). Total horizontal length depends on the number
of elbows used. The venting
Should never slope down. 1/4" rise per 2' horizontal is
recommended.
If practical, it is best to locate the appliance to permit the use of
shorter horizontals and fewer elbows.
-Two 90° elbow, maximum total horizontal length of 20 ft (6m).
-Three 90° elbow, maximum total horizontal length of 13 ft (3.8m).
-Four 90° elbow, maximum total horizontal length of 6 ft (1.9m).
-Five 90° elbow, maximum total horizontal length of 0 ft (0m).
If 45° elbows are used, one 90° elbow is equivalent to two 45°
elbows.
Venting rise should be a minimum of 1 ft (.31m). from the top of the
unit before any horizontal run.
The bottom of the vent cap shall extend at least 2 ft. (.6m) above the
highest point of the roof where it passes through and at least 2 ft
(.6m) higher than any portion of the roof within a horizontal distance
of 10 ft. (3m).
7
INSTALLATION OF LOG SET and EMBERS
INSTALLING THE GLOWING EMBERS
A bag of Rock Wool embers is provided for use on the burner tray.
CAUTION: Use only the type of ember material supplied with this appliance. Due to the irregular size of the
ember material there may be more than required.
If over time, through cleaning and servicing, these embers require replacement, contact your nearest
ENVIROGAS dealer for replacement embers.
Remove the ember material from the plastic bag.
Cover the shaded areas in the diagram shown beside.
Totally fill these areas with glowing ember material
Do not pack down, leave embers loose.
CAUTION: NEVER OPERATE THIS APPLIANCE WITH THE DOOR REMOVED
INSTALLING THE LOGSET
Carefully remove log from box. Check to ensure there is no damage. It is very important to install this log in its
proper position to insure safe, optimum operating conditions.
1. Open the front door.
2. Place each piece of the log set into
the firebox resting the pins in the
holes in the log supports.
3. Close the door and tighten securely.
Upon the first light up, watch for ignition to
all burner ports. If a long delay is noted:
a) First, wait for the appliance to cool
down
b) Open the front door of the appliance.
(See adjusting the venturi section to adjust air for proper flame).
8
OPERATING INSTRUCTIONS
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A) This appliance is equipped with a pilot, which must be lit by
hand by following these instructions exactly.
B) BEFORE LIGHTING smell all around the appliance area
for gas, and next to the floor because some gas is heavier
than air and will settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any
phone in your building.
• Immediately call your gas supplier from a neighbor’s
phone. follow the gas supplier’s instructions.
LIGHTING INSTRUCTIONS
1. STOP! Read the safety information above.
2. Turn off all electrical power to the appliance.
3. Turn the gas control knob clockwise to
the “off’ position.
4. Open door. Wait five (5) minutes to clear out any gas.
Close door. If you smell gas including near the floor,
STOP! Follow “B” in the above safety information.
If you don’t smell gas go to next step.
5. Find the pilot located to the right between the front and
rear burner.
6. Turn gas control knob counterclockwise to “PILOT”.
7. Push the gas control knob in fully and hold. Immediately
light the pilot by pushing the piezo spark igniter. Keep
knob depressed for about 30 seconds after pilot is lit.
Release knob. If pilot goes out, repeat steps 4 through 6.
WARNING The gas valve has a lockout device, which will not
allow the pilot burner to be re-lit until the thermocouple,
has cooled.
If the knob does not pop up when released, stop and
immediately call your service technician or gas supplier.
NOTE: Check to be sure the pilot flame engulfs the
thermocouple and that the burners light completely.
TO TURN OFF GAS TO APPLIANCE Turn the gas control knob clockwise to “OFF” DO
NOT FORCE
1. Turn off all electrical power to the appliance if service is to be performed.
2. Flip burner switch to off.
• If you cannot reach your gas supplier, call the fire
department.
C) Use only your hand to push in or turn the gas control
knob. Never use tools. If the knob will not push in or turn
by hand, do not try to repair it . Call a qualified service
technician. Force or attempted repair may result in a fire
or explosion.
D) Do not use this appliance if any part has been under
water. Immediately call a qualified service technician to
inspect the appliance and to replace any part of the
control system and any gas control which has been under
water
If the pilot will not stay
lit after several tries,
turn the gas control
knob to “OFF" and
call you service
technician or gas
supplier.
8. Turn gas control knob counter-clockwise
to the “ON” position.
Flip burner switch to “ON” then turn “HI / LO” knob to the
desired setting.
HI \ LO knob Control knob
9. Turn on all electrical power to the unit
9
MAINTENANCE AND TECHNICAL
Annually check to ensure that your
Venting system is clear.
Periodically check the pilot and burner. Check to
see that all the burner ports are clean and clear.
Check the pilot head for blockage. Check to ensure
the pilot flame is blue with small yellow tips.
CLEANING OF GLASS
Do not clean glass when hot
It will be necessary to clean the ceramic glass
periodically. During a cold start up, condensation
will sometimes form on the glass, this is a normal
condition with all gas fireplaces and stoves.
However, this condensation can allow dust and lint
to cling to the glass surface. Initial paint curing of the
appliance can leave behind a slight film on the glass.
This is a temporary problem. It is therefore
recommended that the glass be cleaned initially after
about the first two weeks of use.
After that, depending upon the amount of use,
cleaning should be required no more than two or
three times per season.
To clean the door, use a mild glass cleaner and a
soft cloth. Abrasive cleaners will damage the glass
and gold surfaces.
OPENING THE DOOR
Turn unit off and wait until the appliance has cooled
down.
1. Open the right hand hinged side flap, which will
expose a door fastener. Using a 1/2" wrench,
loosen the fastener.
3. Due to the shape of the bay window door. You
must also open the left-hand side flap before
attempting to open the door.
3. Ensure the door is properly fastened after
cleaning before attempting to re-light the appliance.
TO REPLACE DOOR AND GLASS ASSEMBLY
The glass in this appliance is an integral part of the
door assembly. If the glass is damaged or broken a
replacement door assembly including glass must be
fitted.
To Replace:
• open door fully
• Lift door vertically so that hinge pins lift out of
hinge receivers.
• Return the door assembly to dealer.
Door and glass assembly must be replaced as a
complete unit by your ENVIROGAS Dealer.
No substitute materials are allowed.
Use extreme caution cleaning up broken glass. Use
thick gloves and broom to brush glass up.
FOR CLEANING THE INSIDE OF THE FIREBOX
Remove the log carefully from the firebox. Gently
remove the embers and place on a piece of paper
towel. Until ready to replace.
Vacuum the firebox thoroughly. Carefully clean off
any dust on the logs and remove any lint from the
main burner and pilot burner.
After carefully replacing the log and embers in their
correct positions, and the door has been resealed,
re-light the pilot, following the instructions on the
attached label.
CLEARANCES MUST BE SUFFICIENT TO ALLOW
ACCESS FOR MAINTENANCE AND SERVICE
TROUBLE SHOOTING
10
Problem Possible Cause Solution
Spark will not light the pilot after
repeated pressing of spark igniter
Broken spark electrode -Check for broken ceramic insulation
Miss-aligned spark electrode -If spark is not arcing from the
Pilot will not remain lit Problem with thermocouple circuit -Check for proper connection of
Air in gas line - (Pilot flame dies while knob
Burners will not remain lit Problem with thermopile circuit -Check gas line pressure.
Flame lifting Leak in vent pipe
Glass fogs up Normal conditions - after the appliance warms up glass will clear
Blue flames
Flames are burning “dirty” or
Sooting
Defective piezo igniter Check connections to igniter
-If igniter connections are good but
there is no spark-replace igniter
replace, electrode if broken
electrode to pilot- adjust by loosening
screws on pilot base. Adjust and retighten
thermocouple to rear of valve. If
loose, tighten lightly
-Check pilot for full flame
impingement around thermocouple.
If the pilot is to small - Check gas
pressure, adjust pilot rate screw,
check pilot head for blockage.
-Check thermocouple voltage at
valve- must be greater than 5 mV. If
low , replace thermocouple.
-Bleed line.
is depressed.)
Improper vent configuration
Terminal may be recirculating flue gases
** Due to additives in gas, glass may get hazy during normal use**
Clean when needed.
Normal during start - flame will yellow as the
appliance heats up.
Flame impingement -Check log position
-Check gas line pressure.
-Contact dealer.
-Check for flame impingement on
thermopile, if low see “Pilot will not
stay lit”
-check thermopile for a Minimum of
300 mV when burner switched
on.
-Check wiring to thermostat for
breaks.
-Check for leaks in vent connections
-Check vent configuration with
manual
-Check to see if terminal is on
correctly
-May need to install high wind
termination cap
-Contact dealer.
-Increase primary air by opening
venturi shutters
See also “Burners will not stay lit”
11
GAS LINE CONNECTION
Orifice size #42 dms #53 dms
Manifold pressure. 3.8” wc (0.95 kPa) 11” wc (2.74 kPa)
Min. Manifold pressure. 1.1” wc (0.27 kPa) 2.7” wc (0.67 kPa)
Supply Pressure. 7.0” wc (1.74 kPa) 12” wc (2.98 kPa)
Min. Supply pressure. 5” wc (1.25 kPa) 11.5” wc (2.86 kPa)
Max. BTUH Input. 26,500 Btu/h(7.87 kW) 26,500 Btu/h(7.87 kW)
Min. BTUH Input. 13,500 Btu/h(3.9 kW) 13,500 Btu/h(3.9 kW)
Output fan off 20,700 Btu/h(6.06 kW) 21,200 Btu/h(6.21 kW)
Output fan on 21,200 Btu/h(6.21 kW) 21,700 Btu/h(6.35 kW)
WARNING:
NOTE: The gas line connection may be made using 3/8" rigid tubing or an approved flex connector. Since some municipalities
have additional local codes it is always best to consult your local authorities and the CAN/CGA-B149 (1 or 2) Installation Code.
For USA gas installations follow either local codes or the current edition of the National Fuel Gas Code ANSI.Z223.1.
Only persons licensed to work with gas piping may make the necessary gas connections to this appliance.
UPON CONNECTION, MARK APPROPRIATE FUEL TYPE ON RATING LABEL LOCATED
Manifold Pressure Tap. Inlet Pressure Tap.
Millivolt Terminals
ORIFICE SIZES, PRESSURE AND BTU’S
NATURAL GAS PROPANE GAS
ON THE INSIDE OF THE RIGHT HAND SIDE PANEL.
Pilot Adjustment screw. "HI-LOW" Burner Gas Knob. Pilot "ON-OFF" Gas Knob.
The appliance and its shutoff valves must be disconnected
from the gas supply piping system during any pressure
testing where the pressure exceeds 1/2 PSIG (3.45 kPa)
or damage will occur to the valve.
The appliance must be isolated from the gas supply piping
system by closing its individual manual shutoff valve
during any pressure testing of the gas supply piping
system at test pressures equal to or less than 1/2 psig (3.5
kPa).
When using copper or flex connectors use only fittings
approved for gas connections.
NEVER USE AN OPEN FLAME FOR LEAK TESTING
ELECTRICAL
TO TEST
The pressure taps are located in the top right corner on
the valve face (right - inlet, left - manifold pressure).
• Turn set screw counter clockwise to loosen, 2 turns.
• Place 5/16" hose over pressure tap system.
• When finished, release pressure, remove hose &
tighten set screw.
Always check for gas leaks with a soap and water solution
after completing the required pressure test.
12
The ENVIROGAS EG 28.FS.BV. will operate with no external power supply. These models have a Millivolt gas
control which uses the pilot flame to generate enough electricity to operate the main burner.
The appliance when installed, must be electrically connected and grounded in accordance with local codes or in
the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE. Part 1, SAFETY
STANDARDS FOR ELECTRICAL INSTALLATIONS, or THE NATIONAL ELECTRICAL CODE ANSI / NFPA 70 in
the USA.
NOTE:
• Operation of the fan
increases the efficiency
and the heat output of the
appliance.
• The thermostat connects
to the two purple wires in
the harness
• Control panel light uses a
7w Max. bulb
CAUTION
Label all wires
prior to
disconnection
when servicing
controls. Wiring
errors can cause
improper and
dangerous
operation. Verify
proper operation
after servicing.
WARNING: ELECTRICAL
GROUNDING
INSTRUCTIONS.
This appliance is equipped
with a three-prong (grounding)
plug for your protection
against shock hazard and
should be plugged into a
properly grounded three-prong receptacle.
DO NOT cut or remove the grounding prong from the plug.
INSTALLING REMOTE THERMOSTAT OR WALL SWITCH
RECOMMENDED WIRE SIZE for thermostat installation: 18 gauge, 2 wire solid core, Low Voltage wire. (Bell wire)
1. Install the 18 Gauge wire supplied to the two terminals on the thermostat or remote wall switch.
2. Connect the other end of the wire to the gas valve using the two outside terminals on the front of the gas valve.
Use the terminals marked (TP/TH and TH).
RECOMMENDED MAXIMUM LEAD LENGTH (TWO WIRE)
WHEN USING WALL THERMOSTAT
WIRE SIZE
14 GAUGE 100 FEET
16 GAUGE 64 FEET
18 GAUGE 40 FEET
20 GAUGE 18 FEET
MAXIMUM LENGTH
13
PARTS AND ACCESSORIES
Service Parts available from your local Envirogas Dealer
Burner Control Assembly
Natural Gas Pilot Assembly
Propane Pilot Assembly
Door Bolt
Relief Door Gasket
Regulating Valve
Piezo Igniter
Burner Switch
B-vent Spill switch 220°
Orifice Blank
Accessories
Gold trim Package
Low Voltage Thermostat
REMOVING or INSTALLATION OF THE BLOWER
1. Turn the unit off and remove the log set.
2. Remove the burner tray assembly by
removing the screw on either side of the
tray, between the front and rear burners.
Lift the tray out
3. Remove the 4-5/16” bolts that hold the
blower mounting plate to the back firewall.
Use a light lubricating oil on screws before
removal.
4. Carefully pull the assembly into the firebox.
Install the blower onto the mounting
bracket (blower outlets pointing through the
two holes in the bracket) using the 4
screws provided.
5. Connect wires according to the wiring
diagram. (If removing the blower,
disconnect the blower leads from the
harness. Remove the blower.)
6. Check mounting plate gasket and reverse
steps 1 through 4.
Convection Blower
Light Bulb Holder
Light Switch (momentary)
Fan Controller
Log Set (with Embers)
Thermocouple
Embers
Thermopile
Door Gasket
Convection Fan Sensor 120° (48°C)
14
ADJUSTING THE VENTURI
• Remove the ash shelf by undoing the screw at
each end, pull shelf towards you.
• Remove one screw from the cover plate located
below the ash shelf. Loosen the other screw (do
not remove) swing the cover plate out of the way
and tighten screw down to hold it in place.
• With along screwdriver rotate spring clips to open
or close the shutter to the desired setting.
• The burner flame should be a bright
yellow/orange when hot. Excessive blue is to
lean and dark orange with soot is too rich.
FUEL CONVERSION
“Warning” This conversion kit shall be installed
by a qualified service technician in accordance
with the manufacturer’s instructions and all applicable codes and requirements of the authority having
jurisdiction. If the information in these instructions is not followed exactly, a fire, explosion or CO
poisoning may result. The qualified service agency is responsible for the proper installation of this kit.
The installation is not proper or complete until the operation of the converted appliance is checked as
specified in the owner’s conversion kit.
Please read and follow these instructions. Also please read the instruction guide lines provided by S.I.T on how to
remove and install the HI-LOW regulator.
STEP 1.
STEP 2. Shut the gas off and disconnect the main gas line from the unit.
STEP 3. Open the door by unscrewing the ½” bolt on the right hand side of the stove. Lift door off the hinges mounted on
STEP 4. Change the regulator on the front of the gas valve. (Follow the instructions provided by S.I.T)
STEP 5. To change the pilot orifice: First, remove the two (2) T-20 Torx screws that hold the pilot assembly to the burner
(BE CAREFUL WHEN TIGHTENING THE PILOT FITTING, YOU COULD BREAK THE CERAMIC IGNITER ELECTRODE).
STEP 6. Re-install the pilot assembly in the reverse order of STEP 5.
STEP 7. Remove the burner orifice with a ½” deep socket.
STEP 8. Install the new orifice supplied making sure that the orifice is in the correct location. Be sure to put a bead of pipe
STEP 9. Reinstall the burner tray, log set and door.
STEP 10. Re connect the gas line to the unit. Do a leak check using a soap and water solution or an approved manner on
STEP 11. Re-light the appliance to insure proper operation and proper flame appearance. Be sure to adjust the venturi setting
STEP 12. MAKE SURE that the sticker provided by S.I.T is installed to signify that this valve has been converted to a different
A VISUAL CHECK OF THE REGULATOR KNOB IS NECESSARY TO DETERMINE WHETHER OR NOT THE
REGULATOR IS THE CORRECT PART. A 50% TURN DOWN REGULATOR WILL HAVE ONLY ONE
CORNER ON THE KNOB.
1 50% turn down HI-LOW Regulator w 3 T-20 Torx
screws
1 T-20 tamper proof Torx screwdriver bit
1 pilot injector
1 Main orifice
Carefully inspect all parts supplied with this conversion kit.
the left-hand side. Remove the burner tray top for the appliance
tray. Lift the pilot assembly from the burner tray. Using a 10mm wrench, disconnect the pilot line from the pilot
assembly and remove the pilot injector. Install the new pilot injector.
thread sealant or approved Teflon tape on the orifice before installing into the burner assembly.
the gas supply line and the pilot tubing.
to achieve an efficient flame in the fireplace.
type of fuel. Also make sure that the rating plate has a conversion label to show that this unit has been converted to
a different fuel type.
1 Pilot assembly mounting gasket
NATURAL GAS PROPANE
Pilot Orifice. .51mm .35mm
Burner Orifice. #42 dms #53dms
Venturi Settings 1/16” min ¼” min
15
WARRANTY
Because of our high standards Sherwood Industries Ltd. can offer a *Lifetime Warranty on all it’s gas products.
Covered under this warranty are Cabinet Sides, Tops, Pedestals, Surround Panels and Chassis. These steel
components are covered against manufacture’s defects for 5 years and labour for the first years and for parts
only thereafter. Please refer to the warranty agreement for specific details on the coverage of your *Lifetime
Warranty.
Sherwood Industries Ltd. offers a 5 year warranty against manufacturing defects on the following components,
Heat Exchanger, Gold Plating, Log Set, Burners and Glass.
Sherwood Industries Ltd. offers a 2 year warranty on all Electrical Components, Gas Components, Paint and
Corrosion Protection.
All claims under this warranty shall be made in writing by your dealer:
WHEN FILING A WARRANTY CLAIM PLEASE COMPLETE THE FOLLOWING
INFORMATION ON AN OFFICIAL WARRANTY CLAIM FORM:
To the Dealer
• name, address and telephone number of purchaser and date of purchase.
• Date of installation. Name of installer and dealer. Serial number of the appliance. Nature of complaint, defect
or malfunction. Description and part # of any parts replaced.
To the Distributor
• Sign and verify that the work and information is correct.
This warranty covers defects in materials and workmanship only if the product has been installed according to the
manual’s instructions. If the product is damaged or broken as a result of misuse or mishandling, the warranty
does not apply. The warranty does not cover removal and re-installation costs.
Sherwood Industries Ltd. reserves the right to repair or to replace the defective product. The shipping costs are
paid by the consumer. All warranties by the manufacture are set forth herein and no claim shall be made against
the manufacturer on any oral warranty or representation.
Sherwood Industries Ltd. and its employees or representatives will not assume any damages, either directly or
indirectly caused by improper usage, operation, installation, servicing or maintenance of this appliance.
Sherwood Industries Ltd. reserves the right to make changes without notice. Please complete and mail the
warranty registration card and have the installer fill in the installation data sheet in the back of the manual for
warranty and future reference.
16
PARTS LIST
EC-001
EC-002
EC-006 SIT NOVA 820 NG VALVE 50% EG28-116 BURNER TRAY TOP
EC-007 SIT NOVA 820 LP VALVE 50% EG28-120 FS DV OWNERS MANUAL
EC-009 THERMOCOUPLE (POST 10/00) EG28-121 FS BV OWNERS MANUAL
EC-011 SPARK ELECTRODE w/CABLE EG28-123 FS CABINET SIDE PANEL
EC-012 THERMOPILE EG28-124 FS BV STOVE TOP
EC-013 PILOT NG w/ELECTRODE EG28-125 FIREBOX BAFFLE
EC-014 PILOT LP w/ELECTRODE EG28-126 FS DV STOVE TOP
EC-015 FULLY ASSEMBLED PILOT NG EG28-129 UPPER GOLD BARS
EC-016 FULLY ASSEMBLED PILOT LP EG28-130 LOWER GOLD BAR
EC-019 PILOT ORIFICE NG EG28-131 DV TOP BAFFLE
EC-020 PILOT ORIFICE LP EG28-132 BV TOP BAFFLE
EC-021 PILOT GASKET EG28-139 WIRE CHANNEL
EC-022 ORIFICE BLANK - FRONT EG28-140 PEDESTAL WIRING PLATE
EC-022A ORIFICE BLANK - BACK EG28-141 PEDESTAL BACK
EC-023 S.I.T. PIEZO IGNITER EG28-143
EC-024
EC-025 BURNER SWITCH (FOR NOVA TRAY) EG28-150 ASH SILL
EC-029 FAN ACCESS COVER GASKET EG28-161 DOOR HINGE STRIP
EC-030 CONVECTION BLOWER EG28-162 DOOR LATCH STRIP
EC-031 MINIATURE LIGHT BULB EG28-169 BV 4” CRIMPED FLUE COLLAR
EC-032 FS LIGHT BULB HOLDER EG28-170 DV 4” FLARED FLUE COLLAR
EC-037 FS WIRING HARNESS EG28-201 LP to NG CONVERSION KIT
EC-038 FS FAN CONTROLLER EG28-203 NG to LP CONVERSION KIT
EC-040- FS FAN CONTROLLER KNOB
EC-043 IEC POWER CORD 115 V
EC-045 EMBERS
EC-048 LOG SET AND EMBERS
EC-054 1 X 1 SIDE CABINET HINGE
EC-055 FPI SIDE PANEL MAGNET
EC-057 3/8 TADPOLE GASKET
EC-059 DOOR LATCH BOLT
EC-060 SIMPSON DURA VENT ADAPTER
EC-061 FS DV VENT KIT
EC-064 FAN IMPELLER
EC-065 DOOR NUT MOUNTING BRACKET
EC-066 LIGHT SWITCH
EC-067 VENT RESTRICTOR RINGS
EG28-095 LATCH BRACKET AND NUT
EG28-097 GLASS SET w/ TAPE
EG28-099 PAINTED DOOR ASSEMBLY W GLASS
EG28-100 OUTER PAINTED DOOR (A)
EG28-101 GOLD DOOR ASSEMBLY W GLASS
EG28-102 OUTER GOLD DOOR (A)
EG28-103 INNER DOOR W GLASS
120° F CERAMIC TEMP SENSOR
220° F CERAMIC SPILL SWITCH
SS FLEX CONNECTOR WITH 3/8”
ELBOW 18” LONG
EG28-108 FREESTANDING PEDESTAL
EG28-109 FS PEDESTAL DOOR
BURNER COMPLETE W/NOVA SIT
VALVE NG
EG28-145
BURNER COMPLETE W/NOVA SIT
VALVE LP
17
120 ° F (49° C)
CERAMIC FAN
TEMP SENSOR
CONVECTION
BLOWER
EC-030
FS FAN
MOUNTING
BRACKET
EG28-304
EC-001
WIRE
CHANNEL
EG28-139
220° F (104° C)
CERAMIC
SPILL SWITCH
1 X 1 SIDE
CABINET
HINGE
EC-054
FS CABINET
SIDE PANEL
EG28-123
EC-002
BV 4”
CRIMPED
FLUE PIPE
EG28-169
DV 4”
FLARED
FLUE PIPE
EG28-170
PEDESTAL
BACK
EG28-141
FS BV
STOVE TOP
EG28124
FS DV
STOVE TOP
EG28-126
FS PEDESTAL
DOOR MAGNET
EG28-056
BV TOP
BAFFLE
EG28-132
DV TOP
BAFFLE
EG28-131
FS CABINET
SIDE PANEL
EG28-123
DOOR MAGNET
AND BRACKET
UPPER
GOLD BARS
EG28-129
LOWER
GOLD BAR
EG28-130
FIREBOX GOLD
BAR
EG28-128
FREESTANDI
NG
PEDESTAL
EG28 FREESTANDING
EXPLODED
Page 2 of 2 JULY 2001
FS PEDESTAL DOOR
EG28-109
18
BURNER CONTROL
ASSEMBLY
COMPLETE
EG28-143 NG
EG28-145 LPG
VENTURI
TUBE
BURNER
BRACKET
ORIFIC
E
BLANK
PAN BURNER TOP
GAS TRAY TOP
AND SIDES
FS LIGHT BULB
HOLDER
EC-031
FULLY ASSEMBLED
PILOT
EC-015 NG , 016 LP
THERMOPILE
EC-012
THERMOCOUPLE
EC-009
PILOT ORIFICE
EC-019 NG, 020 LP
SPARK ELECTRODE
EC-011
RETAINER
GLASS
PAINTED DOOR ASSEMBLY
WITH GLASS (A+B)
EG28-099
GOLD DOOR ASSEMBLY
WITH GLASS (A+B)
EG28-101
GLASS
EXTRUSIONS
DOOR LATCH
BOLT
EC-059
DOOR LATCH
STRIP
EG28-162
CONTROL
PANEL
FS FAN
CONTROLLER
EC-038
LIGHT
SWITCH
EG28-038
EG28 DOOR AND GAS TRAY ASSEMBLY
EXPLODED
Page 1 of 2 JULY 2001
S.I.T NOVA 820 VALVE
EC-006 NG, 007 LP
S.I.T PIEZO
IGNITER
EC-023
BURNER
SWITCH
EC-025
19
GLASS SET
WITH TAPE
EG28-097
INNER DOOR
WITH GLASS (B)
EG28-103
OUTER DOOR
PAINTED OR
GOLD (A)
EG28-100 , 102
_
_
INSTALLATION DATA SHEET
The following information must be recorded by the installer for warranty purposes and future reference.
Model: EG 28 B vented
Name of Owner:
__________________________________________
Address:
__________________________________________
__________________________________________
__________________________________________
Phone:_____________________________________
• Model :___________________________________
• Serial Number: __________________
• Date of Purchase:
__________/________/________
• Date of Installation:
_________/________/________
• ____ Natural Gas (Nat.), ____ Propane (LPG)
Name of Dealer:
___________________________________________
Address:
___________________________________________
___________________________________________
___________________________________________
Phone: ___________________________________
Name of Installer:
___________________________________________
Address:
_______________________________________
___________________________________________
___________________________________________
Phone :_____________________________________
• Inlet Gas Supply Pressure: ________ in.w.c.
If the orifices were changed by the installer.
Main burner orifice
• Pilot Orifice # ________ or ______ in.Dia.
Installer's Signature
____________________________________________
E-MAIL ADDRESS ( www.envirofire.biz )
MANUFACTURED BY:
SHERWOOD INDUSTRIES, 6782 OLDFIELD ROAD., SAANICHTON, B.C., CANADA V8M 2A3
8/29/2002
20
Loading...
