WARRANTY REGISTRATION
enviro.com/warranty
Q1GI
D I R E C T V E N T F I R E P L A C E - I P I
OWNER’S MANUAL
4001609
WARNING: If the information in this manual is not followed exactly, a
re or explosion may result causing property damage, personal injury
or loss of life. Installation and service must be performed by a qualied
Version Française: www.enviro.com/fr.html
installer, service agency or the gas supplier.
50-3004
Safety Precautions
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or other ammable vapors and
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Leave the building immeadiately.
• Immeadiately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re
department.
- Installation and service must be performed by a qualied
installer, service agency or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
This appliance may be installed in an after-market permanently located,
manufactured (mobile) home, where not prohibited by local codes.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases, unless a certied kit is used.
Massachusetts installations (Warning): This product must be installed by a licensed plumber or
gas tter when installed within the Commonwealth of Massachusetts. Other Massachusetts code
requirements: Flexible connector must not be longer than 36in., a shut off valve must be installed;
only direct vent sealed combustion products are approved for bedrooms/bathrooms. A carbon
monoxide detector is required in all rooms containing gas red direct vent appliances. The replace
damper must be removed or welded in the open position prior to installation of a replace insert.
2
Safety Precautions
FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER,
PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
• All ENVIRO gas-red appliances must be installed in
accordance with their instructions. Carefully read all the
instructions in this manual rst. Consult the building
authority having jurisdiction to determine the need for a
permit prior to commencing the installation.
• NOTE: Failure to follow these instructions could cause
a malfunction of the replace, which could result in death,
serious bodily injury, and/or property damage.
• Failure to follow these instructions may also void your
re insurance and/or warranty.
GENERAL
• Installation and repair should be done by a qualied
service person. The appliance should be inspected before
the rst use and, at least, annually by a qualied service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It
is imperative the control compartments, burners and
circulating air passageways of the appliance be kept
clean.
• Due to high temperatures, the appliance should be
located out of high trafc areas and away from furniture
and draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and should
stay away to avoid burn or clothing ignition.
• Young children should be carefully supervised when
in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental
contact burns. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access to a
replace or stove install an adjustable safety gate to keep
toddlers, young children and other at risk individuals
out of the room and away from hot surfaces. Any safety
screen or guard removed for servicing an appliance must
be replaced prior to operating the appliance.
• Clothing or other ammable materials should not be
placed on or near the appliance.
WARNING
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH
GLASS UNTIL COOLED.
NEVER ALLOW
CHILDREN TO TOUCH
GLASS.
FOR YOUR SAFETY
• Installation and service must be performed by a qualied
installer, service agency or gas supplier.
• This installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the Natural Gas and Propane
Installation Code, CSA B149.1.
• To prevent injury, do not allow anyone who is unfamiliar
with the stove to operate it.
• To prevent injury, if the pilot or pilot and burners
have gone out on their own, open the glass door and
wait 5 minutes to air out before attempting to relight the stove.
• Always keep the area around these appliances clear of
combustible material, gasoline and other ammable liquids
and vapours.
• These appliances should not be used as a drying rack for
clothing or for hanging Christmas stockings/decorations.
• Due to the paint curing on the stove, a faint odor and slight
smoking will likely be noticed when the stove is rst used.
Open a window until the smoking stops.
Always connect this gas stove to a vent system and vent to
the outside of the building envelope. Never vent to another
room or inside the building. Make sure the specied vent
pipe is used, properly sized and of adequate height to
provide sufcient draft. Inspect the venting system annually
for blockage and signs of deterioration.
WARNING: Failure to position the parts in accordance
with the diagrams in this booklet, or failure to use only
parts specically approved with this appliance, may result in
property damage or personal injury.
WARNING: Do not operate with the glass front removed,
cracked or broken. Replacement of the glass should be done
by a licensed or qualied service person.
• Never use solid fuels such as wood, paper, cardboard, coal,
or any ammable liquids, etc., in this appliance.
• Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system or
any gas control which has been under water.
• Do not abuse the glass by striking it or slamming the door
shut.
• If the Q1GI unit is pulled out of its installation, and the
vent-air intake system is disconnected for any reason,
ensure that the vent-air intake pipes are reconnected and
re-sealed in accordance to the instructions noted in
InstallatIon - VentIng
InItIal
3
Table of Contents
Safety Precautions........................................................................................................2
Table of Contents.........................................................................................................4
Codes And Approvals....................................................................................................5
Specications.............................................................................................................6

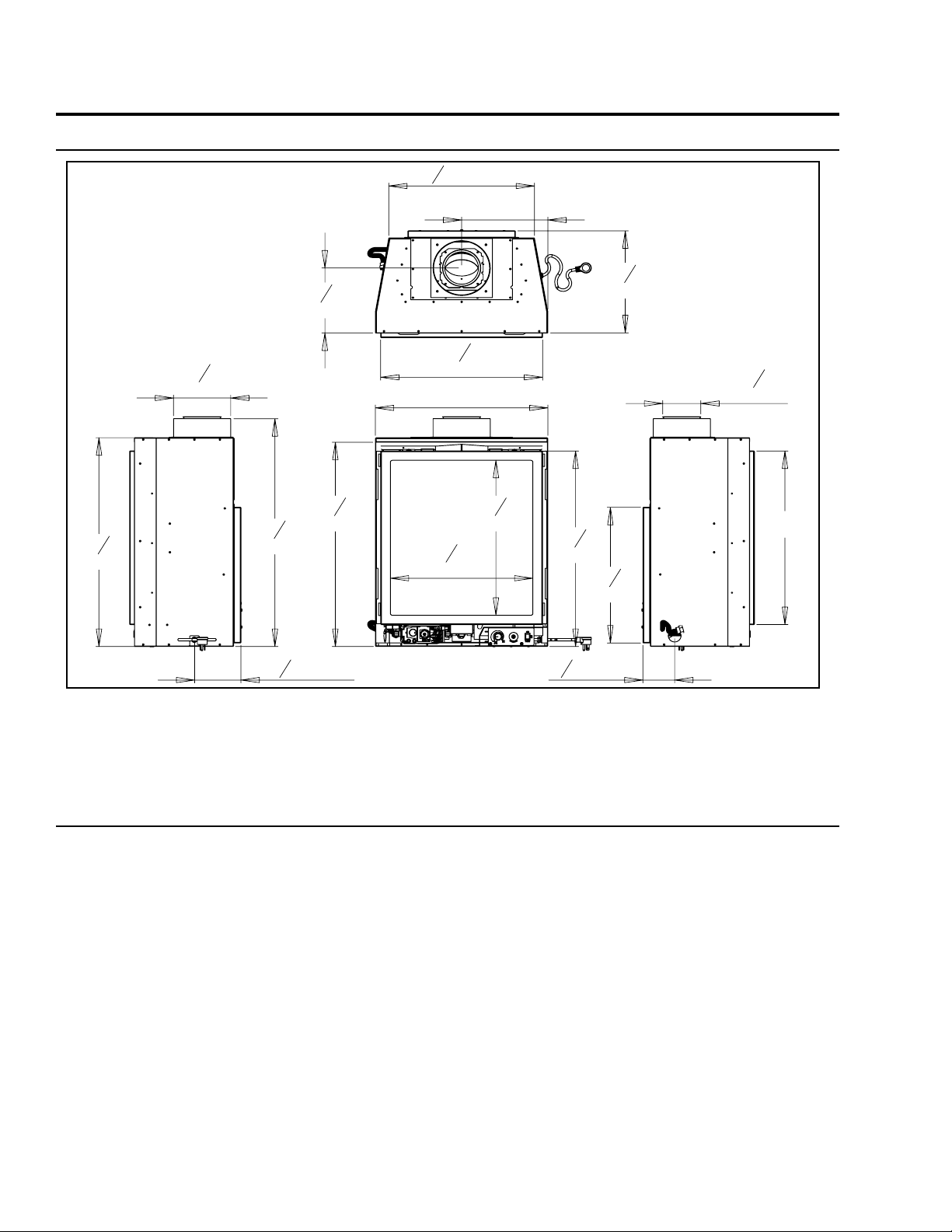

Dimensions.....................................................................................................6
Rating Label Location.........................................................................................6
Operating Instructions..................................................................................................7
Lighting Instructions..........................................................................................7
Air Shutter.........................................................................................................8
Normal Sounds During Operation........................................................................8
Remote Controls................................................................................................8
Initializing the System for the First Time.............................................................11
Switching to Continuous Pilot............................................................................11
Fan Control.....................................................................................................14
Maintenance And Service............................................................................................14
Routine Maintenance.......................................................................................14
Cleaning The Glass...........................................................................................14
Cleaning The Firebox........................................................................................14
Replacing the Glass..........................................................................................14
Cleaning Decorative Surfaces............................................................................15
Glass Door Removal.........................................................................................15
Burner Removal...............................................................................................16
Fuel Conversion...............................................................................................16
Initial Installation.......................................................................................................19
Introduction.................................................................................................19
Placement and Framing....................................................................................19
Insulating Material...........................................................................................20
Standoffs............................................................................................21
Corner Installation...........................................................................................22
Mantle and Non-Combustible Clearances............................................................23
Direct Vent......................................................................................................24
Venting Fireplcace Inserts.................................................................................24
Vent Termination Restrictions............................................................................25
Venting Clearances..........................................................................................26
Approved Venting Parts.....................................................................................26
Allowable Co-Axial Vent Congurations..............................................................28
Co-Linear Venting Adapter Kit (50-2982)..........................................................29
Horizontal Termination.....................................................................................31
Vertical Termination ........................................................................................32
Solid Fuel Fireplace Installation.........................................................................35
Gas Line Connection and Testing.......................................................................36
Electrical Requirements ...................................................................................37
Secondary Installation................................................................................................38
Glass Media Installation....................................................................................38
Optional Ceramic Brick or Ledgestone Panels Installation & Removal.................39
Trouble Shooting........................................................................................................40
Parts List....................................................................................................................43
Parts Diagram............................................................................................................44
Notes........................................................................................................45
Warranty.................................................................................................................47
Installation Data Sheet...............................................................................................48
4
Codes And Approvals
DIRECT VENT ONLY: This type is identied by the sufx DV. This appliance draws all of its air for
combustion from outside the dwelling, through a specially designed vent pipe system.
This appliance has been tested and approved for installations from 0 feet to 4500 feet (1372 m) above
sea level.
In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas
Association guidelines which state: the sea level rated input of Gas Designed Appliances installed at
elevations above 2000 (610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level.
Refer also to local authorities or codes which have jurisdiction in your area regarding the de-rate
guidelines.
In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certied high
altitude rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).
• This appliance has been tested by INTERTEK and found to comply with the established VENTED
GAS FIREPLACE HEATER standards in CANADA and the USA as follows:
VENTED GAS FIREPLACE HEATER (Q1GI; NG/LPG)
TESTED TO: ANSI Z21.88a-2009/CSA 2.33a-2009 VENTED GAS FIREPLACE HEATERS
CAN/CGA 2.17-M91 (R2009) GAS FIRED APPLIANCES FOR HIGH ALTITUDES
CSA P.4.1-02 TESTING METHOD FOR MEASURING ANNUAL FIREPLACE EFFICIENCY
This ENVIRO Q1GI Fireplace:
• Has been certied for use with either natural or propane gases. (See rating label.)
• Is not for use with solid fuels.
• Is approved for bedroom or bed sitting room. (IN CANADA: must be installed with a listed wall
thermostat. IN USA: see current ANSI Z223.1 for installation instructions.)
• Must be installed in accordance with local codes. If none exist, use current
installation code CAN/CGA B149 in Canada or ANSI Z223.1/NFPA 54 in the
USA.
• Must be properly connected to an approved venting system and not connected
to a chimney ue serving a separate solid-fuel burning appliance.
IMPORTANT NOTICE (Regarding rst re up): When the unit is turned
on for the rst time, it should be turned onto high without the fan on
for the rst 4 hours. This will cure the paint, glass, gasket material and
other products used in the manufacturing process. It is advisable to open a
window or door, as the unit will start to smoke and can irritate some people.
After the unit has gone through the rst burn, turn the unit off including
the pilot, let the unit get cold then remove the glass door and clean it with
a good gas replace glass cleaner, available at your local ENVIRO dealer.
21"
(533mm)
3
5
8
"
(93mm)
16
3
8
"
(417mm)
4
3
8
"
(112mm)
20"
(508mm)
16
1
2
"
(420mm)
18
3
4
"
(476mm)
23
5
8
"
(601mm)
24
3
4
"
(627mm)
25
1
4
"
(641mm)
27
1
2
"
(700mm)
5
3
8
"
(136mm)
6
5
8
"
(168mm)
12
3
8
"
(313mm)
10"
(254mm)
7
7
8
"
(199mm)
18
3
4
"
(477mm)
16
7
8
"
(429mm)
Dimensions:
Specifications
120V
Line
Plug
Figure 1. Q1GI Dimensions - Top Vent
Gas
Rating LabeL & Lighting instRuctions Location:
The rating label plate and lighting instructions are located under the gas valve and attached to the unit
with a length of chain.
6
Operating Instructions
For Your Safety, Read Safety Precautions And
Lighting Instructions Before Operating
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY
RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE.
Lighting anD tuRning off instRuctions:
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING:IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance is equipped with an ignition device
which automatically lights the pilot. Do not try to
light the pilot by hand.
B. BEFORE OPERATING smell all around the
appliance area for gas. Be sure to smell next to the
floor because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call the
fire department.
OPERATING INSTRUCTIONS
C. Use only your hand to push in or
turn the gas control knob. Never
use tools. If the knob will not push
in or turn by hand, don’t try to
repair it, call a qualified service
technician. Force or attempted
repair may result in a fire or
explosion.
D. Do not use this appliance if any
part has been under water.
Immediately call a qualified service
technician to inspect the appliance
and to replace any part of the
control system and any gas control
which has been under water.
1. STOP! Read the safety information above on this label.
2. Read the owner's manual including the section on
"Remote Control" operation.
3. Set the thermostat to the lowest setting.
4. Turn off all electric power to the appliance.
5. Do not attempt to light the pilot by hand.
6. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP!
Follow "B" in the safety information above on this label.
If you don't smell gas, go to the next step.
7. Turn on all electric power to the appliance.
8. Using the remote control, set
thermostat to desired setting, or
press the ON/OFF key on the
remote. "ON" will be indicated on the
display of the remote and an audible
"beep" will be heard at the unit to
indicate the command has been
received.
9. This appliance is equipped with a
completely automatic ignition and
lighting control. The control will
attempt to light the pilot several
times if necessary. If it is
unsuccessful, it will discontinue
operations. If the appliance will
not operate, follow the
instructions "To Turn Off Gas To
Appliance" and call your service
technician or gas supplier.
Blue LCD Display
ON/OFF Key
THERMOSTAT Key
UP/DOWN Arrow Key
MODE Key
TO TURN OFF GAS TO APPLIANCE
1. Set thermostat to lowest setting, or press the ON/OFF Key. "OFF" will be indicated on the display
and an audible "Beep" will be heard at the unit to indicate the command has been received.
2. Turn off all electric power to the appliance if service is to be performed.
C-12455
Figure 2. Lighting Instruction Label
Operating Instructions
aiR shutteR:
The air shutter adjustment lever is on the right hand side of the venturi box (see Figure 3).
The air shutter allows the amount of air coming into the replace to be adjusted in order to accommodate
different climates and venting arrangements. Start the pilot and then the burner. Make sure the pilot
ame is burning normally and none of the burner ports are plugged. Let the replace burn for roughly
fteen minutes and then examine the ames.
The ideal ame will be blue at the base and light orange above. The ames should be of medium
height. If the ames look like this, no venturi adjustment is needed. If the ames are fairly short and
mostly blue, the replace is getting too
much air. Therefore, the air shutter
should be closed (pulled out) slightly
until the correct ames are achieved.
Flames that are very orange, with tall,
dark, stringy tips, are not getting enough
air. Open (push in) the venturi until the
ames clean up. If the venturi is opened,
or closed all the way, and the correct
ames cannot be attained, turn off the
gas and contact the dealer.
Less Air
Air Shutter Adjustment
More Air
Warning: Incorrect venturi adjustment
may lead to improper combustion, which
is a safety hazard. Contact the dealer if
there is any concern about the venturi
Figure 3. Air shutter adjustment lever.
adjustment.
noRmaL sounDs DuRing opeRation:
Table 1: Normal Sounds
Component Sound & Reason
Q1GI & Surround Panels Creaking when heating up or cooling down.
Burner Light pop or poof when turned off; this is more common with LP units.
Temperature Sensor Clinking when it senses to turn the blower on or off.
Pilot Flame Quiet whisper while the pilot ame in on.
Blower / Fan Air movement that increase and decreases with the speed of the blower. The
blower is pushing the heat from the replace into the room.
Gas Control Valve Dull click when turning on or off, this is the valve opening and closing.
Remote contRoL opeRations:
The Proame 2 GTMFL is a modular remote control system that directs the functions of the QGI. The
Proame 2 GTMFL is congured to control the on/off main burner operation, its ame levels and provides
on/off and Smart thermostatic control of the appliance. The system controls a remotely actuated
120V/60Hz power outlet, and fan speed through six (6) levels.
8
Operating Instructions
ON/OFF Key
system DescRiption:
The Proame 2 Remote Control System consists of two (2) elements:
1. Proame 2 Transmitter.
2. Integrated Fireplace Controller (IFC) and a wiring harness to connect the Receiver to the gas valve,
stepper motor and Fan Control Module.
ATTENTION!
- TURN “OFF” THE MAIN GAS SUPPLY OF THE APPLIANCE DURING INSTALLATION OR
MAINTENANCE OF THE RECEIVER.
- TURN “OFF” MAIN GAS SUPPLY TO THE APPLIANCE PRIOR TO REMOVING OR REINSERTING
THE BATTERIES IN THE BATTERY HOLDER
technicaL Data
Transmitter (Remote Control):
Supply voltage: 4.5 V (three 1.5 V AAA batteries)
Radio frequency: 315 MHz
Integrated Fireplace Controller (IFC):
Supply voltage: AC IN - 120 V / 60 Hz
Battery Backup IN - 6 Vdc - 200mA (four 1.5 V AA batteries)
Spark voltage / frequency: >10kV / 1Hz
Comfort modulating fan: 120 V / 60 Hz / 2A
Auxiliary: 120 V / 60 Hz / 5A (not used)
tRansmitteR:
The Proame 2 Transmitter is a remote control with a blue backlit lcd display. It uses a streamline design with
a simple button layout and informative lcd readout (Figure 4). The Transmitter is powered by three (3) AAA
type batteries. A Mode Key is provided to Index between the features and a Thermostat Key is used to turn
on/off or index through Thermostat functions (Figure 4 & 5)
THERMOSTAT Key
Back lit LCD display
Figure 4: Proame 2 Transmitter.
MODE Key
UP/D OW N Arrow Key
9
CPI Mode
Operating Instructions
Figure 5: Proame 2 Transmitter LCD Screen.
integRateD fiRepLace contRoLLeR (ifc):
The Proame 2 IFC (Figure 6) connects directly to the gas valve, stepper motor, pilot and covection fan with a
wiring harness. The IFC is mainly powered by 120 VAC but can also run off a battery backup four (4) AA type
batteries for shorter periods of time. The IFC accepts commands via radio frequency from the Transmitter to
operate the appliance in accordance with the particular Proame 2 system conguration. The IFC has a red
reset button at the front right corner that is used is to synchronize the Transmitter when using the for the rst
time, or after the batteries have been replaced.
Reset Button
Figure 6: Integrated Fireplace Controller
10
Operating Instructions
opeRating pRoceDuRe:
Initializing The System For The First Time
Install the four (4) AA batteries into the IFC battery holder. Note the polarity of the battery and insert into the
battery bay as indicated on the body of the battery holder. Press the reset button on the IFC marked “SW1”
(see Figure 6).
The IFC will “beep” three (3) times to indicate that it is ready to synchronize with a Transmitter. Install the
three (3) AAA type batteries in the Transmitter battery bay, located on the base of the Transmitter. With the
batteries already installed in the Transmitter, push the ‘ON’ button. The IFC will “beep” four (4) times to indicate
the Transmitter’s command is accepted and sets to the
particular code of that Transmitter. The system is now
initialized.
Temperature Indication Display
With the system in the “OFF” position, press the
Thermostat Key and the Mode Key at the same time.
Look at the LCD screen on the transmitter to verify that
a °C or °F is visible to the right of the Room Temperature
display (see Figure 7).
Turn on the Appliance
Press the ON/OFF Key on the Transmitter. The
Transmitter display will show all active Icons on the screen. A single “beep” from the Receiver will conrm
reception of the command and will commence to rst ignite the pilot light, followed by the main burner. This
should take about 10 seconds to complete.
Figure 7: Remote Control Display in Farenheit and Celcius.
switching to continuous piLot moDe:
When the Q1GI is turned off press the mode key to index to the constant pilot (CPI) mode icon (see
gure 8). Pressing the up arrow key will select Continuous Pilot Ignition (CPI) and pressing the down
arrow key will return to IPI. Once a selection is made the IFC will beep once to conrm it had received
the command. NOTE: It is recommended to use the continuous pilot mode during the winter
when the outside temperature is below 50°F (10°C) to keep the chimney properly heated
for updraft during burner ignition. Continuous pilot mode also keeps the rebox warm which
eliminates both heat loss to cold air that is trapped inside the rebox as well as excessive exhaust vapour
condensation on the door glass.
11
Figure 8: CPI Pilot Mode.
Room Temperature
Set Temperature
Thermostat ON
Flame Off
Flame Level 1
Flame Level 5
Maximum Flame Level
Operating Instructions
Turn off the Appliance
Press the ON/OFF Key on the Transmitter. The Transmitter LCD display
will only show the room temperature and Icon (see Figure 9). A single
“beep” from the IFC conrms reception of the command and both the
pilot light (if the unit is not set to continuous pilot) and main burner will
turn off.
Room Thermostat (Transmitter Operation)
The Remote Control can operate as a room thermostat. The thermostat
can be set to a desired temperature to control the comfort level in a
room. To activate this function, press the Thermostat Key (see Figure
4). The LCD display on the Transmitter will change to show that the
room thermostat is “ON” and the set temperature is now displayed (see
Figure 9). To adjust the set temperature, press the Up or Down Arrow
Keys until the desired set temperature is displayed on the LCD screen
of the Transmitter.
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the ame height in accordance to the difference between the set
point temperature and the actual room temperatures. As the room temperature gets closer to the set point
the Smart Function will modulate the ame down. To activate this function, press the Thermostat Key (Figure
4) until the word “SMART” appears to the right of the temperature bulb graphic (Figure 10). To adjust the
set temperature, press the Up or Down Arrow Keys until the desired set temperature is displayed on the LCD
screen of the Transmitter.
Figure 9: Remote Control Displays
Set Temperature.
Figure 10: Remote Control’s Smart Flame Function.
Remote Flame Control
The Proame 2 GTMF has six (6) ame levels. With the
system on, and the ame level at the maximum in the
appliance, pressing the Down Arrow Key once will reduce
the ame height by one step until the ame is turned
off. The Up Arrow Key will increase the ame height
each time it is pressed. If the Up Arrow Key is pressed
while the system is on but the ame is off, the ame will
come on in the high position (refer to Figure 11). A single
“beep” will conrm reception of the command.
Figure 11: Remote Control’s Flame Levels.
12
Operating Instructions
Fan Control
The Q1GI comes with a convection fan that can be
controlled with the Transmitter. The fan speed can be
adjusted thorugh six (6) speeds. To control the fan
press the MODE key (Figure 4) to index to the fan
control icon (Figure 12). Use the UP/DOWN arrow keys
to turn on, off, or adjust the fan speed (Figure 12). A
single beep from the IFC will conrm the command
has been received
Key lock
This function will lock the keys to avoid unsupervised
operation. To activate this function, press the MODE
and UP keys at the same time and the a lock will
appear (see Figure 14). To de-activate this function,
press the MODE and UP Keys at the same time.
Low Battery Power Detection
Transmitter: The life span of the remote control
batteries depends on various factors: quality of
the batteries used, the number of ignitions of
the appliance, the number of changes to the
room thermostat set point, etc. When the
Transmitter batteries are low, a Battery Icon will
appear on the LCD display of the Transmitter
(see Figure 15) before all battery power is lost.
When the batteries are replaced this Icon will
disappear.
IFC: The life span of the IFC batteries depends on
various factors during a prolonged power outage:
quality of the batteries used, the number of ignitions
of the appliance, the number of changes to the room
thermostat set point etc. When the IFC batteries are
low, No “beep” will be emitted when it receives an
On/Off command from the Transmitter. This is an
alert for a low battery condition for the IFC. When the
batteries are replaced the “beep” will be emitted from
the Receiver when the ON/OFF Key is pressed (See
InItIalIzIng the system for the fIrst tIme).
Figure 12: Fan Control
Figure 13: Remote Control with Aux (not used)
Figure 14: Remote Control
Locked.
Figure 15: Low Battery
Indicator.
WARNING: Fire Hazard. Can cause severe injury or death The Receiver causes ignition of the appliance.
The appliance can turn on suddenly. Keep away from the appliance burner when operating the remote
system or activating manual by pass of the remote system.
WARNING: Shock Hazard. Can cause severe injury or death. This device is powered by line voltage. Do
not try to repair this device. In no way is the enclosure to be tampered with or opened. Disconnect from
line voltage before performing any maintenance.
WARNING: Devices rated more than 5A shall not be connected to the OUT receptacle. Devices rated
more than 1A shall not be connected to the FAN receptacle. Devices rated more than 2A shall not be
connected to the AUX receptacle.
CAUTION: Property Damage Hazard. Excessive heat can cause property damage. The appliance can stay
lit for many hours. Turn off the appliance if it is not going to be attended for any length of time. Always
13
place the Transmitter where children cannot reach it.
Maintenance And Service
Routine maintenance:
At least once a year, run through the following procedures to ensure the system is clean and working
properly. Check the burner to see if all the ports are clear and clean. Check the pilot to make sure it is not
blocked by anything. The pilot ame should be blue with little or no yellow on the tips.
Warning: Clearances must be sufcient to allow access for maintenance and service
Warning: Failure to position the parts in accordance with this manual, or failure to use only parts
specically approved with this appliance may result in property damage or personal injury.
The venting system must be periodically examined; it is recommended the examination is done by a
qualied agency.
cLeaning the gLass:
When the replace has cooled, remove the face of the replace along with the glass. See maIntenance
and serVIce - glass door remoVal. Check the gasket material on the back of the glass, making sure that
it is attached and intact.
During a cold start up, condensation will sometimes form on the glass. This is a normal condition with all
replaces. However, this condensation can allow dust and lint to cling to the glass surface. Initial paint
curing of the appliance can leave a slight lm behind the glass, a temporary problem. The glass will need
cleaning about two weeks after installation. Use a mild glass cleaner and a soft cloth. Abrasive
cleaners will damage the glass and painted surfaces. Depending on the amount of use, the glass
should require cleaning no more than two or three times a season. Do not clean the glass when it is
hot.
cLeaning the fiRebox:
Remove all of the glass media from the tray, a vacuum cleaner with an empty canister or new bag works
best. At this time, inspect the burner tray for cracking or severe warping. If a problem is suspected,
contact the dealer. Check the glass media for large amounts of soot; a small amount on the bottom side
of the glass is normal. Re-install the glass as in the secondary InstallatIon - glass medIa InstallatIon
section. If new or glass is required, contact your nearest ENVIRO dealer.
RepLacing the gLass:
The door glass in the replace is a high temperature ceramic. If the glass is damaged in any way,
a factory replacement is required (see Parts lIst). Wear gloves when handling damaged glass door
assembly to prevent personal injury. Do not operate with the glass front removed, cracked or broken.
Removal and replacement of the glass from the door must be done by a licensed or qualied service
person. The glass must be purchased from an ENVIRO dealer. No substitute materials are
allowed. Remove the door (see page 11). The replacement glass will come with a new gasket installed.
Remove any silicone remnants from the door. Apply high temperature silicone to the two vertical faces
of the door and install the new piece of glass with gasket (be sure to maintain edge clearances). Apply
even pressure to the glass to allow the silicone to adhere to the gasket material.
14
Maintenance And Service
cLeaning DecoRative suRfaces:
Painted and porcelain faces should be wiped with a damp cloth periodically. If a plated face has been
purchased, it should be unpacked/unwrapped carefully to avoid getting anything on the surface of the
nish, including cleaners, polish and nger prints. It is important to note that ngerprints and other
marks can leave a permanent stain on plated nishes. To avoid this, give the face a quick wipe with
denatured alcohol on a soft cloth BEFORE lighting the replace. Never clean the face when it is
hot. Do not use other cleaners as they may leave a residue, which can become permanently etched into
the surface.
gLass DooR RemovaL:
In order to install the glass media,
and for regular cleaning, the glass
Door Tool Hole
Figure 16. Top latches for glass door
Door Latch Mechanism
door must be removed. There are
two (2) door latch mechanisms
on top the glass door as shown in
Figure 16. Each latch has a hole
at the front to use the door tool,
supplied with the unit, to pull the
mechanisms straight out and up.
When the top latches are unhooked,
lean the door forward and then lift
it up out of the alignment slots at
the bottom corners of the rebox,
shown in Figure 17.
Alignment Slot
(both corners)
*Parts removed
for clarity*
Figure 17. Bottom Alignment Slots for glass door.
To replace the glass door, simply
reverse the above procedure.
Warning: Do not touch or attempt
to remove the glass door if the
replace is not completely cold.
WARNING: Never operate the
replace with the glass door
removed.
15
Maintenance And Service
buRneR RemovaL:
The burner tray may need to be removed for a few reasons, including cleaning under the burner, converting
the unit to a different gas type, or to replace the burner altogether. Proceed only when the unit has
completely cooled down.
1. Remove the glass door as shown in the
maIntenance and serVIce - glass door
remoVal.
2. Remove the glass media as instructed in
maIntenance and serVIce - cleanIng the
f
Irebox and remove the front glass hood.
3. Take note of the pilot shield tment and
then lift the glass tray assembly straight
up and out
4. Push the air shutter in until it stops
5. Lift the burner tray straight up then out.
To re-install the burner follow steps 1-4 in
reverse. When placing the burner back in
the unit be sure to align it correctly with the
back rest and pilot shield, then adjust the
air shutter back to the correct setting.

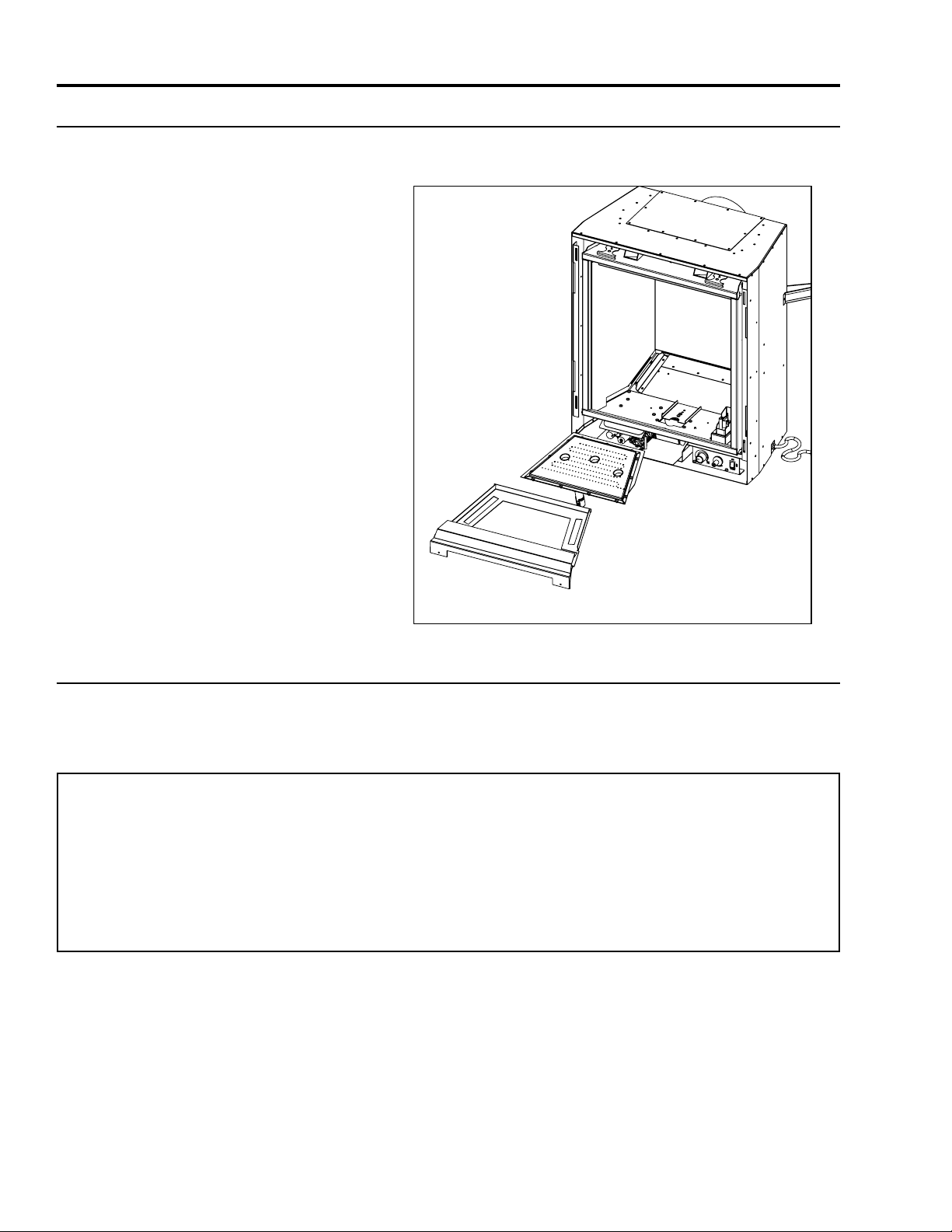

Figure 18. Removing Burner.
fueL conveRsion:
TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY
Please read and understand these instructions before installing.
Warning: This conversion kit shall be installed by a qualied service agency in accordance
with the manufacturer’s instructions and all applicable codes and requirements of the
authority having jurisdiction. If the information in these instructions is not followed
exactly, a re, explosion or production of carbon monoxide may result causing property
damage, personal injury or loss of life. The qualied service agency is responsible for
the proper installation of this kit. The installation is not proper or complete until the
operation of the converted appliance is checked as specied in the manufacturer’s
instructions supplied with the kit.
Kit Parts List:
1 - Orice (NG - #46 DMS or LP - 1.2 mm)
1 - Servo Regulator with diaphragm
1 - Installation instruction sheet
1 - Conversion label
Carefully inspect all parts supplied with this conversion kit. If any parts have been damaged or are
missing, contact your dealer, distributor or courier company to have them replaced before starting this
installation.
16
Maintenance And Service
Conversion Kit Installation:
1. Turn the unit off by pressing the ON/OFF Key on the remote and shut off gas supply at the shut-off
valve upstream of the unit. CAUTION: The gas supply must be shut off prior to disconnecting the
electrical power and before proceeding with the conversion. Allow the valve and unit to cool down
to room temperature.
2. Remove the glass door as shown in the
3. Carefully remove the glass media, front hood, glass tray, and pilot shield.
4. Remove the burner as shown in the
5. Convert the pilot injector (see Figure 19):
a) Using a
1/4 turn counter-clockwise
b) Push the slider with your nger or
at head screwdriver
- Natural Gas is marked NAT.
- Propane gas is marked LP with an
indicating hole between L and P.
It is also marked red.
c) Turn the pilot head a
back to its original position.
6. Convert the burner orice:
a) Remove the main burner orice with a
b) Put a bead of pipe-thread sealant into the orice mount. DO NOT OVER-TIGHTEN
7
/16” wrench, turn the pilot head a
1
/4 turn clockwise
maIntenance and serVIce - glass door remoVal.
maIntenance and serVIce - burner remoVal.

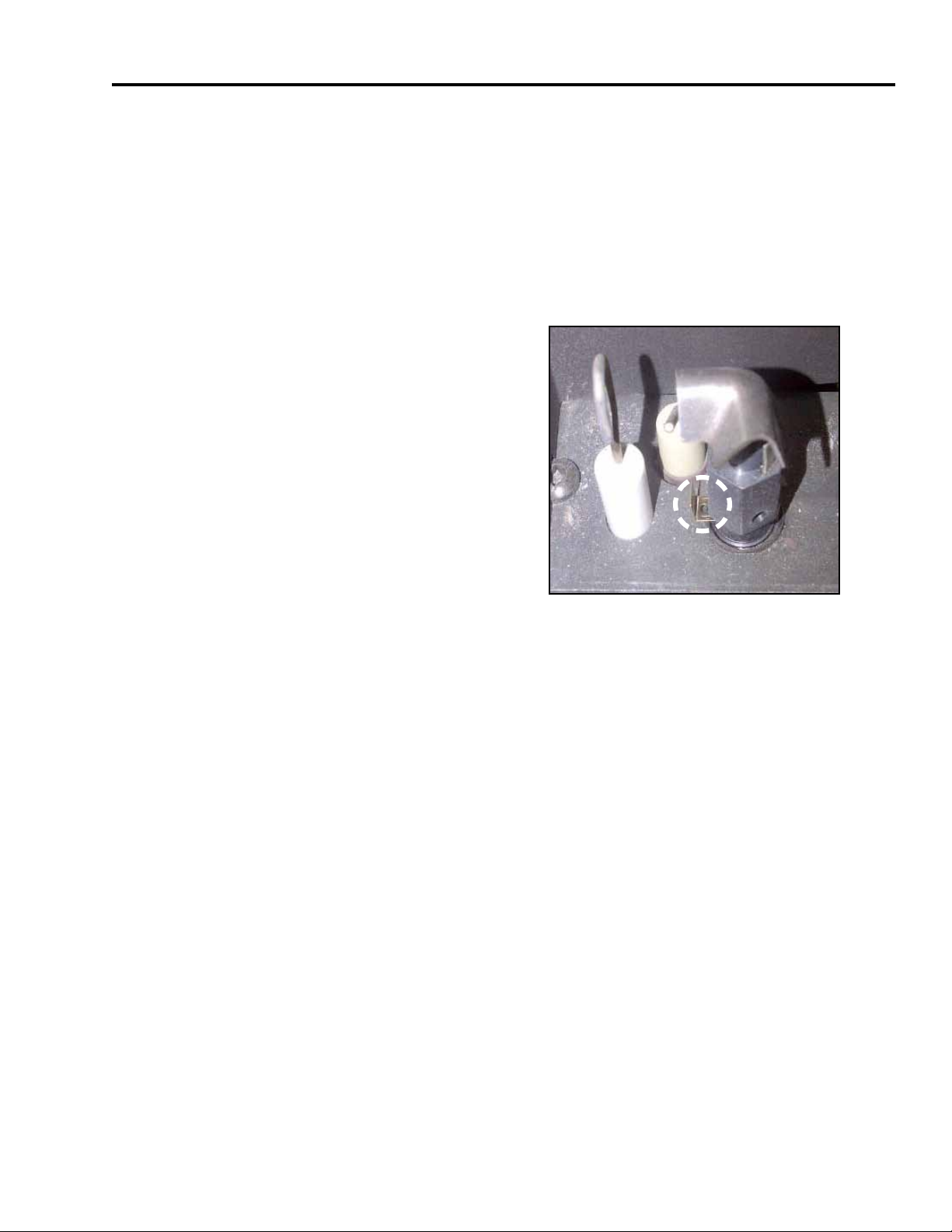

Figure 19. Pilot Slider set to LP
1
/2” deep socket
17
7. Convert the SIT gas valve:
a) Use a T-20 driver to remove the two screws that hold the servo regulator to the gas valve and
disconnect the wire harness from the IFC.
b) Remove the rubber regulator diaphragm that is situated between the servo regulator and the valve
body. The new servo regulator already has this diaphragm installed.
c) Install the LP servo regulator, with the new longer T-20 screws included in the kit and connect the
harness to the IFC.
8. Reinstall the burner, pilot shield, glass tray and hood, glass media, and glass door. Also refer to
secondary InstallatIon - glass medIa InstallatIon in your Owner’s Manual. When re-installing the
burner, ensure that the burner to pilot hood and shield relationship is similar to what is shown in
Figure 20.
9. Reconnect the main gas line if it was disconnected and open the shut-off valve at the gas line to the
unit.
10. Reconnect the electrical power to the unit.
11. Use a small brush to apply a warm soapy water solution to all gas connections (use a half dish soap
and half warm water). If a gas leak is present, bubbling will occur. Gas leaks can be repaired by
using an approved pipe thread sealant or approved Teon tape. NEVER USE AN OPEN FLAME WHEN
TESTING FOR LEAKS.
12. Relight the pilot and conrm the ame properly covers the ame sensor (see Figure 20). Should the
pilot require adjustment, turn the adjustment screw (gure 40, page 36) clockwise to decrease or
counterclockwise to increase until the correct ame is achieved.
Maintenance And Service
13. Relight the main burner in both the “HI” and “LO” positions to verify proper burner ignition, operation
and proper ame appearance. Conrm the inlet and manifold pressures are within the acceptable
ranges as directed in section IntIal IntallatIon - gas lIne connectIon and testIng. If the Q1 has
been installed at an altitude higher than 2000ft (610m) it is required to de-rate the unit accordingly:
In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas
Association guidelines which state: the sea level rated input of Gas Designed Appliances installed at
elevations above 2000 (610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level.
Refer also to local authorities or codes which have jurisdiction in your area regarding the de-rate
guidelines.
In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certied high
altitude rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).
14. MAKE SURE that the conversion label is installed on or close to the rating label to signify that the
unit has been converted to a different fuel type.
Figure 20: Correct Glass Media and Pilot Shield Placement
18
Initial Installation
25 1/4"
(641mm)
15 1/8"
(384mm)
6 15/16"
(176mm)
Gas
Inlet
Ad
j
ac
e
n
t
w
a
l
l
3 11/16 "
min
(94mm)
Top
Vent
41"
(1041mm)
QUALIFIED INSTALLERS ONLY
intRoDuction:
This section of the owner’s manual is for the use of qualied technicians only. Fireplace placement,
hearths, facing, mantels, and venting terminations will be covered, as well as the gas and electric
systems. There are several installation safety guidelines that must be adhered to. Please carefully read
the safety precautions at the front of this manual.
NOTE: The Q1GI comes as a top vent unit and CANNOT be converted to a rear vent.
Warning: Clearances must be sufcient to allow access for maintenance and service.
pLacement anD fRaming:
Table 2. Framing Dimensions.
Firebox Framing
Depth 15⅛” 38.4 cm
Width 25¼” 64.1 cm
Height - Top Vent 41” 104.1 cm
Gas Inlet (Distance
From Back)
The location for the replace can be
along a wall, raised or at oor level, or
in a corner. There are specic framing
measurements for each situation.
The basic opening should have the
dimensions shown in Figure 21.
The replace must have a strong and
level surface to be placed on. The
surface should be made of wood or a
non-combustible material, not carpet.
The framing boards may touch the
top and back standoffs, but only the
supplied insulating material can
be placed between the frame and
the standoffs.
The gas line, ⅜ inch NPT, should be
brought to the left side of the replace.
The location should be chosen so the
Figure 21. Dimensions for Framing the Firebox.
other combustibles. The framed opening should also be a minimum of 3 11/16” inches (9.4 cm) from the
nearest perpendicular wall (sidewall to the edge of the opening).
replace will be at least 36 inches
(91.4 cm) from drapes, doors and
19
Initial Installation
QUALIFIED INSTALLERS ONLY
insuLating mateRiaL:
When using the top vent conguration the berglass insulation supplied with the stove is required. Cut a
notch in the insulation, to t around the vent collar, and place on top of the unit as shown in Figure 22.
Fiberglass
Insulation
(cut around
vent collar)
Figure 22. Unit Insulation - Top Vent
20
Initial Installation
QUALIFIED INSTALLERS ONLY
stanDoffs:
The Q1GI is supplied with two sets of standoffs that serve as a framing guide and must be used when the
unit is being installed as a replace. The front set of standoffs mount to sides of the unit (see Figure 23)
and can be adjusted as needed to
account for the thickness of the
wall material. The rear standoffs
attach to the back corners of
the unit and are not adjustable.
Combustible material can
touch the standoffs but must
not encroach past them.
Mounting Screw
Rear Standoff
Mounting Screw
If the Q1GI is being installed
into a pre-existing masonary
replace it is not necessary to
use the standoffs. Installation of
the standoffs will require a T20
screwdriver. Remove the installed
screws in the noted locations,
place the standoff over the holes,
and re-install the screws.
Figure 23. Standoff Mounts
Frame up to this
ange
Multiple Holes
for Adjustable
Depth
Front Standoff
No Combustible
Material within
dotted lines
21
Figure 24. Area created by stanoffs
Initial Installation
15
3
4
"
(260mm)
25
1
4
"
(641mm)
39
1
2
"
(1003mm)
27
7
8
"
(709mm)
55
7
8
"
(1123mm)
13
3
4
"
(203mm)
Outside Wall
Inside Wall
coRneR instaLLation:
QUALIFIED INSTALLERS ONLY
The dimensions for installing a replace in the corner of a room are given in Figure 25. Refer to “InItIal
InstallatIon - allowable co-axIal Vent confIguratIons” for allowable pipe lengths.
Do not interfere with the structural integrity of the walls.
Figure 25. Dimensions for a corner installation, top vented.
22
Initial Installation
12" (305 mm) Mantle
1¼” (32mm)
thick non-
combustible
floor
12" (305 mm) minimum from wall
If hearth is flush with flooring
2" (51 mm) Mantle
41"
(1041 mm)
minimum
from bottom
of unit
35"
(889 mm)
minimum
from bottom
of unit
10” (254 mm)
Non-Combustible
Facing
7" (178 mm)
minimum from
side of door to
side wall
1/2” (12.7mm)
thick non-
combustible facing
QUALIFIED INSTALLERS ONLY
mantLe & non-combustibLe cLeaRances:
When installing the Q1GI as a zero clearance replace the correct clearances and materials must be used:
above unit: A minimum 10” of ½” thick non-combustible facing material, with a R-Value no less than
0.26, must be used (see Figure 26).
in fRont of unit: A minimum 12” of 1¼” thick non-combustible material, with a R-Value no less than
2.27 (K-value no less than .55), must be used when the unit is either sitting on the oor or raised within
2’’ of the oor. Approved 1” thick Q1 oor protection is available seperately under part number 50-3016.
When raising the unit 2” - 4” above the oor a minimum 12” of ¾” thick material, with a R-Value no less
than 1.36, must be used. If raising the unit higher than 4” from the oor, any combustible material can
be used.
aDjacent/siDewaLL: There must be a minimum distance of 7” from the side of the rebox door to an
adjacent wall composed of combustible material (see Figure 26).
mantLe: It is not necessary to install a mantle, but if one is desired the guidelines as shown in Figure 26
below must be followed.
Figure 26. Non-Combustible Clearances
23
Initial Installation
QUALIFIED INSTALLERS ONLY
DiRect vent:
WARNING: This appliance has been designed to draw room air for proper heat circulation
from the bottom of the unit, and out the top front. Blocking or modifying these openings in
any way can create hazardous situations.
The vent length for the Q1GI must be between 7” (18 cm) and 44ft (13.4 m). This model is vented
with co-axial 4” intake, 6 5/8” exhaust aluminum or stainless steel approved rigid vent leading into a
vertical or horizontal termination cap. The ue collar of this model will t inside of a standard 4” x 6
5/8” vent and must be either correctly interlocked or fastened, with three screws directly to the vent.
The Q1GI may also be converted to a replace insert with the use of a co-linear vent adapter kit (50-
2982) see InItIal InstallatIon - co-lInear VentIng adaPter KIt. When converted to co-linear venting
the lenth of vent must be between 8’ (2.44m) and 40’ (12.19m). The insert model is vented with
a 3” intake and a 3” exhaust aluminum or stainless steel approved ex vent leading into a vertical
termination cap only. The ue collars of this model will t inside of a standard 3” vent
and must be fastened directly to the vent with three screws. The exhaust vent and air intake are both
located on the top of the unit.
Check periodically that the vents are unrestricted. Also ensure that all direct vent pipes have been
properly sealed and installed after routine inspection or cleaning. The air intake and exhaust pipes must
be installed in the correct locations on the top of the Q1GI.
venting fiRepLace inseRts:
When using the co-linear venting adapter kit (50-2982) the Q1GI may be installed and vented into any
solid fuel replace that has been installed in accordance with the National, Provincial/State and local
building codes and has been constructed of noncombustible materials. Please reference the information
in Table 8 and Figures 38. An approved chimney liner and rain cap must be used. A throat connector or
ashing must be installed to ensure a tight seal, top performance, safety and efciency. Carefully follow
the manufacturer’s instructions that accompany the chimney liner kit. Use double walled aluminum
ex vent (3” ex conversion piece and 4”x 6 5/8” cap) from the following approved products; Simpson
Dura-Vent (Direct Vent GS). If necessary, remove the vent collar plate from the top of the insert and
connect it securely to the liner with sheet metal screws. Check for any tears in the liner at this point.
IMPORTANT: The screws that hold the vent collar plate in its approved position must be installed.
NOTE: If the Q1GI unit is pulled out of its installation, and the vent-air intake system is disconnected
for any reason, ensure that the vent-air intake pipes are re-sealed with high-temperature sealant and
reconnected with three (3) sheet metal screws evenly spaced.
24
Initial Installation
QUALIFIED INSTALLERS ONLY
vent teRmination RestRictions:
N
O
D
E
C
B
L
F
Fixed
Closed
Openable
B
B
Openable
Fixed
Closed
H
G
G
M
B
A
J
I
Termination Cap
Figure 27. Vent Termination Restrictions, refer to Table 3.
Letter Canadian Installation
A 12 in (30 cm) Clearance above grade, verandah, porch, deck, or balcony.
B 12 in (30 cm) 9 in (23 cm) Clearance from window or door that may be opened.
C 12 in (30 cm)* Clearance from permanently closed window (to prevent
D 24 in (60 cm)* Vertical clearance to ventilated soft located above the
E 18 in (45 cm)* Clearance to unventilated soft.
F 12 in (30 cm)* Clearance to outside corner.
G 12 in (30 cm)* Clearance to inside corner.
H 3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly
I 3 ft (91 cm) 3 ft (91 cm)* Radial clearance around service regulator vent outlet.
J 12 in (30 cm) 9 in (23 cm) Clearance to non-mechanical air supply inlet to building, or
K 6 ft (1.83 m) 3 ft (91 cm) above if within 10
L 7 ft (2.13 m
M 12 in / 30 cm
N 12 in (30 cm)* Clearance horizontally to any surface (such as an exterior
O 12 in (30 cm) Clearance above roof line for vertical terminations.
1
In accordance with the current CSA B149, Natural Gas and Propane Installation Code.
2
In accordance with the current ANSI Z223.1 NFPA 54, National Fuel Gas Code.
* These numbers are only estimates. Clearance in accordance with installation codes and the requirements of the gas supplier.
t
A vent shall not terminate directly above a side walk or paved driveway that is located between two single family dwellings and it serves both dwellings.
+
Permitted only if verandah, porch, deck, or balcony is fully open on a minimum of two sides beneath the oo
1
)t
+
Air Supply Inlet
Gas MeterG
Table 3: Vent termination clearances
US Installation
3 ft (91 cm) within a height of
15 ft (4.5 m) above the meter/
regulator assembly*
ft (3 m) horizontally
7 ft (2.13 m)
12 in / 30 cm*
2
condensation).
terminal, within a horizontal distance of 2 ft (60 cm) from
center line of terminal.
Clearance to each side of center line extended above
meter/regulator assembly.
the combustion air inlet to any other appliance.
Clearance to mechanical air supply inlet.
*t
+
Clearance above paved sidewalk or paved driveway located
on public property.
Clearance under verandah, porch, deck, or balcony.
wall) for vertical terminations.
Restriction Zone
(Termination not allowed)
Description
r.
K
A
25
Clearances are in accordance with local installation codes and the requirements of the gas supplier.
NOTE: Venting terminals shall not be recessed into walls or siding.
Initial Installation
Framing
Joists/Studs
10”
10”
QUALIFIED INSTALLERS ONLY
venting cLeaRances:
A 1” (25 mm) clearance to combustibles must be maintained around any vertical vent pipe. Around a
horizontal vent pipe, the clearance to combustibles should be 2” (51 mm) above and 1½” (38 mm) on the
sides and bottom. When combustible materials are directly above a 90° elbow, 3” (76 mm) of clearance
are necessary.
Table 4. Vent Pipe Minimum Clearances.
Vertical Pipe to
the Side Walls
Hard
Pipe
1”
(25.4 mm)
A 10” (254 mm) x 10” (254 mm) frame (see Figure 28) will assure the proper support and spacing for
the vent pipe as it passes through the wall. Installations in Canada require that a wall thimble be used for
passing through walls and ceilings. All sealing and vapour barriers must comply with local building codes.
The conguration of the venting pipes depends on the locations
of walls, ceilings, and studs. However, the pipes cannot be of
arbitrary length and arrangement. Because the length of the
vertical and horizontal sections dramatically affects the burning
efciency of the replace, certain guidelines have been set in
InItIal InstallatIon - allowable co-axIal Vent confIguratIons.
Venting terminals can not be recessed into a wall or siding.
Horizontal Pipe to
the Sides & Bottom
1½”
(38.1 mm)
Above an Elbow
Above the Unit
3”
(76.2 mm)
Above an Elbow
Not Above the Unit
3”
(76.2 mm)
Above Horizontal
Vent Pipe
2”
(51 mm)
Wall Frame 8”
(203mm) or less
10”x10”
(25x25cm)
WARNING: This gas appliance must not be connected
to a chimney ue serving a separate solid-burning
appliances.
Figure 28. Vent Framing For Wall or Ceiling.
appRoveD venting paRts:
Table 5: Approved Vent Manufacturers
Manufacturer Trade Name Nominal Sizes
American Metal Products AmeriVent Direct 4” - 6 5/8”
ICC EXCELDirect 4” - 6 5/8”
Security Chimneys International LTD Secure Vent 4” - 6 5/8”
Selkirk Metalbestos Direct-Temp 4” - 6 5/8”
Simpson Dura-Vent Direct Vent GS 4” - 6 5/8”
The Q1GI replace has been tested and certied for use with AMERICAN METAL PRODUCTS “AMERIVENT
DIRECT”, SIMPSON DURAVENT TYPE GS PIPE FOR GAS STOVES. SECURITY CHIMNEY’S “SECURE VENT
DIRECT VENT SYSTEM” and SELKIRK “DIRECT-TEMP VENT SYSTEM” kits are available for horizontal and
vertical venting. When using Simpson Duravent, it is recommended that, before installation, a bead of
RTV High Temperature Silicone should be applied to each outer vent joint, and Mil-Pac to each inner
joint. When planning an installation, it will be necessary to select the proper length of vent pipe for the
particular requirements.
WARNING: Do not mix parts from different vent manufacturers’ systems.
26
Initial Installation
QUALIFIED INSTALLERS ONLY
EXCEPTION TO WARNING: This product has been evaluated by Intertek for using a Direct Vent GS
starting collar in conjunction with Secure Vent, Direct-Temp, Ameri Vent Direct, and ExcelDirect venting
systems. Use of these systems with the Direct Vent GS starting collar is deemed acceptable and does
not affect the Intertek WH listing of the appliance.
Table 6: Vent part numbers (Must state if galvanized or black wanted, PART NUMBERS).
Direct Vent GS Direct-Temp Secure Vent Ameri Vent Direct Description
908 4DT-6 SV4L6 6” pipe length
4D7 7” pipe length
907 4DT-9 9” pipe length
906 4DT-12 SV4L12 4D12 12” pipe length
904 4DT-24 SV4L24 4D2 24” pipe length
903 4DT-36 SV4L36 4D3 36” pipe length
902 4DT-48 SV4L48 4D4 48” pipe length
945 4DT-EL45 SV4EBR45 4D45B 45° elbow, black
990 4DT-EL90 SV4EBR90 4D90B 90° elbow, black
950 4DT-VS SV4VS Vinyl siding standoff/sheild
942 4DT-WT SV4RSN 4DWT Wall thimble
953 4DT-SC SV4FC 4DSC Storm collar
963 4DT-FS SV4BF 4DFSP Fire stop
988 4DT-WS/B SV4BM 4DWS Wall strap/support/band
970 4DT-HKA SV0SHK 4DHTK1
911 11” to 14 ⅝” pipe, adjustable
4DT-AJ 4D12A 4” to 10” pipe , adjustable
SV4LA12 1½” to 12” pipe , adjustable
943 4DT-AF6 4DF Flashing, 0/12 to 6/12 roof pitch
943S 4DT-AF12 4DF12 Flashing, 7/12 to 12/12 roof pitch
SV4FA Flashing, 1/12 to 7/12 roof pitch
SV4FB Flashing, 8/12 to 12/12 roof pitch
943F SV4F Flat ashing
991 4DT-HVC High wind vertical termination
985 4DT-HHC High wind horizontal termination
Horizontal termination kit (SD: Basic Kit,
SEL: Kit A, SC: Standard Kit)
978 4DT-VKC SV0FAK 4DVTK Vertical termination kit
971 4DT-HKB SV0SHK2 4DHTK2
Horizontal termination kit
(SD: Kit A, SEL: Kit B, SC: Kit)
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9 10 11 12 13 14
HORIZONTAL RUN
ft
VERTICAL RISE
INSTALLATION
PROHIBITED
INSTALLATION
PROHIBITED
Initial Installation
QUALIFIED INSTALLERS ONLY
aLLowabLe co-axiaL vent configuRations:
Figures 29 shows the range of venting options, it shows possible vent con gurations if the unit is top vented,
for vertical and horizontal terminations, any layout that remains within the shaded area is acceptable.
Having the fewest number of elbows is ideal, as they tend to disrupt air movement. Using 45˚ elbows is
preferable to using 90˚ elbows. Also, a shorter vent system will perform better than a longer one. The
total length of horizontal vent pipe can not exceed 14 feet (4.27m) and the total vent length can not
exceed 44ft (13.4m). Any combination of
rise and run can be used as long as it lays
within the shaded area (a total of two (2)
90˚ elbows or four (4) 45˚ elbows can be
used. In addition to what is shown, if a
90˚ elbow is used in the horizontal plane,
3 feet (91.4cm) must be subtracted from
the allowable horizontal run (for each 45˚
elbow, 1½ feet must be subtracted).
Note: Minimum length of co-axial venting
with no vertical rise is 7in (25.4mm)
Note: Minimum length of co-linear
venting is 8ft (2.44m) and maximum
length is 40ft (12.19m)
Figure 29. Possible Vent Con gurations for Top
Vented; Vertical and Horizontal Terminations.
28
Initial Installation
QUALIFIED INSTALLERS ONLY
co-LineaR venting aDapteR Kit (50-2982):
The Q1GI can be converted from solid co-axial venting to 3” (76mm) exible co-linear venting to allow
for installation into exisiting masonary replaces (see Figures 30-32). Co-linear venting can not be used
in combustible chimney installations. This adapter kit is for vertical terminations only and can’t be
connected to a chimney ue serving a seperate solid-fuel burning stove or appliance.
WARNING: Failure to position the parts in accordance with these diagrams or failure to use only parts
specically approved with this appliance may result in property damage or personal injury.
Adapter Kit Contents:
Vent Plate Adapter
Vent Plate Adapter
Ceramic Gasket
3” Dia. Exhaust
Spigot
Exhaust Spigot
Ceramic Flange
Gasket
Exhaust Spigot
Ceramic Tube
Gasket
Figure 30: Co-Linear Venting Kit Contents
29
Initial Installation
QUALIFIED INSTALLERS ONLY
Adapter Kit Installation:
Vent Collar
Base Plate
4” Exhaust Spigot
Cover Plate
Figure 31: Removal of Co-Axial Venting
Vent Plate Adapter
3” Exhaust Spigot
Step 1: Using a T20 screwdriver
remove the vent collar, base plate,
cover plate and 4” exhaust spigot
(28 screws total) as shown in
Figure 31. The vent collar, base
plate, and 4” exhaust spigot will
no longer be used.
Cover Plate
Figure 32: Installation of Co-Linear Vent Kit
Step 2: Install the components
supplied in the adapter kit as
shown using the screws that had
been removed from the unit in
Step 1. The gasket on the bottom
side the vent plate adapter and
exhaust spigot ange gasket will
be sandwiched together when
properly installed.
30
Initial Installation
QUALIFIED INSTALLERS ONLY
hoRizontaL teRmination:
NOTES:
1. Horizontal pipes must not be level. For every 12 inches (305 mm) of horizontal travel
(away from the stove), there should be at least ¼ inch (6.4 mm) of vertical travel. Never
allow the vent to run downward, as this could cause high temperatures or even present
the possibility of a re.
2. The exterior of the horizontal
vent termination must not be
blocked or obstructed.
3. If the vent termination is not
being attached to wood, the
four wood screws provided
should be replaced with
material appropriate fasteners.
4. For buildings with vinyl siding,
a vinyl standoff should be
Elbow
installed between the vent cap
and the exterior wall. Attach
the vinyl siding standoff to
the horizontal termination.
Note that the termination
bolts onto the at portion of
the standoff, providing an air
space between the wall and
the vent termination. The air
gap prevents excessive heat
from possibly melting the vinyl
siding.
5. Horizontal pipes must be
supported every 3 feet (914
mm). Plumber’s all round strap will sufce.
Wall thimble
fire stop
Exhaust
pipe
Combustion air
outer pipe
Figure 33. Horizontal Vent Termination
Horizontal wall
termination
Wall framing
31
6. When running horizontal pipe, clearances to combustibles must be maintained 1½ inches (38 mm)
sides, 1½ inches (38 mm) bottom, and 2 inches (51 mm) top.
Step 1. Set the replace in the desired location. Check to determine if wall studs will be in the way when
the venting system is attached. If this is the case, the location of the replace may have to be
adjusted or the venting may have to be offset.
Step 2. Direct vent pipe sections are designed with special twist-lock connections. Dry t the desired
combination of pipe and elbows to the appliance adaptor.
Step 3. With the pipe in the correct position and attached to the replace, mark the wall for a 10 inches
(25.4 cm) x 10 inches (25.4 cm) square hole (see Figure 28). The center of the hole should
match the center line of the horizontal pipe. Cut and frame the hole in the exterior wall where
the vent will be terminated. If the wall being penetrated is made of a non-combustible material
(i.e. masonry or concrete) a 7 inches (17.8 cm) hole is acceptable.
Initial Installation
QUALIFIED INSTALLERS ONLY
NOTE: For Simpson Duravent only, place a bead of Mil-Pac or Rutland No 78 Stove and Gasket Cement
on the outer edge of the inner exhaust pipe (non-ared end). Push the pipe sections together, then twist
about ¼ turn, making sure the two sections are fully locked. Wrap all seams with foil ducting tape.
Step 4. With the hole now framed, the wall thimble installed, and the pipe extending into the wall,
proceed to the outside. Attach the termination to the pipe using RTV and Mil-Pac or Rutland No
78 Stove and Gasket Cement to seal joints. The vent pipe must extend into the vent cap at least
1¼ inches (3.2 cm). Secure the connection between the vent cap and the pipe by attaching the
two (2) sheet metal straps, which extend from the vent cap assembly to the outer wall of the
vent pipe. Bend any remaining portion of the strap back towards the vent cap. Security Secure
Vent uses a twist lock cap.
Step 5. Position the horizontal vent termination in the center of the 10 inches (25.4 cm) square hole
and attach to the exterior wall with the four screws provided. The arrow on the vent termination
should be pointing up. Run a bead of non-hardening mastic around the edges of the vent
cap, to make a seal with the wall. Ensure the proper clearances to combustibles have been
maintained.
veRticaL teRmination:
Step 1. Check the instructions for required clearances (air spaces) to combustibles when passing
through ceilings, walls, roofs, enclosures, attic rafters, or other nearby combustible surfaces.
Do not pack air spaces with insulation.
Step 2. Set the gas appliance in the desired location. Drop a plumb bob down from the ceiling to
the position of the appliance ue exit, and mark the location where the vent will penetrate
the ceiling. Drill a small hole at this point. Next, drop a plumb bob from the roof to the hole
previously drilled in the ceiling, mark the spot where the vent will penetrate the roof. Determine
if ceiling joists, roof rafters, or other framing will obstruct the venting system. You may wish to
relocate the appliance, or to offset, to avoid cutting load bearing members.
Step 3. To install the Round
Support Box/Wall Thimble
Vertical
Termination
in a at ceiling, cut a 10
inch (25.4 cm) square hole
Elbow Strap
Storm Collar
in the ceiling, centered in
the hole drilled in Step 2.
Flashing
Frame the hole as shown
in Figure 28.
Roofing nails
Step 4. Assemble the desired
lengths of black pipe
and elbows necessary to
reach from the appliance
adapter up through the
Round Support Box.
Insure that all pipe and
elbow connections are
in their fully twist-locked
position.
Figure 34. Vertical Vent Termination
32
Initial Installation
H
Dimension ‘H’ obtained
from table below.
QUALIFIED INSTALLERS ONLY
STEP 5. Cut hole in the roof centered on the small hole placed in the roof from Step 2. The hole should
be of sufcient size to meet minimum requirements for Clearance to Combustibles, as specied.
Continue to assemble lengths of pipe and elbows necessary to reach from the ceiling support
box up through the roof line. Galvanized pipe and elbows may be utilized in the attic, as well
as above the roof line. The galvanized nish is desirable above the roof line, due to the higher
corrosion resistance.
STEP 6. Once the pipe sections have been joined, and run up through the hole in the roof, slip an elbow
strap over the exposed sections, bend the support straps outwards, and push the elbow strap
down to the roof level, as shown in Figure 34. Tighten the clamp around the pipe section. Use
a level to make sure the pipe is truly vertical. With roong nails, secure the support straps to
the roof. Seal the nails holes heads with non-hardening mastic. Trim the excess length of the
support straps that extend out beyond the edge of the ashing.
STEP 7. Slip the ashing over the pipe section protruding through the roof. Secure the base of the
ashing to the roof with roong nails. Use a non-hardening sealant between the uphill edge
of the ashing and the roof. Insure the roong material overlaps the top edge of the ashing.
Verify that you have at least the minimum clearance to combustibles at the roof line.
STEP 8. Continue to add pipe sections until the height of the vent cap meets the minimum code
requirements. Refer to Figure 35 and Table 7. Note that for steep roof pitches, the vent height
must be increased. In high wind conditions, nearby trees, adjoining roof lines, steep pitched
roofs, and other similar factors can result in poor draft, or down drafting. In these cases,
increasing the vent height may solve the problem.
STEP 9. Slip the storm collar over the pipe, and push it down to the top of the roof ashing as shown
in Figure 34. Use the non-hardening sealant around the joint between the pipe and the storm
collar.
STEP 10. Twist-lock the vent cap.
Table 7: Minimum ‘H’ for Figure 35.
Roof Pitch Minimum Height (H)
Feet Meters
Flat to 7/12 1 0.3
Over 7/12 to 8/12 1.5 0.46
Over 8/12 to 9/12 2 0.61
Over 9/12 to 10/12 2.5 0.76
Over 10/12 to 11/12 3.25 0.99
Over 11/12 to 12/12 4 1.22
Over 12/12 to 14/12 5 1.52
Over 14/12 to 16/12 6 1.83
Figure 35: Height of Vertical Termination;
Reference Table 8.
Over 16/12 to 18/12 7 2.13
Over 18/12 to 20/12 7.5 2.29
Over 20/12 to 21/12 8 2.44
33
plumber’s tape
connected to
wall strap
Wall strap
45° elbows (x2)
Initial Installation
QUALIFIED INSTALLERS ONLY
NOTES:
(1) If an offset is necessary in the attic to avoid
obstructions, it is important to support the vent pipe
every 3 feet (914 mm), to avoid excessive stress
on the elbows, and possible separation. Wall straps
are available for this purpose (see Figure 36).
(2) When ever possible, use 45° degree elbows instead
of 90° degree elbows. The 45° degree elbow offers
less restriction to the ow of ue gases and intake
air.
(3) For multi story installations; a ceiling restop is
required at the second oor, and any subsequent
oors (see Figure 37). The opening should be
framed to 10” (254 mm) x 10” (254 mm) inside
dimensions, in the same manner as shown in Figure
28.
closets and storage spaces, which the
vertical vent passes through, must be
enclosed. The enclosure may be framed
and sheet-rocked with standard building
materials. However consult the appliance
manufactures installation instructions
for the minimum allowable clearance
between the outside of the vent pipe, and
the combustible surfaces of the enclosure.
Do not ll any required air spaces with
insulation.
(4) Any occupied areas above the rst oor, including
Figure 36: Use of Wall Straps.
Figure 37: Multi-Story Vent Pipe Installation.
34
Initial Installation
The total vent length must be between 8 ft (2.44 m) and 40 ft (12.19 m).
Install a sealed vent cap to prevent leakage of room air up through chimney.
The intake and the exhaust are 3" (76mm).
Measure the height of the chimney beforehand and purchase the appropriate
venting. Never attempt to over-stretch a flexible liner to accommodate the
height of the chimney. Every joint in the venting must be secured with three (3)
#8 x 3/8” HWH sheet metal screws and an appropriate sealant (either silicone
or stove cement).
The flue damper can be fully blocked open or removed for installation of the
unit; the smoke shelves, shields and baffles may be removed if attached by
mechanical fasteners.
The fireplace and fireplace chimney must be clean, in good working order and
constructed of non-combustible materials.
Make sure that all chimney cleanouts are tight fitting and will not permit air to
leak into the chimney.
Refractory, glass doors, screen rails, screen mesh and log grates can be
removed from the fireplace before installing the unit.
WARNING: This fireplace has been converted
for the use with a gas fireplace insert only and
cannot be used for burning wood or solid
fuels unless all original parts have been
replaced, and the fireplace re-approved by the
authority having jurisdiction.
C-11168
QUALIFIED INSTALLERS ONLY
soLiD fueL fiRepLace instaLLation:
Table 8: Min. Fireplace Dimensions
Width Height Depth
Fireplace Dimensions 20¼” (51.4 cm) 27½” (69.8 cm) 12½” (31.7 cm)
Note: Space must be left for gas line on left side of unit for servicing purposes
The base, sidewalls and top structure of the solid fuel rebox cannot be altered with the exception of:
removal of dampers, removal of smoke shelf or bafe, removal of ember catches, removal of log grate,
removal of viewing screen/curtain, and removal of doors. THE ORIGINAL FIREPLACE MAY NEVER BE
RETURNED TO SOLID FUEL USE IN THIS CONDITION.
IMPORTANT: If the factory-built replace has no gas access hole(s) provided, an access hole of 1.5 inch
(37.5 mm) or less may be drilled through the lower sides or bottom of the rebox in a proper workmanship
like manner. This access hole must be plugged with non-combustible insulation after the gas supply line
has been installed. Cutting any
Figure 38: Solid Fuel Fireplace Installation.
sheet-metal parts of the replace,
in which the gas replace insert is
to be installed is prohibited. The
label plate shown on the right,
included with co-linear venting
adapter kit, must be permanently
attached inside the cavity of the
replace in a visible location.
35
Figure 39: Fireplace Altered Plate.
Initial Installation
QUALIFIED INSTALLERS ONLY
gas Line connection anD testing:
WARNING: Only persons licensed to work with gas piping may make the necessary gas connections to
this appliance.
GAS LINE CONNECTION
• This stove is equipped with a certied exible pipe located on the right side of the unit terminating in
a ⅜” male NPT tting. Consult your local authorities codes or the CAN/CGA B 149 (1 or 2) installation
code in Canada, or in the USA gas installations follow either local codes or the current edition of the
National Fuel Gas Code ANSI Z223.1.
• The efciency rating of this appliance is a product thermal efciency rating determined under
continuous operating conditions and was determined independently of any installed system.
The appliance and its shutoff valves must be
disconnected from the gas supply piping system
during any pressure testing where the pressure
exceeds ½ PSIG (3.45 KPa) or damage will occur
to the valve.
The appliance must be isolated from the gas supply
piping system by closing its individual manual
shutoff valve during any pressure testing of the gas
supply piping system at test pressures equal to or
less than ½ psig (3.45 KPa).
Always check for gas leaks with a soap
Pressure Tap
Manifold
Pressure Tap
Inlet
and water solution after completing the
required pressure test.
TO TEST VALVE PRESSURES
The pressure taps are located on the top right of the valve shown in Figure 40.
•Turn set screw 1 turn counter clockwise to loosen,
5
•Place
•Check pressures using a manometer.
•When nished, release pressure, remove hose & tighten set screw.
/16” (8 mm) I.D. hose over pressure tap system.
Table 9: Pressure and BTU Information.
Figure 40: Fully Labeled Gas Valve.
Servo
Regulator
Pilot Adjustment
Screw
Natural Gas Propane
Main Orice #46 DMS 1.2 mm
Manifold Pressure 3.5” W.C. (0.87 KPa) 10.0” W.C. (2.49 KPa)
Min. Manifold Pressure 1.6” W.C. (0.40 KPa) 6.4” W.C. (1.59 KPa)
Max Supply Pressure 7.0” W.C. (1.74 KPa) 11.0” W.C. (2.74 KPa)
Min. Supply Pressure 4.5” W.C. (1.12 KPa) 10.4” W.C. (2.59 KPa)
Max BTU/hr Input 20,000 BTU/hr (5.86 KW) 18,500 BTU/hr (8.42 KW)
Min. BTU/hr Input 13,600 BTU/hr (3.98 KW) 14,500 BTU/hr (4.25 KW)
NEVER USE AN OPEN FLAME FOR LEAK TESTING.
36
Initial Installation
Battery Holder
(4 x AA)
Proame Transmitter
0.584.045
Spark Electrode
Flame Sensor
IPI Pilot
QUALIFIED INSTALLERS ONLY
eLectRicaL RequiRements:
The replace must be electrically connected and grounded in accordance with local codes or, in the
absence of local codes, with the current CSA C22.1 Canadian Electrical Code Part 1, Safety Standards For
Electrical Installations, or The National Electrical Code ANSI / NFPA 70 in the US.
WARNING: The electrical grounding instructions must be followed. The unit is equipped with a threeprong (grounding) plug for your protection against shock hazard, and should be plugged directly into a
properly grounded three-prong outlet. DO NOT cut or remove the grounding prong from this plug.
CAUTION: When servicing controls, label all wires prior to disconnection. Wiring errors can cause
improper and dangerous operation. Verify proper operation after servicing.
If any of the original wire as supplied with the appliance must be replaced, it must be replaced with 18
AWG wire with a temperature rating of 105°C
37
Figure 41: Wiring Diagram
Secondary Installation
gLass meDia instaLLation:
Pour the glass media into the tray and evenly distribute over the entire tray. Ensure that the pilot box
remains clear of any glass
NOTE: The glass may have sharp edges and gloves should be worn while handling
Figure 42. Burner Tray with glass installed
38
Secondary Installation
optionaL ceRamic bRicK oR LeDgestone paneLs instaLLation anD RemovaL:
Turn off the gas control knob and allow the
unit to cool.
Please ensure that your ceramic panels have not
been damaged.
Note: The front porcelain panel (hood) will still
be used with optional panels.
To Install Panels:
1. Remove the glass door by following the
instruction in the “
glass door remoVal” section and remove the
glass media and tray.
2. Remove the top porcelain panel by un-screwing
it from the rebox baf e as shown in Figure 43
Figure 43. Top Panel Screws.
3. Next, remove the rebox baf e by unscrewing the two screws indicated in Figure 44. Lower the front
of the baf e down and then lift it out of the two locating screws at the rear of the rebox.
using a T20 screwdriver.
maIntenance and serVIce -
4. Carefully remove the left, rear, and right porcelain panels from the rebox.
5. Remove the screws at the top front corners of the rebox
6. Install the rear ceramic panel rst by sitting it on the ledge
at the rear of the rebox (see gure 45), then follow with
the left and right panels
7. Install the supplied brick panel retainers (see Figure 46) on
each side of the rebox above the ceramic panels. Make sure
the panels are plum with the front of the rebox.
8. Re-install the rebox baf e.
9. Re-install the tray and glass media.
10. Re-Install the glass door
Figure 44. Baf e Screws.
39
Figure 45. Rear Panel Ledge.
Figure 46. Brick Panel Retainer.
Trouble Shooting
Diagnostic fLash coDes:
1. Fail to ignite: If there is no positive ignition, the board will go into lock out and the LED will blink 3 times
in intervals until the system is reset.
2. Low battery condition (<4V): the LED indicator will blink one (1) time in intervals.
3. Parasitic Pilot Flame: the LED indicator will blink two (2) times in intervals.
4. System Lock out: the LED indicator will blink three (3) times in intervals.
Additional Ignition Information
1. The Proame2 IFC will try two (2) times for ignition.
2. Each try for ignition will last approximately 60 seconds.
3. The wait time between the two tries is approximately 35 seconds.
LED Location
Figure 47: IFC LED Location
40
Trouble Shooting
Problem Possible Cause Solution
Thermostat
does not
work
The pilot ame has gone out
The On/Off switch is turn to OFF
The thermostat is set too high
· Turn it ON
· Set the thermostat to a lower temperature
· Check pilot assembly wiring
No spark
generation
No pilot
ame ignition
Pilot will not
remain lit
Spark develops near the pilot
assembly or could occur onboard
No spark from the igniter
Air in the gas line
Pilot gas pressure dropout upon
main burner gas valve opening
No gas ow out of the pilot burner
Problem with Flame Sensor circuit
· Check for broken or poor connection from the sparker to the electrode
· Check for the spark shorting or arcing at other locations
· Check for defective sparker and spark electrode
· See “no spark generation”
· It takes a while for all the air to purge out of the pilot before gas can reach
the pilot and ignite
· Check gas mains supply and pressure
· Check gas valve wirings and connections to the board
· Check the pilot burner for obstruction
· Check the wirings and connections between the pilot assembly and the board
· Check the correct gas type settings on the valve and pilot burner assembly
orice
· Check for proper connection of the Flame Sensor to the IFC board
· Check pilot for full ame impingement around Flame Sensor
· If ame is too small, check gas pressure, adjust pilot rate screw, check pilot
head for damage
· Ensure the ground wire is properly attached to the pilot mounting bracket and
that it is makes a good electrical connection.
Remote
control does
not work
No reaction
to command
Restrictor setting
The pilot light has gone out
The remote is too far away from
the heater
The remote control receiver is
turned “OFF”
One of the two remote control or
receiver batteries are dead
Receiver or transmitter batteries
are low
A maximum number of failed
ignitions or ame restorations have
been reached.
No communication between the
remote control and the receiver
· Use the correct restrictor setting for the venting conguration
· See “Pilot will not remain lit”
· Use the remote closer to the heater
· Check the remote control instructions
· Replace the batteries
· Replace the batteries
· Remove any possible blocking conditions. See “locking conditions”
· See how to reset the board from Lockout
· Reprogram the transmitter to the receiver.
· Follow the initializing system for the rst time
Troubleshooting
Problem Possible Cause Solution
· Turn the system off by pressing the ON/OFF button on the
transmitter
· After approximately 2 seconds press the ON/OFF button on the
transmitter again.
· In the manual ame control mode, use the down arrow button to
reduce the ame to off, indicated by the word OFF displayed on
Locking
conditions
Main burners
will not start
Reset the Proame IFC board
The pilot ame has gone out · See “Pilot will not remain lit”
The remote control is not working
correctly
The thermostat is disconnected or
set too high
Problem with thermopile circuit
the transmitter LCD screen.
· Wait approximately 2 seconds and press the up arrow button, the
ignition sequence will start.
· With the transmitter off, move the slider switch on the receiver to
the OFF position.
· Wait approximately 2 seconds and move the receiver slider
switch to the ON position.
· Replace the batteries
· Set the thermostat to a lower temperature
· Check gas line pressure
· Check wiring to thermostat for breaks
· Check for ame impingement on thermopile
Flame lifting
Blue Flames
Glass fogs up
Flames are
burning
“dirty” or
sooting
Leak in vent pipe · Check for leaks in vent connections
Improper vent conguration · Check vent conguration with manual
· Check to see if terminal is on correctly
Terminal may be re-circulating ue
gases
The heater has just been started
Improper air shutter adjustment · Adjust air shutter – contact your dealer
Normal condition: after the
appliance warms up the glass will
be clear.
The logs or glass are placed
incorrectly
Improper air shutter adjustment
Incorrect rating input · Check manifold pressure and clock input rating for over-ring
· May need to install high wind termination cap.
· Contact dealer
· Normal during start up: ame will yellow as the replace heats
up
**Due to additives in gas, glass may get hazy during operation**
Clean as needed.
· Check log positioning
· Check level of glass layout
· Increase primary air by opening the air shutter and/or by
opening the vent restrictor
· Check for proper venting and blockage of the vent termination
· See also “Burners will not remain lit”
42
Parts List
Reference
Number
1 Door Release Tool 50-2510
2 Door Latch Mechanism w/ Spring (set of 2) 50-1285
3 Firebox Air Restrictors (set of 2) 50-2988
4 Glass Burner Pilot Shield 50-2996
5 Convection Fan only 50-2493
6 FPI Burner Switch EC-026
7 IPI Pilot Assembly (PSE-C7-539) 50-3026
- Pilot Assembly Gasket EC-021
8 S.I.T. 885 Valve w/ NG Stepper Motor 50-2682
9 Heyco Strain Relief EC-044
10 Domestic Power Cord (115v) EC-042
11 Glass Media (3.5lbs) 50-2937
12 Tray Burner 50-2936
13 Glass Tray w/ Porcelain Panel 50-2936
14 Door Glass w/ Gasket (19.75 x 17.5in) 50-2998
15 Door Complete 50-2990
16 Porcelain Liners Set (4 pieces) 50-2939
17 Ceramic Brick Liner Set (3 pieces) 50-2938
- Ceramic Ledgstone Liner Set (3 pieces) 50-2972
18 Proame 2 Integrated Fireplace Control (IFC) 50-3010
- Proame 2 IFC Wire Harness (0.584.924) 50-3030
19 Proame 2 Transmitter (GTMFL) - Hand Held 50-3029
- Proame 2 Transmitter (GTMFL) - Wall Mount 50-3028
20 Battery Holder 4 x AA 50-3027
- Fireplace Floor Pad 12” x 20” 50-3016
21 Co-Linear Vent Kit 50-2982
22 Q1GI Owners Manual 50-3004
- Q1 Conversion Kit - LP to NG (IPI) 50-2994
- Q1 Conversion Kit - NG to LP (IPI) 50-2984
- 12 oz. Can of Matallic Black Touch Up Paint PAINT-12-MB
Part Description Part Number
43
21
Parts Diagram
15
14
18 19
10
2
9
3
4
7
12
17
13
20
22
8
16
6
11
1
5
44
Notes
45
Notes
46
Warranty for Enviro Gas Products
Sher wood Industries Ltd. (“Sherwood”) hereby warrants, subject to the terms and
conditions herein set forth, this product against defects in material and workmanship
during the specified warranty period starting from the date of original purchase at retail.
In the event of a defect of material or workmanship during the specified warranty period,
Sherwood reserves the right to make repairs or to assess the replacement of a defective
product at Sherwood’s factory. The shipping costs are to be paid by the consumer.
All warranties by Sherwood are set for th herein and no claim shall be made against
Sherwood on any oral warranty or representation.
Conditions
A completed warranty registration must be submitted to Sherwood within 90 days
of original purchase via the online warranty registration page or via the mail-in
warranty registration card provided. Have the installer fill in the installation data
sheet in the back of the manual for warranty and future reference.
This warranty applies only to the original owner in the original location from date of
install.
The unit must have been properly installed by a qualified technician or installer, and
must meet all local and national building code requirements.
The warranty does not cover removal and re-installation costs.
Sherwood Industries Ltd. reserves the right to make changes without notice.
Sherwood Industries Ltd. and its employees or representatives will not assume
any damages, either directly or indirectly caused by improper usage, operation,
installation, servicing or maintenance of this appliance.
A proof of original purchase must be provided by you or the dealer including serial
number.
Exclusions
An expanded list of exclusions is available at www.enviro.com/help/warranty.html
This warranty does not cover:
Damage as a result of improper usage or abuse.
Damage caused from over-firing due to incorrect setup or tampering.
Damage caused by incorrect installation.
To the Dealer
Provide name, address and telephone number of purchaser and date of purchase.
Provide date of purchase. Name of installer and dealer. Serial number of the
appliance. Nature of complaint, defects or malfunction, description and part # of any
parts replaced.
Pictures or return of damaged or defective product may be required.
To the Distributor
Sign and verify that work and information are correct.
Sherwood Industries Ltd.
6782 Oldfield Road, Victoria, BC . Canada V8M 2A3
Online warranty registration: www.enviro.com/warranty/
Category One Year Two Year Limited Lifetime (7yr)
1
Parts
(unit serial number required)
Firebox Liner Panels
(excluding porcelain)
Firebox
Heat Exchanger
Burner
Ceramic Logs
Ceramic Glass
Pedestal / Legs
2
3
(excluding finish)
Door Assembly
Surround Panels
Exterior Panels
(excluding finish)
(excluding finish)
Electrical Components
Exterior Surface Finishing
Labour
1
Whereas warranty has expired, replacement parts will be warrantied for 90 days from part purchase date. Labour not included.
4
Unit serial number required.
2
Log set and panels excludes wear and tear or breakage caused by cleaning or service.
3
Glass is covered for thermal breakage. Photos of box, inside of door, and unit serial # must be supplied for breakage due to shipping.
4
Exterior Surface finishing covers plating, enamel or paint and excludes colour changes, chipping, and fingerprints.
Travel costs not included.
Ceramic Steel
Up to 5 years
Jan 2013
Installation Data Sheet
The following information must be recorded by the installer for warranty purposes and future reference.
NAME OF OWNER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
MODEL:___________________________________
SERIAL NUMBER:___________________________
DATE OF PURCHASE: _____________ (dd/mm/yyyy)
NAME OF DEALER:
_________________________________________
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
NAME OF INSTALLER:
_________________________________________
DATE OF INSTALLATION:___________(dd/mm/yyyy)
� NATURAL GAS (NAT) � PROPANE(LPG)
INLET GAS PRESSURE:_________in wc
MAIN BURNER ORIFICE:__________# DMS
PILOT ORIFICE #_________OR________in diam.
INSTALLER’S SIGNATURE:
_________________________________________
MANUFACTURED BY:
SHERWOOD INDUSTRIES LTD.
6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3
www.enviro.com
September 10, 2014
ADDRESS:
_________________________________________
_________________________________________
_________________________________________
PHONE:___________________________________
C-14398
Loading...
