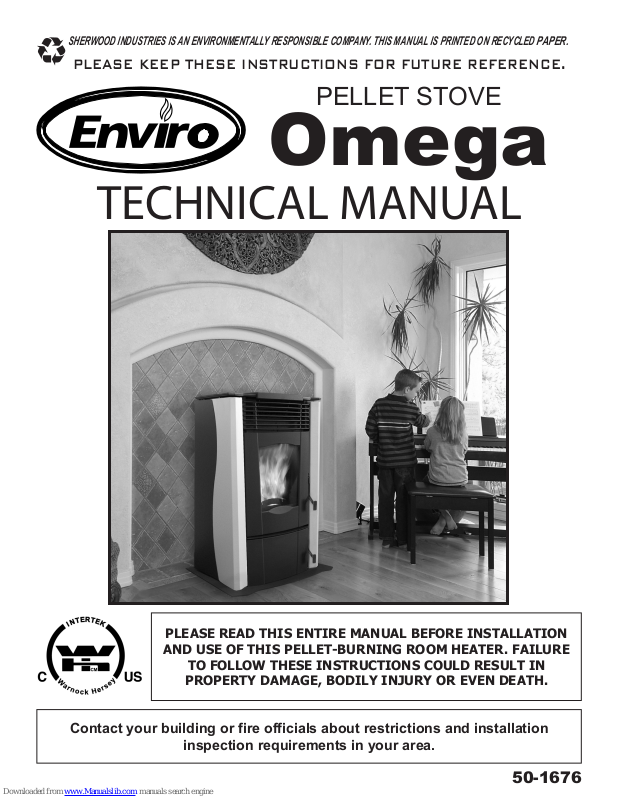

Enviro Omega, Maxx-M Technical Manual

SHERWOOD INDUSTRIES IS AN ENVIRONMENTALLY RESPONSIBLE COMPANY. THIS MANUAL IS PRINTED ON RECYCLED

PLEASE KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE.

PAPER.

PELLET STOVE

Omega

TECHNICAL MANUAL

PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION

AND USE OF THIS PELLET-BURNING ROOM HEATER. FAILURE

TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN

PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.

Contact your building or fire officials about restrictions and installation

inspection requirements in your area.

50-1676

Table of Contents

Safety Warnings & Recommendations...............................................................................................3

Installation.....................................................................................................................................5

Rating Label Location................................................................................................................5

Deciding Where to Locate your Pellet Appliance..........................................................................5

Removing Pellet Stove From Pallet.............................................................................................5

Dimensions & Specifications......................................................................................................6

Clearances to Combustibles.......................................................................................................7

Hearth Shield Installation...........................................................................................................7

Thermostat Installation..............................................................................................................7

Vent Termination Requirements.................................................................................................8

Outside Fresh-Air Connection.....................................................................................................9

Exhaust And Fresh Air Intake Locations......................................................................................9

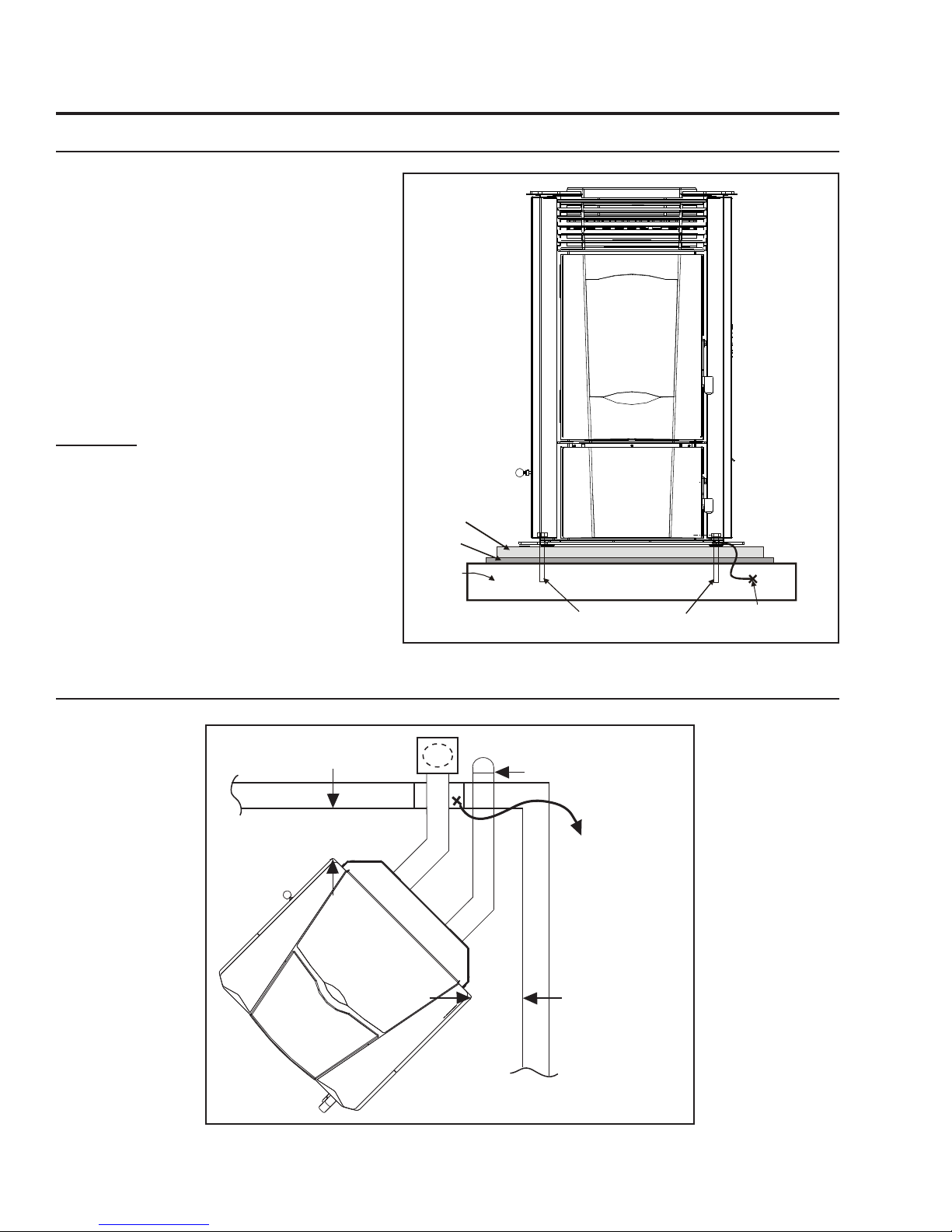

Mobile Home Installation.........................................................................................................10

Corner Through Wall Installation..............................................................................................10

Horizontal Exhaust Through Wall Installation............................................................................11

RECOMMENDED - Through Wall With Vertical Rise and Horizontal Termination Installation...........13

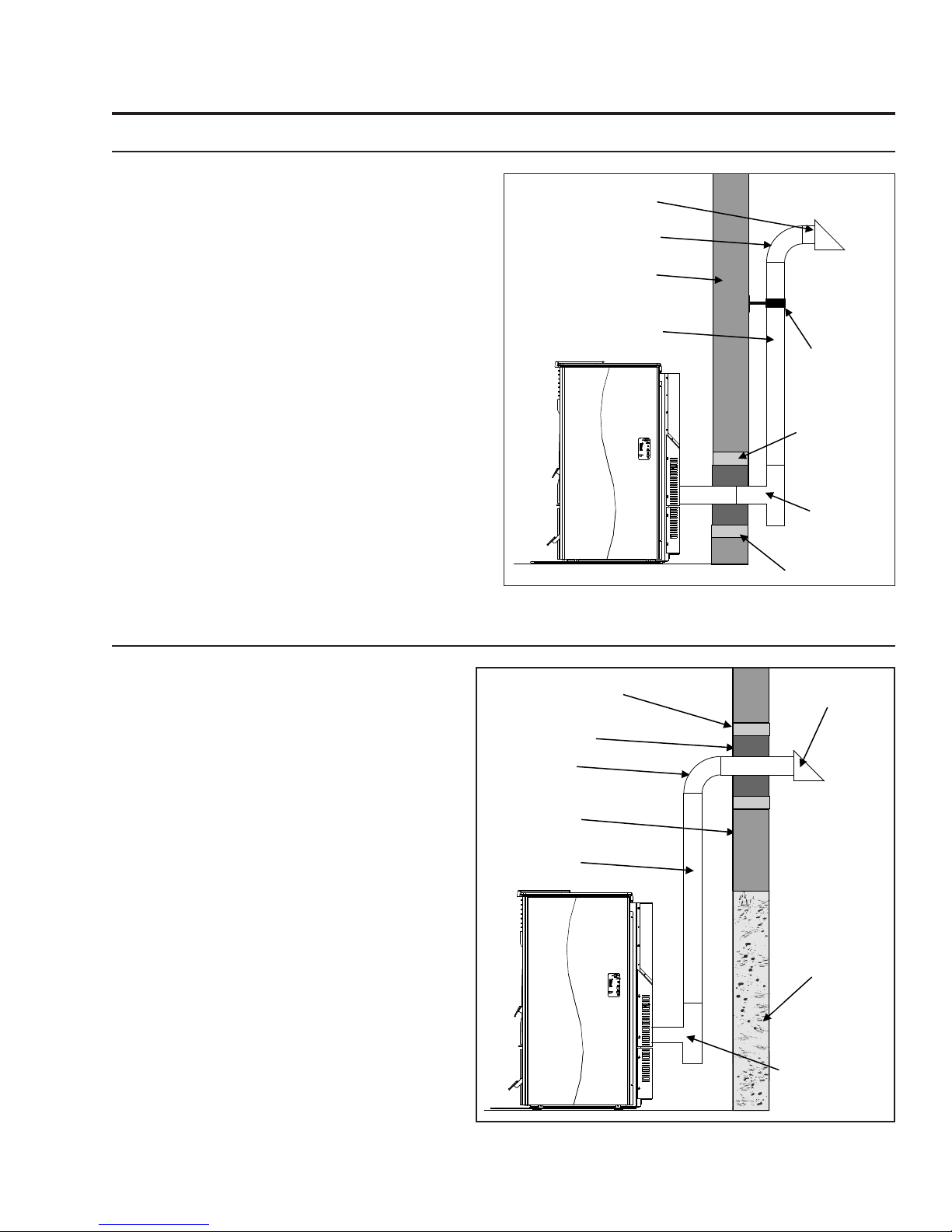

Through Concrete Wall With Vertical Rise Installations...............................................................13

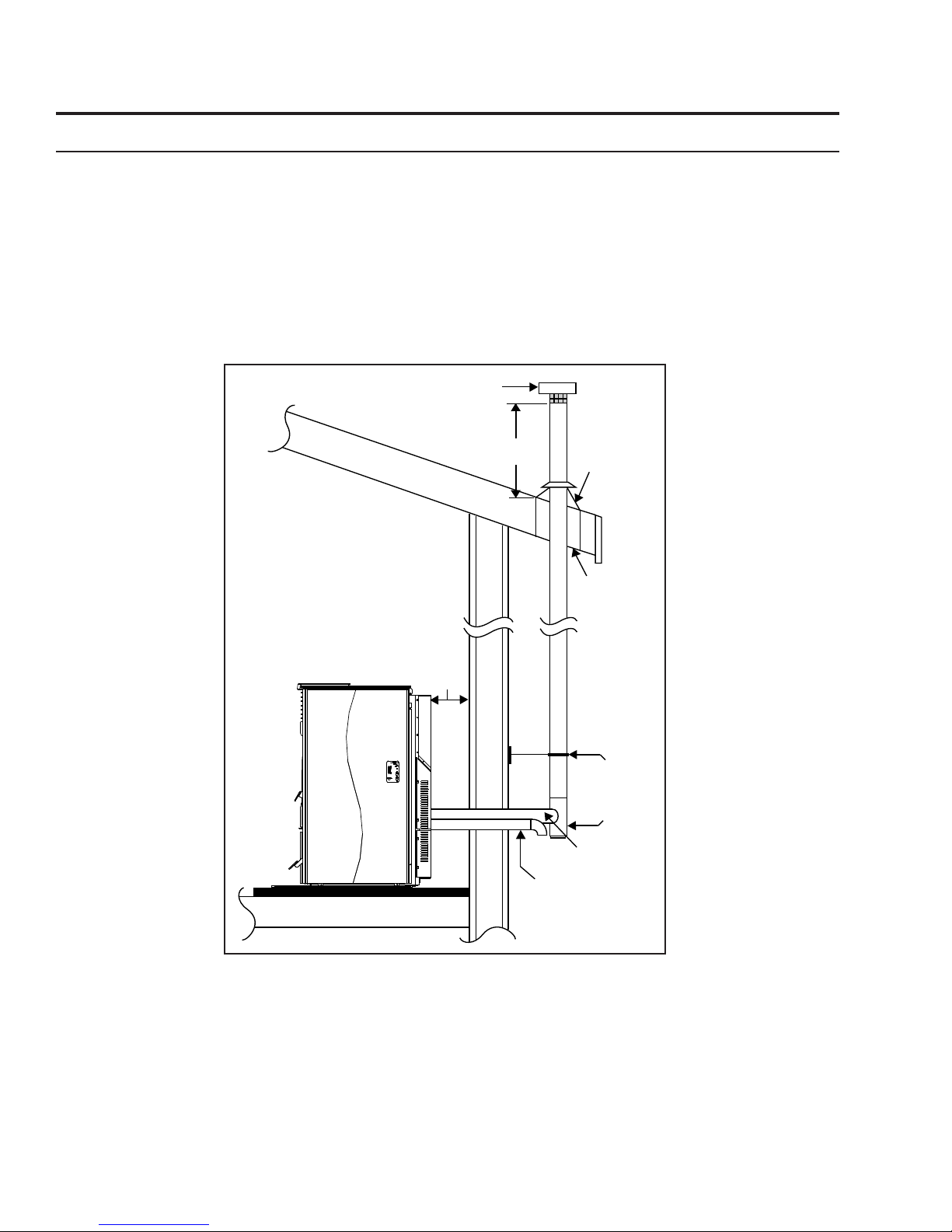

Outside Vertical Installations....................................................................................................14

Inside Vertical Installations......................................................................................................15

Hearth Mount Installation........................................................................................................16

Slider/Damper Set-Up.............................................................................................................17

Troubleshooting............................................................................................................................18

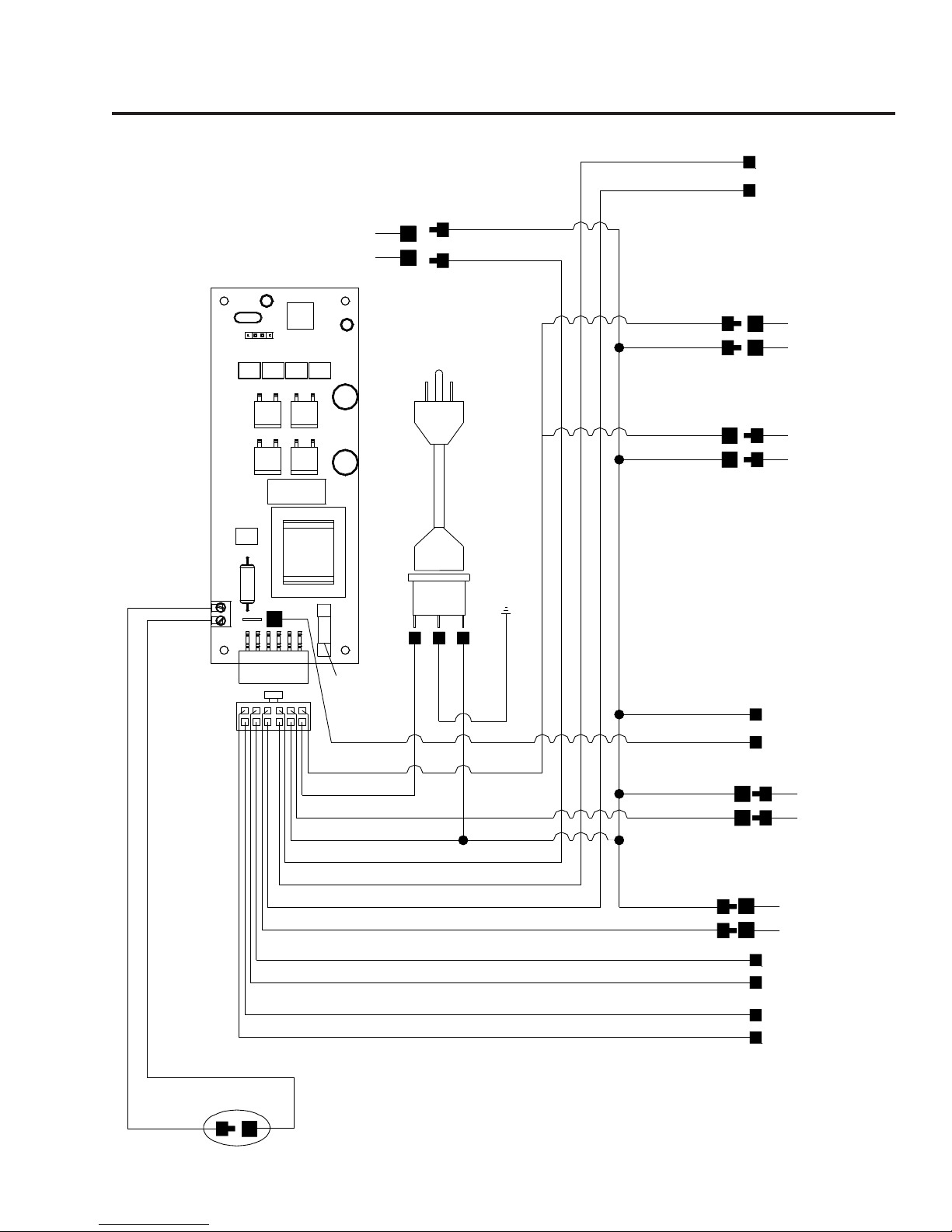

Wiring Diagram.............................................................................................................................21

Parts List......................................................................................................................................22

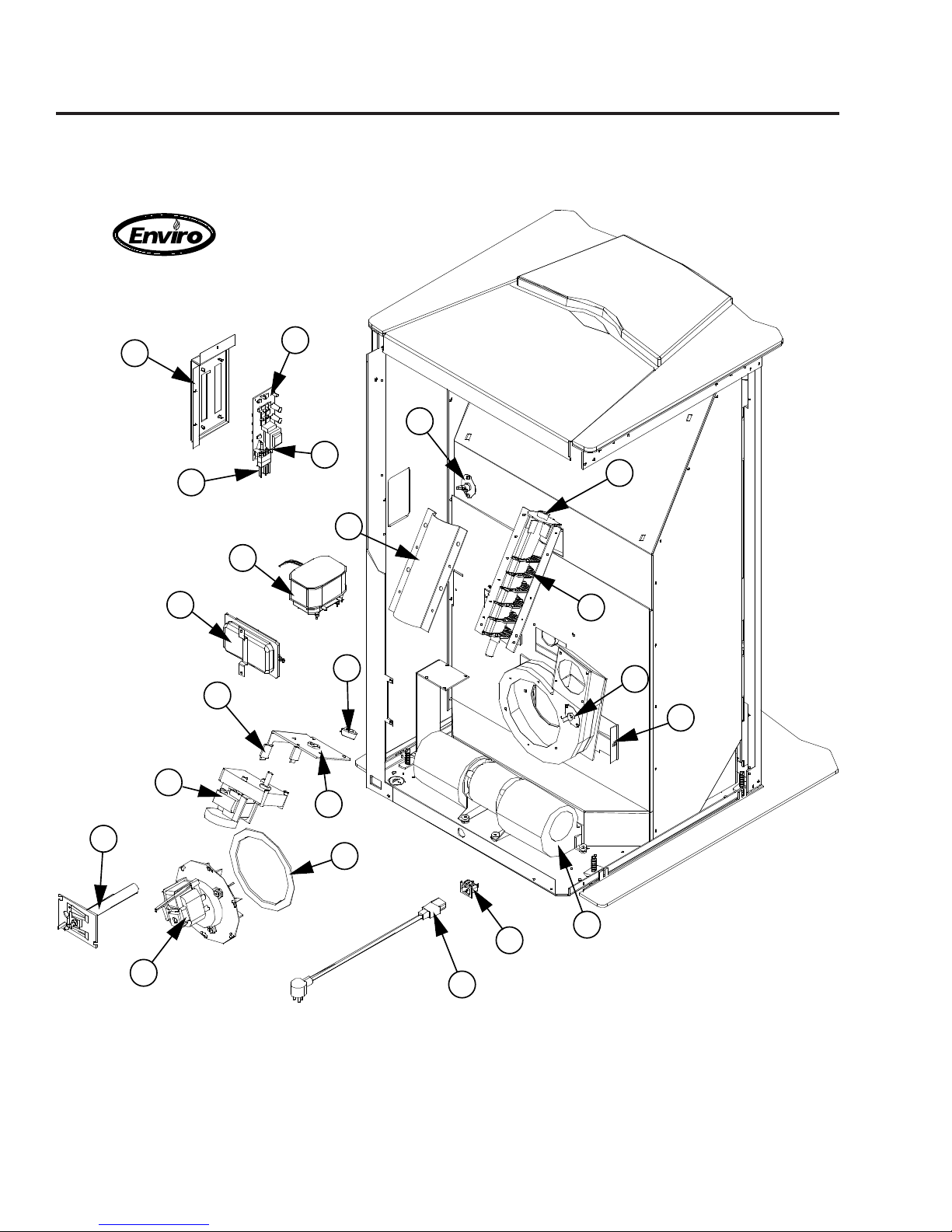

Parts Diagram - Components.........................................................................................................24

Parts Diagram - Steel....................................................................................................................25

Parts Diagram - Burn Pot Assembly................................................................................................26

Warranty......................................................................................................................................27

Installation Data Sheet..................................................................................................................30

2

Safety Warnings & Recommendations

* This manual is designed for the technician in conjunction with the owner’s manual. *

Please read this entire Technical Manual before installing or operating your Enviro Pellet Stove.
Failure to follow these instructions may result in property damage, bodily injury or even death.
Any unauthorized modification of the appliance or use of replacement parts not recommended
by the manufacturer is prohibited. All national and local regulations and shall be complied with
when operating this appliance.

Caution: Do not connect to any air distribution duct or system.

Warning: Never place wood, paper, furniture, drapes or other combustible materials within 48” (122cm)

of the front of the unit, 12” (30.5cm) from each side, and 4” (10cm) from the back of the unit. Do not let
children or pets touch it when it is hot.

To prevent the possibility of a fire, ensure that the appliance is properly installed by adhering to the
installation instructions. An Enviro dealer will be happy to assist you in obtaining information with regards
to your local building codes and installation restrictions.

FIRE EXTINGUISHER AND SMOKE DETECTION: All homes with a pellet burning stove should have at
least one fire extinguisher in a central location known to all in the household. Smoke detectors should be
installed and maintained in the room containing the stove. If it sounds the alarm, correct the cause but do
not deactivate. You may choose to relocate the smoke detection devise within the room; DO NOT REMOVE
THE SMOKE DETECTOR FROM THE ROOM.

CHIMNEY OR RUN AWAY FIRE: Call local fire department (or dial 911). Close the draft fully. Extinguish
the fire in the burn pot liner with a cup of water and close the door. Examine the flue pipes, chimney, attic,
and roof of the house, to see if any part has become hot enough to catch fire. If necessary, spray with fire
extinguisher or water from the garden hose. IMPORTANT: Do not operate the stove again until you are
certain the chimney and its lining have not been damaged.

OPERATION: The door and ash drawer must be kept closed when the unit is in operation to prevent
fume spillage and for proper and safe operation of the pellet stove. Also ensure all gaskets on the door
are checked and replaced when necessary. Unit hot while in operation. Keep children, clothing and

furniture away. Contact may cause skin burns.

CAUTION: When operating during adverse weather, if the unit exhibits dramatic changes in combustion

stop using the unit immediately.

FUEL: This stove is designed and approved to only burn wood pellets of any quality, corn, wheat, barley,
and grass. Dirty fuel will adversely affect the operation and performance of the unit and may void the
warranty. Check with your dealer for fuel recommendations. THE USE OF CORDWOOD IS PROHIBITED

BY LAW. Do not burn garbage or flammable fluids such as gasoline, naptha or engine oil.

SOOT: Operation of the stove with insufficient combustion air will result in the formation of soot which will

collect on the glass, the heat exchanger, the exhaust vent system, and may stain the outside of the house.
Frequently check your stove and adjust the slider/damper as needed to ensure proper combustion. See:

“Slider/damper Setting”.

CLEANING: There will be some build up of fly ash and small amounts of creosote in the exhaust. This will

vary due to the ash content of the fuel used and the operation of the stove. It is advisable to inspect and
clean the exhaust vent semi-annually or every two tons of pellets.

The appliance, flue gas connector and the chimney flue require regular cleaning. Check them for blockage
prior to re-lighting after a prolonged shut down period.

ASHES: Disposed ashes should be placed in a metal container with a tight fitting lid. The closed container
of ashes should be on a non-combustible surface, well away from all combustible materials pending final
disposal. If the ashes are disposed of by burial in soil or otherwise locally dispensed, they should be retained
in the closed container until all cinders have thoroughly cooled.

3

Safety Warnings & Recommendations

ELECTRICAL: The use of a surge protected power bar is recommended. The unit must be grounded.
The grounded electrical cord should be connected to a standard 110-120 volts (4.2 Amps), 60 hertz electrical
outlet and also must be accessible. If this power cord should become damaged, a replacement power cord
must be purchased from the manufacturer or a qualified Enviro dealer. Be careful that the electrical cord is
not trapped under the appliance and that it is clear of any hot surfaces or sharp edges. This unit’s maximum
power requirement is 504 watts.

When installing the stove in a mobile home, it must be electrically grounded to the steel chassis of the home
and bolted to the floor.

GLASS: Do not abuse the glass by striking or slamming the door. Do not attempt to operate the stove with
broken glass. The stove uses ceramic glass. Replacement glass must be purchased from an Enviro dealer.
Do not attempt to open the door and clean the glass while the unit is in operation or if glass is hot. To clean
the glass, use a soft cotton cloth and mild window cleaner, gas or wood stove glass cleaner, or take a damp
paper towel and dip into the fly ash. This is a very mild abrasive and will not damage the glass.

KEEP ASH PAN FREE OF RAW FUEL. DO NOT PLACE UNBURNED OR NEW PELLET FUEL IN ASH PAN.
A fire in the ash pan may occur.

INSTALLATION: Contact your local building or fire official to obtain a permit and any information on
installation restrictions and inspection requirements for your area.

Be sure to maintain the structural integrity of your home when passing a vent through walls, ceilings, or
roofs, and all construction meets local building codes. It is recommended that the unit be secured into its
position in order to avoid any displacement. This appliance must be installed on a floor with an adequate
load bearing capacity, if existing construction doesn’t meet load capacity, suitable measures (e.g. load
distributing plate) must be taken to achieve it.

DO NOT INSTALL A FLUE DAMPER IN THE EXHAUST VENTING SYSTEM OF THIS UNIT.
DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

FRESH AIR: This unit uses large quantities of air for combustion; outside Fresh Air connection is strongly
recommended. Fresh Air must be connected to all units installed in Mobile and “Air Tight Homes” (R2000)
or where required by local codes.

Consider all large air moving devices when installing your unit and provide room air accordingly. NOTE:
Extractor fans when operating in the same room or space as the appliance may cause problems. Limited air
for combustion may result in poor performance, smoking and other side effects of poor combustion.

The stove’s exhaust system works with negative combustion chamber pressure and a slightly positive
chimney pressure. It is very important to ensure that the exhaust system be sealed and airtight. The ash
pan and viewing door must be locked securely for proper and safe operation of the pellet stove.

Do not burn with insufficient combustion air. A periodic check is recommended to ensure proper combustion
air is admitted to the combustion chamber. Setting the proper combustion air is achieved by adjusting the
slider damper located on the left side of the stove.

Soot or creosote may accumulate when the stove is operated under incorrect conditions such as an rich
burn (black tipped, lazy orange flames).

If you have any questions with regards to your stove or the above-mentioned information, please feel free
to contact your local dealer for further clarification and comments.

SINCE SHERWOOD INDUSTRIES LTD. HAS NO CONTROL OVER THE INSTALLATION OF YOUR
STOVE, SHERWOOD INDUSTRIES LTD. GRANTS NO WARRANTY IMPLIED OR STATED FOR THE
INSTALLATION OR MAINTENANCE OF YOUR STOVE. THEREFORE, SHERWOOD INDUSTRIES
LTD. ASSUMES NO RESPONSIBILITY FOR ANY CONSEQUENTIAL DAMAGE(S).

SAVE THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

4

Installation

rating label location:

The rating label is located on the inside of the hopper lid.

deciding Where to locate your pellet appliance:

1. Do not install the stove in a bedroom or room where people sleep in.

2. Locate the stove in a large and open room that is centrally located in the house. This will optimize

heat circulation.

3. Check clearances to combustibles and for the least amount of interference to house framing, plumbing,

wiring, etc.

4. You can vent the stove with approved pipe through an exterior wall behind the unit or pass it through

the ceiling and roof. The stove can connect to an existing masonry or metal chimney (must be lined
if the chimney is over 6” (15 cm) diameter, or over 28 inches² (180 cm²) cross sectional area).

5. This unit must not be installed directly onto carpet. If it is to be installed on a carpeted area, a solid

surface (wood, metal or approved hearth pad) must be installed between the unit and the carpet.

6. This unit uses large quantities of air for combustion; outside Fresh Air connection is strongly

recommended. Fresh Air must be connected to all units installed in Mobile and “Air Tight Homes”
(R2000) or where required by local codes.

7. Do not obtain combustion air from an attic, garage or any unventilated space. Combustion air may be

obtained from a ventilated crawlspace.

8. The power cord is 8 feet (2.43 m) long and may require a grounded extension cord to reach the

nearest electrical outlet.

removing pellet Stove From pallet:

1. Remove the right and left hand cabinet
sides. Partially back out the two (2) T-20
Torx screws on the back of the each panel
and the two (2) located on the front inside
edge below the louvers and ash shelf. Pull
the panel forward then remove.

2. Remove the two (2) wood screws from each
side that are holding the bottom of the
stove to the pallet.

Figure 1: Screws to take out to remove stove from pallet.

5

dimenSionS & SpeciFicationS:

2113/16" (554mm)

1515/16"

(404mm)

243/16" (615mm)

Installation

221/16"

(561mm)

263/8" (669mm)

1

26

/8" (664mm)

4115/16"

421/2"

(1080mm)

2313/16" (605mm)

Figure 2: Dimensions of Omega.

Table 1: Omega Specifications.

(1065mm)

Description Fuel type
Residential Pellet Heater 6mm (¼”) dia. Pellets - wood, corn, wheat, barley, & grass only*

Voltage Current Max Power
110 - 120 V 4.2 Amps 504 Watts

Frequency Hopper Capacity Consumption on Low
60 Hz up to 130 lb (59 Kg) 1.7 lb/hr (0.77 Kg/hr)*

Testing Standard Weight (with full hopper) Consumption on High
ASTM 1509-04 455 lb (206 Kg) 7.6 lb/hr (3.45 Kg/hr)*

*Note: Consumption will vary with the type of fuel used.

6

clearanceS to combuStibleS:

Remove jumper

wire and install

thermostat wires here.

Back Wall

4" (10cm)

12"

(30.5cm)

Figure 3: Omega Clearance to Combustibles.

hearth Shield inStallation:

Installation

4" (10cm)

Adjacent Wall

These dimensions are minimum clearances but it is
recommended that you ensure sufficient room for
servicing, routine cleaning and maintenance.

Side wall to unit 12 inches (30.5 cm)
Back wall to unit 4 inches (10 cm)
Corner to unit 4 inches (10 cm)
Ceiling height 84 inches (213 cm)

1. Remove the right and left hand
cabinet sides. Partially back out
the two (2) T-20 Torx screws on
the back of the each panel and the
two (2) located on the front inside
edge below the louvers and ash
shelf. Pull the panel forward then
remove.

2. Slide the hearth shield into place.

3. Secure the shield to the unit with
two (2) screws on each side (see
Figure 4).

4. Re-install the side panels.

Figure 4: Omega Hearth Shield Installation.

thermoStat inStallation:

1. Install the wall thermostat (12 or 24 Volt rated) in
a location that is not to close too the unit but will
effectively heat the desired area.

2. Connect the Thermostat or Timer using a 2 x 18 gauge
wire from the unit to the thermostat.

If the heat in the room becomes to great, the high limit
switch may turn the stove off and the switch will have to
be manually reset. To reset the high limit switch, remove
the right cabinet side. The switch is found on the air
jacket.

Figure 5: Thermostat wire placement.

7

Installation

vent termination requirementS:

IT IS RECOMMENDED THAT YOUR PELLET STOVE BE INSTALLED BY AN AUTHORIZED DEALER/INSTALLER.

Table 2: Use in conjunction with Figure 6 for allowable exterior vent termination locations.

Letter Minimum Clearance Description

A 24 in (61 cm) Above grass, top of plants, wood, or any other combustible materials.

B 48 in (122 cm) Beside/below any door or window that may be opened. (18” (46 cm) if outside

fresh air installed.)

C 12 in (30 cm) Above any door or window that may be opened. (9” (23 cm) if outside fresh air

installed.)

D 24 in (61 cm) To any adjacent building, fences and protruding parts of the structure.

E 24 in (61 cm) Below any eave or roof overhang

F 12 in (30 cm) To outside corner.

G 12 in (30 cm) To inside corner, combustible wall (vertical and horizontal terminations).

H 3 ft (91 cm) within a height

of 15 ft (4.5 m) above the

meter/regulator assembly

I 3 ft (91 cm) From any forced air intake of other appliance

J 12 in (30 cm) Clearance to non-mechanical air supply inlet to building, or the combustion air

K 24 in (61 cm) Clearance above roof line for vertical terminations.

L 7 ft (2.13 m) Clearance above paved sidewalk or paved driveway located on public property.

To each side of center line extended above natural gas or propane meter/
regulator assembly or mechanical vent.

inlet to any appliance.

1. Do not terminate the

vent in any enclosed or

G

K

semi-enclosed areas such
as a carport, garage,
attic, crawlspace, narrow
walkway, closely fenced
area, under a sundeck
or porch, or any location
that can build up a
concentration of fumes
such as stairwells, covered
breezeway, etc.

2. Vent surfaces can become

B

D

F

Opens

B

Termination Cap

Air Supply Inlet

Figure 6: Use in conjunction with Table 2 for allowable exterior vent termination

Opens

A

G

Gas Meter

I

locations.

G

Restriction Zone

(Termination not allowed)

H

E

C

Opens

G

L

hot enough to cause burns if touched by children. Non-combustible shielding or guards may be required.

3. Termination must exhaust above the inlet elevation. It is recommended that at least five feet of vertical pipe be
installed outside when the appliance is vented directly through a wall, to create some natural draft to prevent the
possibility of smoke or odor during appliance shut down or power failure. This will keep exhaust from causing a
nuisance or hazard from exposing people or shrubs to high temperatures. In any case, the safest and preferred
venting method is to extend the vent through the roof vertically.

4. Distance from the bottom of the termination and grade is 12” (30 cm) minimum. This is conditional upon the
plants and nature of grade surface. The exhaust gases are hot enough to ignite grass, plants and shrubs located
in the vicinity of termination. The grade surface must not be lawn.

5. If the unit is incorrectly vented or the air to fuel mixture is out of balance, a slight discoloration of the exterior
of the house might occur. Since these factors are beyond the control of Sherwood Industries Ltd, we grant no
guarantee against such incidents.

NOTE: Venting terminals shall not be recessed into walls or siding.

8

Installation

outSide FreSh-air connection:

This Heater must have adequate air for proper combustion in the room that it is installed.

A Fresh-air intake is strongly recommended for all installations. Failure to install intake air may

result in improper combustion as well as the unit smoking
during power failures.

The inlet to the intake must be below and a minimum of 12”
(30cm) away from the unit exhaust outlet.

Outside fresh air is mandatory when installing this
unit in airtight homes and mobile homes.

When connecting to an outside fresh air source, do not use
plastic or combustible pipe. A 3” minimum (76 mm) ID (inside
diameter) steel, aluminum or copper pipe or ducting should
be used. The inlet must have a rodent screen installed. It is
recommended, when you are installing a fresh air system, to
keep the number of bends in the pipe to a minimum.

exhauSt and FreSh air intake locationS:

This unit uses a 4” exhaust vent.

EXHAUST:

Base of unit to center of flue
min. 14
Center of unit to center of flue
4

FRESH AIR INTAKE.

Base of unit to center of intake
min. 14
Center of unit to center of intake
5⅛” (130 mm)

3

/

16” (361 mm)

3

/

16” (107 mm)

3

/

16” (361 mm)

14 3/16"

(361mm)

Outside

Wall

3" ID

(76 mm)

Figure 7: Outside Air Connection.

Optional

Elbow

1

/8"

5

(130mm)

Figure 8: Omega Inlet and Outlet Location.

4 3/16"

(107mm)

9

Installation

mobile home inStallation:

● Secure the heater to the floor using the
four (4) holes in the pedestal.

● Ensure the unit is electrically grounded to
the chassis of your home (permanently).

● Do not install in a room people sleep in.

● Outside fresh air is mandatory. Secure
outside air connections directly to fresh
air intake pipe and secure with three (3)
screws evenly spaced.

CAUTION: THE STRUCTURAL

INTEGRITY OF THE
MANUFACTURED HOME FLOOR,
WALL AND CEILING/ROOF MUST
BE MAINTAINED.

Optional

Hearth Pad

Flooring

Steel
Frame

corner through Wall inStallation:

4"

(10cm)

1

/4” Lag Bolts Securely

Fastened

Figure 9: Mobile home installation.

Fresh Air Intake

Wall thimble

manufactured

by pellet vent

manufacturer.

4"

(10cm)

Ground Wire Directly

to Metal Chassis

10

Figure 10: Corner Installation.

Installation

horizontal exhauSt through Wall inStallation:

Vent installation: install vent at clearances specified by the vent manufacturer.

A chimney connector shall not pass through an attic or roof space, closet or similar concealed spaces,
or a floor, or ceiling. Where passage through a wall or partition of combustible construction is desired,
the installation must conform to CAN/CSA-B365 Installation Code for Solid-Fuel-Burning Appliances and
Equipment and with all local regulations, including those referring to regional and national. Only use
venting of L or PL type or corn certified venting if corn will be burned as a fuel with an inside diameter
of 4 inches (100 mm).

1. Place the appliance 15” (37.5 cm) away from the wall. If the stove is to be set on a hearth pad, set
the unit on it.

2. Locate the center of the exhaust pipe on the stove. Extend that line to the wall. Once you have located
the center point on the wall, refer to pellet vent manufacturer installation instructions for correct hole
size and clearance to combustibles.

3. Install the wall thimble as per the instructions written on the thimble. Maintain an effective vapour
barrier in accordance with local building codes.

4. Install a length of vent pipe into the wall thimble. Try not to have joints inside the thimble.
The pipe should install easily into the thimble.

5. Connect the exhaust vent pipe to the exhaust pipe on the stove. Seal the connection with high
temperature silicone.

6. Install the fresh air intake (see Outside Fresh Air COnneCtiOn).

4" (100mm)

Exhaust Tube

4" (100mm)

Vent Pipe

Wall Thimble

45

o

Elbow with Screen

or Termination Cap

3" (80mm)

Inlet Tube

High Temperature RTV

Silicone Required

Figure 11: Straight through wall Installation.

11

Installation

7. Push the stove straight back, leaving a minimum of 4” (10 cm) clearance from the back of the stove
to the wall. Seal the vent pipe to the thimble with high temperature silicone.

8. The pipe must extend at least 12” (30 cm) away from the building. If necessary, bring another

length of pipe to the outside of the home to connect to the first section. Do not forget to place high
temperature silicone around the pipe that passes through the thimble.

9. Install a vertical pipe, or if all requirements for direct venting are met, install vent termination.The

stainless steel cap termination manufactured by the vent manufacturer is recommended. However,
when the vent terminates several feet above ground level and there are no trees, plants, etc. within
several feet, a 45° elbow can be used as termination. The elbow must be turned down to prevent
rain from entering.

NOTE:

• It is recommended that horizontal through wall installations have 3 to 5 feet (91 to 152 cm) of vertical

pipe in the system to help naturally draft the unit in the event of extreme weather or a power outage.

• Some horizontal through wall installations may require a “T” and 3 to 5 feet (91 to 152 cm) of vertical

pipe outside the building to help draft the unit. This may be required if a proper burn cannot be
maintained, after the stove has been tested and the airflow set. This is due to the back pressure in the
exhaust caused by airflow around the structure.

• Follow vent manufacturer guidelines for installation of venting. High temp Sealent must be used when

connecting vent pipe to the unit’s starter pipe. Improper seals at the vent joints may cause combustion
by-products to leak into the room where installed - seal as required.

Wall framing

Horizontal frame
for thimble

Vent pipe

Termination cap

Wall thimble

Figure 12: Straight through Wall Installation - Side View.

12

Installation

recommended - through Wall With vertical riSe and horizontal termination inStallation:

Termination cap

90°elbow

Wall framing

A 45° down elbow with a rodent screen may be
used in place of the termination cap (or stainless

Vertical section
of vent pipe

steel termination hood).

Figure 13: Venting horizontally with rise.

through concrete Wall With vertical riSe inStallationS:

Horizontal frame
for thimble

Installation to use if there is a concrete or
retaining wall in line with exhaust vent on
pellet stove.

Wall thimble

o

90

elbow

Wall strap

Horizontal
frame for
thimble

Clean
out tee

Wall thimble

Termination cap

A 45° down elbow with a rodent screen may
be used in place of the termination cap (or
stainless steel termination hood).

The termination must be 12 inches (30 cm)
from the outside wall and 12 inches (30 cm)
above the ground.

Wall framing

Vertical section
of vent pipe

Concrete Wall

Clean out tee

Figure 14: Venting with concrete wall behind unit .

13

Installation

Rain cap

Flashing

24"

(61 cm)

4"

(10cm)

Tee with
cleanout

Fresh air

intake

3" (7.5 cm)

Clearance

Support

bracket

Type "L"

vent

outSide vertical inStallationS:

To accomplish an outside vertical pipe installation, follow the “hOrizOntAl exhAust thrOugh WAll instAllAtiOns”
section and then finish it by performing the following (refer to Figure 15).

1. Install a tee with clean out on the outside of the house.

2. Install PL vent upward from the tee. Make sure that you install support brackets to keep the vent

straight and secure.

3. Install ceiling thimble and secure the flashing as you go through the roof.

4. Ensure that the rain cap is approximately 24” (61 cm) above the roof.

Figure 15: Outside Vertical Installation.

14

Installation

inSide vertical inStallationS:

1. Place the unit on the hearth pad if a hearth pad is to be used (or on solid material if installed on a
carpeted surface) and space the unit in a manner so when the pellet vent is installed vertically, it will
be 3” (7.6 cm) away from a combustible wall.

2. Install the tee with clean out.

3. Install the pellet vent upward from there. When you reach the ceiling, make sure that the vent
goes through the ceiling fire stop. Maintain a 3” (7.6 cm) distance to combustibles and keep attic
insulation away from the vent pipe. Maintain an effective vapor barrier. Follow the Vent manufacturer’s
instructions.

4. Finally, extend the pellet vent to go through the roof flashing.

5. Ensure that the rain cap is approximately 24” (60 cm) above the roof.

6. Install the fresh air system.

Rain Cap (ensure cap

is at least 3ft (91cm)

above the roof at the

lowest point)

Roof Flashing

2 ft

(61 cm)

Roof Rafter

Fire Stop with

Support Collar

Ceiling Joist

Vertical Vent Pipe

Clean Out Tee with

Pipe Adapter

NOTE: All vent sections must
maintain 3 inches (7.6 cm)
clearances to combustibles.

Figure 16: Inside Vertical Installation.

15

hearth mount inStallation:

Clean-out

Fresh-air intake should com

from chimney. If holes

already exist fresh-air

intake can be taken through

back of the fireplace or
through the ash dump.

Figure 17: Hearth Mount - Side View.

Installation

Damper Removed
or Fastened Open

Mantel
Minimum 200mm (8")
from top of stove

Min 150mm (6")

Floor

Protection

Masonry Fireplace

Combustible Floor

1. Lock fireplace damper in the open
position.

2. Install flexible stainless steel liner or listed
pellet vent to the top of the chimney.

3. Install a sealing plate at the top of the
chimney.

4. Connect a rain cap and flex adapter to
the chimney liner/pipe.

5. Connect a clean-out tee or a 90° elbow
to the liner/pipe.

6. Install tee onto stove.

Rain Cap

Seal Plate

Existing Masonary
Flue

Vent Pipe (single
wall stainless flex
pipe or PL vent)

Flexible Vent Connector
(Use this 5 ft section of
pipe to vent past
fireplace damper or
smoke shelf)

Fireplace Damper
Location

Clean Out Tee

Existing Fireplace

16

Figure 18: Hearth Mount - Over View.

Installation

Slider/damper Set-up:

This is used to regulate the airflow through the pellet stove. The slider damper should be set
by a trained technician using magnehelic.

1. To install the optional slider damper

Exhaust Channel

rod remove the left cabinet side
panel. Partially back out the two (2)
T-20 Torx screws on the back of the
each panel and the two (2) located
on the front inside edge below the

Exhaust Fan

Housing

louvers and ash shelf. Pull the panel
forward then remove and locate the
slider damper plate.

2. Install the 7/16” (11mm) nut onto the
slider damper rod, thread it all the

way onto the rod.

7

/16” (11mm)

nuts

3. Slide rod through the hole in the
slider damper plate and install the

7

/16” (11mm) clinching nut onto
the rod. Leave nut a little loose to
help it line up when the cabinet is
re-installed.

4. Re-install the cabinet side.

5. Mark the rod at either end of range
in which the unit runs correctly and
has a good ame pattern. Pull the

Figure 19: Slider/Damper Plate & Rod in Unit.

rod out until the ame becomes a short, brisk flame, like a blowtorch;
push the rod in a little and mark it. The next mark its the most important
and is set with a magnehelic.

Slider Damper

Rod

Set collars are

installed on either

side of the cabinet.

Knob

IMPORTANT: Taking a reading of vacuum pressure inside the firebox with
a magnehelic gauge should be used to set the slider for best combustion.
The slider damper should be set only on a hot stove (operating for thirty
(30) minutes or more) by using a Magnahelic Pressure Gauge to measuring
the pressure in the firebox. The best settings are a reading of

approximately 0.12 - 0.15 inches of water column (29.9 - 37.3 Pa)
on the high fire setting. Some fuels may require higher or lower
settings. The reading can be taken from the ⅛” (3 mm) hole located on

the front of the unit below the ash shelf on the right hand side.

6. Remove the cabinet side

7. Install a set collar ½” (12mm) in from the inner mark from step #5

8. Re-install the cabinet side.

9. Install a set collar on the outside of the outer mark from step #5

10. Install the black knob on the end of the rod. Check slider damper for smooth operation.

Figure 20: Efficient Flame.

17

Troubleshooting

DO NOT:

● Service the stove with wet hands. The stove is an electrical appliance, which may pose a shock hazard
if handled improperly. Only qualified technicians should deal with possible internal electrical failures.

● Do not remove from the firebox any screws without penetrating oil lubrication.

WHAT TO DO IF:

1. The stove will not start.

2. The stove will not operate when hot.

3. The exhaust blower will not function normally.

4. Light # 3 on Heat output bar flashing.

5. Auger light flashes but auger motor does not turn at all.

6. The 200 °F (93 °C) high limit temperature sensor has tripped.

7. The convection blower will not function normally.

8. Ignitor- the Fuel will not light.

9. Control settings (Heat Level) has no effect on the fire.

10. The stove keeps going out.

11 The agitator does not turn.

*NOTE: All troubleshooting procedures should be carried out by qualified technicians or installers.

1. The stove will not start.

• Make sure the stove is plugged in and the wall outlet is supplying power..

• If the Control Board has been placed in the ON /OFF thermostat mode, then turn the thermostat up

to call for heat.

• Ensure the burn pot liner is correctly placed in the burn pot

• Check the Heat Level Indicator. - If the # 3 light is flashing (unit may be out of fuel)

• Check the Door and Ash Pan door - THEY MUST BE CLOSED TIGHT.

• See section 8 “The Fuel will not light”.

• Check the fuse on the circuit board.

• If the unit still does not start, contact your local service dealer for service.

2. The stove will not operate when hot.

• Check the Heat Level Indicator if a fire is not detected or if the fire has gone out the #3 light will flash

because the Exhaust Temperature Sensor’s contacts have opened.

• Check the hopper for fuel.

• Incorrect air damper setting.

Excessive air may consume the fire too quickly before the next drop of fuel, leaving completely

unburned fuel in the burn pot liner.

Insufficient air may cause the vacuum switch to open or will cause build up, further restricting the air

flow through the Burn Pot Liner. This in turn will cause the fuel to burn cold and very slowly. Fuel may
build up and smother the fire. In this case clean the burn pot.

NOTE: The unit may require a change to the vent system or installation of fresh air to correct Air to

Fuel ratio problems if unable to achieve proper damper setting.

• Combustion Blower failure. - The Combustion Blower is not turning fast enough to generate the

proper vacuum in the fire box. Visual Check – is the blower motor turning. See section #3 - The
Exhaust Blower will not function normally.

• Poor Quality Fuel – Insufficient energy in the fuel to produce enough heat to keep the stove

burning

18

Troubleshooting

• Exhaust Temperature Sensor failure. Bypass sensor located on Exhaust Blower, if stove now operates
properly, the unit may require cleaning or a new sensor. Contact your local dealer for service.

• Check the agitator to make sure it is turning properly

3. The exhaust motor will not function normally.

• Open the access panels; check all connections against the wiring diagram.

• Check the Exhaust Blower voltage across the blower motor wires (>=115V on #5 setting and >= 75V
on #1 setting). – Replace the Circuit Board if the Voltage reading is less than 75 V. with a line voltage
of >115 V AC.

• Clean all exhaust passages and venting.

4. Light # 3 on Heat output bar flashing (The Exhaust Temp. Switch contacts have opened.)

• Stove ran out of fuel - check fuel level in the hopper

• See sections #2 - Stove will not operate when hot, #3 - The Exhaust motor will not function normally,
and #5 - Unit is on but auger does not turn at all for more suggestions.

• Severe negative pressure in area where unit is installed - Check the operation by opening a window,
does this solve the problem? If it does, install fresh air intake to unit or room. Venting system may
require vertical section to move termination into a low pressure zone.

• To reset Circuit Board after a trouble code - push the ON/OFF button

5. Unit is on but auger motor does not turn at all.

• Check the Door and Ash Pan door - THEY MUST BE CLOSED TIGHT.

• If the Auger gear box does not turn but the motor’s armature does try to spin, then the auger is
jammed. Try to break apart jam by poking at the jam through the drop tube. If this fails then empty
the hopper and remove the Auger Cover **Remember to re-seal the cover after installation**

• Auger stopped running. Pinch, break or blockage in Vacuum Hose - Check hose for pinch points or
damage, replace or re-route as required. Blow out Vacuum Hose

• Damage to wires between Circuit Board and Vacuum Switch and Auger Motor - Inspect wires and
connectors

• Vacuum Switch failure - Bypass the vacuum switch, if this corrects the problem check for above
problems before replacing the Vacuum Switch.

• Blocked exhaust / venting system - Have stove and venting cleaned and inspected.

• Check Vacuum levels at the Vacuum Switch, with a Magnahelic Gauge (readings must be above .07”
W.C. on low fire).

6. Light # 4 on Heat output bar flashing The 200 °F ( 93 °C) high limit temperature sensor

has tripped.

• Reset sensor and determine cause. Was it Convection Blower failure or Circuit board control
problems?

7. The convection blower will not function normally.

• Clean all grill openings at the back and below unit .

• Check the Voltage across the blower wires, It should adjust with the heat output settings. If not
contact your local dealer for service.

19

Troubleshooting

8. Ignitor - the pellets will not light.
NOTE: The ignitor should be bright orange in color.

• Everything else in the stove operates but the ignitor will not light the pellets.

• Make sure the burn pot liner is up tight and square to the ignitor tube by pulling the ignitor tube out
towards the liner.

• Check to see if the exhaust blower is operating. If not, contact your local dealer for service.

9. Control settings (Heat Level) has no effect on the fire.

NOTE: If the system light is flashing the Control Board has complete control of the unit. When the units
system light becomes solid then control of the unit is given back to the operator.

• Check position of the Thermostat slide switch on the Circuit Board.

• If there is no control of the Heat Level button, make sure the thermostat is calling for heat.

• Call your local dealer for service.

10. The stove keeps going out.

If the stove goes out and leaves fresh unburned fuel in the burn pot liner, the fire is going out before
the stove shuts off.

• Check to see that the Slider / Damper is in the correct position.

• Turn the Heat Level up slightly (poor quality fuels will require slightly higher settings).

• Set the auger trim up one setting

If the stove goes out and there are partially burned pellets left in the burn pot liner, the stove has shut
down due to a lack of air, exhaust temperature, or power failure.

• Adjust the Slider / Damper.

• Check to see if the stove needs a more complete cleaning.

• Turn the Heat Level up slightly (poor quality fuel will require slightly higher settings).

• Did the power go out?

• Contact your local Dealer for service.

11. The agitator does not turn.

• Ensure unit has finished start-up.

• Ensure agitator is locked into the drive shaft properly and is not jammed.

• Check drive chain assembly and gear motor for damage.

20

Wiring Diagram

Thermostat

Combustion

Blower

White

Blue

120V

Grounded Plug

L N

Ground

Brown

Brown

Red
White

Red
White

Exhaust

Temperature

Sensor

Air Pump

Ignitor

Red

Red

5 Amp

Fuse

Red
Black
Yellow
White
Blue
Brown
Brown
Purple

Grey
Grey

Orange
Orange

Connect

Thermostat

Here

Black

White

Green

White

Blue/Yellow

White

Yellow

White
Purple

Agitator

Motor

Auger

Motor

Convection

Blower

Vacuum

Switch

High Limit

Temperature

Sensor

21

Parts List

Reference # Description Part #

1 120ºF (49ºC) Ceramic Fan Temp Sensor EC-001
2 IEC Power Cord - 115V EC-043

Window Channel Tape - 6ft (1.8m) EC-058
3 Auger Motor - 115V (1 RPM) EF-001
4 High Limit Temp Sensor 200ºF (93ºC) Manual Reset EF-016

Silicone Hose EF-018
5 Slider Damper Rod With Knob EF-050

½” Round Door Gasket - 6FT (1.8m) EF-057
6 1” Knob EF-068
7 Shoulder Bolt, Roller, & Nut Set Of 2 EF-124

Pellet Stove Cleaning Brush EF-156

Pedestal & Ash Pan Gasket - 10’ (3.05m) EF-208
8 Auger Brass Bushings (Set Of 2) EF4i-065
9 Convection Blower - 115V 50-514

10 IEC Power Cord Inlet Socket 50-713
11 Circuit Board 5 Amp Fuse - 115V (Set Of 2) 50-833
12 ⅝” ID Auger Collar With Screw 50-968
13 Slider Damper Set Collar Kit 50-1068
14 Auger With Paddles 50-1161
15 Burn Pot Scraper Tool 50-1254
16 Leveling Legs 1½” - Set Of 4 50-1342
17 Vacuum Switch Low Pressure 50-1390
18 Auger Tube Cover 50-1410
19 4” Exhaust - Starter Tube Gasket 50-1913

600 Watts Backup System - SF 707 50-1547

20 Auger Stops - Clear Rubber 50-1559
21 Hopper Lid Hinge - Left 50-1633
22 Hopper Lid Hinge - Right 50-1634
23 Heat Exchanger Rod 50-1638
24 Back Grill - Top 50-1639
25 Back Grill - Bottom 50-1640
26 Slider Damper Plate 50-1644
27 Ash Pan 50-1646
28 Auger Motor - 3rpm 120V 50-1657
29 Auger Plate And Bushing Assembly 50-1658
30 Combustion Blower Assembly 50-1660

22

Parts List

Reference # Description Part #

31 4” Exhaust - Starter Tube with Flange; 5” Long 50-1914
32 Combustion Blower Motor Mounting Gasket 50-1664
33 Glass 11⅞” x 15⅜” (301.6 x 390.5mm) 50-1673
34 Control Panel Decal 50-1674
34 Control Panel With Decal 50-1689

Omega Domestic Owners Manual 50-1675

Omega Domestic Technical Manual 50-1676
35 Cast Door 50-1677
36 Hopper Lid 50-1678
37 Trivet 50-1679
38 Top Left Or Right (Specify) 50-1680
39 Cabinet Side - Left Back 50-1681
40 Cabinet Side - Right Back 50-1682
41 Cast Louver Assembly 50-1683
42 Firebox Bafe 50-1684
43 Cast Ash Pan Door 50-1685
44 Glass Retainer 50-1686
45 Door Handle - Main 50-1687
46 Door Handle - Ash Pan 50-1688
47 Circuit Board With Agitator Control 50-1690
48 Ignitor Coil Type - 400 Watt 50-1691
49 Burn Pot 50-1692
50 Burn Pot Liner 50-1693
51 Hearth Shield 50-1694
52 Circuit Board Wire Harness 50-1695
53 Burn Pot Grate 50-1696
54 Burn Pot Agitator 50-1697
55 Agitator Drive Shaft With Sprocket 50-1698
56 ⅝” ID x ¾” OD High Temperature Bushing 50-1699
57 Motor Drive Sprocket 50-1700
58 ¼” Spring Pin 50-1701
59 Air Pump 50-1702
60
61 Drive Chain 50-1704
62 Cabinet Side-front - Left Or Right 50-1705

9

/16” Thrust Bushing 50-1703

23

Parts Diagram - Components

Omega - Components

July 2007

34

28

17

52

20

59

47

11

29

18

12

4

8

14

1

26

48

30

24

32

9

10

2

Parts Diagram - Steel

45

7

July 2007

Omega - Steel Components

62

40

41

44

42

33

27

46

43

35

15

23

22

37

36

21

24

38

16

19

26

31

25

39

5

62

13

6

51

25

Parts Diagram - Burn Pot Assembly

60

50

49

54

58

53

12

56

3

Omega - Burn Pot Components

55

61

57

July 2007

26

Warranty

Sherwood Industries Ltd. is the manufacturer of the Enviro line of heating products. At Sherwood
Industries, our commitment to the highest level of quality and customer service is the most important
thing we do. Each Enviro stove is built on a tradition of using only the finest materials and is backed by
our Exclusive Lifetime Limited Warranty to the original purchaser. With Enviro, you’re not just buying a
stove, you’re buying a company with years of unequalled performance and quality.

Limited Lifetime Warranty:

Under this warranty, Sherwood Industries Ltd. covers the fireplace or stove body and accessories
against defects in materials and workmanship, for part repair or replacement for the first seven (7)
years and limited labour for the first two (2) years to the original purchaser. This Warranty covers:
Firebox, Heat Exchanger, Burn Pot, Firebox Panels, Ceramic Glass, Pedestals, Panels, Legs, Log Sets
and Door Assembly. Please see the exclusions and limitation section below as certain restrictions and
exclusions apply to this warranty.

Limited Three (3) Year Warranty

Under this warranty, Sherwood Industries Ltd. covers the Burn Pot Liner against defects in materials
and workmanship, for part repair or replacement for the first three (3) years and limited labour for the
first two (2) years to the original purchaser. Please see the exclusions and limitation section below as
certain restrictions and exclusions apply to this warranty.

Limited Two (2) Year Warranty:

Under this warranty, Sherwood Industries Ltd. covers: Ignitor, Auger Motor, Circuit Board, Timers, Temp
Sensors, Blowers, Vacuum Switch and Wire Harness, against defects in materials and workmanship, for
part repair or replacement for the first two (2) years and limited labour for the first two (2) years to
the original purchaser. Please see the exclusions and limitation section below as certain restrictions and
exclusions apply to this warranty.

Limited One (1) Year Warranty:

Under this warranty, Sherwood Industries Ltd. covers all exterior surface finishes against defects in
materials and workmanship, for part repair or replacement and limited labour for the first (1) year to
the original purchaser. Please see the exclusions and limitation section below as certain restrictions and
exclusions apply to this warranty.

Here is how our Warranty works

If you have any concerns with your Enviro product please contact the dealer where you purchased the
replace or stove. Your dealer shall make all claims under this warranty in writing.

To the Dealer

When lling out a warranty claim please complete the following information on an ofcial warranty claim
form:

Customer information: Name, address and telephone number of purchaser and date of purchase.
Dealer information: Date of installation, name of installer and dealer, serial number of the appliance,

nature of complaint, defects or malfunction, description and part numbers of any parts replaced.

To the Distributor

Sign and verify that work and information are correct.

27

Warranty

Exclusions and Limitations:

1. This Warranty does not cover tarnish, discoloration or wear on the plating or paint.

2. This Warranty excludes wear and tear or breakage caused by cleaning, moving or service on log set.

3. A qualified installer must install this stove or fireplace. This Limited Warranty covers defects in materials
and workmanship only if the product has been installed in accordance with local building and fire codes;
in their absence, refer to the owner’s manual. If the product is damaged or broken as a result of any
alteration, willful abuse, mishandling, accident, neglect, or misuse of the product, the Limited Warranty
does not apply.

4. The stove must be operated and maintained at all times in accordance with the instructions in the
Owner’s Manual. If the unit shows signs of neglect or misuse, it is not covered under the terms of this
Warranty policy. Performance problems due to operator error will not be covered by the Limited Warranty
policy.

5. As this is a heating appliance some changes in colour of surface finishes may occur. This is not a flaw
and as such is not covered under this warranty.

6. Some minor expansion, contraction, or movement of certain parts and resulting noise, is normal and not
a defect and, therefore, is not covered under this Limited Warranty.

7. Misuse includes over-firing. Over-firing this appliance can cause serious damage and will nullify the
Limited Warranty.

8. The Limited Warranty will cover glass thermal breakage only and will not cover misuse of the stove glass,
including but not limited to glass that is struck, has surface contaminates or has had harsh or abrasive
cleaners used on it.

9. This warranty does not cover products made or provided by other manufacturers and used in conjunction
with the operation of this stove without prior authorization from Sherwood Industries Ltd. The use of
such products may nullify the Limited Warranty on this stove. If unsure as to the extent of this Limited
Warranty, contact your authorized Enviro dealer before installation.

10. Sherwood Industries Ltd. will not be responsible for inadequate performance caused by environmental

conditions.

11. The Limited Warranty does not cover installation and operational related problems such as spillage

caused by environmental conditions. Environmental conditions include but are not limited to nearby
trees, buildings, roof tops, wind, hills, mountains, inadequate venting or ventilation, excessive offsets,
negative air pressures or other influences caused by mechanical systems such as furnaces, fans, clothes
dryers etc.

12. The Limited Warranty is void if:

a) The stove has been operated in atmospheres contaminated by chlorine, fluorine or other damaging

chemicals.
b) The stove is subject to submersion in water or prolonged periods of dampness or condensation.
c) Any damage to the unit, combustion chamber or other components due to water, or weather damage

which is the result of, but not limited to, improper chimney/venting installation.
c) Salt air in coastal areas or high humidity can be corrosive to the finish; these environments can cause

rusting. Damage caused by salt air or high humidity is not covered by the Limited Warranty.

13. Exclusions to the Limited Warranty include: injury, loss of use, damage, failure to function due to

accident, negligence, misuse, improper installation, alteration or adjustment of the manufacturer’s

settings of components, lack of proper and regular maintenance, alteration, or act of God.

14. The Limited Warranty does not cover damage caused to the fireplace or stove while in transit. If this

occurs, do not operate the stove and contact your courier and/or dealer.

15. The Limited Warranty does not extend to or include firebox paint, door or glass gaskets with damage

caused by normal wear and tear, or exterior paint discoloration or chipping, worn gaskets, etc.

16. The Limited Warranty does not include damage to the unit caused by abuse, improper installation, or

modification of the unit.

28

Warranty

17. Damage to plated surfaces caused by fingerprints, scratches, melted items, or other external scores and
residues left on the plated surfaces from the use of abrasive cleaners or polishes is not covered in this
warranty.

18. The Limited Warranty does not cover tarnish, discoloration or wear on the plated surfaces.

19. The paint on the Metal Brick Liner may peel. This is due to the extreme conditions applied to the paint
during normal usage. It is not a flaw and is not covered under warranty.

20. Sherwood Industries Ltd. is free of liability for any damages caused by the fireplace or stove, as well as
inconvenience expenses and materials. The Limited Warranty does not cover incidental or consequential
damages.

21. The Limited Warranty does not cover any loss or damage incurred by the use or removal of any
component or apparatus to or from the Enviro fireplace or stove without the express written permission
of Sherwood Industries Ltd. and bearing a Sherwood Industries Ltd. label of approval.

22. Any statement or representation of Enviro products and their performance contained in Enviro
advertising, packaging literature, or printed material is not part of the Limited Warranty.

23. The Limited Warranty is automatically voided if the fireplace or stove’s serial number has been removed
or altered in any way. If the stove is used for commercial purposes, it is excluded from the Limited
Warranty.

24. No dealer, distributor, or similar person has the authority to represent or warrant Enviro products beyond
the terms contained within the Limited Warranty. Sherwood Industries Ltd. assumes no liability for such
warranties or representations.

25. Sherwood Industries Ltd. will not cover the cost of the removal or re-installation of the stove, hearth,
facing, mantels, venting or other components.

26. Labour to replace or repair items under this Limited Warranty will be covered per our warranty service
fee reimbursement schedule. Labour rates are set per component and as such total labour costs may
not be covered.

27. Sherwood Industries Ltd. is not liable for freight or labour on any stove replaced in-field and is not liable
for travel costs for service work. In the event of in-home repair work, the customer will pay any in­home travel fees or service charges required by the Authorized Dealer.

28. At no time will Sherwood Industries Ltd. be liable for any consequential damages which exceed the
purchase price of the unit. Sherwood Industries Ltd. has no obligation to enhance or modify any
stove once manufactured (example: as a stove evolves, field modifications or upgrades will not be
performed).

29. This Limited Warranty is applicable only to the original purchaser and it is non-transferable.

30. This warranty only covers Enviro products that are purchased through an authorized Enviro dealer.

31. If for any reason any section of the Limited Warranty is declared invalid, the balance of the warranty
remains in effect and all other clauses shall remain in effect.

32. The Limited Warranty is the only warranty supplied by Sherwood Industries Ltd., the manufacturer
of the stove. All other warranties, whether express or implied, are hereby expressly disclaimed and
purchaser’s recourse is expressly limited to the Limited Warranty.

33. Sherwood Industries Ltd. and its employees or representatives will not assume any damages, either
directly or indirectly, caused by improper usage, operation, installation, servicing or maintenance of this
stove.

34. Sherwood Industries Ltd. reserves the right to make changes without notice. Please complete and mail
the warranty registration card and have the installer fill in the installation data sheet in the back of the
manual for warranty and future reference.

35. Sherwood Industries Ltd. is responsible for stocking parts for a maximum of seven (7) years after
discontinuing the manufacture or incorporation of the item into its products. An exception to this would
be if an OEM supplier is not able to supply a part.

29

Installation Data Sheet

The following information must be recorded by the installer for warranty purposes and future reference.

NAME OF OWNER:

_________________________________________

ADDRESS:

_________________________________________

_________________________________________

_________________________________________

PHONE:___________________________________

MODEL:___________________________________

SERIAL NUMBER:___________________________

DATE OF PURCHASE: _____________ (dd/mm/yyyy)

NAME OF DEALER:

_________________________________________

ADDRESS:

_________________________________________

_________________________________________

_________________________________________

PHONE:___________________________________

NAME OF INSTALLER:

_________________________________________

DATE OF INSTALLATION:___________(dd/mm/yyyy)

MAGNEHELIC AT INSTALL:___________________

INSTALLER’S SIGNATURE:

_________________________________________

MANUFACTURED BY:

SHERWOOD INDUSTRIES LTD.

6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3

www.enviro.com

July 8, 2008

ADDRESS:

_________________________________________

_________________________________________

_________________________________________

PHONE:___________________________________

C-11622

30
