Tested & Listed By

Portland

Oregon USA

OMNI-Test Laboratories, Inc,

O-

T L

WARRANTY REGISTRATION

INSTALLER: LEAVE THIS MANUAL WITH THE WOOD STOVE.

CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

enviro.com/warranty

WOOD STOVE

Models: Kodiak 1200 FS & Kodiak 1700 FS

INSTALLATION AND

OPERATION MANUAL

CONTACT YOUR LOCAL BUILDING OR FIRE OFFICIALS, OR THE AUTHORITY HAVING JURISDICTION ABOUT RESTRICTIONS AND INSTALLATION INSPECTION REQUIREMENTS IN YOUR AREA.

PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS WOOD BURNING ROOM HEATER. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH.

THIS HEATER MEETS THE U. S. ENVIRONMENTAL PROTECTION AGENCIES EMISSION LIMITS FOR WOOD HEATERS SOLD AFTER JULY 1ST, 1990. UNDER SPECIFIC CONDITIONS THIS HEATER HAS BEEN SHOWN TO DELIVER HEAT AT RATES RANGING FROM 11,479 TO 34,196 BTU PER HOUR FOR THE 1200 AND FROM 9,425 TO 31,780 BTU PER HOUR FOR THE 1700. THESE STOVES HAVE BEEN

Report/Rapport No.

268-S-04b-2, 268-S-01b-2

Version Française: www.enviro.com/fr.html

CERTIFICATION TESTED TO STANDARDS UL-1482-11 AND ULC-S627-00. CERTIFICATION TESTING COMPLETED BY OMNI TEST LABS.

50-2920

Table of Contents

ety Precautions.............................................................................................3

Saf

Operating Instructions........................................................................................4

Building Your Fire...................................................................................6

Air Control.............................................................................................9

How It Works.......................................................................................10

Speci• cations..................................................................................................11

1200 Speci• cations...............................................................................11

1700 Speci• cations:..............................................................................12

Clearances To Combustibles - 1200 Freestanding.....................................13

Clearances To Combustibles - 1700 Freestanding.....................................14

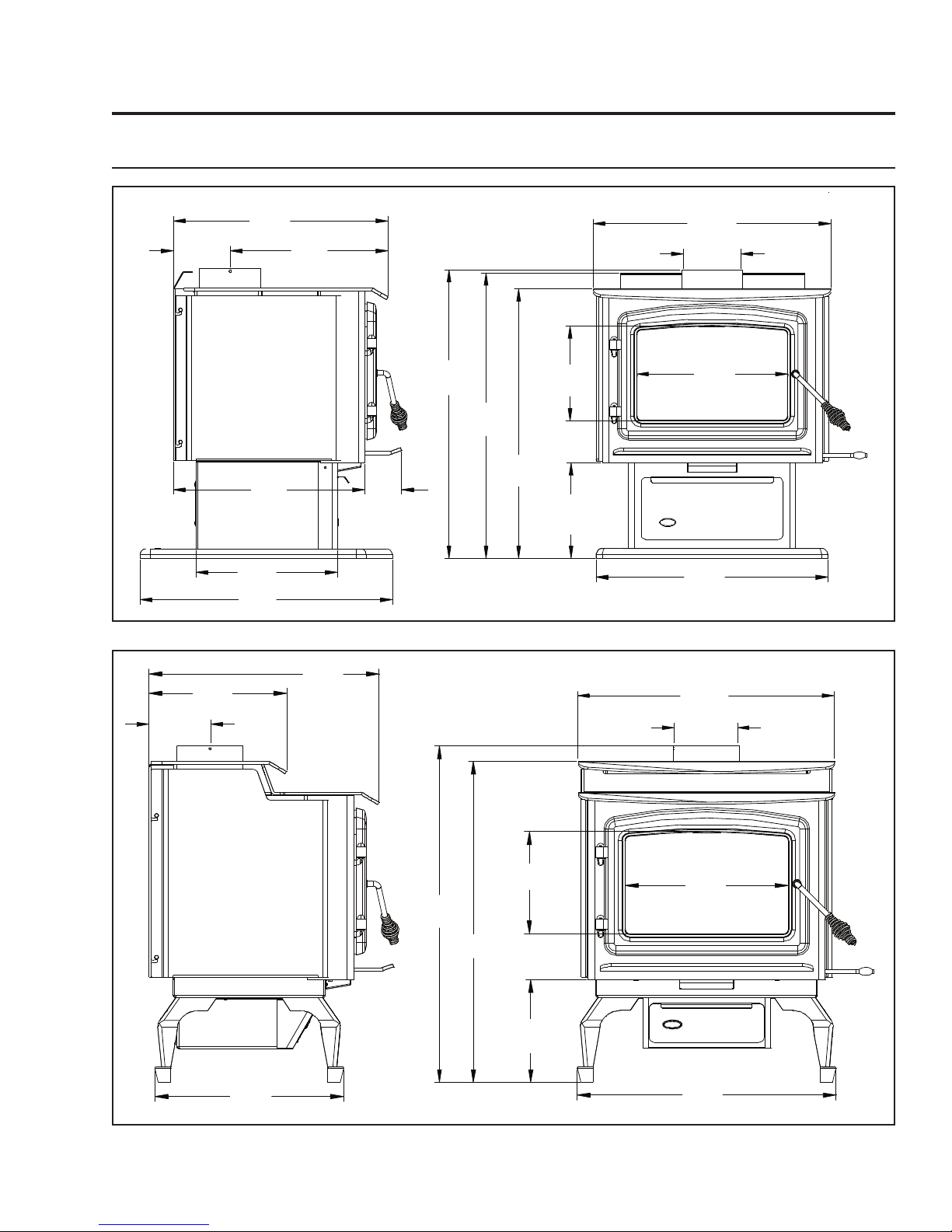

Dimensions - 1200 Freestanding............................................................15

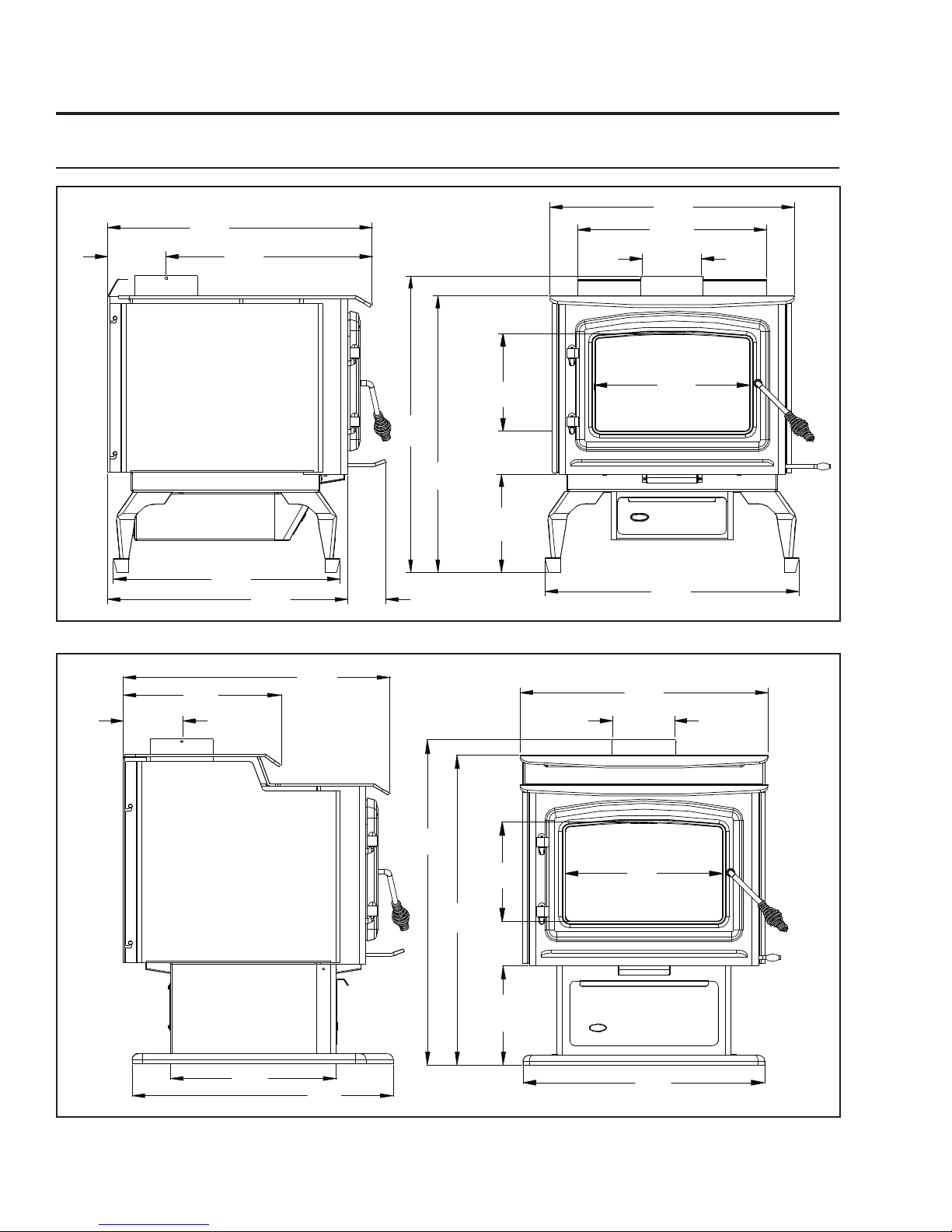

Dimensions - 1700 Freestanding............................................................16

Freestanding Side Dimensions For Fan Kit...............................................17

Installation.................................................................................................18

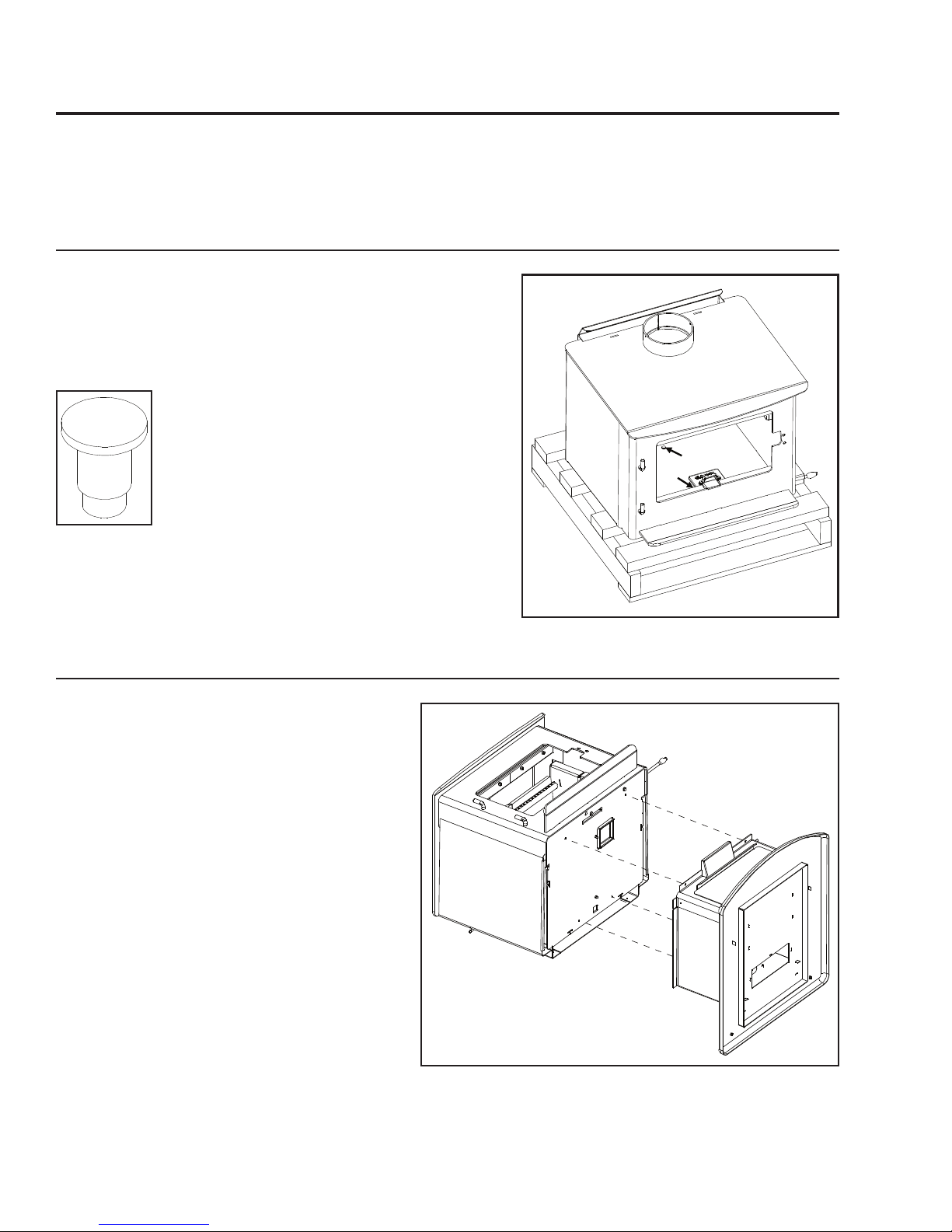

Removal From Pallet.........................................................................................18

Pedestal Installation - Freestanding:.......................................................18

Legs And Ash Pan Installation - Freestanding..........................................19

Installation Of Heat-Ef• ciency Shield - Freestanding Flat Top....................19

Hearth Protection Examples...................................................................20

Outside Air Kit......................................................................................23

Recommended Heights And Diameters For Flue Pipe...............................23

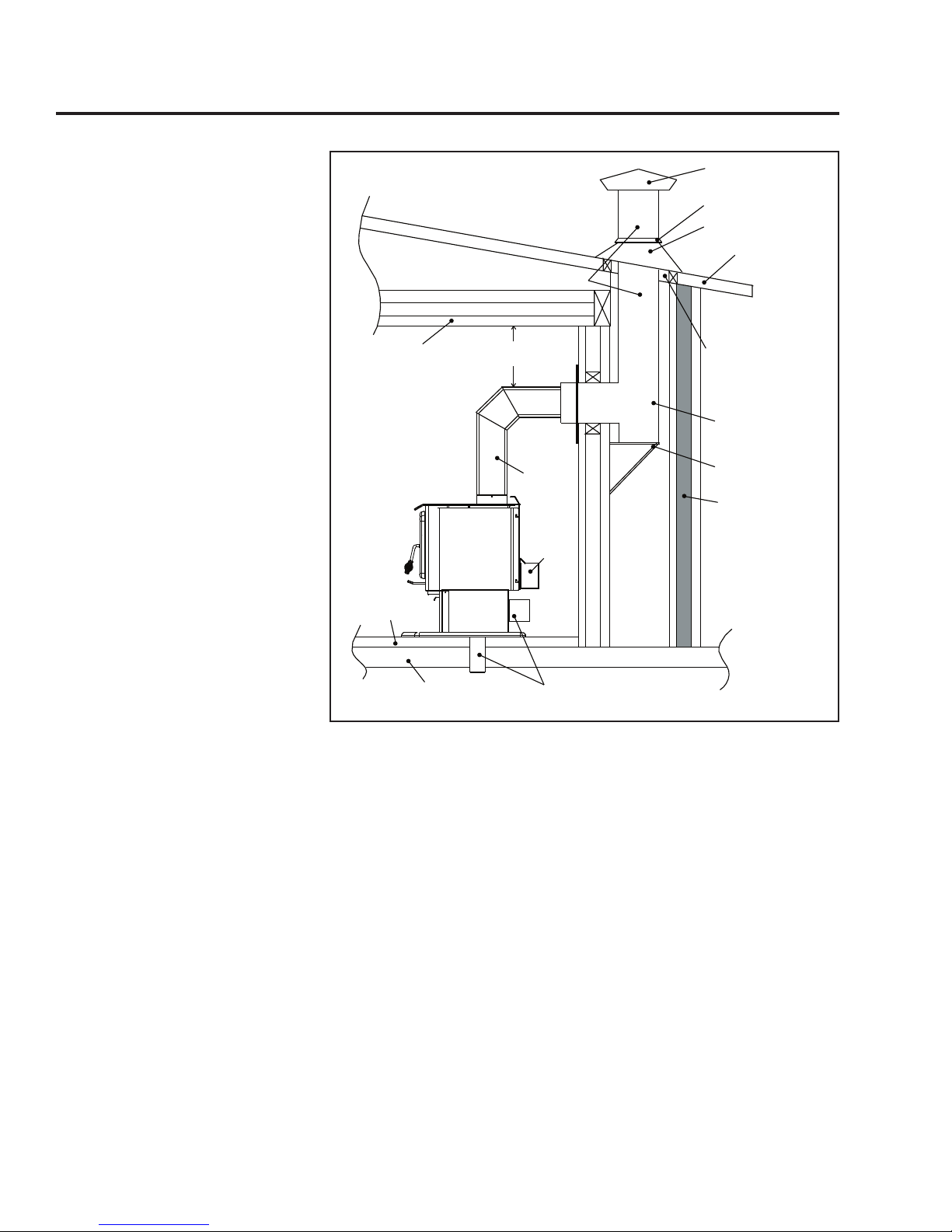

Chimney Installation Through Wall.........................................................24

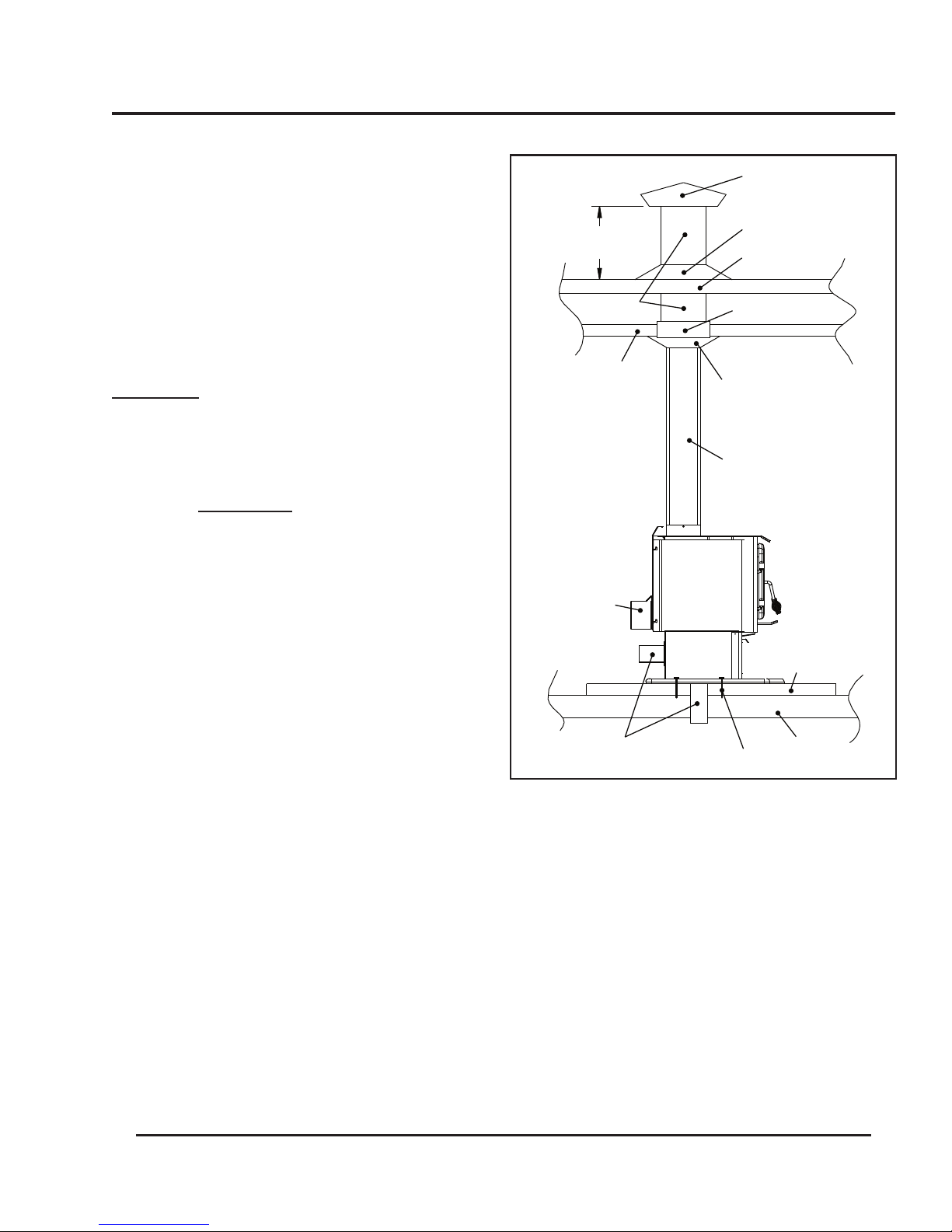

Installation of A Listed, Factory Built Chimney - Freestanding...................25

Masonary Chimney Installation - Freestanding......................................27

Masonry Fireplace Installation - Freestanding..........................................28

Mobile Home Installation.......................................................................28

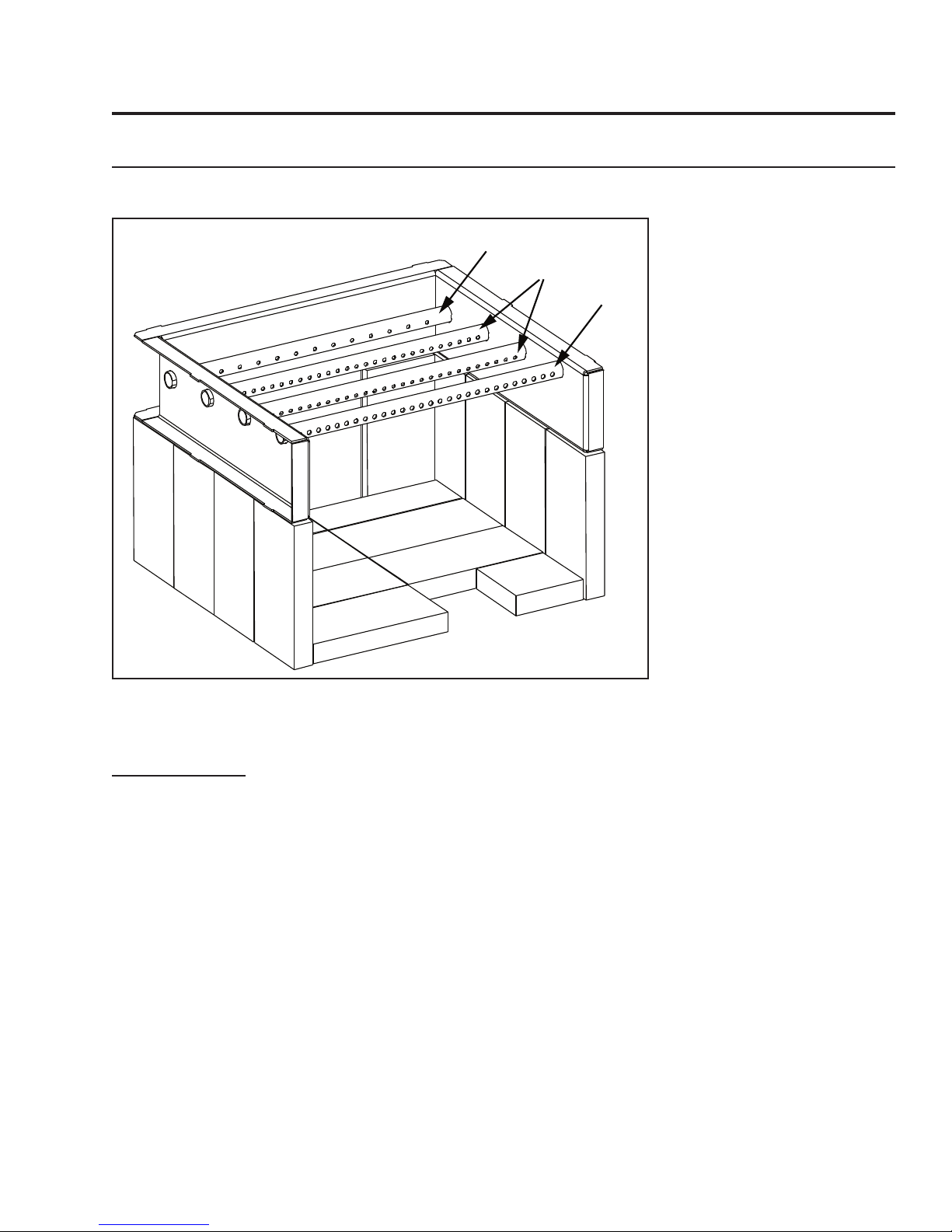

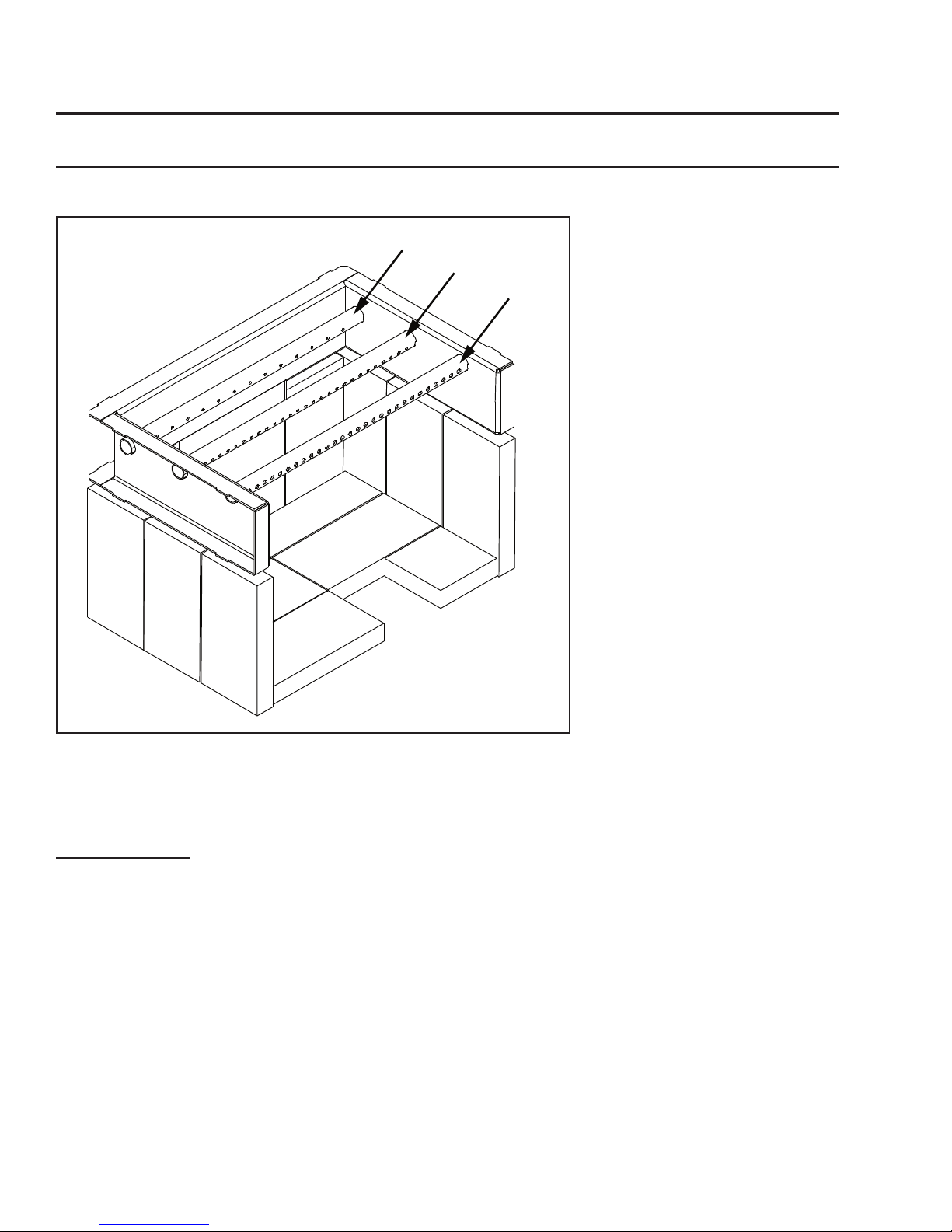

Model 1200 Brick Placement & Tube Locations........................................30

Model 1700 Brick Placement & Tube Locations........................................31

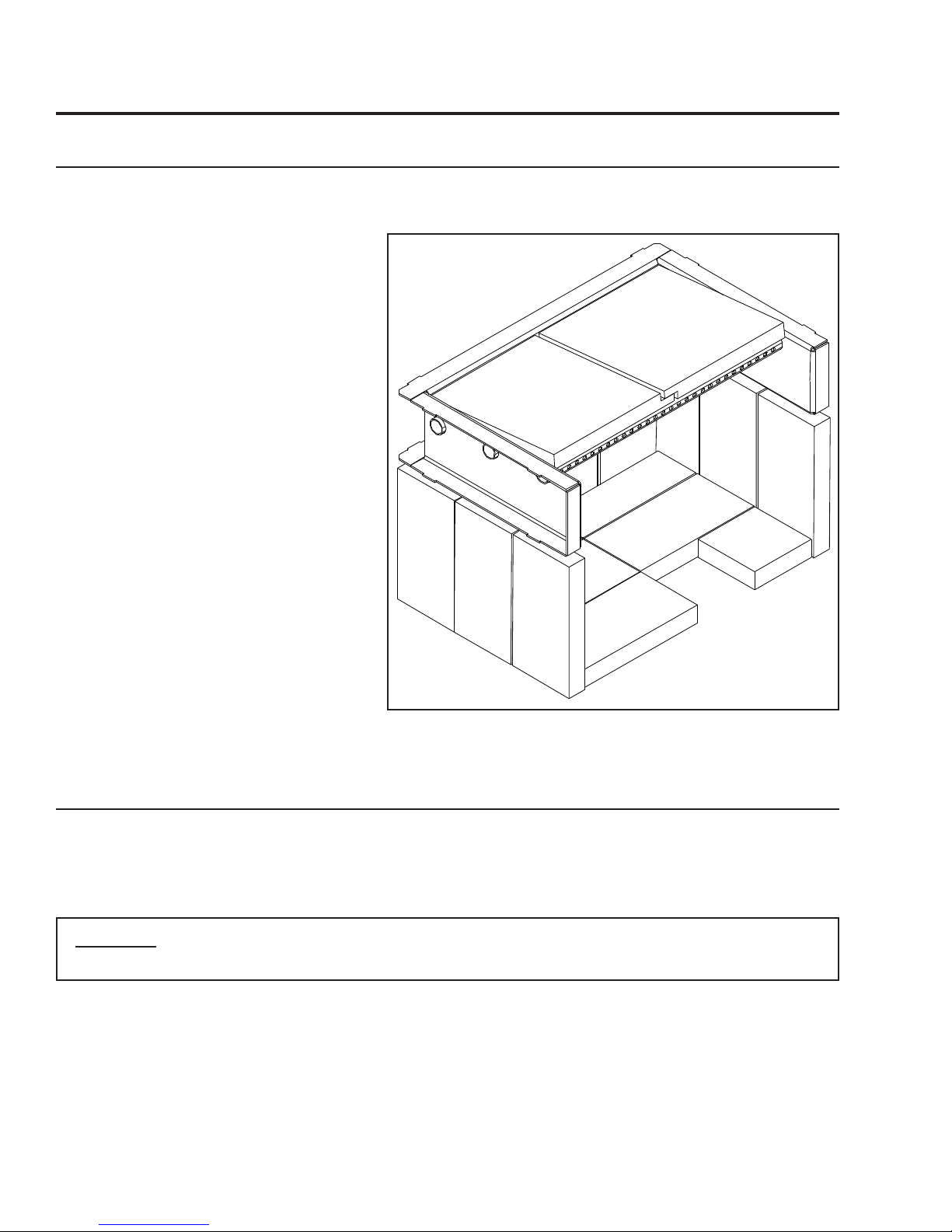

C-Cast Ceramic Baf• e Installation..........................................................32

Fan Wiring Diagrams.............................................................................32

Optional Fan Installation - Freestanding..................................................33

Rating Label.....................................................................................................34

Parts List.........................................................................................................35

Parts Diagram - Freestanding............................................................................37

Parts Diagram - Pedestals & Legs......................................................................38

Warranty.........................................................................................................39

Installation Data Sheet.....................................................................................40

Safety Precautions

PLEASE READ THIS ENTIRE MANUAL BEFORE YOU INSTALL AND USE OF YOUR NEW WOOD STOVE. FAILURE TO FOLLOW INSTRUCTIONS MAY RESULT IN PROPERTY DAMAGE, BODILY INJURY OR EVEN DEATH. BE AWARE THAT LOCAL CODES AND REGULATIONS MAY OVERRIDE SOME ITEMS IN THIS MANUAL. PLEASE CHECK WITH YOUR LOCAL BUILDING OR

FIRE AUTHORITY.

• This appliance becomes extremely hot when in use and can cause burns if contacted. Young children should be carefully supervised when they are in the same room as the appliance.

•

• Make sure you have incorporated proper safety measures to protect infants/toddlers from touching hot surfaces.

• Even after the appliance is out, the ! rebox and glass will remain hot for an extended period of time.

• If this appliance is not properly installed, operated, and maintained a serious house ! re could result.

• Installation of appliance must be completed by a certi! ed installer.

• Wear protective gloves and safety glasses during installation, sheet metal edges may be sharp.

• Do not operate without fully assembling all components.

• Do not use any makeshift materials during installation, maintenance, or replacement.

• Any changes or alterations to this appliance are dangerous and prohibited.

• This appliance has been designed to burn dried and seasoned hardwoods.

• Do not use chemical " uids to start or re-fresh the ! re.

• Do not burn coal, charcoal, or treated wood as there is danger of carbon monoxide being produced.

• Do not burn garbage or " ammable " uids such as gasoline, grease, naphtha or engine oil.

• Never let the stove become hot enough to get any part glowing red.

• Do not operate with door open, door must be tightly closed.

• Do not strike or slam shut the ceramic glass door, if the door glass is broken or a gasket is missing or damaged appliance must be repair by a quali! ed service technician before resuming use.

• At least 12 square inches (77.4 cm2) of fresh outside air should be admitted into the room or directly to the stove through a 4 inch (10.16 cm) diameter pipe.

• Do not burn wet unseasoned wood, this can causes excessive creosote accumulation. When this is ignited it can cause a chimney ! re that may result in a serious house ! re.

• Do not use grates, andirons or any other methods to support or raise the ! re up off the ! re bricks.

• Do not place clothing, furniture, draperies, or any other "ammable materials on or near the appliance.

• Objects placed in front of the appliance must be kept at least of 48” away from the front face of the appliance.

• Do not connect appliance to a chimney "ue pipe servicing another solid fuel burning appliance.

• Do not install in a mobile home this appliance is not Certi! ed for that application.

• Do not attach to any kind of heat distribution ducting system.

• The chimney must be sound and free of cracks. Clean your chimney a minimum of twice a year and as required.

• Your appliance requires periodic maintenance and cleaning. Failure to maintain your appliance may lead to smoke spillage in your home.

• A chimney connector shall not pass through an attic, roof space, " oor, ceiling, closet or similar concealed space.

• Do not store wood within appliance installation clearances or within the space required for refueling and ash removal.

• Ashes must be disposed in a metal container with a tight lid and placed on a non-combustible surface well away from the home or structure until completely cool.

• Ensure proper clearances to combustibles are maintained when building a mantel or shelves above the appliance.

IMPORTANT: The following must be done to ensure proper operation. Failure to do so will cause extreme overheating and possible personal injury or property damage. If an outside air supply has not been added to this appliance, please ensure that the 4” inch fresh air inlet on the back of the pedestal is removed. Also ensure the ash plug is installed in the ﬁ rebox.

Operating Instructions

Open Closed

FIRST START

When • rst installed, the chimney, • rebricks and steel are cold and it usually takes several hours on a fairly high burn for them to become hot and dry enough for the stove to function well. We recommend during the unit’s • rst burn that a door and window are opened to vent the smoke and fumes created from the unit’s paint curing. The paint will smell a little for the • rst burn or two as it cures.

DISPOSAL OF ASHES:

If you let the ashes accumulate two or three inches on the ! oor they tend to burn themselves up. The • replace insert models do not have and ash drawer so the ashes will need to be scooped into a metal

container with a tightly • tting lid. Place the closed container on a non-combustible ! oor, well away from combustible materials.

The freestanding models are equipped wi

th a small tap door in the • rebox and an ash drawer. Open the trap door located on the ! oor of the unit. Push the ashes that have accumulated into the hole were the ashes would drop into the ash pan. Ensure that the trap door is closed properly before relighting the unit. When the ash drawer is ready to be emptied lift the front of the drawer up then slowly pull the drawer straight out and close the lid on the ash drawer (see Figure 1); this is to prevent making a mess with the ashes when transporting the ash drawer through the house. When reinstalling the ash drawer ensure that the lid is open and line up the rails on the bottom of the ash drawer with the notches in the opening on the pedestal (see Figure 2). Slide the drawer into place, the front of the drawer will drop a bit when it is all the way in.

If the ashes are to be buried in soil or otherwise locally dispersed, keep them in a closed container until all cinders have cooled. Small amounts of cold wood ash can be used in the garden or compost.

Figure 1: Ash Drawer Lid Open and Close.

Figure 2: Installing Ash Drawer.

FAN OPERATION:

All models have been approved for operation with or without the optional fans supplied by the manufacturer. On medium or high burns, using a fan will increase the heat transfer slightly. Route the power supply cord along the ! oor behind the stove where it will remain cool.

Operating Instructions

1. Plug the fan assembly into a standard three (3) prong grounded electrical receptacle.

2. Freestanding - turn the rotary fan controller to the desired setting. Inserts - an auto/off/manual rocker switch allows the fan to be turned on manually, or automatically.

When this switch is pushed right toward the unit, it will be set to manual operation; the center position is off, and when pushed left away from the unit, it will be set to automatic.

3. In automatic mode (& for freestanding units), set the rotary switch to the desired setting, once operating temperature is reached, the fan temperature sensor will turn the fan on. When the unit cools down, the fan temperature sensor will shut the fan off automatically.

4. In manual mode (Inserts only) the fan can be turned on and off any time using the rotary switch.

REPLACING THE GLASS:

Never strike or slam the door, hit the glass or let burning wood rest against it. If the glass cracks when the ! re is burning, do not open the door until the ! re is out and do not operate the stove again until the

glass has been replaced. If the glass is damaged in any way, a factory replacement is required (see “PARTS LIST”). To remove the door, open and lift. To replace the glass, remove the steel retaining clips and all

glass. Replace only with Neoceram 5 mm glass 16.61” (422 mm) x 10.63” (270 mm) and wrap the

loose edges with 0.125” (3.2 mm) x 0.5” (13 mm) self-adhesive ! berglass gasket.

Wear gloves when handling damaged glass door assembly to prevent personal injury. When the glass door assembly is being transported, it must be wrapped in newsprint and tape and/or a strong plastic bag.

The glass must be purchased from an ENVIRO dealer. No substitute materials are allowed.

CLEANING THE PLATED SURFACES:

Painted faces should be wiped with a damp cloth periodically. If a plated door has been purchased, it should be unpacked carefully to avoid getting anything on the surface of the ! nish, including cleaners, polish and ! nger prints. It is important to note that ! ngerprints and other marks can leave a permanent stain on plated ! nishes. To avoid this, give the face a quick wipe with denatured alcohol on a soft cloth BEFORE lighting the ﬁ replace. Never clean the door when it is hot. Do not use other cleaners as they may leave a residue, which can become permanently etched into the surface.

FIRE EXTINGUISHER AND SMOKE DETECTION:

All homes with a solid fuel burning stove should have at least one ! re extinguisher in a central location known to all in the household and a smoke detection devise in the room containing the stove. If it sounds the alarm, correct the cause but do not deactivate. You may choose to relocate the smoke detection devise within the room; DO NOT REMOVE THE SMOKE DETECTOR FROM THE ROOM.

CREOSOTE - ITS FORMATION AND REMOVAL:

When wood is burned slowly, it may produce tar and other vapors that, combined with moisture, form creosote. These vapors condense in the relatively cooler chimney " ue of a slow burning ! re and, if ignited, make an extremely hot ! re. Therefore, the smoke pipe and chimney should be inspected biweekly during the heating season to determine if a build-up has occurred. If creosote has accumulated it should be removed to reduce the risk of a chimney ! re.

MAINTENANCE:

At the end of each heating season clean the chimney and the smoke pipe. If soot has accumulated above the top baf" e bricks, remove, clean, and then replace them. If the secondary air tube is badly eroded, replace it. Replace worn door gaskets and broken bricks as needed.

Operating Instructions

FAILURE TO INSPECT AND CLEAN YOUR CHIMNEY SYSTEM REGULARLY CAN RESULT IN A CHIMNEY FIRE, WHICH COULD DAMAGE THE CHIMNEY OR CAUSE A HOUSE FIRE.

CHIMNEY OR RUN AWAY FIRE:

1. Call local ! re department (or dial 911)

2. Close the draft fully

3. Examine the " ue pipes, chimney, attic, and roof of the house, to see if any part has become hot

enough to catch ! re. If necessary, spray with ! re extinguisher or water from the garden hose.

4. Do not operate the stove again until you are certain the chimney and its lining have not been damaged.

BUILDING YOUR FIRE:

oper operation of your stove will help to ensure safe, ef! cient heating. Please take a few moments to

Pr review these simple operating procedures.

IMPORTANT: Please be aware when loading your stove that the air tubes in the rear are lower.

1. Fuel Selection:

This stove is designed to burn natural wood only. Higher ef! ciencies and lower emissions generally result when burning air-dried seasoned hardwoods, as compared to softwoods or to green or freshly cut hardwoods. DO NOT BURN the following: treated wood, coal, garbage, solvents, colored papers, or trash. Burning these may result in the release of toxic fumes and may poison or render the catalytic ineffective. Burning coal, cardboard, or loose paper can produce soot, or large " akes of char or " y ash that can coat the combustor, causing smoke spillage into the room, and rendering the combustor ineffective.

2. Building/Maintaining a Fire:

a) Open the primary air slide by pulling it all the way to the right.

b) Place a base of crumpled uncolored newspaper in the bottom of the stove. Lay pieces of kindling on

top of the newspaper and light it.

CAUTION: Never use gasoline, gasoline-type lantern fuel, kerosene, charcoal lighter ! uid, or

similar liquids to start or “freshen up” a " re in this heater. Keep all such liquids well away from heater while it is in use.

c) As the kindling begins to burn, add several larger pieces of wood until the ! re is burning well. At this

point, regular size logs may be added.

CAUTION: Never allow the " re to rest directly on the glass. Space the logs at least one inch

off the glass to allow for proper air ! ow.

NOTE: Until the ! re is burning well, leave the air controls fully open.

d) Regulate the heat output of the stove by adjusting the air controls to allow a larger ! re and vice versa.

A short period of experimentation with the control settings will allow you to regulate the heat output to keep your home comfortable.

Do not use a grate or elevate the " re. Build wood " re on the stove " rebox hearth ! oor.

3. Refueling the Stove:

Use a long pair of gloves (barbecue gloves) when feeding the ! re because these stoves burn at the front.

Operating Instructions

They are clean and ef! cient but they are also very hot and gloves are useful. Keep a small steel shovel and whisk nearby for moving a log or lifting a fallen ember and for keeping the hearth clean.

a) Before attempting to add fuel to the stove, OPEN the damper control fully by pulling it all the way out. This allows the chimney to carry away the additional smoke, which occurs when the door is open.

b) DO NOT OVERLOAD THE STOVE. Normally, three or four logs will provide heat for several hours. Never operate this stove where portions glow red hot.

c) DO NOT OVERFIRE. If the heater or chimney connector glows, you are over! ring. d) CAUTION: DO NOT PLACE FUEL WITHIN SPACE HEATER INSTALLATION CLEARANCES OR WITHIN

THE SPACE REQUIRED FOR CHARGING AND ASH REMOVAL.

4. For Maximum Efﬁ ciency:

When the stove is hot, load it fully to the top of the door opening and burn at medium low settings. When the fuel is mostly consumed, leaving a bed of red coals, repeat the process. Maximum heat for minimum fuel occurs when the stove top temperature is between 250°F (120°C) and 550°F (290°C). The most likely causes of dirty glass are: not enough fuel to get the stove thoroughly hot, burning green or wet wood, closing the draft until there is insuf! cient air for complete combustion, or a weak chimney draw. Indeed, the cleanness of the glass is a good indicator of the stove operating ef! ciently.

Helpful Hints Worth Repeating

1. Helpful advice on the correct way to start your ﬁ re.

a) You will need small pieces of dry wood, called kindling, and paper. Use only newspaper or paper

that has not been coated or had other materials glued or applied to it. Never use coated (typically advertising " yers) or coloured paper.

b) Always open the door of the wood stove slowly to prevent suction and drawing smoke into the

room.

c) Crumple several pieces of paper and place them in the center of the ! rebox and directly onto the

! rebricks of the wood stove. Never use a grate to elevate the ! re.

d) Place small pieces of dry wood (kindling) over the paper in a “teepee” manner. This allows for good

air circulation, which is critical for good combustion.

e) Light the crumpled paper in 2 or 3 locations. Note: It is important to heat the air in the stovepipe for

draft to start.

f) Fully open the air controls of the wood stove and close the door until it is slightly open, allowing for

much needed air to be introduced into the ! rebox. Never leave the door fully open, as sparks from the kindling may " y out of the stove, causing damage or injury. As the ! re begins to burn the kindling, some additional kindling may be needed to sustain the ! re. DO NOT add more paper after the ! re has started.

g) Once the kindling has started to burn, add some smaller pieces of seasoned, dry ! rewood. Note:

Adding large pieces at the early stages will only serve to smother the ! re. Continue adding small pieces of seasoned dry ! rewood, keeping the door slightly open until each piece starts to ignite. Remember to always open the door slowly between placing wood into the ! re.

h) Once the wood has started to ignite and the smoke has reduced, close the wood stove door fully. The

reduction of smoke is a good indication that the draft in the chimney has started and good combustion is now possible. Larger pieces of seasoned, dry ! rewood can now be added when there is suf! cient space in the ! rebox. Adjust the air control setting to desired setting. Note: The lower the air control setting, the longer the burn time of your ! rewood.

Operating Instructions

2. What type of wood is best to use as • rewood?

Both hardwood and softwood burn well in this stove. Both woods contain about 8,000 BTU/lb (18,570 KJ/Kg), but hardwood is generally more dense, will weigh more per cord, and burns a little slower and longer. Cutting ! rewood so that it will ! t horizontally, front to back, makes it easier loading and less likely

for the fuel to roll on the glass. Except for a cold start, there is no need to crisis-cross the logs. Ideal length for the logs used in the 1200 would be about 16“ (381 mm) but it can burn pieces up to 18” long. Ideal length for the logs used in the 1700 would be about 18“ (381 mm) but it can burn pieces up to 20” long logs. Burn only dry, seasoned wood. It produces more heat and less soot or creosote. Freshly cut wood has about 50% moisture. A 10 pound (4.5 Kg) log contains 5 pounds (2.3 Kg) of water. To season ! rewood, split and stack it so that air can get to all parts of the wood. Burn beach wood only if its salt content has been washed away in a season of rain and then the wood dried. To prevent smoke spillage when refueling, open the door slowly.

3. What does dry, seasoned wood mean?

Wood that has been dried for a period of one year in a well-ventilated and sheltered area would be considered dry, seasoned wood. Wood from slow-growing trees is generally considered better than wood from fast-growing trees. To season ! rewood, split and stack it so that air can get to all parts of the wood.

4. Will following the above-listed steps for starting a • re mean perfect results every time?

The quick answer is ‘most of the time’. There are many variables that may affect your success when starting a ! re. Most of those variables and how to deal with them will be learned through experience. Your ability to start a good ! re will signi! cantly increase with time and patience. Some of the reasons for poor stove performance will be covered in the next section of these instructions.

5. Why can’t I get the • re lit?

Damp or wet wood and poor drafts are the main reasons for poor results in starting a ! re. Always use dry, seasoned wood for your ! re. Even wood dried for two years will be dif! cult to ignite if it has become wet.

6. Is it normal for soot to cover the glass at the beginning of a • re?

Your stove has been built with an air-wash system that will help keep the glass clear when the ! rebox has reached a good operating temperature and has a good draft. Normally a hot stove will keep the glass clean, but if you must clean the glass, use a soft cloth with no abrasive and clean only when cold. Cold ! rebox temperature and poor draft cause sooting of the glass. Once the ! rebox temperature and the draft increase, the soot will burn off. Do not use abrasive cleaners on glass.

7. What is draft?

Draft is the ability of the chimney to exhaust or draw smoke produced during the normal combustion process. Too much draft may cause excessive temperatures in the appliance and may damage the appliance. Inadequate draft may cause backpuf! ng or “plugging” of the chimney. There is a certain amount of draft that is required to allow for your stove to function at its’ highest ef! ciency. A water column gauge can be used to reference this amount.

Operating Instructions

8. What can cause a poor draft?

The most common factors for poor draft are: a) Air supply

b) Environmental conditions c) Cold chimney temperature d) Poor chimney installation and maintenance e) Atmospheric pressure

a) Air supply – Inside the home, normal household appliances such as clothes dryers and forced-air

furnaces compete for air, resulting in air starvation to the ! re. This creates a condition in the house known as negative pressure. When a house experiences negative pressure, the combustion gases can be drawn from the chimney and into the house. This condition is commonly referred to as downdrafting. Increased amounts of insulation, vinyl windows, extra caulking in various places and door seals can all keep heat in but may also make a home too airtight. An easy way to stop negative pressure in a home is to crack a window in the room containing the stove.

b) Environmental Conditions - High trees, low-lying house location such as in a valley, tall buildings or

structures surrounding your house and windy conditions can cause poor draft or down-drafting.

c) Cold Chimney Temperature - Avoid cold chimney temperatures by burning a hot ! re for the ! rst ! fteen

to forty minutes, being careful not to over-! re the stove. If any part of the chimney or parts of the stove start to glow, you are over-! ring the stove. Where possible, install a temperature gauge on the chimney so temperature drops can be seen.

d) Chimney Installation and Maintenance - Avoid using too many elbows or long horizontal runs. Too short

a chimney can cause dif! cult start-up, dirty glass, back smoking when door is open, and even reduced heat output. Too tall a chimney may prompt excessive draft, which can result in very short burn times and excessive heat output. If in doubt, contact a chimney expert and/or chimney manufacturer for help. Clean chimney, rain caps and especially the spark arrestor regularly, to prevent creosote buildup, which will signi! cantly reduce chimney draw and possibly a chimney ! re.

Note: These instructions are intended as an aid and do not supercede any local, provincial or state

requirements. Check with of! cials or authorities having jurisdiction in your area.

AIR CONTROL:

air wash and pilot air (control the amount of air to the ! re) are controlled by the rod located on the

The right side of the unit. To increase your air, pull the rod out and to decrease, push the rod in. All the units have a secondary air that " ows through the tubes at the top of the ! rebox, just below the baf" es.

Pull this control all the way out when ! rst starting the stove. Once the ! re has been established you may adjust this control to set the burn rate of the ! re. If this damper is closed at ! rst start-up, the ! re will burn very slowly and could soot the appliance.

When shutting down the stove, fully open the air control. This allows the chimney temperatures to remain as high as possible for as long as possible. Cold chimney temperatures create creosote.

Figure 3: Air Control Rod.

HOW IT WORKS:

/2" Ceramic baffle; reflects heat down to burn up smoke.

Secondary air tubes;

creates a secondary

burn on the particles

in the smoke.

Intake air.

Smoke

Intake air.

Dry seasoned wood

Primary air;

window airwash.

Pilot air.

Slider plate; used

for air flow control.

Primary air;

window airwash.

Pilot air.

Slider plate; used

for air flow control.

/2" Ceramic baffle; reflects heat down to burn up smoke.

Secondary air tubes;

creates a secondary

burn on the particles

in the smoke.

Intake air.

Smoke

Intake air.

Dry seasoned wood

Operating Instructions

Figure 4: 1200 Air Flow Path.

Figure 5: 1700 Air Flow Path.

Specifications

1200 S

Model 1200 Freestanding

Width x Depth 25” x 22 7/16” (635 mm x 570 mm)

Height wi

Height of body

Fire box size (depth x width x height)

Capacity

* Approximate heating area

PECIFICATIONS:

th pedestal or legs

Table 1: 1200 General Information.

Flat Top Step Top

28 ¼”

(718mm)

18 ¼”

(464 mm)

16.1” x 18.25” x 11.15”

(409 mm x 464 mm x 283 mm)

1.85 feet

(0.0526 meter3)

2200 feet

(205 meter2)

31 ¼”

(794 mm)

21 ¼”

(540 mm)

**E.P.A. output rating

*Duration on low burn 6 -10 hours

Weight with packaging

E.P.A. Emissions

Standard (width x height)

Oversized (width x height)

Rating Label Location Back of Unit

335 lb

(151.95 Kg)

11,479 to 34,196 BTU/hour

(3,361 to 10,013 watt)

3.3 grams/hour

(0.116 oz/hour)

375 lb

(170.10 Kg)

Specifications

1700 S

Model 1700 Freestanding

Width x Depth 25” x 26 15/16” (635 mm x 684 mm)

Height wi

Height of body

Fire box size (depth x width x height)

Capacity 2.5 feet3 (0.0708 meter3)

* Approximate heating area 3000 feet2 (280 meter2)

PECIFICATIONS:

th pedestal or legs

Table 2: 1700 General Information.

Flat Top Step Top

28 ¼”

(718mm)

18 ¼”

(464 mm)

20.65” x 18.25” x 11.95” (525 mm x 464 mm x 304 mm)

31 ¼”

(794 mm)

21 ¼”

(540 mm)

**E.P.A. output rating 9,425 to 31,780 BTU/hour (2,760 to 9,306 watt)

*Duration on low burn 8 - 12 hours

Weight with packaging

E.P.A. Emissions 4.48 grams/hour (0.158 oz/hour)

Oversized (width x height)

Rating Label Location Back of Unit

390 lb

(176.90 Kg)

420 lb

(190.51 Kg)

Specifications

Front

Hearth

Back wall

Side wall

Front

Alcove Back wall

Alcove Side wall

ron

Adjacent wall

Alcove

LEARANCES TO COMBUSTIBLES - 1200 FREESTANDING:

MAINTAIN THESE MINIMUM CLEARANCES TO UNSHIELDED COMBUSTIBLES*

Table 3: 1200 Freestanding Clearance to Combustibles.

Single Wall Pipe Double Wall Pipe** Double Wall Pipe

From side wall

to side of unit

From rear wall

to back of unit

From adjacent wall

to corner of unit

From side wall

to collar

From rear wall

to collar

From adjacent wall

to collar

† From door opening

to edge of hearth pad

† From side/back of unit

to edge of hearth pad

Alcove (48” [1220 mm] Deep)

I Total Width 55” (1397 mm)

J Total Height 78” (1981 mm)

K Top of stove to ceiling 49” (1245 mm)

L Side wall to stove 15” (381 mm)

M Side wall to pipe 24” (610 mm)

N Back wall to unit 12” (305 mm)

O Back wall to pipe 15” (381 mm)

USA 16” (406 mm) CND 18” (450 mm)

13”

(330 mm)

11”

(279 mm)

9”

(229 mm)

22”

(559 mm)

14”

(356 mm)

17½”

(445 mm)

USA 6” (152 mm) CND 8” (200 mm)

13”

(330 mm)

10”

(254 mm)

8”

(203 mm)

22”

(559 mm)

13”

(330 mm)

16½”

(419 mm)

USA 16” (406 mm)

CND 18” (450 mm)

USA 6” (152 mm) CND 8” (200 mm)

with Heat Ef• ciency

Shield 50-1088 (Flat

top model only)

13”

(330 mm)

8”

(203 mm)

6½”

(165 mm)

22”

(559 mm)

11”

(279 mm)

15”

(368 mm)

USA 16” (406 mm) CND 18” (450 mm)

USA 6” (152 mm) CND 8” (200 mm)

Top vent out back wall with min. 24” (610 mm) vertical

USA 16” (406 mm) CND 18” (450 mm)

USA 6” (152 mm) CND 8” (200 mm)

rise; double wall

14”

(356 mm)

12”

(305 mm)

23”

(584 mm)

15”

(381 mm)

CAUTION:

An uninsulated smoke pipe must not pass through an attic, roof space, closet or similar concealed

space, or through a ! oor, ceiling, wall, or partition, or any combustible construction.

† FLOOR PROTECTION: If a stove is installed on a combustible ! oor, it must have a pedestal or leg kit with ash

pan attached and be on a NON-COMBUSTIBLE hearth pad

* ALL CLEARANCES CAN BE REDUCED WITH SHIELDING ACCEPTABLE TO THE LOCAL AUTHORITY.

**DOUBLE WALL: IN CANADA: Any ULC-S629 listed chimney system with the accompanying listed double wall vent connector.

IN U.S.A.: Any UL 103 HT listed chimney system with the accompanying listed double wall vent connector.

Specifications

Front

Hearth

Back wall

Side wall

Front

Alcove Back wall

Alcove Side wall

Adjacent wall

Alcove

LEARANCES TO COMBUSTIBLES - 1700 FREESTANDING:

MAINTAIN THESE MINIMUM CLEARANCES TO UNSHIELDED COMBUSTIBLES*

Table 4: 1700 Freestanding Clearance to Combustibles.

Single Wall Pipe Double Wall Pipe** Double Wall Pipe

From side wall

to side of unit

From rear wall

to back of unit

From adjacent wall

to corner of unit

From side wall

to collar

From rear wall

to collar

From adjacent wall

to collar

† From door opening

to edge of hearth pad

† From side/back of unit

to edge of hearth pad

Alcove (48” Deep)

I Total Width 51” (1295 mm)

J Total Height 72” (1829 mm)

K Top of stove to ceiling 44” (1118 mm)

L Side wall to stove 13” (330 mm)

M Side wall to pipe 22” (559 mm)

N Back wall to unit 8” (203 mm)

O Back wall to pipe 11” (279 mm)

USA 16” (406 mm) CND 18” (450 mm)

20”

(508 mm)

12”

(305 mm)

10”

(254 mm)

29”

(737 mm)

15”

(381 mm)

18½”

(470 mm)

USA 6” (152 mm) CND 8” (200 mm)

13”

(330 mm)

10”

(254 mm)

8½”

(216 mm)

22”

(559 mm)

13”

(330 mm)

17”

(432 mm)

USA 16” (406 mm)

CND 18” (450 mm)

USA 6” (152 mm) CND 8” (200 mm)

with Heat Ef• ciency Shield 50-1088 (Flat

top model only)

13”

(330 mm)

7”

(178 mm)

6”

(152 mm)

22”

(559 mm)

10”

(254 mm)

14½”

(368 mm)

USA 16” (406 mm) CND 18” (450 mm)

USA 6” (152 mm) CND 8” (200 mm)

Top vent out back wall with min. 24” (610 mm) vertical

USA 16” (406 mm) CND 18” (450 mm)

CND 8” (200 mm)

rise; double wall

11”

(279 mm)

13”

(330 mm)

20”

(508 mm)

16”

(406 mm)

USA 6” (152 mm)

CAUTION:

An uninsulated smoke pipe must not pass through an attic, roof space, closet or similar concealed

space, or through a ! oor, ceiling, wall, or partition, or any combustible construction.

† FLOOR PROTECTION: If a stove is installed on a combustible ! oor, it must have a pedestal or leg kit with ash

pan attached and be on a NON-COMBUSTIBLE hearth pad * ALL CLEARANCES CAN BE REDUCED WITH SHIELDING ACCEPTABLE TO THE LOCAL AUTHORITY. **DOUBLE WALL: IN CANADA: Any ULC-S629 listed chimney system with the accompanying listed double wall vent connector. IN U.S.A.: Any UL 103 HT listed chimney system with the accompanying listed double wall vent connector.

IMENSIONS - 1200 FREESTANDING:

25"

(635mm)

6 1/16"

(153mm)

9 15/16"

52mm)

28 1/4"

(718mm)

29 15/16"

(760mm)

30 1/4"

(769mm)

10"

(254mm)

Legs same height

24 3/8"

(619mm)

22 7/16"

70mm)

5 15/16"

(151mm)

16 1/2"

(419mm)

26 3/8"

(67

0mm)

14 3/4"

(375mm)

3 7/8"

(98mm)

20"

(508mm)

15 13/16"

(402mm)

9 15/16"

(252mm)

31 1/4"

(793mm)

32 3/4"

(831mm)

10"

(254mm)

edestal same height

13 7/1

(341mm)

22 7/16"

(570mm)

18 3/8"

(467mm)

25 3/1

(640mm)

/16"

(402mm)

25"

(635mm)

6 1/16"

(153mm)

5 15/16"

(151mm)

Specifications

Figure 6: 1200 Freestanding Flat Top Dimensions.

Figure 7: 1200 Freestanding Step Top Dimensions.

IMENSIONS - 1700 FREESTANDING:

26 15/16"

(684mm)

/16"

(252mm)

15 7/8"

(403mm)

25"

(635mm)

19 3/8"

(492mm)

6 1/16"

(153mm)

25 15/16"

(659mm)

30 1/4"

(769mm)

3 7/8"

(98mm)

28 1/4"

(718mm)

24 1/2"

(622mm)

21"

(534mm)

/16"

(151mm)

23 1/1

(586mm)

10"

(254mm)

Pedestal same height

26 15/16"

(684mm)

16"

(406mm)

26 3/8"

(670mm)

16 3/4"

26mm)

9 15/16"

(

252mm)

31 1/4"

(794mm)

32 11/16"

(831mm)

24 3/8"

(

619mm)

15 7/8"

(

403mm)

10"

(254mm)

Legs same height

25"

(635mm)

6 1/16"

(153mm)

5 15/16"

(151mm)

Specifications

Figure 8: 1700 Freestanding Flat Top Dimensions.

Figure 9: 1700 Freestanding Step Top Dimensions.

Specifications

(104mm)

5 3/8"

(137mm)

2 3/4"

(69mm)

10 3/8"

(264mm)

(102 mm)

5 1/16"

(128 m

5 3/8"

(

137 mm)

10 3/8"

(263 mm)

REESTANDING SIDE DIMENSIONS FOR FAN KIT:

Figure 10: 1200 Freestanding with Fan Kit Dimensions.

Figure 11: 1700 Freestanding with Fan Kit Dimensions.

Installation

Please read and understand these instructions before installing pedestal or ash pan and leg option. Failure to follow these instructions carefully could cause personal injury or property damage. All screws are pre-installed on the base of the unit.

REMOVAL FROM PALLET:

• Remove the bricks from the unit before starting.

• Remove the two (2) lag bolts (shown in Figure 1) that

secure the unit to the pallet from inside the " rebox.

Note: After the pedestal or legs and ash pan

have been installed but before the bricks are installed, rivets (Figure 12) must be placed in the two (2) holes (shown in Figure 1) in the " rebox that lag bolts came out of. This is done to make unit burn more ef" ciently.

Figure 12:

Rivet.

PEDESTAL INSTALLATION - FREESTANDING:

Place the unit on the pallet on its back.

•

• Remove the front two (2) provided Pedestal

bolts, slide the pedestal assembly over the rear bolts located on the base of the unit, and re-install the front bolts through the Pedestal holes.

• Tighten all four (4) bolts ensuring the pedestal

is properly aligned to the edges of the unit.

• Stand the unit on the pedestal and set the

unit in the location ready for installation.

• If fresh air supply is being supplied from the

bottom of the unit please install the cover plate supplied to the rear of the pedestal covering the 4” (10 cm) hole.

Note: In seismically active areas, it is recommend that your unit is secured to the ! oor by using the bolt down holes at the rear of the pedestal.

Figure 12: Bolts to remove.

Figure 13: Installing Pedestal.

Note: Pre-installed on 1200

Installation

Chimney Connector

Heat Shield

Loosen screws

Flue

LEGS AND ASH PAN INSTALLATION - FREESTANDING:

• Place the unit on the pallet on its back.

•

Attach the Leg Adaptor Plate to the bottom of the unit using the supplied screws

• 1700 Only: Attach the air channel box to the front of the pedestal spacer using two (2) T-20 screws

• Remove the rear two provided Leg Box bolts, slide the Leg Box assembly over the front bolts located on the base of the unit, and reinstall the rear bolts thru the Leg Box holes and tighten all four (4) bolts.

• Carefully remove the cast iron legs from the packaging and secure each leg with two (2) bolts provided.

• Secure all four (4) legs, push the leg towards the center of the stove

and align the legs with the outer edges of the ! rebox.

• Stand the unit on the legs and set the unit in the location ready for installation.

Figure 14: Installing Legs and Ash Pan Assembly.

INSTALLATION OF HEAT-EFFICIENCY SHIELD - FREESTANDING FLAT TOP:

The heat-ef! ciency shield is installed to lower the clearances to combustibles on the " at top freestanding model.

1. The unit must be in position for the installation and

with the venting ready to be assembled.

2. Loosen the two (2) top screws on the back of the

unit using a 5/16” socket.

3. Place the heat-ef! ciency shield on top of unit.

4. Slide chimney connector through the heat-

ef! ciency shield and over the " ue.

5. Lift the heat-ef! ciency shield and screw the

chimney connector to the " ue.

6. Slide the heat-ef! ciency shield down and hook the

slot at the back of the shield, around the loosened screws at the back of the unit.

7. Tighten the two (2) screws at the back.

Figure 15: Installing Heat Shield.

Installation

HEARTH PROTECTION EXAMPLES:

Table 5: Examples of Hearth Pad Sizing Using Clearances From Tables 3 &4 (refer to Figures 16 & 17).

Canada USA

1200 1700 1200 1700

(A) Minimum Width 40½” (1028mm) 36½” (926mm)

(B) Minimum Depth

Adjacent

(D) Maximum Back Corners -

Adjacent

(E) Maximum Front Corners -

Diagonal

(F) Maximum Back Corners -

Diagonal

(G) Minimum Width remaining

without corners - Front

(H) Minimum Width remaining

without corners - Back

46”

(1168mm)

OPTIONAL - Corner removal

8¾” (314mm) 6¾” (171mm)

6¼” (160mm) 5⅛” (130mm)

12⅜” (314mm) 9½” (242mm)

8⅞” (227mm) 7¼” (185mm)

23” (583mm) 23” (583mm)

27⅞” (707mm) 26⅛” (665mm)

50½”

(1283mm)

42”

(1067mm)

46½”

(1181mm)

Table 6: Examples of Parallel Installation Using Clearances From Tables 3 & 4 (refer to Figure 16).

Single Wall Pipe

Double Wall Pipe

Double Wall Pipe with Heat Efﬁ ciency Shield 50-1088 (Flat top model only)

Top vent out back wall with min. 24” (610mm) vertical rise; double wall

Model Country

Canada 45½” (1156mm) 49¼” (1252mm)

1200

USA 43½” (1104mm) 47¼” (1201mm)

Canada 52½” (1333mm) 54¾” (1391mm)

1700

USA 50½” (1283mm) 52¾” (1340mm)

Canada 45½” (1156mm) 48¼” (1226mm)

1200

USA 43½” (1104mm) 46¼” (1175mm)

Canada 45½” (1156mm) 52¾” (1340mm)

1700

USA 43½” (1104mm) 50¾” (1290mm)

Canada 45½” (1156mm) 46¼” (1175mm)

1200

USA 43½” (1104mm) 44¼” (1125mm)

Canada 45½” (1156mm) 50¾” (1290mm)

1700

USA 43½” (1104mm) 47¾” (1213mm)

Canada 46½” (1181mm) 50¼” (1277mm)

1200

USA 44½” (1129mm) 48¼” (1226mm)

Canada 43½” (1104mm) 55¾” (1417mm)

1700

USA 41½” (1053mm) 53¾” (13466mm)

(I) Far Edge of Hearth Pad

to Side Wall - Minimum

(J) Front of Hearth Pad to

Back Wall - Minimum

Installation

Door Opening

USA 16" (406mm) CND 18" (457mm)

USA 6"

(152mm)

CND 8"

(203mm)

USA 6" (152mm)

CND 8" (203mm)

H D

Door Opening

Optional

Coverage

Optional

Coverage

Optional

Coverage

USA 16" (406mm) CND 18" (457mm)

USA 6"

(152mm)

CND 8"

(203mm)

USA 6" (152mm) CND 8" (203mm)

59"

(1499mm)

361/2"

(926mm)

331/4"

(844mm)

Optional

Coverage

Optional

Coverage

Optional

Coverage

Door Opening

171/2"

(445mm)

171/2"

(445mm)

651/4"

(1657mm)

16"

(406mm)

(152mm)

461/2"

(1181mm)

6" (152mm)

91/2"

(242mm)

63/4"

(171mm)

23"

(583mm)

Figure 16: General Parallel Installation

(refer to Tables 5 & 6).

Figure 18: Corner Installation for 1700 in USA using Single Wall Pipe (refer to Tables 4, 5, & 7).

Figure 17: General Corner Installation (refer to Tables 5 & 7).

Installation

7⅛”

Diagonal

Removed -

(P) Back Corner

4⅞”

Adjacent

Removed -

(O) Back Corner

Pad

30⅝”

(N) Width at

back of Hearth

29⅛”

(M) Edge of

Adjacent Wall

Hearth Pad to

1¼”

(32mm)

(182mm)

⅞”

(23mm)

(124mm)

34⅝”

(779mm)

(881mm)

29⅛”

(738mm)

4⅞”

(125mm)

3½”

(88mm)

33½”

(851mm)

33¼”

(844mm)

0”

(0mm)

0”

(0mm)

36½”

(926mm)

33¼”

(844mm)

8⅞”

(227mm)

6¼”

(160mm)

27⅞”

(707mm)

28⅛”

(713mm)

3¼”

(83mm)

2¼”

(59mm)

31⅞”

(809mm)

28⅛”

(713mm)

7⅞”

(201mm)

5⅝”

(142mm)

29¼”

(743mm)

31¾”

(806mm)

2¼”

(59mm)

1⅝”

(41mm)

33¼”

(845mm)

31¾”

(806mm)

8⅞”

(227mm)

6¼”

(160mm)

27⅞”

(707mm)

28⅛”

(713mm)

6¼”

(160mm)

4⅜”

(133mm)

27⅝”

(701mm)

26⅝”

(675mm)

8⅞”

(227mm)

6¼”

(160mm)

27⅞”

(707mm)

31¼”

(794mm)

7¼”

(185mm)

5⅛”

(130mm)

26⅛”

(665mm)

29¼”

(743mm)

Wall

57⅝”

54⅞”

61⅞”

(1465mm)

(L) Adjacent

Corner

(K) Front of

Hearth Pad to

Table 7: Examples of Corner Installation Using Clearances From Tables 9 &10 (refer to Figures 23 & 24).

1200 Canada 61⅜”

Single

(1393mm)

(1558mm)

(1507mm)

USA 59⅜”

Wall Pipe

1700 Canada 67¼”

59”

(1571mm)

(1708mm)

(1499mm)

(1657mm)

USA 65¼”

56⅝”

53⅞”

(1439mm)

(1522mm)

USA 57⅞”

1200 Canada 59⅞”

Double

Wall Pipe

60⅜”

(1368mm)

(1533mm)

(1471mm)

(1654mm)

1700 Canada 65⅛”

57½”

56⅝”

(1461mm)

(1603mm)

USA 63⅛”

1200 Canada 59⅞”

Double

52⅜”

(1439mm)

(1330mm)

(1522mm)

(1417mm)

USA 55¾”

Wall Pipe

Efﬁ ciency

with Heat

Shield 50-

55”

59⅞”

(1520mm)

(1636mm)

USA 59⅝”

1700 Canada 64⅜”

only)

top model

1088 (Flat

(1398mm)

(1514mm)

Installation

Rear of pedestal

OUTSIDE AIR KIT:

It is mandatory to use outside air for installations in mobile homes. A 4” (10.2 cm) fresh air adaptor kit is available. This adaptor can be

installed either on the back pedestal or through the ! oor under the pedestal. The cover plate must be installed on the unit if your stove is located in a mobile home or if using outside air from the bottom.

Place the ¼” mesh screen between the fresh air adaptor and the body of the pedestal (as shown to right).

NOTE: Fresh air connection to the unit must be a non-combustible pipe,

example: 4” (10.2 cm) single wall aluminum ! ex pipe.

Figure 25: Fresh Air Adaptor

onto the Back of the Pedestal.

NOTE: Remove the cover plate on the rear of the pedestal if room air is to be used for combustion air.

RECOMMENDED HEIGHTS AND DIAMETERS FOR FLUE PIPE:

minimum ! ue pipe height at sea level is 12 feet (3.7 m) straight up from top of the unit. For every

The 1000 feet (305 m) above sea level, 4% could be added to the overall height. Use Tables 8, 9, and 10 to calculate the required vertical rise required.

Table 8: Recommended Height for Flue Pipe.

Elevation

above sea level

feet 0 2 x 15° 4 x 15° 2 x 30° 4 x 30° 2 x 45° 4 x 45°

0-1000 12.0 12.7 13.3 13.3 14.7 14.0 16.0

1000-2000 12.5 13.2 13.8 13.8 15.3 14.6 16.6

2000-3000 13.0 13.7 14.4 14.4 15.9 15.1 17.3

3000-4000 13.4 14.2 14.9 14.9 16.5 15.7 17.9

4000-5000 13.9 14.7 15.4 15.4 17.1 16.2 18.6

5000-6000 14.4 15.2 16.0 16.0 17.6 16.8 19.2

6000-7000 14.9 15.7 16.5 16.5 18.2 17.4 19.8

7000-8000 15.4 16.3 17.0 17.0 18.8 17.9 20.5

8000-9000 15.8 16.8 17.6 17.6 19.4 18.5 21.1

9000-10000 16.3 17.3 18.1 18.1 20.0 19.0 21.8

meters 0 2 x 15° 4 x 15° 2 x 30° 4 x 30° 2 x 45° 4 x 45°

0-305 3.7 3.9 4.1 4.1 4.5 4.3 4.9

305-610 3.8 4.0 4.2 4.2 4.6 4.4 5.1

610-915 4.0 4.2 4.4 4.4 4.8 4.6 5.3

915-1220 4.1 4.3 4.6 4.6 5.0 4.8 5.5

1220-1525 4.2 4.5 4.7 4.7 5.2 4.9 5.7

1525-1830 4.4 4.6 4.9 4.9 5.4 5.1 5.9

1830-2135 4.5 4.8 5.0 5.0 5.5 5.3 6.0

2135-2440 4.7 4.9 5.2 5.2 5.7 5.5 6.2

2440-2745 4.8 5.1 5.4 5.4 5.9 5.6 6.4

2745-3050 5.0 5.3 5.5 5.5 6.1 5.8 6.6

Minimum recommended ﬂ ue pipe height for # of elbows

(Note: No more than 2 offsets (4 elbows) can be used. 2x45°=1x90°

We recommend the use of a 6” (150mm) diameter ! ue pipe. However, the CSA-B365, NFPA 211 Chapter

12.4.4-1, and the WETT Training Manual state that the ! ue pipe may be reduced in cross-sectional area

provided that the installer ensures suf" cient draft is available at the appliance.

Table 9: Distance to add to

overall vertical height.

Distance to add

Part used feet meters

45° elbow 1.0 0.3

90° elbow 2.0 0.6

“T” 3.0 0.9

1 ft (0.3m) of horizontal run

Table 10: Examples of calculating

overall vertical height required.

sea level with 2

x 30° elbows

one “T” 3.0 ft (0.9 m)

1½ ft (0.6 m) horizontal run

Total 1 19.3 ft (5.9 m)

4000-5000 ft

(1220-1525 m)

above sea level

one “T” 3.0 ft (0.9 m)

2 ft (0.6 m)

horizontal run

Total 2 20.9 ft (6.3 m)

2.0 0.6

Height

13.3 ft (4.1 m)

3.0 ft (0.9 m)

13.9 ft (4.2 m)

4.0 ft (1.2 m)

Installation

Chimney flue

Masonry chimney

Sheet steel supports

Chimney connector

Minimum chimney clearance from masonry to sheet steel supports and combustibles 2 inches (50.8 mm)

Two air channels each 1 inch (25.4 mm)

Minimum 6 inches (152.4 mm) glass fiber insulation

Two ventilated air channels each 1 inch (25.4 mm). Construction of sheet steel

Minimum 12 inches (304.8 mm) to combustibles

Masonry chimney

Fire clay liner

Chimney connector

Minimum clearance 12 inches (304.8 mm) of brick

Minimum chimney clearance to brick and combustibles 2 inches (50.8 mm)

Chimney Flue

Minimum chimney clearance from masonry to sheet steel supports and combustibles 2 inches (50.8 mm)

Factory-built chimney length

Non-soluble refractory cement

Chimney length flush with inside of flue

Air space 9 inches (228.6 mm) minimum

Chimney

flue

Masonry chimney

Sheet steel supports

Solid-insulated, listed factory-built chimney length

Use chimney manufacturer’s parts to attach connector securely

Chimney connector

Minimum clearance 9 inches (228.6 mm)

CHIMNEY INSTALLATION THROUGH WALL:

Here are four (4) methods of combustible wall chimney connector pass-throughs. Information was provided from NFPA 211.

Method A. 12” (304.8 mm) Clearance to Combustible Wall Member: Using a minimum thickness 3.5” (89 mm) brick and a !” (15.9 mm)

minimum wall thickness clay liner, construct a wall pass-through. The clay liner must conform to ASTM C315 (Standard Speci" cation for Clay Fire Linings) or its equivalent. Keep a minimum of 12” (305 mm) of brick masonry between the clay liner and wall combustibles. The clay liner shall run from the brick masonry outer surface to the inner surface of the chimney # ue liner but not past the inner surface. Firmly grout or cement the clay liner in place to the chimney # ue liner.

Figure 20: Chimney Through Wall - Method A.

Method B. 9” (229 mm) Clearance to Combustible Wall Member: Using

a 6” (152 mm) inside diameter, factory-built Solid-Pak chimney section with insulation of 1” (25.4 mm) or more, build a wall pass-through with a minimum 9” (229 mm) air space between the outer wall of the chimney length and wall combustibles. Use sheet metal supports, fastened securely to wall surfaces on all sides, to maintain the 9” (229 mm) air space. When fastening supports to chimney length, do not penetrate the chimney liner (the inside wall of the Solid-Pak chimney). The inner end of the Solid-Pak chimney section shall be # ush with the inside of the masonry chimney # ue and sealed with a non-water soluble refractory cement. Use this cement to also seal to the brick masonry

Figure 21: Chimney Through Wall - Method B.

penetration.

Figure 22: Chimney Through Wall - Method C.

Figure 23: Chimney Through Wall - Method D.

NOTES:

1. Connectors to a masonry chimney, excepting method B, shall extend in one continuous section through the wall pass-through system and the chimney wall, to but not past the inner # ue liner face.

2. A chimney connector shall not pass through an attic or roof space, closet or similar concealed space, or a # oor, or ceiling.

Method C. 6” (152.4 mm) Clearance to Combustible Wall Member: Starting with a minimum 24 gauge (.024” [0.6 mm]) 6” (152.4 mm) metal chimney connector and a minimum 24 gauge ventilated wall thimble which has two air channels of 1” (25.4 mm) each, construct a wall pass-through. There shall be a minimum 6” (152.4 mm) separation area containing " berglass insulation, from the outer surface of the wall thimble to wall combustibles. Support the wall thimble and cover its opening with a 24 gauge minimum sheet metal support. Maintain the 6” (152.4 mm) space. There should also be a support sized to " t and hold the metal chimney connector. See that the supports are fastened securely to wall surfaces on all sides. Make sure fasteners used to secure the metal chimney connector do not penetrate chimney # ue liner.

Method D. 2” (50.8 mm) Clearance to Combustible Wall Member: Start with a solid-pak listed factory-built chimney section at least 12” (304 mm) long, with insulation of 1” (25.4 mm) or more, and an inside diameter of 8” (2” [51 mm] larger than the 6” [152.4 mm] chimney connector). Use this as a pass-through for a minimum 24 gauge singlewall steel chimney connector. Keep solid-pak section concentric with and spaced 1” (25.4 mm) off the chimney connector by way of sheet metal support plates at both ends of chimney section. Cover opening, and support chimney section on both sides, with 24 gauge minimum sheet metal supports. See that the supports are fastened securely to wall surfaces on all sides. Make sure fasteners are used to secure chimney #

ue liner.

NSTALLATION OF A LISTED, FACTORY BUILT CHIMNEY - FREESTANDING:

Hearthpad

Floor

Pedestal

Woodstove

Optional

fan

Outside air connection

through wall or floor

Ceiling support

Ceiling

Radiation shield

Insulated chimney

Rain cap/

Spark arrestor cap

Roof flashing

Roof

Attic radiation shield

Minimum air space in

accordance with

chimney manufacturer.

Chimney

connector

Storm Collar

This is a generic set of instructions; always follow the chimney manufacturer’s instructions explicitly. Also refer to “RECOMMENDED HEIGHTS FOR FLUE PIPE”.

1. Set • oor protector and stove in location in accordance with the “CLEARANCES TO COMBUSTIBLES - 1200

FREESTANDING” or “CLEARANCES TO COMBUSTIBLES 1700 FREESTANDING”.

2. Mark the position for the ceiling hole by

suspending a plumb bob from the ceiling over the exact center of your stove • ue and mark a spot on the ceiling to indicate the center of the chimney.

3. Move this location, if necessary, to avoid

• oor joists, ceiling rafters, electrical wiring and plumbing while still maintaining required clearances. If • oor joists or ceiling rafters must be cut they must be made structurally sound again. Install chimney according to chimney manufacturers instructions. A chimney connector cannot pass through an attic or roof space, closet or similar concealed space, or a • oor, ceiling, wall or partition of combustible construction. In Canada, if passage through a wall or partition of combustible construction is desired, the installation shall conform to CAN/CSA-B365 Installation Code for SolidFuel Burning Appliances and Equipment and NFPA 211 Standard for Chimneys, Fireplaces, Vents, and Solid Fuel-Burning Appliances.

4. Mark the hole for the outside air kit.

5. Move the stove out of the way.

6. Cut a pilot hole in the ceiling.

7. Cut a hole for the ceiling penetration

components and frame in the sides of the hole in both the ceiling and roof. Check, and follow chimney manufacturer’s instructions for all of these steps.

8. Install the support box and chimney through

the roof. Install the slip section for the chimney connector.

9. Slip the roof • ashing over the chimney and

secure to the roof, being careful to keep the pipe centered in the opening. To meet the code, the chimney must extend above the roof penetration at least 3 feet (91.4 cm),

Installation

Figure 24: Roof Clearances.

Figure 25: Standard Vertical Installation.

Installation

Hearthpad

Floor

Pedestal

Woodstove

Optional

fan

Outside air connection

through wall or floor

Chimney

connector

Ceiling

Insulated chimney

Roof flashing

Roof

Roof radiation

shield (if required)

Minimum air space in accordance with chimney manufacturer.

Wall support

Chase

(optional)

Insulated corner

Minimum

18" (475 mm)

Rain cap/

rk arrestor cap

Storm Collar

and in any area within 10 feet (304.8 cm) of the roof ridge, the chimney must be 2 feet (60.9 cm) above the ridge. Refer to Figure 30.

Note: Increasing the chimney

height above the roof may help your unit to draft better. This greater draft can decrease

problems such as dif! cult start-ups, smoke coming out when door is open, and dirty glass. You may initially try the minimum required height and if problems do arise, add additional height later.

10. Slide the roof " ashing over your chimney and seal the " ashing to the roof with a roo! ng compound. Secure the roof " ashing to your roof with nails or screws.

11. Place the storm collar over the " ashing and seal the joints with silicone caulking.

12. Fasten the rain cap / spark arrestor cap to the top of your chimney.

13. Place the stove back into position.

14. Install the chimney connector pipe with the lower (crimped) edge of the pipe inside the " ue collar. Any creosote formed will then run back down into the stove. All connections must be tight and secured with three sheet metal screws equally spaced. Double wall pipe is recommended over single wall.

15. Also install an outside air " ex pipe to the stove.

IMPORTANT: When a metal prefabricated chimney is used, the manufacturer’s installation instructions must be followed. You must also purchase and install the ceiling support package or wall pass-through and “T” section package, ! restops (where needed), insulation shield, roof " ashing, chimney cap, etc. Maintain proper clearance to the structure as recommended by the manufacturer. The chimney must be the required height above the roof or other obstructions for safety and proper draft operation.

Note: If you are using a horizontal connector (refer to Figure 32), the chimney connector

should be as high as possible while still maintaining the 18” (475 mm) minimum distance from the horizontal connector to the ceiling.

Figure 26: Standard Horizontal Installation.

Installation

MASONRY CHIMNEY INSTALLATION - FREESTANDING:

DO NOT CONNECT THIS UNIT TO OR USE IN CONJUCTION WITH ANY AIR DISTRIBUTION DUCTWORK UNLESS SPECIFICALLY APPROVED FOR SUCH INSTALLATIONS

DO NOT CONNECT THIS UNIT TO A CHIMNEY FLUE SERVING ANOTHER APPLIANCE.

A non-combustible ! oor protector is required under all freestanding units; refer to “CLEARANCES TO COMBUSTIBLES -

FREESTANDING” or “CLEARANCES TO COMBUSTIBLES - 1700 FREESTANDING”. When venting into a masonry chimney,

1200 the ! oor protector must be installed directly below the chimney vent and 2” (50.8 mm) on either side of the chimney vent.

Vent the stove into a clean, lined, approved masonry chimney in good condition, conforming to local building codes and meeting the minimum standards of the National Fire Protection Association (NFPA). Make sure there are no cracks, loose mortar or other signs of deterioration and blockage. Have the chimney cleaned before the stove is installed and operated, or vent with a listed 6” (150 mm) factory-built chimney suitable for use with solid fuels and conforming to ULC-S629 Standard for 650°C factory-Built Chimneys in CANADA or UL 103 HT Factory-Built Chimneys for Residential Type and Building Heating Appliances in the U.S.A. Connect the stove to this chimney with a short and straight 6” (150 mm), 24 gauge or heavier, single-wall black or blued steel smoke pipe. Connection to all masonry chimneys must be a metal or masonry thimble cemented in place. All smoke pipes must slope upwards, all connections must be tight and secured with three sheet metal screws equally spaced. The smoke pipe length should not exceed 40% of the chimney height above the stove.

When connecting the stove through a combustible wall to a masonry chimney, additional steps are required. Consult the chimney connector manufacturer and refer to Figure 28.

Figure 27: Installation into a masonry chimney.

Figure 28: Installation into chimney through a

combustible wall.

Installation

Floor Protection

Combustible Floor

Masonry Fireplace

Rain Cap

Steel Plate or Flashing

Rigid Stainless

Steel Liner

Damper Removed or Fastened Open

Clean-out tee

Chimney

Support and Clamp

Clean-out

cover

Flexible Stainless

Steel Section

Stainless Steel

Connector Pipe

Listed Liner

Stove pipe must

end higher than liner

MASONRY FIREPLACE INSTALLATION - FREESTANDING:

Unless

you are experienced, we recommend installation by your dealer or a professional installer.

Many venting manufacturers have listed kits

available to connect a stove to a masonry ! replace. Always follow the vent manufacturer’s installation instructions.

The existing damper may have to be removed to allow installation.

MOBILE HOME INSTALLATION:

SPECIAL REQUIREMENTS: Pedestal models 1200 and 1700 are approved for mobile homes. A 1200

or 1700 Insert may also be installed into a Mobile Home in the U.S. provided there is a Mobile Home

Figure 29: Freestanding Installation into existing • replace.

approved Factory Built Fireplace installed with adequate fresh air supply, and that that Factory Built Fireplace is not altered beyond the damper or ash shelf being modi! ed. In Canada, Insert Mobile Home installations must be pre-approved by the local inspector. All freestanding installation requirements in “

Installation Of A Listed, Factory Built Chimne

the following must be met:

VENTING: In Canada: Any ULC-S629 listed chimney system with the accompanying double-wall vent connector. In U.S.A. Any UL-103-HT listed chimney system with the accompanying double-wall vent connector.

Do not connect a listed chimney of one manufacture with a listed double wall connector from another manufacture.

y”, must comply with all local codes that may apply, and

At least

3 feet (914 mm)

Hearthpad

Floor

Pedestal

Woodstove

Optional

fan

Outside air connection

through wall or floor

Double wall pipe

Ceiling support

Ceiling

Spark arrestor cap

Roof flashing

Roof

Radiation Shield

Insulated

chimney

Bolt stove to floor

Installation

These connectors must be installed in accordance with the manufacturer’s instructions. Use only speci! ed components. The chimney and pipe must extend at least 10 feet (2.4 m) above the stove and 3 feet (0.9 m) above the highest point of the roof. Install a rain cap with spark arrestor at the top that will not impede the smoke exhaust. The chimney must be supported at the ceiling or roof so that its weight will not sit on the stove. Seal with silicone to maintain vapor barrier at the chimney and outside air penetrations.

CAUTION: THE STRUCTURAL INTEGRITY OF THE MOBILE HOME FLOOR, WALL, AND CEILING/ROOF MUST BE MAINTAINED.

OUTSIDE AIR :

Connection from the stoves air intake to the outside is mandatory, (MOBILE HOMES ONLY) either through a hole in the wall not higher than the stoves bottom or through a hole in the " oor beneath the pedestal, using the fresh air adaptor provided. If the air intake is through the " oor, the hole in the pedestal back must be closed with the sheet metal cover provided. Avoid cutting any " oor joists, wall studs, electrical wiring or plumbing. Seal around the outside air pipe with insulation to prevent drafts. Also install a ¼” mesh rodent or pest screen in the end of fresh-air pipe. Fresh-air connection must be of a non-combustible material, example: 4” (10.16 cm) " exible aluminum single wall pipe.

Fresh air could also be supplied from a vented

crawlspace.

The pedestal must be ! rmly bolted to the " oor using two (2) ¼” bolts. Be sure to replace any insulation or panels removed when fastening the bottom nuts.

If room air starvation occurs because the air intake is blocked with ice, leaves etc. or because the stove door was left open, or due to a strong exhaust fan operating, dangerous fumes could be sucked into the room.

IN SOME AREAS IT MAY BE REQUIRED TO ELECTRICALLY GROUND THE STOVE TO THE STEEL CHASSIS OF THE MOBILE HOME.

When this unit is installed in a Mobile Home it must be grounded to the steel chassis or connected to a grounding rod.

Manufactured (Mobile) home installation must be in accordance with the Manufactured Home Construction and Safety Standard, UL 307B, Title 24 CFR, Part 3280 and/or The Standard for Manufactured Home Installations, ANSI A225.1/NFPA 501A.

WARNING: DO NOT INSTALL IN A MOBILE HOME SLEEPING ROOM.

Figure 30: Freestanding installation into mobile home.

Installation

Tube A

Tube E

Tube D

ODEL 1200 BRICK PLACEMENT & TUBE LOCATIONS:

COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS.

1. Place the three (3) full size bricks along each side of the " rebox and one (1) full size brick on either side of the back of the " rebox.

2. To place the ! oor bricks, lay the two (2) partial bricks along the back of the ! oor. Then on the left, lay two (2) full size bricks and on the right, lay a full size brick in the center and the half brick in the front (for the ash dump). The spaces between the bricks will soon " ll with ashes.

Figure 31: Brick Placement for 1200 shown with Secondary Air Channel

When replacing bricks, use only pumas type ﬁ re bricks.

and Tubes.

TOTAL BRICKS:

11 - Full size bricks 9” long x 4.5” wide x 1.25” thick (22.9 cm long x 11.4 cm wide x 3.2 cm thick)

2 - Partial bricks 9” long x 3” wide x 1.25” thick (22.9 cm long x 7.6 cm wide 3.2 cm thick)

1 - Half brick 4.5 “ long x 4.5” wide x 1.25” thick (11.43 cm long x 11.43 cm wide x 3.175 cm thick)

Removing Air Tube: If a secondary air tube needs to be removed, place a screwdriver (any style except ! at head) into one of the air holes and tap it with a hammer/mallet to the left until the right end of the tube is freed. To installation a secondary air tube reverse the above instructions.

IMPORTANT: All secondary air tubes must be in place for proper operation.

Installation

Tube A

Tube C

Tube B

ODEL 1700 BRICK PLACEMENT & TUBE LOCATIONS:

COMPLETE THE STOVE AND SMOKE PIPE INSTALLATION BEFORE PLACING THESE BRICKS.

1. Place the four (4) full size bricks along each side of the " rebox and one (1) full size brick on either side of the back of the " rebox.

2. To place the ! oor bricks, lay the two (2) partial bricks along the back of the ! oor. Then on the left, lay three (3) full size bricks and on the right, lay two (2) full size bricks in the center and the half brick in the front (for the ash dump). The spaces between the bricks will soon " ll with ashes.

Figure 32: Brick Placement for 1700 shown with Secondary Air Channel

and Tubes.

When replacing bricks, use only pumas type ﬁ re bricks. TOTAL BRICKS:

15 - Full size bricks 9” long x 4.5” wide x 1.25” thick (22.9 cm long x 11.4 cm wide x 3.2 cm thick)

2 - Partial bricks 9” long x 3” wide x 1.25” thick (22.9 cm long x 7.6 cm wide 3.2 cm thick)

1 - Half brick 4.5 “ long x 4.5” wide x 1.25” thick (11.43 cm long x 11.43 cm wide x 3.175 cm thick)

IMPORTANT: All secondary air tubes must be in place for proper operation.

Left Ceramic Baffle

Right Ceramic Baffle

Installation

C-CAST CERAMIC BAFFLE INSTALLATION:

1. Slide the right C-Cast Ceramic Baf! e in over the secondary air tubes at the top of the " rebox. The tab must be on the top and pointing towards the center and the smooth side is to face down.

2. Hook the outside edge of the baf! e over the top of the secondary air chamber. This will make room to for the installation of the left C-Cast Ceramic Baf! e.

3. Slide the left C-Cast Ceramic Baf! e in over the secondary air tubes. The tab must be on the bottom and pointing towards the center and the smooth side is to face down.

4. Pull the baf! es together in the middle so the right tab rests on top of the left tab. Ensure the baf! es are ! ush with the back and both sides of the " rebox.

Note for insert models only: If the bolts on the ! ue collar are not to the left and right of the hole, the front secondary air tube will need to be removed in order to install or remove the C-Cast Ceramic Baf! es. To remove the front secondary air tube place a screwdriver (any style except ! at head) into one of the air holes and tapping it with a hammer/mallet to the left.

Figure 33: Installation of C-Cast Ceramic Baf! e.

FAN WIRING DIAGRAMS:

This appliance, when installed, must be electrically connected and grounded in accordance with local codes or in the absence of local codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE. Part 1, SAFETY STANDARDS FOR ELECTRICAL INSTALLATIONS, or THE NATIONAL ELECTRICAL CODE ANSI / NFPA 70 in the USA.

CAUTION Label all wires prior to disconnection when servicing controls. Wiring errors

can cause improper and dangerous operation. Verify proper operation after servicing.

DO NOT oil the fan bearings. DO NOT cut or remove the grounding prong from the plug. DO NOT route the power cord beneath the heater.

WARNING: This appliance is equipped with a three-prong (grounding) plug for your protection against

shock hazard and should be plugged into a properly grounded three-prong receptacle.

Fan

White

Black

Fan

temperature

sensor

White

Black

Power Supply

Fan

controller

Installation

Figure 34: Freestanding Fan Kit Wiring Diagram.

OPTIONAL FAN INSTALLATION - FREESTANDING:

Refer to F

1. Remove the fan assembly from the box and inspect for any damage to the assembly. If damage is noticed call your dealer, distributor or courier company and have components replaced before installing kit.

2. Remove the knock out at the bottom of the back panel of the appliance by using a ! at head screwdriver as a lever, hook the tip of the screwdriver under the panel beside the tabs and push the panel out.

3. Install two (2) T-20 screws into the top two (2) holes. Place the blower assembly over these two (2) screws.

4. Ensure the temperature sensor will touch the unit when mounted. If it does not touch, adjust the sensor so it does. Tighten the two (2) top screws and install the two (2) bottom screws and tighten.

5. Plug the fan assembly in and check for proper operation.

AN WIRING DIAGRAM before installing your optional fan

Figure 35: Back View of Freestanding Unit

with Fan Kit.

Rating Label

**Alcove (Use double wall pipe) / Alcôve (Utilisant le double connecteur de mur)

I Total width / Largeur totale 55” (1397 mm)

Model/Modèle 1200

J Total height / Hauteur totale 78” (1981 mm) K Top of stove to ceiling / Le sommet de poêle au plafond 49” (1245 mm) L Sidewall to unit / De la paroi latérale au dispositif

Sidewall to connector / De la paroi latérale au connecteur Backwall to unit / De la paroi arrière au dispositif Backwall to connector / De la paroi arrière au connecteur

15” (381 mm) M 24” (610 mm) N 12” (305 mm) O 15” (381 mm)

51” (1295 mm)

Model/Modèle 1700

72” (1829 mm) 44” (1118 mm)

13” (330 mm) 22” (559 mm)

8” (203 mm)

11” (279 mm)

Maximum Depth / Profondeur maximumP 48” (1220 mm) 48” (1220 mm)

Single wall pipe /

Seul connecteur de mur

**Double wall pipe /

Double connecteur de mur

Top vent out back wall with min. 24” (610mm)

vertical rise; double wall pipe / Donné vent hors

de la paroi arrière avec le min. 24” (610 mm)

l'ascension verticale; double connecteur de mur

13” (330 mm) 14” (356 mm)

11” (279 mm) 8” (203 mm) 12” (305 mm)

C 9” (229 mm) 6½" (165 mm)

22” (559 mm) 22” (559 mm) 23” (584 mm)

14” (356 mm) 11” (279 mm) 15” (381 mm)

11” (279 mm)

16” (381 mm) 15” (406 mm)

17½” (445 mm) 16½” (419 mm)

10” (254 mm)

8½" (216 mm)

22” (559 mm)

17” (432 mm) 15” (381 mm)

7” (178 mm)

6” (152 mm)

22” (559 mm) 10” (254 mm)

14½” (368 mm)

† Front of door opening to edge of hearth / Le devant d'ouverture de porte au bord de coussin de coeur

USA 16” (406 mm) CND 18

” (450 mm)

USA 6” (152 mm) CND 8” (200 mm)

Sidewall to unit / De la paroi latérale au dispositif

Sidewall to connector / De la paroi latérale au connecteur

Backwall to unit / De la paroi arrière au dispositif

Backwall to connector / De la paroi arrière au connecteur

Adjacent wall to corner of unit / De la paroi adjacent au coin de dispositif

Adjacent wall to connector/ De la paroi adjacent au connecteur

1200

20” (508 mm) 12

” (305 mm)

10" (254 mm)

29” (737 mm) 15” (381 mm)

18½” (470 mm)

1700 1200 1700 1200 1700 1200 1700

Double wall pipe with efficiency shield (Flat top model only) / Double connecteur de mur avec la protection d'efficacité (Le modèle plat seulement

Model / Modèle

Minimum Clearances to Combustible Materials / Espaces Libres Aux Materiax Combustibles.

13” (330 mm) 13” (330 mm) 13” (330 mm) 13” (330 mm)

13” (330 mm)

13” (330 mm)13” (330 mm)

22” (559 mm)

10” (254 mm)

8” (203 mm)

† Side/back of unit to edge of hearth / Le latérale/arrière de dispositif au bord de coussin de coeur

Front / Mur avant

Floor Protection / Protection du sol

Back wall/ Mur arrière

Sid¸e wall / Mur a côté

Alcove Back wall / Mur d’alcôve a l’arrière

Alcove Side wall /

Mur d’alcôve a côté

Front /

Mur avant

Adjacent wall / Mur adjacent

Alcove / Alcôve

Front / Mur avant

Certified for use in Canada & USA /

Certifié pour installation au Canada et aux Etats-Unis.

Adjacent wall / Mur adjacent

CAUTION: An uninsulated smoke pipe must not pass through an attic, roof space, closet or similar concealed space, or through a floor, ceiling, wall, or partition, or any combustible construction. † FLOOR PROTECTION: If a stove is installed on a combustible floor, it must have the legs or pedestal attached and be on a NON COMBUSTIBLE hearth pad * ALL CLEARANCES CAN BE REDUCED WITH SHIELDING ACCEPTABLE TO THE LOCAL AUTHORITY. SINGLE WALL: IN CANADA: Any ULC-S629 listed chimney system with the accompanying listed single wall vent connector. IN U.S.A.: Any UL 103 HT listed chimney system with the accompanying listed single wall vent connector. **DOUBLE WALL : IN CANADA: Any ULC-S629 listed chimney system with the accompanying listed double wall vent connector. IN U.S.A.: Any UL 103 HT listed chimney system with the accompanying listed double wall vent connector. DOUBLEWALL IS REQUIRED FOR MOBILE HOME INSTALLATIONS.

† FLOOR PROTECTION / PROTÉGER LE PLANCHER: If unit is raised / Si l'appareil est soulevé: 0” - 2” (0mm - 51mm); 1” (25mm) non-combustible material with R = 1.19 or equivalent / 1” (25mm) le matériel incombustible avec la valeur de R = 1.19 ou équivalent. 2” - 8” (51mm - 203mm); ½” (13mm) non-combustible material with R = 1.19 or equivalent / ½” (13mm) le matériel incombustible avec la valeur de R = 1.19 ou équivalent. Greater than/Plus grand que 8” (203 mm) any non-combustible material / n'importe quel type de matériel incombustible.

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE ÉTIQUETTE

LISTED SOLID FUEL SPACE HEATER / IDENTIFIE COMME UN FOYER A COMBUSTIBLE SOLIDE

Serial No. / No. De Serié:

Models 1200 and 1700 Freestanding units: Room Heater, Solid Fuel Type, Also For Use In Mobile Homes. Tested to ULC-S627-00, ULC-S628-93 (FPI only), & UL-1482-11.

Install and use only in accordance with the manufacturers installation and operating instructions. Contact local building or fire officials about restrictions and installation inspection in your area. Use 6” (150 mm) diameter minimum 24 MSG black or 25 MSG blued steel connector listed factory-built chimney suitable for use with solid fuels or masonry chimney. See local building code and manufacturer’s instructions for precautions required for passing a chimney through a combustible wall or ceiling. Do not pass chimney connector through a combustible wall or ceiling. Minimum clearances from horizontal connector and ceiling 18” (455 mm). Do not connect this unit to a chimney flue servicing another appliance.

Modèles 1200 et 1700 items indépendants: Chauffage pièce, le type de combustible solide, également pour une utilisation dans les maisons mobiles. Testé selon ULC-S627-00, ULC-S628-93 (FPI seulement), & UL-1482-11.

Ce dispositif doit entre installé et opéré conformément aux instructions d'installation et d'opération du manufacturier contactez le service local de l'inspection des bâtiments ou l'officier pompier concernant les restrictions et l'inspection d'installation dans votre localité. Utiliser des connecteurs répertoriés 24 MSG noir ou 25 MSG en acier bronzée de 6" (150 mm) minimum, et une cheminée de fabrication industrielle, appropriée pour utilisation avec des combustibles solides ou avec une cheminée de maçonnerie. Vérifiez les précautions a prendre exigées parle code local et les instructions du manufacturier concernant les conditions pour passer la cheminée a travers un mur ou un plafond combustible. Net pas installer le connecteur de la cheminée a travers un mur ou un plafond combustible. Espaces libres minimum d'un connecteur horizontal et plafond sont 18" (455 mm) ne pas connecter ce dispositif a un conduit de cheminée qui sert déjà un autre dispositif.

DATE OF MANUFACTURE /

DATE DE FABRICATION:

J F M A M J J A S O N D 2014 2015 2016 2017 2018

C-14290

MANUFACTURED BY /

FABRIQUE PAR

: SHERWOOD INDUSTRIES LTD. 6782 OLDFIELD ROAD, SAANICHTON, BC CANADA

MADE IN CANADA /

FABRIQUE AU CANADA

HOT WHILE IN OPERATION.

DO NOT TOUCH. KEEP CHILDREN,

CLOTHING AND FURNITURE AWAY. CONTACT MAY CAUSE

SKIN BURN. READ NAMEPLATE AND INSTRUCTIONS.

CAUTION:

TRÈS CHAUD QUAND ALLUMÉ. NE TOUCHEZ PAS. TENIR LOIS LES ENFANTS, LES VÊTEMENTS ET LES MEUBLES. LE CONTACT PEUT CAUSER DES BRÛLURES. LISEZ ATTENTIVEMENT L’ÉTIQUETTE ET LES INSTRUCTIONS.

MISE EN GARDE:

OPERATE ONLY WITH DOORS CLOSED. Only open door to feed fire. For use with solid wood fuels only. Do not use any other type of fuel. Do not use grate or elevate-fire build wood fire directly on hearth. Do not overfire. Do not obstruct beneath the heater. If heater or chimney connector glows, you are overfiring. Inspect and clean chimney frequently-under certain conditions of use, creosote buildup may occur rapidly. The provided insulation materials are required for operation. Keep furnishing and other combustibles well away from heater. Replace glass only with 5 mm thick ceramic glass. Optional component for FS: fan, electrical rating 115V, 60 Hz 1 Amp (Part # EFW-261). Combustion air openings are not to be obstructed. Danger: Risk of electrical shock. Disconnect power before servicing unit. Route cord away from heater.

Models 1200 and 1700 inserts may be installed as an insert in a masonry fireplace. / On peut encastrer le modèles 1200 et 1700 dans un foyer de maçonnerie.

L’OPERATION DU POELE DOIT SE FAIRE AVEC LA PORTE FERME. N'ouvrir la porte que pour alimenter le feu. N'utilisez que des combustibles solides. Ne pas utiliser un autre type de carburant. N'employez pas de grille de foyer ou ne surélevez pas le feu. Mettez le bois à brûler directement sur l'âtre. Pour éviter la surchauffeur, ne mettez pas trop de bois. N'obstruez pas les ouvertures d'air comburant. Si le poêle ou le connecteur commencent à luire, vous surchauffez le poêle. Inspectez et nettoyez la cheminée souvent. Dans certaines conditions, le créosoté peut s'accumuler rapidement. Les matériaux d'isolation fournis sont requis pour l'opération.Tenez loin les meubles et d'autres produits combustibles. Ne remplacez le verre qu'avec du verre céramique, 5mm

MISE EN GARDE: Un uninsulated tuyau de fumée ne doit pas passer par un grenier, un espace de toit, le placard ou l'espace dissimulé similaire, ou par un plancher, un plafond, un mur, ou une cloison, ou une construction combustible. † PROTÉGER LE PLANCHER: Si une cuisinière est installée sur un sol combustible, il doit avoir un piédestal attache et être sur un coussinet non- combustible. TOUS “ESPACES LIBRES AUX MATERIAX COMBUSTIBLES” PEUVENT ÊTRE RÉDUITS AVEC PROTÉGEANT ACCEPTABLE À L’AUTORITÉ LOCALE. Seul Connecteur de Mur: Au Canada: Certifiée seul connecteur de mur avec toute systèmes de cheminée listée sous ULC-S629. Aux

États-Unis: Certifiée seul connecteur de mur avec toute systèmes de cheminée listée sous UL 103 HT. **Double Connecteur de Mur: Au Canada: Certifiée double connecteur de mur avec toute systèmes de cheminée listée sous ULC-S629. Aux États-Unis: Certifiée double connecteur de mur avec toute systèmes de cheminée listée sous UL 103 HT.

DOUBLE CONNECTEUR DE MUR NÉCESSAIRES POUR INSTALLATION DANS LES MAISONS MOBILE.

Tested & Listed By

Model / Modèle

1200 FPI 1700 FPI

A To unshielded side wall / aux mur non protegé 10” (254 mm) 10” (254 mm)

B To an unshielded 8” (203 mm) mantle / aux manteau 8“ non protegé 21” (533 mm) 24” (610 mm) C To top facing (protruding ¾” [19 mm]) clearance / aux revêtement supérieur 17½” (445 mm) 19½” (495 mm) D To side facing (protruding ¾” [19 mm]) clearance / aux revêtement a côté 1” (25 mm) 1” (25 mm) E † From door opening of unit to edge of floor protection /

De ouverture de la porte de l'unité à bord de la protection de plancher USA 16” (406mm) / CND 18” (450mm) F † From side of unit to edge of floor protection / Du côté de l'unité au bord de la protection de plancher USA 6” (152 mm) / CND 8” (200 mm)

épais. Équipement en option pour un FS: ventilateur caractéristiques assignées 115V, 60 Hz, 1 Amp (pièce # EFW-261) tenez le câble électrique loin du poêle. Danger: Le risque de choc électrique. Débrancher le dispositif avant d'entretenir. Ouvertures d'air de combustion ne doivent pas être obstrués.

Model / Modèle: Report/Rapport no.

Kodiak 1200 FS 268-S-04b-2

enice 1200 FPI

268-S-05-2

1200 KI FPI 268-S-05-2

Boston 1200 FPI 268-S-06c-2

Kodiak 1700 FS 268-S-01b-2

Venice 1700 FPI 268-S-06c-2

1700 KI FPI 268-S-06c-2

Boston 1700 FPI 268-S-06c-2

Boston 1200 FS 268-S-04b-2

Boston 1700 FS 268-S-01b-2

XXXXXXXXXXX

SAMPLE

Parts List

Reference # Description Part #

5 Door Gasket - 7 feet (2.13m) EF-168

Fresh Air Kit EF-186

6 One Leg - Painted EFW-253

6 One Leg - Gold EFW-254

6 One leg - nickel EFW-255

7 Freestanding Fan Kit EFW-261

7 1200 & 1700 Freestanding Convection Blower - 115V EC-069

8 Glass with Tape 10-000

9 Damper Handle Spring - Brass EF-191

9 Damper Handle Spring - Nickel 10-005

10 Door Handle Spring - Brass 10-006

10 Door Handle Spring - Nickel 10-007

Enviro Logo Gel Decal 50-322

11 1200 Leg Kit with ash drawer - Nickel 50-979

11 1200 Leg Kit with ash drawer - Gold 50-980

11 1200 Leg Kit with ash drawer - Painted 50-981

11 1200 Leg Kit with ash drawer - Brushed Nickel 50-1470

12 1200 Freestanding Pedestal - Painted 50-982

13 1700 Leg Kit with ash drawer - Nickel 50-983

13 1700 Leg Kit with ash drawer - Gold 50-984

13 1700 Leg Kit with ash drawer - Painted 50-985

13 1700 Leg Kit with ash drawer - Brushed Nickel 50-1471

14 1700 Freestanding Pedestal - Painted 50-986

15 Door - Painted 50-2897

15 Door - Gold 50-2898

15 Door - Nickel 50-2899

15 Door - Nickel Trim 50-2904

15 Door - Gold Trim 50-2903

16 Owner’s Manual 50-2920

17 Heat Efﬁ ciency Shield 50-1088

18 1200 & 1700 Front Secondary Air Tube A 50-1099

19 1700 Rear Secondary Air Tube C 50-1100

20 1700 Middle Secondary Air Tube B 50-1101

21 1200 Rear Secondary Air Tube E 50-1102

22 1200 Middle Secondary Air Tube D 50-1103

23 Pumice Bricks - 3” X 9” (76mm x 229mm) 50-1104

Parts List

Reference # Description Part #

24 Pumice Bricks - 4½” X 9” (114mm x 229mm) 50-1105

25 Pumice Bricks - 4½” X 4½” (114mm x 114mm) 50-1106

26 1200 & 1700 Cast Ash Plug 50-1120

27 Door Handle Assembly (Rod, Cast Latch, Brass Spring) 50-1121

27 1200 & 1700 Cast Latch 50-1381

28 Wood Door Glass Retainer Kit (With Screws) 50-1122

29 1200 Freestanding Flat Top Left Side Cabinet 50-1123

30 1200 Freestanding Flat Top Right Side Cabinet 50-1124

31 1200 Freestanding Step Top Left Side Cabinet 50-1125

32 1200 Freestanding Step Top Right Side Cabinet 50-1126

33 1700 Freestanding Flat Top Left Side Cabinet 50-1127

34 1700 Freestanding Flat Top Right Side Cabinet 50-1128

35 1700 Freestanding Step Top Left Side Cabinet 50-1129

36 1700 Freestanding Step Top Right Side Cabinet 50-1130

37 1200 & 1700 Leg Kit Ash Drawer 50-1131

38 1200 Leg Kit Ash Drawer Box 50-1132

39 1700 Leg Kit Ash Drawer Box 50-1133

40 1200 Leg Kit Adaptor Plate 50-1134

41 1700 Leg Kit Adaptor Plate 50-1135

42 1200 & 1700 Pedestal Kit Ash Drawer 50-1136

43 1200 & 1700 Left Shield Assembly 50-1144

44 1200 & 1700 Right Shield Assembly 50-1145

45 1200 C-Cast Ceramic Baf• e - 1 Piece 50-1146

46 1700 C-Cast Ceramic Baf• e - 1 Piece 50-1147

50 1200 & 1700 Door Hinge Pin Cap 50-1815

51 Wood Handle w/ Hardware 50-2909

Parts Diagram - Freestanding

Kodiak - Freestanding Components

April 2013

Parts Diagram - Pedestals & Legs

Kodiak - Pedestal and Leg Kit Components

March 2008

Jan 2013

Sher wood Industries Ltd. (“Sherwood”) hereby warrant

s, subject to the terms and conditions herein set forth, this product against defects in material and workmanship during the specified warranty period starting from the date of original purchase at retail. In the event of a defect of material or workmanship during the specified warranty period, Sherwood reserves the right to make repairs or to assess the replacement of a defective product at Sher wood’s factory. The shipping costs are to be paid by the consumer. All warranties by Sherwood are set forth herein and no claim shall be made against Sherwood on any oral warranty or representation.

Conditions

 A completed warranty registration must be submitted to Sherwood within 90 days

of original purchase via the online warranty registration page or via the mail-in warranty registration card provided. Have the installer fill in the installation data sheet in the back of the manual for warranty and future reference.

 This warranty applies only to the original owner in the original location from date of

install.

 The unit must have been properly installed by a qualified technician or installer, and

must meet all local and national building code requirements.

 The warranty does not cover removal and re-installation costs.

 Sherwood Industries Ltd. reserves the right to make changes without notice.

 Sherwood Industries Ltd. and its employees or representatives will not assume

any damages, either directly or indirectly caused by improper usage, operation, installation, servicing or maintenance of this appliance.

 A proof of original purchase must be provided by you or the dealer including serial

number.

Exclusions

An expanded list of exclusions is available at www.enviro.com/help/warranty.html

This warranty does not cover:

 Damage as a result of improper usage or abuse.

 Damage caused from over-firing due to incorrect setup or tampering.

 Damage caused by incorrect installation.

To the Dealer

 Provide name, address and telephone number of purchaser and date of purchase.

 Provide date of purchase. Name of installer and dealer. Serial number of the

appliance. Nature of complaint, defects or malfunction, description and part # of any parts replaced.

 Pictures or return of damaged or defective product may be required.

To the Distributor

 Sign and verify that work and information are correct.

Sherwood Industries Ltd.

6782 Oldfield Road, Victoria, BC . Canada V8M 2A3

Online warranty registration: www.enviro.com/warranty/

Warranty for Enviro Wood Products

Category One Year Two Year Limited Lifetime (7yr)

Parts

(unit s erial n umber r equire d)



Firebox

(excluding bri cks)



Ceramic Baffle



Secondary Air Tubes



Surround Panels

(excluding fin ish)



Pedestals / Legs

(excluding fin ish)



Ceramic Glass



Door Assembly

(excluding gas ket)



Slider Control



Shield Assembly



Electrical Components



Convection Fan



Exterior Surface Finishing



Gasket



Labour



Whereas warranty has expired, replacement parts will be warrantied for 90 days from part purchase date. Labour not included.

Unit serial number required.

Warranty does not cover damage caused from burning ar tificial/firestarter log varieties.

Excludes damage caused by loading wood, cleaning or service.

Glass is covered for thermal breakage. Photos of box, inside of door, and unit serial # must be supplied for breakage due to shipping.

Exterior Surface finishing covers Plating, Enamel or Paint and excludes colour changes, chipping, and fingerprints.

Travel costs not included.

No warranty on replacement firebricks

Installation Data Sheet

The following information must be recorded by the installer for warranty purposes and future reference.

NAME OF OWNER:

_________________________________________

ADDRESS:

_________________________________________

PHONE:___________________________________

MODEL:___________________________________

SERIAL NUMBER:___________________________

DATE OF PURCHASE: ______________(dd/mm/yyyy)

NAME OF DEALER:

_________________________________________

ADDRESS:

_________________________________________

PHONE:___________________________________

NAME OF INSTALLER:

_________________________________________

DATE OF INSTALLATION:___________(dd/mm/yyyy)

INSTALLER’S SIGNATURE:

_________________________________________

MANUFACTURED BY:

SHERWOOD INDUSTRIES LTD.

6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3

www.enviro.com

January 30, 2014

ADDRESS:

_________________________________________

PHONE:___________________________________

C-14296

Enviro Kodiak 1200 FS, Kodiak 1700 FS Installation And Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
