Enviro EX32, EX35 Owner's Manual
WARRANTY REGISTRATION
enviro.com/warranty
EX32
I PI GA S F I R E PL ACE I N S E R T
OWNER’S MANUAL
WARNING: If the information in this manual is not followed exactly, a
re or explosion may result causing property damage, personal injury
or loss of life. Installation and service must be performed by a qualied
4001609
Version Française: www.enviro.com/fr.html
installer, service agency or the gas supplier.
1
50-3520
Safety Precautions
WARNING:
FIRE OR EXPLOSION HAZARD
Failure to follow safety warnings exactly could result in serious
injury, death, or property damage.
- Do not store or use gasoline or other ammable vapors and
liquids in the vicinity of this or any other appliance.
- WHAT TO DO IF YOU SMELL GAS
• Do not try to light any appliance.
• Do not touch any electrical switch; do not use any phone in your
building.
• Leave the building immeadiately.
• Immeadiately call your gas supplier from a neighbor’s phone.
Follow the gas supplier’s instructions.
• If you cannot reach your gas supplier, call the re
department.
- Installation and service must be performed by a qualied
installer, service agency or the gas supplier.
INSTALLER:
Leave this manual with the appliance.
CONSUMER:
Retain this manual for future reference.
This appliance is only for use with the type of gas indicated on the rating plate. This
appliance is not convertible for use with other gases, unless a certied kit is used.
Massachusetts installations (Warning): This product must be installed by a licensed plumber or
gas tter when installed within the Commonwealth of Massachusetts. Other Massachusetts code
requirements: Flexible connector must not be longer than 36in., a shut off valve must be installed;
only direct vent sealed combustion products are approved for bedrooms/bathrooms. A carbon
monoxide detector is required in all rooms containing gas red direct vent appliances. The replace
damper must be removed or welded in the open position prior to installation of a replace insert.
2
Safety Precautions
HOT GLASS WILL
CAUSE BURNS
DO NOT TOUCH GLASS
UNTIL COOLED.
NEVER ALLOW CHILDREN
TO TOUCH GLASS.
A barrier designed to reduce the risk of burns from the
hot viewing glass is provided with this appliance and shall
individuals.
FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER,
PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:
• All ENVIRO gas-red appliances must be installed in
accordance with their instructions. Carefully read all the
instructions in this manual rst. Consult the building
authority having jurisdiction to determine the need for a
permit prior to commencing the installation.
• NOTE: Failure to follow these instructions could cause
a malfunction of the replace, which could result in death,
serious bodily injury, and/or property damage.
• Failure to follow these instructions may also void your
re insurance and/or warranty.
GENERAL
• Installation and repair should be done by a qualied
service person. The appliance should be inspected before
the rst use and, at least, annually by a qualied service
person. More frequent cleaning may be required due to
excessive lint from carpeting, bedding material, etc. It
is imperative the control compartments, burners and
circulating air passageways of the appliance be kept
clean.
• Due to high temperatures, the appliance should be
located out of high trafc areas and away from furniture
and draperies.
Children and adults should be alerted to the
hazards of high surface temperatures and should
stay away to avoid burn or clothing ignition.
• Young children should be carefully supervised when
in the same room as the appliance. Toddlers, young
children and others may be susceptible to accidental
contact burns. A physical barrier is recommended if there
are at risk individuals in the house. To restrict access to a
replace or stove install an adjustable safety gate to keep
toddlers, young children and other at risk individuals out of
the room and away from hot surfaces. Any safety screen,
guard, or barrier removed for servicing an appliance must
be replaced prior to operating the appliance.
• Clothing or other ammable materials should not be
placed on or near the appliance.
• A barrier designed to reduce the risk of burns from the
hot veiwing glass is provided with this appliance and shall
be installed for the protection of children and other at-risk
individuals. If the barrier becomes damaged, the barrier
shall be replaced with the manufacturer’s barrier for this
appliance
FOR YOUR SAFETY
• Installation and service must be performed by a qualied
installer, service agency or gas supplier.
• This installation must conform to local codes or, in the
absence of local codes, with the National Fuel Gas Code,
ANSI Z223.1/NFPA 54, or the Natural Gas and Propane
Installation Code, CSA B149.1.
• To prevent injury, do not allow anyone who is unfamiliar
with the stove to operate it.
• To prevent injury, if the pilot or pilot and burners
have gone out on their own, open the glass door and
wait 5 minutes to air out before attempting to relight the stove.
• Always keep the area around these appliances clear of
combustible material, gasoline and other ammable liquids
and vapours.
• These appliances should not be used as a drying rack for
clothing or for hanging Christmas stockings/decorations.
• Due to the paint curing on the stove, a faint odor and slight
smoking will likely be noticed when the stove is rst used.
Open a window until the smoking stops.
Always connect this gas stove to a vent system and vent to
the outside of the building envelope. Never vent to another
room or inside the building. Make sure the specied vent
pipe is used, properly sized and of adequate height to
provide sufcient draft. Inspect the venting system annually
for blockage and signs of deterioration.
WARNING: Failure to position the parts in accordance
with the diagrams in this booklet, or failure to use only
parts specically approved with this appliance, may result in
property damage or personal injury.
WARNING: Do not operate with the glass front removed,
cracked or broken. Replacement of the glass should be done
by a licensed or qualied service person.
• Never use solid fuels such as wood, paper, cardboard, coal,
or any ammable liquids, etc., in this appliance.
• Do not use this appliance if any part has been under water.
Immediately call a qualied service technician to inspect the
appliance and to replace any part of the control system or
any gas control which has been under water.
• Do not abuse the glass by striking it or slamming the door
shut.
• If the EX32 unit is pulled out of its installation, and the
vent-air intake system is disconnected for any reason,
ensure that the vent-air intake pipes are reconnected and
re-sealed in accordance to the instructions noted in
InstallatIon - VentIng.
InItIal
3
Table of Contents
Safety Precautions...........................................................................................................2
Table of Contents.............................................................................................................4
Codes And Approvals.......................................................................................................5
Specications..................................................................................................................6
Rating Label Location...........................................................................................6

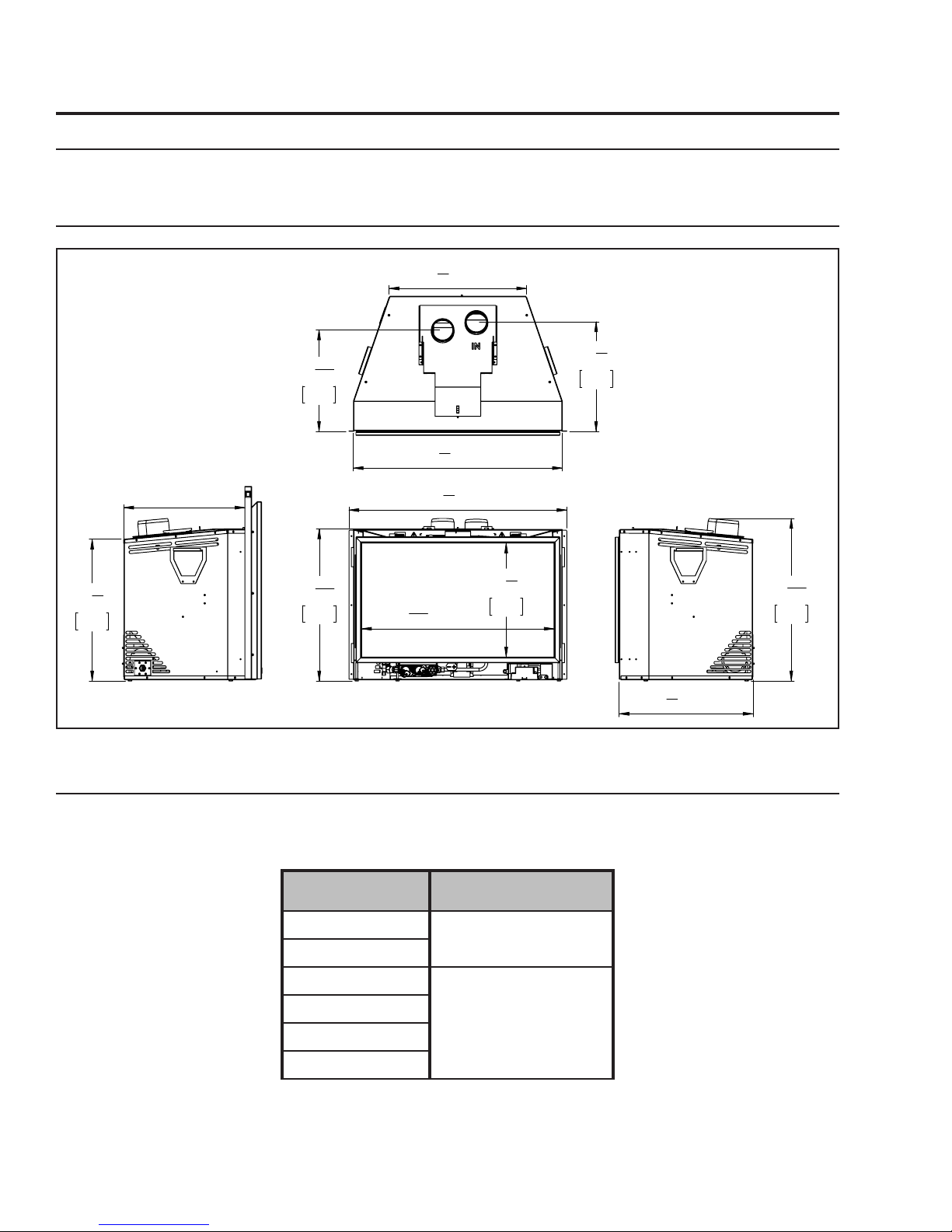

Dimensions..........................................................................................................6
Install Depths.......................................................................................................6
EX32 Options Dimensions......................................................................................7
Operating Instructions.....................................................................................................8
Lighting and Turning Off Instructions.....................................................................8
Venturi Adjustment...............................................................................................9
Normal Sounds During Operation.........................................................................9
Remote Control Operations...................................................................................9
System Description.............................................................................................10
Technical Data....................................................................................................10
Transmitter..............................................................................................10
Integrated Fireplace Controller (IFC).....................................................................11
Operating Procedure...........................................................................................12
Maintenance And Service................................................................................................16
Cleaning the Painted Surfaces..............................................................................16
Glass Door Removal............................................................................................16
Cleaning the Glass..............................................................................................17
Cleaning the Firebox...........................................................................................16
Replacing the Glass.............................................................................................17
Check Pilot and Burner Flames.............................................................................17
Burner Removal..................................................................................................18
Ember Lights - Bulb Replacement.........................................................................19
Top Light - Bulb Replacement................................................................................19
Fuel Conversion..................................................................................................20
Initial Installation...........................................................................................................22
Clearances to Combustibles.................................................................................22
Minimum Fireplace Size.......................................................................................22
Venting...............................................................................................22
Exhaust Restrictor...............................................................................................24
Installing the EX32..............................................................................................24
Zero Clearance Fireplace Installation...................................................................27
Electrical Requirements.......................................................................................27
Gas Line Connection...........................................................................................29
Adjusting The Pilot Flame....................................................................................30
Secondary Installation....................................................................................................31
Optional Base Shelf & Riser..................................................................................31
Surround Panel Installation.................................................................................32
Optional 3 and 4 sided Trimmable Panels...............................................................33
Log Set Installation............................................................................................34
Trouble Shooting............................................................................................................37
Parts List.......................................................................................................................40
Parts Diagram - Components..........................................................................................41
Notes....................................................................................................................................42
Warranty.......................................................................................................................43
Installation Data Sheet...................................................................................................44
4
Codes And Approvals
DIRECT VENT: This type is identied by the sufx DV. This appliance draws all of its air for combustion from
outside the dwelling, through a specially designed vent pipe system.
This appliance has been tested and approved for installations from 0 feet to 4500 feet (1372 m) above sea level.
In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas Association
guidelines which state: the sea level rated input of Gas Designed Appliances installed at elevations above 2000
(610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level. Refer also to local authorities
or codes which have jurisdiction in your area regarding the de-rate guidelines.
In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certied high altitude
rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).
• This appliance has been tested by INTERTEK and found to comply with the established VENTED GAS
FIREPLACE HEATER standards in CANADA and the USA as follows:
DIRECT VENTED GAS FIREPLACE INSERT HEATER
TESTED AND LISTED TO: ANSI Z21.88-2016/CSA 2.33-2016 VENTED GAS FIREPLACE HEATERS
CAN/CGA 2.17-M91 (R2009) GAS FIRED APPLIANCES FOR HIGH ALTITUDES BY OMNI-TEST LABORATORIES
CSA P.4.1-2015 TESTING METHOD FOR MEASURING ANNUAL FIREPLACE EFFICIENCY
This ENVIRO EX32 Fireplace Insert:
• Has been certied for use with either natural or propane gases. (See rating label.)
• Is not for use with solid fuels.
• Is approved for bedroom or bed sitting room. (IN CANADA: must be installed with a permanent wall thermostat
for bedroom installations. Consult the authority having local jurisdiction in your area. IN USA: see current ANSI
Z223.1 for installation instructions.)
• Must be installed in accordance with local codes. If none exist, use current installation code CAN/CGA B149 in
Canada or ANSI Z223.1/NFPA 54 in the USA.
• Must be properly connected to an approved venting system and not connected to a chimney ue serving a
separate solid-fuel burning appliance.
• Is not approved for closet or recessed installations.
IMPORTANT NOTICE (Regarding rst re up): When the unit is turned on for
the rst time, it should be turned onto high without the fan on for the rst 4
hours. This will cure the paint, logs, gasket material and other products used in
the manufacturing process. It is advisable to open a window or door, as the unit
will start to smoke and can irritate some people. After the unit has gone through
the rst burn, turn the unit off, let the unit get cold then remove the glass door
and clean it with a good gas replace glass cleaner, available at your local ENVIRO
dealer. See “Door remoVal” and “CleanIng the glass” sections.
COLD CLIMATES:
NOTE: In cold climates, additional insulation may be used on some venting. It is
recommended in cold climates to wrap the exhaust and intake venting for the nal
few feet before termination.
5
19
13
16
"
504
28
5
8
" [728]
14
7
8
"
377
25
5
16
" [643]
27
1
2
" [699]
18
1
8
" [460]
13
3
16
"
336
14
1
4
"
363
17
5
8
" [447]
21
3
16
"
538
16" [406]
18
1
2
"
469
Specifications
Rating LabeL Location:
The rating label is located in the bottom of the unit.
Dimensions:
*Shown with
Contemporary
surround*
instaLL Depth:
The EX32 has a minimum install depth of 16” (406mm). The table below shows what depth of
install is required with each surround panel.
Surrround Panel Required Install Depth
Contemporary
Extruded Plus
Borderview Plus
Modern Plus
6
Figure 1: EX32 Exterior Dimensions.
Extruded
Borderview
Table 1: Install Depths
16” (406mm)
17 1/4” (438mm)
Specifications
39
5
8
"
41
5
8
"
25"
27
3
8
"
Figure 2: EX32 Contemporary Surround with Base Shelf and Riser.
Table 2: EX32 Options Dimensions.
Contemporary Surround Extruded Surround
Height 25” (635mm) 25” (635mm)
7
Width 39
Trimmable
Surround
/8” (1013 mm) 39 7/8” (1013 mm)
Height Width
38” (965mm) 46” (1168mm)
Base Shelf Base Shelf Riser
Height 1 ⅝” (41mm) 2 ⅛” (54mm)
Width 41
Depth Bottom 4 ⅞” (112mm); Top 3
5
/8” (1057mm) 40 1/4” (1022mm)
13
/16” (97mm) 3 11/16” (94mm)
Table 3: Elite Surround Options
Surround Borderview Plus Borderview Plus
Height 26.125” (665mm) 26.125” (665mm)
Width 40” (1016mm) 40” (1016mm)
Surround Borderview Plus 4-Sided Modern Plus
Height 31” (785mm) 25.375” (645mm)
Width 40” (1016mm) 38.5” (725mm)
Surround Extruded Plus E30 Hearth Riser
Height 26.125” (665mm) 2” (50mm)
Width 40” (1016mm) 43.5” (1105mm)
7
Operating Instructions
For Your Safety, Read Safety Precautions And Lighting Instructions Before Operating
WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION
MAY RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
Lighting anD tuRning off instRuctions:
FOR YOUR SAFETY READ BEFORE OPERATING
WARNING:IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION
MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.
A. This appliance is equipped with an ignition device
which automatically lights the pilot. Do not try to
light the pilot by hand.
B. BEFORE OPERATING smell all around the
appliance area for gas. Be sure to smell next to the
floor because some gas is heavier than air and will
settle on the floor.
WHAT TO DO IF YOU SMELL GAS:
Do not try to light any appliance.
Do not touch any electrical switch; do not use any
phone in your building.
Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
If you cannot reach your gas supplier, call the
fire department.
OPERATING INSTRUCTIONS
C. Use only your hand to push in or
turn the gas control knob. Never
use tools. If the knob will not push
in or turn by hand, don’t try to
repair it, call a qualified service
technician. Force or attempted
repair may result in a fire or
explosion.
D. Do not use this appliance if any
part has been under water.
Immediately call a qualified service
technician to inspect the appliance
and to replace any part of the
control system and any gas control
which has been under water.
1. STOP! Read the safety information above on this label.
2. Read the owner's manual including the section on
"Remote Control" operation.
3. Set the thermostat to the lowest setting.
4. Turn off all electric power to the appliance.
5. Do not attempt to light the pilot by hand.
6. Wait five (5) minutes to clear out any gas. Then smell for
gas, including near the floor. If you smell gas, STOP!
Follow "B" in the safety information above on this label.
If you don't smell gas, go to the next step.
7. Turn on all electric power to the appliance.
8. Using the remote control, set
thermostat to desired setting, or
press the ON/OFF key on the
remote. "ON" will be indicated on the
display of the remote and an audible
"beep" will be heard at the unit to
indicate the command has been
received.
Blue LCD Display
9. This appliance is equipped with a
completely automatic ignition and
lighting control. The control will
attempt to light the pilot several
times if necessary. If it is
unsuccessful, it will discontinue
operations. If the appliance will
not operate, follow the
instructions "To Turn Off Gas To
Appliance" and call your service
technician or gas supplier.
ON/OFF Key
Blue LCD Display
Thermostat Key
Mode Key
ON/OFF Key
THERMOSTAT Key
UP/DOWN Arrow Key
MODE Key
UP/Down
Arrow Key
TO TURN OFF GAS TO APPLIANCE
1. Set thermostat to lowest setting, or press the ON/OFF Key. "OFF" will be indicated on the display
and an audible "Beep" will be heard at the unit to indicate the command has been received.
2. Turn off all electric power to the appliance if service is to be performed.
C-12455
8
Figure 3: Lighting instruction label.
Operating Instructions
VentuRi aDjustment:
The venturi adjustment lever is located on the right side of the unit, below the door (see Figure 4).
The venturi allows the amount of air coming into the replace to be adjusted in order to accommodate
different climates and venting arrangements. Start the pilot and then the burner. Make sure the pilot
ame is burning normally and none of the burner ports are plugged. Let the replace burn for roughly
fteen (15) minutes and then examine the ames. The ideal ame will be blue at the base and light
orange above. The ames should be of medium height. If
the ames look like this, no venturi adjustment is needed.
If the ames are fairly short and mostly blue, the replace
Less Air
Figure 4: Adjusting the venturi air setting.
More Air
is getting too much air. Therefore, the air shutter should
be closed (push left) slightly until the correct ames are
achieved. Flames that are very orange, with tall dark
stringy tips are not getting enough air. Open (push right)
the venturi until the ames clean up. If the venturi is
opened, then closed all the way, and the correct ames
cannot be attained, turn off the gas and contact the
dealer.
Warning: Incorrect venturi adjustment may lead to improper combustion, which is a safety hazard.
Contact the dealer if there is any concern about the venturi adjustment.
Operating Instructions
noRmaL sounDs DuRing opeRation:
Component Sound & Reason
Fire Box Creaking when heating up or cooling down.
Burner Light pop or poof when turned off; this is more common with LP units.
Pilot Flame Quiet whisper while the pilot ame in on.
Blower / Fan Air movement that increases and decreases with the speed of the blower.
Gas Control Valve Dull click when turning on or off, this is the valve opening and closing.
IFC Beeps when remote control buttons are pressed.
Table 4: Normal Sound
Remote contRoL opeRations:
The Proame 2 GTMFLSA is a modular remote control system that directs the functions of the EX32.
The Proame 2 GTMFLSA is congured to control the on/off main burner operation, its ame levels and
provides on/off and Smart thermostatic control of the appliance. The system controls a remotely actuated
top light, as well as bottom lights and fan speed each through six (6) levels.
9
Operating Instructions
Blue Back lit LCD display
UP/D O W N Arrow Key
ON/OFF Key
THERMOSTAT Key
MODE Key
system DescRiption:
The Proame 2 Remote Control System consists of two (2) elements:
1. Proame 2 Transmitter.
2. Integrated Fireplace Controller (IFC) and wiring harness to connect to the gas valve, stepper motor
battery holder, convection fan, and lights.
ATTENTION!
- TURN “OFF” THE MAIN GAS SUPPLY OF THE APPLIANCE DURING INSTALLATION OR
MAINTENANCE OF THE IFC.
- TURN “OFF” MAIN GAS SUPPLY TO THE APPLIANCE PRIOR TO REMOVING OR REINSERTING
THE BATTERIES IN THE BATTERY HOLDER
technicaL Data
Transmitter (Remote Control):
Supply voltage: 4.5 V (three 1.5 V AAA batteries)
Radio frequency: 315 MHz
Integrated Fireplace Controller (IFC):
Supply voltage: AC IN - 120 V / 60 Hz
Battery Backup IN - 6 Vdc - 200mA (four 1.5 V AA batteries)
Spark voltage / frequency: >10kV / 1Hz
Comfort modulating fan: 120 V / 60 Hz / 2A
Auxiliary: 120 V / 60 Hz / 5A
tRansmitteR:
The Proame 2 Transmitter is a remote control with a blue backlit lcd display. It uses a streamline design with
a simple button layout and informative lcd readout (Figure 5). The Transmitter is powered by three (3) AAA
type batteries. A Mode Key is provided to Index between the features and a Thermostat Key is used to turn
on/off or index through Thermostat functions (Figure 5 & 6).
Figure 5: Proame 2 Transmitter.
10
Low battery alarm
Key Lock
Room
Temperature
Dimmer ON
Set Point
Temperature/Level/State
Flame ON
Thermostat OFF/
ON/SMART
Comfort fan
Transmission
Split Flow
Aux ON
CPI mode
Operating Instructions
[Not used oN eX32]
integRateD fiRepLace contRoLLeR (ifc):
The Proame 2 IFC (Figure 7) connects directly to the gas valve, stepper motor, pilot, covection fan, and accent
lights with wiring harnesses. The IFC is mainly powered by 120 VAC but can also run off a battery backup four
(4) AA type batteries for shorter periods of time. The IFC accepts commands via radio frequency from the
Transmitter to operate the appliance in accordance with the particular Proame 2 system conguration. The
IFC has a red reset button at the front right corner that is used is to synchronize the Transmitter when using
the for the rst time, or after the batteries have been replaced.
Figure 6: Proame 2 Transmitter LCD Screen.
Reset Button
Figure 7: Integrated Fireplace Controller
11
Operating Instructions
Room Temperature
Set Temperature
Thermostat ON
opeRating pRoceDuRe:
Initializing The System For The First Time
Install the four (4) AA batteries into the IFC battery holder. Note the polarity of the battery and insert into the battery
bay as indicated on the body of the battery holder. Press and release the reset button (see Figure 7).
The IFC will “beep” three (3) times to indicate that it is ready to synchronize with a Transmitter. Install the three (3)
AAA type batteries in the Transmitter battery bay, located on the base of the Transmitter. With the batteries already
installed in the Transmitter, push the ‘ON’ button. The IFC
will “beep” four (4) times to indicate the Transmitter’s
command is accepted and sets to the particular code of
that Transmitter. The system is now initialized.
Temperature Indication Display
With the system in the “OFF” position, press the
Thermostat Key and the Mode Key at the same time.
Look at the LCD screen on the transmitter to verify that
a °C or °F is visible to the right of the Room Temperature
display (see Figure 8).
Turn on the Appliance
Press the ON/OFF Key on the Transmitter. The Transmitter display will show all active Icons on the screen. A single
“beep” from the Receiver will conrm reception of the command and will commence to rst ignite the pilot light,
followed by the main burner. This should take about 10 seconds to complete.
Figure 8: Remote Control Display in Farenheit and Celcius.
Turn off the Appliance
Press the ON/OFF Key on the Transmitter. The Transmitter LCD display
will only show the room temperature and Icon (see Figure 9). A single
“beep” from the IFC conrms reception of the command and both the
pilot light (if the unit is not set to continuous pilot) and main burner will
turn off.
Room Thermostat (Transmitter Operation)
The Remote Control can operate as a room thermostat. The thermostat
can be set to a desired temperature to control the comfort level in a
room. To activate this function, press the Thermostat Key (see Figure
5). The LCD display on the Transmitter will change to show that the
room thermostat is “ON” and the set temperature is now displayed (see
Figure 9). To adjust the set temperature, press the Up or Down Arrow
Keys until the desired set temperature is displayed on the LCD screen
of the Transmitter.
Smart Thermostat (Transmitter Operation)
The Smart Thermostat function adjusts the ame height in
accordance to the difference between the set point temperature
and the actual room temperatures. As the room temperature
gets closer to the set point the Smart Function will modulate
the ame down. To activate this function, press the Thermostat
Key (Figure 5) until the word “SMART” appears to the right
of the temperature bulb graphic (Figure 10). To adjust the
set temperature, press the Up or Down Arrow Keys until the
desired set temperature is displayed on the LCD screen of the
Transmitter.
Figure 9: Remote Control Displays
Set Temperature.
Figure 10: Remote Control’s Smart Flame Function.
12
Operating Instructions
Flame Off
Flame Level 1
Flame Level 5
Maximum Flame Level
Flame Off
Flame Level 1
Remote Flame Control
The Proame 2 GTMF has six (6) ame levels. With the system on, and the ame level at the maximum in the
appliance, pressing the Down Arrow Key once will reduce the ame height by one step until the ame is turned off.
The Up Arrow Key will increase the ame height each time it is pressed. If the Up Arrow Key is pressed while the
system is on but the ame is off, the ame will come on in the high position (refer to Figure 11 below). A single “beep”
will conrm reception of the command.
Figure 11: Remote Control’s Flame Levels.
Fan Control
The EX32 comes with a convection fan that can be
controlled with the Transmitter. The fan speed can be
adjusted thorugh six (6) speeds. To control the fan
press the MODE key (Figure 5) to index to the fan
control icon (Figure 12). Use the UP/DOWN arrow
keys to turn on, off, or adjust the fan speed (Figure
12). A single beep from the IFC will conrm the
command has been received
Ember Lights Control
The ember lights at the front of the replace can
be controlled with the Transmitter. The lights can
be adjusted thorugh six (6) levels. To adjust the
brightness of the lights press the MODE key (Figure
5) to index to the light control icon (Figure 13). Use
the UP/DOWN arrow keys to turn on, off, or adjust
the brightness (Figure 13). A single beep from the
IFC will conrm the command has been received.
Figure 12: Fan Control
Figure 13: Bottom Light Control
13
Operating Instructions
Split Flow Control
This function is not used on the EX32 and can be
disregarded.
Top Light Control
For added ambiance the EX32 also has a light at the
top of the replace that can be controlled with the
Transmitter. The light is non-adjustable but can be
turned on and off as desired. To control the top light
press the MODE key (Figure 5) to index to the AUX
control icon (Figure 15). Use the UP/DOWN arrow
keys to turn the light on or off. A single beep from
the IFC will conrm the command has been received.
The top light is most noticable when the ame is set
to the lowest setting. It can also be left on when the
ame is off (see remote Flame Control section) to
highlight the log set.
Figure 14: Split Flow Control
Figure 15: Aux (Top Light) Control
Key lock
This function will lock the keys to avoid unsupervised operation. To activate this
function, press the MODE and UP keys at the same time and the a lock will appear
(see Figure 16). To de-activate this function, press the MODE and UP Keys at the
same time.
14
Figure 16: Remote Control
Locked.
Loading...
