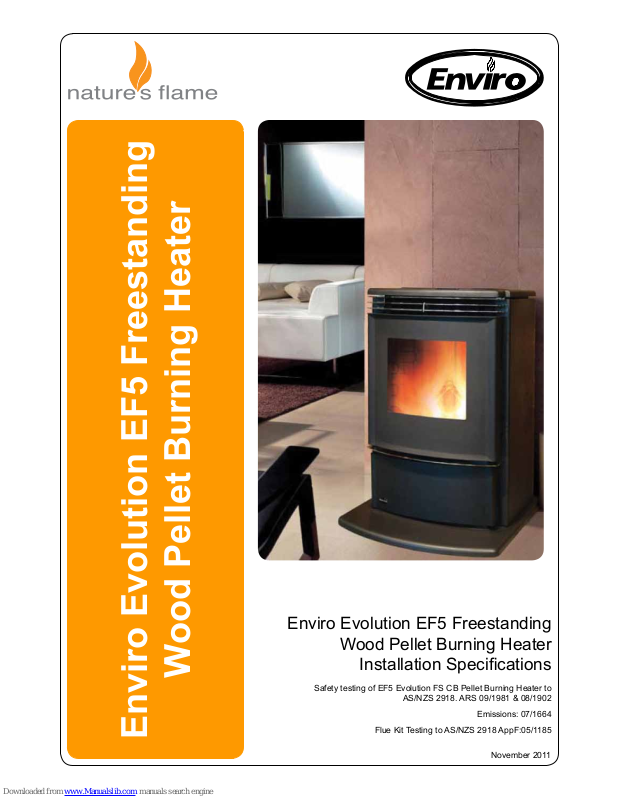

Enviro Evolution EF5 Installation Manual

November 2011

Enviro Evolution EF5 Freestanding

Wood Pellet Burning Heater

Enviro Evolution EF5 Freestanding

Wood Pellet Burning Heater

Installation Specications

Safety testing of EF5 Evolution FS CB Pellet Burning Heater to

AS/NZS 2918. ARS 09/1981 & 08/1902

Emissions: 07/1664

Flue Kit Testing to AS/NZS 2918 AppF:05/1185

2

November 2011

Installation

Dimensions – Evolution EF5 Freestanding

Installation Clearances & Specications

Minimum clearances shown are in millimetres. All Enviro res are tested to AS/NZS2918:2001.
Specications were correct at time of printing but may alter and those detailed below should be used as

a guide only. Refer to the Installation and Operation Manual supplied with every Enviro Pellet Fire or if

in doubt, consult your Switch Retailer. Refer to Safety Test 09/1981 for all clearances to combustibles.

Clearances to Combustibles

22 1/4"

(565 mm)

34

5

/16"

(871 mm)

23 7/16"

(595 mm)

5

5

/8"

(144 mm)

26

3

/8"

(670 mm)

28"

(711 mm)

24

3

/8"

(619 mm)

B

J

H

A

E

External Flue

J

J

F

B

I

F

E

Enviro Evolution EF5 Pellet Fire

Clearance to Combustibles

B

C

A

E

D

G

F

B

F

G

E

Internal Flue

Location

Dimension

(mm)

A 100

B 150

C* 50

D ~210

E N/A

F 75

G* 50

H 100

I* 50

J* 25

Freestanding
Clearances

* from shielded ue

Note: AS/NZS 2918
requires a minimum
of 100mm clearance
for any side requiring
access.
Note: These are
minimum clearances to
combustibles. Actual
installation distances
may be greater.

Note: The above clearance to combustibles on the ue are only applicable within the re envelope. Clearance outside this e.g.at a ceiling / wall thimble reverts to 25mm as per ARS ue

test 05/1185.

3

November 2011

Location of the Pellet Fire

Installation of the Enviro Evolution Wood Pellet Burning Heater should be undertaken by an
experienced installer. Please read the Evolution Owners/Technical Manual thoroughly before

commencing installation as failure to follow the instruction could cause damage to the pellet

re or property.

Positioning the re:

Generally the Evolution should be installed in a centrally located position within the home.

When deciding where to position the appliance in your room you need to consider the following:

• Location of a power source

• The Evolution has a convection fan which blows air through tubes in the direction that
the re faces, for optimum performance this location should be in a large room centrally

located.

• The Evolution comes with its own hearth pad. This complies with the hearth requirements
and the re can be installed on a combustible surface.

• The Evolution has been Safety Tested to AS/NZS 2918 using the Davins manufactured
ue. Test Report ARS 05/1185. Installation is not exclusive to these nominated kits,
though alternative ue should only be considered following consultation with your local

council.

• Please consult page 2 for the required clearances to combustible material also ensure
the position of structural elements near the proposed ue.

• Because of the positive pressure in the ue, sealing of all 75mm stainless joints is
mandatory – use high temperature sealant. Both inner and outer ue joints must be

riveted.

• Seismic Restraint: Please see page 6 for requirements.

• Warranty: To validate warranty following installation a copy of the completed Warranty/
Producers Statement must be forwarded to: Switch- Fax [phone].

4

November 2011

Internal Standard Flue Kit (50)

Internal Standard Flue Kit

Each 50 Internal Standard Flue Kit contains:-

ytitnauQnoitpircseDoN traP

1 Galvanised outer liner

ø100mm x 900mm long 1

4

3

2

1

1

1

1

1

1

2

2 Stainless steel inner liner

ø75mm x 900mm long

4a Black p/coat outer liner

ø100mm x 900mm long

5 Inner/outer ue liner spacer

6c Ceiling thimble ø107mm hole

7c Ceiling decor plate

ø107mm hole – white

8 Rain cap 75mm

9 Rain Cap 100mm

10b Elbow 45° – ø75mm stainless

– black (painted)

12H T-adaptor/cleanout – ø75mm

– black (painted)

23 Support angle 950mm long

– 50mm x 50mm sides

This ue kit may be used in new and replacement
applications in rooms with stud height of 2.4m. The
overall height of the ue is 3.6m. The visible u e is
nished in black and the ceiling plate is white. T he
support angles for securing the liner to the ceilin g are
not shown. Kit is supplied in a carton.

Heat-resistant

oor protector

Seismic restraint

(to be tted)

50mm minimum clearance if lined ue

600mm from

roof

penetration

~

210 mm

150mm

Note: The Davin 50 Internal Standard Flue
Kit complies with AS/NZS 2918:2001 as per
Applied Research Test Report 05/1185, dated
15 September 2005.

All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.

50

This ue kit may be used in new and replacement

applications in rooms with stud height of 2.4m.

The overall height of the ue is 3.6m. The visible
ue is nished in black and the ceiling plate is

white. The support angles for securing the liner to
the ceiling are not shown. Kit is supplied in carton.

5

November 2011

External Standard Flue Kit (51)

Each 51 External Standard Flue Kit contains:-

ytitnauQnoitpircseDoN traP

1 Galvanised outer liner

ø100mm x 900mm long

2 Stainless steel inner liner

ø75mm x 900mm long

5 Inner/outer ue liner spacer

6w Wall thimble – 2 pieces

ø102mm holes

6s Sot thimble ø107mm hole

7w Wall decor plate

ø102mm hole – white

8 Rain cap 75mm

9 Rain Cap 100mm

26 Lined T-adaptor

This ue kit may be used in new and replacement
applications with the ue penetrating the wall behind
the re, running vertically up an outside wall and
penetrating the sot. The overall height of the f lue is

3.6m. All visible ue has a galvanised nish, and can be
powdercoated on request. Kit is supplied in a carton.

Note: The Davin 51 External Standard Flue
Kit complies with AS/NZS 2918:2001 as per
Applied Research Test Report 05/1185, dated
15 September 2005.

All res must be installed by a qualied
installer as per the manufacturer’s
instructions and AS/NZS2918:2001.

Heat-resistant

oor protector

Seismic restraint

(to be tted)

600mm from

roof penetration

100mm

(minimum)

150mm

(minimum)

External Standard Flue Kit51

4

4

2

1

1

1

1

1

1

This ue kit may be used in new and replacement
applications with the ue penetrating the wall
behind the re, running vertically up an outside
wall and penetrating the soft. The overall
height of the ue is 3.6m. All visible ue has a
galvanised nish, and can be powdercoated on
request. Kit is supplied in a carton.

6

November 2011

Flashing Options:

Decktite - For all Steel Roof Proles

Please circle the ashing option to be used. When considering an alternative method please consult

your local council.

SEISMIC RESTRAINT:

All installation scenarios for the

Enviro Evolution EF5 require the use of hold-down anchors (one on

each side)

Fixing to Concrete Floor:

Minimum M8 expansion anchors (M10 recommended) or min M8 epoxy- set anchors.
Approved Anchors: Expansion Anchors-Ramset Dynabolt and Trubolt, Hilti HAS.
Epoxy-set Anchors – Ramset Epcon, Ramset Chemset and Hilti HVU.

Fixing to Timber Floor Framing:

Minimum 14g x 60 screws (6.3mm diameter) or M10 X 90 coach-screws. These shall be xed a minimum
of 40mm into the centre-line of the existing oor joists. If screws cannot be installed directly into an
existing oor joist, solid blocking between joists (min size 90x45) shall be provided.
