EG31

GAS F I R E PL ACE I NS E R T - N OVA

OWNER’S MANUAL

WARNING: If the information in this manual is not followed exactly, a

re or explosion may result causing property damage, personal injury

or loss of life. Installation and service must be performed by a qualied

Version Française: www.enviro.com/fr.html

installer, service agency or the gas supplier.

EG31-118

Safety Precautions

WARNING: FIRE OR EXPLOSION HAZARD

Failure to follow safety warnings exactly could result in serious

injury, death, or property damage.

- Do not store or use gasoline or other ammable vapors and

liquids in the vicinity of this or any other appliance.

- WHAT TO DO IF YOU SMELL GAS

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Leave the building immeadiately.

• Immeadiately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the re department.

- Installation and service must be performed by a qualied

installer, service agency or the gas supplier.

INSTALLER:

Leave this manual with the appliance.

CONSUMER:

Retain this manual for future reference.

This appliance may be installed in an after-market permanently located,

manufactured (mobile) home, where not prohibited by local codes.

This appliance is only for use with the type of gas indicated on the rating plate. This

appliance is not convertible for use with other gases, unless a certied kit is used.

Massachusetts installations (Warning): This product must be installed by a licensed plumber or

gas tter when installed within the Commonwealth of Massachusetts. Other Massachusetts code

requirements: Flexible connector must not be longer than 36in., a shut off valve must be installed; only direct vent sealed combustion products are approved for bedrooms/bathrooms. A carbon

monoxide detector is required in all rooms containing gas red direct vent appliances. The replace damper must be removed or welded in the open position prior to installation of a replace insert.

Safety Precautions

HOT GLASS WILL

CAUSE BURNS

DO NOT TOUCH GLASS

UNTIL COOLED.

NEVER ALLOW CHILDREN

TO TOUCH GLASS.



A barrier designed to reduce the risk of burns from the hot viewing glass is provided with this appliance and shall

individuals.

FOR SAFE INSTALLATION AND OPERATION OF YOUR “ENVIRO” HEATER, PLEASE CAREFULLY READ THE FOLLOWING INFORMATION:

• All ENVIRO gas-red appliances must be installed in accordance with their instructions. Carefully read all the instructions in this manual rst. Consult the building

authority having jurisdiction to determine the need for a permit prior to commencing the installation.

• NOTE: Failure to follow these instructions could cause

a malfunction of the replace, which could result in death,

serious bodily injury, and/or property damage.

• Failure to follow these instructions may also void your re insurance and/or warranty.

GENERAL

• Installation and repair should be done by a qualied

service person. The appliance should be inspected before

the rst use and, at least, annually by a qualied service

person. More frequent cleaning may be required due to

excessive lint from carpeting, bedding material, etc. It

is imperative the control compartments, burners and circulating air passageways of the appliance be kept clean.

• Due to high temperatures, the appliance should be located out of high trafc areas and away from furniture

and draperies.

Children and adults should be alerted to the

hazards of high surface temperatures and should stay away to avoid burn or clothing ignition.

• Young children should be carefully supervised when

in the same room as the appliance. Toddlers, young children and others may be susceptible to accidental contact burns. A physical barrier is recommended if there are at risk individuals in the house. To restrict access to a

replace or stove install an adjustable safety gate to keep

toddlers, young children and other at risk individuals out of the room and away from hot surfaces. Any safety screen, guard, or barrier removed for servicing an appliance must be replaced prior to operating the appliance.

• Clothing or other ammable materials should not be

placed on or near the appliance.

• A barrier designed to reduce the risk of burns from the

hot veiwing glass is provided with this appliance and shall be installed for the protection of children and other at-risk

individuals. If the barrier becomes damaged, the barrier

shall be replaced with the manufacturer’s barrier for this appliance

FOR YOUR SAFETY

• Installation and service must be performed by a qualied

installer, service agency or gas supplier.

• This installation must conform to local codes or, in the absence of local codes, with the National Fuel Gas Code, ANSI Z223.1/NFPA 54, or the Natural Gas and Propane Installation Code, CSA B149.1.

• To prevent injury, do not allow anyone who is unfamiliar

with the stove to operate it.

• To prevent injury, if the pilot or pilot and burners

have gone out on their own, open the glass door and wait 5 minutes to air out before attempting to relight the stove.

• Always keep the area around these appliances clear of combustible material, gasoline and other ammable liquids

and vapours.

• These appliances should not be used as a drying rack for clothing or for hanging Christmas stockings/decorations.

• Due to the paint curing on the stove, a faint odor and slight

smoking will likely be noticed when the stove is rst used. Open a window until the smoking stops.

Always connect this gas stove to a vent system and vent to

the outside of the building envelope. Never vent to another room or inside the building. Make sure the specied vent

pipe is used, properly sized and of adequate height to

provide sufcient draft. Inspect the venting system annually

for blockage and signs of deterioration. WARNING: Failure to position the parts in accordance

with the diagrams in this booklet, or failure to use only

parts specically approved with this appliance, may result in

property damage or personal injury.

WARNING: Do not operate with the glass front removed,

cracked or broken. Replacement of the glass should be done

by a licensed or qualied service person.

• Never use solid fuels such as wood, paper, cardboard, coal, or any ammable liquids, etc., in this appliance.

• Do not use this appliance if any part has been under water. Immediately call a qualied service technician to inspect the

appliance and to replace any part of the control system or any gas control which has been under water.

• Do not abuse the glass by striking it or slamming the door

shut.

• If the EG31 unit is pulled out of its installation, and the

vent-air intake system is disconnected for any reason, ensure that the vent-air intake pipes are reconnected and re-sealed in accordance to the instructions noted in

InstallatIon - VentIng FIreplace Inserts.

InItIal

Table of Contents

Safety Precautions.....................................................................................................2

Table of Contents......................................................................................................4

Codes And Approvals.................................................................................................5

Specications............................................................................................................6

Rating Label Location.....................................................................................6

Dimensions....................................................................................................6

Install Depth..................................................................................................6

Operating Instructions...............................................................................................7

Lighting Instructions.......................................................................................7

Adjusting Venturi Air Settings..........................................................................8

Blower speed.................................................................................................8

Normal Sounds During Operation.....................................................................8

Maintenance And Service...........................................................................................9

Routine Maintenance......................................................................................9

Glass Door Removal........................................................................................9

Cleaning The Glass.........................................................................................9

Cleaning The Firebox......................................................................................9

Replacing the Glass.......................................................................................10

Cleaning Painted Surfaces.............................................................................10

Burner and Blower Removal............................................................................10

Fuel Conversion............................................................................................11

Initial Installation....................................................................................................14

Clearances to Combustibles...........................................................................14

Minimum Fireplace Size.................................................................................14

Direct Vent Model.........................................................................................15

Direct Vent Restrictor Ring............................................................................15

Venting Fireplace Inserts...............................................................................15

Automatic Flue Gas Spill Switch.....................................................................17

Direct Vent Vertical Vent Termination...........................................................18

B Vent Model...............................................................................................19

Converting A Direct Vent Fireplace To A B-Vented Fireplace..............................19

Converting A B-Vent Fireplace To A Direct Vented Fireplace..............................19

Preparing Your EG31 For Installation.............................................................20

Zero Clearance (ZC) Fireplace Installation.....................................................21

Electrical Requirements.................................................................................22

Gas Line Connection & Testing.....................................................................23

Adjusing the Pilot Flame...............................................................................24

Secondary Installation.............................................................................................25

Extension Bracket Removal..........................................................................25

Safety Screen Installation..............................................................................26

Surround Panel Installation............................................................................27

Log Set and Ember Installation......................................................................28

Brick Panel Installation..................................................................................29

Trouble Shooting.....................................................................................................30

Parts List - Components...........................................................................................31

Parts Diagram - Body...............................................................................................33

Notes......................................................................................................34

Warranty.................................................................................................................35

Installation Data Sheet.............................................................................................36

Codes And Approvals

DIRECT VENT: This type is identied by the sufx DV. This appliance draws all of its air for combustion from

outside the dwelling, through a specially designed vent pipe system.

This appliance has been tested and approved for installations from 0 feet to 4500 feet (1372 m) above sea level.

In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas Association

guidelines which state: the sea level rated input of Gas Designed Appliances installed at elevations above 2000 (610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level. Refer also to local authorities

or codes which have jurisdiction in your area regarding the de-rate guidelines.

In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certied high altitude

rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).

• This appliance has been tested by INTERTEK (Warnock Hersey) and found to comply with the established VENTED GAS FIREPLACE HEATER standards in CANADA and the USA as follows:

VENTED GAS FIREPLACE HEATER (EG31 DV; NG/LPG)

TESTED TO: ANSI Z21.88-2014/CSA 2.33-2014 VENTED GAS FIREPLACE HEATERS

CAN/CGA 2.17-M91 GAS FIRED APPLIANCES FOR HIGH ALTITUDES

CSA P.4.1-02 TESTING METHOD FOR MEASURING ANNUAL FIREPLACE EFFICIENCY

This ENVIRO EG31 Fireplace:

• Has been certied for use with either natural or propane gases. (See rating label.)

• Is not for use with solid fuels.

• Is approved for bedroom or bed sitting room. (IN CANADA: must be installed with a permanent wall thermostat

for bedroom installations is required. Consult the authority having local jurisdiction in your area. IN USA: see current ANSI Z223.1 for installation instructions.)

• Must be installed in accordance with local codes. If none exist, use current installation code CAN/CGA B149 in

Canada or ANSI Z223.1/NFPA 54 in the USA.

• Must be properly connected to an approved venting system and not connected to a chimney ue serving a

separate solid-fuel burning appliance.

• Is not approved for closet or recessed installations.

IMPORTANT NOTICE (Regarding rst re up): When the unit is turned on for

the rst time, it should be turned onto high without the fan on for the rst 4

hours. This will cure the paint, logs, gasket material and other products used in

the manufacturing process. It is advisable to open a window or door, as the unit

will start to smoke and can irritate some people. After the unit has gone through

the rst burn, turn the unit off, let the unit get cold then remove the glass door and clean it with a good gas replace glass cleaner, available at your local ENVIRO

dealer. See “Door remoVal” and “cleanIng the glass” sections.

Specifications

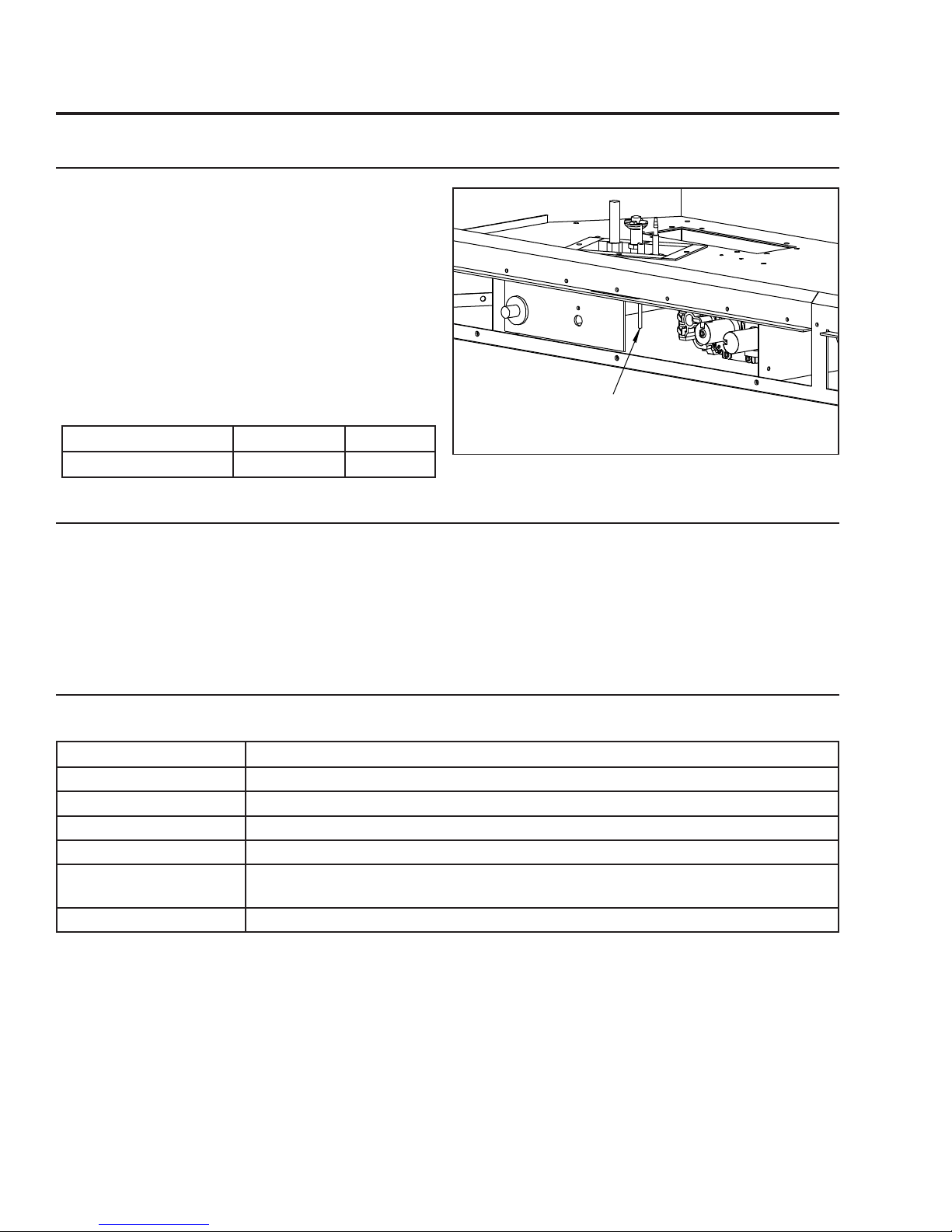

Rating LabeL Location:

The rating label is located under the control panel and is attached to a rectangular metal sheet that is

chained to the replace.

Dimensions:

30.39

18.00

12.61 OR 10.87

13.99

39.93

28.25

13.84 OR 12.10

25.30

16.14 OR 14.41

2.13

18.27 OR 16.54

16.14 OR 14.41

19.52

21.75

instaLL Depth:

If the available depth of install is less than the 16.14” shown above, the stove depth can be reduced to 14.41” by removing the cabinet extension brackets; however, doing so will cause the safety screen to protrude past the front of the surround panel. If the reduced install depth is required, the extension brackets must be removed. Refer to Secondary Installation pages 29-31 for instructions.

Figure 1: EG31 Exterior Dimensions.

Operating Instructions

Thermopile

Thermocouple

1. STOP! Read the safety information above on this label.

2. Turn off all electrical power to this appliance.

3. Turn off the gas control knob clockwise to the off position.

4. Open door. Wait fIve (5) minutes to clear out any gas. Close door. If you smell gas STOP! Follow “B” in the above safety information. If you do not smell gas go to the next step.

5. Find pilot-located to the left under the front log. Tu

rn the gas control knob counter-clockwise� to “PILOT”. Push the gas control in fully and hold, keep knob depressed for about 30 seconds after the pilot is lit. Release knob. If pilot goes out, repeat steps 4 through 5.

CAUTION:

Hot while operating. Do not touch, severe burns may result. Keep children, clothing, furniture, gasoline or other flammable vapors away.

FOR YOUR SAFETY READ BEFORE OPERATING

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING

PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE.

A) This appliance is equipped with a pilot, which must be lit by hand by following these instructions exactly. B) BEFORE LIGHTING smell all around the appliance area for gas

and next to

the floor because some gas is heavier than air and will settle on the floor. WHAT TO DO IF YOU SMELL GAS: Do not try to light any appliance. Do not touch any electrical switch: do not use any phone in your building. Immediately call your gas supplier from a neighbor's phone. Follow the gas suppliers instructions. If you cannot reach your gas suppl

ier,

call the fire department.

C) Use only your hand to push in or turn the gas control knob; NEVER use tools. If the knob will not push in or turn by hand, do not try to repair it. Call a qualified service technician. Force or attempted repair may result in a fire or explosion. D) Do not use this appliance if any part has been under water. Immediately call a qualified

service technician to inspect the

appliance and to replace any part of the control system and any

gas control which has been under water.

LIGHTING INSTRUCTIONS

WARNING: this gas valve has a lockout device, which will not allow the pilot burner to be relit until the thermocouple has cooled. If the knob does not pop up when released, stop and immediately call your service

technician or gas supplier.

If the pilot does not stay lit after several tries, turn the gas control knob

to “OFF” and call your service technician or gas supplier.

6. Turn the gas control knob counter clockwise to the “ON” position. Flip the burner switch to “ON” THEN TURN THE “HI/LOW” knob to the desired setting.

7. Turn on the electrical power to the unit.

TO TURN OFF GAS TO APPLIANCE

1. Flip burner switch to “OFF”

2. Turn the gas control knob clockwise to the “OFF” position.

C-10489

3. Turn off all electrical power to the appliance if service is to be performed.

CAUTION: Do not operate this fireplace with the glass removed, cracked or broken. Replacement of the panel(s) should be done by a licensed or qualified person! This appliance needs fresh air for safe operation and must be installed with provisions for combustion and ventilation air. See installation and operati

ng instructions manual. Keep burner and control compartment clean.

RNING: Improper installation, adjustment, alteration, service or maintenance can cause injury or property damage, or loss of life. Refer to owner's

information manual provided with this appliance. For assistance or additional information consult a qualified installer, service agency or the gas supplier. See installation and operat

ing instructions accompanying appliance. Installation and service must be performed by a qualified installer,

service agency,

or the gas supplier.

TP TH TP TH

IN OUT

For Your Safety, Read Safety Precautions And

Lighting Instructions Before Operating

WARNING: IF YOU DO NOT FOLLOW THESE INSTRUCTIONS EXACTLY A FIRE OR EXPLOSION MAY

RESULT, CAUSING PROPERTY DAMAGE, PERSONAL INJURY OF LOSS OF LIFE.

Lighting instRuctions:

Figure 2. Lighting Instruction Label

Figure 3: Gas Valve.

Figure 4: Pilot Burning.

Operating Instructions

aDjusting VentuRi aiR settings:

There is only one (1) venturi and one (1) air shutter

to be adjusted. When installing the burner top, ensure that

the venturi tube is engaged to the air shutter adjustment rod.

Use this small venturi adjustment rod to achieve a proper and efcient ame, shown in Figure 5.

Adjust rod until the ame pattern is similar to Figure

39.

Table 1: Venturi Setting.

Natural Gas Propane

Venturi Setting Rear

/16” min.

bLoweR speeD:

The blower will come on only when the replace is up to temperature (approximately 20 minutes). The

speed of the fan can be changed by turning the fan control knob. To turn the blower off, turn the knob

COUNTER CLOCKWISE until it “clicks” off.

Move the rod located behind the

piezo ignitor to increase or decrease

primary air at the venturi tube.

Figure 5: Venturi Air Setting Rod

It is advisable not to operate the blower below

/3 speed as it puts a strain on the windings of the blower

and running the blower at lower speeds could also cause premature fan failure.

noRmaL sounDs DuRing opeRation:

Table 2: Normal Sounds.

Component Sound & Reason

EG31 Creaking when heating up or cooling down.

Burner Light pop or poof when turned off; this is more common with LP units.

Temperature Sensor Clinking when it senses to turn the blower on or off.

Pilot Flame Quiet whisper while the pilot ame in on.

Blower / Fan Air movement that increase and decreases with the speed of the blower. The

blower is pushing the heat from the replace into the room.

Gas Control Valve Dull click when turning on or off, this is the valve opening and closing.

Maintenance And Service

Routine maintenance:

At least once a year, run through the following procedures to ensure the system is clean and working

properly. Check the burner to see if all the ports are clear and clean. Check the pilot to make sure it is not blocked by anything. The pilot ame should be blue with little or no yellow on the tips.

Warning: Clearances must be sufcient to allow access for maintenance and service

Warning: Failure to position the parts in accordance with this manual, or failure to use only parts

specically approved with this appliance may result in property damage or personal injury.

The venting system must be periodically examined; it is recommended the examination is done by a

qualied agency.

gLass DooR RemoVaL:

Turn unit off and wait until the appliance has cooled down. Remove the decorative fascia or clip-on bay window by lifting it up

and removing it from the slots in the body of the unit.

Undo the two (2)

the glass and frame, being careful that the glass does not fall out of

the door frame assembly. Install in the reverse order. Ensure the door is properly fastened after cleaning before attempting

to re-light the appliance.

/16’’ bolts at the top of the door frame and then lift

Figure 6: Top bolts for glass door.

cLeaning the gLass:

When the replace has cooled, remove the face of the replace along with the glass. See maIntenance

anD serVIce - glass Door remoVal. Check the gasket material on the back of the glass, making sure that

it is attached and intact.

During a cold start up, condensation will sometimes form on the glass. This is a normal condition with all replaces. However, this condensation can allow dust and lint to cling to the glass surface. Initial paint curing of the appliance can leave a slight lm behind the glass, a temporary problem. The glass will need

cleaning about two weeks after installation. Use a mild glass cleaner and a soft cloth; abrasive

cleaners will damage the glass and plated surfaces. Depending on the amount of use, the glass

should require cleaning no more than two or three times a season. Do not clean the glass when it is

hot.

cLeaning the FiRebox:

Remove the logs carefully, as they are very fragile. Gently remove all the embers and rock wool and place on a paper towel. Vacuum the bottom of the rebox thoroughly. Carefully clean any dust off the logs and

remove any lint from the burner and pilot. At this time, inspect the burner pan for cracking or severe warping. If a problem is suspected, contact the dealer. Check the logs for deterioration or large amounts of soot; a small amount on the bottom side of the logs is normal. Replace the logs and embers as in the

seconDary InstallatIon - log set anD ember InstallatIon section. If new/more embers and rock wool are required, contact your nearest ENVIRO dealer.

Maintenance And Service

RepLacing the gLass:

The glass in the replace is a high temperature ceramic. If the glass is damaged in any way, a factory

replacement is required (see parts lIst). Wear gloves when handling damaged glass door assembly to prevent personal injury. When the glass door assembly is being transported, it must be wrapped in

newsprint and tape and/or a strong plastic bag. Do not operate with the glass front removed, cracked

or broken. Removal and replacement of the glass from the door must be done by a licensed or qualied service person. The glass must be purchased from an ENVIRO dealer. No substitute materials

are allowed.

cLeaning the painteD suRFaces:

Painted surfaces should be periodically wiped with a damp cloth when the unit is cool.

buRneR anD bLoweR RemoVaL:

1. Turn the unit off, remove the glass door (see maIntenance anD serVIce - glass Door remoVal) and the log set. Caution: Bleed lines before lighting and light pilot with door open.

2. Remove the burner tray top by removing the two (2) T-20 screws located in the center of the burner tray (see Figure 7). Slide tray to the left and lift out.

3. Remove brick panels (see seconDary InstallatIon - brIck panels InstallatIon).

4. Remove the surround panel by lifting it straight up and then out to free it from the body of the unit.

5. Turn the gas supply off and remove gas connection and disconnect the wiring from the side of the

appliance.

6. Remove the three (3) T-20 screws that hold the air deector in place on the back rewall (see Figure

7) and undo the remaining screws that hold the burner assembly in the appliance. Carefully remove the gas tray assembly from the rebox, ensuring that wires and gas lines are not damaged.

7. Remove the blower and housing from the gas tray assembly by removing the fastening screws located

on the back of the gas tray assembly. Disconnect the wiring from the fan temperature sensor and

remove.

To install; follow steps 1 through 7 in reverse. Perform a gas leak check on all gas line with a soap and

water solution or an approved method and check burner and blower assembly for proper operation.

Gas and electrical tray complete

Burner top

Air deflector

Figure 7: Removing Burner and Gas Tray.

Maintenance And Service

FueL conVeRsion:

TO BE INSTALLED BY A QUALIFIED SERVICE AGENCY ONLY

Please read and understand these instructions before installing.

Warning: This conversion kit shall be installed by a qualied service agency in accordance with the manufacturer’s instructions and all applicable codes and requirements of the authority having jurisdiction. If the information in these instructions is not followed exactly, a re, explosion or production of carbon monoxide may result causing property damage, personal injury or loss of life. The qualied service agency is responsible for the proper installation of this kit. The installation is not proper or complete until the operation of the converted appliance is checked as specied in the manufacturer’s instructions supplied with the kit.

Kit Parts List:

1 - Orice (NG #38 DMS or LP #52 DMS)

1 - Pilot Injector (NG 0.62 mm; LP 0.35 mm)

1 - Installation instruction sheet

1 - Conversion label

Carefully inspect all parts supplied with this conversion kit. If any parts have been damaged or are

missing, contact your dealer, distributor or courier company to have them replaced before starting this installation.

Conversion Kit Installation:

1. Turn control knob on the gas valve to the “OFF” position and shut the gas supply off at the shut-off valve upstream of the unit. CAUTION: The gas supply must be shut off prior to disconnecting the

electrical power and before proceeding with the conversion. Allow the valve and unit to cool down to room temperature.

2. Remove the glass as shown in the maIntenance anD serVIce - openIng the Door.

3. Carefully remove the log set and ember material if they are installed.

4. Remove the burner as shown in the maIntenance anD serVIce - burner remoVal.

5. Convert the burner orice(s):

a) Remove the main burner orice with a ½ inch deep socket. b) Put a bead of pipe-thread sealant or approved Teon tape on the orice

threads before installing into the brass elbow.

c) Install the new orice(s) from the kit into the brass elbow.

6. Convert the pilot injector:

a) Pull the pilot hood straight up to access the pilot injector. b) Using a c) Install the new pilot injector supplied with this conversion kit. Simply screw

the new injector inside the pilot hood using the Allen key,

d) Reinstall the hood by placing the hood on the assembly, line up the key

way, and snap into place.

/32” or 4 mm Allen key, remove the pilot injector.

Figure 8: Removing

valve cap.

Red o-ring

is not visible

Red o-ring

is visible

LPG Configuration

Loosen

Tighten

Maintenance And Service

7. Convert the SIT gas valve:

a) Remove the black protection cap from the HI/LO knob by hand shown in Figure 8.

b) Insert a

hexagonal key-way of the screw (see Figure 9),

rotate it counter-clockwise until it is free and extract it.

c) Check that the screw is clean and if necessary

remove dirt.

d) Flip the screw (refer to Figure 10). e) Using the Allen wrench as shown in Figure 9,

rotate the screw clockwise until a torque of 9 inch

lbs. WARNING! Do not over tighten the screw.

It is recommended that you grip the wrench by

the short side.

f) Verify that if the conversion is from NG to LPG,

the screw must be re-assembled with the red o-

ring visible (refer to Figure 11). If the conversion is from LPG to NG, the red o-ring of the screw

Figure 9: Removing valve

screw.

must be not visible.

g) Re-attach the black protection cap that was

8. Reinstall the burner, brick panels, log set, embers, and glass door. Also refer to seconDary InstallatIon

- InstallIng log set anD embers. When re-installing the burner, ensure that the burner to pilot hood

relationship is similar to what is shown in Figure 12. On some units you will need to pay special attention when installing the burner that the venturi adjustment rod is properly installed into the venturi adjustment piece welded to the burner venturi tube

9. Reconnect the main gas line if it was disconnected and open the shut-off valve at the gas line to the unit.

10. Use a small brush to apply a warm soapy water solution to all gas connections (use a half dish soap and half warm water). If a gas leak is present, bubbling will occur. Gas leaks can be repaired by using an approved pipe thread sealant or approved Teon tape. NEVER USE AN OPEN FLAME WHEN TESTING FOR LEAKS.

11. Reconnect the electrical power to the unit.

/32” or 4 mm Allen wrench into the

removed in step a (Figure 8).

Figure 10: Flip valve

screw.

Figure 11: O-ring on valve screw.

Maintenance And Service

12. Relight the pilot and conrm the ame properly covers both the thermocouple and thermopile (see Figure 4, page 7). Should the pilot require adjustment, turn the adjustment screw (gure 26, page

23) clockwise to decrease or counterclockwise to increase until the correct ame is achieved.

13. Relight the main burner in both the “HI” and “LO” positions to verify proper burner ignition, operation and proper ame appearance. Conrm the inlet and manifold pressures are within the acceptable

ranges as directed in section

been installed at an altitude higher than 2000ft (610m) it is required to de-rate the unit accordingly:

In the USA: The appliance may be installed at higher altitudes. Please refer to your American Gas

Association guidelines which state: the sea level rated input of Gas Designed Appliances installed at elevations above 2000 (610 m) feet is to be reduced 4% for each 1000 feet (305 m) above sea level.

Refer also to local authorities or codes which have jurisdiction in your area regarding the de-rate guidelines.

In Canada: When the appliance is installed at elevations above 4500 feet (1372 m), the certied high

altitude rating shall be reduced at the rate of 4% for each additional 1000 feet (305 m).

14. MAKE SURE that the conversion label is installed on or close to the rating label to signify that the

unit has been converted to a different fuel type.

IntIal IntallatIon - gas lIne connectIon anD testIng. If the EG31 has

Figure 12: Burner to pilot hood relationship.

Initial Installation

41”

39”

37”

35”

33”

31”

29”

27”

25”

23”

21”

2 4 6 8 10 12

M A N T L E H E I G H T

( F R O M U N I T B O T T O M )

M A N T L E D E P T H

Minimum Mantle Clearances

8” MANTLE

QUALIFIED INSTALLERS ONLY

WARNING: Operation of this heater when not connected to a properly installed and maintained

venting system can result in carbon monoxide (CO) poisoning and possible death.

Warning: Failure to position the parts in accordance with this manual, or failure to use only parts

specically approved with this appliance may result in property damage or personal injury.

cLeaRances to combustibLes

Maintain sufcient clearances for operation, service

and maintenance.

• A minimum distance of 9” (229mm mm) is required

from the side of the unit to the sidewalls.

• A 8” (200 mm) wide mantel can be mounted at a minimum height of 38” (965 mm) from the bottom

of unit.

• If installed at oor level there must be a minimum of 16” (406 mm) of non-combustible material in

front of the unit.

• Minimum ceiling clearance is 61.5” (1562mm)

from bottom of unit.

Warning: Clearances must be sufcient to allow

access for operation, maintenance and service.

Stove must sit on a non-combustible surface

minimum FiRepLace size:

NOTE: Space must be provided for gas line on right side of unit for servicing purposes. The EG31 can

Table 3: Minimum dimensions of replace for EG31 to be installed into.

Width Height Depth

Fireplace Dimensions 34” (864 mm) 21” (533 mm) 18” (457 mm)

only be installed into masonary or zero-clearance replaces.

Figure 13: Mantle width and height.

Initial Installation

QUALIFIED INSTALLERS ONLY

DiRect Vent moDeL:

WARNING: This appliance has been designed to draw room air for proper heat circulation from the sides of the unit. Blocking or modifying the louvers in any way can create hazardous

situations.

The vent length for the EG31 must be between 8ft (2.44 m) and 25ft (7.62 m).

This model is vented with TWO (2) 3” aluminum or stainless steel ex vent leading into a co-linear to coaxial vent adaptor and using a Simpson Dura Vent vertical termination cap. The ue collars of this model will t inside of standard 3” vent and may be fastened directly to the vent. The Exhaust vent is in the center of the ue connector. The Air Intake is on the left side of the vent collar plate (this outlet is not in

the center it is off to one side of the vent collar plate.)

Check periodically that the vents are unrestricted. Also ensure that all direct vent pipes have been

properly sealed and installed after routine inspection or cleaning. The air intake and exhaust pipes must be installed in the correct locations on the removable draft hood connector.

DiRect Vent RestRictoR Ring:

DIRECT VENT ONLY: The maximum vertical vent

height for a direct vent installation is 25 feet (7.62 m). Use the vent restrictor ring for installations above 15 feet (4.57 m). See Figure 14 for installation

of restrictor ring.

Vent Restrictor Ring

Figure 14: Direct vent restrictor ring installation.

Venting FiRepLace inseRts:

The ENVIRO EG31 may be installed and vented into any solid fuel replace that has been installed

in accordance with the National, Provincial/State and local building codes and has been constructed of non-combustible materials. Before starting, refer to InItIal InstallatIon - preparIng your eg31 For InstallatIon. Please reference the information in Table 4 and Figures 15, and 16.

An approved chimney liner and rain cap must be used. A throat connector or ashing must be installed to

ensure a tight seal, top performance, safety and efciency. Carefully follow the manufacturer’s instructions that accompany the chimney liner kit. Use double walled aluminum ex vent (3” ex conversion piece and 4”x 6 5/8” cap) from any of the following approved products; Simpson Dura-Vent (Direct Vent GS) or (ICC Excel Direct). If necessary, remove the vent collar plate from the top of the insert and connect it securely

to the liner with sheet metal screws.

Check for any tears in the liner at this point. IMPORTANT: The screws that hold the vent collar plate in its

approved position must be installed.

NOTE: If the EG31 unit is pulled out of its installation, and the vent air intake system is disconnected

for any reason, ensure that the vent-air intake pipes are re-sealed with high-temperature sealant and reconnected with three (3) sheet metal screws evenly spaced.

Initial Installation

QUALIFIED INSTALLERS ONLY

Table 4: Vent termination clearances

Minimum Clearance* Description

3 ft (0.9 m)

24 in (0.6 m)

5 ft (1.5 m)

6 ft (1.83 m) Clearance to mechanical air supply inlet.

3ft (0.9m) Clearance to each side of center line extended above meter/regulator assembly.

6 ft (1.83 m) Radial clearance around service regulator vent outlet.

12 in (30 cm) Clearance above grade, verandah, porch, deck, or balcony.

3 ft (0.9 m)

9 in (0.23 m) Exception for inputs up to and including 50,000 Btu/h (15kW)

12 in (0.3 m)

Clearance above the highest point where it passes through a roof surface, refer to Figure 15.

Clearance above a roof ridge, any other portion of a building, or any other obstruc-

tion within a horizontal distance of 10 feet (3 m), refer to Figure 15.

Clearance for a vent or chimney above either the highest connected appliance

drafthood outlet, or ue collar.

Clearance to a building opening or combustion air inlet of another appliance, ex-

cept with the approval of the authority having jurisdiction for the following reduced clearances.

Exception for inputs exceeding 50,000 Btu/h (15kW) but not exceeding 100,000 Btu/h (30kW)

*Clearances are in accordance with local installation codes and the requiremenets of the gas supplier

3ft (0.9m)

Minimum

2ft (0.6m)

Minimum

Within

10ft (3m)

Figure 15: Roof Clearances.

Roof ridge or

any other portion

of a building

Initial Installation

QUALIFIED INSTALLERS ONLY

Install sealed throat connector or flashing to prevent leakage of room air up through chimney.

DV Only: Before installing vent liners, mark each liner on both ends to designate which is the intake and the exhaust.

Measure the height of the chimney before hand and purchase the appropriate kit. Never attempt to over-stretch a flexible liner to accommodate the height of the chimney.

Any flue damper must b or blocked permanently in the open position.

The chimney must be clean, in good working order and constructed of non-combustible materials.

Make sure that all chimney cleanouts are tightly fitting and will not permit air to leak into the

DV Shown BV Shown

chimney

Figure 16: Installation of EG31 DV and BV.

e removed

automatic FLue gas spiLL switch:

NOTE: This heater must be properly connected to a venting system. This heater is equipped with a vent safety shutoff system designed to protect against improper venting of combustion products. This safety

switch is located on the rear of the appliance close to the draft hood relief opening. If the switch trips more than once, the venting should be inspected by a qualied service technician for possible blockage

or severe down draft conditions. BV Only: The draft hood must be in the same pressure zone as the air inlet. To inspect draft from

the front of the unit, locate the ¼” tube between the louvers (see Figure 17) and check for a draft

using smoke. A vacuum or suction into the tube will indicate proper drafting.

This model can be vented with 4” aluminum or stainless steel ex vent and/or certied Type B Gas Vent. The ue collar of the appliance will t inside of a standard 4” vent and may be fastened directly

to the vent, check periodically that the vent is unrestricted and an adequate draft is present when the unit is in operation.

Check draft with a match or smoke in a ¼" (6 mm) tube located here.

Figure 17: Draft Check.

Initial Installation

QUALIFIED INSTALLERS ONLY

DiRect Vent VeRticaL Vent teRmination:

instaLLation instRuctions:

1. Plan your installation and clearances to combustibles. The EG31 may be installed and vented into

any solid fuel replace that has been installed in accordance with the National, Provincial/State and

local building codes and has been constructed of non-combustible materials. Also refer to the InItIal InstallatIon - preparIng your eg31 For InstallatIon and clearances to combustIbles sections. Refer

to Figure 13 throughout installation.

2. Stretch the Ø3” (76mm) ex vent liners to the length needed to ensure they can be easily connected

to the vent terminals.

3. Install the ex pipe assembly up through the chimney, ensure that the pipe slides through far enough

to connect onto the vent cap.

4. Most vent caps can be installed onto chimneys with ue openings up to 16” (406mm) x 16” (406mm) and the actual ashing is 18”x18” (refer to Figure 18). If the chimney is smaller the cap should be

trimmed down and folded over.

5. Apply a bead of stove cement sealant to the top section of the Ø3” (76mm) exhaust vent collar plate. Slide the Ø3” (76mm) ex vent over the ue collar and secure with three (3) sheet metal screws

evenly spaced.

Note: If replace opening is lower than 21.75” (552 mm), remove the vent collar plate from the top

of the insert (see InItIal InstallatIon - preparIng your eg31 For InstallatIon) and connect it securely

to the liner as stated in Step 4. Check for tears in the liner at this point.

6. Place a bead of high temperature silicone on the intake collar of the replace, slide the Ø3” (76mm) ex intake liner over the collar, secure the ex liner with three (3) sheet metal screws evenly spaced.

7. At the top of the chimney, apply a bead of stove cement sealant to the Ø3” (76mm) pipe of the exhaust vent terminal (refer to Figure 18). Slide the ex liner onto the vent terminal and secure with

three (3) sheet metal screws evenly spaced.

8. Place a bead of high temperature silicone on the intake collar of the vent terminal (refer to Figure 18). Slide the Ø3” (76mm) ex intake liner over the collar, secure the ex liner with three (3) sheet metal

screws evenly spaced.

9. Make a tight connection between the gas replace insert ue collar and the replace chimney at the top of the chimney. Secure the

Trim flashing

as required.

vent terminal to the chimney using adequate sealant, and according to local building codes.

APPROVED TERMINATIONS:

-Simpson Dura-Vent

46DVA-VCH cap with 46DVA-GK termination adapter or 46DVA-CL33 termination kit

18"

(457mm)

18"

(457mm)

ICC

TM-4SVT cap with TM-CTA termination adapter

Figure 18: Generic Vent Cap Dimensions.

Initial Installation

QUALIFIED INSTALLERS ONLY

b Vent moDeL:

WARNING: This appliance has been designed to operate by drawing combustion air and dilution air from the

room. It is also designed to draw room air for proper heat circulation from the sides of the unit. Blocking or

modifying the louvers in any way can create hazardous situations, either through poor venting or by overheating.

It is important that this unit has sufcient air circulation for proper venting and combustion. Provisions must

be made for the supply of adequate combustion and ventilation air. These openings must not be blocked. The

appliance must not be connected to a chimney ue servicing a separate solid fuel burning appliance.

conVeRting a DiRect Vent FiRepLace to a b-VenteD FiRepLace:

Parts required for conversion

1 - 300°F (149°C) manual reset spill switch and wires 1 - Drafthood (4’’ chimney connection)

2 - Air channels

1 - Drafthood diverter

1. Remove the chimney connector, fresh air cover

plates and draft hood cover plate.

2. Install the 300°F (149°C) spill switch in the location provided.

300°F (140°F)

Spill Switch

3. Install the two fresh air channels in the correct locations.

4. Install a new 4’’ chimney liner into the existing and

attach with three (3) sheet metal screws evenly

Drafthood

iverter

Figure 19: Converting To A BV Fireplace.

Chimney Connector

Air Channels (x2)

spaced to new 4’’ chimney connector.

5. Test re the appliance and ensure proper operation. A venturi adjustment could be required to achieve an efcient ame. Improper operation or adjustment could result in Carbon Monoxide production causing

personal injury or property damage.

conVeRting a b-Vent FiRepLace to a DiRect VenteD FiRepLace:

Parts required for conversion

1 - Drafthood (2 - 3’’ dual pipe chimney connector), 2 - Air channel cover plates, 1 - Drafthood cover plate.

1. Remove the chimney connector, 300° spill switch, two (2) B-vent air channels and B-vent draft diverter plate.

2. Install the two (2) air channel cover plates in the locations provided.

3. Install the draft hood cover plate in the location provided.

4. Install two (2) 3’’ chimney liners in the existing

chimney, securing the 3’’ liners with three (3) sheet metal screws evenly spaced to the new chimney connector.

5. Test re the appliance and ensure proper operation.

A venturi adjustment could be required to achieve

an efcient ame. Improper operation or adjustment could result in Carbon Monoxide production causing

personal or property damage.

Drafthood

Cover Plate

Figure 20: Converting To A DV Fireplace.

Chimney

Connector

Air Channel

Cover Plate (x2)

Initial Installation

Electrical

Wire Tie

QUALIFIED INSTALLERS ONLY

pRepaRing YouR eg31 FoR instaLLation:

1. Remove the appliance and surround panels from the packaging; check to make sure there is no

damage. Carefully check the glass door. Do not use the unit if it is damaged. In the event damage is

found, please report it to both the courier and your dealer as soon as possible.

2. Carefully clean the replace and ue before installing the stove. Failure to do so may result in fumes

or dirt being blown into the room and may cause a re leading to death or serious injury.

3. Remove the glass door; see maIntenance anD serVIce - glass Door remoVal.

4. Remove log and ember set and all wrapping material from inside the stove. Remove wrapping material

from log and embers and check for any damage. If damage is observed, do not use unit and contact

your local dealer.

5. Remove the vent collar plate from the top of the stove by unscrewing the T-20 Torx screw located on the center top of the stove. Slide collar plate backwards. Properly secure the vent collar plate to the exible vent pipe liner(s) previously installed in the chimney. Be careful not to over-stretch the liner(s).

6. Install the leveling legs. Thread the two (2) 5” (13 cm) bolts and locknut up into the captive nuts at

each end of the leveling leg bracket (refer to Figure 21).

7. Place the unit part way into the replace. Connect the replace insert’s exible gas line to the household gas supply, using locally approved methods. Place the electric cable so it can be connected to the

power supply.

8. As you push the unit into its nal position in the replace, reinstall the vent collar plate to the stove by

sliding it along the draft hood and secure with the screw. Adjust the leveling legs to ensure the unit is level.

9. Connect the wires from the unit to the ON/OFF/THERMOSTAT switch mounted on the surround panel

(see gure 22)

Leveling

legs bracket

Figure 21: Installation of Leveling Legs.

Figure 22: Wire ties holding

wires against the panel

Initial Installation

QUALIFIED INSTALLERS ONLY

zeRo cLeaRance (zc) FiRepLace instaLLation:

The metal oor of the ZC solid fuel rebox can be removed to allow the installation of the insert. THE CLEARANCE TO COMBUSTIBLE MATERIAL UNDER THE INSERT IS 4” (102 mm). YOU MUST USE THE LEVELING LEGS TO RAISE THE INSERT A MINIMUM OF 4” (102 mm) IF THE UNIT IS TO BE INSTALLED ON COMBUSTIBLE MATERIAL. IF THE ZERO CLEARANCE FIREPLACE IS INSTALLED DIRECTLY ONTO A CONCRETE FLOOR THE MINIMUM CLEARANCE IS NOT APPLICABLE. The optional Base Shelf and Riser are recommended to ll the space under the unit once raised. The sidewalls and top structure of the solid fuel rebox cannot be altered with the exception of: removal of dampers, removal of smoke shelf or bafe, removal of ember catches, removal of log grate, removal of viewing screen/curtain, and removal of doors. THE ORIGINAL FIREPLACE MAY NEVER BE RETURNED TO SOLID FUEL USE IN THIS CONDITION.

IMPORTANT: If the factory-built replace has no gas access hole(s) provided, an access hole of 1.5 inch (37.5 mm) or less may be drilled through the lower sides or bottom of the rebox in a proper workmanship

like manner. This access hole must be plugged with non-combustible insulation after the gas supply line

has been installed. Cutting any sheet-metal parts of the replace, in which the gas replace insert is to be installed, except as tested for the oor is prohibited.

The included label plate shown below must be permanently attached inside the cavity of the replace

in a visible location.

WARNING: This fireplace has been converted

for the use with a gas fireplace insert only and

cannot be used for burning wood or solid

fuels unless all original parts have been

replaced, and the fireplace re-approved by the

authority having jurisdiction.

Figure 23: Fireplace Altered Plate.

C-11168

COOL / HEAT PROGRAM

DOWN

70 ° F

N O

Optional Remote Control

Purple

Grey

Optional

Wall Switch

Optional

Thermostat

Pilot

Adjustment

Screw

ON/OFF/REMOTE Thermostat Switch

Blue

Thermopile

Thermocouple

Manifold Pressure

Tap

Inlet

Pressure

Tap

Gas

Control

Valve

BV Only

300

F (149oC)

Temperature

Sensor

(DV has only

connectors)

Blue

Initial Installation

eLectRicaL RequiRements:

300

F (149oC) Manual

Reset Spill Switch

For DV Only

Blue Grey Orange

Black White Green/Yellow

FAN

120

F (49oC)

Temperature Sensor

Orange Blue

Grey

Black

TP TP/THTH

QUALIFIED INSTALLERS ONLY

The EG31 will operate without electrical power. This model has a Millivolt gas control which uses

the pilot ame to generate enough

Blue

White

White Green

Place Thermostat

Wires Here.

Blue Grey

Purple

On/Off/Thermostat

Switch

Power Cord

120V AC

Fan

Control

electricity to operate the main burners. This appliance when equipped with a blower, must be electrically connected and grounded in accordance with local codes or in the absence of local

codes, with the current CSA C22.1 CANADIAN ELECTRICAL CODE Part 1, SAFETY STANDARDS FOR ELECTRICAL INSTALLATIONS, OR THE NATIONAL ELECTRICAL CODE ANSI / NFPA 70 in the U.S.

WARNING: Electrical grounding

instructions. This appliance is equipped with a three-prong (grounding) plug for your protection against shock hazard, and should be plugged directly into a properly grounded three-prong outlet.

DO NOT cut or remove the grounding

prong from this plug.

Figure 24: EG31 Wiring Diagram.

Figure 25: Wiring of a Thermostat.

CAUTION: Label all wires prior to disconnection when servicing controls. Wiring errors can cause improper and dangerous operation.

Verify proper operation after

servicing.

Table 5. Recommended Thermostat

Wire Size.

Wire Size Max. Length

14 gauge 100 ft (30.48 m)

16 gauge 60 ft (18.29 m)

18 gauge 40 ft (12.00 m)

20 gauge 25 ft (7.62 m)

22 gauge 18 ft (5.49 m)

Initial Installation

QUALIFIED INSTALLERS ONLY

gas Line connection & testing:

Warning: Only persons licensed to work with gas piping may make the necessary gas connections to

this appliance. Gas Line Connection:

•This replace is equipped with a certied exible pipe located on the right side of the unit, terminating

in a ⅜” male NPT tting. Consult the local authorities for local codes or use the CAN/CGA B149 (1 or 2) installation code in Canada. In the US, gas installations follow either local codes or the current edition of the National Fuel Gas Code ANSI Z223.1.

•The efciency of this unit is a product thermal efciency rating determined under continuous operating

conditions and was determined independently of any installed system.

TP TH TP TH

Pilot Adjustment

Screw

Figure 26: Fully Labeled Gas Valve.

Manifold

Pressure Tap

Hi/Low

Knob

Pressure Tap

IN OUT

Gas Control

Knob

TO TEST VALVE PRESSURES:

The pressure taps are located on the top right of the valve.

• Turn set screw 1 turn counterclockwise to

loosen.

• Place 5/16 in (8 mm) I.D. hose over the

pressure taps.

• Check pressures using a manometer.

• When nished, release pressure, remove hose

and tighten set screw.

Inlet

The appliance and its’ shut-off valves must be disconnected from the gas supply piping system during any pressure testing where the pressure exceeds ½ psig (3.45 KPa) or the valve will be damaged.

The unit must be isolated from the gas supply piping system by closing its’ individual manual shut off valve during any pressure testing of the gas supply piping system at pressures equal to or less than

½ psig (3.45 KPa).

Always check for gas leaks with a soap and water solution after completing the required pressure test.

Table 6: Pressure and BTU Information.

Main Burner Natural Gas

(in W.C./KPa)

Orice: #38 DMS #52 DMS

Manifold Press: 3.8 / 0.95 11.0 / 2.74

Min. Manifold Press: 1.1 / 0.27 2.7 / 0.67

Max. Supply Press: 7.0 / 1.74 13.0 / 3.28

Min. Supply Press: 5.0 / 1.24 12.0 / 2.98

Max. BTU Input: 30,000/ 8.8 KW∙h 28,500/ 8.2 KW∙h

Min. BTU Input: 15,000/ 4.4 KW∙h 14,000/ 4.1 KW∙h

Propane Gas (in W.C./KPa)

NEVER USE AN OPEN FLAME FOR LEAK TESTING.

/8”-1/2”

(10-13mm)

Thermocouple

Proper Flame

Adjustment

Initial Installation

QUALIFIED INSTALLERS ONLY

aDjusting the piLot FLame:

The pilot ow adjustment is set to maximum at the factory and should not need to be adjusted. The pilot ame should envelope ⅜” to ½” (10 to 13mm) of the thermocouple (see Figure 27). However, should the need arise, follow Steps 1- 2 below.

1. The adjustment screw can be reached through the front of the unit using a 10 inch at head screw driver (see Figure 27 for

location on valve).

2. Turn the adjustment screw clockwise to decrease or

counterclockwise to increase pilot ame.

Figure 27: Proper Pilot Flame.

Secondary Installation

extension bRackets RemoVaL:

The extension brackets installed on the outside of the stove are used to make the front of the surround panel

ush with the safety screen. If the reduced install depth is required, the top and side extension brackets will need to be removed as outlined in steps 1-3 below:

REMOVAL:

1. Using a T20 screwdriver, remove the four (4) screws that secure the Top Extension to the Cabinet (see Figure 29).

2. Remove the ve (5) screws on

each Side Extension (see Figure

29).

3. Remove extension parts from the stove.

Figure 29w: Removing Extension Screws

Figure 28: Stove as Shipped

Secondary Installation

DETAIL A

SCALE 3 : 1

saFetY scReen instaLLation:

Safety Screen Frame

Right Bracket

Top/Bottom

Bracket

The safety screen supplied with the unit must be

assembled rst before it can be installed. When

installed, the screen should not extrude out any farther than the surround panel if the cabinet extensions are still installed.

Safety Screen Assembly

1. Attach the left, right, top/bottom brackets onto

the safety screen using a T20 screwdriver and the supplied sixteen (16) #8 T20 screws (see Figure

30). Do not over-tighten the screws, doing so

could cause them to strip out of the screen frame.

2. Lift the face upright in front of the replace with

the four (4) hooks pointing towards the replace. Slide the hooks into the corresponding slots on each side of the cabinet (see Figure 31). Ensure

the hooks are secure before releasing the safety screen.

Top/Bottom

Bracket

Figure 30: Installing Safety Screen Mounts.

Left Bracket

Figure 31: Installing Safety Screen onto

Brackets

Figure 32: Installing Safety Screen onto

Cabinet Bracket (Parts removed for clarity)

NOTE: The safety screen MUST be

installed before the surround panel.

Secondary Installation

suRRounD paneL instaLLation:

Warning: The surround becomes hot when the unit is operating; ensure that the unit is turned off, and that it has cooled to room temperature before begining this installation. The safety screen must be installed before the surround panel.

Please check components supplied with this kit. If components are missing or have been damaged,

contact your dealer, distributor or courier company before starting this installation.

IMPORTANT: The panel must not seal ventilation openings in the replace.

1. Place the assembled surround panel around the stove, align the slots. Push back then down to engage the surround panel hooks with the slots in the replace. Install the decorative fascia or bay window options to

the appliance by aligning the hooks and the slots in the replace as seen in the surround panel installation.

Figure 33: Surround Panel Install

(parts removed for clarity)

Secondary Installation

Back Placement/Support Pins

Log set anD embeR instaLLation:

The placement of the logs is not arbitrary. If they are positioned incorrectly, the ames can be “pinched”

and will not burn correctly. The burner comes with placement pins and rest areas, which make alignment

easier. Using Figures 34 to 39, carefully set the logs in place.

NOTE: The logs are fragile and should

be handled with care.

Place the rear log on the two back placement

pins.

Install the left front log on the left placement

pin with the narrow end of the log resting on the rectangular rest area.

Figure 34: EG31 burner.

Install the right front log on the right

placement pin with the narrow end of the log resting on the rectangular rest area. The last two logs should meet tip to tip on the rest area.

One end of the big log twig will rest

on the pin on the right log and the other will lay within the left rest area.

The small log twig should be placed so it sit completely within the right rest area.

Once the logs are in place the embers

can be placed lightly between the

logs. Bags of ceramic ber embers

and rock wool are provided. The

ceramic ber comes in chunks that are about 2”-4” (5-10cm) long. Break these roughly in half and

place them irregularly around the burner. When there is a sparse but even layer of embers, spread the

rock wool in the same manner. DO NOT pack this ember material as this

could create an unsafe condition. The pieces should be lightly place so they don’t completely block any of

the tiny ports. DO NOT allow any of

the embers to rest against the pilot assembly.

Figure 35: EG31 Log Placement 1.

Figure 36: EG31 Log Placement 2.

Figure 37: EG31 Log Placement 3.

Secondary Installation

Caution: Use only the type of ember material supplied with this replace. Due to the irregular size of the ember material, there may be more than required. Use of other foreign materials on the burners may create dangerous conditions.

If over time, through cleaning and servicing, these embers require replacement , contact your nearest Enviro dealer.

IMPORTANT: Upon the rst light

up after installing logs and embers, watch for ignition to ALL burner

ports. If a long delay is noted wait

for the appliance to cool down:

• Open the front door of the

appliance

• Carefully reposition the embers,

making sure that the burner ports are not plugged or blocked.

Figure 38: EG31 Log Placement Complete.

Figure 39: EG31 Log Set Burning.

bRick paneL instaLLation:

Remove the glass door and the log set. Remove the burner tray by undoing the hold-down screws located in the center of the pan burner and sliding the assembly to the left, then up.

Gently pull right brick side panel inward from the bottom back. Pull towards the back then out,

freeing it from the front retainer. Caution: The pilot may damage panel. Remove

left side panel in the same fashion. To install, insert front edge of brick panel into the

retainer and very gently move panel forward and

out until ush against rebox side.

Figure 40: Brick Panel Installation.

Trouble Shooting

Problem Possible Cause Solution

The main burner does not ignite when called for.

Spark will not

light the pilot after repeatedly pressing the spark ignitor.

Pilot will not

remain lit.

The gas valve may not be on. • Check that the gas control knob is in the “ON” position. Thermostat is not calling for

heat.

Problem with gas valve. • Use a DC voltmeter to measure the voltage across the TPTH and

Defective piezo ignitor. • Check connections to ignitor.

Broken spark electrode. • Check for broken ceramic insulation, replace electrode if broken.

Misaligned spark electrode. • If spark is not arcing from electrode to pilot, loosen the screws on the

Problem with thermocouple

circuit.

• Adjust the thermostat several degrees above ambient temperature.

TP terminals. Main operator voltage: Open circuit ≥ 325mV Closed circuit ≥ 100mV

• If voltage is not present, check the control circuit for proper

operation.

• If proper control system voltage is present, replace the gas control.

• If ignitor connections are good but no spark, replace ignitor.

pilot base adjust and tighten.

• Check for proper connection of the thermocouple to the rear of the valve. If loose, fully tighten.

• Check pilot for full ame impingement around thermocouple. If ame

is too small, check gas pressure, adjust pilot rate screw, check pilot head for damage.

• Check thermocouple voltage at valve. It must be greater than 5 mV. If low, replace thermocouple.

Air in gas line (pilot dies while knob is depressed).

Burners will not

remain lit.

Flame lifting Leak in vent pipe • Check for leaks in vent connections.

Glass fogs up Normal Condition: after the appliance warms up the glass will clear.

Blue Flames Normal during start up: ames will yellow as the replace heats up.

Flames are

burning “dirty” or

sooting

Remote control doesn’t work

BV ONLY:

Insufcient air

for combustion

Problem with thermopile

circuit.

Improper vent conguration • Check vent conguration with manual.

Terminal may be recirculating

ue gases

**Due to additives in gas, glass may get hazy during operation** Clean as needed.

Flame impingement • Check log positioning.

Problem with the remote • One or more of the batteries are dead. See remote control

Problem with replace • The on/off switch is turned to OFF.

• Air tight house.

• A vacuum in room due to

other air-moving device.

• Bleed line.

• Check gas line pressure.

• Contact dealer.

• Check gas line pressure .

• Check for ame impingement on thermopile. If low, see “Pilot will not

remain lit”.

• Check thermopile for minimum of 300 mV when burner is switched

on.

• Check wiring to thermostat for breaks.

BV ONLY: Check for spillage at draft hood that may trip spill switch

• Check to see if terminal is on correctly.

• May need to install high wind termination cap.

• Contact dealer.

• Increase primary air by opening the venturi shutter and/or by

opening the vent restrictor.

See also “Burners will not remain lit.”

instructions.

• The gas control valve is turned to PILOT or OFF.

• The pilot has gone out.

• Supply make up air to the unit.

Parts List - Components

Reference Number Part Description Part Number

1 120°F (49°C) Ceramic Fan Temperature Sensor EC-001

2 300°F (149°C) Spill Switch EC-003 3 Thermocouple EC-009 3 Spark Electrode with Ignitor Cable EC-011 3 Thermopile EC-012 3 Fully Assembled Pilot NG EC-015 3 Fully Assembled Pilot LP EC-016 3 Pilot Orice NG Threaded EC-019 3 Pilot Orice LP Threaded EC-020 3 Pilot Gasket EC-021

4 S.I.T. Piezo Ignitor EC-023

Stainless Steel Flex Connector with ⅜” Elbow 18” Long EC-024

5 FPI Burner Switch EC-026

6 FPI Fan Controller - 115 V EC-039 6 FPI Fan Controller Knob EC-041

Domestic Power Cord - 115 V EC-042

Heyco Strain Relief EC-044

Embers (Coal & Wool) EC-046

7 Convection Blower - 115 V EC-069

8 Burner Control Assembly NG EG31-052

8 Burner Control Assembly LP EG31-053

Burner Switch Bracket EG31-075

Relief Door Gasket EG31-087

Window Channel Tape (6 feet) EG31-089

9 Glass With Tape (6 feet) EG31-090

Parts List - Components

Reference Number Part Description Part Number

10 Door Only - Painted EG31-092

11 Venturi EG31-099

Owner’s Manual EG31-118

⅜” NTP Male ⅜ Comp. 90° Elbow EG31-124

¼” NTP Female ⅜ Comp. 90° Elbow EG31-125

LP to NG Conversion Kit EG31-200

NG to LP Conversion Kit EG31-202

12 Conversion Kit BV to DV EG31-205

13 Conversion Kit DV to BV EG31-206

Extension Knob (Pilot) 30-030

Extension Knob (HI-LO) 30-031

Relief Door & Gasket 30-034

14 Blank Orice #73 50-343

BV Flue Collar Gasket 50-528

DV Flue Collar Gasket 50-529

Log Set & Embers 50-588

15 Ceramic Brick Liner 50-610

Dual Bulb Door Gasket (10 feet) 50-634

16 Pan Burner Only 50-897

17 S.I.T. Nova Valve Convertible 50-1421

EG31 Conversion Kit LP to NG Convertible 50-1434

EG31 Conversion Kit NG to LP Convertible 50-1435

S.I.T. Valve Conversion Screw With O-Ring 50-1450

S.I.T. Valve Conversion Screw Cap 50-1451

Control Panel Decal 50-1539

18 Door with Glass & Gasket 50-1822

- Replacement EG31 Safty Screen 50-xxxx

Parts Diagram - Body

EG31 - Components

Focus - Components

March 2008

Notes

Dec 2014

Sher wood Industries Ltd. (“Sherwood”) hereby warrants, subject to the terms and conditions herein set forth, this product against defects in material and workmanship during the specified warranty period starting from the date of original purchase at retail. In the event of a defect of material or workmanship during the specified warranty period, Sherwood reserves the right to make repairs or to assess the replacement of a defective product at Sher wood’s factory. The shipping costs are to be paid by the consumer. All warranties by Sherwood are set forth herein and no claim shall be made against Sherwood on any oral warranty or representation.

Conditions

 A completed warranty registration must be submitted to Sherwood within 90 days

of original purchase via the online warranty registration page or via the mail-in warranty registration card provided. Have the installer fill in the installation data sheet in the back of the manual for warranty and future reference.

 This warranty applies only to the original owner in the original location from date of

install.

 The unit must have been properly installed by a qualified technician or installer, and

must meet all local and national building code requirements.

 The warranty does not cover removal and re-installation costs.

 Sherwood Industries Ltd. reserves the right to make changes without notice.

 Sherwood Industries Ltd. and its employees or representatives will not assume

any damages, either directly or indirectly caused by improper usage, operation, installation, servicing or maintenance of this appliance.

 A proof of original purchase must be provided by you or the dealer including serial

number.

 This warranty does not cover any discoloration of the safety screen mesh.

Exclusions

An expanded list of exclusions is available at www.enviro.com/help/warranty.html

This warranty does not cover:

 Damage as a result of improper usage or abuse.

 Damage caused from over-firing due to incorrect setup or tampering.

 Damage caused by incorrect installation.

To the Dealer

 Provide name, address and telephone number of purchaser and date of purchase.

 Provide date of purchase. Name of installer and dealer. Serial number of the

appliance. Nature of complaint, defects or malfunction, description and part # of any parts replaced.

 Pictures or return of damaged or defective product may be required.

To the Distributor

 Sign and verify that work and information are correct.

Sherwood Industries Ltd.

6782 Oldfield Road, Victoria, BC . Canada V8M 2A3

Online warranty registration: www.enviro.com/warranty/

Warranty for Enviro Gas Products

Category One Year Two Year Limited Lifetime (7yr)

Parts

(unit serial number required)



Firebox Liner Panels

(excluding porcelain)

Ceramic Steel

Firebox



Heat Exchanger



Burner



Ceramic Logs



Ceramic Glass



Pedestal / Legs

(excluding finish)



Door Assembly



Surround Panels

(excluding finish)



Exterior Panels

(excluding finish)

Up to 5 years

Electrical Components



Exterior Surface Finishing



Labour



Whereas warranty has expired, replacement parts will be warrantied for 90 days from part purchase date. Labour not included.

Unit serial number required.

Log set and panels excludes wear and tear or breakage caused by cleaning or service.

Glass is covered for thermal breakage. Photos of box, inside of door, and unit serial # must be supplied for breakage due to shipping.

Exterior Surface finishing covers plating, enamel or paint and excludes colour changes, chipping, and fingerprints.

Travel costs not included.

Installation Data Sheet

The following information must be recorded by the installer for warranty purposes and future reference.

NAME OF OWNER:

_________________________________________

ADDRESS:

_________________________________________ _________________________________________ _________________________________________

PHONE:___________________________________

MODEL:___________________________________

SERIAL NUMBER:___________________________

DATE OF PURCHASE: _____________ (dd/mm/yyyy)

NAME OF DEALER:

_________________________________________

ADDRESS:

_________________________________________ _________________________________________ _________________________________________

PHONE:___________________________________

NAME OF INSTALLER:

_________________________________________

DATE OF INSTALLATION:___________(dd/mm/yyyy)

� NATURAL GAS (NAT) � PROPANE(LPG)

INLET GAS PRESSURE:_________in wc

MAIN BURNER ORIFICE:__________# DMS

PILOT ORIFICE #_________OR________in diam.

INSTALLER’S SIGNATURE:

_________________________________________

MANUFACTURED BY:

SHERWOOD INDUSTRIES LTD.

6782 OLDFIELD RD. SAANICHTON, BC, CANADA V8M 2A3

www.enviro.com

December 10, 2014

ADDRESS:

_________________________________________ _________________________________________ _________________________________________

PHONE:___________________________________

C-14475

Enviro EG31 Nova Owner's Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
